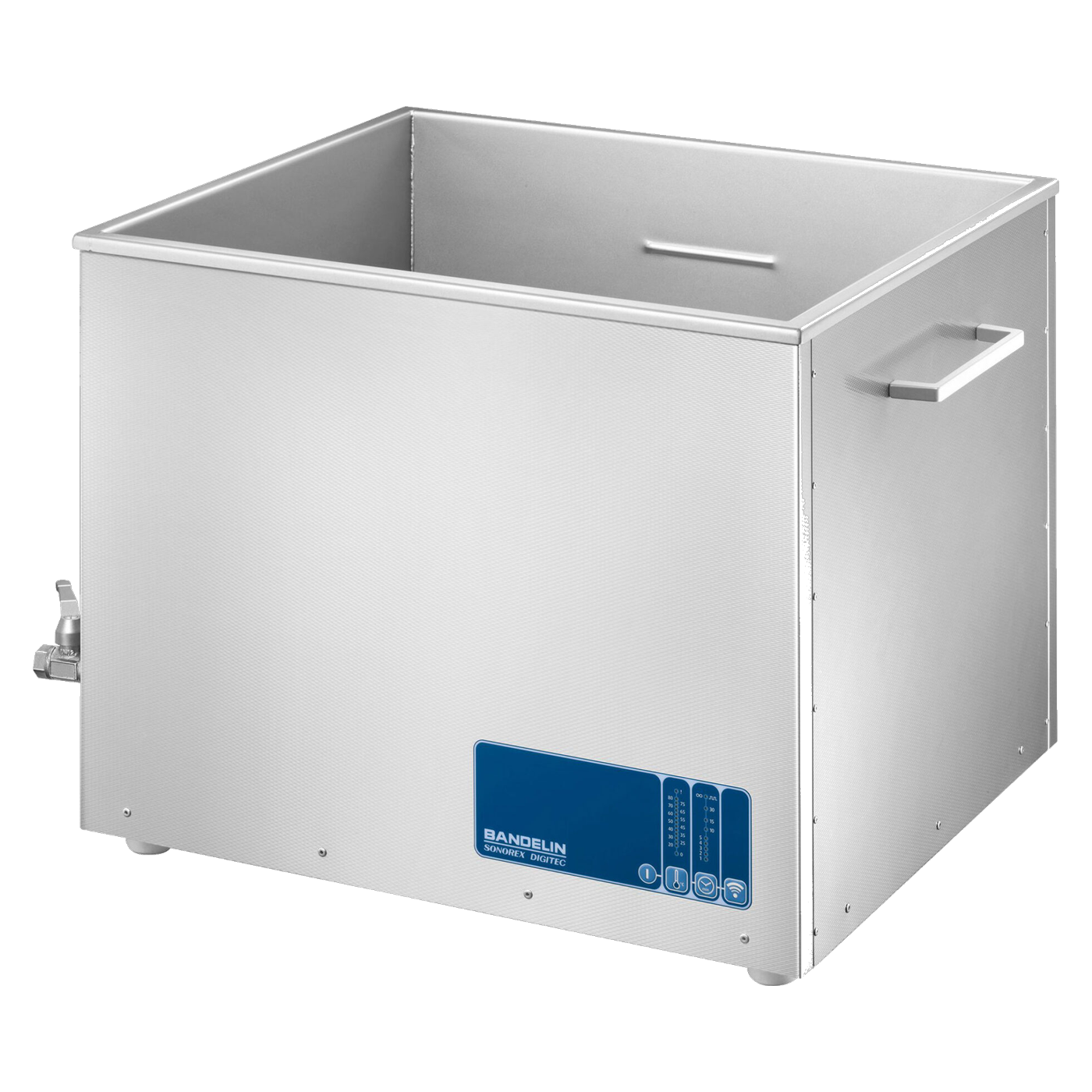

Bandelin SONOREX DIGITEC DT 1050 CH Ultrasonic Bath with Heating, 90 L, 3271

The Bandelin SONOREX DIGITEC DT 1050 CH is a heated ultrasonic bath with a capacity of 90.0 l, a tank measuring 600 x 500 x 300 mm, 16 vibration systems and a peak power output of 2,400 W. The unit weighs 35.9 kg and is supplied in a carton on a Euro pallet.

Tank and construction

The tank is welded from 1.4404 stainless steel and is 2.0 mm thick. The working capacity is 60.0 l, and a level mark indicates the fill level. The unit’s external dimensions are 640 x 540 x 530 mm. The drain consists of a G ½ ball valve with a 50 cm hose on the left-hand side; the handles are located on the sides. The mains cable is 2 m long and permanently attached to the unit.

Performance and heating

16 vibration systems achieve a peak power of 2,400 W at 35 kHz, with a nominal power of 600 W. The heater has a power rating of 1,950 W at 230 V and 1,050 W at 115 V; the bath temperature can be set between 20 and 80 °C. Boiling delay protection and dry-run protection of the heating are built in. The current consumption is 11.1 A at 230 V and 14.4 A at 115 V. The designated circuit must be capable of handling this load.

Functions and timer

SweepTec ensures the sound field remains free of standing waves. At the start of a run, the liquid can be degassed using DEGAS; a pulse function is also included. The display shows the remaining time and temperature. The duration can be set in increments of one minute up to 5 minutes, and thereafter in increments of 10, 15 or 30 minutes (± 5 %), or the bath can run continuously. It switches off automatically after 12 hours unless a button is pressed.

Accessories for large batches

Accessories include the K 50 C insert basket (545 x 450 x 50 mm, mesh size 5 x 5 mm, up to 10 kg) with the D 1050 C lid, as well as the K 50 CS basket (530 x 445 x 50 mm, mesh size 12.5 x 12.5 mm, up to 40 kg) with the D 1050 CS lid. The K 50 CA and K 50 CV baskets hold nine full-face masks and six full-view masks respectively. Also available are the KW 50 B-0 hanging tray (520 x 445 x 284 mm), the UG 75 stainless steel base frame on four height-adjustable feet, the TW 75 transport trolley and the FT 45 film test frame (550 x 585 mm) for testing the bath.

Size comparison

The SONOREX DIGITEC DT 1028 CH has a capacity of 45 l, eight vibration systems and a peak power of 1,200 W in a tank measuring 500 x 300 x 300 mm. The DT 1058 M has a capacity of 46 l, also 16 vibration systems and 2,400 W, but no heating. The DT 1050 CH is suitable for users who require both a large volume and a heated liquid.

Typical applications

• Sonication of large batches in the 90-litre tank (working capacity 60 l)
• Cleaning of masks in the K 50 CA and K 50 CV baskets
• Homogenisation, emulsification and rapid degassing of liquids
• Sonochemical applications, sample preparation for analysis
• Instrument cleaning (Class I medical device in accordance with Regulation (EU) 2017/745; suitability as specified by the instrument manufacturer)

Frequently asked questions

How is the unit delivered?
In a carton on a Euro pallet (1,200 x 800 x 740 mm); the shipping weight, including the pallet, is 61.0 kg.

What is the heating power?
1,950 W at 230 V and 1,050 W at 115 V.

Where is the drain located?
On the left, as a G ½ ball valve with a 50 cm hose.

Are there other plug types available?
Yes, there are separate order numbers for the UK, Switzerland and the US mains supply (115 V). The 230 V version is supplied with a CEE 7/7 plug.

Technical details

Scope of delivery

• 1x Bandelin SONOREX DIGITEC DT 1050 CH ultrasonic bath with heating
• Permanently attached mains cable (2 m)
• Ball valve, hose connector and hose for fitting to the drain

Insert baskets, lid, base frame, trolley and concentrates are not included in the scope of delivery.

Individual requirements and procurement service

Our procurement service can assist with baskets, lids, frames or trolleys for the DT 1050 CH, as well as advising on the appropriate tank size.
