Laboratory furnaces

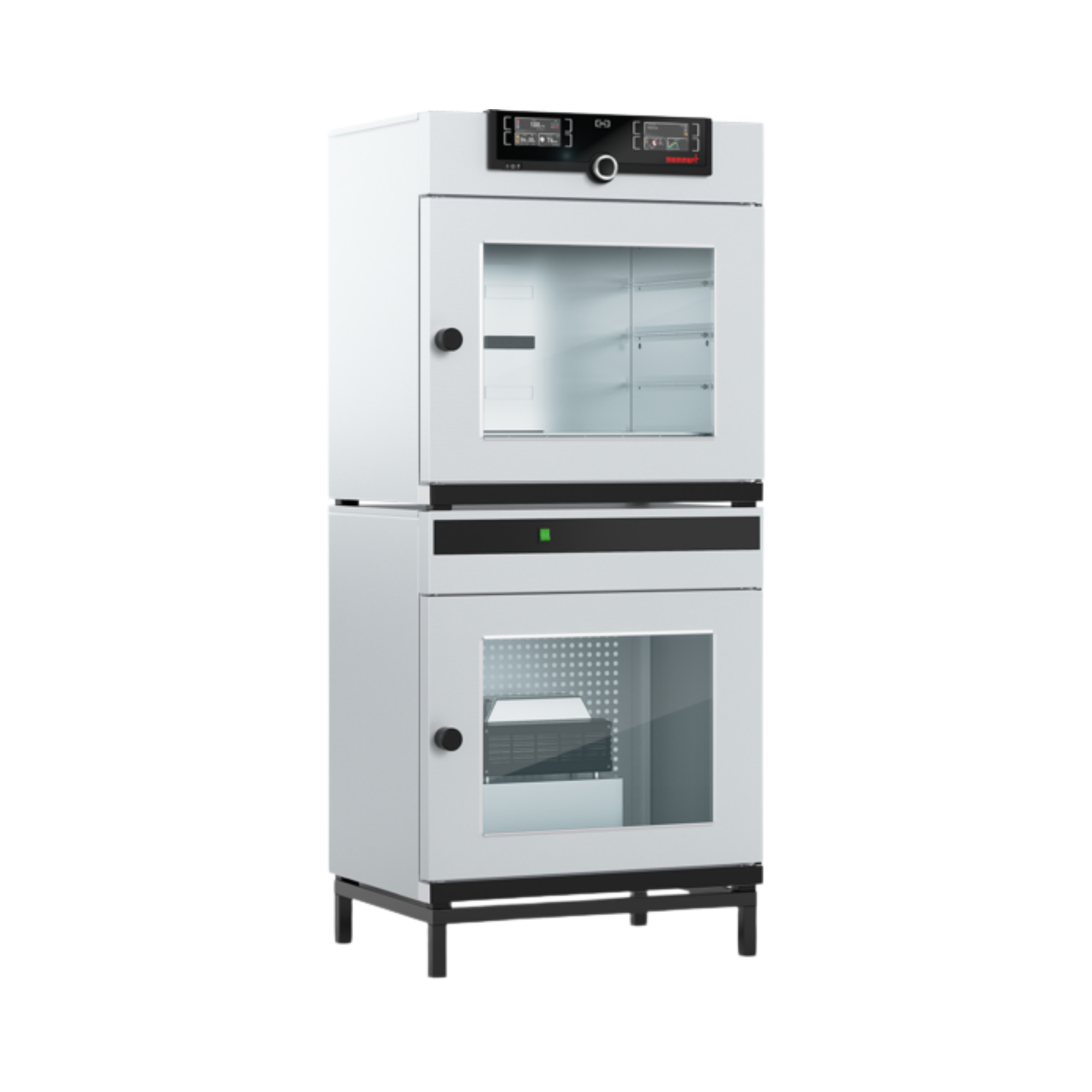

Laboratory furnaces enable annealing, calcination, sintering and heat treatment at temperatures far exceeding the range of conventional drying ovens. LT Laborhandel stocks Nabertherm muffle, chamber and high-temperature furnaces with brick, fibre or SiC/MoSi₂ heating elements for temperatures up to 1750 °C, as well as Memmert vacuum ovens with digital pressure control. You can find further temperature-control units in the ‘Temperature Control’ category. We would be happy to discuss which type of furnace is best suited to your application in a personal consultation.
Nabertherm Muffle Furnace LE 1/11/R8, 1 l, Tmax 1,100 °C, Flap Door, LE015K1A8
With only 1 litre of usable volume and a weight of 15 kg, the Nabertherm muffle furnace LE 1/11 is the smallest version in the economy series up to 1,100 °C. The heating elements are protected in quartz glass tubes on two sides of the furnace chamber, and the housing is double-walled, made of textured stainless steel sheet, and coated in RAL 9003.Dimensions and installationInside, the usable space measures 90 x 115 x 110 mm (W x D x H), externally the LE 1/11 measures 310 x 300 x 410 mm. The controller is located space-savingly under the flap door, dimensions and weight are kept compact. The flap door can additionally be used as a shelf as long as it is open. On the laboratory bench, the LE 1/11 occupies a footprint of 310 x 300 mm.Heating elements and heating rateThe quartz glass tubes protect the heating elements on both heated sides. The LE 1/11 operates single-phase with a connected load of 1.6 kW and reaches Tmax minus 100 K, i.e. 1,000 °C, in around 6 minutes when empty and closed. The muffle furnaces with brick insulation require around 55 to 60 minutes to reach their target value of 1,200 °C.Controller R8As standard, the LE 1/11 is equipped with the controller R8, which can be set to one temperature. Via NTLog Basic, process data can be recorded directly onto a USB stick. It is located space-savingly under the door.Exhaust air and serviceThe exhaust air leaves the furnace via an opening in the rear wall. An exhaust chimney is available as an option only from the LE 6/11 onwards, not for the LE 1/11 and LE 2/11. Nabertherm designs the furnace for easy maintenance replacement of heating elements and insulation.Selection guideIf 1 litre of usable volume is not sufficient, the economy series is available in other sizes up to the LE 24/11 with 24 litres, which LT Laborhandel supplies on request. Anyone requiring a higher maximum temperature than 1,100 °C will find muffle furnaces L and LT up to 1,200 °C, 1,300 °C or 1,400 °C at LT Laborhandel, such as the L 3/12 with 3 litres and Tmax 1,200 °C.Typical applicationsThe series is intended for use in laboratories and research. With 1 litre of usable volume and a heating time of around 6 minutes, the LE 1/11 is suitable for individual small samples where rapid throughput rather than large volume is important. This value applies to the empty, closed furnace up to 1,000 °C.Technical detailsTmax1,100 °CUsable volume1 lInternal dimensions (W x D x H)90 x 115 x 110 mmExternal dimensions (W x D x H)310 x 300 x 410 mmConnected load1.6 kWElectrical connectionsingle-phaseWeight15 kgHeating timeapprox. 6 min (empty, closed furnace to Tmax minus 100 K)Heatingtwo sides, heating elements in quartz glass tubesHousingdouble-walled, textured stainless steel sheet, RAL 9003 coatedDoorflap door, also usable as a shelfControllerR8, adjustable for one temperatureTemperature uniformity±5 K according to DIN 17052-1 (from 800 °C working temperature)Other models in the seriesThe economy series up to 1,100 °C from Nabertherm comprises five sizes from 1 to 24 litres, each with a flap door and controller R8.ModelVolumeTmaxDoorLE 1/11 (this page)1 l1,100 °CFlap doorLE 2/11 (on request)2 l1,100 °CFlap doorLE 6/11 (on request)6 l1,100 °CFlap doorLE 14/11 (on request)14 l1,100 °CFlap doorLE 24/11 (on request)24 l1,100 °CFlap doorScope of delivery1x Nabertherm muffle furnace LE 1/11 with standard controller R8Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old devices can be found on our page Environment and disposal.Individual requirements and procurement serviceIn the economy series, factory options include an exhaust chimney, also with fan or catalytic converter, for models from LE 6/11 onwards, as well as a charging frame with closed or perforated trays for loading on multiple levels up to 800 °C, described for the LE 14/11 and LE 24/11. Whether accessories are available for the LE 1/11 is clarified by LT Laborhandel on request. For individual requirements, LT Laborhandel provides personal advice.
Nabertherm Muffle Furnace L 3/11/B510, 3 l, Tmax 1,100 °C, Flap Door, L-035K1AL
The Nabertherm L 3/11 offers 3 litres of usable space, the smallest size in the L/LT series with Tmax 1,100 °C. The flap door opens forwards and also serves as a shelf, the single-phase connection requires 1.3 kW. For laboratory workstations with little bench space where small sample quantities are treated up to 1,100 °C, this is the most compact solution in the 1,100 °C class.Housing, heating and insulationThe double-walled, rear-ventilated housing is made of textured stainless steel sheet. Inside, the working chamber measures 160 x 140 x 100 mm, externally the furnace is 385 x 330 x 405 mm. Heating is from two sides via ceramic heating plates with integrated heating wire, which are protected and easy to replace if required. The furnace is insulated exclusively with material without classification under CLP Regulation (EG) Nr. 1272/2008, aluminium silicate wool (RCF fibre) is not used. The empty, closed furnace heats up to Tmax minus 100 K in around 41 minutes (at 230 V 1/N/PE or 400 V 3/N/PE), the weight is 21 kg.Controller B510 and process dataOperation is via the B510 touch controller with 5 programs of 4 segments each. The heating works with solid-state relays and therefore remains quiet during operation. Process data can be recorded on a USB stick with NTLog Basic. At working temperatures above 800 °C, the L 3/11 achieves a temperature uniformity of +/-5 K according to DIN 17052-1 in the empty working chamber with the air inlet slide closed. A type N thermocouple is installed for Tmax 1,100 °C.Flap door and safetyThe flap door can be used as a shelf during loading, an adjustable air inlet opening is located directly in the door. Exhaust air escapes via an opening in the rear wall of the furnace. As additional over-temperature protection, an adjustable temperature limiter with adjustable cut-off temperature is available as an option when ordering.Selection guide for the right sizeThose who need the higher temperature class in the same size will find it in the L 3/12 (article no. L-035K2AL) with type S thermocouple. If 3 litres of usable space are not sufficient, the L 5/11 with 5 litres provides more space, the complete size table is shown below.Typical applicationsThe L/LT series is intended for use in laboratory and research. With 3 litres of usable space, the L 3/11 is designed for small sample quantities up to 1,100 °C and fits where little bench space is available.Laboratory workstations with small sample quantities up to 1,100 °CResearch environments with limited bench spaceTechnical detailsManufacturer model designationL 3/11Tmax1,100 °CUsable volume3 lInternal dimensions W x D x H160 x 140 x 100 mmExternal dimensions W x D x H385 x 330 x 405 mmConnected load1.3 kW, single-phaseWeight21 kgHeating time to Tmax -100 K41 min (empty, closed furnace, 230 V 1/N/PE or 400 V 3/N/PE)HeatingTwo sides, ceramic heating platesTemperature uniformity+/-5 K according to DIN 17052-1 (from 800 °C, empty working chamber)ThermocoupleType NControlB510, touch, 5 programs of 4 segments eachDoorFlap doorHousingdouble-walled, rear-ventilated, textured stainless steel sheetInsulation materialwithout CLP classification (EG) Nr. 1272/2008, no RCF fibreOther models in the seriesThe table shows all models in the L/LT series with Tmax 1,100 °C and flap door, sorted by usable volume:ModelVolumeTmaxDoorL 3/11 (this page)3 l1,100 °CFlap doorL 5/115 l1,100 °CFlap doorL 9/119 l1,100 °CFlap doorL 15/1115 l1,100 °CFlap doorL 24/11 (on request)24 l1,100 °CFlap doorL 40/1140 l1,100 °CFlap doorL 60/11 (on request)60 l1,100 °CFlap doorScope of delivery1x Nabertherm muffle furnace L 3/11 with B510 controllerRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFurther factory options can be ordered for the L 3/11: an exhaust chimney, optionally with fan or catalytic converter, an adjustable temperature limiter with adjustable cut-off temperature as additional over-temperature protection, a protective gas connection for purging with non-flammable process gases, a manual or automatic gas supply system, a thermocouple feedthrough in the rear wall or in the furnace door, the VCD software package for process control and documentation, and a charging frame for multiple loading levels, usable up to 800 °C with 2 to 3.5 kg per level depending on the model. Which option suits the respective application is clarified by LT Laborhandel in a personal consultation.

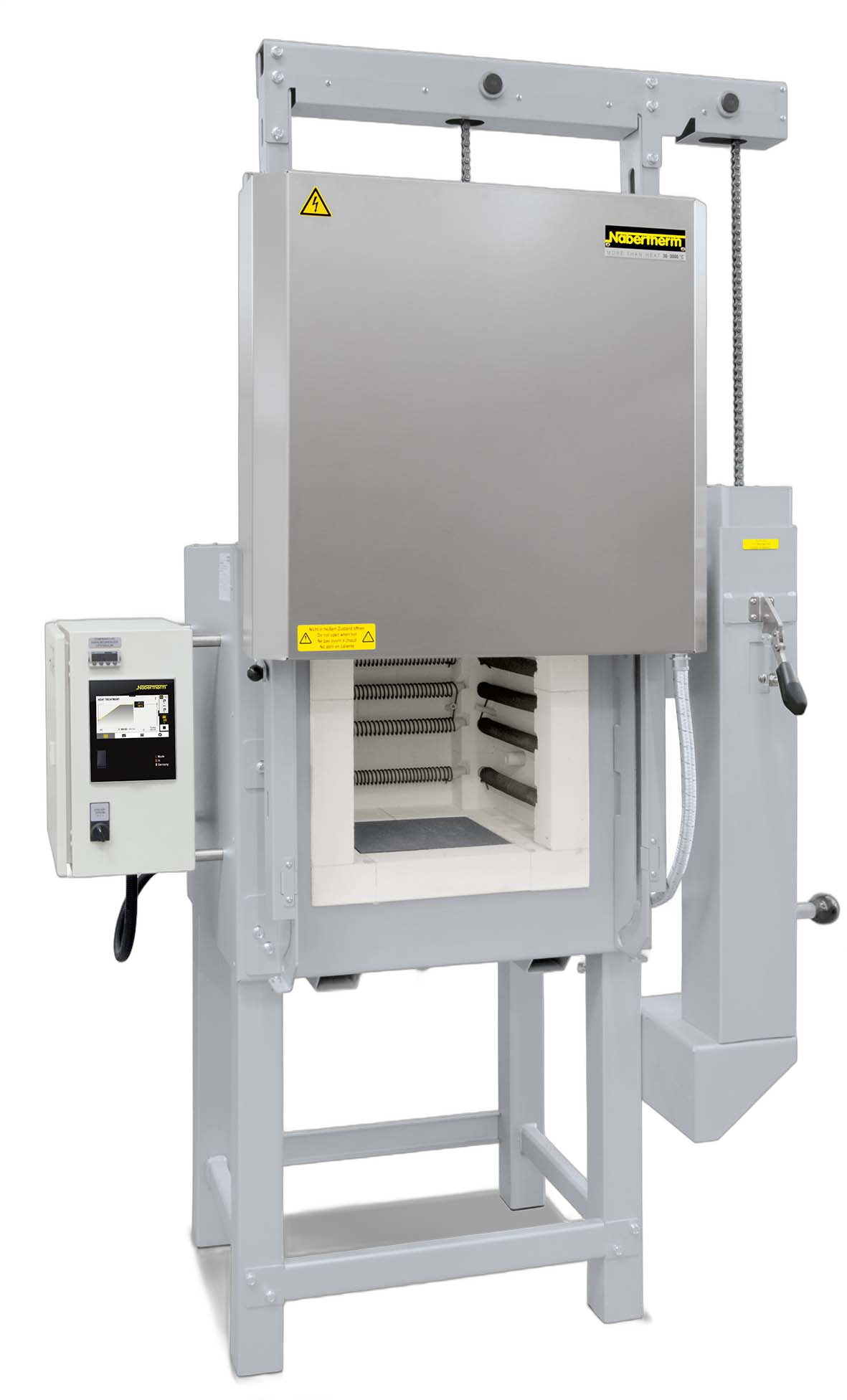

Nabertherm Chamber Furnace LH 30/12/B500, 30 l, Tmax 1,200 °C, Brick Insulation, LH0322NKNE
The Nabertherm chamber furnace LH 30/12 is the smallest model of the brick insulated LH series carried by LT Laborhandel and provides 30 litres of usable space at Tmax 1,200 °C. Five sides of the furnace chamber are heated, the heating elements sit on support tubes and radiate freely, behind them sits a multi layer insulation of lightweight firebricks with special rear insulation.Construction and doorThe housing is double walled, made of textured stainless steel sheet, this keeps the external temperature low and gives the furnace stability. As standard, the door seals brick on brick, hand ground, and is therefore the standard design of this model. In the floor, a recessed SiC plate protects the floor heating and provides a level stacking surface for the charge. Inside, the usable space measures 320 x 320 x 320 mm, externally the LH 30/12 measures around 710 x 930 x 1,290 mm depending on additional equipment, the weight is 200 kg.Controller B500 and connectionThe controller B500 is mounted in the furnace door and can be removed for operation. It stores five programs of four segments each via touch operation. The LH 30/12 is connected three phase, whereby the heating itself works only between two phases, and draws 7 kW while doing so. A motor driven exhaust flap and a continuously adjustable air inlet slide in the furnace floor regulate the airflow during the process. The installed heating power is generously sized and enables short heating times.Insulation and ceiling archFor this series, Nabertherm uses exclusively insulation materials without classification under the CLP Regulation (EG) Nr. 1272/2008. A self supporting ceiling arch gives the furnace chamber additional stability and protects against dust ingress from above. As over-temperature protection for furnace and charge, an adjustable temperature limiter with adjustable cut-off temperature can be ordered as a factory option.Selection guideIf 30 litres are not enough, LT Laborhandel carries two larger versions of the same temperature class with the LH 120/12 and the LH 216/12. The LH 120/12 offers a connected load of 12 kW at four times the usable volume of 120 litres and weighs a good two times as much at 410 kg, the LH 216/12 reaches 20 kW and 470 kg at 216 litres. If a higher final temperature than 1,200 °C is needed, the LH 30/14 is available as the same size variant up to 1,400 °C, it also weighs 200 kg and has a connected load that is 3 kW higher at 10 kW. Those looking for a fibre insulation with shorter heating and cooling times will find it in this size as the LF 30/13 up to 1,300 °C or as the LF 30/14 up to 1,400 °C, an LF version up to 1,200 °C does not exist.Typical applicationsWith the weighing device available as a factory option, the LH 30/12 can be set up for loss on ignition determinations. Via a protective gas connection, the furnace chamber can be purged with non-flammable process gases, an optional cooling system cools the furnace with a predefined temperature gradient or a fixed set fresh air volume.Technical detailsTmax1,200 °CUsable volume30 lInternal dimensions (W x D x H)320 x 320 x 320 mmExternal dimensions (W x D x H)approx. 710 x 930 x 1,290 mm (varies with additional equipment)Connected load7 kWElectrical connectionthree phase (heating only between two phases)Weight200 kgHeatingfive sided, heating elements on support tubesInsulationlightweight firebricks, multiple layers with rear insulationDoorfixed door, brick on brick sealControllerB500, touch operation, 5 programs of 4 segments eachOther models in the seriesIn the 1,200 °C temperature class, Nabertherm builds the brick insulated chamber furnace LH in five sizes from 15 to 216 litres.ModelVolumeTmaxLH 15/12 (on request)15 l1,200 °CLH 30/12 (this page)30 l1,200 °CLH 60/12 (on request)60 l1,200 °CLH 120/12120 l1,200 °CLH 216/12216 l1,200 °CScope of delivery1x Nabertherm chamber furnace LH 30/12 with standard controller B500StandRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LH 30/12 include a parallel swing door, a lift door with electro-mechanical linear drive, a cooling system with a predefined temperature gradient, a protective gas connection, a manual or automatic gas supply system, an exhaust air hood or stainless steel chimney, a weighing device for loss on ignition determinations, a temperature limiter, and the VCD software package for process control and documentation. For individual requirements, LT Laborhandel provides personal advice.
Nabertherm Muffle Furnace L 5/11/B510, 5 l, Tmax 1,100 °C, Flap Door, L-055K1AL
The Nabertherm L 5/11 provides 5 litres of usable space at Tmax 1,100 °C and has a flap door that serves as a shelf during loading. With a connected load of 2.6 kW and a weight of 27 kg, it lies between the 3-litre and 9-litre sizes of the L/LT series.Construction, heating and insulationInternally, the chamber measures 205 x 170 x 130 mm, externally 385 x 390 x 460 mm, with the lift door variant LT 5/11 adding 205 mm when the door is open. The housing is double-walled, rear-ventilated and made of textured stainless steel sheet, heating is from two sides via ceramic heating plates with integrated heating wire. The furnace is insulated exclusively with material without classification according to the CLP Regulation (EG) Nr. 1272/2008, without aluminium silicate wool (RCF fibre). The empty, closed furnace heats up to Tmax minus 100 K in around 47 minutes at 230 V 1/N/PE or 400 V 3/N/PE.Controller B510The B510 touch controller stores 5 programs with 4 segments each, the heating operates quietly via solid-state relays. NTLog Basic records process data on a USB stick. At Tmax 1,100 °C, a type N thermocouple is installed, temperature uniformity in the empty chamber with the air inlet slide closed and working temperatures above 800 °C is +/-5 K according to DIN 17052-1.Flap door and safetyThe flap door can be used as a shelf during loading and has an adjustable air inlet, the exhaust air escapes via the rear wall of the furnace. An adjustable temperature limiter with adjustable cut-off temperature is available as an option for additional over-temperature protection.Selection guide for volume and door typeFor the higher temperature class with the same volume, the L 5/12 (art. no. L-055K2AL) with type S thermocouple is available. The lift door variant of the same size is called LT 5/11 and is available on request, with Tmax 1,200 °C LT Laborhandel offers the LT 5/12 with lift door. The table below shows smaller and larger chambers with flap doors.Typical applicationsThe L/LT series is intended for use in laboratories and research. With 5 litres of usable space, the L 5/11 is suitable for somewhat larger sample quantities than the 3-litre size, at temperatures up to 1,100 °C.Laboratory samples with medium space requirements up to 1,100 °CResearch setups with flap door accessTechnical detailsManufacturer model designationL 5/11Tmax1,100 °CUsable volume5 lInternal dimensions W x D x H205 x 170 x 130 mmExternal dimensions W x D x H385 x 390 x 460 mmConnected load2.6 kW, single-phaseWeight27 kgHeating time to Tmax -100 K47 min (empty, closed furnace, 230 V 1/N/PE or 400 V 3/N/PE)HeatingTwo sides, ceramic heating platesTemperature uniformity+/-5 K according to DIN 17052-1 (from 800 °C, empty chamber)ThermocoupleType NControlB510, touch, 5 programs with 4 segments eachDoorFlap doorHousingdouble-walled, rear-ventilated, textured stainless steel sheetInsulation materialwithout CLP classification (EG) Nr. 1272/2008, no RCF fibreOther models in the seriesThe table shows all models of the L/LT series with Tmax 1,100 °C and flap door, sorted by usable volume:ModelVolumeTmaxDoorL 3/113 l1,100 °CFlap doorL 5/11 (this page)5 l1,100 °CFlap doorL 9/119 l1,100 °CFlap doorL 15/1115 l1,100 °CFlap doorL 24/11 (on request)24 l1,100 °CFlap doorL 40/1140 l1,100 °CFlap doorL 60/11 (on request)60 l1,100 °CFlap doorScope of delivery1x Nabertherm muffle furnace L 5/11 with controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on returning old appliances can be found on our page Environment and disposal.Individual requirements and procurement serviceAvailable from the factory for the L 5/11 are, among others, an exhaust chimney with optionally a fan or catalytic converter, an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection for non-flammable process gases, a manual or automatic gas supply system, a thermocouple feedthrough in the rear wall or furnace door, the VCD software package for process control and documentation, and a charging rack with several loading levels, usable up to 800 °C, 2 to 3.5 kg per level depending on the model. LT Laborhandel provides personal advice on the appropriate option.

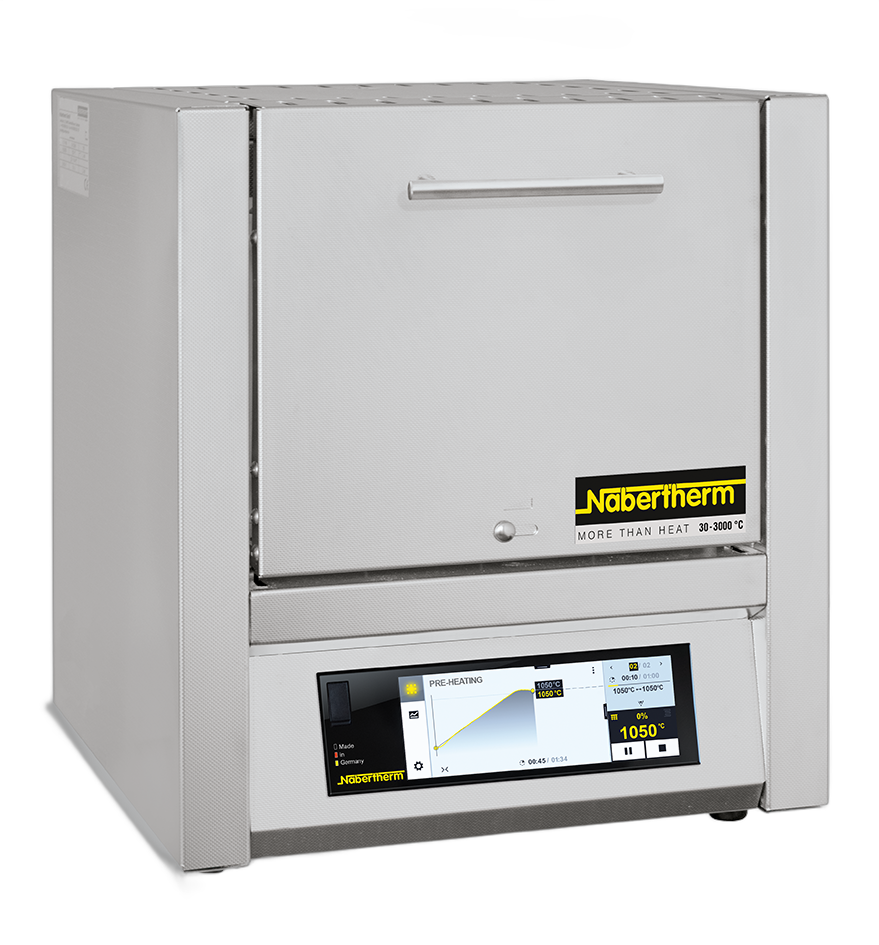

Nabertherm Muffle Furnace L 3/12/B510, 3 l, Tmax 1,200 °C, Flap Door, L-035K2AL
The Nabertherm L 3/12 is the 1,200 °C version of the 3-litre size of the L/LT series. Compared to the 1,100 °C variant, a type S thermocouple is fitted in the furnace, and the heating time is slightly longer at around 48 minutes. Where samples regularly need to be heated above 1,100 °C, but no larger chamber is required, this size is suitable.Heating, insulation and housingInside, the chamber measures 160 x 140 x 100 mm, as with the L 3/11, while outside the furnace measures 385 x 330 x 405 mm in a double-walled, rear-ventilated housing made of textured stainless steel sheet. Heating is from two sides via ceramic heating plates with integrated heating wire, protected and easy to replace. Exclusively insulation material without classification according to the CLP Regulation (EG) Nr. 1272/2008 is used, meaning without aluminium silicate wool (RCF fibre). With an empty, closed furnace, heating up to Tmax minus 100 K takes around 48 minutes (230 V 1/N/PE or 400 V 3/N/PE), and the weight is 21 kg.Type S thermocouple and controllerA type S thermocouple is fitted for the 1,200 °C class, while type N is used at 1,100 °C instead. Control is via the B510 touch controller with 5 programs of 4 segments each, and the heating operates quietly via solid-state relays. NTLog Basic records process data on a USB stick. At operating temperatures above 800 °C, the temperature uniformity in the empty chamber with the air inlet slide closed is +/-5 K according to DIN 17052-1.Door and safetyThe flap door of the L 3/12 also serves as a shelf and has an adjustable air inlet, while the exhaust air is vented through the rear wall. An adjustable temperature limiter with adjustable cut-off temperature can be ordered as an option for additional over-temperature protection.Auswahlhilfe für die passende TemperaturklasseIf the temperature class up to 1,100 °C is sufficient, the L 3/11 (item no. L-035K1AL) with a type N thermocouple is the alternative. If more chamber volume than 3 litres is required, the size table below shows the next step with the L 5/12.Typical applicationsThe L/LT series is intended for use in laboratories and research. For the L 3/12, this applies to small sample quantities that need to be heated up to 1,200 °C and do not otherwise justify a larger furnace.Small sample quantities with temperature requirements up to 1,200 °CLaboratory workstations with limited bench spaceTechnical detailsManufacturer model designationL 3/12Tmax1,200 °CWorking volume3 lInternal dimensions W x D x H160 x 140 x 100 mmExternal dimensions W x D x H385 x 330 x 405 mmConnected load1.3 kW, single-phaseWeight21 kgHeating time to Tmax -100 K48 min (empty, closed furnace, 230 V 1/N/PE or 400 V 3/N/PE)HeatingTwo sides, ceramic heating platesTemperature uniformity+/-5 K according to DIN 17052-1 (from 800 °C, empty chamber)ThermocoupleType SControlB510, touch, 5 programs with 4 segments eachDoorFlap doorHousingdouble-walled, rear-ventilated, textured stainless steel sheetInsulation materialwithout CLP classification (EG) Nr. 1272/2008, no RCF fibreOther models in the seriesThe table shows all models of the L/LT series with Tmax 1,200 °C and flap door, sorted by working volume:ModelVolumeTmaxDoorL 1/12 (on request)1 l1,200 °CFlap doorL 3/12 (this page)3 l1,200 °CFlap doorL 5/125 l1,200 °CFlap doorL 9/129 l1,200 °CFlap doorL 15/1215 l1,200 °CFlap doorL 24/12 (on request)24 l1,200 °CFlap doorL 40/12 (on request)40 l1,200 °CFlap doorL 60/12 (on request)60 l1,200 °CFlap doorScope of delivery1x Nabertherm muffle furnace L 3/12 with controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement serviceThe following can additionally be ordered from the factory for the L 3/12: an exhaust chimney with either a fan or catalytic converter, an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection for non-flammable process gases, a manual or automatic gas supply system, a thermocouple port in the rear wall or furnace door, the VCD software package for process control and documentation, as well as a charging rack with multiple loading levels, usable up to 800 °C, 2 to 3.5 kg per level depending on the model. LT Laborhandel provides personal advice on the individual options.

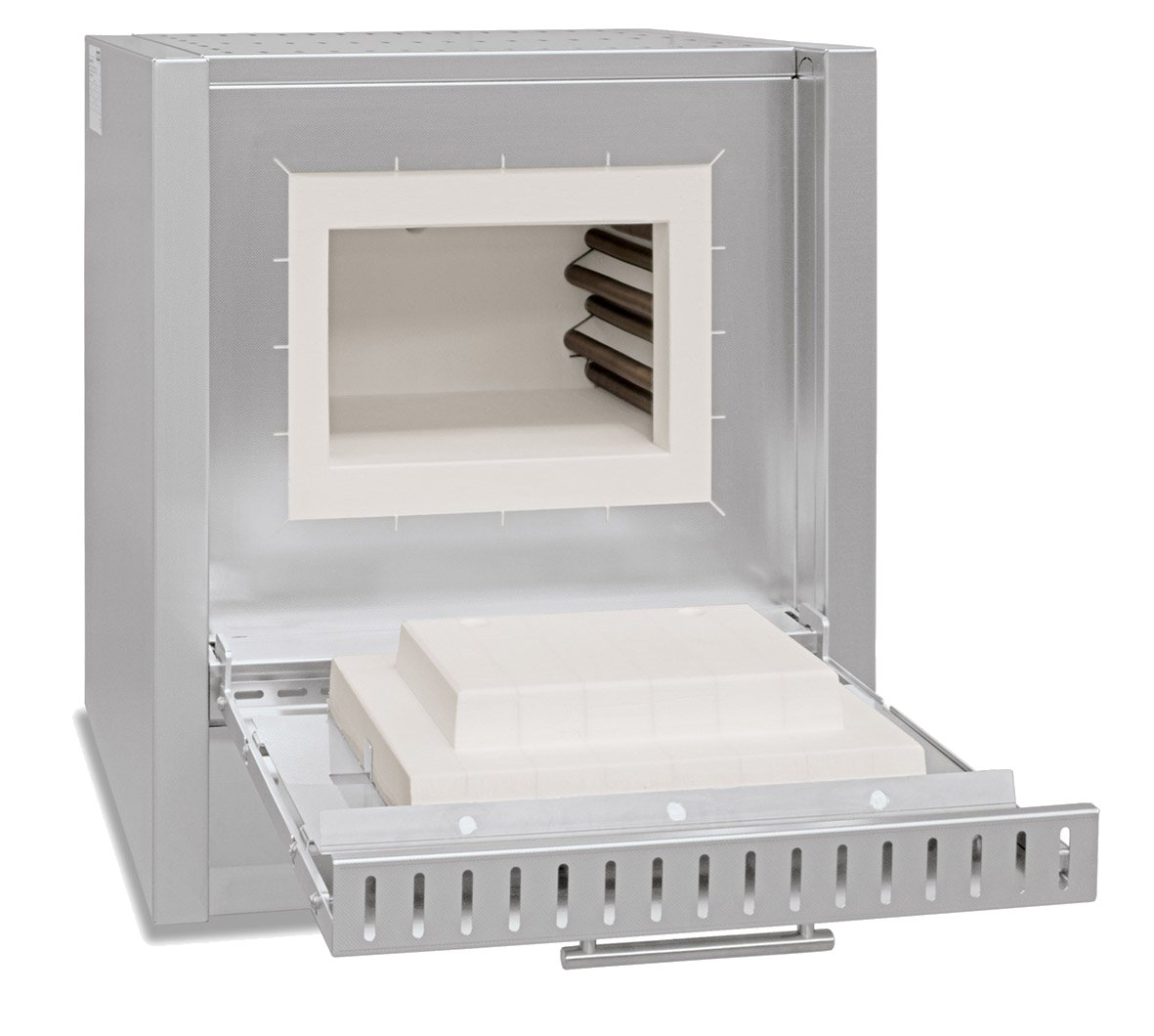

Nabertherm Muffle Furnace L 9/14/B510, 9 l, Tmax 1,400 °C, Flap Door, L-095K4AL
The Nabertherm muffle furnace L 9/14 heats up to 1,400 °C and offers 9 litres of usable volume behind a flap door. For insulation, Nabertherm uses exclusively materials without classification under the CLP Regulation (EG) Nr. 1272/2008 for this model, heating is from two sides via heating elements on support tubes.Insulation and housingThe heating elements sit on support tubes, this allows free heat radiation and is designed for a long service life. The housing is double walled, made of textured stainless steel sheet. Inside, the usable space measures 250 x 250 x 170 mm (W x D x H), externally the furnace measures 530 x 525 x 630 mm. The weight is 55 kg. The additional 350 mm for the open door in the external dimensions applies only to the lift door variant LT 9/14.Flap door and air inletThe flap door opens forwards and has an adjustable air inlet opening. The exhaust air leaves the furnace via an opening in the rear wall. The furnace runs single phase with a connected load of 3.5 kW and reaches Tmax minus 100 K, that is 1,300 °C, in around 50 minutes when empty and closed. The L 9/13 from the 1,300 °C series needs around 60 minutes at the same volume to reach its target value of 1,200 °C.Controller B510The L 9/14 is operated via the touch controller B510 with five programs of four segments each. This allows different heating and holding times for various samples to be stored and recalled easily when needed, without entering the parameters again each time.Temperature uniformityAccording to DIN 17052-1, the temperature uniformity in the empty usable space with the air inlet slide closed and a working temperature above 800 °C is ±5 K. An adjustable temperature limiter with adjustable cut-off temperature can be ordered as a factory option.Selection guideThose who prefer a lift door will find the matching variant at the same volume and Tmax at LT Laborhandel in the LT 9/14 (article no. L-095H4AL). If a final temperature of 1,300 °C is sufficient, the L 9/13 (article no. L-095K3AL) also offers a version of the same size from the brick insulation series.Typical applicationsThe series is intended for use in laboratory and research. With Tmax 1,400 °C, the L 9/14 covers processes that go beyond the range of the brick insulation series up to 1,300 °C, with 9 litres of usable volume for several small samples at the same time. The usable space for this measures 250 x 250 x 170 mm.Technical detailsTmax1,400 °CUsable volume9 lInternal dimensions (W x D x H)250 x 250 x 170 mmExternal dimensions (W x D x H)530 x 525 x 630 mmConnected load3.5 kWElectrical connectionsingle phaseWeight55 kgHeating timeapprox. 50 min (empty, closed furnace to Tmax minus 100 K)Heatingtwo sides, heating elements on support tubesInsulationwithout classification under Regulation (EG) Nr. 1272/2008 (CLP)DoorFlap doorControllerB510, touch operation, 5 programs of 4 segments eachTemperature uniformity±5 K according to DIN 17052-1 (from 800 °C working temperature)Other models in the seriesThe Nabertherm muffle furnace series up to 1,400 °C comprises six variants in three sizes with flap or lift door.ModelVolumeTmaxDoorL 5/14 (on request)5 l1,400 °CFlap doorLT 5/14 (on request)5 l1,400 °CLift doorL 9/14 (this page)9 l1,400 °CFlap doorLT 9/149 l1,400 °CLift doorL 15/14 (on request)15 l1,400 °CFlap doorLT 15/14 (on request)15 l1,400 °CLift doorScope of delivery1x Nabertherm muffle furnace L 9/14 with standard controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the L 9/14 include an exhaust chimney (also with fan or catalytic converter), an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection, and a manual or automatic gas supply system. For individual requirements, LT Laborhandel provides personal advice.
Nabertherm Muffle Furnace L 9/13/B510, 9 l, Tmax 1,300 °C, Flap Door, L-095K3AL
With 9 litres of usable volume and a flap door, the Nabertherm muffle furnace L 9/13 is the medium size of the brick insulation series up to 1,300 °C. Two heating sides with heating elements on support tubes radiate freely into the furnace chamber, the furnace is insulated in multiple layers with robust lightweight firebricks.Flap door and housingThe flap door opens forwards. The same size is also available with a lift door at no extra cost, then as the LT 9/13. An adjustable air inlet opening sits in the door, the exhaust air leaves the furnace via an opening in the rear wall. The housing is double walled and rear ventilated, made of textured stainless steel sheet. Inside, the usable space measures 250 x 240 x 170 mm (W x D x H), externally the furnace measures 530 x 525 x 630 mm and weighs 58 kg. For the lift door variant LT 9/13, 350 mm are added to the external dimensions when the door is open.Connection and heating timeThe L 9/13 runs single phase with a connected load of 3.3 kW. Empty and closed, it reaches Tmax minus 100 K, that is 1,200 °C, in around 60 minutes. The heating is switched via solid state relays and therefore runs quietly.Controller B510The L 9/13 is operated via the touch controller B510 with five storable programs of four segments each, so temperature programs for different samples can be created in advance and recalled. NTLog Basic records the process data directly to a USB stick, so every run stays traceable.Temperature uniformityAccording to DIN 17052-1, the temperature uniformity in the empty usable space with the air inlet slide closed and a working temperature above 800 °C is ±5 K. An adjustable temperature limiter with adjustable cut-off temperature can be ordered as a factory option.Selection guideThose who need only 5 litres and prefer a lift door will find the more compact variant of the same series at LT Laborhandel in the LT 5/13 (article no. L-055H3AL). The lift door version with 9 litres, the LT 9/13, is available on request. Those who need a higher final temperature at the same volume will find the matching model in the series up to 1,400 °C with the L 9/14.Typical applicationsThe series is intended for use in laboratory and research. With 9 litres of usable volume, the L 9/13 suits somewhat larger sample quantities or several small containers at the same time, at temperatures up to 1,300 °C and with freely programmable ramps via the B510 controller. The five program slots allow recurring processes to be set up once and simply recalled for later batches.Technical detailsTmax1,300 °CUsable volume9 lInternal dimensions (W x D x H)250 x 240 x 170 mmExternal dimensions (W x D x H)530 x 525 x 630 mmConnected load3.3 kWElectrical connectionsingle phaseWeight58 kgHeating timeapprox. 60 min (empty, closed furnace to Tmax minus 100 K)Heatingtwo sides, heating elements on support tubesInsulationmultiple layers of lightweight firebricksDoorFlap doorControllerB510, touch operation, 5 programs of 4 segments eachTemperature uniformity±5 K according to DIN 17052-1 (from 800 °C working temperature)Other models in the seriesThe Nabertherm muffle furnace series with brick insulation up to 1,300 °C comprises six variants in three sizes with flap or lift door.ModelVolumeTmaxDoorL 5/13 (on request)5 l1,300 °CFlap doorLT 5/135 l1,300 °CLift doorL 9/13 (this page)9 l1,300 °CFlap doorLT 9/13 (on request)9 l1,300 °CLift doorL 15/13 (on request)15 l1,300 °CFlap doorLT 15/13 (on request)15 l1,300 °CLift doorScope of delivery1x Nabertherm muffle furnace L 9/13 with standard controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the L 9/13 include an exhaust chimney (also with fan or catalytic converter), an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection, a manual or automatic gas supply system, and a thermocouple feedthrough in the rear wall or the furnace door. For individual requirements, LT Laborhandel provides personal advice.

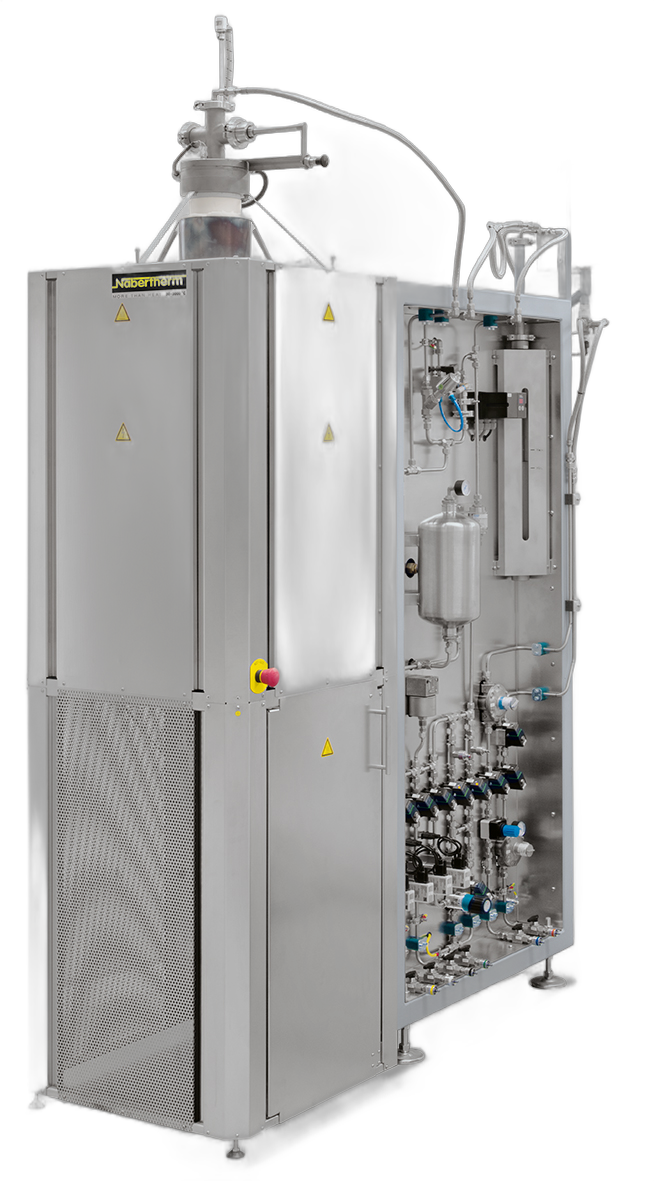

Nabertherm Vertical Tube Furnace RHTV 120/600/17/P570, 600 mm Heated Length, Tmax 1,700 °C, Vertical Operation, RV322V72AN
With 120 mm tube outer diameter and 600 mm heated length, the Nabertherm vertical tube furnace RHTV 120/600/17 is the largest size in the RHTV series and, like the smaller models, works with suspended MoSi2 heating elements in the 1,700 °C temperature class. It is controlled via the P570 touch controller in a standing cabinet separate from the furnace.Construction and tube dimensionsThe tube length is 830 mm, with single-zone heating the length with constant temperature is 170 mm. The furnace weighs 110 kg and measures 680 x 700 x 1,580 mm (W x D x H) without the tube. At 19.4 kW, the connected load is a good three times higher than the smallest 50/150 size, the connection is three-phase. Two fibre plugs close the open ends of the ceramic working tube C 799, which allows operation in air.Heating and insulationLike the other RHTV sizes, the furnace works with suspended MoSi2 heating elements that are easy to replace. The insulation consists of vacuum-formed ceramic fibre panels, aluminium silicate wool (RCF fibres) is not used. As standard, a ceramic working tube C 799 with two fibre plugs is fitted, measurement is via a type B thermocouple. For three-zone heating with an additional neutral conductor, Nabertherm only offers the horizontal RHTH variant of this series, the RHTV 120/600/17 works single-zone.Vertical operation and switch cabinetA stand holds the working tube, there is no classic furnace door with this design. The switch cabinet with the P570 controller sits in a standing cabinet separate from the furnace. Standard equipment includes a power unit with low-voltage transformer and thyristor. An adjustable temperature limiter with adjustable cut-off temperature is part of the standard equipment and serves as over-temperature protection for furnace and charge.Controller P57050 programs with 40 segments each are available in the P570 touch controller for temperature ramps and holding times. If the temperature is to be measured directly at the charge instead of in the furnace chamber, a charge control with temperature measurement in the working tube can be added as a factory option, alternative working tubes are also available.Selection guideIf 50 mm tube diameter and 150 mm heated length are sufficient, the RHTV 50/150/17 at 70 kg and 5.8 kW connected load is the lighter size. At 19.4 kW, the RHTV 120/600/17 requires a correspondingly rated three-phase supply, but in return offers a 70 mm larger tube diameter and four times the heated length. Gas supply package 2 for non-flammable process gases, gas supply package 4 for hydrogen applications, and a vacuum package for evacuating the working tube can be ordered as factory options for both RHTV sizes.Typical applicationsThe RHTV 120/600/17 is a vertical high-temperature tube furnace up to 1,700 °C for working tubes up to 120 mm outer diameter. With the standard ceramic working tube C 799 and two fibre plugs, it operates in air, for non-flammable process gases, hydrogen applications or vacuum, gas supply packages 2 and 4 and a vacuum package are available as factory options.Technical detailsTmax1,700 °CMax. tube outer diameter120 mmHeated length600 mmTube length830 mmLength with constant temperature, single-zone170 mmExternal dimensions without tube (W x D x H)680 x 700 x 1,580 mmConnected load19.4 kW, three-phaseWeight110 kgHeatingMoSi2 heating elements, suspendedInsulationVacuum-formed ceramic fibre panelsControllerP570, touch operation, 50 programs of 40 segments eachOther models in the seriesIn the 1,700 °C temperature class, Nabertherm builds the RHTV in three sizes between 50 and 120 mm tube outer diameter, sorted below by tube size:ModelTmaxRHTV 50/150/171,700 °CRHTV 80/300/17 (on request)1,700 °CRHTV 120/600/17 (this page)1,700 °CScope of delivery1x Nabertherm vertical tube furnace RHTV 120/600/17 with standSeparate switch cabinet with P570 controllerCeramic working tube C 799 with two fibre plugsRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the RHTV 120/600/17 include a charge control with temperature measurement in the working tube and alternative working tubes. In addition, there is gas supply package 2 for non-flammable process gases, gas supply package 4 for hydrogen applications, and a vacuum package for evacuating the working tube. For individual requirements, LT Laborhandel provides personal consultation.

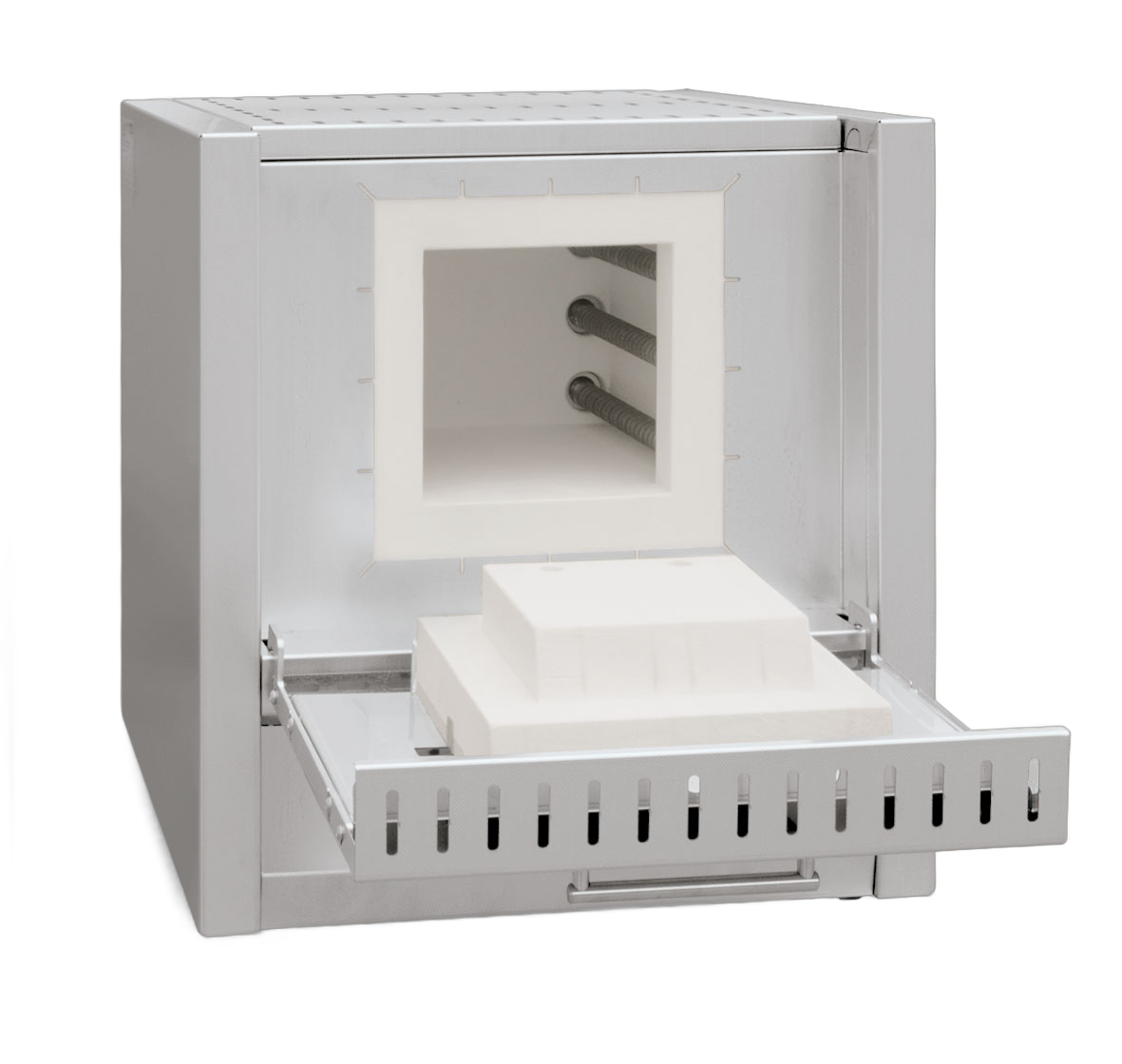

Nabertherm High-Temperature Furnace LHTC 08/16/C550, 8 l, Tmax 1,600 °C, Flap Door, LC084K6ON8
The Nabertherm high-temperature furnace LHTC 08/16 is the large size in the SiC series with 8 litres of usable space and Tmax 1,600 °C. The flap door can also be used as a shelf, the same size is also available with a lift door as the LHTCT 08/16 at no extra cost. In both cases, control is via the C550 touch controller.Construction and connectionThe interior measures 170 x 290 x 170 mm, externally the furnace measures 490 x 625 x 540 mm, with the LHTCT model open, up to 255 mm of additional height is added. The weight is 58 kg. With a connected load of 12.5 kW, the 08/16 is connected three-phase, whereas the smaller 01/16 size with 3.5 kW is single-phase. The empty, closed furnace heats up to Tmax minus 100 K in around 25 minutes.Heating with SiC heating rodsSilicon carbide heating rods heat the furnace, a switch cabinet with solid-state relays is matched to the rods in terms of power, and the heating rods are easy to replace. The insulation consists of high-quality fibre material without classification under Regulation (EG) Nr. 1272/2008, aluminium silicate wool (RCF fibres) is not contained in it.Flap door or lift doorFor the 08/16, there is a choice at no extra cost between a flap door (usable as a shelf, model designation LHTC) and a lift door (model designation LHTCT, hot side faces away from the operator when opening). For the smaller 01/16 size, on the other hand, only the lift door version is available. An adjustable air inlet opening and an exhaust opening in the ceiling provide air exchange in the furnace chamber.Control with the C550 controllerUp to 10 programs with 20 segments each can be stored in the C550 touch controller for temperature ramps and holding times. The C550 with touch operation and 10 programs of 20 segments each is the standard controller for all three sizes in the LHTC/LHTCT series, including the lift door version LHTCT 08/16.Selection guideIf 1.5 litres of usable space and a lift-door-only version are sufficient, the LHTCT 01/16 with Tmax 1,550 °C is the more compact alternative in the series. For a medium size with 3 litres and also a selectable door, there is the LHTC 03/16 size, which is currently not carried in the LT shop and is available on request.Typical applicationsThe LHTC 08/16 is designed for high-temperature processes in the laboratory up to Tmax 1,600 °C, the working temperature is 1,500 °C, above that wear increases. With 8 litres, it offers the largest usable space in the series, the two smaller sizes have 1.5 and 3 litres. As factory options, a protective gas connection for purging with non-flammable process gases and a manual or automatic gas supply system can be ordered, the furnace is not gas-tight in this case.Technical detailsTmax1,600 °CInternal dimensions (W x D x H)170 x 290 x 170 mmInternal volume8 lExternal dimensions (W x D x H)490 x 625 x 540 mm, plus up to 255 mm when the LHTCT model is openConnected load12.5 kW, three-phaseWeight58 kgHeating timeapprox. 25 min (empty, closed furnace to Tmax minus 100 K)HeatingSiC heating rods (silicon carbide)InsulationHigh-quality fibre materialDoorFlap door (optionally lift door at no extra cost as LHTCT 08/16)ControllerC550, touch operation, 10 programs of 20 segments eachOther models in the seriesThe LHTC/LHTCT series with SiC heating comprises three sizes from 1.5 to 8 litres of usable space, for the 03/16 and 08/16 the door version can be selected at no extra cost:ModelVolumeTmaxDoorLHTCT 01/161.5 l1,550 °CLift doorLHTC 03/16 (on request)3 l1,600 °CFlap doorLHTC 08/16 (this page)8 l1,600 °CFlap doorScope of delivery1x Nabertherm high-temperature furnace LHTC 08/16 with C550 controllerRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LHTC 08/16 include an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection for non-flammable process gases, and a manual or automatic gas supply system. The adjustable temperature limiter, with its adjustable cut-off temperature, serves as over-temperature protection for furnace and charge. For individual requirements, LT Laborhandel provides personal consultation.

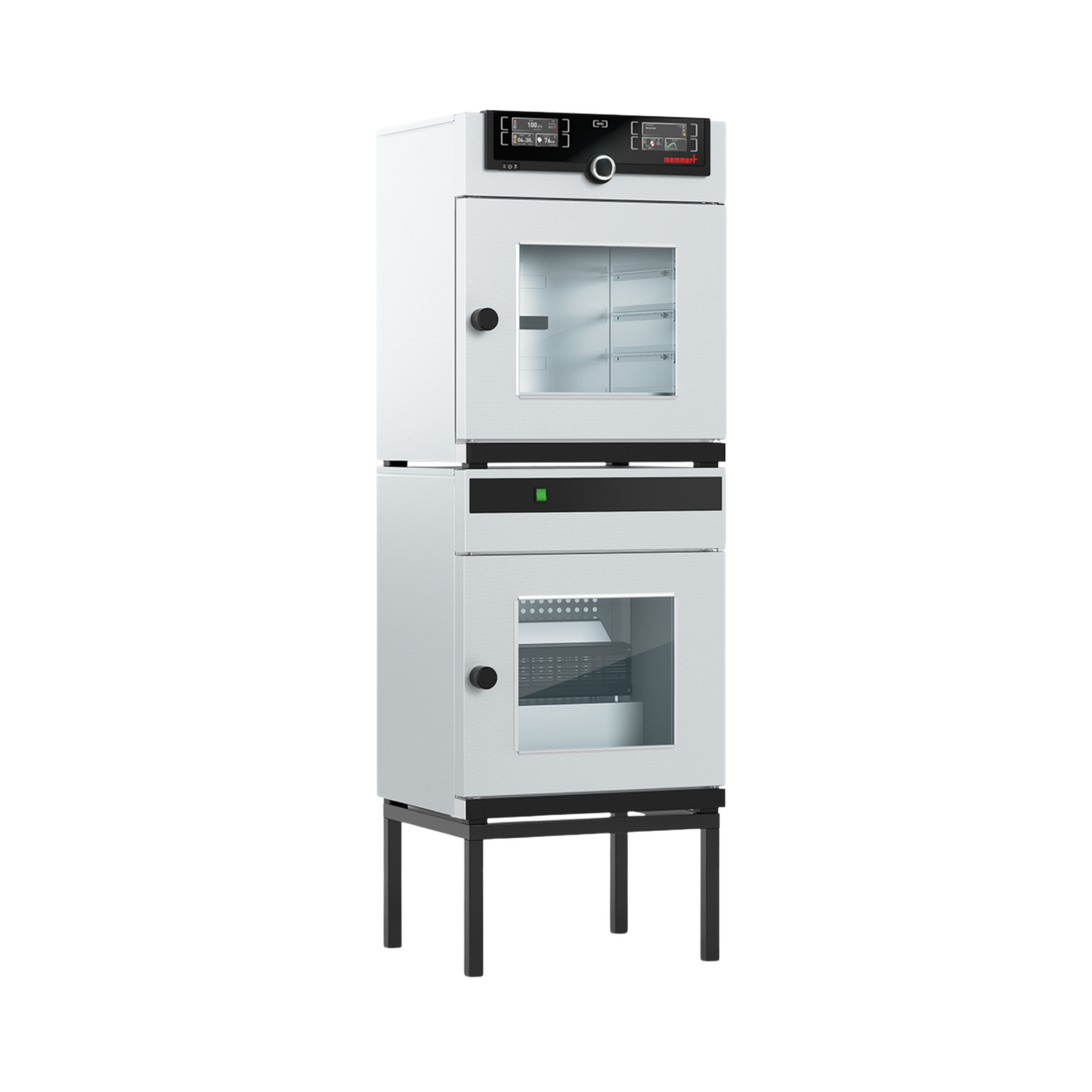

Memmert Vacuum Drying Oven VO49, 49 l, +20 to +200 °C, TwinDISPLAY
With 49 litres of internal volume, the VO49 is the middle one of the three VO sizes. Compared with the VO29, the interior grows in height and depth to 385 x 385 x 330 mm, while the width stays the same. The housing measures 550 x 687 x 480 mm (door handle additional 38 mm) and weighs approx. 83 kg. The temperature can be set from +20 to +200 °C, and the pressure is controlled digitally in the range 5 to 1,100 mbar.Two thermal shelf levels in the interiorThe rear wall of the VO49 has two connections for thermal shelves, on the 1st and the 3rd level. One thermal shelf made of aluminium (material 3.3547, integrated large-area heating) is supplied. Each shelf is controlled individually: an MLC microprocessor control with fuzzy-assisted power adjustment according to load quantity, plus its own Pt100 in 4-wire measurement. A maximum of 2 shelves with 20 kg each and 60 kg for the whole unit are permitted.The Premium module T5 can be selected as a factory option when ordering. For size 49 it contains inert gas switching, two further thermal shelf connections and an additional thermal shelf. Memmert supplies further shelves as accessories in anodised aluminium (B00743) or in stainless steel 1.4404 (B00734) for particularly corrosive materials.Pressure control, air inlet and pumpThe pressure can be controlled to a value between 5 and 1,100 mbar. The permissible ultimate vacuum of the oven is 0.01 mbar, and the maximum leak rate is 0.01 bar/h. Suction is via a small flange DN16, and ventilation via the gas inlet with fresh air supply, which opens in a programmable and digitally controlled way. Suction and ventilation lines are made of material 1.4571 (ASTM 316 Ti).A pump is not included in the carton with the VO49. It is ordered as an accessory, for example the chemically resistant 4-head diaphragm pump E07509 with approx. 50 Nl./min (3.0 m³/h) at 230 V. The oven controls its speed, switches it ON and OFF via a signal output and triggers demand-based flushing cycles of the diaphragm. Signal cable B39410 and hose B04026 (3 m each) are additionally mandatory. The pump module PM49 (without pump) or PMP49 (with built-in pump) stands as a noise-damping base cabinet under the oven, and with the PMP49, signal cable and hose are not needed. Together with the base frame B63506, this gives a stacked unit of 1,650 mm height.Control, timing and data pathsThe ControlCOCKPIT works with an adaptive PID controller and two high-resolution TFT colour displays. Parameters such as temperature (Celsius or Fahrenheit), pressure and program runtime are settable, as are time zone and summer/winter time. The timer counts down from 1 minute to 99 days and states the target time, and SetpointWAIT shifts the start of timing to the moment when the setpoint temperature is reached. The setting accuracy is 0.1 °C up to a setpoint temperature of 99.9 °C, and 0.5 °C above that.Programs can be written, managed and loaded onto the unit via Ethernet LAN or USB with the AtmoCONTROL software. The program sequence is saved in the event of a power failure. Two current interfaces are available as factory options: V3 outputs the actual temperature value from 0 to 210 °C as 4 to 20 mA, V6 the value of a Pt100 that can be freely positioned in the interior (both only with T5).Protective devices and locationThe mechanical temperature limiter (protection class 1, DIN 12880) disconnects the heating at approximately 10 °C above the maximum oven temperature. The AutoSAFETY protection ASF follows the setpoint at a freely selectable interval and triggers an optical and acoustic alarm when exceeded or fallen below, and additionally the heating shutdown when exceeded. The door consists of a full-view glass pane with spring-mounted 15 mm safety glass on the inside and a splinter-protection pane on the outside.The location should be between +5 and +40 °C, and the humidity at most 80 %, non-condensing. At the sides 8 cm of space to the wall remain, 15 cm to the rear wall, 20 cm to the ceiling. During transport the oven must stand upright.Choosing a size: VO29, VO49 or VO101The VO29 offers 29 litres and one connection in the rear wall, at 40 kg unit load. It is sufficient if the load fits in 385 x 305 x 250 mm. The VO49 has 20 litres more internal volume and two connections. The VO101 reaches 545 x 465 x 400 mm interior at 710 mm external width and approx. 110 kg net weight, and the load capacity per shelf stays at 20 kg.Typical applicationsVacuum drying is the job of this oven. Typical materials to be dried in the series are food, cosmetics, granules, watches, books, printed circuit boards, electronic components and injection moulds.Drying food and cosmetics under vacuumDrying powder and granules with vacuum cyclesDrying printed circuit boards and electronic componentsVacuum drying of watches, books and injection mouldsTechnical detailsInternal volume49 lInternal dimensions (W x H x D)385 x 385 x 330 mmExternal dimensions (W x H x D)550 x 687 x 480 mm (depth plus 38 mm door handle)Setting temperature range+20 to +200 °CWorking temperature rangemin. 5 °C above room temperature to +200 °CTemperature setting accuracy0.1 °C up to 99.9 °C setpoint temperature, 0.5 °C from 100 °CTemperature sensorPt100, 4-wire measurement, separate for each thermal shelfVacuum range5 to 1,100 mbar, digital pressure controlPermissible ultimate vacuum0.01 mbarMaximum leak rate0.01 bar/hVacuum connectionSmall flange DN16, gas inlet with fresh air supplyThermal shelf connections2 in the rear wall (1st and 3rd level)Thermal shelves in scope of delivery1Shelves maximum2Max. load per shelf20 kgMax. load unit60 kgWeight netapprox. 83 kgWeight gross incl. cartonapprox. 104 kgCarton dimensions (W x H x D)670 x 890 x 630 mmControlControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2x TFT colour graphic displayTimerdigital countdown clock, 1 minute to 99 daysInterfacesEthernet LAN, USBConnection voltage230 V, 50/60 HzPermissible ambient temperature+5 to +40 °CPermissible humiditymax. 80 % rel., non-condensingOvervoltage category / pollution degreeII / 2MarkingsCE, VDE, cMETusOther sizes in the seriesThe three VO sizes differ in internal volume, while temperature and pressure range are the same:ModelInternal volumeSetting temperaturePressure rangeVO2929 l+20 to +200 °C5 to 1,100 mbarVO49 (this page)49 l+20 to +200 °C5 to 1,100 mbarVO101101 l+20 to +200 °C5 to 1,100 mbarScope of delivery1x Memmert Vacuum Drying Oven VO491 thermal shelf made of aluminium (material 3.3547) with integrated large-area heatingFactory calibration certificate for +160 °C at 20 mbar pressure for every supplied thermal shelfFull-view glass door with spring-mounted 15 mm thick safety glass on the inside and splinter-protection pane on the outsideRegulatory informationThe unit is an electrical device within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Notes on returning old devices can be found on our page Environment and disposal.Individual requirements and procurement serviceAvailable as factory options for the VO49 are the Premium module T5, the current interfaces V3 and V6, the potential-free contact H6 (24 V/2 A, NAMUR NE 28) as well as MobileALERT C3 and C4. C3 reports every fault by SMS and requires H6, while C4 reports two alarm messages (temperature and vacuum) and requires T5 and H6. Accessories include pump E07509, signal cable, hose, pump module PM49 or PMP49, base frame B63506, additional thermal shelves, USB-Ethernet adapter, Ethernet cable, user ID stick and the FDA licence FDAQ1. Services include factory calibration, IQ/OQ documents, on-site qualification and calibration, short training as well as maintenance and a maintenance contract (minimum term 3 years). For your specific requirements, LT Laborhandel puts together equipment and quotation individually.

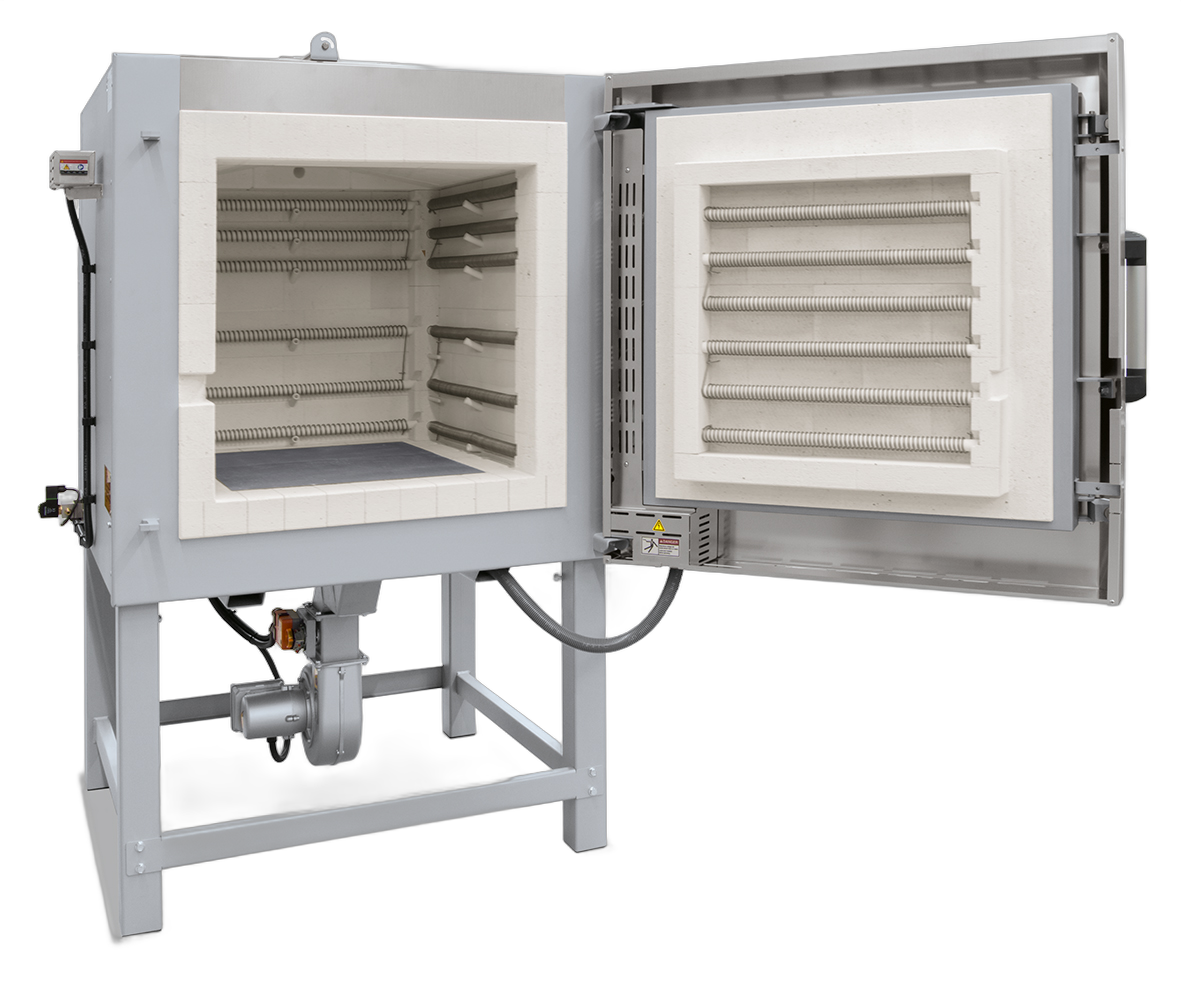

Nabertherm Chamber Furnace LH 216/12/B500, 216 l, Tmax 1,200 °C, Brick Insulation, LH2122NKNE
216 litres of usable space make the Nabertherm chamber furnace LH 216/12 the largest version in the brick-insulated LH series up to 1,200 °C. The interior measures 600 x 600 x 600 mm, the weight is 470 kg.Format, weight and installationExternally, the LH 216/12 measures around 990 x 1,280 x 1,590 mm depending on additional equipment. A base stand is already part of the scope of delivery. At 20 kW with a three-phase connection, the connected load is significantly higher than the LH 30/12 with 7 kW and the LH 120/12 with 12 kW, the three-phase supply at the installation site must be rated accordingly.Door, floor and ceiling archThe standard door is a fixed door with a hand-ground brick-on-brick seal. A recessed SiC plate in the floor protects the floor heating and provides a level surface for stacking the charge. The self-supporting ceiling arch gives the large furnace chamber stability and protects it against dust ingress. As a factory option, the fixed door can be replaced with a parallel swing door for protection against heat radiation or a lift door with electro-mechanical linear drive, an adjustable temperature limiter with adjustable cut-off temperature supplements the over-temperature protection if required. An optional cooling system cools the furnace with a predefined temperature gradient or a fixed fresh air volume and can be switched segment by segment via an extra function of the controller.Heating, insulation and controllerFive sides of the furnace chamber are heated, the heating elements sit on support tubes and radiate freely. The five-sided heating provides good temperature uniformity in the furnace chamber, freely radiating heating elements on support tubes provide a long service life. Behind this is a multi-layer brick insulation made of lightweight refractory bricks with special rear insulation, exclusively with materials without classification under CLP Regulation (EG) Nr. 1272/2008. The furnace is operated via the B500 controller, which is mounted in the door and removable, with five programs of four segments each via touch operation.Selection guideIf the furnace chamber is rarely used at full capacity, the LH 120/12 with 120 litres offers a smaller and lighter alternative in the same temperature class at LT Laborhandel. At 410 kg, the LH 120/12 weighs 60 kg less and requires a connected load of 12 kW, which is 8 kW less than the LH 216/12. If a higher final temperature is needed, Nabertherm also offers the series as LH 216/13 and LH 216/14, although these are currently not in the range at LT Laborhandel.Typical applicationsAs a factory option, the LH 216/12 can be equipped with a weighing device for loss on ignition determination. For processes with non-flammable process gases, a protective gas connection and a manual or automatic gas supply system are available, process control and documentation can be handled by the VCD software package if desired.Technical detailsTmax1,200 °CUsable volume216 lInternal dimensions (W x D x H)600 x 600 x 600 mmExternal dimensions (W x D x H)approx. 990 x 1,280 x 1,590 mm (varies with additional equipment)Connected load20 kWElectrical connectionthree-phaseWeight470 kgHeatingfive-sided, heating elements on support tubesInsulationLightweight refractory bricks, multi-layer with rear insulationDoorfixed door, brick-on-brick sealControllerB500, touch operation, 5 programs of 4 segments eachOther models in the seriesIn the 1,200 °C temperature class, Nabertherm builds the brick-insulated LH chamber furnace in five sizes from 15 to 216 litres.ModelVolumeTmaxLH 15/12 (on request)15 l1,200 °CLH 30/1230 l1,200 °CLH 60/12 (on request)60 l1,200 °CLH 120/12120 l1,200 °CLH 216/12 (this page)216 l1,200 °CScope of delivery1x Nabertherm chamber furnace LH 216/12 with standard B500 controllerBase standRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LH 216/12 include a parallel swing door, a lift door with electro-mechanical linear drive, a cooling system with predefined temperature gradient, a protective gas connection, a manual or automatic gas supply system, an exhaust hood or stainless steel flue, a weighing device for loss on ignition determination, an adjustable temperature limiter, and the VCD software package for process control and documentation. For individual requirements, LT Laborhandel provides personal consultation.

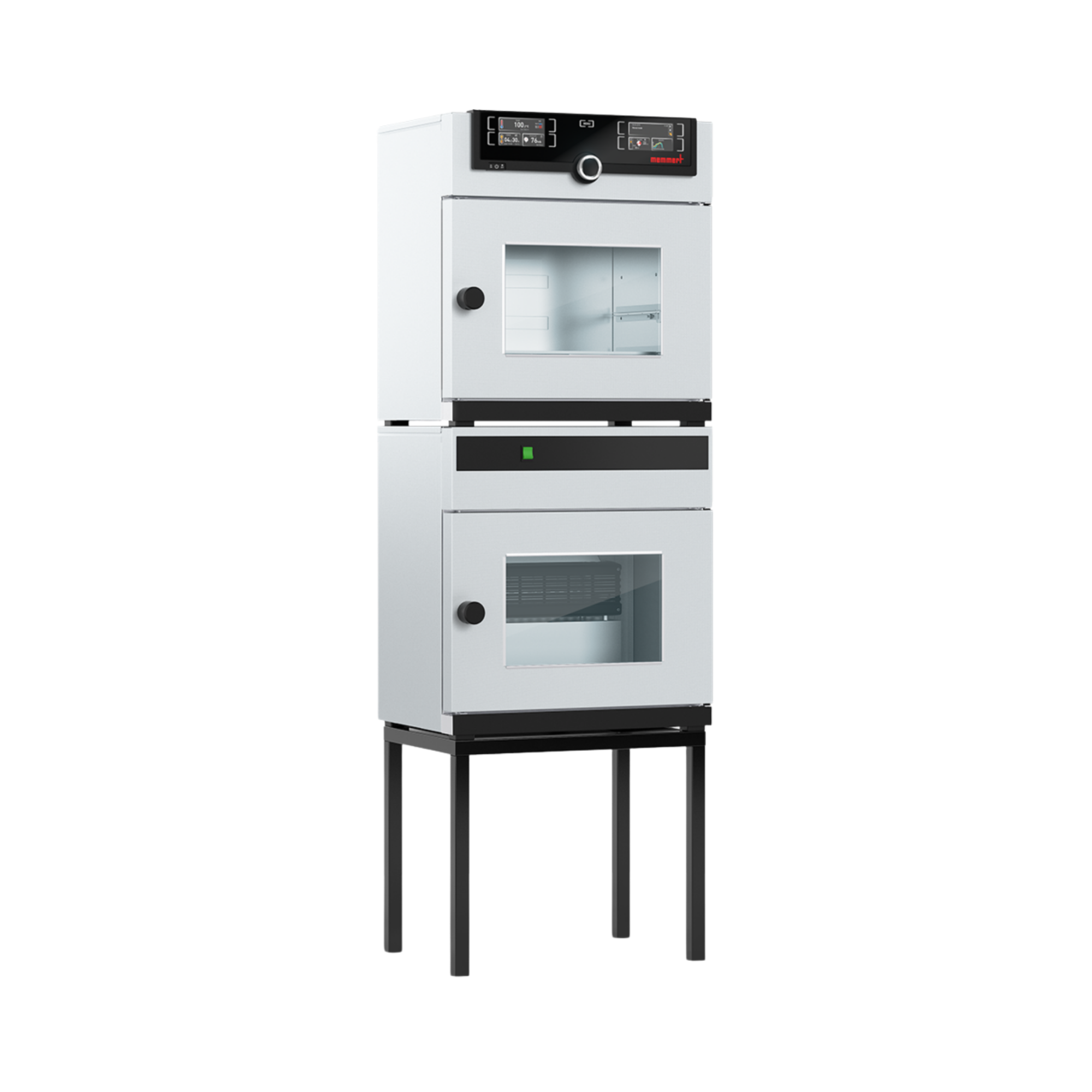

Memmert Vacuum Drying Oven VO29, 29 l, +20 to +200 °C, TwinDISPLAY
The Memmert Vacuum Drying Oven VO29 is the smallest size in the VO series. The interior holds 29 litres and measures 385 x 305 x 250 mm (W x H x D), the unit measures 550 x 607 x 400 mm externally, and the door handle adds 38 mm to the depth. At approx. 55 kg net weight, it is the lightest VO. The temperature is set between +20 and +200 °C, the pressure digitally between 5 and 1,100 mbar, and operation is via the TwinDISPLAY of the ControlCOCKPIT.Loading: one thermal shelf instead of a shelfThe scope of delivery includes a thermal shelf made of aluminium (material 3.3547) with integrated large-area heating. It replaces the shelf that is otherwise usual. Up to 2 shelves are possible in total, each may be loaded with 20 kg, and the unit as a whole with 40 kg. There is a connection for the thermal shelf in the rear wall. The Premium module T5 can be selected as a factory option when ordering and includes, among other things, further thermal shelf connections (one for size 29).The interior is hermetically sealed by welding and made of stainless steel 1.4404. A removable interior lining of the same material carries the support rails with tilt protection on the sides, and the ceiling lining serves against ventilation turbulence.Direct heating and temperature controlHeating takes place in the thermal shelf itself. A fuzzy-assisted MLC microprocessor control (Multi-Level-Controlling) adapts the heating power to shelf and load quantity, and measurement is by a Pt100 in 4-wire technology directly at the shelf. The working temperature range begins at least 5 °C above room temperature and ends at +200 °C. The setting accuracy is 0.1 °C up to a setpoint temperature of 99.9 °C and 0.5 °C from 100 °C. Every supplied thermal shelf comes with a factory calibration certificate for +160 °C at 20 mbar.Vacuum and pump connectionOn the outlet side, the VO29 has a small flange DN16, plus a gas inlet with fresh air supply and a programmable, digitally controlled air inlet. The pipework in the suction and ventilation area is made of material 1.4571 (ASTM 316 Ti). The permissible ultimate vacuum of the oven is 0.01 mbar, and the maximum leak rate is 0.01 bar/h.The vacuum pump is not part of the scope of delivery and is ordered separately. Memmert offers the chemically resistant 4-head diaphragm pump E07509 (approx. 50 Nl./min = 3.0 m³/h, 230 V). It runs with speed control, and the oven also outputs a pump ON/OFF signal and triggers demand-based flushing cycles of the pump diaphragms. Signal cable B39410 and connecting hose B04026 (3 m each) are required for this. As a noise-damping base cabinet there is the pump module PM29 (without pump, to hold the vacuum pump) or PMP29 (with built-in pump). Together with the base frame B63505, oven and pump module form a stacked unit with a total height of 1,650 mm. With the module with pump, signal cable and hose are not needed.Programs, timer and interfacesThe TwinDISPLAY consists of two high-resolution TFT colour graphic displays. Settable are temperature (Celsius or Fahrenheit), pressure, program runtime, time zone and summer/winter time, and the menu language is selected from nine languages. The digital countdown clock runs from 1 minute to 99 days with target time indication. With SetpointWAIT, the process time begins only when the setpoint temperature has been reached. Programs are created, managed and transferred via Ethernet LAN or USB with the AtmoCONTROL software. The program sequence is saved in the event of a power failure.Protection and installationA mechanical temperature limiter of protection class 1 to DIN 12880 switches the heating off at approximately 10 °C above the maximum oven temperature. In addition, the AutoSAFETY protection ASF follows the setpoint at a freely selectable interval, reports exceeding and falling below visually and acoustically, and switches the heating off when exceeded. A self-diagnosis system supports troubleshooting of the temperature control. The door is built as a full-view glass door: spring-mounted safety glass of 15 mm thickness on the inside, and a splinter-protection pane on the outside.Installation is at +5 to +40 °C ambient temperature and a maximum of 80 % relative humidity, non-condensing. A distance of 15 cm to the rear wall is to be observed, 20 cm to the ceiling and 8 cm at the sides. The unit is transported upright.Selection guide: when the VO29 is enoughThe VO29 fits if material to be dried and shelves fit within 385 x 305 x 250 mm and 20 kg per shelf is sufficient. The VO49 has the same internal width and the same external width of 550 mm, but offers 385 mm height and 330 mm depth, two thermal shelf connections from the factory and 60 kg unit load. Anyone who needs more height or depth switches to it. For even larger batches there is the series up to 101 litres, see size table below.Typical applicationsThe VO29 dries under vacuum. Typical materials to be dried are food, cosmetics, granules, watches, books, printed circuit boards, electronic components and injection moulds.Vacuum drying of food and cosmeticsDrying of granules and powder in vacuum cyclesDrying of printed circuit boards and electronic componentsVacuum drying of watches, books and injection mouldsTechnical detailsSetting temperature range+20 to +200 °CWorking temperature rangemin. 5 °C above room temperature to +200 °CTemperature setting accuracy0.1 °C up to 99.9 °C setpoint temperature, 0.5 °C from 100 °CTemperature sensorPt100, 4-wire measurement, separate for each thermal shelfVacuum range5 to 1,100 mbar, digital pressure controlPermissible ultimate vacuum0.01 mbarMaximum leak rate0.01 bar/hVacuum connectionSmall flange DN16, gas inlet with fresh air supplyInternal volume29 lInternal dimensions (W x H x D)385 x 305 x 250 mmExternal dimensions (W x H x D)550 x 607 x 400 mm (depth plus 38 mm door handle)Weight netapprox. 55 kgWeight gross incl. cartonapprox. 76 kgCarton dimensions (W x H x D)660 x 870 x 590 mmThermal shelves in scope of delivery1Shelves maximum2Max. load per shelf20 kgMax. load unit40 kgThermal shelf connection1 connection in the rear wallControlControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2x TFT colour graphic displayTimerdigital countdown clock, 1 minute to 99 daysInterfacesEthernet LAN, USBConnection voltage230 V, 50/60 HzPermissible ambient temperature+5 to +40 °CPermissible humiditymax. 80 % rel., non-condensingOvervoltage category / pollution degreeII / 2MarkingsCE, VDE, cMETusOther sizes in the seriesThe VO series comprises three sizes from 29 to 101 litres, all with TwinDISPLAY, sorted by internal volume:ModelInternal volumeSetting temperaturePressure rangeVO29 (this page)29 l+20 to +200 °C5 to 1,100 mbarVO4949 l+20 to +200 °C5 to 1,100 mbarVO101101 l+20 to +200 °C5 to 1,100 mbarScope of delivery1x Memmert Vacuum Drying Oven VO291 thermal shelf made of aluminium (material 3.3547) with integrated large-area heatingFactory calibration certificate for +160 °C at 20 mbar pressure for every supplied thermal shelfFull-view glass door, spring-mounted 15 mm thick safety glass on the inside, splinter-protection pane on the outsideRegulatory informationThe unit is an electrical device within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Notes on returning old devices can be found on our page Environment and disposal.Individual requirements and procurement serviceAvailable as factory options for the VO29 are the Premium module T5 (including inert gas switching), the current interface V6 (4 to 20 mA, temperature of a Pt100 that can be freely positioned in the interior, price per sensor, only with T5), the potential-free contact H6 to NAMUR NE 28 for fault messages and MobileALERT C3 for alarm notification by SMS (requires H6). Accessories include additional thermal shelves made of anodised aluminium (B00741) or stainless steel 1.4404 (B00733), the vacuum pump E07509 with signal cable and hose, the pump module PM29 or PMP29 with base frame B63505, USB-Ethernet adapter, Ethernet cable (5 m), USB user ID stick and the FDA licence FDAQ1 for AtmoCONTROL FDA. Services range from factory calibration (+50, +100 and +160 °C at 20 mbar) and IQ/OQ documents to short training, maintenance and an on-site maintenance contract. For individual requirements, LT Laborhandel will advise you personally.
Nabertherm Muffle Furnace LT 5/12/B510, 5 l, Tmax 1,200 °C, Lift Door, L-055H2AL
The Nabertherm LT 5/12 is the lift door version of the 5-litre size for Tmax 1,200 °C. The hot side of the door remains turned away from the operator, and with the lift door open, 205 mm are added to the external dimensions. Where this is more important during loading than using the door as a shelf, this is the appropriate design.Construction, heating and insulationThe usable space measures 205 x 170 x 130 mm internally, externally the furnace is 385 x 390 x 460 mm, with 205 mm added when the lift door is open. The housing is double-walled, rear-ventilated and made of textured stainless steel sheet. Heating is provided from two sides via ceramic heating plates with integrated heating wire, and the furnace is insulated exclusively with material without classification under the CLP Regulation (EG) Nr. 1272/2008, meaning without aluminium silicate wool (RCF fibre). The empty, closed furnace takes approximately 59 minutes to reach Tmax minus 100 K (230 V 1/N/PE or 400 V 3/N/PE), and the weight is 27 kg.Controller and thermocoupleControl is handled via the B510 touch controller with 5 programs of 4 segments each, and the heating operates quietly via solid-state relays. NTLog Basic logs process data on a USB flash drive. A type S thermocouple is installed for Tmax 1,200 °C, and at working temperatures above 800 °C, the temperature uniformity in the empty usable space with the inlet air slider closed is +/-5 K according to DIN 17052-1.Lift door and safetyWith the lift door, the hot side remains turned away from the operator, an adjustable air inlet is located in the door, and the exhaust air discharges through the rear wall. For additional over-temperature protection, an adjustable temperature limiter with an adjustable cut-off temperature can be ordered as an option.Selection guide for door type and temperature classThose who prefer to use the door as a shelf rather than lifting it will find the flap door variant with the same usable space and the same temperature class in the L 5/12 (item no. L-055K2AL). If the lower temperature class is sufficient, this size is also available with Tmax 1,100 °C, as the L 5/11 with flap door (item no. L-055K1AL) or as the LT 5/11 with lift door on request.Typical applicationsThe L/LT series is intended for use in laboratories and research. With the LT 5/12, the lift door design is added, which is suitable when the hot side should remain facing away from the operator during loading.Laboratory workstations requiring Tmax 1,200 °CApplications where the lift door design is preferredTechnical detailsManufacturer model designationLT 5/12Tmax1,200 °CWorking volume5 lInternal dimensions W x D x H205 x 170 x 130 mmExternal dimensions W x D x H385 x 390 x 460 mm (plus 205 mm with lift door open)Connected load2.6 kW, single-phaseWeight27 kgHeating time to Tmax -100 K59 min (empty, closed furnace, 230 V 1/N/PE or 400 V 3/N/PE)HeatingTwo sides, ceramic heating platesTemperature uniformity+/-5 K according to DIN 17052-1 (from 800 °C, empty usable space)ThermocoupleType SControlB510, touch, 5 programs with 4 segments eachDoorLift doorHousingdouble-walled, rear-ventilated, textured stainless steel sheetInsulation materialwithout CLP classification (EG) Nr. 1272/2008, no RCF fibreOther models in the seriesThe table shows all models of the L/LT series with Tmax 1,200 °C and lift door, sorted by working volume:ModelVolumeTmaxDoorLT 1/12 (on request)1 l1,200 °CLift doorLT 3/12 (on request)3 l1,200 °CLift doorLT 5/12 (this page)5 l1,200 °CLift doorLT 9/12 (on request)9 l1,200 °CLift doorLT 15/12 (on request)15 l1,200 °CLift doorLT 24/12 (on request)24 l1,200 °CLift doorLT 40/12 (on request)40 l1,200 °CLift doorLT 60/12 (on request)60 l1,200 °CLift doorScope of delivery1x Nabertherm muffle furnace LT 5/12 with controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement serviceFor the LT 5/12, the following can additionally be ordered from the factory: an exhaust chimney, optionally with fan or catalytic converter, an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection for purging with non-combustible process gases, a manual or automatic gas supply system, a thermocouple lead-through in the rear wall or furnace door, the VCD software package for process control and documentation, and a charging rack with multiple loading levels, usable up to 800 °C, 2 to 3.5 kg per level depending on the model. LT Laborhandel clarifies which option is suitable in a personal consultation.
Nabertherm High-Temperature Furnace LHT 03/17 D/P580, 4 l, Tmax 1,650 °C, Lift Door, LHT327WN1
With 4 litres of usable space, the Nabertherm high-temperature furnace LHT 03/17 D is the largest of the three LHT sizes with MoSi2 heating elements carried by LT Laborhandel, Tmax is 1,650 °C. It opens via a lift door and is controlled via the P580 touch controller.Heating and insulationMoSi2 heating elements (molybdenum disilicide) heat the furnace, maintaining extensive protection against chemical interactions between the charge and the heating elements. The insulation consists of high-quality fibre material without CLP classification under Regulation (EG) Nr. 1272/2008, aluminium silicate wool (RCF fibres) is not used.Interior and connectionThe interior measures 135 x 135 x 200 mm, externally the furnace measures 412 x 450 x 595 mm, with the lift door open, around 300 mm of additional height is added. The weight is 38 kg. The LHT 03/17 D is connected single-phase at 2.7 kW. Empty and closed, the furnace needs around 57 minutes to reach Tmax minus 100 K at 230 V.Controller P580 and thermocouple50 programs with 40 segments each can be stored in the P580 touch controller, ramps and holding times remain stored in it for recurring processes. Each segment covers a process step with its own heating rate and holding time, allowing multi-stage temperature profiles to be mapped in one program. NTLog Basic records the process data and outputs it via USB. In the D version, a type S thermocouple measures the furnace temperature.Selection guideIf 1 litre of usable space is sufficient, the LHT 01/17 D at the same Tmax of 1,650 °C is the more compact and lighter alternative at 28 instead of 38 kg weight. If a higher temperature is needed, the LHT 02/17 reaches Tmax 1,750 °C at 2 litres.Typical applicationsThe LHT series is intended for two main application fields across all sizes.Sintering of technical ceramics, for example zirconia dental bridgesResearch and laboratory as an all-rounder for high-temperature processesTechnical detailsTmax1,650 °CInternal dimensions (W x D x H)135 x 135 x 200 mmInternal volume4 lExternal dimensions (W x D x H)412 x 450 x 595 mm, plus approx. 300 mm when the lift door is openConnected load2.7 kW, single-phaseWeight38 kgHeating timeapprox. 57 min (empty, closed furnace to Tmax minus 100 K, at 230 V 1/N/PE)HeatingMoSi2 heating elements (molybdenum disilicide)InsulationHigh-quality fibre materialDoorLift doorControllerP580, touch operation, 50 programs of 40 segments eachOther models in the seriesWithin the LHT series, the 03/17 D covers only a section, the complete series spans four temperature classes from 1,600 to 1,800 °C and usable spaces between 1 and 8 litres, sorted by model designation:ModelVolumeTmaxDoorLHT 02/16 (on request)2 l1,600 °CLift doorLHT 04/16 (on request)4 l1,600 °CLift doorLHT 08/16 (on request)8 l1,600 °CLift doorLHT 01/17 D1 l1,650 °CLift doorLHT 03/17 D (this page)4 l1,650 °CLift doorLHT 02/172 l1,750 °CLift doorLHT 04/17 (on request)4 l1,750 °CLift doorLHT 08/17 (on request)8 l1,750 °CLift doorLHT 02/18 (on request)2 l1,800 °CLift doorLHT 04/18 (on request)4 l1,800 °CLift doorLHT 08/18 (on request)8 l1,800 °CLift doorScope of delivery1x Nabertherm high-temperature furnace LHT 03/17 D with P580 controllerRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LHT 03/17 D include an adjustable temperature limiter with adjustable cut-off temperature, a thermocouple feedthrough in the furnace ceiling, a protective gas connection for non-flammable process gases, and a manual or automatic gas supply system. Stackable charge containers for loading in multiple levels can also be added. For individual requirements, LT Laborhandel provides personal consultation.

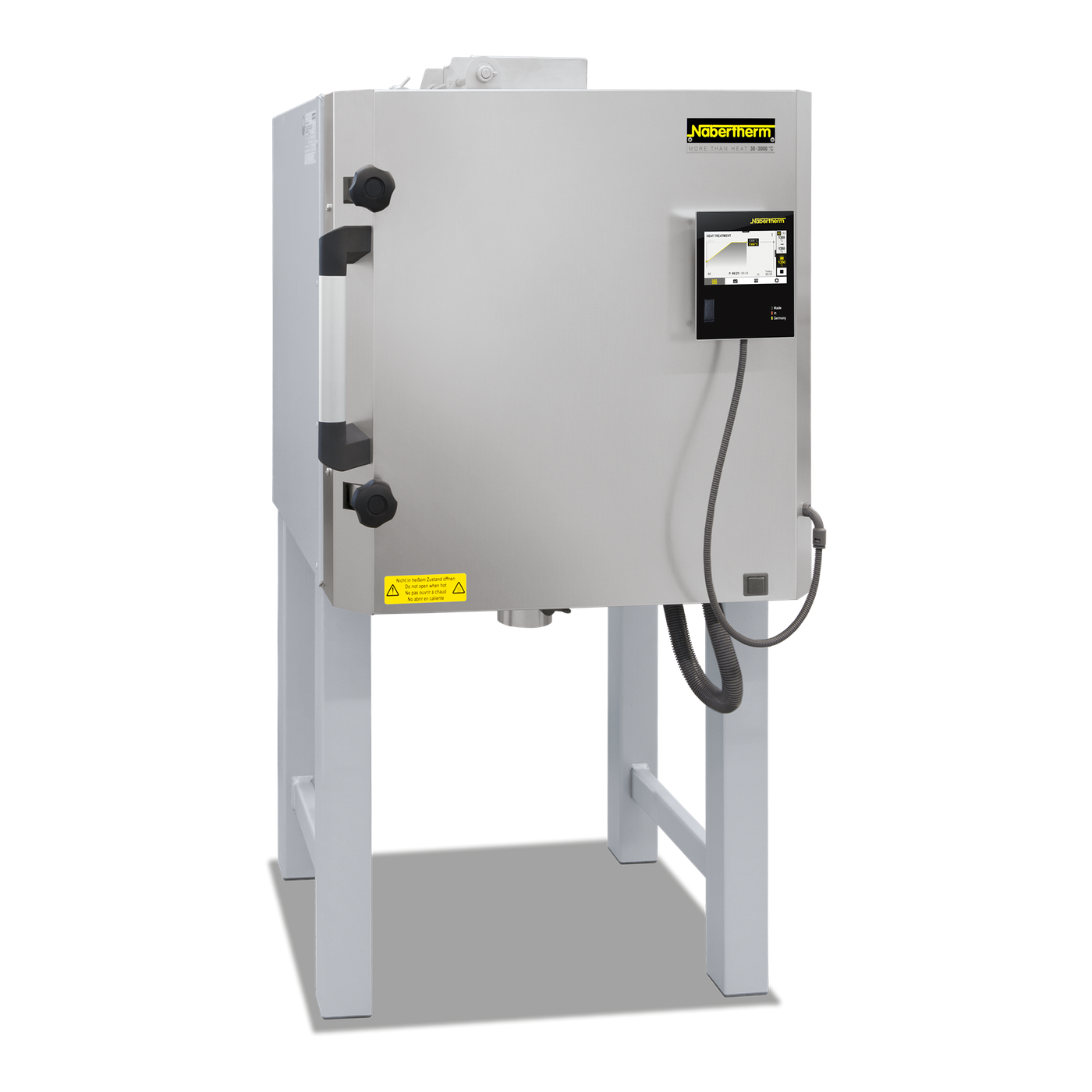

Nabertherm Chamber Furnace LF 30/14/B500, 30 l, Tmax 1,400 °C, Fibre Insulation, LF0342NKNE
Unlike the LH models, the Nabertherm chamber furnace LF 30/14 uses a high-quality fibre insulation with bricked corner stones instead of lightweight refractory bricks. The fibre insulation shortens the heating and cooling times compared to the brick insulation, with the same usable space of 30 litres and the same Tmax of 1,400 °C as the LH 30/14.Fibre insulation instead of brickThe LF 30/14 weighs 180 kg, the brick-insulated LH 30/14 version weighs 200 kg. Internal dimensions, external dimensions and connected load are the same for both models.Interior and doorInternally, the usable space measures 320 x 320 x 320 mm, externally the furnace measures around 710 x 930 x 1,290 mm depending on additional equipment. The standard door is a fixed door with a brick-on-brick seal, hand-ground, a recessed SiC plate in the floor protects the floor heating and serves as a level stacking surface. The housing is made of double-walled textured stainless steel sheet, which keeps the external temperature low and gives the furnace stability. As a factory option, the fixed door can be replaced with a parallel swing door with protection against heat radiation or a lift door with electro-mechanical linear drive. An adjustable temperature limiter with adjustable cut-off temperature additionally protects furnace and charge against over-temperature if required.Heating, connection and controllerFive sides of the furnace chamber are heated, heating elements on support tubes radiate freely into the interior. The five-sided heating is designed to provide good temperature uniformity in the furnace chamber, freely radiating heating elements on support tubes for a long service life. The connection is three-phase at 10 kW, although the heating itself only operates between two phases. The installed heating power is generously dimensioned and enables short heating times. An optional cooling system with predefined temperature gradient or fixed fresh air volume can be switched segment by segment via an extra function of the controller. The B500 controller is mounted in the door, removable for operation, and stores five programs of four segments each via touch operation.Selection guideAnyone who prefers a brick insulation made of lightweight refractory bricks will find the matching alternative at LT Laborhandel with the LH 30/14 at the same volume and the same Tmax. Compared to the LH 30/14 with the same volume and the same Tmax, the fibre insulation saves 20 kilograms of weight, with an otherwise identical connected load of 10 kW. If a lower final temperature is sufficient, the fibre insulation is also available as LF 30/13 up to 1,300 °C, Nabertherm only builds models up to 1,200 °C with brick insulation. If more volume is needed, Nabertherm also offers the fibre insulation as LF 60/14 with double and as LF 120/14 with four times the usable space compared to the LF 30/14.Typical applicationsWith the weighing device available as a factory option, the LF 30/14 can be set up for loss on ignition determination. For processes with non-flammable process gases, a protective gas connection and a manual or automatic gas supply system are available, process control and documentation can be handled by the VCD software package if desired.Technical detailsTmax1,400 °CUsable volume30 lInternal dimensions (W x D x H)320 x 320 x 320 mmExternal dimensions (W x D x H)approx. 710 x 930 x 1,290 mm (varies with additional equipment)Connected load10 kWElectrical connectionthree-phase (heating only between two phases)Weight180 kgHeatingfive-sided, heating elements on support tubesInsulationFibre insulation with bricked corner stonesDoorfixed door, brick-on-brick sealControllerB500, touch operation, 5 programs of 4 segments eachOther models in the seriesIn the 1,400 °C temperature class, the fibre-insulated LF chamber furnace is available in four sizes from 15 to 120 litres.ModelVolumeTmaxLF 15/14 (on request)15 l1,400 °CLF 30/14 (this page)30 l1,400 °CLF 60/14 (on request)60 l1,400 °CLF 120/14 (on request)120 l1,400 °CScope of delivery1x Nabertherm chamber furnace LF 30/14 with standard B500 controllerBase standRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LF 30/14 include a parallel swing door, a lift door with electro-mechanical linear drive, a cooling system with predefined temperature gradient, a protective gas connection, a manual or automatic gas supply system, an exhaust hood or stainless steel flue, a weighing device for loss on ignition determination, an adjustable temperature limiter, and the VCD software package for process control and documentation. For individual requirements, LT Laborhandel provides personal consultation.
Nabertherm High-Temperature Furnace LHT 01/17 D/P580, 1 l, Tmax 1,650 °C, Lift Door, LHT147WNA
The Nabertherm high-temperature furnace LHT 01/17 D is the smallest size in the LHT series with MoSi2 heating elements and reaches up to 1,650 °C with 1 litre of usable space. The lift door opens upwards. The furnace is operated via the P580 touch controller.Construction and connectionThe interior measures 110 x 120 x 120 mm, externally the LHT 01/17 D measures 385 x 425 x 525 mm, with the lift door open, around 195 mm of additional height is added. At 28 kg, it is designed as a benchtop model. The electrical connection is single-phase at 1.95 kW, a three-phase supply is not required for this. The empty, closed furnace heats up to Tmax minus 100 K in around 27 minutes at 230 V.Heating and insulationThe high-quality heating elements are made of molybdenum disilicide (MoSi2). This maintains extensive protection against chemical interactions between the charge and the heating elements. The furnace is insulated with high-quality fibre material without classification under CLP Regulation (EG) Nr. 1272/2008, aluminium silicate wool (RCF fibres) is not used.Control and safetyThe P580 controller has a touch display and stores up to 50 programs with 40 segments each, temperature ramps and holding times can be permanently stored with it. Via NTLog Basic, the controller records process data and outputs it to a USB stick. In the D version, a type S thermocouple measures the furnace temperature. An adjustable air inlet opening and an exhaust opening in the ceiling provide air exchange in the furnace chamber.Selection guideAnyone who needs more volume for larger charges will find 4 litres of usable space in the LHT 03/17 D at the same Tmax of 1,650 °C. If the temperature needs to exceed 1,650 °C, the LHT 02/17 with 2 litres and Tmax 1,750 °C is closer to the requirement.Typical applicationsThe LHT series with MoSi2 heating elements is intended for two main application fields.Sintering of technical ceramics, for example zirconia dental bridgesResearch and laboratory, as an all-rounder for high-temperature processesTechnical detailsTmax1,650 °CInternal dimensions (W x D x H)110 x 120 x 120 mmInternal volume1 lExternal dimensions (W x D x H)385 x 425 x 525 mm, plus approx. 195 mm when the lift door is openConnected load1.95 kW, single-phaseWeight28 kgHeating timeapprox. 27 min (empty, closed furnace to Tmax minus 100 K, at 230 V 1/N/PE)HeatingMoSi2 heating elements (molybdenum disilicide)InsulationHigh-quality fibre materialDoorLift doorControllerP580, touch operation, 50 programs of 40 segments eachOther models in the seriesThe LHT series with MoSi2 heating elements ranges from 1 to 8 litres of usable space across four temperature classes between 1,600 °C and 1,800 °C, sorted here by model designation:ModelVolumeTmaxDoorLHT 02/16 (on request)2 l1,600 °CLift doorLHT 04/16 (on request)4 l1,600 °CLift doorLHT 08/16 (on request)8 l1,600 °CLift doorLHT 01/17 D (this page)1 l1,650 °CLift doorLHT 03/17 D4 l1,650 °CLift doorLHT 02/172 l1,750 °CLift doorLHT 04/17 (on request)4 l1,750 °CLift doorLHT 08/17 (on request)8 l1,750 °CLift doorLHT 02/18 (on request)2 l1,800 °CLift doorLHT 04/18 (on request)4 l1,800 °CLift doorLHT 08/18 (on request)8 l1,800 °CLift doorScope of delivery1x Nabertherm high-temperature furnace LHT 01/17 D with P580 controllerRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LHT 01/17 D include an adjustable temperature limiter with adjustable cut-off temperature, a thermocouple feedthrough in the furnace ceiling, a protective gas connection for non-flammable process gases, and a manual or automatic gas supply system. Depending on requirements, stackable charge containers for loading in multiple levels can also be added. For individual requirements, LT Laborhandel provides personal consultation.

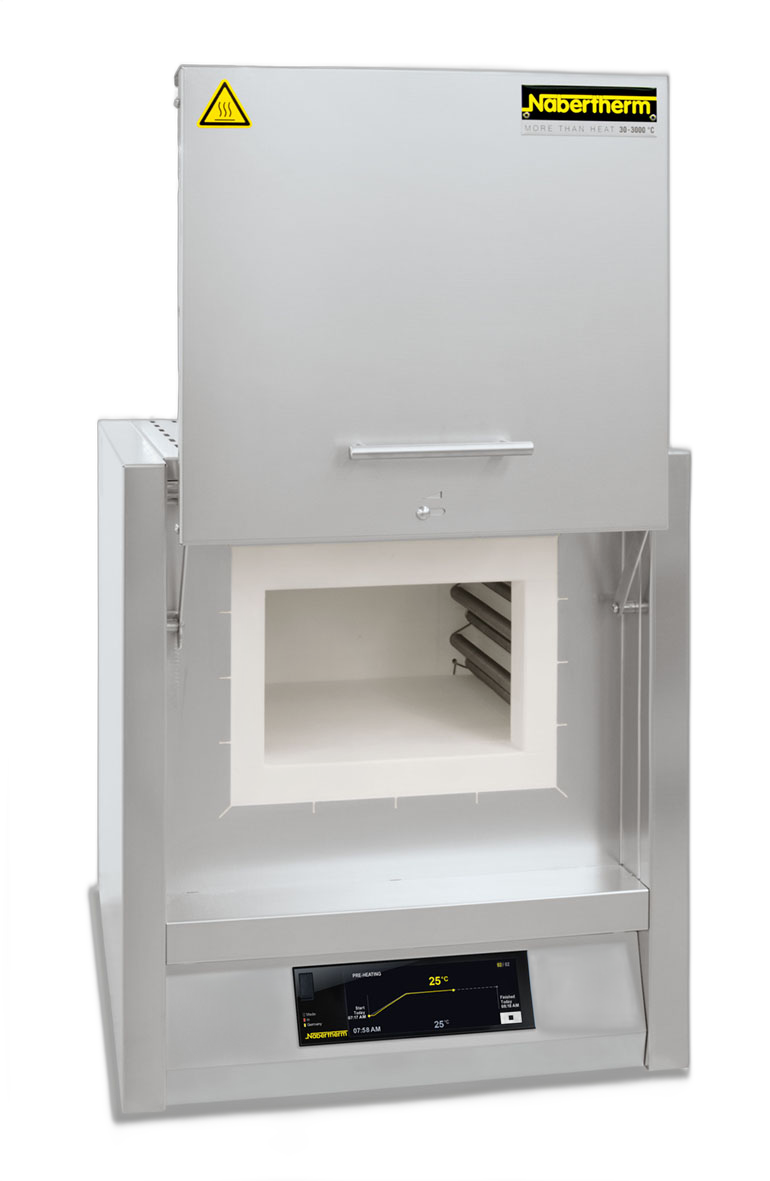

Nabertherm Muffle Furnace LT 9/14/B510, 9 l, Tmax 1,400 °C, Lift Door, L-095H4AL
The Nabertherm muffle furnace LT 9/14 is the lift door version of the 9 litre size up to 1,400 °C, with a flap door the same volume is called L 9/14. At 9 litres volume and Tmax 1,400 °C, the heating elements sit on support tubes on two sides of the furnace chamber, insulation is exclusively with material without classification under the CLP Regulation (EG) Nr. 1272/2008.Lift door and space requirementThe lift door opens vertically upwards and requires an additional 350 mm of clearance above the housing. Inside, the usable space measures 250 x 250 x 170 mm (W x D x H), externally the LT 9/14 measures 530 x 525 x 630 mm, the weight is 55 kg. Those who want to install the furnace under an extraction hood or in a low fume cupboard should plan for the 350 mm of lift travel in advance. The housing is double walled, made of textured stainless steel sheet, the heating elements on support tubes are designed for free heat radiation and a long service life.Insulation and air inletThe insulation consists exclusively of materials without classification under the CLP Regulation. An adjustable air inlet opening sits in the door, the exhaust air escapes via an opening in the rear wall. The furnace runs single phase with a connected load of 3.5 kW and reaches Tmax minus 100 K, that is 1,300 °C, in around 50 minutes when empty and closed.Controller B510The touch controller B510 stores five programs of four segments each. This allows different temperature profiles for various sample types to be stored once and recalled repeatedly afterwards, without entering the values again each time.Temperature uniformityAccording to DIN 17052-1, the temperature uniformity in the empty usable space with the air inlet slide closed and a working temperature above 800 °C is ±5 K. An adjustable temperature limiter with adjustable cut-off temperature can be ordered as a factory option.Selection guideIf little space is available above the furnace in the laboratory, the flap door variant L 9/14 (article no. L-095K4AL) at the same volume and Tmax is the alternative, the additional 350 mm with the door open applies only to the lift door. If a final temperature of 1,300 °C is sufficient, the brick insulation series also offers a more compact lift door version with less usable volume in the LT 5/13.Typical applicationsThe series is intended for use in laboratory and research. With Tmax 1,400 °C and 9 litres of usable volume, the LT 9/14 suits samples that need a higher final temperature than the 1,300 °C series. Those who prefer working with a lift door rather than a flap door get the same usable space and the same Tmax here as with the L 9/14.Technical detailsTmax1,400 °CUsable volume9 lInternal dimensions (W x D x H)250 x 250 x 170 mmExternal dimensions (W x D x H)530 x 525 x 630 mm (+350 mm with lift door open)Connected load3.5 kWElectrical connectionsingle phaseWeight55 kgHeating timeapprox. 50 min (empty, closed furnace to Tmax minus 100 K)Heatingtwo sides, heating elements on support tubesInsulationwithout classification under Regulation (EG) Nr. 1272/2008 (CLP)DoorLift doorControllerB510, touch operation, 5 programs of 4 segments eachTemperature uniformity±5 K according to DIN 17052-1 (from 800 °C working temperature)Other models in the seriesThe Nabertherm muffle furnace series up to 1,400 °C comprises six variants in three sizes with flap or lift door.ModelVolumeTmaxDoorL 5/14 (on request)5 l1,400 °CFlap doorLT 5/14 (on request)5 l1,400 °CLift doorL 9/149 l1,400 °CFlap doorLT 9/14 (this page)9 l1,400 °CLift doorL 15/14 (on request)15 l1,400 °CFlap doorLT 15/14 (on request)15 l1,400 °CLift doorScope of delivery1x Nabertherm muffle furnace LT 9/14 with standard controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LT 9/14 include an exhaust chimney (also with fan or catalytic converter), an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection, and a manual or automatic gas supply system. For individual requirements, LT Laborhandel provides personal advice.
Nabertherm Muffle Furnace L 9/12/B510, 9 l, Tmax 1,200 °C, Flap Door, L-095K2AL
The Nabertherm L 9/12 offers 9 litres of usable space at Tmax 1,200 °C. With a heating time of around 78 minutes, it needs considerably longer than the 1,100 °C sister model, but in return it covers the higher temperature class with a type S thermocouple.Construction, heating and insulationThe L 9/12 takes 78 minutes, empty and closed, to reach Tmax minus 100 K, that is 1,100 °C. The L 9/11 reaches its target value of 1,000 °C in 63 minutes, 15 minutes earlier. The usable space remains the same size at 235 x 240 x 170 mm, externally the furnace measures 415 x 455 x 515 mm. Heating is on both sides via ceramic plates with embedded heating wire, installed in the double walled, rear ventilated housing made of textured stainless steel sheet. For insulation, Nabertherm uses a material that carries no CLP classification under Regulation (EG) Nr. 1272/2008, aluminium silicate wool is not used.Controller and thermocoupleThe L 9/12 is operated via the B510, a touch controller with 5 programs of 4 segments each. A USB stick records the process data via NTLog Basic, solid state relays keep the heating quiet. In the empty usable space with the air inlet slide closed and above 800 °C working temperature, the temperature uniformity according to DIN 17052-1 is +/-5 K.Flap door and safetyThe flap door can be used as a shelf during loading, an opening in the door regulates the air inlet, the exhaust air escapes at the rear. More protection against over-temperature is offered by the optionally available adjustable temperature limiter with adjustable cut-off temperature.Selection guide for the right temperature classThose who do not need to go beyond 1,100 °C will find the version with a type N thermocouple in the L 9/11 (article no. L-095K1AL). For more usable space at 1,200 °C, the L 15/12 with 15 litres is available.Typical applicationsThe L/LT series is intended for use in laboratory and research. The L 9/12 suits where 9 litres of usable space are sufficient, but the samples need temperatures up to 1,200 °C.Laboratory samples requiring temperatures up to 1,200 °CResearch setups with 9 litres of usable spaceTechnical detailsManufacturer model designationL 9/12Tmax1,200 °CUsable volume9 lInternal dimensions W x D x H235 x 240 x 170 mmExternal dimensions W x D x H415 x 455 x 515 mmConnected load3.3 kW, single phaseWeight35 kgHeating time to Tmax -100 K78 min (empty, closed furnace, 230 V 1/N/PE or 400 V 3/N/PE)HeatingTwo sides, ceramic heating platesTemperature uniformity+/-5 K according to DIN 17052-1 (from 800 °C, empty usable space)ThermocoupleType SControlB510, touch, 5 programs of 4 segments eachDoorFlap doorHousingdouble walled, rear ventilated, textured stainless steel sheetInsulation materialwithout CLP classification (EG) Nr. 1272/2008, no RCF fibreOther models in the seriesThe table shows all models in the L/LT series with Tmax 1,200 °C and flap door, sorted by usable volume:ModelVolumeTmaxDoorL 1/12 (on request)1 l1,200 °CFlap doorL 3/123 l1,200 °CFlap doorL 5/125 l1,200 °CFlap doorL 9/12 (this page)9 l1,200 °CFlap doorL 15/1215 l1,200 °CFlap doorL 24/12 (on request)24 l1,200 °CFlap doorL 40/12 (on request)40 l1,200 °CFlap doorL 60/12 (on request)60 l1,200 °CFlap doorScope of delivery1x Nabertherm muffle furnace L 9/12 with controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceAdditional equipment for the L 9/12 is available ex works in the form of an exhaust chimney (also with fan or catalytic converter), a temperature limiter, a protective gas connection for purging with non-flammable process gases, and a manual or automatic gas supply system. In addition, there is a thermocouple feedthrough in the rear wall or door, the VCD software package, and a charging frame for several levels up to 800 °C (2 to 3.5 kg per level, depending on the model). A conversation with LT Laborhandel is the best way to clarify which combination suits the process.

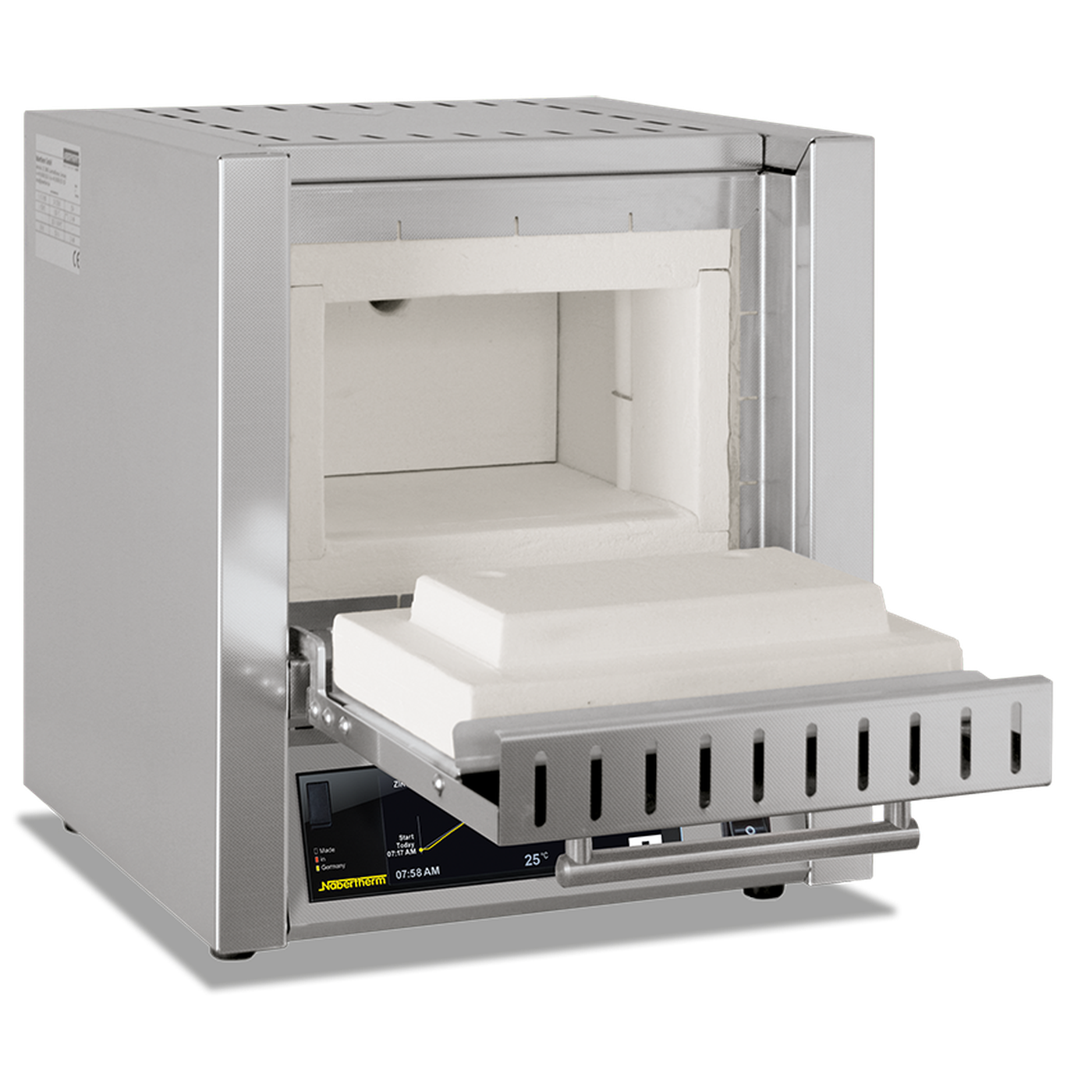

Nabertherm Muffle Furnace L 5/12/B510, 5 l, Tmax 1,200 °C, Flap Door, L-055K2AL
The Nabertherm L 5/12 combines 5 litres of usable space with Tmax 1,200 °C and a flap door that also serves as a shelf. Compared with the 1,100 °C version, it takes somewhat longer to heat up at around 59 minutes and works with a type S thermocouple.Construction, heating and insulationInside, the usable space measures 205 x 170 x 130 mm, externally 385 x 390 x 460 mm. The double walled, rear ventilated housing is made of textured stainless steel sheet, heating is from two sides via ceramic heating plates with integrated heating wire. As insulation material, exclusively a variant without classification under the CLP Regulation (EG) Nr. 1272/2008 is used, aluminium silicate wool (RCF fibre) is not installed. At 230 V 1/N/PE or 400 V 3/N/PE, heating the empty, closed furnace to Tmax minus 100 K takes around 59 minutes, the weight is 27 kg.Controller and thermocoupleOperation is via the touch controller B510 with 5 programs of 4 segments each. NTLog Basic records process data on a USB stick, the heating works quietly via solid state relays. For Tmax 1,200 °C, a type S thermocouple is installed, the temperature uniformity at working temperatures above 800 °C in the empty usable space with the air inlet slide closed is +/-5 K according to DIN 17052-1.Flap door and safetyThe flap door can be used as a shelf during loading, an adjustable air inlet opening sits in the door, the exhaust air is drawn off via the rear wall. An adjustable temperature limiter with adjustable cut-off temperature is optionally available as additional over-temperature protection.Selection guide for door type and temperature classThose who prefer the hot side facing away from the operator when opening will find the lift door variant at the same usable space and temperature class in the LT 5/12 (article no. L-055H2AL). If the lower temperature class is sufficient, the L 5/11 with Tmax 1,100 °C offers an alternative.Typical applicationsThe L/LT series is intended for use in laboratory and research. The L 5/12 suits where 5 litres of usable space are sufficient, but temperatures up to 1,200 °C are needed.Laboratory samples requiring temperatures up to 1,200 °CResearch setups with 5 litres of usable spaceTechnical detailsManufacturer model designationL 5/12Tmax1,200 °CUsable volume5 lInternal dimensions W x D x H205 x 170 x 130 mmExternal dimensions W x D x H385 x 390 x 460 mmConnected load2.6 kW, single phaseWeight27 kgHeating time to Tmax -100 K59 min (empty, closed furnace, 230 V 1/N/PE or 400 V 3/N/PE)HeatingTwo sides, ceramic heating platesTemperature uniformity+/-5 K according to DIN 17052-1 (from 800 °C, empty usable space)ThermocoupleType SControlB510, touch, 5 programs of 4 segments eachDoorFlap doorHousingdouble walled, rear ventilated, textured stainless steel sheetInsulation materialwithout CLP classification (EG) Nr. 1272/2008, no RCF fibreOther models in the seriesThe table shows all models in the L/LT series with Tmax 1,200 °C and flap door, sorted by usable volume:ModelVolumeTmaxDoorL 1/12 (on request)1 l1,200 °CFlap doorL 3/123 l1,200 °CFlap doorL 5/12 (this page)5 l1,200 °CFlap doorL 9/129 l1,200 °CFlap doorL 15/1215 l1,200 °CFlap doorL 24/12 (on request)24 l1,200 °CFlap doorL 40/12 (on request)40 l1,200 °CFlap doorL 60/12 (on request)60 l1,200 °CFlap doorScope of delivery1x Nabertherm muffle furnace L 5/12 with controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the L 5/12 include an exhaust chimney, optionally with fan or catalytic converter, an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection for purging with non-flammable process gases, a manual or automatic gas supply system, a thermocouple feedthrough in the rear wall or furnace door, the VCD software package for process control and documentation, and a charging frame with multiple loading levels, usable up to 800 °C with 2 to 3.5 kg per level depending on the model. LT Laborhandel provides personal advice on this.
Nabertherm High-Temperature Furnace LHTCT 01/16/C550, 1.5 l, Tmax 1,550 °C, Lift Door, LC014H6ON1
The Nabertherm high-temperature furnace LHTCT 01/16 heats with SiC heating rods up to 1,550 °C and has 1.5 litres of usable space in the lift door version. It is operated via the C550 touch controller. At 1.5 litres, it is the most compact size in the LHTC/LHTCT series with SiC rod heating.Construction and connectionThe interior measures 110 x 120 x 120 mm, externally the furnace measures 340 x 335 x 485 mm, with the LHTCT model open, up to 255 mm of additional height is added. The weight is 20 kg. The connection is single-phase at 3.5 kW, the empty, closed furnace heats up to Tmax minus 100 K in around 30 minutes at 230 V.Heating with SiC heating rodsThe silicon carbide (SiC) heating rods are controlled via a switch cabinet with solid-state relays matched to the rods in terms of power. The heating rods are easy to replace. The interior is insulated with high-quality fibre material without classification under Regulation (EG) Nr. 1272/2008, aluminium silicate wool (RCF fibres) is not used.Door and safetySize 01/16 is only available with a lift door, the larger LHTC/LHTCT sizes allow a choice between flap door and lift door at no extra cost. The flap door can also be used as a shelf, with the lift door the hot side faces away from the operator when opening. An adjustable air inlet opening and an exhaust opening in the ceiling provide air exchange in the furnace chamber.Control with the C550 controllerThe C550 controller has a touch display and stores up to 10 programs with 20 segments each for temperature ramps and holding times. The C550 is the standard controller for all three sizes in the LHTC/LHTCT series, so the operation stays the same when changing size.Selection guideAnyone who needs more volume and wants to choose between flap door and lift door will find the next size in the series in the LHTC 08/16 with 8 litres of usable space and Tmax 1,600 °C. A medium size with 3 litres and also a selectable door is the LHTC 03/16 size, which is currently not carried in the LT shop and is available on request.Typical applicationsThe LHTCT 01/16 is designed for high-temperature processes in the laboratory up to 1,550 °C, heated with SiC heating rods and insulated with fibre material. As a factory option, it can be equipped with a protective gas connection for purging with non-flammable process gases, the furnace is not gas-tight in this case. A manual or automatic gas supply system can also be ordered. Within the series, the choice depends mainly on the usable space between 1.5 and 8 litres and on the door version.Technical detailsTmax1,550 °CInternal dimensions (W x D x H)110 x 120 x 120 mmInternal volume1.5 lExternal dimensions (W x D x H)340 x 335 x 485 mm, plus up to 255 mm when the LHTCT model is openConnected load3.5 kW, single-phaseWeight20 kgHeating timeapprox. 30 min (empty, closed furnace to Tmax minus 100 K, at 230 V 1/N/PE)HeatingSiC heating rods (silicon carbide)InsulationHigh-quality fibre materialDoorLift doorControllerC550, touch operation, 10 programs of 20 segments eachOther models in the seriesThe LHTC/LHTCT series with SiC heating comprises three sizes between 1.5 and 8 litres of usable space, only the smallest size 01/16 is only available with a lift door:ModelVolumeTmaxDoorLHTCT 01/16 (this page)1.5 l1,550 °CLift doorLHTC 03/16 (on request)3 l1,600 °CFlap doorLHTC 08/168 l1,600 °CFlap doorScope of delivery1x Nabertherm high-temperature furnace LHTCT 01/16 with C550 controllerRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LHTCT 01/16 include an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection for non-flammable process gases, and a manual or automatic gas supply system. The adjustable temperature limiter, with its adjustable cut-off temperature, serves as over-temperature protection for furnace and charge. For individual requirements, LT Laborhandel provides personal consultation.
Nabertherm High-Temperature Furnace LHT 02/17/P580, 2 l, Tmax 1,750 °C, Lift Door, LHT237WN1
With Tmax 1,750 °C, the Nabertherm high-temperature furnace LHT 02/17 reaches the highest temperature class of the three LHT sizes carried by LT Laborhandel, the usable space is 2 litres. The lift door opens upwards, control is via the P580 touch controller. Unlike the 01/17 D and 03/17 D models, the 02/17 does not carry a D suffix in the model designation.Construction and connectionThe interior measures 130 x 145 x 130 mm, externally the furnace measures 430 x 450 x 570 mm, with the lift door open, around 325 mm of additional height is added. The weight is 33 kg, placing the furnace between the two D variants at 28 and 38 kg. The connection is single-phase at 3.4 kW. The heating time to Tmax minus 100 K for the empty, closed furnace at 230 V is around 46 minutes.Heating and insulationThe high-quality MoSi2 heating elements (molybdenum disilicide) offer extensive protection against chemical interactions between the charge and the heating elements. The furnace is insulated with high-quality fibre material without CLP classification under Regulation (EG) Nr. 1272/2008, aluminium silicate wool (RCF fibres) is not used.Controller and air flowThe P580 touch controller stores up to 50 programs with 40 segments each, each segment covering its own process step with heating rate and holding time. Via NTLog Basic, the controller records process data to a USB stick. An adjustable air inlet opening and an exhaust opening in the ceiling provide air exchange in the furnace chamber.Selection guideAnyone who needs more usable space at a lower temperature requirement up to 1,650 °C will find 4 litres in the LHT 03/17 D, the LHT 01/17 D offers 1 litre with a more compact design and lower weight.Typical applicationsFurnaces in the LHT series with MoSi2 heating elements are intended for two application fields.Sintering of technical ceramics, such as zirconia dental bridgesResearch and laboratory as an all-rounder for high-temperature processesFor sintering processes with a higher temperature requirement, the LHT 02/17 with Tmax 1,750 °C is the size with the greatest reserve of the three LHT furnaces carried by LT Laborhandel.Technical detailsTmax1,750 °CInternal dimensions (W x D x H)130 x 145 x 130 mmInternal volume2 lExternal dimensions (W x D x H)430 x 450 x 570 mm, plus approx. 325 mm when the lift door is openConnected load3.4 kW, single-phaseWeight33 kgHeating timeapprox. 46 min (empty, closed furnace to Tmax minus 100 K, at 230 V 1/N/PE)HeatingMoSi2 heating elements (molybdenum disilicide)InsulationHigh-quality fibre materialDoorLift doorControllerP580, touch operation, 50 programs of 40 segments eachOther models in the seriesThe complete LHT series comprises eleven models between 1 and 8 litres of usable space and four temperature classes from 1,600 to 1,800 °C, sorted below by model designation:ModelVolumeTmaxDoorLHT 02/16 (on request)2 l1,600 °CLift doorLHT 04/16 (on request)4 l1,600 °CLift doorLHT 08/16 (on request)8 l1,600 °CLift doorLHT 01/17 D1 l1,650 °CLift doorLHT 03/17 D4 l1,650 °CLift doorLHT 02/17 (this page)2 l1,750 °CLift doorLHT 04/17 (on request)4 l1,750 °CLift doorLHT 08/17 (on request)8 l1,750 °CLift doorLHT 02/18 (on request)2 l1,800 °CLift doorLHT 04/18 (on request)4 l1,800 °CLift doorLHT 08/18 (on request)8 l1,800 °CLift doorScope of delivery1x Nabertherm high-temperature furnace LHT 02/17 with P580 controllerRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LHT 02/17 include an adjustable temperature limiter with adjustable cut-off temperature, a thermocouple feedthrough in the furnace ceiling, a protective gas connection for non-flammable process gases, and a manual or automatic gas supply system. Stackable charge containers for multiple loading levels can also be added. For individual requirements, LT Laborhandel provides personal consultation.

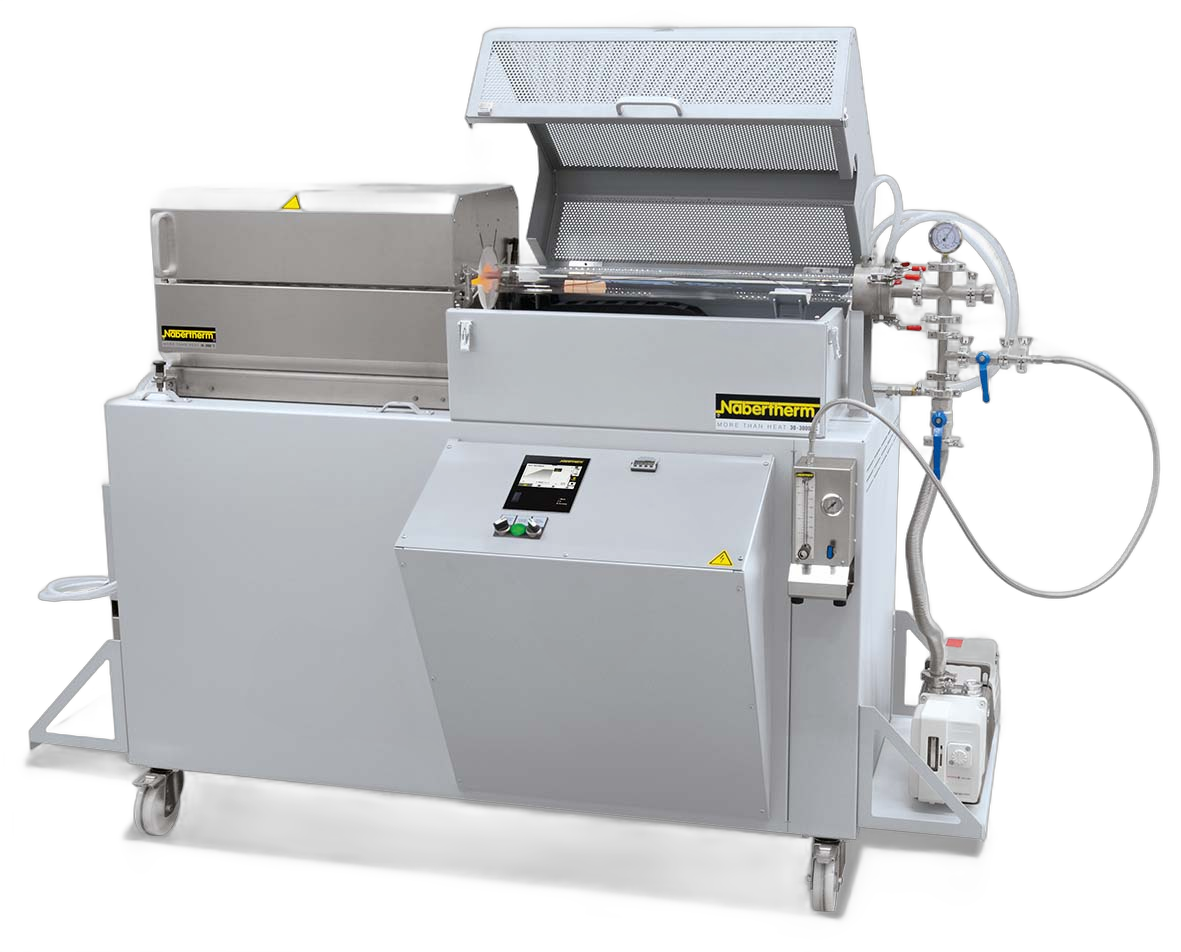

Nabertherm Tube Furnace RS 120/500/11/C550, 500 mm Heated Length, Tmax 1,100 °C, Hinged (Split-Type), RS33O1B
The Nabertherm tube furnace RS 120/500/11 is a hinged (split-type) benchtop furnace with 500 mm heated length and Tmax 1,100 °C, designed as standard for horizontal operation and, with an optional frame, also usable vertically. It is controlled via the C550 touch controller in the external switch cabinet, on which the furnace rests during horizontal operation.Construction and tube dimensionsThe working tube accommodates a maximum outer diameter of 120 mm, the heated length is 500 mm. In the standard single-zone version, the length with constant temperature is 170 mm, with the optionally available three-zone version it would be 250 mm. Closed and resting on the switch cabinet, the furnace measures 670 x 515 x 590 mm, the separate switch cabinet measures 600 x 450 x 218 mm. The weight is 56 kg, the connection is three-phase at 6.7 kW. For the optionally available three-zone version, a neutral conductor is additionally required, the connection then changes to 3/N/PE.Hinged (split-type) housingInstead of a classic furnace door, the housing can be hinged open, which makes it easier to insert the working tube. It may only be opened below 180 °C. The heating elements are arranged on support tubes and radiate freely. The scope of delivery includes a ceramic working tube made of C 530 material with two fibre plugs for operation in air, plus a 2 metre long connecting cable in a metal protective hose. The insulation materials used are without classification under Regulation (EG) Nr. 1272/2008, aluminium silicate wool (RCF fibres) is not used.Controller C550The C550 controller has a touch display and stores up to 10 programs with 20 segments each, this also allows multi-stage temperature profiles with different heating and holding times per program to be mapped. Depending on the temperature class, a type N thermocouple (up to 1,100 °C) or type S (up to 1,300 °C) is used for measurement, for the RS 120/500/11 this is type N.Selection guideAnyone who needs a higher temperature class up to 1,300 °C will find the same size in the RS series also as RS 120/500/13. Shorter or longer heated lengths between 250 and 1,000 mm are also available in the series, see table below. For working tubes with a different diameter, tube adapter shells can be ordered as a factory option, a charge control with temperature measurement directly in the working tube is also available as an option. With the optional conversion frame, the RS 120/500/11 can be converted from horizontal to vertical operation.Typical applicationsThe RS 120/500/11 is a hinged (split-type) tube furnace for working tubes up to 120 mm outer diameter and temperatures up to 1,100 °C. With gas supply packages 1, 1.5 or 2, it can be equipped as a factory option for operation under non-flammable process gases, with gas supply package 4 for hydrogen applications and with the vacuum package for processes in an evacuated working tube.Technical detailsTmax1,100 °CMax. tube outer diameter120 mmHeated length500 mmLength with constant temperature, single-zone170 mmLength with constant temperature, three-zone (option)250 mmExternal dimensions furnace (closed, resting on switch cabinet)670 x 515 x 590 mmExternal dimensions switch cabinet600 x 450 x 218 mmConnected load6.7 kW, three-phaseWeight56 kgDoorHinged (split-type) housing, opening temperature below 180 °CControllerC550, touch operation, 10 programs of 20 segments eachOther models in the seriesIn the 1,100 °C temperature class, Nabertherm builds the hinged (split-type) RS tube furnace with 250 to 1,000 mm heated length, sorted here by tube size:ModelTmaxDoorRS 50/250/11 (on request)1,100 °Chinged (split-type)RS 120/500/11 (this page)1,100 °Chinged (split-type)RS 170/750/11 (on request)1,100 °Chinged (split-type)RS 170/1000/11 (on request)1,100 °Chinged (split-type)Scope of delivery1x Nabertherm tube furnace RS 120/500/11 with external switch cabinet and C550 controller2 m connecting cable in metal protective hoseCeramic working tube C 530 with two fibre plugsRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the RS 120/500/11 include a conversion frame for vertical operation, tube adapter shells for other tube diameters, a charge control with temperature measurement in the working tube, and a three-zone version. Alternative working tubes, gas supply packages 1, 1.5 or 2 for non-flammable process gases, a gas supply package 4 for hydrogen applications, and a vacuum package for evacuating the working tube round off the factory options. For individual requirements, LT Laborhandel provides personal consultation.
Nabertherm Chamber Furnace LH 30/14/B500, 30 l, Tmax 1,400 °C, Brick Insulation, LH0342NKNE
The Nabertherm chamber furnace LH 30/14 shares the 320 x 320 x 320 mm furnace chamber with the same-sized LH 30/12, but reaches up to 1,400 °C instead of 1,200 °C. In return, the connected load rises to 10 kW compared to 7 kW on the cooler model, at an unchanged weight of 200 kg.More temperature at the same sizeThe higher Tmax does not change the external dimensions of around 710 x 930 x 1,290 mm, so the LH 30/14 fits in the same location as the 1,200 °C version. Both models are insulated with lightweight refractory bricks and special rear insulation, the LH 30/14 has a connected load that is 3 kW higher at 10 kW.Door, floor and housingThe standard door is a fixed door with a brick-on-brick seal, hand-ground. A recessed SiC plate in the floor protects the floor heating and serves as a level stacking surface for the charge. The double-walled housing made of textured stainless steel sheet keeps the external temperature low, a self-supporting ceiling arch protects the furnace chamber against dust from above. As a factory option, a parallel swing door for protection against heat radiation or a lift door with electro-mechanical linear drive is also available instead of the fixed door, an adjustable temperature limiter with adjustable cut-off temperature supplements the protection of furnace and charge if required.Heating, connection and controllerFive sides of the furnace chamber are heated, heating elements on support tubes radiate freely into the interior, this provides good temperature uniformity in the furnace chamber and a long service life for the heating elements. The connection is three-phase, although the heating itself only operates between two phases. The installed heating power is generously dimensioned, which enables short heating times. An optional cooling system cools the furnace with a predefined temperature gradient or a fixed fresh air volume and can be switched segment by segment via an extra function of the controller. The furnace is operated via the B500 controller, which is mounted in the door and removable for operation, with five programs of four segments each via touch operation.Selection guideIf a final temperature of 1,200 °C is sufficient, the LH 30/12 is the variant with the lower connected load at the same size. If more usable space is needed at the same Tmax of 1,400 °C, Nabertherm also lists the LH 120/14 with four times the volume and the LH 216/14 with just over seven times the volume compared to the LH 30/14 in this series. Anyone looking for a fibre insulation with shorter heating and cooling times instead of the brick insulation will find the matching model in the LF 30/14 with the same Tmax and the same volume.Typical applicationsWith the weighing device available as a factory option, the LH 30/14 can be set up for loss on ignition determination up to Tmax 1,400 °C. A protective gas connection for purging with non-flammable process gases and a manual or automatic gas supply system are also available as factory options, an exhaust hood or stainless steel flue can direct exhaust gases to site-provided extraction if desired.Technical detailsTmax1,400 °CUsable volume30 lInternal dimensions (W x D x H)320 x 320 x 320 mmExternal dimensions (W x D x H)approx. 710 x 930 x 1,290 mm (varies with additional equipment)Connected load10 kWElectrical connectionthree-phase (heating only between two phases)Weight200 kgHeatingfive-sided, heating elements on support tubesInsulationLightweight refractory bricks, multi-layer with rear insulationDoorfixed door, brick-on-brick sealControllerB500, touch operation, 5 programs of 4 segments eachOther models in the seriesIn the 1,400 °C temperature class, Nabertherm builds the brick-insulated LH chamber furnace in five sizes from 15 to 216 litres.ModelVolumeTmaxLH 15/14 (on request)15 l1,400 °CLH 30/14 (this page)30 l1,400 °CLH 60/14 (on request)60 l1,400 °CLH 120/14 (on request)120 l1,400 °CLH 216/14 (on request)216 l1,400 °CScope of delivery1x Nabertherm chamber furnace LH 30/14 with standard B500 controllerBase standRegulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceFactory options available for the LH 30/14 include a parallel swing door, a lift door with electro-mechanical linear drive, a cooling system with predefined temperature gradient, a protective gas connection, a manual or automatic gas supply system, an exhaust hood or stainless steel flue, a weighing device for loss on ignition determination, an adjustable temperature limiter, and the VCD software package for process control and documentation. For individual requirements, LT Laborhandel provides personal consultation.

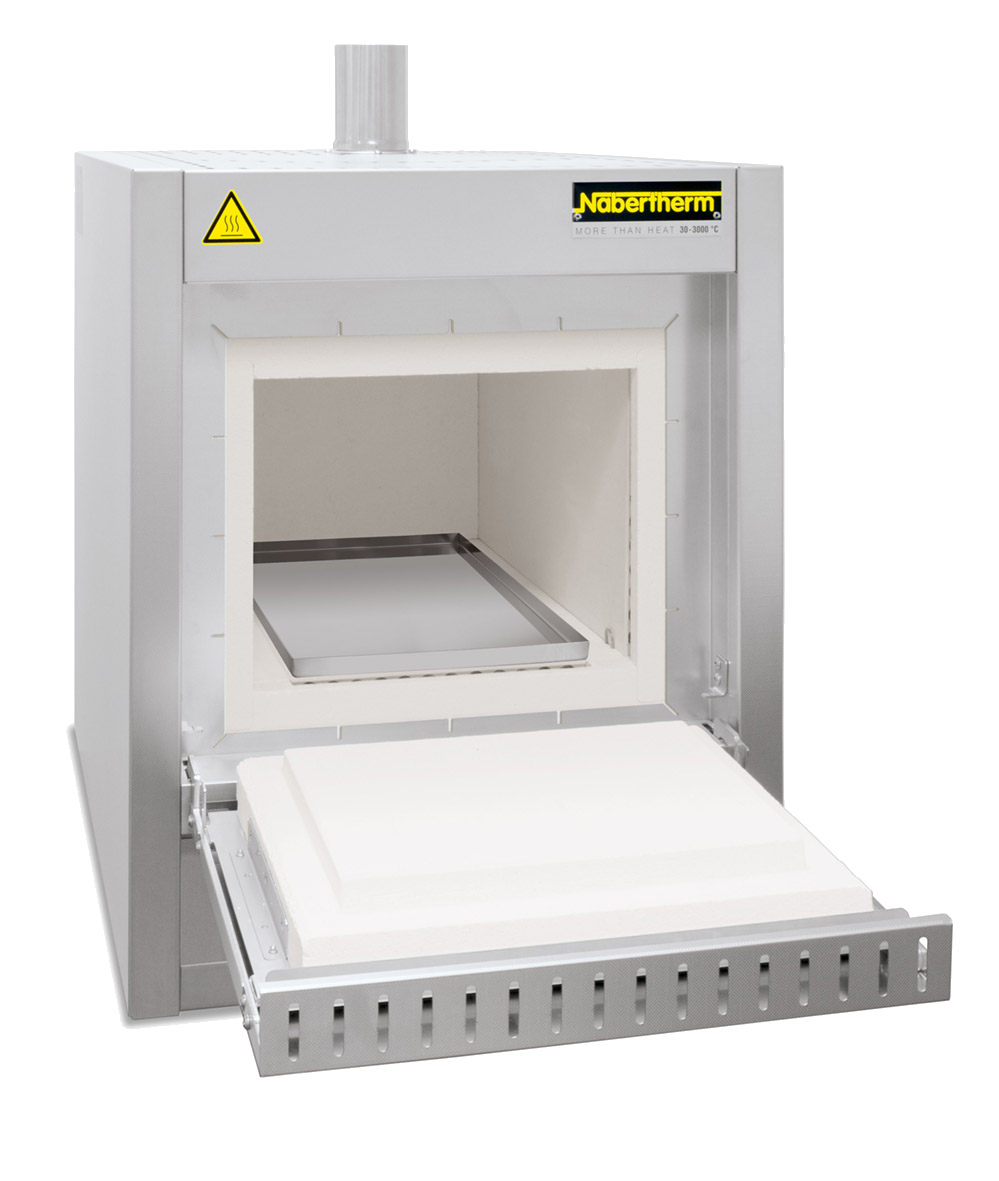

Nabertherm Muffle Furnace L 40/11/B510, 40 l, Tmax 1,100 °C, Flap Door, L-405K1DL
The Nabertherm L 40/11 offers 40 litres of usable space and runs with Tmax 1,100 °C. Like all sizes from the L 24/11 upwards, it heats from three sides instead of two, the connection is three phase with 6.5 kW.Construction, heating and insulationInside, the usable space measures 320 x 490 x 250 mm, externally 530 x 705 x 580 mm, for the lift door version LT 40/11, 320 mm are added when the door is open. The housing is double walled, rear ventilated and made of textured stainless steel sheet. From size L 24/11 up to LT 60/12, the L/LT series heats from three sides via ceramic heating plates with integrated heating wire, also for the L 40/11. The furnace is insulated exclusively with material without classification under the CLP Regulation (EG) Nr. 1272/2008, without aluminium silicate wool (RCF fibre). The empty, closed furnace needs around 80 minutes at 230 V 1/N/PE or 400 V 3/N/PE to reach Tmax minus 100 K, the weight is 70 kg.Controller and three phase connectionControl is via the touch controller B510 with 5 programs of 4 segments each, process data can be saved with NTLog Basic on a USB stick. The heating runs quietly via solid state relays. Unlike the sizes up to 15 litres, the L 40/11 needs a three phase connection with 6.5 kW. At Tmax 1,100 °C, a type N thermocouple is installed, the temperature uniformity at working temperatures above 800 °C in the empty usable space with the air inlet slide closed is +/-5 K according to DIN 17052-1.Flap door and safetyThe flap door can be used as a shelf during loading, an adjustable air inlet opening sits in the door, the exhaust air is drawn off via the rear wall. For additional over-temperature protection, an adjustable temperature limiter with adjustable cut-off temperature can be ordered as an option.Selection guide for volume and connection typeIf a smaller usable space with a single phase connection is sufficient, the L 15/11 (article no. L-155K1AL) offers 15 litres with two sided heating. More usable space is offered by the L 60/11 with 60 litres, between the L 15/11 and L 40/11 lies the L 24/11 with 24 litres, both on request.Typical applicationsThe L/LT series is intended for use in laboratory and research. With 40 litres of usable space and a three phase connection, the L 40/11 is aimed at larger sample quantities at temperatures up to 1,100 °C than the single phase sizes up to 15 litres allow.Larger sample quantities up to 1,100 °CLaboratory workstations with three phase connectionTechnical detailsManufacturer model designationL 40/11Tmax1,100 °CUsable volume40 lInternal dimensions W x D x H320 x 490 x 250 mmExternal dimensions W x D x H530 x 705 x 580 mmConnected load6.5 kW, three phaseWeight70 kgHeating time to Tmax -100 K80 min (empty, closed furnace, 230 V 1/N/PE or 400 V 3/N/PE)HeatingThree sides, ceramic heating platesTemperature uniformity+/-5 K according to DIN 17052-1 (from 800 °C, empty usable space)ThermocoupleType NControlB510, touch, 5 programs of 4 segments eachDoorFlap doorHousingdouble walled, rear ventilated, textured stainless steel sheetInsulation materialwithout CLP classification (EG) Nr. 1272/2008, no RCF fibreOther models in the seriesThe table shows all models in the L/LT series with Tmax 1,100 °C and flap door, sorted by usable volume:ModelVolumeTmaxDoorL 3/113 l1,100 °CFlap doorL 5/115 l1,100 °CFlap doorL 9/119 l1,100 °CFlap doorL 15/1115 l1,100 °CFlap doorL 24/11 (on request)24 l1,100 °CFlap doorL 40/11 (this page)40 l1,100 °CFlap doorL 60/11 (on request)60 l1,100 °CFlap doorScope of delivery1x Nabertherm muffle furnace L 40/11 with controller B510Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our Environment and disposal page.Individual requirements and procurement serviceAdditional factory options for the L 40/11 include an exhaust chimney, optionally with fan or catalytic converter, an adjustable temperature limiter with adjustable cut-off temperature, a protective gas connection for purging with non-flammable process gases, a manual or automatic gas supply system, a thermocouple feedthrough in the rear wall or furnace door, the VCD software package for process control and documentation, and a charging frame with multiple loading levels, usable up to 800 °C with 2 to 3.5 kg per level depending on the model. Which option suits best is clarified by LT Laborhandel in a personal consultation.
