Microscopes
Microscopes enable the visual examination of samples in laboratories, quality assurance and schools. LT Laborhandel offers Kern & Sohn stereo zoom, fluorescence and transmitted-light microscopes, ranging from school microscopes to metallurgical microscopes with infinity optics, including digital microscope kits with cameras. Our service team will be happy to advise you on the right equipment for your needs.

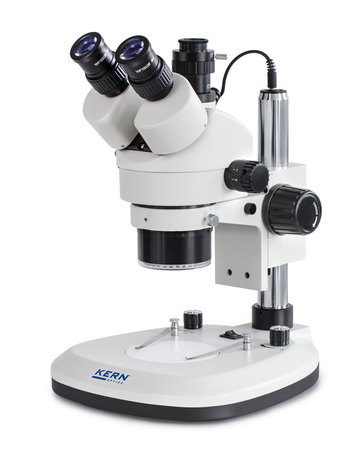

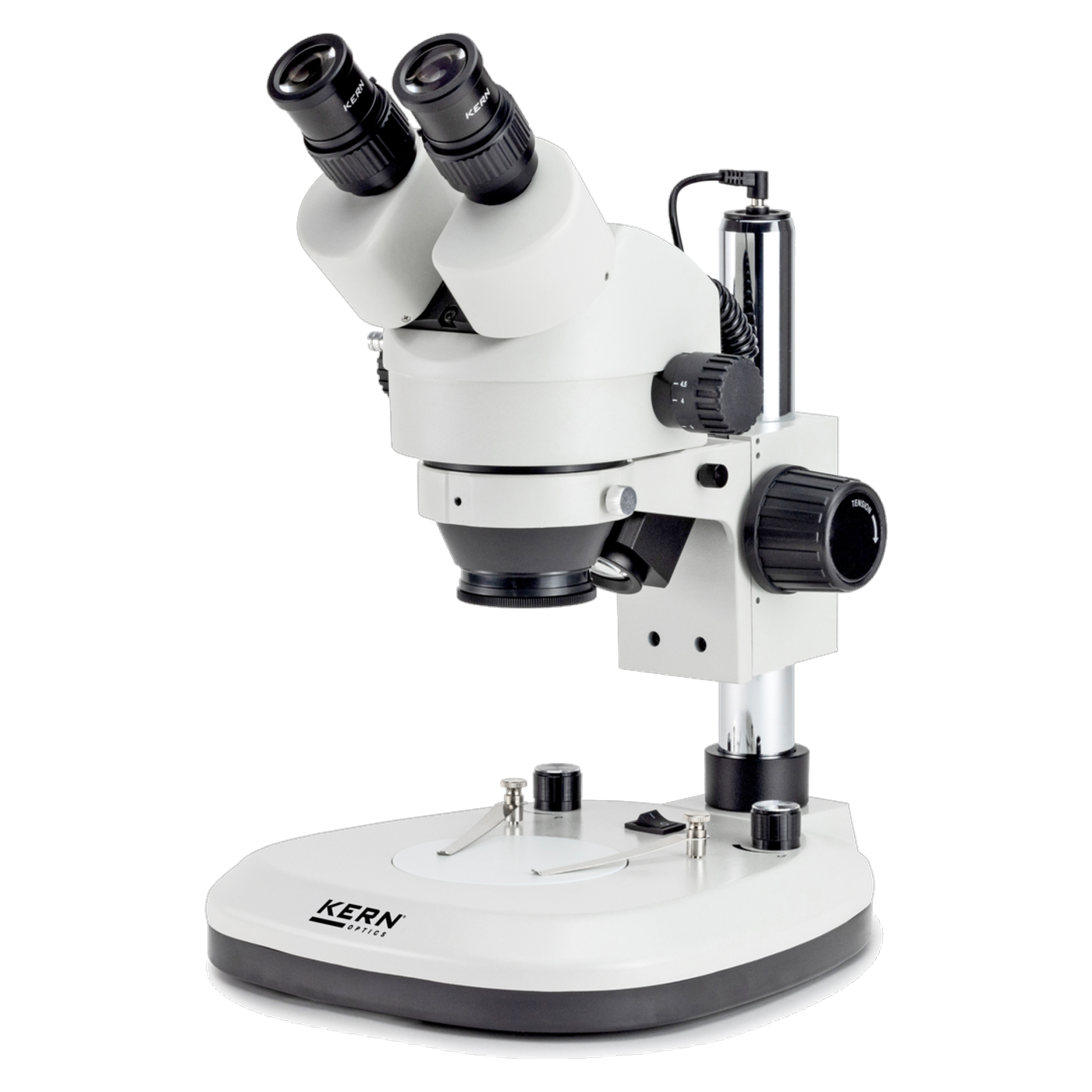

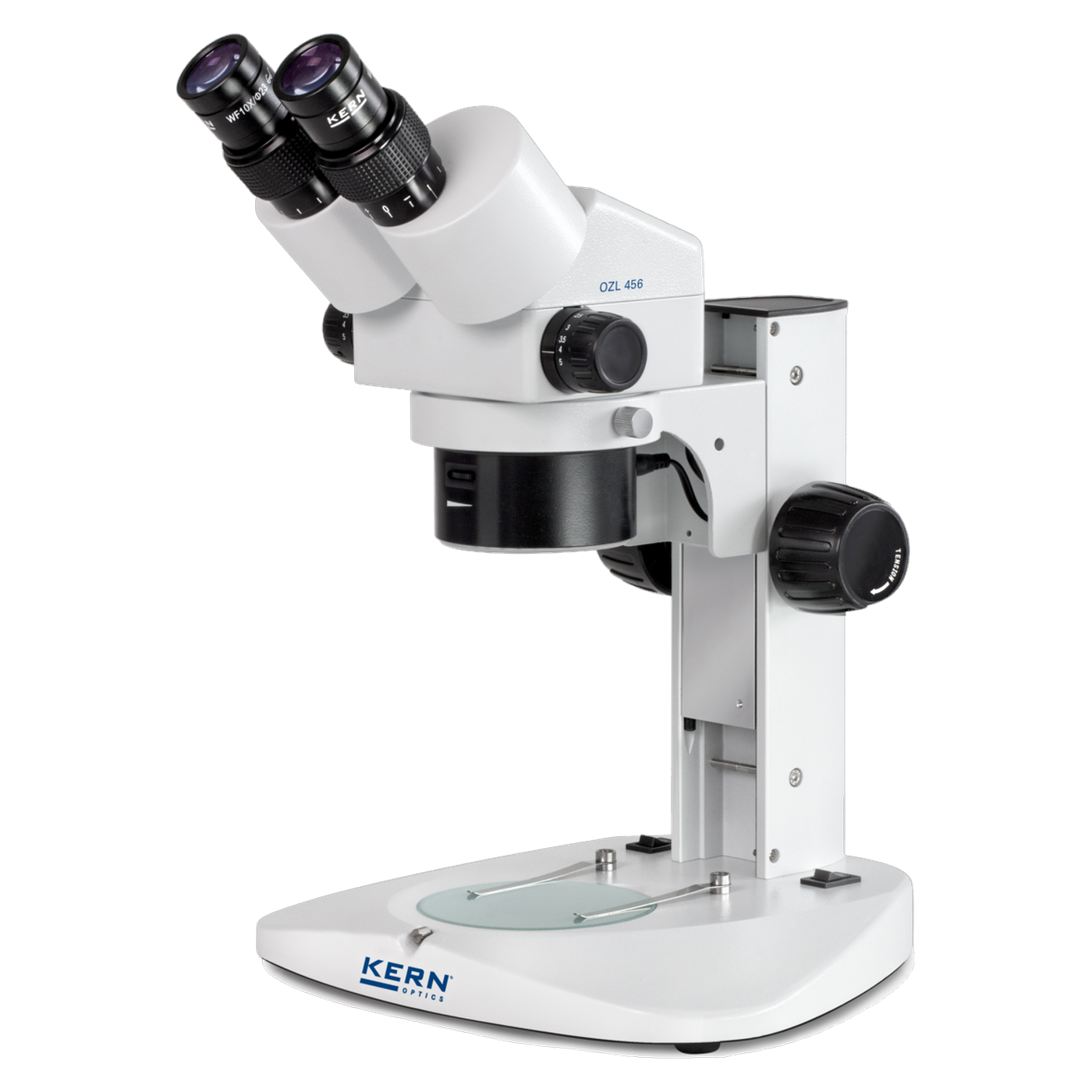

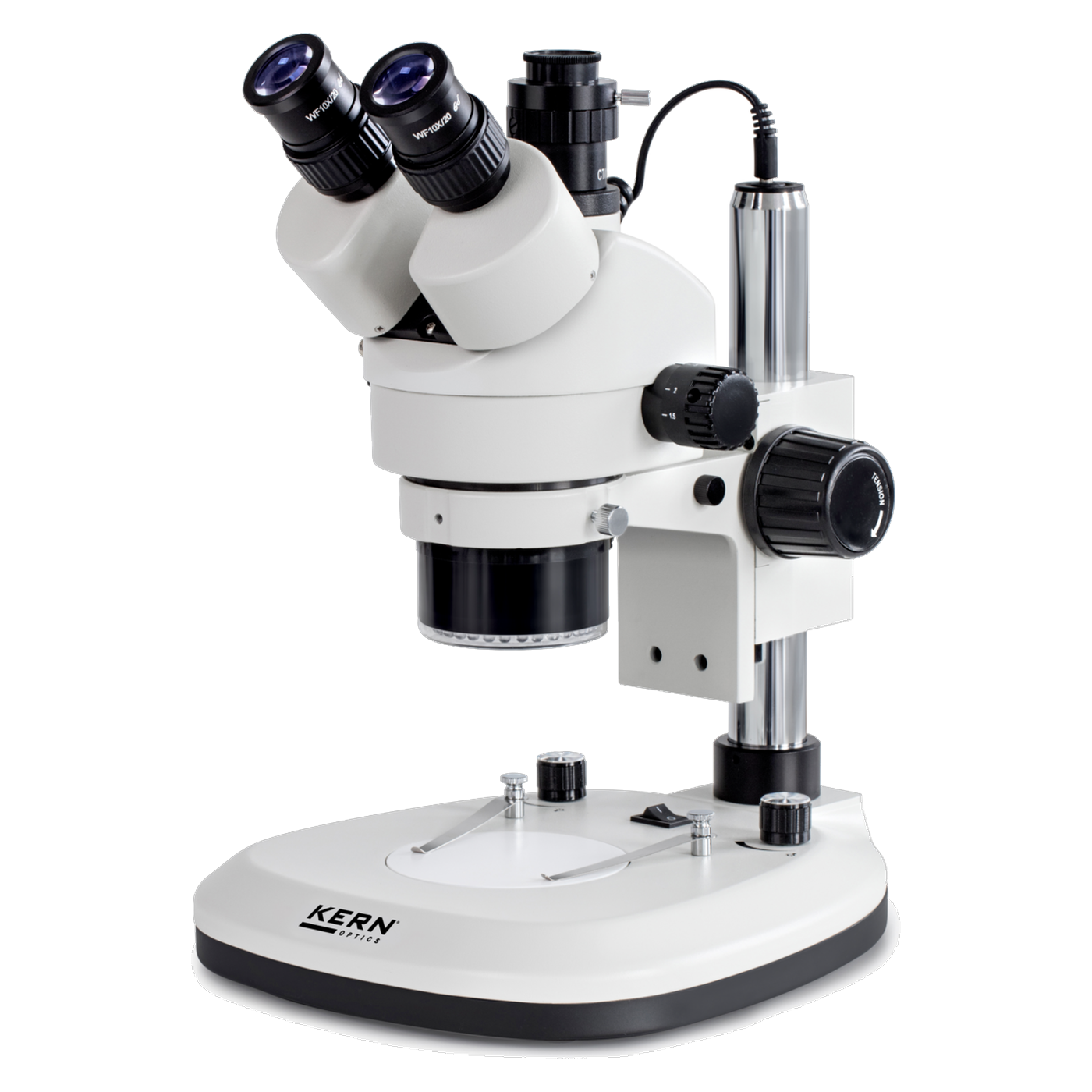

Kern OZL-46 stereo zoom microscopes, zoom 0.7x to 4.5x, LED incident and transmitted light, binocular and trinocular
The Kern OZL-46 series comprises six stereo zoom microscopes with LED incident light and LED transmitted light for assembly and repair workstations, training workshops and testing centres. The zoom range is continuously adjustable from 0.7x to 4.5x; when used with the HWF 10x eyepieces, this provides a total magnification of 7x to 45x. Three models are binocular (OZL 463, OZL 465, OZL 467), and three are trinocular with a third port for a camera (OZL 464, OZL 466, OZL 468). All models have a built-in power supply.Which modelThe binocular models OZL 463, OZL 465 and OZL 467 do not have a camera output. The OZL 463 and OZL 465 are mounted on a column stand; according to the data sheet, they differ in net weight (4.2 kg versus 4.6 kg). According to the data sheet, the OZL 467 has a mechanical stand. Of the trinocular models, the OZL 464 and OZL 466 have a beam splitter ratio of 50:50, meaning that the eyepieces and camera can be used simultaneously. Both are mounted on a column stand and feature a click-stop on the zoom wheel. For the OZL 468, the beam splitter ratio is 0:100 according to the data sheet, and the stand is mechanical, as stated in the data sheet. If you need to document and observe live through the eyepiece at the same time, choose the OZL 464 or the OZL 466. Those who work exclusively at the eyepiece will find the OZL 463, the OZL 465 or the OZL 467 sufficient.Zoom, field of view and click-stopAccording to the data sheet, the zoom wheel on the OZL 464 and OZL 466 has an integrated click-stop. It clicks into defined magnification steps so that a setting, once selected, can be found again reproducibly. The data sheet does not specify a click-stop for the other models. The zoom ratio is 6.4:1. The field of view measures 4.4 to 28.6 mm, the working distance is 105 mm, and the maximum specimen height is 140 mm. The Greenough system provides a stereoscopic image. The tube is inclined at 45° and rotates through 360°; the interpupillary distance ranges from 55 to 75 mm, and the dioptre adjustment operates on both sides from -5 to +5. The HWF 10x eyepieces have a 20 mm field of view, a high eye point and a 30 mm mounting diameter, and are fixed in the tube.Illumination and camera connectionThe incident and transmitted light sources are 3 W LEDs, each of which can be dimmed independently. The contrast method is bright field. A C-Mount adapter is required to connect a camera. Kern lists the microscope camera adapters OZB-A4809 (1x), OZB-A4810 (0.3x) and OZB-A4811 (0.5x), as well as the eyepiece camera adapter OZB-A4863 (1x). For models with a camera output, Kern lists the ODC 241, ODC 825, ODC 832 and ODC 852 cameras. For the OZL 464 and OZL 468, the ODC 854 is added; for the OZL 468, so is the ODC 251.Stand, power and dimensionsAccording to the brochure, the stand allows the microscope head to be removed and fitted into other modular systems, such as a universal stand. The coarse focus mechanism features torque control. The power supply is built-in and operates at 100 to 240 V; it is connected via a power cable. The microscopes measure 300 x 240 x 420 mm. The OZL 463 and OZL 464 have a net weight of approx. 4.2 kg, while the OZL 465, OZL 466, OZL 467 and OZL 468 weigh approximately 4.6 kg.Typical applicationsAssembly and repair workstations, for example in the electronics industryTraining organisations, schools and training workshopsTest centres and quality control: circuit boards and componentsZoology and botany, tissue preparation, dissectionSoldering work and inspection using a camera (OZL 464 and OZL 466)Models at a glanceModelTubeBeam splitter ratioStandClick-StopNet weightOZL 463Binocularnot applicableColumnnoapprox. 4.2 kgOZL 464Trinocular50:50Columnyesapprox. 4.2 kgOZL 465Binocularnot applicableColumnnoapprox. 4.6 kgOZL 466Trinocular50:50Columnyesapprox. 4.6 kgOZL 467Binocularnot applicablemechanicalnoapprox. 4.6 kgOZL 468Trinocular0:100mechanicalnoapprox. 4.6 kgTechnical detailsThese values apply to all models. Any differing values are listed in the model table.Optical systemGreenough, bright fieldTubeInclined at 45°, rotatable through 360°, interpupillary distance 55 to 75 mm, dioptre adjustment on both sides from -5 to +5EyepieceHWF 10x, field of view 20 mm, mounting diameter 30 mm, high eye point, fixedZoom0.7x to 4.5x continuously variable, ratio 6.4:1Click-StopOZL 464 and OZL 466Total magnification7x to 45xField of view4.4 mm to 28.6 mmWorking distance105 mmMaximum sample height140 mmFocusingCoarse focus, torque controlIllumination3 W LED incident light and 3 W LED transmitted light, independently dimmablePower supplyBuilt-in power supply, 100 to 240 V, power cableMains plugEuro plug included in the scope of delivery; UK and CH adapters optional, for OZL 463, 465, 467 and 468 also AUS and USDimensions (W x D x H)300 x 240 x 420 mmStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOZL 463, OZL 464, OZL 465, OZL 466, OZL 467 or OZL 468 stereo zoom microscope, depending on the modelHWF 10x eyepiecesIEC power cable with Euro plugDust coverEyecupsMultilingual operating instructionsWarrantyAccording to Kern & Sohn, these microscopes come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OZL 463, 464, 465, 466, 467 (PDF)Operating instructions Kern OZL 468 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OZB-A4632 (HWF 15x), OZB-A4633 (HWF 20x), OZB-A4634 (HWF 25x), OZB-A4635 (HWF 10x with 0.1 mm scale)Attachment lenses: OZB-A4641 (0.5x), OZB-A4644 (0.75x), OZB-A4642 (1.5x), OZB-A4643 (2x). According to the brochure for the OZL 463, OZL 464, OZL 467 and OZL 468; for the OZL 466 only the OZB-A4642, for the OZL 465 none.Further microscope accessories: solder protection lens OZB-A4646, stand insert OZB-A4670, dust cover OBB-A1387Eyepiece cameras: ODC 874, ODC 881Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Power cables: 822-903 (UK), MLB-A07 (Euro), YKK-01 (CH)Ready-to-use sets with a camera: OZL 464C825, OZL 464C832, OZL 464T241, OZL 466C825, OZL 466C832, OZL 466T241, OZL 468C825, OZL 468C832, OZL 468T241Enquiries are handled via our procurement service.
Kern OIV 345 digital video microscope, 11.6-inch HD display (PC-free)
The Kern OIV 345 is a video microscope without an eyepiece. The camera and optics are housed in a head mounted on a mechanical column stand, and the image appears on a built-in 11.6-inch display. It is operated using the supplied wireless USB mouse; a computer is not required for operation. Kern describes it as a video microscope with axial optics for digital stereomicroscopy, which displays samples clearly on the screen.Display instead of eyepieceThe LCD measures 11.6 inches with a resolution of 1,920 x 1,080 pixels (HD) and, according to the brochure, can be tilted from 0 to 45°. It is made of toughened glass and has no edges, which makes cleaning easier. The display unit measures 275 x 170 x 12 mm. According to Kern, the menu languages include German, English, French, Italian and Russian. The integrated camera software captures images and videos, processes and documents them, and takes measurements.Click-stop zoomThe zoom range is from 0.7x to 4.5x, with a zoom ratio of 6.4:1. It also has a fixed 0.5x objective. The data sheet specifies a standard total magnification range of 15.96x to 102.6x, with a field of view measuring 2.3 to 14.77 mm. The zoom wheel has an integrated click-stop that locks into defined steps. According to Kern, this helps with selecting the magnification and calibrating the documentation functions in the software. Torque control is provided.Camera and lightingThe camera has a 5 MP Sony CMOS sensor in 1/2.8-inch format and delivers 60 frames per second; it uses a rolling shutter. The light comes from a 3 W LED ring in incident light mode, which can be dimmed continuously. The contrast method is bright field. The working distance is 100 mm, and the maximum specimen height is 110 mm. The mechanical stand has a column height of 330 mm; focusing is carried out via a coarse focus mechanism.Storage, connections and PC softwareRecordings can be saved to the included 32 GB USB stick or to a microSD card. Connectivity options include HDMI, two USB 2.0 ports and a microSD card slot. An additional monitor can be connected via HDMI, allowing the live feed to be displayed on two devices. The image can be viewed and analysed on a PC or laptop via USB; according to Kern, the S-VIEWER (OXM 904) software is available to download free of charge for this purpose. The data sheet lists the following system requirements: an Intel Core i3 or higher CPU, or an AMD Ryzen 5 or higher CPU; 8 GB of RAM; a 128 GB SSD; a graphics card (the data sheet names NVIDIA GeForce RTX 3060 and AMD Radeon RX 6600); and a 13-inch Full HD display running at 2.5 GHz.Power supply and dimensionsThe desktop power supply is detachable, has a C14 IEC connector and operates at 100 to 240 V at 50/60 Hz; the device receives 12 V at 2,000 mA. The power cable is 2.5 m long. The unit measures 320 x 260 x 450 mm and has a net weight of approx. 4.4 kg. It may be stored at temperatures between -5 °C and 40 °C.Typical applicationsQuality control and materials testing: jointly assessing solder joints and component edges on the displayElectronics and semiconductor industryEducation and research: several people view the same imageMineralogy and tissue preparationDetection of parasitesTechnical detailsOptical systemAxial, without eyepiece (display)Zoom0.7x to 4.5x, ratio 6.4:1, click-stop; fixed 0.5x objectiveStandard total magnification15.96x to 102.6xField of view2.3 mm to 14.77 mmWorking distance100 mmMaximum sample height110 mmContrast methodsBright fieldIlluminationLED ring in incident light, 3 W, continuously dimmableCameraSony CMOS, colour, 5 MP, 1/2.8 inch, 60 frames per second, rolling shutterDisplay11.6-inch LCD, 1,920 x 1,080 HD, tempered glass, tilt 0° to 45°; display unit 275 x 170 x 12 mmStandMechanical column stand, column height 330 mm, coarse focus, torque controlInterfacesHDMI, USB 2.0 (2 ports), MicroSD card slotMemory32 GB USB stick included in the scope of deliverySoftwareintegrated camera software; S-VIEWER (OXM 904) for the PCPower supplyDesktop power supply (detachable, IEC connector C14), 100 to 240 V AC, 50/60 Hz; device 12 V / 2,000 mA; cable 2.5 mMains plugEuro included in the scope of delivery; UK, US and CH adapters optionalDimensions (W x D x H)320 x 260 x 450 mmNet weightapprox. 4.4 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOIV 345 video microscope with display and mechanical standDesktop power supply with Euro plugWireless USB mouseUSB stick, 32 GBDust coverMultilingual operating instructionsWarrantyAccording to Kern & Sohn, this microscope comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OIV-3 (PDF)Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe attachment lenses OBB-A3225, OBB-A3226 and OBB-A3240, the solder protection lens OBB-A3227, the microscope stand OIV-A3001, the cleaning spray OCS-A1101, the cleaning kit OCS 901, the calibration slide ODC-A2404, the software OXM 904 (S-VIEWER) and the IEC power cables 822-903 (UK), MLB-A09 (US) and YKK-01 (CH) are also available. Enquiries are handled via our procurement service.

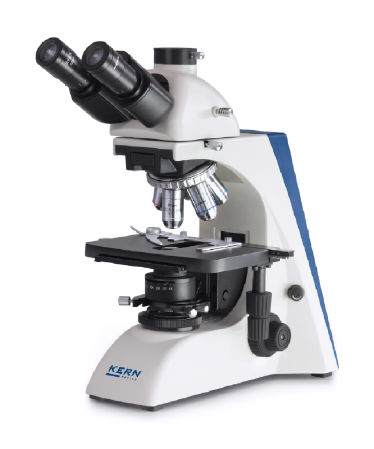

Kern OBN 135 transmitted-light microscope, trinocular, 4x-100x, Köhler
A trinocular transmitted-light microscope with Köhler illumination is the working instrument for anything that goes beyond simply viewing a specimen, from blood smears in haematology to sediments in water analysis. The Kern OBN 135 transmitted-light microscope, with five Infinity Plan objectives, covers a magnification range from 4x to 100x, whilst the Köhler illumination ensures an evenly illuminated image area across the entire field of view. The third tube port makes the microscope ready for a camera, even though none is supplied with the basic model. Five objectives, ranging from low magnification to oil immersion The revolver houses five Infinity Plan objectives: 4x/0.11, 10x/0.25, 20x/0.45, 40x/0.65 and 100x/1.25 in oil immersion. The three higher-magnification objectives are spring-loaded and spring back if accidentally placed on the slide, rather than damaging the lens or specimen. All five feature an anti-fungal coating, which is important in humid laboratory environments. Five objectives in five revolver positions mean there is no wasted space and every magnification level is immediately available. Trinocular head and ergonomics The Siedentopf tube is inclined at 30 degrees and can be rotated through 360 degrees. The dioptre adjustment operates on both sides from minus 5 to plus 5, whilst the interpupillary distance can be adjusted between 50 and 75 mm. The HWF-10x eyepieces, with a 20 mm field of view, also feature an anti-fungal coating and are designed as high-eye-point eyepieces. The tube diameter of the eyepieces is 23.2 mm, a common size for this component. Köhler illumination and Abbe condenser The LED transmitted light illumination operates according to the Köhler principle and is continuously dimmable, with a colour temperature of 6,000 Kelvin and a power output of 3 watts. The Abbe condenser is centrable and height-adjustable, with an aperture of 1.25. Kern describes this combination as professional equipment for demanding applications. Depending on the objective, the field of view ranges from 0.2 mm to 5 mm. Mechanical stage and fine adjustment The large mechanical stage features a coaxial coarse and fine adjustment mechanism that can be operated from either side. The fine adjustment mechanism operates with a minimum step of 0.002 mm; at 100x magnification in oil immersion, this is the difference between a sharp and an out-of-focus image. Camera retrofit: C-mount required separately The trinocular tube has a third port for a camera, but no sensor is fitted in the basic model. A C-mount adapter is required for the camera connection; this is not included in the scope of delivery and must be ordered separately. Standalone microscope or digital microscope kit: correctly classifying the OBN 135 Kern offers several versions under the model designation OBN 135. This product is the standard optical microscope without a camera. In addition, Kern offers digital microscope kits fitted with a camera as standard, such as the OBN 135T241. Those who wish to document digitally from the outset, without having to assemble a C-mount adapter and camera themselves, are better served by such a kit. Those who look exclusively through the eyepiece or wish to choose their own camera at a later date should opt for the OBN 135 described here. Contrast techniques beyond the basic configuration By default, the OBN 135 operates in brightfield mode. Darkfield, polarisation, fluorescence and phase contrast are available as additional contrast techniques, each requiring supplementary accessories. This is relevant for laboratories which, in addition to routine stained specimens, occasionally examine unstained or birefringent samples, for example in microbiology or materials science. Typical applications Kern cites a wide range of applications for the OBN 13 series, spanning laboratory medicine and industry: Haematology Urology Gynaecology Dermatology Pathology Microbiology and parasitology Immunology Sewage treatment works Oncology Entomology Veterinary practices Water analysis Breweries Inpatient facilities Clinical laboratories Public health authorities Training centres Universities At a public health authority, a technician uses it to test drinking water samples for bacteria; at a veterinary practice, a faecal smear is examined for parasite eggs. At universities and training centres, the same instrument serves as an introduction to microscopy, using the same optics that students will later use in their professional careers. Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questions about the OBN 135 What is the difference between the OBN 135 and the OBN 135T241 set?The OBN 135 is purely optical, whilst the OBN 135T241 set comes with a factory-fitted camera. Is a camera included in the scope of delivery?No, the trinocular tube is prepared for a camera; a C-mount adapter must be ordered separately. What is the maximum magnification?100x with the oil immersion objective, numerical aperture 1.25. Can I use phase contrast or polarisation?Yes, as optional contrast techniques via accessories; the basic model is preset to brightfield. How finely can the focus be adjusted?The fine-adjustment knob operates with a minimum increment of 0.002 mm. What is the eyepiece size of the microscope?23.2 mm tube diameter, which is a common size for microscope eyepieces. How heavy is the instrument?The net weight is 10 kg, and the dimensions are 390 x 200 x 395 mm. How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. Technical details Optical systemInfinity (infinity-corrected)Head/tubeTrinocular, Siedentopf, tilted at 30 degrees, rotatable through 360 degreesEyepiecesHWF 10x, field of view 20 mm, anti-fungal coating, high eye pointEyepiece field of view20 mmEyepiece tube diameter23.2 mmInterpupillary distance50 to 75 mmDioptre adjustmenton both sides, -5 to +5Magnification range4x to 100x (standard objectives)ObjectivesInfinity Plan 4x/0.11, 10x/0.25, 20x/0.45 (spring-loaded), 40x/0.65 (spring-loaded), 100x/1.25 oil (spring-loaded), all anti-fungalObjective turret5 positionsContrast methodsStandard brightfield, darkfield/polarisation/fluorescence/phase contrast optionalIlluminationLED transmitted light, Köhler illumination, continuously dimmable, 3 WColour temperature6,000 KCondenserAbbe, centrable, height-adjustable, aperture 1.25StageLarge mechanical stage, coaxial coarse and fine adjustment on both sidesFine adjustment, minimum step0.002 mmField of view0.2 mm to 5 mmPower supplyMains adaptor, 100 to 240 V AC 50/60 Hz 0.3 A, device side 5 V 1 ADevice dimensions (W x D x H)390 x 200 x 395 mmNet weight10 kgStorage temperature-5 to 40 °CWarranty (manufacturer)36 months according to Kern, excluding wear parts Scope of delivery OBN 135 transmitted light microscope (trinocular) Dust cover Eyecups Operating instructions (multilingual) Mains power supply The scope of delivery does not include a C-mount adapter for the camera connection, and it must be ordered separately for digitisation. Individual requirements and procurement service We can advise you on the C-mount adapter, additional objectives and contrast techniques such as phase contrast or polarisation. Enquiries are handled through our procurement service.
KERN OKM 173 Metallurgical Microscope, reflected light, trinocular, infinite-corrected optics
The Kern OKM 173 is a metallurgical reflected-light microscope for materials and surface testing. It visualises surfaces, fracture edges and coatings on specimens through which light does not pass, such as metallographic sections or workpieces. Illumination comes from above through the objective. The microscope has an upright design, features infinity optics, four objectives and a trinocular tube for connecting a camera.Reflected light with filter wheelThe reflected light illumination consists of a 5 W LED and is continuously dimmable. A 5-position filter wheel is integrated into the illumination unit, containing colour filters in blue, green, yellow and grey, as well as an open position. This allows for quick switching between different contrast modes. A simple polarisation unit with a polariser and analyser is also included in the scope of delivery. Kern lists bright-field and polarisation as the contrast methods.Objectives and eyepiecesThe 4-position objective turret carries four Infinity Plan objectives with a long working distance (LWD) and anti-fungus coating. Key specifications at a glance:ObjectiveNumerical apertureNote5x0.15Infinity Plan, LWD10x0.25Infinity Plan, LWD20x0.4Infinity Plan, LWD50x0.75Infinity Plan, LWD, with suspensionThe eyepieces are HWF 10x with a 20 mm field of view, high eye point and anti-fungal coating. The interpupillary distance can be adjusted from 50 to 75 mm, and the dioptre adjustment works on one side with ± 5. With the 10x eyepiece, total magnifications range from 50x to 500x.Tube, stage and focusThe trinocular tube (butterfly design) is inclined at 30° and can be rotated through 360°. Light is distributed in a ratio of 20:80 between the eyepieces and the camera mount. The mechanical stage is designed for reflected-light applications; the travel range is 76 mm and 52 mm. The coarse and fine adjustment knobs are positioned coaxially on both sides; the fine adjustment knob moves in increments of at least 0.002 mm. The focus knob features torque control.A C-mount adapter is required to connect a camera; this is not included in the scope of delivery. Adapters for 1x and 0.5x are also available.Camera and documentationA microscope camera can be connected via the trinocular tube. The following cameras are available: ODC 825 (5.1 MP, USB 2.0), ODC 832 (5.1 MP, USB 3.0), ODC 841 (Sony CMOS, 1-inch, USB 3.0) and ODC 854 (8 MP, 4K, USB and HDMI), as well as the tablet cameras ODC 241 (5 MP, Wi-Fi) and ODC 251 (8 MP, 4K, Ethernet and Wi-Fi). All of these are also available and require the appropriate C-mount adapter.Typical applicationsMetallurgy: assessment of the microstructure on polished sectionsMaterials testing: examining surfaces, fracture edges and coatingsIndustrial quality assurance: visual inspection of raw materials and finished partsThick samples and workpieces that fit on the stageFor microstructural analysis, metal samples are usually ground and polished before being examined under reflected light. In the surface testing of raw materials and finished products, the focus is on the surface itself; a polished section is not a prerequisite for this.With the OKM 173, the sample is placed on the stage with the surface to be inspected facing upwards. Those wishing to place heavy, large workpieces with the surface to be inspected facing downwards should consider the inverted models OLM 170 and OLM 171.Technical detailsOptical systemInfinity (infinity optics)Designupright, reflected lightTubeTrinocular (butterfly), tilted 30°, rotatable 360°Beam path distribution20:80EyepiecesHWF 10x, 20 mm field of view, high eye point, anti-fungalInterpupillary distance50 mm to 75 mmDioptre adjustmenton one side, ± 5Objective turret4-positionObjectivesInfinity Plan LWD 5x, 10x, 20x, 50xIllumination5 W LED, reflected light, dimmable, 5-position filter wheelStagemechanical, travel range 76 mm x 52 mmFocusingCoaxial coarse and fine adjustment, fine adjustment 0.002 mmPower supplyMains adaptor, 100 V to 240 V AC, 50/60 Hz, rated current 0.3 ADimensions (W x D x H)440 x 200 x 400 mmNet weightapprox. 8 kgStorage temperature-5 °C to 40 °CScope of deliveryKern OKM 173 microscope with eyepieces and four objectivesPolarisation unit with polariser and analyserMains power supply with EU adapterDust coverEyecupsMultilingual operating instructionsThe scope of delivery does not include a C-mount adapter for the camera connection.According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceEyepieces with different magnifications or with a scale, objectives with 2x, 80x and 100x magnification, C-mount adaptors, ODC series microscope cameras, filters and accessory plates are also available. Enquiries are handled via our procurement service.
Kern OPO 185 polarising microscope, transmitted and reflected light, infinity
The Kern OPO 185 is a trinocular polarising microscope with infinity optics. It features transmitted light and reflected light, each with a 5 W LED, and a swing-out Abbe condenser with Köhler illumination. According to Kern, it is used for the analysis of minerals, crystals and isotropic materials via the polarisation of light.Polarisation in transmitted and reflected lightThe microscope operates with linearly polarised light. The polariser and analyser each have a scale, and the objectives can be centred. Transmitted and reflected light can be dimmed separately, allowing transparent thin sections and opaque specimens to be examined on the same instrument. Kern specifies bright-field and polarisation as the contrast methods. Kern describes the target specimens as more challenging preparations with polarising properties.Illumination and condenserThe condenser is a centre-adjustable and height-adjustable Abbe condenser in a swing-out design with an aperture diaphragm. Together with the field diaphragm, this provides full Köhler illumination. Both light sources are 5 W LEDs. The stage is round and mechanical, rotatable through 360°, with 1° graduations, 6' fine graduations and a locking function.Objectives, eyepieces and tubeThe five-position revolver houses five Infinity Plan objectives. All are strain-free; the 50x is also semi-apochromatic and has a long working distance (LWD). Key specifications at a glance:ObjectiveNumerical apertureNote4x0.11Infinity Plan, strain-free10x0.25Infinity Plan, strain-free20x0.45Infinity Plan, strain-free, spring-loaded40x0.65Infinity Plan, strain-free, spring-loaded50xnot specifiedInfinity Plan, semi-apochromatic, LWD, strain-freeThe eyepieces are HWF 10x with high eye point and anti-fungal coating; the dioptre adjustment operates on both sides with ±5, and the interpupillary distance ranges from 50 to 75 mm. The Siedentopf tube is inclined at 30° and can be rotated through 360°. Kern specifies the beam path distribution as 20:80 and 100:0. The fine adjustment moves in increments of at least 0.002 mm, and the torque of the adjustment mechanism is adjustable.A C-mount adapter is required to connect a camera; this is not included in the scope of delivery. Adapters for 1x and 0.5x magnifications are also available.Typical applicationsMineralogy: identifying mineral phases in thin sectionsTexture analysis: assessing the structure and orientations of crystals and rocksExamination of crystals under polarised lightMaterial testing: examining birefringent materials and opaque samples under reflected lightExtensions for polarisation analysisThe Bertrand lens and the lambda plate with 1/4 lambda (slip, combination) are not included in the standard equipment. They are available as accessories. The Bertrand lens allows interference patterns to be observed, whilst the compensators enable path differences to be determined. Anyone wishing to carry out conoscopic work should order them at the same time. Also available are a mechanical stage attachment, additional objectives ranging from 4x to 100x (some semi-apochromatic) and an eyepiece with a 0.1 mm scale.Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsAre the Bertrand lens and lambda plate included?No, both are accessories and are not part of the standard equipment.Can I connect a camera?Yes, via the third optical path of the trinocular tube. The C-mount adapter required for this is not included in the scope of delivery.How are transmitted light and reflected light controlled?Both are 5 W LEDs and can be dimmed separately.How many objectives are included?Five Infinity Plan objectives with 4x, 10x, 20x, 40x and 50x magnification. The revolver has five positions.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsOptical systemInfinity (infinity optics)Designupright, transmitted light and reflected lightTubeTrinocular (Siedentopf), inclined at 30°, rotatable through 360°Beam path distribution20:80 or 100:0EyepiecesHWF 10x, high eye point, anti-fungalInterpupillary distance50 mm to 75 mmDioptre adjustmenton both sides, ± 5Objective turret5-positionObjectivesInfinity Plan 4x, 10x, 20x, 40x, 50x, strain-free, centrableTransmitted light illumination5 W LED, Köhler, dimmableReflected light illumination5 W LED, dimmableCondenserAbbe, swing-out, centring and height-adjustable, aperture diaphragmPolarisationPolariser and analyser, each with a scaleStagemechanical, round, rotates 360°, 1° graduations, 6' fine graduations, lockableFocusingCoaxial coarse and fine adjustment, fine adjustment 0.002 mmPower supplyMains adaptor, 100 V to 240 V AC, 50/60 Hz, rated current 0.3 ADimensions (W x D x H)519 x 211 x 400 mmNet weightapprox. 12 kgStorage temperature-5 °C to 40 °CScope of deliveryKern OPO 185 microscope with eyepieces and five objectivesPolariser and analyserMains power supply with EU adapterDust coverEyecupsMultilingual operating instructionsThe scope of delivery does not include a C-mount adapter for the camera connection, the Bertrand lens and the lambda plate.Individual requirements and procurement serviceBertrand lens, lambda plate, mechanical stage attachment, additional objectives, eyepieces with scales, C-mount adaptors, filters and ODC series microscope cameras are also available. Enquiries are handled via our procurement service.

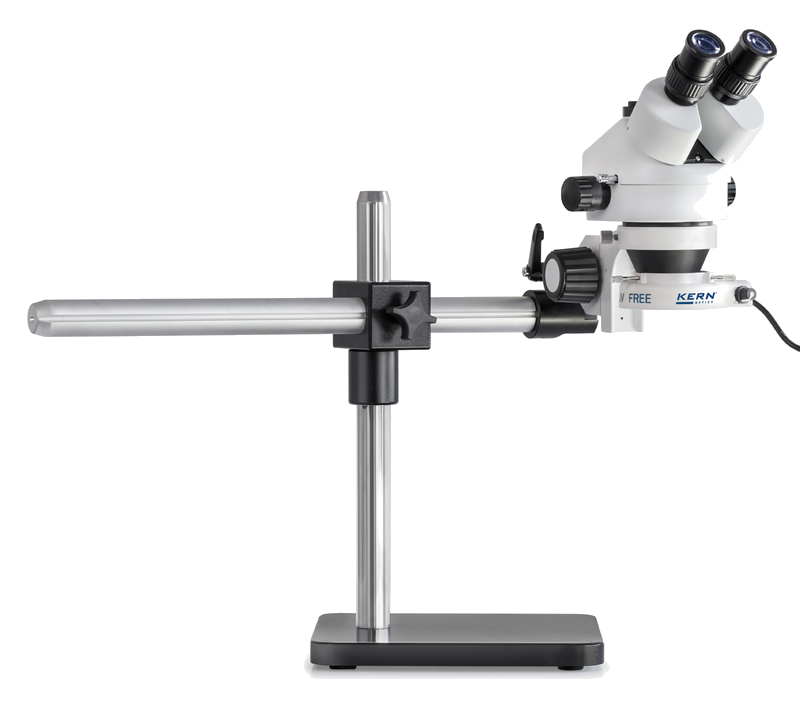

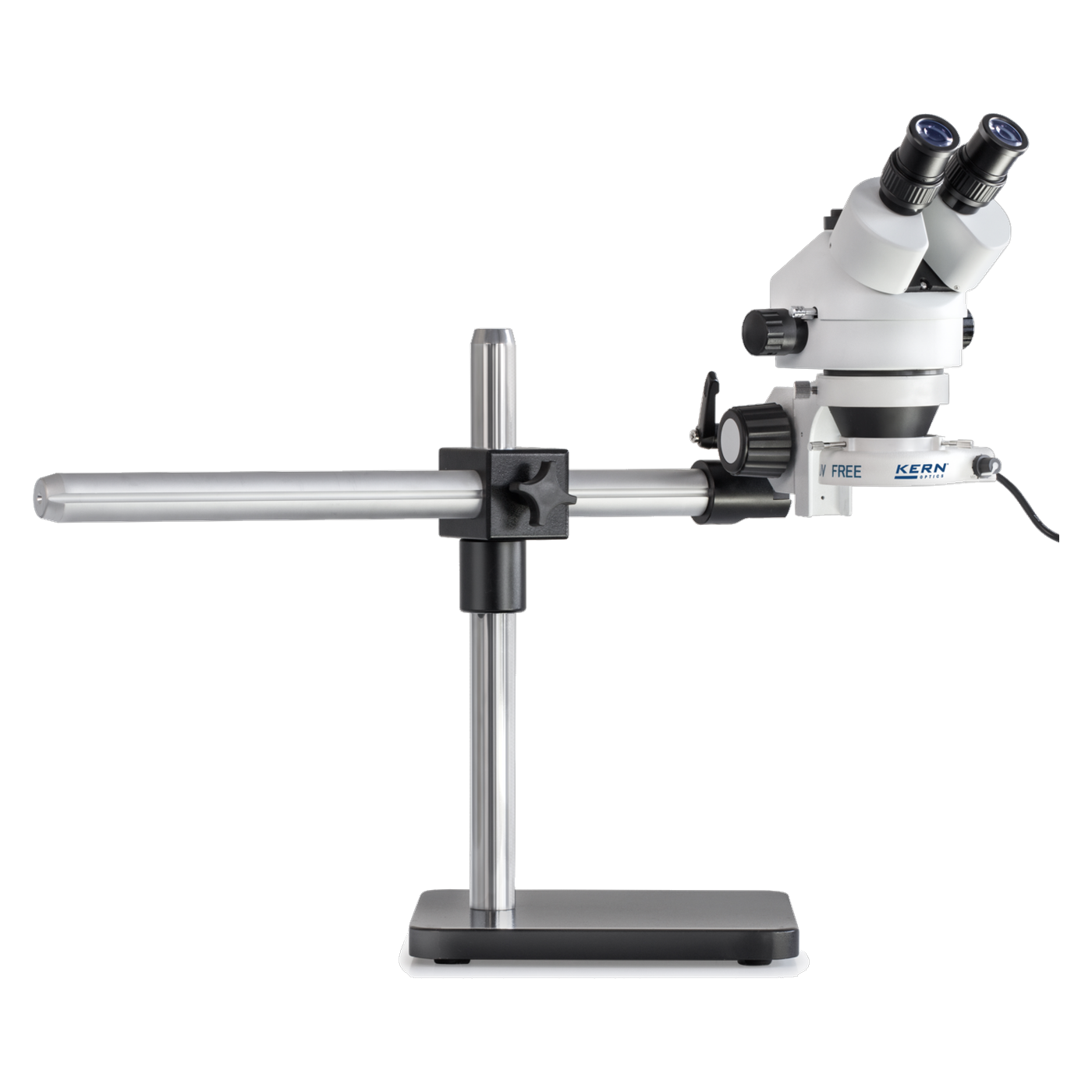

Kern OZL-9 stereo microscope sets, telescopic arm stand with plate, zoom 0.7x to 4.5x, LED ring light, EU and UK plugs
The Kern OZL-9 models are two ready-to-use stereo microscope sets comprising a stereo zoom head, a universal telescopic arm stand with a plate, a holder, an LED ring light and a dust cover. The OZL 961 is binocular, while the OZL 963 is trinocular with a camera output. Both are available with an EU plug (no suffix) and with a UK plug (suffix UK), making a total of four variants. The suffix UK stands for the UK adapter, which, according to Kern, is included in the scope of delivery. The zoom range is continuously adjustable from 0.7x to 4.5x; when used with the HWF 10x eyepieces, this provides a total magnification of 7x to 45x.Telescopic arm for large samplesAccording to Kern, the universal telescopic arm stand is extremely versatile. According to Kern, it is particularly suitable for large specimens and for working freely under the microscope. The microscope head, 76 mm in diameter, is guided in the holder. The working distance is 100 mm, and the maximum specimen height is 140 mm. The base plate makes the set stable: the sets measure 700 x 255 x 600 mm and weigh approximately 17 kg (OZL 961) or 18 kg (OZL 963) net.Ring light and opticsThe incident light is provided by a 4.5 W LED ring light, which is dimmable. The set has no transmitted light. The Greenough system provides a stereoscopic image; the field of view measures 4.4 to 28.6 mm. The tube is inclined at 45° and rotates through 360°; the interpupillary distance ranges from 55 to 75 mm, and the dioptre adjustment operates on both sides from -5 to +5. The HWF 10x eyepieces have a 20 mm field of view, a high eye point and a 30 mm mounting diameter. A torque control is provided on the coarse focus knob.Binocular or trinocularThe OZL 963 also has a third tube outlet with a beam splitter ratio of 0:100. A C-Mount adapter is required to connect a camera; Kern lists the microscope camera adapters OZB-A4809 (1x), OZB-A4810 (0.3x) and OZB-A4811 (0.5x) for this purpose. The OZL 963 brochure lists the ODC 241 tablet camera, as well as the ODC 825, ODC 832, ODC 852 and ODC 854, as cameras.Power and mains plugThe power supply is built in and operates at 100 to 240 V; it is connected with an IEC power cable. According to Kern, the UK adapter is included in the scope of delivery for sets ending in UK. For sets with an EU plug (without UK), adapters for various countries are optional, according to the data sheet. The sets may be stored at temperatures between -5 °C and 40 °C.Typical applicationsAssembly and repair workstations, for example in the electronics industryTraining centres and workshops: large specimens under the microscopeQuality control: circuit boards and componentsZoology and botany, tissue preparation, dissectionIn-vitro fertilisation and detection of parasitesModels at a glanceModelTubeBeam splitter ratioNet weightMains plugOZL 961Binocularnot applicableapprox. 17 kgEU (OZL 961) or UK (OZL 961UK)OZL 963Trinocular0:100approx. 18 kgEU (OZL 963) or UK (OZL 963UK)Technical detailsThese values apply to both models, with EU and UK plugs. The tube differs.Optical systemGreenough, bright fieldTubeInclined at 45°, rotatable through 360°, interpupillary distance 55 to 75 mm, dioptre adjustment on both sides from -5 to +5EyepieceHWF 10x, field of view 20 mm, mounting diameter 30 mm, high eye pointZoom0.7x to 4.5x continuously variable, ratio 6.4:1Total magnification7x to 45xField of view4.4 mm to 28.6 mmWorking distance100 mmMaximum sample height140 mmFocusingCoarse focus, torque controlStandUniversal telescopic arm with base plate, head mount Ø 76 mmIlluminationLED ring light in incident light, 4.5 W, dimmablePower supplyBuilt-in power supply, 100 to 240 V, power cable; if the model ends in UK, a UK adapter is included in the scope of deliveryDimensions (W x D x H)700 x 255 x 600 mmStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryStereo zoom head (OZL 961 binocular, OZL 963 trinocular) with HWF 10x eyepiecesUniversal telescopic arm stand with plate and holderLED ring lightDust coverFor models ending in UK: UK adapterWarrantyAccording to Kern & Sohn, these sets come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OZL-9 (PDF)Regulatory informationAs electrical devices, the stereo microscope sets fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OZB-A4632 (HWF 15x), OZB-A4633 (HWF 20x), OZB-A4634 (HWF 25x)Attachment lenses: OZB-A4641 (0.5x), OZB-A4644 (0.75x), OZB-A4642 (1.5x), OZB-A4643 (2x)Further microscope accessories: solder protection lens OZB-A4646, dust cover OBB-A1387Eyepiece camera adapters: OZB-A4863 (1x)Eyepiece cameras: ODC 874, ODC 881Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Travel adapter: YKA-02. According to the brochure, for versions with an EU plug.Enquiries are handled via our procurement service.

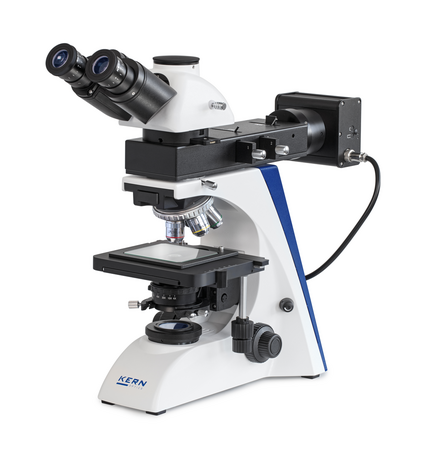

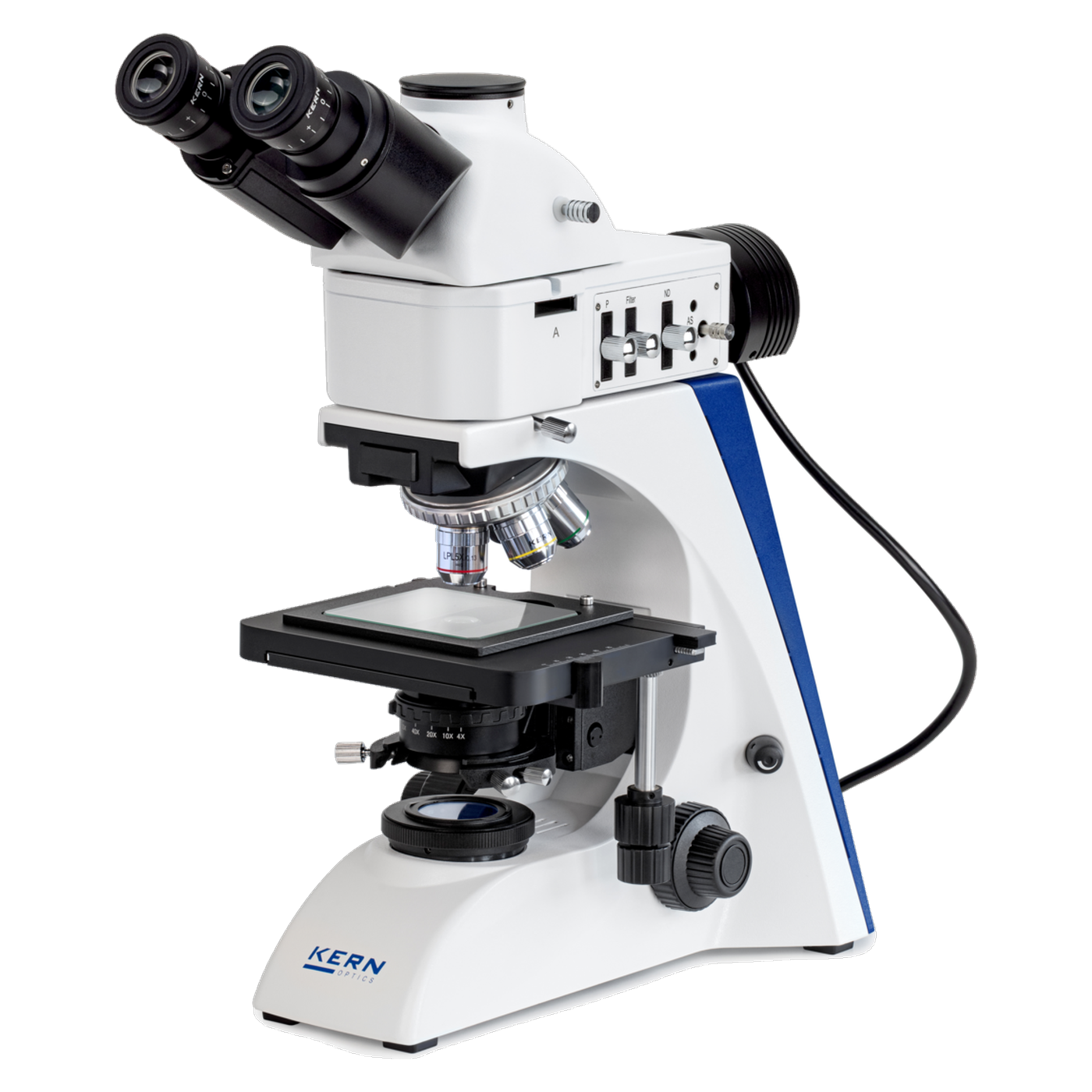

Kern OKO 178 metallurgical microscope, trinocular, 5x to 50x, reflected and transmitted light
Metals and surfaces are examined under reflected light, whilst transparent specimens are examined under transmitted light. The Kern OKO 178 combines both in a single instrument: LED reflected light and LED transmitted light of 5 watts each, separately dimmable, plus infinity optics, Köhler illumination and a simple polarisation unit, all included as standard. Kern describes the microscope as professional and versatile, designed for the inspection of metals and surface analysis.Objectives with space for a fifthThe standard objectives are 5x, 10x, 20x and 50x, all of Infinity Semi-Apochromatic quality. The revolver has five positions, one of which remains free. With the HWF-10x eyepieces (22 mm field of view, anti-fungus, high eye point), this gives a magnification range of 50x to 500x. For the free position, Kern offers as accessories a 100x oil immersion objective with an aperture of 1.25 (OBB-A1241), an 80x objective with a long working distance and an aperture of 0.8 (OBB-A1530), as well as other semi-apochromatic objectives. Kern classes the 80x objective as an objective with a long working distance.Reflected light, transmitted light and polarisationBoth reflected light and transmitted light illumination have a power of 5 watts each. The Abbe condenser with an aperture of 1.25 is centrable and height-adjustable; it also features an aperture diaphragm and a field diaphragm for full Köhler illumination. The simple polarisation unit, comprising an analyser and a polariser, is part of the standard equipment. A blue filter is included as standard; accessories available include a polariser for transmitted light illumination, as well as yellow, green and grey filters.Head and stageThe Siedentopf tube is trinocular, inclined at 30 degrees and rotatable. The interpupillary distance can be adjusted between 50 and 75 mm, and dioptre adjustment is available on both sides. The open mechanical stage has a travel range of 77 x 52 mm. An object holder for two slides and an extension plate for the stage are available as accessories. The coaxial coarse and fine adjustment mechanisms operate in increments of 0.002 mm. The microscope measures 472 x 211 x 440 mm (W x D x H), has a net weight of 11 kg and is powered by a mains adaptor (100 to 240 V, 50/60 Hz, 0.3 A, protection class III).Documentation with a cameraThe third tube port carries a camera. Kern offers C-mount adaptors with 0.5x (adjustable focus) and 0.75x magnification, as well as an adaptor for trinocular models, and the ODC 825, 832, 841 and 854 microscope cameras and the ODC 241 tablet camera.OKO 178 or a biology microscopeThe OBN 135 is intended for brightfield transmitted light on specimens; the OBN 141 is intended for use with fluorescence. The OKO 178 is the choice when reflected light is needed, for example when examining metals and surfaces.Typical applicationsKern describes the OKO 178 as being suitable for the inspection of metals and for surface analysis. As a combination of LED reflected light and LED transmitted light, it covers both opaque and transparent samples.Inspection of metalsSurface analysis using reflected lightTransmitted light examinationsPolarisation observations using the supplied unitFrequently asked questionsWhat is the magnification of the OKO 178?The objectives provide magnifications of 5x, 10x, 20x and 50x. With the 10x eyepieces, this gives a total magnification of 50x to 500x.Is a polarisation unit included?Yes, a basic unit comprising an analyser and a polariser is included in the scope of delivery.Can I add a 100x oil objective?Yes, Kern offers a 100x objective (oil, 1.25 aperture) as an accessory. There is a free position on the revolver.Can the reflected and transmitted light be controlled separately?Yes, both 5 W LED light sources can be dimmed independently of one another.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsOptical systemInfinityTubeTrinocular, Siedentopf, inclined at 30 degrees, rotatableEyepiecesHWF 10x, 22 mm field of view, anti-fungus, high eye pointInterpupillary distance50 to 75 mmDioptre adjustmenton both sidesObjectivesInfinity semi-apochromatic 5x, 10x, 20x, 50xObjective turret5 positionsCondenserAbbe, aperture 1.25, centrable and height-adjustable, aperture diaphragmIllumination5 W LED reflected light and 5 W LED transmitted light, independently dimmable, KöhlerPolarisationBasic unit (analyser, polariser) includedMechanical stageOpen, travel range 77 x 52 mmFocusingCoaxial coarse and fine adjustment, fine adjustment 0.002 mmPower supplyMains adaptor, 100 to 240 V, 50/60 Hz, 0.3 A, protection class IIIDimensions (W x D x H)472 x 211 x 440 mmWeight (net)11 kgStorage temperature-5 to 40 °CScope of deliveryOKO 178 metallurgical microscopeSimple polarisation unit (analyser and polariser)HWF 10x eyepiece with 0.1 mm scaleBlue filterDust coverEyecupsOperating instructions (multilingual)Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceWe can arrange a 100x oil immersion objective, additional objectives, filters, eyepieces, an object holder, a camera with a C-mount adapter or a cleaning set for the OKO 178 on request. Please use our procurement service for this.

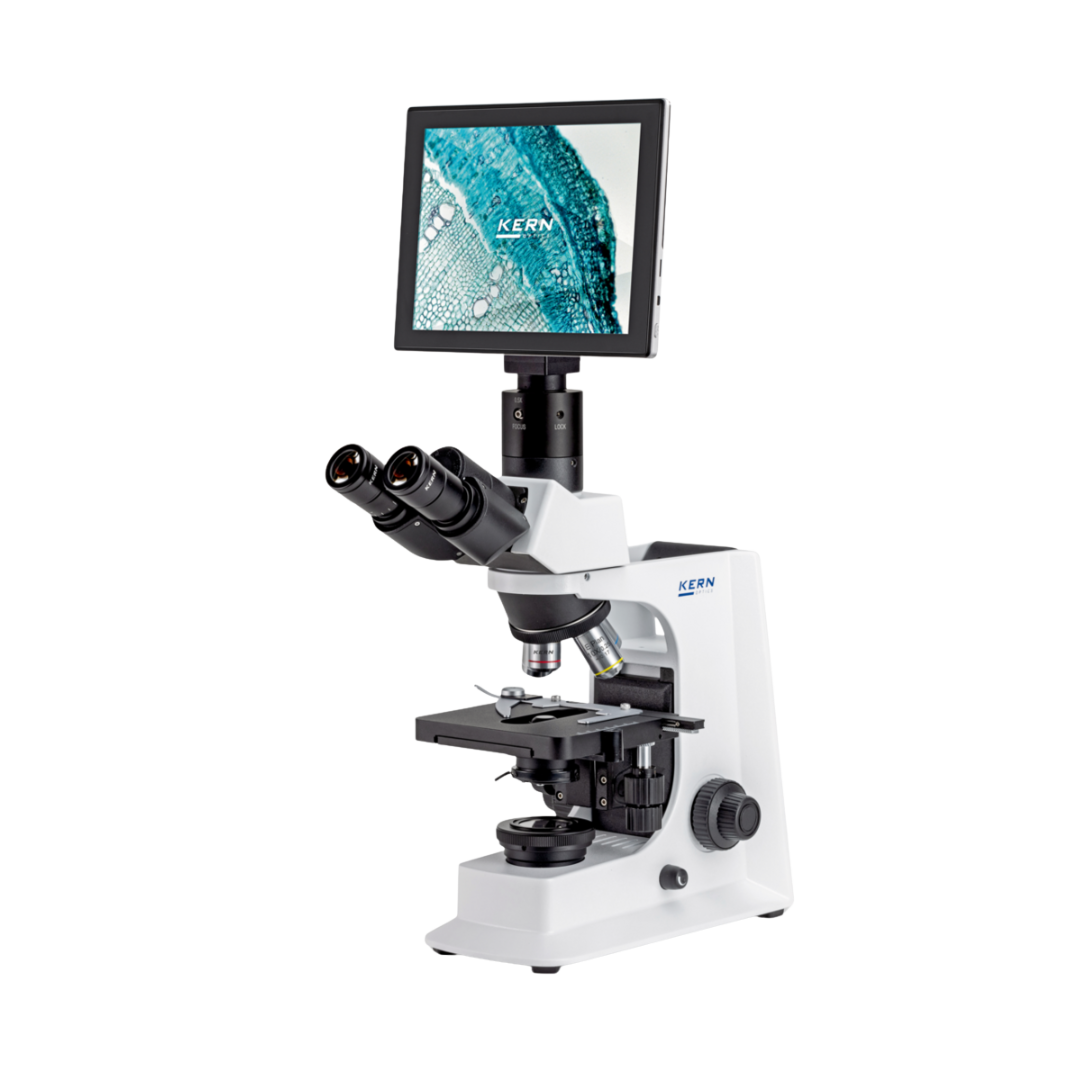

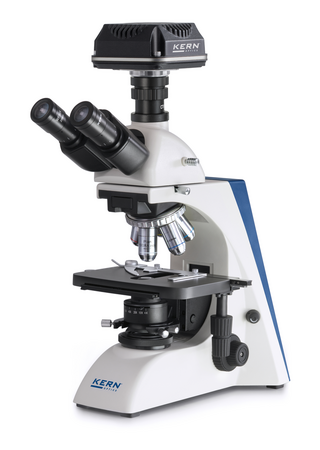

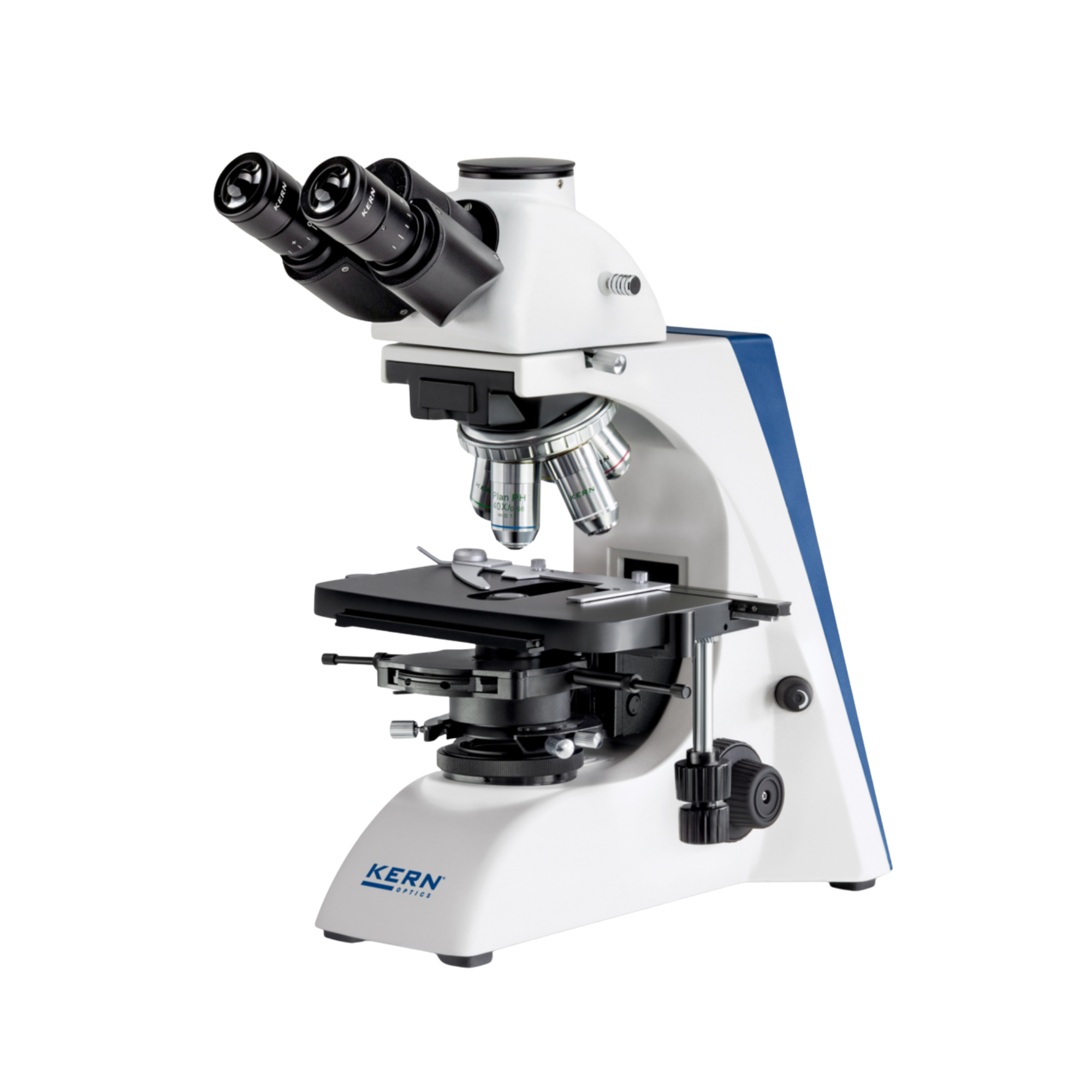

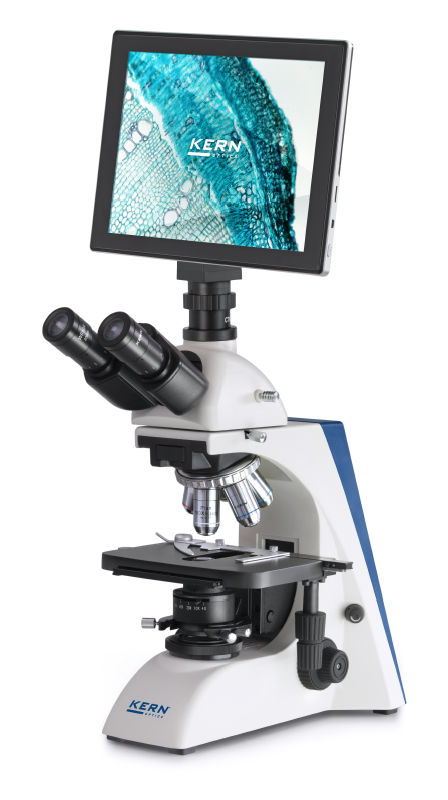

Kern OBN-S digital microscope sets, trinocular, Infinity, bright field, fluorescence or phase contrast
The Kern OBN-S range comprises seven digital microscope sets, each consisting of a trinocular Infinity microscope from the OBN series and a permanently mounted camera. The microscope is the OBN 135 for bright field, the OBN 142 for fluorescence or the OBN 159 for phase contrast. In addition, there is either a C-Mount camera with USB (ODC 825, ODC 832, ODC 861) or a tablet camera with a display (ODC 241, ODC 251). The model number indicates the combination: OBN 142T251 is the OBN 142 with the ODC 251 tablet camera. According to Kern, the appropriate C-Mount adapter is included in the delivery.A choice of three microscopesThe OBN 135 works in bright field. Dark field, polarisation, fluorescence and phase contrast are options according to the data sheet. It features a 3 W LED for transmitted light and five Infinity-Plan objectives: 4x, 10x, 20x, 40x and 100x. The OBN 142 is a fluorescence microscope with a 3 W LED for transmitted light and a 5 W LED for epi-fluorescence. Both light sources can be dimmed independently. The fluorescence unit covers UV, V, B and G; according to Kern, the filter wheel can accommodate up to six filters and is fitted with B/G/UV/V filters. The OBN 159 is a phase contrast microscope equipped with the following objectives: 4x, PH 10x, PH 20x, PH 40x and PH 100x. All three have a Siedentopf tube, inclined at 30° and rotatable through 360°, with an interpupillary distance of 50 to 75 mm and dioptre adjustment on both sides from -5 to +5, plus five nosepiece positions, HWF 10x eyepieces with a 20 mm field of view and an Abbe condenser 1.25.Köhler illumination and mechanical stageThe series features Köhler illumination, an adjustable field diaphragm and a centring and height-adjustable Abbe condenser with an adjustable aperture diaphragm. The very large mechanical stage is operated via a coaxial coarse and fine focus control on both sides. The fine focus mechanism operates in increments of 0.002 mm, and torque control is provided. According to the data sheet, the field of view measures 0.2 to 5 mm. According to the data sheet, the beam splitter ratio is 0:100 and 80:20.The camerasThe ODC 825 and the ODC 832 have 5.1 MP and a 1/2.5-inch CMOS sensor. The ODC 825 operates via USB 2.0 at 6.8 to 55 frames per second, while the ODC 832 operates via USB 3.0 at 14.2 to 101.2 frames per second. Both are powered via the USB cable; the VIS 2.0 PRO or LITE software is free of charge, according to Kern. The ODC 861 is a Peltier-cooled camera for fluorescence applications: 1-inch Sony CMOS sensor, 20 MP, USB 3.0, 5 to 30 frames per second, exposure time from 0.1 ms to 3,600,000 ms (one hour). According to Kern, the cooling is intended to significantly reduce image noise in low light; a black balance is possible. It is powered by an external 12 V power supply and comes with the VIS 2.0 LITE software (OXM 903).The ODC 241 is a tablet camera with a 5 MP sensor (Sony CMOS, 1/2.8-inch, 30 frames per second), running Android and featuring 128 GB of storage. It saves data to a USB stick or microSD card, supports a USB mouse and outputs the live image via HDMI. The ODC 251 consists of an Android tablet with a 10.5-inch touchscreen (1,920 x 1,280 pixels) and an 8 MP camera (1/1.8-inch sensor) that records video in 4K. It has 32 GB of storage, Ethernet, Bluetooth, Wi-Fi, USB 2.0, USB 3.0 and HDMI. Both tablet cameras capture images and videos, measure distances and areas, and automatically adjust white balance and contrast. The ODC 241 also has a manual counting function and measures angles. According to the data sheet, the ODC 251 offers a choice of German and English as user interface languages.Dimensions and currentThe sets with the C-Mount cameras OBN 135C825 and OBN 135C832 measure 390 x 200 x 470 mm and have a built-in power supply for 100 to 240 V with IEC power cable. The OBN 135T241, OBN 135T251 and OBN 159T251 sets measure 390 x 235 x 620 mm. Kern states that the net weight for these five sets is approximately 11 kg. For the sets containing the OBN 142, the dimensions listed in the data sheet are the same as for the OBN 135 sets; however, the OBN 142 microscope alone measures 530 x 220 x 490 mm, which is why no dimensions are given in the table for these two sets.Typical applicationsHaematology, urology, gynaecology, dermatology and pathology with image documentationMicrobiology, parasitology, immunology and oncologyImmunofluorescence, FISH and DAPI staining using the OBN 142C861 and OBN 142T251 fluorescence setsPhase contrast on living cells and bacteria using the OBN 159T251 setWater analysis, sewage treatment works, breweries and veterinary practicesTraining centres and universities: display specimens live on screenModels at a glanceModelMicroscopeCameraCamera connectionsOBN 135C825OBN 135, bright fieldODC 825, 5.1 MPUSB 2.0OBN 135C832OBN 135, bright fieldODC 832, 5.1 MPUSB 3.0OBN 135T241OBN 135, bright fieldODC 241, tablet, 5 MPWi-Fi, USB 2.0, HDMI, MicroSDOBN 135T251OBN 135, bright fieldODC 251, tablet, 8 MP (4K)Ethernet, Bluetooth, Wi-Fi, USB 2.0, USB 3.0, HDMIOBN 142C861OBN 142, fluorescenceODC 861, cooled, 20 MPUSB 3.0OBN 142T251OBN 142, fluorescenceODC 251, tablet, 8 MP (4K)Ethernet, Bluetooth, Wi-Fi, USB 2.0, USB 3.0, HDMIOBN 159T251OBN 159, phase contrastODC 251, tablet, 8 MP (4K)Ethernet, Bluetooth, Wi-Fi, USB 2.0, USB 3.0, HDMITechnical detailsThese values apply to all sets. Any differing values are listed in the model table and in the text.Optical systemInfinityTubeTrinocular, Siedentopf, inclined at 30°, rotatable through 360°, interpupillary distance 50 to 75 mm, dioptre adjustment on both sides -5 to +5Beam splitter ratio0:100 and 80:20EyepieceHWF 10x, field of view 20 mm, mounting diameter 23.2 mmObjectivesInfinity Plan; OBN 135 and OBN 142: 4x, 10x, 20x, 40x, 100x; OBN 159: 4x, PH 10x, PH 20x, PH 40x, PH 100xObjective nosepiece5 placesField of view0.2 mm to 5 mmCondenserAbbe, aperture 1.25, aperture diaphragm, centringKöhler illuminationwith adjustable field diaphragmStageLarge mechanical stageFocusingCoaxial coarse and fine focus, on both sides, fine focus 0.002 mm, torque controlIllumination3 W LED (transmitted light), dimmable; OBN 142: additional 5 W LED (epi-fluorescence), separately dimmableFluorescence (OBN 142)UV, V, B, G (LED); filter wheel up to 6-position, fitted with B/G/UV/VCamera connectionC-MountSoftwareC-Mount cameras: VIS 2.0 PRO (OXM 902) or, for ODC 861, VIS 2.0 LITE (OXM 903), Windows; tablet cameras: Android with integrated camera softwareMicroscope power supplyOBN 135C825, OBN 135C832: built-in power supply 100 to 240 V, power cable; other sets: plug-in mains adaptor, device 5 VDimensions (W x D x H)OBN 135C825, 135C832: 390 x 200 x 470 mm; OBN 135T241, 135T251, 159T251: 390 x 235 x 620 mmNet weightapprox. 11 kg (OBN 135 and OBN 159 sets)Storage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOBN 135, OBN 142 or OBN 159 microscope with trinocular Siedentopf tube and two HWF 10x eyepiecesInfinity-Plan objectives for each microscopeODC 825, ODC 832, ODC 861, ODC 241 or ODC 251 camera per setC-Mount adapterFor the ODC 825 and ODC 832 as per the brochure: Microscope VIS Basic software (OXM 901), USB cable (2,000 mm), eyepiece adapter and stage micrometerFor the ODC 241: tablet camera with pre-installed software and power supply unitFor the OBN 142: Centring objective for fluorescence adjustmentDust cover, eyecups and multilingual operating instructionsWarrantyAccording to Kern & Sohn, these sets come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OBN 135C825, 135C832 (PDF)Operating instructions Kern OBN 135T241 (PDF)Operating instructions Kern OBN 135T251, 142T251, 159T251 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OBB-A1351, OBB-A1352 and OBB-A1448, as well as OBB-A1617 and OBB-A1618 with a 0.1 mm scale, OBB-A1354 WF 16xBinocular tubes: OBB-A1125 (Siedentopf), OBB-A1359 (Butterfly)Phase contrast: complete unit OBB-A1237, individual PH units, PH plan objectives (OBB-A1390 to OBB-A1393), PH condensers with sliders (OBB-A1394 to OBB-A1397)Dark field and polarisation: dark field condensers OBB-A1421, OBB-A1538 (oil), polarisation unit OBB-A1283Fluorescence units: OBB-A1153, OBB-A1155 (HBO), OBB-A1156 (LED)Filters: OBB-A1165, OBB-A1170, OBB-A1183, OBB-A1188Camera adapters: OBB-A1514 (1x), OBB-A1515 (0.5x), OBB-A1590 (0.75x)Eyepiece adapters: ODC-A8102, ODC-A8103, ODC-A8105Software: OXM 902, OXM 903Further microscope accessories: calibration slide ODC-A2404, dust cover OBB-A1388, travel adapter YKA-02Enquiries are handled via our procurement service.

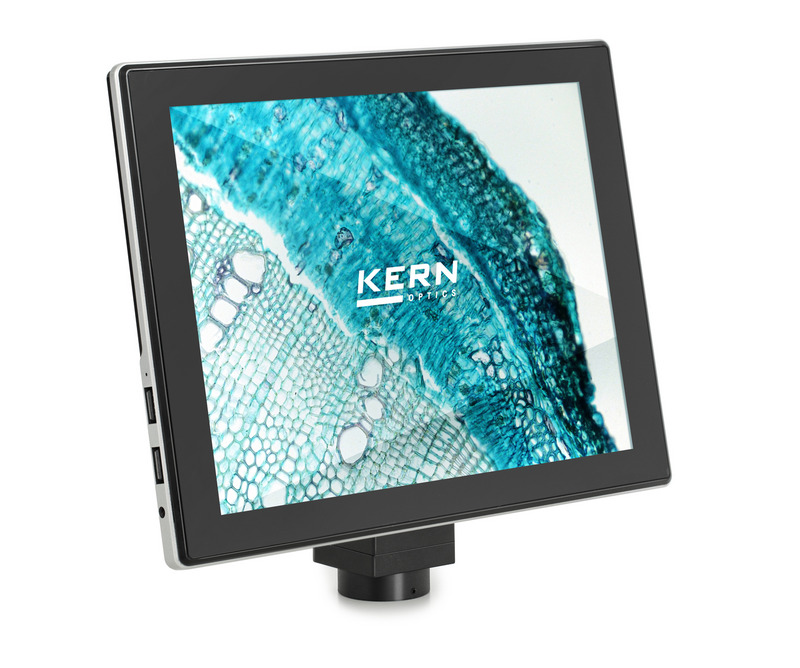

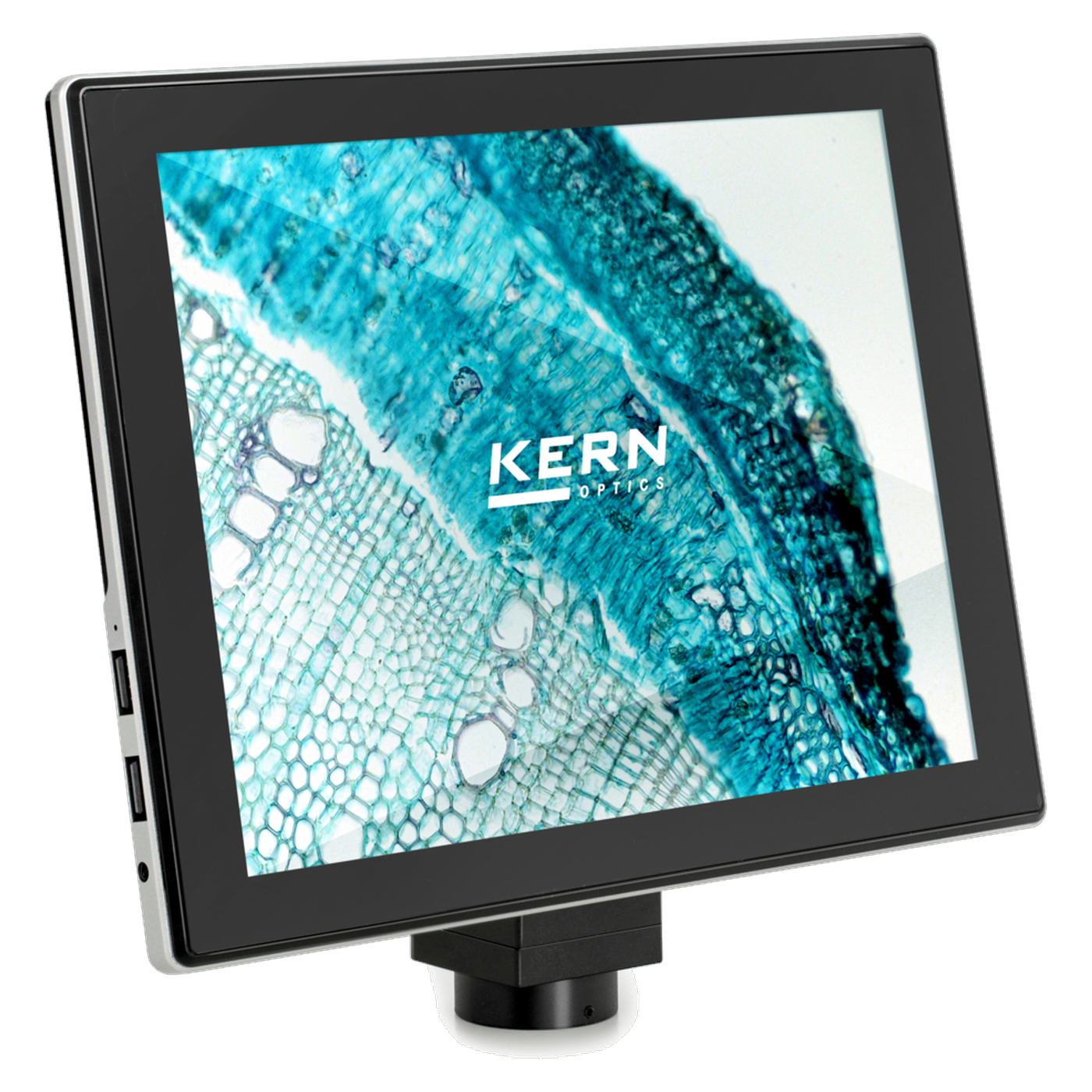

Kern ODC 241 microscope tablet camera, 5 MP, 9.7-inch touchscreen, C-mount
The Kern ODC 241 combines a 5-megapixel microscope camera with an Android tablet in a single device. Kern describes it as a 2-in-1 digital microscopy solution and as a universal system for all trinocular microscopes with a C-mount adapter. The live image appears on the 9.7-inch touchscreen; recording, measurement and documentation are carried out via the pre-installed S-EYE app, with no need for a computer.Camera and displayThe sensor is a Sony CMOS measuring 1/2.8-inch with 5 megapixels; the camera operates in colour. The HD display is a touchscreen with a diagonal of 9.7 inches and a resolution of 2,048 x 1,536 pixels. The frame rate is between 15 and 30 frames per second. The camera is attached to the microscope’s phototube via a C-mount connector. The device measures 238 x 182 x 51 mm and has a net weight of 0.8 kg.S-EYE softwareThe app captures images and videos and covers image analysis, measurement and documentation. It measures distances, areas and angles, and also features a manual counting function. The live image can be transmitted to an external screen via Micro-HDMI. Data is saved to a USB stick or SD card, and a USB mouse can also be connected to the USB port. An overview of the interfaces: Wi-Fi with wireless data transfer, Micro-HDMI, MicroSD and USB 2.0.Connection to the microscopeA C-mount adapter is fitted between the phototube and the camera. This is not included in the scope of delivery and depends on the microscope model. Kern requires trinocular microscopes; binocular heads without a third tube port are therefore not compatible. Kern offers its own adapters for this purpose, depending on the model.OZL 466 (stereo zoom)C-mount adapter 1x (OZB-A4809), 0.3x (OZB-A4810) or 0.5x (OZB-A4811)Trinocular OCM, OBN and OKO models, for example OBN 141 and OKO 178C-mount adapters for trinocular models (OBB-A1514) or 0.75x (OBB-A1590); for some models, additionally 0.5x with adjustable focus (OBB-A1515)The camera is listed by Kern as an accessory for the microscopes mentioned. The pre-assembled set comprising a stereo zoom microscope and this camera is available as the OZL 464T241.Power supply and specificationsThe camera is powered via a plug-in power supply unit rated for 100 to 240 V and 50 or 60 Hz (protection class III, detachable cable). The storage temperature ranges from -5 to 40 °C. A calibration slide is supplied; a further calibration slide with a micrometre is listed as an accessory (ODC-A2404).Typical applicationsAccording to Kern, the ODC 241 is suitable for school pupils and university students undergoing training, as well as for demonstration purposes in the laboratory. It has been developed for the simple and direct observation of the sample on the screen.Training of school and university studentsLaboratory demonstrationsObservation of the sample on the screen rather than through the eyepieceImage and video documentation with measurementFrequently asked questionsDo I need a computer?No, viewing, recording and measurement are carried out on the integrated tablet using the pre-installed S-EYE app.Which microscopes is the camera compatible with?Trinocular microscopes with a C-mount adapter. The adapter is not included in the scope of delivery and depends on the microscope model.What can I measure with it?Distances, areas and angles. There is also a manual counting function.Where do I save the images?On a USB stick or an SD card. The live image can also be displayed on an external monitor via HDMI.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsCamera typeTablet camera, colourSensorSony CMOS, 1/2.8-inch, 5 MPDisplayHD touchscreen, 9.7 inches, 2,048 x 1,536 pixelsFrame rate15 to 30 frames per secondMountingC-mountInterfacesWi-Fi (wireless data transmission), Micro-HDMI, MicroSD, USB 2.0SoftwareS-EYE (pre-installed): image capture, video recording, measurement, counting functionPower supplyMains adaptor, 100 to 240 V, 50/60 Hz, protection class IIIDimensions (W x D x H)238 x 182 x 51 mmWeight (net)0.8 kgStorage temperature-5 to 40 °CScope of deliveryODC 241 tablet camera with pre-installed app softwarePower supplyCalibration slideOperating instructionsRegulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceWe can put together the right C-mount adapter for your microscope, an additional calibration slide or the right microscope for the ODC 241 on request. Please use our procurement service for this.

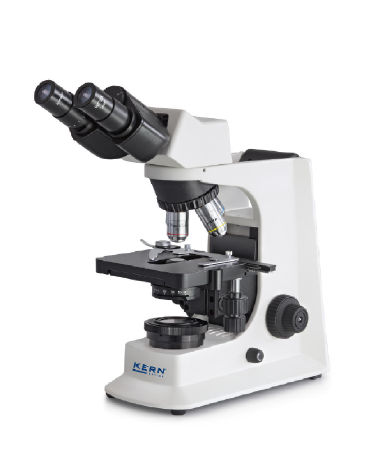

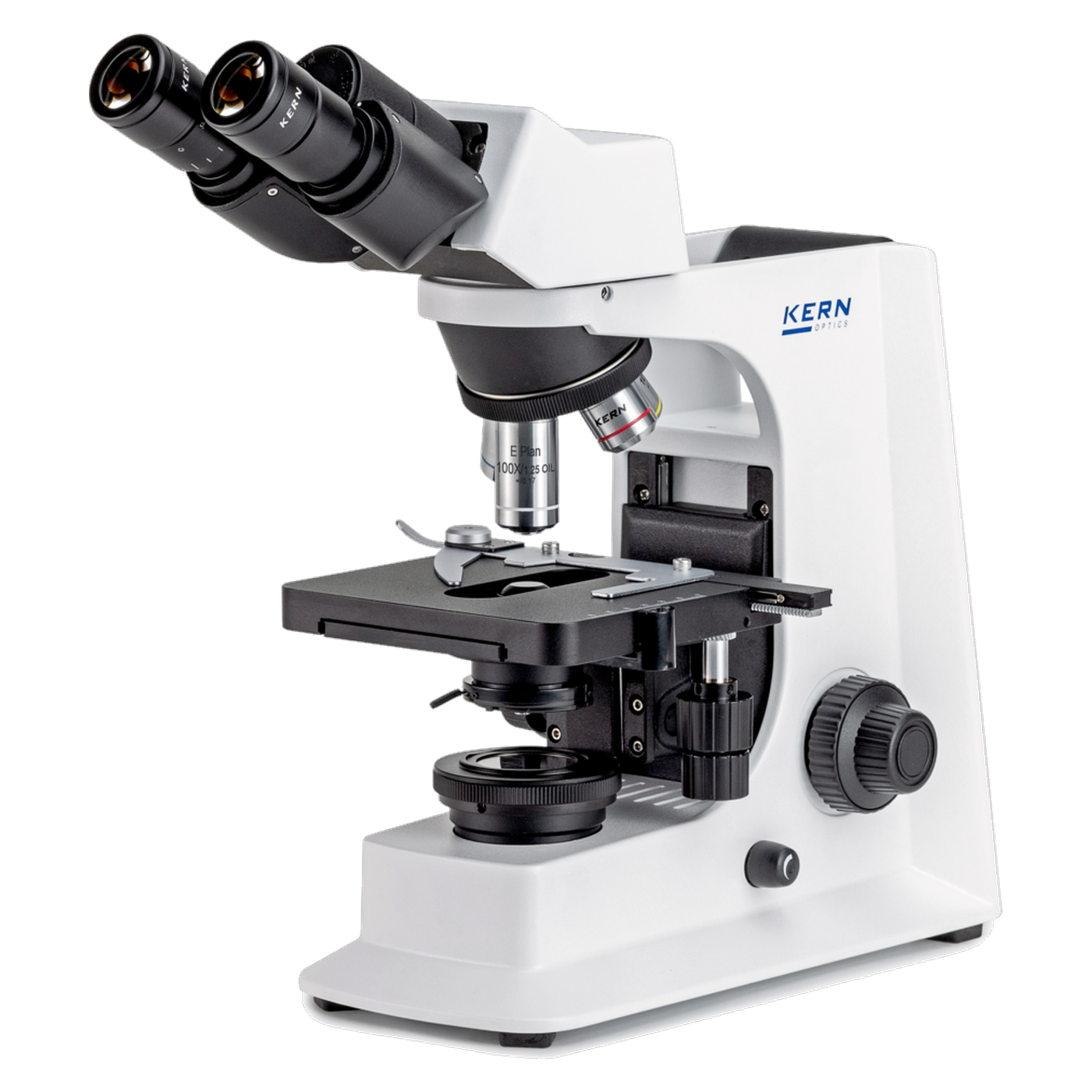

Kern OBL 127 transmitted-light microscope, binocular, 4x-100x, Köhler illumination
The Kern OBL 127 is a binocular transmitted-light microscope with infinity optics and pre-centred Köhler illumination. Four Infinity E-Plan objectives cover magnifications from 4x to 100x; with the 10x eyepieces, this results in a total magnification of 40x to 1,000x. Kern describes the OBL series as suitable for demanding transmitted light applications. Accessories include phase contrast, polarisation, dark-field, a fluorescence unit and a trinocular tube.Optics and revolverThe revolver has four positions and holds the standard 4x, 10x, 40x and 100x Infinity E-Plan objectives. A 20x objective is not included as standard; it is listed as an accessory with a 0.45 aperture, as is a 60x objective. The HWF-10x eyepieces have a field of view of 20 mm, an anti-fungus coating and a high eye point. The head is a butterfly tube, inclined at 30 degrees and rotatable; the interpupillary distance can be adjusted between 50 and 75 mm. Dioptre adjustment is on one side.Köhler illumination and condenserThe Abbe condenser with an aperture of 1.25 is permanently pre-centred and focusable; an aperture diaphragm and field diaphragm are included. This simplifies the Köhler adjustment, as the centre cannot be displaced. The LED transmitted light illumination has a power of 3 watts and is continuously dimmable. The unit is powered by a mains adaptor (100 to 240 V, 50/60 Hz, 0.3 A, protection class III).Mechanical stage and focusThe large mechanical stage, with a travel range of 76 x 52 mm, can hold up to two specimens at the same time. The coaxial coarse and fine adjustment knobs are located on both sides; the fine adjustment knob moves in increments of 0.002 mm. The unit measures 395 x 200 x 380 mm (W x D x H) and weighs 7 kg. Kern describes the base as robust and ergonomic.Expansion options via accessoriesThe extensions are all separate items from Kern. Selection from the range of accessories for the OBL 127:Trinocular tubeOBB-A1580, for camera connectionContrast techniquesDark-field condenser (OBB-A1422), polarisation unit (OBB-A1277), phase-contrast units with PH-Plan objectives 10x to 100xFluorescence100 W HBO epi-fluorescence unit with 6-filter wheel (OBB-A1153)Objectives20x/0.45 spring-loaded (OBB-A1250), 60x/0.8 spring-loaded (OBB-A1270), 100x water (OBB-A1437), 2x (OBB-A1655)EyepiecesWF 10x and WF 16x (Ø 23.2 mm), HWF 10x with scale or pointerCamerasODC 874 and ODC 881 (microscope cameras)FiltersYellow, green and greyThose planning to use a camera from the outset are more likely to choose the trinocular OBN 135 with five objectives or, for fluorescence, the OBN 141. The OKO 178 is intended for metallurgy using reflected light.Typical applicationsKern describes the OBL series as suitable for demanding transmitted light applications. Its specifications make it suitable for use with transmitted light specimens in brightfield mode; with accessories, it can also be used in phase contrast, polarisation, darkfield and fluorescence modes.Transmitted light microscopy in brightfieldExaminations using phase contrast, polarisation or dark-field (accessories)Fluorescence examinations with a fluorescence unit (accessory)Routine work on two specimens on the mechanical stageFrequently asked questionsWhat is the magnification of the OBL 127?The objectives provide magnifications of 4x, 10x, 40x and 100x. With the 10x eyepieces, this gives a magnification range of 40x to 1,000x.Can a camera be connected?The standard head is binocular. Kern offers a trinocular tube (OBB-A1580) as an accessory.Can I use fluorescence? With the optional fluorescence unit featuring a 100 W HBO lamp (OBB-A1153).How precisely can the focus be adjusted?The fine-adjustment knob adjusts in increments of 0.002 mm.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsOptical systemInfinityTubeBinocular, butterfly, 30-degree tilt, rotatableEyepiecesHWF 10x, 20 mm field of view, anti-fungus, high eye pointInterpupillary distance50 to 75 mmDioptre adjustmenton one sideObjectivesInfinity E-Plan 4x, 10x, 40x, 100xObjective turret4 positionsCondenserAbbe, aperture 1.25, fixed pre-centred, focusable, aperture diaphragmIlluminationLED transmitted light, 3 W, continuously dimmable, KöhlerMechanical stageMechanical, travel range 76 x 52 mmFocusingCoaxial coarse and fine adjustment, fine adjustment 0.002 mmPower supplyMains adaptor, 100 to 240 V, 50/60 Hz, 0.3 A, protection class IIIDimensions (W x D x H)395 x 200 x 380 mmWeight (net)7 kgStorage temperature-5 to 40 °CScope of deliveryOBL 127 transmitted light microscopePlug-in mains adaptorDust coverEyecupsOperating instructions (multilingual)Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceFor the OBL 127, we can provide eyepieces, additional objectives, phase contrast, polarisation, dark-field accessories, a trinocular tube or a camera on request. Please make use of our procurement service for this.
Kern OZB-UP stereo microscope stand, large universal stands, telescopic arm, articulating arm, double arm, column 515 mm
The Kern OZB-UP range comprises eight large universal stands for stereo microscopes. They have a column height of 515 mm and a mounting diameter of 37 mm for the universal stand. There are three arm types (telescopic arm, articulating arm and ball-bearing double arm) and up to three mounting options for each: free-standing on a plate, clamped to the table edge or with screws in the centre of the table. The stands are supplied without holders and are purely mechanical. Kern describes the large universal stands as a pedestal-base variant, optionally with a table clamp for the table edge or for central mounting on a desk or workbench.Comparison of arm typesThe telescopic arm is 614 mm long, the articulating arm 553 mm and the ball-bearing double arm 545 mm. The telescopic arm therefore has the greatest reach. The arms differ in the way the head is guided. The data sheet gives no information on mobility or load capacity; the weight of the intended head should therefore be checked with our advisory service.Plate, clamp or screwsWith a base plate (OZB-A5201, OZB-A5203), the stand is freestanding; it then weighs 18 kg and 22 kg. When fitted with a clamp (OZB-A5211, OZB-A5212, OZB-A5213), it is attached to the edge of the table; the clamp can grip table tops up to 62 mm thick, and the weight is reduced to between 6 and 9 kg. It is mounted in the centre of the table using screws (OZB-A5221, OZB-A5222, OZB-A5223), which requires a hole to be drilled in the tabletop. These stands weigh between 8 and 9 kg.Holder and headAll eight stands are described without holders. The head mount has a diameter of 76 mm. Kern lists the items OZB-A5301 and OZB-A5306 as holders for stereo microscope stands. The accessories for the OZM 544 stereo zoom microscope include the stands OZB-A5201, OZB-A5203, OZB-A5211, OZB-A5212 and OZB-A5213; Kern thereby lists them for heads in the OZM series.Typical applicationsCustom microscope setup with stereo zoom head and external illuminationTest stations for large samples that lie beneath the headWorkbenches in electronics, assembly and repair (clamps or screws)Laboratory workstations with a fixed installation on the worktopModels at a glanceModelDesignMountingColumn heightArm lengthDimensions (W x D x H)Net weightOZB-A5201Telescopic arm with platePlate515 mm614 mm254 x 614 x 515 mmapprox. 18 kgOZB-A5203Double arm with platePlate515 mm545 mm254 x 545 x 515 mmapprox. 22 kgOZB-A5211Telescopic arm with clampClamp515 mm614 mm80 x 614 x 515 mmapprox. 6 kgOZB-A5212Articulating arm with clampClamp515 mm553 mm80 x 553 x 515 mmapprox. 7 kgOZB-A5213Double arm with clampClamp515 mm545 mm80 x 545 x 515 mmapprox. 9 kgOZB-A5221Telescopic arm for screw mountingScrews515 mm614 mm150 x 614 x 515 mmapprox. 8 kgOZB-A5222Articulating arm for screw mountingScrews515 mm553 mm150 x 553 x 515 mmapprox. 9 kgOZB-A5223Double arm for screw mountingScrews515 mm545 mm150 x 545 x 515 mmapprox. 9 kgTechnical detailsThese values apply to all stands. Any differing values are listed in the model table.Stand typeStereo microscope stand (universal stand), without holderColumn height515 mmUniversal stand mountingØ 37 mmHead mountØ 76 mmClamp spanmax. 62 mm (OZB-A5211, A5212, A5213)ElectricalnoneStorage temperature-5 °C to 40 °CWarranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliveryStereo microscope stand depending on the model, without holderFor OZB-A5211, OZB-A5212 and OZB-A5213: table-edge clampWarrantyAccording to Kern & Sohn, these components come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OZB-A5201 (PDF)Operating instructions Kern OZB-A5203 (PDF)Operating instructions Kern OZB-A5211 (PDF)Operating instructions Kern OZB-A5212 (PDF)Operating instructions Kern OZB-A5213 (PDF)Operating instructions Kern OZB-A5221 (PDF)Operating instructions Kern OZB-A5222 (PDF)Operating instructions Kern OZB-A5223 (PDF)Individual requirements and procurement serviceThe holders for the OZB-A5301 and OZB-A5306 stereo microscope stands are also available. We can assemble suitable heads and lighting units on request. Enquiries are handled via our procurement service.

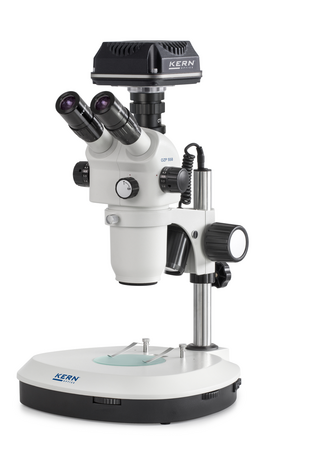

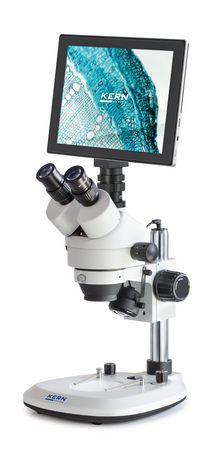

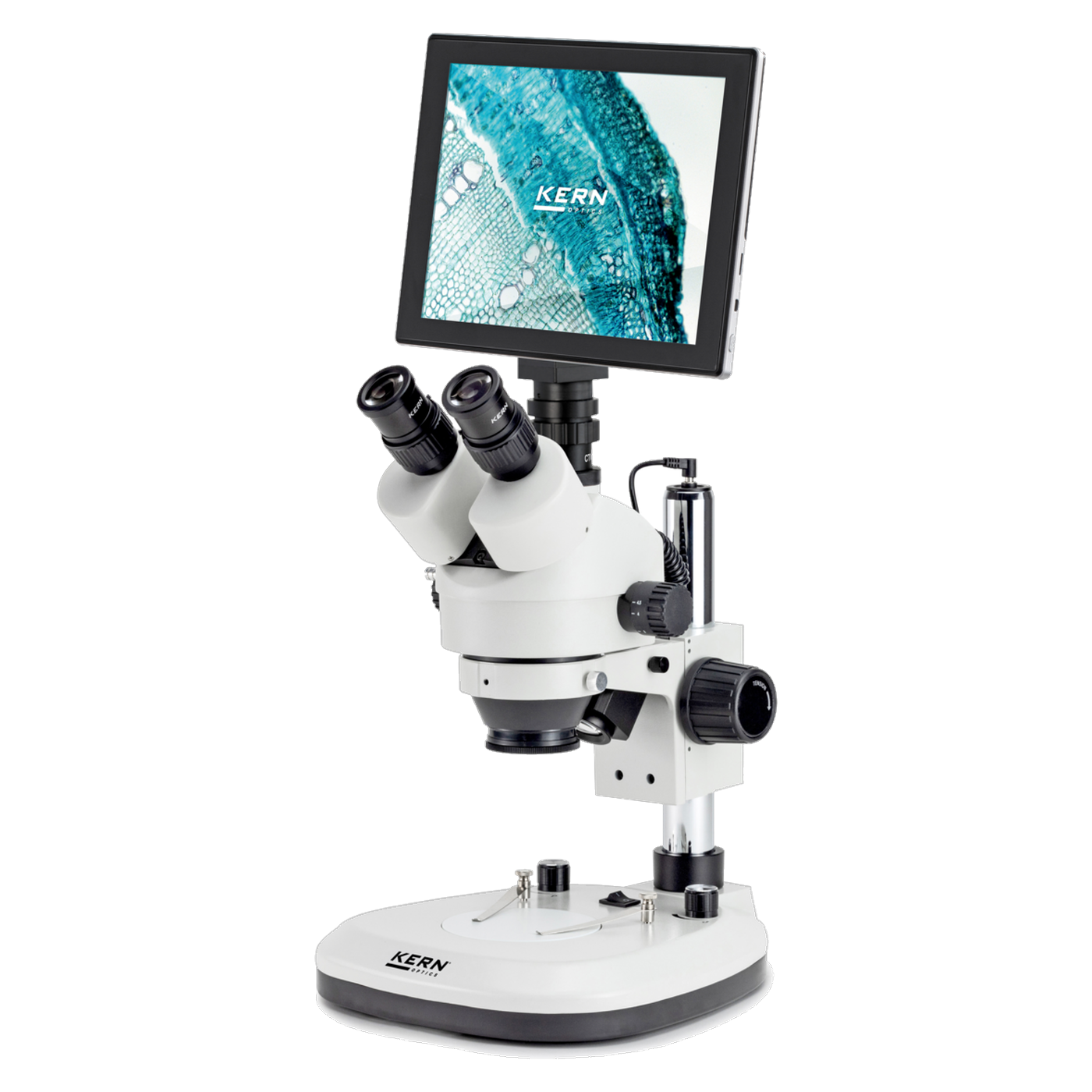

Kern OZL-S digital microscope sets, stereo zoom 0.7x to 4.5x, trinocular, ODC 825, ODC 832 or ODC 241 camera
The Kern OZL-S range comprises nine digital microscope sets, each consisting of a trinocular stereo zoom microscope from the OZL-46 series and a permanently mounted camera. According to Kern, the appropriate C-Mount adapter is included in the delivery. The model number indicates the combination: OZL 466C832 is the OZL 466 with the ODC 832 C-Mount camera, while OZL 468T241 is the OZL 468 with the ODC 241 tablet camera. All sets have a zoom range of 0.7x to 4.5x, HWF 10x eyepieces, and LED incident light and LED transmitted light.Three microscopesThe OZL 464 and the OZL 466 are mounted on a column stand. According to the brochure, the OZL 466 also features an LED ring light in the objective housing and an LED transmitted light unit. The OZL 468 features a mechanical stand with an integrated handle and, according to Kern, has been developed for use in schools and workshops. The head is trinocular on all models, tilted at 45° and rotatable through 360°. The interpupillary distance ranges from 55 to 75 mm, and dioptre adjustment is available on both sides. The field of view measures 4.4 to 28.6 mm, the working distance is 105 mm, and the maximum specimen height is 140 mm. The incident and transmitted light sources are each 3 W LEDs.Three camerasThe ODC 825 and ODC 832 are C-Mount cameras with 5.1 MP and a 1/2.5-inch CMOS sensor. The ODC 825 operates via USB 2.0 at 6.8 to 55 frames per second, while the ODC 832 operates via USB 3.0 at 14.2 to 101.2 frames per second. Power is supplied via the USB cable. Image output and analysis are carried out on a PC using the free VIS 2.0 PRO or VIS 2.0 LITE software for Windows. According to Kern, both cameras are also suitable for dark field, phase contrast and fluorescence microscopy.The ODC 241 is a tablet camera with a 5 MP sensor (Sony CMOS, 1/2.8 inch) and a 9.7-inch touchscreen display with a resolution of 2,048 x 1,536 pixels. It runs on Android, has 128 GB of storage, and features Wi-Fi, USB 2.0, HDMI and a microSD card slot. Kern has developed it for the simple and direct examination of samples on screen and recommends it for school pupils and students in training, as well as for laboratory demonstrations. It saves images and videos to a USB stick or SD card, measures distances, areas and angles, counts manually and outputs the live image via HDMI.Dimensions and currentThe sets with a C-Mount camera measure 300 x 240 x 490 mm and have a net weight of approx. 5.0 kg. The sets with a tablet camera measure 300 x 240 x 640 mm and weigh approximately 6 kg. The microscope’s power supply is built-in and operates at 100 to 240 V; it is connected via a power cable with a Euro plug.Typical applicationsAssembly and repair workstations, for example in the electronics industryTraining organisations, schools and training workshopsQuality control and testing centres with image documentationZoology and botanyTissue preparation, dissectionModels at a glanceModelMicroscopeStandCameraDimensions (W x D x H)Net weightOZL 464C825OZL 464ColumnODC 825, 5.1 MP, USB 2.0300 x 240 x 490 mmapprox. 5.0 kgOZL 464C832OZL 464ColumnODC 832, 5.1 MP, USB 3.0300 x 240 x 490 mmapprox. 5.0 kgOZL 464T241OZL 464ColumnODC 241, tablet, 5 MP300 x 240 x 640 mmapprox. 6 kgOZL 466C825OZL 466ColumnODC 825, 5.1 MP, USB 2.0300 x 240 x 490 mmapprox. 5.0 kgOZL 466C832OZL 466ColumnODC 832, 5.1 MP, USB 3.0300 x 240 x 490 mmapprox. 5.0 kgOZL 466T241OZL 466ColumnODC 241, tablet, 5 MP300 x 240 x 640 mmapprox. 6 kgOZL 468C825OZL 468mechanical, with handleODC 825, 5.1 MP, USB 2.0300 x 240 x 490 mmapprox. 5.0 kgOZL 468C832OZL 468mechanical, with handleODC 832, 5.1 MP, USB 3.0300 x 240 x 490 mmapprox. 5.0 kgOZL 468T241OZL 468mechanical, with handleODC 241, tablet, 5 MP300 x 240 x 640 mmapprox. 6 kgTechnical detailsThese values apply to all sets. Any differing values are listed in the model table.Optical systemGreenough, bright fieldTubeTrinocular, inclined at 45°, rotatable through 360°, interpupillary distance 55 to 75 mm, dioptre adjustment on both sidesEyepieceHWF 10x, field of view 20 mmZoom0.7x to 4.5x continuously variable, ratio 6.4:1Field of view4.4 mm to 28.6 mmWorking distance105 mmMaximum sample height140 mmIllumination3 W LED incident light and 3 W LED transmitted light, independently dimmableCamera connectionC-MountInterfacesC825: USB 2.0; C832: USB 3.0; T241: Wi-Fi, USB 2.0, HDMI, MicroSD card slotSoftwareC-Mount cameras: VIS 2.0 PRO or VIS 2.0 LITE for Windows; ODC 241: Android with integrated camera softwarePower supplyBuilt-in power supply, 100 to 240 V, power cableMains plugEuro included in the scope of delivery; adapters for Australia, UK, US and CH optionalStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOZL 464, OZL 466 or OZL 468 stereo zoom microscope with HWF 10x eyepiecesODC 825, ODC 832 or ODC 241 camera, depending on the setC-Mount adapterFor the ODC 825 and ODC 832 as per the brochure: Microscope VIS Basic software (OXM 901), USB cable (2,000 mm), eyepiece adapter and stage micrometerIEC power cable with Euro plugDust cover, eyecups and multilingual operating instructionsWarrantyAccording to Kern & Sohn, these sets come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OZL 464C825, 464C832, 466C825, 466C832, 468C825, 468C832 (PDF)Operating instructions Kern OZL 464T241, 466T241, 468T241 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OZB-A4632 (HWF 15x), OZB-A4633 (HWF 20x), OZB-A4634 (HWF 25x), OZB-A4635 (HWF 10x with 0.1 mm scale)Attachment lenses: OZB-A4641 (0.5x), OZB-A4644 (0.75x), OZB-A4642 (1.5x), OZB-A4643 (2x)Eyepiece adapters: ODC-A8102, ODC-A8103, ODC-A8105Software: OXM 902, OXM 903Further microscope accessories: solder protection lens OZB-A4646, stand insert OZB-A4670, calibration slide ODC-A2404, dust cover OBB-A1387Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Power cables: 822-903 (UK), MLB-A07 (Euro), YKK-01 (CH)Enquiries are handled via our procurement service.
Kern OBE-S digital microscope sets, trinocular, ODC 825, ODC 832 or ODC 241 camera
The Kern OBE-S series consists of digital microscope sets comprising a trinocular transmitted-light microscope from the OBE range and a permanently mounted camera. According to Kern, the appropriate C-Mount adapter is included in the delivery. There are six sets: the microscope is either the OBE 124 with three objectives or the OBE 134 with four objectives up to 100x. The camera used is the ODC 825 USB 2.0 camera, the ODC 832 USB 3.0 camera or the ODC 241 tablet camera. The model number indicates the combination: OBE 124C825 is the OBE 124 with the ODC 825, while OBE 134T241 is the OBE 134 with the ODC 241.Microscope: OBE 124 or OBE 134Both microscopes have a Butterfly tube, inclined at 30° and rotatable through 360°, with an interpupillary distance of 50 to 75 mm and unilateral dioptre adjustment from -5 to +5. The HWF 10x eyepieces have an 18 mm field of view and a high eye point. The nosepiece has four positions. The OBE 124 is fitted with 4x, 10x and 40x achromatic objectives, while the OBE 134 also features a 100x objective. With the 10x eyepiece, this results in a total magnification of 40x to 400x or 40x to 1,000x. The 3 W LED is continuously dimmable, and the Abbe condenser 1.25 has an aperture diaphragm. The field of view ranges from 0.18 to 4.5 mm, and the fine focus mechanism operates in increments of 0.002 mm.Camera comparisonThe ODC 825 and ODC 832 are C-Mount cameras with 5.1 MP and a 1/2.5-inch CMOS sensor. The ODC 825 operates via USB 2.0 at 6.8 to 55 frames per second, while the ODC 832 operates via USB 3.0 at 14.2 to 101.2 frames per second. Both are powered via the USB cable. According to Kern, they are also suitable for dark field, phase contrast and fluorescence applications. Data analysis is carried out on a PC using the free VIS 2.0 PRO or VIS 2.0 LITE software on Windows XP, Vista, 7, 8 and 10.The ODC 241 is a tablet camera with a 5 MP Sony CMOS sensor (1/2.8 inch) and a frame rate of 30 frames per second. It has a display with a resolution of 2,048 x 1,536 pixels, runs on Android and has 128 GB of storage. Connectivity options include Wi-Fi, USB 2.0, HDMI and a microSD card slot. Kern has developed it to enable simple and direct examination of the sample on screen and recommends it for school pupils and students in training, as well as for laboratory demonstrations.Design and power supplyThe sets with a C-Mount camera measure 360 x 150 x 390 mm, while those with a tablet camera measure 360 x 235 x 540 mm. Kern states that the net weight is approximately 6 kg in both cases. The microscope is powered by a plug-in mains adaptor rated for 100 to 240 V; the device receives 5 V at 1 A. There is a compartment for the power cable on the back. According to Kern, the microscope can also be powered by an external power bank.Typical applicationsHaematology and sediment analysis with image documentation on a PCMedical and veterinary practices: recording findings as photographsTraining and universities: displaying specimens live on screenInpatient and outpatient facilities, as well as public health authoritiesModels at a glanceModelMicroscopeObjectivesTotal magnificationCameraDimensions (W x D x H)OBE 124C825OBE 1244x, 10x, 40x40x to 400xODC 825, USB 2.0, 5.1 MP360 x 150 x 390 mmOBE 124C832OBE 1244x, 10x, 40x40x to 400xODC 832, USB 3.0, 5.1 MP360 x 150 x 390 mmOBE 124T241OBE 1244x, 10x, 40x40x to 400xODC 241, tablet camera, 5 MP360 x 235 x 540 mmOBE 134C825OBE 1344x, 10x, 40x, 100x (oil)40x to 1,000xODC 825, USB 2.0, 5.1 MP360 x 150 x 390 mmOBE 134C832OBE 1344x, 10x, 40x, 100x (oil)40x to 1,000xODC 832, USB 3.0, 5.1 MP360 x 150 x 390 mmOBE 134T241OBE 1344x, 10x, 40x, 100x (oil)40x to 1,000xODC 241, tablet camera, 5 MP360 x 235 x 540 mmTechnical detailsThese values apply to all sets. Any differing values are listed in the model table.Optical systemFinite, bright field, dark field (optional)TubeTrinocular, Butterfly, inclined at 30°, rotatable through 360°, interpupillary distance 50 to 75 mm, dioptre adjustment on one side -5 to +5Beam splitter ratio20:80 (C832 sets also 0:100 according to the data sheet)EyepieceHWF 10x, field of view 18 mm, mounting diameter 23.2 mm, high eye pointObjectivesAchromatic; OBE 124: 4x, 10x, 40x; OBE 134: 4x, 10x, 40x, 100xObjective nosepiece4 placesField of view0.18 mm to 4.5 mmCondenserAbbe, aperture 1.25, aperture diaphragm, height-adjustable, permanently mountedFocusingCoaxial coarse and fine focus, on both sides, fine focus 0.002 mm, torque controlIllumination3 W LED (transmitted light), 6,000 K, continuously dimmable, filters availableCamera connectionC-Mount thread, rolling shutter, colour sensorInterfacesC825: USB 2.0; C832: USB 3.0; T241: Wi-Fi, USB 2.0, HDMI, MicroSD card slotPower supplyPlug-in mains adaptor 100 to 240 V, device 5 V / 1 AMains plugEuro included in the scope of delivery; adapters for AUS, UK, US and CH optionalNet weightapprox. 6 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOBE 124 or OBE 134 microscope with Butterfly tube and two HWF 10x eyepiecesAchromatic objectives: 4x, 10x, 40x (OBE 134: additionally 100x)ODC 825, ODC 832 or ODC 241 camera, depending on the setC-Mount adapterFor the C-Mount cameras as per the brochure: Microscope VIS Basic software (OXM 901), USB cable (2,000 mm), eyepiece adapter and stage micrometerPlug-in mains adaptor with Euro plugDust cover, eyecups and multilingual operating instructionsWarrantyAccording to Kern & Sohn, these sets come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OBE 124C825, 124C832, 134C825, 134C832 (PDF)Operating instructions Kern OBE 124T241, 134T241 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OBB-A1347, OBB-A1348, OBB-A1349 (with 0.1 mm scale), OBB-A1354 (WF 16x)Objectives: OBB-A1110 (20x), OBB-A1113 (60x), OBB-A1441 (100x water)Objective: OBB-A1109 (100x oil). For the OBE 124.Filters: OBB-A1184, OBB-A1466, OBB-A1467, OBB-A1468Further microscope accessories: dark field insert OBB-A1148, dust cover OBB-A1387, calibration slide ODC-A2404Eyepiece adapters: ODC-A8102, ODC-A8103, ODC-A8105Software: OXM 902 (VIS 2.0 PRO), OXM 903 (VIS 2.0 LITE)Other cameras: ODC 251, ODC 841, ODC 854Enquiries are handled via our procurement service.
Kern ODC 881 eyepiece camera for microscopes, 5.1 MP, USB 3.0, 23.2 mm tube
The Kern ODC 881 is an eyepiece camera with 5.1 megapixels and a USB 3.0 connection. It replaces one of the microscope’s eyepieces and transmits the image to a computer. Power is supplied via the USB cable. Compared to the ODC 874, which has 3.1 MP and USB 2.0, it has a higher pixel count and a faster interface. Measuring 56 x 32 x 32 mm and weighing 0.45 kg, it is slightly longer but just as light.Insertion into the eyepiece tubeRemove one eyepiece and insert the camera into the eyepiece tube using the plug-in connection. The standard tube diameter is 23.2 mm. With the two eyepiece adapters supplied, the camera also fits into tubes with diameters of 30.0 mm and 30.5 mm. Further adapters are available as the ODC-A8106 (Ø 23.2 to 30 mm) and the ODC-A8107 (Ø 23.2 to 30.5 mm). You should check before purchasing whether the tube of your microscope matches one of these dimensions.Sensor and frame rateThe Aptina CMOS colour sensor has a format of 1/2.8 inch (5.18 x 3.89 mm) with pixels measuring 2 x 2 µm and uses a rolling shutter. According to the data sheet, the frame rate is 20 frames per second for all three resolutions mentioned: 2,592 x 1,944, 1,280 x 960 and 640 x 480. The data sheet does not specify an exposure time for the ODC 881.Software and PCAnalysis is carried out using the Microscope VIS 2.0 PRO (OXM 902) or VIS 2.0 LITE software, which, according to Kern, are free of charge. The data sheet lists Windows 8, 10 and 11. The computer requires a quad-core CPU (x64) running at 2.5 GHz, 8 GB of RAM, a 256 GB SSD, a graphics card supporting DirectX 12 and a 13-inch Full HD (1,920 x 1,080) display. A suitable port on the computer is required for the USB 3.0 interface.PowerThe camera draws 5 V at 180 mA via USB. The supplied USB cable is 1.5 m long. It may be stored at temperatures between -5 °C and 40 °C.Typical applicationsSchools, training and laboratories: retrofitting existing microscopes with digital capabilitiesDocumentation of specimens using photos and videoMeasuring and counting on screenMicroscopes with an eyepiece tube of 23.2 mm, 30.0 mm or 30.5 mmTechnical detailsCamera typeUSB 3.0 eyepiece camera for 23.2 mm diameter tubeSensorAptina CMOS, colour, 5.1 MP, 1/2.8 inch (5.18 x 3.89 mm), pixel size 2 x 2 µm, rolling shutterFrame rate20 frames per second at 2,592 x 1,944, 1,280 x 960 and 640 x 480Tube diameter23.2 mm (standard); 30.0 mm and 30.5 mm with eyepiece adapterInterfaceUSB 3.0SoftwareMicroscope VIS 2.0 PRO (OXM 902)Operating systemsWindows 8, 10, 11System requirementsQuad-core x64, 2.5 GHz, 8 GB RAM, 256 GB SSD, DirectX 12, 13-inch Full HD displayPower supplyvia USB, 5 V / 180 mADimensions (W x D x H)56 x 32 x 32 mmNet weightapprox. 0.45 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliveryODC 881 eyepiece cameraUSB cable, 1.5 mTwo eyepiece adaptersStage micrometer for calibrating the softwareWarrantyAccording to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern ODC-88 (PDF)Regulatory informationAs an electrical device, the camera falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe ODC-A2404 calibration slide, the ODC-A8106 and ODC-A8107 eyepiece adapters for eyepiece cameras, and the OXM 902 (VIS 2.0 PRO) and OXM 903 (VIS 2.0 LITE) software are also available. Kern lists the ODC 881 as an accessory for the Kern microscopes OBT 104, OBT 105, OBE 121, OBE 122, OBE 131 and OBL 146, among others. Enquiries are handled via our procurement service.

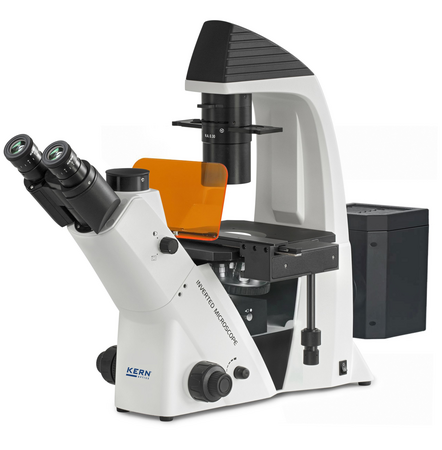

Kern inverted fluorescence microscope OCM 165, trinocular, infinity optics, objectives 10x to 40x, PH 20x
The Kern OCM 165 is an inverted fluorescence microscope for observing cell cultures and tissue cultures. The trinocular tube, featuring a Siedentopf design, is inclined at 45 degrees and can be rotated through 360 degrees; the optical system operates on the infinity principle with Infinity Plan-grade objectives. Optics and magnification The five-position revolver is fitted as standard with 10x, 20x and 40x objectives, as well as a PH 20x phase-contrast objective. With the 10x eyepiece and a 22-millimetre field of view, this results in a total magnification of 100x to 400x with the standard objectives; a 4x and a 2x objective are available as accessories. The interpupillary distance can be adjusted between 48 and 76 millimetres, whilst the dioptre adjustment operates on both sides from -5 to +5. Focusing is achieved via a coaxial coarse and fine adjustment mechanism; the fine adjustment has a minimum resolution of 0.002 millimetres. Transmitted light and fluorescence For transmitted light observation, the OCM 165 features a continuously adjustable 30-watt halogen illuminator. An Osram 100-watt HBO-Epi fluorescence unit with a mercury vapour lamp is also fitted as standard, complete with filter sliders for blue and green excitation. The permanently mounted Abbe condenser has a numerical aperture of 0.3, an aperture diaphragm and a working distance of 72 millimetres. Phase contrast and stage The standard scope of delivery already includes a PH-20x objective for phase contrast, along with a phase contrast slider. The mechanical stage has a specimen holder with a diameter of 110 millimetres. According to Kern, the microscope is suitable for samples in culture flasks, Petri dishes and microtitre plates; suitable holders are available as accessories for culture dishes measuring 35, 54 and 65 millimetres. Camera connection and power supply The trinocular tube has a camera output. A C-mount adapter is required for a C-mount camera (1x OBB-A1514 or 0.5x OBB-A1515), available separately. According to the operating instructions, switching to the camera output redirects the light path; simultaneous observation via the eyepiece and the camera is not possible. The integrated power supply operates at 100 to 240 volts and is connected with an IEC mains cable. Typical applications Kern describes the OCM 165 as a microscope for observing translucent, thin and low-contrast samples in culture vessels such as bottles, Petri dishes or microtitre plates. Observation and analysis of cell cultures and tissue cultures Work with living mammalian cells and tissue cultures Fluorescence microscopy on cell and tissue cultures, such as immunofluorescence Research involving translucent, low-contrast specimens Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questions about the OCM 165 Does the microscope have a camera port? Yes, the trinocular tube has a camera output. A C-mount adapter is required for a C-mount camera; this is available separately. When switching to the camera, the light path is redirected; the eyepiece and camera cannot be used simultaneously. How is the microscope illuminated? Transmitted light via a continuously adjustable 30-watt halogen lamp, plus an Osram 100-watt HBO fluorescence unit as standard, with a filter slider for blue and green excitation. Which objectives are supplied as standard? 10x, 20x and 40x, as well as a PH 20x phase-contrast objective, all of Infinity Plan quality. How long is the warranty? According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. Technical details Optical systemInfinity (infinity-corrected)TubeTrinocular, Siedentopf, inclined at 45 degrees, rotatable through 360 degreesEyepiece magnification10xEyepiece field of view22 mmLight distribution (trinocular tube)0:100Objectives (standard)10x, 20x, 40x, PH 20x (Infinity Plan)Revolver5 positionsCentrable eyepieceYesInterpupillary distance48 to 76 mmDioptre adjustmenton both sides, -5 to +5FocusingCoaxial coarse and fine adjustment, fine adjustment minimum 0.002 mmCondenserAbbe condenser, N.A. 0.3, working distance 72 mm, permanently mountedIllumination Transmitted light30 W, continuously adjustable halogen illuminationIllumination: reflected light/fluorescenceOsram 100 W HBO epi-fluorescence unit (mercury vapour lamp), fitted as standardFluorescence excitation (according to Kern)Blue (B), Green (G), filter sliders as standardStageMechanical stage with specimen holder, Ø 110 mmCamera connectionCamera output in the trinocular tube; C-mount adapter required (OBB-A1514 1x or OBB-A1515 0.5x)Power supplyIntegrated mains power supply, 100 to 240 V, IEC mains cableDimensions (W x D x H)782 x 304 x 530 mmWeight (net)22 kgWeight (gross)28 kgPackaging dimensions1,050 x 590 x 330 mmShipping weight40.9 kgWarranty (manufacturer)36 months according to Kern, excluding wear parts Scope of delivery OCM 165 inverted fluorescence microscope (base unit with trinocular tube) Mechanical stage with specimen holder (diameter 110 mm) Standard objectives: 10x, 20x, 40x, PH 20x 2 HWF 10x / 22 mm eyepieces Osram 100 W HBO fluorescence unit with blue/green filter slider Phase contrast slider Dust cover Operating instructions The scope of delivery does not include a C-mount adapter for connecting a microscope camera, and it must be ordered separately (1x OBB-A1514 or 0.5x OBB-A1515). Individual requirements and procurement service For the OCM 165, the following items are available, amongst others: C-mount camera adaptors, microscope cameras with various resolutions, additional Infinity Plan and Infinity-PH-Plan objectives, holders for culture dishes in 65, 54 and 35 millimetres, colour filters for transmitted light (e.g. grey), a replacement halogen lamp and cleaning accessories. Enquiries about these and other accessory requests relating to Kern microscopes are handled through our procurement service.

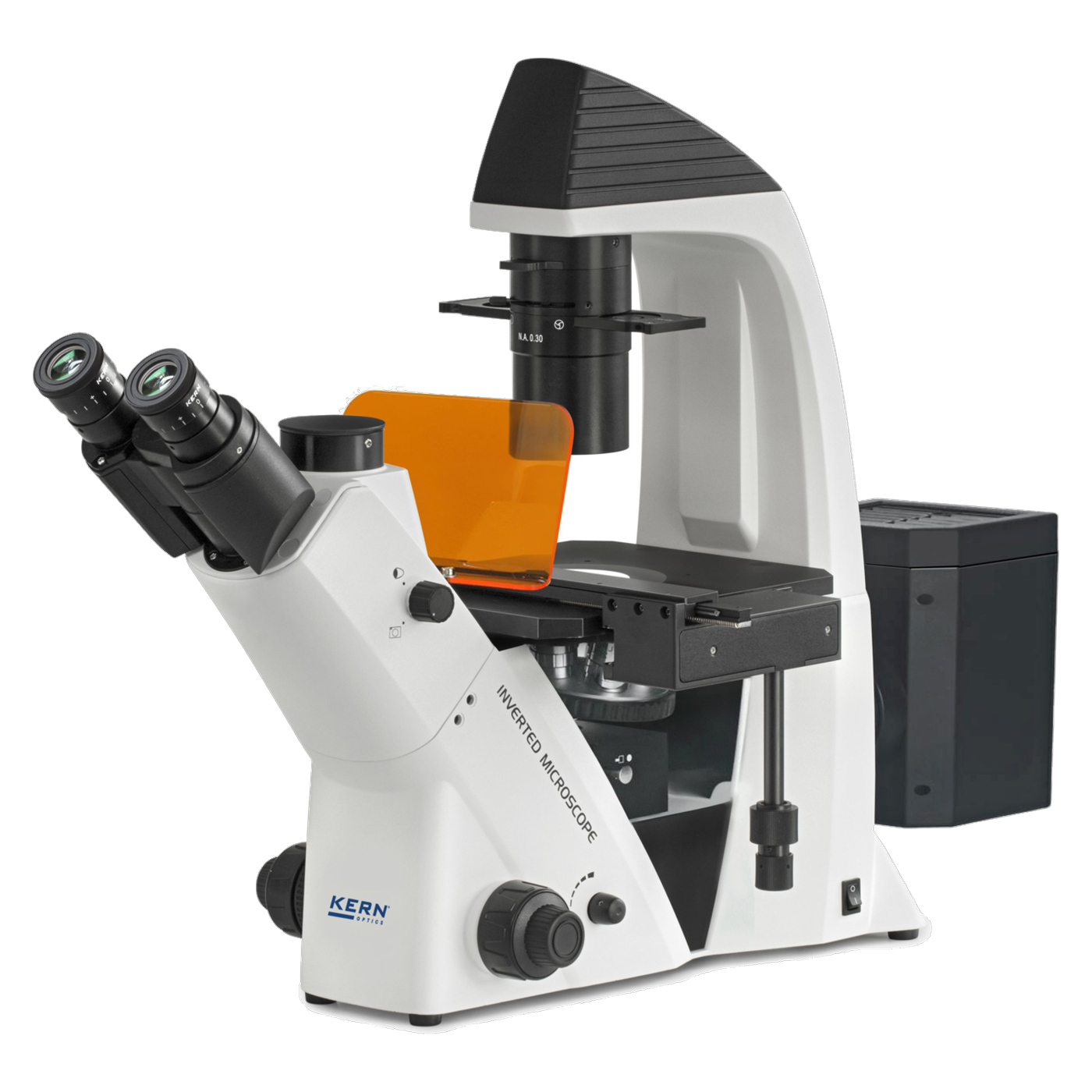

Kern OCM 168 inverted microscope, trinocular, LED reflected and transmitted light 5 W each, long working distance
Cell cultures grow in dishes and plates, and anyone wishing to examine them needs space for the culture vessel above the objective lens. The Kern OCM 168 is an inverted microscope designed for this purpose: the objectives are positioned beneath the stage, the specimen rests on top, and, according to Kern, the working distance is very large. Kern describes the instrument as an inverted biological laboratory microscope with fluorescence capability. It features a trinocular head, Infinity Plan objectives at 10x, 20x and 40x, a PH 20x phase-contrast objective, as well as LED transmitted light and LED reflected light of 5 watts each.Equipment for culture monitoringThe mechanical stage travels 128 mm in one direction and 180 mm in the other. It is fitted with a specimen holder for Ø 110 mm. A holder for 54 mm culture dishes is included in the scope of delivery; holders for 35 and 65 mm dishes are available from Kern as accessories. The Abbe condenser has an aperture of 0.3, an aperture diaphragm and a working distance of 72 mm. Kern specifies it for brightfield, phase contrast and fluorescence applications. A phase contrast slider, centring eyepiece and green filter are included as standard.LightingThe transmitted light source is a 5 W LED and is dimmable; the reflected light source is a second 5 W LED for epi-illumination. Power is supplied via a plug-in power supply unit rated at 100 to 240 V, 50/60 Hz and 0.3 A (protection class III); the connection cable is detachable. The OCM 168 is constructed in the same way as the OCM 167, but features a fluorescence filter unit for UV, V, B and G instead of just B and G, and weighs 17 kg instead of 16 kg.Head and eyepiecesThe eyepieces are HWF 10x with a 22 mm field of view, anti-fungus coating and high eye point. The Siedentopf tube is trinocular and inclined at 45 degrees; the interpupillary distance can be adjusted from 48 to 76 mm, and dioptre adjustment is available on both sides. The coaxial coarse and fine adjustment mechanisms have a minimum step of 0.002 mm. With the 10x eyepieces, this results in a total magnification of 100x to 400x. A centring eyepiece is included as standard; an adjustable 10x eyepiece with a scale (0.1 mm) is available as an accessory.Capturing imagesThe third tube outlet accommodates a camera. Kern offers a choice of the ODC 854 4K camera (HDMI and USB, Sony sensor), the ODC 251 HD tablet with 4K camera, the ODC 861 cooled camera for fluorescence, the ODC 825 and 832 cameras, and the ODC 241 tablet camera. The corresponding adapters are: C-mount with 0.5x magnification and adjustable focus (OBB-A1515), 0.75x (OBB-A1590) or the standard adapter for trinocular models (OBB-A1514).Which OCMThe OCM 161 features halogen transmitted light without reflected light, whilst the OCM 166 also features a 100 W HBO reflected light. Like the OCM 167, the OCM 168 is an LED unit with reflected and transmitted light, but features an extended filter set comprising UV, V, B and G.Typical applicationsKern names the observation and analysis of cell cultures for the OCM series.Observation and analysis of cell culturesInspection in culture dishes on the mechanical stageBrightfield, phase contrast and fluorescenceFrequently asked questionsCan I mount culture dishes?Yes. The specimen holder has a diameter of 110 mm; a holder for 54 mm dishes is included, whilst holders for 35 and 65 mm dishes are available as accessories.What is the travel range of the stage?128 mm and 180 mm.What do I need for phase contrast?The PH 20x objective, the phase contrast sliders and a centring eyepiece are included.Which total magnification is possible? 100x to 400x using the 10x, 20x and 40x objectives and the 10x eyepieces.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsDesignInverted, infinityTubeTrinocular, Siedentopf, inclined at 45 degreesEyepiecesHWF 10x, 22 mm field of view, anti-fungus, high eye pointInterpupillary distance48 to 76 mmDioptre adjustmenton both sidesObjectivesInfinity Plan 10x, 20x, 40x, PH 20xObjective turret5 positionsCondenserAbbe, aperture 0.3, fixed, aperture diaphragm, working distance 72 mmIllumination5 W LED transmitted light (dimmable), 5 W LED reflected lightStageMechanical, travel range 128 mm and 180 mm, specimen holder Ø 110 mmFocusingCoaxial coarse and fine adjustment, fine adjustment 0.002 mmPower supplyMains adaptor, 100 to 240 V, 50/60 Hz, 0.3 A, protection class IIIDimensions (W x D x H)782 x 304 x 530 mmWeight (net)17 kgStorage temperature-5 to 40 °CScope of deliveryOCM 168 inverted microscopeMechanical stage with specimen holder (Ø 110 mm) and stage extensionHolder for 54 mm culture dishesPhase contrast unit (slider, centring eyepiece, green filter)Blue filterEyecupsDust coverOperating instructionsRegulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceWe can source additional culture dish holders, cameras, adaptors or lenses for the OCM 168 on request via our procurement service.

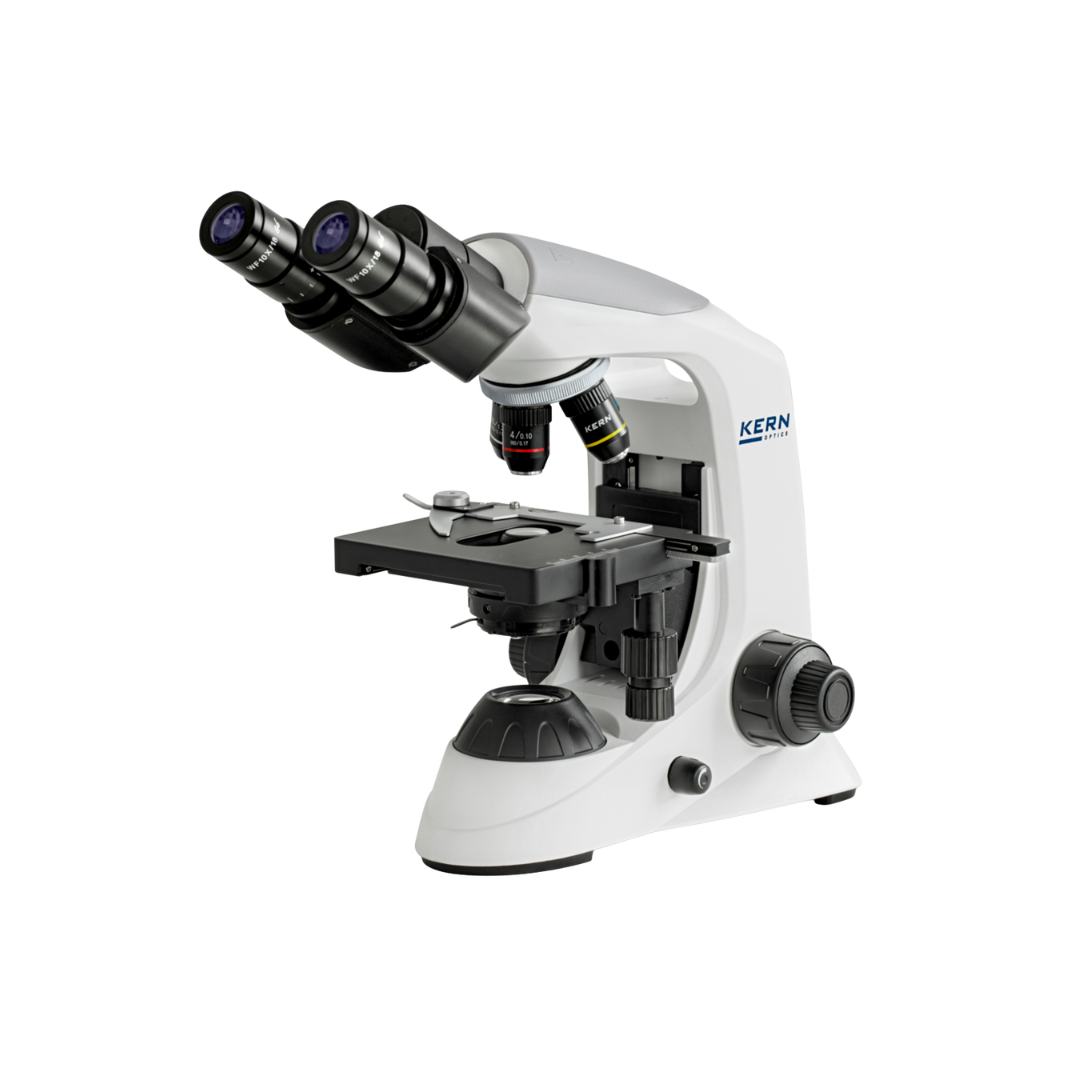

Kern OBE-12 transmitted-light microscopes, monocular to trinocular, 3 W LED, 40x to 400x
The Kern OBE-12 comprises three transmitted-light microscopes with a 3 W LED, an Abbe condenser and a mechanical stage. The OBE 121 is monocular, the OBE 122 is binocular and the OBE 124 is trinocular. All three are fitted with 4x, 10x and 40x achromatic objectives and a 10x HWF eyepiece with an 18 mm field of view. Kern describes the OBE series as an all-round transmitted-light microscope for schools, training and laboratories.A comparison of three tube variantsThe OBE 121 has a monocular tube that is inclined by 30°. Both the OBE 122 and the OBE 124 feature a Butterfly tube, which is also inclined at 30° and can be rotated through 360°. The interpupillary distance can be adjusted between 48 and 75 mm on the OBE 122, and between 50 and 75 mm on the OBE 124. On both models, the dioptre adjustment works on one side, from -5 to +5. The OBE 124 also has a third output for a camera; the beam splitter ratio is 20:80.Optics, field of view and contrast methodsThe three objectives are achromatic and feature an anti-fungus coating: 4x with an aperture of 0.1, 10x with 0.25 and 40x with 0.65, the latter being spring-loaded. The nosepiece has four positions, so a fourth objective can be retrofitted. With the 10x eyepiece, this results in a total magnification of 40x to 400x. According to the data sheet, the field of view measures 0.18 to 4.5 mm. The eyepieces have a high eye point, an 18 mm field of view and a 23.2 mm mounting diameter. The contrast method is bright field; dark field is provided as an option and requires the OBB-A1148 dark field insert for 4x to 40x.Illumination, condenser and mechanical stageThe 3 W LED for transmitted light is continuously dimmable and has a colour temperature of 6,000 K. The Abbe condenser has an aperture of 1.25 and an aperture diaphragm. It is permanently mounted and height-adjustable, allowing it to be focused. The mechanical stage is part of the equipment; it is operated via a coaxial coarse and fine focus control that is accessible from both sides. The fine focus adjusts in steps of 0.002 mm; according to the data sheet, torque adjustment is provided.Cable compartment and power bankThere is a storage compartment for the power cable on the back. According to Kern, the microscope can also be powered by an external power bank thanks to its USB connectivity. The device is supplied with 5 V at 1 A; the supplied plug-in mains adaptor operates at 100 to 240 V at 50/60 Hz and 0.3 A. The device measures 360 x 150 x 320 mm and has a net weight of approx. 4.6 kg.Typical applicationsSchools, training centres and universities: microscopy courses using stained specimensMedical and veterinary practices: blood smears and sedimentsHaematology and sediment analysis in the laboratoryInpatient and outpatient facilities, as well as public health authoritiesCamera use with the OBE 124: image documentation via the third tube portAs samples, Kern names translucent, thin and high-contrast specimens such as plant tissue or stained cells and parasites. If you require oil immersion, this is available in the sister series OBE-13, which comes with a 100x objective. In the OBE-12 range, the 100x oil immersion objective is available as an accessory for the OBE 122 and OBE 124 (OBB-A1109).Models at a glanceModelTubeInclinationInterpupillary distanceCamera outputOBE 121Monocular30°not applicablenoOBE 122Binocular (Butterfly)30°, rotatable through 360°48 to 75 mmnoOBE 124Trinocular (Butterfly)30°, rotatable through 360°50 to 75 mmyes, distribution 20:80Technical detailsThese values apply to all models. Any differing values are listed in the model table.Optical systemFinite, bright field, dark field (optional)EyepieceHWF 10x, field of view 18 mm, mounting diameter 23.2 mm, high eye point, anti-fungus coatingObjectivesAchromatic, 4x / 0.1, 10x / 0.25, 40x / 0.65 (spring-loaded), with anti-fungus coatingObjective nosepiece4 placesTotal magnification40x to 400xField of view0.18 mm to 4.5 mmCondenserAbbe, aperture 1.25, aperture diaphragm, height-adjustable, permanently mountedStageMechanical stageFocusingCoaxial coarse and fine focus, on both sides, fine focus 0.002 mm, torque controlIllumination3 W LED (transmitted light), 6,000 K, continuously dimmable, filters availablePower supplyPlug-in mains adaptor 100 to 240 V AC, 50/60 Hz, 0.3 A; device 5 V / 1 AMains plugEuro included in the scope of delivery; adapters for AUS, UK, US and CH optionalDimensions (W x D x H)360 x 150 x 320 mmNet weightapprox. 4.6 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months (122, 124), 24 months (121), according to Kern, excluding wear partsScope of deliveryOBE 121, OBE 122 or OBE 124 microscope, depending on the modelHWF 10x eyepiece (OBE 122 and OBE 124: two eyepieces)Achromatic objectives 4x, 10x, 40xPlug-in mains adaptor with Euro plugDust coverEyecupsMultilingual operating instructionsWarrantyAccording to Kern & Sohn, the OBE 122 and OBE 124 come with a 3-year warranty and the OBE 121 comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OBE-12 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OBB-A1347 (WF 10x), OBB-A1348 (HWF 10x), OBB-A1349 (HWF 10x with 0.1 mm scale), OBB-A1354 (WF 16x)Objectives: OBB-A1110 (20x), OBB-A1113 (60x), OBB-A1441 (100x water, plan)Plan achromatic objectives: OBB-A1255 (4x), OBB-A1238 (10x), OBB-A1249 (20x), OBB-A1256 (40x), OBB-A1269 (60x), OBB-A1239 (100x)Objective: OBB-A1109 (100x, oil, spring-loaded). For the OBE 122 and OBE 124.Further microscope accessories: dark field insert OBB-A1148, dust cover OBB-A1387Filters: OBB-A1184 (grey), OBB-A1466 (blue), OBB-A1467 (green), OBB-A1468 (yellow)Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Eyepiece cameras: ODC 874 (3.1 MP, USB 2.0), ODC 881 (5.1 MP, USB 3.0). For the OBE 121 and OBE 122.Camera adapters and cameras: OBB-A1137 (0.5x), OBB-A1139 (1x), ODC 825, ODC 832, ODC 841, ODC 854, tablet cameras ODC 241, ODC 251. According to Kern, for the OBE 124.A C-Mount adapter is required to connect a camera. Enquiries are handled via our procurement service.
Kern OZM-9 stereo microscope sets, zoom 0.7x to 4.5x, LED ring light, binocular and trinocular, six stands
The Kern OZM-9 are pre-configured stereo microscope sets comprising the stereo zoom head from the OZM-5 series, a universal stand, a holder, an LED ring light and a dust cover. There are twelve basic models, each with an EU plug (no suffix) and a UK plug (suffix UK), making a total of 24 variants. All sets feature a zoom range of 0.7x to 4.5x, HSWF 10x eyepieces and a 4.5 W LED in incident light. They differ in three respects: the stand, the head (binocular or trinocular) and the mains plug (EU or UK). The model number reveals this: the first two digits after ‘OZM’ denote the stand (90, 91, 92, 93, 95, 98), the third digit denotes the head (2 for binocular, 3 for trinocular), and the suffix UK indicates that a UK adapter is included in the scope of delivery. According to Kern, the set eliminates the need to configure the individual components.An overview of six standsThe 90 and 91 series have a telescopic arm with a base plate; at 26 kg, the 91 series is significantly heavier than the 90 series, which weighs 17 kg. The 92 and 93 series have a ball-bearing double arm with a base plate (22 kg and 28 kg). The 95 series has an articulating arm with a clamp and weighs 11 kg; the 98 series has a spring-loaded articulating arm with a clamp and weighs 6 kg. The clamps on the 95 and 98 series allow the microscope to be attached to the edge of a table, while the plate on the other series lets it stand without fixing. The weight depends on the stand. All dimensions and weights are listed in the model table.Head and opticsThe head features a Greenough system. The zoom range is continuously adjustable from 0.7x to 4.5x with a ratio of 6.4:1; when used with the eyepieces, this gives a range of 7x to 45x. The field of view ranges from 5.1 to 32.8 mm, the working distance is 110 mm, and the maximum specimen height is 130 mm. The HSWF 10x eyepieces have a 23 mm field of view, a high eye point and an anti-fungus coating. The tube is inclined at 45°, the interpupillary distance ranges from 52 to 76 mm, and the dioptre adjustment operates on both sides. The trinocular sets (third digit 3) feature a camera output; the beam splitter ratio is 0:100 according to the data sheet. A C-Mount adapter is required to connect a camera; Kern lists the microscope camera adapters OZB-A5701 (0.3x), OZB-A5702 (0.5x), OZB-A5703 and OZB-A5704 (1x each), as well as the cameras ODC 825, ODC 832, ODC 852 and ODC 854.Ring light, power supply and mains plugThe incident light is a dimmable 4.5 W LED ring light. The set has no transmitted light. The power supply is built-in and operates at 100 to 240 V. According to Kern, the UK adapter is included in the scope of delivery for sets ending in UK. For sets with an EU plug (without UK), adapters for various countries are optional, according to the data sheet. All sets may be stored at temperatures between -5 °C and 40 °C.Typical applicationsElectronics manufacturing: LCD and LED electronics, semiconductor technology, assembly and repairQuality control: large circuit boards and components under the microscopeZoology and botany, tissue preparation, dissectionDetection of parasites, in vitro fertilisationTraining centres and workshopsModels at a glanceModelHeadStandNet weightUniversal stand mounting (Ø)Mains plugBeam splitter ratioOZM 902BinocularTelescopic arm with plateapprox. 17 kg32 mmEU (OZM 902) or UK (OZM 902UK)not applicableOZM 903TrinocularTelescopic arm with plateapprox. 17 kg32 mmEU (OZM 903) or UK (OZM 903UK)0:100OZM 912BinocularTelescopic arm with plateapprox. 26 kg37 mmEU (OZM 912) or UK (OZM 912UK)not applicableOZM 913TrinocularTelescopic arm with plateapprox. 26 kg37 mmEU (OZM 913) or UK (OZM 913UK)0:100OZM 922BinocularBall-bearing double arm with plateapprox. 22 kg32 mmEU (OZM 922) or UK (OZM 922UK)not applicableOZM 923TrinocularBall-bearing double arm with plateapprox. 22 kg32 mmEU (OZM 923) or UK (OZM 923UK)0:100OZM 932BinocularBall-bearing double arm with plateapprox. 28 kg37 mmEU (OZM 932) or UK (OZM 932UK)not applicableOZM 933TrinocularBall-bearing double arm with plateapprox. 28 kg37 mmEU (OZM 933) or UK (OZM 933UK)0:100OZM 952BinocularArticulating arm with clampapprox. 11 kg37 mmEU (OZM 952) or UK (OZM 952UK)not applicableOZM 953TrinocularArticulating arm with clampapprox. 11 kg37 mmEU (OZM 953) or UK (OZM 953UK)0:100OZM 982BinocularSpring-loaded articulating arm with clampapprox. 6 kgnot applicableEU (OZM 982) or UK (OZM 982UK)not applicableOZM 983TrinocularSpring-loaded articulating arm with clampapprox. 6 kgnot applicableEU (OZM 983) or UK (OZM 983UK)0:100Technical detailsThese values apply to all sets. Any differing values are listed in the model table.Optical systemGreenough, bright fieldTubeInclined at 45°, interpupillary distance 52 to 76 mm, dioptre adjustment on both sidesEyepieceHSWF 10x, field of view 23 mm, mounting diameter 30 mm, high eye point, anti-fungus coatingZoom0.7x to 4.5x continuously variable, ratio 6.4:1Total magnification7x to 45xField of view5.1 mm to 32.8 mmWorking distance110 mmMaximum sample height130 mmIlluminationLED ring light in incident light, 4.5 W, dimmableMounting of microscope head (Ø)76 mmPower supplyBuilt-in power supply, 100 to 240 V; for models ending in UK, a UK adapter is included in the scope of deliveryStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryStereo zoom head (binocular or trinocular) with HSWF 10x eyepiecesUniversal stand with holder; depending on the model, a telescopic arm, double arm, articulating arm or spring-loaded articulating armLED ring lightDust coverFor models ending in UK: UK adapterWarrantyAccording to Kern & Sohn, these sets come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OZM 902, 902UK, 903, 903UK, 922, 922UK, 923, 923UK (PDF)Operating instructions Kern OZM 912, 912UK, 913, 913UK, 932, 932UK, 933, 933UK, 952, 952UK, 953, 953UK (PDF)Operating instructions Kern OZM 982, 982UK, 983, 983UK (PDF)Regulatory informationAs electrical devices, the stereo microscope sets fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OZB-A5504 (SWF 15x), OZB-A5505 (SWF 20x), OZB-A5506 (SWF 30x), OZB-A5512 (HSWF 10x with 0.1 mm scale), OZB-A5513 (SWF 15x with 0.05 mm scale), OZB-A5514 (SWF 20x with 0.05 mm scale)Attachment lenses: OZB-A5611 (0.37x), OZB-A5612 (0.5x), OZB-A5613 (0.7x), OZB-A5615 (1.5x), OZB-A5616 (2x)Stereo microscope stands: OZB-A6301, OZB-A6302, OZB-A6303Further microscope accessories: solder protection lens OZB-A5614Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Travel adapter: YKA-02. According to the brochure, for models with an EU plug.Enquiries are handled via our procurement service.
Kern OZL-47 stereo zoom microscopes, zoom 0.7x to 4.5x, LED double gooseneck, binocular and trinocular
The Kern OZL-47 series comprises two stereo zoom microscopes with an integrated LED double gooseneck illuminator for incident light. Instead of a fixed ring light, the series features two adjustable light arms that can be directed towards the specimen. The OZL 473 is binocular, while the OZL 474 is trinocular with a camera output. The zoom range is continuously adjustable from 0.7x to 4.5x; when used with the HWF 10x eyepieces, this provides a total magnification of 7x to 45x. Kern intends this series for training workshops, testing centres and laboratories.Double gooseneck instead of ring lightThe two LED goosenecks together provide 3 W of incident light and are continuously dimmable. According to Kern, the illumination can be adjusted individually and quickly. The series has no transmitted light. The contrast method is bright field.Zoom, field of view and working distanceThe zoom ratio is 6.4:1; according to the data sheet, the field of view measures 4.4 to 28.6 mm, and the working distance is 105 mm. The Greenough system produces a stereoscopic image. The tube is inclined at 45° and rotates through 360°; the interpupillary distance ranges from 55 to 75 mm, and the dioptre adjustment operates on both sides from -5 to +5. The HWF 10x eyepieces have a 20 mm field of view, a high eye point and a 30 mm mounting diameter.OZL 473 or OZL 474The OZL 473 is binocular and has no camera output. The OZL 474 is trinocular; the beam splitter ratio is 0:100 according to the data sheet. A C-Mount adapter is required to connect a camera; Kern lists the microscope camera adapters OZB-A4809 (1x), OZB-A4810 (0.3x) and OZB-A4811 (0.5x). The OZL 474 brochure lists the ODC 241 and ODC 251 tablet cameras, as well as the ODC 825, ODC 832, ODC 852 and ODC 854, as cameras.Column stand and dimensionsAccording to Kern, the head can be removed from the column stand and fitted into other modular systems, for example a universal stand. The coarse focus mechanism features torque control. Both microscopes measure 300 x 240 x 420 mm and have a net weight of approx. 4.2 kg. They may be stored at temperatures between -5 °C and 40 °C.Typical applicationsAssembly and repair workstations, for example in the electronics industryTraining companies and training workshopsQuality control and testing centres: circuit boards and componentsZoology and botany, tissue preparation, dissectionDocumentation using a camera on the OZL 474Models at a glanceModelTubeCamera outputBeam splitter ratioOZL 473Binocularnonot applicableOZL 474Trinocularyes0:100Technical detailsThese values apply to both models. The tube differs.Optical systemGreenough, bright fieldTubeInclined at 45°, rotatable through 360°, interpupillary distance 55 to 75 mm, dioptre adjustment on both sides from -5 to +5EyepieceHWF 10x, field of view 20 mm, mounting diameter 30 mm, high eye pointZoom0.7x to 4.5x continuously variable, ratio 6.4:1Total magnification7x to 45xField of view4.4 mm to 28.6 mmWorking distance105 mmFocusingCoarse focus, torque controlStandColumnIlluminationLED double gooseneck in incident light, 3 W, continuously dimmable, no transmitted lightDimensions (W x D x H)300 x 240 x 420 mmNet weightapprox. 4.2 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOZL 473 or OZL 474 stereo zoom microscope with column stand and HWF 10x eyepiecesIntegrated LED double gooseneck lampDust coverEyecupsMultilingual operating instructionsWarrantyAccording to Kern & Sohn, these microscopes come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OZL-47 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OZB-A4632 (HWF 15x), OZB-A4633 (HWF 20x), OZB-A4634 (HWF 25x), OZB-A4635 (HWF 10x with 0.1 mm scale)Attachment lenses: OZB-A4641 (0.5x), OZB-A4644 (0.75x), OZB-A4642 (1.5x), OZB-A4643 (2x)Further microscope accessories: solder protection lens OZB-A4646, stand insert OZB-A4670, dust cover OBB-A1387Eyepiece camera adapters: OZB-A4863 (1x)Eyepiece cameras: ODC 874, ODC 881Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Enquiries are handled via our procurement service.

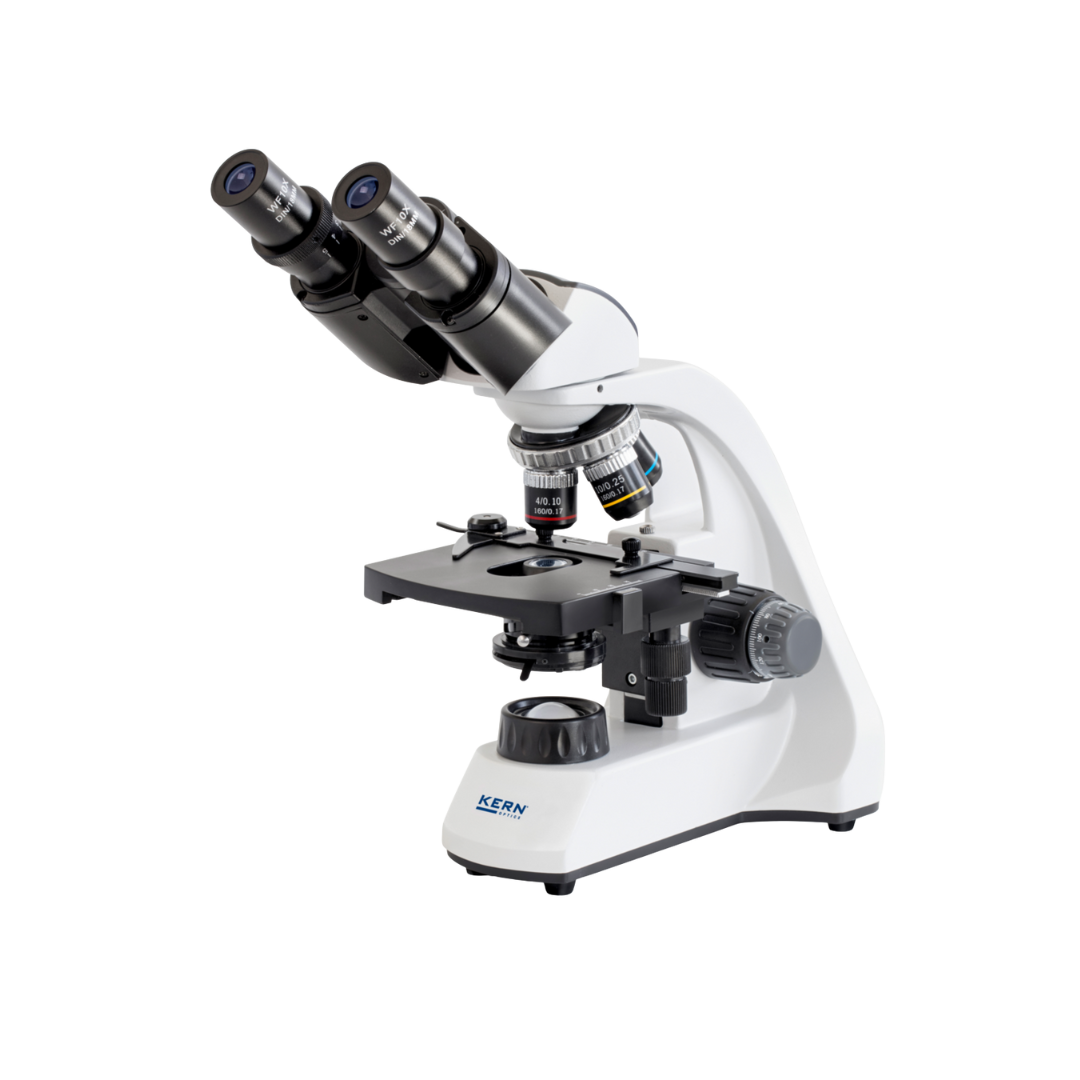

Kern OBT-1 transmitted-light microscopes, monocular and binocular, 1 W LED, school microscope
The Kern OBT-1 is a range of six transmitted-light microscopes designed for teaching, training and hobby use. Kern refers to them as school microscopes. All models feature a continuously dimmable 1 W LED, achromatic objectives, a WF 10x eyepiece with an 18 mm field of view, and a tube that is tilted at 45° and rotates through 360°. The models differ in terms of the tube (monocular or binocular), the condenser, the number of objectives and whether a mechanical stage is included.Which model for which applicationThe OBT 101 is the most basic model. It has three objectives (4x, 10x, 40x), a simple condenser with an aperture of 0.65 and a three-position nosepiece. The OBT 102 has the same optics, but features an Abbe condenser with an aperture of 1.25 and a four-position nosepiece. The OBT 103 also features a mechanical stage, which allows the specimen to be moved. The OBT 104 is identical to the OBT 103, but has a binocular tube for viewing with both eyes. The OBT 105 is monocular and has a 100x objective for oil immersion fitted at the factory. The OBT 106 is equipped in the same way as the OBT 105, but has a binocular tube. For the OBT 101 to OBT 104, the 100x objective is available as an accessory (OBB-A3207). Standard objectives are sufficient for general observation up to 400x.Optics and magnificationThe objectives are achromatic: 4x with an aperture of 0.1, 10x with 0.25 and 40x with 0.65. The 40x objective is spring-loaded, meaning it moves upwards when placed on the specimen. Only the OBT 105 and OBT 106 come factory-fitted with a 100x objective with an aperture of 1.25 for oil immersion, which is also spring-loaded. With the 10x eyepiece, this results in a total magnification of 40x to 400x; for the OBT 105 and OBT 106, this extends up to 1,000x. According to the data sheet, the field of view measures 0.45 to 4.5 mm. The eyepieces have a field of view of 18 mm and a mounting diameter of 23.2 mm; according to the data sheet, they are fixed. On the OBT 104 and OBT 106 binocular models, the interpupillary distance can be adjusted from 48 to 75 mm; the dioptre adjustment operates on one side only from -5 to +5.Illumination and condenserThe light comes from below via a 1 W LED, which can be dimmed continuously. The OBT 101 has a simple condenser with an aperture of 0.65 and an aperture diaphragm. In the OBT 102 to 106 models, an Abbe condenser with an aperture of 1.25 and an aperture diaphragm is permanently fitted inside the unit and can be adjusted vertically. Colour filters in grey, green, yellow and blue are available as accessories; the data sheet lists these filters as options.Focusing and power supplyFocus is adjusted via a coaxial coarse and fine focus control that can be operated from either side; the fine focus control adjusts in increments of 0.0025 mm. The microscope is powered by a plug-in mains adaptor rated for 100 to 240 V; the unit receives 5 V at 1,000 mA. It is also designed for battery operation; the batteries are not included in the scope of delivery. Kern names mobile use as the purpose. The dimensions are 195 x 147 x 325 mm, and it weighs approximately 2.8 kg.Typical applicationsPrimary and secondary schools: observing plant tissue and cells in biology lessonsTraining: introduction to microscopy using stained specimensHobby: observing thin, high-contrast specimensCamera documentation: eyepiece cameras are also available for the OBT 104, OBT 105 and OBT 106Kern lists translucent, thin and high-contrast specimens as examples, such as plant tissue or stained cells and parasites. According to the data sheet, the contrast method is bright field.Models at a glanceModelTubeObjectivesNosepiece positionsCondenserMechanical stageTotal magnificationOBT 101Monocular4x, 10x, 40x3Simple, aperture 0.65none40x to 400xOBT 102Monocular4x, 10x, 40x4Abbe, aperture 1.25none40x to 400xOBT 103Monocular4x, 10x, 40x4Abbe, aperture 1.25mechanical40x to 400xOBT 104Binocular4x, 10x, 40x4Abbe, aperture 1.25mechanical40x to 400xOBT 105Monocular4x, 10x, 40x, 100x (oil)4Abbe, aperture 1.25mechanical40x to 1,000xOBT 106Binocular4x, 10x, 40x, 100x (oil)4Abbe, aperture 1.25mechanical40x to 1,000xTechnical detailsThese values apply to all models. Any differing values are listed in the model table.Optical systemFinite, bright fieldTubeInclined at 45°, rotatable through 360°; OBT 104 and OBT 106 binocular, interpupillary distance 48 to 75 mm, dioptre adjustment on one side -5 to +5EyepieceWF 10x, field of view 18 mm, mounting diameter 23.2 mm, fixedObjectivesAchromatic, 4x / 0.1, 10x / 0.25, 40x / 0.65 (spring-loaded); OBT 105 and OBT 106 additionally 100x / 1.25 (oil, spring-loaded)Field of view0.45 mm to 4.5 mmFocusingCoaxial coarse and fine focus, on both sides, fine focus 0.0025 mmIllumination1 W LED (transmitted light), continuously dimmable, filters availablePower supplyPlug-in mains adaptor 100 to 240 V, unit 5 V / 1,000 mA; designed for battery operation (batteries not included)Mains plugEuro included in the scope of delivery; adapters for AUS, UK, US and CH optionalDimensions (W x D x H)195 x 147 x 325 mmNet weightapprox. 2.8 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliveryMicroscope OBT 101, OBT 102, OBT 103, OBT 104, OBT 105 or OBT 106, depending on the modelWF 10x eyepiece (OBT 104 and OBT 106: two eyepieces)Achromatic objectives 4x, 10x, 40x (OBT 105 and OBT 106: plus 100x)Plug-in mains adaptor with Euro plugDust coverOperating instructionsWarrantyAccording to Kern & Sohn, these microscopes come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OBT-1 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OBB-A3201 (WF 10x), OBB-A3202 (WF 10x with 0.1 mm scale)Objectives: OBB-A3206 (60x, aperture 0.85, spring-loaded), OBB-A3207 (100x, aperture 1.25, oil, spring-loaded). The latter for OBT 101 to OBT 104.Colour filters: OBB-A3209 (grey), OBB-A3210 (green), OBB-A3211 (yellow), OBB-A3212 (blue)Specimen holder: OBB-A3217 (clip). For the OBT 101 and OBT 102.Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Microscope camera: ODC 231 (2 MP, USB 2.0, MicroSD)Eyepiece cameras: ODC 874 (3.1 MP, USB 2.0), ODC 881 (5.1 MP, USB 3.0). For the OBT 104, OBT 105 and OBT 106.Enquiries are handled via our procurement service.
Kern OBE-13 transmitted-light microscopes, monocular, binocular and trinocular, 100x oil, 40x to 1,000x
The Kern OBE-13 comprises three transmitted-light microscopes with four achromatic objectives ranging from 4x to 100x. The 100x objective is designed for oil immersion and is spring-loaded. This means that the total magnification with the 10x eyepiece reaches up to 1,000x. The OBE 131 has a monocular tube, the OBE 132 a binocular tube and the OBE 134 a trinocular Butterfly tube with a camera output. All models feature a continuously dimmable 3 W LED, an Abbe condenser with an aperture of 1.25 and a mechanical stage.Oil immersion up to 1,000xThe 4x (aperture 0.1), 10x (0.25), 40x (0.65, spring-loaded) and 100x (1.25, oil, spring-loaded) objectives are achromatic and feature an anti-fungus coating. The nosepiece has four positions, all of which are occupied. According to the data sheet, the field of view measures 0.18 to 4.5 mm. The HWF 10x eyepieces have a high eye point, an 18 mm field of view and a 23.2 mm mounting diameter. Immersion oil is needed for the 100x objective. The data sheet specifies bright field as the contrast method; dark field is provided as an option with the OBB-A1148 dark field insert for 4x to 40x.OBE 131, OBE 132 or OBE 134The only difference lies in the head. The optics, illumination, condenser and mechanical stage are identical across all three models. The OBE 131 is monocular; its tube is inclined at an angle of 30°. The OBE 132 features a binocular Butterfly tube, inclined at 30° and rotatable through 360°, with an interpupillary distance of 48 to 75 mm and unilateral dioptre adjustment from -5 to +5. It does not have a camera output. The OBE 134 also features a Butterfly tube, inclined at 30° and rotatable through 360°, with an interpupillary distance of 50 to 75 mm and unilateral dioptre adjustment from -5 to +5. It also features a camera output with a 20:80 beam splitter ratio. Anyone working with one eye at the eyepiece can manage with the OBE 131; anyone working with both eyes takes the OBE 132. Anyone wishing to take photographs or keep this option open should choose the OBE 134 and add a camera with a C-Mount adapter.Lighting, condenser and operationThe 3 W LED has a colour temperature of 6,000 K and is continuously dimmable in transmitted light. The Abbe condenser 1.25 with aperture diaphragm is permanently mounted and height-adjustable. The mechanical stage is operated by coaxial coarse and fine focus controls, from both sides. The fine focus adjusts in steps of 0.002 mm; according to the data sheet, torque adjustment is provided. Filters can be used.Power and dimensionsThe plug-in mains adaptor operates at 100 to 240 V at 50/60 Hz and 0.3 A; the device is supplied with 5 V at 1 A. According to Kern, the microscope can also be powered by an external power bank; the power cable has a storage compartment on the rear. The units measure 360 x 150 x 320 mm and have a net weight of approx. 4.6 kg. They may be stored at temperatures between -5 °C and 40 °C.Typical applicationsHaematology: blood smears using the 100x oil immersion objectiveLaboratory sediment analysisMedical and veterinary practicesEducation, vocational schools and universitiesInpatient and outpatient facilities, public health authoritiesKern lists as samples translucent, thin and high-contrast specimens such as plant tissue, as well as stained cells and parasites.Technical detailsThese values apply to all three models. The tube differs.Optical systemFinite, bright field, dark field (optional)TubeOBE 131: monocular, inclined at 30°; OBE 132: binocular (Butterfly), inclined at 30°, rotatable through 360°, interpupillary distance 48 to 75 mm, dioptre adjustment on one side from -5 to +5; OBE 134: trinocular (Butterfly), inclined at 30°, rotatable through 360°, interpupillary distance 50 to 75 mm, dioptre adjustment on one side from -5 to +5Beam splitter ratioOBE 134: 20:80EyepieceHWF 10x, field of view 18 mm, mounting diameter 23.2 mm, high eye point, anti-fungus coatingObjectivesAchromatic, 4x / 0.1, 10x / 0.25, 40x / 0.65 (spring-loaded), 100x / 1.25 (oil, spring-loaded), with anti-fungus coatingObjective nosepiece4 placesTotal magnification40x to 1,000xField of view0.18 mm to 4.5 mmCondenserAbbe, aperture 1.25, aperture diaphragm, height-adjustable, permanently mountedStageMechanical stageFocusingCoaxial coarse and fine focus, on both sides, fine focus 0.002 mm, torque controlIllumination3 W LED (transmitted light), 6,000 K, continuously dimmable, filters availablePower supplyPlug-in mains adaptor 100 to 240 V AC, 50/60 Hz, 0.3 A; device 5 V / 1 AMains plugEuro included in the scope of delivery; adapters for AUS, UK, US and CH optionalDimensions (W x D x H)360 x 150 x 320 mmNet weightapprox. 4.6 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOBE 131, OBE 132 or OBE 134 microscope, depending on the modelHWF 10x eyepiece (OBE 132 and OBE 134: two eyepieces)Four achromatic objectives: 4x, 10x, 40x and 100xPlug-in mains adaptor with Euro plugDust coverEyecupsMultilingual operating instructionsWarrantyAccording to Kern & Sohn, these microscopes come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OBE-13 (PDF)Regulatory informationAs electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OBB-A1347 (WF 10x), OBB-A1348 (HWF 10x), OBB-A1349 (HWF 10x with 0.1 mm scale), OBB-A1354 (WF 16x)Objectives: OBB-A1110 (20x), OBB-A1113 (60x), OBB-A1441 (100x water, plan)Plan achromatic objectives: OBB-A1255 (4x), OBB-A1238 (10x), OBB-A1249 (20x), OBB-A1256 (40x), OBB-A1269 (60x), OBB-A1239 (100x)Further microscope accessories: dark field insert OBB-A1148, dust cover OBB-A1387Filters: OBB-A1184 (grey), OBB-A1466 (blue), OBB-A1467 (green), OBB-A1468 (yellow)Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Eyepiece cameras: ODC 874 (3.1 MP, USB 2.0), ODC 881 (5.1 MP, USB 3.0). For the OBE 131 and OBE 132.Camera adapters and cameras: OBB-A1137 (0.5x), OBB-A1139 (1x), ODC 825, ODC 832, ODC 841, ODC 854, tablet cameras ODC 241, ODC 251. According to Kern, for the OBE 134.Enquiries are handled via our procurement service.
Kern OBL 146 phase contrast microscope, binocular, Infinity, 40x to 1,000x, 3 W LED
The Kern OBL 146 is a binocular phase contrast microscope with Infinity optics and a 3 W LED. It is configured for phase contrast ex works: two phase contrast objectives (PH 10x and PH 40x) and a phase contrast condenser are part of the equipment, plus a 4x objective and a 100x oil objective. Phase contrast makes low-contrast, transparent objects visible without the need for staining. As samples, Kern names living mammalian cells, bacteria and tissue.Phase contrast ex worksThe phase contrast condenser is permanently pre-centred and can be focused by height adjustment; a field diaphragm complements it. Kern refers to simplified Köhler illumination and high-performance phase contrast imaging. The condenser aperture is 1.25; the unit is designed as a single insert. The phase contrast objectives are the PH 10x with an aperture of 0.25 and the PH 40x with an aperture of 0.65 (spring-loaded). In addition to phase contrast, the data sheet also lists bright field as a contrast method. Dark field, polarisation and fluorescence are optional.Objectives and eyepiecesThe four-position nosepiece houses the 4x (Infinity E-Plan, aperture 0.11), PH 10x, PH 40x and 100x (Infinity E-Plan, aperture 1.25, oil, spring-loaded) objectives, all with anti-fungus coating. With the HWF 10x eyepieces (20 mm field of view), the total magnification ranges from 40x to 1,000x. According to the data sheet, the field of view measures 0.2 to 5 mm.Binocular tube and mechanical stageThe Butterfly tube is inclined at 30° and can be rotated through 360°; the interpupillary distance ranges from 50 to 75 mm, and the dioptre adjustment operates on one side from -5 to +5. The OBL 146 does not have a camera output. According to the brochure, anyone wishing to document their observations at a later date can use the OBB-A1580 trinocular tube. The large mechanical stage has a specimen holder capable of accommodating up to two specimens at the same time. Focusing is achieved via a coaxial coarse and fine focus mechanism on both sides, with a fine focus step of 0.002 mm and torque control.Power and dimensionsThe 3 W LED has a colour temperature of 6,000 K and can be dimmed continuously. The plug-in mains adaptor operates at 100 to 240 V at 50/60 Hz and 0.3 A; the device is supplied with 5 V at 1 A. The microscope measures 395 x 200 x 380 mm and has a net weight of approx. 6 kg.Typical applicationsHaematology, urology, gynaecology and dermatology: unstained cells and smearsPathology, microbiology, parasitology and immunologyWater analysis and sewage treatment works: living microorganismsOncology, entomology and veterinary practicesBreweriesThe OBL 146 is designed for general applications using phase contrast. If you are looking for bright field, dark field and fluorescence in a single instrument, the OBL 137 is the model without phase contrast capability.Technical detailsOptical systemInfinityTubeBinocular, Butterfly, inclined at 30°, rotatable through 360°, interpupillary distance 50 to 75 mm, dioptre adjustment on one side -5 to +5EyepieceHWF 10x, field of view 20 mm, mounting diameter 23.2 mm, anti-fungus coatingObjectives4x / 0.11 (Infinity E-Plan), PH 10x / 0.25, PH 40x / 0.65 (spring-loaded), 100x / 1.25 (Infinity E-Plan, oil, spring-loaded), anti-fungus coatingObjective nosepiece4 placesTotal magnification40x to 1,000xField of view0.2 mm to 5 mmContrast methodsPhase contrast and bright field; dark field, polarisation, fluorescence (optional)CondenserPhase contrast condenser for single insertion, aperture 1.25, field diaphragm, fixed pre-centred, height-focusableStageMechanical stage with specimen holder for up to two specimensFocusingCoaxial coarse and fine focus, on both sides, fine focus 0.002 mm, torque controlIllumination3 W LED (transmitted light), continuously dimmable, filters availablePower supplyPlug-in mains adaptor 100 to 240 V AC, 50/60 Hz, 0.3 A; device 5 V / 1 AMains plugEuro included in the scope of delivery; adapters for AUS, UK, US and CH optionalDimensions (W x D x H)395 x 200 x 380 mmNet weightapprox. 6 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOBL 146 microscope with binocular Butterfly tubeTwo HWF 10x eyepiecesObjectives: 4x, PH 10x, PH 40x and 100xPhase contrast condenserPlug-in mains adaptor with Euro plugDust coverEyecupsMultilingual operating instructionsWarrantyAccording to Kern & Sohn, this microscope comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OBL-14 (PDF)Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Eyepieces: OBB-A1351 WF 10x, OBB-A1448 HWF 10x, OBB-A1617 and OBB-A1618 HWF 10x with 0.1 mm scale, OBB-A1354 WF 16xObjectives: OBB-A1655 (2x), OBB-A1159 (10x), OBB-A1160 (40x), OBB-A1250 (20x), OBB-A1270 (60x), OBB-A1437 (100x water)PH plan objectives: OBB-A1391 (20x), OBB-A1393 (100x)PH sliders: OBB-A1399, OBB-A1400, OBB-A1401 and OBB-A1402 (10x, 20x, 40x, 100x)Condensers: Abbe condenser OBB-A1103, dark field condenser OBB-A1422Polarisation and fluorescence: polarisation unit OBB-A1277, LED fluorescence unit OBB-A1157Filters: OBB-A1165, OBB-A1183, OBB-A1188Further microscope accessories: trinocular tube OBB-A1580, dust cover OBB-A1388Cleaning: cleaning spray OCS-A1101, cleaning kit OCS 901Eyepiece cameras: ODC 874 (3.1 MP, USB 2.0), ODC 881 (5.1 MP, USB 3.0)Enquiries are handled via our procurement service.
Kern OZB-UE stereo microscope stand, telescopic arm, double arm, spring-loaded articulating arm, with plate or clamp
The Kern OZB-UE range comprises six universal stands for stereo microscopes. Four of these are the small universal stands with a column height of 430 mm: telescopic arm or ball-bearing double arm, each mounted on a base plate or with a table clamp. Two are spring-loaded articulating arm stands with clamp and holder, including coarse focus. The stands are mechanical components with no electrical parts. The microscope head, illumination and, where applicable, the holder are selected separately; Kern refers to this concept as a modular system in which heads, stands and external illumination units can be combined according to the application.Small universal stands with a columnThe OZB-A1201, OZB-A1203, OZB-A1211 and OZB-A1213 stands have a column height of 430 mm and a mounting diameter of 32 mm for the universal stand. The head mount has a diameter of 76 mm. The telescopic arm is 385 mm long, while the ball-bearing double arm is 480 mm long. With the base plate, they stand freely on the table (12 kg and 19 kg); with the clamp, they are secured to the edge of the table (10 kg and 15 kg). The clamp on the OZB-A1211 can grip table thicknesses of up to 40 mm, while that on the OZB-A1213 can grip up to 62 mm. According to the brochure, all four are supplied without a holder.Spring-loaded articulating stand with coarse focusThe two spring-jointed stands are designed for day-to-day work with the stereo microscope and, according to Kern, now feature a coarse focus mechanism for simple and flexible focusing. The arm of the OZB-A6302 operates using a gas spring, while that of the OZB-A6303 uses a helical compression spring. The OZB-A6302 is 525 mm high, has an arm length of 620 mm and weighs approximately 4.6 kg. The OZB-A6303 is 400 mm high, has an 850 mm-long arm and weighs approximately 7 kg. Both are supplied with a clamp for table tops up to 50 mm thick and a bolder. The head mount on the OZB-A6302 has a diameter of 76 mm.Plate or clampThe plate stabilises the stand without the need to modify the table surface. The table clamp saves space on the table; the clamping range determines the maximum thickness of the tabletop. The choice depends on the table edge, the weight of the head and the desired reach.Typical applicationsDedicated microscope set-up for workshops, electronics manufacturing and repairsLaboratory workstations with a stereo microscope head and external illuminationTest stations for larger components with a telescopic arm or double armTraining stations where the microscope is frequently set upModels at a glanceModelDesignColumn heightArm lengthDimensions (W x D x H)Net weightHolderOZB-A1201Telescopic arm with plate430 mm385 mm410 x 230 x 420 mmapprox. 12 kgwithout holderOZB-A1203Double arm with plate430 mm480 mm526 x 210 x 420 mmapprox. 19 kgwithout holderOZB-A1211Telescopic arm with clamp430 mm385 mm410 x 230 x 380 mmapprox. 10 kgwithout holderOZB-A1213Double arm with clamp430 mm480 mm526 x 210 x 380 mmapprox. 15 kgwithout holderOZB-A6302Spring-loaded articulating arm, gas spring525 mm620 mm620 x 580 x 200 mmapprox. 4.6 kgwith holderOZB-A6303Spring-loaded articulating arm, helical compression spring400 mm850 mm770 x 85 x 300 mmapprox. 7 kgwith holderTechnical detailsThe specifications for the individual stands are listed in the model table.Stand typeStereo microscope stand (universal stand)Universal stand mountingØ 32 mm (OZB-A1201 to OZB-A1213)Head mountØ 76 mm (OZB-A1201 to OZB-A6302)ElectricalnoneStorage temperature-5 °C to 40 °CWarranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliveryStereo microscope stand, depending on the modelFor OZB-A1211, OZB-A1213, OZB-A6302 and OZB-A6303: Table clampFor OZB-A6302 and OZB-A6303: Holder with coarse focusOZB-A1201, OZB-A1203, OZB-A1211 and OZB-A1213 without holderWarrantyAccording to Kern & Sohn, these components come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OZB-A6302 (PDF)Operating instructions Kern OZB-A6303 (PDF)Individual requirements and procurement serviceThe OZB-A1201, OZB-A1203, OZB-A1211 and OZB-A1213 stands are supplied without bolders. For Kern’s large universal stands, the brochure lists the holders OZB-A5301 and OZB-A5306. We will check whether they are compatible with these stands before placing the order. Enquiries are handled via our procurement service.
Kern OBN 158 phase contrast microscope, trinocular, Infinity Plan, 40x to 1,000x, 20 W halogen
The Kern OBN 158 is a trinocular phase contrast microscope with Infinity-Plan optics and 20 W halogen illumination. Kern supplies it as a pre-configured unit: a five-position condenser wheel, a phase contrast condenser and four phase contrast objectives are already fitted. The halogen lamp is manufactured by Philips and is dimmable. As samples, Kern names translucent, thin, low-contrast and demanding specimens such as living mammalian cells, bacteria and tissue.Phase contrast equipmentThe PH universal rotating condenser has a condenser wheel with five positions. It can be centred, has an aperture of 1.25 and an aperture diaphragm. Five objectives are mounted on the nosepiece: 4x (Infinity Plan, aperture 0.11), PH 10x (0.25), PH 20x (0.45, spring-loaded), PH 40x (0.65, spring-loaded) and PH 100x (1.25, oil). All of them carry an anti-fungus coating. With the HWF 10x eyepieces, the total magnification ranges from 40x to 1,000x. According to the data sheet, the field of view measures 0.2 to 5 mm. In addition to phase contrast, bright field is listed as a contrast method. Dark field, polarisation and fluorescence are optional. A centring eyepiece for phase contrast adjustment is included in the scope of delivery.Köhler illumination with halogen lightThe illumination operates according to the Köhler principle with an adjustable field diaphragm. The halogen lamp has a power rating of 20 W and is dimmable; filters are available. The desktop power supply is detachable and has a C14 IEC connector. It operates at 100 to 240 V at 50/60 Hz and 1.5 A; the microscope is supplied with 12 V at 4 A. The barrel plug is positive on the inside, with an outer diameter of 5.5 mm, an inner diameter of 2.5 mm and a length of 9.5 mm. The Euro plug is included in the delivery; a UK adapter is optional.Tube, stage and focusThe Siedentopf tube is trinocular, inclined at 30° and rotatable through 360°. According to the data sheet, the beam splitter ratio is 0:100 and 80:20. The interpupillary distance ranges from 50 to 75 mm, and the dioptre adjustment operates on both sides from -5 to +5. The very large mechanical stage is operated with an ergonomic coaxial coarse and fine focus control that works from both sides. The fine focus mechanism operates in increments of 0.002 mm, and torque control is provided. A C-Mount adapter is required to connect a camera. The microscope measures 390 x 200 x 400 mm and has a net weight of approx. 10 kg.Typical applicationsHaematology, urology, gynaecology and dermatology: unstained cellsMicrobiology, parasitology and immunologyPathology, oncology and entomologyWater analysis, sewage treatment works and breweriesVeterinary practices, as well as inpatient and laboratory medical facilities, public health authorities and universitiesTechnical detailsOptical systemInfinityTubeTrinocular, Siedentopf, inclined at 30°, rotatable through 360°, interpupillary distance 50 to 75 mm, dioptre adjustment on both sides -5 to +5Beam splitter ratio0:100 and 80:20EyepieceHWF 10x, field of view 20 mm, mounting diameter 23.2 mm, anti-fungus coatingObjectivesInfinity Plan: 4x / 0.11, PH 10x / 0.25, PH 20x / 0.45 (spring-loaded), PH 40x / 0.65 (spring-loaded), PH 100x / 1.25 (oil), anti-fungus coatingObjective nosepiece5 placesTotal magnification40x to 1,000xField of view0.2 mm to 5 mmContrast methodsPhase contrast and bright field; dark field, polarisation, fluorescence (optional)CondenserPH universal rotary condenser with 5-position condenser wheel, aperture 1.25, aperture diaphragm, centrableStageVery large mechanical stageFocusingCoaxial coarse and fine focus, on both sides, fine focus 0.002 mm, torque controlIlluminationHalogen 20 W (Philips), dimmable, Köhler illumination with field diaphragm, filters availableCamera connectionC-Mount adapter requiredPower supplyDesktop power supply (detachable, IEC connector C14) 100 to 240 V AC, 50/60 Hz, 1.5 A; unit 12 V / 4 AMains plugEuro included in the scope of delivery; UK adapter optionalDimensions (W x D x H)390 x 200 x 400 mmNet weightapprox. 10 kgStorage temperature-5 °C to 40 °CLabellingCEWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryOBN 158 microscope with trinocular Siedentopf tubeHWF 10x eyepiecesObjectives: 4x, PH 10x, PH 20x, PH 40x, PH 100xPhase contrast condenser with condenser wheelCentring eyepiece for phase contrast adjustmentDesktop power supply with Euro plugDust coverEyecupsMultilingual operating instructionsWarrantyAccording to Kern & Sohn, this microscope comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern OBN-15 (PDF)Regulatory informationAs an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceFor the OBN series, Kern lists as accessories a swing-out condenser, additional eyepieces, objectives, colour filters, phase contrast units, a dark field condenser, a simple polarisation unit, a Butterfly tube and complete fluorescence units. They are also available. Enquiries are handled via our procurement service.
