Tempering
Temperature control encompasses heating ovens, drying ovens and climate chambers, as well as water baths and thermostats, for controlled temperature processes in the laboratory. LT Laborhandel offers equipment from Memmert and BINDER for climate chambers and incubators, water baths and immersion thermostats from LAUDA and JULABO, and chamber furnaces from Nabertherm. For incubators in particular, see Climate Chambers & Incubators. Our service team will be happy to advise you on selecting the right equipment.
save 5 %

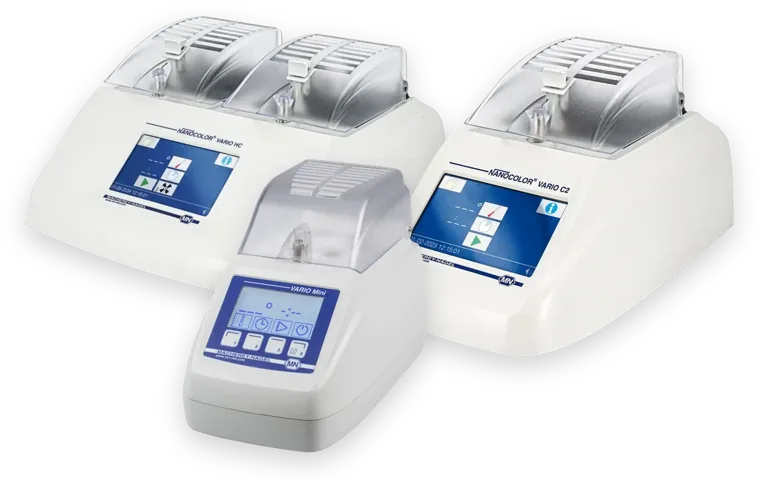

Thermal blocks for water analysis
NANOCOLOR VARIO for tube test digestion, from the portable Mini to the HC with active cooling.
Compared with the Macherey-Nagel RRP.

Memmert UN30 universal oven, compact heating and drying oven with natural convection, 32 litres, up to 300 °C
The Memmert UN30 universal oven is the most compact model in the Memmert universal oven range and operates using purely natural convection rather than an active air turbine. With an internal volume of 32 litres, a temperature range of 20 to 300 °C and a unit weight of around 45 kg, it fits on a laboratory bench, where space is usually more limited than in the equipment area of a permanent laboratory. As there is no active air circulation inside the chamber, the UN30 is particularly suitable for applications where vibration-free and low-dust operation are more important than the shortest possible heating time, such as when gently drying light samples or fine powders.Natural convection for vibration-free, low-dust operationUnlike the UF models in the series, the Memmert UN30 universal oven deliberately does not feature an air turbine or a recirculation motor. Heat rises within the chamber purely by convection, without a fan setting air, dust or light sample components in motion. As a result, the operating temperature range starts from at least 5 °C above room temperature up to 300 °C, whilst the forced-air models in the UF series only start from 10 °C above room temperature; however, thanks to forced air circulation, they heat up more quickly and distribute the temperature more actively. For samples that are sensitive to air movement, such as loose powders, fine fibres or specimens that must not be blown away by draughts, the UN30’s natural convection is suitable. A DIN Class A Pt100 temperature sensor with 4-wire measurement ensures the same setting accuracy as in the larger models, despite the simpler airflow principle: 0.1 °C to 99.9 °C and 0.5 °C from 100 °C.ControlCOCKPIT SingleDISPLAY: compact operation with a full range of functionsDespite its compact design, the UN30 does not compromise on any of the control functions found in the larger models. The ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a TFT colour graphic display, regulates temperature in Celsius or Fahrenheit, as well as the position of the exhaust air damper, programme duration, time zone and summer/winter time. As no air turbine is fitted, the only parameter omitted is that for the recirculation fan speed. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWAIT function only starts the process time once the setpoint temperature has been reached. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download, whilst a USB stick containing the full version is available as an optional accessory.Compact dimensions of the Memmert UN30 universal ovenThe internal dimensions are 400 x 320 x 250 mm, whilst the external dimensions are 585 x 704 x 434 mm. One electropolished stainless steel grid shelf is included as standard; the cabinet can accommodate up to three shelves in total. The maximum load capacity is 60 kg for the entire unit and 20 kg per shelf, which is entirely sufficient for smaller sample batches and individual containers. As with the larger models, the interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The fully insulated stainless steel door locks via a 2-point compression door lock. The UN30 is connected to a 230 V or 115 V supply, in each case at 50/60 Hz, with a power consumption of around 1,600 W.Selection guide: choosing the right size from the UN seriesThe Memmert universal oven series with natural convection covers a range of internal volumes from 32 to 749 litres. The UN30 is the smallest model in the range. When choosing the right size, the key factors, apart from internal volume, are the footprint and the number of shelves required; not every larger model takes up more floor space than the next smaller one.ModelInternal volumeUN3032 l, footprint 585 x 434 mm, max. 3 shelvesUN5553 l, footprint 585 x 514 mm, max. 4 shelvesUN7574 l, footprint 585 x 514 mm, max. 6 shelvesUN110108 l, footprint 745 x 584 mm, max. 5 shelvesUN260256 l, footprint 824 x 684 mm, max. 9 shelvesUN450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUN750749 l, footprint 1,224 x 784 mm, max. 14 shelvesThe UN30 is suitable when space on the laboratory bench is limited and only a few samples are being processed at a time. If the number of samples increases, the Memmert UN55 universal oven is the obvious next size up, offering 53 litres instead of 32 and 4 shelves instead of 3, whilst taking up only slightly more floor space. All seven sizes in the series can be found in our range of climate chambers and incubators.Distinction: TwinDISPLAY and the forced-air versionWithin the UN30 series, the most important purchasing decision is between SingleDISPLAY and TwinDISPLAY. The UN30 described here operates with a single Pt100 sensor and one display; for unattended processes with higher safety requirements, the Memmert UN30plus universal oven offers two redundant Pt100 sensors as well as two TFT displays instead of one. Those who would instead prefer to benefit from the shorter heating-up time offered by active air circulation and do not require vibration-free operation will find the Memmert UF30 universal oven to be the equivalent model featuring forced air circulation rather than natural convection, whilst retaining the same internal volume of 32 litres.Safety according to DIN 12880, even in the smallest modelThe UN30 also features adjustable electronic temperature monitoring plus a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature reaches approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and three freely selectable temperature values can be calibrated. CE and EAC markings, as well as a UL test mark, are present.Application, installation and disposalThe same installation rules apply to the Memmert UN30 universal oven when placed on a laboratory bench as for the larger models in the series: a minimum clearance of 15 cm from the wall, a minimum clearance of 20 cm from the ceiling, and a minimum clearance of 5 cm on each side from a wall or adjacent unit. It may be installed at altitudes of up to 2,000 m above sea level at ambient temperatures of 5 °C to 40 °C and a maximum relative humidity of 80 %, non-condensing. Electrically, the UN30 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. The interior, made of easy-to-clean stainless steel, can be cleaned using standard laboratory cleaning products. As an electrical appliance, the UN30 is subject to the Electrical and Electronic Equipment Act at the end of its service life and must not be disposed of with household waste; see Regulatory information below.Typical applicationsThe compact Memmert UN30 universal oven is suitable wherever space is limited or where vibration-free, low-dust heat treatment is more important than a short heating-up time.Drying small sample quantities and laboratory glassware on the laboratory benchVibration-free drying of dust- or air-sensitive samplesTempering, ageing and baking of small material samplesRoutine tests in quality assurance, schools and trainingA compact addition or secondary unit in laboratories with limited spaceInvestment rationale: keep it compact or opt for greater safety straight awayThe UN30 is supplied with 1 electropolished stainless steel grid shelf; the cabinet is designed to accommodate up to 3 shelves. For day-to-day operation under supervision, the SingleDISPLAY of the UN30 described here is generally sufficient. If a process runs unattended overnight, the redundant sensor system of the Memmert UN30plus universal oven reduces the risk of an undetected sensor failure. For visual inspection without opening the door, a full-view glass door with 4-layer insulation up to 250 °C or 300 °C is available as an option, as are interior lighting and a stacking kit, which allows two UN30 units to be stacked on top of one another to save space. Anyone wishing to use the data logger permanently, rather than just with the time-limited trial version, should add an AtmoCONTROL software licence. For pharmaceutical or standards-compliant applications, we arrange calibration, IQ/OQ and maintenance services, including DAkkS calibration on request.Frequently asked questions before purchaseDoes the UN30 fit on a standard laboratory bench?Yes, with a net weight of around 45 kg and external dimensions of 585 x 704 x 434 mm, the UN30 is designed for use on a laboratory bench, provided that the bench can safely support the load.How many samples can fit into the UN30 at once?One grid shelf is included as standard; up to 3 shelves, each with a maximum load of 20 kg, are possible, giving a total load capacity of up to 60 kg.Is natural convection sufficient for uniform drying?For most routine applications, yes. For dust- or air-sensitive samples, the gentle natural convection of the UN30 is an advantage; for shorter heating times with larger batches, the Memmert UF30 universal oven offers active air circulation with the same volume.How does the UN30 differ from the UN30plus?Both operate using natural convection and share the same housing; the UN30plus additionally features two redundant Pt100 sensors and TwinDISPLAY for greater process reliability during unattended operation.What is the accuracy of the temperature control?0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, as the UN30, like all models in the series, measures using a DIN Class A Pt100 sensor with 4-wire technology.Can a glass door be retrofitted?A full-view glass door with 4-layer insulation up to 250 °C or 300 °C is one of the standard options for the UN30 and can be specified when ordering.Is the UN30 suitable for continuous overnight operation?The mechanical temperature limiter, which complies with protection class 1 according to DIN 12880, switches off the heating in the event of an overtemperature of approximately 20 °C and is designed for unattended operation.Technical detailsAdjustable temperature range20 to 300 °CWorking temperature rangeat least 5 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume32 lInternal dimensions (W x H x D)400 x 320 x 250 mmExternal dimensions of housing (W x H x D)585 x 704 x 434 mmNet weightapprox. 45 kgConnection 230 V50/60 Hz, approx. 1,600 WConnection 115 V50/60 Hz, approx. 1,600 WShelves max.3Shelves included in scope of delivery1Max. load on unit60 kgMax. load per shelf20 kgInterior materialStainless steel, 4-sided all-round heatingCasing materialTextured stainless steel, galvanised sheet steel rear panelControl systemControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic displayTimer1 minute to 99 days, digital countdown timerPermissible ambient temperature5 °C to 40 °CPermissible relative humiditymax. 80 % rel., non-condensingMaximum installation altitude2,000 mMarkingsCE, EAC, UL test markScope of delivery1x Memmert UN30 universal ovenFactory calibration certificate (calibrated at 160 °C)Fully insulated stainless steel door with 2-point locking (compression door lock)1x stainless steel grid shelf, electropolishedRegulatory informationThe Memmert UN30 universal oven is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29728) or without air slots (B29729). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements & procurement serviceOptions available for the UN30 include full-view glass doors with 4-layer insulation up to 250 °C or 300 °C, interior lighting, reinforced grid shelves and perforated sheets, slide-in or floor-standing drip trays, as well as wall brackets, levelling feet, stacking kits and a mobile or fixed base frame. For data acquisition, a USB-to-Ethernet adapter with a 5 m cable, user ID sticks and AtmoCONTROL software licences are available. In addition, we arrange calibration, IQ/OQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories, extended overtemperature protection with an additional Pt100 sensor, or assistance in selecting the right universal oven for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.
Memmert IN30 incubator, compact incubator with natural convection, 32 litres, up to 80 °C
With an internal volume of 32 litres, a temperature range of 20 to 80 °C and purely natural convection, the Memmert IN30 incubator is designed as a compact incubator for the incubation and cultivation of samples in microbiology, food analysis and the pharmaceutical industry. An internal glass door allows visual inspection of the cultures without having to open the fully insulated outer door and thereby disturb the internal temperature, a practical difference compared to the pure heating and drying ovens of the UN series.Natural convection for stable incubation conditionsThe Memmert IN30 incubator operates without an air turbine or a forced-air fan; the heat rises within the chamber purely by thermal convection. This is an advantage for the cultivation of microorganisms and cell cultures: there is no forced air movement that could dry out open Petri dishes or affect culture media. The operating temperature range starts at a minimum of 5 °C above room temperature and extends up to 80 °C. A DIN Class A Pt100 temperature sensor with 4-wire measurement ensures a setting accuracy of 0.1 °C across the entire operating range, important for reproducible incubation temperatures, such as 37 °C in microbiology.ControlCOCKPIT SingleDISPLAY and data acquisitionThe IN30 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphic display. The temperature can be set in Celsius or Fahrenheit, as well as the position of the exhaust air flap, programme duration, time zone and summer/winter time. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWAIT function only starts the incubation time once the setpoint temperature has actually been reached, which is important for defined incubation times. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity and dimensions of the Memmert IN30 incubatorThe internal chamber measures 400 x 320 x 250 mm, whilst the external dimensions are 585 x 704 x 434 mm. An electropolished stainless steel grid shelf is included in the scope of delivery; the incubator can accommodate up to three shelves in total. The maximum load capacity is 60 kg for the entire unit and 20 kg per shelf, which is more than sufficient for Petri dishes, test tubes and smaller culture vessels. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The IN30 is connected to 230 V (approx. 1,600 W) or 115 V (approx. 800 W), in both cases at 50/60 Hz, with noticeably lower power consumption than the heating ovens of the UN series with their higher temperature range.Selection guide: choosing the right incubator sizeMemmert offers two sizes with natural convection, as well as the forced-air version with TwinDISPLAY for different temperature distribution requirements.ModelInternal volume and controlIN3032 l, natural convection, SingleDISPLAY, max. 3 shelvesIN5553 l, natural convection, SingleDISPLAY, max. 4 shelvesIF30plus32 l, forced air circulation, TwinDISPLAY, max. 3 shelvesFor those who wish to incubate more culture vessels simultaneously whilst still avoiding forced air circulation, the Memmert IN55 incubator with a 53-litre capacity offers the next level. Those who, on the other hand, require active, more uniform air circulation as well as an integrated sterilisation programme will find these functions in the Memmert IF30plus incubator, which is identical in size. The full range of climate chambers and incubators can be found under Climate Chambers & Incubators.Distinction: Incubator versus heating oven, IN versus IFUnlike the universal ovens in the UN series, the IN30 is specifically designed for incubation temperatures up to 80 °C, not for drying or tempering processes up to 300 °C. The inner glass door, included with the IN30, is not part of the standard specification for the UN models and is important for culture monitoring without temperature loss. Within the incubator range, the key purchasing decision is between natural convection (IN series) and forced air circulation (IF series): The IF30plus features an air turbine, two Pt100 sensors for mutual monitoring, a TwinDISPLAY with two screens and a permanently installed sterilisation programme for the interior, all functions that the IN30, with its SingleDISPLAY, does not offer. Those who switch between different sample types and wish to decontaminate the interior between runs are better served by the IF30plus; those who require quiet, vibration-free incubation without air movement are better off sticking with the IN30.Safety according to DIN 12880The IN30 features adjustable electronic temperature monitoring and a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature reaches approximately 20 °C above the maximum chamber temperature, important for incubation runs lasting several days without constant supervision. A self-diagnostic system assists with fault-finding, and three freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL mark.Installation, operation and disposalFor operation, a minimum distance of 15 cm from the wall and a minimum distance of 20 cm from the ceiling must be maintained; a minimum of 5 cm is sufficient on either side in relation to a wall or neighbouring unit. Installation is permitted at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the IN30 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. The interior and the inner glass door can be cleaned using standard laboratory cleaning agents and disinfectants. As an electrical appliance, the IN30 is subject to the Electrical and Electronic Equipment Act at the end of its service life and must not be disposed of with household waste.Typical areas of applicationWith an internal volume of 32 litres and incubation temperatures of up to 80 °C, the Memmert IN30 incubator is suitable for compact routine applications in microbiology and food technology.Incubation of culture media and cultures in routine microbiological workBacterial count determination and shelf-life testing in food analysisIncubation of small batches in the pharmaceutical industry and researchVisual inspection of ongoing cultures without temperature loss thanks to the internal glass doorCompact entry-level incubator for schools, training and routine laboratoriesReasons for investment: Equipment for day-to-day incubationThe IN30 comes supplied with 1 electropolished stainless steel grid shelf and the internal glass door; the incubator is designed to accommodate up to 3 shelves. For process documentation, we recommend a permanent AtmoCONTROL software licence rather than the time-limited trial version, supplemented by a USB-to-Ethernet adapter. Those wishing to secure access can configure a lockable door with a security lock; for enhanced safety, an additional Pt100 sensor with overtemperature protection is available. For pharmaceutical or standards-compliant applications, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Those wishing to combine the IN30 with other devices on a shelf or rack will find a space-saving solution in a wall bracket or stacking kit, without taking up any additional floor space.Frequently asked questions before purchaseWhat is the inner glass door for?It allows visual inspection of the cultures without having to open the fully insulated outer door, which reduces temperature fluctuations inside the unit and disturbs the incubation process less.Up to what temperature does the IN30 operate?The adjustable temperature range is from 20 to 80 °C; the operating temperature range starts at a minimum of 5 °C above room temperature.How many culture vessels can fit inside at the same time?One grid shelf is included as standard; up to three shelves, each with a maximum load of 20 kg, are possible, for a total load of up to 60 kg.Is the IN30 different from the UN30 universal oven?Yes, the IN30 is designed for incubation temperatures up to 80 °C and has an internal glass door, whilst the UN30 operates as a heating and drying oven up to 300 °C without an internal glass door.Is the IN30 a medical device?No, according to Memmert’s own MDR classification table, the IN30 is not a medical device; this applies only to the separate m and mplus variants.Is there a version with active air circulation?Yes, the Memmert IF30plus incubator, which is the same size, features forced air circulation, TwinDISPLAY and an integrated sterilisation programme.Is the IN30 suitable for continuous operation over several days?The mechanical temperature limiter of protection class 1 according to DIN 12880 switches off the heating at an excess temperature of approximately 20 °C and is designed for unattended operation.Can the IN30 also be used for drying tasks instead of incubation?In principle, yes, provided the setpoint temperature is within the range of 20 to 80 °C. For higher drying temperatures up to 300 °C, a heating and drying oven from the UN series, such as the Memmert UN30 universal oven, is the more suitable choice.Technical detailsAdjustable temperature range20 to 80 °COperating temperature rangeat least 5 °C above room temperature up to 80 °CTemperature setting accuracy0.1 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume32 lInternal dimensions (W x H x D)400 x 320 x 250 mmExternal dimensions of housing (W x H x D)585 x 704 x 434 mmNet weightapprox. 48 kgConnection 230 V50/60 Hz, approx. 1,600 WConnection 115 V50/60 Hz, approx. 800 WMaximum number of shelves3Shelves included in scope of delivery1Max. load on unit60 kgMax. load per shelf20 kgInterior materialStainless steel, 4-sided all-round heatingCasing materialTextured stainless steel, galvanised sheet steel rear panelControl systemControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayTimer1 minute to 99 days, digital countdown timerPermissible ambient temperature5 °C to 40 °CPermissible relative humiditymax. 80 % rel., non-condensingMaximum installation height2,000 mMarkingsCE, EAC, UL marksScope of delivery1x Memmert IN30 incubatorFactory calibration certificate (calibrated at 37 °C)Fully insulated stainless steel door with 2-point locking mechanism (compression door lock)Inner glass door1x stainless steel grid shelf, electropolishedRegulatory informationThe Memmert IN30 incubator is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29728) or without air slots (B29729). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements & procurement serviceOptions available for the IN30 include interior lighting and a power socket, a lockable door with a security lock, an additional Pt100 sensor with over-temperature protection, and reinforced grid shelves. For data acquisition, a USB-to-Ethernet adapter and AtmoCONTROL software licences are available. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories or assistance in selecting the right incubator for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.
Memmert UF160 universal oven, heating and drying oven with forced air circulation, 161 litres, up to 300 °C
Within the eight-tier UF series with forced air circulation, the Memmert UF160 universal oven marks the exact point at which a benchtop unit becomes a floor-standing cabinet: 161 litres of internal volume, a temperature range from 20 to 300 °C and up to 8 shelves for the daily rotation of different batches. The air turbine, which can be electronically controlled in 10 % increments, actively distributes heat throughout the interior and brings samples up to temperature more quickly and evenly than natural convection alone. From drying freshly cleaned laboratory glassware to tempering, ageing and baking material samples, right through to curing in quality assurance, the UF160 thus covers a wide range of applications in laboratories and industry.Forced air circulation for even temperature distribution and short heating timesThe air turbine in the Memmert UF160 universal oven can be electronically controlled in 10 % increments and actively distributes the heat throughout the interior, rather than simply allowing it to rise, as is the case with a natural convection chamber. As a result, the UF160 operates from a minimum of 10 °C above room temperature up to 300 °C. A natural convection unit already starts operating from around 5 °C above room temperature but, in return, operates without any air movement inside the chamber. A DIN Class A Pt100 temperature sensor with 4-wire measurement ensures a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C. Those who run many different batches with varying setpoint temperatures will benefit from the shorter heating-up phases achieved through active air circulation.ControlCOCKPIT SingleDISPLAY: Operation, programming and data acquisitionThe UF160 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphics display. The following parameters can be adjusted: temperature in Celsius or Fahrenheit, the speed of the forced air circulation motor, the position of the exhaust air damper, the programme duration, as well as the time zone and summer/winter time. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWait function only starts the actual process time once the setpoint temperature has actually been reached, which ensures reproducible results in time-critical drying or ageing processes. The integrated data logger can be read, managed and organised via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download to get you started.Capacity and connections of the Memmert UF160 universal ovenThe interior of the UF160 accommodates up to 8 shelves; 2 electropolished stainless steel grid shelves are included in the scope of delivery. The cabinet has a total load capacity of up to 210 kg, with a maximum load of 20 kg per shelf. The internal usable space measures 560 x 720 x 400 mm; the external dimensions of the cabinet are 745 x 1,104 x 584 mm, and the net weight is approximately 96 kg. The interior consists of easy-to-clean stainless steel, reinforced with deep-drawn ribbing, featuring protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The UF160 can be connected either to 230 V (approx. 3,200 W) or 115 V (approx. 1,800 W), in both cases at 50/60 Hz; a single-phase connection is still sufficient for this size.Selection guide: choosing the right size from the UF rangeThe Memmert UF range comprises eight models with internal volumes ranging from 53 to 1,060 litres, all featuring forced-air circulation and available with TwinDISPLAY. When choosing the right size, the key factors, alongside the internal volume, are the footprint and the number of shelves required; not every larger model automatically requires more floor space.ModelInternal volumeUF5553 l, footprint 585 x 514 mm, max. 4 shelvesUF7574 l, footprint 585 x 514 mm, max. 6 shelvesUF110108 l, footprint 745 x 584 mm, 5 shelves max.UF160161 l, footprint 745 x 584 mm, max. 8 shelvesUF260256 l, footprint 824 x 684 mm, max. 9 shelvesUF450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUF750749 l, footprint 1,224 x 784 mm, max. 14 shelvesUF10601,060 l, footprint 1,224 x 1,035 mm, max. 14 shelvesThe UF160 straddles the line between a benchtop unit and a floor-standing cabinet: whilst having the same footprint as the smaller Memmert UF110 universal oven, it offers significantly more capacity, with 8 shelves instead of 5, in a housing that is only slightly larger. For those who regularly process even larger batches, the next step up is the Memmert UF260 universal oven with a capacity of 256 litres. You can find all models in this range in our Climate Chambers & Incubators range.Distinction: TwinDISPLAY and the natural convection variantWithin the UF160 series, the most important purchasing decision is between SingleDISPLAY and TwinDISPLAY. The UF160 described here operates with a single Pt100 sensor and one display; for unattended processes with higher safety requirements, the Memmert UF160plus universal oven offers two redundant Pt100 sensors with mutual monitoring, as well as two TFT displays instead of one. Those who can do without active air circulation, for example, because samples sensitive to dust or air movement are laid out in the open, will find the Memmert UN160 universal oven to be the direct equivalent, featuring natural convection instead of an air turbine, whilst retaining the same internal volume of 161 litres. Conversely, those who can manage with a smaller volume will save a noticeable amount of floor space with the more compact Memmert UF110 universal oven.Safety according to DIN 12880 for unattended operationIn addition to the adjustable electronic temperature monitoring, the UF160 features a mechanical temperature limiter (protection class 1 according to DIN 12880), which switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature, an important safety feature for overnight or weekend runs. An integrated self-diagnostic system assists with fault-finding, whilst the calibration function allows three freely selectable temperature values to be readjusted. The unit bears CE and EAC markings as well as a UL test mark.Use, installation and disposalWhen operating the UF160, a minimum distance of 15 cm from the wall and a minimum distance of 20 cm from the ceiling must be maintained; a minimum distance of 5 cm from the side of the wall or an adjacent unit is sufficient. The unit may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the cabinet is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. The interior, made of easy-to-clean stainless steel, can be cleaned using standard laboratory cleaning agents; the robust textured stainless steel construction ensures a long service life. As an electrical appliance, the UF160 is subject to the German Electrical and Electronic Equipment Act (ElektroG) at the end of its service life and must not be disposed of with household waste; see Regulatory information below.Typical applicationsWith forced air circulation, an internal volume of 161 litres and an installation altitude of up to 2,000 metres, the Memmert UF160 universal oven is suitable for a wide range of heat treatment processes in both laboratory and industrial settings.Drying laboratory glassware and sample vessels in routine operationsTempering, ageing and baking of material samplesTesting and curing in quality assuranceMaterial testing in industrial manufacturingHeat treatment processes in science and researchAn intermediate size for laboratories that require greater capacity than the UF110 can provideInvestment rationale: SingleDISPLAY or TwinDISPLAYThe scope of delivery for the UF160 includes two electropolished stainless steel grid shelves; the cabinet is designed to accommodate up to eight shelves. For day-to-day operation under supervision, the SingleDISPLAY on the UF160 described here is generally sufficient. However, if drying or ageing processes run unattended overnight or at weekends, the redundant sensor system of the Memmert UF160plus universal oven reduces the risk of a single sensor failure jeopardising the entire batch. For visual inspection without opening the door, a full-view glass door rated up to 250 °C or 300 °C is available as an option, as are interior lighting and reinforced grid shelves or perforated trays for up to 60 kg for heavier samples. Those wishing to use the data logger on a permanent basis rather than just with the time-limited trial version can add an AtmoCONTROL software licence. For pharmaceutical or standard-compliant applications, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request.Frequently asked questions before making a purchaseHow many samples can the UF160 hold at any one time?Two grid shelves are supplied as standard; it can accommodate up to 8 shelves, each with a maximum load of 20 kg, for a total load capacity of up to 210 kg.How does the UF160 differ from the UF160plus?Both share the same housing and air turbine; the UF160plus also features two redundant Pt100 sensors, TwinDISPLAY, HeatBALANCE and AutoSAFETY for greater process reliability during unattended operation.Is a natural convection model available in this size?Yes, the Memmert UN160 universal oven offers the same internal volume of 161 litres, but operates without an air turbine and is suitable for samples that are sensitive to dust or air movement.What is the accuracy of the temperature control?0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, measured using a DIN Class A Pt100 sensor with a 4-wire connection.What type of power supply is required?Either 230 V at around 3,200 W or 115 V at around 1,800 W, in both cases at 50/60 Hz; a single-phase supply is sufficient.Is the UF160 suitable for continuous overnight operation?The mechanical temperature limiter of protection class 1 according to DIN 12880 switches the heater off when the temperature rises by approximately 20 °C and is designed for unattended operation.Can a glass door be retrofitted?A full-view glass door rated up to 250 °C or 300 °C is one of the common options for the UF160 and can be selected when placing your order.Technical detailsSetting temperature range20 to 300 °CWorking temperature rangeat least 10 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume161 lInternal dimensions (W x H x D)560 x 720 x 400 mm (depth minus 39 mm for the fan)External dimensions of the housing (W x H x D)745 x 1,104 x 584 mmNet weightapprox. 96 kg230 V connection50/60 Hz, approx. 3,200 W115 V connection50/60 Hz, approx. 1,800 WMaximum number of shelves8Shelves included in the scope of delivery2Max. load on the unit210 kgMaximum load per shelf20 kgInterior materialsStainless steel, 4-sided all-round heatingHousing materialTextured stainless steel, galvanised sheet steel rear panelControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayTimer1 minute to 99 days, digital countdown clockPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % relative humidity, non-condensingMaximum installation altitude2,000 mLabellingCE, EAC, UL test markScope of delivery1x Memmert UF160 universal ovenFactory calibration certificate (calibration at 160 °C)Fully insulated stainless steel door with a 2-point locking system (compression door lock)2x stainless steel grid shelves, electropolishedRegulatory informationThe Memmert UF160 universal oven is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29736) or without air slots (B29737). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceThe UF160 is available with, amongst other features, full-view glass doors rated up to 250 °C or 300 °C, interior lighting, reinforced grid shelves and perforated trays up to 60 kg, slide-in or floor-standing drip trays, as well as wall brackets, levelling feet and a mobile or fixed base frame. For data acquisition, a USB-to-Ethernet adapter with a 5 m cable and AtmoCONTROL software licences are available; licences for 21 CFR Part 11 (AtmoCONTROL FDA) are also available. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories, a gas-tight version with gas inlet and outlet, a specific feed-through (14, 23, 38, 57 or 100 mm), or assistance in selecting the right universal oven for your application? Through our procurement service, we’ll be happy to assist you with procurement and configuration.
Memmert UN110 universal oven, heating and drying oven with natural convection, 108 litres, up to 300 °C
The Memmert UN110 universal oven is a heating and drying oven from the Memmert UN series. With an internal volume of 108 litres, it marks the transition from the compact benchtop units of the UN series to a noticeably larger footprint and greater loading capacity, whilst continuing to operate using purely natural convection within a temperature range of 20 to 300 °C. For laboratories that regularly dry, temper or cure larger batches or several batches in parallel, without giving up vibration-free operation, the UN110 is the obvious choice between a compact benchtop unit and a large-volume floor-standing cabinet.Natural convection for larger batchesThe Memmert UN110 universal oven also deliberately does not feature an air turbine or a forced air circulation motor. Heat rises within the chamber purely by convection, without dust or light sample particles being stirred up by a fan. As a result, the working temperature range starts from at least 5 °C above room temperature up to 300 °C. With an internal volume of 108 litres and several shelves occupied simultaneously, uniform natural heat distribution remains crucial, particularly when sensitive or exposed samples must not be affected by air movement. A Pt100 temperature sensor of DIN Class A in a 4-wire configuration ensures a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards.ControlCOCKPIT SingleDISPLAY: Operation and data acquisitionThe UN110 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphics display. You can set the temperature in Celsius or Fahrenheit, as well as the position of the exhaust air flap, the programme duration, the time zone and summer/winter time. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWait function only starts the process time once the setpoint temperature has actually been reached, ensuring reproducible results for larger batches. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity and dimensions of the Memmert UN110 universal ovenThe interior measures 560 x 480 x 400 mm, whilst the external dimensions are 745 x 864 x 584 mm, representing a noticeably larger footprint than the smaller UN30, UN55 and UN75 models. The scope of delivery includes two electropolished stainless steel grid shelves, and the cabinet can accommodate up to five shelves in total. The maximum load capacity is 175 kg for the entire unit and 20 kg per shelf. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The UN110 is connected to either 230 V (approx. 2,800 W) or 115 V (approx. 1,800 W), in each case at 50/60 Hz.Selection guide: moving to a larger floor areaThe Memmert UN series with natural convection covers internal volumes ranging from 32 to 749 litres. The UN110 is the first model in the range to feature a noticeably larger footprint compared with the three smaller benchtop models.ModelInternal volumeUN3032 l, footprint 585 x 434 mm, 3 shelves max.UN5553 l, footprint 585 x 514 mm, max. 4 shelvesUN7574 l, footprint 585 x 514 mm, max. 6 shelvesUN110108 l, footprint 745 x 584 mm, 5 shelves max.UN260256 l, footprint 824 x 684 mm, max. 9 shelvesUN450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUN750749 l, footprint 1,224 x 784 mm, max. 14 shelvesAnyone upgrading from the UN75 (74 litres, same footprint as the UN55) who requires more capacity and a higher load capacity per unit will find the UN110 to be the suitable next step. If even that is no longer sufficient, the Memmert UN260 universal oven offers a significantly larger, freestanding model with a capacity of 256 litres. The full range of climate chambers and incubators can be found under Climate Chambers & Incubators.Distinction: natural convection versus forced-air circulationAnyone requiring more active heat distribution and shorter heating times for similar volumes, for example, with densely packed batches of varying sizes, will find the Memmert UF160 universal oven to be the suitable forced air circulation counterpart, featuring an electronically controllable air turbine. Its working temperature range starts at 10 °C rather than 5 °C above room temperature. For samples sensitive to dust or air movement, the natural convection of the UN110 remains the more suitable choice. A significantly more compact natural convection model for smaller sample quantities is the Memmert UN30 universal oven. Like all standard models in the UN series, the UN110 operates with the ControlCOCKPIT SingleDISPLAY, rather than the TwinDISPLAY reserved for the ‘plus’ variants.Safety according to DIN 12880 even for larger batchesThe UN110 features adjustable electronic temperature monitoring and a mechanical temperature limiter (protection class 1 according to DIN 12880), which switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature, an important safety feature for overnight or weekend runs when several shelves are in use simultaneously. A self-diagnostic system assists with fault-finding, and three freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL test mark.Installation, operation and disposalFor operation, a minimum clearance of 15 cm from the wall and a minimum clearance of 20 cm from the ceiling must be maintained; a minimum clearance of 5 cm is sufficient on either side from the wall or an adjacent unit. With a net weight of around 74 kg, it is recommended that the UN110 be placed on a sturdy, load-bearing base rather than simply on a laboratory bench. It may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the UN110 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. As an electrical appliance, the UN110 is subject to the German Electrical and Electronic Equipment Act (ElektroG) at the end of its service life and must not be disposed of with household waste.Typical applicationsWith an internal volume of 108 litres and a load capacity of up to 175 kg, the Memmert UN110 universal oven is suitable for laboratories and businesses that regularly dry or heat-treat large quantities of samples.Drying large quantities of laboratory glassware and sample containersVibration-free drying of dust- or air-sensitive materials in multiple batchesTempering, ageing and firing of material samples in industrial quality assuranceMaterial tests with a higher sample throughput than with the smaller UN modelsScience and research involving varying, sometimes larger, seriesInvestment rationale: Equipment for higher throughputThe scope of delivery for the UN110 includes 2 electropolished stainless steel grid shelves; the cabinet is designed to accommodate up to 5 shelves, each with a maximum load of 20 kg. If you regularly use all levels, you can add further grid shelves or perforated trays. For visual inspection without opening the door, a full-view glass door is available, along with interior lighting and a socket for additional measuring equipment, as well as a levelling or mobile base for flexible repositioning. For gas-tight applications, a corresponding version including gas supply and exhaust is available. For continuous data logging, an AtmoCONTROL software licence is recommended; for applications subject to standards, calibration and IQ/OQ/PQ services are available, including DAkkS calibration on request.Frequently asked questions before making a purchaseWhen is the UN110 a good choice?Compared with compact benchtop units, it offers a significantly larger internal volume and a more robust base, without sacrificing the benefits of natural convection.Will the UN110 still fit on a laboratory bench?With a net weight of around 74 kg and a footprint of 745 x 584 mm, a sturdy, load-bearing base is recommended rather than a standard laboratory bench.How many samples can be loaded at the same time?Up to 5 shelves, each with a maximum load of 20 kg, giving a total load capacity of up to 175 kg.What is the accuracy of the temperature control?The DIN Class A Pt100 sensor, using 4-wire technology, provides an accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, regardless of the cabinet size within the UN series.Is the UN110 also available with forced air circulation?The direct counterpart with forced air circulation in a similar size range is the Memmert UF160 universal oven, with a capacity of 161 litres and an electronically controlled air turbine.Is a gas-tight design possible?Yes, a virtually gas-tight interior with gas inlet and outlet connections is one of the common options for the UN110.Is the UN110 suitable for unattended operation?The mechanical temperature limiter of protection class 1 according to DIN 12880 switches off the heating if the temperature rises by approximately 20 °C and is designed for night-time or weekend operation.Technical detailsSetting temperature range20 to 300 °CWorking temperature rangeat least 5 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume108 lInternal dimensions (W x H x D)560 x 480 x 400 mmExternal dimensions of the housing (W x H x D)745 x 864 x 584 mmNet weightapprox. 74 kg230 V connection50/60 Hz, approx. 2,800 W115 V connection50/60 Hz, approx. 1,800 WMaximum number of shelves5Shelves included in the scope of delivery2Max. load on the unit175 kgMaximum load per shelf20 kgInterior materialsStainless steel, 4-sided all-round heatingHousing materialTextured stainless steel, galvanised sheet steel rear panelControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayTimer1 minute to 99 days, digital countdown clockPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % relative humidity, non-condensingMaximum installation altitude2,000 mLabellingCE, EAC, UL test markScope of delivery1x Memmert UN110 universal ovenFactory calibration certificate (calibration at 160 °C)Fully insulated stainless steel doors with a 2-point locking system (compression door lock)2x stainless steel grid shelves, electropolishedRegulatory informationThe Memmert UN110 universal oven is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29734) or without air slots (B29735). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceThe UN110 is available with, amongst other features, full-view glass doors, interior lighting and a power socket, a levelling or mobile base frame, reinforced grid shelves and perforated trays, as well as a gas-tight version with various pipe feed-throughs. A USB-to-Ethernet adapter and AtmoCONTROL software licences are available for data acquisition. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories or assistance in selecting the right universal oven for your application? Through our procurement service, we are happy to assist you with procurement and configuration.
Memmert UF30 universal oven, 32 l, +20 to +300 °C, SingleDISPLAY
With an internal capacity of 32 litres, the Memmert UF30 universal oven is the smallest model in the UF series and has compact external dimensions of 585 x 704 x 434 mm. Featuring forced air circulation and a temperature range of +20 to +300 °C, it is suitable for drying and heating processes involving individual samples or small batches where floor space is limited but the temperature inside the chamber must still be evenly distributed.Design and air circulationAn electronically controlled, low-noise air turbine circulates the air within the chamber; its speed can be adjusted in 10 % increments. Preheated fresh air is introduced via an electronically adjustable exhaust air damper; the exhaust air outlet with throttle valve can also be controlled electronically. The low-maintenance interior is reinforced with deep-drawn ribbing and features a protected, integrated 4-sided all-round heating system; the housing has a fully galvanised sheet steel rear panel.Control via the ControlCOCKPITThe UF30 is controlled via a ControlCOCKPIT featuring a high-resolution TFT colour graphic display and a DIN Class A Pt100 sensor in a 4-wire configuration. The setting accuracy is 0.1 °C up to a setpoint temperature of 99.9 °C and 0.5 °C from 100 °C onwards. The SetpointWAIT function only starts the process time once the setpoint temperature has actually been reached; a digital countdown timer covers target times ranging from 1 minute to 99 days. Three freely selectable temperature values can be calibrated, whilst a self-diagnostic system assists with troubleshooting. The programme sequence is saved in the event of a power failure, and the data logger can be read out and managed via the Ethernet interface.Safety according to DIN 12880A mechanical temperature limiter, protection class 1 according to DIN 12880, switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature. The door is fully insulated and fitted with a two-point locking mechanism as a compression door lock. The permissible ambient temperature is +5 °C to +40 °C with a maximum relative humidity of 80 % (non-condensing), and the cabinet may be installed at altitudes of up to 2,000 m above sea level. The cabinet must only be transported in an upright position.Selection guide for the correct sizeThe scope of delivery includes a stainless steel grid shelf and up to three possible shelves; the UF30 is designed for small to medium sample quantities; a total load of up to 60 kg and 20 kg per shelf are permitted. Those who regularly wish to dry or temper multiple batches simultaneously will find greater internal volume in the UF55 (53 l) or the UF75 (74 l), as shown in the size table below.Typical applicationsWith an internal volume of 32 litres, the UF30 is suitable for drying, heating, tempering, ageing, baking, testing and curing in research, science, industry and quality assurance.Drying small sample batches in laboratory settingsTempering and curing of individual material samplesPreparing and baking small components in quality assuranceAgeing and testing small samples in research and quality assuranceTechnical detailsSetting temperature range+20 to +300 °CWorking temperature rangeat least 10 °C above room temperature up to +300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensor1x Pt100, DIN Class A, 4-wire measurementInternal volume32 lInternal dimensions (W x H x D)400 x 320 x 250 mm (depth minus 39 mm for the fan)External dimensions of housing (W x H x D)585 x 704 x 434 mmNet weightapprox. 45 kgConnection 230 V50/60 Hz, approx. 1,600 WConnection 115 V50/60 Hz, approx. 1,600 WShelves max.3Shelves included in scope of delivery1Max. load on unit60 kgMax. load per shelf20 kgInteriordeep-drawn ribbed, 4-sided all-round heatingControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic displayPermissible ambient temperature+5 °C to +40 °CPermissible relative humiditymax. 80 % rel., non-condensingMaximum installation altitude2,000 mMarkingsCE, VDE GS, UL, EACOther sizes in the seriesThe UF series with SingleDISPLAY ranges from 32 to 1,060 litres internal volume, sorted by internal volume:ModelInternal volumeSet temperatureDisplayUF30 (this page)32 l+20 to +300 °CSingleDISPLAYUF5553 l+20 to +300 °CSingleDISPLAYUF7574 l+20 to +300 °CSingleDISPLAYUF110108 l+20 to +300 °CSingleDISPLAYUF160161 l+20 to +300 °CSingleDISPLAYUF260256 l+20 to +300 °CSingleDISPLAYUF450449 l+20 to +300 °CSingleDISPLAYUF750749 l+20 to +300 °CSingleDISPLAYUF10601,060 l+20 to +300 °CSingleDISPLAYThis model is also available with two temperature sensors and two control displays for redundant monitoring in the UF-plus series: UF30plus.Scope of delivery1x Memmert UF30 universal ovenFactory calibration certificate (calibrated at +160 °C)Fully insulated stainless steel door with 2-point locking (compression door lock)1x stainless steel grid shelf, electropolishedRegulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Memmert GmbH + Co. KG, is DE 66812464. Information on the return of old appliances can be found on our Environment and Disposal page.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29728) or without air slots (B29729). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceFor the UF30, the following items, amongst others, can be ordered ex-works: a full-view glass door, interior lighting and a socket, as well as a gas-tight version. Accessories available include additional shelves and perforated panels, drip trays, a wall bracket, a USB-to-Ethernet adapter and a stacking kit. For qualification and maintenance, we arrange calibration, IQ/OQ/PQ and maintenance services. Should you have specific requirements or any questions regarding the appropriate equipment, we will be happy to advise you personally.
Memmert UN450 universal oven, large-capacity heating and drying oven with natural convection, 449 litres, up to 300 °C
The Memmert UN450 universal oven offers an internal volume of 449 litres within a comparatively modest overall height of 1,247 mm, meaning it fits even under lower ceilings where a taller model would not. Like all natural convection models in the series, it operates without a fan in the temperature range from 20 to 300 °C and is powered by three-phase current due to the heating power required. For industrial and research facilities wishing to heat-treat large batches without vibration, without needing a particularly tall unit, the UN450 is the suitable solution.Natural convection with a large internal volumeEven with an internal volume of 449 litres, the Memmert UN450 universal oven does not require an air turbine or a forced air circulation motor. Heat rises purely by convection, without a fan stirring up dust or light sample particles within the large interior. The working temperature range extends from at least 5 °C above room temperature up to 300 °C. Natural convection remains in high demand even in this size category, particularly for industrial material samples that must not be affected by air movement. A Pt100 temperature sensor of DIN Class A in a 4-wire configuration provides a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards.ControlCOCKPIT SingleDISPLAY and three-phase connectionThe UN450 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a TFT colour graphic display, which can be used to set the temperature, exhaust air damper position, programme duration and time zone. A digital countdown timer ranging from 1 minute to 99 days and the SetpointWAIT function, which only starts the process time once the setpoint temperature has been reached, ensure reproducible processes, even during long, unattended runs. As a chamber of this size requires correspondingly higher heating capacity, the UN450 is powered by 400 V three-phase current and 3 x 230 V without a neutral conductor at 50/60 Hz and with a power consumption of approximately 5,800 W, rather than the single-phase connection used by the smaller models. The data logger can be read via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity of the Memmert UN450 universal ovenThe internal dimensions are 1,040 x 720 x 600 mm; the external dimensions of the cabinet are 1,224 x 1,247 x 784 mm. There is space for up to 8 shelves; 2 electropolished stainless steel grid shelves are included in the scope of delivery. The UN450 can be loaded with a total of up to 300 kg; each shelf can hold up to 30 kg, which is more than the smaller UN models, which allow 20 kg per shelf. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The fully insulated stainless steel doors are secured by a 2-point locking mechanism with a compression door lock.Same footprint, different heightsWithin the Memmert UN series with natural convection, the internal volume ranges from 32 to 749 litres. The UN450 and UN750 share the same floor space and differ only in their overall height, which is an important selection criterion where room heights are low.ModelInternal volumeUN3032 l, footprint 585 x 434 mm, max. 3 shelvesUN5553 l, footprint 585 x 514 mm, max. 4 shelvesUN7574 l, footprint 585 x 514 mm, max. 6 shelvesUN110108 l, footprint 745 x 584 mm, max. 5 shelvesUN260256 l, footprint 824 x 684 mm, max. 9 shelvesUN450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUN750749 l, footprint 1,224 x 784 mm, max. 14 shelvesIf you require the maximum capacity within this footprint and have a room height of more than 1.72 m, choose the Memmert UN750 universal oven with 749 litres and 14 shelves. If a smaller volume with a smaller footprint is sufficient, the Memmert UN260 universal oven with 256 litres is the suitable alternative. The full range of climate chambers and incubators can be found under Climate Chambers & Incubators.Difference between natural convection and forced air circulation, UN450 and UF450In addition to the UN450 with natural convection, there is also the Memmert UF450 universal oven, the structurally identical large forced air circulation version with an electronically controllable air turbine. The UF450 actively distributes heat throughout the interior and reaches its working temperature range from as low as 10 °C above room temperature, which ensures shorter heating times for densely packed batches of varying sizes. The UN450 deliberately avoids this and instead starts operating from just 5 °C above room temperature, with no air movement inside the chamber; this is suitable for large quantities of material samples that are sensitive to dust or vibration. Both models share the same interior, housing and ControlCOCKPIT SingleDISPLAY, but differ in their ventilation principle and working temperature range.Safety according to DIN 12880 for long, unattended processesProcess safety is crucial, particularly for large-volume batches that often run overnight or for several days. The UN450 features adjustable electronic temperature monitoring plus a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature reaches approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and 3 freely selectable temperature values can be calibrated. CE and EAC markings, as well as a UL test mark, are provided.Installation, operation and disposalThe same spacing requirements apply to the operation of the UN450 as for the smaller models: a minimum of 15 cm from the wall, a minimum of 20 cm from the ceiling and a minimum of 5 cm to the side, either from a wall or an adjacent unit. Given a net weight of around 161 kg and the three-phase power connection, the installation site should be fitted with a suitable heavy-current power connection prior to delivery. The unit may be installed at altitudes of up to 2,000 m above sea level, at ambient temperatures of 5 °C to 40 °C and with a maximum relative humidity of 80 %, non-condensing. Electrically, the UN450 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. As an electrical appliance, the UN450 is subject to the Electrical and Electronic Equipment Act at the end of its service life and must not be disposed of with household waste.Typical applicationsWith an internal volume of 449 litres, up to 8 shelves and a load capacity of up to 300 kg, the Memmert UN450 universal oven is designed for high-throughput applications where headroom at the installation site is also limited.Large-volume drying and heat treatment batches in industry and researchRoutine tempering, ageing and baking of material samplesMaterial testing and quality assurance with high sample throughputVibration-free heat treatment of dust-sensitive materials on a large scaleInstallation sites with limited headroom where a UN750 will not fitShelves, access control and process monitoringThe UN450 is supplied with 2 electropolished stainless steel grid shelves as standard; the cabinet is designed to accommodate up to 8 shelves, each with a maximum load of 30 kg. Options for process monitoring include a 4–20 mA current interface, fan speed monitoring, an additional Pt100 sensor and SMS alerts; for controlled access, there is a lockable door with a security lock. Those requiring a gas-tight version with various pipe penetrations can also have this configured. In addition, we arrange base frames with levelling, as well as calibration, IQ/OQ/PQ services according to DIN 12880 and maintenance contracts, including DAkkS calibration on request.Frequently asked questions before purchaseWhy does the UN450 require three-phase power?A cabinet of this size requires significantly more heating power (around 5,800 W) than the smaller UN models; therefore, the UN450 is operated with 400 V three-phase power and 3 x 230 V without a neutral conductor, rather than a single-phase connection.How does the UN450 differ from the UF450?Both share the same interior, housing and control system; however, the UF450 also features an electronically controllable air turbine for active air circulation and starts its working temperature range at 10 °C rather than 5 °C above room temperature.How tall is the UN450 and will it fit under a standard ceiling?The external dimensions are 1,224 x 1,247 x 784 mm; with a height of 1,247 mm, the UN450 also fits into rooms where the taller UN750, at 1,720 mm, would no longer fit.What is the maximum load per shelf?Up to 30 kg per shelf, with a total load of up to 300 kg for the entire unit when fitted with a maximum of 8 shelves.What is the accuracy of the temperature control?Despite the three-phase power supply, the same accuracy applies across the range as for the smaller models: 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C, measured using a DIN Class A Pt100 sensor with 4-wire technology.Is the UN450 suitable for long, unattended processes?The mechanical temperature limiter, of protection class 1 according to DIN 12880, switches off the heating element in the event of an overtemperature of approximately 20 °C. Information on long processes is available on request.Technical detailsSetting temperature range20 to 300 °CWorking temperature rangeat least 5 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume449 lInternal dimensions (W x H x D)1,040 x 720 x 600 mmExternal dimensions of housing (W x H x D)1,224 x 1,247 x 784 mmNet weightapprox. 161 kgConnection400 V and 3 x 230 V without neutral conductor, 50/60 Hz, approx. 5,800 WMaximum number of shelves8Shelves included in the scope of delivery2Max. load capacity300 kgMax. load per shelf30 kgInterior materialStainless steel, 4-sided all-round heatingCasing materialTextured stainless steel, galvanised sheet steel rear panelControl systemControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic displayTimer1 minute to 99 days, digital countdown timerPermissible ambient temperature5 °C to 40 °CPermissible relative humiditymax. 80 % rel., non-condensingMaximum installation height2,000 mMarkingsCE, EAC, UL test markScope of delivery1x Memmert UN450 universal ovenFactory calibration certificate (calibrated at 160 °C)Fully insulated stainless steel doors with 2-point locking (compression door lock)2x stainless steel grid shelves, electropolishedRegulatory informationThe Memmert UN450 universal oven is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29740) or without air slots (B29741). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements & procurement serviceOptions available for the UN450 include a lockable door with a security lock, a gas-tight version with various pipe feed-throughs, and reinforced grid shelves and perforated sheets. For process monitoring, a 4–20 mA current interface, fan speed monitoring, an additional Pt100 sensor and SMS alerts are available. In addition, we arrange base frames with levelling, as well as calibration, IQ/OQ/PQ services according to DIN 12880 and maintenance contracts. Do you require any of these accessories or assistance in selecting the right universal oven for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.

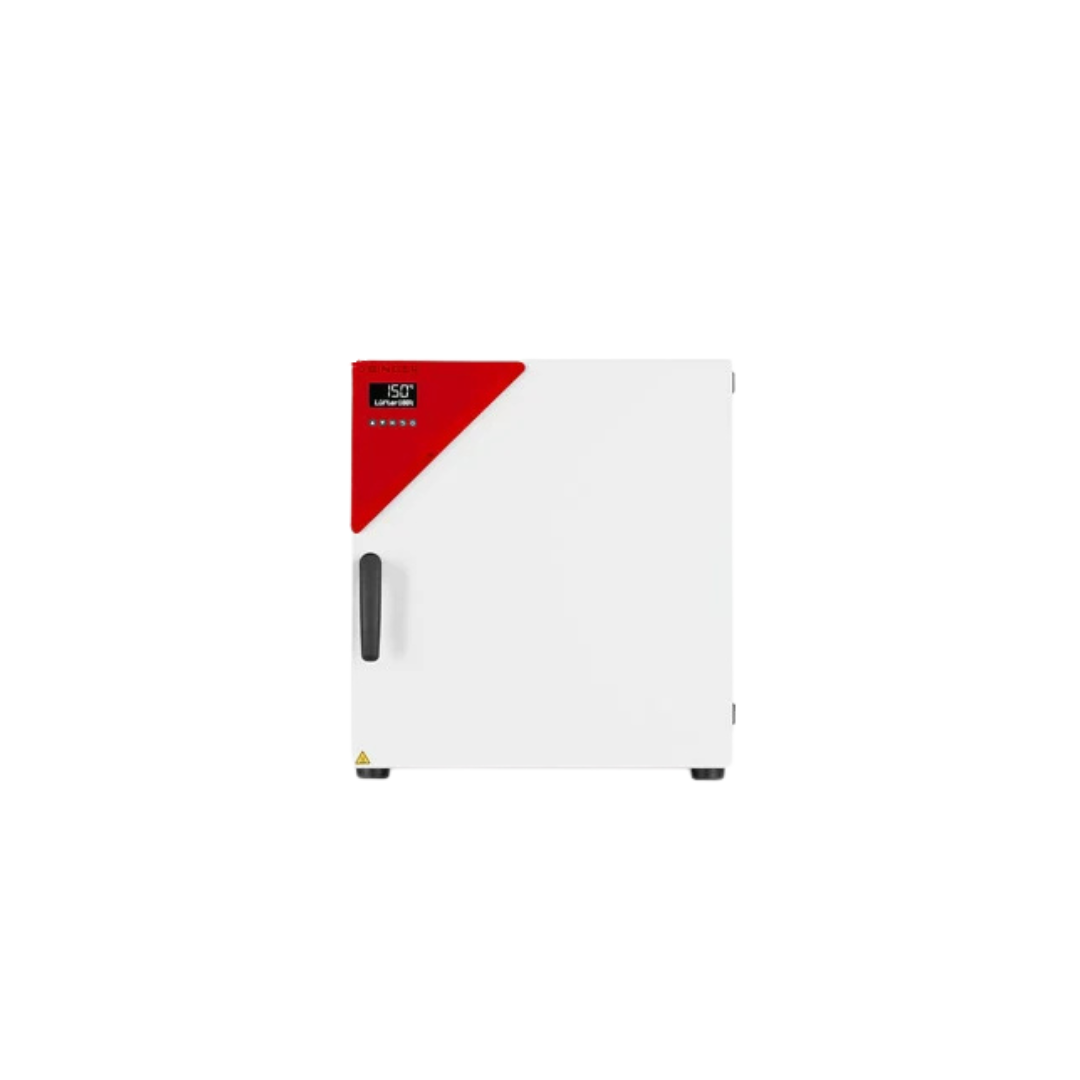

Binder FD 56 drying and heating oven with forced air circulation, 60 l, up to 300 °C, 9010-0303
The Binder FD 56 drying oven from the Avantgarde.Line FD series is a drying and heating oven with forced air circulation, designed for applications requiring particularly rapid drying and sterilisation. With a usable volume of 60 litres and a temperature range from 10 °C above ambient temperature up to 300 °C, this compact benchtop unit is equally suitable for daily laboratory routines and for specific sterilisation processes. Rapid heating thanks to a powerful fan A powerful fan, combined with APT.line technology, ensures uniform temperature distribution throughout the entire interior. At 150 °C, the FD 56 achieves a spatial temperature deviation of ± 1.7 K and a temporal deviation of ± 0.3 K. The heating time to 150 °C is just 15 minutes. With an air change rate of 80 times per hour at 100 °C, rapid, uniform drying is achieved even with a dense load. Operation and features in everyday laboratory use The FD 56 is controlled via a controller with an LCD display; the exhaust air flap is controlled electromechanically and can thus be adapted to the respective drying or sterilisation process. The sound pressure level is 43 dB(A) and the energy consumption is 290 Wh/h at 150 °C. Typical applications Drying of laboratory glassware and sample material in routine laboratory work Sterilisation processes in quality assurance and research Rapid heat treatment of small to medium-sized batches Complementary unit to larger drying and heating ovens For laboratories that regularly need to dry small to medium quantities of glassware or sample material, the FD 56 combines short heating times with a compact footprint, without compromising on temperature accuracy. Technical details Temperature range10 °C above ambient temperature to 300 °CUsable volume60 lSpatial temperature deviation (at 150 °C)± 1.7 KTemporal temperature deviation (at 150 °C)± 0.3 KHeating time to 150 °C15 minAir change rate (at 100 °C)80 times/hEnergy consumption at 150 °C290 Wh/hSound pressure level43 dB(A)Rated voltage230 V (also available in a 120 V version)Rated power1.1 kWExternal dimensions (W x H x D)560 x 625 x 565 mm Scope of delivery 1x Binder FD 56 drying and heating oven, 230 V (9010-0303) Standard grid shelves Operating instructions Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, BINDER GmbH, is DE 37004983. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Further accessories are available for the FD 56, such as additional grid shelves, calibration certificates and maintenance contracts of varying scope. Do you require bespoke configurations, spare parts or advice on selecting the right drying oven for your application? We will be happy to assist you via our procurement service. Selection guide within the range BINDER’s Avantgarde.Line FD range with forced air circulation comprises five sizes. All share the same temperature range, LCD controller and electromechanically controlled exhaust air flap, but differ significantly in terms of usable volume and footprint. ModelUsable volumeExternal dimensions (W x D x H)FD 23 (9010-0194)20 l435 x 520 x 495 mmFD 56 (9010-0303)60 l560 x 565 x 625 mmFD 115 (9010-0305)116 l710 x 605 x 735 mmFD 260 (9010-0309)259 l810 x 825 x 940 mmFD 720 (9010-0311)741 l1,165 x 870 x 1,590 mm The FD 56 described here, with a capacity of 60 litres, is suitable as a supplementary unit for small to medium-sized batches. If this volume is insufficient, the FD 115 with a 116-litre capacity is the next size up; for significantly larger quantities, the FD 260 with a 259-litre capacity or the FD 720 with a 741-litre capacity are available for large-scale applications. At the lower end of the range is the compact FD 23 model with a 20-litre capacity, designed for very small sample volumes and a minimal footprint. Distinction from natural convection, Solid.Line and the FP and M equipment variants The FD 56 operates with forced air circulation. Its counterpart with natural convection is the ED 56: without an active fan, heating up takes considerably longer, but air movement inside the chamber remains minimal, which is advantageous for some samples. Those on a tighter budget who are satisfied with a temperature range up to 250 °C and a simpler timer controller without an LCD display will find the FD-S 56 from the Solid.Line range to be the more economical alternative with a comparable usable volume. If additional programmable temperature and time profiles are required, BINDER offers two higher-specification models above the FD 56 in size 56: the FP series (forced air circulation with programme functions) and the M series (forced air circulation with extensive programme functions), designated as the FP 56 and M 56 respectively. BINDER also uses the designation Classic.Line for certain smaller models. An overview of the entire BINDER range can be found in the ‘Climate Chambers & Incubators’ category. Application, operation and maintenance The heating time to 150 °C is just 15 minutes; the spatial temperature deviation is ± 1.7 K and the temporal deviation is ± 0.3 K. With an air exchange rate of 80 times per hour at 100 °C, rapid, uniform drying is achieved even with a dense load. The sound pressure level of 43 dB(A) must be taken into account when installing the unit in a laboratory, particularly if it is in continuous operation in the immediate vicinity of workstations. The rated power of 1.1 kW is on a par with comparable forced air circulation drying cabinets of this size and must be taken into account when fusing the electrical circuit. Standard, non-abrasive laboratory cleaning products are suitable for maintaining the interior; we advise against the use of abrasive or chlorine-based agents. Calibration is recommended for the regular checking of temperature accuracy; we arrange suitable calibration certificates via our procurement service. Investment rationale: When forced air circulation is sufficient, and when programme functions or natural convection are advisable For day-to-day laboratory routines involving recurring drying and sterilisation processes at a constant setpoint temperature, the FD 56 with its LCD controller reliably meets these requirements. If, on the other hand, multi-stage temperature profiles need to be run automatically and repeatably, the FP 56 or M 56 come into consideration. If air movement inside the chamber is undesirable, the ED 56 with natural convection is the only option, even if this means accepting longer heating-up times. If a temperature range up to 250 °C is sufficient, the FD-S 56 from the Solid.Line range offers additional savings on the initial purchase cost, without compromising performance for most routine applications in drying and heat treatment. For higher loading densities, additional grid shelves are available as accessories, as are calibration certificates and maintenance contracts of varying scope; both can be obtained via our procurement service. Frequently asked questions about the Binder FD 56 What is the usable volume of the FD 56?60 litres, with external dimensions of 560 x 625 x 565 mm. What distinguishes the FD 56 from the ED 56 with natural convection?The FD 56 uses forced air circulation and therefore heats up significantly faster than the ED 56, which operates without a fan and avoids air movement inside the chamber. What distinguishes the FD 56 from the FD-S 56 in the Solid.Line range?The FD-S 56 covers a temperature range up to 250 °C and is controlled via a simpler timer controller; the FD 56 reaches up to 300 °C and features an LCD display. Is the FD 56 suitable for sterilisation processes?Yes, the temperature range up to 300 °C and the rapid, uniform forced air circulation heating make it suitable for sterilisation processes in quality assurance and research. How loud is the FD 56 when in operation?The sound pressure level is 43 dB(A). Is the FD 56 also available with a 120 V connection?Yes, in addition to the 230 V version, the unit is also available as a 120 V variant. What is included in the scope of delivery?The FD 56 (9010-0303), standard grid shelves and the operating instructions.
Nabertherm Muffle Furnace LE 1/11/R8, 1 l, Tmax 1,100 °C, Flap Door, LE015K1A8
With only 1 litre of usable volume and a weight of 15 kg, the Nabertherm muffle furnace LE 1/11 is the smallest version in the Economy series up to 1,100 °C. The heating elements are protected in quartz glass tubes on two sides of the furnace chamber, and the housing is double-walled, made of textured stainless steel sheet, and coated in RAL 9003.Dimensions and installationInside, the usable space measures 90 x 115 x 110 mm (W x D x H), externally the LE 1/11 measures 310 x 300 x 410 mm. The controller sits under the flap door to save space, dimensions and weight are kept compact. The flap door can additionally be used as a shelf as long as it is open. On the laboratory bench, the LE 1/11 occupies a footprint of 310 x 300 mm.Heating elements and heating rateThe quartz glass tubes protect the heating elements on both heated sides. The LE 1/11 operates single-phase with a connected load of 1.6 kW and reaches Tmax minus 100 K, i.e. 1,000 °C, in around 6 minutes when empty and closed. The muffle furnaces with brick insulation require around 55 to 60 minutes to reach their target value of 1,200 °C.Controller R8As standard, the LE 1/11 is equipped with the controller R8, which can be set to one temperature. Via NTLog Basic, process data can be recorded directly onto a USB stick. It sits under the door to save space.Exhaust air and serviceThe exhaust air leaves the furnace via an opening in the rear wall. An exhaust chimney is available as an option only from the LE 6/11 onwards, not for the LE 1/11 and LE 2/11. Nabertherm designs the furnace so that it is easy to replace heating elements and insulation.Selection guideIf 1 litre of usable volume is not sufficient, the Economy series is available in other sizes up to the LE 24/11 with 24 litres, which are available on request. Anyone requiring a higher maximum temperature than 1,100 °C will find muffle furnaces L and LT up to 1,200 °C, 1,300 °C or 1,400 °C, such as the L 3/12 with 3 litres and Tmax 1,200 °C.Typical applicationsThe series is intended for use in laboratories and research. With 1 litre of usable volume and a heating time of around 6 minutes, the LE 1/11 is suitable for individual small samples where rapid throughput rather than large volume is important. This value applies to the empty, closed furnace up to 1,000 °C.Technical detailsTmax1,100 °CUsable volume1 lInternal dimensions (W x D x H)90 x 115 x 110 mmExternal dimensions (W x D x H)310 x 300 x 410 mmConnected load1.6 kWElectrical connectionsingle-phaseWeight15 kgHeating timeapprox. 6 min (empty, closed furnace to Tmax minus 100 K)Heatingtwo sides, heating elements in quartz glass tubesHousingdouble-walled, textured stainless steel sheet, RAL 9003 coatedDoorflap door, also usable as a shelfControllerR8, adjustable for one temperatureTemperature uniformity±5 K according to DIN 17052-1 (from 800 °C working temperature)Other models in the seriesThe Economy series up to 1,100 °C from Nabertherm comprises five sizes from 1 to 24 litres, each with a flap door and controller R8.ModelVolumeTmaxDoorLE 1/11 (this page)1 l1,100 °CFlap doorLE 2/11 (on request)2 l1,100 °CFlap doorLE 6/11 (on request)6 l1,100 °CFlap doorLE 14/11 (on request)14 l1,100 °CFlap doorLE 24/11 (on request)24 l1,100 °CFlap doorScope of delivery1x Nabertherm muffle furnace LE 1/11 with standard controller R8Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Nabertherm GmbH is DE 31598342. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement serviceIn the Economy series, factory options include an exhaust chimney, also with fan or catalytic converter, for models from LE 6/11 onwards, as well as a charging frame with closed or perforated trays for loading on multiple levels up to 800 °C, described for the LE 14/11 and LE 24/11. We clarify on request whether accessories are available for the LE 1/11. For individual requirements, we provide personal advice.
Memmert universal oven UF55, compact heating and drying oven with forced air circulation, 53 litres, up to 300 °C
The Memmert universal oven UF55 is the smallest model in the forced-air series: 53 litres’ internal volume with a compact footprint, a temperature range of 20 to 300 °C and an electronically controlled air turbine that ensures active, uniform heat distribution even in a unit of this size. For laboratories wishing to switch from a natural convection unit to shorter heating times without taking up more floor space, the UF55 is the obvious entry-level choice for the series’ forced-air technology. With up to 4 shelves and a maximum total load capacity of 80 kg, it is a compact workhorse for routine tasks.Forced air circulation in the smallest of spaces: shorter heating timesThe UF55’s air turbine, which can be electronically controlled in 10 % increments, actively distributes heat throughout the interior, rather than simply allowing it to rise, as is the case with a natural convection cabinet. As a result, the UF55 achieves its operating temperature range from at least 10 °C above room temperature up to 300 °C, with shorter heating-up times than a comparable natural convection model such as the UN55, which, by contrast, starts operating from just 5 °C above room temperature and requires no air movement within the chamber. A DIN Class A Pt100 temperature sensor with 4-wire measurement ensures a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards.ControlCOCKPIT SingleDISPLAY and data acquisitionThe UF55 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphics display. The following parameters can be adjusted: temperature in Celsius or Fahrenheit, the speed of the recirculation fan, the position of the exhaust air damper, the programme duration, as well as the time zone and summer/winter time. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWAIT function only starts the process time once the setpoint temperature has actually been reached. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity and dimensions of the Memmert universal oven UF55The interior measures 400 x 400 x 330 mm; the external dimensions of the cabinet are 585 x 784 x 514 mm, and the net weight is approximately 57 kg. One electropolished stainless steel grid shelf is included as standard; up to four shelves are possible in total. The maximum total load is 80 kg, with up to 20 kg permitted per shelf. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The UF55 can be connected either to 230 V (approx. 2,000 W) or 115 V (approx. 1,700 W), in both cases at 50/60 Hz.Selection guide: choosing the right size from the UF rangeThe Memmert UF range offers a choice of eight sizes, with internal volumes ranging from 53 to 1,060 litres. When making a selection, the footprint and the number of shelves required are often more important than the volume alone.ModelInternal volumeUF5553 l, footprint 585 x 514 mm, max. 4 shelvesUF7574 l, footprint 585 x 514 mm, max. 6 shelvesUF110108 l, footprint 745 x 584 mm, max. 5 shelvesUF160161 l, footprint 745 x 584 mm, max. 8 shelvesUF260256 l, footprint 824 x 684 mm, max. 9 shelvesUF450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUF750749 l, footprint 1,224 x 784 mm, max. 14 shelvesUF10601,060 l, footprint 1,224 x 1,035 mm, max. 14 shelvesThe UF55 is the entry-level model in this range. If you need more shelves whilst maintaining the same footprint, you’ll find them in the Memmert universal oven UF75 (74 litres, 6 shelves instead of 4, same footprint, just taller). You can find all sizes of the series in our climate chambers & incubators range.Distinction: Forced air circulation versus natural convection, and TwinDISPLAYWithin the Memmert family of heating and drying ovens, the most important purchasing decision is between forced air circulation (UF series) and natural convection (UN series). Thanks to its air turbine, the UF55 achieves shorter heating times, but its working temperature range only starts at 10 °C above room temperature, rather than at 5 °C like the Memmert universal oven UN55. For samples sensitive to dust or air movement, natural convection remains the more suitable choice. For unattended runs with redundant temperature monitoring, the Memmert universal oven UF55plus is available, featuring TwinDISPLAY, two Pt100 sensors, HeatBALANCE and AutoSAFETY. Those requiring greater capacity whilst maintaining the same footprint will find it in the Memmert universal oven UF75.Safety according to DIN 12880 for unattended operationIn addition to the adjustable electronic temperature monitoring, the UF55 is fitted with a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and three freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL mark.Installation, operation and disposalFor operation, a minimum distance of 15 cm from the wall and a minimum distance of 20 cm from the ceiling must be maintained; a minimum of 5 cm is sufficient on either side in relation to the wall or an adjacent unit. The unit may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the UF55 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. The interior, made of easy-to-clean stainless steel, can be cleaned using standard laboratory cleaning agents. As an electrical appliance, the UF55 is subject to the German Electrical and Electronic Equipment Act (ElektroG) at the end of its service life and must not be disposed of with household waste; see Regulatory information below.Typical applicationsWith an internal volume of 53 litres and active air circulation, the Memmert universal oven UF55 is suitable for compact laboratory workstations that still wish to benefit from shorter heating times.Drying of laboratory glassware and small batches of samples in routine operationsTempering, ageing and baking of material samplesTesting and curing in quality assuranceSample preparation within a tight timeframe thanks to a shorter heating timeAn entry-level unit for laboratories switching from natural convection to forced-air circulationInvestment rationale: Equipment tailored to the specific purposeThe scope of delivery for the UF55 includes 1 electropolished stainless steel grid shelf; the oven is designed to accommodate up to 4 shelves. Those who regularly run several batches in parallel should order additional grid shelves or perforated trays. A fully transparent glass door is available as an option for visual inspection without opening the door, as are interior lighting and an internal power socket for additional measurement equipment. Those wishing to use the data logger on a permanent basis should add an AtmoCONTROL software licence. For those wishing to run unattended cycles with redundant temperature monitoring, the Memmert universal oven UF55plus with TwinDISPLAY is worth choosing outright, rather than retrofitting accessories to the SingleDISPLAY model. For pharmaceutical or standards-based applications, calibration, IQ/OQ/PQ and maintenance services are available, including DAkkS calibration on request.Frequently asked questions before making a purchaseHow many samples can the UF55 hold at any one time?One grid shelf is included as standard; up to four shelves, each with a maximum load of 20 kg, are possible, giving a total load capacity of up to 80 kg.Can I place the UF55 on a laboratory bench?Yes, with a net weight of around 57 kg and a footprint of 585 x 514 mm, the UF55 is designed for use on a laboratory bench, provided that the bench can safely support the load.What is the difference between this model and the UN55?Both share the same casing and footprint. The UF55 actively distributes heat via an air turbine and heats up more quickly, whereas the Memmert universal oven UN55 operates with minimal vibration and dust, using natural convection.What is the accuracy of the temperature control?The UF55 achieves a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, measured using a DIN Class A Pt100 sensor in a 4-wire configuration.Can a glass door be fitted as a retrofit?A fully transparent glass door is one of the common options for the UF55 and can be selected when placing your order.How does the UF55 differ from the larger UF75?Both use the same forced air circulation technology and SingleDISPLAY; the UF75 offers greater capacity, 74 litres instead of 53, and 6 shelves instead of 4, whilst occupying the same floor space.Is the UF55 suitable for continuous overnight operation?The mechanical temperature limiter, of protection class 1 according to DIN 12880 switches the heater off when the temperature rises by approximately 20 °C and is designed for unattended operation.Technical detailsAdjustable temperature range20 to 300 °CWorking temperature rangeat least 10 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume53 lInternal dimensions (W x H x D)400 x 400 x 330 mm (depth minus 39 mm for the fan)External dimensions of the housing (W x H x D)585 x 784 x 514 mmNet weightapprox. 57 kg230 V connection50/60 Hz, approx. 2,000 W115 V connection50/60 Hz, approx. 1,700 WShelves max.4Shelves included in the scope of delivery1Max. load on the unit80 kgMax. load per shelf20 kgInterior materialsStainless steel, 4-sided all-round heatingHousing materialTextured stainless steel, galvanised sheet steel rear panelControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayTimer1 minute to 99 days, digital countdown clockPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % relative humidity, non-condensingMax. installation altitude2,000 mLabellingCE, EAC, UL marksScope of delivery1x Memmert universal oven UF55Factory calibration certificate (calibration at 160 °C)Fully insulated stainless steel door with a 2-point locking system (compression door lock)1x stainless steel grid shelf, electropolishedRegulatory informationThe Memmert universal oven UF55 is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29730) or without air slots (B29731). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceOptional extras available for the UF55 include fully transparent glass doors, interior lighting and a power socket, reinforced grid shelves and perforated trays, slide-in or floor-standing drip trays, as well as wall brackets, levelling feet and a stacking kit. A USB-to-Ethernet adapter and AtmoCONTROL software licences are available for data acquisition. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories, a gas-tight version, or assistance in selecting the right universal oven for your application? Through our procurement service, we are happy to assist you with procurement and configuration.
Binder FD-S 56 drying and heating oven, Solid.Line with forced air circulation, 55 l, up to 250 °C, 9090-0018
If you need to dry laboratory glassware reliably after cleaning or store samples at a constant temperature, you don’t need a high-tech cabinet, you need a robust workhorse. The Binder FD-S 56 from the Solid.Line range is built precisely for this purpose: a drying and heating oven with forced air circulation and a usable volume of 55 litres, deliberately stripped back to the essentials. Rather than offering numerous additional functions, the Solid.Line provides BINDER’s tried-and-tested quality and reliability at a more affordable entry-level price than the Avantgarde.Line (FD series): a conscious choice for anyone looking for a solid drying oven with forced air circulation without any frills. Solid.Line instead of Avantgarde.Line: reduced but well-thought-out features The FD-S 56 covers a temperature range from 10 °C above ambient temperature up to 250 °C. Whilst this is lower than the maximum offered by the Avantgarde.Line models (up to 300 °C), it is entirely sufficient for most routine applications in drying and heat treatment. Control is via a controller with a timer function; the APT.line preheating chamber technology ensures even temperature distribution inside the chamber despite its simpler design. The exhaust air flap can be adjusted so that the air exchange can be tailored to the specific drying process. Heating times and energy consumption in everyday use At 150 °C, the FD-S 56 achieves a spatial temperature deviation of ± 2.6 K and a temporal deviation of ± 0.4 K. The heating time to 150 °C is approximately 15 minutes; once the door is opened, the set temperature is reached again after about 5 minutes. The air change rate at 100 °C is 4 air changes per hour. Energy consumption at 150 °C is 290 Wh/h: a figure that has a direct impact on running costs when used frequently in day-to-day laboratory work. Typical applications A compact drying and heating oven with forced air circulation such as the FD-S 56 is suitable for day-to-day tasks in laboratories and quality assurance, where reliability in continuous use is more important than the highest temperature accuracy. Drying of cleaned laboratory glassware and sample vessels Warm storage and conditioning of material samples Simple heat treatment processes in quality assurance and training Routine drying in industrial and testing laboratories with limited space With external dimensions of 614 x 577 x 625 mm and a weight of 35 kg, the FD-S 56 fits comfortably on smaller laboratory benches or in ancillary rooms, without compromising on its 55-litre capacity for day-to-day drying tasks. Technical details Temperature range10 °C above ambient temperature up to 250 °CUsable volume55 lSpatial temperature deviation (at 150 °C)± 2.6 KTemporal temperature deviation (at 150 °C)± 0.4 KHeating time to 150 °C15 minRecovery time after door opening (at 150 °C)5 minAir change rate (at 100 °C)4 times per hourEnergy consumption at 150 °C290 Wh/hRated voltage230 V (also available in a 120 V version)Rated power1.1 kWExternal dimensions (W x D x H)614 x 577 x 625 mmUnit weight (net, empty)35 kgAdjustable temperature limiterClass 2 according to DIN 12880, with visual alarm Scope of delivery 1x Binder FD-S 56 drying and heating oven, 230 V (9090-0018) 1x chrome-plated grid shelf including base support Operating instructions Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, BINDER GmbH, is DE 37004983. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Additional grid shelves, as well as calibration certificates and maintenance contracts of varying scopes, are available for the FD-S 56. Do you require any of these accessories or assistance in selecting the right drying and heating oven for your application? Through our procurement service, we will be happy to assist you with procurement and configuration. Selection guide within the range The Solid.Line FD-S series is currently available from BINDER in two sizes. Both share the same temperature range, control concept and features, but differ significantly in terms of usable volume and footprint. ModelUsable volumeExternal dimensions (W x D x H)Well suited forFD-S 56 (9090-0018)55 l614 x 577 x 625 mmsmaller batches, limited floor spaceFD-S 115 (9090-0024)106 l764 x 616 x 735 mmlarger batches, higher throughput Anyone who regularly dries larger quantities of laboratory glassware or sample material is better served by the FD-S 115. For day-to-day routine operation with smaller quantities, the FD-S 56 described here is generally sufficient. Differences compared to the Avantgarde.Line, Classic.Line and natural convection The Solid.Line is one of three equipment ranges in which BINDER offers drying and heating ovens. It reliably covers the basic functions, but omits some of the features found in Avantgarde.Line models of similar size, such as the FD 56: The temperature range tops out at 250 °C instead of 300 °C, and control is via a simpler controller with a timer function rather than an LCD display. In return, the Solid.Line has a lower entry-level price than the Avantgarde.Line. Those who require gentler heat distribution without air movement inside the chamber, rather than forced air circulation, will find the ED-S 56 to be the suitable counterpart within the Solid.Line range: the same housing design, but with heat distribution via natural convection rather than via the fan found in the FD-S 56. BINDER also uses the designation Classic.Line for certain smaller models. An overview of the entire Binder range can be found in the ‘Climate Chambers & Incubators’ category. Application, operation and maintenance In day-to-day use, the Solid.Line range really comes into its own in terms of cycle times: the heating-up time to 150 °C for the FD-S 56 is around 15 minutes; once the door is opened, the set temperature is reached again after approximately 5 minutes. The spatial temperature deviation of ± 2.6 K and the temporal deviation of ± 0.4 K at 150 °C are sufficient for most routine applications in drying and heat treatment, even though both deviations are higher than those of comparable Avantgarde.Line models. If the door is opened frequently, for example when loading sample vessels in stages, the recovery time of around 5 minutes has a direct impact on overall throughput during daily operation. Standard, non-abrasive laboratory cleaners are suitable for cleaning the interior; we advise against the use of abrasive or chlorine-based agents. The built-in Class 2 adjustable temperature limiter according to DIN 12880, featuring a visual alarm, provides additional protection against accidental overheating during unattended drying cycles. Calibration is recommended for regular checks of temperature accuracy; we can arrange suitable calibration certificates via our procurement service. Investment rationale: When Solid.Line is sufficient, and when Avantgarde.Line is worthwhile For routine tasks up to 250 °C, where a simple timer controller is sufficient, the Solid.Line meets requirements reliably and at a lower cost than the Avantgarde.Line. If, on the other hand, a higher temperature range up to 300 °C is required, an LCD display with more precise process control is desired, or the process needs to be documented, a model such as the FD 56 from the Avantgarde.Line is the more suitable choice, even if this entails a higher purchase price. For higher throughput within the Solid.Line range itself, the larger FD-S 115 model is available, rather than switching straight to the Avantgarde.Line. The FD-S 56 comes as standard with a chrome-plated grid shelf, including a base support. For higher loading densities, additional grid shelves are available as accessories, as are calibration certificates and maintenance contracts of varying scope; both can be obtained via our procurement service. Frequently asked questions about the Binder FD-S 56 What is the usable volume of the FD-S 56?55 litres, with external dimensions of 614 x 577 x 625 mm. What distinguishes the FD-S 56 from the FD-S 115?With a capacity of 106 litres, the FD-S 115 offers roughly twice the usable volume but takes up more floor space; otherwise, both models are technically identical. What distinguishes the Solid.Line from the FD 56 model in the Avantgarde.Line?The FD-S 56 covers a temperature range up to 250 °C, whilst the FD 56 covers a range up to 300 °C. The Avantgarde.Line is also controlled via an LCD display rather than a simple timer controller. Is the FD-S 56 also available with a 120 V connection?Yes, in addition to the 230 V version, the appliance is also available as a 120 V variant. How do I clean the interior?A mild, non-abrasive laboratory cleaner is sufficient. It is best to avoid using abrasive or chlorine-based cleaners. Can I have the FD-S 56 calibrated?Yes, we can arrange the relevant calibration certificates via our procurement service. What is included in the scope of delivery?The FD-S 56 (9090-0018), a chrome-plated grid shelf including a base support, and the operating instructions.

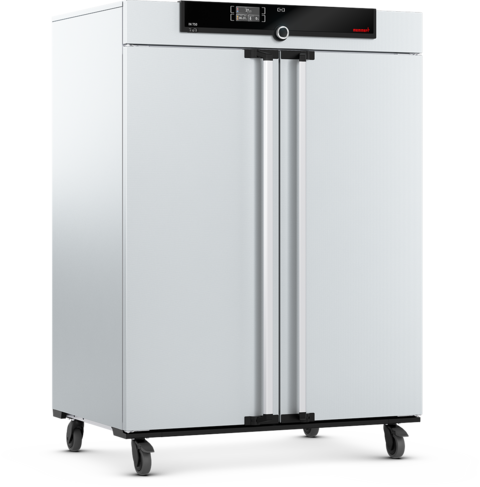

Memmert incubator IN750m, 749 l, +20 to +80 °C, SingleDISPLAY
The Memmert incubator IN750m is a Class I medical device under Regulation (EU) 2017/745 with the intended purpose of heating and keeping warm fango, silicate and APS packs in physiotherapy. With 749 litres of internal volume and internal dimensions of 1,040 x 1,200 x 600 mm, it is the largest model in the IN-m series and holds up to 14 shelves, more than any other model in the series.Control, display and data loggerThe ControlCOCKPIT SingleDISPLAY controls the temperature, and its core is an adaptive, multifunctional PID microprocessor controller with a high-resolution TFT colour graphic display. Measurement is made via a Pt100 sensor of DIN class A using 4-wire technology with a setting accuracy of 0.1 °C. The digital countdown timer can be programmed from 1 minute to 99 days, and SetpointWAIT lets the process time begin only once the set temperature has been reached. After a power failure, the program sequence remains stored, the data logger can be read out via Ethernet using the time-limited trial version of AtmoCONTROL, and a USB stick with the software is available as an accessory.Safety and air circulationA mechanical temperature limiter TB of protection class 1 according to DIN 12880 switches the heating off at approx. 20 °C above the maximum cabinet temperature, and an adjustable electronic temperature monitor and a self-diagnosis system for fault finding complete the safety technology. Natural ventilation receives pre-heated fresh air via an electronically adjustable exhaust air flap, and an electronically adjustable throttle valve regulates at the exhaust air port. Three temperature values can be freely calibrated.Interior, doors and connectionThe interior is made of easy-care, deep-drawn, ribbed stainless steel and has a protected, integrated 4-sided all-round heating. Two electropolished stainless steel grid shelves are included as standard, and a maximum of 14 shelves is possible at 30 kg per shelf and 300 kg total load. The fully insulated stainless steel doors have 2-point locking with a compression door lock and inner glass doors. The connection is 230 V with approx. 2,000 W or 115 V with approx. 1,800 W, in each case 50/60 Hz. Externally, the IN750m measures 1,224 x 1,720 x 784 mm plus 56 mm door handle, approx. 217 kg net and approx. 288 kg gross in the carton.Difference between laboratory unit IN750 and medical device IN750mplusWithout a medical intended purpose, the same size is available as the Memmert incubator IN750. The IN750mplus also offers 749 litres, but shows its values via a ControlCOCKPIT TwinDISPLAY instead of SingleDISPLAY and has a different intended purpose: warming of irrigation and infusion solutions and contrast media, not heating of fango, silicate and APS packs.Selection guide: which size fitsThe IN750m is the largest model in the series. The smaller IN450m has 449 litres and, with eight shelves, significantly fewer loading positions, at the same total load of 300 kg and the same load of 30 kg per shelf. With 14 shelves and 1,200 mm internal height, the IN750m offers the most shelf levels in the series.Typical applicationsAs a Class I medical device, the IN750m is intended exclusively for the physiotherapeutic applications named in the intended purpose.Heating of fango packs for physiotherapeutic useHeating and keeping warm of silicate packsHeating and keeping warm of APS packsTechnical detailsSetting temperature range+20 to +80 °CWorking temperature rangemin. 5 °C above room temperature to +80 °CTemperature setting accuracy0.1 °CTemperature sensor1x Pt100, DIN class A, 4-wire measurementInternal volume749 lInternal dimensions (W x H x D)1,040 x 1,200 x 600 mmExternal dimensions of housing (W x H x D)1,224 x 1,720 x 784 mm (plus 56 mm door handle)Net weightapprox. 217 kgConnection230 V, 50/60 Hz, approx. 2,000 W; 115 V, 50/60 Hz, approx. 1,800 WShelves in scope of delivery2Maximum number of shelves14Max. load, unit300 kgMax. load per shelf30 kgControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic displayMedical device classificationClass I under Regulation (EU) 2017/745Intended purposeHeating/keeping warm of fango, silicate and APS packs in physiotherapyPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % rel., non-condensingMarkingsCE, VDE, ULOther sizes in the seriesThe IN750m is one of eight sizes in the IN-m series from 32 to 749 litres, all with SingleDISPLAY and the same setting temperature range of +20 to +80 °C.ModelInternal volumeSetting temperatureDisplayIN30m32 l+20 to +80 °CSingleDISPLAYIN55m53 l+20 to +80 °CSingleDISPLAYIN75m74 l+20 to +80 °CSingleDISPLAYIN110m108 l+20 to +80 °CSingleDISPLAYIN160m161 l+20 to +80 °CSingleDISPLAYIN260m256 l+20 to +80 °CSingleDISPLAYIN450m449 l+20 to +80 °CSingleDISPLAYIN750m (this page)749 l+20 to +80 °CSingleDISPLAYScope of deliveryFactory calibration certificate (calibration at +37 °C)Fully insulated stainless steel doors with 2-point locking (compression door lock), inner glass doors2x stainless steel grid shelf, electropolishedRegulatory informationThe device is electrical equipment within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Information on the return of old appliances can be found on our page Environment and disposal. The IN750m is also classified as a Class I medical device under Regulation (EU) 2017/745, with the intended purpose of heating and keeping warm fango, silicate and APS packs in physiotherapy.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29742) or without air slots (B29743). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceFor the IN750m, Memmert offers options, accessories and services, and options are specified at the factory with the order. We are happy to clarify individual requirements for the IN750m, such as accessories or spare parts, on request. As factory options, Memmert also offers DAkkS calibration according to DKD-R 5-7, IQ/OQ documents and IQ/OQ qualification. We order these with the device on request.
Memmert UN750 universal oven, large-capacity heating and drying oven with natural convection, 749 litres, up to 300 °C
With an internal volume of 749 litres, the Memmert UN750 universal oven is the largest natural convection model in the entire UN series and, with up to 14 shelves, offers space for significantly more parallel batches than any smaller model in the range. Like all UN models, it does without an air turbine and operates purely by natural convection within a temperature range of 20 to 300 °C. For businesses with high sample throughput in multi-shift operation, such as in industrial materials testing or quality assurance, the UN750 represents the upper limit of the capacity offered by the natural convection series.Natural convection in the largest size of the seriesEven with an internal volume of 749 litres and 14 possible shelves, the Memmert UN750 universal oven deliberately does without an air turbine and a forced air circulation motor. Heat rises purely by convection, without a fan stirring up dust or light sample particles, an advantage that is particularly evident when so many levels are occupied simultaneously. The working temperature range extends from at least 5 °C above room temperature up to 300 °C. A Pt100 temperature sensor of DIN Class A in a 4-wire configuration provides a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, regardless of the number of shelves in use.ControlCOCKPIT SingleDISPLAY and three-phase connection for high utilisationThe UN750 is operated via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a TFT colour graphic display. Temperature, exhaust air damper position, programme duration, time zone and summer/winter time can all be set. A digital countdown timer ranging from 1 minute to 99 days and the SetpointWAIT function, which only starts the process time once the setpoint temperature has been reached, ensure reproducible results even during continuous multi-shift operation. Due to the required heating power, the UN750 is operated with 400 V three-phase current and 3 x 230 V without a neutral conductor at 50/60 Hz and approximately 7,000 W. The data logger can be read via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity of the Memmert UN750 universal ovenThe internal dimensions are 1,040 x 1,200 x 600 mm, whilst the external dimensions of the cabinet are 1,224 x 1,720 x 784 mm. It can accommodate up to 14 shelves, more than any other model in the UN series, and two electropolished stainless steel grid shelves are included as standard. The UN750 has a total load capacity of up to 300 kg, with a maximum load of 30 kg per shelf. The interior consists of easy-to-clean stainless steel, reinforced with deep-drawn ribbing, featuring protected, integrated 4-sided all-round heating; the cabinet is made of textured stainless steel with a fully galvanised sheet steel rear panel. The fully insulated stainless steel doors are secured by a 2-point locking mechanism with a compression door lock.Selection guide: the top of the natural convection rangeThe Memmert UN series with natural convection ranges from 32 to 749 litres in internal volume. The UN750 shares the same footprint as the UN450, but is around 47 cm taller and therefore offers almost twice as many shelves.ModelInternal volumeUN3032 l, footprint 585 x 434 mm, max. 3 shelvesUN5553 l, footprint 585 x 514 mm, max. 4 shelvesUN7574 l, footprint 585 x 514 mm, max. 6 shelvesUN110108 l, footprint 745 x 584 mm, max. 5 shelvesUN260256 l, footprint 824 x 684 mm, max. 9 shelvesUN450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUN750749 l, footprint 1,224 x 784 mm, max. 14 shelvesIf there is insufficient headroom at the installation site for the UN750’s 1.72 m overall height, the Memmert UN450 universal oven, with the same footprint but a significantly lower height, is the practical alternative. For smaller batch sizes, the Memmert UN260 universal oven with a capacity of 256 litres is often sufficient. The full range can be found under Climate Cabinets & Incubators.Distinction: natural convection versus forced air circulationWith a capacity of 749 litres and 14 shelves, the question of active air circulation often arises. Forced air circulation models in the UF series feature an electronically controllable air turbine, which actively distributes heat throughout the interior, thereby achieving shorter heating times for densely packed batches of varying sizes, though only from 10 °C rather than 5 °C above room temperature. For large quantities of material samples that are sensitive to dust or vibration, the natural convection of the UN750 remains the more technically suitable choice. A forced air circulation model of a comparable size, albeit smaller, is the Memmert UF450 universal oven with a capacity of 449 litres. Like all standard models in the series, the UN750 uses the ControlCOCKPIT SingleDISPLAY, rather than the TwinDISPLAY, which is reserved for the ‘plus’ variants.Safety according to DIN 12880 at high utilisationWith up to 14 shelves occupied simultaneously and processes that often run overnight or for several days, reliable process safety is essential. The UN750 features adjustable electronic temperature monitoring plus a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature reaches approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and 3 freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL test mark.Installation, operation and disposalThe same clearance requirements apply during operation as for the smaller models in the series: a minimum of 15 cm clearance from the wall, a minimum of 20 cm clearance from the ceiling, and a minimum of 5 cm clearance to the side from a wall or adjacent unit. With a height of 1.72 m and a net weight of around 217 kg, the room height at the installation site should be checked in advance and a heavy-current connection for three-phase operation should be provided. Installation is permitted at altitudes of up to 2,000 m above sea level, at ambient temperatures between 5 °C and 40 °C and with a maximum relative humidity of 80 %, non-condensing. Electrically, the UN750 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. As an electrical appliance, the UN750 is subject to the Electrical and Electronic Equipment Act at the end of its service life and must not be disposed of with household waste.Typical applicationsWith an internal volume of 749 litres and up to 14 shelves, the Memmert UN750 universal oven offers the highest throughput of the entire UN series.Heat treatment of very large material batches in industrial multi-shift operationRoutine tempering, ageing and baking of numerous material samples in parallelMaterial testing and quality assurance with maximum sample throughputVibration-free heat treatment of dust-sensitive materials on a large scaleCentral heat treatment station for multiple production linesInvestment rationale: optimising capacity utilisationThe UN750 is supplied with 2 electropolished stainless steel grid shelves; the cabinet is designed to accommodate up to 14 shelves, each with a maximum load of 30 kg. Anyone wishing to utilise the full capacity should factor in the additional grid shelves or perforated sheets from the outset. For process monitoring across so many levels, a 4–20 mA current interface, fan speed monitoring, an additional Pt100 sensor and SMS alerts are available; for access control, a lockable door with a security lock is provided. In addition, we arrange base frames with levelling, as well as calibration, IQ/OQ/PQ services according to DIN 12880 and maintenance contracts, including DAkkS calibration on request, which are particularly recommended for a unit of this size.Frequently asked questions before purchaseHow many samples can the UN750 hold at once?Up to 14 shelves, each with a maximum load of 30 kg, giving a total load capacity of up to 300 kg, more than any other model in the UN series.What ceiling height do I need for the UN750?The external dimensions are 1,224 x 1,720 x 784 mm; the height of 1.72 m should be checked against the available room height before delivery.Why does the UN750 require three-phase power?With a power consumption of around 7,000 W, the UN750 requires more heating power than can be reasonably supplied by a single-phase supply; therefore, it requires 400 V three-phase power and 3 x 230 V without a neutral conductor.Is the UN750 also available with forced air circulation?A forced air circulation model with a comparable control system but a smaller capacity is the Memmert UF450 universal oven, which has a capacity of 449 litres and an electronically controllable air turbine.What is the accuracy of the temperature control?Even in the largest model in the series, it remains unchanged: 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C, via a DIN Class A Pt100 sensor using 4-wire technology.Is the UN750 suitable for continuous operation in a multi-shift system?The mechanical temperature limiter, of protection class 1 according to DIN 12880, switches off the heating element at an overtemperature of approximately 20 °C and is designed for long, unattended processes.Technical detailsSetting temperature range20 to 300 °CWorking temperature rangeat least 5 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume749 lInternal dimensions (W x H x D)1,040 x 1,200 x 600 mmExternal dimensions of housing (W x H x D)1,224 x 1,720 x 784 mmNet weightapprox. 217 kgConnection400 V and 3 x 230 V without neutral conductor, 50/60 Hz, approx. 7,000 WMaximum number of shelves14Shelves included in the scope of delivery2Max. load on unit300 kgMax. load per shelf30 kgInterior materialStainless steel, 4-sided all-round heatingCasing materialTextured stainless steel, galvanised sheet steel rear panelControl systemControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic displayTimer1 minute to 99 days, digital countdown timerPermissible ambient temperature5 °C to 40 °CPermissible relative humiditymax. 80 % RH, non-condensingMaximum installation height2,000 mMarkingsCE, EAC, UL test markScope of delivery1x Memmert UN750 universal ovenFactory calibration certificate (calibrated at 160 °C)Fully insulated stainless steel doors with 2-point locking (compression door lock)2x stainless steel grid shelves, electropolishedRegulatory informationThe Memmert UN750 universal oven is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29742) or without air slots (B29743). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements & procurement serviceOptions available for the UN750 include a lockable door with a security lock, a gas-tight version with various pipe penetrations, and reinforced grid shelves and perforated sheets. For process monitoring, a 4–20 mA current interface, fan speed monitoring, an additional Pt100 sensor and SMS alerting are available. In addition, we arrange base frames with levelling, as well as calibration, IQ/OQ/PQ services according to DIN 12880 and maintenance contracts. Do you require any of these accessories or assistance in selecting the right universal oven for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.

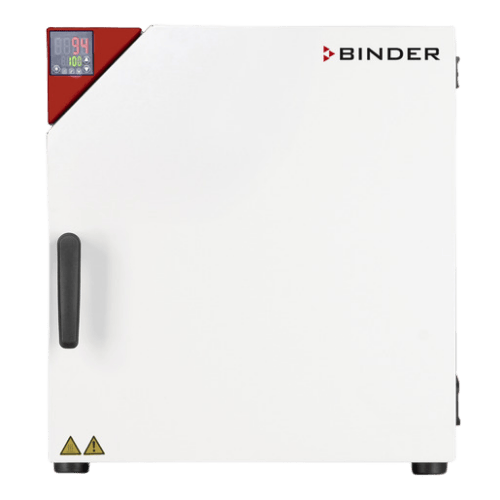

Binder ED-S 56 drying and heating oven with natural convection, 62 litres, up to 250 Degrees Celsius, 9090-0014
The Binder ED-S 56 is a drying and heating oven housed in a compact Solid.Line casing, which is identical in construction to the BD-S 56 and FD-S 56 models from the BINDER range. Contrary to what the name ‘ED-S’ might suggest, this is not a conventional incubator, but rather a unit designed for drying and heat treatment tasks: With a temperature range from 7 °C above room temperature up to 250 °C, the ED-S 56 covers a significantly wider range than would be required for incubation tasks alone. The usable volume is 62 l. Natural convection for gentle heating The ED-S 56 operates using natural convection rather than active forced air circulation. Heat is distributed via the heated chamber walls without a fan actively circulating the air inside the chamber. This is a suitable operating principle for drying tasks where gentler, less turbulent air movement is desired, such as when drying laboratory glassware or sample material without active turbulence. The ED-S 56 shares its compact Solid.Line housing with the structurally identical models BD-S 56 and FD-S 56, but differs from them in its significantly extended temperature range up to 250 °C. High temperature range for drying and heat treatment tasks With a temperature range up to 250 °C, the ED-S 56 extends well beyond the range of conventional incubators, which typically stop at around 70 to 100 °C. This makes the unit suitable for applications involving genuine drying, heat treatment or sterilisation processes at higher temperatures, rather than the incubation of living cultures. With external dimensions of 614 x 577 x 625 mm (W x D x H) and a weight of 36 kg, the ED-S 56 remains a compact benchtop unit. The connected load is 1.05 kW. Typical applications Drying of laboratory glassware and sample material Heat treatment of material samples Sterilisation processes at higher temperatures Compact drying tasks in laboratories with limited space Technical details Temperature range7 °C above room temperature to 250 °CUsable volume62 lHeat distributionnatural convectionHousingSolid.Line (identical in construction to BD-S 56/FD-S 56)External dimensions (W x D x H)614 x 577 x 625 mmUnit weight (net)36 kgConnected load1.05 kWRated voltage230 V Scope of delivery 1x Binder ED-S 56 drying and heating oven (9090-0014) Operating instructions Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, BINDER GmbH, is DE 37004983. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Through our procurement service, we assist with the procurement of suitable accessories, spare parts, individual calibration or special configurations for the ED-S 56. Do you need help selecting the right unit for your application? We’re happy to help via our procurement service. Selection guide within the range Within the ED-S designation, BINDER currently offers only one size: the ED-S 56 described here, with a 62-litre usable volume. If you require a larger or smaller volume, the suitable alternative is not to be found in a larger ED-S model, but in one of the other Solid.Line product families featuring a comparable, compact housing design. ModelHeat distributionUsable volumeExternal dimensions (W x D x H)ED-S 56 (9090-0014)natural convection62 l614 x 577 x 625 mmFD-S 56 (9090-0018)forced air circulation55 l614 x 577 x 625 mmFD-S 115 (9090-0024)forced air circulation106 l764 x 616 x 735 mm For those requiring greater capacity where forced air circulation is not a deal-breaker, the FD-S 115 is the largest Solid.Line model available. If natural convection remains a requirement, the ED-S 56 is currently the only Solid.Line option in this market segment. For larger internal volumes with natural convection, the only option in this case is to switch to the Avantgarde.Line ED series, which offers a significantly wider range with six sizes from 20 to 743 l. Distinction from the Avantgarde.Line and the FD-S 56 forced air circulation model The ED-S 56 belongs to the Solid.Line range, which reliably covers the basic functions but does not include the LCD control panel or the higher temperature range found in the Avantgarde.Line. The Avantgarde.Line counterpart with natural convection is the ED 56, which has a 57-litre usable volume, a temperature range up to 300 °C instead of 250 °C, and an LCD controller with USB data logging. Within the Solid.Line range itself, the FD-S 56 is the forced-air counterpart to the ED-S 56: it features an identical housing design but with an active fan for faster, more uniform heating. The ‘Climate Chambers & Incubators’ category provides an overview of the entire Binder range. Application, operation and maintenance Without active air circulation, heating up typically takes longer than with the structurally identical FD-S 56 with forced air circulation, for which a heating time of around 15 minutes to 150 °C is documented. For processes where steady, low-airflow heating is more important than short cycle times, such as with dust-sensitive samples or sample material stored in the open, this is of secondary importance anyway. The connected load of 1.05 kW is on a par with comparable compact drying and heating ovens with natural convection in this size range. Standard, non-abrasive laboratory cleaners are suitable for cleaning the interior; we advise against using abrasive or chlorine-based products. Calibration is recommended for regular checks of temperature accuracy; we can arrange suitable calibration certificates via our procurement service. Investment rationale: When Solid.Line is sufficient, and when Avantgarde.Line or forced air circulation are worthwhile If a temperature range up to 250 °C with natural convection is sufficient for drying, heat treatment or sterilisation processes, the ED-S 56 meets this requirement without the need for an LCD control panel or USB data logging. If a higher temperature range up to 300 °C or documented process recording is required, the ED 56 from the Avantgarde.Line is the more suitable choice. If, on the other hand, rapid, uniform heating is the main priority and air movement inside the chamber is not critical, the FD-S 56 with forced air circulation is a better fit. For additional accessories, spare parts, individual calibration or special configurations relating to the ED-S 56, our procurement service is available; it is also worth making an enquiry to confirm the compatibility of grid shelves with the identically constructed Solid.Line housing. Frequently asked questions about the Binder ED-S 56 What is the usable volume of the ED-S 56?62 l, with external dimensions of 614 x 577 x 625 mm. Is the ED-S 56 also available in a larger size?No, BINDER currently only offers the ED-S model in this one size. For greater capacity with natural convection, you will need to switch to the Avantgarde.Line ED series. What distinguishes the ED-S 56 from the ED 56 in the Avantgarde.Line range?The ED-S 56 covers a temperature range up to 250 °C, whilst the ED 56 covers a range up to 300 °C and also features an LCD controller with USB data logging. What distinguishes the ED-S 56 from the FD-S 56?Both share the Solid.Line housing, but the FD-S 56 operates with forced air circulation, whilst the ED-S 56 uses natural convection without an active fan. Is the ED-S 56 suitable for sterilisation tasks?The temperature range up to 250 °C is significantly higher than that of conventional incubators, which typically top out at around 70 to 100 °C, and is therefore also suitable for sterilisation processes at higher temperatures. How do I clean the interior?Wipe the interior with a standard, non-abrasive laboratory cleaner. Abrasive cleaners and chlorine-based cleaners are not suitable. What is included in the scope of delivery?The ED-S 56 (9090-0014) and the operating instructions. Is the ED-S 56 more suitable for a laboratory or for industrial use?The compact Solid.Line housing and the temperature range up to 250 °C make the ED-S 56 suitable for laboratories and quality assurance, as well as for simple industrial drying and heat treatment tasks where space is limited.
Memmert universal oven UN260, large-capacity heating and drying oven with natural convection, 256 litres, up to 300 °C
With an internal volume of 256 litres, the Memmert universal oven UN260 is clearly a floor-standing unit designed for businesses that regularly heat-treat, dry or temper larger batches. Like the smaller models in the series, it operates using purely natural convection within a temperature range of 20 to 300 °C, but now across up to 9 shelves. For materials testing and quality assurance in industry, where several test series run simultaneously and vibration-free operation remains crucial, the UN260 marks the entry point into the large-volume models of the UN series.Natural convection on an industrial scaleEven with an internal volume of 256 litres, the Memmert UN260 universal oven does not require an air turbine or a recirculation motor. Heat rises purely by thermal convection, without a fan stirring up dust or light sample particles within the large interior. The working temperature range extends from at least 5 °C above room temperature up to 300 °C. With up to 9 shelves occupied simultaneously, uniform natural heat distribution is particularly advantageous for sensitive material samples or samples laid out in the open, for example in materials testing. A Pt100 temperature sensor of DIN Class A in a 4-wire configuration provides a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, regardless of the unit size.ControlCOCKPIT SingleDISPLAY for everyday industrial useThe UN260 is operated via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphic display. The temperature can be set in Celsius or Fahrenheit, as well as the position of the exhaust air flap, programme duration, time zone and summer/winter time. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWAIT function only starts the process time once the setpoint temperature has been reached, ensuring reproducible results for industrial batches lasting several hours. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity and dimensions of the Memmert universal oven UN260The internal dimensions are 640 x 800 x 500 mm, whilst the external dimensions are 824 x 1183 x 684 mm. The scope of delivery includes two electropolished stainless steel grid shelves; the oven can accommodate up to nine shelves in total, more than any smaller UN model. The maximum load capacity is 300 kg for the entire unit and 20 kg per shelf. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The UN260 is connected to 230 V (approx. 3,400 W) or 115 V (approx. 1,800 W), in both cases at 50/60 Hz, and remains single-phase despite the unit’s size.Selection guide: an introduction to the large-volume modelsThe Memmert UN series with natural convection ranges from 32 to 749 litres internal volume. The UN260 is the first model in the range that is specifically designed as a floor-standing unit, rather than a benchtop unit.ModelInternal volumeUN3032 l, footprint 585 x 434 mm, max. 3 shelvesUN5553 l, footprint 585 x 514 mm, max. 4 shelvesUN7574 l, footprint 585 x 514 mm, max. 6 shelvesUN110108 l, footprint 745 x 584 mm, max. 5 shelvesUN260256 l, footprint 824 x 684 mm, max. 9 shelvesUN450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUN750749 l, footprint 1,224 x 784 mm, max. 14 shelvesIf the 108-litre capacity of the Memmert universal oven UN110 is no longer sufficient, the UN260, with a capacity of 256 litres and a significantly larger footprint, is the next step up. For even larger industrial batches, the Memmert universal oven UN450 follows, with a capacity of 449 litres and a three-phase power connection. The full range can be found under Climate Chambers & Incubators.Distinction: natural convection versus forced air circulationWith a capacity of 256 litres and 9 shelves, it is worth considering whether active air circulation might not be more appropriate anyway. Forced-air models in the UF series feature an electronically controlled air turbine and actively distribute heat throughout the interior, which ensures shorter heating times for very densely packed batches of varying sizes, though only from 10 °C rather than 5 °C above room temperature. For materials sensitive to dust or air movement, such as in materials testing with samples laid out in the open, the natural convection of the UN260 remains the more technically suitable choice. A forced-air model of a similar size is the Memmert UF450 universal oven with a capacity of 449 litres. Like all standard models in the series, the UN260 uses the ControlCOCKPIT SingleDISPLAY; the TwinDISPLAY with two screens is reserved for the ‘plus’ variants.Safety according to DIN 12880 for large, valuable batchesProcess reliability is crucial, particularly with a 256-litre load, which often runs for several hours or overnight. The UN260 features adjustable electronic temperature monitoring and a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature reaches approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and 3 freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL test mark.Installation, operation and disposalFor operation, a minimum clearance of 15 cm from the wall and a minimum clearance of 20 cm from the ceiling must be maintained; a minimum clearance of 5 cm is sufficient on the sides relative to the wall or an adjacent unit. With a net weight of around 110 kg and a footprint of 824 x 684 mm, the UN260 requires a permanently designated installation site with a load-bearing floor. It may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the UN260 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. At the end of its service life, the UN260, as an electrical appliance, is subject to the German Electrical and Electronic Equipment Act (ElektroG) and must not be disposed of with household waste.Typical applicationsWith an internal volume of 256 litres, up to 9 shelves and a load capacity of up to 300 kg, the Memmert universal oven UN260 is designed for applications with higher throughput and larger test batches.Heat treatment and drying of larger batches of material in industryRoutine tempering, ageing and baking of material samplesMaterial testing and quality assurance with high sample throughputVibration-free operation with large numbers of dust-sensitive test specimensA complement to laboratories upgrading from the UN110 to significantly greater capacityInvestment rationale: Equipment designed for continuous industrial operationThe scope of delivery for the UN260 includes 2 electropolished stainless steel grid shelves as standard; the oven is designed to accommodate up to 9 shelves, each with a maximum load of 20 kg. Users who regularly utilise all levels should order additional grid shelves or perforated trays accordingly. For visual inspection without opening the door, a fully transparent glass door is available, along with interior lighting, an internal power socket and a levelling or mobile base frame. Those wishing to secure access can add a lockable door with a security lock. An AtmoCONTROL software licence is recommended for continuous data logging; for applications subject to standards, calibration and IQ/OQ/PQ services are available, including DAkkS calibration on request.Frequently asked questions before purchaseCan the UN260 still be operated on single-phase power?Yes, despite the unit’s size, the UN260 can be operated either on 230 V (approx. 3,400 W) or 115 V (approx. 1,800 W); a three-phase connection is only required from the UN450 upwards.How many samples can be loaded at the same time?Up to 9 shelves, each with a maximum load of 20 kg, giving a total load capacity of up to 300 kg.How much floor space do I need to allow for?A footprint of 824 x 684 mm, with a total height of 1,183 mm and a net weight of around 110 kg.Is natural convection still sufficient with so many shelves?Yes, for most heat treatment and drying processes. For very densely loaded batches with widely varying sample sizes, a forced-air model such as the UF450 can operate more uniformly.What is the accuracy of the temperature control?For the UN260, too, it is 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C, measured via a DIN Class A Pt100 sensor using 4-wire technology, which is unchanged from the smaller models in the series.Is the UN260 suitable for unattended continuous operation?The mechanical temperature limiter, of protection class 1 according to DIN 12880 switches off the heating element in the event of an overtemperature of approximately 20 °C and is designed for long, unattended processes.Technical detailsAdjustable temperature range20 to 300 °CWorking temperature rangeat least 5 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume256 lInternal dimensions (W x H x D)640 x 800 x 500 mmExternal dimensions of housing (W x H x D)824 x 1183 x 684 mmNet weightapprox. 110 kgConnection 230 V50/60 Hz, approx. 3,400 WConnection 115 V50/60 Hz, approx. 1,800 WShelves max.9Shelves included in the scope of delivery2Max. load capacity300 kgMax. load per shelf20 kgInterior materialStainless steel, 4-sided all-round heatingCasing materialTextured stainless steel, galvanised sheet steel rear panelControl systemControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic displayTimer1 minute to 99 days, digital countdown timerPermissible ambient temperature5 °C to 40 °CPermissible relative humiditymax. 80 % rel., non-condensingMaximum installation height2,000 mMarkingsCE, EAC, UL marksScope of delivery1x Memmert universal oven UN260Factory calibration certificate (calibration at 160 °C)Fully insulated stainless steel doors with 2-point locking (compression door lock)2x stainless steel grid shelf, electropolishedRegulatory informationThe Memmert universal oven UN260 is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29738) or without air slots (B29739). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceOptions available for the UN260 include fully glazed doors, interior lighting and a power socket, a levelling or castor-mounted base, a lockable door with a security lock, as well as reinforced grid shelves and perforated trays. A USB-to-Ethernet adapter and AtmoCONTROL software licences are available for data logging. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories or assistance in selecting the right universal oven for your application? Through our procurement service, we are happy to assist you with procurement and configuration.
Memmert UF110 universal oven, compact heating and drying oven with forced air circulation, 108 litres, up to 300 °C
Anyone wishing to upgrade from a small benchtop unit to a model with significantly greater capacity, without having to install a floor-standing cabinet straight away, will find the Memmert UF110 universal oven to be the obvious intermediate option: 108 litres’ internal volume, a temperature range of 20 to 300 °C and an electronically controlled fan for active heat distribution. With up to 5 shelves and a maximum total load capacity of 175 kg, the UF110 meets the needs of many laboratories that regularly dry or temper several small to medium-sized sample batches in parallel, without the cabinet taking up the floor space of a larger model.Forced air circulation instead of pure convection: faster heating timesThe UF110’s air turbine, which can be electronically controlled in 10 % increments, actively distributes heat throughout the interior, rather than simply allowing it to rise, as is the case with a natural convection cabinet. As a result, the UF110 achieves its operating temperature range from at least 10 °C above room temperature up to 300 °C, with shorter heating-up times than a comparable natural convection model, which, by contrast, operates entirely without any air movement inside the chamber. A Pt100 temperature sensor of DIN Class A in a 4-wire configuration ensures a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards. Those who run many different batches with varying setpoint temperatures will benefit from the active air circulation; dust-sensitive samples, on the other hand, are better suited to the natural convection variant.ControlCOCKPIT SingleDISPLAY and data acquisitionThe UF110 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphics display. The following parameters can be adjusted: temperature in Celsius or Fahrenheit, the speed of the recirculation fan, the position of the exhaust air damper, the programme duration, as well as the time zone and summer/winter time. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWAIT function only starts the process time once the setpoint temperature has actually been reached. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity and dimensions of the Memmert UF110 universal ovenThe interior measures 560 x 480 x 400 mm; the external dimensions of the cabinet are 745 x 864 x 584 mm, and the net weight is approximately 74 kg. Two electropolished stainless steel grid shelves are included as standard; up to five shelves can be fitted in total. The maximum total load is 175 kg, with a maximum of 20 kg per shelf. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The UF110 can be connected either to 230 V (approx. 2,800 W) or to 115 V (approx. 1,800 W), in both cases at 50/60 Hz.Selection guide: choosing the right size from the UF rangeThe Memmert UF range is available in eight sizes, with internal volumes ranging from 53 to 1,060 litres. When looking for the right size, you should compare not only the volume but also the footprint and the maximum number of shelves.ModelInternal volumeUF5553 l, footprint 585 x 514 mm, max. 4 shelvesUF7574 l, footprint 585 x 514 mm, max. 6 shelvesUF110108 l, footprint 745 x 584 mm, max. 5 shelvesUF160161 l, footprint 745 x 584 mm, max. 8 shelvesUF260256 l, footprint 824 x 684 mm, max. 9 shelvesUF450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUF750749 l, footprint 1,224 x 784 mm, max. 14 shelvesUF10601,060 l, footprint 1,224 x 1,035 mm, max. 14 shelvesThe UF110 is the obvious choice when the Memmert UF75 universal oven (74 litres, 6 shelves in a smaller footprint) becomes too small for the sample volume, but a larger footprint is not yet available. If you require more volume and more shelves whilst maintaining the same footprint, the Memmert UF160 universal oven (161 litres, 8 shelves instead of 5, same footprint, but taller) is the solution. You can find all sizes in this range in our Climate Chambers & Incubators product range.Distinction: TwinDISPLAY version and its natural convection counterpartThe UF110 described here operates with SingleDISPLAY and a single Pt100 sensor. Anyone requiring redundant temperature monitoring for unattended runs will find this in the Memmert UF110plus universal oven with two Pt100 sensors, TwinDISPLAY, HeatBALANCE and AutoSAFETY. Anyone who can do without active air circulation, for example, because dust-sensitive samples are laid out in the open, will find in the Memmert UN110 universal oven the identical housing with natural convection instead of a fan.Safety according to DIN 12880 for unattended operationIn addition to the adjustable electronic temperature monitoring, the UF110 features a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature, an important safety feature for overnight or weekend runs. An integrated self-diagnostic system assists with fault-finding, whilst the calibration function allows three freely selectable temperature values to be readjusted. The unit bears CE and EAC markings as well as a UL test mark.Installation, operation and disposalWhen operating the UF110, a minimum clearance of 15 cm from the wall and a minimum clearance of 20 cm from the ceiling must be maintained; at the sides, a clearance of at least 5 cm from the wall or an adjacent unit is sufficient. The unit may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the cabinet is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. As an electrical appliance, the UF110 is subject to the Electrical and Electronic Equipment Act at the end of its service life and must not be disposed of with household waste; see Regulatory information below.Typical applicationsWith an internal volume of 108 litres and active air circulation, the Memmert UF110 universal oven is suitable for laboratories that require more capacity than a standard benchtop unit can provide, but still wish to keep their setup compact.Drying of laboratory glassware and medium-sized sample batches in routine operationsTempering, ageing and stoving of material samplesTesting and curing in quality assuranceMaterial testing in the industrial manufacture of small componentsA second unit alongside a UF75, as the sample volume increasesInvestment rationale: Equipment tailored to the specific purposeThe scope of delivery for the UF110 includes 2 electropolished stainless steel grid shelves; the cabinet is designed to accommodate up to 5 shelves. If you regularly use all the levels, you order additional grid shelves or perforated sheets along with the unit. A fully transparent glass door is available as an option for visual inspection without opening the door, as are interior lighting, an internal power socket and a wall bracket for space-saving installation. If you wish to run unattended cycles with redundant temperature monitoring, opt for the Memmert UF110plus universal oven. A USB-to-Ethernet adapter and AtmoCONTROL software licences are suitable for continuous data logging. For pharmaceutical or standards-governed applications, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request.Frequently asked questions before making a purchaseHow many samples can the UF110 hold at one time?Two grid shelves are included as standard; up to five shelves, each with a maximum load of 20 kg, are possible, for a total load of up to 175 kg.Can I place the UF110 on a laboratory bench?Yes, with a net weight of around 74 kg and a footprint of 745 x 584 mm, the UF110 is designed for use on a laboratory bench, provided that the bench can safely support the load.Is SingleDISPLAY sufficient for routine operation?For most applications, yes. However, if you wish to run unattended cycles with redundant temperature monitoring, the Memmert UF110plus universal oven with TwinDISPLAY is the better choice.What is the accuracy of the temperature control?Up to 99.9 °C, the setting accuracy is 0.1 °C; from 100 °C onwards, it is 0.5 °C, measured using a DIN Class A Pt100 sensor with 4-wire technology.Is wall mounting possible?A wall bracket is one of the common options for the UF110 and can be selected when placing your order.How does the UF110 differ from the smaller UF75?Both use the same recirculation technology and SingleDISPLAY; the UF110 offers greater capacity, 108 litres instead of 74, and 5 shelves instead of 6, whilst taking up more floor space.Is the UF110 suitable for continuous overnight operation?The mechanical temperature limiter of protection class 1 according to DIN 12880 switches the heater off at an excess temperature of approximately 20 °C and is designed for unattended operation.Technical detailsAdjustable temperature range20 to 300 °COperating temperature rangeat least 10 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume108 lInternal dimensions (W x H x D)560 x 480 x 400 mm (depth minus 39 mm for the fan)External dimensions of the housing (W x H x D)745 x 864 x 584 mmNet weightapprox. 74 kg230 V connection50/60 Hz, approx. 2,800 W115 V connection50/60 Hz, approx. 1,800 WMaximum number of shelves5Shelves included in the scope of delivery2Max. load on the unit175 kgMaximum load per shelf20 kgInterior materialsStainless steel, 4-sided all-round heatingHousing materialTextured stainless steel, galvanised sheet steel rear panelRegulationControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayTimer1 minute to 99 days, digital countdown clockPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % relative humidity, non-condensingMaximum installation altitude2,000 mLabellingCE, EAC, UL marksScope of delivery1x Memmert UF110 universal ovenFactory calibration certificate (calibration at 160 °C)Fully insulated stainless steel doors with a 2-point locking system (compression door lock)2x stainless steel grid shelf, electropolishedRegulatory informationThe Memmert UF110 universal oven is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29734) or without air slots (B29735). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceAccessories available for the UF110 include full-view glass doors, interior lighting and a power socket, a wall bracket, a stacking kit and levelling feet. For data acquisition, a USB-to-Ethernet adapter and AtmoCONTROL software licences, including the AtmoCONTROL FDA version for 21 CFR Part 11, are available. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories, a TwinDISPLAY version, or assistance in selecting the right universal oven for your application? Through our procurement service, we are happy to assist you with procurement and configuration.
Memmert universal oven UF75, compact heating and drying oven with forced air circulation, 74 litres, up to 300 °C
Anyone who finds the smallest model in the forced-air series has reached its capacity limit will find the next size up in the Memmert universal oven UF75, which has almost the same footprint: 74 litres’ internal volume, a temperature range of 20 to 300 °C, and the same electronically controlled air turbine for active heat distribution. With up to 6 shelves instead of 4 compared to the smaller UF55, more batches can be run in parallel without the cabinet taking up noticeably more floor space in the laboratory; it is simply slightly taller.Forced air circulation: greater capacity with the same footprintThe UF75’s air turbine, which can be electronically controlled in 10 % increments, actively distributes heat throughout the interior, rather than simply allowing it to rise, as is the case with a natural convection cabinet. As a result, the UF75 achieves its working temperature range from at least 10 °C above room temperature up to 300 °C with shorter heating-up times than the structurally identical natural convection model UN75, which, by contrast, starts operating from just 5 °C above room temperature. A DIN Class A Pt100 temperature sensor with 4-wire measurement ensures a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, regardless of the load on the up to 6 shelves.ControlCOCKPIT SingleDISPLAY and data acquisitionThe UF75 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphics display. The following parameters can be adjusted: temperature in Celsius or Fahrenheit, the speed of the recirculation fan, the position of the exhaust air damper, the programme duration, as well as the time zone and summer/winter time. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWAIT function only starts the process time once the setpoint temperature has actually been reached. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity and dimensions of the Memmert universal oven UF75The interior measures 400 x 560 x 330 mm; the external dimensions of the cabinet are 585 x 944 x 514 mm, and the net weight is approximately 66 kg. Two electropolished stainless steel grid shelves are included as standard; up to six shelves can be fitted in total. The maximum total load is 120 kg, with a maximum of 20 kg per shelf. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The UF75 can be connected either to 230 V (approx. 2,500 W) or 115 V (approx. 1,800 W), in both cases at 50/60 Hz.Selection guide: choosing the right size from the UF rangeWith eight sizes, the Memmert UF range covers an internal volume ranging from 53 to 1,060 litres. When choosing the right size, the key factors to consider, alongside the volume, are the footprint and the number of shelves required.ModelInternal volumeUF5553 l, footprint 585 x 514 mm, max. 4 shelvesUF7574 l, footprint 585 x 514 mm, max. 6 shelvesUF110108 l, footprint 745 x 584 mm, max. 5 shelvesUF160161 l, footprint 745 x 584 mm, max. 8 shelvesUF260256 l, footprint 824 x 684 mm, max. 9 shelvesUF450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUF750749 l, footprint 1,224 x 784 mm, max. 14 shelvesUF10601,060 l, footprint 1,224 x 1,035 mm, max. 14 shelvesThe UF75 is the obvious choice when the Memmert universal oven UF55 (53 litres) becomes too small for the sample volumes involved, but a significantly larger floor space is not yet available. Anyone who needs more volume with a larger floor space will find this in the Memmert universal oven UF110 (108 litres, more interior space, slightly larger footprint). You can find all sizes of the series in our climate chambers & incubators range.Distinction: Forced air circulation versus natural convection, and TwinDISPLAYWithin the Memmert family of heating and drying ovens, the most important purchasing decision is whether to opt for forced air circulation or natural convection. Thanks to its air turbine, the UF75 achieves shorter heating times than the Memmert universal oven UN75; however, for samples sensitive to dust or air movement, natural convection remains the more suitable choice. For unattended runs with redundant temperature monitoring, the Memmert universal oven UF75plus is available, featuring TwinDISPLAY, two Pt100 sensors, HeatBALANCE and AutoSAFETY. For those who require a smaller capacity, the Memmert universal oven UF55 offers a more compact alternative with the same footprint.Safety according to DIN 12880 for unattended operationIn addition to the adjustable electronic temperature monitoring, the UF75 is fitted with a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature reaches approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and three freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL mark.Installation, operation and disposalFor operation, a minimum distance of 15 cm from the wall and a minimum distance of 20 cm from the ceiling must be maintained; a minimum of 5 cm is sufficient on either side in relation to the wall or an adjacent unit. The unit may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the UF75 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. The interior, made of easy-to-clean stainless steel, can be cleaned using standard laboratory cleaning products. As an electrical appliance, the UF75 is subject to the German Electrical and Electronic Equipment Act (ElektroG) at the end of its service life and must not be disposed of with household waste; see Regulatory information below.Typical applicationsWith an internal volume of 74 litres and up to 6 shelves, the Memmert universal oven UF75 is suitable for laboratories that require slightly more capacity than the smallest UF model, without taking up any more floor space.Drying of laboratory glassware and medium-sized sample batches in routine operationsTempering, ageing and baking of material samples in multiple batchesTesting and curing in quality assuranceMaterial testing in the industrial manufacture of small componentsA second unit alongside a UF55, if additional shelves are requiredInvestment rationale: Equipment tailored to the specific purposeThe scope of delivery for the UF75 includes 2 electropolished stainless steel grid shelves; the oven is designed to accommodate up to 6 shelves. If you regularly use all levels, you should order additional grid shelves or perforated trays. A fully transparent glass door is available as an option for visual inspection without opening the door, as are interior lighting, an internal power socket and a reversible door hinge. If you wish to run unattended cycles with redundant temperature monitoring, opt for the Memmert universal oven UF75plus with TwinDISPLAY. A USB-to-Ethernet adapter and AtmoCONTROL software licences are available for continuous data logging. For pharmaceutical or standards-based applications, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request.Frequently asked questions before making a purchaseHow many samples can the UF75 hold at any one time?Two grid shelves are included as standard; up to six shelves are possible, each with a maximum load of 20 kg, for a total load of up to 120 kg.Can I place the UF75 on a laboratory bench?Yes, with a net weight of around 66 kg and a footprint of 585 x 514 mm, the UF75 is designed for use on a laboratory bench, provided that the bench can safely support the load.How does the UF75 differ from the smaller UF55?Both have the same footprint; the UF75 is taller and offers greater capacity, with 74 litres instead of 53 and 6 shelves instead of 4.What is the accuracy of the temperature control?The DIN Class A Pt100 sensor, using a 4-wire measurement, provides an accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards.Is a natural convection model available in this size?Yes, the Memmert universal oven UN75 shares the same housing as the UF75, but operates without an air turbine and is suitable for samples that are sensitive to dust or air movement.Is a TwinDISPLAY version available?Yes, the Memmert universal oven UF75plus also features two redundant Pt100 sensors, HeatBALANCE and AutoSAFETY for unattended processes.Is the UF75 suitable for continuous overnight operation?The mechanical temperature limiter, of protection class 1 according to DIN 12880 switches the heater off at an excess temperature of approximately 20 °C and is designed for unattended operation.Technical detailsAdjustable temperature range20 to 300 °CWorking temperature rangeat least 10 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume74 lInternal dimensions (W x H x D)400 x 560 x 330 mm (depth minus 39 mm for the fan)External dimensions of the housing (W x H x D)585 x 944 x 514 mmNet weightapprox. 66 kg230 V connection50/60 Hz, approx. 2,500 W115 V connection50/60 Hz, approx. 1,800 WShelves max.6Shelves included in the scope of delivery2Max. load on the unit120 kgMax. load per shelf20 kgInterior materialsStainless steel, 4-sided all-round heatingHousing materialTextured stainless steel, galvanised sheet steel rear panelControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayTimer1 minute to 99 days, digital countdown clockPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % relative humidity, non-condensingMax. installation altitude2,000 mLabellingCE, EAC, UL marksScope of delivery1x Memmert universal oven UF75Factory calibration certificate (calibration at 160 °C)Fully insulated stainless steel doors with a 2-point locking system (compression door lock)2x stainless steel grid shelf, electropolishedRegulatory informationThe Memmert universal oven UF75 is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29732) or without air slots (B29733). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceAccessories available for the UF75 include full-view glass doors, interior lighting and a power socket, a reversible door hinge, a wall bracket, a stacking kit and levelling feet. For data acquisition, a USB-to-Ethernet adapter and AtmoCONTROL software licences, including the AtmoCONTROL FDA version for 21 CFR Part 11, are available. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories, a TwinDISPLAY version, or assistance in selecting the right universal oven for your application? Through our procurement service, we are happy to assist you with procurement and configuration.
Memmert universal oven UN55, compact heating and drying oven with natural convection, 53 litres, up to 300 °C
For those who have outgrown the Memmert universal oven UN30 but do not yet wish to install a floor-standing cabinet, the Memmert universal oven UN55 is the obvious next size up: 53 litres’ internal volume with almost the same footprint, and still utilising natural convection rather than an active air turbine. The temperature range extends from 20 to 300 °C, and the housing is made of textured stainless steel. As there is no active air circulation inside the chamber, the UN55 remains the first choice where vibration-free operation and low dust levels are more important than a particularly short heating time, for example, when drying samples laid out in the open or fine powders in slightly larger quantities than with the UN30.Natural convection: greater volume, same operating principleLike the smaller UN30 model, the Memmert UN55 universal oven deliberately does not feature an air turbine or a recirculation fan. Heat rises within the chamber purely by convection, without a fan stirring up dust or light sample particles. Consequently, the working temperature range starts from at least 5 °C above room temperature up to 300 °C, whilst the forced-air models of the UF series only start from 10 °C above room temperature, but heat up more quickly thanks to forced air circulation. A Pt100 temperature sensor of DIN Class A in a 4-wire configuration ensures a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, regardless of the unit size within the series.ControlCOCKPIT SingleDISPLAY and data acquisitionThe UN55 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a high-resolution TFT colour graphics display. The following can be set: temperature in Celsius or Fahrenheit, the position of the exhaust air damper, the programme duration, as well as the time zone and summer/winter time; the parameter for the recirculation fan speed is omitted due to the design. A digital countdown timer with target time can be set from 1 minute to 99 days; the SetpointWAIT function only starts the process time once the setpoint temperature has actually been reached. The data logger can be read out and managed via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity and dimensions of the Memmert universal oven UN55The interior measures 400 x 400 x 330 mm, whilst the external dimensions are 585 x 784 x 514 mm, meaning it has the same footprint as the UN30, but is slightly taller. The scope of delivery includes an electropolished stainless steel grid shelf, and the cabinet can accommodate up to four shelves in total. The maximum load capacity is 80 kg for the entire unit and 20 kg per shelf. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The UN55 is connected to a 230 V (approx. 2,000 W) or 115 V (approx. 1,700 W) supply, in each case at 50/60 Hz.Selection guide: choosing the right size from the UN seriesThe Memmert universal oven series with natural convection covers a range of internal volumes from 32 to 749 litres. When choosing the right size, the key factors, apart from the internal volume, are the footprint and the number of shelves required; not every larger model takes up more floor space than the next smaller one.ModelInternal volumeUN3032 l, footprint 585 x 434 mm, max. 3 shelvesUN5553 l, footprint 585 x 514 mm, max. 4 shelvesUN7574 l, footprint 585 x 514 mm, max. 6 shelvesUN110108 l, footprint 745 x 584 mm, max. 5 shelvesUN260256 l, footprint 824 x 684 mm, max. 9 shelvesUN450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUN750749 l, footprint 1,224 x 784 mm, max. 14 shelvesThe UN55 is the obvious choice when the UN30 (32 litres) becomes too small for the volume of samples to be processed, but a significantly larger footprint is not yet available. If you need even more shelves whilst maintaining the same footprint, you will find them in the UN75 (74 litres, 6 shelves instead of 4, same footprint, just taller). All seven sizes can be found in our range of climate chambers and incubators.Distinction: UN versus UF, and when to use which displayWithin the Memmert family of heating and drying ovens, the most important purchasing decision is between natural convection (UN series) and forced air circulation (UF series). The UF models feature an electronically controlled air turbine, which actively distributes heat throughout the interior, thereby achieving shorter heating times; however, this only applies from 10 °C above room temperature, rather than from 5 °C as with the UN55. For samples sensitive to dust or air movement, such as loose powders or fibres, natural convection remains the more suitable choice. A direct forced-air equivalent of a similar size is the Memmert universal oven UF55 with 53 litres. Anyone looking for an even more compact natural convection solution will find it in the Memmert universal oven UN30 with 32 litres. All standard models in the UN series, including the UN55, operate with the ControlCOCKPIT SingleDISPLAY; the TwinDISPLAY variant, featuring two displays and additional safety and logging functions, is reserved for Memmert’s ‘plus’ models and is not part of this series.Safety according to DIN 12880In addition to adjustable electronic temperature monitoring, the UN55 features a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and three freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL mark.Installation, operation and disposalFor operation, a minimum distance of 15 cm from the wall and a minimum distance of 20 cm from the ceiling must be maintained; a minimum of 5 cm is sufficient on either side in relation to the wall or an adjacent unit. The unit may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 5 °C to 40 °C and a relative humidity of no more than 80 %, non-condensing. Electrically, the UN55 is designed for overvoltage category II and pollution degree 2; it must only be transported in an upright position. The interior, made of easy-to-clean stainless steel, can be cleaned using standard laboratory cleaning agents. As an electrical appliance, the UN55 is subject to the German Electrical and Electronic Equipment Act (ElektroG) at the end of its service life and must not be disposed of with household waste; see Regulatory information below.Typical applicationsWith an internal volume of 53 litres and natural convection, the Memmert universal oven UN55 is suitable for laboratories that require slightly more capacity than a standard benchtop unit but still wish to operate in a vibration-free environment.Drying laboratory glassware and medium-sized sample batchesVibration-free drying of samples and powders that are sensitive to dust or airTempering, ageing and baking of material samples in routine operationsTesting and curing in quality assuranceA second unit alongside a UN30, as the sample volume increasesInvestment rationale: Equipment tailored to the specific purposeThe scope of delivery for the UN55 includes 1 electropolished stainless steel grid shelf; the oven is designed to accommodate up to 4 shelves. Those who regularly run several batches in parallel should order additional grid shelves or perforated trays. A full-view glass door is available as an option for visual inspection without opening the door, which reduces temperature fluctuations inside the chamber, as are interior lighting and an internal power socket for additional measurement equipment. Those wishing to use the data logger on a permanent basis, rather than just with the time-limited trial version, should add an AtmoCONTROL software licence and, if required, a USB-to-Ethernet adapter. For pharmaceutical or standards-based applications, calibration, IQ/OQ/PQ and maintenance services are available, including DAkkS calibration on request.Frequently asked questions before making a purchaseIs natural convection sufficient for uniform drying?For most routine applications, yes. For very densely loaded batches with widely varying sample sizes, a forced-air model such as the UF160 distributes the heat more actively; for dust- or air-sensitive samples, the gentle natural convection of the UN55 is advantageous.How many samples can fit into the UN55 at any one time?One grid shelf is included as standard; up to four shelves, each with a maximum load of 20 kg, are possible, giving a total load capacity of up to 80 kg.Can I place the UN55 on the laboratory bench?Yes, with a net weight of around 57 kg and a footprint of 585 x 514 mm, the UN55 is designed for use on a laboratory bench, provided that the bench can safely support the load.What is the accuracy of the temperature control?0.1 °C to 99.9 °C and 0.5 °C from 100 °C onwards, as the UN55, like all models in the UN series, measures using a DIN Class A Pt100 sensor with 4-wire technology.Is a glass door available as an option?A fully transparent glass door is one of the common options for the UN55 and can be selected when placing your order.How does the UN55 differ from the smaller UN30?Both operate using natural convection and feature the same ControlCOCKPIT SingleDISPLAY; the UN55 offers greater capacity, 53 litres instead of 32, and 4 shelves instead of 3, whilst occupying a similar footprint.Is the UN55 suitable for continuous operation overnight?The mechanical temperature limiter, of protection class 1 according to DIN 12880 switches the heater off at an excess temperature of approximately 20 °C and is designed for unattended operation.Technical detailsAdjustable temperature range20 to 300 °CWorking temperature rangeat least 5 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume53 lInternal dimensions (W x H x D)400 x 400 x 330 mmExternal dimensions of the housing (W x H x D)585 x 784 x 514 mmNet weightapprox. 57 kg230 V connection50/60 Hz, approx. 2,000 W115 V connection50/60 Hz, approx. 1,700 WShelves max.4Shelves included in the scope of delivery1Max. load on the unit80 kgMax. load per shelf20 kgInterior materialsStainless steel, 4-sided all-round heatingHousing materialTextured stainless steel, galvanised sheet steel rear panelControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayTimer1 minute to 99 days, digital countdown clockPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % relative humidity, non-condensingMax. installation altitude2,000 mLabellingCE, EAC, UL marksScope of delivery1x Memmert universal oven UN55Factory calibration certificate (calibration at 160 °C)Fully insulated stainless steel door with a 2-point locking system (compression door lock)1x stainless steel grid shelf, electropolishedRegulatory informationThe Memmert universal oven UN55 is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29730) or without air slots (B29731). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceOptions available for the UN55 include full-view glass doors, interior lighting and a power socket, reinforced grid shelves and perforated trays, slide-in or floor-standing drip trays, as well as wall brackets, levelling feet and a stacking kit. A USB-to-Ethernet adapter and AtmoCONTROL software licences are available for data acquisition. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories, a gas-tight version, or assistance in selecting the right universal oven for your application? Through our procurement service, we’d be happy to assist you with procurement and configuration.

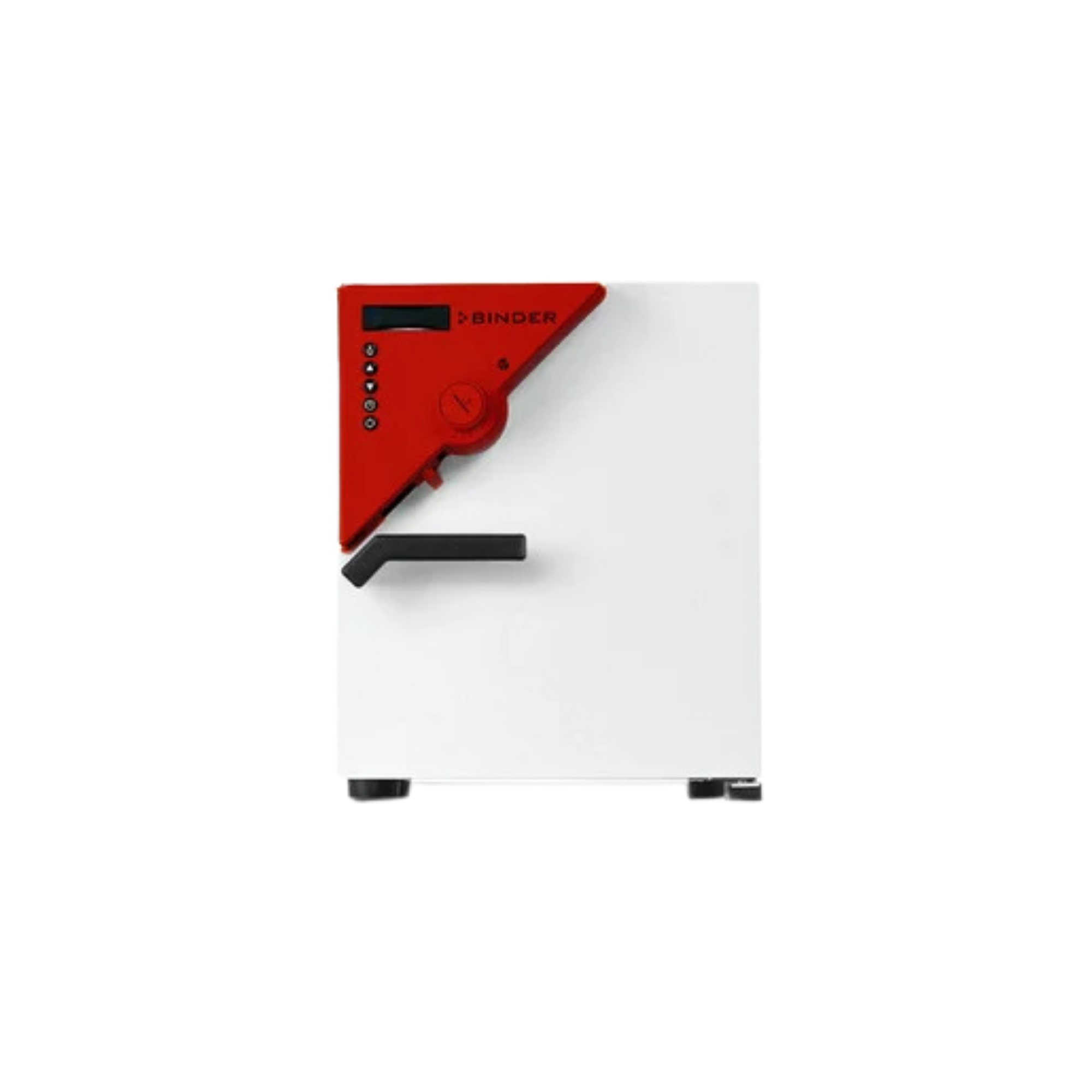

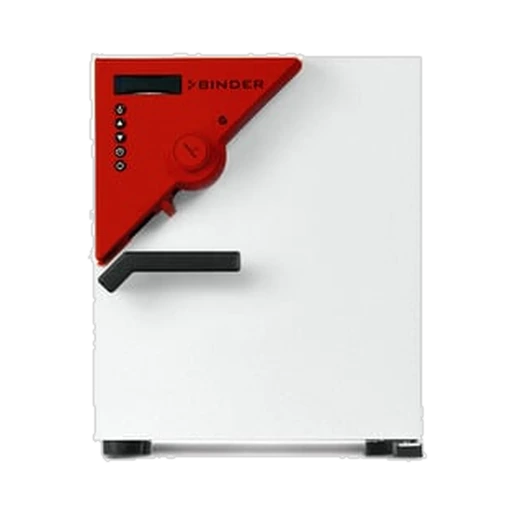

Binder FD 23 drying and heating oven with forced air circulation, 20 l, up to 300 °C, 9010-0194
The Binder FD 23 drying oven is the most compact model in the Avantgarde.Line FD series with forced convection, designed for applications requiring particularly rapid drying and sterilisation in the smallest of spaces. With a usable volume of 20 litres and a temperature range from 5 °C above ambient temperature up to 300 °C, this benchtop unit is suitable for smaller sample quantities where precise and reproducible results are still essential. Compact design with high temperature accuracy Despite its compact dimensions, the APT.line preheating chamber technology ensures homogeneous temperature distribution within the chamber. At 150 °C, the FD 23 achieves a spatial temperature deviation of ± 2.5 K and a temporal deviation of ± 0.3 K. The heating time to 150 °C is around 25 minutes; with an air change rate of 64 times per hour at 150 °C, rapid air exchange is achieved even in a small interior space. Process reliability thanks to integrated adjustable temperature limiter The controller with timing functions features an integrated Class 2 adjustable temperature limiter according to DIN 12880, complete with a visual alarm, which provides additional safety during unattended drying or sterilisation cycles. The adjustable exhaust air damper allows the air exchange rate to be tailored to the specific process, even for small batches. Typical applications Drying small quantities of laboratory glassware and sample material Sterilisation processes where laboratory space is limited Rapid heat treatment of individual samples or small batches Supplementary unit alongside larger drying cabinets for routine tasks For laboratories with limited space, where small batches still need to be dried or sterilised on a regular basis, the FD 23 offers the same APT.line technology as the larger FD models, but in the most compact format in the range. Selection guide: choosing the right size from the FD seriesWithin the FD series, the FD 23, with a 20-litre capacity, is the most compact model for the workbench. Those requiring more capacity but still looking for a benchtop unit will find the next larger models in the FD 56 and FD 115, before the series continues with the FD 260 and culminates in the 400 V large-capacity FD 720. The complete range can be found in our range of climate chambers and incubators.ModelUseful volume, external dimensions (W x D x H), weightFD 2320 l, 435 x 520 x 495 mm, 27 kgFD 5660 l, 560 x 565 x 625 mm, 41 kgFD 115116 l, 710 x 605 x 735 mm, 54 kgFD 260259 l, 810 x 825 x 940 mm, 85 kgFD 720741 l, 1,165 x 870 x 1,590 mm, 166 kgFor smaller sample volumes in training or routine laboratories, where the full temperature accuracy of the Avantgarde.Line is still required, the FD 23 remains suitable. All models in the FD series share the same Class 2 adjustable temperature limiter according to DIN 12880, as well as APT.line technology.Distinction: forced air circulation or natural convectionThose who require particularly quiet heating with minimal air movement rather than active forced circulation will find a suitable alternative in the ED model of the same size: the Binder ED 23 drying and heating oven covers the same 20-litre volume but heats without a fan, which can be advantageous for dust-sensitive samples or open dishes. Where, on the other hand, short processing times and uniform heating are essential, the FD 23 with APT.line forced air remains the faster option. Both models also share the same external dimensions of 435 x 520 x 495 mm, so switching between the FD 23 and ED 23 does not require any adjustment to the footprint.Technical details Temperature range5 °C above ambient temperature up to 300 °CUseful volume20 lSpatial temperature deviation (at 150 °C)± 2.5 KTemperature variation over time (at 150 °C)± 0.3 KHeating time to 150 °C25 minAir change rate (at 150 °C)64 times/hRated voltage230 V (also available in a 120 V version)Rated power0.8 kWExternal dimensions (W x H x D)435 x 495 x 520 mm Scope of delivery 1x Binder FD 23 drying and heating oven, 230 V (9010-0194) Standard grid shelves Operating instructions Frequently asked questions before purchaseHow long does the FD 23 take to reach 150 °C?The heating time to 150 °C for the FD 23 is around 25 minutes, with an air change rate of 64 times per hour.Is the FD 23 also available in a 120 V version?Yes, in addition to the standard 230 V version, the FD 23 is also available as a 120 V variant.What is the safety class of the integrated adjustable temperature limiter?The FD 23 is fitted with a Class 2 adjustable temperature limiter according to DIN 12880, featuring a visual alarm.Does the FD 23 fit on a standard laboratory bench?With external dimensions of 435 x 495 x 520 mm and a weight of 27 kg, the FD 23 is designed exclusively for tabletop use.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, BINDER GmbH, is DE 37004983. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Further accessories are available for the FD 23, such as additional grid shelves, calibration certificates and maintenance contracts of varying scope. Do you require customised configurations, spare parts or advice on selecting the right drying oven for your application? We will be happy to assist you via our procurement service.

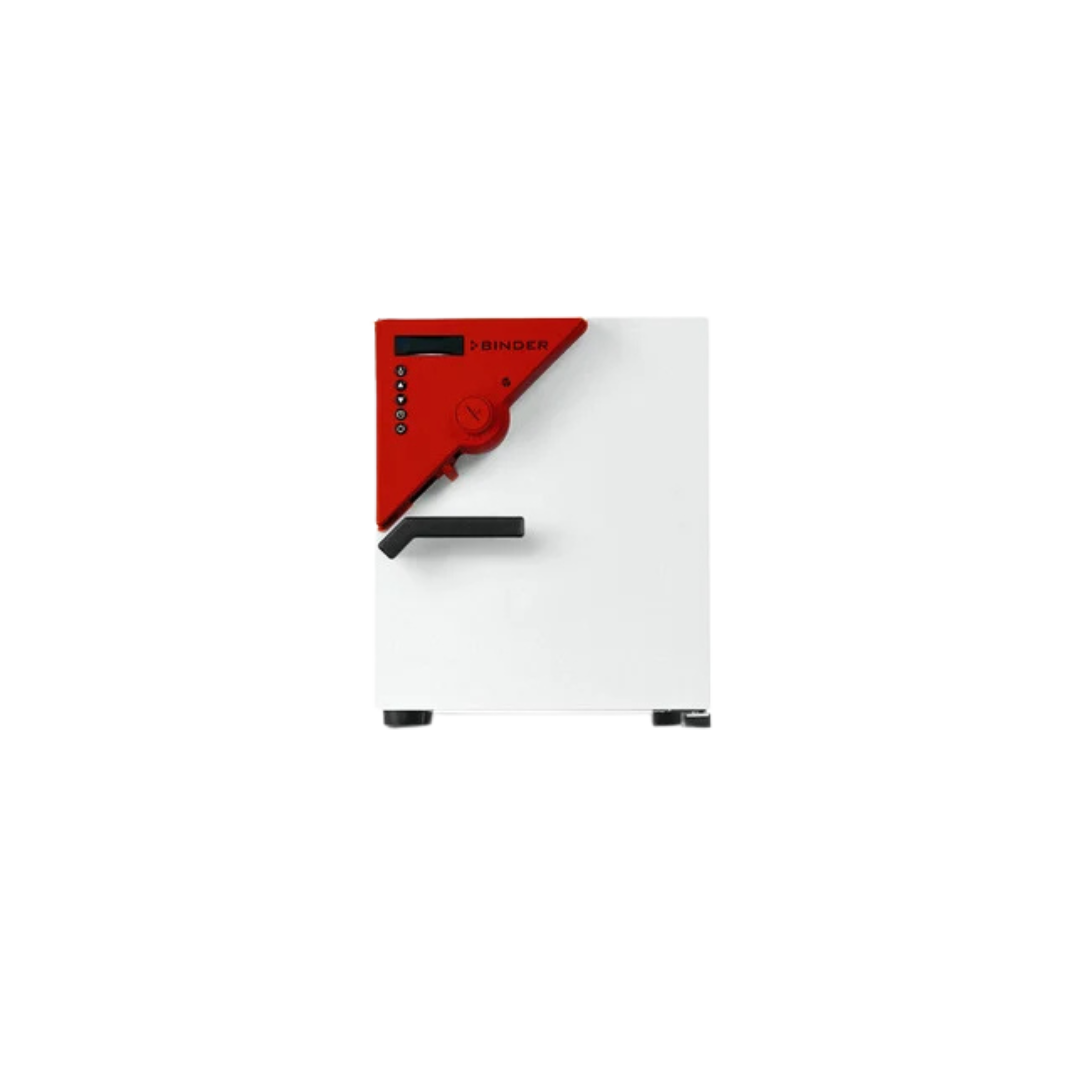

Binder ED 23 Drying and Heating Oven, Avantgarde.Line with natural convection, 20 l, up to 300 °C, 9010-0190
Not every drying task in the laboratory requires a lot of space, but reliability is still essential. The Binder ED 23 is the smallest drying and heating oven in the Avantgarde.Line ED series, designed with a 20-litre usable volume for the workbench or an adjoining room. Unlike the forced air circulation models in the FD or FED series, the ED 23 operates using natural convection: heating is achieved solely through the thermal buoyancy of the air inside the chamber, without an active fan. This results in noticeably less air movement than in a forced air circulation drying oven, an advantage when light or dust-sensitive samples must not be disturbed. Natural convection instead of forced air circulation: what this means for operation Without an active fan, the heat inside the chamber takes longer to distribute evenly than in a comparable forced air circulation unit. With the ED 23, the heating time to 150 °C is around 28 minutes. On the other hand, energy consumption is comparatively low at 148 Wh/h at 150 °C, and the gentle, quiet airflow is well suited to samples that cannot tolerate a draught. The temperature range extends from 5 °C above ambient temperature up to 300 °C, the full range of the Avantgarde.Line, despite its compact design. Features: APT.line technology and safety class A controller with timing functions and an adjustable exhaust air flap are included as standard, as is APT.line technology for high temperature accuracy. At 150 °C, the spatial temperature deviation is ± 2.8 K, and the temporal deviation is ± 0.5 K. A Class 2 adjustable temperature limiter according to DIN 12880 with visual alarm, is already integrated and provides additional process reliability during unattended drying runs. Typical applications The ED 23 is suitable for drying and heating applications where space is limited or where forced air circulation should be avoided for technical reasons. Drying small quantities of laboratory glassware on a workbench Warm storage of sensitive or lightweight samples without air movement Simple heat treatment in training and routine laboratories Supplement to larger drying ovens for smaller additional batches With external dimensions of 435 x 520 x 495 mm and a weight of 27 kg, the ED 23 fits easily onto a standard laboratory bench. Two chrome-plated grid shelves are included as standard; each grid shelf can support up to 12 kg. Selection guide: choosing the right size from the ED seriesWith a capacity of 20 litres, the ED 23 is the smallest model in the ED series. Those requiring more internal space but wishing to continue using natural convection will find suitable alternatives in the ED 115 and the larger models, right up to the 743-litre ED 720. The complete range can be found in our range of climate cabinets and incubators.ModelUseful volume, external dimensions (W x D x H), weightED 2320 l, 435 x 520 x 495 mm, 27 kgED 5657 l, 560 x 565 x 625 mm, 39 kgED 115114 l, 710 x 605 x 705 mm, 54 kgED 260255 l, 810 x 760 x 940 mm, 85 kgED 400400 l, 1,235 x 765 x 1,025 mm, 125 kgED 720743 l, 1,165 x 870 x 1,590 mm, 169 kgFor small batches on the workbench, where smooth heating with minimal air movement is paramount, the ED 23 remains the most compact option in the range.Distinction: natural convection or forced air circulationThose who would prefer to benefit from an active fan and shorter heating-up times will find the Binder FD 23 drying and heating oven of the same size to be a suitable alternative: it reaches 150 °C in around 25 minutes rather than 28. For samples that cannot tolerate any air movement, such as open dishes or fine powders, the ED 23 with natural convection remains the gentler choice.Technical details Temperature range5 °C above ambient temperature up to 300 °CUseful volume20 lSpatial temperature deviation (at 150 °C)± 2.8 KTemporal temperature deviation (at 150 °C)± 0.5 KHeating time to 150 °C28 minEnergy consumption at 150 °C148 Wh/hMax. load per shelf12 kgRated voltage230 V (also available in a 120 V version)Rated power0.8 kWExternal dimensions (W x D x H)435 x 520 x 495 mmUnit weight (net, empty)27 kgAdjustable temperature limiterClass 2 according to DIN 12880, with visual alarm Scope of delivery 1x Binder ED 23 drying and heating oven, 230 V (9010-0190) 2x chrome-plated grid shelves Operating instructions Frequently asked questions before purchaseWhy does it take longer for the ED 23 to heat up than a forced air circulation unit?As there is no active fan, the heat is distributed solely by thermal buoyancy, so the heating time to 150 °C is around 28 minutes.How many grid shelves are included?Two chrome-plated grid shelves are included as standard, each with a load capacity of up to 12 kg.What is the energy consumption of the ED 23?At 150 °C, energy consumption is 148 Wh/h.Is the ED 23 also available in a 120 V version?Yes, a 120 V version is available in addition to the 230 V model.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, BINDER GmbH, is DE 37004983. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Additional grid shelves, as well as calibration certificates and maintenance contracts covering various levels of service, are available for the ED 23. Do you require any of these accessories, or do you need assistance in selecting the right drying and heating oven for your application? We will be happy to assist you with procurement and configuration via our procurement service.
Memmert constant climate chamber HPP410eco, 384 litres, Peltier technology without a compressor
Contract laboratories and manufacturers running several test programmes simultaneously under ICH conditions need capacity and accurate control. The Memmert HPP410eco constant-climate chamber offers an internal volume of 384 litres and space for up to 14 shelves; temperature and humidity are controlled via a Peltier heating and cooling system that requires no compressor and no conventional refrigerant, with the same control range as the smaller models in the HPPeco range: 0 to 70 °C without humidity control, 5 to 70 °C with active humidity control between 10 and 90 % rh.Peltier cooling even under heavy loadsLike the other HPPeco models, the HPP410eco heats and cools via a Peltier element integrated into the rear panel; there is no conventional refrigeration circuit with a refrigerant whatsoever. Two DIN Class A Pt100 sensors in a 4-wire configuration monitor each other and automatically take over the function of the other sensor in the event of a fault; with 14 possible shelves and a total load of up to 200 kg, this is an important detail for long, unattended test runs. The setting accuracy is 0.1 °C; when exposed to light, the operating range narrows to 15 to 40 °C, with a maximum load of 20 kg per shelf.Humidity control and ControlCOCKPIT TwinDISPLAYRelative humidity is controlled between 10 and 90 % rh with an accuracy of 0.5 % rh; humidification is provided by a hot steam generator, whilst dehumidification is achieved via a cold trap using Peltier technology. The water supply is provided via an external canister with a connecting hose and a self-priming pump; a fixed water connection is not required. The chamber is operated via the ControlCOCKPIT TwinDISPLAY, which features two TFT colour graphic displays; an Ethernet interface and AtmoCONTROL software are available for documenting multiple parallel test programmes. The SetpointWait function ensures that the test time only begins once the temperature and humidity have actually reached the setpoint.Selection guide: Choosing the right size within the HPPeco rangeWith a capacity of 384 litres and 14 shelves, the HPP410eco is one of the larger models among the four chambers compared here:Memmert Constant-Climate Chamber HPP110eco108 litres, 560 x 480 x 400 mm, approx. 64 kg, up to 5 shelvesMemmert Constant-Climate Chamber HPP260eco256 litres, 640 x 800 x 500 mm, approx. 94 kg, up to 9 shelvesMemmert Constant-Climate Chamber HPP410eco384 litres, 640 x 1,200 x 500 mm, approx. 134 kg, up to 14 shelvesMemmert Constant-Climate Chamber HPP750eco749 litres, 1,040 x 1,200 x 600 mm, approx. 197 kg, up to 14 shelvesThose who regularly require an even larger sample capacity whilst maintaining a similar number of shelves will find the Memmert HPP750eco constant climate chamber (749 litres) to be the next size up, offering, amongst other things, a higher load capacity per shelf. For smaller, less frequent test runs, the HPP260eco or HPP110eco are often the more economical choice; technically, the models differ mainly in volume, dimensions, weight and connected load. You can find an overview of the entire Memmert range of climate chambers and incubators in the Climate Chambers & Incubators category.Differences: HPPeco or ICH110?The Memmert ICH110 climate chamber covers a wider temperature range from -10 to +60 °C and uses a compressor-based, CFC-free R290 system with automatic defrosting; however, at 108 litres, it falls into a significantly smaller volume class than the HPP410eco. For test programmes that remain within the 0 to 70 °C range and process larger batch sizes in parallel, the Peltier technology of the HPP410eco, with a connected load of around 420 W, remains the more energy-efficient option compared to the ICH110’s approximately 1,350 W.Installation, water connection and disposalA minimum distance of 15 cm from the wall, a minimum distance of 20 cm from the ceiling and a minimum side clearance of 5 cm must be maintained; the unit may be installed at altitudes of up to 2,000 m above sea level at an ambient temperature of 16 to 40 °C and a maximum relative humidity of 70 %, non-condensing. A fixed water connection in the installation room is not required; the supplied water canister with connecting hose provides the water supply for the humidity control. For disposal as waste electrical and electronic equipment (WEEE), Memmert is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Which equipment for which testing purposeWhere several test programmes are being documented in parallel, a USB-to-Ethernet adapter is recommended, together with AtmoCONTROL or myChamber software licences, which can be supplied as AtmoCONTROL FDA for 21 CFR Part 11 environments if required. For long, unattended runs, a potential-free contact for connection to a central control system and a MobileALERT SMS alert system can be added. If several user groups with different access rights are using the device, a lockable door and a USB user ID stick for the TwinDISPLAY are available as options. For permanent installation in the test room, a built-in frame with or without ventilation is also available.Typical applicationsWith an internal volume of 384 litres and up to 14 shelves, the Memmert HPP410eco constant-climate chamber is designed for contract laboratories and manufacturers running multiple ICH test programmes simultaneously.Parallel long-term and intermediate storage studies of multiple active substances in accordance with ICH Q1AStability testing for cosmetic and food batches on an industrial development scaleMaterial testing with higher sample throughput in industryEnvironmental testing from freezing point upwards for several parallel test seriesFrequently asked questions about the Memmert HPP410eco constant-climate chamberWhat temperature and humidity range does the HPP410eco cover?Depending on the operating mode, 0 to 70 °C without humidity or 5 to 70 °C with active humidity control between 10 and 90 % rh; with light exposure, the operating range is restricted to 15 to 40 °C.Does the chamber require a fixed water connection?No. An external water canister with a connecting hose supplies the humidity control system via a self-priming pump; a fixed water connection in the installation room is not required.How many samples can fit into the HPP410eco?Two shelves are included as standard; a total of up to 14 shelves, each with a maximum load of 20 kg, can be fitted, with the total load not exceeding 200 kg.When does it make sense to switch to the HPP750eco?If you regularly require a larger sample volume with a higher load capacity per shelf, the HPP750eco, with a capacity of 749 litres and up to 30 kg per shelf, offers greater capacity whilst utilising the same control technology.What distinguishes the HPP410eco from the Memmert ICH110 climate chamber?The HPP410eco cools between 0 and 70 °C using a Peltier element without a compressor or refrigerant, whilst the ICH110 operates with a compressor-based refrigeration cycle (R290) and also covers a range down to -10 °C, albeit with an internal volume of only 108 litres.What software is available for documentation and validation?The chamber can be managed and data read out via Ethernet using the AtmoCONTROL software; for environments where 21 CFR Part 11 compliance is mandatory, Memmert also offers the AtmoCONTROL FDA licence option.How is calibration carried out?The factory calibration certificate covers the standard values of 25 °C at 60 % rh and 40 °C at 75 % rh; in addition, three freely selectable temperature and humidity values each can be calibrated by the user. For DAkkS-accredited calibrations and IQ/OQ/PQ, we arrange suitable services.Technical detailsAdjustable temperature range (without light, without humidity)0 to 70 °CAdjustable temperature range (with humidity)5 to 70 °COperating temperature range with light15 to 40 °CTemperature setting accuracy0.1 °CTemperature sensor2x Pt100, DIN Class A, 4-wire measurementAdjustable humidity range10 to 90 % rhHumidity setting accuracy0.5 % rhInternal volume384 lInternal dimensions (W x H x D)640 x 1,200 x 500 mm (depth minus 32 mm for the fan)External dimensions of the housing (W x H x D)824 x 1,720 x 655 mmNet weightapprox. 134 kgConnection 230 V50/60 Hz, approx. 420 WConnection 115 V50/60 Hz, approx. 420 WShelves maximum14Shelves in scope of delivery2Max. load on unit200 kgMax. load per shelf20 kgHousing materialTextured stainless steel housing, fully galvanised sheet steel rear panelControlControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2 TFT colour graphic displaysTimer1 minute to 99 days, digital countdown timerPermissible ambient temperature16 to 40 °CPermissible relative humiditymax. 70 % rel., non-condensingMaximum installation altitude2,000 mMarkingsCE, EAC, UL marksScope of delivery1x Memmert Constant-Climate Chamber HPP410ecoStandard factory calibration certificate (25 °C / 60 % rh, 40 °C / 75 % rh)Fully insulated stainless steel door with 2-point locking (compression door lock)Inner glass doorMoisture-tight silicone feed-through (internal diameter 18 mm) with silicone plug2x stainless steel grid shelf, electropolishedWater canister including connection hoseRegulatory informationThe Memmert HPP410eco constant-climate chamber is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B42116) or without air slots (B42117). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements & procurement serviceOptions available for the HPP410eco include a built-in frame with or without ventilation, a potential-free contact for building management systems, and a lockable door. For data acquisition, a USB-to-Ethernet adapter and AtmoCONTROL and myChamber software licences are available; licences for 21 CFR Part 11 (AtmoCONTROL FDA) are also available. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, including DAkkS calibration on request. Do you require any of these accessories, a special configuration or assistance in selecting the appropriate size for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.
Memmert UF450 universal oven, large-capacity heating and drying oven with forced air circulation, 449 litres, up to 300 °C, on castors
With an internal volume of 449 litres, the Memmert UF450 universal oven is the large floor-standing model of the UF range and is designed for batches that no longer fit into smaller ovens. Like the more compact Memmert UF160 universal oven, it features an air turbine with electronic control in 10 % increments for forced air circulation and covers a temperature range from 20 to 300 °C. Fitted with castors that can be moved and locked in place, the cabinet, which weighs around 161 kg, can be moved around the laboratory or production hall despite its size, without having to be lifted each time.Forced air circulation on a large scale: even heat distribution even when the interior is fullWith an internal volume of 449 litres and up to 8 shelves, the active air circulation is particularly noticeable: without an air turbine, the heat would be distributed much more unevenly within such a large interior and would rise more slowly. The UF450’s electronically controlled air turbine ensures that the working temperature range, which, as with all UF models, is at least 10 °C above room temperature up to 300 °C, is reliably achieved even with large, densely packed batches. A DIN Class A Pt100 temperature sensor with 4-wire measurement provides a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, regardless of the size of the unit.ControlCOCKPIT SingleDISPLAY and three-phase power supply for industrial useThe UF450 is controlled via the ControlCOCKPIT SingleDISPLAY, an adaptive, multifunctional digital PID microprocessor controller with a TFT colour graphics display, which can be used to set the temperature, forced air circulation motor speed, exhaust air damper position, programme duration and time zone. A digital countdown timer ranging from 1 minute to 99 days and the SetpointWait function, which only starts the process time once the setpoint temperature has been reached, ensure reproducible processes even during long, unattended runs. As an oven of this size requires correspondingly higher heating power, the UF450 is powered by 400 V three-phase current and 3 x 230 V without a neutral conductor at 50/60 Hz and with a power consumption of approximately 5,800 W, rather than the single-phase connection used by the smaller models. The data logger can be read via the Ethernet interface; a time-limited trial version of the AtmoCONTROL software is available for download.Capacity of the Memmert UF450 universal oven for large batchesThe interior measures 1,040 x 720 x 600 mm; the external dimensions of the cabinet are 1,224 x 1,247 x 784 mm. There is space for up to 8 shelves, and 2 electropolished stainless steel grid shelves are included in the scope of delivery. The UF450 can be loaded with up to 300 kg in total; each shelf can hold up to 30 kg, which is significantly more than the UF160 and considerably more than the compact UN30. The interior consists of easy-to-clean stainless steel, reinforced by deep-drawn ribbing, with protected, integrated 4-sided all-round heating; the housing is made of textured stainless steel with a fully galvanised sheet steel rear panel. The fully insulated stainless steel doors are secured by a two-point locking mechanism with a compression door lock.Selection guide: choosing the right size from the UF rangeThe Memmert UF range comprises eight models with internal volumes ranging from 53 to 1,060 litres, all featuring forced air circulation and available with TwinDISPLAY. When selecting the right size, the key factors to consider, alongside the internal volume, are the footprint and the number of shelves required.ModelInternal volumeUF5553 l, footprint 585 x 514 mm, max. 4 shelvesUF7574 l, footprint 585 x 514 mm, max. 6 shelvesUF110108 l, footprint 745 x 584 mm, max. 5 shelvesUF160161 l, footprint 745 x 584 mm, max. 8 shelvesUF260256 l, footprint 824 x 684 mm, max. 9 shelvesUF450449 l, footprint 1,224 x 784 mm, max. 8 shelvesUF750749 l, footprint 1,224 x 784 mm, max. 14 shelvesUF10601,060 l, footprint 1,224 x 1,035 mm, max. 14 shelvesThe UF450 sits between the more compact Memmert UF260 universal oven (256 litres) and the very large models, starting at 749 litres. Anyone who needs even more space will find it in the Memmert UF750 universal oven, also available on castors. You can find all sizes in this range in our Range of climate chambers & Incubators.Distinction: TwinDISPLAY and the natural convection variantWithin the UF450 series, the most important decision is whether to choose SingleDISPLAY or TwinDISPLAY. The UF450 described here operates with a single Pt100 sensor and one display; for unattended processes with higher safety requirements, the identically constructed Memmert UF450plus universal oven offers two redundant Pt100 sensors, the HeatBALANCE function for fine-tuning the distribution of heating power, and the additional AutoSAFETY monitoring, each with two TFT displays instead of one. For those who can do without active air circulation entirely, for example, because dust-sensitive samples are laid out in the open, the Memmert UN450 universal oven is the counterpart, featuring natural convection instead of an air turbine, whilst retaining the same internal volume of 449 litres.Safety according to DIN 12880 for long, unattended processesProcess reliability is crucial, particularly for large-volume batches that often run overnight or for several days. The UF450 features adjustable electronic temperature monitoring plus a mechanical temperature limiter of protection class 1 according to DIN 12880, which switches off the heating when the temperature reaches approximately 20 °C above the maximum cabinet temperature. A self-diagnostic system assists with fault-finding, and three freely selectable temperature values can be calibrated. The unit bears CE and EAC markings as well as a UL test mark.Use, installation and disposalDespite its size, the same spacing requirements apply to the Memmert UF450 universal oven as to the smaller models: a minimum clearance of 15 cm from the wall, a minimum clearance of 20 cm from the ceiling and a minimum clearance of 5 cm to the side from a wall or adjacent unit, even though the cabinet can be easily manoeuvred into the correct position thanks to its castors. It may be installed at altitudes of up to 2,000 m above sea level at ambient temperatures of 5 °C to 40 °C and a maximum relative humidity of 80 %, non-condensing. Electrically, the UF450 is designed for overvoltage category II and pollution degree 2; despite the castors, it must only be transported in an upright position. The interior, made of easy-to-clean stainless steel, can be cleaned with standard laboratory cleaning agents, even with frequent batch changes. As an electrical appliance, the UF450 is subject to the Electrical and Electronic Equipment Act at the end of its service life and must not be disposed of with household waste; see Regulatory information below.Typical applicationsWith an internal volume of 449 litres, up to 8 shelves and a load capacity of up to 300 kg, the Memmert UF450 universal oven is designed for applications with higher throughput.Large-volume drying and heat treatment batches in industry and researchRoutine tempering, ageing and baking of material samplesMaterial testing and quality assurance with high sample throughputCuring processes in which several shelves are loaded simultaneouslyMobile use at different locations thanks to a wheeled baseInvestment rationale: when TwinDISPLAY is worthwhileThe scope of delivery for the UF450 includes 2 electropolished stainless steel grid shelves; the cabinet is designed to accommodate up to 8 shelves. TwinDISPLAY is particularly worthwhile where processes run unattended overnight or at weekends and where a sensor failure would otherwise jeopardise the entire, often large-volume batch: in such cases, the Memmert UF450plus universal oven is the safer choice. For daytime operation under supervision, the SingleDISPLAY model described here is sufficient. For visual inspection without opening the door, a full-view glass door up to 300 °C is available as an option, as is a lockable door with a security lock and interior lighting. For process monitoring, a 4-20 mA current interface, fan speed monitoring and door-open detection are also available. For pharmaceutical or standard-compliant applications, we arrange calibration, IQ/OQ/PQ services according to DIN 12880 and maintenance contracts.Frequently asked questions before making a purchaseHow many samples can the UF450 hold at one time?Two grid shelves are included as standard; up to 8 shelves are possible, each with a maximum load of 30 kg, for a total load capacity of up to 300 kg.Can the cabinet be moved around in the laboratory?Yes, the UF450 is fitted with castors that allow it to be moved and locked in place, and can be repositioned within the permitted installation conditions despite its net weight of around 161 kg.What type of power connection is required?The UF450 requires 400 V three-phase current at 3 x 230 V without a neutral conductor at 50/60 Hz and has a power consumption of around 5,800 W; a single-phase 230 V connection is not sufficient for a unit of this size.How does the UF450 differ from the UF450plus?Both share the same housing and air turbine; the UF450plus also features two redundant Pt100 sensors, TwinDISPLAY, HeatBALANCE and AutoSAFETY for greater process reliability during unattended operation.Is a natural convection model available in this size?Yes, the Memmert UN450 universal oven offers the same internal volume of 449 litres, but operates without an air turbine and is suitable for samples that are sensitive to dust or air movement.What is the accuracy of the temperature control?0.1 °C up to 99.9 °C and 0.5 °C from 100 °C onwards, measured using a DIN Class A Pt100 sensor with a 4-wire connection.Is the UF450 suitable for continuous overnight operation?The mechanical temperature limiter, of protection class 1 according to DIN 12880, switches the heater off when the temperature exceeds approximately 20 °C and is designed for unattended operation.How do I clean the interior between two batches?The interior is made of easy-to-clean stainless steel and can be cleaned using standard laboratory cleaning products without exposing the 4-sided all-round heating system.Technical detailsSetting temperature range20 to 300 °CWorking temperature rangeat least 10 °C above room temperature up to 300 °CTemperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °CTemperature sensorPt100, DIN Class A, 4-wire measurementInternal volume449 lInternal dimensions (W x H x D)1,040 × 720 × 600 mm (depth minus 39 mm for the fan)External dimensions of the housing (W x H x D)1,224 × 1,247 × 784 mmNet weightapprox. 161 kgConnection400 V and 3 x 230 V without neutral conductor, 50/60 Hz, approx. 5,800 WMaximum number of shelves8Shelves included in the scope of delivery2Max. load on the unit300 kgMaximum load per shelf30 kgInterior materialsStainless steel, 4-sided all-round heatingHousing materialTextured stainless steel, galvanised sheet steel rear panelControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphics displayInstallationmovable and lockable on castorsTimer1 minute to 99 days, digital countdown clockPermissible ambient temperature5 °C to 40 °CPermissible humiditymax. 80 % relative humidity, non-condensingMaximum installation height2,000 mMarkingsCE, EAC, UL test markScope of delivery1x Memmert UF450 universal ovenFactory calibration certificate (calibration at 160 °C)Fully insulated stainless steel doors with a 2-point locking system (compression door lock)2x stainless steel grid shelves, electropolishedRegulatory informationThe Memmert UF450 universal oven is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29740) or without air slots (B29741). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements and procurement serviceThe UF450 is available with, amongst other features, full-view glass doors up to 300 °C, a lockable door with a security lock, interior lighting, reinforced grid shelves and perforated sheets up to 60 kg, as well as a gas-tight version with various pipe feed-throughs. For process monitoring, options include a 4-20 mA current interface, fan speed monitoring, door-open detection, programmable door locking, an additional Pt100 sensor, SMS alerts and a supply air filter. In addition, we arrange base frames with levelling, built-in frames with or without ventilation, as well as calibration, IQ/OQ/PQ services according to DIN 12880 and maintenance contracts. Do you require any of these accessories or assistance in selecting the right universal oven for your application? Through our procurement service, we are happy to assist you with procurement and configuration.
IKA Recirculating Chiller RC 2 lite, Compact Laboratory Chiller, 400 W Cooling Capacity, 0025006624
Anyone who operates a rotary evaporator, a jacketed vessel or a reflux condenser knows the problem of the open tap water circuit: as the outside temperature rises, the cooling effect falls, and water consumption drives up costs and effort. The IKA RC 2 lite recirculating chiller replaces this open circuit with a closed, PID-controlled refrigeration circuit and delivers up to 400 watts of cooling capacity at 20 °C, constant and independent of the season or the water pressure in the laboratory. Cooling capacity from room temperature down to minus 10 °C The cooling capacity of the RC 2 lite falls as expected as the target temperature drops: 400 watts at 20 degrees, 350 watts at 10 degrees, 250 watts at 0 degrees and still 140 watts at minus 10 °C. The working temperature range extends from minus 10 °C to room temperature, and with an external heater the bath can additionally be operated up to 70 °C. Control is handled by a PID controller with a PT1000 sensor and LED display. The temperature stability is ±0.5 kelvin according to DIN 12876, and the display resolution and setting accuracy are each 0.1 kelvin. Refrigerant R290 and classification to DIN 12876 The refrigerant used is R290, a natural, halogen-free hydrocarbon refrigerant, filled with 76 grams at a maximum permissible pressure of 21 bar. According to DIN 12876, the RC 2 lite is classified as Class I with the marking NFL and is therefore intended for operation with non-flammable liquids. R290 (propane) is itself flammable, so, as with all laboratory equipment using a hydrocarbon refrigerant, we recommend a sufficiently ventilated installation location without open ignition sources in the immediate vicinity of the unit. Recirculating chiller, circulating thermostat or heating bath: choosing the right design Within the IKA temperature control family, three designs can be distinguished: pure recirculating chillers such as the RC 2 lite only cool, cooling and heating circulating thermostats such as the HRC 2 series cool and heat in one unit, and heating baths such as the HB digital heat without an active cooling function. The following overview compares the cooling capacity at different target temperatures: ModelDesign20 °C10 °C0 °C-10 °CHeating powerRC 2 lite (this product)Recirculating chiller400 W350 W250 W140 Wnone (external heater up to 70 °C possible)RC 2 basicRecirculating chiller400 W370 W320 W240 WnoneHRC 2 liteCirculating thermostat400 W350 W250 W100 W1,000 WHRC 2 controlCirculating thermostat400 W370 W320 W240 W1,500 W RC 2 lite, RC 2 basic or RC 2 GREEN control: the right specification level The RC 2 lite is the compact entry-level version of the IKA recirculating chiller series for pure cooling tasks down to minus 10 °C, with the natural refrigerant R290. Anyone who prefers pure cooling with the synthetic refrigerant R134a and a cooling capacity of 400 watts will find it in the IKA RC 2 basic. IKA ceased production of the RC 2 basic on 31 July 2026. Anyone looking for a more powerful version will find it in the IKA RC 2 GREEN control, which likewise uses the natural refrigerant R290 and, according to IKA, has roughly double the output of the previous device generation. If the same unit has to heat actively as well as cool, for example for temperature cycles between minus 10 and 100 °C, the IKA HRC 2 lite is suitable. It belongs to the same series as the RC 2 lite, but with an additional 1000-watt heater and an extended working range. Typical applications As an external cooling source with a closed circuit, the RC 2 lite is suitable for the following, among others: Cooling of rotary evaporators, for example the IKA RV 10 digital V-C or the IKA RV 3 V-C, as a replacement for the open tap water circuit Cooling of reflux condensers in syntheses and extractions Cooling source for devices that dissipate heat via a heat exchanger, for example double-walled grinding vessels, cooled incubators, laboratory reactors or cooling coils Connection, installation and ongoing operation The integrated pressure/suction pump reaches a maximum flow rate of 18 litres per minute at a maximum pump pressure of 0.35 bar on the pressure side and 0.15 bar on the suction side, connected via M16x1 threaded connections. The scope of delivery includes two hose nozzles for DN 8 hoses, which allow standard cooling water hoses to be connected directly. The filling volume of the internal bath is between 1 and 3.5 litres. RS232 and USB-B are available for connection to a PC or process control system, for example for logging temperature profiles. With a noise level of 51 dB(A) and a permissible duty cycle of 100 %, the RC 2 lite is designed for continuous operation in everyday laboratory use. The permissible ambient temperature range is 5 to 32 °C at a maximum of 80 % relative humidity. Which cooling capacity for which rotary evaporator The decisive factor in choosing the right cooling capacity is the target temperature of the respective evaporation process: if a cooling bath at around 0 °C is sufficient, the RC 2 lite still has 250 watts of cooling capacity available, and at minus 10 °C it is 140 watts. The lower the required target temperature or the higher the solvent throughput at the rotary evaporator, the more worthwhile it is to consider a more powerful specification level such as the RC 2 GREEN control. The pump capacity also plays a role when connecting external devices: a maximum flow rate of 18 litres per minute at 0 bar back pressure is sufficient for most laboratory reactors and rotary evaporators at a direct installation distance. With longer hose runs or several consumers connected in series, the actual flow rate falls accordingly because of the rising line resistance, so the shortest possible hose routing lets the full pump capacity reach the consumer. Technical details Device typeRecirculating chillerClassification according to DIN 12876Class I, marking NFLWorking temperature range-10 °C to room temperature (with external heater up to 70 °C)Temperature stability (DIN 12876)±0.5 KTemperature sensorPT1000Display resolution / setting accuracy0.1 KCooling capacity at 20 / 10 / 0 / -10 °C400 / 350 / 250 / 140 WRefrigerantR290, 76 g, max. 21 barPump typePressure/suction pumpMax. pump pressure (pressure / suction side)0.35 bar / 0.15 barMax. flow rate (0 bar back pressure)18 l/minPump connectionsM16x1Filling volume1 to 3.5 lPermissible duty cycle100 %Noise level51 dB(A)InterfacesRS232, USB-BDegree of protection according to DIN EN 60529IP 21Permissible ambient temperature5 to 32 °CPermissible relative humiditymax. 80 %Dimensions (W x H x D)225 x 385 x 430 mmWeight24.5 kgVoltage / frequency / connected load230 V, 50/60 Hz, 250 W (other variants 115 V / 100 V available from IKA) Scope of delivery 1 x IKA RC 2 lite recirculating chiller (ident no. 0025006624) 2 x hose nozzle for DN 8 hoses WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory information As an electrical device, the RC 2 lite is subject to the German Electrical and Electronic Equipment Act (ElektroG) and is registered with Stiftung EAR under WEEE registration number DE 66784213. At the end of its service life, the device must not be disposed of with household waste but must be taken to a separate collection point for waste electrical equipment. The refrigerant R290 contained in the refrigeration circuit must be removed professionally by an approved refrigerant recovery company before disposal. Frequently asked questions about the RC 2 lite Can the RC 2 lite also heat?No, the RC 2 lite is a pure recirculating chiller. Heating the bath above room temperature is only possible with an external heater up to a maximum of 70 °C. If an integrated heater is required, the IKA HRC 2 lite is the suitable alternative. Which hoses fit the RC 2 lite?The pump connections are designed as M16x1 threads, and two hose nozzles for DN 8 hoses are included in the scope of delivery. Is R290 as a refrigerant harmless in everyday laboratory use?R290 is a natural but flammable hydrocarbon refrigerant. For operation, we recommend a sufficiently ventilated installation location without open ignition sources in the immediate vicinity, as is usual for all devices with this type of refrigerant. How loud is the RC 2 lite in continuous operation?The noise level is 51 dB(A), and the device is designed for a duty cycle of 100 %. Can the RC 2 lite be integrated into laboratory software?Yes, the existing RS232 and USB-B interfaces allow the device to be connected to a PC or process control system. How does the RC 2 lite differ from the RC 2 GREEN control?Both are pure recirculating chillers with the natural refrigerant R290. The RC 2 GREEN control is the higher-specification, current version with, according to IKA, roughly double the output of the previous device generation, while the RC 2 lite is positioned as a compact entry-level model for applications down to minus 10 °C. Is the pump capacity sufficient for several connected devices?The maximum flow rate of 18 l/min at 0 bar back pressure applies to a direct connection. With longer hose runs or several consumers in series, the flow actually available falls because of the line resistance, so a short hose routing is preferable. Individual requirements & procurement service For suitable connection hoses, additional valves, adapters or connection to existing laboratory reactors and rotary evaporators, our procurement service will support you. If you have questions about certificates and attestations for the RC 2 lite, please get in touch.
Memmert constant climate chamber HPP260eco, 256 litres, Peltier technology without a compressor
As soon as a single stability study develops into an ongoing test programme involving several formulations, a small chamber is often no longer sufficient. With an internal volume of 256 litres and up to 9 shelves, the Memmert HPP260eco constant-climate chamber offers significantly more capacity than the smallest model in the range, without compromising on temperature and humidity control: 0 to 70 °C without humidity, 5 to 70 °C with active humidity control between 10 and 90 % rh, regulated via a Peltier heating and cooling system without a compressor and without conventional refrigerant.Peltier cooling for parallel test runsLike all four sizes in the HPPeco range, the HPP260eco heats and cools via a Peltier element integrated into the rear wall, operating on the heat pump principle. There is no need for a separate refrigeration circuit with conventional refrigerant. Two DIN Class A Pt100 sensors in a 4-wire configuration monitor each other and automatically take over the function of the other sensor in the event of a fault, a relevant safety detail for a chamber that typically runs continuously for several weeks at a time. The temperature setting accuracy is 0.1 °C; when exposed to light, the operating range is restricted to 15 to 40 °C.Humidity control and ControlCOCKPIT TwinDISPLAYRelative humidity can be set between 10 and 90 % rh with an accuracy of 0.5 % rh; a hot steam generator humidifies the chamber, whilst a Peltier-based cold trap dehumidifies it. The water supply is provided by an external canister with a connecting hose and a self-priming pump; a fixed water connection is not required. The HPP260eco is controlled via the ControlCOCKPIT TwinDISPLAY with two TFT colour graphic displays; test runs are managed and documented via the Ethernet interface and the AtmoCONTROL software. The SetpointWait function only starts the test time once both the temperature and humidity have reached the setpoint, which helps ensure the comparability of results when multiple formulations are running in parallel.Selection guide: Choosing the right model size in the HPPeco rangeWith a capacity of 256 litres, the HPP260eco sits between the compact entry-level model and the two larger chambers in the series:Memmert Constant-Climate Chamber HPP110eco108 litres, 560 x 480 x 400 mm, approx. 64 kg, up to 5 shelvesMemmert Constant-Climate Chamber HPP260eco256 litres, 640 x 800 x 500 mm, approx. 94 kg, up to 9 shelvesMemmert Constant-Climate Chamber HPP410eco384 litres, 640 x 1,200 x 500 mm, approx. 134 kg, up to 14 shelvesMemmert Constant-Climate Chamber HPP750eco749 litres, 1,040 x 1,200 x 600 mm, approx. 197 kg, up to 14 shelvesIf 9 shelves are consistently insufficient for the planned test programmes, it is worth considering the Memmert HPP410eco constant-climate chamber with a capacity of 384 litres and 14 shelves. On the other hand, if you only test individual batches occasionally, the more compact Memmert HPP110eco constant climate chamber is often the more cost-effective solution; technically, the four models differ mainly in volume, dimensions, weight and connected load. You can find an overview of the entire Memmert range of climate chambers and incubators in the Climate Chambers & Incubators category.Choosing between the HPPeco and the ICH110?For test programmes that also require temperatures below 0 °C or compressor-based cooling with automatic defrosting, the Memmert ICH110 climate chamber is the suitable alternative, although, at 108 litres, it falls into a smaller volume class than the HPP260eco. The ICH110 covers a range from -10 to +60 °C and uses the CFC-free R290 refrigerant; however, its connected load of around 1,350 W is significantly higher than the HPP260eco’s approximately 420 W. As long as the test range is between 0 and 70 °C, the Peltier technology of the HPP260eco remains the more energy-efficient choice.Installation, water connection and disposalA minimum distance of 15 cm from the wall, a minimum distance of 20 cm from the ceiling and a minimum distance of 5 cm from the side must be maintained; the unit may be installed at altitudes of up to 2,000 m above sea level at ambient temperatures of 16 to 40 °C and a maximum relative humidity of 70 %, non-condensing. The supplied water canister with connecting hose supplies the humidity control system; a fixed water connection in the installation room is not required. For disposal as waste electrical and electronic equipment, Memmert is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Which equipment for which test purposeFor validated, documented test runs, a USB-to-Ethernet adapter is suitable in combination with AtmoCONTROL or myChamber software licences; according to the manufacturer, an FDA-compliant version for 21 CFR Part 11 environments is available on request. Where several test series are running in parallel with different user groups, a lockable door and a USB user ID stick can be added to the TwinDISPLAY. For unattended runs, a potential-free contact for connection to a central control system and a MobileALERT SMS alert system are available as options. For installation, a castor frame with a supply air filter, levelling feet and a levelling or mobile base frame are also available, along with accessories for the water supply.Typical applicationsWith an internal volume of 256 litres and up to 9 shelves, the Memmert HPP260eco constant-climate chamber is suitable for laboratories that test multiple formulations or batches in parallel under controlled ICH conditions.Parallel stability studies of several active ingredient batches in accordance with ICH Q1AStability testing for cosmetic and food formulations during ongoing developmentMaterial testing in industrial quality assurance involving a large volume of samplesEnvironmental testing from freezing point upwards in research and developmentFrequently asked questions about the Memmert HPP260eco constant-climate chamberWhat temperature and humidity range does the HPP260eco cover?Depending on the operating mode, 0 to 70 °C without humidity or 5 to 70 °C with active humidity control between 10 and 90 % rh; when light exposure is applied, the operating range is restricted to 15 to 40 °C.Does the chamber require a fixed water connection?No. Humidity is supplied via the water canister supplied with the unit, which includes a connection hose and a self-priming pump.How many samples can fit into the HPP260eco?Two shelves are included as standard; a total of up to nine shelves, each with a maximum load of 20 kg, can be used, provided the total load does not exceed 200 kg.When does it make sense to switch to the HPP410eco?If you regularly require more than 9 shelves at the same time or a total load exceeding 200 kg, the HPP410eco, with a capacity of 384 litres and up to 14 shelves, offers greater capacity whilst retaining the same control technology.What distinguishes the HPP260eco from the Memmert ICH110 climate chamber?The HPP260eco cools between 0 and 70 °C using a Peltier element without a compressor or refrigerant, whilst the ICH110 operates with a compressor-based refrigeration cycle (R290) and also covers a range down to -10 °C, albeit with an internal volume of only 108 litres.What software is available for documentation and validation?The HPP260eco can be managed and read via Ethernet using the AtmoCONTROL software; for environments subject to 21 CFR Part 11, Memmert also offers, according to the manufacturer, an FDA-compliant licence option.How is calibration carried out?A calibration certificate is supplied as standard (reference values: 25 °C at 60 % rh and 40 °C at 75 % rh); in addition, three freely selectable values each for temperature and humidity can be calibrated by the user. We also arrange DAkkS-accredited calibration and IQ/OQ/PQ services.Technical detailsAdjustable temperature range (without light, without humidity)0 to 70 °CAdjustable temperature range (with humidity)5 to 70 °COperating temperature range with light15 to 40 °CTemperature setting accuracy0.1 °CTemperature sensor2x Pt100, DIN Class A, 4-wire measurementAdjustable humidity range10 to 90 % rhHumidity setting accuracy0.5 % rhInternal volume256 lInternal dimensions (W x H x D)640 x 800 x 500 mm (depth minus 32 mm for the fan)External dimensions of the housing (W x H x D)824 x 1,183 x 655 mmNet weightapprox. 94 kgConnection 230 V50/60 Hz, approx. 420 WConnection 115 V50/60 Hz, approx. 420 WShelves maximum9Shelves in scope of delivery2Max. load capacity200 kgMax. load per shelf20 kgHousing materialTextured stainless steel housing, fully galvanised sheet steel rear panelControlControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2 TFT colour graphic displaysTimer1 minute to 99 days, digital countdown timerPermissible ambient temperature16 to 40 °CPermissible relative humiditymax. 70 % rel., non-condensingMaximum installation altitude2,000 mMarkingsCE, EAC, UL marksScope of delivery1x Memmert Constant-Climate Chamber HPP260ecoStandard factory calibration certificate (25 °C / 60 % rh, 40 °C / 75 % rh)Fully insulated stainless steel door with 2-point locking (compression door lock)Inner glass doorMoisture-tight silicone feed-through (internal diameter 18 mm) with silicone plug2x stainless steel grid shelf, electropolishedWater canister including connection hoseRegulatory informationThe Memmert HPP260eco constant-climate chamber is registered with the Stiftung Elektro-Altgeräte Register (Stiftung EAR) under WEEE registration number DE 66812464.Installation in a wall openingFor fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29738) or without air slots (B29739). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.Individual requirements & procurement serviceFor the HPP260eco, the following are available, amongst other things: a castor frame with supply air filter, levelling feet, a levelling or mobile base frame, and additional accessories relating to the water supply. For data acquisition, a USB-Ethernet adapter and AtmoCONTROL and myChamber software licences are available; according to the manufacturer, FDA-compliant licences are also available. In addition, we arrange calibration, IQ/OQ/PQ and maintenance services, some of which are DAkkS-accredited. Do you require any of these accessories, a special configuration or assistance in selecting the appropriate size for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.
Binder FD 260 drying and heating oven with forced air circulation, 230 V, 9010-0309
The Binder FD 260 from the FD Avantgarde.Line series is a drying and heating oven with forced air circulation designed for applications requiring particularly rapid drying and sterilisation. A powerful fan ensures uniform temperature distribution throughout the entire chamber, whilst Binder’s APT.line technology ensures high spatial and temporal temperature accuracy. With a chamber volume of 259 litres and a temperature range from 10 °C above room temperature up to 300 °C, the FD 260 covers a wide range of applications. The unit is designed for energy efficiency: according to the manufacturer, the FD 260 is up to 30 % more energy-efficient than standard units on the market. It is operated via a controller with an LCD display, and a USB port enables data logging. A Class 2 adjustable temperature limiter according to DIN 12880, featuring a visual alarm, is already integrated. Precise temperature control and fast heating times At 150 °C, the FD 260 achieves a spatial temperature deviation of ± 1.9 K and a temporal deviation of ± 0.4 K. The heating time to 150 °C is approximately 19 minutes; once the door is opened, the setpoint temperature is reached again after about 5 minutes. At 100 °C, the air exchange rate is 9 air changes per hour, which is important for uniform and rapid drying. The integrated Class 2 adjustable temperature limiter according to DIN 12880, featuring a visual alarm, offers additional process reliability, for example during unattended drying or sterilisation cycles. With a maximum load of 40 kg per shelf or 270 kg total load, the FD 260 is also designed for heavier samples and material batches. Typical applications A drying and heating oven such as the FD 260 is typically used for drying laboratory glassware and sample material, for the heat treatment of material samples, and for sterilisation processes in quality assurance, research and industrial manufacturing. The homogeneous temperature distribution and the rapid thermal dynamics of the forced air circulation system also make the unit suitable for time-critical testing and drying processes where reproducible, consistent results are essential. Operation, features and noise levels in everyday laboratory use The FD 260 is controlled via a controller with an LCD display and features a programme memory that allows recurring drying and sterilisation cycles to be stored. The exhaust air flap is controlled electromechanically, enabling the air exchange rate to be adjusted to suit the specific process. The scope of delivery includes two chrome-plated grid shelves; if required, the interior can be expanded to accommodate up to eight shelves. The ergonomic handle design facilitates operation in day-to-day laboratory work, and with a sound pressure level of just 43 dB(A), the unit operates pleasantly quietly even during continuous use. In terms of energy consumption, the FD 260 uses 245 Wh/h when operating at 100 °C and 410 Wh/h at 150 °C. Combined with an energy efficiency that, according to the manufacturer, is up to 30 % greater compared to standard market models, this is particularly noticeable during frequent or continuous use in laboratory settings, such as during batch testing or in multi-shift operation. Technical details Temperature range10 °C above room temperature to 300 °CInternal volume259 lSpatial temperature deviation (at 150 °C)± 1.9 KTemporal temperature deviation (at 150 °C)± 0.4 KHeating time to 150 °C19 minRecovery time after door opening (at 150 °C)5 minAir change rate (at 100 °C)9 times/hEnergy consumption at 100 °C245 Wh/hEnergy consumption at 150 °C410 Wh/hSound pressure level43 dB(A)Rated voltage230 VMains frequency50/60 HzRated power2.3 kWUnit fuse12.5 APhase1~External dimensions (W x H x D)810 x 940 x 825 mmInternal dimensions (W x H x D)650 x 780 x 515 mmUnit weight (net, empty)85 kgMax. load per shelf40 kgMax. total load270 kgNumber of shelves (standard/max.)2 / 8Distance from wall (rear / side)160 mm / 100 mmAdjustable temperature limiterClass 2 according to DIN 12880, with visual alarm Scope of delivery 1x Binder FD 260 drying and heating oven, 230 V (9010-0309) 2x chrome-plated grid shelves Operating instructions Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, BINDER GmbH, is DE 37004983. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service A wide range of accessories is available for the FD 260, e.g. a viewing window with internal lighting, HEPA air filters, additional grid shelves, an Ethernet interface for network connection, APT-COM management software, as well as calibration certificates and maintenance contracts of varying scopes. Do you require any of these accessories, a bespoke configuration, or assistance in selecting the right unit for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.
