Thermostats & Water Baths
Thermostats and water baths control the temperature of samples, reaction vessels and external applications with precision and reproducibility. LT Laborhandel offers LAUDA immersion and circulating thermostats as well as water baths, IKA compact immersion thermostats and circulating coolers using the natural refrigerant R290, plus JULABO shaking water baths for dynamic temperature control. You can find further temperature control units in the Temperature Control category. Not sure which temperature control bath is right for your application? We’re here to offer expert advice.
IKA Recirculating Chiller RC 2 lite, Compact Laboratory Chiller, 400 W Cooling Capacity, 0025006624
Anyone who operates a rotary evaporator, a jacketed vessel or a reflux condenser knows the problem of the open tap water circuit: as the outside temperature rises, the cooling effect falls, and water consumption drives up costs and effort. The IKA RC 2 lite recirculating chiller replaces this open circuit with a closed, PID-controlled refrigeration circuit and delivers up to 400 watts of cooling capacity at 20 °C, constant and independent of the season or the water pressure in the laboratory. Cooling capacity from room temperature down to minus 10 °C The cooling capacity of the RC 2 lite falls as expected as the target temperature drops: 400 watts at 20 degrees, 350 watts at 10 degrees, 250 watts at 0 degrees and still 140 watts at minus 10 °C. The working temperature range extends from minus 10 °C to room temperature, and with an external heater the bath can additionally be operated up to 70 °C. Control is handled by a PID controller with a PT1000 sensor and LED display. The temperature stability is ±0.5 kelvin according to DIN 12876, and the display resolution and setting accuracy are each 0.1 kelvin. Refrigerant R290 and classification to DIN 12876 The refrigerant used is R290, a natural, halogen-free hydrocarbon refrigerant, filled with 76 grams at a maximum permissible pressure of 21 bar. According to DIN 12876, the RC 2 lite is classified as Class I with the marking NFL and is therefore intended for operation with non-flammable liquids. R290 (propane) is itself flammable, so, as with all laboratory equipment using a hydrocarbon refrigerant, we recommend a sufficiently ventilated installation location without open ignition sources in the immediate vicinity of the unit. Recirculating chiller, circulating thermostat or heating bath: choosing the right design Within the IKA temperature control family, three designs can be distinguished: pure recirculating chillers such as the RC 2 lite only cool, cooling and heating circulating thermostats such as the HRC 2 series cool and heat in one unit, and heating baths such as the HB digital heat without an active cooling function. The following overview compares the cooling capacity at different target temperatures: ModelDesign20 °C10 °C0 °C-10 °CHeating powerRC 2 lite (this product)Recirculating chiller400 W350 W250 W140 Wnone (external heater up to 70 °C possible)RC 2 basicRecirculating chiller400 W370 W320 W240 WnoneHRC 2 liteCirculating thermostat400 W350 W250 W100 W1,000 WHRC 2 controlCirculating thermostat400 W370 W320 W240 W1,500 W RC 2 lite, RC 2 basic or RC 2 GREEN control: the right specification level The RC 2 lite is the compact entry-level version of the IKA recirculating chiller series for pure cooling tasks down to minus 10 °C, with the natural refrigerant R290. Anyone who prefers pure cooling with the synthetic refrigerant R134a and a cooling capacity of 400 watts will find it in the IKA RC 2 basic. IKA ceased production of the RC 2 basic on 31 July 2026. Anyone looking for a more powerful version will find it in the IKA RC 2 GREEN control, which likewise uses the natural refrigerant R290 and, according to IKA, has roughly double the output of the previous device generation. If the same unit has to heat actively as well as cool, for example for temperature cycles between minus 10 and 100 °C, the IKA HRC 2 lite is suitable. It belongs to the same series as the RC 2 lite, but with an additional 1000-watt heater and an extended working range. Typical applications As an external cooling source with a closed circuit, the RC 2 lite is suitable for the following, among others: Cooling of rotary evaporators, for example the IKA RV 10 digital V-C or the IKA RV 3 V-C, as a replacement for the open tap water circuit Cooling of reflux condensers in syntheses and extractions Cooling source for devices that dissipate heat via a heat exchanger, for example double-walled grinding vessels, cooled incubators, laboratory reactors or cooling coils Connection, installation and ongoing operation The integrated pressure/suction pump reaches a maximum flow rate of 18 litres per minute at a maximum pump pressure of 0.35 bar on the pressure side and 0.15 bar on the suction side, connected via M16x1 threaded connections. The scope of delivery includes two hose nozzles for DN 8 hoses, which allow standard cooling water hoses to be connected directly. The filling volume of the internal bath is between 1 and 3.5 litres. RS232 and USB-B are available for connection to a PC or process control system, for example for logging temperature profiles. With a noise level of 51 dB(A) and a permissible duty cycle of 100 %, the RC 2 lite is designed for continuous operation in everyday laboratory use. The permissible ambient temperature range is 5 to 32 °C at a maximum of 80 % relative humidity. Which cooling capacity for which rotary evaporator The decisive factor in choosing the right cooling capacity is the target temperature of the respective evaporation process: if a cooling bath at around 0 °C is sufficient, the RC 2 lite still has 250 watts of cooling capacity available, and at minus 10 °C it is 140 watts. The lower the required target temperature or the higher the solvent throughput at the rotary evaporator, the more worthwhile it is to consider a more powerful specification level such as the RC 2 GREEN control. The pump capacity also plays a role when connecting external devices: a maximum flow rate of 18 litres per minute at 0 bar back pressure is sufficient for most laboratory reactors and rotary evaporators at a direct installation distance. With longer hose runs or several consumers connected in series, the actual flow rate falls accordingly because of the rising line resistance, so the shortest possible hose routing lets the full pump capacity reach the consumer. Technical details Device typeRecirculating chillerClassification according to DIN 12876Class I, marking NFLWorking temperature range-10 °C to room temperature (with external heater up to 70 °C)Temperature stability (DIN 12876)±0.5 KTemperature sensorPT1000Display resolution / setting accuracy0.1 KCooling capacity at 20 / 10 / 0 / -10 °C400 / 350 / 250 / 140 WRefrigerantR290, 76 g, max. 21 barPump typePressure/suction pumpMax. pump pressure (pressure / suction side)0.35 bar / 0.15 barMax. flow rate (0 bar back pressure)18 l/minPump connectionsM16x1Filling volume1 to 3.5 lPermissible duty cycle100 %Noise level51 dB(A)InterfacesRS232, USB-BDegree of protection according to DIN EN 60529IP 21Permissible ambient temperature5 to 32 °CPermissible relative humiditymax. 80 %Dimensions (W x H x D)225 x 385 x 430 mmWeight24.5 kgVoltage / frequency / connected load230 V, 50/60 Hz, 250 W (other variants 115 V / 100 V available from IKA) Scope of delivery 1 x IKA RC 2 lite recirculating chiller (ident no. 0025006624) 2 x hose nozzle for DN 8 hoses WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory information As an electrical device, the RC 2 lite is subject to the German Electrical and Electronic Equipment Act (ElektroG) and is registered with Stiftung EAR under WEEE registration number DE 66784213. At the end of its service life, the device must not be disposed of with household waste but must be taken to a separate collection point for waste electrical equipment. The refrigerant R290 contained in the refrigeration circuit must be removed professionally by an approved refrigerant recovery company before disposal. Frequently asked questions about the RC 2 lite Can the RC 2 lite also heat?No, the RC 2 lite is a pure recirculating chiller. Heating the bath above room temperature is only possible with an external heater up to a maximum of 70 °C. If an integrated heater is required, the IKA HRC 2 lite is the suitable alternative. Which hoses fit the RC 2 lite?The pump connections are designed as M16x1 threads, and two hose nozzles for DN 8 hoses are included in the scope of delivery. Is R290 as a refrigerant harmless in everyday laboratory use?R290 is a natural but flammable hydrocarbon refrigerant. For operation, we recommend a sufficiently ventilated installation location without open ignition sources in the immediate vicinity, as is usual for all devices with this type of refrigerant. How loud is the RC 2 lite in continuous operation?The noise level is 51 dB(A), and the device is designed for a duty cycle of 100 %. Can the RC 2 lite be integrated into laboratory software?Yes, the existing RS232 and USB-B interfaces allow the device to be connected to a PC or process control system. How does the RC 2 lite differ from the RC 2 GREEN control?Both are pure recirculating chillers with the natural refrigerant R290. The RC 2 GREEN control is the higher-specification, current version with, according to IKA, roughly double the output of the previous device generation, while the RC 2 lite is positioned as a compact entry-level model for applications down to minus 10 °C. Is the pump capacity sufficient for several connected devices?The maximum flow rate of 18 l/min at 0 bar back pressure applies to a direct connection. With longer hose runs or several consumers in series, the flow actually available falls because of the line resistance, so a short hose routing is preferable. Individual requirements & procurement service For suitable connection hoses, additional valves, adapters or connection to existing laboratory reactors and rotary evaporators, our procurement service will support you. If you have questions about certificates and attestations for the RC 2 lite, please get in touch.

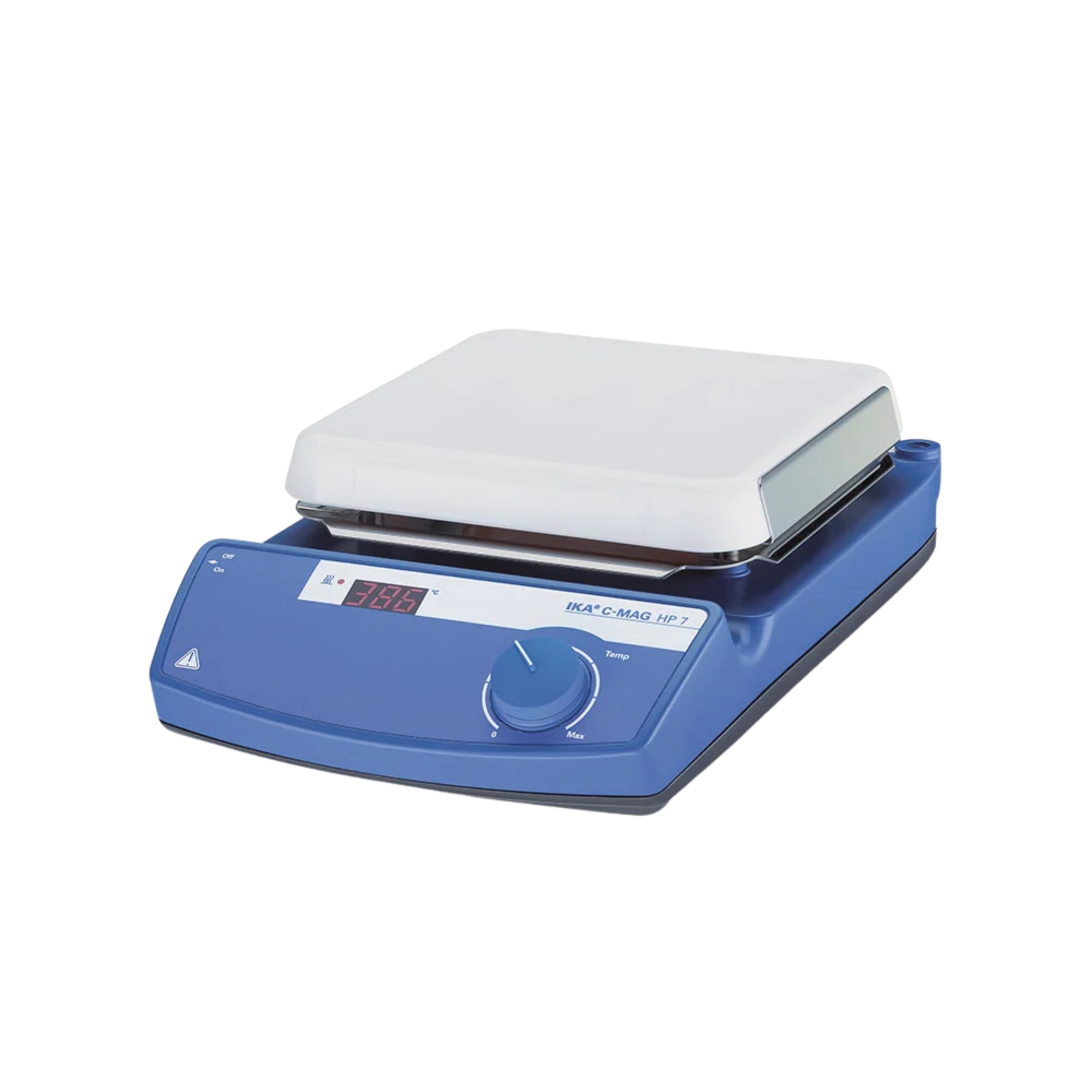

IKA C-MAG HP 7 Hotplate, Ceramic Surface 180 x 180 mm, Without Stirring Function, 0003581800
Not every workstation needs a stirrer as well, for example when stirring is done externally and a water bath is only to be temperature-controlled or a vessel is only to be heated. The IKA C-MAG HP 7 (0003581800) is a hotplate without magnetic stirring function, with 1000 watts of heating power, a ceramic surface measuring 180 x 180 millimetres and a heating temperature range of 50 to 500 °C. It is technically derived from the proven C-MAG HS series, but without the stirring drive. 1000 watts of heating power without stirring function The ceramic plate transfers the heating power directly to the vessel placed on it and covers a temperature range of 50 to 500 °C, set with a rotary knob with an accuracy of 5 Kelvin. According to the data sheet, the heating rate is 5 Kelvin per minute, a guide value for estimating how quickly a given volume of water reaches the set temperature. As no stirring drive is fitted, the otherwise usual speed scale is omitted and operation is limited to setting the temperature. According to the manufacturer, a volume of up to 10 litres of water can be heated with it. Can be extended with external temperature measurement in the medium Via the connection socket according to DIN 12878, an ETS-D5 contact thermometer can be retrofitted to measure the temperature directly in the medium instead of only at the plate surface, which is practical for oil baths, for example, or when an externally driven stirrer is already part of the setup. The sensor itself is not included in the scope of delivery. Compact design for integration into existing setups With dimensions of 220 x 105 x 330 millimetres and a weight of 4.4 kilograms, the HP 7 can be integrated into existing experimental setups without taking up much space, for example underneath a stand with a separate stirrer or as a plain heat source for an oil bath, without having to allow extra space for a stirring unit. The degree of protection IP 21 protects against vertically falling water drops. Easy integration into existing setups Because the electronics of the HP 7 are designed exclusively for the heating function, operation is reduced to a single rotary knob for the set temperature, with no scale or control for a speed that does not exist anyway. This makes the unit an uncomplicated addition to setups in which a separate stirrer, for example an overhead stirrer with its own stand, is already available and only a reliable heat source underneath is missing. Typical applications As a hotplate without stirring function, the C-MAG HP 7 is technically suited for: Heating vessels and oil baths without a simultaneous need for stirring Combination with separately driven stirrers, for example overhead stirrers Temperature control of reaction blocks or carrier plates from the IKA accessories range Simple heat source in teaching and training laboratories Replacement purchase for workstations where a separate stirrer is already available Selection guide: hotplate only or heating magnetic stirrer Within the C-MAG family, IKA basically distinguishes between HS models with stirring and heating and HP models with heating function only: ModelStirringVolume (H2O)Heating powerPlate sizeC-MAG HP 7 (this unit)no10 l1,000 W180 x 180 mmC-MAG HP 4no5 l250 W100 x 100 mmC-MAG HS 7yes, 100 to 1,500 rpm10 l1,000 W180 x 180 mmC-MAG HS 10yes, 100 to 1,500 rpm15 l1,500 W260 x 260 mm If stirring is done anyway or a stirrer is not needed at all, the hotplate only saves purchase costs compared with an HS model with the same heating rating. As soon as stirring and heating are required together in one unit, one of the HS models is the more suitable choice. Differences from the heating magnetic stirrers and the smaller HP 4 The IKA C-MAG HP 4 covers smaller volumes of up to 5 litres with a smaller plate area and 250 watts of heating power and does not have a connection for an external contact thermometer. If stirring is required in addition to heating, the IKA C-MAG HS 7 and the IKA C-MAG HS 10 offer the same heating technology with an integrated stirring drive. For larger heating surfaces of up to 260 x 260 millimetres, IKA also offers the C-MAG HP 10 as a hotplate only, and for smaller batches the C-MAG HS 4 is available as a more compact alternative with stirring function. Technical details Number of heating positions1Heating power1,000 WHeating temperature range50 to 500 °C, rotary knob, setting accuracy 5 KConnection for external temperature sensorETS-D5 (DIN 12878)Volume max.10 lHeating rate5 K/minSurface materialCeramicSurface dimensions180 x 180 mmPermissible relative humidity80 %Dimensions (W x H x D)220 x 105 x 330 mmWeight4.4 kgDegree of protectionIP 21 (DIN EN 60529)Mains connection230 V, 50/60 Hz, 1,005 W (other voltage variants 120 V / 100 V available) Scope of delivery 1 x IKA C-MAG HP 7 Hotplate (0003581800) Magnetic stir bars are not included, as the C-MAG HP 7 has no stirring function. An external temperature sensor such as the ETS-D5 is likewise not included in the scope of delivery. Use, installation, maintenance and disposal With degree of protection IP 21, the C-MAG HP 7 is protected against vertically falling water drops and is designed for operation in a fume hood or on a stable, level laboratory bench at up to 80 % relative humidity. As no stirrer is fitted, the plate is particularly suitable for installation underneath separate stirring drives or stands. Sufficient clearance for cables and accessories should be ensured here. The ceramic surface should be allowed to cool before cleaning. At the end of its service life, the hotplate, as an electrical appliance, does not belong in household waste but in separate collection of waste electrical equipment; the manufacturer's WEEE registration number is DE 66784213. Cost logic: when it pays to do without a stirring function If a separate stirrer, for example an overhead stirrer, is already in use, or if no stirring is needed for the application at all, the hotplate only saves noticeable purchase costs compared with an HS model with identical heating power, without compromising on the actual heating function. This applies in particular when several workstations with different stirrers are to use the same heating power, for example in practical course rooms with permanently mounted stands. For standard workstations where stirring and heating are typically needed together, an HS model is usually the more economical overall solution, because it makes an additional stirrer unnecessary. WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Individual requirements & procurement service For the C-MAG HP 7, suitable original accessories are available on request, such as the ETS-D5 contact thermometer, stand material, carrier plates, oil bath attachments and reaction blocks of different volumes. Through our procurement service we also support you with spare parts, calibrations and the assembly of several workstations with uniform accessories. For further information and contact options, see our procurement service. Frequently asked questions Can the C-MAG HP 7 also stir?No, the HP 7 is a hotplate without magnetic stirring drive. The HS models of the C-MAG series are available for this. Is an external temperature sensor included in the scope of delivery?No, the connection socket according to DIN 12878 is present, but an ETS-D5 contact thermometer has to be purchased separately. How does the HP 7 differ from the smaller HP 4?With 1000 instead of 250 watts, the HP 7 offers a considerably higher heating power, a larger plate of 180 x 180 millimetres and, in addition, a connection for an external contact thermometer, which the HP 4 does not have. What is the maximum volume that can be heated?According to the manufacturer, up to 10 litres of water. Is the HP 7 suitable for an oil bath?The hotplate itself is designed for direct heat transfer to vessels placed on it. For oil bath applications, IKA offers suitable oil bath attachments in its accessories range, which can be placed on the 180 x 180 millimetre plate. Does accessory equipment from the HS series also fit the HP 7?Carrier plates, reaction blocks and oil bath attachments from the IKA accessories range are designed for the 180 x 180 millimetre surface of the HP 7 and are generally also compatible with other C-MAG models of the same plate size, for example the C-MAG HS 7. How is the C-MAG HP 7 disposed of properly?As an electrical appliance, it belongs at a collection point for waste electrical equipment rather than in household waste. The manufacturer's WEEE registration number is given in the section Use, installation, maintenance and disposal.

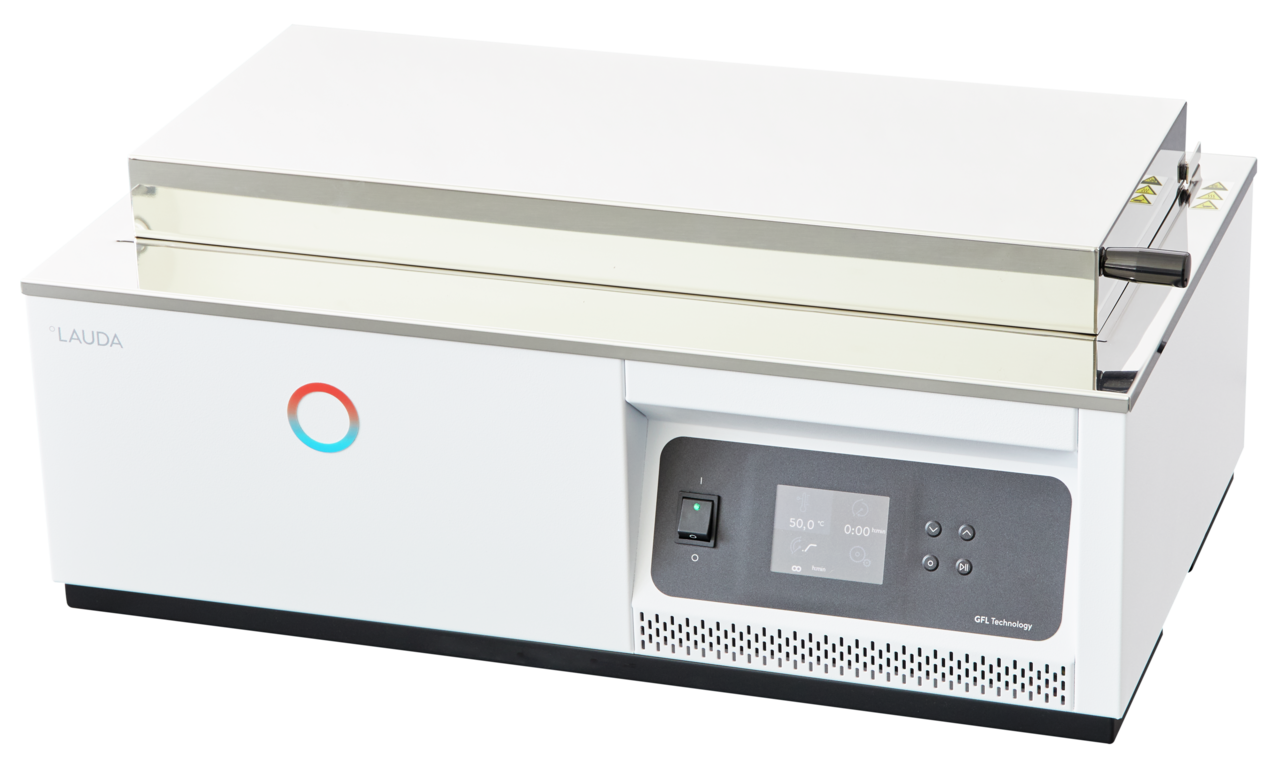

LAUDA Hydro H 24 Water Bath, 25 to 100 °C, up to 20.9 L, Bath Dimensions 600 x 245 mm, L002904
If a large number of vessels need to be heated to the same temperature at the same time, it is primarily the width of the bath opening that determines how many of them can fit in at once. Measuring 600 x 245 millimetres, the LAUDA Hydro H 24 has the widest bath opening in the Hydro series, with a bath depth of 165 millimetres, the same as the Hydro H 8 and H 16. The bath volume ranges from 11.3 to 20.9 l, and the temperature is controlled within the usual working temperature range of 25 to 100 °C with a temperature stability of ± 0.1 K.Space for many vessels in a rowThe 600-millimetre-wide surface allows significantly more vessels to be placed side by side than with the smaller models in the series, for example, a row of beakers, narrow-necked flasks or sample containers. With a bath depth of 165 millimetres, the Hydro H 24 is particularly suitable for vessels that do not need to be fully submerged. The maximum heating output is 1.5 kilowatts.Uniform temperature across the entire surfaceTemperature control is handled by a 1-point controller, operated via a TFT colour display showing readings in °C or °F. Setpoints are entered in increments of 0.1 °C via a membrane keypad, whilst a timer set in hours and minutes covers three application-specific time functions. In the event of low water level, over- or under-temperature, or in the event of a sensor failure or short circuit, the unit triggers a visual and audible alarm; the trigger points can be adjusted up to ± 10 K. The controller’s electronic function monitoring runs continuously.Robust construction for continuous operationThe bath body, cover frame, sieve base and heating element are made of stainless steel; a drain tap on the bath vessel simplifies water changes given the large surface area. The double-walled, internally domed lid insulates the heat along its entire length and channels condensation away along the dome. The lid and sieve base are included as standard in the scope of delivery.Handling in everyday laboratory useGiven the wide surface area, it is advisable to establish a fixed arrangement for the vessels so that the same volume of water always circulates around each vessel and the temperature remains consistent across the entire row. The drain tap is located at the narrow end of the bath and remains easily accessible even when the bath is fully loaded. Weighing around 18 kilograms, the Hydro H 24 is best placed in a fixed, stable location rather than being moved frequently.Typical applicationsSimultaneous temperature control of multiple vessels in series experimentsSerial testing with a consistent temperature across the entire bath widthQuality assurance with high sample throughputApplications in research and development laboratories with a high demand for vesselsSelection guide: width or depth requiredIf only a few vessels are required, the more compact Hydro H 8, with a bath opening of just 245 x 200 millimetres, is sufficient. For a moderate number of vessels with the same bath depth of 165 millimetres, the narrower Hydro H 16 with a 400 x 245 millimetre opening is suitable. If vessels need to be fully submerged rather than placed side by side, the Hydro H 22, with a bath depth of 225 millimetres instead of 165 millimetres, is better suited to these requirements, whilst offering the same opening width as the Hydro H 16. The largest model in the range, the Hydro H 41, combines greater depth with a bath volume of up to 37.9 l, making it equally suitable for large batches and tall vessels.Technical detailsWorking temperature range25 to 100 °CAmbient temperature range10 to 40 °CTemperature stability± 0.1 KMax. heating output1.5 kWBath dimensions (W x D x H)600 x 245 x 165 mmBath volume min. / max.11.3 / 20.9 LOverall dimensions (W x D x H)700 x 440 x 275 mmWeight (net)18 kgMains supply230 V, 50/60 HzMains plugMains cable with angled Schuko plug (CEE7/7)Scope of deliveryLAUDA Hydro H 24 water bath with drive and control unit, order number L002904Stainless steel lid, double-walled with an inner curveStainless steel sieve baseMains cable with angled Schuko plug (CEE7/7)Regulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA DR. R. WOBSER GMBH & CO. KG, Lauda-Königshofen, offers end customers a 5-year ‘Best’ warranty on this appliance from the date of delivery. This is subject to registration at lauda.de within three months of delivery. The warranty covers defects in materials and workmanship. Exclusions include, amongst other things, wear parts such as filters and seals, damage caused during transport, damage resulting from unauthorised tampering, as well as cables, plugs, hoses and adapters. LAUDA’s warranty terms and conditions (as at 03/2025) apply. Your statutory warranty rights remain unaffected.For the Hydro H 24, our procurement service can put together suitable accessories on request, such as holders for vessels or spare parts for lids and sieve bases. We are happy to answer any questions regarding the correct bath size or accessory requirements directly.

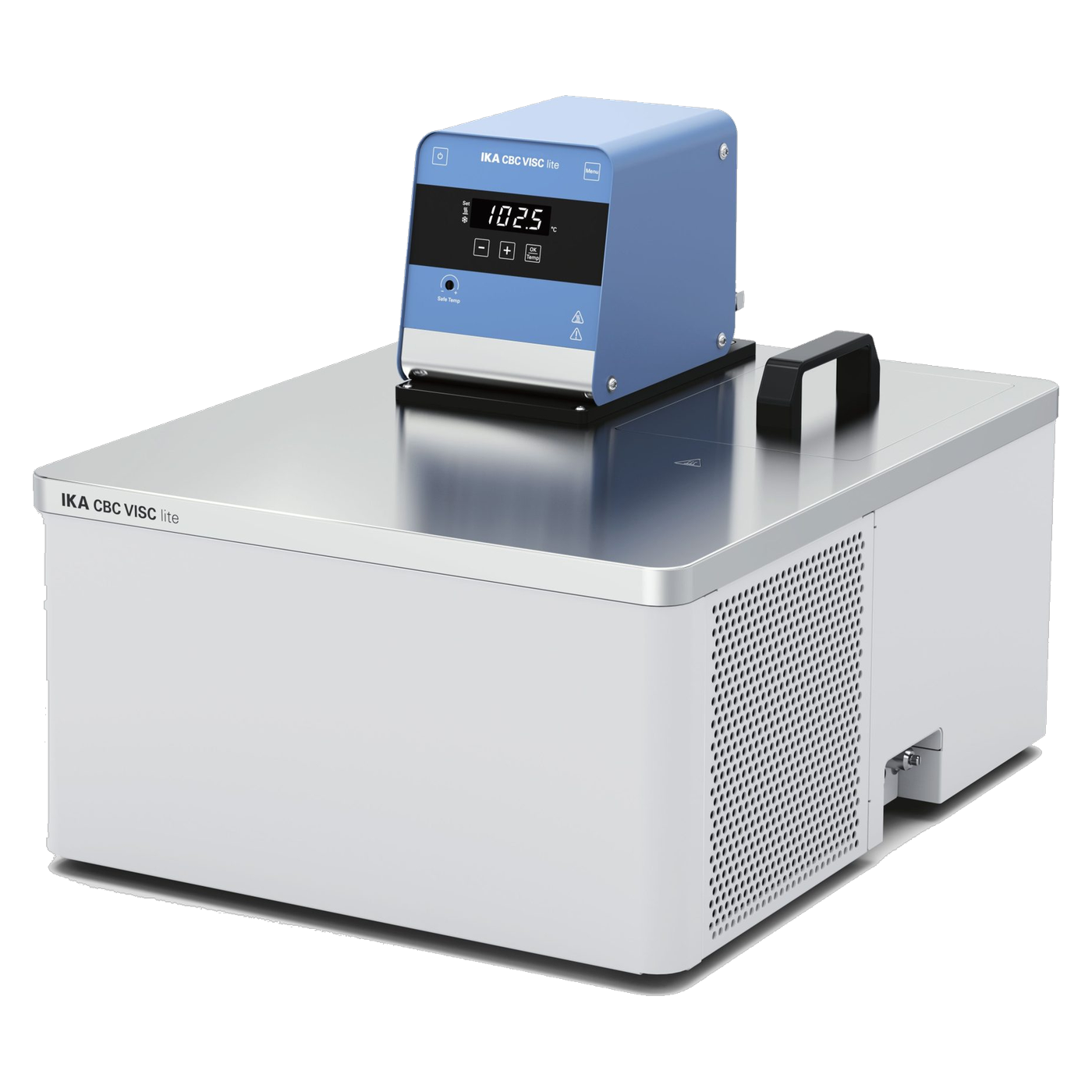

IKA CBC VISC lite Refrigerated and Heating Bath Circulator, -25 to 125 °C, for ROTAVISC Viscometers, 0020102007
Rotational viscometers only deliver reliable measured values if the sample stays precisely temperature-controlled during the measurement. The IKA CBC VISC lite (0020102007) is a refrigerated and heating bath circulator designed specifically for combination with IKA ROTAVISC rotational viscometers, with a working temperature range of -25 °C to 125 °C and space for two standard beakers in the open bath. While one sample is being measured in the bath, a second one can already be pre-conditioned, which saves waiting time in measurement series with several samples. Temperature range and control accuracy for viscosity measurement The heating power of 2,000 watts and a cooling capacity of 450 watts at 20 °C to 120 watts at -20 °C cover the working temperature range of -25 °C to 125 °C. The temperature stability according to DIN 12876 is ±0.05 kelvin both at 70 °C and at -10 °C, controlled by a PID controller with PT1000 working and safety probes. This stability is important in viscosity determination, because the viscosity of many media depends strongly on temperature and even small temperature fluctuations can falsify the measured values. Natural refrigerant and optimised water flow The natural R290 is used as refrigerant, with a fill quantity of 48 grams, designed for a maximum pressure of 21 bar. Optimised water flow management in the insulated bath ensures fast and precise temperature control. The noise level is 53 dB(A), and an air filter that is easy to remove and clean keeps the cooling performance constant over time. External pump connection for standard vessels to DIN Via the external pump connection, the CBC VISC lite can also be used to heat standard vessels to DIN for absolute viscosity determination with ELVAS spindles or for double-walled beakers. The pressure/suction pump reaches a maximum delivery pressure of 0.35 bar, a suction pressure of 0.15 bar and a flow rate of up to 18 litres per minute via the M16x1 connection. The fill volume of the bath is 5.5 to 8.5 litres, the bath opening measures 150 x 218 millimetres and the total height of the bath is 234 millimetres. The CBC VISC lite can thus be used flexibly both for direct measurement in the open bath and for temperature control of an external, closed test vessel, depending on which specific measurement method the respective viscosity determination requires in each case. Compact design for the workstation at the viscometer With external dimensions of 414 x 392 x 505 millimetres and a weight of 29 kilograms, the CBC VISC lite is designed for installation directly next to a ROTAVISC viscometer. The IP 21 rating and the permissible ambient temperature range of 5 to 32 °C at up to 80 % relative humidity cover the usual laboratory conditions. The device can be connected to a PC via the USB and RS 232 interfaces. Safety classification and insulation of the bath To DIN 12876, the CBC VISC lite is classified in safety class III with the marking FL, and the adjustable safety circuit ranges from 0 to 135 °C. The insulated bath reduces heat loss to the outside and, together with the optimised water flow management, helps set temperatures to remain stable even over longer measurement series and ambient temperature in the laboratory to affect the measurement less. For measurement series with frequently changing temperature steps, this combination of fast control and stable insulation is a practical advantage over open, uninsulated water baths. Typical applications As a bath circulator tailored specifically to viscosity measurement, the CBC VISC lite is used above all where temperature stability and sample throughput have to work together: Temperature control of samples for rotational viscometers of the ROTAVISC series directly in the open bath Parallel pre-conditioning of a second sample while the first is already being measured Absolute viscosity determination with ELVAS spindles in standard vessels to DIN via the external pump connection Temperature-dependent viscosity series over a wide range from -25 °C to 125 °C Quality control and research in the coatings, paint and food industries, where viscosity is recorded as a test parameter Technical details Device typeRefrigerated and heating bath circulatorClass according to DIN 12876III (FL)RefrigerantR290, 48 g, max. 21 barHeating power2,000 WCooling capacity at 20 °C / 10 °C / 0 °C / -10 °C / -20 °C450 W / 420 W / 380 W / 250 W / 120 WWorking temperature range-25 °C to 125 °CTemperature stability according to DIN 12876 (at 70 °C and -10 °C)±0.05 KTemperature controlPID controller, PT1000 working and safety probesDisplayLEDAdjustable safety circuit0 to 135 °CBath fill volume5.5 to 8.5 lBath opening (W x D) / total bath height150 x 218 mm / 234 mmPump typePressure/suction pumpMax. pump pressure / max. suction pressure0.35 bar / 0.15 barMax. flow rate18 l/minPump connectionM16x1Noise level53 dB(A)Dimensions (W x H x D)414 x 392 x 505 mmWeight29 kgIP rating according to DIN EN 60529IP 21Permissible ambient temperature / rel. humidity5 to 32 °C / 80 %InterfacesUSB, RS 232Power supply230 V, 50/60 HzPower consumption2,320 W Scope of delivery 1 x IKA CBC VISC lite Refrigerated and Heating Bath Circulator WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement service To connect the CBC VISC lite to ROTAVISC viscometers or to external standard vessels, we support you through our procurement service in selecting suitable ELVAS spindles, hose sets and heat transfer fluids. We are also at your side with spare parts. Further information and contact options can be found at our procurement service.

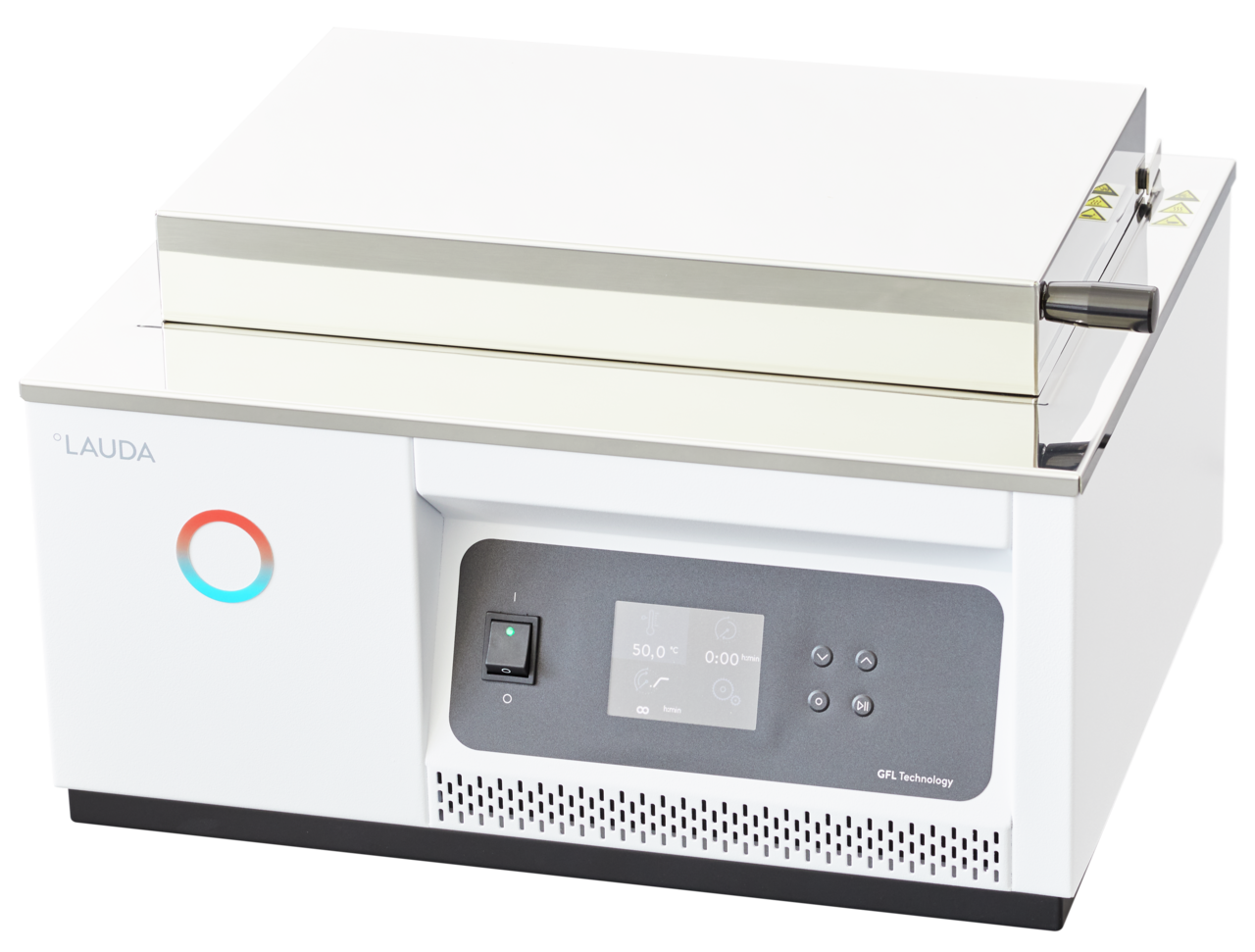

LAUDA Hydro H 16 Water Bath, 25 to 100 °C, up to 13.9 L, Bath Dimensions 400 x 245 mm, L002902
If several Erlenmeyer flasks or a row of beakers are to be temperature-controlled at the same time, the size of the bath opening becomes the decisive factor. Measuring 400 x 245 millimetres, the LAUDA Hydro H 16 has a significantly wider opening than the smaller models in the series, whilst maintaining the same bath depth of 165 millimetres. The bath volume ranges from 7.5 to 13.9 l; as with all Hydro water baths, the working temperature range is from 25 to 100 °C with a temperature stability of ± 0.1 K.Wide bath opening for multiple vesselsThe 400 x 245 millimetre bath opening accommodates several narrow vessels side by side without them touching one another. With a depth of 165 millimetres, the bath is particularly suitable for shallower vessel shapes such as beakers, smaller Erlenmeyer flasks or sample bottles, which do not need to be fully submerged. The maximum heating output is 1.5 kilowatts, which is higher than that of the smaller Hydro H 8.Timer, alarms and digital setpoint adjustmentOperation is via a TFT colour display showing temperatures in °C or °F and a membrane keypad with clear symbols. Temperature values can be set in increments of 0.1 °C; a 1-point temperature controller then takes over regulation. The timer supports three application-specific time functions in hours and minutes. In the event of a water shortage, over- or under-temperature, or a sensor break or short circuit, the unit triggers a visual and audible alarm; the trigger points are adjustable up to ± 10 K.Robust construction in stainless steelThe bath body, cover frame, sieve base and heating element are made of stainless steel; the bath vessel has a drain tap for draining the water. The double-walled lid is domed on the inside and provides thermal insulation; as a result, condensation drips down the dome rather than running back into the open vessels. The lid and sieve base are included as standard in the scope of delivery.Handling in everyday laboratory useIf several vessels are placed on a single surface, it is worth checking their arrangement to ensure that heat can circulate evenly around each vessel and that none of them touch one another. The drain tap makes changing the water easier, even though the larger volume of up to 13.9 l means slightly more water needs to be drained than with the smaller Hydro H 8. Weighing around 14 kilograms, the bath can still be placed on the laboratory bench by a single person.Typical applicationsSimultaneous temperature control of several beakers or small Erlenmeyer flasksRoutine experiments in chemical process engineering involving multiple vesselsPreparation and sample processing in research and development laboratoriesScreening tests with a consistently repeated temperatureSelection guide: is a depth of 165 millimetres sufficient?If you only need a few small vessels, the more compact Hydro H 8 with its small 245 x 200 millimetre opening will suffice. If, with the same opening, greater depth is required for taller vessels, the Hydro H 22, with a bath depth of 225 millimetres (instead of 165 millimetres) and a volume of up to 20.3 l, is suitable. For an even wider opening of 600 x 245 millimetres, in which many vessels can be arranged in a row, the Hydro H 24 is suitable. The largest model in the range, the Hydro H 41, holds up to 37.9 l for large batches.Technical detailsWorking temperature range25 to 100 °CAmbient temperature range10 to 40 °CTemperature stability± 0.1 KMax. heating output1.5 kWBath dimensions (W x D x H)400 x 245 x 165 mmBath volume min. / max.7.5 / 13.9 LOverall dimensions (W x D x H)500 x 440 x 275 mmWeight (net)14 kgMains supply230 V, 50/60 HzMains plugMains cable with angled Schuko plug (CEE7/7)Scope of deliveryLAUDA Hydro H 16 water bath with drive and control unit, order number L002902Stainless steel lid, double-walled with an inner curveStainless steel sieve baseMains cable with angled Schuko plug (CEE7/7)Regulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA DR. R. WOBSER GMBH & CO. KG, Lauda-Königshofen, offers end customers a 5-year ‘Best’ warranty on this appliance from the date of delivery. This is subject to registration at lauda.de within three months of delivery. The warranty covers defects in materials and workmanship. Exclusions include, amongst other things, wear parts such as filters and seals, damage caused during transport, damage resulting from unauthorised tampering, as well as cables, plugs, hoses and adapters. LAUDA’s warranty terms and conditions (as at 03/2025) apply. Your statutory warranty rights remain unaffected.For the Hydro H 16, our procurement service can put together suitable accessories on request, such as holders for vessels or spare parts for lids and sieve bases. We are happy to answer any questions regarding the correct bath size or accessory requirements directly.

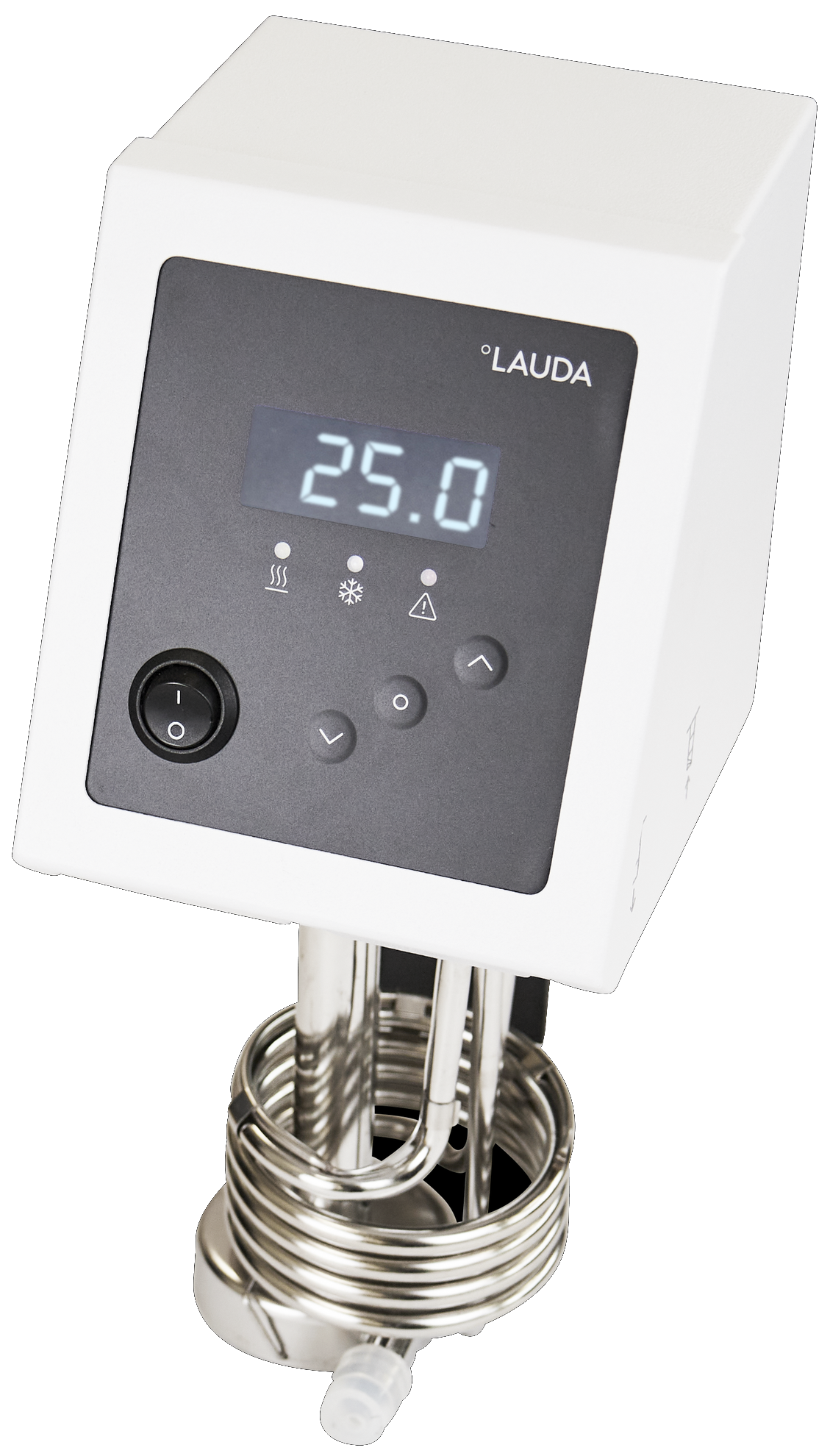

LAUDA Alpha A Immersion Circulator, 25 to 100 °C, Bath Volume up to 50 L, L000618
Not every laboratory or workshop needs a completely new bath thermostat with its own vessel. Often, a tank, basin or water bath is already available, but lacks a temperature control system. The LAUDA Alpha A is an immersion circulator designed precisely for this purpose: using the screw clamp supplied, it is attached to an existing bath vessel and regulates the temperature within it between 25 and 100 °C, without the need to purchase an additional vessel.Clamp mounting on existing containersThe screw clamp fits wall thicknesses of up to 30 millimetres; the immersion depth should be at least 150 millimetres. This allows the Alpha A to be attached to basins, tanks or vats with a volume of up to 50 litres without being permanently installed. Once used in one location, the device can just as easily be moved to another bath vessel, which saves time when tasks change or there are multiple locations within the operation.Display and operationA single-line LED display shows either the actual or the setpoint value; operation is via three buttons and a simple menu system. According to the data sheet, the fully electronic, continuous controller maintains the temperature with a stability of ± 0.05 K. The working temperature range is from 25 to 100 °C, whilst the permissible ambient temperature is between 5 and 40 °C. This range is sufficient for most aqueous and oil-based temperature baths used in everyday laboratory work.Pump and safety featuresThe built-in circulation pump delivers up to 15 litres per minute at a maximum pressure of 0.2 bar; the flow rate can be reduced if a gentler flow is required in the bath. Low-level and over-temperature protection monitor operation with non-flammable liquids; in the event of a fault, the unit emits an audible and visual alarm. The maximum heating power is 1.5 kilowatts, the current consumption is 7 amperes, and the unit is connected via an angled Schuko plug.Typical applicationsRetrofitting temperature control to existing water baths, tanks or vatsImmersion baths in workshops and quality assurance, where a permanently installed bath thermostat is not practicalFlexible use with a variety of containers up to 50 litresSupplementing existing systems without the need to purchase a separate bath vesselRetrofitting multiple containers at different locations using just a single drive unitHeating thermostat with its own bath or cooling thermostatIf no suitable vessel is available, or if the thermostat is to be used permanently with its own bath, the LAUDA Alpha A 6, Alpha A 12 and Alpha A 24 heating thermostats are the more suitable choice. They come with their own stainless steel bath vessel in three sizes ranging from 2.5 to 25 litres. The Alpha A is not designed for active cooling below ambient temperature; in this case, the Alpha RA 8 refrigeration thermostat with compressor cooling takes on this task.Technical data according to DIN 12876The technical data for the Alpha A are determined according to DIN 12876, the standard for recirculating thermostats and bath thermostats in laboratory and industrial applications. This makes it possible to compare specifications relating to temperature stability, heating power and pump capacity across different manufacturers, which is helpful during audits and interlaboratory tests in quality management.Connection for different mains voltagesThe Alpha A operates as standard at 220 volts at 60 hertz or 230 volts at 50 hertz, thus covering the standard European mains supplies; it is connected via an angled Schuko plug. For export, variants with 100-volt and 115-volt mains plugs (NEMA5-15P in each case) as well as with a British BS1363 plug are also available under separate order numbers.Technical detailsWorking temperature range25 to 100 °CAmbient temperature range5 to 40 °CTemperature stability± 0.05 KMax. heating power1.5 kWMax. power consumption1.5 kWCurrent consumption7 AMax. pump pressure0.2 barMax. pump flow rate15 L/minBath volumeup to 50 L, suspended operation in an existing bath vesselSuitable bath vesselsWall thickness up to 30 mm, immersion depth at least 150 mmDimensions (W x D x H)125 x 150 x 300 mmWeight4 kgMains supply220 V; 60 Hz / 230 V; 50 HzMains plugSchuko (CEE7/7), angledStandardTechnical data according to DIN 12876Scope of deliveryLAUDA Alpha A immersion circulator, order number L000618Screw clamp for mounting on existing bath vesselsMains cable with angled Schuko plugOperating instructions as a PDF downloadRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA DR. R. WOBSER GMBH & CO. KG, Lauda-Königshofen, offers end customers a 5-year ‘Best’ warranty on this device, effective from the date of delivery. This is subject to registration at lauda.de within three months of delivery and the use of genuine LAUDA temperature control fluids. The warranty covers material and manufacturing defects. Exclusions include, amongst others, wear parts such as filters and seals, damage caused during transport, damage resulting from unauthorised tampering, as well as cables, plugs, hoses and adapters. LAUDA’s warranty terms and conditions (as at 03/2025) apply. Your statutory warranty rights remain unaffected.A cooling coil set and a pump connection set are available as accessories for the Alpha A, allowing the bath to be cooled further or integrated into an external circuit. We can compile a selection of suitable accessories and spare parts for the Alpha A on request, ranging from the screw clamp to pump connections.

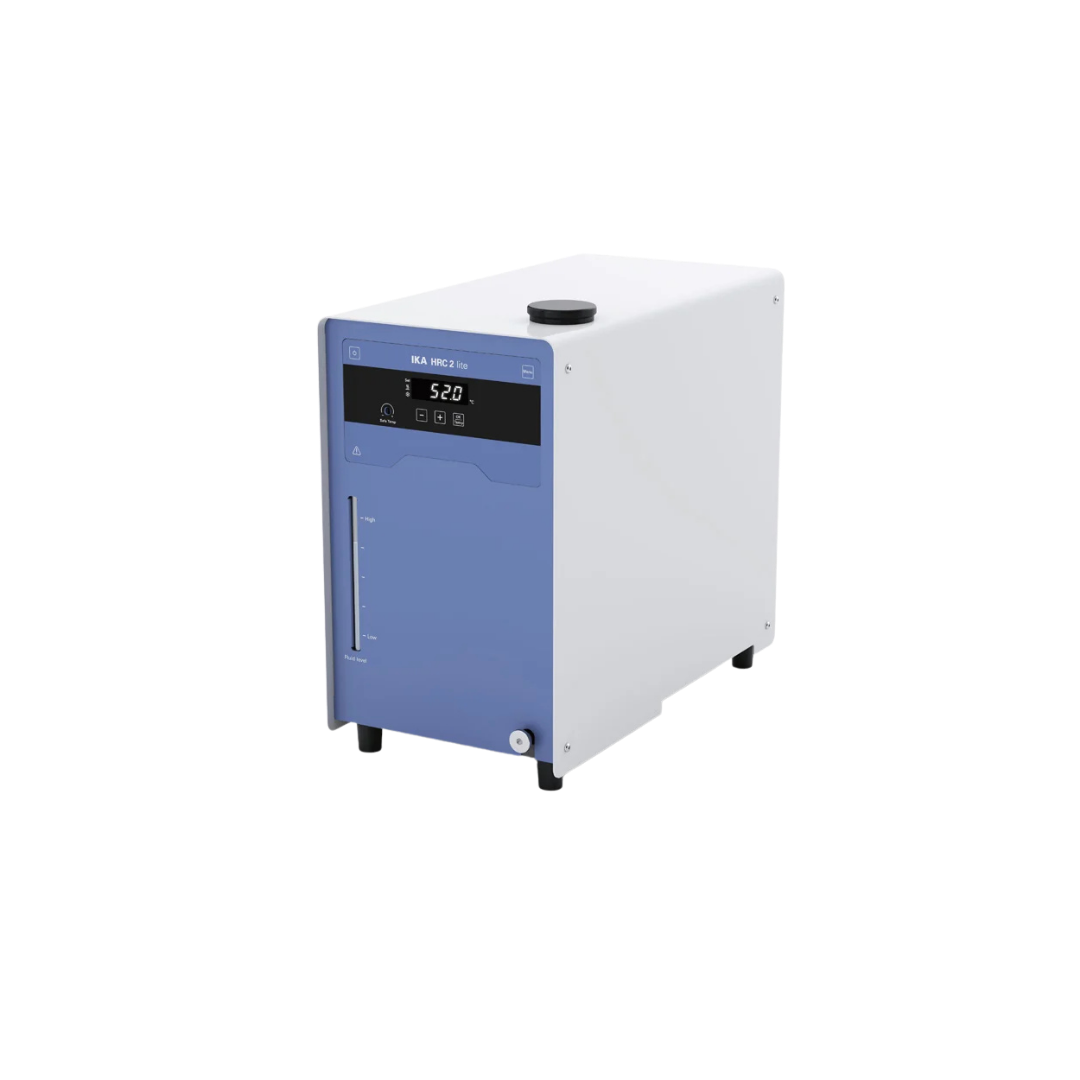

IKA HRC 2 lite Circulator, Cooling/Heating -10 to 100 °C, R290, 0020104311
Some applications need both cooling and heating in the same series of experiments, for example when a bioreactor first has to be cooled down to 5 °C and then heated to 80 °C. The IKA HRC 2 lite covers exactly this case: as a refrigerated and heating circulator it works in the range from minus 10 to 100 °C, with the natural refrigerant R290 and a heating power of 1,000 watts in a compact benchtop unit. One unit for cooling and heating from minus 10 to 100 °C The cooling capacity is 400 watts at 20 °C and falls with decreasing target temperature to 350 watts at 10 degrees, 250 watts at 0 degrees and 100 watts at minus 10 °C. For the opposite direction, a heating power of 1,000 watts is available. The temperature stability according to DIN 12876 is ±0.1 kelvin in the colder range around minus 10 °C and improves to ±0.05 kelvin at plus 70 °C. Control is by PID controller with a PT1000 working temperature sensor and a separate PT1000 safety temperature sensor, and the LED display provides a resolution of 0.1 kelvin with the same setting accuracy. Safety functions and refrigerant R290 The HRC 2 lite has visual and acoustic warning functions as well as its own over-temperature warning, and the safety circuit is adjustable between 0 and 110 °C. To DIN 12876 the unit is classified as Class II with the designation FL, which makes it suitable for operation with flammable liquids as long as there is a sufficient safety margin between the flash point and the set maximum temperature. The refrigerant used is R290, with a fill of 79 grams at a maximum permissible pressure of 21 bar. R290 (propane) is a natural but flammable hydrocarbon refrigerant, so, as is usual for all laboratory equipment with this type of refrigerant, we recommend a sufficiently ventilated installation location without open ignition sources in the immediate vicinity of the unit. HRC 2 lite or HRC 2 control: choosing the right specification level The HRC 2 lite and the IKA HRC 2 control share the operating principle of a refrigerated and heating circulator, but differ clearly in equipment and specifications: the HRC 2 lite uses the natural refrigerant R290 instead of the synthetic R134a of the HRC 2 control, is classified as Class II instead of Class III according to DIN 12876 and delivers 1,000 instead of 1,500 watts of heating power, with a somewhat narrower working temperature range of minus 10 to 100 °C instead of minus 30 to 100 °C. In addition, the HRC 2 lite does without the analogue output of the HRC 2 control and is limited to RS232 and USB-B. The HRC 2 control itself has been discontinued since 31 July 2026, and its successor is the IKA HRC 2 GREEN control with the natural refrigerant R290. If cooling only is needed, without a heating function, the dedicated recirculating chiller IKA RC 2 lite is the technically closely related alternative without a heating element. If, conversely, only heating is needed, without active cooling, a simple IKA HB digital heating bath is often sufficient. Typical applications As a refrigerated and heating circulator with a wide temperature range, the HRC 2 lite is suitable, among other things, for: Temperature control of laboratory reactors and bioreactors over changing temperature cycles from cold to warm Temperature control of open baths for sample preparation or reaction control Temperature control source for connected measuring instruments that need a stable reference temperature Use as a peripheral device with device-to-device communication via RS232 or USB to main units, as well as control and monitoring via laboratory software Connection, installation and ongoing operation The integrated pressure/suction pump reaches a maximum flow rate of 18 litres per minute at a maximum pump pressure of 0.35 bar on the pressure side and 0.15 bar on the suction side, connected via M16x1 threaded connections. The scope of delivery includes two olives for DN 8 hose connections and a USB-A-B cable for direct PC connection. The filling volume of the internal bath is between 1 and 3.5 litres, and a calibration option is available to check the temperature display regularly against a reference sensor. For continuous operation the HRC 2 lite is designed for a permissible duty cycle of 100 % and has a sound level of 51 dB(A); the permissible ambient temperature range is 5 to 32 °C at a maximum of 80 % relative humidity. One unit instead of two: when the dual function pays off Anyone who regularly has to run both cooling and heating cycles in the same experimental set-up saves one unit space and one additional hose connection with the HRC 2 lite, compared with a combination of a separate recirculating chiller and heating bath. For applications that only ever cool or only ever heat, on the other hand, the respective specialised single unit may be the better fit depending on the application, as the heating power of 1,000 watts and the cooling capacity steps down to 100 watts at minus 10 °C represent compromises compared with the respective specialised units. As for the pump design, the same applies as for all units in this series: the maximum flow rate of 18 l/min is only reached with short hose runs without significant back pressure, and longer lines or several connected consumers reduce the flow that actually arrives in line with the increasing line resistance. Technical details Device typeRefrigerated and heating circulatorClassification according to DIN 12876Class II, designation FLWorking temperature range-10 to 100 °CTemperature stability (DIN 12876, -10 °C / +70 °C)±0.1 K / ±0.05 KTemperature sensors (working / safety)PT1000 / PT1000Display resolution / setting accuracy0.1 KHeating power1,000 WCooling capacity at 20 / 10 / 0 / -10 °C400 / 350 / 250 / 100 WRefrigerantR290, 79 g, max. 21 barWarning functionsvisual, acoustic, over-temperature warningAdjustable safety circuit0 to 110 °CPump typePressure/suction pumpMax. pump pressure (pressure / suction side)0.35 bar / 0.15 barMax. flow rate (0 bar back pressure)18 l/minPump connectionsM16x1Filling volume1 to 3.5 lCalibration optionyesPermissible duty cycle100 %Noise level51 dB(A)InterfacesRS232, USB-BDegree of protection according to DIN EN 60529IP 21Permissible ambient temperature5 to 32 °CPermissible relative humiditymax. 80 %Dimensions (W x H x D)225 x 385 x 430 mmWeight24.9 kgVoltage / frequency / connected load230 V, 50/60 Hz, 1,250 W Scope of delivery 1 x IKA HRC 2 lite refrigerated and heating circulator (ident no. 0020104311) 2 x olive for DN 8 hoses 1 x USB-A-B cable WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory information As an electrical appliance, the HRC 2 lite is subject to the German Electrical and Electronic Equipment Act (ElektroG) and is registered with Stiftung EAR under the WEEE registration number DE 66784213. At the end of its service life the unit must not be disposed of with household waste but must be taken to a separate collection for waste electrical equipment. The refrigerant R290 contained in the refrigerant circuit must be removed by an approved refrigerant recovery company before disposal. Frequently asked questions about the HRC 2 lite What is the difference between the HRC 2 lite and the HRC 2 control?The HRC 2 lite uses R290 instead of R134a, is classified as Class II instead of Class III according to DIN 12876, delivers 1,000 instead of 1,500 watts of heating power, covers a somewhat narrower working range of minus 10 to 100 °C and does without the analogue output of the HRC 2 control. The HRC 2 control has been discontinued since 31 July 2026, and its successor is the IKA HRC 2 GREEN control. Can the HRC 2 lite also be used as a pure chiller without a heating function?Technically yes, the heating function can simply be left unused. If only cooling is needed permanently, the IKA RC 2 lite without a heating element may be the more suitable choice, depending on the application. Which hoses fit the HRC 2 lite?Connection is via M16x1 thread, and two olives for DN 8 hose connections are supplied with the unit to match. Do I need to observe anything special with the refrigerant R290?Yes, R290 (propane) is flammable, even though it counts as a natural refrigerant. A well-ventilated installation location without ignition sources in the immediate vicinity of the unit is therefore usual and sensible. Why is the DIN 12876 designation FL important?It indicates that the unit is also suitable for operation with flammable liquids as the bath medium, provided their flash point maintains a sufficient safety margin to the set maximum temperature. Can the HRC 2 lite be calibrated?Yes, the unit has a calibration option to check the temperature display regularly against a reference sensor. How loud is the HRC 2 lite in continuous operation?The sound level is 51 dB(A), even in continuous operation at a permissible duty cycle of 100 %. Individual requirements & procurement service For suitable connection hoses, additional valves, adapters or connection to existing laboratory and bioreactors, our procurement service will support you. If you have questions about the HRC 2 lite, please do not hesitate to contact us.

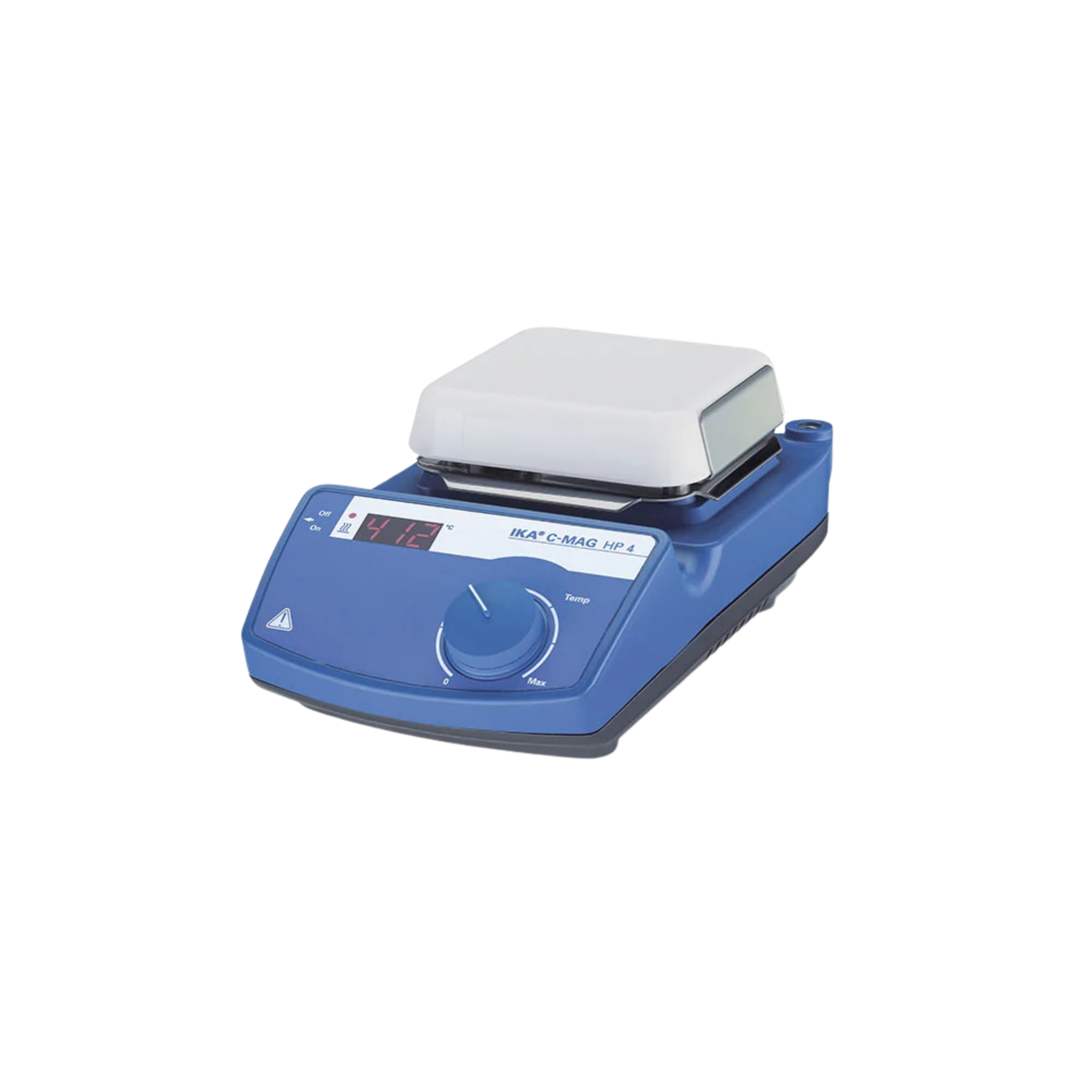

IKA C-MAG HP 4 Hotplate, Ceramic Support Surface 100 x 100 mm, 250 Watt, 0003581600
For a single flask, a small Petri dish or occasional heating without much space requirement, a full-sized hotplate is often not worthwhile. The IKA C-MAG HP 4 (0003581600) is the most compact pure hotplate of the C-MAG family, with a ceramic support surface of just 100 x 100 millimetres, 250 watts of heating power and a weight of only 2.44 kilograms. Compact ceramic support surface for small vessels The ceramic support surface of 100 x 100 millimetres is deliberately designed for smaller vessels and volumes of up to 5 litres of water and covers a heating temperature range of 50 to 500 °C, set via a simple rotary knob with a setting accuracy of 5 kelvin, without the additional display and control functions of the larger HS models. With 250 watts of heating power, the heating rate is 2.5 kelvin per minute, lower than with the larger C-MAG HP models, but sufficient for smaller batches and spot heating. Lightweight for mobile use With dimensions of 150 x 105 x 260 millimetres and a weight of only 2.44 kilograms, the HP 4 can easily be moved between workstations or accommodated in small fume hoods where there is no room for larger hotplates. The degree of protection IP 21 protects against vertically falling drops of water. No option for external temperature measurement Unlike the larger C-MAG HP and HS models, the HP 4 has no connection for an external contact thermometer according to the manufacturer. Temperature control takes place exclusively via the plate surface, a deliberate omission in favour of the compact, simple design. For applications in which the exact temperature in the medium itself must be documented, this is a relevant exclusion criterion that should be checked before purchase. Economical entry into the C-MAG series With 250 watts of heating power, the HP 4 is well below the 1,000 watts of the C-MAG HP 7 and HS models, and the purchase price and the running power consumption in continuous operation across several workstations are correspondingly lower. For laboratories that have to equip several workstations with simple heating tasks without every position needing high heating power or a sensor socket, the HP 4 allows a larger number of positions to be equipped at reasonable cost. Typical applications As the most compact and lightest hotplate of the C-MAG family, the HP 4 is technically suited above all to small-volume, non-critical heating tasks: Heating individual small vessels up to 5 litres volume Workstations with limited space, for example in small fume hoods Simple heat source in training and routine laboratories without any requirement for medium temperature measurement Second device for spot heating tasks alongside a larger main device Mobile use thanks to a low weight of 2.44 kilograms Selection guide: HP 4 compared with larger C-MAG hotplates Within the C-MAG HP series, the HP 4 marks the entry point, with clear differences in surface area, power and sensor connection: ModelPlate sizeVolume (H2O)Heating powerExternal sensorC-MAG HP 4 (this device)100 x 100 mm5 l250 Wnot providedC-MAG HP 7180 x 180 mm10 l1,000 WETS-D5 (DIN 12878) Anyone who wants to heat larger vessels or use external temperature measurement in the medium is better served by the C-MAG HP 7. For small, non-critical heating tasks with limited space, the HP 4 remains the more compact and more economical choice, especially if several workstations are to be equipped in parallel with simple heating tasks without every position needing a connection to an external contact thermometer. Differentiation from the larger HP 7 and from heating magnetic stirrers The IKA C-MAG HP 7 offers, with 1,000 watts of heating power, a larger surface and a connection for an external contact thermometer, considerably more reserves for larger volumes. If stirring is required in addition to heating, the IKA C-MAG HS 7 or, for very small volumes, the mini magnetic stirrer topolino are the more suitable devices, although the latter has no heating function. Technical details Number of heating positions1Heating power250 WHeating temperature range50 to 500 °C, rotary knob, setting accuracy 5 KMax. volume5 lHeating rate2.5 K/minSupport surface materialCeramicSupport surface dimensions100 x 100 mmPermissible relative humidity80 %Dimensions (W x H x D)150 x 105 x 260 mmWeight2.44 kgIP ratingIP 21 (DIN EN 60529)Mains connection230 V, 50/60 Hz, 255 W (other voltage variants 120 V / 100 V available) Scope of delivery 1 x IKA C-MAG HP 4 hotplate (0003581600) Stir bars are not included, as the C-MAG HP 4 has no stirring function. A connection for an external contact thermometer is not provided on this model. Application, installation, maintenance and disposal With degree of protection IP 21, the C-MAG HP 4 is protected against vertically falling drops of water and is designed for operation in a fume hood or on a stable laboratory bench at up to 80 % relative humidity. Because of its compact design and low weight, the plate is also suitable for mobile use between several workstations or for transport between different rooms and floors, but it should be cooled down and disconnected from the mains before being moved. The ceramic surface should be allowed to cool and be disconnected from the mains before cleaning. At the end of its service life, the hotplate, as an electrical device, does not belong in household waste but in the separate collection of waste electrical equipment; the manufacturer's WEEE registration number is DE 66784213. Investment logic: when the compact HP 4 is sufficient For small vessels up to 5 litres, spot heating without any requirement for a temperature measured in the medium, and cramped space conditions, the HP 4 is the most economical solution within the C-MAG family and covers a large part of simple laboratory routines without power reserves remaining unused. As soon as larger volumes, more heating power or external temperature measurement are needed, there is no way around the C-MAG HP 7 or an HS model with stirring function, and the additional cost is then covered by the additional range of functions. For training laboratories with many parallel but non-critical workstations, purchasing several HP 4 units can make more sense than a few larger hotplates. WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Individual requirements & procurement service Suitable original accessories such as fixing elements and holders are available for the C-MAG HP 4 if required. Through our procurement service, we also support you with spare parts, calibrations and the configuration of several workstations with uniform accessories. You will find further information and contact options at our procurement service. Frequently asked questions What vessel sizes is the 100 x 100 millimetre plate designed for?The surface is designed for smaller standard vessels such as Erlenmeyer flasks, beakers or Petri dishes up to a volume of 5 litres and thus offers sufficient support area for most routine small-scale batches. Can the C-MAG HP 4 also stir?No, the HP 4 is a pure hotplate without a magnetic stirring drive. For stirring and heating in one device, IKA offers the C-MAG HS series. Can an external temperature sensor be connected?No, according to the manufacturer, the HP 4 has no connection for an external contact thermometer, unlike the larger HP 7. What is the maximum volume that can be heated?According to the manufacturer, up to 5 litres of water. How quickly does the plate heat up?According to the data sheet, the heating rate is 2.5 kelvin per minute, which is about half as fast as the more powerful C-MAG HP 7 at 5 kelvin per minute, but usually quick enough for small volumes. Which voltage variants are available?In addition to the standard 230 volt version, further voltage variants with 120 volts and 100 volts are available according to the data sheet, each at a mains frequency of 50 or 60 hertz. Is the HP 4 suitable for mobile use between workstations?With a weight of 2.44 kilograms and compact dimensions, the HP 4 can be moved comparatively easily. How is the C-MAG HP 4 disposed of properly?As an electrical device, it belongs at a waste electrical equipment collection point instead of in household waste. The manufacturer's WEEE registration number is given in the section Application, installation, maintenance and disposal.

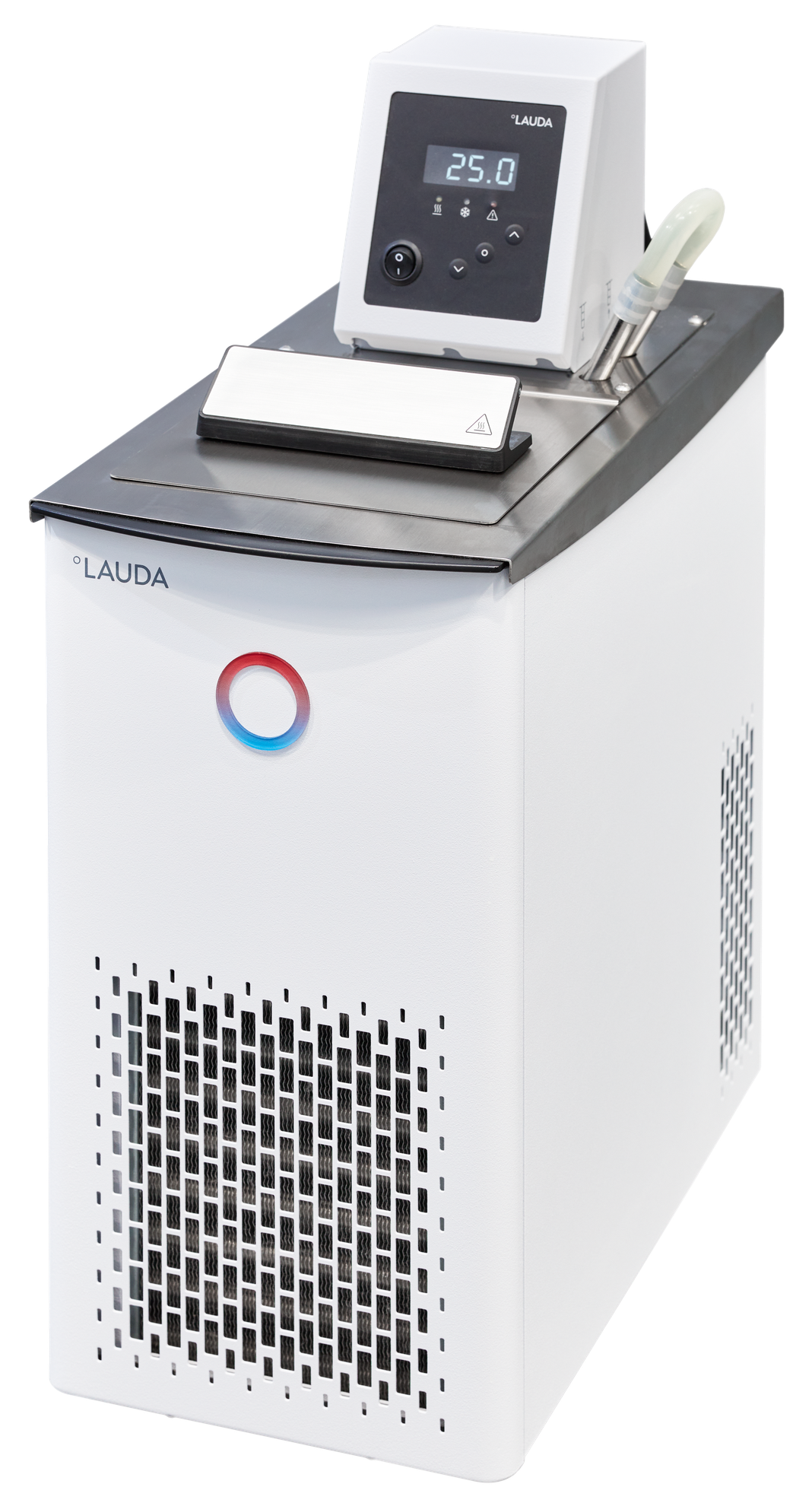

LAUDA Alpha RA 8 Cooling Thermostat, -25 to 100 °C, 5 to 7.5-litre Bath, L004603
Anyone who needs to maintain precise temperatures for small volumes in the laboratory, for example, when calibrating a viscometer, cooling a cuvette in analytical chemistry, or operating a small external reactor, requires a bath that can quickly reach sub-zero temperatures and takes up little floor space. With its 5.0 to 7.5-litre stainless steel bath, the LAUDA Alpha RA 8 caters precisely to this market segment. The operating temperature range extends from -25 to 100 °C, with cooling provided by a built-in compressor using the natural refrigerant R-290.Compressor cooling with automatic controlThe RA 8 actively cools via a built-in compressor; there is no need for an external cooling water connection or an additional circulation cooler. An automatic compressor control system switches the compressor on and off as required, which extends its service life and reduces energy consumption during continuous operation. The unit dissipates heat into the ambient air via an air-cooled condenser.Cooling capacity across the operating rangeWith ethanol as the bath medium, the RA 8 delivers a cooling capacity of 0.325 kW at 20 °C, 0.26 kW at 0 °C, at -20 °C it is still 0.1 kW, and at the lower limit of -25 °C it is 0.07 kW. The maximum heating power is 1.5 kW, the total power consumption is a maximum of 1.8 kW, and the current consumption is 8 A. LAUDA specifies the temperature stability as ± 0.05 K; a 1-line LED display and a fully electronic, continuous controller handle the display and control functions.Circulation pump for external loadsA bath lid, a pump connection set and a short-circuit hose are supplied as standard. The built-in circulation pump delivers up to 15 L/min at a maximum pressure of 0.2 bar and can therefore also be used for small external loads such as a double-jacketed reactor or a cold trap. A drain connection on the rear facilitates the replacement of the bath medium.Safety during continuous operationLow-level protection and over-temperature protection monitor operation; in the event of deviations, the unit triggers an audible and visual alarm. The stainless steel bath vessel, with internal dimensions of 165 x 177 x 160 mm, is suitable for small batches of samples; the entire unit weighs 29 kg and measures 235 x 500 x 605 mm (W x D x H).Typical applicationsCalibration and testing of viscometers at defined sub-zero temperaturesTemperature control of cuvettes and small sample vessels in analytical applicationsCooling of small external reactors or double-jacketed vessels via the circulation pumpTraining and routine operation where only a small bath volume is requiredSelection guide within the Alpha seriesIf the bath volume of the RA 8 is insufficient for several vessels or a larger external load, the LAUDA Alpha RA 12 (9.5 to 14.5 l) and the LAUDA Alpha RA 24 (14 to 22 l) are available as two larger sister models with the same operating temperature range. If no active cooling is required at all, the LAUDA Alpha A 6 heating thermostat meets the same temperature control requirements without a built-in compressor.Technical detailsOperating temperature range-25 to 100 °CAmbient temperature range5 to 40 °CTemperature stability± 0.05 KBath volume min. / max.5.0 / 7.5 LBath dimensions (W x D x H)165 x 177 x 160 mmOverall dimensions (W x D x H)235 x 500 x 605 mmWeight29 kgMax. heating power1.5 kWCooling capacity at 20 °C (ethanol)0.325 kWCooling capacity at 0 °C (ethanol)0.26 kWCooling capacity at -20 °C (ethanol)0.1 kWCooling capacity at -25 °C (ethanol)0.07 kWMax. power consumption1.8 kWCurrent consumption8 APump flow rate, max.15 L/minMax. pump pressure0.2 barMains supply220 V; 60 Hz / 230 V; 50 HzMains plugMains cable with angled Schuko plug (CEE7/7)RefrigerantR-290 (natural refrigerant), 0.052 kgStandardDIN 12876Scope of deliveryLAUDA Alpha RA 8 cooling thermostat with stainless steel bath vessel, order number L004603Bath lidPump connection setShort-circuit hose for pump connectionsMains cable with angled Schuko plug (CEE7/7)Operating instructions as a PDF downloadRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.The appliance operates using the natural refrigerant R-290 (propane), with a charge of 0.052 kg and a GWP of 3. LAUDA states the CO2 equivalent as 0.0 tonnes.Warranty and procurement serviceLAUDA DR. R. WOBSER GMBH & CO. KG, Lauda-Königshofen, offers end customers a 5-year ‘Best’ warranty on this unit, effective from the date of delivery. This is subject to registration at lauda.de within three months of delivery and the use of genuine LAUDA temperature control fluids. The warranty covers material and manufacturing defects. Exclusions include, amongst others, wear parts such as filters and seals, damage caused during transport, damage resulting from unauthorised tampering, as well as cables, plugs, hoses and adaptors. LAUDA’s warranty terms and conditions (as at 03/2025) apply. Your statutory warranty rights remain unaffected.For the RA 8, our procurement service can, if required, put together suitable accessories, such as a temperature-control fluid for operation down to -25 °C, an additional bath lid or hoses for the external pump connection. We can also request spare parts from the manufacturer on your behalf.

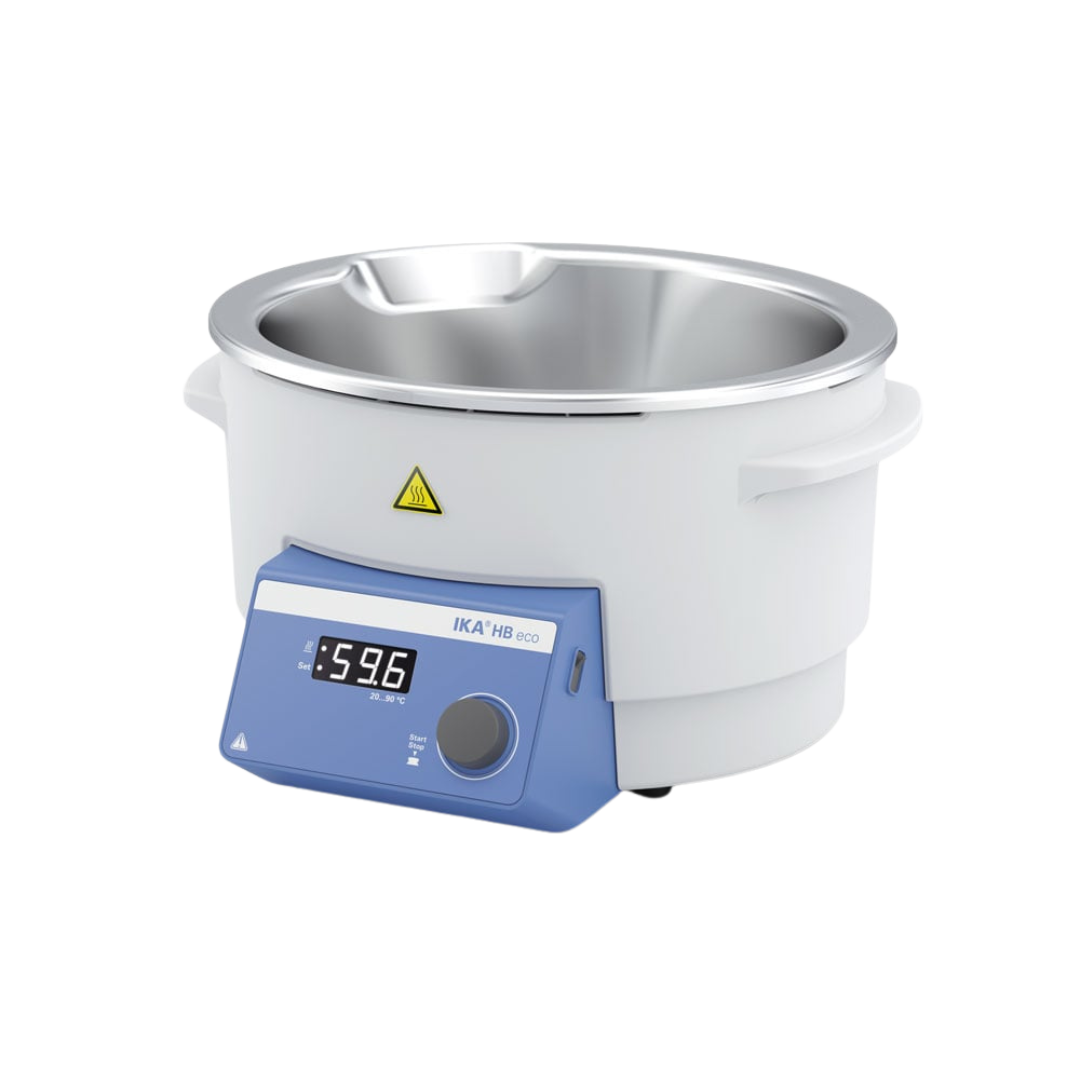

IKA HB eco Heating Bath (4 L, 99 °C, for RV 3), 0020016337
Compact safety heating bath for the RV 3 series The IKA HB eco (0020016337) is a compact, ergonomic safety heating bath with a capacity of 4 litres and heating temperatures from room temperature up to 99 °C. According to IKA, it is intended for rotary evaporators of the RV 3 series (RV 3 V, RV 3 V-C, RV 3 FLEX, RV 3 pro V-C Complete and RV 3 V Starter Solution). Ergonomic carrying handles, an alternating setpoint and actual temperature display (LED), heating temperature adjustment by rotary knob and a USB interface (Micro-USB) are part of the equipment. Heating, control and safety The heating power is 1,400 W, and the setpoint temperature can be set to within 1 K. For 3 l of water at 90 °C, IKA specifies a controller fluctuation of ±1 K and an absolute deviation from the mean of ±2 K. The bath is made of stainless steel 1.4404, and the safety circuit is fixed at 109 °C. According to DIN 12876, the heating bath is classified as class I. Technical details Product type: heating bath Heating power: 1,400 W Heating temperature range: room temperature to 99 °C Temperature display: LED, heating temperature set by rotary knob Setting accuracy of the setpoint temperature: 1 K Controller fluctuation (3 l water, 90 °C): ±1 K, absolute deviation from the mean ±2 K Filling volume max.: 4 l, filling height min. 60 mm Material (in contact with the product): stainless steel 1.4404 Safety circuit: fixed, 109 °C Class according to DIN 12876: I Outer diameter 257 mm, inner diameter 225 mm, outer height 190 mm, inner height 130 mm Dimensions (W x H x D): 330 x 190 x 325 mm, weight 3.9 kg Permissible ambient temperature: 5 to 40 °C, relative humidity 80 % Degree of protection according to DIN EN 60529: IP 21 Interface: USB (Micro-USB) Voltage: 220 to 240 V, 50/60 Hz, power consumption 1,450 W (standby 3 W), further voltage variant 100 to 120 V Scope of delivery 1 x IKA HB eco heating bath 1 x USB cable, USB A to Micro-B, 2 m Note: This is the heating bath only. The rotary evaporator drive, glassware and stand are not included in the scope of delivery. WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Whether the heating bath fits your existing rotary evaporator is something our individual procurement service will gladly clarify.

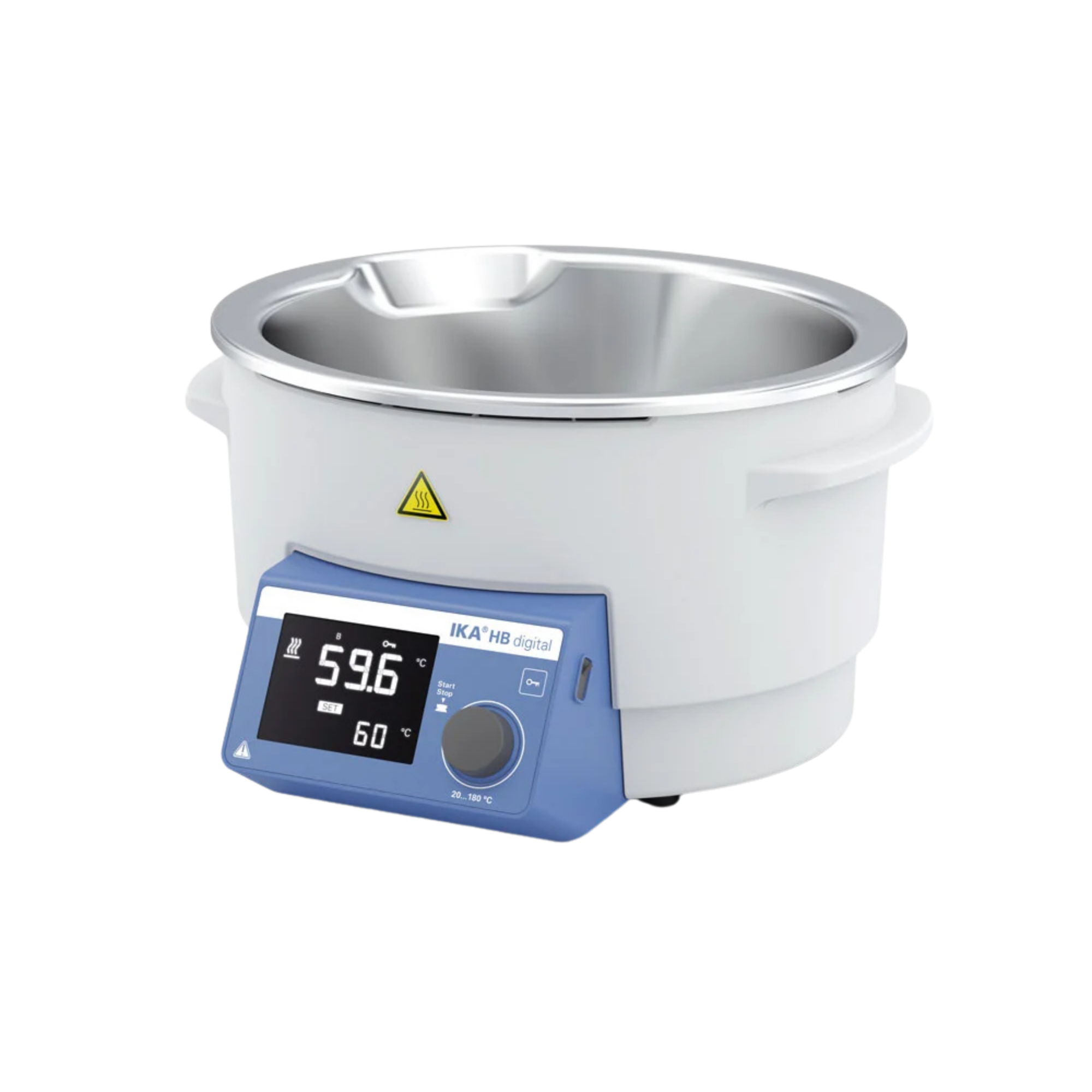

IKA HB digital Heating Bath, 4 Litre, Water/Oil, 180 °C, 0020016334
Not every temperature control task in the laboratory requires compressor cooling. Where only a heating bath up to 180 °C is needed, for example for extractions, solvent evaporation or viscosity measurements at elevated temperature, a plain heating bath is sufficient. The IKA HB digital provides 1,400 watts of heating power, a capacity of up to 4 litres and a stainless steel vessel (material 1.4404) in contact with the product, which works with both water and silicone oil as the temperature control medium.As an open bath without an integrated circulation pump, it is aimed at anyone looking for a reliable, easy-to-use heating bath for direct use, without needing the additional equipment of an external circuit. Heating power and control accuracy up to 180 °C The heating temperature range extends from room temperature to 180 °C, set with a rotary knob with a setting accuracy of 1 Kelvin and read on an LCD display. With 3 litres of water at 90 °C, the controller fluctuation is ±1 Kelvin and the absolute deviation from the mean value is ±2 Kelvin. With 3 litres of silicone oil (50 mPas) at 150 °C, the controller fluctuation is ±2 Kelvin and the absolute deviation is ±4 Kelvin. This separate statement for water and oil shows that the control accuracy varies depending on the medium and the target temperature, an aspect that is relevant when choosing the temperature control medium for precision-critical applications. Open bath without external circulation, but compact and robust Unlike a circulating thermostat, the HB digital has no pump for the external connection of further devices. It is designed as an open bath for the direct heating of vessels in the bath itself. The inner diameter of the bath vessel is 225 millimetres with an inner height of 130 millimetres, and the minimum filling level is 60 millimetres. A fixed safety circuit at 190 °C and an additionally adjustable safety circuit between 50 and 190 °C protect against unintentional overheating, in line with the classification according to DIN 12876 Class II. Heating bath, heating bath circulator or heating and cooling unit: choosing the right design Anyone who needs only an open bath without an external connection is well served by the HB digital. If the same warm water bath is also to supply externally connected vessels or double-jacketed reactors, the IKA HBC 5 basic and the IKA HBC 10 control as heating bath circulators offer an integrated circulation pump for exactly this purpose. If active cooling is also required in addition to heating, for example for temperature cycles below room temperature, the IKA RC 2 lite as a pure recirculating chiller or the IKA HRC 2 lite as a combined heating and cooling unit is the more suitable choice. Typical applications As a compact heating bath with a stainless steel vessel and a temperature range up to 180 °C, the HB digital is suitable for the following, among other uses: Heating and temperature control of samples in water or oil baths, for example during extractions or evaporation processes Viscosity measurements and other applications with temperature-dependent material properties at elevated temperature Heating reaction vessels or flasks that are suspended directly in the open bath Installation, operation and ongoing use It is operated via a rotary knob with LCD display, and a USB interface (Micro-USB) allows connection to a PC or software for logging temperature curves. The housing dimensions are 330 x 190 x 325 millimetres and the weight is 3.9 kilograms. The outer diameter of the bath vessel is 257 millimetres. The power consumption is 1,450 watts in operation and only 3 watts in standby. The permissible ambient temperature range is 5 to 40 °C at a maximum of 80 % relative humidity, and the housing is protected to IP 21 according to DIN EN 60529. Care of the stainless steel bath vessel The vessel made of stainless steel 1.4404 that comes into contact with the product is intended for water and silicone oil as temperature control medium. Before filling, the minimum filling level of 60 millimetres must be observed. After prolonged operation with oil as the temperature control medium, the bath vessel should be cleaned thoroughly before changing the medium, to avoid carry-over between the media. Why the choice of temperature control medium affects accuracy When making the investment decision, it is worth considering the planned temperature control medium: for applications with water up to around 90 °C, the absolute deviation of ±2 Kelvin is within a narrower range than with higher-viscosity oil baths at 150 °C with ±4 Kelvin. Anyone who regularly works in the upper temperature range with oil and needs tighter control accuracy should check these values against the requirements of their own method before deciding on a standard heating bath. For most routine applications up to 180 °C, however, the accuracy of the HB digital is sufficient. Regarding the filling quantity: the closer the bath is operated to the maximum filling volume of 4 litres, the longer it takes at a constant heating power of 1,400 watts for the bath to reach the target temperature, an aspect that affects throughput time in everyday laboratory work when set temperatures change frequently. Technical details Heating power1,400 WHeating temperature rangeRoom temperature to 180 °CTemperature displayLCDSetting of heating temperatureRotary knobSetting accuracy of set temperature1 KController fluctuation (3 l water / 90 °C)±1 KAbsolute deviation (3 l water / 90 °C)±2 KController fluctuation (3 l silicone oil 50 mPas / 150 °C)±2 KAbsolute deviation (3 l silicone oil 50 mPas / 150 °C)±4 KFilling volume max.4 lFilling level min.60 mmWetted materialStainless steel 1.4404Safety circuit fixed / adjustable190 °C / 50 to 190 °CClassification according to DIN 12876Class IIOuter diameter / inner diameter257 mm / 225 mmOuter height / inner height190 mm / 130 mmUSB interfaceMicro-USBDevice power consumption (operation / standby)1,450 W / 3 WDegree of protection according to DIN EN 60529IP 21Permissible ambient temperature5 to 40 °CPermissible relative humiditymax. 80 %Dimensions (W x H x D)330 x 190 x 325 mmWeight3.9 kgVoltage / frequency / connected load220 to 240 V, 50/60 Hz, 1,450 W (further variant 100 to 120 V available) Scope of delivery 1 x IKA HB digital Heating Bath (ident no. 0020016334) 1 x USB cable USB A to Micro-B, 2 m WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory information As an electrical appliance, the HB digital is subject to the German Electrical and Electronic Equipment Act (ElektroG) and is registered with Stiftung EAR under the WEEE registration number DE 66784213. At the end of its service life, the device must not be disposed of with household waste but must be taken to a separate collection for waste electrical equipment. Frequently asked questions about the HB digital Can the HB digital also supply external devices with warm water?No, the HB digital has no circulation pump and is designed as an open bath for direct heating in the bath itself. The heating bath circulators of the HBC series are suitable for external connection. Up to what temperature can the HB digital be operated?The heating temperature range extends from room temperature to 180 °C, safeguarded by a fixed safety circuit at 190 °C. Which media can be used in the bath?According to the controller data, both water and silicone oil are intended as temperature control media, each with its own accuracy specifications for controller fluctuation and absolute deviation. How large is the bath vessel?The inner diameter is 225 millimetres with an inner height of 130 millimetres, the filling volume is a maximum of 4 litres and the minimum filling level is 60 millimetres. What material is the bath vessel made of?The material in contact with the product is stainless steel 1.4404. Can the HB digital be connected to a PC?Yes, via the Micro-USB interface provided, the device can be connected to a PC or logging software. What distinguishes the HB digital from a circulating thermostat?A circulating thermostat has an integrated pump for connecting external devices, whereas the HB digital is a plain, open heating bath without a pump function. How long does heating up to the target temperature take?The exact heating time depends on the filling quantity, the starting temperature and the selected medium. With 1,400 watts of heating power and a maximum filling volume of 4 litres, the following applies: the larger the filling quantity and the higher the target temperature, the longer the heating time. Individual requirements & procurement service Our procurement service will support you with suitable accessories such as a protective cover or an intermediate shelf for smaller vessels. If you have questions about certificates and certifications for the HB digital, please also feel free to contact us.

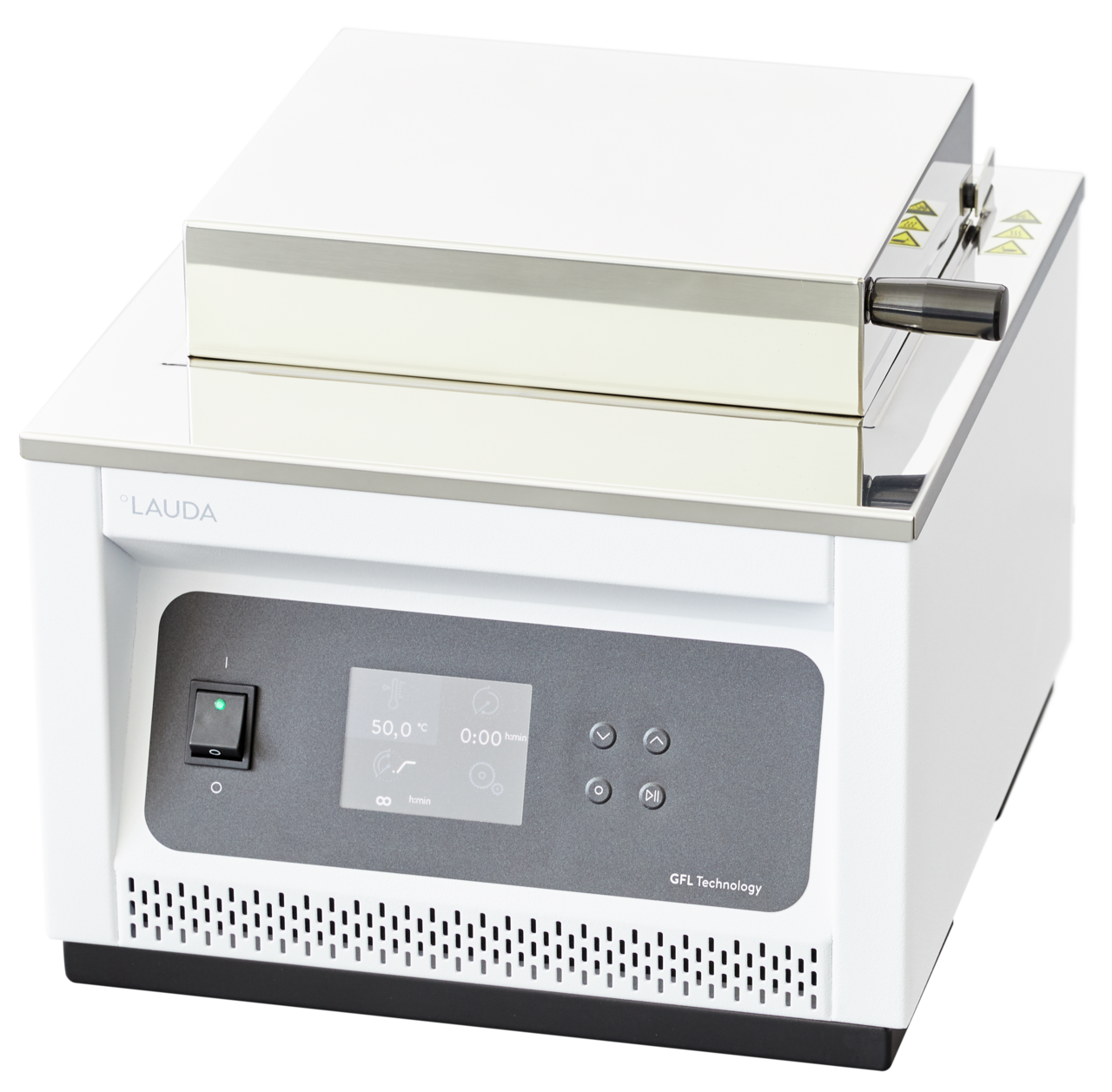

LAUDA Hydro H 8 Water Bath, 25 to 100 °C, up to 7 L, Bath Dimensions 245 x 200 mm, L002901
Anyone who regularly needs to bring individual test tubes, small sample vessels or a single round-bottom flask up to a specific temperature in the laboratory does not need a large water bath, but rather one that takes up little space and heats up quickly. With a bath volume of 3.8 to 7.0 l, the LAUDA Hydro H 8 is the most compact model in the Hydro series. The operating temperature range extends from 25 to 100 °C with a temperature stability of ± 0.1 K, making applications right up to the boiling point possible.Small bath, short heating timeThe bath opening measures 245 x 200 millimetres with a depth of 165 millimetres. The maximum heating power of 1 kilowatt is tailored to this bath size, ensuring the water reaches the required temperature quickly. For routines involving just a few vessels, such as thawing small samples, incubating individual tubes or temperature-controlling calibration solutions, the Hydro H 8 is the model with the smallest bath within the range.Operation via TFT colour displayA TFT colour display shows both the actual and setpoint values simultaneously; the temperature display can be switched between °C and °F. Setpoints are adjusted in 0.1 °C increments via a membrane keypad with clear symbols; a 1-point temperature controller then maintains the temperature at a constant level. A timer set in hours and minutes allows three application-specific time functions to be programmed, enabling the bath to run unattended for a specified duration. In the event of low water level, over- or under-temperature, or in the event of a sensor failure or short circuit, the unit emits a visual and audible alarm; the trigger points for the temperature alarm can be set to a maximum of ± 10 K.Stainless steel inside and outThe bath body, cover frame, sieve base and heating element are made of stainless steel. The bath vessel has a drain tap, allowing the water to be drained without tilting the bath. The lid supplied is thermally insulated, double-walled and domed on the inside; condensation runs down the dome to the side rather than dripping back into the vessels.Handling in everyday laboratory useThe drain tap on the bath vessel means that changing the water in this small volume takes just a few minutes; a drain hose is not strictly necessary. As the bath holds only a small amount of water, it can also be operated using distilled water or a temperature-control fluid without the cost per fill being a significant factor. The unit operates at a rated voltage of 230 volts at 50 or 60 hertz.Typical applicationsTemperature control of individual test tubes, sample tubes or small flasks in research and quality assuranceCalibration baths for thermometers and sensors in the low-volume rangeThawing and preheating small sample quantities in medical technologySecondary workstations and teaching laboratories with limited floor spaceSelection guide: which Hydro size is right for youIf the bath volume of the H 8 is insufficient for multiple vessels, the series offers four larger models. With the same bath depth but a significantly wider opening of 400 x 245 millimetres, the Hydro H 16 accommodates more vessels side by side. Those requiring additional depth for tall flasks will find it in the Hydro H 22, which offers a bath volume of up to 20.3 l. The Hydro H 24 is suitable for an even wider opening of 600 x 245 millimetres, allowing many vessels to be placed in a row. The largest model in the range, the Hydro H 41, has a capacity of up to 37.9 l and is suitable for large batches or particularly tall vessels.Technical detailsOperating temperature range25 to 100 °CAmbient temperature range10 to 40 °CTemperature stability± 0.1 KMax. heating power1 kWBath dimensions (W x D x H)245 x 200 x 165 mmBath volume (min./max.)3.8 / 7.0 LOverall dimensions (W x D x H)340 x 395 x 275 mmWeight (net)10 kgMains supply230 V, 50/60 HzMains plugMains cable with angled Schuko plug (CEE7/7)Scope of deliveryLAUDA Hydro H 8 water bath with drive and control unit, order number L002901Stainless steel lid, double-walled with an inner curveStainless steel sieve baseMains cable with angled Schuko plug (CEE7/7)Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA DR. R. WOBSER GMBH & CO. KG, Lauda-Königshofen, offers end customers a 5-year ‘Best’ warranty on this appliance from the date of delivery. This is subject to registration at lauda.de within three months of delivery. The warranty covers defects in materials and workmanship. Exclusions include, amongst others, wear parts such as filters and seals, damage caused during transport, damage resulting from unauthorised tampering, as well as cables, plugs, hoses and adapters. LAUDA’s warranty terms and conditions (as at 03/2025) apply. Your statutory warranty rights remain unaffected.For the Hydro H 8, our procurement service can put together suitable accessories on request, such as holders for vessels or spare parts for lids and sieve bases. We are happy to answer any questions regarding the correct bath size or accessory requirements directly.
IKA RC 2 basic, Recirculating Chiller, 400 W Cooling Capacity, -20 °C, 0004171000
Not every laboratory cooling application requires the latest refrigerant; some require, above all, availability and a tried-and-tested, non-flammable refrigerant. The IKA RC 2 basic recirculating chiller delivers up to 400 watts of cooling capacity at 20 °C and operates with the refrigerant R134a, which is classified in safety group A1 and is therefore non-flammable. This unit is a discontinued model and is offered from existing stock; it is available immediately, with no lead time. Cooling capacity from room temperature down to minus 20 °C As expected, the cooling capacity of the RC 2 basic decreases as the target temperature falls: 400 watts at 20 degrees, 370 watts at 10 degrees, 320 watts at 0 degrees, 240 watts at minus 10 degrees and 130 watts at minus 20 °C. The working temperature range extends from minus 20 °C to room temperature; with an external heater, the bath can also be operated at temperatures up to 80 °C. Temperature is controlled via a PT100 sensor; temperature stability is ±0.1 Kelvin according to DIN 12876. Refrigerant and availability Refrigerant R134a (HFC-134a), charge 230 g, corresponding to 0.33 tonnes of CO2 equivalent, GWP 1430, safety group A1 in accordance with DIN EN 378-1 (non-flammable). The RC 2 basic is a discontinued model: IKA ceased production on 31 July 2026, and only existing stock is available. Its successor is the IKA RC 2 GREEN basic, which uses the refrigerant R290 and, according to IKA, offers approximately double the cooling capacity. Anyone who requires the 400-watt cooling capacity of the RC 2 basic, and nothing more, will receive a unit with a spare parts commitment of at least ten years according to IKA, available immediately from stock. Please contact us if you would like to compare both variants for your application. Recirculating chiller, circulating thermostat or heating bath: the right design Within the IKA temperature control unit range, three different designs can be distinguished: pure recirculating chillers, such as the RC 2 basic, are designed solely for cooling; cooling and heating circulation thermostats, such as the HRC-2 series, provide both cooling and heating in a single unit; and heating baths provide heating without an active cooling function. The following overview compares the cooling capacity at various target temperatures: ModelDesign20 °C0 °C-20 °CRefrigerantRC 2 basic (this product)Recirculating chiller400 W320 W130 WR134aRC 2 liteRecirculating chiller400 W250 WNot specified (minimum -10 °C)R290HRC 2 liteCirculating thermostat400 W250 W100 W (at -10 °C)R290 RC 2 basic compared to RC 2 lite and the HRC-2 series With a minimum operating temperature of minus 20 °C, the RC 2 basic covers the lowest working temperature range of the recirculating chillers in this power class compared in the overview. If, on the other hand, you are looking for a unit using the R290 refrigerant, you will find this in the slightly more compact IKA RC 2 lite. If the same unit needs to provide active heating as well as cooling, the IKA HRC 2 lite is suitable. Typical applications According to the manufacturer, the RC 2 basic is suitable as an external closed-circuit cooling source for, amongst other things, cooling external equipment such as: Laboratory reactors Calorimeters Incubation shakers Rotary evaporators, such as the IKA RV 10 digital V-C or the IKA RV 3 V-C Connection, installation and ongoing operation The integrated pressure/suction pump achieves a maximum flow rate of 18 l per minute at a maximum pump pressure of 0.3 bar on the pressure side and 0.2 bar on the suction side. The internal bath has a capacity of between 1.4 and 4.0 l. RS232 and USB interfaces are available for connection to a PC or process control system. The housing is protected to IP 21 in accordance with DIN EN 60529; it can be connected to either 230 or 115 volts at 50 or 60 hertz. End of production and selecting the correct cooling capacity IKA has discontinued production of the RC 2 basic with effect from 31 July 2026. Consequently, only existing stock is still available; further orders are no longer possible, and the current stock is the last batch available. When selecting the appropriate cooling capacity, the target temperature is the key factor: if a cooling bath at around 0 °C is sufficient, 320 watts of cooling capacity is still available; it is only at minus 20 °C that the capacity drops to 130 watts. For applications that regularly require temperatures below minus 10 °C, the RC 2 basic, with its operating range extending down to minus 20 °C, is one of the few options in this performance class. Technical details Unit typeRecirculating chillerWorking temperature range-20 °C to room temperature (up to 80 °C with external heating)Temperature stability (DIN 12876)±0.1 KTemperature sensorPT100Cooling capacity at 20 / 10 / 0 / -10 / -20 °C400 / 370 / 320 / 240 / 130 WRefrigerantR134a (HFC-134a), fluorinated greenhouse gasGWP (refrigerant)1430Refrigerant charge230 gCO2 equivalent0.33 tRefrigerant safety group (DIN EN 378-1)A1 (non-flammable)Pump typePressure/suction pumpMax. pump pressure (discharge / suction side)0.3 bar / 0.2 barMax. flow rate18 l/minFilling volume (bath tank)1.4 to 4.0 lInterfacesRS232, USBIP rating according to DIN EN 60529IP 21Dimensions (W x H x D)220 x 475 x 525 mmWeight31.26 kgVoltage / Frequency / Connected load230/115 V, 50/60 Hz, 300 W Scope of delivery 1 x IKA RC 2 basic recirculating chiller (ID No. 0004171000) WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory information As an electrical appliance, the RC 2 basic is subject to the German Electrical and Electronic Equipment Act (ElektroG) and is registered with the EAR Foundation under WEEE registration number DE 66784213. At the end of its service life, the appliance must not be disposed of with household waste, but must be taken to a separate collection point for waste electrical and electronic equipment. According to the manufacturer's labelling, the unit is labelled as a hermetically sealed system containing the fluorinated greenhouse gas R134a (HFC-134a); the full refrigerant specifications (GWP, charge quantity, CO2 equivalent) are set out in the Technical details table above. The refrigerant must be professionally recovered by an authorised refrigerant recovery operator prior to disposal. Frequently asked questions about the RC 2 basic What does the F-Gas Regulation mean for operating the RC 2 basic?The refrigerant data are given in the Technical details table: R134a, charge 230 g, GWP 1430, 0.33 t of CO2 equivalent, safety group A1. The assessment for your operation depends on your obligations as an operator. We will gladly provide you with the manufacturer's information and the data sheet. Has production of the RC 2 basic already ceased?Yes. IKA ceased production on 31 July 2026. Only existing stock is still available; further purchases are no longer possible. Will I still be able to obtain spare parts and repair services for the RC 2 basic after it has been discontinued?Yes. According to IKA, the following applies to all discontinued units in this series: the availability of spare parts and repair services will continue to be ensured for at least 10 years. Is there a successor model using a different refrigerant?Yes, the IKA RC 2 GREEN basic uses the natural refrigerant R290 and, according to IKA, offers approximately double the cooling capacity of the RC 2 basic. Please contact us if you would like to compare both variants for your application. Individual requirements and procurement service Our procurement service is here to assist you with suitable connection hoses, additional valves or connecting the unit to existing laboratory reactors and rotary evaporators. Please also feel free to contact us if you have any questions regarding F-gas labelling or the successor model.

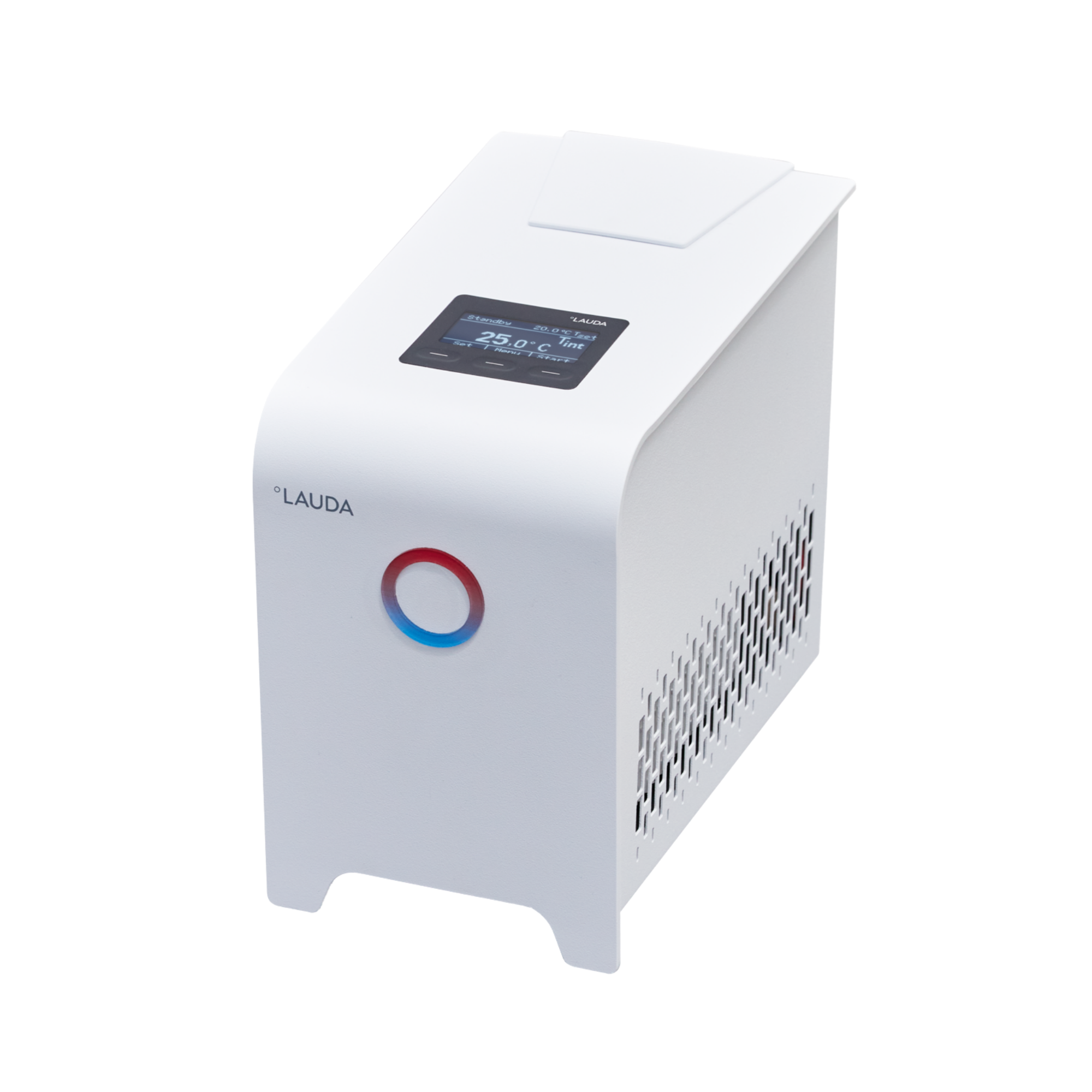

LAUDA Loop L 100 Circulation Thermostat, 4 to 80 °C, 120 Watt Cooling Capacity, L000027
Anyone wishing to operate an external circuit at a constant temperature without the space and noise associated with a compressor will find the LAUDA Loop L 100 circulation thermostat to be a compact device for the laboratory bench. It cools and heats thermoelectrically using Peltier elements, covers a working temperature range of 4 to 80 °C and delivers a cooling capacity of 120 watts at 20 °C. For smaller external loads with limited cooling requirements, such as individual double-jacketed vessels or measuring cells, this is generally sufficient, without the need to purchase a larger cooling unit with its own refrigerant circuit.Cooling without refrigerantThe Loop L 100 operates entirely without refrigerant. Thermoelectric cooling via Peltier elements requires no refrigerant circuit, compressor or condenser, and consequently runs noticeably more quietly and with less vibration than a conventional compressor-based unit in the same performance class. The sound pressure level is 57 dB(A), the power consumption is a maximum of 0.24 kilowatts, and the heating power is a maximum of 0.2 kilowatts. Under partial load, that is, when only a small amount of cooling or heating is required, the power consumption drops accordingly. Weighing 7 kilograms, the unit is also easy to move around.Operation and connectionA graphical OLED display shows setpoint and actual values in plain text; operation is via three buttons with simple menu navigation. An RS232 interface allows connection to a higher-level control system or a logging system. The supply and return lines are fitted with 1/4-inch quick-connect couplings; the connected external load can be changed without tools. The internal pump delivers up to 3 litres per minute at a maximum pressure of 0.8 bar; the bath’s maximum filling volume is 0.28 litres. The unit operates with non-flammable liquids such as water or water-glycol mixtures.Installation and mains connectionThe Loop L 100 is designed for ambient temperatures of 5 to 40 °C and operates on a mains supply of 100 to 240 volts at 50 or 60 hertz; it can therefore be operated in various mains environments without a voltage converter. A mains cable with an angled Schuko plug is supplied as standard. For export, LAUDA lists further plug variants, for example for the UK, Australia, North America or Brazil, which are listed under separate order numbers. If you require one of these variants, it is best to check with us before placing your order.Typical applicationsAs an external temperature control unit, the Loop L 100 is used wherever a compact unit is sufficient:Tempering of external double-jacketed vessels and small reaction vesselsMaintaining a constant temperature on measuring cells, cuvette holders and viscometersContinuous operation on small test set-ups without their own refrigeration systemLaboratory environments where quiet, low-vibration operation is requiredSelection guide: which Loop is right for youIf the cooling capacity of the L 100 is insufficient for the external circuit, the LAUDA Loop L 250, with 250 watts and the same operating concept, offers approximately double the capacity. If significantly more cooling capacity is required, for example, for larger external circuits or lower temperatures in the sub-zero range, the compressor-based LAUDA Alpha RA 8, LAUDA Alpha RA 12 and LAUDA Alpha RA 24 cooling thermostats are the more suitable choice.Technical detailsWorking temperature range4 to 80 °CAmbient temperature range5 to 40 °CTemperature stability± 0.1 KMax. heating power0.2 kWCooling capacity at 20 °C (ethanol)0.12 kWCooling capacity at 10 °C (ethanol)0.06 kWFlow/return connection1/4-inch quick-connect couplingMax. fill volume0.28 LPump flow rate, max.3 L/minPump pressure, max.0.8 barDimensions (W x D x H)175 x 301 x 266 mmWeight7 kgSound pressure level57 dB(A)Max. power consumption0.24 kWMains supply100-240 V; 50/60 HzMains plugMains cable with angled Schuko plug (CEE7/7)Safety class (DIN 12876)I / NFLStandardDIN 12876Scope of deliveryLAUDA Loop L 100 circulation thermostat, order number L000027Mains cable with angled Schuko plug (CEE7/7)Operating instructions as a PDF downloadRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.The Loop L 100 operates using thermoelectric, refrigerant-free cooling technology based on Peltier elements. Labelling in accordance with Regulation (EU) 2024/573 on certain fluorinated greenhouse gases is therefore not required.Warranty and procurement serviceLAUDA DR. R. WOBSER GMBH & CO. KG, Lauda-Königshofen, offers end customers a 5-year ‘Best’ warranty on this unit, effective from the date of delivery. This is subject to registration at lauda.de within three months of delivery and the use of genuine LAUDA temperature control fluids. The warranty covers defects in materials and workmanship. Exclusions include, amongst others, wear parts such as filters and seals, damage caused during transport, damage resulting from unauthorised tampering, as well as cables, plugs, hoses and adaptors. LAUDA’s warranty terms and conditions (as at 03/2025) apply. Your statutory warranty rights remain unaffected.A silicone hose is available as an accessory for the Loop L 100, compatible with the quick-connect couplings on the supply and return lines. Our procurement service can, if required, put together a selection of suitable hoses, temperature control fluids and other accessories for the unit.

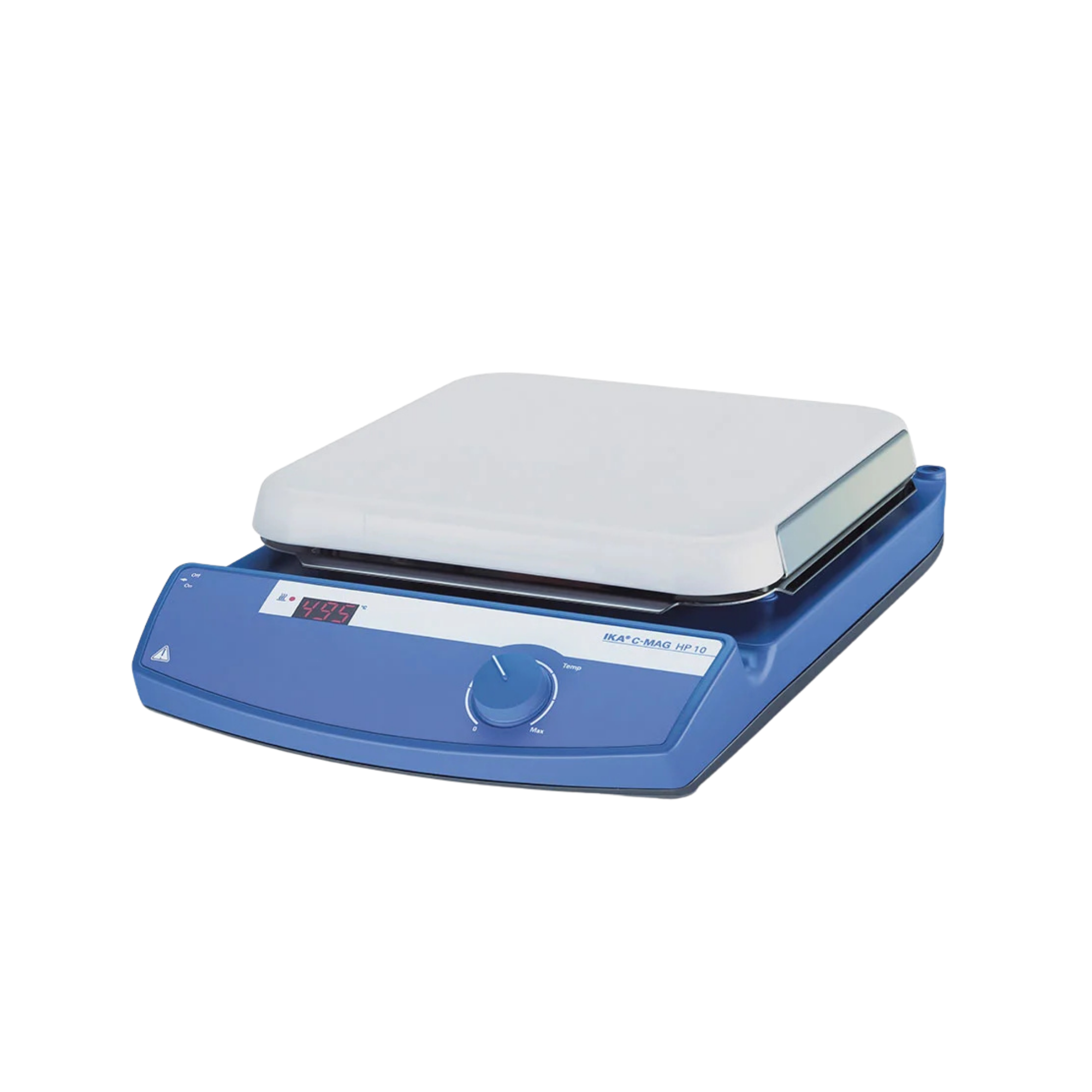

IKA C-MAG HP 10 hotplate, with glass-ceramic work surface, 0003582000
Thermodynamic efficiency and material resistance The IKA C-MAG HP 10 is a high-performance heating system specially developed for the thermal treatment of large-volume media and aggressive chemical substances. With a heating power of 1500 W and a standing surface of 260 x 260 mm, the unit is suitable for heating vessels. The glass-ceramic plate is chemically resistant and resistant to temperature changes. Thanks to the low thermal expansion of the material, the surface remains flat even at high operating temperatures, which supports contact with the vessel. Metrological precision and system reliability The thermal parameters are controlled via a digital display, which allows precise monitoring of the setpoints. To regulate the medium temperature, the C-MAG HP 10 features an integrated interface in accordance with DIN 12878, which enables the connection of external contact thermometers (e.g. ETS-D5). The safety architecture comprises a fixed safety circuit at 550 °C and a visual ‘Hot Top’ warning indicator. The indicator points to the residual heat of the plate, even after the heating function has been switched off, as long as the surface temperature remains above 50 °C. Technical details Thermodynamics & Heating Technology Heating power: 1,500 W Heating temperature range: 50 to 500 °C Setpoint temperature setting accuracy: 5 K Fixed safety cut-off: 550 °C Heating rate of the hotplate: 5 K/min Metrology & Control Engineering Display: Digital LED display (setpoint) Connection for external temperature sensor: DIN 12878 (e.g. PT 1000) Control accuracy with sensor: ± 3 K Residual heat indicator: Visual warning signal (Hot Top indicator) Material Properties & Mechanics Surface material: Glass-ceramic (vitroceramic) Surface dimensions: 260 x 260 mm Housing material: Cast aluminium / corrosion-resistant plastic Dimensions & weight Dimensions (W x H x D): 300 x 105 x 415 mm Weight: 6 kg Permissible ambient temperature range: 5 to 40 °C Permissible relative humidity: 80 % Degree of protection according to DIN EN 60529: IP 21 Voltage: 230 V (50/60 Hz) Power consumption: 1,505 W Scope of delivery 1 x IKA C-MAG HP 10 hotplate 1 x mains cable 1 x operating instructions Important note: An external temperature sensor (e.g. PT 1000) for direct control of the medium temperature is not included as standard and must be configured separately. WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & accessories For precise thermodynamic control in the liquid phase, an external resistance thermometer (PT 1000) or an electronic contact thermometer (ETS-D series) must be connected via the DIN 12878 socket. This enables compensation for the thermal hysteresis of the glass-ceramic hotplate. You can find suitable stand rods and boss heads for securing the sensor via our procurement service.

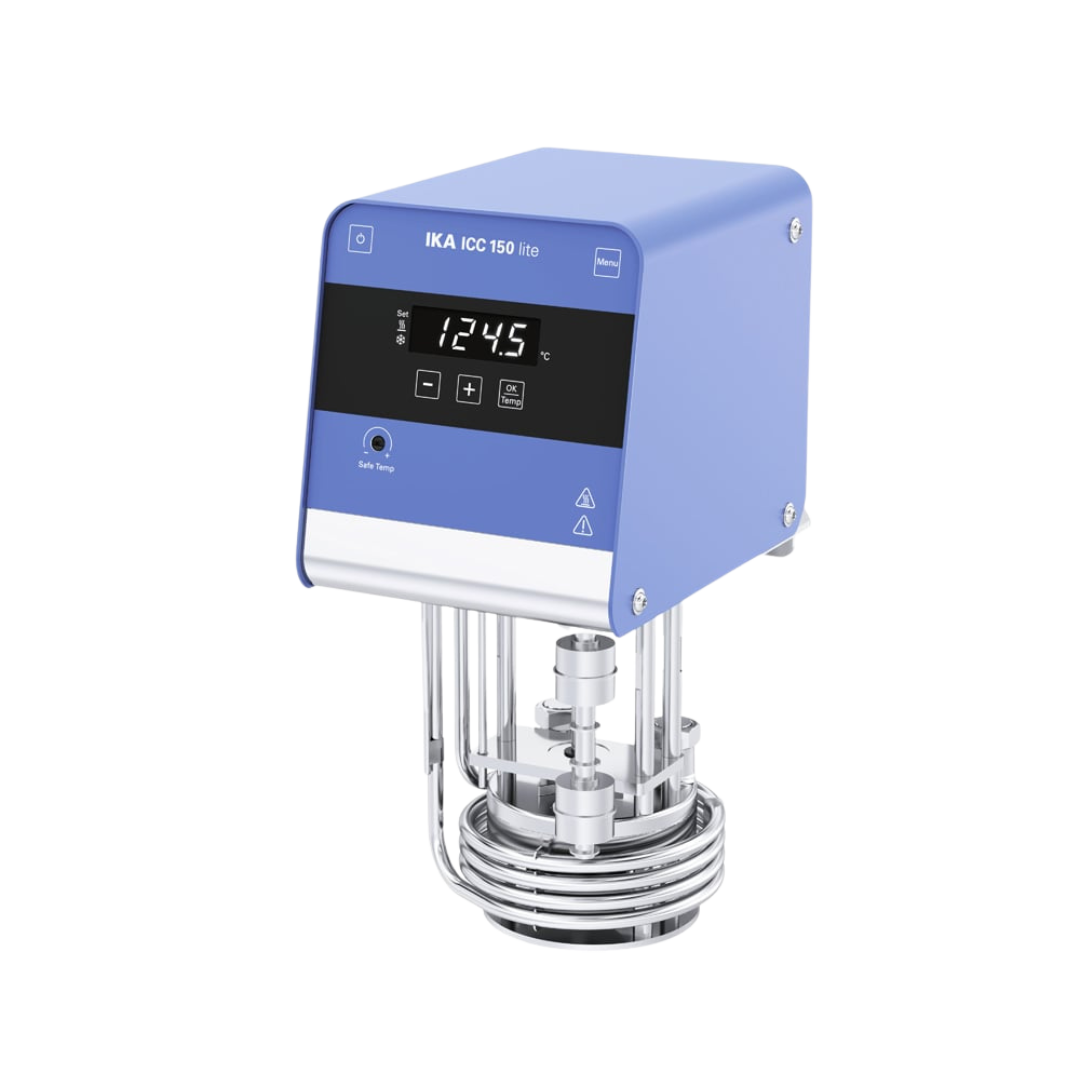

IKA ICC 150 lite Immersion Circulator, LED Display, up to 150 °C, 0020105581
The ICC 150 lite belongs to the lite series of IKA immersion circulators, which is designed for the essential basic functions. It controls the temperature of liquids from room temperature to 150 °C with 2,000 W heating power, has a built-in pressure/suction pump and is classified for flammable liquids according to DIN 12876 class III. The housing is made of coated stainless steel.Overflow protection and safety circuitThe circulator detects an overflow of the bath, for example due to an unintentionally increased amount of oil, and safely switches off the heating. It also monitors for low level. The safety circuit is adjustable from 0 to 160 °C, and warnings are visual and audible. A PT1000 measures both the working and the safety temperature.Display and controlThe LED display shows working and safety temperature with a resolution of 0.1 K, and the set temperature can be set to an accuracy of 0.1 K. Control is by PID, and the temperature stability according to DIN 12876 is ±0.05 K. With external cooling the minimum operating temperature of the circulator is -25 °C.PumpThe integrated pressure/suction pump is intended for internal and external applications. It delivers up to 15 l/min at 0 bar back pressure and reaches a maximum pump pressure of 0.3 bar, on the suction side 0.1 bar.Dimensions, clamp and connectionThe circulator measures 135 x 303 x 180 mm and weighs 4.7 kg. It is attached to the bath vessel with a clamp, the universal clamp has a clamping width of 0 to 40 mm, and the vessel must be at least 150 mm deep. A stand foot is integrated into the housing. The connection is to 230 V at 50/60 Hz, and the power consumption is 2,100 W. Via RS 232 and USB-B the device can be monitored, controlled and documented.Comparison with the ICC basicThe ICC basic is somewhat larger at 145 x 340 x 200 mm and 3.75 kg, but lighter. Its temperature stability is ±0.02 K compared with ±0.05 K for the ICC 150 lite, and the pump flow rate is 18 instead of 15 l/min. Both devices have 2,000 W heating power, a safety circuit from 0 to 160 °C and an LED display.As a package with stainless steel bathThe ICC 150 lite is also available in ready-to-connect packages with the necessary accessories. In the shop these are, for example, the ICC 150 lite pro 9 with a 9 litre stainless steel bath, the ICC 150 lite pro 12 with 12 litres and the ICC 150 lite pro 20 with 20 litres.Typical applicationsTemperature control of liquids up to 150 °C in an existing bath vesselUse with flammable liquids according to DIN 12876 class IIIApplications with oil in which an overflow is to be detected and the heating switched offInternal or external applications with the integrated pumpMonitoring and documentation on a PC via RS 232 or USB-BTechnical detailsHeating power2,000 WWorking temperatureRoom temp. to 150 °COperating temperature min. (with external cooling)-25 °CTemperature controlPIDWorking temperature probePT1000Safety temperature probePT1000Display of working/safety temperatureLEDTemperature stability according to DIN 12876±0.05 KDisplay resolution0.1 KSetting accuracy of set temperature0.1 KPump typePressure/suction pumpMax. flow rate (0 bar back pressure)15 l/minMax. pump pressure (no flow)0.3 barMax. pump pressure suction side (no flow)0.1 barClassification according to DIN 12876III with FL markingWarning functionsvisual, audibleSafety circuit, adjustable0 to 160 °CLow/high level protectionyesMin. bath depth150 mmDevice mountingClampClamping width of universal clamp0 to 40 mmDimensions (W x H x D)135 x 303 x 180 mmWeight4.7 kgPermissible duty cycle100 %Ambient temperature5 to 40 °CRelative humiditymax. 80 %IP rating (DIN EN 60529)IP 21InterfacesRS 232, USB-BPower supply230 V, 50/60 HzPower consumption2,100 WScope of delivery1 x ICC 150 lite Immersion CirculatorRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceThe IKA manufacturer's warranty of 2 years applies to the ICC 150 lite, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure bath vessels, packages with bath, cooling coils and further accessories.

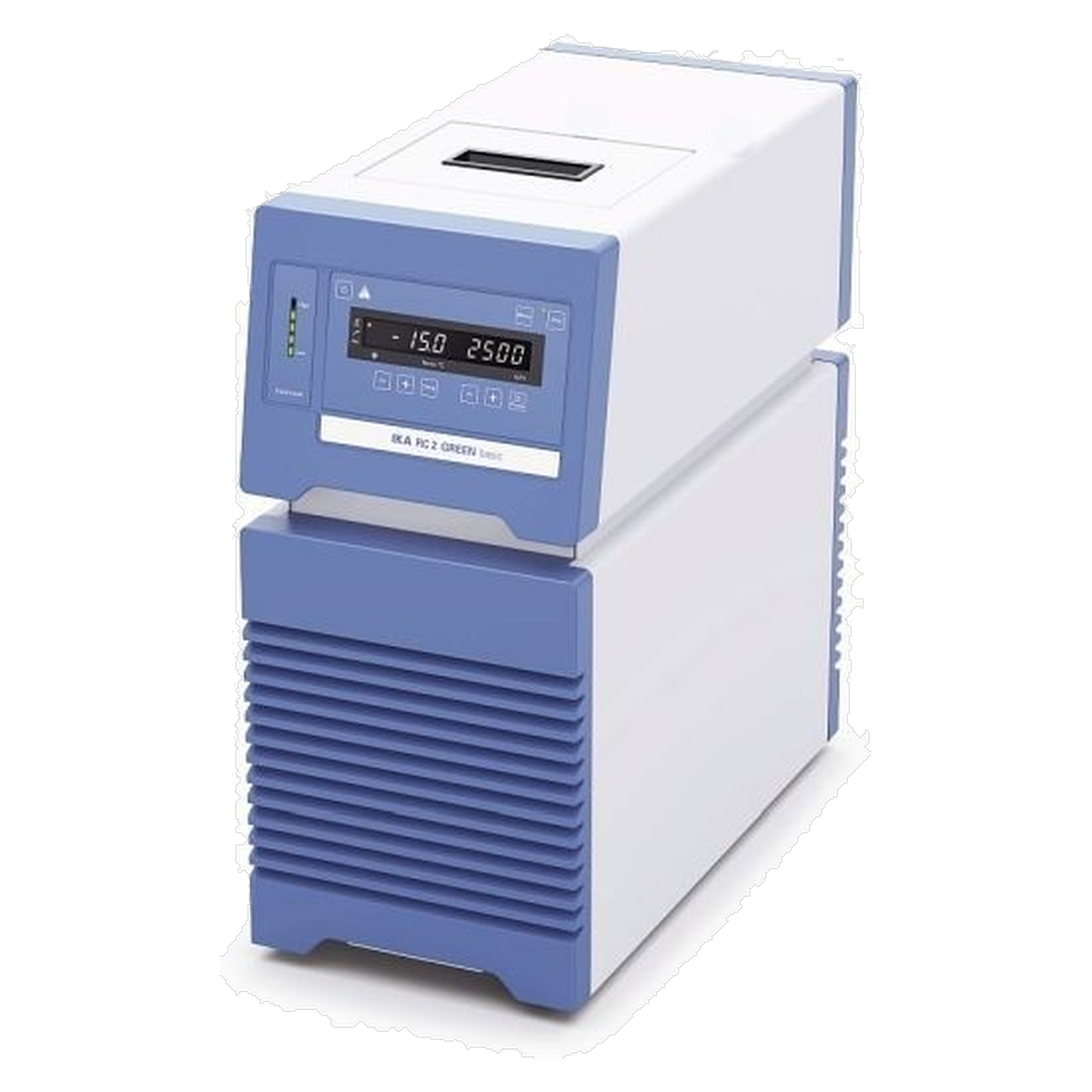

IKA RC 2 GREEN basic Recirculating Chiller, R290, 800 W Cooling Capacity, Down to -30 °C, 0025004186
The IKA RC 2 GREEN basic recirculating chiller is the successor designated by IKA to the RC 2 basic, which was discontinued on 31 July 2026. It delivers up to 800 watts of cooling capacity at 20 °C and uses the natural refrigerant R290 instead of the previous R134a. As an external, closed-circuit cooling source, it cools rotary evaporators, laboratory reactors and other equipment with heat exchangers, regardless of the season or water pressure in the laboratory. Successor to the IKA RC 2 basic: what’s changing IKA has discontinued production of the RC 2 basic as of 31 July 2026 as part of the portfolio transition to natural refrigerants. IKA assures the availability of spare parts and repair services for all discontinued units in this series for at least 10 years. The RC 2 GREEN basic retains the design and connection dimensions virtually unchanged and is the direct successor. Compared with its predecessor, the refrigerant, cooling capacity and pump capacity have changed; in terms of temperature stability, the specified value for the successor is numerically higher than that of its predecessor. The following table compares both series with their respective documented values: FeatureRC 2 basic (predecessor)RC 2 GREEN basic (this product)RefrigerantR134aR290Cooling capacity at 20 °C400 W800 WMax. pump pressure0.3 bar0.5 barMax. flow rate18 l/min21 l/minTemperature stability (DIN 12876)±0.1 K±0.15 KWeight28.0 kg25.5 kg The RC 2 basic can still be used by existing customers; there is no ban on its operation and no expiry date for its use. Anyone still requiring a unit with the non-flammable refrigerant R134a will find the IKA RC 2 basic (item no. 0004171000) to be an alternative from our remaining stock. Cooling capacity from room temperature down to minus 30 °C As expected, the cooling capacity of the RC 2 GREEN basic decreases as the target temperature falls: 800 watts at 20 °C, 700 watts at 10 degrees, 500 watts at 0 degrees, 400 watts at minus 10 degrees, 200 watts at minus 20 degrees and 90 watts at minus 30 °C. The working temperature range thus extends from minus 30 °C to room temperature; with an external heater, the bath can also be operated at temperatures up to 70 °C. Control is via a PT100 sensor with an LED display; the display resolution and setting accuracy of the setpoint temperature are both 0.1 Kelvin. R290 refrigerant: Safety group A3 and installation instructions The RC 2 GREEN basic operates with 69 grams of the natural refrigerant R290 (propane) at a maximum permissible pressure of 21 bar. According to DIN EN 378-1, R290 is classified as safety group A3 and is therefore flammable. According to the operating instructions, a minimum room volume of 9 cubic metres and a clearance of at least 20 centimetres in front of and behind the unit are required for safe operation: These values ensure that, even if the entire refrigerant charge were to escape, no flammable refrigerant-air mixture can form (R290: max. 8 g per cubic metre of room air). As is standard for laboratory equipment using flammable refrigerants, it is recommended that the unit be installed in a well-ventilated area with no open ignition sources in the immediate vicinity. Display, warning functions and calibration The RC 2 GREEN basic displays the operating and safety temperatures on an LED display and features visual and audible warning functions in the event of overheating, as well as low- and high-level protection for the bath vessel. The internal temperature measurement can be calibrated. DIN 12876 specifies a temperature stability of ±0.15 Kelvin; the comparative value for the predecessor model can be found in the table in the section on the successor model above. Selection guide: RC 2 GREEN basic or RC 2 GREEN control The RC 2 GREEN basic and RC 2 GREEN control share the same refrigeration circuit, cooling capacity and pump, but differ in terms of control and operation: FeatureRC 2 GREEN basic (this product)RC 2 GREEN controlCooling capacity at 20 °C800 W800 WTemperature controlPT100 sensor, LED displayPID controller, TFT displayDisplay resolution0.1 K0.01 KExternal PT100 connection (LEMO)NoYesWiCo wireless controller with programsNoYesWeight25.5 kg26.5 kg If you only need to read and set the target temperature directly on the unit, the RC 2 GREEN basic is suitable for you. If you also wish to connect an external temperature probe, programme temperature profiles or monitor the unit wirelessly, the IKA RC 2 GREEN control is the model for you. Positioning within the IKA recirculating chiller range Within the IKA temperature control unit range, the RC 2 GREEN basic sits between two neighbouring series. Those looking for a more compact entry-level solution with lower cooling capacity will find what they need in the IKA RC 2 lite, which delivers up to 400 watts at 20 °C and operates down to minus 10 °C. Those who need to actively heat as well as cool will find what they are looking for in the IKA HRC 2 GREEN basic or, with an additional WiCo wireless controller, in the IKA HRC 2 GREEN control; both use the same refrigeration technology as the RC 2 GREEN series but feature an additional heating function. Typical applications As an external closed-circuit cooling source, the RC 2 GREEN basic is suitable for, amongst other things: Cooling rotary evaporators, such as the IKA RV 10 digital V-C or the IKA RV 3 V-C Cooling reflux condensers during syntheses and extractions As a cooling source for laboratory reactors, double-walled vessels and other equipment with heat exchangers Applications with higher cooling requirements due to higher solvent flow rates or lower target temperatures than with the RC 2 lite Connection, installation and ongoing operation The integrated pressure/suction pump achieves a maximum flow rate of 21 l per minute at a maximum pump pressure of 0.5 bar on the pressure side and 0.25 bar on the suction side, connected via M16x1 threaded connections. The internal bath has a capacity of between 1.4 and 4.0 l. RS232 and Micro-USB interfaces are available for connection to a PC or process control system. The permissible ambient temperature range is 5 to 32 °C with a maximum relative humidity of 80 %; the housing is protected to IP 21 in accordance with DIN EN 60529. Technical details Device typeRefrigerated circulating thermostatWorking temperature range-30 °C to room temperature (up to 70 °C with external heating)Temperature stability (DIN 12876, at -10 °C)±0.15 KTemperature sensorPT100Display resolution / setting accuracy0.1 KCooling capacity at 20 / 10 / 0 / -10 / -20 / -30 °C800 / 700 / 500 / 400 / 200 / 90 WRefrigerantR290, 69 g, max. 21 barPump typePressure/suction pumpMax. pump pressure (discharge / suction side)0.5 bar / 0.25 barMax. flow rate (0 bar back pressure)21 l/minPump connectionsM16x1Filling volume1.4 to 4.0 lWarning functionsvisual and audible, overtemperature; low and high level protectionCalibration optionsyesNoise level61 dB(A)InterfacesRS232, Micro-USBIP rating according to DIN EN 60529IP 21Permissible ambient temperature5 to 32 °CPermissible relative humiditymax. 80 %Dimensions (W x H x D)220 x 475 x 525 mmWeight25.5 kgVoltage / Frequency / Connected load230 V, 50/60 Hz, 350 W (other variants available: 115 V / 100 V) Scope of delivery 1 x IKA RC 2 GREEN basic recirculating chiller (ID no. 0025004186) 2 x hose connectors for DN 8 hoses 2 x hose connectors for DN 12 hoses 1 x USB cable (USB A to Micro-B), 2 m WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory information As an electrical appliance, the RC 2 GREEN basic is subject to the German Electrical and Electronic Equipment Act (ElektroG) and is registered with the EAR Foundation under WEEE registration number DE 66784213. At the end of its service life, the appliance must not be disposed of with household waste, but must be taken to a separate collection point for waste electrical and electronic equipment. The R290 refrigerant contained in the refrigeration circuit must be professionally recovered by an authorised refrigerant recovery company prior to disposal. Frequently asked questions about the RC 2 GREEN basic Is the RC 2 GREEN basic the successor to the RC 2 basic?Yes. IKA ceased production of the RC 2 basic on 31 July 2026; its successor is the RC 2 GREEN basic, which uses the natural refrigerant R290 and, according to IKA, offers approximately double the cooling capacity compared to the previous generation of units. Can I still get spare parts for the discontinued RC 2 basic?Yes; according to the manufacturer, IKA assures the availability of spare parts and repair services for all discontinued units in this series for at least 10 years. Is the R290 refrigerant flammable?Yes, R290 (propane) is classified as safety group A3 according to DIN EN 378-1. According to the operating instructions, a minimum room volume of 9 cubic metres and a clearance of at least 20 centimetres in front of and behind the unit are required for operation. How does the RC 2 GREEN basic differ from the RC 2 GREEN control?Both share the same refrigeration circuit, cooling capacity and pump. The RC 2 GREEN control also features a PID controller with a TFT display, a connection for an external PT100 sensor and a WiCo wireless controller with programmable temperature profiles. Is there still an alternative using the R134a refrigerant?Yes, the IKA RC 2 basic is still available from our stock whilst supplies last. It operates with R134a, which is classified in safety group A1 (non-flammable), with a cooling capacity of up to 400 watts. Which hoses are compatible with the RC 2 GREEN basic?The pump connections are M16x1 threaded; the scope of delivery includes two hose fittings each for DN 8 and DN 12 hoses. Individual requirements and procurement service Our procurement service is here to assist you with suitable connection hoses, additional valves, adaptors or connections to existing laboratory reactors and rotary evaporators. Please also feel free to contact us if you have any questions regarding confirmations and certificates, or if you wish to compare the RC 2 basic or the HRC-2-GREEN series.
IKA ICC 150 lite pro 9 Immersion Circulator, Stainless Steel Bath 9 Litre, 10013199
At many laboratory workstations, the footprint is the limiting factor, not the temperature control power required. The IKA Compact Immersion Circulator ICC 150 lite pro 9 (0010013199) combines the ICC 150 lite immersion circulator with the smallest available stainless steel bath in the series, 9 litres in volume with a maximum bath opening of 230 x 121 millimetres, and covers a working temperature range from room temperature to 150 °C. The compact format is particularly suitable for workstations where several devices must be operated side by side in a confined space, without compromising on heating power or control accuracy. Most compact bath in the ICC 150 lite pro series With a maximum bath opening of 230 x 121 millimetres and a bath depth of at least 150 millimetres, the IB 9 pro stainless steel bath is the smallest within the ICC 150 lite pro series. The external dimensions of the entire system of circulator head, bath and bath bridge are 374 x 377 x 388 millimetres, so the ICC 150 lite pro 9 can also be accommodated on narrower work surfaces, for example when several circulators are in use in parallel for different batches in the same laboratory. Performance data of the ICC 150 lite circulator head The circulator head delivers a heating power of 2,000 watts at a working temperature range from room temperature to 150 °C, and with external cooling operating temperatures down to -25 °C can be reached. The temperature stability according to DIN 12876 is ±0.05 kelvin, and a PID controller with PT1000 working and safety probes handles the control. The integrated pressure/suction pump reaches a maximum delivery pressure of 0.3 bar, a suction pressure of 0.1 bar and a flow rate of up to 15 litres per minute. The smaller bath volume of 9 litres is therefore brought to the set temperature and mixed particularly quickly and evenly. Operation, display and safety concept Operation is via a membrane keypad, and the display is an LED display. The adjustable safety circuit ranges from 0 to 160 °C, and visual and audible warning functions as well as low-level protection reliably protect the device and the heat transfer medium from damage. The system is classified according to DIN 12876 in safety class III (FL) and is therefore also classified for use with flammable heat transfer fluids in a closed circuit. Light circulator head for flexible use The circulator head itself weighs 4.7 kilograms at dimensions of 135 x 303 x 180 millimetres and is mounted directly on the bath via a clamp mounting, the same component that is also used in the larger sizes pro 12 and pro 20. The IP 21 rating and a permissible ambient temperature range of 5 to 40 °C at up to 80 % relative humidity cover the usual laboratory conditions. The device can also be connected to a PC via USB and RS 232 and integrated into existing laboratory software. Small bath, same performance data as the larger sizes Since all sizes of the ICC 150 lite pro series use the same circulator head, the ICC 150 lite pro 9 does not differ from the larger variants pro 12 and pro 20 in heating power, temperature stability, pump data and safety functions. Only the connected bath is smaller. For applications with small sample volumes, this means no loss of performance compared with the larger sizes of the series, only a smaller liquid reserve and a more compact footprint. Anyone who needs different bath sizes in the same laboratory can also rely on the same circulator head type and only has to become familiar with a single design, regardless of which bath is currently connected. Typical applications With the most compact bath in the series, the ICC 150 lite pro 9 is particularly suitable for space-saving, small-volume temperature control tasks: Temperature control of individual or a few small vessels at workstations with limited space Parallel operation of several circulators on the same work surface, for example in practical courses or teaching laboratories Quickly reaching a uniform bath temperature thanks to the small liquid volume of 9 litres External temperature control of smaller connected consumers via the integrated pump connection Processes with flammable heat transfer fluids in closed circuits thanks to classification in safety class III (FL) to DIN 12876 Technical details Device typeCompact immersion circulatorClass according to DIN 12876III (FL)Heating power2,000 WWorking temperature rangeRT to 150 °CMin. operating temperature (with external cooling)-25 °CTemperature stability according to DIN 12876±0.05 KTemperature controlPID controller, PT1000 working and safety probesDisplay / operationLED display / membrane keypadAdjustable safety circuit0 to 160 °CPump typePressure/suction pump, for internal and external useMax. pump pressure / max. suction pressure0.3 bar / 0.1 barMax. flow rate15 l/minBath material / bath volumeStainless steel (IB 9 pro) / 9 lBath depth / max. bath opening at the upper bath edge (W x D)150 mm / 230 x 121 mmExternal dimensions of complete system (W x D x H)374 x 377 x 388 mmWeight of circulator head (without bath)4.7 kgIP rating according to DIN EN 60529IP 21Permissible ambient temperature / rel. humidity5 to 40 °C / 80 %InterfacesUSB, RS 232Power supply230 V, 50/60 HzPower consumption2,100 W Scope of delivery 1 x ICC 150 lite immersion circulator 1 x IB 9 pro stainless steel bath (size S, 9 l) 1 x BS.ICC lite bath bridge (small) WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement service For extended operation of the ICC 150 lite pro 9, we support you through our procurement service in selecting a suitable bath cover and suitable heat transfer fluids as well as replacement baths and spare parts. Further information and contact options can be found at our procurement service.
IKA IB R 20 eco plastic bath for thermostats, polycarbonate, 20 litres, 0020004383
The IKA IB R 20 eco plastic bath is a temperature control vessel made of polycarbonate for IKA immersion thermostats (such as the ICC series). It holds 20 litres and is designed for temperatures up to 100 °C. It is suitable for water bath applications in the laboratory. Transparent polycarbonate The IB R 20 eco is made of transparent polycarbonate (PC) and is designed for temperatures up to 100 °C. The transparent material makes it possible to observe the sample vessels in the bath, such as test tubes, flasks or reactors, during temperature control without opening a lid. Capacity and carrying handles The bath holds 20 litres. The plastic bath has integrated carrying handles on the front sides. They make it easier to move, transport and empty the bath. System integration and cleaning The bath is designed for IKA immersion thermostats. The IKA bath bridges hold the immersion thermostat in the bath. The polycarbonate is resistant to mild laboratory cleaning agents and can be wiped clean. Technical details Design & material Bath type: Plastic bath / temperature control vessel for laboratory thermostats Model designation: IB R 20 eco Material: Polycarbonate (PC), transparent and impact-resistant Max. capacity: 20.0 litres Operating temperature range: Room temperature (plus self-heating) up to 100 °C Geometry & dimensions Overall dimensions (W x D x H): approx. 514 x 340 x 170 mm Bath depth / max. usable depth: approx. 150 mm Housing features: Integrated, ergonomic carrying handles Net weight (empty): approx. 3.2 kg System compatibility & infrastructure Thermostat connection: Optimised for IKA immersion thermostats (e.g. ICC basic, ICC control) Cleaning: Resistant to mild laboratory cleaning agents; can be wiped clean without damaging the material Installation: Stable base, suitable for any standard laboratory worktop Scope of delivery 1 x IKA IB R 20 eco plastic bath base unit (MPN: 0020004383) 1 x Quick start guide Important note: The immersion thermostat (e.g. IKA ICC), which is essential for operation, as well as suitable bath bridges, bath lids and test tube holders, are not included in the standard scope of delivery and must be ordered separately according to your specific application. Individual requirements & accessories To complete your temperature control system, we recommend operating the IKA IB R 20 eco with an original IKA immersion thermostat from the ICC basic or ICC control series. Suitable polycarbonate bath lids and floating insulating balls that reduce evaporation losses at operating temperatures above 60 °C are also available. Test tube holders, stainless steel inserts and additional cooling coils for external cooling media are available for placing the sample vessels. Our procurement service helps with choosing matching thermostat accessories.
Memmert water bath WTB35, 32 L, touch display, +100 °C
The Memmert water bath WTB35 belongs to Memmert's new water bath generation. The Memmert water bath WTB35 tempers larger sample volumes between +10 and +100 °C. At 32 litres, it is suitable for several racks or larger vessels at once. New model generation The WTB35 is part of the full relaunch of the Memmert water bath range for price list 01-2027, which replaces the previous model line entirely. Accessories such as lids, base grids, insert racks and test tube racks now come with new order numbers. The pump module P7 for circulating the water bath can now be ordered as a factory option, previously the circulation pump was a separate retrofit part. When reordering accessories, it is worth checking the current order number, listed further down in this description. Touch display and controls A 3.5-inch colour graphic touch display with 2-point calibration controls the temperature to an accuracy of 0.1 °C. The customisable remote screen “CustomView” allows its own display layout, useful when several identical units run in the same lab. The display shows the key operating values at a glance, no separate control panel is needed. Stainless steel tank and cleaning The deep-drawn stainless steel tank (1.4301) is made without corners or edges, the integrated central drain system makes emptying easier given the larger fill volume here. The heater sits outside the chamber, the housing is stainless steel, four adjustable feet carry the extra weight safely. That makes daily cleaning and disinfection between two different batches easier. Connection and operation Connected load is 2,840 watts at 230 V and 1,840 watts at 115 V (50/60 Hz). The 115 V version is available as option X2 at no extra cost. A standard lab socket is enough, no dedicated high-current connection is needed. Size within the WTB range At 32 litres, the WTB35 is the second-largest model, between the WTB24 and the WTB50. Controls, material and drain system are identical across the whole range, what mainly differs is internal dimensions, capacity, weight and, from the WTB15 upward, whether the pump module P7 is available. Footprint and transport Internal dimensions are 650 x 140 x 450 mm, external with the flat lid 747 x 547 x 292 mm, with the sloped lid 747 x 547 x 404 mm. Packed, the WTB35 arrives in a box measuring 840 x 680 x 495 mm, gross weight 37.5 kg, net weight 32.5 kg. Because of the weight, a second person is recommended for transport into the lab. Pump module P7 For the WTB35, the pump module P7 can be ordered as a factory option and handles continuous circulation of the heat transfer medium, useful at larger fill volumes and dense loading. Without P7, the water surface stays calm, for example for gently thawing sensitive samples. Calibration and documentation A factory calibration certificate is not part of the standard equipment and is not included in the scope of delivery. Anyone who needs documented calibration, for example for a quality management system under ISO 9001 or for test equipment monitoring, can order it as an additional chargeable service through our procurement service. That way the initial commissioning can be documented without having to ship the unit off separately. Typical applications With a setting range of +10 to +100 °C, the WTB35 covers a wide range of tempering tasks in the lab. With several test tube racks or the basket insert, larger sample series can be processed in a single run. Tempering larger sample volumes or several racks at onceThawing and warming processes where the pump module helps even out the temperature distributionFood and water analysis with higher sample throughputChemical and microbiological routine work that needs documented temperature control For larger sample volumes or several racks at once, the WTB35 is a good fit, with the pump module P7 available for even mixing. Anyone who needs still more capacity will find the WTB50 as the largest model in the range. Manufacturer's WEEE registration number (Memmert GmbH + Co. KG, Stiftung EAR): DE 66812464. Memmert units bought from us are covered for three years from delivery: the first 12 months are followed by a 24-month warranty under Memmert's terms, handled through us. Your statutory rights remain unaffected. Technical details Capacity32 litres Internal dimensions (L x W x H)650 x 140 x 450 mm External dimensions with flat lid (L x W x H)747 x 547 x 292 mm External dimensions with sloped lid (L x W x H)747 x 547 x 404 mm Packed dimensions (L x W x H)840 x 680 x 495 mm Temperature setting range+10 to +100 °C Working temperature rangeat least 5 °C above room temperature up to +100 °C (with lid, depending on ambient pressure) Setting accuracy0.1 °C Control unit3.5″ colour graphic touch display, customisable remote screen “CustomView”, 2-point calibration MaterialStainless steel 1.4301 (chamber and housing) Drain systemIntegrated central drain system, tank without corners or edges Installation4 adjustable feet Voltage / power230 V, 50/60 Hz, 2,840 W (optional 115 V, 50/60 Hz, 1,840 W, option X2) Net weight / gross weight32.5 kg / 37.5 kg Scope of delivery 1× Memmert water bath WTB35 (base unit)1× stainless steel sloped lid A factory calibration certificate is not part of the scope of delivery, details are given above in the section Calibration and documentation. The pump module P7 is also a factory option and not fitted as standard. Accessories for the WTB35 The following accessories are available for the WTB35 under the new order numbers: Stainless steel flat lid, 8 openings Ø 107 mmB65808 Base gridB65816 Pump module P7 (factory option, circulates the water bath)P7 Basket insert (large)B66309 Shaking attachment (complete)SV3550 The stainless steel flat lid (8 openings Ø 107 mm) and the base grid are available as accessories. The complete shaking attachment SV3550 and the large basket insert are also available as accessories. Individual requirements & procurement service Insert racks and test tube racks with new order numbers are also available for the WTB35, matched to the relevant size. Our procurement service helps with choosing the right accessories, with spare parts, and with individual calibration requests. As a factory option, Memmert also offers IQ/OQ documents. We order these with the device on request.
