Gas chromatography
Gas chromatography accessories cover all components required for a GC analysis. LT Laborhandel stocks Restek GC capillary columns (Rxi, Rtx, MXT, Stabilwax) in a wide range of lengths and film thicknesses, inlet liners, leak detectors, electronic flowmeters and standard kits for calibration. Our service team will be happy to advise you on the right column for your method.

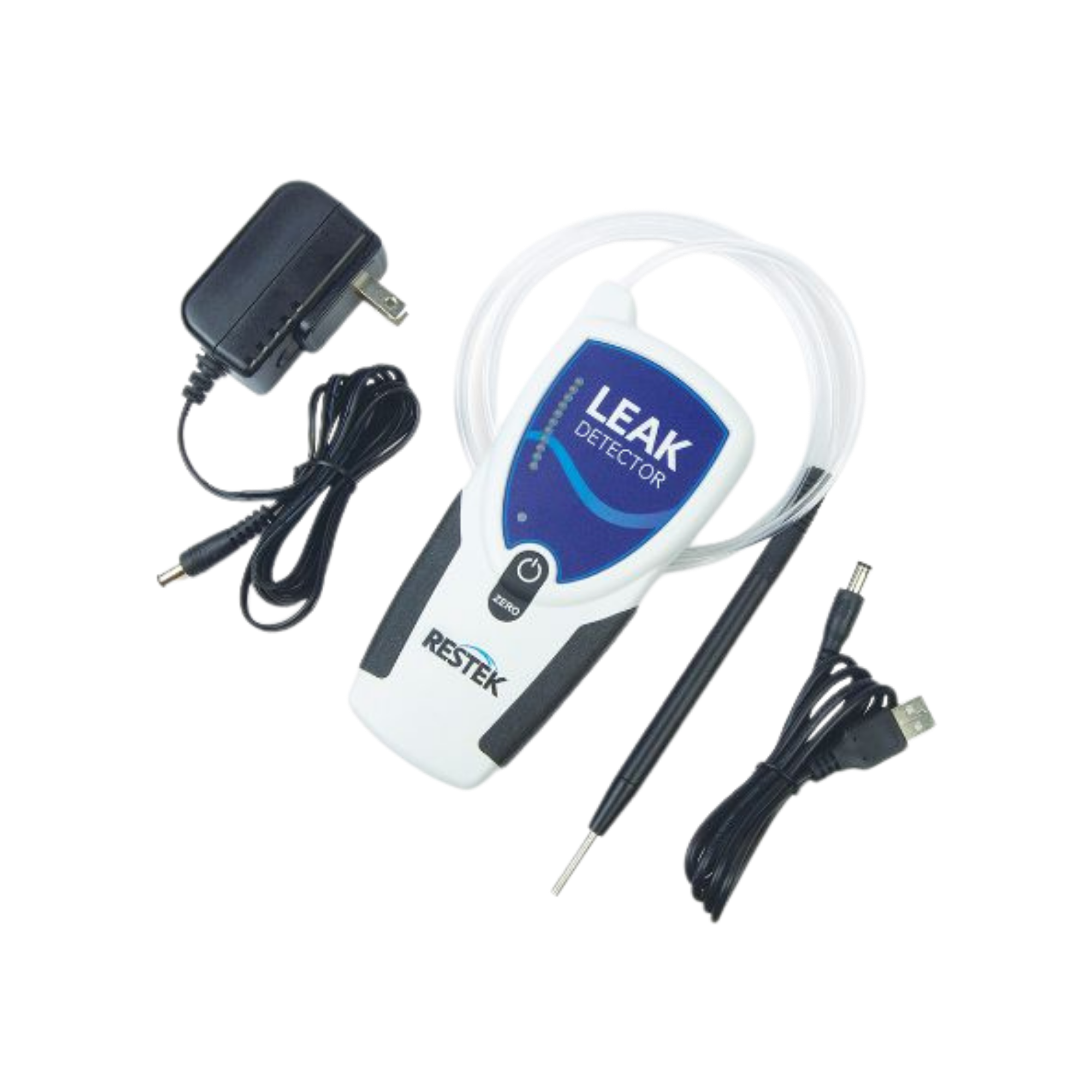

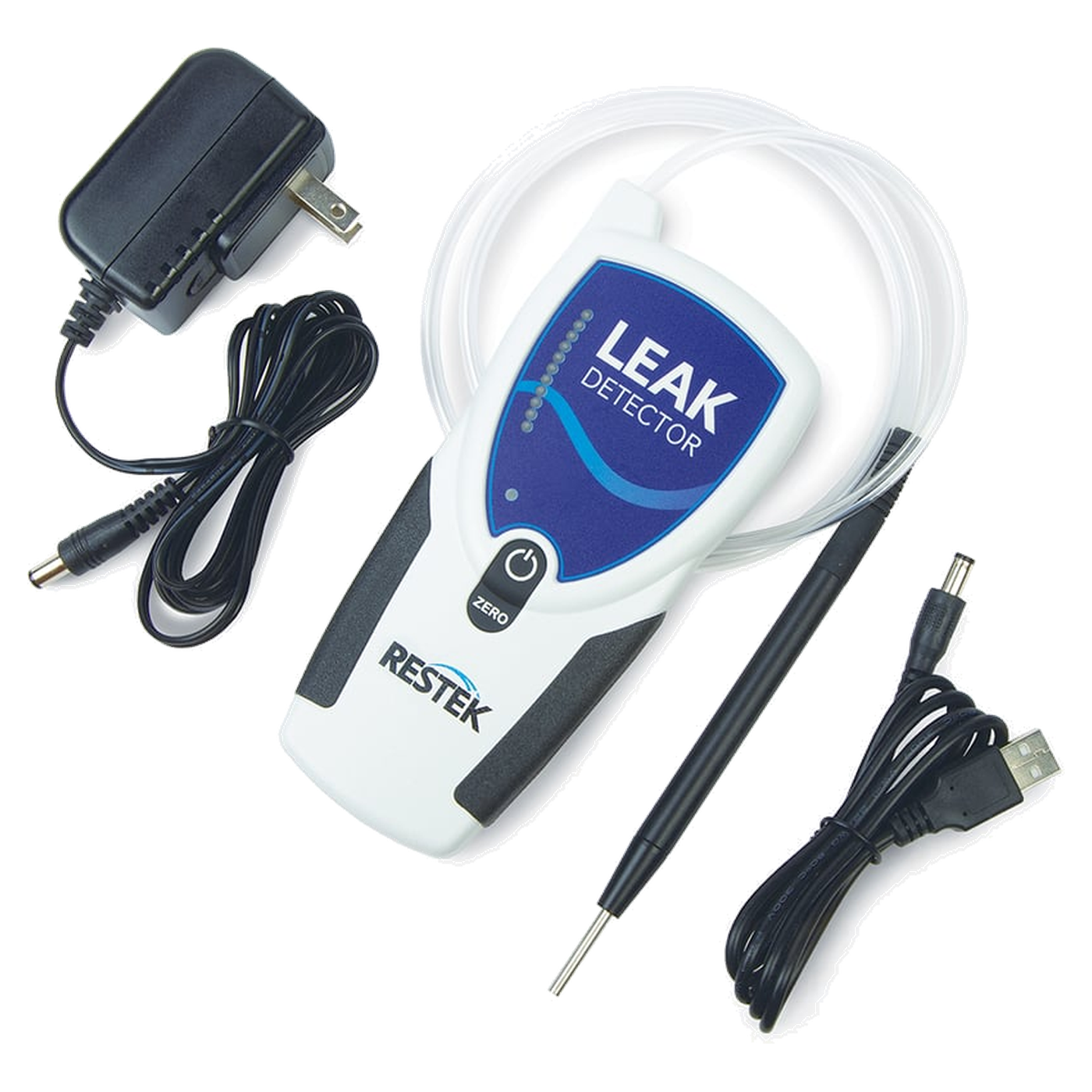

Restek Electronic Leak Detector for Gas Chromatography, Carrying Case and Mains Adapter, 28500
The Restek leak detector is an electronic handheld instrument for gas leak detection in GC systems. It detects a wide range of gases, including helium, nitrogen, hydrogen and CO2, and shows the severity of a leak with an audible tone and an LED display. The battery lasts up to 12 hours between two charges, and charging is via USB or with the universal mains adapter.Display and gas typesThe instrument reports a leak in two ways. A tone indicates audibly, and an LED display visually, how severe the leak is. Both signals reflect the severity, so a leak that has been found can be classified. Anyone who is not looking at the display can rely on the tone, and anyone who cannot hear the tone can rely on the LED.A wide range of gases is detected. These include helium, nitrogen, hydrogen and CO2. With this instrument, hydrogen can only be searched for in trace amounts and in a non-flammable environment. The leak detector is not intended for leaks in a flammable environment, for which a combustible gas detector is to be used.Handheld instrument, battery and probeThe leak detector is an ergonomic handheld instrument with robust side grips. The probe unit is easy to clean, and the instrument has a convenient holder for the probe. An automatic shut-off ends operation by itself.The operating time is up to 12 hours between charges, and operation is also possible while charging. Anyone planning a longer search can therefore let the instrument keep running on mains power or on the USB charging cable. For charging, a 6 ft USB charging cable (about 1.8 m) and a universal mains adapter are included. The mains adapter is designed for the regions USA, United Kingdom, Europe, Australia and Japan. The instrument is supplied in a carrying case.Leak detector and flowmeter comparedBoth instruments belong to the Restek measurement technology for gas chromatography, but solve different tasks. The leak detector finds and assesses leaks. The ProFLOW 6000 flowmeter, by contrast, measures the volume flow of gases between 0.5 and 500 mL/min with an accuracy of ±2 % of reading or ±0.2 mL/min, whichever is greater. The ProFLOW 6000 runs on two AA batteries, the leak detector on a battery that is charged via USB or mains adapter. Both instruments are handheld devices with side grips, and both switch off automatically. Anyone who wants to search for leaks and measure volume flows on the same system orders both instruments separately.FeatureLeak detector 28500ProFLOW 6000 22656TaskGas leak detectionMeasurement of volume flowOutputTone and LED displayReading, data output via USB portPower supplyBattery, charging via USB or mains adapter2 AA batteriesDesignHandheld instrument with side gripsBenchtop or handheld instrument with side gripsShut-offautomaticautomaticTypical applicationsThe instrument is intended for gas leak detection in GC systems, for example for leaks of:HeliumNitrogenHydrogen, only trace amounts in a non-flammable environmentCO2Tone and LED indicate the severity of a leak. The battery lasts up to 12 hours, after which it is recharged via USB or mains adapter, even while the instrument is running.Technical detailsPart number28500Instrument typeElectronic leak detector, handheld instrumentDetectable gasesWide range of gases, including helium, nitrogen, hydrogen, CO2DisplayAudible tone and LED display for the severity of a leakOperating timeUp to 12 hours between chargesChargingOperation while charging possibleFunctionsAutomatic shut-offDesignErgonomic handheld instrument with robust side grips, probe holder, easy-to-clean probe unitMains adapterUniversal AC mains adapter for USA, United Kingdom, Europe, Australia, JapanCharging cableUSB charging cable, 6 ft (about 1.8 m)Product classLeak detectorsPack contents1 pieceScope of delivery1 leak detectorCarrying caseUniversal AC mains adapter (USA, United Kingdom, Europe, Australia, Japan)USB charging cable, 6 ft (about 1.8 m)Charging cable and mains adapter are included with the instrument, so operation and charging need no additionally purchased parts.Individual requirements and procurement serviceBesides the leak detector, Restek offers very many further instruments, columns and accessories for chromatography. LT Laborhandel procures them on request, including by Restek part number. Tell us the number or describe your requirement, and we will prepare a quote for you. Anyone equipping a GC system with several Restek parts, for example with columns, inlet liners and measurement technology, can combine everything in one request.

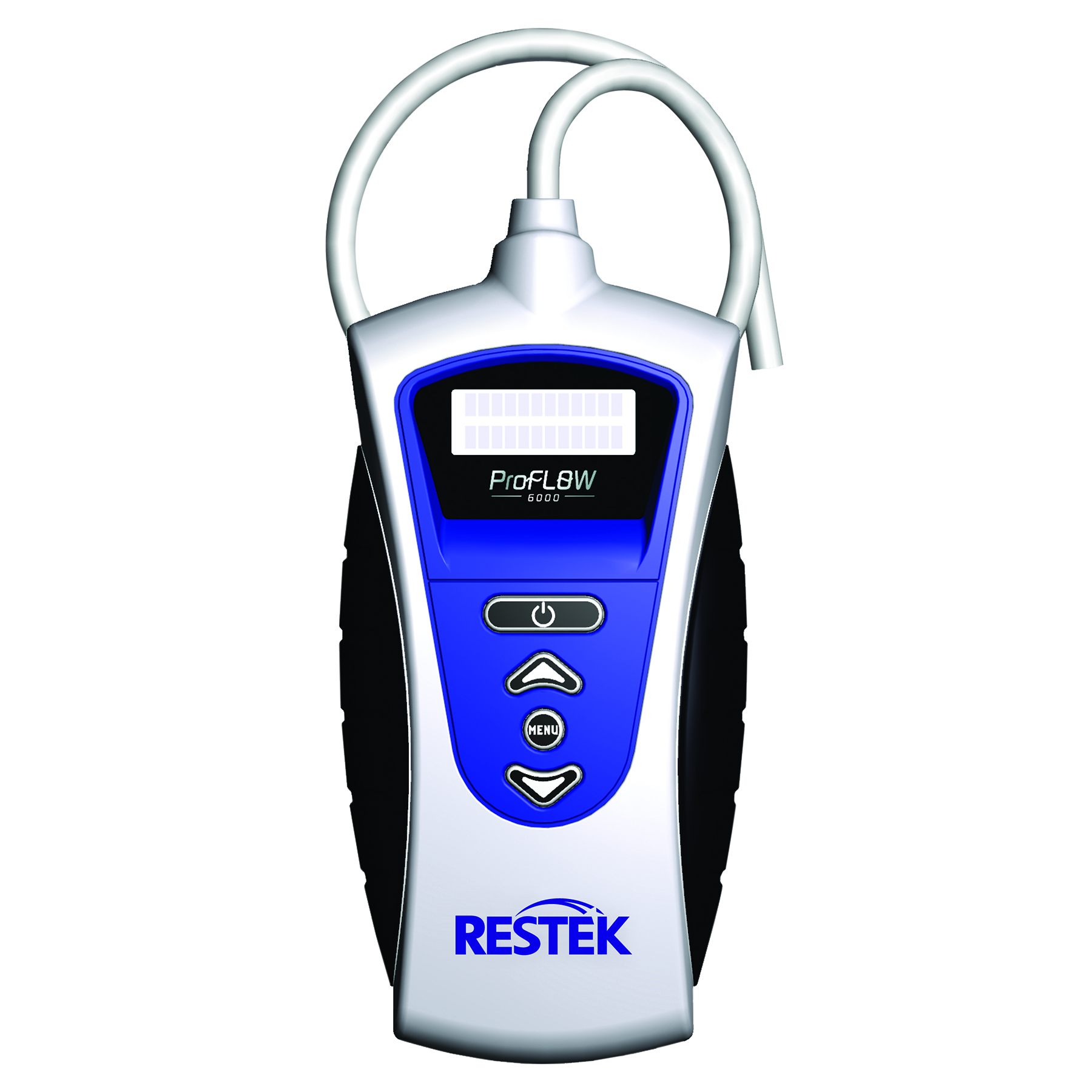

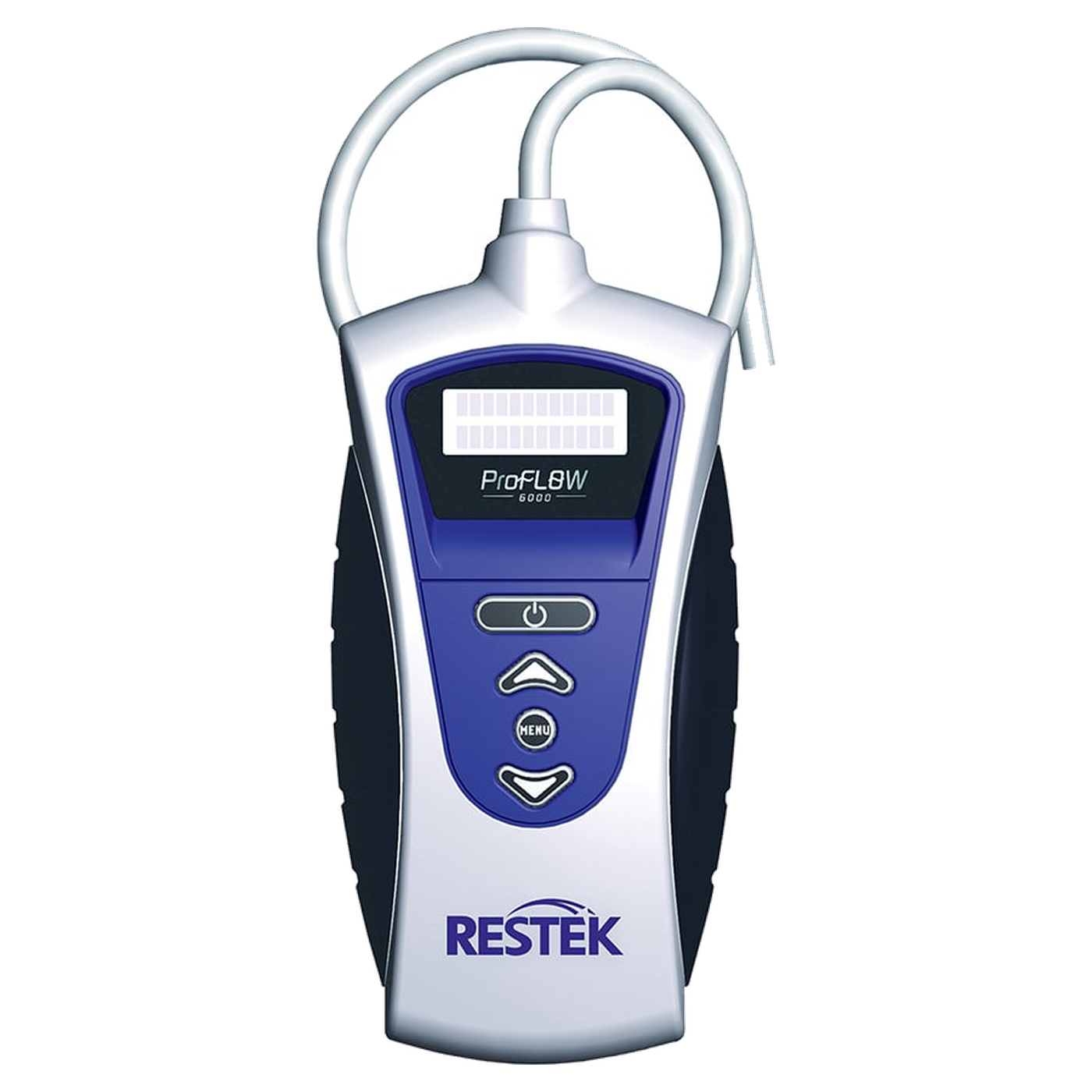

Restek ProFLOW 6000 Electronic Flowmeter, 0.5 to 500 mL/min, 22656
The ProFLOW 6000 is an electronic flowmeter for gases. It measures the volume flow in the range of 0.5 to 500 mL/min and is used to measure gas flows in gas chromatography. The calibration is NIST-traceable, meaning it is traced back to standards of the American National Institute of Standards and Technology. The instrument runs on two AA batteries, outputs data via a USB port and comes in a hard-shell case.Measuring range and accuracyThe measuring range extends from 0.5 to 500 mL/min. The accuracy is ±2 % of the flow reading or ±0.2 mL/min, whichever is greater. This results in a threshold at 10 mL/min: below it, the fixed component of ±0.2 mL/min determines the deviation, above it the percentage. At 100 mL/min it is ±2 mL/min, at 500 mL/min ±10 mL/min. Anyone checking flows around 1 mL/min has to include the ±0.2 mL/min in their assessment, because there it corresponds to a fifth of the reading.For orientation, how large the permitted deviation is at a given reading (the greater of the two values in each case):ReadingDeviationShare of reading0.5 mL/min±0.2 mL/min40 %1 mL/min±0.2 mL/min20 %5 mL/min±0.2 mL/min4 %10 mL/min±0.2 mL/min2 %50 mL/min±1 mL/min2 %100 mL/min±2 mL/min2 %250 mL/min±5 mL/min2 %500 mL/min±10 mL/min2 %Most gas types can be measured, provided they are clean, dry and non-corrosive. Humid or aggressive gas flows therefore do not belong on this instrument. If a flow lies outside the measuring range, the ProFLOW 6000 shows an out-of-range warning.Handling, power supply and data outputThe ProFLOW 6000 can be used as a benchtop or handheld instrument. The ergonomic housing has side grips. Two AA batteries power the instrument and are included. The batteries are thus already part of the scope of delivery. An automatic shut-off function switches the instrument off by itself. Data output runs via the USB port. A hard-shell case for transport and storage is part of the scope of delivery.Warranty and recalibrationRestek grants a one-year manufacturer's warranty on the ProFLOW 6000 from the date of purchase. Your statutory warranty rights against LT Laborhandel remain unaffected. Recalibration is excluded from the warranty. Restek offers its own service for recalibration.Typical applicationsMeasuring gas flows in gas chromatography, volume flow from 0.5 to 500 mL/minMeasurement on clean, dry, non-corrosive gasesThe measuring range up to 500 mL/min is intended for measuring gas flows in gas chromatography. Flows above 500 mL/min are outside the range, and the instrument then shows the out-of-range warning. Gases with moisture or corrosive components are not intended for the ProFLOW 6000.For gas leak detection on the same system there is the electronic leak detector from Restek. The flowmeter measures the volume flow, while the leak detector reports by sound and LED how large a leak is.Technical detailsPart number22656Instrument typeElectronic flowmeter for gasesMeasured quantityVolume flow of gasesMeasuring range0.5 to 500 mL/minAccuracy±2 % of flow reading or ±0.2 mL/min, whichever is greaterCalibrationNIST-traceableGas typesMost gas types, only clean, dry, non-corrosive gasesPower supply2 AA batteriesInterfaceUSB port for data outputFunctionsWarning display when out of range, automatic shut-off functionDesignBenchtop or handheld instrument, side gripsProduct classFlow metersPack contents1 pieceRecalibrationRecalibration service availableWarranty1 year from date of purchase, excluding recalibrationScope of delivery1 electronic flowmeter ProFLOW 6000Hard-shell case for transport and storage2 AA batteriesIndividual requirements and procurement serviceBesides the ProFLOW 6000, Restek offers very many further instruments and accessories for chromatography, plus GC columns in numerous phases and dimensions. LT Laborhandel procures them on request, including by Restek part number. Send us the number or your requirement, and we will get back to you with a quote. Whether a gas is clean, dry and non-corrosive should be settled before ordering, because the ProFLOW 6000 is designed only for such gases.
Restek Rxi-PAH GC Capillary Column, 40 m, 0.18 mm ID, 0.07 µm, 49316
The Rxi-PAH is a GC capillary column for the analysis of polycyclic aromatic hydrocarbons. The phase is proprietary, of medium polarity. This version is 40 m long, with an inner diameter of 0.18 mm and a film thickness of 0.07 µm.Dimensions and analysis timeThe narrow inner diameter and the thin film stand for faster analysis with excellent separation of important PAHs. The sample capacity is correspondingly lower. The column is also intended for the separation of chrysene and triphenylene, the separation of the benzofluoranthenes and for low-volatility dibenzopyrenes.EFSA PAH4The PAH4 group includes benz[a]anthracene, chrysene, benzo[b]fluoranthene and benzo[a]pyrene. The Rxi-PAH is intended for this analysis in food safety and for environmental methods. PAH4 designates a group of substances, not a test method.Other columns for PAHs in the shopFor PAHs and semivolatile compounds in complex matrices there are also columns with 0.25 mm inner diameter. PAHs are also among the fields of use of the Rxi-XLB.ColumnPhaseDimensions and temperatureRxi-PAH (this page)proprietary, medium polarity40 m, 0.18 mm ID, 0.07 µm, 40 to 350/360 °CRxi-SVOCmsproprietary, 5 % phenyl type30 m, 0.25 mm ID, 0.25 µm, up to 340 °CRxi-XLBlow polarity, proprietary30 m, 0.25 mm ID, 0.25 µm, 30 to 340/360 °CTemperature rangeThe column can be used from 40 °C to 350 °C isothermal and up to 360 °C in a temperature program. The first temperature value applies to isothermal operation, the second to temperature programs. The lower limit is 40 °C, which is higher than for the 5-phases in the shop, which start at -60 °C.Dimensions comparedCompared with the 30 m columns with 0.25 mm inner diameter, the Rxi-PAH is 10 m longer, the inner diameter is 0.07 mm smaller and the film at 0.07 µm is considerably thinner. Narrow inner diameter and thin film are part of the design for fast PAH analysis, and the sample capacity is lower as a result.Typical applicationsEFSA PAH4 analysis (benz[a]anthracene, chrysene, benzo[b]fluoranthene, benzo[a]pyrene)PAH analysis for food safety and environmental methodsSeparation of chrysene and triphenylene and of the benzofluoranthenesLow-volatility dibenzopyrenesEFSA is the European Food Safety Authority. PAH4 designates the four named compounds benz[a]anthracene, chrysene, benzo[b]fluoranthene and benzo[a]pyrene. Triphenylene and chrysene are isomers.Technical detailsManufacturerRestekPhaseRxi-PAHPhase typeProprietary, medium polarityPolarityIntermediateLength40 mInner diameter0.18 mmFilm thickness0.07 µmColumn materialFused silicaTemperature range40 °C to 350 °C isothermal, 360 °C programmedPackaging unit1 pieceUNSPSC41115710Part number49316Scope of deliveryOne capillary column, single.Guard columns, liners and further accessories are separate items.Individual requirements and procurement serviceLT procures other Rxi-PAH dimensions and further Restek phases on request, as well as reference standards and accessories, by Restek part number if desired. Quantity and delivery address help with the quote. Matching Restek liners and reference standards can be ordered in the same request.
Restek Rtx-5ms GC Capillary Column, 30 m, 0.25 mm ID, 0.25 µm, 12623
The Rtx-5ms has a stationary phase of 5 % diphenyl and 95 % dimethyl polysiloxane, crosslinked on fused silica. It is 30 m long, with an inner diameter of 0.25 mm and a film thickness of 0.25 µm. The column is tested to strict specifications for low column bleed and high inertness.Polarity, USP and equivalentsThe polarity matches the Rtx-5, and column bleed is lower. The phase is listed under the USP designations G27 and G36. From other manufacturers, the following are considered comparable: Agilent DB-5, HP-5, HP-5ms, Ultra-2 and CP-Sil 8 CB, Phenomenex ZB-5 and ZB-5MS, and Supelco SPB-5. Comparable column part numbers are Agilent 19091S-433 and Scion/Bruker/Varian CP5860.Temperature rangeThe Rtx-5ms withstands up to 330 °C isothermal and 350 °C programmed, with a lower limit of -60 °C. The first temperature value applies to isothermal operation, the second to temperature programs.Which 5-phase fitsAmong the 30 m columns with a 5-phase in the shop, the phase and temperature limits differ, and for the Rtx-5 the dimensions as well. The Rtx-5 has the same polarity, but 0.32 mm ID and 1.00 µm film thickness.ColumnPhaseDimensions and temperatureRtx-5ms (this page)5 % diphenyl, 95 % dimethyl polysiloxane30 m, 0.25 mm ID, 0.25 µm, -60 to 330/350 °CRtx-5Diphenyl dimethyl polysiloxane30 m, 0.32 mm ID, 1.00 µm, -60 to 325/350 °CRxi-5msDiphenyl dimethyl polysiloxane30 m, 0.25 mm ID, 0.25 µm, -60 to 330/350 °CRxi-5Sil MSSilarylene phase, phenyl groups in the polymer backbone30 m, 0.25 mm ID, 0.25 µm, -60 to 320/350 °CBleed and detectorColumn bleed occurs when degradation products of the stationary phase elute from the column, especially at high temperatures. It raises the baseline and increases background noise at the detector. On the Rtx-5ms, bleed is expressly a test criterion. The Rtx-5 also has extremely low column bleed, and on the Rtx-5ms it is lower still.Typical applicationsGeneral-purpose column, also for pharmaceuticalsSolvent impuritiesPesticidesHydrocarbonsPCB congeners, for example Aroclor mixturesEssential oilsSemivolatilesPCB congeners are the individual polychlorinated biphenyls, and Aroclor is the trade name of technical PCB mixtures. Semivolatiles (SVOCs) have a higher boiling point than the classic volatile organic compounds.Technical detailsManufacturerRestekPhaseRtx-5msPhase type5 % diphenyl, 95 % dimethyl polysiloxane, crosslinked, low polarityPolarityNon-polarUSP phaseG27, G36Length30 mInner diameter0.25 mmFilm thickness0.25 µmColumn materialFused silicaTemperature range-60 °C to 330 °C isothermal, 350 °C programmedPackaging unit1 pieceUNSPSC41115710Part number12623Scope of deliveryOne capillary column is supplied as a single piece.Individual requirements and procurement serviceRestek offers the Rtx-5ms in further dimensions. LT procures these on request, as well as other Restek phases, liners and accessories. The request can be made with the Restek part number or with length, inner diameter and film thickness. Quantity and delivery address help with the quote. Matching Restek liners and reference standards can be ordered in the same request.

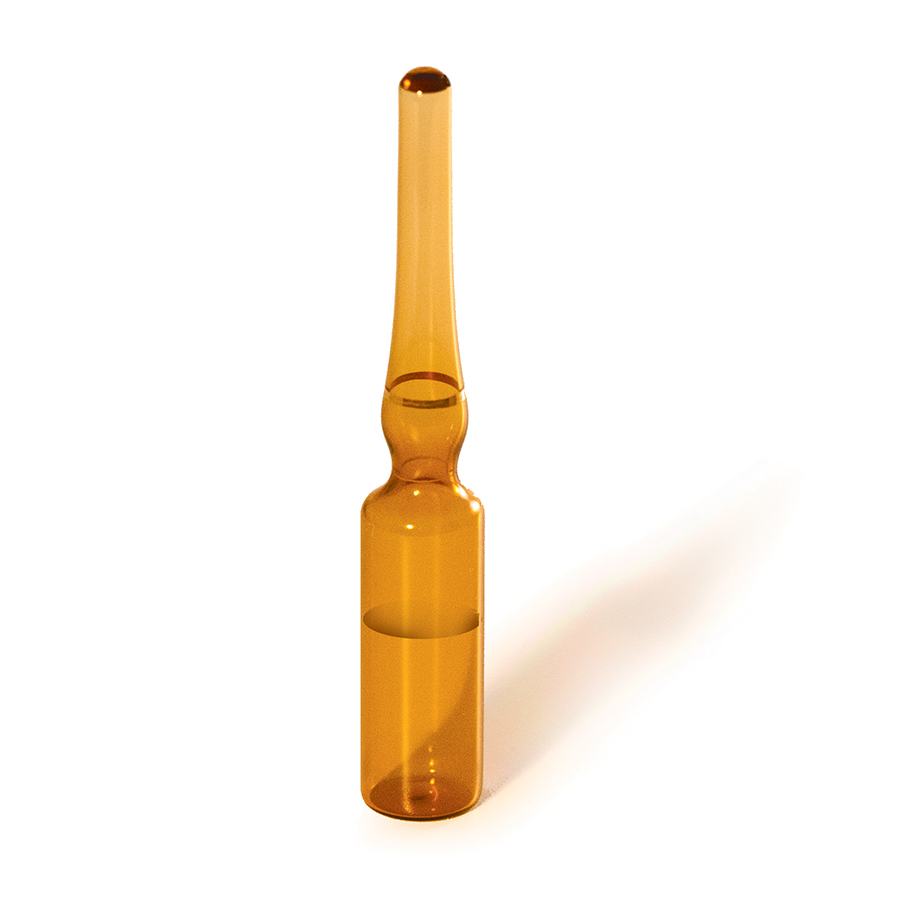

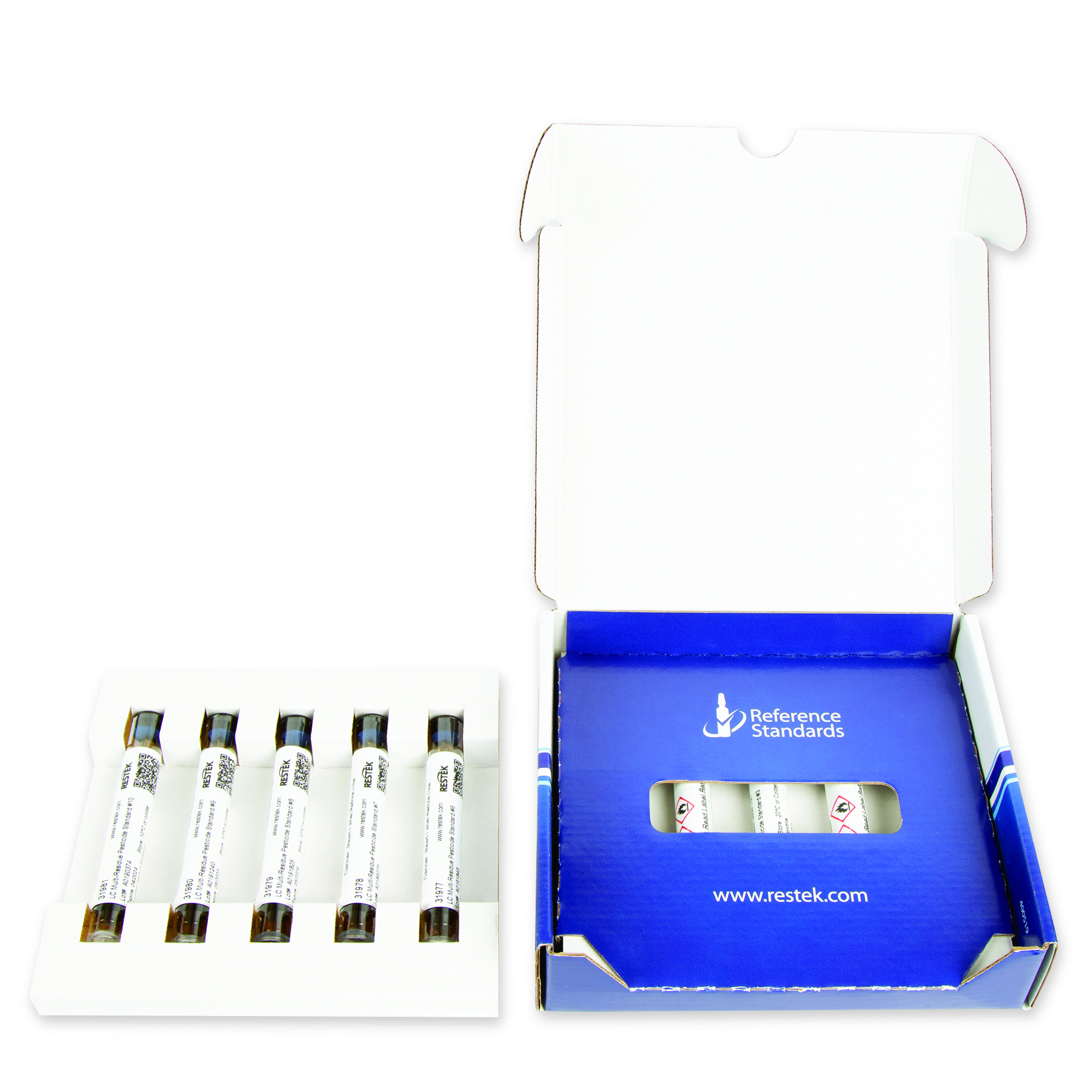

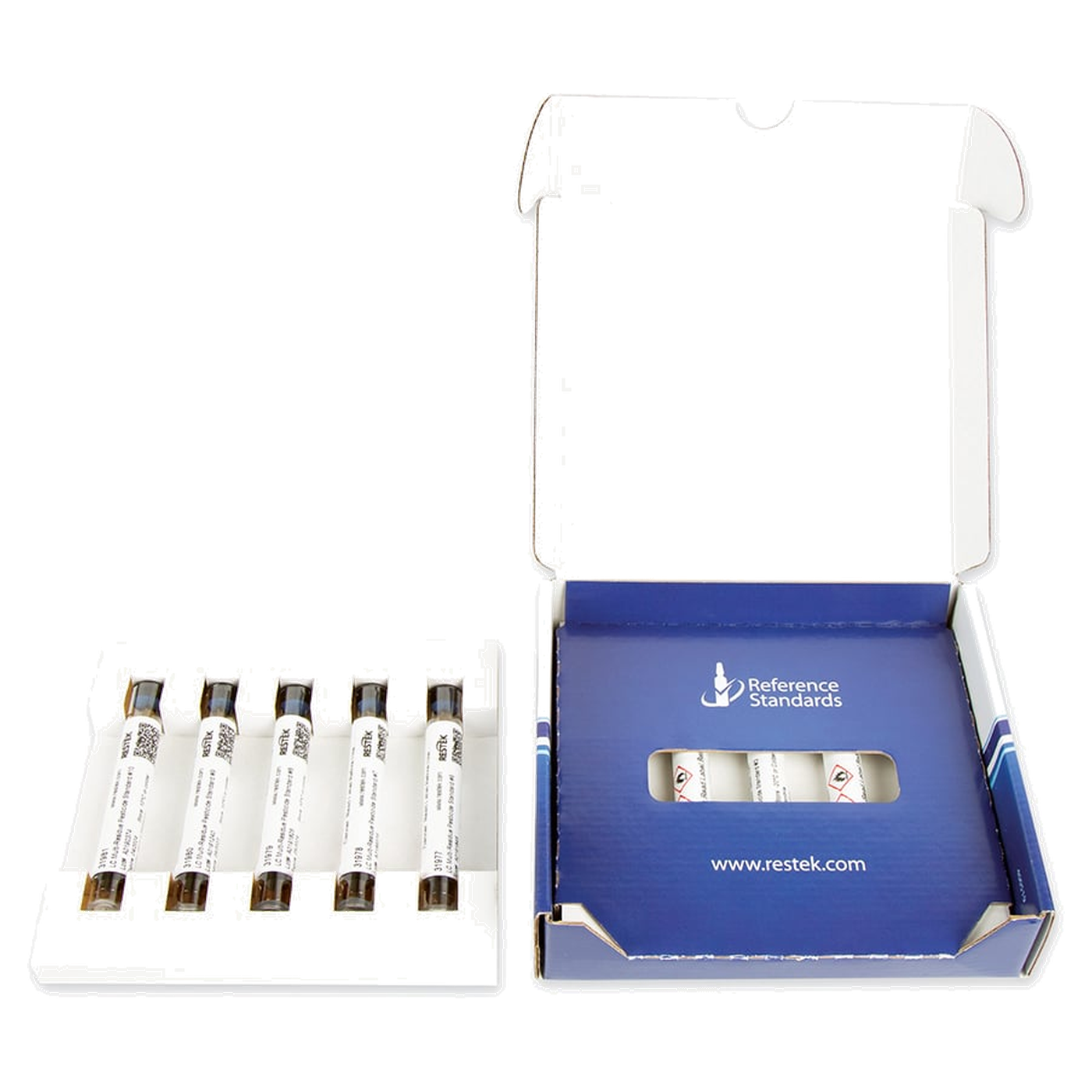

Restek LC Multi-Pesticide Standard Kit, 10 Ampoules, 204 Compounds, 31971
The LC Multi-Pesticide Standard Kit combines 204 pesticides in ten ampoules and serves as certified reference material for the calibration of LC-MS/MS methods. Mixes no. 1 to no. 10 cover many of the pesticides listed by authorities that can be analysed by liquid chromatography.Ten mixes, to be analysed separatelyEach ampoule contains its own mix, named LC Multi-Residue Pesticide Standard #1 to #10. The mixes are formulated and grouped for the longest possible stability, so each mix should be analysed separately. An optimised multi-component pesticide method with conditions and transition tables is available as a free XLS file. Reference materials containing chlorantraniliprole must be sonicated for at least 60 minutes before opening.Storage and shelf lifeThe kit is delivered on ice and then stored at -20 °C or colder. On arrival the shelf life is 6 to 9 months, so consumption should fit the measurement planning.The ten ampoules at a glanceMixes no. 1 to no. 9 are in acetonitrile (item no. 31972 to 31980), mix no. 10 in methanol (item no. 31981). Each mix has its own item number, so individual ampoules can be reordered without buying another kit.DocumentationThe standards are quantitatively tested, and the kit comes with extensive accompanying documentation. The certificate of analysis can be retrieved online from the manufacturer for each lot, and the search runs via the lot or serial number.Typical applicationsDetection and quantification of pesticides of global food safety in fruit, vegetables and other products by LC-MS/MSCalibrationFields: plants, cannabis, environmental and industrial exposure, food and agricultureTechnical detailsFormatKit with 10 ampoulesCompounds204SolventAcetonitrile (no. 1 to 9), methanol (no. 10)Certified reference materialYesPurposeCalibrationAnalyte classPesticides (multi-residue pesticides)Storage temperature-20 °C or colderShelf life on delivery6 to 9 monthsShippingon iceSafety and shippingAmpoules no. 1 to no. 9 contain acetonitrile (UN 1648, class 3, packing group II), ampoule no. 10 contains methanol (UN 1230, class 3, packing group II). The signal word is Danger for all ampoules.With the classification in class 3, the shipment is dangerous goods, and the available shipping options depend on the destination.The hazard statements under the CLP Regulation are in the safety data sheet that belongs to the product. The ampoules are to be stored closed until use and protected from ignition sources.Scope of delivery1 kit with 10 ampoules (mix no. 1 to no. 10, item no. 31972 to 31981) and extensive accompanying documentation.Individual requirements and procurement serviceThe individual ampoules are also available separately, for example mix no. 5 with the organonitrogen compounds. For gas chromatography there is the GC Multi-Pesticide Standard Kit. Restek offers many further standards, columns and accessories. LT procures these on request, including by Restek part number.

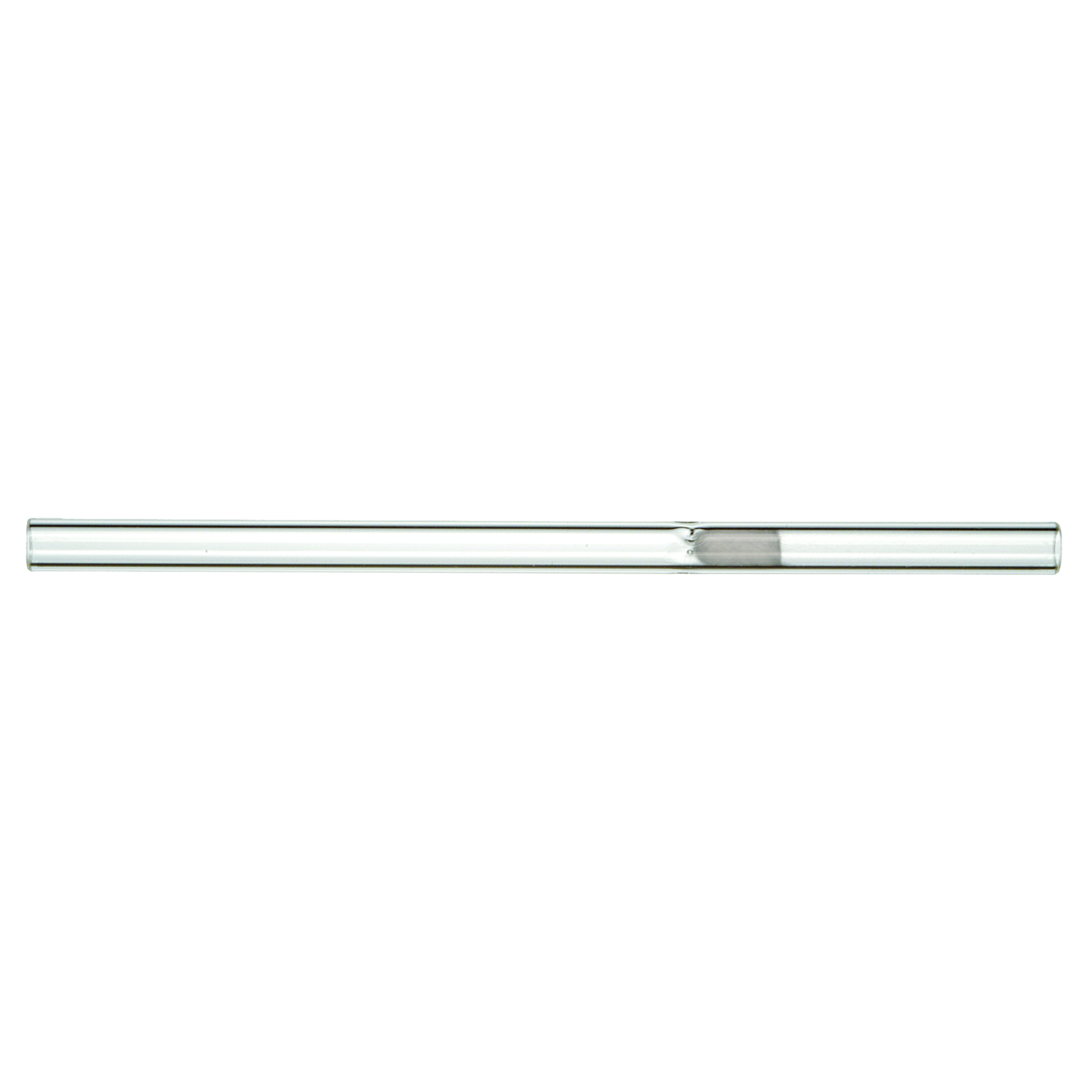

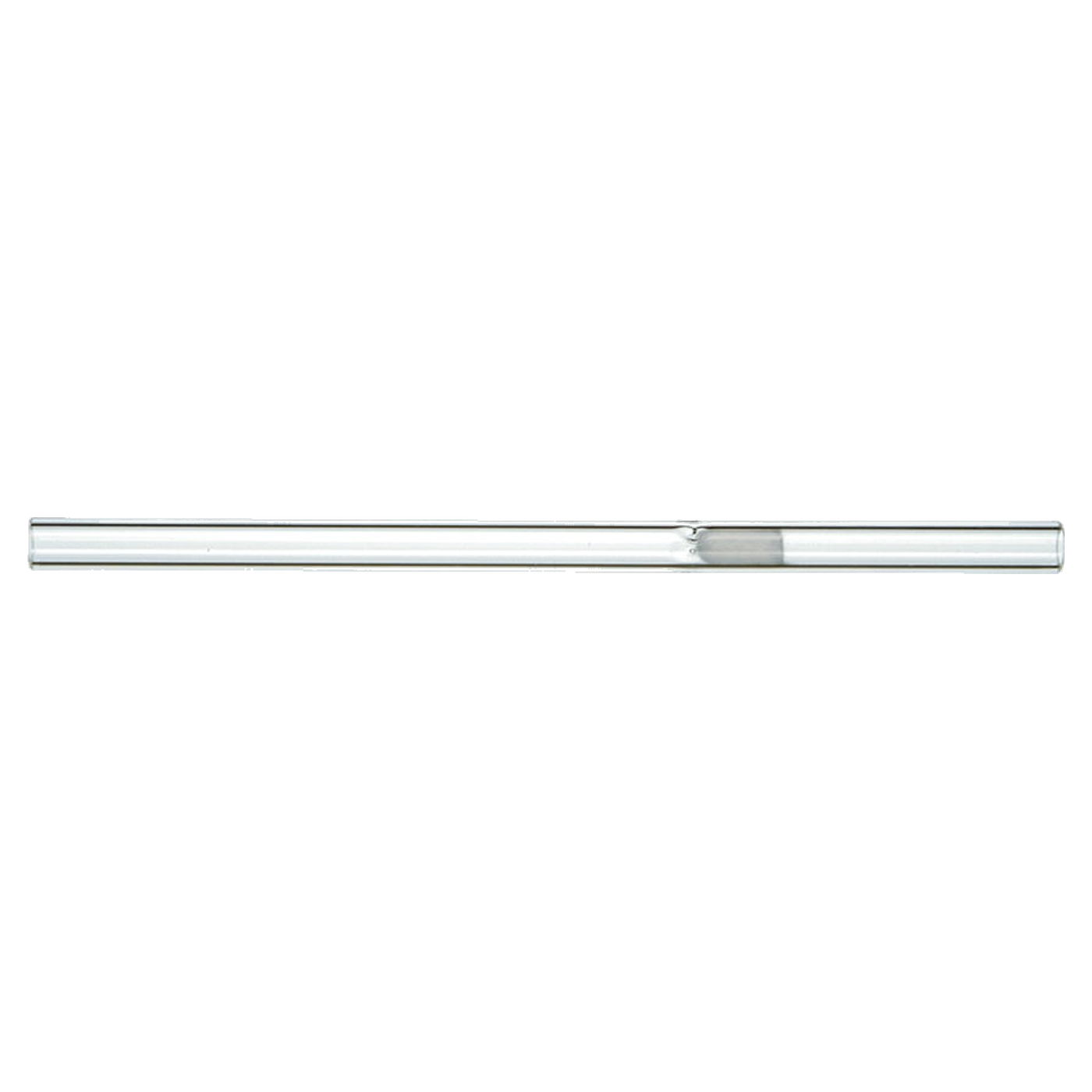

Restek Inlet Liner for Shimadzu, Straight, Standard Deactivation, with Wool, 3.5 mm ID, 5 Pieces, 20956
The straight inlet liner 20956 is intended for Shimadzu GCs of the types 17A, 2010, 2014 and 2030. It is made of borosilicate glass, has standard deactivation and contains deactivated glass wool. The pack comprises 5 liners.Construction and dimensionsThe liner is straight and therefore has the same cross-section over its entire length, without a taper. The inner diameter is 3.5 mm, the outer diameter 5.0 mm and the length 95 mm. This gives a wall thickness of 0.75 mm. The volume is 0.914 mL. The liner is made of borosilicate glass, and the inlet type is split/splitless. The deactivation is the standard version, and the liner contains deactivated glass wool. The wool is therefore already inserted and does not have to be ordered separately. Deactivation refers to the treatment of the glass surface so that analytes adhere to it less. Among the liners in the shop, the grades standard and premium occur, and this one belongs to the standard grade.Straight or single taperFor the same Shimadzu models and the same dimensions 3.5 mm x 5.0 mm x 95 mm, the shop also offers the Topaz Single Taper 23336. It has quartz wool, premium deactivation and a smaller volume. The comparison:FeatureStraight 20956Topaz Single Taper 23336Shapestraightsingle taperDeactivationStandardPremiumWooldeactivated glass woolquartz wool at the lower endVolume0.914 mL0.702 mLWall thickness0.75 mm0.75 mmChoosing the right oneWith Shimadzu liners, the dimensions matter alongside the shape, because outer diameter and length have to fit the instrument inlet. This liner is intended for the types 17A, 2010, 2014 and 2030. Shimadzu 220-90784-00 is considered a comparable part number from another manufacturer. Anyone looking for a different instrument model or different dimensions should tell us the Restek part number or the GC model.Typical applicationsSplit and splitless injection on Shimadzu GCs of the types 17A, 2010, 2014 and 2030. In split mode only part of the sample reaches the column, in splitless mode almost the entire sample. The liner is intended for both modes. As a consumable it is supplied in a pack of 5.Technical detailsPart number20956Liner shapeStraightInner diameter3.5 mmOuter diameter5.0 mmLength95 mmVolume0.914 mLMaterialBorosilicate glassPackingDeactivated glass woolDeactivationStandardInlet typeSplit/splitlessInstrumentsShimadzu 17A, 2010, 2014, 2030Pack contents5 piecesScope of delivery5 liners (one pack).Individual requirements and procurement serviceRestek offers very many further liners for Shimadzu, Agilent and other GC manufacturers, as well as dimensions, wool variants and deactivations. LT Laborhandel procures them on request, including by Restek part number. Send us the number or your GC model, and we will get back to you with a quote. Please state the quantity in packs, one pack contains 5 liners.

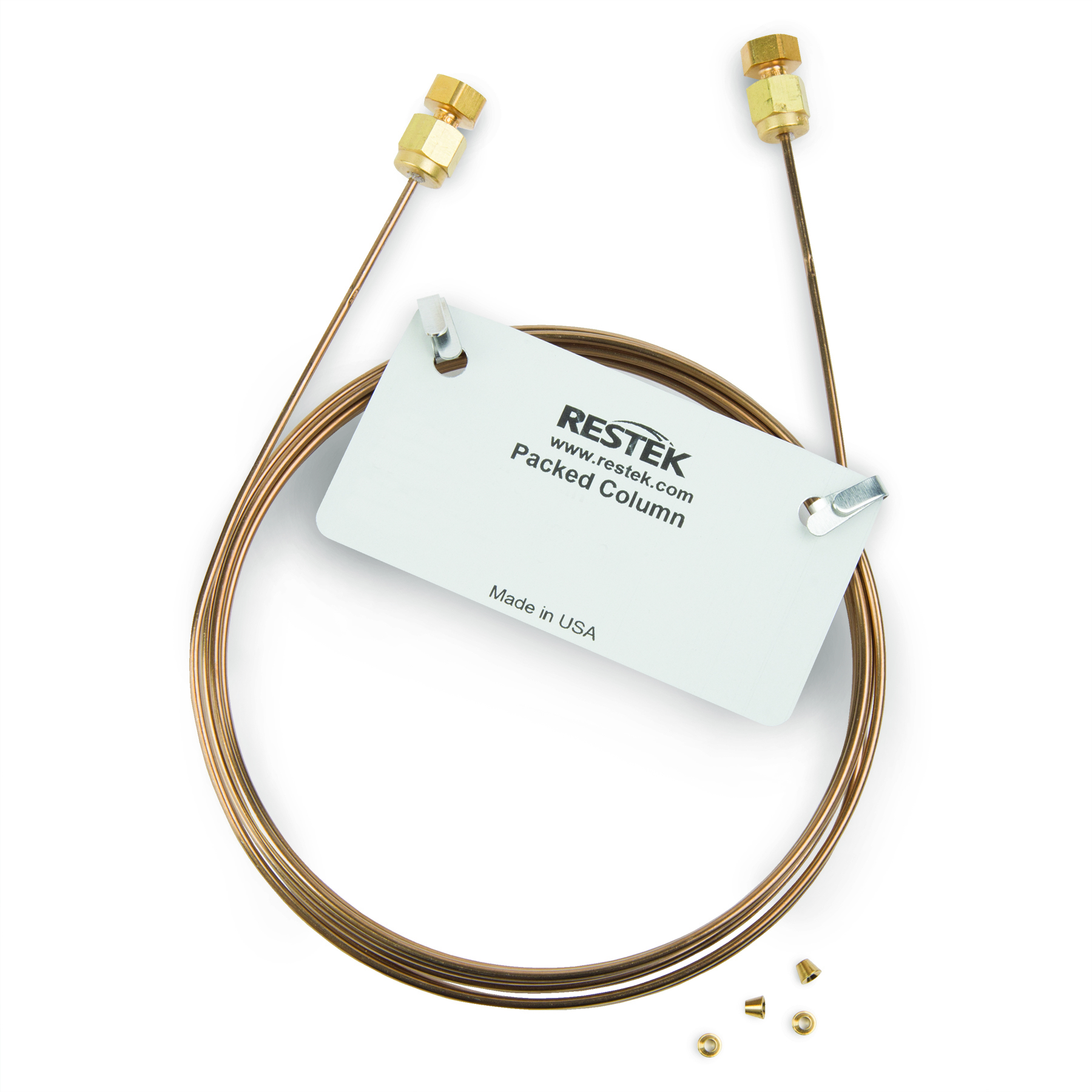

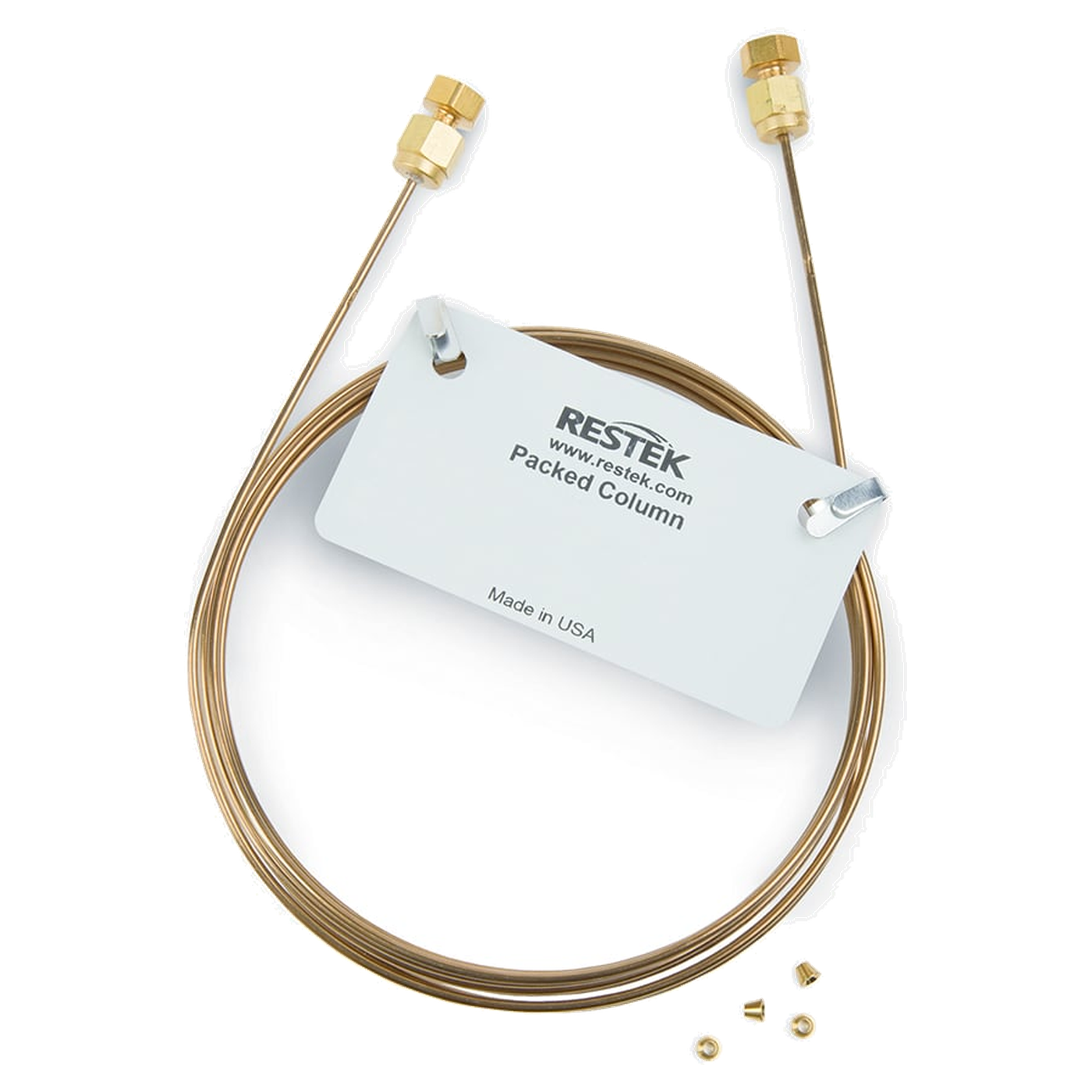

Restek Molesieve 5A Micropacked GC Column, 80/100 Mesh, 2 m, 1.00 mm ID, 19001
The micropacked GC column 19001 carries a Molesieve 5A packing with 80/100 mesh. The tube is 2 m long, with an inner diameter of 1.00 mm and an outer diameter of 1/16 inch. The temperature range is stated as -60 to 330/350 °C.Micropacked instead of conventionally packedMicropacked columns achieve higher efficiency than conventionally packed columns and have a higher capacity than PLOT columns. Restek offers a comprehensive range of packings for this, and Molesieve 5A is one of them. The column is supplied as a standard coil. It fits all instruments, and no special instrument configuration is required. Custom-packed versions are available on request.Dimensions and temperatureThe packing has a particle size of 80/100 mesh. This means that the particles pass through a sieve with 80 meshes per inch and are retained on a sieve with 100 meshes per inch. It fills a tube 2 m long. The inner diameter is 1.00 mm, the outer diameter 1/16 inch (about 1.6 mm). The temperature range extends from -60 to 330/350 °C and thus starts well below zero.Selection guideThe shop offers two micropacked columns, each 2 m long with 80/100 mesh. They differ in packing and diameter:FeatureMolesieve 5A 19001ShinCarbon ST 19043PackingMolesieve 5AShinCarbon STLength2 m2 mParticle size80/100 mesh80/100 meshInner diameter1.00 mm0.53 mmOuter diameter1/16 inch0.74 mmTemperature-60 to 330/350 °Cup to 300 °CTypical applicationsThe column is intended for gas chromatography with a micropacked Molesieve 5A column in standard coil format. Molecular sieve 5A is a synthetic zeolite with a pore size of about 5 Å, hence the designation 5A. Whether the packing suits a particular analyte mix depends on the analytes, carrier gas and detector of the method. These details also belong in a request for a different packing. The Molesieve 5A packing, the length of 2 m and the inner diameter of 1.00 mm define this column. Anyone who needs a different length or a different packing should request the variant.Technical detailsPart number19001Column typeMicropackedPacking (stationary phase)Molesieve 5AParticle size80/100 meshLength2 mInner diameter1.00 mmOuter diameter1/16 inchTemperature range-60 to 330/350 °CPack contents1 pieceScope of delivery1 micropacked GC column (single column, pack contents 1 piece).Individual requirements and procurement serviceRestek offers very many further packings, dimensions and accessories for chromatography. LT Laborhandel procures them on request, including by Restek part number. The same applies to custom-packed columns. Send us the part number or your requirement, and we will get back to you with a quote. Please state part number 19001 in the request, so that packing and dimension are clearly defined.

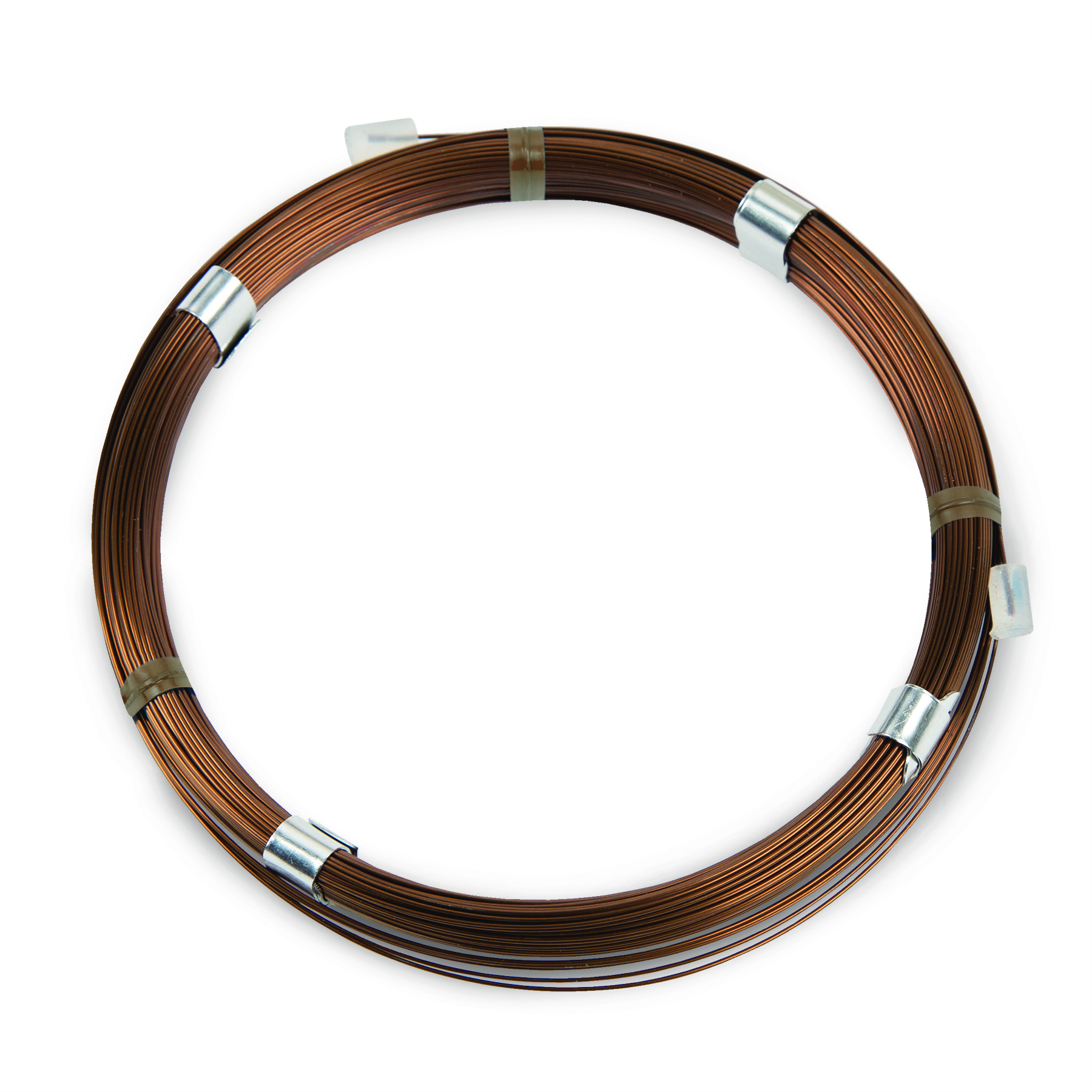

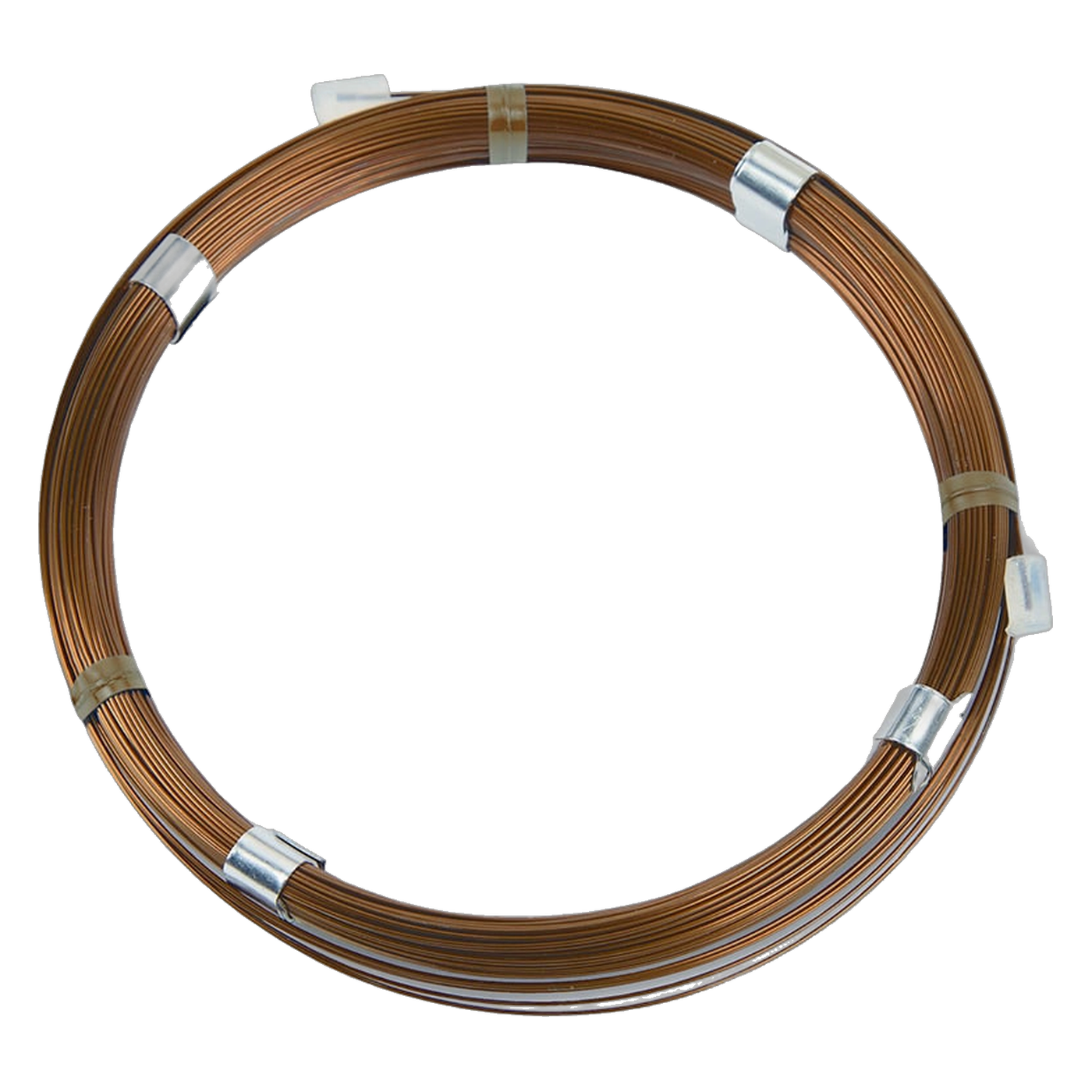

Restek MXT-1 GC Metal Capillary Column, 15 m, 0.25 mm ID, 0.10 µm, 70105
The MXT-1 70105 is a metal capillary column with a non-polar phase of crosslinked dimethyl polysiloxane. It has a length of 15 m, an inner diameter of 0.25 mm and, at 0.10 µm, the thinner of the two films available in the shop. The tube is made of stainless steel with a Siltek coating.Metal tube with Siltek coatingThe MXT-1 is a Siltek-coated stainless steel capillary column (WCOT). It combines the strength of metal with the inertness of glass. The coils have the standard diameter of 4.5 inch.The phase is a non-polar, crosslinked dimethyl polysiloxane. The USP phase classes are G1, G2, G9 and G38. Known comparable phases from other manufacturers are Agilent DB-PS1 and Quadrex UAC-1 and UAC-1MS.Temperature rangeThe column can be used from -60 °C. 360 °C is permitted isothermally and 430 °C in a temperature program. The limits are the same as for the 0.25 µm version 70120, and the range from -60 °C allows low starting temperatures in a program.Dimensions and temperature dataThe 15 m describes the capillary tube, 0.25 mm the inner diameter and 0.10 µm the thickness of the phase film on the tube wall. Crosslinked means that the polymer chains of the phase are linked. Isothermal stands for a constant oven temperature, programmed for a run according to a temperature program.0.10 µm or 0.25 µm filmBoth MXT-1 columns in the shop have 15 m length and 0.25 mm inner diameter. The film makes the difference: 0.10 µm here, 0.25 µm for 70120. Retention times change when the film thickness changes, so an existing method has to be revalidated.Part numberLengthInner diameterFilm thicknessDifference to this column7012015 m0.25 mm0.25 µm+0.15 µmTypical applicationsThe MXT-1 is intended as a general-purpose column for solvent impurities. Other fields of use are PCB congeners (for example Aroclor mixtures), gases, odorants for natural gas, sulphur compounds, hydrocarbons and oxygenates. In addition there are high-temperature chromatography, field instruments, process GCs and GCs with small ovens.Technical detailsPart number70105PhaseMXT-1Phase compositionCrosslinked dimethyl polysiloxanePolarityNon-polarLength15 mInner diameter0.25 mmFilm thickness0.10 µmColumn materialMetal (MXT), Siltek-coated stainless steelLower temperature limit-60 °CUpper temperature limit isothermal360 °CUpper temperature limit programmed430 °CUSP phase classG1, G2, G9, G38Comparable phases from other manufacturersAgilent DB-PS1, Quadrex UAC-1, Quadrex UAC-1MSApplicationsSolvent impurities, PCB congeners, gases, odorants for natural gas, sulphur compounds, hydrocarbons, oxygenatesPack contents1 piece (single column)Coil diameter4.5 inchScope of deliveryOne metal capillary column (single piece) with a length of 15 m is supplied. Part number 70105 stands for 0.10 µm film thickness.Individual requirements and procurement serviceRestek offers the MXT-1 in further dimensions as well as other MXT phases and accessories. LT Laborhandel procures them on request, including by Restek part number. Write to us with the version you want, and we will get back to you with a quote.
Restek Rxi-5Sil MS GC Capillary Column, 15 m, 0.25 mm ID, 0.25 µm, 13620
At 15 m length, 0.25 mm inner diameter and 0.25 µm film thickness, the Rxi-5Sil MS 13620 is the shorter of the two Rxi-5Sil MS columns in the shop. The phase has low polarity and is designed as a low-bleed GC-MS column for semivolatiles.Silarylene phase with phenyl groups in the backboneIn the Rxi-5Sil MS, the phenyl groups are built into the polymer backbone. This silarylene design makes the phase more thermally stable, lets it bleed less and reduces its susceptibility to oxidation. Chemically, the phase is a crosslinked 1,4-bis(dimethylsiloxy)phenylene dimethyl polysiloxane. The table lists the USP phase classes G27 and G36.Comparable phases from other manufacturers are Agilent DB-5msUI, Phenomenex ZB-5MSplus and SLB-5ms from Supelco (Millipore Sigma). Comparable part numbers are Agilent 122-5512UI and Phenomenex 7EG-G030-11.Temperature limitsThe column starts at -60 °C. 320 °C is permitted isothermally and 350 °C in a temperature program. The range from -60 °C also allows low starting temperatures in a program; the limits apply to both lengths.The specifications at a glanceThe length of 15 m refers to the capillary tube, the inner diameter of 0.25 mm to the clear diameter, and the film thickness of 0.25 µm to the thickness of the phase layer on the tube wall. Crosslinked means that the polymer chains of the phase are linked to one another. Isothermal means operation at a constant oven temperature, programmed means operation with a temperature program.15 m or 30 mBoth Rxi-5Sil MS columns in the shop have 0.25 mm inner diameter and 0.25 µm film thickness. They differ in length. Anyone transferring a running method to the other length should revalidate it, because retention times change.Part numberLengthInner diameterFilm thicknessDifference to this column1362330 m0.25 mm0.25 µm+15 mTypical applicationsThe column is intended for GC-MS analysis of semivolatiles. Polycyclic aromatic compounds, chlorinated hydrocarbons, phthalates, phenols and amines are named, as well as organochlorine and organophosphorus pesticides, pharmaceuticals, solvent impurities and hydrocarbons.Technical detailsPart number13620Product lineRxi GC columnsPhaseRxi-5Sil MSPhase compositionCrosslinked 1,4-bis(dimethylsiloxy)phenylene dimethyl polysiloxanePolarityLow (non-polar)Length15 mInner diameter0.25 mmFilm thickness0.25 µmColumn materialFused silicaLower temperature limit-60 °CUpper temperature limit isothermal320 °CUpper temperature limit programmed350 °CUSP phase classG27, G36Comparable phases from other manufacturersAgilent DB-5msUI, Phenomenex ZB-5MSplus, Supelco SLB-5msComparable part numbers from other manufacturersAgilent 122-5512UI, Phenomenex 7EG-G030-11ApplicationsGC-MS analysis of semivolatiles, pesticides, phthalates, phenols, amines, pharmaceuticals, hydrocarbonsPack contents1 piece (single column)Scope of deliveryOne capillary column (single piece) with a length of 15 m is supplied.Individual requirements and procurement serviceSome dimensions of the Rxi-5Sil MS are also available as Integra-Guard columns with a built-in guard column. Restek also offers further lengths, diameters and film thicknesses as well as other phases and accessories. LT Laborhandel procures them on request, including by Restek part number. Write to us with the version you want, and we will get back to you with a quote.
Restek Force Biphenyl LC Column, 1.8 µm, 100 Å, 100 x 2.1 mm, 9629212
The Force Biphenyl is a reversed-phase column with a biphenyl phase (USP L11) and 1.8 µm fully porous particles. It provides increased selectivity and retention for compounds that are difficult to resolve on C18 columns and other phenyl phases or that elute early.Phase and particlesThe pores measure 100 Å, the specific surface area is 300 m²/g and the carbon content 15 %. The phase is endcapped and aqueous-compatible. The column is designed for small molecules, the pH range is 2.0 to 8.0 and the maximum operating temperature is 80 °C.MS-friendly mobile phasesThe phase limits ionisation suppression and allows simple, MS-friendly mobile phases. This is important for methods with mass spectrometric detection.Maximum pressure and recommended pressureThe maximum pressure of the column is 1,034 bar (15,000 psi). For maximum service life with 1.8 µm particles, a pressure of at most 830 bar (12,000 psi) is recommended. The HPLC or UHPLC system should cover the operating pressure of the method.Dimensions comparedAt 100 x 2.1 mm, the column has the same dimensions as the Ultra Aqueous C18, but 1.8 instead of 3 µm particles, a different phase and a somewhat wider pH range. At 250 mm length and 5 µm particles, the Allure Silica is a normal-phase column with a different separation mode.Force BiphenylUltra Aqueous C18Allure SilicaPhaseBiphenylC18SilicaParticle size1.8 µm3 µm5 µmLength x inner diameter100 x 2.1 mm100 x 2.1 mm250 x 2.1 mmpH range2.0 to 8.02.5 to 8.02.5 to 8.0Usable with 100 % aqueousYesYesNoShort profileThe part number suits methods that need additional selectivity compared with a C18, run with MS detection and are intended for a 100 x 2.1 mm format with 1.8 µm particles.Ordering and dimensionPart number 9629212 stands for the dimension 100 x 2.1 mm with 1.8 µm particles. Further dimensions of the Force Biphenyl have their own part numbers.Typical applicationsBioanalytical tests such as drug and metabolite analysesAnalyte classes: diagnostic biomarkers, drugs and pharmaceuticals, mycotoxins, pesticidesCompounds that elute early on C18 phases or are difficult to resolveTechnical detailsPhaseBiphenyl, ForcePackaging unit1 pieceSeparation modeReversed phaseUSP designationL11Particle size1.8 µmParticle typefully porousPore size100 ÅSpecific surface area300 m²/gCarbon content15 %EndcappingYesLength100 mmInner diameter2.1 mmMolecule sizesmall moleculespH range2.0 to 8.0Maximum temperature80 °CMaximum pressure1,034 bar (15,000 psi)Recommended maximum pressure830 bar (12,000 psi)Aqueous-compatibleYesScope of delivery1 column.Individual requirements and procurement serviceRestek offers the Force series in further dimensions and particle sizes, plus other LC phases. For metal-sensitive components there are inert LC columns. LT procures columns and accessories on request, including by Restek part number.

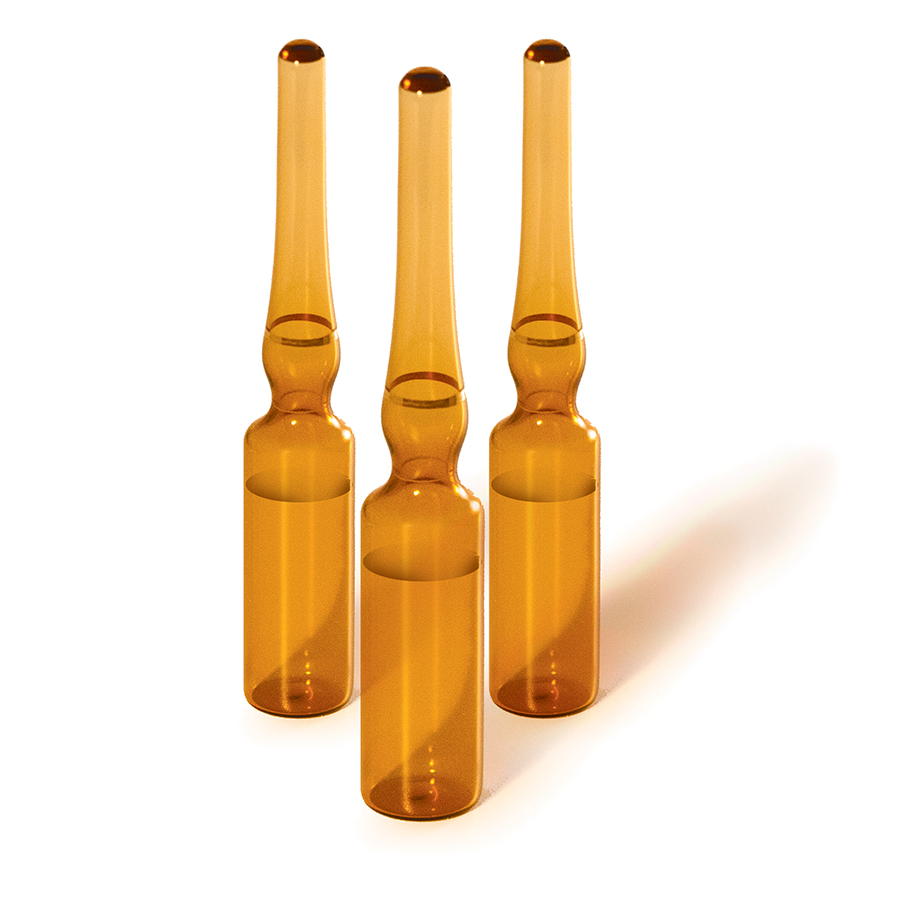

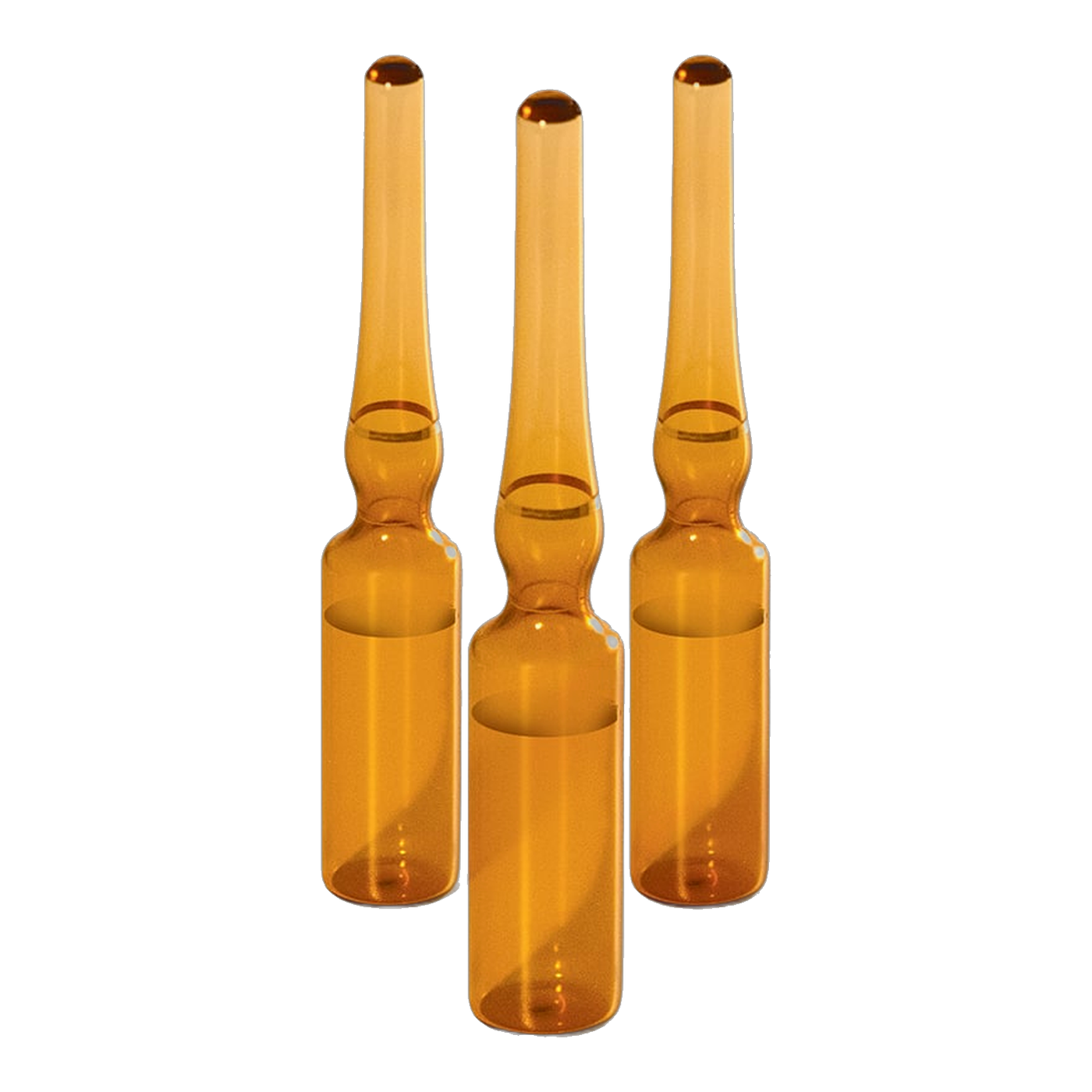

Restek Fragrance Allergen Standards Kit, 5 Components, 31 Allergens, 400 ppm, 33105
The Fragrance Allergen Standards Kit covers 31 fragrance allergens that can be fully separated in one analysis on a Rxi-17 column. Besides the three allergen standards, a solvent blank and an internal standard are included. The kit is designed for GC-MS analyses according to the IFRA method. Some of the compounds are listed in the 7th Amendment of the former EU Cosmetics Directive.Structure of the kitThe kit consists of three allergen standards (A, B and C), an MTBE solvent blank and a 1-fluoronaphthalene mix as internal standard. Each compound included is present at 400 ppm. The standards can be diluted for calibration curves and used with various solvents. The purity exceeds the requirements of the IFRA method. The components are not available individually.Notes on the compound listIn the compound list, substances of the 7th Amendment of the former EU Cosmetics Directive, additional potential allergens and compounds with two isomers are marked. The latter give two peaks.Storage and shelf lifeThe kit is stored at 0 °C or colder and keeps for 6 to 18 months. It is shipped at ambient temperature.Ordering as a kitThe components are not available individually, and the kit is always delivered complete. With a shelf life of 6 to 18 months and storage at 0 °C or colder, the stock can be spread over several measurement series.DocumentationThe standards are certified as reference material. The certificate of analysis can be retrieved online from the manufacturer for each lot, and the search runs via the lot or serial number.Typical applicationsComplete separation of 31 fragrance allergens in one analysis on a Rxi-17 columnGC-MS analyses according to the IFRA methodAnalysis of fragrance allergens from the 7th Amendment of the former EU Cosmetics DirectiveCalibration of the GC-MS analysis of fragrance allergens with internal standard and solvent blankTechnical detailsFormatKit with 5 componentsComponentsMTBE blank, 1-fluoronaphthalene mix (internal standard), allergen standards A, B and CAllergens31Concentration400 ppm per compoundSolventMethyl tert-butyl ether (MTBE)Certified reference materialYesPurposeCalibrationStorage temperature0 °C or colderShelf life6 to 18 monthsShippingAmbient temperatureSafety and shippingAll five components contain methyl tert-butyl ether as solvent (UN 2398, class 3, packing group II). The signal word is Danger.With the classification in class 3, the shipment is dangerous goods.The hazard statements under the CLP Regulation are in the safety data sheet that belongs to the product. The ampoules are to be stored closed until use and protected from ignition sources.Scope of delivery1 kit with 5 components: MTBE solvent blank (33100), 1-fluoronaphthalene mix as internal standard (33101) and fragrance allergen standard A, B and C (33102 to 33104).Individual requirements and procurement serviceLT procures further Restek reference standards on request, for example for pesticide analysis such as the GC Multi-Pesticide Standard Kit or the LC Multi-Pesticide Standard Kit. This also applies to matching GC columns such as the Rxi-17 and to accessories, gladly by Restek part number.
Restek Stabilwax GC Capillary Column, 30 m, 0.32 mm ID, 1.00 µm, 10654
The Stabilwax 10654 is a polar capillary column with crosslinked polyethylene glycol as the stationary phase. It has a length of 30 m, an inner diameter of 0.32 mm and a film thickness of 1.00 µm, and is intended for fatty acid methyl esters (FAMEs), flavours, essential oils and solvents.Polar phase with firmly bonded surfaceOn the Stabilwax, the polar-deactivated surface is firmly bonded to the Carbowax polymer. This increases thermal stability and service life, even with repeated use up to 260 °C. The retention times of polar compounds do not shift in the process. A used column can be regenerated by rinsing with solvents.The USP phase classes are G14, G15, G16, G20 and G39. Comparable phases from other manufacturers are Agilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW and Supelco SUPELCOWAX 10. A comparable part number is Agilent 123-7334.Temperature rangeThe range starts at 40 °C. The column can be used isothermally up to 240 °C and in a temperature program up to 260 °C.The dimensions at a glanceThe 30 m refers to the capillary tube, 0.32 mm to the inner diameter, and 1.00 µm to the thickness of the phase layer on the tube wall. Crosslinked means that the polymer chains are linked to one another. In the temperature data, isothermal stands for a constant oven temperature and programmed for a run with a temperature program.30 m or 60 mThe 30 m column and its 60 m counterpart share phase, inner diameter (0.32 mm) and film thickness (1.00 µm). Anyone transferring a method to the other length should revalidate it, because retention times change.Part numberLengthInner diameterFilm thicknessDifference to this column1065760 m0.32 mm1.00 µm+30 mTypical applicationsThe phase is intended for the following applications:FAMEsFlavours and essential oilsSolventsAromatics including xylene isomersAcrolein and acrylonitrileOxygenated compoundsPurity testing of chemicalsAnalysis of alcoholic beveragesTechnical detailsPart number10654PhaseStabilwaxPhase compositionCrosslinked polyethylene glycol (wax phase)PolarityPolarLength30 mInner diameter0.32 mmFilm thickness1.00 µmColumn materialFused silicaLower temperature limit40 °CUpper temperature limit isothermal240 °CUpper temperature limit programmed260 °CUSP phase classG14, G15, G16, G20, G39Analyte groupsFAMEComparable phases from other manufacturersAgilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW, Supelco SUPELCOWAX 10Comparable part numbers from other manufacturersAgilent 123-7334Pack contents1 piece (single column)Scope of deliveryOne capillary column (single piece) with a length of 30 m is supplied. Part number 10654 stands for 0.32 mm inner diameter.Individual requirements and procurement serviceRestek offers the Stabilwax in further dimensions. The version with 30 m, 0.53 mm inner diameter and 1.00 µm film thickness has the Restek part number 10655, and we procure it on request as well. LT Laborhandel also procures other phases and accessories, in each case by part number or by phase and dimensions. Write to us with what you need.

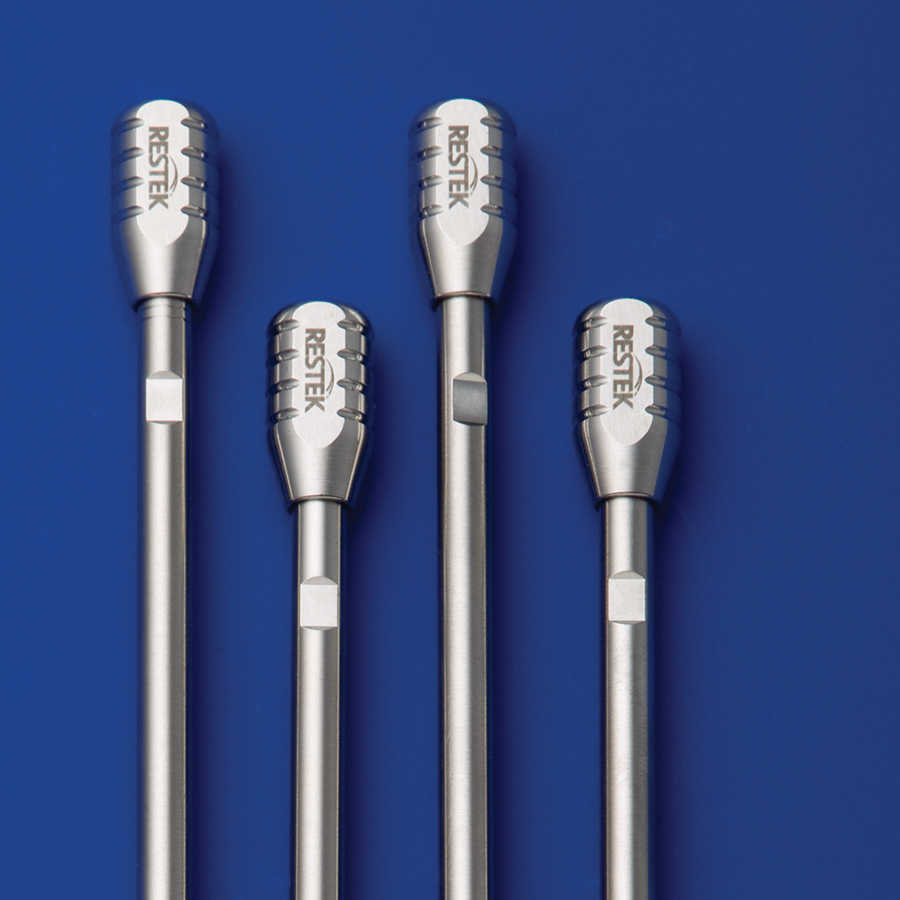

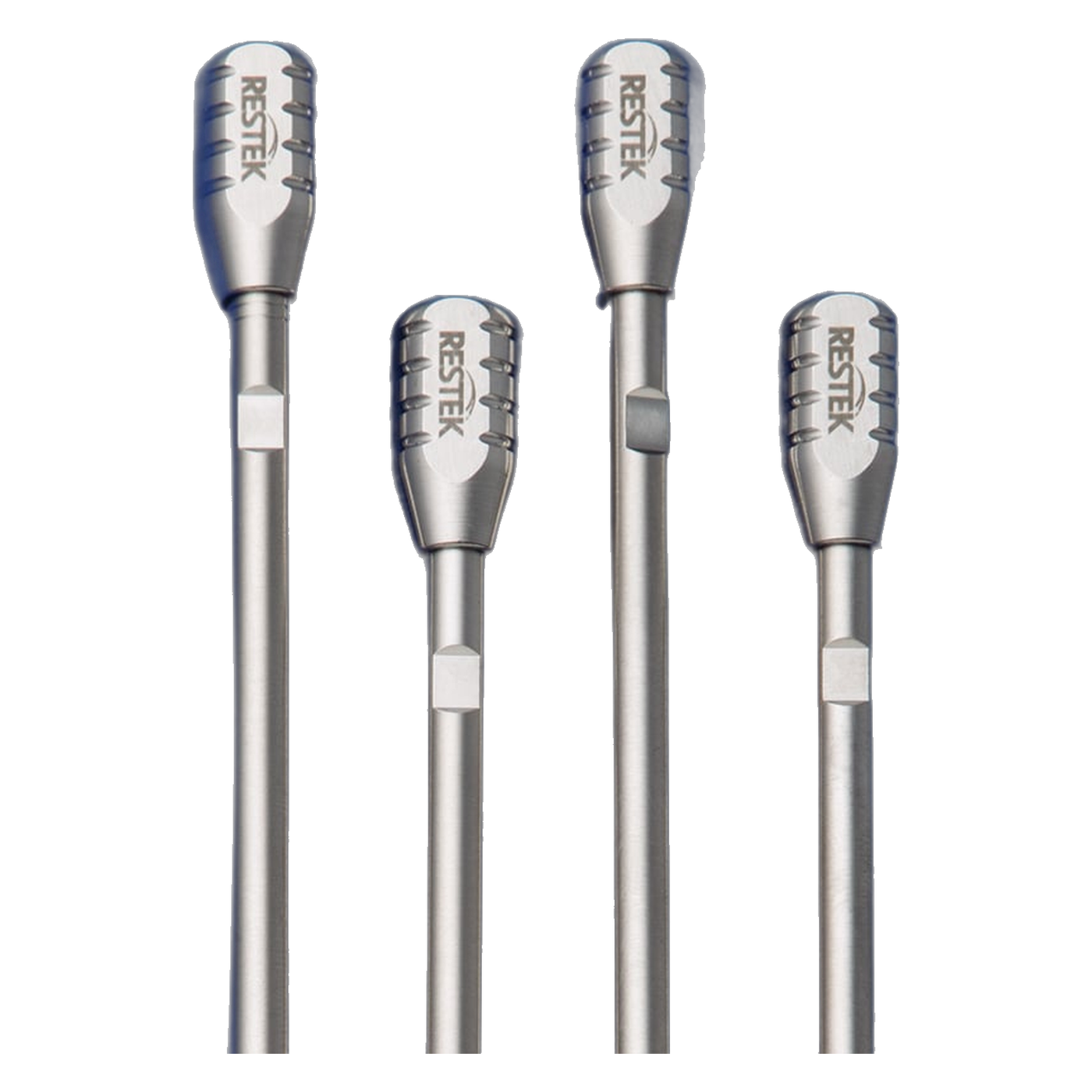

Restek Allure Silica LC Column, 5 µm, 60 Å, 250 x 2.1 mm, 9160572
The Allure Silica is a normal-phase column for separations of small molecules, 250 mm long, 2.1 mm inner diameter, with 5 µm particles (USP L3). It is suitable for MOSH/MOAH analysis according to EN 16995.Phase and particlesThe packing consists of type B silica with a very large surface area of 450 m²/g. The particles are spherical, fully porous and 5 µm in size, and the pores measure 60 Å. The phase is highly retentive and designed for normal-phase separations.MOSH/MOAH analysis according to EN 16995Within the Allure Silica series, part number 9160572 is intended for MOSH/MOAH analysis according to EN 16995. The standard describes the analytical method, and the column is suitable for it. It combines the highly retentive silica phase with spherical 5 µm particles in the format 250 x 2.1 mm.Normal phase and limits of useThe Allure Silica is not designed for purely aqueous mobile phases. The pH range is 2.5 to 8.0, and the maximum operating temperature is 80 °C. Comparable phases from other manufacturers are Phenomenex LiChrospher Si-60 and Maxsil Si. For reversed-phase separations with aqueous eluents, the Ultra Aqueous C18, for example, is a good choice.Choosing among the three HPLC columnsAt 250 mm, the Allure Silica is considerably longer than the Ultra Aqueous C18 and the Force Biphenyl. The inner diameter of 2.1 mm is the same for all three columns.Allure SilicaUltra Aqueous C18Force BiphenylSeparation modeNormal phaseReversed phaseReversed phaseLength250 mm100 mm100 mmParticle size5 µm3 µm1.8 µmpH range2.5 to 8.02.5 to 8.02.0 to 8.0Usable with 100 % aqueousNoYesYesAccessories for automated systemsFor compatibility with automated systems such as those from Axel Semrau, the Trident column protection system (level 3) and an Allure Silica guard cartridge are additionally recommended. LT procures both on request together with the column.Typical applicationsMOSH/MOAH analysis according to EN 16995, for which this part number is intended within the Allure Silica seriesNormal-phase separations of small molecules where a highly retentive silica phase is requiredMethods that do not use a purely aqueous mobile phaseTechnical detailsPhaseSilica (silicon dioxide), type B silicaSeriesAllure SilicaPackaging unit1 pieceSeparation modeNormal phaseUSP designationL3Particle size5 µmParticle typefully porousParticle shapesphericalPore size60 ÅSpecific surface area450 m²/gLength250 mmInner diameter2.1 mmMolecule sizesmall moleculespH range2.5 to 8.0Maximum temperature80 °CUsable with 100 % aqueousNoScope of delivery1 column (packaging unit 1 piece).Individual requirements and procurement serviceRestek offers the Allure series and further HPLC phases in many lengths, inner diameters and particle sizes, plus guard cartridges and column protection systems. LT procures these on request, including by Restek part number. Anyone working with automated systems for MOSH/MOAH analysis is best advised to clarify column protection and cartridge together with the column.
Restek Rxi-5Sil MS GC Capillary Column, 30 m, 0.25 mm ID, 0.25 µm, 13623
With 30 m length, 0.25 mm inner diameter and 0.25 µm film thickness, the Rxi-5Sil MS 13623 is the longer of the two Rxi-5Sil MS columns in the shop. It is a crosslinked phase of low polarity on fused silica, designed for GC-MS with low column bleed.Phase structureThe polymer contains phenyl groups in the backbone (silarylene phase). This means better thermal stability, less column bleed and a lower tendency to oxidise. The composition is crosslinked 1,4-bis(dimethylsiloxy)phenylene dimethyl polysiloxane, and the USP phase classes are G27 and G36. The tube material is fused silica.Comparable phases are found from Agilent (DB-5msUI), Phenomenex (ZB-5MSplus) and Supelco (SLB-5ms). Comparable part numbers are Agilent 122-5532UI and Phenomenex 7HG-G030-11.Usable temperature rangeLower limit -60 °C, upper limit 320 °C isothermal and 350 °C with a programmed temperature. The values are the same for 15 m and 30 m, so starting at low temperatures is possible in both lengths.What the dimensions meanThe 30 m gives the length of the capillary tube, 0.25 mm the inner diameter and 0.25 µm the thickness of the phase film on the tube wall. In a crosslinked phase, the polymer chains are linked to one another. In the temperature data, isothermal stands for a constant oven temperature and programmed for an oven temperature changed according to a program.The second length in the shopThe shorter version 13620 has a length of 15 m with the same diameter and film thickness. Switching between the two lengths changes retention times, so an existing method has to be revalidated.Part numberLengthInner diameterFilm thicknessDifference to this column1362015 m0.25 mm0.25 µm-15 mTypical applicationsDesigned as a low-bleed GC-MS column, it is intended for these applications:GC-MS analysis of semivolatilesPolycyclic aromatic compounds and chlorinated hydrocarbonsPhthalates, phenols and aminesOrganochlorine and organophosphorus pesticidesPharmaceuticals, solvent impurities and hydrocarbonsTechnical detailsPart number13623Product lineRxi GC columnsPhaseRxi-5Sil MSPhase compositionCrosslinked 1,4-bis(dimethylsiloxy)phenylene dimethyl polysiloxanePolarityLow (non-polar)Length30 mInner diameter0.25 mmFilm thickness0.25 µmColumn materialFused silicaLower temperature limit-60 °CUpper temperature limit isothermal320 °CUpper temperature limit programmed350 °CUSP phase classG27, G36Comparable phases from other manufacturersAgilent DB-5msUI, Phenomenex ZB-5MSplus, Supelco SLB-5msComparable part numbers from other manufacturersAgilent 122-5532UI, Phenomenex 7HG-G030-11ApplicationsGC-MS analysis of semivolatiles, pesticides, phthalates, phenols, amines, pharmaceuticals, hydrocarbonsPack contents1 piece (single column)Scope of deliveryOne capillary column (single piece) with a length of 30 m is supplied. Part number 13623 defines length, inner diameter and film thickness.Individual requirements and procurement serviceRestek offers the Rxi-5Sil MS in further dimensions, in part also as an Integra-Guard column with a built-in guard column. Many other phases and accessories are available as well. LT Laborhandel procures these on request, even if only the Restek part number is available. Send us the part number, or the phase with length, inner diameter and film thickness, and we will get back to you with a quote.
Restek Rtx-1301 GC Capillary Column, 30 m, 0.53 mm ID, 3.00 µm, 16085
The Rtx-1301 is a capillary column with a low to medium polarity phase and intermediate polarity. This version is 30 m long, with an inner diameter of 0.53 mm and a film thickness of 3.00 µm, and the support tube is made of fused silica. With 0.53 mm ID it is a wide-bore column.Phase, bleed and detectorsThe phase carries the USP designation G43. Column bleed is low, even with sensitive detectors such as ECD and MSD. For some sizes the phase is also available as Integra-Guard columns with a built-in guard column.Other columns for solvent analysisResidual solvents are also on the application list of the Rxi-5ms, and solvent impurities on that of the Rxi-1ms. Both have 0.25 mm inner diameter and a considerably higher temperature range.ColumnPhaseDimensions and temperatureRtx-1301 (this page)low to medium polarity, intermediate polarity30 m, 0.53 mm ID, 3.00 µm, -20 to 240 °CRxi-5msDiphenyl dimethyl polysiloxane30 m, 0.25 mm ID, 0.25 µm, -60 to 330/350 °CRxi-1msDimethyl polysiloxane30 m, 0.25 mm ID, 0.25 µm, -60 to 330/350 °CMind the temperature limitFor this item, the temperature range -20 °C to 240 °C applies. The Rtx-1301 family has different maximum temperatures depending on the dimension. When transferring a method, therefore compare the final temperature of the method with 240 °C.Equivalents at a glanceAnyone switching from another brand will find the phase under the following designations:ManufacturerComparable phasesAgilentCP-Select 624 CB, DB-1301, DB-624, DB-624UI, DB-Select 624 UIPhenomenexZB-624Quadrex007-1301, 007-624, 007-502Supelco/Millipore SigmaSPB-624DimensionsLength 30 m, inner diameter 0.53 mm and film thickness 3.00 µm are to be checked together with the phase when matching against columns from other manufacturers. Among the comparable phases above are several 624 types.Typical applicationsGeneral-purpose column for alcoholsBeveragesResidual solventsVolatile organic compoundsVolatile organic compounds (VOCs) are substances with a low boiling point, and residual solvents are solvent residues, for example from manufacturing processes. Alcohols are organic compounds with one or more hydroxyl groups.On the detectors: ECD is the electron capture detector, MSD the mass selective detector.Technical detailsManufacturerRestekPhaseRtx-1301Phase typeLow to medium polarityPolarityIntermediateUSP phaseG43Length30 mInner diameter0.53 mmFilm thickness3.00 µmColumn materialFused silicaTemperature range-20 °C to 240 °CPackaging unit1 pieceUNSPSC41115710Part number16085Scope of deliveryOne capillary column, single.Guard columns, liners and further accessories are separate items.Individual requirements and procurement serviceRestek offers the Rtx-1301 in further dimensions. LT procures it on request, as well as other phases, liners and accessories, by Restek part number if desired. Quantity and delivery address help with the quote. Matching Restek liners and reference standards can be ordered in the same request. Anyone who needs several columns or accessories can combine everything in one request.

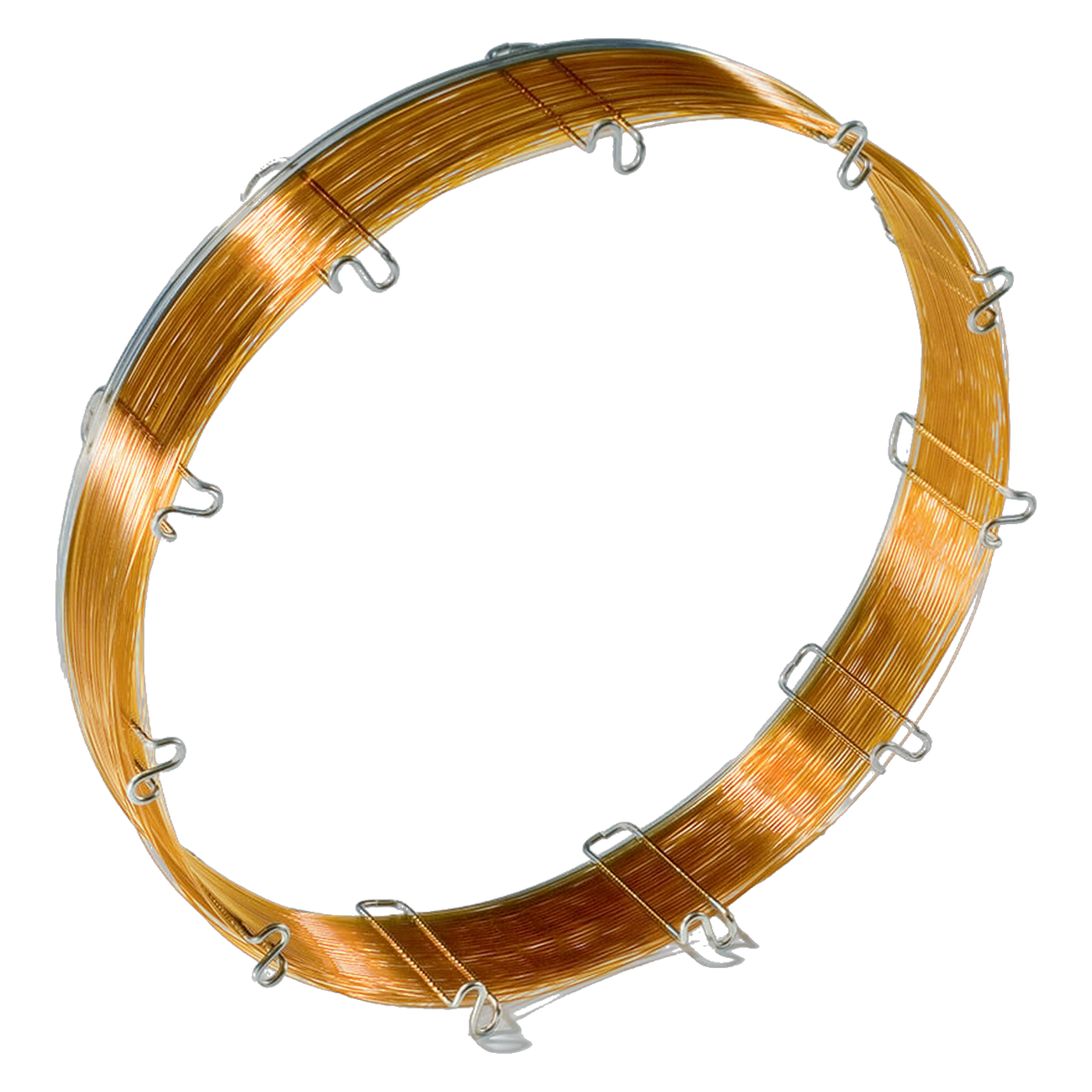

Restek Rxi-5ms GC Capillary Column, 30 m, 0.25 mm ID, 0.25 µm, 13423
The Rxi-5ms is the Rxi version of the 5-phase: a crosslinked diphenyl dimethyl polysiloxane of low polarity on fused silica. Length 30 m, inner diameter 0.25 mm, film thickness 0.25 µm. The column is tested for extremely low column bleed, and the signal-to-noise ratio is improved.USP phase and temperatureThe USP designations are G27 and G36. The temperature limits are -60 °C to 330 °C isothermal and 350 °C programmed.Rxi-5ms, Rtx-5ms or Rxi-5Sil MSThe shop offers several 5-phases with the same dimensions. The Rtx-5ms is a 5 % diphenyl/95 % dimethyl polysiloxane phase with the same temperature limits as the Rxi-5ms. The Rxi-5Sil MS is a silarylene phase with phenyl groups in the polymer backbone, and its isothermal limit is somewhat lower at 320 °C, while programmed it is 350 °C as with the Rxi-5ms. There is also the Rtx-5 with 0.32 mm ID and 1.00 µm film thickness.ColumnPhaseDimensions and temperatureRxi-5ms (this page)Diphenyl dimethyl polysiloxane30 m, 0.25 mm ID, 0.25 µm, -60 to 330/350 °CRtx-5ms5 % diphenyl, 95 % dimethyl polysiloxane30 m, 0.25 mm ID, 0.25 µm, -60 to 330/350 °CRxi-5Sil MSSilarylene phase, phenyl groups in the polymer backbone30 m, 0.25 mm ID, 0.25 µm, -60 to 320/350 °CRtx-5Diphenyl dimethyl polysiloxane30 m, 0.32 mm ID, 1.00 µm, -60 to 325/350 °CEquivalents at a glanceAnyone switching from another brand will find the phase under the following designations:ManufacturerComparable phasesComparable column part numberAgilentHP-5msUI19091S-433UIPhenomenexZB-5plus7HG-G032-11Quadrex007-5MSSelection by application listPhenols, residual solvents and drugs of abuse are on the list for the Rxi-5ms. The Rxi-5Sil MS also names phthalates, amines, organochlorine and organophosphorus pesticides, pharmaceuticals and polycyclic aromatic compounds, and is designed for GC-MS of semivolatiles. Phenols and solvent impurities are listed for both columns.Dimensions at a glanceThe Rxi-5ms is 30 m long, with an inner diameter of 0.25 mm and a film thickness of 0.25 µm. The Rtx-5ms and Rxi-5Sil MS share these dimensions. The Rtx-5ms has the same temperature limits, while the Rxi-5Sil MS is 10 °C lower isothermally at 320 °C.Typical applicationsGeneral-purpose column for phenolsResidual solventsDrugs of abusePesticidesPCB congeners, for example Aroclor mixturesSolvent impuritiesTo clarify the terms: residual solvents are solvent residues in products. PCB congeners are the individual polychlorinated biphenyls, and Aroclor is the trade name of technical PCB mixtures.Technical detailsManufacturerRestekPhaseRxi-5msPhase typeLow polarity, crosslinked diphenyl dimethyl polysiloxanePolarityNon-polarUSP phaseG27, G36Length30 mInner diameter0.25 mmFilm thickness0.25 µmColumn materialFused silicaTemperature range-60 °C to 330 °C isothermal, 350 °C programmedPackaging unit1 pieceUNSPSC41115710Part number13423Scope of deliveryThe scope of delivery is one capillary column.Individual requirements and procurement serviceRestek offers the Rxi-5ms in several dimensions. If you need a different one, tell us the length, inner diameter and film thickness or the Restek part number. LT procures on request, as it does other phases, liners and accessories from the Restek catalogue. Quantity and delivery address help with the quote. Matching Restek liners and reference standards can be ordered in the same request.
Restek Rxi-XLB GC Capillary Column, 30 m, 0.25 mm ID, 0.25 µm, 13723
The Rxi-XLB carries a low-polarity, proprietary phase with its own selectivity for GC-MS. It is 30 m long, with an inner diameter of 0.25 mm and a film thickness of 0.25 µm. The support tube is made of fused silica.Thermal stabilityThe phase withstands high temperatures: 30 °C to 340 °C isothermal, up to 360 °C in a temperature program. The first temperature value applies to isothermal operation, the second to temperature programs. The column is inert and has extremely low bleed. It is intended for sensitive GC-MS systems, including ion trap detectors.Other Rxi columns in the shopThe shop offers further Rxi columns that differ in phase, dimensions and temperature limits.ColumnPhaseDimensions and temperatureRxi-XLB (this page)low polarity, proprietary30 m, 0.25 mm ID, 0.25 µm, 30 to 340/360 °CRxi-5msDiphenyl dimethyl polysiloxane30 m, 0.25 mm ID, 0.25 µm, -60 to 330/350 °CRxi-SVOCmsproprietary, 5 % phenyl type30 m, 0.25 mm ID, 0.25 µm, up to 340 °CRxi-PAHproprietary, medium polarity40 m, 0.18 mm ID, 0.07 µm, 40 to 350/360 °CEquivalents at a glanceAnyone switching from another brand will find the phase under the following designations:ManufacturerComparable phasesComparable column part numberAgilentDB-XLB, VF-Xms122-1232PhenomenexMR1, ZB-XLB7HG-G019-11Lower temperature limitThe Rxi-XLB starts at 30 °C, the 5-phases in the shop (Rtx-5, Rtx-5ms, Rxi-5ms, Rxi-5Sil MS) at -60 °C. Anyone running starting temperatures below 30 °C should choose one of these 5-phases. At the top end, the Rxi-XLB at 340/360 °C is above the 5-phases at 320/350 to 330/350 °C.ClassificationThe Rxi-XLB has been in the Restek range since 2007. It is designed as a general-purpose column for GC-MS applications, and its selectivity differs from the 5-phases in the shop.Typical applicationsThe column is intended as a general-purpose column with unique selectivity for GC-MS applications, for example for pesticides, PCB congeners and PAHs. Other fields of use are active compounds with high molecular weight and semivolatile compounds in drinking water.PAHs are polycyclic aromatic hydrocarbons, and PCB congeners are the individual polychlorinated biphenyls. Semivolatile compounds (SVOCs) boil higher than the classic volatile organic compounds.Technical detailsManufacturerRestekPhaseRxi-XLBPhase typeLow polarity, proprietaryLength30 mInner diameter0.25 mmFilm thickness0.25 µmColumn materialFused silicaTemperature range30 °C to 340 °C isothermal, 360 °C programmedPackaging unit1 pieceUNSPSC41115710Part number13723Scope of deliveryOne capillary column, single.Guard columns, liners and further accessories are separate items.Individual requirements and procurement serviceLT procures further Rxi-XLB dimensions and other Restek phases on request. The part number or desired dimensions are enough. Liners, standards and accessories from the Restek range can also be requested. Quantity and delivery address help with the quote. Anyone who needs several columns or accessories can combine everything in one request.

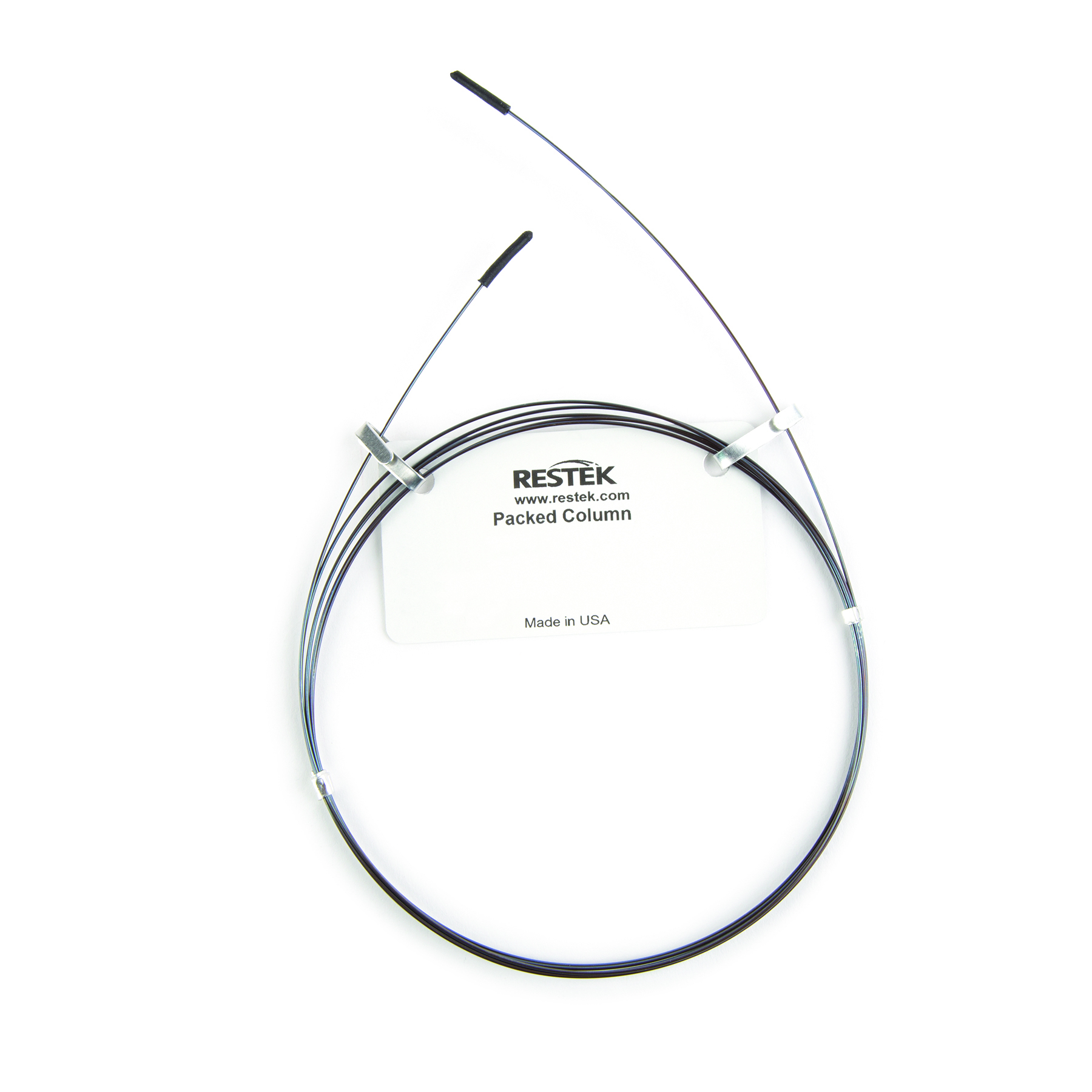

Restek ShinCarbon ST Micropacked GC Column, 80/100 Mesh, 2 m, 0.53 mm ID, 19043
The ShinCarbon ST 19043 is a micropacked GC column with 80/100 mesh. It is 2 m long, with an inner diameter of 0.53 mm and an outer diameter of 0.74 mm, and is made of SilcoSmooth tubing, a Siltek-coated stainless steel. The column can be used up to 300 °C.Packing and detector compatibilityThe packing has a particle size of 80/100 mesh. This means that the particles pass through a sieve with 80 meshes per inch and are retained on a sieve with 100 meshes per inch. The ShinCarbon ST packing is compatible with most GC detectors. It is characterised by minimal column bleed and minimal baseline rise. The tube is made of SilcoSmooth tubing, that is stainless steel with a Siltek coating. The inner diameter is 0.53 mm, the outer diameter 0.74 mm.Preconditioned and temperatureThe column is preconditioned. Stabilisation takes less than 30 minutes. Installation kits with the Restek part numbers 21065 and 21066 are provided as accessories. The column can be used up to 300 °C, and the maximum temperature is 280 °C isothermal and 300 °C in a temperature program.Selection guideThe shop offers two micropacked columns, each 2 m long with 80/100 mesh. They differ in packing and diameter:FeatureShinCarbon ST 19043Molesieve 5A 19001PackingShinCarbon STMolesieve 5ALength2 m2 mParticle size80/100 mesh80/100 meshInner diameter0.53 mm1.00 mmOuter diameter0.74 mm1/16 inchTemperatureup to 300 °C-60 to 330/350 °CTypical applicationsSeparation of permanent gases including carbon monoxide and carbon dioxide without cryogenic coolingFast separation of mixtures of permanent gas and light hydrocarbonsNo cryogenic cooling is needed for the separation of the permanent gases, so the oven does not have to be cooled below room temperature. With 0.53 mm inner diameter, the column is narrower than the Molesieve 5A with 1.00 mm. Anyone who needs a different length or a different packing should request the variant.Technical detailsPart number19043Column typeMicropackedPacking (stationary phase)ShinCarbon STParticle size80/100 meshLength2 mInner diameter0.53 mmOuter diameter0.74 mmTube materialSilcoSmooth tubing (Siltek-coated stainless steel)Temperature limit280 °C isothermal, 300 °C programmedConditioningPreconditioned, stabilises in less than 30 minutesPack contents1 pieceScope of delivery1 micropacked GC column (single column, pack contents 1 piece).Individual requirements and procurement serviceRestek offers very many further packings, dimensions and accessories, including the installation kits 21065 and 21066. LT Laborhandel procures them on request, including by Restek part number. The same applies to custom-packed columns. Send us the part number or your requirement, and we will get back to you with a quote. Please state part number 19043 in the request, so that packing and dimension are clearly defined.
Restek Stabilwax GC Capillary Column, 60 m, 0.32 mm ID, 1.00 µm, 10657
At 60 m, the Stabilwax 10657 is the long version of this polar wax column in the shop. Inner diameter (0.32 mm) and film thickness (1.00 µm) are the same as on the 30 m column 10654. The phase consists of crosslinked polyethylene glycol.About the phaseThe polar-deactivated surface of the Stabilwax is firmly bonded to the Carbowax polymer. This gives higher thermal stability and a long service life, even with repeated operation up to 260 °C. The retention times of polar compounds do not shift. The column can be regenerated by rinsing with solvents.USP classes: G14, G15, G16, G20, G39. Agilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW and Supelco SUPELCOWAX 10 are comparable phases, and Agilent 123-7364 is a comparable part number.Temperature limitsUsable from 40 °C. The upper limits are 240 °C for a constant oven temperature and 260 °C for a run with a temperature program.Notes on the dimensionsOn this column, 60 m is the length, 0.32 mm the clear inner diameter of the capillary and 1.00 µm the thickness of the phase film. The phase is crosslinked, meaning the polymer chains are linked. The two upper limits distinguish isothermal operation from a run with a temperature program.Why the longer columnCompared with the 30 m column 10654, this one is twice as long, and all other dimensions are the same. Retention times change when the length changes, so the method has to be revalidated.Part numberLengthInner diameterFilm thicknessDifference to this column1065430 m0.32 mm1.00 µm-30 mTypical applicationsThe Stabilwax is intended for FAMEs, flavours, essential oils and solvents. Other fields of use are aromatics including xylene isomers, acrolein and acrylonitrile, oxygenated compounds, purity testing of chemicals and the analysis of alcoholic beverages.Technical detailsPart number10657PhaseStabilwaxPhase compositionCrosslinked polyethylene glycol (wax phase)PolarityPolarLength60 mInner diameter0.32 mmFilm thickness1.00 µmColumn materialFused silicaLower temperature limit40 °CUpper temperature limit isothermal240 °CUpper temperature limit programmed260 °CUSP phase classG14, G15, G16, G20, G39Analyte groupsFAMEComparable phases from other manufacturersAgilent HP-INNOWax, Phenomenex ZB-WAXplus, Quadrex 007-CW, Supelco SUPELCOWAX 10Comparable part numbers from other manufacturersAgilent 123-7364ApplicationsFAMEs, flavours, essential oils, solvents, aromatics, acrolein and acrylonitrile, oxygenated compounds, purity testing of chemicals, alcoholic beveragesPack contents1 piece (single column)Scope of deliveryOne capillary column (single piece) with a length of 60 m is supplied. Part number 10657 defines length, inner diameter and film thickness.Individual requirements and procurement serviceFurther Stabilwax dimensions, other phases and accessories are part of the Restek range. LT Laborhandel procures them on request, including by Restek part number. Send us the part number, or the phase with length, inner diameter and film thickness, and we will get back to you with a quote.
Restek Rxi-624Sil MS GC Capillary Column, 60 m, 0.25 mm ID, 1.40 µm, 13869
At 60 m, this Rxi-624Sil MS is the longest version of the family in the shop. Inner diameter (0.25 mm) and film thickness (1.40 µm) match the 30 m column 13868. The phase is intended for volatile organics, terpenes and residual solvents.About the phaseRxi-624Sil MS is a crosslinked phase of medium polarity on fused silica. Low column bleed, high thermal stability and inertness are among its characteristics, and the columns are manufactured for column-to-column reproducibility. They are also well suited to validated methods. The USP phase class G43 is in the table further below.Known comparable phases from other manufacturers are Agilent VF-624ms, Phenomenex ZB-624plus and Quadrex 007-502, 007-624 and 007-608. Comparable part numbers are Agilent CP9103 and Phenomenex 7KG-G040-27.Operating temperaturePermitted are -20 °C as the lower limit, 300 °C in isothermal operation and 320 °C in a temperature program. All four dimensions of the family have the same limits. Anyone moving from a shorter column to 60 m should revalidate the method, because retention times change.When the long column, when anotherThis column shares diameter and film with 13868, but is 30 m longer. Compared with 13865 (20 m, 0.18 mm ID, 1.00 µm) it has 40 m more length, 0.07 mm more inner diameter and 0.40 µm more film thickness. The 13870 version is shorter at 30 m, but has 0.07 mm more inner diameter and 0.40 µm more film thickness.Part numberLengthInner diameterFilm thicknessAnalyte groupsDifference to this column1386520 m0.18 mm1.00 µmSolvents, terpenes-40 m, -0.07 mm, -0.40 µm1386830 m0.25 mm1.40 µmNitrosamines, solvents, terpenes-30 m1387030 m0.32 mm1.80 µmAlkylfurans, nitrosamines, solvents, terpenes-30 m, +0.07 mm, +0.40 µmTypical applicationsVolatile organics, terpenes and residual solvents (G43 phase). Solvents and terpenes are provided as analyte groups. At 60 m it is the only long variant of the family in the shop.Technical detailsPart number13869Product lineRxi GC columnsPhaseRxi-624Sil MSPhase compositionCrosslinked Crossbond phase, medium polarityPolarityIntermediateLength60 mInner diameter0.25 mmFilm thickness1.40 µmColumn materialFused silicaLower temperature limit-20 °CUpper temperature limit isothermal300 °CUpper temperature limit programmed320 °CUSP phase classG43Analyte groupsSolvents, terpenesPack contents1 piece (single column)Scope of deliveryOne capillary column (single piece) in the stated dimension is supplied. The part number defines length, inner diameter and film thickness unambiguously.Individual requirements and procurement serviceRestek has further dimensions of the Rxi-624Sil MS, other phases and matching accessories in its range. LT Laborhandel procures these on request, even if you only know the Restek part number. Simply write to us with what you are looking for.
Restek Rxi-624Sil MS GC Capillary Column, 30 m, 0.25 mm ID, 1.40 µm, 13868
This Rxi-624Sil MS has a length of 30 m, an inner diameter of 0.25 mm and a film thickness of 1.40 µm. The analyte groups nitrosamines, solvents and terpenes are assigned to it. Within the family it sits between the short 20 m column with narrow diameter and the 60 m version with the same cross-section.Phase characteristicsThe phase is crosslinked (Crossbond) and of medium polarity. Its characteristics include low column bleed, high thermal stability and an inert surface. The columns are manufactured for column-to-column reproducibility and are well suited to validated methods. The tube material is fused silica, a quartz glass.For anyone switching from another brand: Agilent VF-624ms, Phenomenex ZB-624plus and Quadrex 007-502, 007-624 and 007-608 are considered comparable phases. Agilent CP9102 is a comparable part number. The USP phase class G43 is in the table below, and it helps with matching methods that name a phase class.Temperature limitsThe column can be used from -20 °C. The upper limit is 300 °C in isothermal operation and 320 °C with a programmed temperature. Programmed means that the oven temperature is changed according to a temperature program.Placement among the four dimensionsCompared with the 20 m column 13865, this dimension is 10 m longer, with 0.07 mm more inner diameter and 0.40 µm more film thickness. The 60 m column 13869 has 30 m more length with the same diameter and film thickness. 13870 has, at the same length, 0.07 mm more inner diameter and 0.40 µm more film.Part numberLengthInner diameterFilm thicknessAnalyte groupsDifference to this column1386520 m0.18 mm1.00 µmSolvents, terpenes-10 m, -0.07 mm, -0.40 µm1386960 m0.25 mm1.40 µmSolvents, terpenes+30 m1387030 m0.32 mm1.80 µmAlkylfurans, nitrosamines, solvents, terpenes+0.07 mm, +0.40 µmTypical applicationsVolatile organics, terpenes and residual solvents (G43 phase). Nitrosamines and solvents are among the assigned analyte groups of this dimension.Technical detailsPart number13868Product lineRxi GC columnsPhaseRxi-624Sil MSPhase compositionCrosslinked Crossbond phase, medium polarityPolarityIntermediateLength30 mInner diameter0.25 mmFilm thickness1.40 µmColumn materialFused silicaLower temperature limit-20 °CUpper temperature limit isothermal300 °CUpper temperature limit programmed320 °CUSP phase classG43Analyte groupsNitrosamines, solvents, terpenesPack contents1 piece (single column)Scope of deliveryOne capillary column (single piece) in the stated dimension is supplied. The part number defines length, inner diameter and film thickness unambiguously.Individual requirements and procurement serviceFor the Rxi-624Sil MS, Restek offers further lengths, diameters and film thicknesses, plus many other phases and accessories. LT Laborhandel obtains on request, by Restek part number, whatever is not in the shop. A short message with the data you want is enough, and we state price and terms in the quote.

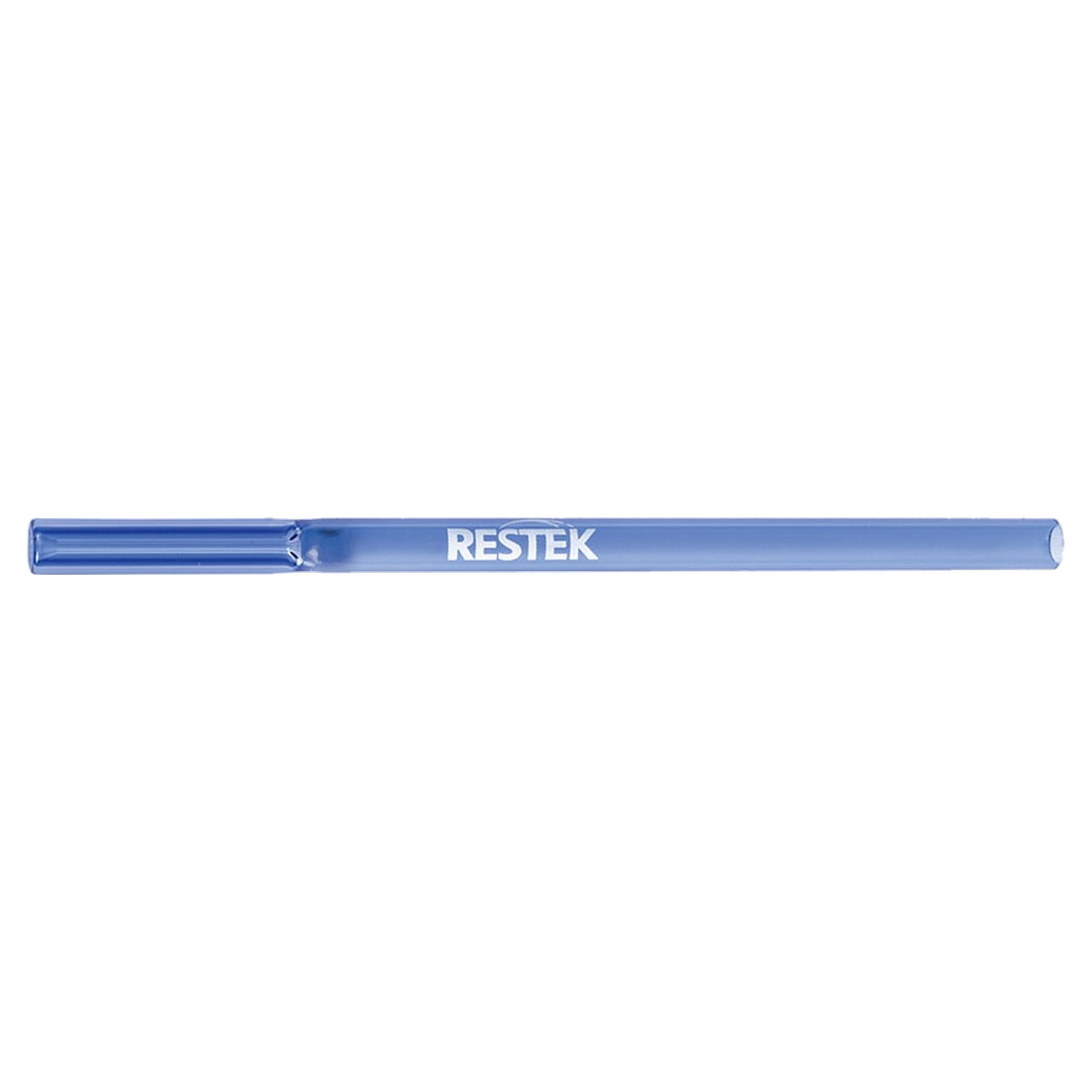

Restek Topaz Single Taper Inlet Liner for Shimadzu, Quartz Wool, Premium Deactivation, 3.5 mm ID, 5 Pieces, 23336
The Topaz Single Taper liner 23336 is made for Shimadzu GCs of the types 17A, 2010, 2014 and 2030. It contains quartz wool at the lower end, carries the premium deactivation and has a 3.5 mm inner diameter at 95 mm length. The pack comprises 5 liners.Single taper with quartz woolSingle taper refers to the single narrowing of the liner. The quartz wool sits at the lower end of the liner and is already inserted on purchase. The inner diameter is 3.5 mm, the outer diameter 5.0 mm and the length 95 mm. This gives a wall thickness of 0.75 mm and a volume of 0.702 mL. The liner is made of borosilicate glass, and the inlet type is split/splitless.Topaz deactivationThe Topaz deactivation is designed for low decomposition of analytes. Manufacturing controls and quality checks ensure reproducibility, and cleanliness is high. This liner carries the premium deactivation. For the same instruments, the shop offers the straight liner 20956 with standard deactivation. Deactivation refers to the treatment of the glass surface so that analytes adhere to it less.Which liner fits the ShimadzuThe straight liner 20956 has the same dimensions 3.5 mm x 5.0 mm x 95 mm and is intended for the same Shimadzu models. It has standard deactivation and deactivated glass wool, and its volume is 0.914 mL. The Single Taper 23336 has 0.702 mL, quartz wool and premium deactivation. Anyone who wants to work with premium deactivation should choose the Single Taper. For Agilent GCs, the shop offers the Topaz Cyclo Double Taper 23310 with 4.0 mm inner diameter.Typical applicationsSplit and splitless injection on Shimadzu GCs of the types 17A, 2010, 2014 and 2030. The dimensions 3.5 mm x 5.0 mm x 95 mm are matched to these instruments. In split mode only part of the sample reaches the column, in splitless mode almost the entire sample. The liner is intended for both modes and is supplied as a consumable in a pack of 5. Please match the instrument model against this type list before ordering, because outer diameter and length have to fit the instrument inlet.Technical detailsPart number23336Product lineTopazLiner shapeSingle taperLength95 mmOuter diameter5.0 mmInner diameter3.5 mmVolume0.702 mLMaterialBorosilicate glassWoolQuartz wool at the lower endDeactivationPremiumInlet typeSplit/splitlessInstrumentsShimadzu 17A, 2010, 2014, 2030Pack contents5 piecesScope of delivery5 liners (one pack).Individual requirements and procurement serviceRestek offers very many further liners with other dimensions, wool variants and deactivations. LT Laborhandel procures them on request, including by Restek part number. Send us the number or your GC model, and we will get back to you with a quote. Please state the quantity in packs, one pack contains 5 liners.
Restek Rxi-624Sil MS GC Capillary Column, 30 m, 0.32 mm ID, 1.80 µm, 13870
Of the four dimensions, the Rxi-624Sil MS 13870 has the largest inner diameter (0.32 mm) and the thickest film layer (1.80 µm), at 30 m length. Alkylfurans, nitrosamines, solvents and terpenes are assigned as analyte groups.PhaseRxi-624Sil MS is a crosslinked Crossbond phase of medium polarity on a fused silica tube. Column bleed is low, thermal stability high and the surface inert. The columns are manufactured for column-to-column reproducibility and are well suited to validated methods.Comparable phases from other manufacturers include Agilent VF-624ms, Phenomenex ZB-624plus and Quadrex 007-502, 007-624 and 007-608. Comparable part numbers are Agilent CP9104 and Phenomenex 7HM-G040-31. The USP phase class G43 serves for matching methods that name a phase class.TemperatureThe range of use starts at -20 °C. Upwards, 300 °C isothermal and 320 °C in a temperature program are permitted, depending on whether the oven temperature stays constant or follows a program.Selection within the familyAnyone looking for the narrower cross-section at 30 m length will find it in 13868 with 0.25 mm ID and 1.40 µm film, that is 0.07 mm less inner diameter and 0.40 µm less film thickness than here. The 60 m column 13869 has the same values at twice the length. At the narrow end is 13865 with 20 m, 0.18 mm ID and 1.00 µm. Retention times change when the dimension changes, so the method has to be revalidated afterwards.Part numberLengthInner diameterFilm thicknessAnalyte groupsDifference to this column1386520 m0.18 mm1.00 µmSolvents, terpenes-10 m, -0.14 mm, -0.80 µm1386830 m0.25 mm1.40 µmNitrosamines, solvents, terpenes-0.07 mm, -0.40 µm1386960 m0.25 mm1.40 µmSolvents, terpenes+30 m, -0.07 mm, -0.40 µmTypical applicationsVolatile organics, terpenes and residual solvents (G43 phase). For the dimension 0.32 mm and 1.80 µm, alkylfurans and nitrosamines are also listed as analyte groups.Technical detailsPart number13870Product lineRxi GC columnsPhaseRxi-624Sil MSPhase compositionCrosslinked Crossbond phase, medium polarityPolarityIntermediateLength30 mInner diameter0.32 mmFilm thickness1.80 µmColumn materialFused silicaLower temperature limit-20 °CUpper temperature limit isothermal300 °CUpper temperature limit programmed320 °CUSP phase classG43Analyte groupsAlkylfurans, nitrosamines, solvents, terpenesPack contents1 piece (single column)Scope of deliveryOne capillary column (single piece) in the stated dimension is supplied. The part number defines length, inner diameter and film thickness unambiguously.Individual requirements and procurement serviceBesides the four dimensions in the shop, Restek offers further versions of the Rxi-624Sil MS and a wide selection of other phases and accessories. LT Laborhandel procures them on request, including by Restek part number. Give us the phase and dimensions, and we will take care of the rest.

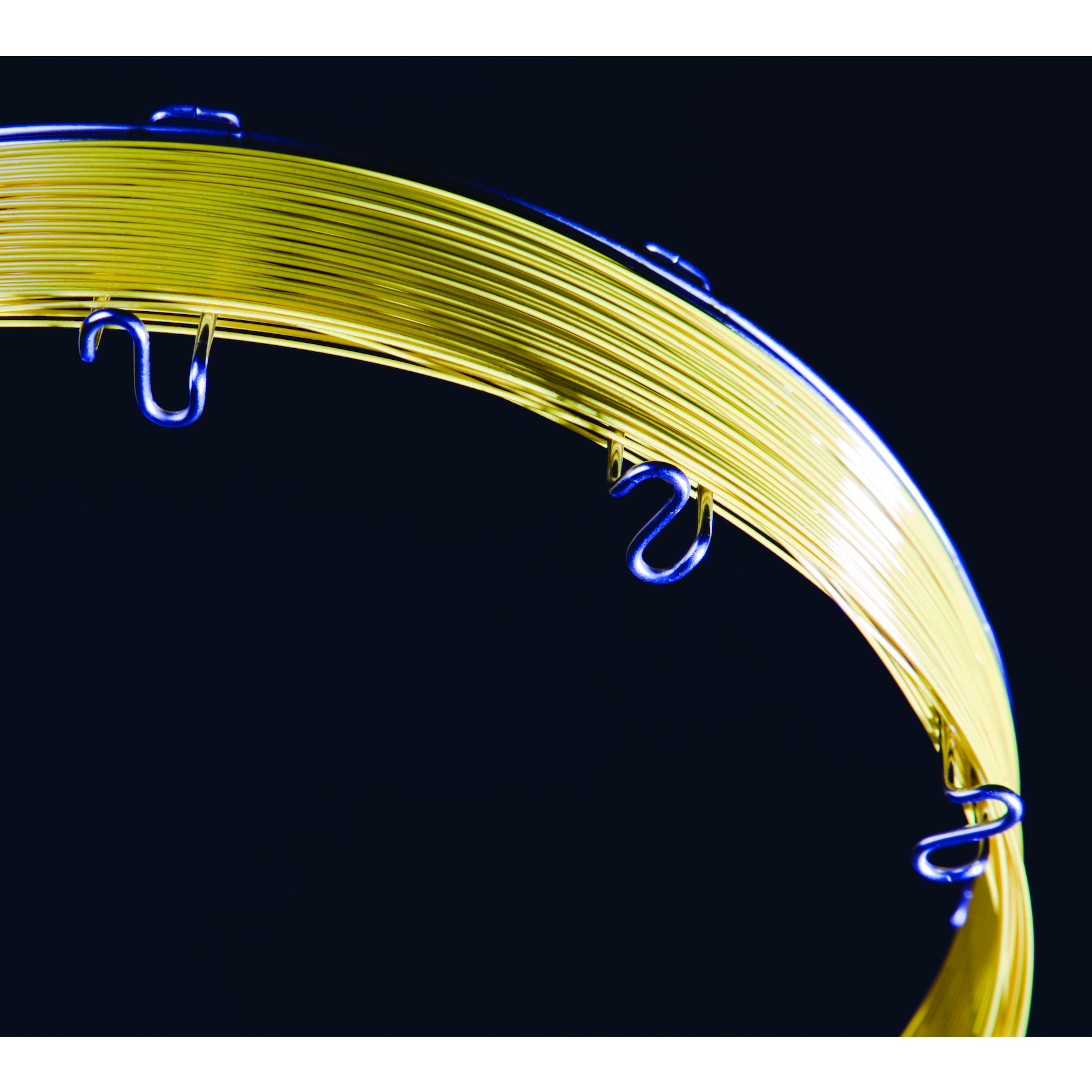

Restek Rt-Q-BOND PLOT Column, 30 m, 0.32 mm ID, 10 µm, 19744
The Rt-Q-BOND is a non-polar PLOT column with 100 % divinylbenzene as the stationary phase. This version is 30 m long, with an inner diameter of 0.32 mm and a film thickness of 10 µm, and the support tube is made of fused silica. The phase is hydrophobic, and water does not affect retention times.Gas analysisThe column separates C1 to C3 hydrocarbons as well as isomers and alkanes up to C10. In gas analysis, CO2 and methane are separated from O2, N2 and CO. At ambient temperature, the column does not separate O2, N2 and CO from one another.HandlingRewinding the PLOT column is not recommended. The temperature range extends from -60 °C to 280 °C isothermal and up to 300 °C programmed. The first temperature value applies to isothermal operation, the second to temperature programs.Permanent gasesFor permanent gases including carbon monoxide and carbon dioxide without cryogenic cooling, there is the micropacked ShinCarbon ST with 80/100, 2 m length and 0.53 mm ID. It also quickly separates mixtures of permanent gas and light hydrocarbons. The Rt-Q-BOND, by contrast, is a capillary PLOT column with 30 m and 0.32 mm ID.Equivalents at a glanceAnyone switching from another brand will find the phase under the following designations:ManufacturerComparable phasesAgilentHP-PLOT Q, PoraBOND Q, PoraPLOT QQuadrexPLT-QSupelco/Millipore SigmaSupel-Q-PLOTDimensionsThe column is 30 m long and has an inner diameter of 0.32 mm. The film thickness of 10 µm here describes the porous divinylbenzene layer.PLOT or micropackedBoth columns are intended for gas analysis, but differ in construction.ColumnConstructionNamed fields of useRt-Q-BOND (this page)PLOT capillary, 30 m, 0.32 mm ID, 100 % divinylbenzeneC1 to C3 hydrocarbons, alkanes up to C10, gas analysis, oxygen-containing compoundsShinCarbon STmicropacked, 80/100, 2 m, 0.53 mm IDPermanent gases including CO and CO2 without cryogenic cooling, mixtures of permanent gas and light hydrocarbonsTypical applicationsC1 to C3 hydrocarbons as well as isomers and alkanes up to C10Gas analysis: CO2 and methane are separated from O2, N2 and COOxygen-containing compounds and solventsPLOT stands for porous layer open tubular: the phase is a porous layer on the tube wall. In the Rt-Q-BOND it consists of divinylbenzene. The designation C1 to C3 means hydrocarbons with one to three carbon atoms, and alkanes up to C10 extend to decane.Technical detailsManufacturerRestekPhaseRt-Q-BONDPhase type100 % divinylbenzene, PLOTLength30 mInner diameter0.32 mmFilm thickness10 µmColumn materialFused silicaTemperature range-60 °C to 280 °C isothermal, 300 °C programmedPackaging unit1 pieceUNSPSC41115710Part number19744Scope of deliveryOne PLOT column, single.Guard columns, liners and further accessories are separate items.Individual requirements and procurement serviceLT procures further Rt-Q-BOND dimensions and other PLOT phases on request, as well as accessories, by Restek part number if desired. Quantity and delivery address help with the quote. Anyone who needs several columns or accessories can combine everything in one request.
