Safety containers & labels

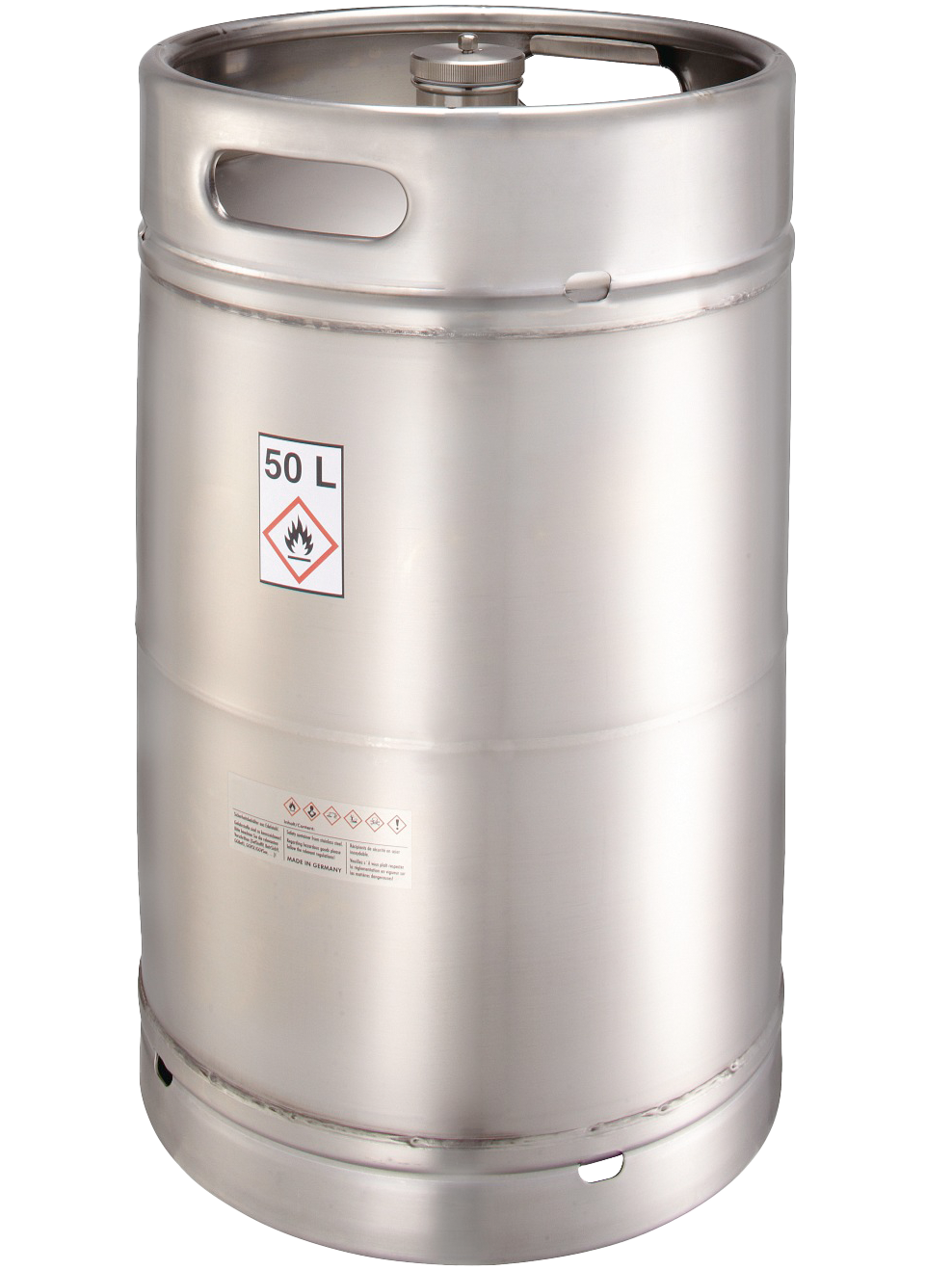

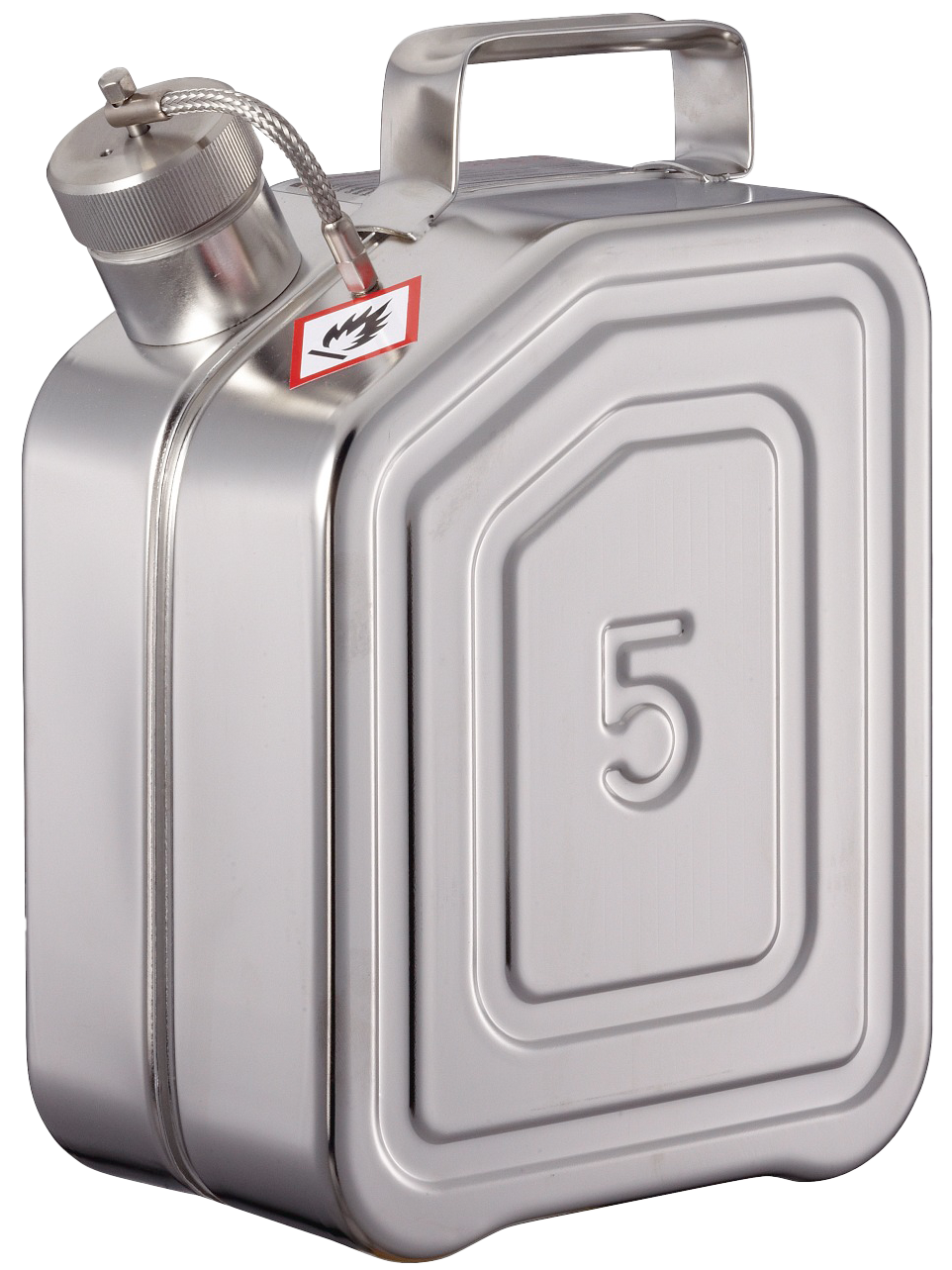

Stainless steel safety containers from Bürkle for flammable liquids: cans of 1 to 5 l, canisters of 5 to 20 l and containers up to 50 l, with pressure relief valve, precision dispenser or tap, in V4A (1.4571) or V2A (1.4301), two containers with UN approval for transport. In addition, danger labels of Classes 1 to 9 and ADR marks from Giese-GEF under Dangerous goods labelling.
Giese-GEF Dangerous Goods Label Class 3 (Flammable Liquids), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 300-10-1
The Class 3 hazard label indicates on packages that they contain flammable liquids. This roll from Giese-GEF (Offenbach am Main) contains 1,000 labels measuring 100 x 100 mm on self-adhesive film according to BS 5609. This labelling is also known commercially as a Class 3 dangerous goods label or sticker.ApplicationsThe label goes on packages and overpacks containing Class 3 substances. Examples include acetone (UN 1090), petrol (UN 1203) and methanol (UN 1230). The manufacturer identifies fire and explosion as the hazards, as vapours can form explosive mixtures with air. The consignor decides which labels a consignment carries.Design of the hazard labelThe diamond is positioned on its point and is red. At the top is a flame, in black or white according to ADR, and at the bottom the number 3. A line runs approximately 5 mm inside the border, in the colour of the symbol at the top and in the colour of the number at the bottom. The minimum size according to ADR is 100 x 100 mm.A special rule applies to self-reactive substances and organic peroxides. They do not require an additional label 3, as label 4.1 or 5.2 already indicates their flammability.Material and finishThe labels are made of self-adhesive film. According to the manufacturer, they are seawater-resistant according to BS 5609 (Section 2). The IMDG Code requires that markings remain legible after at least three months in seawater; BS 5609 is a voluntary means of demonstrating this. According to the manufacturer, the label is UV-resistant, and the adhesive provides a permanent bond, both indoors and outdoors. The roll contains 1,000 labels, each individually mounted on a backing tape.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number300-10-1Hazard label templateNo. 3, Flammable liquidsFormat100 x 100 mm, diamond shapeMaterialSelf-adhesive film, seawater-resistant to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent, for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 3 hazard labels (flammable liquids), 100 x 100 mm, self-adhesive filmFrequently asked questionsIs label 3 sufficient for methanol?No. According to ADR, methanol (UN 1230) requires labels 3 and 6.1. The second label is available as Class 6.1 hazard label.Does the label replace a large label?No. Large labels measuring at least 250 x 250 mm are provided for on containers and vehicles; the roll label, measuring 100 x 100 mm, is used to mark the package.Is Class 3 also available on paper?The manufacturer also offers Class 3 as self-adhesive paper. This item is the film version. Enquiries regarding the paper version should be directed to the procurement service.Individual requirements and procurement serviceNeed more than one roll, a framework order, or other classes, formats and language versions from the Giese range? Quotes are available on request, including for public sector clients. Enquiries should be directed to the procurement service.
Giese-GEF Dangerous Goods Label Class 1.1 (Explosives), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 100-10-1
Class 1 hazard labels are used to identify packages containing explosive substances and articles containing explosives. Giese-GEF, based in Offenbach am Main, supplies these labels for subclasses 1.1, 1.2 and 1.3, each as a separate roll containing 1,000 labels, measuring 100 x 100 mm, on self-adhesive film according to BS 5609. The subclass is determined by the variant; each subclass is printed separately. A fourth variant is subclass 1.1 with compatibility group G (marked 1.1 G).ApplicationsThe label goes on packages containing substances or articles of subclasses 1.1 to 1.3, next to the proper shipping name according to ADR. The subclasses describe the hazard: 1.1 is capable of mass explosion; for 1.2, the hazard arises from fragments, blast and projectiles without mass explosion; for 1.3, the primary hazard is fire with a minor blast or fragmentation effect. Examples of 1.1 include trinitrotoluene, dry (UN 0209) and ammonium nitrate containing more than 0.2 % of combustible substances (UN 0222), both with classification code 1.1D.Class 1 occurs as a subsidiary hazard label, for example with Type B organic peroxides. UN 3102, for instance, bears labels 5.2 and 1. As subsidiary hazard labels, the subclass and compatibility group remain blank; rolls with a pre-printed subclass are not suitable for this purpose. There is a separate template for subclass 1.4 (hazard label 1.4). The consignor determines which labels a consignment requires on the basis of the regulations.Design of the hazard labelThe template shows an exploding bomb in black on an orange background, with the number 1 at the bottom. In the lower half, above the number, the ADR provides space for the subclass and the compatibility group letter. Neither is required if the explosive property is only a subsidiary hazard. The minimum size according to ADR is 100 x 100 mm. Whether a letter is pre-printed in addition to the subclass can be clarified via the procurement service before placing an order. Variant 1.1 G already has the letter G printed alongside subclass 1.1.Material and finishThe labels are made of self-adhesive film, which the manufacturer states is seawater-resistant according to BS 5609. The IMDG Code requires legibility after at least three months in seawater; BS 5609 is a voluntary standard for this purpose. According to the manufacturer, the label is UV-resistant and the adhesive provides a permanent bond, both indoors and outdoors. Each roll contains 1,000 labels, individually mounted on a backing tape.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number100-10-1 for all four variants, printed on the label edge for 1.1 GHazard label templateNo. 1, Explosive substances and articles containing explosivesVariant subclass 1.1capable of mass explosion, example UN 0209 (1.1D)Variant subclass 1.2hazard from fragments, blast and projectiles, not capable of mass explosionVariant subclass 1.3fire hazard with minor blast or fragmentation effect, not capable of mass explosionVariant subclass 1.1 Gsubclass 1.1 with compatibility group G, marked 1.1 GFormat100 x 100 mm, diamondMaterialSelf-adhesive film, seawater-resistant to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent, for indoor and outdoor useSupplied asRoll of 1,000 pieces per variantWeight per rollapprox. 1.8 kg according to the manufacturerScope of delivery1 roll containing 1,000 hazard labels of the selected subclass (1.1, 1.2, 1.3 or 1.1 G), 100 x 100 mm, self-adhesive filmFrequently asked questionsWhich variant do I need?The subclass is determined by the classification of the substance or article, as indicated by the classification code, for example 1.1D. Variant 1.1 G is suitable if the classification results in subclass 1.1 with compatibility group G. For classes 1.4 to 1.6, different labels are required; see Class 1.4 and Class 1.5.Is a single label sufficient for a vehicle or container?No. Large labels of the same design with at least 250 x 250 mm are intended for vehicles and containers. The 100 x 100 mm label belongs on the package.Individual requirements and procurement serviceLarger quantities, framework orders, the other classes and other formats and language versions from the Giese range are available on request. Companies and public sector clients can obtain quotations via the procurement service.
Giese-GEF Dangerous Goods Label Class 2.2 (Non-Flammable, Non-Toxic Gases), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 220-10-1
A gas cylinder on a green background displays hazard label 2.2, the ADR symbol for non-flammable, non-toxic gases. The roll from Giese-GEF (Offenbach am Main) contains 1,000 labels measuring 100 x 100 mm on self-adhesive film according to BS 5609. The label is also known as a Class 2.2 dangerous goods label.ApplicationsThe label goes on packages and gas cylinders containing gases such as argon, compressed (UN 1006) or carbon dioxide, liquefied under pressure (UN 1013). The manufacturer lists the risks as the danger of suffocation and the pressure within the container; in the case of cryogenic gases, frostbite is also a risk. It is used on packages and overpacks. The consignor checks the regulations to determine whether a consignment requires this label alone or in combination with others.Design of the hazard labelOn a green background is the symbol of a gas cylinder, with the number 2 in the bottom corner. According to ADR, the symbol and number may be black or white. As with all hazard labels, the label is a diamond placed on its point with an inner line approximately 5 mm from the edge. The ADR stipulates a minimum size of 100 x 100 mm; the roll is exactly this size.Material and finishThe label is made of self-adhesive film. The manufacturer specifies BS 5609 Section 2: the material is meant to be able to remain in seawater for three months without peeling off or becoming illegible. This standard is not mandatory; the IMDG Code only requires the label to remain legible after this period. The adhesive is permanent and suitable for both indoor and outdoor use; according to the manufacturer, the film is UV-resistant. Each roll contains 1,000 labels on a backing tape.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number220-10-1Hazard label templateNo. 2.2, Non-flammable, non-toxic gasesFormat100 x 100 mm, diamond shapeMaterialSelf-adhesive film, seawater-resistant according to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent, for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 2.2 hazard labels (non-flammable, non-toxic gases), 100 x 100 mm, self-adhesive filmFrequently asked questionsWhen does Class 2.2 apply and when does Class 2.1?Label 2.2 is for gases that are neither flammable nor toxic. Flammable gases require the red label with a flame (Class 2.1), whilst toxic gases require the 2.3 label with a skull and crossbones (Class 2.3).Is this label sufficient for a vehicle or a container?No, large labels measuring at least 250 x 250 mm are required for these. This label identifies the individual package.Is there an English version?The manufacturer offers a version with English lettering (NON-FLAMMABLE, NON-TOXIC GAS) under item number 221-10-1. Enquiries regarding this should be directed to the procurement service.Individual requirements and procurement serviceLarger quantities, framework orders, other classes or formats, and further language versions from the Giese range can be arranged on request. Companies and public sector clients should direct enquiries to the procurement service.
Giese-GEF Environmentally Hazardous Substance Mark, 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, UMW-10-1
Fish and tree in black on white: the environmentally hazardous substance mark goes on packages whose contents meet the criteria in 2.2.9.1.10 ADR. Giese-GEF, based in Offenbach am Main, supplies it as a roll of 1,000 pieces, 100 x 100 mm, on self-adhesive film.ApplicationsThe mark sits next to the UN number on the package. Examples include UN 3077 (environmentally hazardous substance, solid, n.o.s.) and UN 1203 (petrol). It applies in addition to the hazard labels; for UN 3077, this means alongside the hazard label Class 9, and for petrol, alongside the hazard label Class 3. IBCs over 450 l and large packagings carry it on two opposite sides. The UN number itself is not part of this mark and is applied separately, for example using the UN number mark for lettering, with a character height of at least 12 mm; for packages up to 30 l or 30 kg net mass, the character height must be at least 6 mm.Design of the markThe manufacturer depicts a dead fish and a dead tree in black on a white background. The ADR requires a diamond measuring at least 100 x 100 mm with a border of at least 2 mm. A smaller size is permitted provided that everything remains clearly visible. Legally, it is a distinct mark according to 5.2.1.8 and not a hazard label.Material and finishThe material is self-adhesive film. According to the manufacturer, it is seawater-resistant according to BS 5609, a voluntary standard not required by the IMDG Code. One roll contains 1,000 pieces and, according to the manufacturer, weighs approx. 1.9 kg.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s numberUMW-10-1MarkEnvironmentally hazardous substances, fish and tree, ADR 5.2.1.8Format100 x 100 mm, diamond shapeMaterialSelf-adhesive film, seawater-resistant according to BS 5609 (manufacturer’s specification)Supplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 environmentally hazardous substance marks, 100 x 100 mm, self-adhesive filmFrequently asked questionsIs this a hazard label?No, it is a mark and does not replace a hazard label. The hazard labels for the relevant classes on the package must remain in place.When can it be omitted?For single or combination packagings with no more than 5 l (liquid) or 5 kg (solid) per single or inner packaging (5.2.1.8.1).Does this also apply to maritime transport?In maritime transport, the equivalent mark is called Marine Pollutant. The IMDG Code requires that marks remain legible after three months in seawater. According to the manufacturer, the film is seawater-resistant according to BS 5609, a voluntary standard.Individual requirements and procurement serviceAnyone planning to order larger quantities or placing framework orders can obtain a quotation via the procurement service; this also applies to other marks, formats and language versions from the Giese-GEF range. This applies to both businesses and public sector clients. The consignor checks against the regulations which marks must appear on the package.

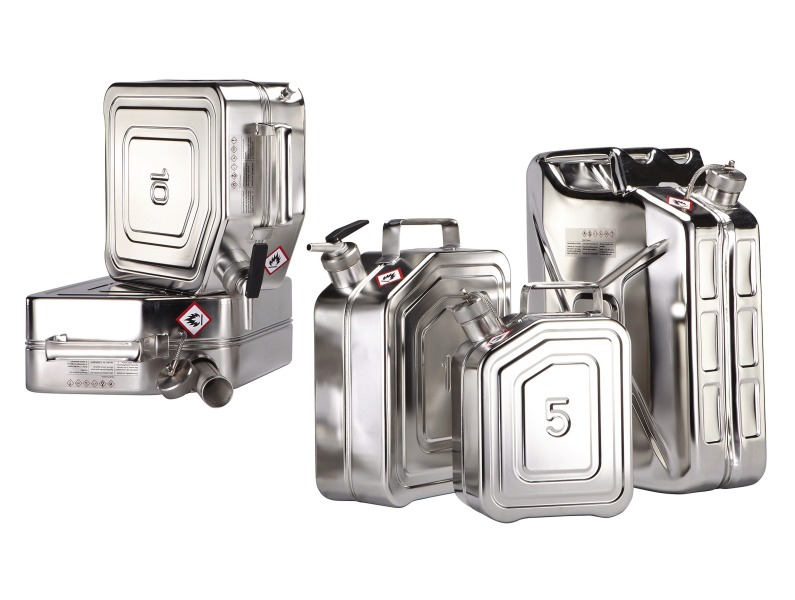

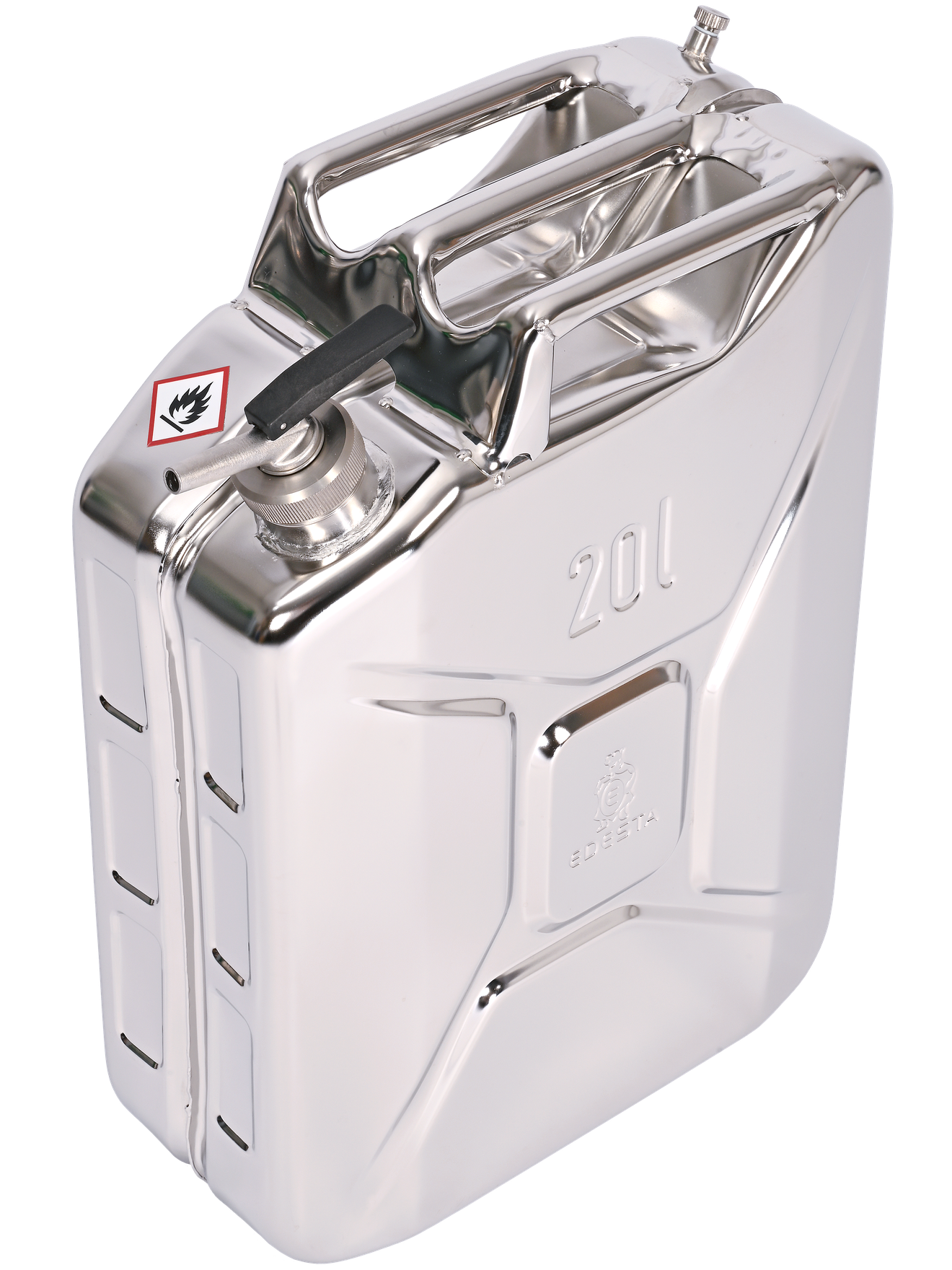

Bürkle Stainless Steel Safety Canister, with Precision Dispenser and Vent Screw, 20 l, 2601-2020
When dealing with larger quantities of solvent, it quickly becomes apparent just how laborious it is to top up from a 10-litre container. The stainless steel safety canister, featuring a precision dispenser and a vent screw, offers a 20-litre capacity, the next size up, and complements the precision dispenser with a manual vent screw for pressure equalisation.Vent screw for controlled pressure equalisationThe vent screw on the screw cap can be opened manually during filling so that air flows in as the liquid is drawn off, preventing a vacuum from building up which would make pouring difficult. During storage, it remains closed; the pressure relief valve continues to ensure continuous pressure equalisation from around 0.3 bar.Level indicator keeps track of the contentsThe canister is also fitted with a level indicator. This allows you to check the contents without opening the canister or placing it on a set of scales. For a 20-litre container that is used over several days, this makes a noticeable difference compared to a container with no indicator whatsoever.Stainless steel 1.4301 for continuous operationFor the 20-litre version, Bürkle uses 1.4301 (V2A) stainless steel with PTFE seals. V2A is compatible with most solvents commonly used in laboratories and is more cost-effective than V4A. For particularly aggressive media, the smaller 10-litre version in 1.4571 stainless steel is the more robust alternative.Dimensions for centralised storageWith external dimensions of 345 x 175 x 470 millimetres and an empty weight of 3.7 kilograms, the 20-litre canister is significantly larger than the 10-litre version, but still fits into a safety cabinet compartment or under a fume hood. The precision dispenser with its vent screw is securely screwed onto the G 1 1/2-inch external thread, so that the canister does not open unintentionally, even when carried by the screw cap.Vent screw in practiceThe vent screw is located on the screw cap separately from the precision dispenser and the pressure relief valve, and can be opened or closed by hand independently of them. This becomes noticeable when dispensing larger quantities from the 20-litre canister: without the vent screw open, the flow becomes increasingly sluggish as the fill level drops, because a vacuum builds up inside. If the screw is opened before dispensing, the flow rate remains consistent throughout the entire dispensing process. After use, it is closed again so that, during storage, only the pressure relief valve is responsible for pressure equalisation.Labelling without a specific standardBürkle also labels this canister as food-safe without specifying a specific standard, such as Regulation (EU) No 10/2011, on the product page. For internal documentation purposes, it is worth checking before ordering if certification in accordance with this regulation is expressly required.Finding the suitable size and designThose who only fill smaller quantities or work with more aggressive solvents are better off with the 10-litre version made from 1.4571 stainless steel, the Bürkle stainless steel safety canister with precision dispenser. If, on the other hand, you are looking for a simple screw cap without a precision dispenser, you will find it in the Bürkle stainless steel safety canister range, which features screw caps in several sizes. Alternatively, the Bürkle stainless steel safety jug is suitable for smaller quantities that are easy to portion, complete with a carrying handle. The Bürkle stainless steel safety funnel complements the range for clean filling into narrow container openings.Typical applicationsFilling larger quantities of flammable solvents in everyday laboratory workCentralised storage from which several workstations are supplied throughout the dayOperations where the fill level needs to be checked without opening the canisterReplacement for canisters without pressure equalisation, where a vacuum builds up during dispensingWeekly or batch supplies intended to last without frequent refilling from a drumTechnical detailsMaterialStainless steel 1.4301 (V2A)SealsPTFECapacity20 lThreadG 1 1/2 inch, external threadDimensions (L x W x H)345 x 175 x 470 mmNet weight3.7 kgFeaturesPressure relief valve, vent screw, level indicator, precision dispenserLabellingFood-safe according to Bürkle labellingScope of deliveryStainless steel safety canister, with precision dispenser and vent screwService and procurementIf the 20-litre canister is regularly required alongside smaller containers for the workplace, your order with us can be tailored to include the appropriate sizes from the same product range. If you are unsure which size or material variant is suitable for the solvent you are using, we will provide personalised advice.
Giese-GEF Limited Quantities (LQ) mark, 100 x 100 mm, self-adhesive film, roll of 1,000, LQM-10-1
The LQ mark identifies packages containing dangerous goods in limited quantities. It consists of an upright diamond with black upper and lower points and a white centre, measuring 100 x 100 mm, made of self-adhesive film and available in rolls of 1,000 from Giese-GEF in Offenbach am Main. Legally, it is one of the marks under Chapter 3.4 of the ADR and not a hazard label.ApplicationsThe mark indicates that a package is packed according to the simplifications for limited quantities. The quantity limit per inner packaging is set out in Table A, column 7a. For UN 1350 sulphur and UN 1942 ammonium nitrate, for example, the limit is 5 kg in each case. The package must not weigh more than 30 kg gross mass; for trays wrapped in stretch or shrink film, the limit is 20 kg. This mark does not apply to air transport, where the variant with Y is used (LQ mark with Y). In the case of composite packagings containing liquid substances in inner packagings, the orientation arrows specified in 5.2.1.10 also apply to LQ packages, subject to the exceptions stated there for small inner packagings.Design of the markThe upper and lower sections, as well as the border, are black; the central area is white or a contrasting colour. The mark measures at least 100 x 100 mm with a border of at least 2 mm. If the size of the package requires it, it may be reduced to 50 x 50 mm with a 1 mm border. It must withstand weathering without significant deterioration. For transport units weighing over 12 t containing more than 8 t of LQ packages, marks are provided at the front and rear; for containers, they are provided on all four sides, in which case they measure at least 250 x 250 mm. A roll label measuring 100 x 100 mm does not replace these larger marks.Material and finishThe roll carries 1,000 marks on self-adhesive film, which the manufacturer states to be seawater-resistant according to BS 5609. This standard is voluntary. For maritime transport, the IMDG Code requires that the markings remain legible after three months in seawater. According to the manufacturer, a roll weighs approximately 1.9 kg.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s numberLQM-10-1MarkLimited quantities (LQ) without Y, ADR 3.4.7Format100 x 100 mm, diamond shapeMaterialSelf-adhesive film, seawater-resistant according to BS 5609 (manufacturer’s specification)Supplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 LQ marks (without Y), 100 x 100 mm, self-adhesive filmFrequently asked questionsDo I need a different mark for air transport?This mark does not apply to air transport. There, the LQ mark with Y applies according to the ICAO Technical Instructions.Is the mark with Y also sufficient on the road?The ADR recognises it. Packages bearing the Y mark are deemed to comply with 3.4.1 to 3.4.4 and do not require the mark without Y. The mark without Y remains the option for consignments not transported by air.Individual requirements and procurement serviceThe procurement service handles requests for quantities exceeding one roll, framework orders and additional marks, formats or language versions from the Giese-GEF range. Companies and public sector clients will receive a quotation on request. The consignor checks against the regulations whether a consignment may be dispatched as a limited quantity.
Giese-GEF Lithium Battery Mark UN 3090, 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, LIT-10-1-3090
The lithium battery mark has a red hatched border, a battery symbol and the UN number. It is available here in four versions for UN 3090, 3091, 3480 and 3481, each measuring 100 x 100 mm, on self-adhesive film and available in rolls of 1,000. The manufacturer is Giese-GEF in Offenbach am Main, where the label is marketed under the name ‘IATA Lithium Battery Sticker’.ApplicationsThe mark goes on packages containing cells or batteries prepared in accordance with Special Provision 188 or 400. The four numbers denote: UN 3090 lithium metal cells or batteries, UN 3091 lithium metal cells or batteries contained in or packed with equipment, UN 3480 lithium-ion cells or batteries, and UN 3481 lithium-ion cells or batteries contained in or packed with equipment. If a package contains several of these numbers, all applicable ones appear on one or more marks. It therefore covers loose cells and batteries as well as equipment in which they are installed or with which they are packed.Design of the markThe mark is a rectangle or square with a hatched border; the hatching is at least 5 mm wide and red. It measures at least 100 x 100 mm and may, if the package so requires, be reduced to 100 mm in width and 70 mm in height. The ADR specifies, as the symbol, a cluster of batteries, one of which is damaged and ignited, positioned above the UN number. The lithium battery mark is not hazard label 9A. Which of the two a package requires is determined, for road transport, by Table A and Special Provision 188, and for air transport by the IATA regulations.Material and finishSelf-adhesive film, which the manufacturer states is seawater-resistant according to BS 5609. This standard is voluntary; the IMDG Code requires legibility after three months in seawater. A roll of 1,000 marks weighs approx. 1.6 kg according to the manufacturer.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainUN 3090Lithium metal cells or batteries, manufacturer’s number LIT-10-1-3090UN 3091Lithium metal, contained in or packed with equipment, manufacturer’s number LIT-10-1-3091UN 3480Lithium-ion cells or batteries, manufacturer’s number LIT-10-1-3480UN 3481Lithium-ion, contained in or packed with equipment, manufacturer’s number LIT-10-1-3481Format100 x 100 mmMaterialSelf-adhesive film, seawater-resistant according to BS 5609 (manufacturer’s specification)Supplied asRoll of 1,000 piecesWeight per rollapprox. 1.6 kg according to the manufacturerScope of delivery1 roll containing 1,000 lithium battery marks with the selected UN number, 100 x 100 mm, self-adhesive filmFrequently asked questionsIs this hazard label 9A?No. Design 9A is a Class 9 hazard label with a battery symbol; this is a lithium battery mark, which the ADR regulates separately in 5.2.1.9. The standard Class 9 hazard label is available as a separate item.Is the mark also available for sodium-ion batteries?The ADR 2025 also specifies it for sodium-ion batteries (UN 3551, 3552). In air transport, Addendum 1 to IATA DGR 67 (valid from 1 January 2026) removes the reference to UN 3551 from the requirements for the battery mark; the regulations for road and air transport therefore differ in this respect. The range includes only the four lithium numbers.Individual requirements and procurement serviceLarger quantities, framework orders and other marks, formats or language versions from the Giese-GEF range, such as the environmentally hazardous substance mark, are available via the procurement service. Quotations for businesses and public sector clients are available on request. The consignor determines which marking the consignment requires.
Giese-GEF Dangerous Goods Label Class 2.1 (Flammable Gases), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 210-10-1
Class 2 flammable gases are indicated by hazard label 2.1, which features a flame on a red background. Giese-GEF, based in Offenbach am Main, supplies it in rolls of 1,000 labels, measuring 100 x 100 mm, on self-adhesive film according to BS 5609. In the trade, this label is also known as a Class 2.1 dangerous goods label or sticker.ApplicationsThe label is applied to packages and overpacks containing flammable gases, for example aerosols, flammable (UN 1950), hydrogen, compressed (UN 1049) or isobutane, liquefied under pressure (UN 1969). The manufacturer describes the warning as indicating a risk of fire and explosion, as the gases are under pressure within their containers. The consignor determines the labelling requirements for a consignment on the basis of the regulations.Design of the hazard labelThe symbol is a flame in black or white, with the number 2 in the bottom corner; this may also be black or white. Visually, the label resembles that for flammable liquids (Class 3); the number distinguishes the two. On cylinders and gas cartridges for liquefied petroleum gas, the symbol, text and number may appear in the colour of the container, provided there is sufficient contrast. The ADR specifies 100 x 100 mm as the minimum size and permits a proportional reduction only if the size of the package requires it and all elements remain clearly visible.Material and finishPrinting is carried out on self-adhesive film, which the manufacturer describes as seawater-resistant according to BS 5609. This is in line with the IMDG Code’s requirement that markings remain legible after three months in seawater. BS 5609 is a voluntary standard and is not mandatory. According to the manufacturer, the film is UV-resistant and the adhesive provides a permanent bond, suitable for both indoor and outdoor use. The labels are supplied individually on a backing tape.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number210-10-1Hazard label templateNo. 2.1, Flammable gasesFormat100 x 100 mm, diamond shapeMaterialSelf-adhesive film, seawater-resistant to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent, for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 2.1 hazard labels (flammable gases), 100 x 100 mm, self-adhesive filmFrequently asked questionsWill the label fit on gas cylinders?For gas cylinders, the ADR specifies its own dimensions according to ISO 7225:2005, tailored to the cylinder shoulder. 100 x 100 mm is the minimum size for packages in general; for cylinders, the dimensions should be checked before ordering.Does it replace the large label on the vehicle?No. Large labels for containers and vehicles must be at least 250 x 250 mm; the roll label is intended for the package itself.What is the difference between 2.1, 2.2 and 2.3?2.1 refers to flammable gases. Non-flammable, non-toxic gases are marked with a green label (Class 2.2), whilst toxic gases are marked with a white label featuring a skull and crossbones (Class 2.3).Individual requirements and procurement serviceAnyone requiring larger quantities, a framework order or additional classes, formats and language versions from the Giese range can request a quotation. For businesses and public sector clients, the procurement service is responsible for this.
Giese-GEF Dangerous Goods Label Class 7, Design 7B (Radioactive Substances), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 720-10-1
Class 7 hazard labels for radioactive substances are available here in three designs: 7A (Category I-WHITE), 7B (Category II-YELLOW) and 7C (Category III-YELLOW). All three measure 100 x 100 mm, are made of self-adhesive film and are supplied in rolls of 1,000 from Giese-GEF in Offenbach am Main. The person labelling the package chooses which variant to use. The applicable category is determined by the nature of the package.ApplicationsThe labels go on packages and overpacks containing radioactive substances, specifically on two opposite sides. On containers and tanks, all four sides must be labelled. The category depends on the transport index and dose rate, and not on the UN number. Part 2 of the ADR lists, for example, UN 2915 (Type A package), UN 2916 (Type B(U) package) and UN 3332 (Type A package of special form). Depending on the category, the same substance bears label 7A, 7B or 7C.Design of the hazard labelAll three designs feature the radiation symbol in black and the number 7 in the bottom corner. They differ in terms of background and stripes:7A: white background, one vertical red stripe7B: upper half yellow with a white border, lower half white, two red stripes7C: designed like 7B, but with three red stripesThe ADR design specifies the text ‘RADIOACTIVE’, ‘CONTENTS’ and ‘ACTIVITY’; from 7B onwards, it also includes the ‘TRANSPORT INDEX’ field. According to ADR, the radionuclide and activity must be entered in Bq; for 7B and 7C, the transport index must also be included. Fissile materials also require label 7E, which is not covered in this article. Large labels on containers and vehicles must measure at least 250 x 250 mm; for Class 7, label 7D applies. They do not replace the roll labels.Material and finishThe rolls are supplied by the manufacturer on self-adhesive film according to BS 5609 (manufacturer’s specification). The standard is voluntary; the IMDG Code requires legibility after three months in seawater. Each roll contains 1,000 labels of a single design.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainDesign 7ACategory I-WHITE, one red stripe, manufacturer’s number 710-10-1Design 7BCategory II-YELLOW, two red stripes, manufacturer’s number 720-10-1Design 7CCategory III-YELLOW, three red stripesFormat100 x 100 mm, diamond shapeMaterialSelf-adhesive film according to BS 5609 (manufacturer’s specification)Supplied asRoll of 1,000 piecesScope of delivery1 roll containing 1,000 hazard labels in the selected design (7A, 7B or 7C), 100 x 100 mm, self-adhesive filmFrequently asked questionsWhich design do I need?This is determined by the category of the package, i.e. the transport index and dose rate. It cannot be deduced from the UN number; the consignor carries out the classification in accordance with the regulations.Is the label sufficient for a container?No. Containers, tanks and vehicles usually carry large labels in accordance with design 7D, which the roll labels do not replace. However, according to ADR, hazard labels in accordance with designs 7A, 7B or 7C must also be affixed to containers and tanks, on all four sides.Individual requirements and procurement serviceAnyone requiring additional classes, such as Class 6.1 or Class 8, can request them via the procurement service. The procurement service also handles larger quantities, framework orders, other formats and language versions from the Giese-GEF range. Quotations for businesses and public sector clients are available on request. The consignor decides which labelling a consignment requires.
Giese-GEF Dangerous Goods Label Class 6.2 (infectious substances), 100 x 100 mm, self-adhesive film, roll of 1,000, 620-10-1
The Class 6.2 hazard label features the biohazard symbol, three crescents around a circle, in black on a white background, and identifies infectious substances. Giese-GEF, based in Offenbach am Main, supplies it on a roll of 1,000 labels, measuring 100 x 100 mm, on self-adhesive film according to BS 5609. The number 6 is positioned in the bottom corner.ApplicationsAccording to the manufacturer, the label is used to identify infectious substances during transport and to warn of the risk of infection. Class 6.2, according to the ADR, includes, among others, infectious substances hazardous to humans (UN 2814), those hazardous only to animals (UN 2900), and clinical waste, unspecified, n.o.s. (UN 3291).In addition to label 6.2, all other labels that the properties of the contents require are added (ADR 5.2.2.1.10). Containers and vehicles receive large labels measuring at least 250 x 250 mm. The choice of labels is at the discretion of the consignor.Design of the hazard labelThe label is white with a black biohazard symbol. In the lower half, black text is permitted according to the ADR template: ‘INFECTIOUS SUBSTANCES’ and the instruction to notify the health authorities immediately in the event of damage or release. The class number at the bottom is 6, as on label 6.1.Material and finishSelf-adhesive film, seawater-resistant according to BS 5609, as stated by the manufacturer, permanently adhesive and suitable for both indoor and outdoor use. The film is UV-resistant. Supplied as a roll of 1,000 labels. According to the manufacturer’s specifications, it is intended for use on packages and overpacks.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number620-10-1Hazard label templateNo. 6.2, Infectious substancesFormat100 x 100 mmMaterialSelf-adhesive film, seawater-resistant according to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent adhesion, suitable for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 6.2 hazard labels, 100 x 100 mmFrequently asked questionsIs label 6.2 sufficient on its own?That depends on the contents. The ADR also requires all hazard labels that correspond to the properties of the contents. This could be label 6.1 or label 8, for example, depending on the substance.How does 6.2 differ from 6.1?Label 6.1 features a skull and crossbones, whilst 6.2 features the biohazard symbol consisting of three crescents around a circle. The number 6 at the bottom is the same for both.Who affixes the label?The ADR assigns responsibility for compliance with the regulations on marking and labelling to the packer (1.4.3.2 b); the consignor ensures that packaging bearing the prescribed markings is used.Individual requirements and procurement serviceFramework orders, larger quantities and other classes, formats or language versions from the Giese range can be requested via the procurement service. Companies and public sector clients will receive a quotation on request.

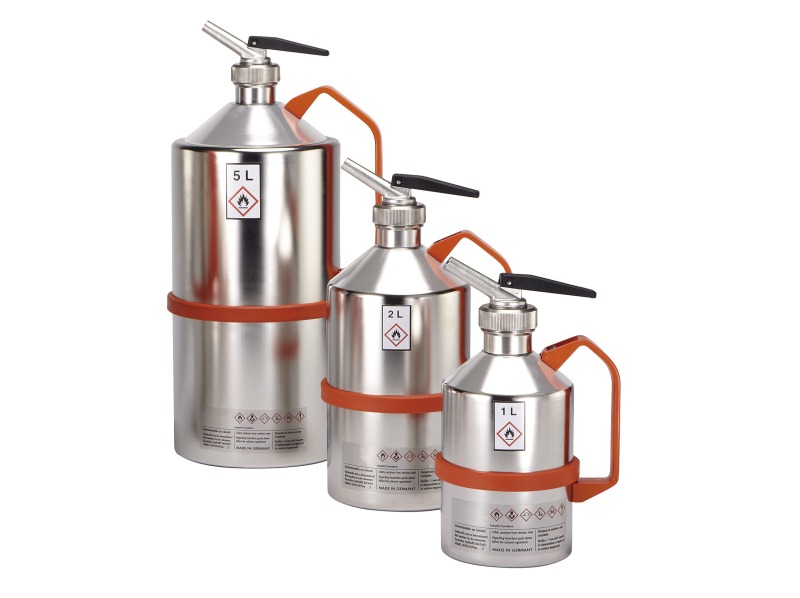

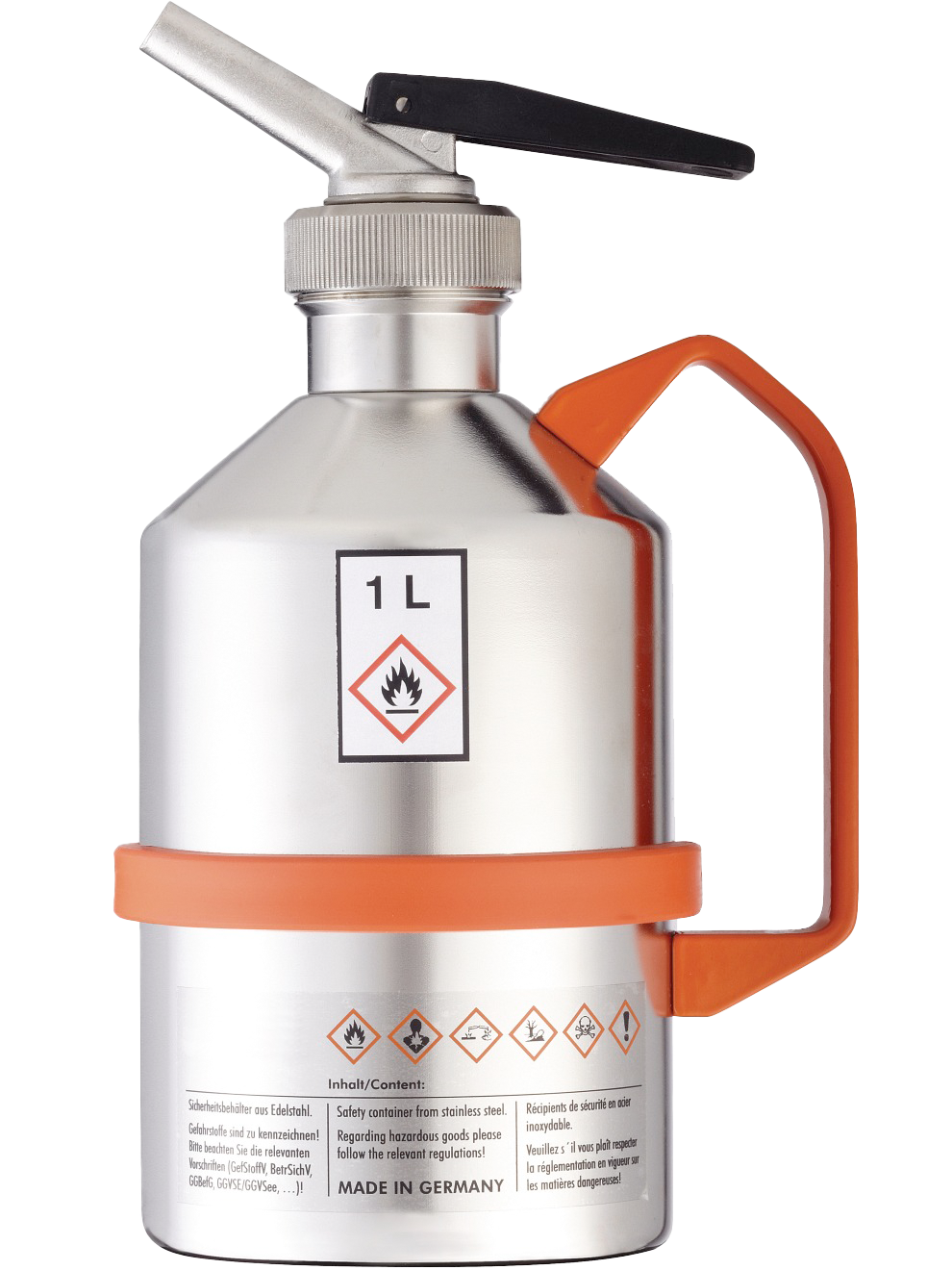

Bürkle, V4A Safety Jug, with dispenser and pressure relief valve, 1L, #2601-1001
Anyone who fills or dispenses small quantities of flammable solvents in the laboratory needs a container that can be opened in a controlled manner without spilling anything whilst pouring. The stainless steel safety jug meets this need with three sizes ranging from 1 to 5 litres. A self-closing precision dispenser releases only the required amount, whilst a pressure relief valve keeps the internal pressure within a safe range during storage.A precise dispenser instead of tilting and drippingThe precision dispenser fits onto the 1 1/4-inch external thread of the jug and opens only as far as is actually required to dispense the liquid. Once released, it closes automatically, leaving the remaining liquid in the jug. Pressure equalisation begins at around 0.3 bar, so that no excess pressure is suddenly released when the dispenser is opened. This eliminates the need to weigh out small portions from a larger container and reduces the risk of spilling anything whilst decanting.Explosion protection in the filler neckA removable flame arrestor is fitted in the filler neck and prevents a source of ignition outside the jug from backfiring through the vapour chamber. The flame arrestor and the pressure relief valve serve to protect against hazards when handling flammable liquids in the workplace. The flame arrestor can be removed from the filler neck for cleaning or visual inspection without having to dismantle the entire jug.Three sizes for different consumption levels1 litre is sufficient for small batches prepared directly at the workstation, whilst 2 litres is sufficient for ongoing use at a single workstation. The 5-litre container is suitable for areas with higher throughput, where refilling is required less frequently. All three sizes feature the same precision dispenser and the same flame arrestor; they differ only in terms of outer diameter, height and weight (see table below).Selecting a suitable sizeIf you only need to take small quantities from time to time, for example, for an analysis or a series of tests, the 1-litre jug will suffice. If a workstation operates on a shift basis and the jug is emptied several times a day, the 2-litre version is the more practical choice, as it needs to be refilled less often. The 5-litre jug is suitable if several people at a workstation share the same jug or if a particular work step regularly requires larger portions without having to switch to a canister straight away.Materials and workmanshipThe housing is made of V4A (1.4571) stainless steel with a wall thickness of 0.6 millimetres and is electropolished, which makes the surface highly chemically resistant. The handle is made of powder-coated aluminium, whilst the seals are made of PTFE. According to Bürkle, the material is food-safe.Cleaning and careThe smooth, electropolished surface can be wiped clean using standard laboratory cleaning agents without any residue becoming trapped in the pores. After decanting, a quick wipe-down of the exterior and a rinse cycle through the precision dispenser are usually sufficient before the jug is ready for use again with the next batch. Seals and the flame arrestor are replaceable individual parts, so worn components can be replaced as required without having to replace the entire jug.Typical applicationsFilling and dispensing small quantities of flammable solvents in the laboratoryDosing of cleaning and disinfectant products at the workbenchSafe temporary storage of small quantities of flammable liquids at individual workstationsA refill container alongside larger safety canisters and containers in the same solvent areaTechnical detailsMaterialV4A stainless steel (1.4571), 0.6 mm wall thicknessSealsPTFEHandlepowder-coated aluminiumClosure thread1 1/4 inches (G 1 1/4", external thread)Closure typeScrew cap with precision dispenserFeatureswith pressure relief valve, pressure equalisation from approx. 0.3 barVolume range1 to 5 litresAn overview of the variantsItem numberCapacity lOuter diameter (mm)Height (mm)Net weight (kg)2601-100111112350.62752601-100221312950.782601-100551654001.201Scope of deliveryStainless steel safety jug in the selected sizeService and ProcurementAnyone who also stores or transports larger stock quantities, in addition to small filling quantities, can supplement the safety jug with a Safety canister with screw cap for 5 to 20 litres or a Safety container with tap for 10 to 25 litres. For the 10-litre range, with the same precision dispenser principle, there is also the Safety canister with precision dispenser, 10 litres. We order each of the three jug sizes individually and, where required, can also coordinate them with larger containers from the same range of stainless steel products. If you have any queries regarding the appropriate size for your workplace, our team will be happy to help.
Giese-GEF Dangerous Goods Label Class 1.6 (Extremely Insensitive Articles), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000
This Class 1.6 hazard label goes on packages containing extremely insensitive articles that are not capable of mass explosion. Giese-GEF, based in Offenbach am Main, supplies it on a roll of 1,000 labels, measuring 100 x 100 mm, on self-adhesive film according to BS 5609.ApplicationsSubclass 1.6 covers articles containing explosives where the risk is limited to the explosion of a single article. This distinguishes them from subclass 1.5, which covers very insensitive substances capable of mass explosion. One example is UN 0486, articles containing explosives, extremely insensitive, classification code 1.6N.The label is intended for packages. For containers and vehicles, large labels measuring at least 250 x 250 mm are required; these do not replace a 100 x 100 mm label. The choice of marking is at the discretion of the consignor.Design of the hazard labelOrange background, the numerals 1.6 in black, without a pictogram. The characters are approximately 30 mm high at 100 x 100 mm, with lines around 5 mm thick. The class number 1 appears in the lower half; above this, the ADR template provides space for the letter of the compatibility group. Hazard labels are affixed to a background of contrasting colour or have an outer border.Material and finishThe roll contains 1,000 labels on self-adhesive film. The manufacturer describes the film as seawater-resistant according to BS 5609. This is relevant for maritime transport, where the IMDG Code requires that labels remain legible after three months in seawater. BS 5609 is a common standard used to demonstrate this, but it is not a mandatory standard.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainHazard label templateNo. 1.6, subclass 1.6Format100 x 100 mmMaterialSelf-adhesive film according to BS 5609, seawater-resistant (manufacturer’s specification)Supplied asRoll of 1,000 piecesScope of delivery1 roll containing 1,000 Class 1.6 hazard labels, 100 x 100 mmFrequently asked questionsWhat is the difference between 1.5 and 1.6?Both labels look almost identical; only the numerals at the top differ. Class 1.5 refers to very insensitive substances capable of mass explosion, whilst Class 1.6 refers to extremely insensitive articles not capable of mass explosion.Can the label be reduced in size?If the size of the package requires it, the dimensions may be reduced proportionally, provided that the symbols and other elements remain clearly visible (ADR 5.2.2.2.1.1.3). The roll itself has the minimum size of 100 x 100 mm.Are there any other Class 1 labels?Yes, subclass 1.4 is available as hazard label 1.4 and template No. 1 for 1.1 to 1.3 as Class 1 hazard labels.Individual requirements and procurement serviceAnyone requiring larger quantities, framework orders or additional classes, formats and language versions from the Giese range can receive a quotation on request, including businesses and public sector clients. Enquiries are handled via the procurement service.
Giese-GEF Dangerous Goods Label Class 4.3 (Substances Which, in Contact with Water, Emit Flammable Gases), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 430-10-1
Blue background, black or white flame: this is what the Class 4.3 hazard label looks like. It warns of substances that, on contact with water, give off flammable gases. Giese-GEF (Offenbach am Main) supplies it on self-adhesive film according to BS 5609, 100 x 100 mm, in rolls of 1,000.ApplicationsThe label goes on packages containing water-reactive substances. The dangerous goods list cites sodium (UN 1428) and solid lithium hydride (UN 1414) as examples, both with classification code W2.For containers and vehicles, large labels (diamond-shaped, at least 250 x 250 mm) apply. The roll labels do not replace these. The consignor decides whether a consignment requires labels and, if so, which ones.Design of the hazard labelThe background is blue throughout. According to the ADR, the symbol and number may be black or white; this option is not available for 4.1 and 4.2. The number in the bottom corner is a 4, not 4.3. A line runs along the edge at a distance of approximately 5 mm, the upper half of which is the same colour as the symbol.Material and finishThe roll material is self-adhesive film, which the manufacturer states to be seawater-resistant according to BS 5609. Section 2 of the standard tests the unprinted material with adhesive, including by subjecting it to three months’ exposure to seawater. Print durability is covered in Section 3 and is assessed separately. The adhesive is permanent; the label is designed for both indoor and outdoor use and is UV-resistant. There are 1,000 labels per roll.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number430-10-1Hazard label templateNo. 4.3, Water-reactive substancesFormat100 x 100 mmMaterialSelf-adhesive film, seawater-resistant according to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent adhesion, suitable for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 4.3 hazard labels, 100 x 100 mmFrequently asked questionsAre the flame and the number black or white?The ADR permits both. The manufacturer specifies ‘in black or white’; if you require a specific colour, please clarify this before placing your order.Where does the label go on large containers?For IBCs over 450 l and for large packaging, hazard labels go on two opposite sides (ADR 5.2.2.1.7).What do 4.1, 4.2 and 4.3 have in common?They are three separate classes under ADR; their hazard labels all feature the number 4 at the bottom. The labels differ in their background colour: 4.1 is white with red stripes, 4.2 is white at the top and red at the bottom, and 4.3 is blue.Individual requirements and procurement serviceAdditional rolls, tiered quantities or framework orders can be requested via the procurement service, as can other classes, formats and language versions from the Giese range. Non-binding quotations are available for businesses and public sector clients.

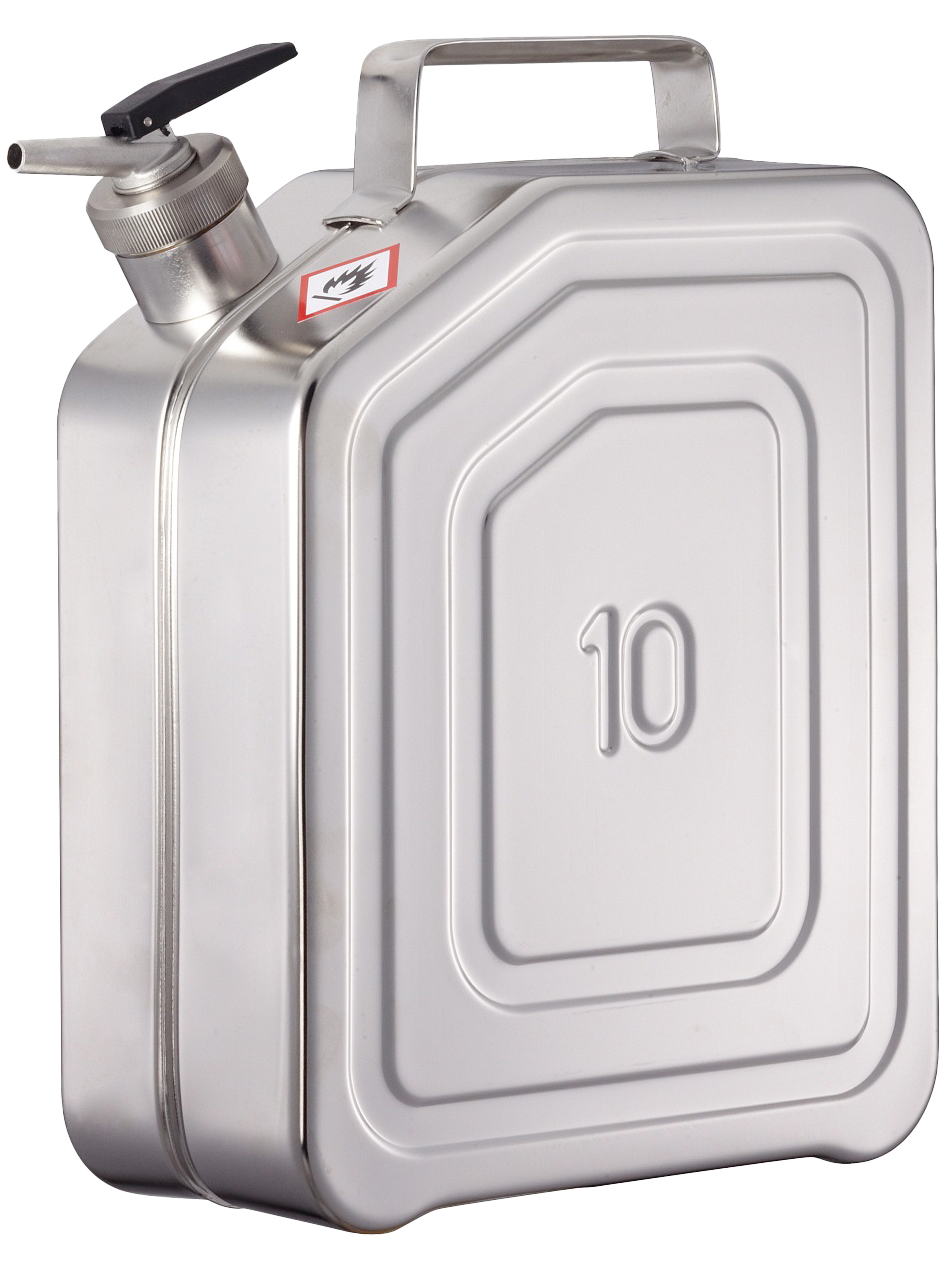

Bürkle Stainless Steel Safety Canister, with Precision Dispenser, 10 l, 2601-2010
Anyone who decants flammable solvents in small batches in the laboratory is familiar with the problem posed by standard canisters: without a dosing device, more liquid often ends up in the container than is necessary, and when topping up, it is easy for the canister to drip or tip over. The stainless steel safety canister with a precision dispenser fills this gap for 10-litre quantities. The self-closing precision dispenser can be opened precisely and then closes automatically; the pressure relief valve maintains the internal pressure within a safe range during storage.Precision dispenser for controlled fillingThe precision dispenser fits onto the canister’s G 1 1/2-inch external thread and can be opened in such a way that only the desired amount of liquid is dispensed, rather than having to tip the whole canister. Once released, it closes automatically, which reduces drip loss and contact with the solvent during dispensing. For repeated dispensing, such as when filling spray bottles or smaller working vessels, this saves time and effort compared to a canister without a dispensing device.Stainless steel 1.4571 for aggressive mediaThe canister is made from 1.4571 (V4A) stainless steel; the seals are made from PTFE. This material is more corrosion-resistant than standard steel 1.4301. Whether a particular solvent is suitable must be checked for each medium against its chemical resistance. Businesses that fill various solvents and do not wish to keep a separate type of canister for each one will find the more corrosion-resistant option in the V4A version.Pressure relief valve for storageThe pressure relief valve opens when the internal pressure reaches approximately 0.3 bar, thereby equalising the pressure that can build up under warmer storage conditions or due to evaporation inside the sealed canister. This prevents the canister from opening uncontrollably or the seals from being subjected to constant pressure.Dimensions and weight in everyday useWith a base area of 280 x 130 millimetres and a height of 380 millimetres, the canister fits into standard safety cabinets for flammable liquids and can also be easily placed on a normal worktop. When empty, it weighs 2.501 kilograms, so its weight remains manageable even when full. A single canister is usually sufficient for daily use at a fixed workstation; however, where there are several users or shifts, a second canister is recommended to prevent any bottlenecks during cleaning or refilling.Maintenance of the pressure relief valveAs with all safety canisters fitted with a pressure relief valve, it is worth carrying out a regular visual inspection, particularly if the canister has been left unused in a cupboard for a prolonged period. If dirt or dried-up solvent becomes lodged on the valve seat, pressure equalisation may be impaired. A quick check before reuse is therefore part of standard health and safety procedures, regardless of which solvent is stored in the canister.Labelling without reference to a specific standardBürkle labels the canister on the product page as food-safe, but does not refer to a specific standard such as Regulation (EU) No 10/2011. Anyone requiring certification in accordance with this regulation for their own documentation should clarify this before placing an order.If 10 l are not enough or a different design is requiredThose who regularly fill larger quantities will find the suitable counterpart in the Bürkle stainless steel safety canister, with precision dispenser and vent screw, 20 l. Those who prefer a simple screw cap to the precision dispenser, or are looking for multiple container sizes within a single range, will find what they need in the Bürkle stainless steel safety canister with a screw cap. If the canister also needs to be approved for the transport of dangerous goods, the Bürkle stainless steel safety canister with UN approval is suitable. For clean filling into narrow openings, the Bürkle stainless steel safety funnel completes the range.Typical applicationsFilling and dispensing flammable solvents in the laboratoryFilling spray bottles and smaller working vessels from a central storage canisterStorage of small quantities of flammable liquids between two withdrawalsUse with chemically more demanding solvents for which plastic canisters are unsuitableWorkstations with multiple users, where a storage canister is shared throughout the dayTechnical detailsMaterialStainless steel 1.4571 (V4A)SealsPTFECapacity10 lThreadG 1 1/2 inch, external threadDimensions (L x W x H)280 x 130 x 380 mmNet weight2.501 kgFeaturesPressure relief valve, precision dispenserLabellingFood-safe according to Bürkle labellingScope of deliveryStainless steel safety canister, with precision dispenserService and procurementFor laboratories requiring multiple canister sizes or different materials, we can put together the suitable combination of precision dispensers, screw caps and UN-approved versions. If you have any questions regarding the correct size or suitable material, please contact us directly for assistance.

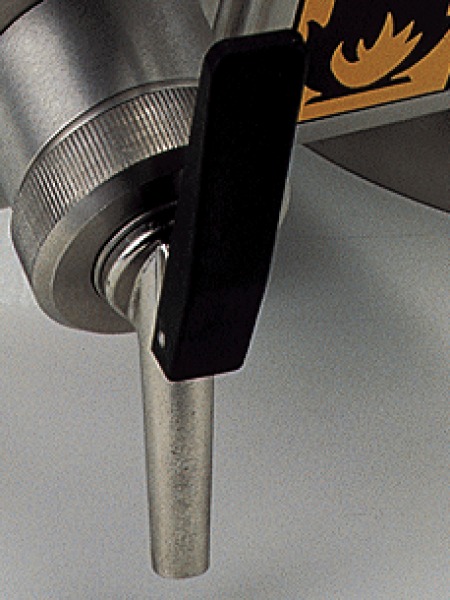

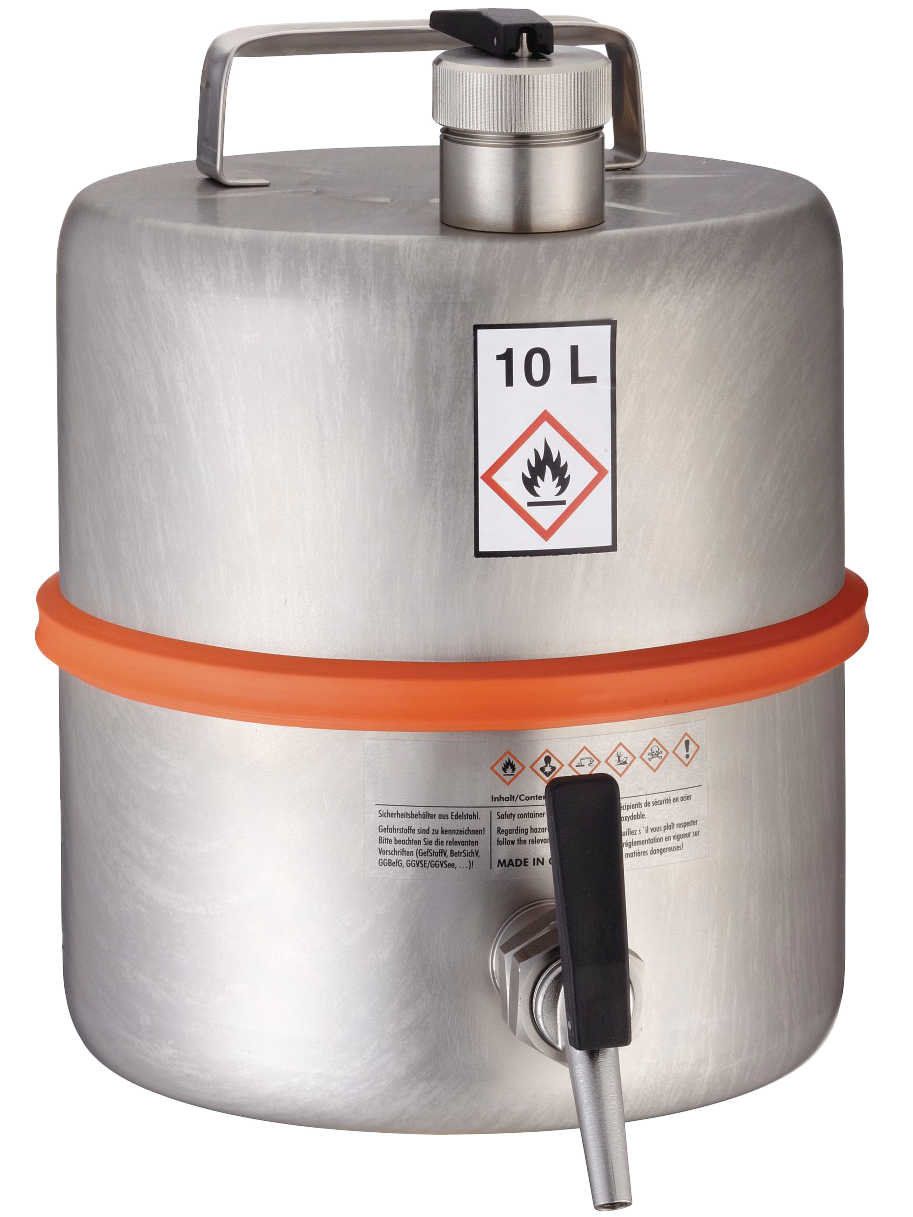

Bürkle, V4A safety container, tap, pressure relief valve, 10L, #2601-4010
Large containers of flammable liquids cannot be tipped completely every time only a small portion is needed. The stainless steel safety container with a tap solves this problem for 10- and 25-litre capacities: a self-closing tap dispenses the liquid in small quantities, whilst a pressure relief valve keeps the internal pressure within a safe range during storage.Tap for dispensing measured quantities from large containersThe tap is situated on the side of the container and can be opened without having to tip or lift the whole container. It closes automatically after use. A plastic lever on the screw cap can also be used to set continuous ventilation if continuous pressure equalisation is required when pouring larger quantities.10 and 25 litres, made from various types of stainless steelThe 10-litre container is made of 1.4571 (V4A) stainless steel with a wall thickness of 0.8 millimetres, whilst the 25-litre container is made of the slightly simpler 1.4301 (V2A) with a wall thickness of 1.2 millimetres, which is sufficient for this larger volume, designed primarily for storage and transport. The 25-litre container is also stackable, which saves space when storing several containers in the chemicals store.For everyday use from the storage containerWhilst a safety jug or safety canister is primarily intended for transport and decanting, the safety container with a tap is usually kept in a fixed location and is tapped repeatedly from there, for example, at a workstation that regularly requires small quantities of the same solvent. The G 1 1/2-inch external thread securely holds the screw cap with tap in place.Continuous ventilation for controlled pouringIf the plastic lever is set to continuous venting, the internal pressure is continuously equalised whilst pouring, rather than only being released when the tap is opened. This is helpful when larger quantities are being dispensed in one go and a steady flow of liquid is required. For storage purposes only, the continuous venting can be switched off again.Choice of 10 or 25 litresThe 10-litre version is suitable for workstations with moderate consumption, where the container is still to be moved by a single person. The 25-litre version is suitable for areas with higher throughput or for a central location from which several workstations are supplied via the tap, without the container itself having to be moved frequently.Typical applicationsTransport and storage of flammable liquids in high-quality stainless steelPortion-controlled dispensing from a stationary storage container at the workstationCentralised solvent supply to several workstations in the same areaSpace-saving storage of multiple containers in the chemicals store (25-litre version, stackable)Technical detailsClosure typeScrew cap with tapThreadG 1 1/2 inch, external threadFeatureswith pressure relief valve, adjustable continuous ventilation via a plastic leverSealsPTFEVolume range10 to 25 litresAn overview of the variantsItem numberCapacity lMaterialOuter diameter (mm)Height (mm)Wall thickness (mm)Net weight (kg)2601-401010V4A stainless steel (1.4571)2603300.82.482601-402525V2A stainless steel (1.4301)3155401.26.54Storage of multiple containersAnyone using both the 10-litre and 25-litre versions in the same area, for example, a smaller quantity for daily use and a larger one for stock, will benefit from the same tap mechanism on both sizes. Staff do not need to adjust to different closures, regardless of which container is currently being tapped. To maintain clarity in the chemicals store, it is advisable to clearly label the containers according to their contents, particularly when several solvents are stored in containers of the same design.Scope of deliveryStainless steel safety container with tap, in the size of your choiceHow to use a tap correctlyThe tap opens with a brief press and closes automatically when released, so no tools are required to dispense the liquid. If the continuous venting is active, the flow of liquid remains steady even during several consecutive dispenses, rather than stalling briefly each time the tap is opened.Service and ProcurementIf the container is used more for transport than for stationary dispensing, the Safety canister with screw cap for 5 to 20 litres is often more suitable. For smaller quantities, with a precision dispenser, the Stainless steel safety jug for 1 to 5 litres is available; for a container with a tap and an additional level indicator, there is the Safety container with tap and level indicator, 10 litres. We order both sizes separately and, where necessary, also coordinate the combination of several containers for a central solvent supply.
Giese-GEF Dangerous Goods Label Class 6.1 (Toxic Substances), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 610-10-1
A skull and crossbones in black on a white background, with the number 6 at the bottom: this is the Class 6.1 hazard label for toxic substances. It is supplied by Giese-GEF in Offenbach am Main on a roll of 1,000 labels on self-adhesive film according to BS 5609, size 100 x 100 mm.ApplicationsThe label warns of the risk of poisoning through inhalation, ingestion or skin contact. It is used on packages and overpacks containing toxic substances and is frequently used as a subsidiary hazard label, for example with methanol (UN 1230), which carries labels 3 and 6.1. Hazard label 3 is suitable for this purpose. Examples of primary hazard labels in the list of dangerous goods include trichloroethylene (UN 1710) and toxic liquid, organic, n.o.s. (UN 2810).Containers and vehicles require large labels measuring at least 250 x 250 mm, which the roll label does not replace. The choice is made by the consignor.Design of the hazard labelThe symbol and number are black on white; the number at the bottom is a 6 (ADR 5.2.2.2.1.3 c). Visually, the label closely resembles hazard label 2.3 for toxic gases; the design differs from it only in the number. The minimum size of 100 x 100 mm applies to both.Material and finishAccording to the manufacturer’s specifications, the film is seawater-resistant according to BS 5609 and UV-resistant. The adhesive provides a permanent bond and is suitable for both indoor and outdoor use. The ADR also permits indelible hazard marks in place of hazard labels, provided they correspond exactly to the specified designs. One roll contains 1,000 labels.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number610-10-1Hazard label designNo. 6.1, Toxic substancesFormat100 x 100 mmMaterialSelf-adhesive film, seawater-resistant according to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent adhesion, suitable for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 6.1 hazard labels, 100 x 100 mmFrequently asked questionsIs the 6.1 label sufficient on its own if the substance is also flammable?Not always. Methanol (UN 1230), for example, carries both 3 and 6.1. The ADR’s list of dangerous goods specifies which labels apply to a substance.Who is responsible for affixing the labels?The ADR requires the consignor to use packaging that is marked in accordance with the regulations and the packer to comply with the regulations on marking and labelling. In Germany, Section 22 of the GGVSEB explicitly names the packer.How can I tell the difference between 2.3 and 6.2?For 2.3, simply by the number (6 instead of 2). The hazard label 6.2 for infectious substances features three crescents around a circle instead of the skull and crossbones.Individual requirements and procurement serviceLarger quantities, framework orders and other classes, formats or language versions from the Giese range can be requested via the procurement service. Companies and public sector clients will receive a quotation on request.
Giese-GEF Fragile Handling Label (Glass Symbol), 74 x 105 mm, PE Self-Adhesive Film, Roll of 1,000, 12-07-1
The ‘Fragile’ sticker shows a wine glass symbol and identifies packages with fragile contents. It measures 74 x 105 mm, is made of PE self-adhesive film and is supplied in rolls of 1,000 by Giese-GEF in Offenbach am Main. As a handling symbol for dispatch, it is not a dangerous goods mark.ApplicationsAs a handling symbol, it supplements the dangerous goods labelling and does not replace it. If the consignment also contains dangerous goods, the relevant marks are added, such as the orientation arrows for certain packages containing liquid dangerous goods or a Class 3 hazard label for flammable liquids.Design of the labelThe graphic is a wine glass symbol; the manufacturer’s designation is ‘Shipping Label, Fragile Glass Symbol’. The dimensions are 74 x 105 mm. The manufacturer does not specify a standard for this item.Material and finishThe label is made of PE self-adhesive film. According to the manufacturer, the label adheres permanently, both indoors and outdoors, and is UV-resistant. There are 1,000 labels on the roll; the roll weighs approximately 1.6 kg, according to the manufacturer.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number12-07-1SymbolFragile, glass (wine glass)Format74 x 105 mmMaterialPE self-adhesive film, UV-resistant according to the manufacturerAdhesivepermanent adhesion, indoors and outdoorsSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.6 kg according to the manufacturerScope of delivery1 roll containing 1,000 ‘Fragile’ (glass symbol) stickers, 74 x 105 mm, PE self-adhesive filmFrequently asked questionsIs the sticker a dangerous goods mark?No. It is a handling symbol for dispatch. For dangerous goods, the hazard labels and marks of the relevant class apply.What is the difference between this and the orientation arrows?The glass symbol warns of breakage. The orientation arrows indicate the position of the package; the ADR requires them for certain packages containing liquid dangerous goods.Will the sticker last outdoors?The manufacturer describes the label as permanently adhesive for indoor and outdoor use and UV-resistant. It does not provide any information regarding seawater for this product.When does the ADR require the orientation arrows?For composite packaging containing liquid substances in inner packagings, for single packagings with ventilation devices, for cryogenic containers and for machinery containing liquid dangerous goods, in each case on two opposite vertical sides (5.2.1.10.1). Exceptions apply, among other things, to inner packagings of up to 120 ml containing absorbent material and to tightly sealed inner packagings of up to 500 ml. The ‘Fragile’ sticker does not indicate orientation and therefore does not replace the orientation arrows.How big is the label?It measures 74 x 105 mm, i.e. 7.4 x 10.5 cm. A roll contains 1,000 labels.Individual requirements and procurement serviceThe procurement service handles orders for more than one roll, framework orders or other handling symbols and formats from the Giese-GEF range. It provides quotations on request for businesses and public sector clients.
Giese-GEF Limited Quantities Mark with Y (Air Transport), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, LQY-10-1
This mark carries a black Y in the white centre of the LQ diamond. It identifies a package containing limited quantities that has been packed according to the ICAO Technical Instructions for Air Transport. The label measures 100 x 100 mm, is made of self-adhesive film and is supplied by Giese-GEF (Offenbach am Main) in rolls of 1,000.ApplicationsIt is used for packages that are transported by air as limited quantities. A special feature is set out in 3.4.9 ADR: on the road, the Y mark is recognised. Packages bearing this mark are deemed to be packed in accordance with 3.4.1 to 3.4.4 and do not additionally need the LQ mark without Y. For composite packaging containing liquids in inner packagings, orientation arrows are generally required under ADR. The quantities permitted per inner packaging are governed by the regulations of the respective mode of transport; for the Y mark, they are governed by the ICAO Technical Instructions.Design of the markThe diamond has the same shape as the standard LQ mark. The upper and lower sections, the border and the Y are black; the central area is white or of a sufficiently contrasting colour. In the ADR, the illustration is numbered 3.4.8.1.Material and finishSelf-adhesive film with the manufacturer’s declaration of seawater resistance according to BS 5609. This is voluntary proof and not a requirement of the IMDG Code, which stipulates legibility after three months in seawater. Giese-GEF supplies 1,000 labels per roll; according to the manufacturer, the roll weighs approximately 1.9 kg.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s numberLQY-10-1MarkLimited quantities with Y, ADR 3.4.8Format100 x 100 mm, diamond shapeMaterialSelf-adhesive film, seawater-resistant according to BS 5609 (manufacturer’s specification)Supplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 LQ marks with Y, 100 x 100 mm, self-adhesive filmFrequently asked questionsDoes the Y mark apply only to air transport?No. It is the air transport mark, but the ADR expressly recognises it for road transport (3.4.9).What is the difference from the LQ mark without Y?The diamond is the same; the air transport mark also has a Y in the centre field. The mark without Y is not intended for air transport.How big must the mark be?At least 100 x 100 mm with a border of at least 2 mm. For small packages, a reduction to 50 x 50 mm with a 1 mm border is permitted (3.4.8.1, 3.4.8.2). The roll provides the standard size.Individual requirements and procurement serviceLarger quantities, framework orders and other marks, formats or language versions from the Giese-GEF range are handled via the procurement service. Quotations for businesses and public sector clients are available on request. The consignor chooses the mark in accordance with the regulations of the relevant modes of transport.
Giese-GEF Dangerous Goods Label Class 4.2 (Spontaneously Combustible Substances), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 420-10-1
The Class 4.2 hazard label goes on packages containing spontaneously combustible substances. The upper half is white, the lower half red, and it features a black flame. The roll from Giese-GEF in Offenbach am Main contains 1,000 labels, measuring 100 x 100 mm, on self-adhesive film according to BS 5609.ApplicationsTitanium powder, dry (UN 2546, Code S4): Label 4.2Phosphorus, white, dry (UN 1381, Code ST4): Labels 4.2 and 6.1These are two examples from the list of dangerous goods. Anyone shipping phosphorus requires label 6.1 in addition to this label. A 100 x 100 mm label does not replace a large label (at least 250 x 250 mm) on containers and vehicles. The choice of labels is made by the consignor.Design of the hazard labelTwo coloured areas divide the label horizontally: white at the top, red at the bottom. The flame is black, as is the number. At the bottom is a ‘4’, not ‘4.2’ (ADR 5.2.2.2.1.3 b). This two-part design distinguishes the label from the white label with red stripes for Class 4.1 and from the solid blue label for 4.3.Material and finishThe backing material is self-adhesive film, which, according to the manufacturer’s specifications, is seawater-resistant according to BS 5609. The IMDG Code requires that markings on packages remain legible after at least three months in seawater. It does not specify a standard; BS 5609 is used as evidence, but is voluntary. The adhesive is permanent; the film is designed for both indoor and outdoor use and is UV-resistant. The roll contains 1,000 labels.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number420-10-1Hazard label templateNo. 4.2, Spontaneously combustible substancesFormat100 x 100 mmMaterialSelf-adhesive film, seawater-resistant according to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent adhesion, suitable for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 4.2 hazard labels, 100 x 100 mmFrequently asked questionsHow do I tell the difference between 4.2, 4.1 and 4.3?By the background: 4.1 is white with seven red stripes (see hazard label 4.1), 4.2 is white at the top and red at the bottom, and 4.3 is blue (see hazard label 4.3). The symbol is a flame in all cases.How weather-resistant must a hazard label be?The ADR requires that hazard labels withstand the weather without any significant impairment to their effectiveness, and that symbols, text and numbers are clearly legible and indelible (5.2.2.2.1.6, 5.2.2.2.1.7). It does not specify a test method or a minimum duration.Is the label also suitable for maritime transport?The manufacturer states that the film is seawater-resistant according to BS 5609. Whether a package meets the requirements of the IMDG Code as a whole depends on the packaging and labelling and is the responsibility of the consignor.Individual requirements and procurement serviceEnquiries can be made regarding quantities exceeding one roll, framework orders or other classes, formats and language versions from the Giese range. The procurement service accepts enquiries from businesses and public sector clients.
Giese-GEF Dangerous Goods Label Class 2.3 (Toxic Gases), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000
The Class 2.3 hazard label warns of toxic gases. It features a black skull and crossbones on a white background, with the number 2 in the bottom corner. The roll from Giese-GEF (Offenbach am Main) contains 1,000 labels measuring 100 x 100 mm; the material is self-adhesive film according to BS 5609.ApplicationsThe label goes on packages and gas cylinders containing toxic gases of Class 2. It is rarely used on its own. According to the dangerous goods list, ammonia, anhydrous, liquefied under pressure (UN 1005) bears 2.3 together with 8, and chlorine, liquefied under pressure (UN 1017), bears 2.3, 5.1 and 8. The templates for oxidising and corrosive substances are available as hazard label 5.1 and hazard label 8.Gas cylinders are subject to specific dimensions according to ISO 7225:2005 in the area of the cylinder shoulder (ADR 5.2.2.2.1.2). Whether the roll label fits there must be checked on the container. Large labels of at least 250 x 250 mm are required on containers and vehicles. The consignor decides which labels a consignment requires in total.Design of the hazard labelThe symbol and number are black, with a white background. The number 2 at the bottom refers to the class of gases. The design is strikingly similar to hazard label 6.1 for toxic substances; the only difference lies in this number, 2 instead of 6. Hazard labels must be affixed to a contrasting background or be surrounded by an outer border.Material and finishSelf-adhesive film, specified by the manufacturer as seawater-resistant according to BS 5609. The ADR requires weather resistance but does not specify either a test method or a minimum duration. For maritime transport, the IMDG Code requires legibility after three months in seawater. The roll contains 1,000 labels.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainHazard label templateNo. 2.3, Toxic gasesFormat100 x 100 mmMaterialSelf-adhesive film, seawater-resistant according to BS 5609 (manufacturer’s specification)ColoursSkull and number in black on a white backgroundSupplied asRoll of 1,000 piecesScope of delivery1 roll containing 1,000 Class 2.3 hazard labels, 100 x 100 mmFrequently asked questionsHow does Class 2.3 differ from Class 6.1?There is no difference in the symbols or colours. Only the number in the bottom corner is different: 2 for toxic gases, 6 for toxic substances.Does a consignment containing toxic gas need to carry several labels?Often, yes. Several hazard labels must be placed close together on the same surface and must not obscure one another (ADR 5.2.2.1.6). For chlorine, the dangerous goods list specifies three different designs.Are there labels for other types of gas?Flammable gases have the red hazard label 2.1, whilst non-flammable and non-toxic gases have the green hazard label 2.2.Individual requirements and procurement serviceRequests for larger quantities, framework orders or additional classes, formats and language versions from the Giese range can be made via the procurement service. Companies and public sector clients can request a quote there.
Giese-GEF Dangerous Goods Label Class 5.2 (Organic Peroxides), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 520-10-1
The Class 5.2 hazard label identifies organic peroxides. The upper half is red, the lower half yellow; it also features a flame and the number 5.2 at the bottom. Giese-GEF, based in Offenbach am Main, supplies the label on a roll of 1,000 pieces, measuring 100 x 100 mm, on self-adhesive film according to BS 5609.ApplicationsIt goes on packages containing organic peroxides. According to the manufacturer’s specifications, it warns of the risk of fire and explosion due to decomposition at elevated temperatures or on contact with other substances; the label also indicates that the product may be flammable. Examples from the list of dangerous goods include dibenzoyl peroxide (UN 3106, Type D, solid, label 5.2) and di-(2,4-dichlorobenzoyl) peroxide (UN 3102, Type B, solid, labels 5.2 and 1).A 100 x 100 mm label does not replace a large label on containers or vehicles. The consignor determines what a consignment requires according to the regulations.Design of the hazard labelHalf red, half yellow, with the division running horizontally. The flame may be black or white according to ADR (5.2.2.2.1.6 c); the number 5.2 remains black. As the design already indicates flammability, no additional hazard label 3 for flammable liquids is required.Material and finishSelf-adhesive film with the manufacturer’s BS 5609 specification, permanently adhesive and suitable for use both indoors and outdoors. The film is UV-resistant. The ADR stipulates that hazard labels must withstand weathering, without specifying a method. In this case, it is the manufacturer’s specification for BS 5609 that provides the reference to seawater. There are 1,000 labels per roll.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number520-10-1Hazard label templateNo. 5.2, Organic peroxidesFormat100 x 100 mmMaterialSelf-adhesive film, seawater-resistant according to BS 5609, UV-resistant (manufacturer’s specification)Adhesivepermanent adhesion, suitable for indoor and outdoor useSupplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 5.2 hazard labels, 100 x 100 mmFrequently asked questionsWhen are additional labels required alongside label 5.2?For Type B organic peroxides, an additional label 1 is required as a subsidiary hazard label, i.e. without a subclass or compatibility group, unless the competent authority waives this requirement. In addition, a label 8 is required if the criteria for packing group I or II of Class 8 are met (ADR 5.2.2.1.9).Can a UN number appear on the label?Yes, the ADR permits text such as the UN number, provided it does not obscure the prescribed elements. Additional text is excluded only on design 9A.How does 5.2 differ from 5.1?Both have a yellow background and the number 5.x at the bottom. The hazard label 5.1 is entirely yellow with a flame above a circle, whilst the 5.2 label has red at the top.Individual requirements and procurement serviceFurther quantities, framework orders, other classes, formats and language versions from the Giese range can be requested via the procurement service. Companies and public sector clients can receive a no-obligation quotation on request.

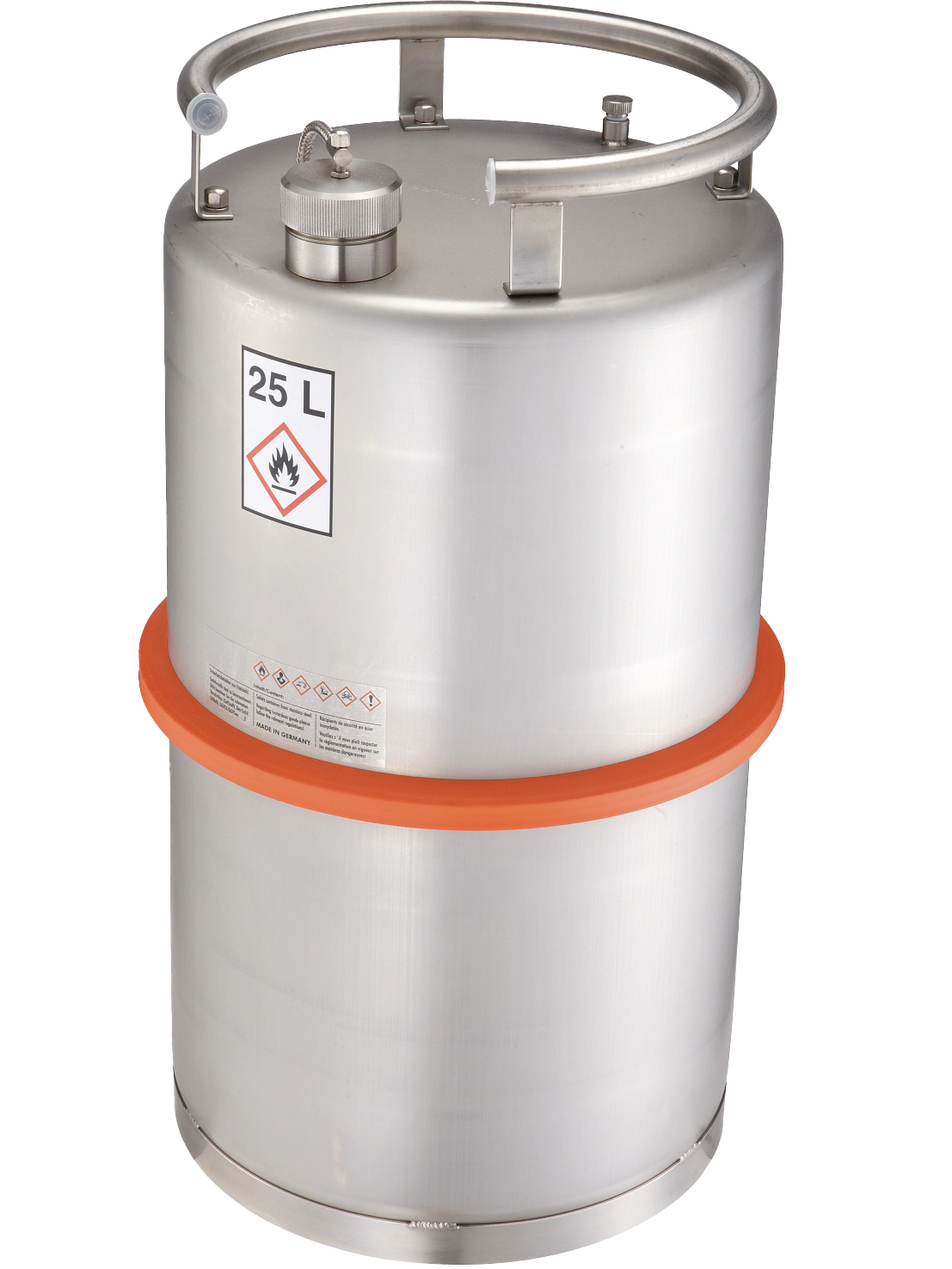

Bürkle Stainless Steel Safety Container, with UN Approval, 25 l, 2601-5125
If flammable liquids need to be transported between sites, a standard safety container for storage is not sufficient; dangerous goods regulations require officially approved packaging. The UN-approved stainless steel safety container is type-tested specifically for this purpose and marked with its own UN approval number. A standard storage container without this approval must not be used for such transport, even if it appears structurally similar.UN packaging code 1A1/X1.6/400The container bears the UN packaging code 1A1/X1.6/400 and, according to the manufacturer’s specifications, is approved for transport in accordance with GGVSEB, GGVSee, ADR, RID, the IMDG Code and ICAO-TI. This marking is a prerequisite for the transport of flammable liquids in this container on public roads, by rail, sea or air. A container that has not undergone this test must not be used for this purpose.1.2-millimetre wall thickness and stackable designAt 1.2 millimetres thick, the wall is slightly thinner than that of the 50-litre storage version of the same series, but this is sufficient for transport purposes. The container is stackable, which saves space in storage and when transporting several containers on a pallet, for example when consolidating multiple consignments prior to joint dispatch.Why the UN test mattersThe UN test confirms that the container’s design has passed specific drop, stacking and leak-tightness tests within the relevant packaging group before it is approved for the transport of dangerous goods. Without this proof, a haulier may not accept a flammable liquid in this container. The UN approval number is affixed to the container itself and is cross-checked against the transport document during a loading inspection.Reading the UN packaging codeThe UN packaging code 1A1/X1.6/400 can be read digit by digit: 1A1 stands for a metal drum with a non-removable lid; X indicates approval for all three packaging groups I to III; 1.6 specifies the relative density up to which the container has been tested; and 400 indicates the test pressure in kilopascals. In day-to-day practice, it is usually sufficient to check the code on the delivery note against the specifications in your own hazardous substances register, without having to look up each digit individually.25 l, made of 1.4301 stainless steelWith a capacity of 25 l, an external diameter of 300 mm and a height of 530 mm, the container falls between the 10-litre and 50-litre versions of the same series. The material is 1.4301 (V2A) stainless steel, and the closure is a screw cap with a G 1 1/2-inch external thread. Weighing 6.401 kilograms when empty, the container can be moved by a single person provided it is not completely full.Alternative designs for transport and storageIf the cargo is a canister rather than a container, the Bürkle stainless steel safety canister with UN approval offers the same transport approval in a more compact form. If a simpler design is sufficient for storage purposes only without transport approval, the variants of the Bürkle stainless steel safety container with tap in 10 or 25 litres or the Bürkle stainless steel safety container with pressure relief valve in 50 litres are the more cost-effective choice. The Bürkle stainless steel safety funnel assists with filling.Typical applicationsTransport of flammable liquids between locations by road, rail or seaDispatch of samples or solvents for which proof of an official dangerous goods approval is requiredSpace-saving storage of multiple containers thanks to the stackable designReplacement of containers without transport approval, where required by dangerous goods regulationsLoading checks, during which the UN approval number on the container is cross-checked against the transport documentTechnical detailsMaterialStainless steel 1.4301 (V2A)Closure typeScrew capCapacity25 lExternal diameter300 mmHeight530 mmWall thickness1.2 mmThreadG 1 1/2 inch, external threadNet weight6.401 kgUN packaging code1A1/X1.6/400Compliance with standardsUN transport approval in accordance with GGVSEB, GGVSee, ADR, RID, IMDG Code, ICAO-TI (manufacturer’s specification)LabellingSuitable for food contact according to Bürkle labellingScope of deliveryStainless steel safety container, with UN approvalService and procurementAs the transport of dangerous goods often requires additional accessories, such as a funnel, in addition to the approved container, we tailor the order accordingly. If several containers are transported on a regular basis, the order can be arranged straight away to include the appropriate quantity and pallet size. We provide personalised advice on the correct transport approval or the appropriate size.
Giese-GEF Dangerous Goods Label Class 8 (Corrosive Substances), 100 x 100 mm, Self-Adhesive Film, Roll of 1,000, 800-10-1
The Class 8 hazard label is used to mark packages containing corrosive substances. The diamond-shaped label measures 100 x 100 mm, is printed on self-adhesive film and is supplied in rolls of 1,000 by Giese-GEF in Offenbach am Main.ApplicationsClass 8 comprises corrosive substances according to ADR. The label goes on packages containing such substances and is often applied as a subsidiary hazard label alongside the label for the primary hazard. Examples include UN 1830 sulphuric acid, UN 1789 hydrochloric acid and UN 1824 sodium hydroxide solution. If other hazards are present, such as flammability or toxicity, the relevant labels are added, for example Class 3 or Class 6.1.Design of the hazard labelThe upper half is white and depicts liquids being poured from two test tubes, corroding a hand and a piece of metal. The lower half is black with a white border; the number 8 appears in white in the lower corner. On Class 8 labels, the text and class number are white. The ADR describes hazard labels as a diamond standing on its point measuring at least 100 x 100 mm, with an inner line approximately 5 mm from the edge. A label of this size belongs on the package. Containers and vehicles require large labels measuring at least 250 x 250 mm; this label does not replace them.Material and finishThe material is self-adhesive film, which the manufacturer states is seawater-resistant according to BS 5609. This standard is voluntary. The IMDG Code requires that labels remain legible after at least three months in seawater, but does not specify a particular standard. One roll contains 1,000 labels and, according to the manufacturer, weighs approximately 1.9 kg.Technical detailsManufacturerGiese-GEF Druck GmbH, Offenbach am MainManufacturer’s number800-10-1Hazard label designNo. 8, Corrosive substancesFormat100 x 100 mm, diamond shapeMaterialSelf-adhesive film, seawater-resistant according to BS 5609 (manufacturer’s specification)Supplied asRoll of 1,000 piecesWeight per rollapprox. 1.9 kg according to the manufacturerScope of delivery1 roll containing 1,000 Class 8 hazard labels, 100 x 100 mm, self-adhesive filmFrequently asked questionsWhen is the self-adhesive film recommended?For packages transported by sea, as the IMDG Code requires the labels to remain legible after three months in seawater. For road transport, the ADR requires the label to withstand the elements, but does not specify a test procedure for this.Does the label go on the package on its own?Not always. If the substance poses additional hazards, the relevant labels are applied close together on the same surface, without one obscuring the other.Individual requirements and procurement serviceLarger quantities, framework orders and additional classes, formats or language versions from the Giese-GEF range can be requested via the procurement service, including as quotations for businesses and public sector clients. The consignor determines which labelling a consignment requires in accordance with the applicable regulations.

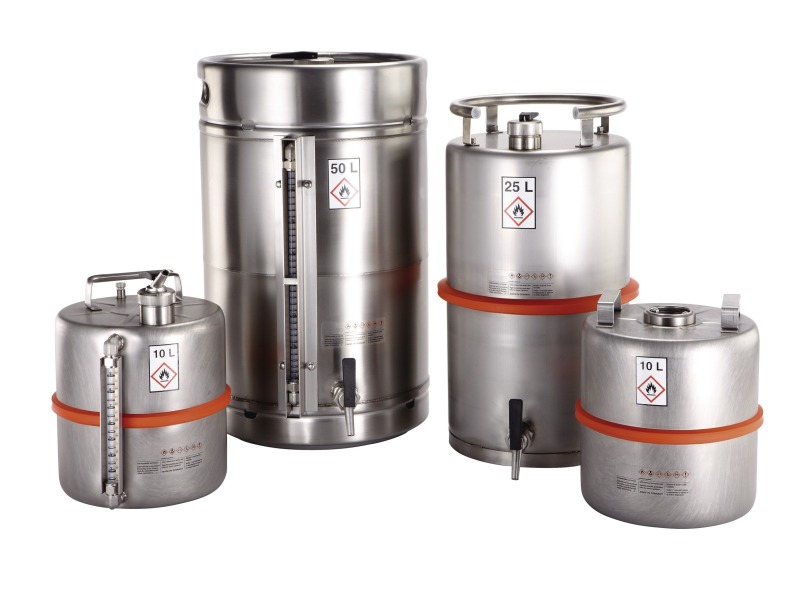

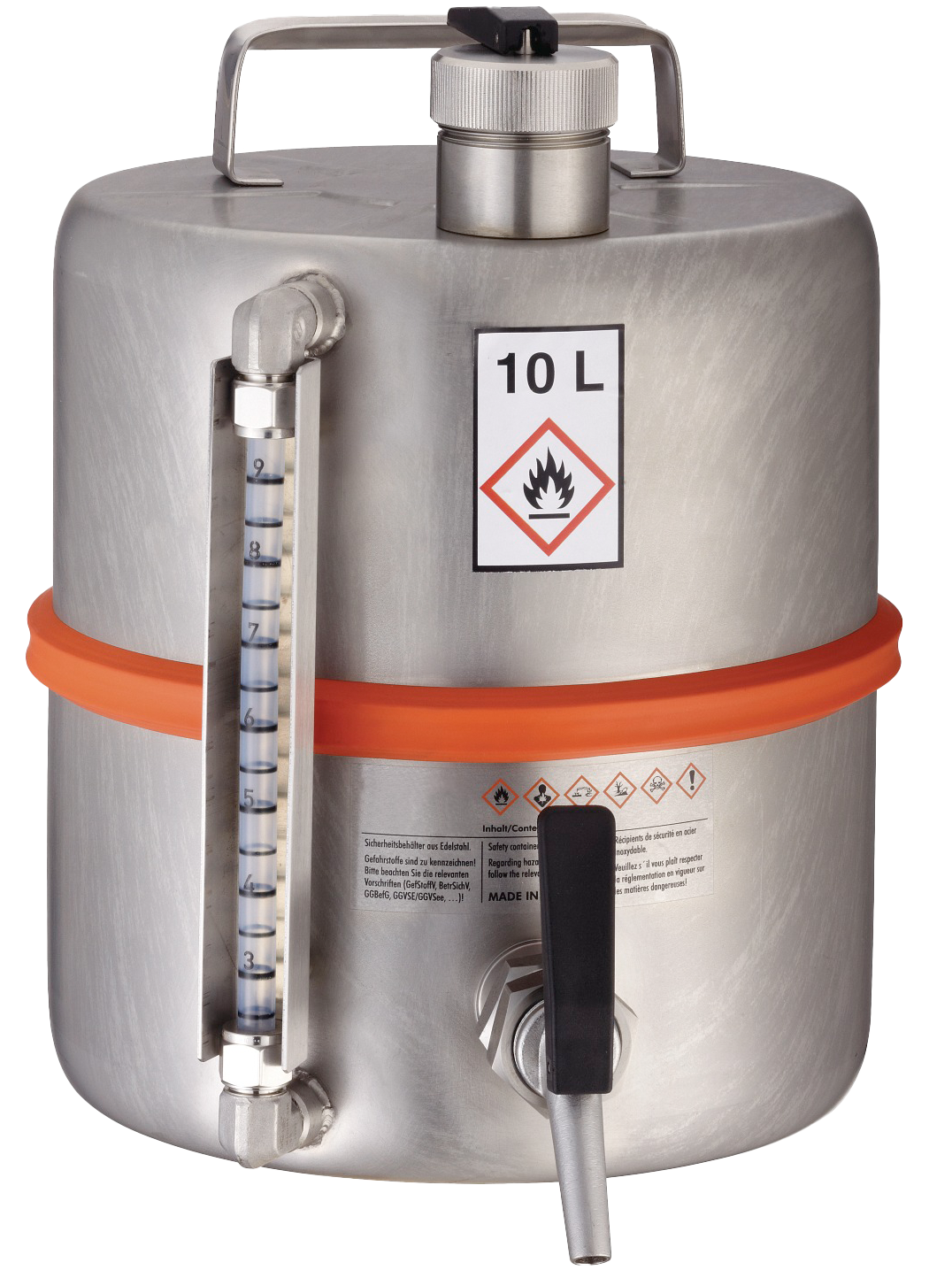

Bürkle Stainless Steel Safety Container, with Tap and Level Indicator, 10 l, 2601-6010
When dispensing from a sealed metal container, the fill level can normally only be estimated. The stainless steel safety container, fitted with a tap and a level indicator, makes the contents visible and combines this with a self-closing tap for controlled dispensing.PFA level indicator for visual monitoringA PFA level indicator on the outside shows the fill level during both filling and dispensing, without the need to open the screw cap. This reduces the risk of accidentally overfilling the container or running it empty unnoticed whilst working.Self-closing tap with adjustable ventingThe tap closes automatically after dispensing; the continuous venting can be precisely adjusted using a plastic lever on the screw cap. This keeps the internal pressure under control during dispensing without the need to operate a separate valve. In addition, the pressure relief valve ensures pressure equalisation during storage, from approximately 0.3 bar.Stainless steel 1.4571 for everyday useThe container is made from 1.4571 (V4A) stainless steel, with PTFE seals. With a capacity of 10 l, an external diameter of 260 mm and a height of 330 mm, it is the most compact model with a tap in this series and is easy to handle in the workplace.Compact design for the workplaceWeighing 2.48 kilograms when empty and with a base diameter of 260 millimetres, the container can be accommodated on a standard laboratory bench or in a base cabinet without taking up much space. When a collection vessel is placed underneath, the tap points directly downwards, allowing small quantities to be dispensed in a controlled manner without having to change grip. For daily use at a fixed workstation, this is a practical size, falling between a hand-held can and a larger storage container.Maintenance of the level indicatorThe PFA level indicator is located on the outside of the container and can be cleaned during regular cleaning using standard cleaning agents for stainless steel containers. If it becomes clouded by residues that remain on the surface for a prolonged period, the fill level can no longer be reliably read; an occasional visual check whilst refilling prevents this. Unlike a mechanical fill-level indicator, the PFA indicator has no moving parts that could wear out.Food-safe and documentationBürkle labels the container as food-safe. If you need proof in accordance with a specific regulation for your own records, for example Regulation (EU) No 10/2011, please contact us before ordering.Suitable versions for other capacities and purposesWith a tap but without a level indicator, the Bürkle stainless steel safety container with tap, available in 10 or 25-litre capacities, meets the same requirements. If the container is only to be stored and not regularly tapped, the simpler Bürkle stainless steel safety container with a pressure relief valve, available in 50 l, is sufficient. If the container also needs to be transported, the Bürkle stainless steel safety container with UN approval is the suitable choice. If you are looking for a canister with a precision dispenser rather than a container, you will find it in the Bürkle stainless steel safety canister with precision dispenser.Typical applicationsRegular dispensing of small quantities of flammable liquids in the workplaceApplications where the fill level needs to be checked without opening the containerReplacement for containers where the fill level has previously only been estimated by weighingSuitable for use with more chemically demanding media thanks to 1.4571 stainless steelWorkplaces with limited floor space where a compact container with a tap is requiredTechnical detailsMaterialStainless steel 1.4571 (V4A)Closure typeScrew capCapacity10 lExternal diameter260 mmHeight330 mmThreadG 1 1/2 inch, external threadNet weight2.48 kgFeaturesPressure relief valve, tap, level indicatorLevel indicatorPFALabellingFood-safe according to Bürkle labellingScope of deliveryStainless steel safety container, with tap, pressure relief valve and level indicatorService and procurementIf the container is to be used at multiple workstations with varying requirements regarding the tap or level indicator, we will put together the appropriate combination from the safety container range. For organisations requiring containers with and without level indicators simultaneously, the quantity required for each version can be clarified in a single enquiry. If you have any questions regarding the correct configuration, please contact us directly.
Choosing safety containers and dangerous goods labelling
For use at the workplace, the safety jug in 1, 2 or 5 l is enough. A self-closing precision dispenser releases only the quantity needed, a removable flame arrestor in the filler neck prevents a flame from flashing back into the vapour space, and the pressure relief valve opens, according to Bürkle, from about 0.3 bar. Canisters come in 10 or 20 l with precision dispenser and in 5 to 20 l with screw cap, which opens the full cross-section for filling and emptying. If you leave a container in a fixed place and draw from it repeatedly, you take the safety container with tap, 10 or 25 l. The 50-l container has only the pressure relief valve and is intended purely for storage.

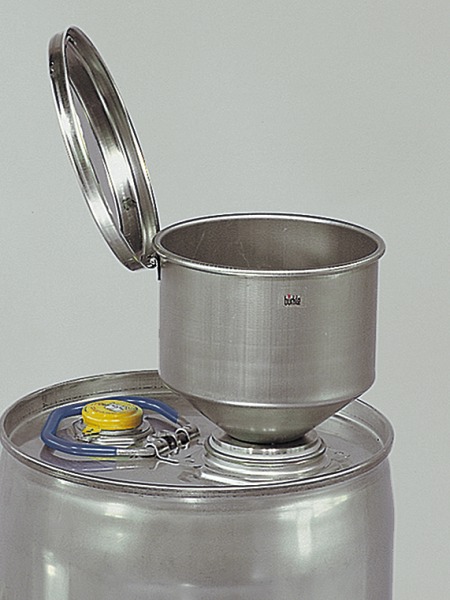

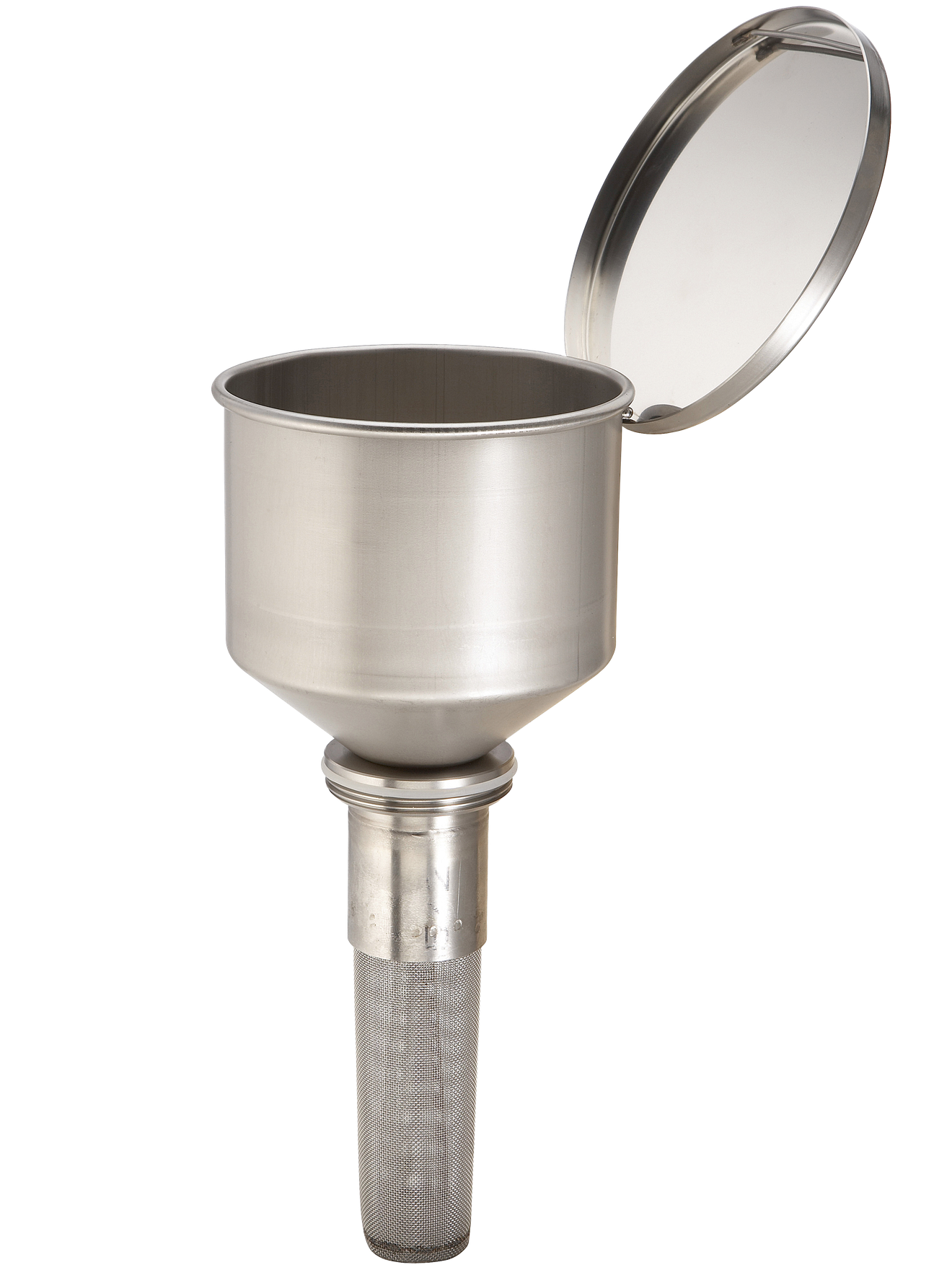

The containers up to 10 l are made of 1.4571 stainless steel (V4A), which according to Bürkle is more corrosion-resistant than 1.4301 (V2A), the material of the versions with 20, 25 and 50 l and of the safety funnel with flame arrestor. For shipping flammable liquids by road, rail, sea or air, only the two containers with UN approval are intended, the 10-l canister (3A1/X1.6/300) and the 25-l container (1A1/X1.6/400). How much you may store in the workroom follows from your risk assessment under the Hazardous Substances Ordinance (Gefahrstoffverordnung), from TRGS 510 and, in the laboratory, additionally from TRGS 526. TRGS 510 also limits the container size for flammable liquids outside storage areas.
Under Dangerous goods labelling you will find danger labels, also called dangerous goods stickers, dangerous goods labels or hazard labels, for all nine classes including the subclasses and the three designs for Class 7 in the ADR minimum size of 100 x 100 mm, plus the marks for limited quantities (LQ, with and without Y), environmentally hazardous substances, lithium batteries, the UN number for writing on, orientation arrows, Cargo Aircraft Only and Fragile. Giese-GEF supplies rolls of 1,000 pieces, mostly on adhesive film, seawater-resistant to BS 5609 according to the manufacturer.
Frequently asked questions
Which danger label belongs on my package?
This is given in the ADR Dangerous Goods List (Table A) under the UN number of your substance, often two labels apply; methanol (UN 1230), for example, carries Class 3 and 6.1. In addition, the UN number is required, in general with a character height of at least 12 mm, for packages of up to 30 l or 30 kg net at least 6 mm, up to 5 l or 5 kg in an appropriate size. Environmentally hazardous substances also carry the mark with a fish and a tree, provided the single packaging or the inner packagings contain more than 5 l or 5 kg. Placards of at least 250 x 250 mm belong on containers, tank vehicles and vehicles carrying bulk, on vehicles carrying only packages only for Classes 1 and 7.
When is the LQ mark enough?
The limited quantities mark under Chapter 3.4 of the ADR applies to packages whose inner packagings keep within the substance-specific maximum quantity from the Dangerous Goods List and which weigh no more than 30 kg gross in total, for trays in stretch or shrink film 20 kg. Instead of the danger labels, the package then carries the LQ diamond; orientation arrows as a rule remain mandatory for liquid contents.
Which mark do lithium batteries need?
Cells and batteries under Special Provision 188 of the ADR carry the battery mark in accordance with 5.2.1.9 with a red hatched border, battery symbol and the appropriate UN number: 3090 for lithium metal, 3480 for lithium ion, 3091 and 3481 if they are contained in equipment or packed with equipment. Exempt are packages containing only button cells installed in equipment, as well as consignments of no more than two packages in which each contains no more than four cells or two batteries installed in equipment. Fully regulated consignments carry the danger label 9A instead. Whether your consignment falls under the special provision follows from its conditions, for example regarding watt-hours and lithium content.
Does correct labelling replace dangerous goods training?
No. The label shows the hazard. The consignor must make sure that the substance is correctly classified, use approved packagings and provide the details for the transport document. Marking and labelling of the packages are among the duties of the packer. Consignor and packer can be the same company. Every person involved must be trained in accordance with Chapter 1.3 of the ADR, until then only under the supervision of a trained person. Whether your company has to appoint a dangerous goods safety adviser is governed by the Dangerous Goods Safety Adviser Ordinance (Gefahrgutbeauftragtenverordnung).
