Laboratory pumps
Are you looking for laboratory pumps for precise processes? At LT Laborhandel, you will find pumping technology for various applications in everyday laboratory work.
The range includes vacuum pumps for filtration and evacuation as well as drum pumps (such as models from Bürkle) for transferring solvents, acids and alkalis. We will be happy to discuss which pump suits your needs.
KNF LABOPORT N 96, very compact, chemical-resistant diaphragm vacuum pump with manual speed control, 322806
For those who have limited space on their lab bench but still need a reliable, chemical-resistant vacuum source, the KNF LABOPORT N 96 is a highly compact, oil-free diaphragm vacuum pump. Weighing just 1.3 kg and measuring 75 x 119 x 156 mm, it fits next to almost any workstation and can be precisely adjusted to the specific application via the manual speed control, for example for filtration, liquid aspiration or solid-phase extraction (SPE). Very compact and lightweight Measuring just 75 x 119 x 156 mm (W x H x D) and weighing 1.3 kg, the N 96 is the most compact pump in the LABOPORT range. Its small footprint makes it a practical addition to workstations where there is no room for larger vacuum pumps, such as directly next to a filtration unit or an SPE setup. Chemical-resistant materials, tailored to the design The pump head is made of PPS (polyphenylene sulphide), the diaphragm is PTFE-coated, and the valves are made of FKM. This combination of materials differs from that of the larger LABOPORT-N pumps (which feature a TFM PTFE pump head and FFPM valves), but is designed specifically for the compact design of the N 96 and its intended applications. Manual, stepless speed control The N 96’s flow rate can be continuously adjusted to suit the specific application via the manual speed control. According to the manufacturer, this ensures exceptional ease of use in day-to-day laboratory work and enables precise vacuum control, for example when gently filtering sensitive samples. Up to 2.5 bar operating pressure, not just vacuum In addition to a maximum ultimate vacuum of 130 mbar (abs.), the N 96 also achieves an operating pressure of up to 2.5 bar (rel.). This means it can be used not only for evacuation but also, where required, for pumping under slight overpressure, a difference from the larger LABOPORT-N pumps, which are primarily designed for vacuum operation. Mains-powered via an external plug-in power supply The pump itself operates at 24 V DC and is powered via an external plug-in power supply with a wide-range input (100 to 240 V AC, 50/60 Hz); it does not have a built-in battery. The power consumption is 19 W; the pump’s operating current is 0.9 A, whilst that of the power supply unit is 0.4 A (230 V AC) or 0.7 A (100 V AC). The degree of protection is IP40. Permissible media and ambient temperatures range from +5 to +40 °C. Maintenance-free and 100 % oil-free According to the manufacturer, the N 96 operates maintenance-free and is 100 % oil-free. There is no need for regular oil changes, and there is no risk of oil mist entering the gases being pumped or the laboratory air, an advantage wherever contamination-free conditions are required, such as during sample preparation for analysis. Gas connection and accessories The gas connection is a 1/8 NPT fitting; the supplied hose connector has an internal diameter of 6 mm and is made of PP. A column mounting bracket is available for wall mounting if required, along with a spare parts kit and a power supply set for replacement purposes. Suitable for confined spaces As the N 96 is powered by an external plug-in power supply, the pump housing itself remains particularly compact, an advantage wherever shelves, fume hoods or workstations are already densely occupied. The column mount also allows for space-saving installation away from the worktop, for example on a stand or a wall within easy reach of the workstation. Typical applications Filtration Liquid aspiration Solid-phase extraction (SPE) For example, the N 96 can be placed right next to an SPE cartridge stand, where it provides the necessary vacuum for sample purification in a space-saving manner, without the need for a separate, bulky pump setup. Need a higher flow rate? The larger LABOPORT series If the flow rate of 7 l/min is insufficient for a larger application, or if there is an additional need to collect liquids and condensate or to recover solvents, there are also the larger LABOPORT series: the pure diaphragm vacuum pump N 820 G / N 840 G (20 and 34 l/min respectively), the SR 820 G / SR 840 G vacuum pump system with two separator bottles, and the SH 820 G / SH 840 G vacuum pump system with a separator and high-performance condenser for solvent recovery. Technical details Flow rate (max.)7 l/min (0.4 m³/h) Ultimate vacuum (max.)130 mbar (abs.) Operating pressure (max.)2.5 bar (rel.) Pump headPPS (polyphenylene sulphide) DiaphragmPTFE-coated ValvesFKM Pump voltage24 V DC Power supply voltage100 to 240 V AC, 50/60 Hz (plug-in power supply, wide-range input) Power P119 W Operating current, pump0.9 A Operating current of power supply unit0.4 A (230 V AC) / 0.7 A (100 V AC) Degree of protectionIP40 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)75 x 119 x 156 mm Weight1.3 kg Gas connectionNPT 1/8, hose connection ID 6, PP Scope of delivery 1x KNF LABOPORT N 96 diaphragm vacuum pump External plug-in power supply (wide-range input) Silencer Hose connection ID 6, PP Individual requirements and procurement service A spare parts kit, a power supply set and a column mounting bracket for wall mounting are among the accessories available for the N 96. If you have any questions regarding suitable accessories, spare parts or individual requirements relating to your KNF LABOPORT N 96, our procurement service will be happy to assist you.

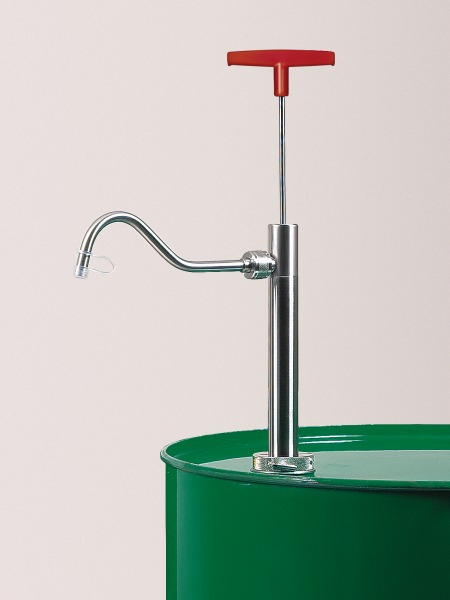

Bürkle stainless steel drum pump with outlet elbow, 91 cm immersion depth, for drums up to 220 l, 5601-0800
The 91-cm version of the Bürkle stainless steel drum pump with an outlet elbow delivers 540 ml per stroke. With an immersion depth suitable for drums up to approx. 220 l, it covers standard 200-litre drums. Delivery rate540 ml/stroke Max. immersion depth91 cm Outer diameter of outlet12 mm Length of outlet elbow290 mm ConnectionFor openings from 32 mm, drum screw connection For containers up toapprox. 220 l Anyone who needs to safely transfer flammable or corrosive liquids from a drum or canister requires more than just a simple hand pump. The Bürkle stainless steel drum pump is a hand-operated reciprocating piston pump, which has been developed specifically for this purpose. Thanks to its electrical conductivity and DEKRA-tested suitability for Ex zones 0, 1 and 2, it can also be used in areas where highly flammable vapours are likely to be present, such as when decanting solvents or other flammable chemicals in workshops, laboratories and production facilities. DEKRA-tested for Ex zones 0, 1 and 2 The drum pump was specially developed for use in Ex zones 0, 1 and 2 and is DEKRA-tested for explosion groups IIA and IIB. Thanks to the electrical conductivity of all parts in contact with the medium, it is suitable for highly flammable and combustible liquids. Important for safe operation: When handling flammable or highly flammable liquids, all parts of the pump must be earthed, for example using an anti-static kit. The pump is not suitable for acetone or similar dehydrating solvents. Material: 1.4301 stainless steel with PTFE seals All parts in contact with the medium are made of corrosion-resistant stainless steel 1.4301 (V2A), which, according to Bürkle, promises a long service life even in damp or aggressive environments. The PTFE seals also ensure high chemical resistance and good sliding properties during pumping, so that the pump remains smooth-running even after prolonged use. Two versions: outlet elbow or hose with tap The Bürkle stainless steel drum pump is available in two versions. The version with an outlet elbow (length 290 mm, outlet outer diameter 12 mm) is suitable for direct filling into a container placed underneath. The version with an outlet hose and tap (hose length 1.2 m, outlet outer diameter 12.8 mm) allows for metered, controlled dispensing thanks to the shut-off tap, even when the receiving vessel is not positioned directly beneath the pump. The outlet elbow and outlet hose can also be swapped, making the pump versatile for a range of filling situations. What immersion depth for which container? The pump is available in three lengths, and the immersion depth is infinitely adjustable. This makes it possible to find the suitable Bürkle stainless steel drum pump for different containers: 36 cm immersion depth: for containers up to approx. 30 l 57 cm immersion depth: for containers up to approx. 60 l 91 cm immersion depth: for containers up to approx. 220 l, such as standard drums The 91 cm version with an outlet elbow covers standard 200-litre drums with its immersion depth. Flow rate and viscosity Depending on the selected immersion depth, the pump delivers between 190 and 540 ml per stroke, which corresponds to a flow rate of 9 to 22 l/min across the entire range. The immersion tube has a consistent diameter of 32 mm, and the pump handles fluids with a viscosity of up to 500 mPa·s. Robust construction, versatile use Stainless steel drum pumps are versatile and suitable for a wide variety of drums, containers and other vessels. The robust construction from high-quality, corrosion-resistant 1.4301 stainless steel ensures, according to Bürkle, a long service life, particularly in damp or corrosive environments. Typical applications Decanting flammable or corrosive liquids and chemicals from drums, canisters and other containers Use in workshops, laboratories and production facilities Filling in Ex zones 0, 1 and 2, provided the pump is earthed in accordance with regulations Choice of immersion depth to suit the container size, from small 30-litre canisters up to 220-litre drums Handling and cleaning To operate, screw on the outlet elbow or hose, insert the pump with the drum screw connection into the drum opening and screw it in hand-tight. After removing the cap, the liquid can be pumped out using the handle on the piston rod. During the final pumping stroke, push the piston rod in as far as it will go before carefully unscrewing the pump from the drum. After use, the drum pump should be rinsed with a pH-neutral liquid. Technical details Product principleManually operated reciprocating piston pump Material of parts in contact with the mediumStainless steel 1.4301 (V2A) Seal materialPTFE Immersion tube diameter32 mm Viscosityup to 500 mPa·s Flow rate (entire range)9 to 22 l/min Immersion depthcontinuously adjustable, max. 91 cm Drive typeManually operated ColourSilver Ex zone0, 1, 2 Explosion groupsIIA, IIB Explosion protection testingDEKRA-tested Electrical conductivityYes Outlet elbow/hoseReplaceable Scope of delivery 1x Bürkle stainless steel drum pump in the selected version (with outlet elbow or with hose and tap) and immersion depth Operating instructions Not included in the scope of delivery: drum screw connection and the anti-static earthing kit required for use with flammable liquids. Individual requirements and procurement service For the mandatory earthing required when transferring flammable liquids, Bürkle offers a suitable anti-static kit (5602-1000), as well as a drum mount (5618-0200) for storing the pump in an upright position between uses. We are happy to source both on request: if you have any questions regarding suitable accessories, spare parts or specific requirements relating to your drum pump, our procurement service will be happy to assist you.
KNF LABOPORT N 840 G, chemical-resistant diaphragm vacuum pump, 34 l/min, ATEX marking category 2, 317123
For those in the laboratory who require a higher flow rate than the smaller N 820 G can provide, the KNF LABOPORT N 840 G is a chemical-resistant, oil-free diaphragm vacuum pump with a flow rate of 34 l/min. It covers the higher performance range of the LABOPORT N series and is suitable for applications requiring a higher flow rate, such as larger vacuum chambers or filtration set-ups. Chemical-resistant materials in the parts in contact with the medium As with the smaller version, the pump head is made of TFM PTFE, the diaphragm is PTFE-coated, and the valves are made of FFPM. This combination of materials makes the N 840 G suitable for handling and evacuating highly aggressive and corrosive gases and vapours. The maximum operating pressure is 0.1 bar (rel.), and the ultimate vacuum is 6 mbar (abs.), identical to the smaller version. Stepless speed control and gas ballast valve The integrated, manual speed control allows the flow rate to be adjusted to suit the specific application. The integrated gas ballast valve supports short process times, even when working with high-boiling-point solvents, by reducing the condensation of vapours in the pump head. A 3-colour status indicator shows the operating status (running, standby, fault) at a glance. Explosion protection for internal areas in contact with the medium The N 840 G bears the ATEX marking (Ex) II 2/-G IIB+H2 T3 and is therefore designed for pumping in potentially explosive atmospheres. This marking refers exclusively to the internal, media-contacting area of the pump, not to the installation environment. More power, more weight Measuring 177 x 240 x 289 mm (W x H x D) and weighing 11.3 kg, the N 840 G is slightly larger and heavier than the N 820 G, in line with its higher flow rate. It is powered directly from the mains (100 to 240 V AC, 50/60 Hz), requires no battery, and has a power consumption of 100 W. A thermal switch and a mains fuse protect the pump against overload; the degree of protection is IP30. Permissible media and ambient temperatures range from +5 to +40 °C. Low-maintenance in everyday laboratory use As the diaphragm vacuum pump operates completely oil-free, there is no need for the regular oil changes required by conventional rotary vane pumps, and there is no risk of oil mist entering the gases being pumped or the laboratory air. This makes the N 840 G a clean vacuum source for applications where contamination-free operation is important, such as when filtering samples or evacuating larger set-ups. A thermal switch and mains fuse provide additional protection against overload during continuous operation, making it suitable for longer process times and higher flow rates in everyday laboratory use. Connection and common size The hose connection has an internal diameter (ID) of 9.5 to 8 mm and is made of PVDF. The pump head of size 840 is also listed by the manufacturer under reference number 315994, the same identification number used for the structurally identical drive unit of the SR 840 G and SH 840 G system variants. Anyone who already has experience with one of these system variants of size 840 will therefore also be familiar with the drive unit of the N 840 G. Typical applications As a purely oil-free diaphragm vacuum pump, the N 840 G covers a wide range of laboratory applications requiring higher flow rates: Conveying and evacuating aggressive or corrosive gases and vapours requiring higher flow rates Vacuum filtration of larger set-ups Evacuating desiccators and vacuum chambers Vacuum supply for drying and vacuum ovens N, SR or SH: choosing the right configuration The N 840 G delivers a pure vacuum without the need for additional accessories. For those who also wish to collect condensate or solvent vapours on the suction and discharge sides, the SR 840 G system variant (with two separator flasks) provides a suitable extension. If the recovery of solvents through condensation is the primary objective, the SH 840 G system variant (with separator and high-performance condenser) is the more suitable choice. For those who only require 20 l/min, the more compact N 820 G is available in the same series. Designed for continuous operation With a power consumption of 100 W and a stable power supply across the wide range of 100 to 240 V AC, the N 840 G can be operated at different mains voltages without the need for an additional voltage converter. In combination with the stepless speed control and the gas ballast valve, it is therefore also suitable for more demanding, longer-running vacuum applications in the laboratory where a higher flow rate is required. Technical details Flow rate (max.)34 l/min (2.04 m³/h) Ultimate vacuum (max.)6 mbar (abs.) Operating pressure (max.)0.1 bar (rel.) Pump headTFM PTFE DiaphragmPTFE-coated ValvesFFPM Voltage100 to 240 V AC, 50/60 Hz Power P1100 W Operating current1.0 A (100 V AC) / 0.6 A (240 V AC) Degree of protectionIP30 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)177 x 240 x 289 mm Weight11.3 kg Hose connectionID 9.5 to 8, PVDF ATEX marking (internal areas in contact with the medium)(Ex) II 2/-G IIB+H2 T3 Scope of delivery 1x KNF LABOPORT N 840 G diaphragm vacuum pump Wrench for hose connection Silencer Individual requirements and procurement service A suitable spare parts kit is available for the N 840 G. If you have any questions regarding suitable accessories, spare parts or individual requirements relating to your KNF LABOPORT N 840 G, our procurement service will be happy to assist you.
Bürkle Hand Pump for Solvents, V2A Stainless Steel, for Containers up to 60 L, 5603-1000
Anyone who scoops solvent from a 60-litre drum using a beaker or a jug risks splashes and direct skin contact with the liquid. The hand pump for solvents, on the other hand, operates on the principle of positive pressure: A pump ball forces air into the sealed drum; the resulting overpressure pushes the solvent out in a controlled manner through the fixed spout. This allows flammable solvents to be dispensed in measured quantities without having to tip the drum over or leave it open permanently.Operation without suctionUnlike a suction pump, the hand pump does not create a vacuum in the riser tube, but rather positive pressure inside the drum itself. The pump bulb is operated by hand; air flows through a tube into the drum, whilst the solvent rises separately to the spout. The shut-off valve at the end of the spout, made of stainless steel and PTFE, stops the flow immediately once the receiving container is full.For drums up to 60 l with a G2-inch threadThe pump fits containers with a G2-inch external thread and a capacity of up to approximately 60 l. The dip tube can be continuously adjusted to the actual depth of the drum; at full immersion depth, it extends up to 60 centimetres into the drum. With a flow rate of around 10 l per minute and a viscosity of up to 500 mPa·s, the pump is suitable for low- to medium-viscosity solvents. The 12-millimetre external diameter of the outlet fits standard funnels and canister openings, allowing the target container to be filled directly beneath the outlet elbow.Materials in contact with solventsAll parts in contact with the medium are made of 1.4301 (V2A) stainless steel and PTFE. Both materials are chemically resistant to organic solvents and aromatic compounds and can withstand regular cleaning after filling. Unlike a plastic pump, stainless steel does not swell when frequently exposed to more aggressive solvents and retains its fit, even after many filling cycles.Independent of mains power and compressed airThe hand pump requires neither a mains power connection nor a compressed air supply; it operates solely by means of the pump ball in the hand. This makes it a suitable option for workplaces where there is no compressed air network, such as in smaller workshops, for mobile operations or in storage areas away from the main infrastructure. Those who only open a drum occasionally can therefore manage without having to purchase a compressor.Safety when handling flammable liquidsBürkle expressly refers to the explosion protection guidelines for handling flammable, highly combustible liquids when using this pump: all parts must be earthed; in addition, the manufacturer recommends an anti-static kit. The advice is a recommendation for safe operation.If a different container or drive type is requiredFor tinplate canisters with bellows closures, the solvent pump for tinplate canisters is available as a hand pump of identical design, featuring a suitable adapter instead of a G2-inch thread. If both hands need to remain free, or if larger 220-litre drums are being used, the foot-operated solvent pump with spout is the more suitable choice. For small containers such as bottles or canisters up to 10 l with a GL45 thread, the Mini solvent pump is more suitable.Typical applicationsContamination-free dispensing of organic solvents and aromatic compounds from 60-litre drumsPrecise dispensing of flammable liquids in the laboratory, workshop or warehouseDecanting into smaller containers without tilting or opening the drumDrums with G2-inch threads in the chemical industry and in tradeTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typemanually operatedPump typePositive pressure pumpThreadG 2 inches, external threadFlow rate approx.10 l/minViscosity up to approx.500 mPa·sPipe diameter15 mmImmersion tube diameter15 mmLength of outlet bend185 mmOuter diameter of outlet12 mmMax. immersion depth60 cmFor containers up toapprox. 60 lScope of deliveryHand pump with fixed spout and shut-off valveService and procurementBusinesses with multiple drum sizes or container types often coordinate their order with the appropriate foot-operated or mini version, so that the right pump is to hand for every container. If you have any questions regarding the correct thread size, the choice between hand- and foot-operated models, or spare parts such as the shut-off valve, we will be happy to assist you directly, even for larger requirements across multiple workstations.
KNF LABOPORT SH 820 G, vacuum pump system with separator and high-performance condenser, 20 l/min, ATEX marking category 3, 325234
For those in the laboratory who wish not only to draw off solvents but also to actively recover them, rather than losing them unused via the exhaust air, the KNF LABOPORT SH 820 G is a complete vacuum pump system: a chemical-resistant diaphragm vacuum pump, a base plate, a separator on the suction side and a high-performance condenser on the discharge side. With a flow rate of 20 l/min, it covers the moderate performance range of the SH series, typically used in distillation processes or with rotary evaporators, where solvent vapours need to be recovered for cost, safety or environmental reasons. Separator and high-performance condenser for solvent recovery The base plate supports a separator on the suction side (order number 047729) and a high-performance condenser with a pressure relief valve on the discharge side (order number 114855), which ensures solvent recovery. Both components are connected via a red GL screw cap (GL 14 or GL 18), a standard laboratory glass thread that is easy to open and close again. One hose connector each (KNF designation Hose-BGR) is intended for the separator flask (order number 323044) and the condenser (order number 317157). Chemically resistant materials in the parts in contact with the medium The pump head is made of TFM PTFE, the diaphragm is PTFE-coated, and the valves are made of FFPM. This combination of materials makes the system suitable for aggressive and corrosive media. The ultimate vacuum is a maximum of 6 mbar (abs.), and the operating pressure is a maximum of 0.1 bar (rel.). These values apply to the entire system, not just the pump itself. Explosion protection for internal parts in contact with the medium, Category 3 The SH 820 G bears the ATEX marking (Ex) II 3/-G Ex h IIB+H2 T3 Gc and is therefore designed for pumping potentially explosive atmospheres. This marking refers exclusively to the internal, media-contacting area of the system, not to the installation environment. It is the same ATEX equipment category as for the SR 820 G, lower than that of the pure LABOPORT N 820 G (Category 2). Compact and mains-powered Measuring 323 x 416 x 260 mm (W x H x D) and weighing 11.7 kg, the system is designed for use on a laboratory bench or in a fume hood. It is powered directly from the mains (100 to 240 V AC, 50/60 Hz) and requires no battery; its power consumption is 60 W. A thermal switch and mains fuse provide protection against overload, and the degree of protection is IP30. Permissible media and ambient temperatures range from +5 to +40 °C. Same size as the N 820 G and SR 820 G The size 820 pump head is also listed by the manufacturer under reference number 313452, the same identification number used for the identical drive unit of the LABOPORT N 820 G and the SR 820 G system variant. Anyone who has already used one of these size 820 variants will also be familiar with the drive unit of the SH 820 G. Spare parts kit 331051 is available for the pump itself, whilst spare parts kit 331053 is available for the complete system (including additional O-rings). Installation and operation The SH 820 G is designed for installation on a laboratory bench or in a fume hood and is operated via the base plate with the attached separator and condenser. Before initial commissioning, the hose connections should be checked to ensure they are secure, particularly at the condenser’s pressure relief valve. Like the entire LABOPORT series, the SH 820 G operates completely oil-free; there is no need for regular oil changes, and there is no risk of oil mist entering the gases being pumped or the laboratory air. Typical applications As a vacuum pump system with active solvent recovery, the SH 820 G is particularly suitable for: Distillation Rotary evaporation N, SR or SH: choosing the right configuration If a pure vacuum without a collection vessel is sufficient, the more compact LABOPORT N 820 G is the simpler choice. If the primary requirement is to collect liquid without condensation, the SR 820 G system variant with two separator flasks is sufficient. If, on the other hand, the focus is on the active recovery of solvents, the SH 820 G with separator and high-performance condenser is suitable. For those requiring a higher flow rate, the same series offers the SH 840 G with a flow rate of 34 l/min. Technical details Flow rate (max.)20 l/min (1.2 m³/h) Ultimate vacuum (max.)6 mbar (abs.) Operating pressure (max.)0.1 bar (rel.) Pump headTFM PTFE DiaphragmPTFE-coated ValvesFFPM Voltage100 to 240 V AC, 50/60 Hz Power P160 W Operating current0.35 A (240 V AC) / 0.66 A (100 V AC) Degree of protectionIP30 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)323 x 416 x 260 mm Weight11.7 kg Separator1x, GL 14/GL 18 screw cap (order no. 047729) High-performance condenserwith pressure relief valve (order no. 114855) ATEX marking (internal parts in contact with the medium)(Ex) II 3/-G Ex h IIB+H2 T3 Gc Scope of delivery 1x KNF LABOPORT SH 820 G vacuum pump system (pump, base plate, separator, high-performance condenser) Individual requirements and procurement service A spare parts kit for the pump and a spare parts kit for the complete system (including additional O-rings) are available for the SH 820 G. If you have any questions regarding suitable accessories, spare parts or individual requirements relating to your KNF LABOPORT SH 820 G, our procurement service will be happy to assist you.
Bürkle foot-operated solvent pump with outlet hose and tap, V2A stainless steel, for drums up to 220 L, 5603-3000
If the receiving container is not positioned directly next to the drum, but on a shelf, in a tray or slightly to one side, a rigid discharge elbow will quickly reach its limits. The foot-operated solvent pump with discharge hose and tap solves this problem with a 1-metre-long, flexible hose: It can be routed freely and positioned precisely into a narrow canister opening or over the rim of a taller container, whilst both hands remain free because the pump is operated via a foot pedal.Flexible hose instead of a rigid elbowInstead of a fixed elbow, the delivery line here ends in a flexible PTFE hose with its own shut-off valve. The pedal is operated in the same way as with the outlet elbow version; the excess pressure in the drum forces the solvent upwards through the dip tube, but ultimately the operator decides where the hose points, rather than being constrained by the fixed geometry of an elbow. The separate shut-off valve at the end of the hose is positioned exactly where the hand needs it when aiming at the container.For steel drums up to 220 litres with a G2-inch threadThe pump fits steel drums with a G2-inch external thread and is suitable for containers up to around 220 litres. The 21-millimetre-thick dip tube can be continuously adjusted to the depth of the drum; at full immersion, it extends up to 95 centimetres into the drum. The flow rate and viscosity limit, at around 20 litres per minute and up to 500 mPa·s, are on a par with those of the elbow-outlet version; only the final metre to the target container is flexible rather than rigid. The 13-millimetre outer diameter of the outlet fits the same canister and funnel openings as the rigid version.When the hose makes the differenceA fixed outlet elbow is more stable and requires no guidance, making it well-suited when the target container is positioned directly beneath the pump. For precisely this purpose, the foot-operated solvent pump with outlet elbow is available, an identically constructed variant featuring the same pump body. The hose on this model, on the other hand, comes into its own where the distance to the drum varies, for example, when filling several containers in different positions one after the other, or when a narrow canister opening is only accessible from the side.Materials and safety when handling flammable liquidsParts in contact with the medium, made from stainless steel 1.4301 (V2A) and PTFE, are chemically resistant to high-purity solvents. Bürkle draws attention to the explosion protection guidelines for this pump when handling flammable, highly flammable liquids: all parts must be earthed; an anti-static kit is also recommended.If compressed air or another material is requiredIf compressed air or an inert gas is available and the immersion depth is to be freely selected between 60 and 95 centimetres, the solvent extraction system with discharge hose covers the same discharge type with a complete system including a pressure regulator. Where particularly aggressive or high-purity media are involved, for which stainless steel is not suitable, the Ultrapure PTFE drum pump with a hose and tap made of PTFE and FEP is the more chemically resistant alternative.Typical applicationsFilling high-purity solvents into containers positioned offset or at a higher levelWorkstations with changing target containers, which the hose can reach flexiblyFrequent, repetitive filling whilst keeping both hands free for handling the receiving containerSteel drums with G2-inch threads in laboratories, warehouses or production facilitiesTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typefoot-operatedPump typePositive pressure pumpThreadG 2 inches, external threadFlow rate approx.20 l/minViscosity up to approx.500 mPa·sPipe diameter21 mmImmersion tube diameter21 mmLength of outlet hose1 mOuter diameter of outlet13 mmMax. immersion depth95 cmFor containers up toapprox. 220 litresScope of deliveryFoot-operated solvent pump with outlet hose and tapService and procurementIf you are unsure whether the rigid elbow or the flexible hose is better suited to your particular setup, you can often order both versions initially to compare them or for different workstations with varying container arrangements. We can advise you on your choice and on spare parts such as hoses, shut-off valves or foot pedals.
IKA VACSTAR lite Starter Solution, diaphragm vacuum pump, including emission condenser, 9 mbar, 0010014496
The IKA VACSTAR lite Starter Solution (MPN 0010014496) is a pre-assembled entry-level vacuum package for everyday laboratory use: a compact, oil-free diaphragm vacuum pump combined with the VSE 1 emission condenser. For example, anyone working with a rotary evaporator or setting up a filtration system does not need to purchase and set up the condenser separately, but can put the set into operation straight away. The pump thus handles standard tasks such as filtration, drying in a vacuum drying oven or evacuating Schlenk lines. Compact two-cylinder pump with robust suction capacity At its core is a dry two-cylinder diaphragm pump with a maximum pumping speed of 1.0 cubic metres per hour (16.67 litres per minute) and an ultimate vacuum of 9 mbar without gas ballast. The speed can be continuously adjusted via a rotary knob; the speed range is between 285 and 1,100 revolutions per minute, with a rated speed of 1,100 rpm. This is sufficient for most routine laboratory tasks, but is clearly intended for applications that do not require extremely low ultimate vacuums, such as simple filtration or the drying off of solvents at moderate temperatures. VSE 1 emission condenser for solvent vapours The VSE 1 vacuum safety emission condenser included in the set captures solvent vapours before they are released into the room air via the pump. This allows the condensed solvent to be recovered rather than wasted. Particularly when working with volatile organic solvents in fume hoods or on rotary evaporators, this can reduce consumption and the volume of waste to be disposed of, without the need to procure and adapt a separate component. Chemical-resistant and low-maintenance in continuous operation As a dry-running pump, the VACSTAR lite operates entirely without operating oil, thus eliminating the need for oil changes, waste oil disposal and the risk of sample contamination from oil vapours. All parts in contact with the medium are made of Al₂O₃, PTFE, FFPM, PPS and NBR, whilst the housing is made of coated die-cast aluminium and thermoplastic. According to the manufacturer, this combination of materials is designed for use with aggressive chemicals and solvent vapours and can reduce maintenance requirements during continuous operation. Space-saving and easy to integrate Measuring 115 x 292 x 280 millimetres and weighing 8.5 kilograms, the VACSTAR lite fits even on small work surfaces or directly inside a fume hood. Connections are made via 8-millimetre hose connections on the suction and discharge sides; the housing is rated to IP 20. The sound pressure level is 54 dB(A) at low pressure. A USB interface and an analogue input are available for connection to external control systems, for example if a digital vacuum controller is to be retrofitted at a later date. Simple operation with no training required The ‘lite’ version deliberately omits a digital display and focuses purely on functionality: a rotary knob continuously adjusts the speed and thus the pumping capacity, whilst a non-return valve protects the system against backflow when the pump is switched off. This makes the pump particularly suitable for workstations where several people with varying levels of experience use the same unit, for example during practical sessions or in teams with frequently changing personnel. Wide range of applications in everyday laboratory work IKA positions the VACSTAR-lite series as a universal vacuum source for use with rotary evaporators, laboratory reactors, temperature-controlled chambers, centrifuges and other laboratory equipment. Manual operation via the rotary knob means the pump does not require additional control software. For workstations where more precise, automated process control is required at a later stage, an external vacuum controller can be retrofitted via the analogue interface if necessary, without having to replace the pump itself. Typical applications As an entry-level solution for generating vacuum in the laboratory, the VACSTAR lite Starter Solution is particularly suitable for the following applications: Vacuum filtration in routine analysis, for example when filtering precipitates Support for rotary evaporators for moderate distillation tasks Drying of samples or glassware in a vacuum drying oven Evacuating Schlenk lines and simple desiccators An introduction to vacuum technology for training and teaching, thanks to simple rotary knob operation requiring no lengthy familiarisation Technical details Pump type2-cylinder diaphragm vacuum pump, dryMax. pumping speed (50/60 Hz)1.0 m³/h (16.67 l/min)Ultimate vacuum without gas ballast9 mbarStages / cylinders2 / 2Inlet pressure10 to 1,030 mbarSpeed range285 to 1,100 rpm (rated speed 1,100 rpm)ControlContinuously variable speed control via rotary knob, two-point controlSuction/discharge connectionHose nozzle Ø 8 mmMaterials in contact with the productAl₂O₃, PTFE, FFPM, PPS, NBRHousing materialCoated die-cast aluminium / thermoplasticDimensions (W x H x D)115 x 292 x 280 mmWeight8.5 kgDegree of protection according to DIN EN 60529IP 20Sound pressure level at low pressure54 dB(A)Permissible ambient temperature5 to 40 °CPermissible relative humidity80 % (up to 31 °C), decreasing linearly to a maximum of 50 % (at 40 °C)InterfacesUSB, analogue inputVoltage / Frequency100 to 240 V, 50/60 HzDevice power consumption120 W (5 W on standby) Scope of delivery 1 x IKA VACSTAR lite vacuum pump 1 x VSE 1 vacuum safety emission condenser 1 x vacuum hose 1 x power supply unit Operating instructions WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement service If you wish to control the VACSTAR lite automatically at a later date, you can retrofit it with a digital vacuum controller such as the VC 10 lite, for example to set programmed ramp profiles on the rotary evaporator. A Woulff bottle to protect the pump from liquid hammer, as well as other original accessories from the IKA vacuum range, are also available via our procurement service. Further information and contact details can be found on our procurement service page.

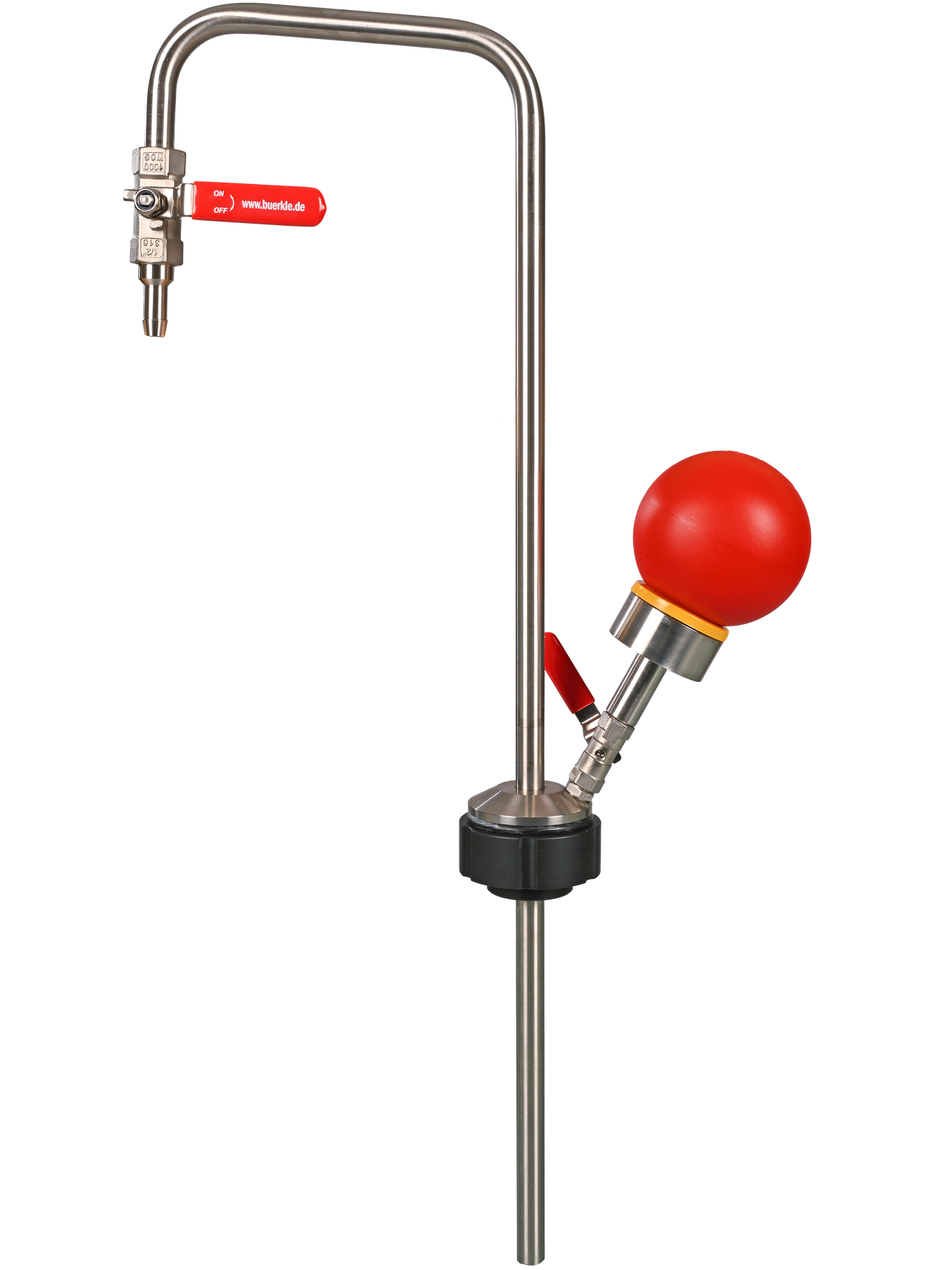

Bürkle Solvent Pump for Tinplate Canisters, V2A Stainless Steel, Bellows Seal Adapter, 5603-2000
In practice, tinplate canisters with bellows caps are often simply tipped over and emptied by hand, resulting in splashes and direct contact with the contents. The solvent pump for tinplate canisters, on the other hand, fits a suitable threaded adapter directly onto the bellows cap and then operates like a standard hand pump based on the overpressure principle: The pump ball forces air into the canister; the excess pressure then forces the liquid out through the fixed spout.Adapter for the standard bellows capThe supplied threaded adapter, with a 35-millimetre, two-start internal thread, fits the bellows cap commonly used on tinplate canisters in industry. This eliminates the need for the risky manual pouring of hazardous substances; the canister remains stationary during filling, and the contents flow out in a controlled manner via the spout fitted with a shut-off valve. The adapter is screwed on once and remains attached to the canister for the duration of the transfer; afterwards, it can be removed just as easily as the original bellows cap.For canisters up to around 60 lThe pump is suitable for containers with a capacity of up to approximately 60 l; the 15-millimetre-diameter dip tube can be continuously adjusted to the depth of the canister, reaching a maximum immersion depth of 60 centimetres. With a flow rate of around 10 l per minute and a viscosity limit of up to 500 mPa·s, the performance matches that of the hand pump for drums with a G2-inch thread; only the connection itself is tailored to the canister cap.Why the adapter makes all the differenceCompared to drums with a G2-inch thread, tinplate canisters are a category of their own; the bellows cap cannot simply be converted to a standard thread. Without a suitable adapter, many businesses have no choice but to tip the canister, with all the associated risks of splashing and uncontrolled spillage. The supplied adapter bridges this gap without requiring any modifications to the canister itself, and can be removed again once filling is complete.Materials and safety when handling flammable liquidsParts in contact with the medium are made of 1.4301 (V2A) stainless steel and PTFE and are chemically resistant to organic solvents and aromatic compounds. Bürkle refers to the explosion protection guidelines when handling flammable, highly flammable liquids: all parts must be earthed; in addition, the manufacturer recommends an anti-static kit.If a different container is being usedFor drums with a G2-inch thread instead of a bellows seal, the identically constructed hand pump for solvents is the appropriate choice; for small containers with a GL45 connection up to 10 l, the Mini solvent pump is suitable. If, on the other hand, 220-litre steel drums need to be connected and both hands need to remain free, the foot-operated solvent pump in the outlet elbow or hose version covers this need.Independent of mains power and compressed airLike the other hand pumps in the range, this model requires neither a mains power connection nor a compressed air supply. This makes it particularly practical for businesses that only occasionally open tinplate canisters, such as in smaller laboratories, workshops or storage areas without their own compressed air network. The threaded adapter can also be swapped between several canisters of the same closure type, meaning a single pump is sufficient for multiple containers.Typical applicationsContamination-free decanting from tinplate canisters with bellows closuresAvoiding the manual pouring of hazardous substancesExtraction of organic solvents and aromatic compounds in the laboratoryBusinesses that routinely source raw materials in tinplate canistersGoods-in and decanting stations where several cans with the same type of closure are in circulationTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typemanually operatedPump typePositive pressure pumpConnection typeThreaded, female threadConnection35 mm, two-startFlow rate approx.10 l/minViscosity up to approx.500 mPa·sPipe diameter15 mmImmersion tube diameter15 mmLength of outlet bend185 mmOuter diameter of outlet12 mmMax. immersion depth60 cmFor containers up toapprox. 60 lScope of deliverySolvent pump with fixed outlet elbow and shut-off valveThreaded adapter for tinplate canistersService and procurementBusinesses that use both canisters with bellows closures and drums with G2-inch threads often order both pump versions together, so that the correct connection is available for every container. We can assist with selecting the correct adapter, with larger orders for multiple workstations, and with spare parts such as the shut-off valve.

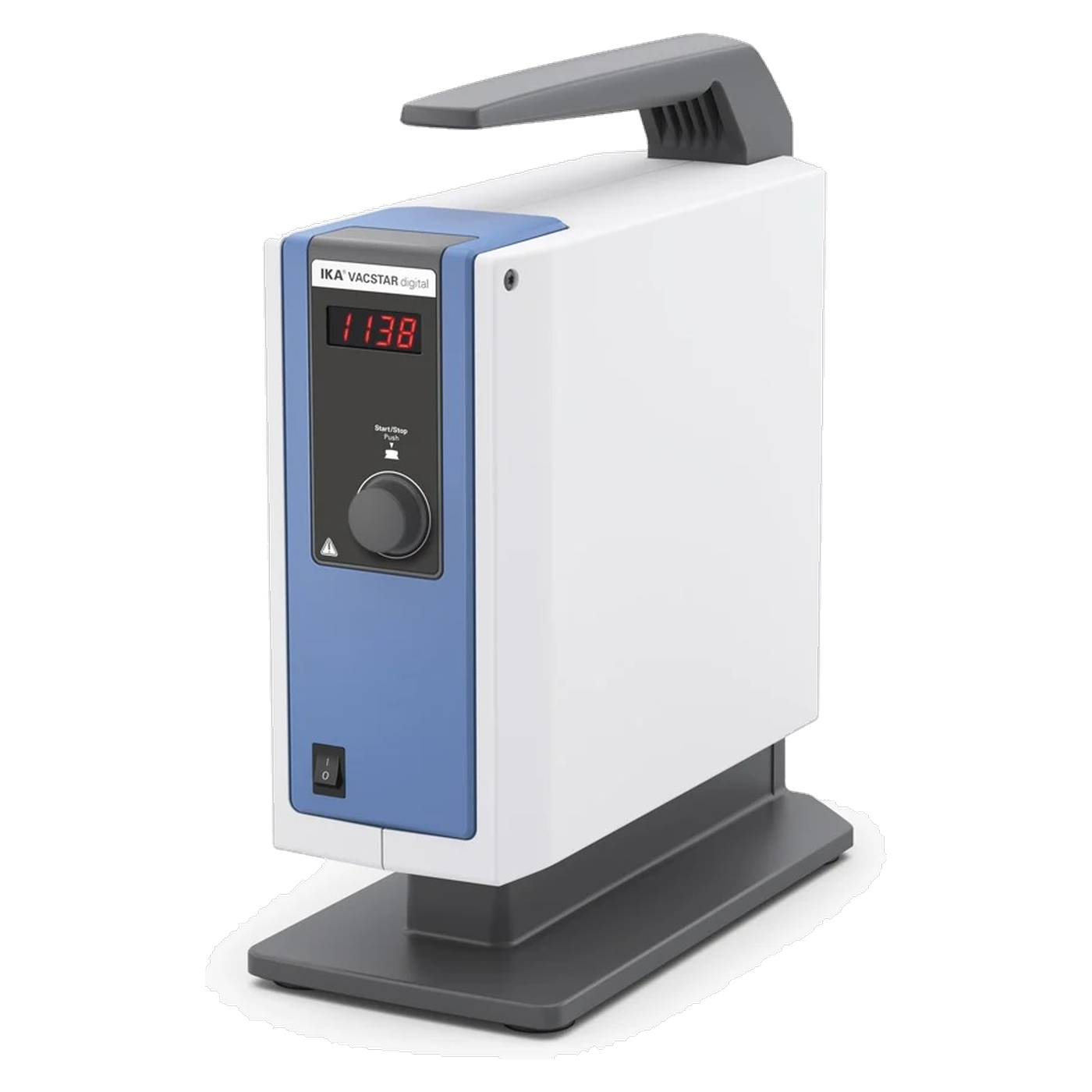

IKA VACSTAR digital Vacuum Pump, Diaphragm Pump with Digital Speed Display, 22 l/min, 0020016236
The IKA VACSTAR digital is a dry 4-chamber diaphragm vacuum pump with digital speed display. Anyone who has so far operated a purely analogue pump without feedback on the current speed can see here at a glance which setting is currently in use, without depending on full automation. The VACSTAR digital is thus positioned between the purely manual VACSTAR lite and the VACSTAR control with integrated vacuum controller: more control than with a purely analogue pump, but without the additional cost of a permanently installed controller when it is not yet needed for the application in question. Digital display with simple turn-and-push operation The parameters are set with a turn-and-push knob, and an LED display shows the current speed in real time. The pumping speed of 22 l/min (1.32 m³/h) and an ultimate vacuum of 2 mbar reliably cover typical tasks such as rotary evaporators, drying ovens or filtrations. The speed range extends from 285 to 1,200 revolutions per minute, regulated by an analogue speed-vacuum control with two-point control for stable, readily reproducible process behaviour. Prepared for later automation An analogue cable for connecting an external vacuum controller of type VC 10 is already included in the scope of delivery. Anyone who wants to run automated processes, for example a programmed distillation ramp, can extend the pump with the VC 10 at any time without having to buy an additional connecting cable and without having to replace the pump itself with another model. For the protection of laboratory air and the environment, the VSE 1 vacuum safety emission condenser is also recommended. It reduces the release of solvent vapours into the room air and can be retrofitted at any time if required. Chemically resistant and designed for continuous operation All parts in contact with the product are made of Al2O3, PTFE, FFPM, PPS and NBR, and the housing of coated die-cast aluminium and thermoplastic. As a dry-running pump, the VACSTAR digital works entirely without operating oil, so oil changes and the disposal of waste oil are eliminated and samples are not contaminated by oil vapours from the pump. This combination of materials makes the pump particularly resistant to aggressive solvents and ensures low-maintenance continuous operation in everyday laboratory work, even with daily changes between different solvents. Connection, format and operating values With dimensions of 150 x 375 x 370 millimetres and a weight of 11.5 kilograms, the VACSTAR digital is designed for a fixed place at the laboratory workstation, for example next to a rotary evaporator or drying oven. It is connected to 100 to 240 volts at 50 or 60 hertz with a device power consumption of 130 watts in operation and 3 watts in standby. Both an RS232 and a USB interface are available for connection to laboratory software, and the housing is classified IP 20. Robust design for daily laboratory use The lower housing made of coated die-cast aluminium in combination with thermoplastic components is designed for daily continuous use in the laboratory. The permissible ambient temperature of 5 to 40 °C and a tolerated relative humidity of up to 80 % at 31 °C, decreasing linearly to a maximum of 50 % at 40 °C, make the pump suitable even for laboratories without continuous air conditioning. With a sound pressure level of 54 dB(A) at minimum pressure, operation next to the workstation remains pleasantly quiet. Typical applications As a digital intermediate step between manual operation and a fully integrated controller, the VACSTAR digital is particularly suitable for the following applications: Rotary evaporator operation with direct reading of the current speed instead of estimating from the scale on the knob Vacuum drying in drying ovens with a traceable speed setting that can be read on the display Vacuum filtration in the routine laboratory where digital control without full automation is already sufficient Laboratory workstations that are to be retrofitted later with a VC 10 vacuum controller for full automation Training and practical courses in which the digital speed display supports participants' understanding of the process Workstations with several users where a traceable speed setting is more important than estimating from a scale Technical details Pump type4-chamber diaphragm vacuum pump, dryDelivery rate max. (50/60 Hz)1.32 m³/h (22 l/min)Ultimate pressure without gas ballast2 mbarSuction stages / cylinders4 / 4Connection diameter suction/pressure side8 mmInlet pressure2 to 1,030 mbarControlTwo-point control, analogue speed-vacuum control, setting via turn-and-push knobSpeed range285 to 1,200 rpmDisplayLEDSound pressure level at min. pressure54 dB(A)Wetted materialAl2O3, PTFE, FFPM, PPS, NBRHousing materialCoated die-cast aluminium / thermoplasticDimensions (W x H x D)150 x 375 x 370 mmWeight11.5 kgPermissible ambient temperature5 to 40 °CPermissible relative humidity80 % (up to 31 °C), decreasing linearly to max. 50 % (at 40 °C)Degree of protection according to DIN EN 60529IP 20InterfacesRS232, USBVoltage / frequency100 to 240 V, 50/60 HzDevice power consumption130 W (standby 3 W) Scope of delivery 1 x IKA VACSTAR digital Vacuum Pump 1 x vacuum hose (1 m) 1 x silencer 1 x USB cable (USB-A to USB-B) 1 x analogue cable for connecting an external vacuum controller (e.g. VC 10) WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service The VC 10 vacuum controller is available as an extension for fully automatic distillations, and for the protection of laboratory air and the environment we also recommend the VSE 1 emission condenser. Further accessories and spare parts are available on request through our procurement service.

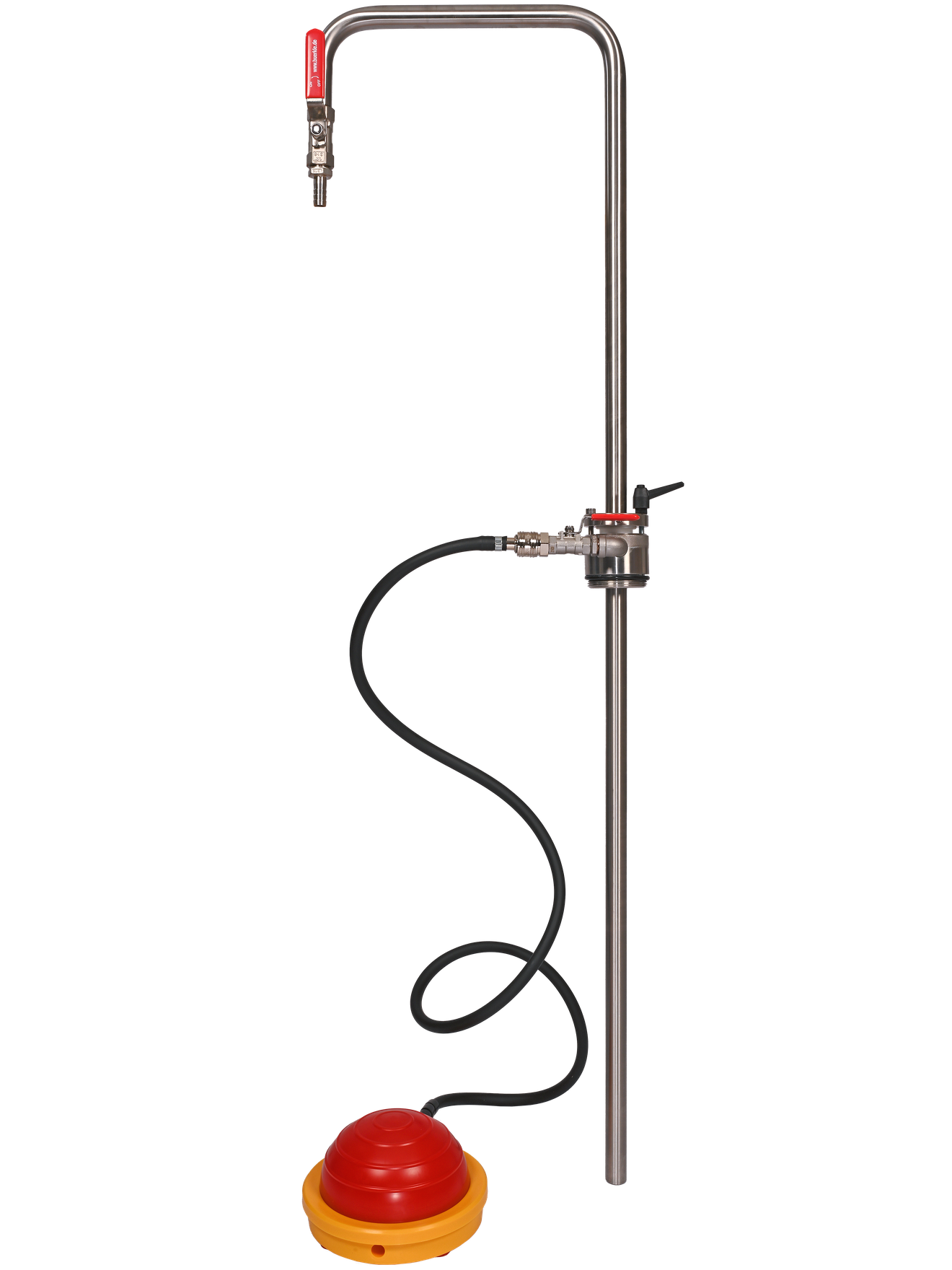

Bürkle Foot-operated Solvent Pump with Outlet Elbow, V2A Stainless Steel, for Drums up to 220 L, 5603-1100
When dispensing from a 220-litre steel drum, both hands are often needed: one holds the receiving container, whilst the other is supposed to guide the spout. The foot-operated solvent pump solves this problem by being activated via a foot pedal: the operator has both hands free for the container and does not need to touch the pump itself whilst the solvent flows through the fixed spout.Foot operation instead of a hand pumpInstead of a pump ball, the operator presses a pedal at the base of the pump. Each press forces air into the drum and builds up excess pressure, which pushes the solvent through the riser pipe to the outlet elbow. This completely frees up the hands and, during repeated filling over several minutes, is noticeably more comfortable than a hand pump that has to be held down continuously. Even with larger 220-litre drums, which require more strokes, the effort required is distributed more evenly when using the foot.For drums up to 220 l with a G2-inch threadThe pump is designed for steel drums with a G2-inch external thread and is suitable for containers up to around 220 l. The 21-millimetre-diameter dip tube can be continuously adjusted to the depth of the drum; at full immersion, it extends up to 95 centimetres into the drum. With a flow rate of around 20 l per minute and a viscosity of up to 500 mPa·s, it fills a container noticeably faster than the smaller hand pump for 60-litre drums.Fixed spout for stationary fillingThe 300-millimetre-long outlet elbow with shut-off valve is fixed in place and not flexible. This is well suited when the target container is positioned directly beneath or next to the pump, as the short, rigid path from the drum to the spout, with an outer diameter of 13 millimetres, allows for stable, easily controllable flow. If, on the other hand, a container needs to be filled that is further away, raised or offset, the identically constructed foot-operated solvent pump with discharge hose and tap is the more suitable option: It has the same pump body and the same flow rate, but replaces the rigid elbow with a 1-metre-long, flexible hose fitted with its own shut-off valve.Materials and safety when handling flammable liquidsParts in contact with the medium are made of stainless steel 1.4301 (V2A) and PTFE, which are resistant to high-purity solvents. Bürkle also draws attention to the explosion protection guidelines for this pump: all parts must be earthed, and an anti-static kit is recommended for use with flammable liquids.Who will benefit from foot operationAnyone who fills containers from the same drum several times a day will quickly notice the difference compared to manual operation: with foot-operated control, one hand remains on the receiving container whilst the other can guide the spout or operate the shut-off valve without having to touch the pump itself. This also reduces direct hand contact with a potentially contaminated pump surface, an aspect that is particularly important when dealing with sensitive solvents.When a smaller or compressed-air-powered pump is requiredFor smaller 60-litre drums, the more compact manual pump for solvents is usually sufficient. If compressed air or inert gas is available and the immersion depth needs to remain adjustable between 60 and 95 centimetres, the solvent dispensing system with discharge elbow covers the same depth range with a complete system including a pressure regulator.Typical applicationsFilling high-purity solvents from 220-litre steel drumsWorkstations where both hands are needed to handle the target containerFrequent, repetitive filling over extended periodsDrums with G2-inch threads in laboratories, warehouses or production facilitiesTechnical detailsMaterialStainless steel 1.4301 (V2A), polytetrafluoroethylene (PTFE)Drive typefoot-operatedPump typePositive pressure pumpThreadG 2 inches, external threadFlow rate approx.20 l/minViscosity up to approx.500 mPa·sPipe diameter21 mmImmersion tube diameter21 mmLength of outlet bend300 mmOuter diameter of outlet13 mmMax. immersion depth95 cmFor containers up toapprox. 220 lScope of deliveryFoot-operated solvent pump with outlet elbowService and procurementThose who, in addition to stationary filling operations, occasionally need to fill containers located further away often order both the spout and the hose versions together, so that both situations are covered. We can advise on choosing between the two versions, selecting the appropriate drum size and spare parts such as shut-off valves or foot pedals.

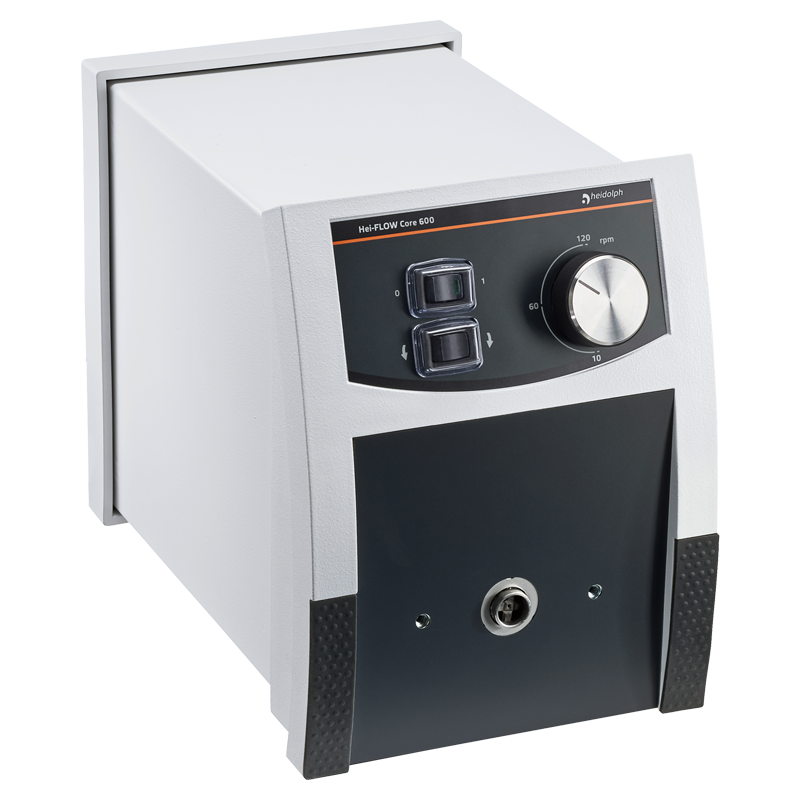

Heidolph Hei-FLOW Core 600 Peristaltic Pump, 50 to 600 rpm, up to 4,151 ml/min, 523-50060-00
Pumping larger volumes in a shorter time requires a drive with greater speed reserve than the 120 series offers. The Hei-FLOW Core 600 covers a speed range of 50 to 600 revolutions per minute and, with a single-channel pump head, achieves a flow rate of up to 4,151 millilitres per minute. Like all Hei-FLOW drives, it is supplied without a pump head; this is selected separately to suit the fluid being pumped.High flow rate for single-channel applicationsThe Core 600 is designed for use with single-channel pump heads, with flow rates ranging from 4.0 to 4,151 millilitres per minute. A switch reverses the flow direction, allowing the same unit to be used for both filling and emptying larger vessels. The Core 600 is not intended for multi-channel operation; the 120 series models are available for this purpose.Same drive technology, higher speedThe EC motor draws 100 watts and delivers the same power; it is digitally controlled with a control accuracy of ± 0.5 % according to the data sheet and a flow accuracy of ± 5 %. The unit is designed for continuous operation 24 hours a day, 7 days a week, and switches off automatically in the event of overheating. Weighing 7.1 kilograms, the Core 600 is slightly lighter than the 120 models in the range; the dimensions of 166 by 225 by 256 millimetres (excluding the pump head) remain the same. This means the Core 600 can be swapped for a 120 model without requiring any additional space should a process suddenly demand higher throughput.Degree of protection, noise level and connectionDegree of protection IP 54 according to DIN EN 60529 and protection class 1 according to EN 61140 correspond with the standard for the entire Hei-FLOW range. The sound pressure level is below 55 dB(A) based on IEC 61010, even at the higher speeds of the 600 series. The unit is powered by 110 to 240 volts at 50 or 60 hertz.Typical applicationsDecanting and transferring large volumes of liquidFilling and emptying of containers via reversible flowHigh-throughput processes with minimal space requirementsPilot-scale trials where the speed of the 120 series models is insufficientSelection guide: Core 600 or one of the 120 seriesThose who primarily handle smaller volumes or multiple channels in parallel are better served by the Hei-FLOW Core 120 or the Hei-FLOW Core 120 Multi; both cover 10 to 120 revolutions per minute. If the high flow rate of the 600 series is also to be controlled via an analogue interface or foot switch, the Hei-FLOW Expert 600 offers the same speed range with external connectivity. The Hei-FLOW Ultimate 600 is available for digital display, an RS232 interface and dosing functions at high throughput.Technical detailsDimensions (W x H x D)166 x 225 x 256 mm, excluding pump headWeight7.1 kg (excluding pump head)DriveEC motorSpeed range50 to 600 rpmSpeed controlDigitalSpeed displayAnalogueControl accuracy± 0.5 %Volume flow accuracy± 5 %Single-channel flow rate4.0 to 4,151 ml/minDirection of rotationclockwise / anti-clockwisePower consumption100 WMotor power100 WOperating modeContinuous operation 24 hours a day, 7 days a weekOverheating protectionYesRated voltage110 to 240 V, 50/60 HzDegree of protection (EN 60529)IP 54Protection class1 (EN 61140)Sound pressure level< 55 dB(A) (based on IEC 61010)Scope of deliveryHei-FLOW Core 600 drive unit, order number 523-50060-00Operating instructions and Safety Guide as PDF downloadsThe pump head and tubing are not included in the scope of delivery. For the Core 600, single-channel pump heads from the SP quick, SP standard and SP vario series are available, as well as tubing made from silicone, Tygon, PharMed or Viton in 1.6 or 2.5 millimetres.Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against material and manufacturing defects. This excludes glass and wear parts, damage caused during transport, and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. We will source the pump head, tubing and tubing connectors for the Core 600 on request.

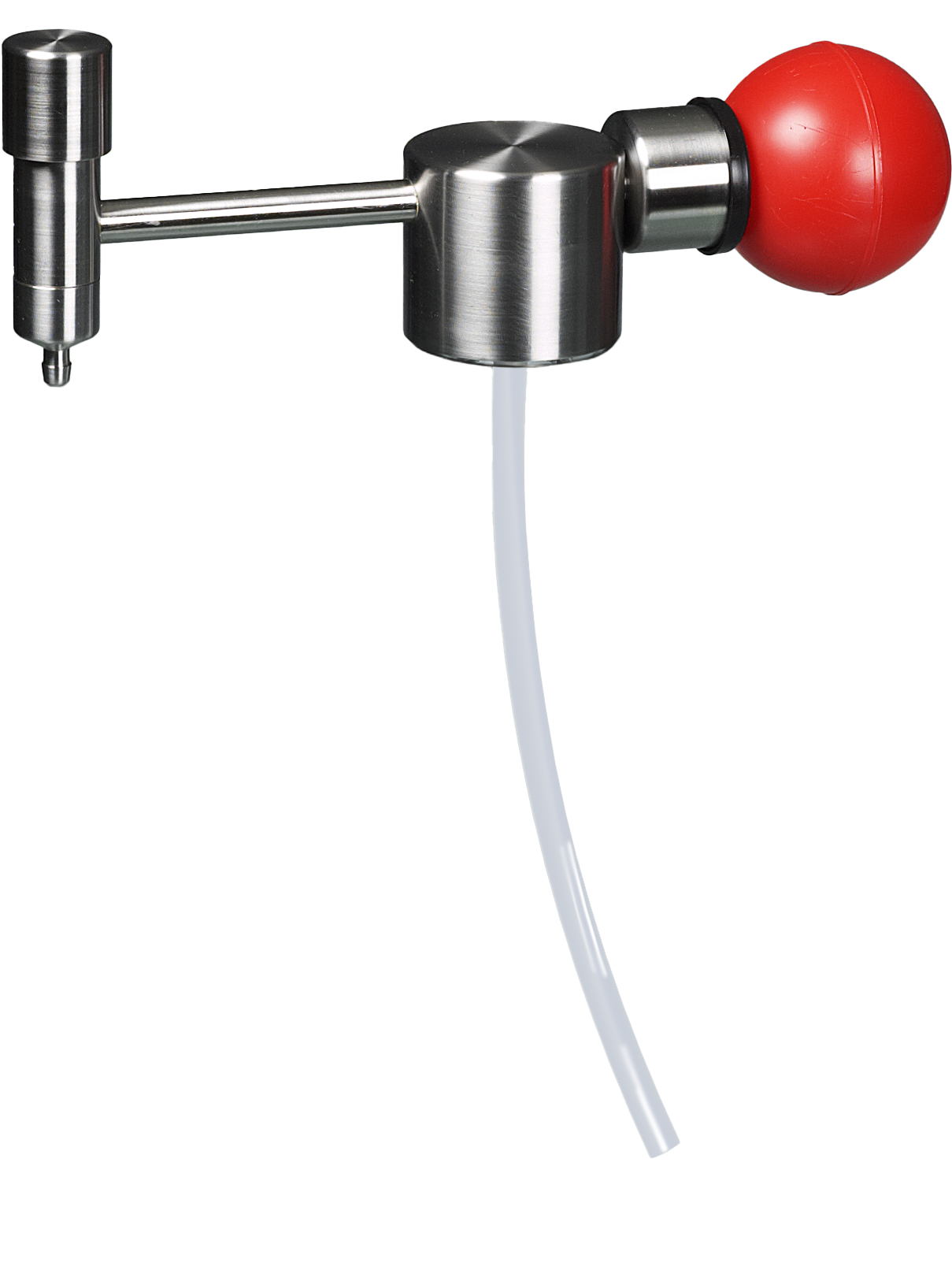

Bürkle solvent pump Mini, stainless steel V2A, GL45 connection, 5603-4000
A 500-millilitre bottle of solvent or a 5-litre canister does not require a 220-litre drum pump, but it does need a way to dispense the contents in a controlled manner without direct contact. The Mini solvent pump is designed precisely for these small containers: compact, with a GL45 thread for bottles and canisters, and operating on the same overpressure principle as the larger Bürkle solvent pumps, but on a scale suited to bottles rather than drums.Compact design for small containersInstead of a long dip tube for drums, the Mini has a short delivery tube that can be replaced and shortened as required. This allows it to adapt to bottles and canisters of varying heights, without a tube that is too long hitting the bottom or one that is too short failing to reach the remaining liquid. The GL45 internal thread screws directly onto standard laboratory bottles and small containers with this connection; no additional adapter is required.For containers up to around 10 litresWith a maximum immersion depth of 40 centimetres and a 104-millimetre-long outlet elbow, the Mini is designed for containers up to around 10 litres. At around 1 litre per minute, it pumps significantly more slowly than the larger models; however, this allows for more precise dosing in smaller increments, for example when preparing reagents or decanting in portions. As with the other solvent pumps in the series, the viscosity limit of up to 500 mPa·s applies, meaning that even slightly thicker solvents can still be pumped without any problems.Earthing is included in the scope of deliveryA 2-metre-long earthing cable is supplied with the pump, along with a 0.4-metre-long PTFE hose with a diameter of 6 by 8 millimetres. Bürkle also highlights the explosion protection guidelines for the Mini when handling flammable, highly flammable liquids: all parts must be earthed, and an anti-static kit is additionally recommended. As the earthing cable is already included in the scope of delivery, the basic equipment for safe operation is ready for immediate use without the need to procure suitable accessories first.Precision rather than speedAt around 1 litre per minute, the Mini is not a pump designed for high throughput, but rather for controlled, incremental work. Anyone loading an analytical balance, preparing a buffer solution or filling a series of small sample vessels one after the other will benefit more from the precise dosing capability than from high flow rates. The adjustable delivery tube can be set so that it ends just above the bottom of the respective bottle, ensuring it reaches even the last few millilitres.When larger containers are in useFor drums up to 60 litres with a G2-inch thread, the hand pump for solvents is the suitable addition; for tinplate canisters with bellows closures, the identically constructed solvent pump for tinplate canisters is suitable. If 220-litre drums are also regularly tapped, the compressed-air-powered dispensing system for solvents with a discharge hose meets this requirement without the need for a separate pump type for each container size. This allows the Mini to be used specifically for small quantities and the larger pump for the rest of the drum stock.Typical applicationsPrecise dosing of small quantities of reagents in the laboratorySafe handling of solvents, even in potentially explosive atmospheresEmptying bottles and small containers with GL45 threadsComplement to larger solvent pumps for drums and canistersFilling small sample vessels or reaction mixtures in batchesTechnical detailsMaterialStainless steel 1.4301 (V2A)Drive typemanually operatedPump typeOverpressure pumpConnection typeThreaded, female threadThreadGL 45Flow rate approx.1 l/minViscosity up to approx.500 mPa·sLength of outlet elbow104 mmMax. immersion depth40 cmAdjust immersion depthImmersion tube can be shortened as requiredFor containers up toapprox. 10 litresScope of deliveryMini solvent pumpEarthing cable, 2 mPTFE hose (6 x 8 mm), length 0.4 mService and procurementBusinesses that fill both small laboratory bottles and larger drums or canisters often coordinate their order for the Mini with one of the larger solvent pumps, so that the right model is available for every container size. We can advise on the right combination and on spare parts such as the delivery tube, PTFE hose or earthing cable.
KNF LABOPORT SR 820 G, vacuum pump system with 2 separator bottles, 20 l/min, ATEX marking category 3, 325236
For those who wish to collect liquids or condensate extracted in the laboratory directly at the system, rather than simply generating a vacuum, the KNF LABOPORT SR 820 G offers a complete vacuum pump system: a chemical-resistant diaphragm vacuum pump, a base plate and two separator bottles on the suction and discharge sides. With a flow rate of 20 l/min, it covers the moderate performance range of the SR series and is suitable for workstations where, in addition to a vacuum, the controlled collection of liquids and condensate is required. Two separator bottles on the suction and discharge sides The base plate supports two separator bottles (order number 047729), one on the suction side and one on the discharge side of the pump. Connection is via hose nipples with red GL screw caps (GL 14 or GL 18), a standard laboratory glass thread, so that the bottles can be changed easily. Two hose connectors (KNF designation Hose-BGR, order number 323044) are provided for connecting the bottles. Chemical-resistant materials in the parts in contact with the medium The pump head is made of TFM PTFE, the diaphragm is PTFE-coated, and the valves are made of FFPM. This combination of materials makes the system suitable for aggressive and corrosive media. The ultimate vacuum is a maximum of 6 mbar (abs.), and the operating pressure is a maximum of 0.1 bar (rel.). Explosion protection for the internal parts in contact with the medium, Category 3 The SR 820 G bears the ATEX marking (Ex) II 3/-G Ex h IIB+H2 T3 Gc and is therefore designed for conveying potentially explosive atmospheres. This marking refers exclusively to the internal, media-contacting area of the system, not to the installation environment. This is a lower ATEX equipment category than that of the standard LABOPORT N 820 G (Category 2), a system-related difference due to the additional separator bottles. Compact and mains-powered Measuring 282 x 234 x 260 mm (W x H x D) and weighing 10.7 kg, the system is compact enough for direct use on a laboratory bench. It is powered directly from the mains (100 to 240 V AC, 50/60 Hz) and requires no battery; its power consumption is 60 W. A thermal switch and mains fuse provide protection against overload, and the degree of protection is IP30. Permissible media and ambient temperatures range from +5 to +40 °C. Same size as N 820 G and SH 820 G The size 820 pump head is also listed by the manufacturer under reference number 313452, the same identification number used for the identical drive unit of the LABOPORT N 820 G and the SH 820 G system variant. Spare parts kit 331051 is available for the pump itself, whilst spare parts kit 331054 is available for the complete system. Installation and operation The SR 820 G is designed for installation on a laboratory bench and is operated via the base plate with connected separator bottles. Before initial commissioning, the hose connections on the suction and discharge sides should be checked to ensure they are secure. The maximum operating pressure of 0.1 bar (rel.) and the ultimate vacuum of 6 mbar (abs.) apply to the complete system, not just to the pump alone. Low-maintenance and oil-free Like the entire LABOPORT range, the SR 820 G operates completely oil-free; there is no need for regular oil changes, and there is no risk of oil mist entering the gases being pumped or the laboratory air. The red GL screw cap on the separator bottles makes it easy to empty or replace the bottles whilst the laboratory is in operation, without having to improvise separate collection vessels. This is a practical advantage over open collection solutions, particularly for quality assurance and research, where chemical resistance and a contamination-free vacuum source are required. Typical applications As a vacuum pump system with an integrated collection facility, the SR 820 G covers the following applications: Filtration Degassing Vacuum ovens Liquid aspiration Centrifugal concentration N, SR or SH: choosing the right configuration If a simple vacuum system without a collection vessel is sufficient, the more compact LABOPORT N 820 G is the simpler choice. If the priority is the recovery of solvents through condensation, the SH 820 G system variant, featuring a separator and high-performance condenser, is the more suitable option. For those requiring a higher flow rate, the SR 840 G with a flow rate of 34 l/min is available within the same series. Technical details Flow rate (max.)20 l/min (1.2 m³/h) Ultimate vacuum (max.)6 mbar (abs.) Operating pressure (max.)0.1 bar (rel.) Pump headTFM PTFE DiaphragmPTFE-coated ValvesFFPM Voltage100 to 240 V AC, 50/60 Hz Power P160 W Operating current0.35 A (240 V AC) / 0.66 A (100 V AC) Degree of protectionIP30 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)282 x 234 x 260 mm Weight10.7 kg Separator bottle2x, GL 14/GL 18 screw cap (order no. 047729) ATEX marking (internal areas in contact with the medium)(Ex) II 3/-G Ex h IIB+H2 T3 Gc Scope of delivery 1x KNF LABOPORT SR 820 G vacuum pump system (pump, base plate, 2 separator bottles) Individual requirements and procurement service A spare parts kit for the pump and a spare parts kit for the complete system are both available for the SR 820 G. If you have any questions regarding suitable accessories, spare parts or specific requirements relating to your KNF LABOPORT SR 820 G, our procurement service will be happy to assist you.

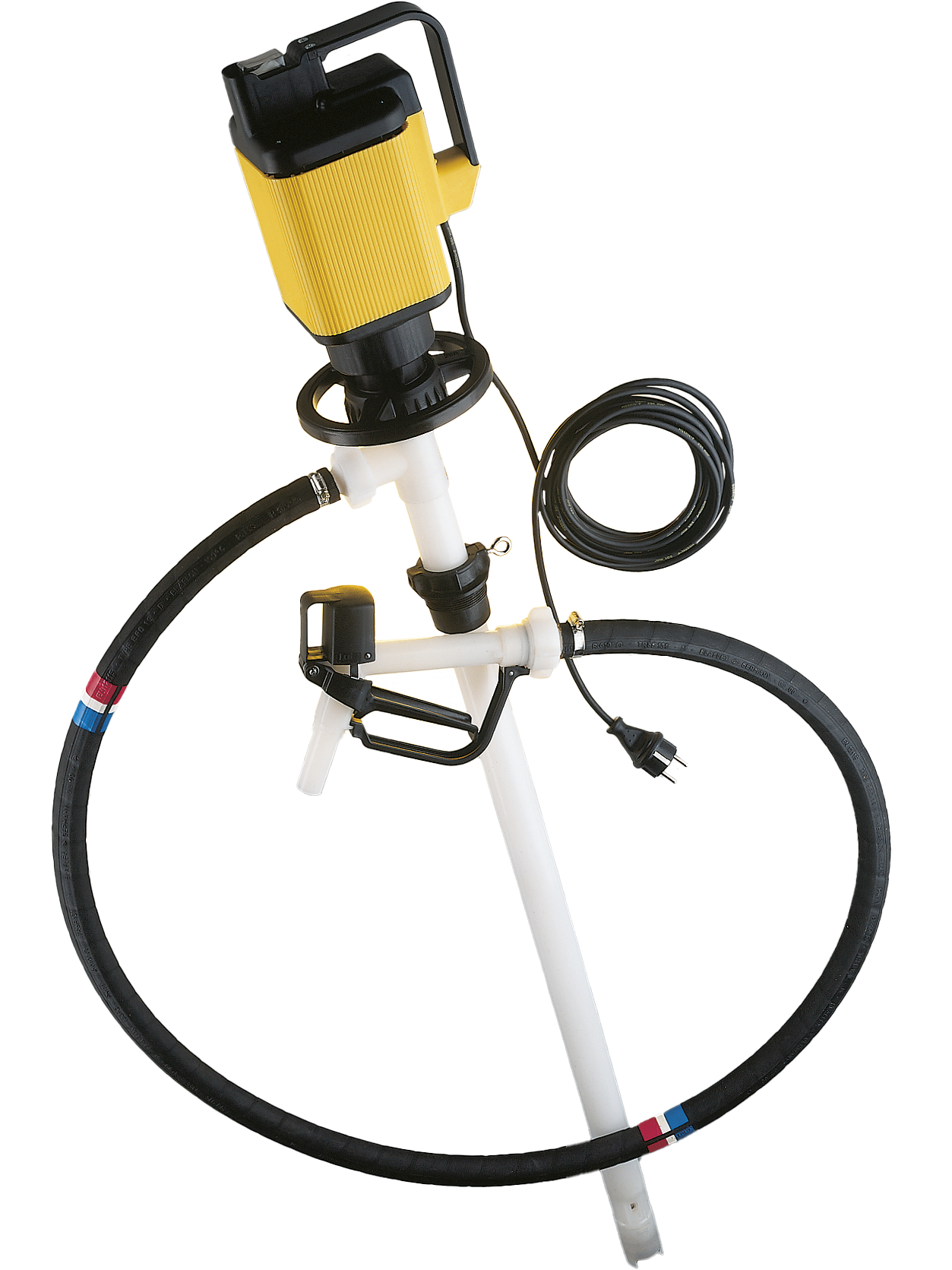

Bürkle, drum pump for concentrated acids/alkalis, 100 cm, 80 rpm, #5762-0200
Sulphuric acid, nitric acid, hydrofluoric acid and sodium hypochlorite corrode most plastics more severely than diluted acids. The drum pump for concentrated acids and alkalis is therefore built in the same way as the drum pump for acids and alkalis, but has a pump body made of PVDF rather than polypropylene. Two immersion depths, 100 and 120 centimetres, are suitable for standard drums of up to 220 litres.PVDF instead of polypropylene for highly corrosive mediaPolyvinylidene fluoride (PVDF) is more chemically resistant than polypropylene and makes the pump suitable for use with media that would, over time, corrode a pump made solely of PP. Bürkle cites sulphuric acid, nitric acid, hydrofluoric acid and sodium hypochlorite as typical applications. This version is also expressly unsuitable for hydrochloric acid; chemical resistance must be checked before use by referring to the manufacturer’s resistance list.Electric centrifugal pump with a slightly lower flow rateAt around 80 litres per minute, the flow rate is just below that of the PP version, which is 85 litres per minute; the difference is due to the PVDF pump body. The 2-metre-long outlet hose and the 41-millimetre-thick immersion tube are standard features of the drum pump range.Two immersion depths for standard drumsThe 100-centimetre version and the 120-centimetre version differ only in terms of immersion depth; all other technical specifications are identical for both. The immersion tube can be adjusted continuously to the actual depth of the drum.When the standard version is sufficientFor low-viscosity acids such as phosphoric acid, chromic acid or battery acid, where polypropylene offers sufficient chemical resistance, the drum pump for acids and alkalis is the more cost-effective choice, offering a slightly higher flow rate. The PVDF version is worthwhile where more concentrated or aggressive media are used.Thread and connectionLike the PP version, this pump also uses a G 1 1/4-inch thread for the drum connection, rather than the G 2-inch thread commonly found on other Bürkle drum pumps. Before ordering, it is therefore worth checking the existing drum connection so that the pump will fit without the need for an additional adapter. The yellow colour scheme is identical for both versions in the range and allows for quick visual differentiation from the other drum pump series on the shelf.Chemical protection for the workplace and staffConcentrated acids and sodium hypochlorite are among the media where a material failure in the pump can quickly pose a risk to staff and the surrounding area. The PVDF pump body reduces this risk compared with a PP version, but does not replace the standard personal protective equipment or the other requirements for handling the relevant hazardous substances in the workplace.Resistance list as the final checkEven within the group of highly corrosive acids and alkalis, there are differences in concentration which determine the actual material resistance. Before using a new medium for the first time, it is therefore advisable to consult the manufacturer’s resistance list to avoid misjudgements between acids that sound similar but differ in their chemical aggressiveness.Electric drive for continuous conveyingEven in the concentrated version, the centrifugal pump’s electric motor runs continuously as long as the fluid continues to flow, rather than delivering individual strokes as with a hand pump. This is particularly suitable for businesses that regularly transfer large quantities of a specific concentrated acid or alkali between drums and process vessels.Typical applicationsPumping highly corrosive acids such as sulphuric, nitric or hydrofluoric acidDecanting sodium hypochlorite and similarly corrosive alkalisLarger transfer volumes from standard drums of up to 220 litresOperations in which polypropylene is not chemically suitable as a pump materialTechnical detailsConnection typeDrum screw connectionThreadG 1 1/4 inch, external threadFlow rate approx.80 l/minViscosity up to approx.500 mPa·sImmersion tube diameter41 mmColouryellowLength of the outlet hose2 mFor containers up toapprox. 220 lDrive typeelectricPump typeCentrifugal pumpImmersion depth adjustmentcontinuously adjustableMaterialPolyvinylidene fluoride (PVDF), polypropylene (PP)Overview of variantsItem numberMaximum immersion depth5762-0200100 cm5762-0201120 cmScope of deliveryDrum pump for concentrated acids/alkalis at the selected immersion depthRegulatory informationThe drum pump for concentrated acids and alkalis is an electrical appliance within the meaning of the ElektroG. Information on returns can be found under ‘Environment and Disposal’.Service and procurementFor low-viscosity, less corrosive acids, the drum pump for acids and alkalis with a PP pump body is often sufficient. For smaller quantities where there is no mains power supply, the Ultrarein PTFE drum pump is a hand-operated alternative. We order both immersion depths separately and can advise on the selection based on the medium to be transferred.
IKA VACSTAR control Diaphragm Vacuum Pump with Integrated Controller, 22 l/min, 0020109375
The IKA VACSTAR control is a dry, oil-free 4-chamber diaphragm vacuum pump with a factory-integrated vacuum controller. Anyone who has so far operated a separate pump and an additional vacuum controller side by side saves bench space and wiring effort with this 1:1 concept: the control electronics are already in the pump housing, and it is operated via a detachable display that can also be read and operated directly at the fume hood. For recurring distillation routines, for example on a rotary evaporator in routine operation, the separate wiring and configuration of an external controller for each setup is no longer necessary, which makes it easier to switch between several workstations in the laboratory. Integrated controller instead of a separate vacuum regulator The pumping capacity of 22 l/min (1.32 m³/h) and an ultimate vacuum of 2 mbar reliably cover typical tasks such as rotary evaporators, drying ovens or vacuum filtrations. The speed range extends from 285 to 1,200 revolutions per minute, regulated by a ceramic Al2O3 vacuum sensor. Unlike with a plain diaphragm pump, the question of which external controller is suitable no longer arises, because the pump and control unit are already matched to each other. WiCo remote control for operation under the fume hood The TFT display of the WiCo remote control can be detached from the pump and placed separately, for example directly at the fume hood window, while the pump itself stands underneath or beside it and therefore does not have to be operated constantly through the front window. Several operating modes can be selected via the menu: automatic operation with boiling point detection and a stored solvent library, manual operation at a fixed speed, and separate pump-down and cleaning functions. The automatic boiling point detection helps to avoid bumping and to protect samples from loss through pumping down too quickly, especially with low-boiling solvents. Chemically resistant and designed for continuous operation The PTFE diaphragms and chemically resistant materials in the media path make the VACSTAR control robust against aggressive solvent vapours. An integrated valve cleaning function removes solvent residues from the system and thereby extends the service life of the diaphragms, without the pump having to be dismantled for manual cleaning. For the protection of laboratory air and the environment, the VSE 1 emission condenser can be connected afterwards, so that solvent vapours do not enter the room air unfiltered. As the pump works as a dry-running pump, oil changes are also eliminated, and with them the risk of oil vapours coming into contact with the sample. Connection and format for fixed laboratory workstations With dimensions of 270 x 435 x 500 millimetres and a weight of 14 kilograms, the VACSTAR control is designed for a fixed place at the workstation, for example directly under the fume hood bench, rather than for frequent transport between workstations. Data connection is via USB and RS232, for example for process documentation with laboratory software. The housing is classified IP 20, the device power consumption is 140 watts in operation and 1.5 watts in standby, and the pump is connected to 100 to 240 volts at 50 or 60 hertz. Reproducible processes thanks to automatic boiling point detection The stored solvent library automatically recognises common solvents from their boiling behaviour and adjusts the vacuum accordingly, instead of the target speed having to be readjusted manually. This reduces the variation between individual distillations and makes it easier to hand a process over to changing laboratory staff, because the parameters can be documented and repeated on the device. In combination with the USB or RS232 connection to laboratory software, the complete course of the process can also be logged, which means a noticeable time saving compared with a manually kept process file, especially in quality-assured environments with batch documentation. Typical applications As a 1:1 vacuum solution with integrated controller, the VACSTAR control is particularly suitable for the following applications: Automated distillations on the rotary evaporator with boiling point detection, also with changing solvents Vacuum drying in drying ovens with reproducible, documented process parameters Vacuum filtration where documented, repeatable process control is also required Laboratory workstations with limited space where a separate vacuum controller does not fit Process documentation via USB or RS232 in quality-assured laboratory environments Fixed vacuum workstations where several users are to run the same process reproducibly Technical details Pump type4-chamber diaphragm vacuum pump, dry, with integrated controllerPumping speed max.22 l/min (1.32 m³/h)Ultimate pressure2 mbarInlet pressure1 to 1,030 mbarSpeed range285 to 1,200 rpmNumber of cylinders4Connection diameter suction/pressure side8 mmVacuum sensorCeramic (Al2O3)Controller / operationIntegrated, detachable WiCo display with touch operationOperating modesAutomatic with boiling point detection, manual operation, pump-down and cleaning functionInterfacesUSB, RS232Degree of protection according to DIN EN 60529IP 20Dimensions (W x H x D)270 x 435 x 500 mmWeight14 kgVoltage / frequency100 to 240 V, 50/60 HzDevice power consumption140 W (standby 1.5 W) Scope of delivery 1 x IKA VACSTAR control Vacuum Pump with Integrated Controller 1 x WiCo remote control WH11 (detachable control unit) 1 x power supply OS 1.0 for the WiCo remote control 1 x power cord (according to the IKA instructions) 1 x vacuum hose (1 m) 1 x USB cable (USB-A to Micro-B, 2 m) 1 x USB cable (USB-A to USB-B) 1 x screwdriver WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service For additional protection of laboratory air and the environment, the VSE 1 emission condenser can be retrofitted, as can a Woulff bottle to protect the pump from liquid surges or suitable connecting hoses for your rotary evaporator. For technical advice, please contact our procurement service.

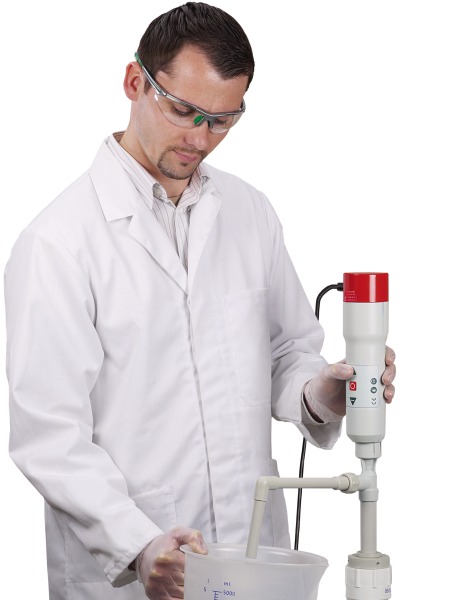

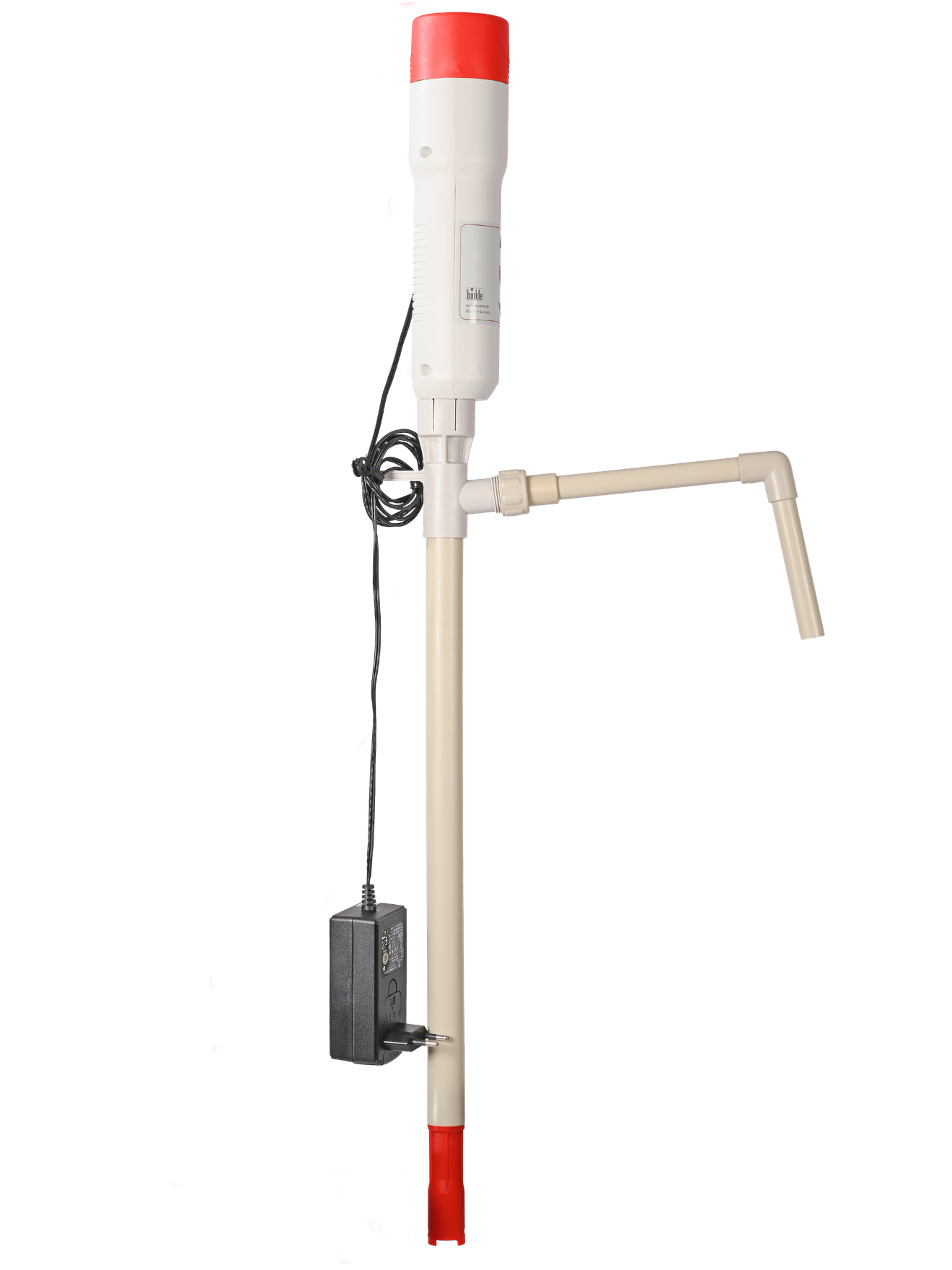

Bürkle, EnergyOne mains-powered drum pump with spout, 50 cm, #5900-2050
At a fixed dispensing station, where small quantities of cleaning agent or diluted acid are repeatedly drawn from canisters throughout the day, one thing is paramount: the pump must not stop because the battery is flat. The EnergyOne is the mains-powered version of the centrifugal pump for small quantities; it is connected via a 230 V power supply unit and is ready for continuous use without any charging time.Mains operation without charging breaksThe power supply is provided by a 230 V power supply unit. Three international plug adaptors are included (plug types EU, UK, US and AU), so that the pump is ready for immediate use even in locations with different plug types. There is no charging time whatsoever, unlike with the battery-powered model; the pump runs as long as it is connected to the mains.When mains operation is worthwhileWhen used at a fixed workstation with a power socket within easy reach, the EnergyOne means you never have to worry about the battery level. Particularly when carrying out frequent, closely spaced filling operations throughout the day, this makes the process much smoother than having to change the battery in between.Same drive system as on the AccuOneThe EnergyOne’s pump unit and drive system are identical in design to those of the battery-operated AccuOne; the power supply unit and battery can be swapped between the two devices. If you need to use the pump in different locations without a mains socket, for example, in another part of the building, you are better off with the AccuOne.Performance data for small quantitiesAs with the AccuOne, the flow rate ranges from 0 to around 12 l/min at a head of approximately 4 m water column. The 25 mm diameter immersion tube can be adjusted continuously, whilst the outlet elbow has an external diameter of 16 mm and a length of 203 mm. The pump is suitable for low-viscosity to aqueous acids, alkalis, chemicals and cleaning agents up to approximately 200 mPa·s.Materials for corrosive mediaAs with the AccuOne, the parts in contact with the medium are made of polypropylene (PP), polytetrafluoroethylene (PTFE) and Hastelloy 2.4610 (AISI Alloy C-4). The IP 20 protection rating is designed for indoor use.Three immersion depths for different containersFor containers up to around 30 litres, the model with a 50 cm immersion depth is sufficient. For containers up to around 60 litres, the 70 cm model is suitable, whilst for drums up to around 220 litres, the 100 cm model is suitable.A fixed place at the filling stationAs there is no need to change or charge a battery, the EnergyOne is particularly well suited to a fixed installation at a filling or dosing station where the pump is used several times a day. The international plug adaptors make installation straightforward even at sites outside Germany.Scope of delivery and connectionThe scope of delivery includes the pump unit, drive, power supply unit with plug, three plug adaptors and the fixed outlet elbow. Once plugged into the mains, the pump is ready for use without any further preparation; there is no need to charge or replace a battery.Degree of protection and operating environmentThe IP 20 protection rating indicates that the pump is designed for indoor use, without any special protection against water jets or dust from outside. This is sufficient for use in warehouses and laboratories with a normal indoor environment.Typical applicationsFixed filling and dosing stations with a permanent mains connectionDecanting and transferring small quantities of acids, alkalis, chemicals and cleaning agentsLocations abroad thanks to international plug adaptorsSmall quantities in laboratory settingsTechnical detailsPump typeCentrifugal pumpDrive typeElectric (mains), 230 VFlow rate0 to 12 l/minHead approx.4 m water columnViscosity up to approx.200 mPa·sImmersion tube diameter25 mm, infinitely adjustableOutlet typeOutlet elbow, 203 mm, external diameter 16 mmPlugEU, UK, US, AUDegree of protectionIP 20Materials (in contact with media)Polypropylene (PP), polytetrafluoroethylene (PTFE), Hastelloy 2.4610ColourgreyOverview of variantsItem numberMaximum immersion depthFor containers up to5900-205050 cmapprox. 30 litres5900-207070 cmapprox. 60 litres5900-2100100 cmapprox. 220 litresScope of deliveryPump unitDrivePower supply unit with plug3x plug adaptorsFixed outlet elbowRegulatory informationThe EnergyOne is an electrical appliance within the meaning of the ElektroG. Information on returning old appliances can be found under ‘Environment and Disposal’.Service and procurementThe suitable immersion depth depends on the height of the container at the specific location, not solely on the container’s volume. We order all three models individually and, if required, can also recommend the battery-powered AccuOne or, for higher flow rates, the mains-powered laboratory pump as an alternative. Our team will be happy to help with any queries regarding a suitable pump for your specific medium.

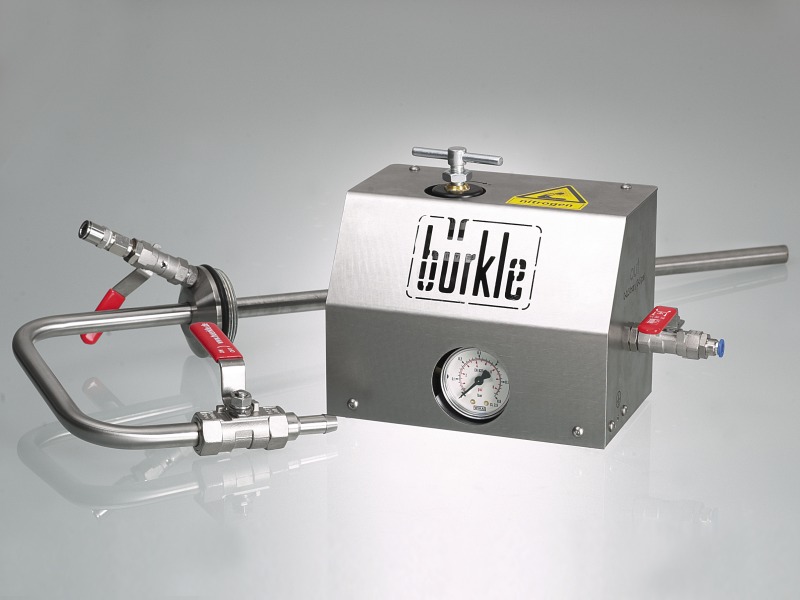

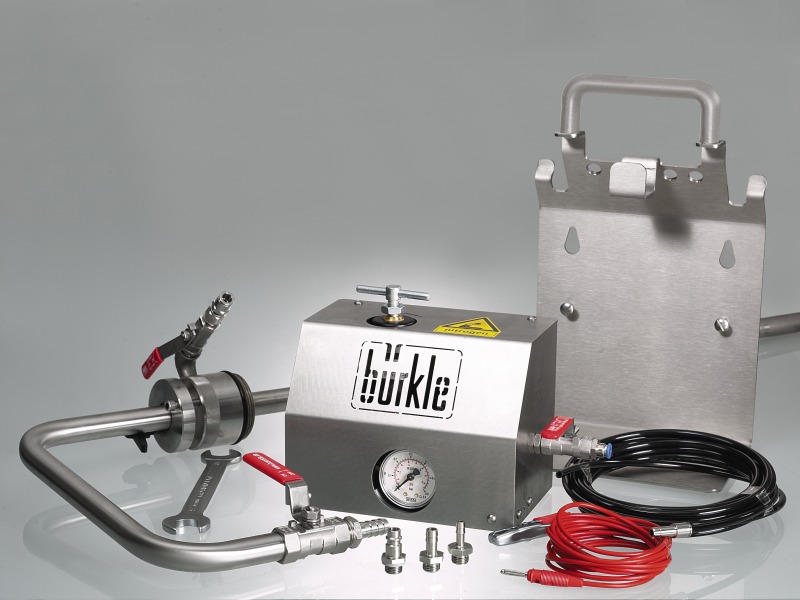

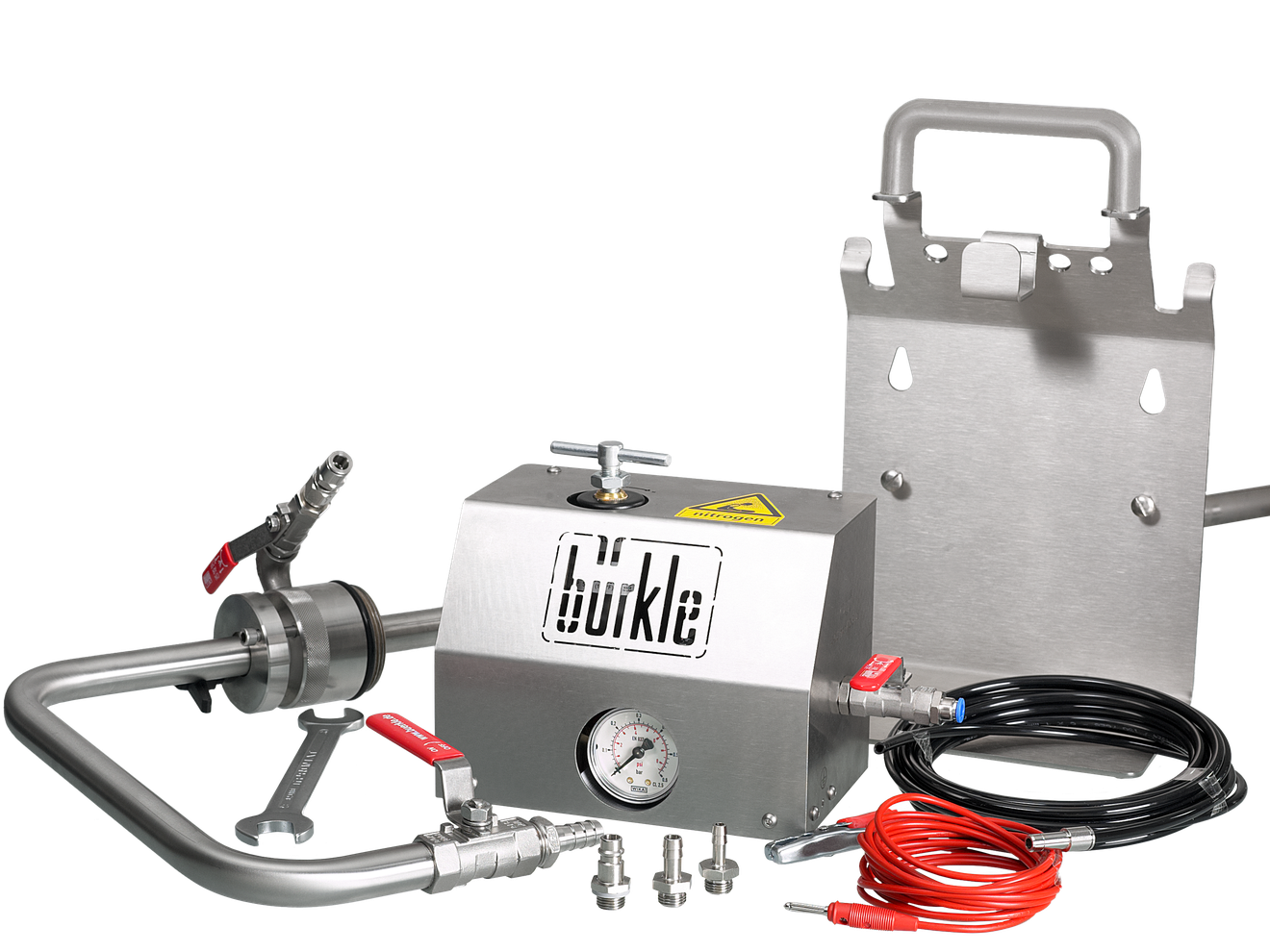

Bürkle, dispensing system for solvent outlet elbow, 60 cm, #5603-5001
To transfer solvents from a steel drum or canister, a system is required that does not involve handling the liquid in the open. The solvent dispensing system with an outlet elbow operates using compressed air or an inert gas such as nitrogen. The gas pressure forces the liquid upwards through the dip tube and through the fixed outlet elbow into the receiving container. Two immersion depths, 60 and 95 centimetres, cater for canisters and standard drums up to 220 litres.Compressed air or inert gas instead of a motorInstead of an electric or manually operated drive, the system uses pure compressed air or an inert gas. This also makes it suitable for high-purity liquids, where a motor-driven pump would be undesirable. A supplied pressure regulator adjusts the delivery pressure; the flow rate is around 10 litres per minute, and the viscosity of the medium may be up to approximately 500 mPa·s. Three adaptors for the pressure supply (G 1/4 inch) included in the scope of delivery cater for different compressors and gas cylinders.Fixed outlet elbow for a fixed workstationThe outlet elbow is rigidly mounted and is suitable when the receiving container is positioned directly beneath or next to the drum, for example when filling laboratory bottles at a fixed workstation. According to Bürkle, the outlet elbow and outlet hose are interchangeable, meaning that the same basic system can be retrofitted with a flexible hose if required.Two immersion depths for different container sizesThe 60-centimetre version is designed for canisters and smaller drums up to approximately 60 litres; the dip tube has a diameter of 15 millimetres. The 95-centimetre version, with a 21-millimetre immersion tube diameter, is suitable for standard 220-litre drums. In both cases, the immersion tube can be continuously adjusted to the actual drum depth, so that it does not rest on the drum base and that the final residual quantity can still be reached.Safety when handling flammable solventsBürkle expressly points out that the pump and pressure regulator must be earthed and that an anti-static kit must also be used when decanting flammable or highly flammable solvents. The system can be used with UN containers and drums with a test pressure of at least 150 kPa. An earthing cable for the pressure regulator unit is included in the scope of delivery, as is a transport stand that keeps the system stable even when not positioned directly next to the drum.Compact system with accessories for mobile useThe transport stand supplied holds the pressure regulator unit and connecting hose together when the system is moved between different drums or workstations. Two protective plugs seal the connections during transport or when the system is not in use, preventing any medium from dripping out or dirt from entering. Bürkle also labels the system with a pictogram indicating suitability for food contact, without specifically referring to a particular standard such as (EC) No 1935/2004. It is therefore advisable to consult the manufacturer for final approval in food-contact applications.Typical applicationsDecanting solvents from drums and canisters into smaller containersDirect dispensing at the point of use in laboratories or chemical productionFilling of high-purity liquids without a motorised pumpAccording to Bürkle, use with UN containers and drums from a test pressure of 150 kPaTechnical detailsConnection typeDrum screw connectionThreadG 2 inch, external threadFlow rate approx.10 l/minViscosity up to approx.500 mPa·sOutlet typeElbow outletDrive typepneumatic (compressed air or inert gas)Pump typeOverpressure pumpAdjust immersion depthInfinitely adjustableMaterialV2A stainless steel (1.4301), PTFE inner parts of the immersion tubeOverview of variantsItem numberMax. immersion depthFor vessels up toImmersion tube ØLength of outlet elbowOuter outlet diameter5603-500160 cmapprox. 60 l15 mm185 mm12 mm5603-500395 cmapprox. 220 l21 mm280 mm13 mmScope of deliverySolvent dispensing system with outlet elbowPressure regulator unitTransport stand2x protective plugsEarthing cable for pressure regulatorConnecting hoseKey for pressure supply3x pressure supply adaptors (G 1/4 inch)Service and procurementThe appropriate immersion depth depends on the drum size at the workplace. For smaller canisters up to 10 litres with a GL45 connection, the Mini solvent pump is often the more practical choice; for simple manual operation without a compressed air connection, the hand pump for solvents is the more practical choice. When dealing with particularly pure media in a manually operated version, the Ultrarein PTFE drum pump is more suitable. We order both versions of the dispensing system individually and can advise on selecting the appropriate immersion depth and pressure supply.

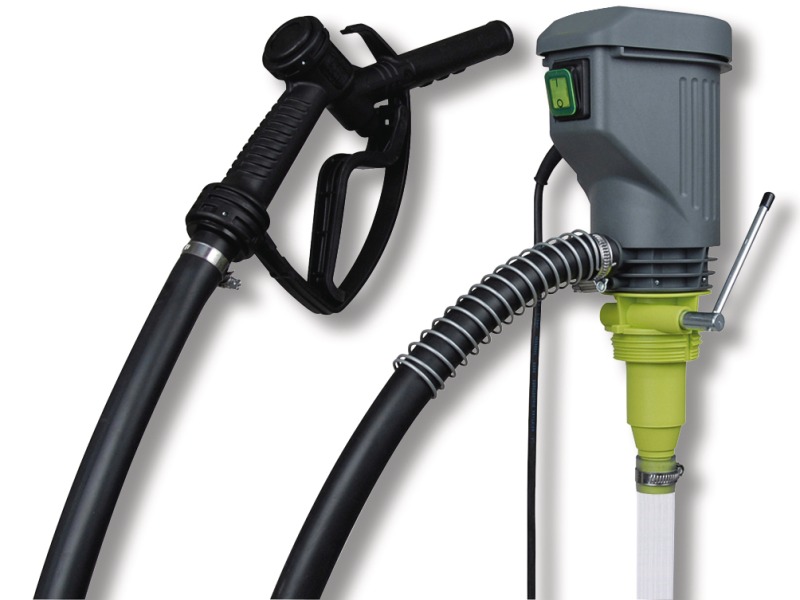

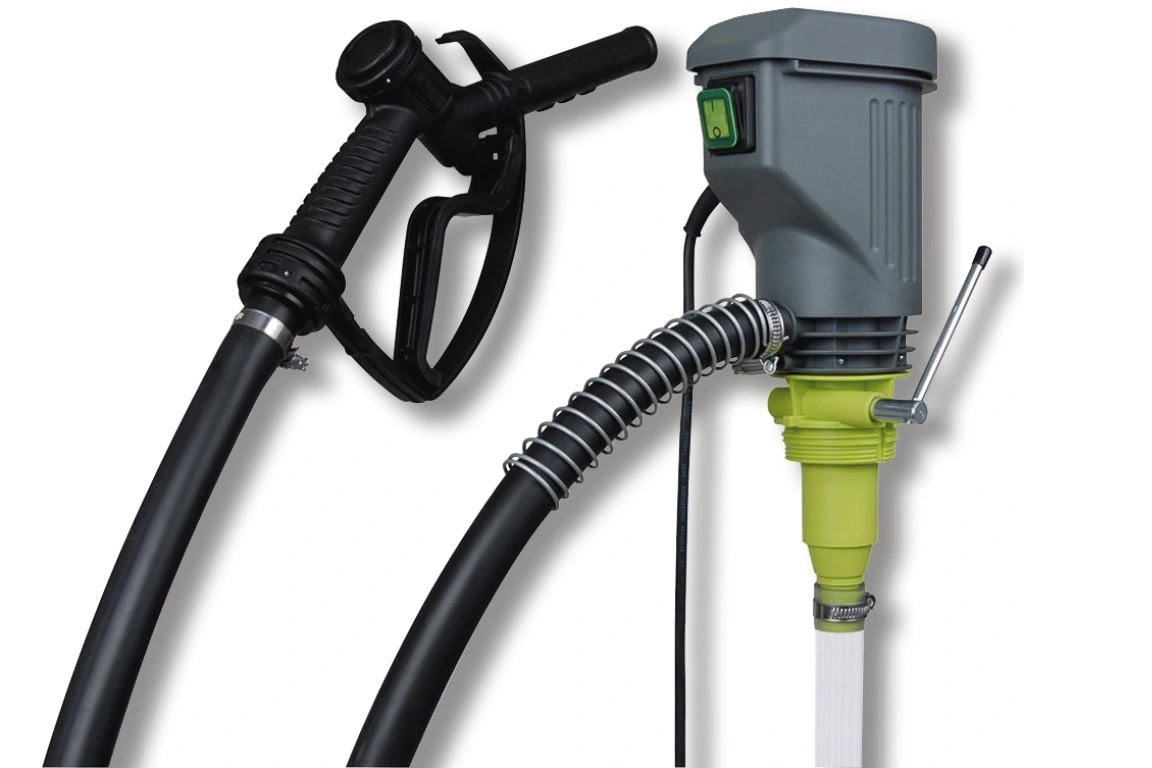

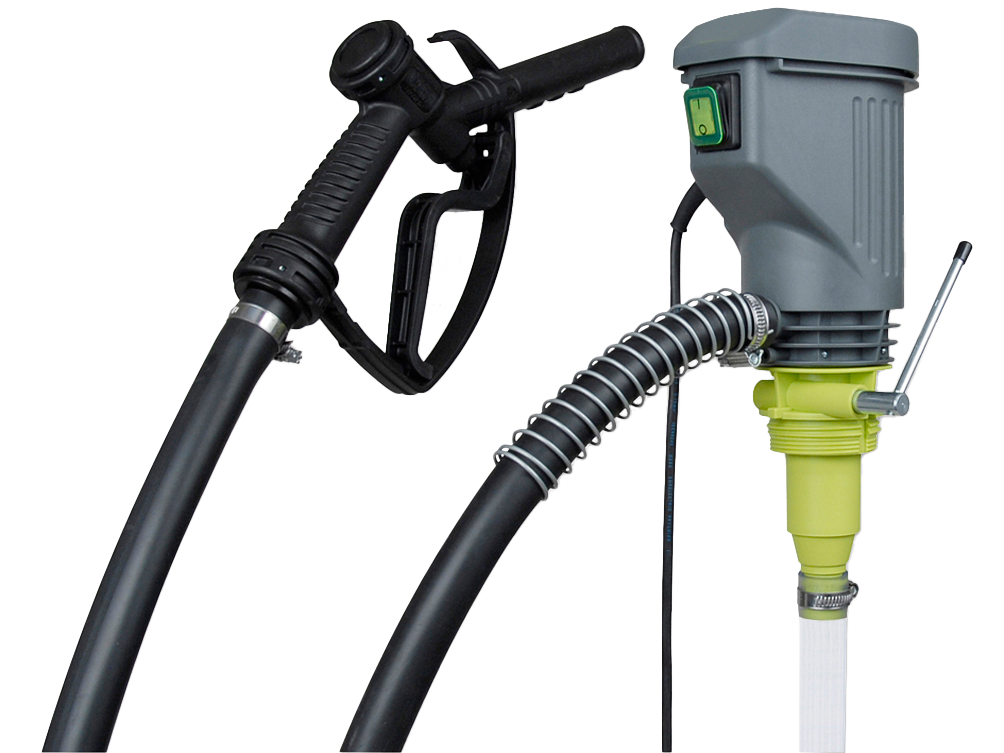

Bürkle, Petro electric drum pump, with standard dispensing nozzle, #5780-0040
A depot that regularly transfers diesel from a drum of up to 220 litres into vehicles or EL heating oil into a tank needs a pump that does not have to be operated manually every time it is used. The Petro electric drum pump does exactly that: it dispenses diesel, EL heating oil, undiluted radiator antifreeze and other liquids with a high flash point via a dispensing nozzle, powered by a 230 V mains supply.Anti-siphon protection against leaksAn integrated anti-siphon protection system stops the flow if the hose is damaged or comes away, thereby preventing fuel from leaking uncontrollably. This is an essential safety feature for day-to-day use on vehicles and machinery.Standard or automatic fuel nozzleThe pump is available with two types of fuel nozzle. The standard fuel nozzle is switched off manually and delivers a flow rate of around 38 l/min. The self-shutting automatic nozzle stops automatically as soon as the target tank is full, making it practical for frequent refuelling without constant supervision, and has a flow rate of around 32 l/min. Which variant is more suitable depends on whether one person is supervising the refuelling process throughout or is carrying out other tasks at the same time.Range and connectivityWith an immersion depth of 160 cm, the pump can reach the bottom of a 220-litre drum. The 4-metre-long outlet hose bridges the distance to the receiving container, whilst the suction lift is approximately 2 m water column. The connection is made via an M 64x4 external thread, suitable for standard drum openings.Not suitable for liquids containing waterThe pump is expressly not suitable for liquids containing water or diluted liquids. Anyone who needs to transfer aqueous media as well as fuels will require a second, suitable pump unit for this purpose.Flow meter as an accessoryFor businesses wishing to record the quantities dispensed, an electronic flow meter with a totaliser and calibration function is available as an accessory. The meter is not verified and is therefore suitable for internal quantity monitoring, but not for billing subject to mandatory verification.Use in day-to-day workshop operationsWhether refuelling construction machinery in the yard, topping up EL heating oil in the fuel storage room or decanting radiator antifreeze in the workshop: The pump remains mounted on its stand and is immediately ready for use via the nozzle, without having to fetch a device for every task.Electric drive instead of a pump handleCompared with a hand-operated pump, the electric drive eliminates the need for repeated manual pumping, which makes a noticeable difference, particularly when refuelling several times a day. The operator simply holds the fuel nozzle; the pump itself handles the flow via the electric motor.Threaded connection instead of a hose connectionThe connection via the M 64x4 external thread sits securely on the drum and prevents it from slipping during operation, unlike a simple push-fit connection. The thread is compatible with standard drums, such as those commonly used for diesel and EL heating oil.Limitations of the scope of applicationThis pump is suitable for fuels and mineral oils, but is expressly not suitable for acids, alkalis or other chemicals. Anyone transferring both types of fluid in the same facility will need two separate pumps so that no residual fluid from one application enters the other.Typical applicationsRefuelling vehicles and machinery with diesel from the storage drumTransferring EL heating oil into tanksPumping of undiluted radiator antifreezeDepots, workshops and warehouses with regular fuel handlingTechnical detailsPump typeCentrifugal pumpDrive typeelectric, 230 VMaximum immersion depth160 cmLength of the outlet hose4 mSuction lift approx.2 m water columnConnection typeThread, M 64x4 external threadFor containers up toapprox. 220 litresColourgreyOverview of variantsItem numberDispensing nozzleFlow rate approx.5780-0040Standard (manual)38 l/min5780-0041Automatic (self-shutting)32 l/minScope of deliveryPetro electric drum pump with the selected dispensing nozzleThe electronic flow meter is not included in the scope of delivery and must be ordered separately.Regulatory informationThe Petro electric drum pump is an electrical appliance within the meaning of the ElektroG. Information on returning old appliances can be found under ‘Environment and Disposal’.Service and procurementWhich fuel nozzle is best suited to a particular application depends on the workflow at the workplace: if one person is in charge of monitoring the process at all times, this speaks for the standard fuel nozzle; if the team changes frequently, the automatic version is more suitable. We order both models individually, along with the appropriate flow meter, and can also discuss alternatives if required, such as the electric drum pump for mineral oils or the mains-powered laboratory pump for acids and alkalis. If you have any queries about which pump is suitable for your specific medium, our team will be happy to help.

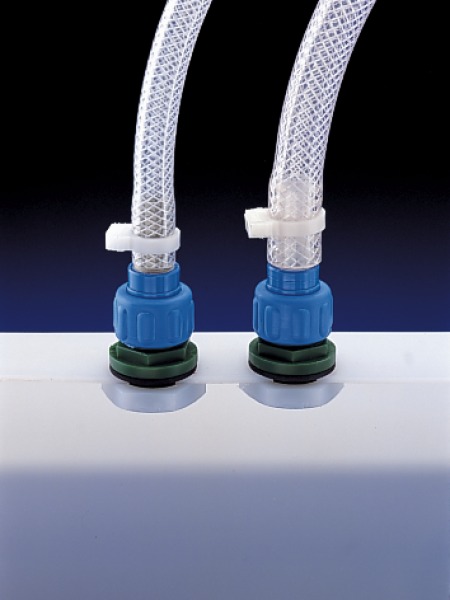

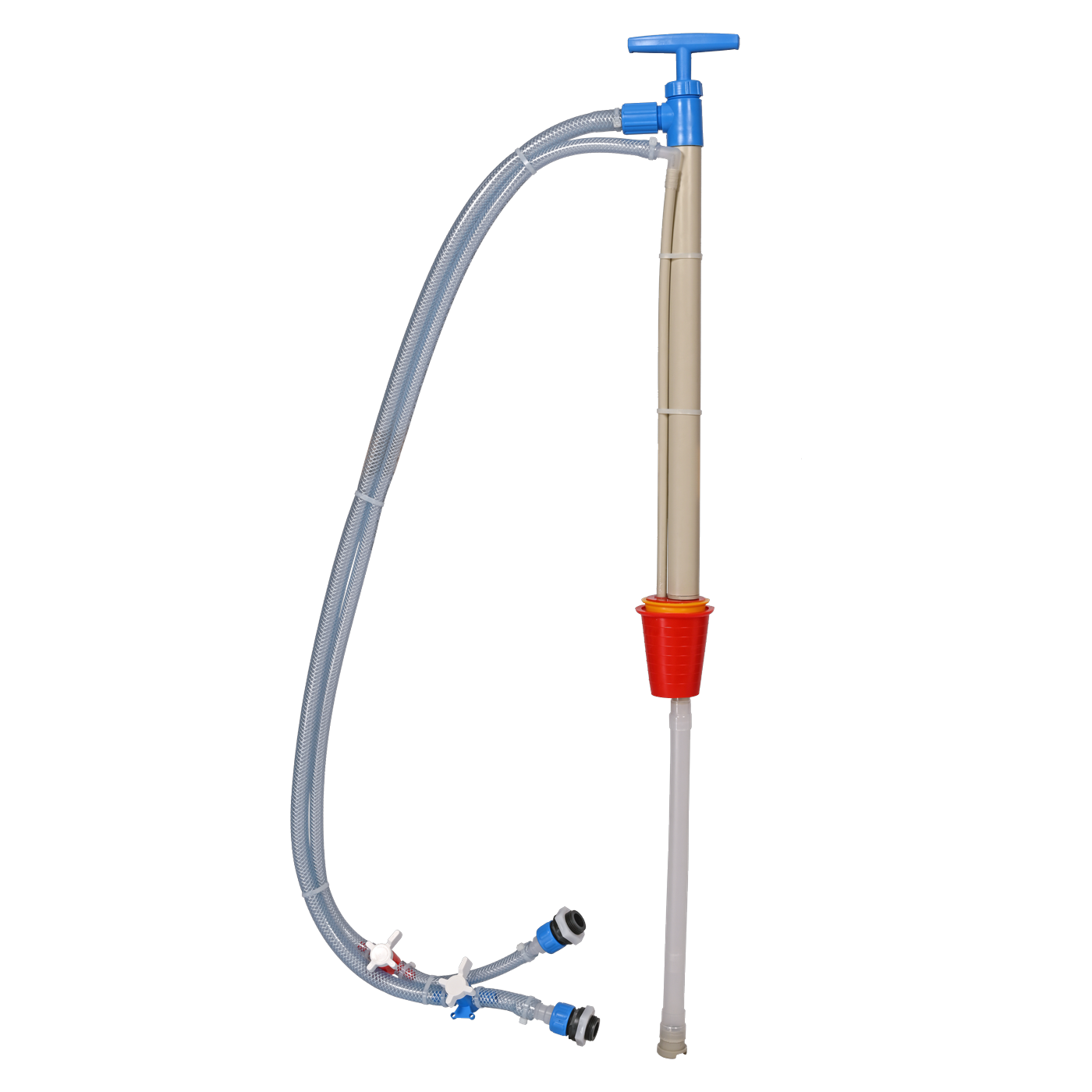

Bürkle Gas-tight PP Drum Pump, 2 Threaded Adaptors 3/4 Inch, Telescopic Dip Tube 40 to 67 cm, 5610-1040
Two 3/4-inch threaded adaptors with lock nuts distinguish the Bürkle 5610-1040 drum pump from its sister model: the hose connection on the dispensing container is securely screwed in place. The pump itself is a hand-operated reciprocating piston pump made of PP with a gas balancing line, which delivers 220 ml per stroke. The telescopic tube extends continuously to a depth of between 40 and 67 cm into the container, and the outlet hose is 1.2 m long.Tightly screwed connection with 3/4-inch adaptorsThe adaptors with lock nuts are designed for openings from 28 mm; a universal plug for openings from 34 to 70 mm is included for the original container. This variant is useful if you do not want the hose connection on the container to consist of a plug. Those who prefer the flexibility to switch between different opening sizes should take a look at the 5610-1030 drum pump with a variable universal plug.Gas and liquid linesGas return takes place via the gas balancing line; the gas and liquid lines each have a shut-off valve. Bürkle intends the pump for the low-odour transfer of volatile, strong-smelling or harmful liquids, such as strong-smelling substances like ammonia, as well as acids and alkalis. For acids and alkalis, the resistance of the materials PP, PE and PVC is crucial; the outlet hose is made of soft PVC.Displacement volume and dip tubeThe pump dispenses 220 ml per stroke. The dip tube has a diameter of 32 mm, whilst the tube above it is 22 mm in diameter. As the telescopic tube can be extended continuously from 40 to 67 cm, the pump is suitable for drums and canisters of various heights. The handle is attached to the piston.Not suitable for flammable liquidsThe instructions for use explicitly exclude the filling of flammable liquids. The material is non-conductive. For handling acids, alkalis or liquids harmful to health, the SafetyBox 2507-9000 from Bürkle is available, complete with safety goggles and protective gloves.Operating limitationsPumping is carried out manually; continuous operation is not intended. The permissible temperature range is 0 to 40 °C, and the unit is for indoor use only. Contaminated media are excluded, and the pump is not dishwasher-safe. When the piston is extended, it requires space above the container plus 20 cm. No maintenance is required.Typical applicationsThe 5610-1040 is suitable for tasks where the filling container is connected via a screw-on hose connection:Decanting strong-smelling substances such as ammoniaFilling volatile or harmful liquids in laboratories, production facilities and warehousesAcids and alkalis from drums and canisters, provided PP, PE and PVC are resistantFirmly screwed hose connection to the filling container (3/4 inch)Technical detailsConnection optionsTwo 3/4-inch threaded adaptors with lock nuts for the filling container (openings from 28 mm), universal plug 34 to 70 mm for the original containerPump typeReciprocating piston pump, hand-operated, not suitable for continuous useFlow rate220 ml per strokeTube diameter22 mmImmersion tube diameter32 mmImmersion depth40 to 67 cm, infinitely adjustableOutlet1.2 m outlet hose with shut-off valveGas returnGas balancing line, gas and liquid lines, each with a shut-off valveMaterialsPP, PE, PVCColourgrey/blueOperating temperature0 to 40 °CLimitationsNot suitable for flammable liquids, for indoor use only, not suitable for contaminated media, not dishwasher-safePackaging unit1 pieceScope of deliveryGas-tight PP drum pump with infinitely extendable telescopic dip tube (40 to 67 cm) and reciprocating piston with handle1.2 m outlet hose with shut-off valveGas balancing line with shut-off valvePlug for the original containerTwo 3/4-inch threaded adaptors with lock nuts for the dispensing containerInstructions for useFrequently asked questionsIs the pump approved for use with flammable liquids?No. The operating instructions expressly exclude flammable liquids.What size openings do the adapters require?The 3/4-inch threaded adapters are designed for openings of 28 mm or larger.Can I use the pump with containers that have different immersion depths?The telescopic tube can be extended continuously from 40 to 67 cm.Is there a version with a universal plug?Yes, the 5610-1030 features a variable universal plug for openings from 34 to 70 mm instead of the threaded adaptors.Individual requirements and procurement serviceThe SafetyBox 2507-9000, complete with safety goggles and protective gloves, goes with this pump. If a different connection would be better suited to your container, we can clarify this via our procurement service. You can also enquire about drum fittings and other Bürkle accessories through this service. The opening width of the filling container and the thread size will help you make your selection.

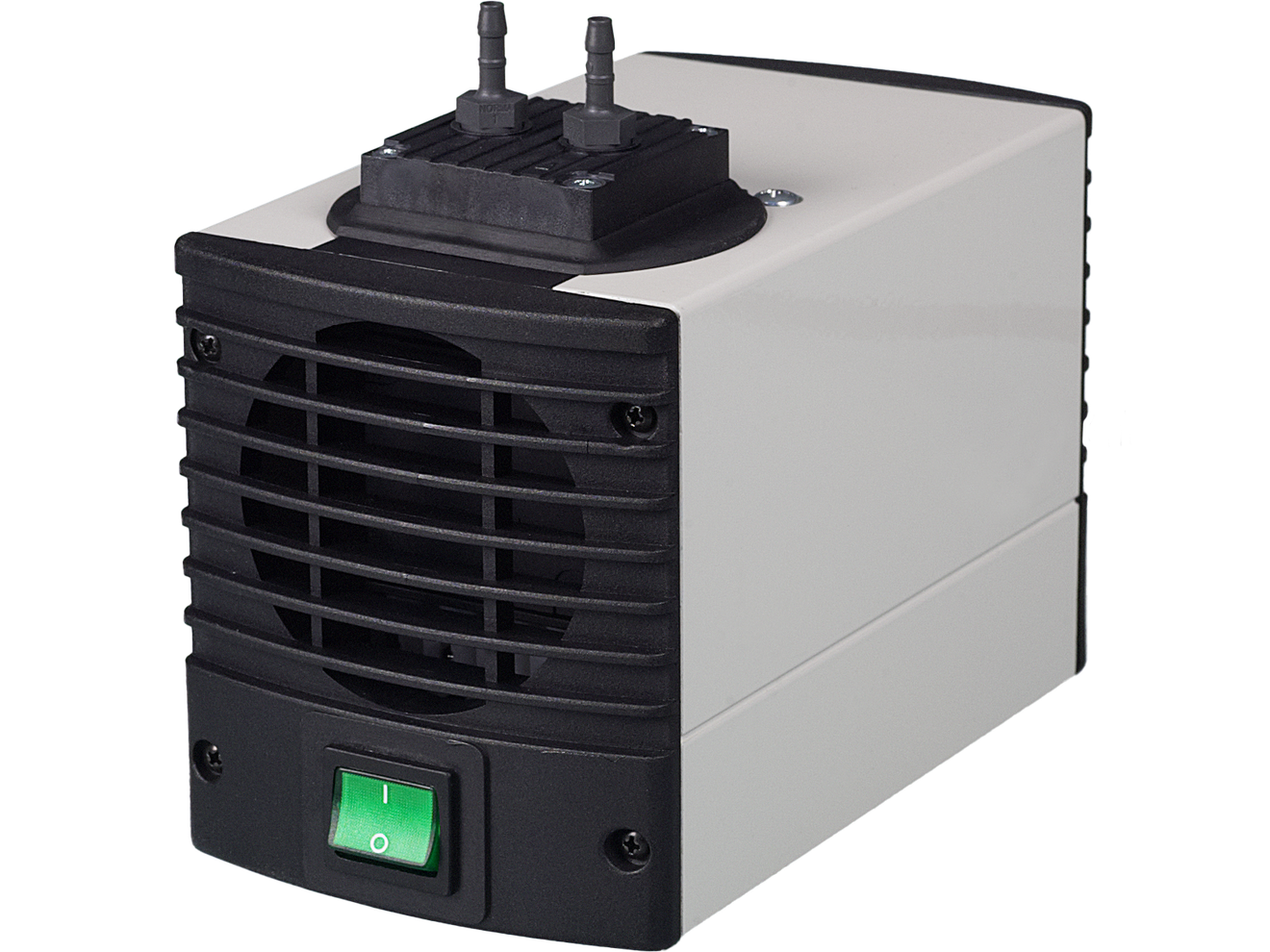

Bürkle, AirJet Mini diaphragm vacuum pump/compressor, EPDM, #5625-2000
A laboratory that requires a brief period of negative pressure for filtration, followed shortly afterwards by some overpressure for a small dosing line, often relies on two separate units. The AirJet Mini handles both tasks with a single, compact diaphragm pump. It pumps, compresses and evacuates completely oil-free, without altering or contaminating the pumped medium.Dry-running and oil-freeThe diaphragm operates dry; there is no oil bath whatsoever, unlike in conventional rotary vane pumps. As a result, the air or gas being pumped does not pick up any traces of oil, and the pump itself does not require an oil change. The housing is made of polyphenylene sulphide (PPS), a chemically resistant high-performance plastic that remains stable even with frequent contact with neutral to slightly aggressive gases and vapours.Vacuum pump and compressor in a single unitThe AirJet Mini operates as a vacuum pump or as a compressor. Via the suction side, it evacuates containers or filtration set-ups; via the discharge side, it delivers and compresses air or gas for dosing and purging tasks. A second unit for the other function is not required.Two diaphragm materials for different mediaThe diaphragm is available in two versions. The version with an EPDM diaphragm is intended for general use with neutral gases and vapours; it has a flow rate of around 6 l/min. The PTFE-coated diaphragm is suitable for slightly aggressive or corrosive gases and vapours; its flow rate is slightly lower at around 5 l/min. The appropriate version depends on the medium being handled, not on the required flow rate.Compact design for the laboratory workbenchMeasuring 164 mm in length, 90 mm in width and 141 mm in height, the AirJet Mini can still find a place even on a crowded laboratory workbench. It is connected via a 4 mm hose nozzle, compatible with standard laboratory hose materials.Low-maintenance operationAs no oil is involved, the typical maintenance steps required for an oil-lubricated pump are eliminated: no oil changes, no checking of the oil level, and no disposal of waste oil. This significantly reduces maintenance requirements over the pump’s service life, particularly when the pump switches between vacuum and pressure operation several times a day.What tasks is the AirJet Mini suitable for?It is typically used wherever small volumes of air or gas need to be moved without oil or other contaminants entering the system. This applies equally to evacuating a desiccator as it does to aerating a dosing line, where a clean, dry medium is essential.Selecting the right diaphragmFor neutral gases and vapours, the EPDM diaphragm is the obvious choice, as it covers most standard applications. Where slightly aggressive or corrosive gases and vapours are involved, for example near chemical storage areas or during cleaning processes, the PTFE-coated diaphragm is the more resistant option. Where in doubt, the deciding factor is chemical resistance to the specific medium, not the slight difference in flow rate between the two versions.Connection to existing laboratory set-upsThe 4 mm hose nozzle allows the AirJet Mini to be connected to existing set-ups using standard laboratory hoses, such as a filter funnel, a desiccator or a small dosing line.Typical applicationsEvacuating containers and filtration set-upsConveying and compressing air for dosing and flushing linesHandling neutral to slightly aggressive or corrosive gases and vapoursLaboratory workstations with varying requirements for vacuum and overpressureTechnical detailsConnection typeHose nozzleConnection diameter4 mmLength164 mmWidth90 mmHeight141 mmDrive typeelectricHousing materialPolyphenylene sulphide (PPS)Overview of variantsItem numberDiaphragmFlow rate approx.5625-2000EPDM6 l/min5625-2001PTFE5 l/minScope of deliveryAirJet Mini diaphragm vacuum pump/compressor in the selected diaphragm versionRegulatory informationThe AirJet Mini is an electrical appliance within the meaning of the ElektroG. Information on the return of old appliances can be found under ‘Environment and Disposal’.Service and procurementWhich diaphragm version is suitable for a particular medium depends on its chemical composition. We order both variants of the AirJet Mini individually and, if required, can also advise on combining them with other Bürkle pumps, for example if the same facility needs to transfer not only gases but also liquids from canisters or drums, using, for instance, the mains-powered electric laboratory pump or the battery-operated drum pumps from the AccuOne range for small quantities. If you have any queries regarding the appropriate diaphragm or the configuration of multiple Bürkle pumps, please contact us for assistance.

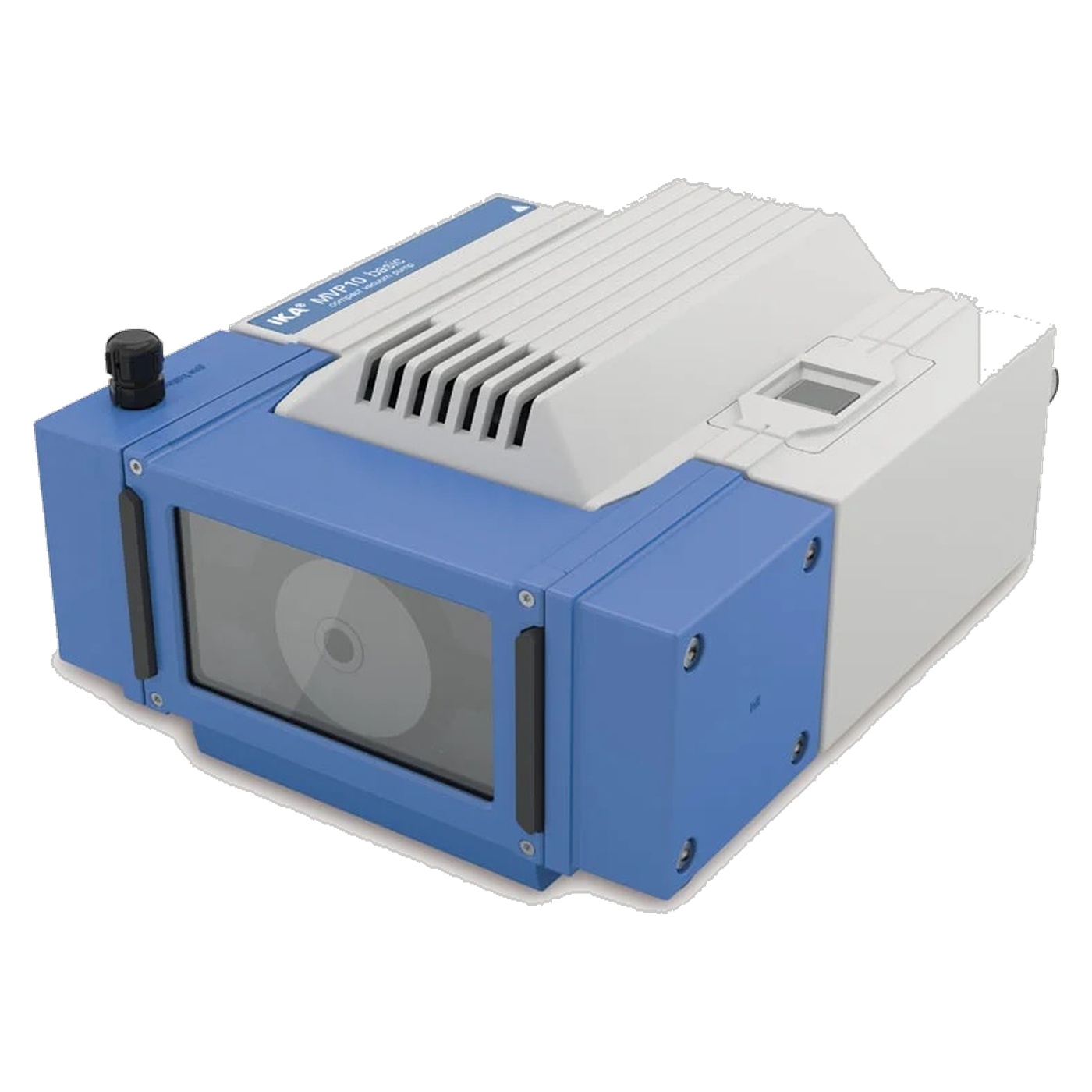

IKA MVP 10 basic Vacuum Pump, Oil-Free Diaphragm Pump, IP 54, 0003980000
The IKA MVP 10 basic is a compact, oil-free diaphragm vacuum pump for straightforward laboratory use. Without a display, without digital interfaces and without a controller, the unit concentrates on pure function: reliably generating vacuum, robustly built and easy to maintain. This makes the MVP 10 basic a pragmatic choice for workstations where a simple vacuum source is needed without control software or a process log behind it, for example as a second or third pump for less critical secondary tasks alongside a precisely controlled main setup. Two-stage pump with solid delivery rate The two-stage, two-cylinder diaphragm pump reaches a maximum delivery rate of 1.7 cubic metres per hour (28.3 litres per minute). The ultimate pressure is 7 mbar without gas ballast and 15 mbar with the gas ballast valve activated. The gas ballast valve is particularly helpful when moist or solvent-containing vapours arise during pumping, as it reduces condensation of these in the pump and attacking the diaphragms in the long term. The permissible inlet pressure ranges from 7 to 1,050 mbar, so the pump is suitable both for initial evacuation and for maintaining an existing vacuum. Chemical resistance through PTFE components throughout All parts in contact with gas are made of PTFE or PTFE compounds, which are resistant to many chemicals. Combined with the dry, oil-free design, oil changes and the disposal of waste oil are eliminated, and at the same time the risk of sample contamination by oil vapours from the pump is reduced. The flat, compact design and the construction built for durability ensure a high ease of servicing in everyday laboratory work, so that maintenance can generally be carried out quickly and without special tools. Degree of protection IP 54 for harsh operating conditions With degree of protection IP 54 according to DIN EN 60529, the MVP 10 basic is protected against dust and splashing water. This also makes it interesting for locations where liquids are occasionally handled or the ambient air is not dust-free, for example in pilot plants or workshop laboratories. The permissible ambient temperature is between 10 and 40 °C at a maximum permissible relative humidity of 80 %, which also allows use in rooms that are less strictly air-conditioned. Compact format for fixed workstations With dimensions of 245 x 155 x 320 millimetres and a weight of 11.5 kilograms, the MVP 10 basic takes up little space and can also be moved between several workstations if required. The connection is made via 10 millimetre hose nozzles on the suction and pressure side, and the speed is constant at 1,380 revolutions per minute in 50 hertz operation and 1,680 revolutions per minute at 60 hertz, without any need for manual speed control. The pump is connected to 230 volts at 50 or 60 hertz with a device power consumption of 180 watts. Deliberate omission of display and interfaces Unlike the VACSTAR series, the MVP 10 basic deliberately dispenses with a display, digital interfaces and a vacuum controller. This reduces not only the purchase price but also the number of potential sources of error and wearing parts that would have to be replaced in the event of service. For applications that do not require finely regulated, documented process control but simply need a reliable vacuum, this is a deliberate and sensible compromise in favour of robustness, easy maintenance and a clearly calculable purchase. Typical applications As a robust, easy-to-operate entry-level pump without additional electronics, the MVP 10 basic is particularly suitable for the following applications: Simple vacuum filtrations in the routine laboratory where a finely regulated, digitally traceable ultimate vacuum depth is not required Suction and evacuation in pilot plants or workshop laboratories with a rougher, less air-conditioned ambient climate Evacuation of desiccators and simple drying setups in routine operation Fixed workstations with several users where a reliable, robust vacuum source without its own user interface is sufficient Teaching laboratories where a robust, easy-to-explain pump with no significant operating effort is required Technical details Pump type2-cylinder diaphragm vacuum pump, dry, two-stageDelivery rate max. (50/60 Hz)1.7 m³/h (28.3 l/min)Ultimate pressure without gas ballast7 mbarUltimate pressure with gas ballast15 mbarSuction stages / cylinders2 / 2Gas ballast valveYesConnection diameter suction/pressure side10 mmInlet pressure7 to 1,050 mbarSpeed (50 Hz / 60 Hz)1,380 rpm / 1,680 rpmSound pressure level at min. pressure65 dB(A)Wetted materialPTFE or PTFE compounds (all parts in contact with gas)Dimensions (W x H x D)245 x 155 x 320 mmWeight11.5 kgPermissible ambient temperature10 to 40 °CPermissible relative humiditymax. 80 %Degree of protection according to DIN EN 60529IP 54Voltage / frequency230 V, 50/60 HzDevice power consumption180 W Scope of delivery 1 x IKA MVP 10 basic Vacuum Pump 1 x vacuum hose 1 x silencer 1 x Y hose connector, 8 mm WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Accessories and spare parts for the MVP 10 basic, such as additional hose connectors or replacement diaphragms, are available on request through our procurement service.

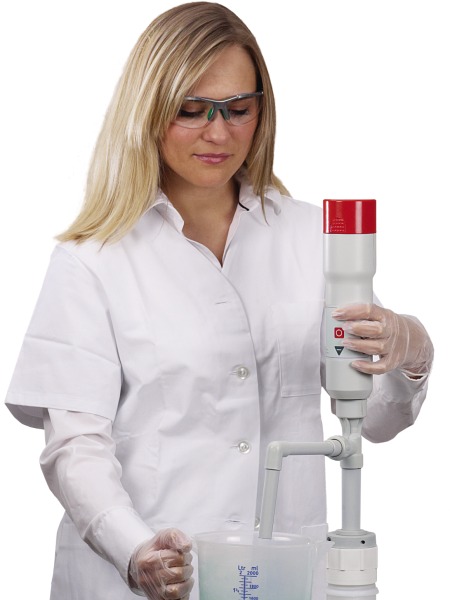

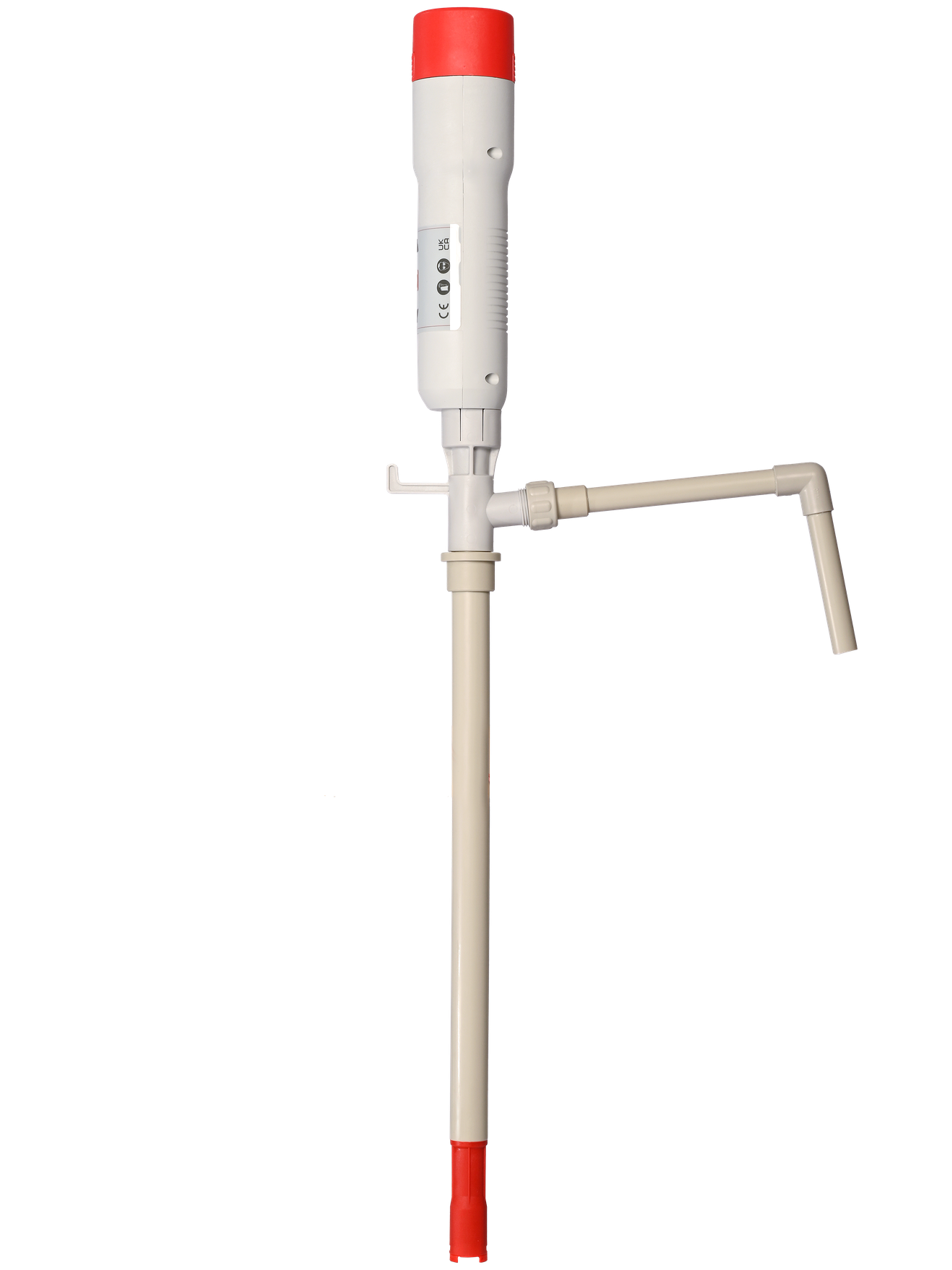

Bürkle, AccuOne battery-powered drum pump with spout, 50 cm 5900-1050
Anyone who needs to draw cleaning solutions or diluted acids several times a day from different containers, often in places where there is no nearby power socket, will benefit from a cordless pump. The AccuOne is a battery-powered centrifugal pump for small volumes, designed to deliver low-viscosity to aqueous acids, alkalis, chemicals and cleaning agents up to approximately 200 mPa·s, without the need for a power socket.Lithium-ion battery with no memory effectThe battery is lightweight, powerful and has no memory effect, so recharging it mid-use does not reduce its subsequent runtime. An auto-stop function protects against deep discharge. According to Bürkle, a full charge is sufficient for a delivery volume of around 1,500 litres, with a charging time of approximately 4 hours. The plugs are designed for use in the EU and the UK.Hybrid system with mains power supplyThe AccuOne’s drive and pump unit can also be operated using a mains power supply. The identically constructed EnergyOne, which runs on mains power, is available as a standalone product from us; the battery and mains power supply are interchangeable. Those who mainly use the pump at a fixed workstation with a mains socket and do not wish to wait for the battery to charge are often better served by the EnergyOne.Performance data for small volumesThe flow rate ranges from 0 to around 12 l/min, whilst the head is approximately 4 m water column. The 25 mm diameter immersion tube can be continuously adjusted in terms of immersion depth and fits through container openings from 25 mm. The connection is via a drum adapter; the outlet elbow has an external diameter of 16 mm and a length of 203 mm. The IP 20 protection rating is designed for indoor use.Materials for aggressive mediaThe parts in contact with the medium are made of polypropylene (PP), polytetrafluoroethylene (PTFE) and Hastelloy 2.4610 (AISI Alloy C-4), three materials with high chemical resistance. Before use with a specific medium, however, it is still worth consulting a chemical resistance table, as Bürkle itself recommends on the product page.Three immersion depths for different containersThe shortest version, with a 50 cm immersion depth, is suitable for containers up to approximately 30 litres. The medium version, with a 70 cm immersion depth, is suitable for containers up to approximately 60 litres, whilst the longest version, with a 100 cm immersion depth, is suitable for drums up to approximately 220 litres.Mobile use without a power cableAs it has no mains cable, the pump can be taken between different locations, for example if several canisters need to be emptied in different storage areas in the course of a morning. The lithium-ion battery can be swapped for a charged spare battery in just a few simple steps.Scope of delivery and initial commissioningThe scope of delivery includes the pump unit, drive unit, battery, charger with plug, a plug adapter set and the fixed outlet elbow. Before first use, charge the battery using the supplied charger; the pump is then ready for immediate use.Protection rating and operating environmentThe IP 20 protection rating indicates that the pump is designed for indoor use, without any special protection against water jets or dust from outside. This is sufficient for use in warehouses and laboratories with a normal indoor environment.Typical applicationsDecanting and transferring small quantities of acids, alkalis, chemicals and cleaning agentsMobile use at different workstations without a nearby power socketRegular filling of containers with narrow openingsSmall quantities in laboratory settingsTechnical detailsPump typeCentrifugal pumpDrive typeElectric (battery-powered)Flow rate0 to 12 l/minHead approx.4 m water columnViscosity up to approx.200 mPa·sImmersion tube diameter25 mm, infinitely adjustableFor openings from25 mmConnection typeDrum adapterOutlet typeOutlet elbow, 203 mm, 16 mm external diameterBattery charging time approx.4 hoursPlugEU, UKDegree of protectionIP 20Materials (in contact with the medium)Polypropylene (PP), polytetrafluoroethylene (PTFE), Hastelloy 2.4610ColourgreyOverview of variantsItem numberMax. immersion depthFor containers up to5900-105050 cmapprox. 30 litres5900-107070 cmapprox. 60 litres5900-1100100 cmapprox. 220 litresScope of deliveryPump unitDriveBatteryCharger with plugPlug adapterFixed outlet elbowRegulatory informationThe AccuOne is an electrical appliance within the meaning of the ElektroG. Information on returning old appliances can be found under ‘Environment and Disposal’. The lithium-ion battery must not be disposed of with household waste and must be disposed of separately when returning the appliance.Service and procurementThe appropriate immersion depth depends on the height of the container at the specific location. We order all three models individually and, if required, can also recommend the mains-powered EnergyOne or, for higher flow rates, the mains-powered laboratory pump as an alternative. If you have any queries regarding the appropriate pump for your specific medium, please contact us for assistance.

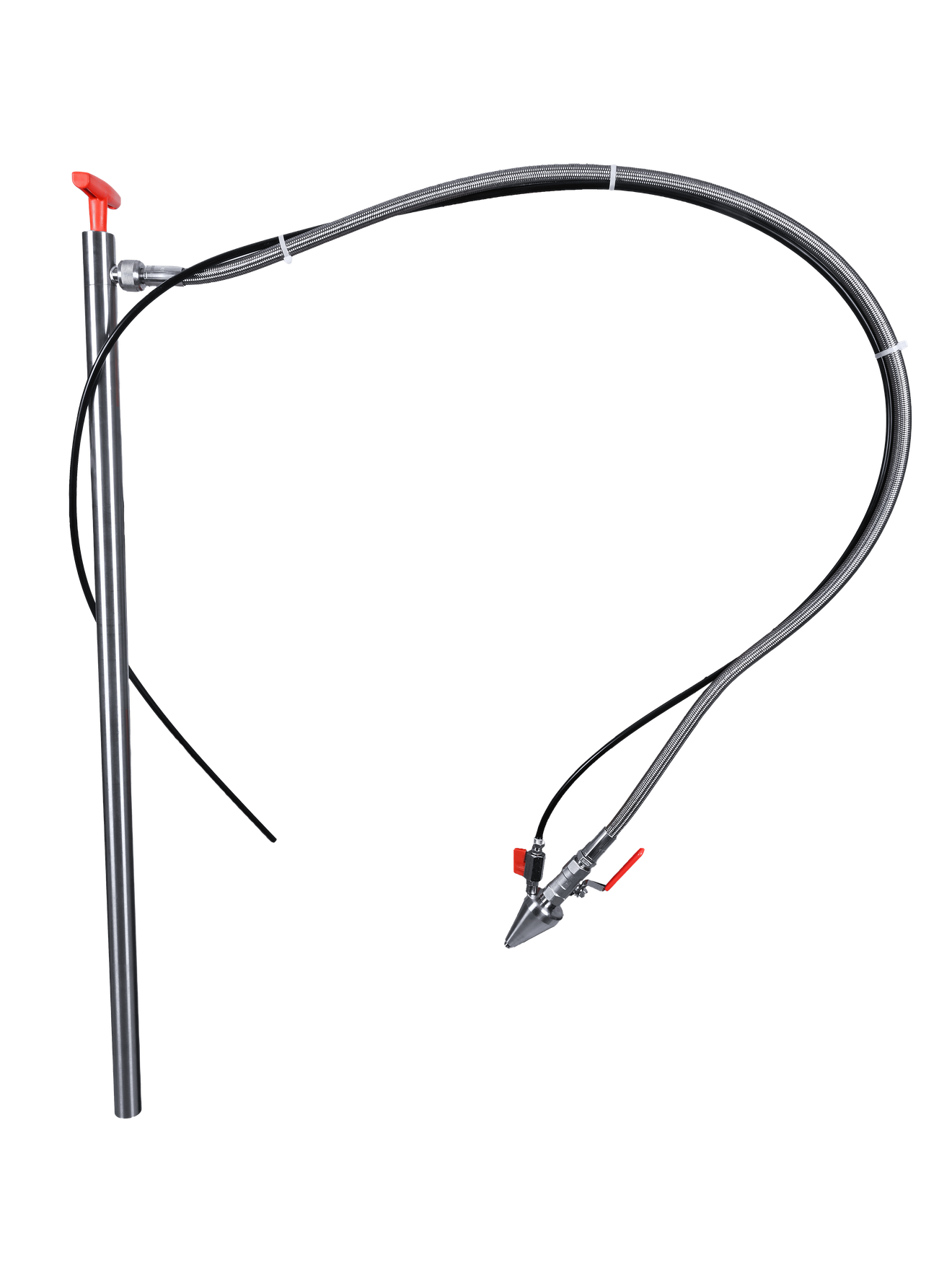

Bürkle, gas-tight V2A drum pump with hose, depth 91 cm, #5611-0090
It is difficult to transfer outgassing or strong-smelling media using an open drum pump without odours or vapours escaping. The V2A gas-tight drum pump returns the displaced vapours to the original container via a gas recirculation system using the gas balancing method, rather than releasing them into the workspace. The pump body is made of V2A stainless steel and PTFE; two immersion depths of 57 and 91 centimetres cater for drums up to 220 litres.Gas recirculation using the gas balancing methodWhen filling the receiving vessel, the inflowing liquid displaces air and vapours from the container. The Gas-Tight V2A Drum Pump returns these vapours to the original container via a gas balancing line, rather than releasing them into the surrounding environment. This reduces workplace exposure to solvent vapours and protects against odour nuisance in the case of strong-smelling media.Two ball valves for a tightly sealed systemA shut-off system comprising two ball valves seals the flow paths tightly when the pump is not in operation. In combination with the universal adapter, which fits container openings from 16 to 49 millimetres, the system can be connected to various types of drums and canisters without vapours escaping from the connection.V2A stainless steel instead of plasticWhilst the structurally identical ‘Gasdicht’ drum pump in PP design is sufficient for media compatible with plastic, the V2A version made of 1.4301 stainless steel with PTFE internal parts offers greater mechanical robustness and is also suitable for media that would corrode plastic. However, Bürkle expressly warns against using the pump with acetone or similarly dehydrating solvents.Safety and earthingWhen handling flammable or highly flammable liquids, according to Bürkle, the explosion protection guidelines must be observed; all parts must be earthed and an anti-static kit must also be used. The immersion depth can be continuously adjusted to the actual drum depth for both sizes.Two sizes for different drumsThe 57-centimetre version is designed for smaller drums up to approximately 60 litres and delivers around 330 millilitres per stroke. The 91-centimetre version is suitable for standard 220-litre drums and delivers significantly more per pump stroke, around 540 millilitres, because the longer dip tube covers a greater distance. The same universal adapter is used for both sizes, so changing the drum size does not require an additional adapter.Differences compared to the open drum pumps in the rangeMost other drum pumps in the range, such as the Ultrarein PTFE drum pump, release vapours into the surrounding environment during dispensing, which is not a problem for odourless or non-critical media. Only when odour nuisance, health and safety or emission regulations come into play is the additional cost of a gas-tight system with gas recirculation justified. For media where neither vapour recirculation nor stainless steel is required, a simpler design is often sufficient.Maintenance of ball valves and sealsThe two ball valves and the seals on the adapter connections are the points where a gas-tight system is most likely to fail. Regular checks for leaks, particularly after switching between different container openings, keep the gas recirculation system reliably functional and prevent vapours from escaping unnoticed into the environment.Typical applicationsDecanting outgassing or strong-smelling media in laboratories, production facilities and warehousesBusinesses prioritising emission control and health and safety at the decanting stationConnection to various container openings ranging from 16 to 49 millimetresDecanting from smaller and larger drums, depending on the selected immersion depthTechnical detailsConnection typeDrum screw connectionThreadG 2 inches, external threadViscosity up to approx.500 mPa·sImmersion tube diameter32 mmColoursilverOuter outlet diameter15 mmLength of outlet hose1 mOutlet typeOutlet hoseFor openings16 to 49 mm (universal adapter)Drive typemanually operatedPump typeReciprocating piston pumpSpecial featuresGas recirculation via gas balancing line, 2 ball valvesMaterialV2A stainless steel (1.4301), polytetrafluoroethylene (PTFE)Overview of variantsItem numberMax. immersion depthFlow rate approx.For containers up to5611-109057 cm330 ml/strokeapprox. 60 l5611-009091 cm540 ml/strokeapprox. 220 lScope of deliveryGas-tight stainless steel drum pump with outlet hose at the selected immersion depthService and procurementIf a plastic-compatible medium is sufficient, the gas-tight PP drum pump is the lighter and more cost-effective alternative, operating on the same principle. For high-purity media without gas recirculation, the Ultrarein PTFE drum pump is more suitable. We order both immersion depths individually and can advise on the selection based on the drum size and the medium to be transferred.

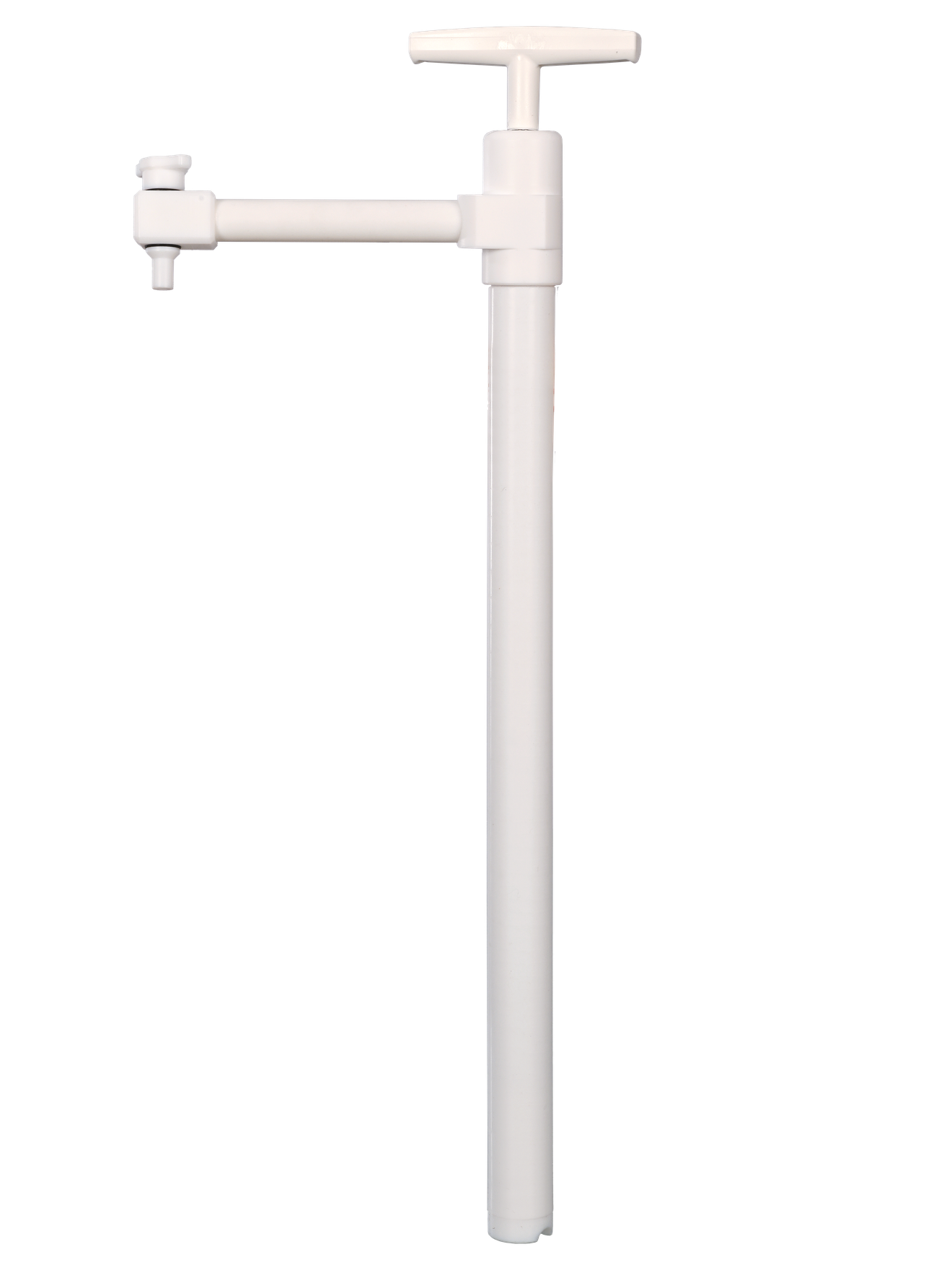

Bürkle, Ultrarein PTFE drum pump with spout, 40 cm, #5606-0400
Acids, alkalis and other media that corrode polypropylene or PVC require a pump made from an even more resistant material. The Ultrarein PTFE drum pump with outlet elbow is a hand-operated reciprocating piston pump whose parts in contact with the medium are made of PTFE and FEP; it is highly chemically resistant and also suitable for high-purity liquids. Three immersion depths ranging from 40 to 95 centimetres cater for canisters and drums up to 220 litres.PTFE and FEP materials for aggressive mediaAccording to Bürkle, PTFE and FEP resist almost all aggressive chemicals with the exception of elemental fluorine, even in applications where polypropylene or PVC would be corroded. This makes the pump a suitable option for acids and alkalis as well as for high-purity liquids in analytical applications, where metal or plastic abrasion from the pump could contaminate the sample.Hand-operated reciprocating piston pump without compressed air connectionUnlike the compressed-air-operated dispensing system for solvents, this drum pump does not require a compressor or gas cylinder. A single pump stroke of the handle is sufficient to deliver the medium through the 32-millimetre-thick immersion tube, at a rate of between 180 and 400 millilitres per stroke, depending on the size. This means the pump can also be used where there is no compressed air supply.Fixed outlet elbow for the workplaceThe 170-millimetre-long outlet elbow is rigidly mounted and is suitable for applications where the receiving vessel is positioned directly beneath the outlet. According to Bürkle, the shut-off tap is also made of PTFE. For those who wish to fill a vessel located further away using a flexible connection, the structurally identical drum pump with hose and shut-off valve offers a suitable alternative; here, an additional tap at the end of the hose also ensures drip-free shut-off after filling.Three immersion depths, three flow ratesThe shortest version, with a 40-centimetre immersion depth, is designed for canisters of up to approximately 30 litres and delivers around 180 millilitres per stroke. The medium size, with a 60-centimetre immersion depth, is suitable for containers of up to 60 litres, delivering approximately 270 millilitres per stroke. The longest version, with a 95-centimetre immersion depth, is suitable for standard 220-litre drums and delivers around 400 millilitres per stroke; the immersion tube can be infinitely adjusted to the drum depth on all three sizes.Equally suitable for analytical work and chemical handlingIn analytical applications, the most important consideration is that no metal or plastic abrasion enters the sample. In chemical dispensing, on the other hand, resistance to aggressive media over many filling cycles is key. The Ultrarein PTFE drum pump meets both requirements with the same PTFE/FEP pump body, eliminating the need to source different materials for different applications. Simply changing the size is sufficient to scale up from small laboratory containers to standard drums.Cleaning and reuseThe PTFE pump body can be flushed relatively easily between two different media, as the material itself absorbs hardly any residues. This is an advantage over pumps made of polypropylene or PVC, where some media remain on the surface and may continue to have an effect during the next use. Nevertheless, when switching between significantly different chemicals, it is advisable to use a separate pump for each type of medium to ensure that carry-over is completely ruled out.Typical applicationsFilling with acids and alkalis that would corrode polypropylene or PVCDecanting of high-purity liquids in analytical work and sample preparationUse at workstations without a compressed air supplyDecanting from small to large containers, depending on the selected immersion depthTechnical detailsImmersion tube diameter32 mmOuter outlet diameter12 mmLength of outlet elbow170 mmOutlet typeOutlet elbowViscosity up to approx.500 mPa·sColourwhiteDrive typemanually operatedPump typeReciprocating piston pumpAdjust immersion depthcontinuously adjustableMaterialPolytetrafluoroethylene (PTFE), Fluoroethylene-propylene (FEP)Overview of variantsItem numberMax. immersion depthFlow rate approx.For containers up to5606-040040 cm180 ml/strokeapprox. 30 l5606-060060 cm270 ml/strokeapprox. 60 l5606-100095 cm400 ml/strokeapprox. 220 lScope of deliveryUltrapure PTFE drum pump with outlet elbow at the selected immersion depthService and procurementFor corrosive media in larger quantities and with an electric drive, the drum pump for acids and alkalis is suitable for flow rates of up to 85 litres per minute. For media that outgas or have a strong odour, where vapours must also be contained, the gas-tight V2A drum pump is the more suitable choice. We order each immersion depth individually and advise on the selection based on the actual drum size and the medium to be transferred.
