Measurement technology
Precision is the foundation of all laboratory work. That is why LT Laborhandel offers a wide range of professional measuring instruments for a wide variety of applications in research, production and quality control. Our range includes digital and analogue instruments from Sauter. Whether force gauges, hardness testers or coating thickness gauges: the instruments are suitable for laboratories, workshops, testing institutes and industrial applications.
For water analysis and electrochemistry, we offer measuring instruments from WTW and Aqualabo. WTW supplies pH metres for laboratory and field use, whilst Aqualabo offers the portable handheld measuring instruments NEON, NEON OPEN and ODEON. Using digital Ponsel sensors, you can measure oxygen, pH, redox, conductivity, turbidity, suspended solids and sludge levels directly on site, for example, at a sewage treatment works, in water bodies, in aquaculture or during drinking water monitoring. The instruments are rated to IP67, whilst the sensors are rated to IP68. You can find suitable electrodes and buffer solutions under Electrochemistry & pH Measurement.
WTW ProfiLine pH 3110 handheld pH meter, IP67, 2AA110
Whether in the laboratory or out by the water’s edge, a pH meter designed for mobile use must operate reliably even under harsh conditions. The WTW ProfiLine pH 3110 is a robust pocket-sized meter with IP 67 protection, battery operation and a 6-button control panel that can be operated even whilst wearing gloves.IP67 protection rating for field and laboratory useThe housing is IP 67-rated, dust-tight and temporarily waterproof. This means the meter can withstand splash water at the sampling point as well as use in damp laboratory environments. Protection class III also ensures safe low voltage during battery operation.Calibration with AutoCal TEC and AutoRead1-, 2- or 3-point calibration with freely selectable calibration points is available. The AutoCal TEC automatic buffer recognition function independently identifies technical buffers or DIN buffers, whilst the AutoRead function checks the stability of the measured value before it is accepted. An integrated calibration timer reminds the user when the next calibration is due.Measuring ranges and accuracyThe pH measurement range extends from -2.000 to +19.999 pH, with an accuracy of ± 0.1 to ± 0.005 pH depending on the selected resolution (± 1 digit in each case, at a sample temperature of 15 to 35 °C). In addition, the instrument measures mV in the range from -2,000 to +2,000 mV, as well as temperature from -5.0 to +105.0 °C with an accuracy of ± 0.1 K.Operation, memory and battery operationThe device is operated via 6 buttons, which can be used even whilst wearing gloves, and, according to the manufacturer, features a large, clear LCD display. The device stores up to 5,000 GLP entries internally. It is powered by four AA alkaline-manganese batteries, or alternatively by four NiMH rechargeable batteries (without an in-unit charging function), with a runtime of approximately 2,500 operating hours.Typical applicationsMobile pH measurement at water bodies and sampling pointsRoutine measurements in industrial and wastewater laboratoriesField measurements at varying locations thanks to battery operation and IP67 ratingCompact secondary unit alongside fixed measuring stations in the laboratoryA typical scenario is a sampling round at several measurement points: the device remains within easy reach in its case, measures pH and temperature directly on site and stores each measurement value with GLP reference, without the need to carry a mains socket or a laptop.Selecting the right electrodeThe ProfiLine pH 3110 has a DIN connector (coaxial plug according to DIN 19262) for the pH electrode and is supplied as a standalone unit without an electrode. It is compatible with WTW electrodes featuring a DIN connector, such as the SenTix 41 (item no. 103635) or the SenTix 81 precision glass electrode (item no. 103642). If you would like the unit and electrode as a complete set, we offer the ProfiLine pH 3110 Set 2 (item no. 2AA112), which includes the SenTix 41.Technical detailsTypePortable pH/mV meterpH measurement range-2.000…+19.999 pH (depending on range)pH accuracy± 0.1 / ± 0.01 / ± 0.005 pH depending on range, ± 1 digit, at 15…35 °CmV measurement range-1,200.0…+1,200.0 mV / -2,000…+2,000 mVmV accuracy± 0.3 mV / ± 1 mV, ± 1 digitTemperature measurement range-5.0…+105.0 °CTemperature accuracy± 0.1 K, ± 1 digitCalibration1-, 2- or 3-point calibration, AutoCal TEC, AutoRead, calibration timerDegree of protectionIP 67, protection class IIIPower supply4 × 1.5 V AA alkaline-manganese batteries (alternatively 4 × 1.2 V NiMH rechargeable batteries)Operating timeapprox. 2,500 operating hoursData storage5,000 GLP entriesDimensionsapprox. 180 × 80 × 55 mmWeightapprox. 0.4 kgOperating temperature / Storage temperature-10…+55 °C / -25…+65 °CConnectionDIN connector for pH electrode (coaxial plug according to DIN 19262)StandardsCE, IP 67 according to EN 60529, EMC according to EN 61326-1/EN 61000-3-2/EN 61000-3-3/FCC Class A, equipment safety according to EN 61010-1Scope of delivery1 WTW ProfiLine pH 3110 handheld meter in a caseSTP 4 and STP 7 buffer solutions3 mol/l KCl electrolyte top-up solutionQuick start guideBatteriesA pH electrode is not included in the scope of delivery; it must be ordered separately for measurement purposes.Regulatory informationThe ProfiLine pH 3110 is covered by WEEE registration number DE 29884659 held by Xylem Analytics Germany GmbH, a collective registration with the EAR Foundation for the WTW brand.Individual requirements and procurement serviceThe SenTix 41 (item no. 103635) and SenTix 81 (item no. 103642), as well as the technical buffer solutions pH 4.01 (item no. 108706) and pH 7.00 (item no. 108708) are suitable for measurement operation. If you require further accessories or have any questions regarding the appropriate combination, our procurement service will be happy to assist.
Macherey-Nagel Compact Photometer PF-12Plus for water analysis, including case and software, 919250
The Macherey-Nagel PF-12Plus compact photometer is an optoelectronic system solution for the precise, mobile and stationary analysis of water, wastewater and environmental samples. As a portable laboratory instrument, this photometer combines filter photometry with a high degree of flexibility, whether used directly at the measuring location or in a traditional laboratory setting. When monitoring critical water parameters, industrial process water flows or municipal sewage treatment works, the accurate and rapid determination of substance concentrations is the primary criterion for documenting and controlling statutory limit values in a traceable way. The optical architecture of the PF-12Plus is based on a long-life xenon flash lamp and a precisely matched sensor system with seven integrated interference filters. This spectral configuration enables reliable coverage of all relevant wavelengths for the evaluation of Macherey-Nagel’s renowned VISOCOLOR® ECO and NANOCOLOR® tube tests. The integrated nephelometric turbidity measurement (NTU-Check) automatically detects interfering turbidity in the sample cuvette during the measurement process and alerts the user to possible measurement errors, an advantage in harsh field conditions. The photometer is designed for easy operation and flexible use under changing environmental conditions. Over 100 pre-programmed methods for common parameters (such as ammonium, nitrate, nitrite, COD, phosphorus or heavy metals) enable direct measurement without time-consuming calibration cycles. The splash-proof housing and intuitive menu navigation via the large, backlit graphic display allow laboratory and service staff to handle it safely. Thanks to flexible power management (optionally via batteries, rechargeable batteries, the integrated USB cable or an external power supply), the instrument can be operated flexibly in the field. For documentation in GLP and GMP environments, the PF-12Plus features an internal data memory for up to 1,000 measurement results, including time, date and sample ID stamps. Via the integrated USB interface, the measurement data can be transferred to the free NANOCOLOR® PC export software. This enables digital archiving, statistical analysis and the convenient creation of certificates of analysis. The simple option to independently verify instrument calibrations using test solutions supports audited quality management systems. Technical details Optics & Photometry Type: Filter photometer with microprocessor control, self-test and auto-calibration Light source: Extremely long-life xenon flash lamp Detector: Silicon photodiode Wavelengths (filters): 345 / 436 / 540 / 585 / 620 / 690 nm plus 860 nm for turbidity measurement Wavelength accuracy: +/- 2 nm Photometric range: +/- 3 Abs Photometric accuracy: +/- 1 % Turbidity measurement: Integrated NTU check (nephelometric at 860 nm, measurement range 1-1,000 NTU) Interfaces, memory & software Data storage: 1,000 measurements (with date, time and sample number, supports documentation in a GLP environment) Interface: USB 2.0 for bidirectional data transfer and power supply Pre-programmed tests: Over 100 pre-programmed methods (VISOCOLOR® ECO and NANOCOLOR®) User-defined methods: Up to 50 freely programmable methods Design & Power supply Display: Backlit graphic display (64 x 128 pixels) Cuvette holder: For round cuvettes with an external diameter of 16 mm (no adapter change required) Power supply: 4 x AA batteries, rechargeable batteries, USB interface or external mains adaptor Housing features: Robust, ergonomic design, splash-proof membrane keypad Dimensions (W x D x H): approx. 215 x 160 x 70 mm Weight: approx. 1.0 kg (including batteries) Scope of delivery 1 x Macherey-Nagel Compact Photometer PF-12Plus base unit 1 x Sturdy carrying case with custom-fit foam insert 1 x Manual / Quick Start Guide (including test instructions) 4 x AA batteries (Mignon) 1 x USB cable for PC connectivity and external power supply 1 x software DVD (NANOCOLOR® data export software also available as a free download) 1 x Calibration cuvette Important note: Reagent test kits (such as NANOCOLOR® or VISOCOLOR® ECO tube tests) are not included in the standard scope of delivery and must be ordered separately according to your specific application. Individual requirements & accessories Reagent kits for the PF-12Plus are available. For standardised, high-precision photometric analyses, we recommend the NANOCOLOR® tube tests (e.g. for COD, total nitrogen, total phosphorus) as well as the VISOCOLOR® ECO test kits. For on-site sample preparation, portable heating blocks (e.g. the NANOCOLOR® VARIO Mini for 12 V vehicle power supply) for the chemical digestion of samples are also available. To ensure the continuous integrity of the metrological chain in your laboratory, test solutions (NANOCONTROL NANOCHECK) for verifying photometric accuracy are also available. Make use of our technical procurement service to tailor your mobile measuring station to your specific requirements.
WTW ProfiLine pH 3110 Set 2 pH Measurement Kit with SenTix 41, 2AA112
If you don’t want to put together a pH meter and a suitable electrode separately, the WTW ProfiLine pH 3110 Set 2 offers a complete, ready-to-use package in a carrying case. As well as the 2AA110 meter, the set includes the SenTix 41 electrode, along with buffer solution, a stand and a beaker for your first measurements.What’s in the caseThe carrying case contains the ProfiLine pH 3110 meter, the SenTix 41 pH electrode (item no. 103635), STP 4 and STP 7 buffer solutions, a stand, a beaker, the quick start guide and the batteries. This means you can calibrate and take measurements immediately after unpacking, without having to order the electrode, buffers or accessories separately.Measuring instrument with IP67 rating and flexible calibrationThe main unit is technically equivalent to the 2AA110 single-unit model: IP 67 protection rating, 1- to 3-point calibration with AutoCal TEC and AutoRead stability check, integrated calibration timer and 6-button operation, even when wearing gloves. The pH measurement range extends from -2.000 to +19.999 pH, with additional mV and temperature measurement. The unit is powered by 4 AA batteries with a runtime of approx. 2,500 operating hours; it stores up to 5,000 GLP entries internally.SenTix 41 electrode included in the setThe included SenTix 41 has a plastic shaft with a low-maintenance gel electrolyte, a fibre diaphragm and an integrated NTC temperature sensor. It is connected via a 1 m fixed cable with a DIN plug and a 4 mm banana plug, compatible with the meter’s DIN input. The measurement range covers 0 to 14 pH at temperatures between 0 and 80 °C; the membrane resistance is less than 1 GOhm.Typical applicationsImmediate access to pH measurement without the need to purchase separate equipmentMobile use at water bodies and sampling points thanks to the carrying caseEquipping new measuring stations in the laboratory with a full range of accessoriesRoutine measurement in industrial and wastewater laboratoriesAn obvious example is the set-up of a new measurement station: rather than having to assemble the meter, electrode, buffer solution and accessories individually, Set 2 provides a calibration-ready workstation straight out of the case.Difference compared to the 2AA110 single unitThe ProfiLine pH 3110 single unit (item no. 2AA110) is supplied without an electrode and is aimed at customers who already own a suitable SenTix electrode or wish to use another model, such as the SenTix 81 precision electrode (item no. 103642). Set 2 eliminates this intermediate step and provides the meter, electrode, buffer solution and accessories as a complete package.Accessories for immediate useThe stand and beaker included in the case allow for a stable measurement setup directly at the workstation, without the need to organise additional laboratory equipment. The included STP 4 and STP 7 buffer solutions already cover one acidic and one neutral calibration point; for a complete 3-point calibration, an alkaline buffer solution (pH 10) can be added if required.The carrying case protects the measuring instrument, electrode and accessories during transport between sampling points or laboratory workstations and keeps the individual parts organised in one place, rather than having to gather them together separately.Technical detailsTypePortable pH/mV meter with pH electrode included in the setpH measurement range (meter)-2.000…+19.999 pH (depending on range)Degree of protectionIP 67, protection class IIICalibration1-, 2- or 3-point calibration, AutoCal TEC, AutoRead, calibration timerPower supply4 × 1.5 V AA alkaline-manganese batteries (alternatively 4 × 1.2 V NiMH rechargeable batteries)Operating timeapprox. 2,500 operating hoursData storage5,000 GLP entriesDimensions / Weight of unitapprox. 180 × 80 × 55 mm / approx. 0.4 kgElectrode included in the setSenTix 41 (Item No. 103635)Electrolyte for electrodeGel, non-refillableTemperature sensor electrodeNTC 30 kOhm, integratedMeasuring range of pH / temperature electrode0…14 pH, 0…80 °CElectrode connection1 m fixed cable, DIN plug and 4 mm banana plugsStandardsCE, IP 67 according to EN 60529, EN 61010-1 (instrument); CE Declaration of Conformity SenTix/TA-Sensolyt, DIN 19262 (electrode)Scope of delivery1 WTW ProfiLine pH 3110 handheld meter in a carrying case1 SenTix 41 pH electrode (item no. 103635)Buffer solutions STP 4 and STP 7Stand and beakerQuick start guideBatteriesRegulatory informationThe WEEE registration number DE 29884659 held by Xylem Analytics Germany GmbH applies to the instrument component; this is a collective registration with the EAR Foundation for the WTW brand. The SenTix-41 electrode included in the set is a passive sensor without its own electronics and is therefore not affected by this registration.Individual requirements & procurement serviceOnce the buffer solution in the set has been used up, refills of the Technical Buffer Solution pH 4.01 (item no. 108706) and pH 7.00 (item no. 108708) are available. For replacement electrodes, additional accessories or specific enquiries regarding the kit, our procurement service provides support.

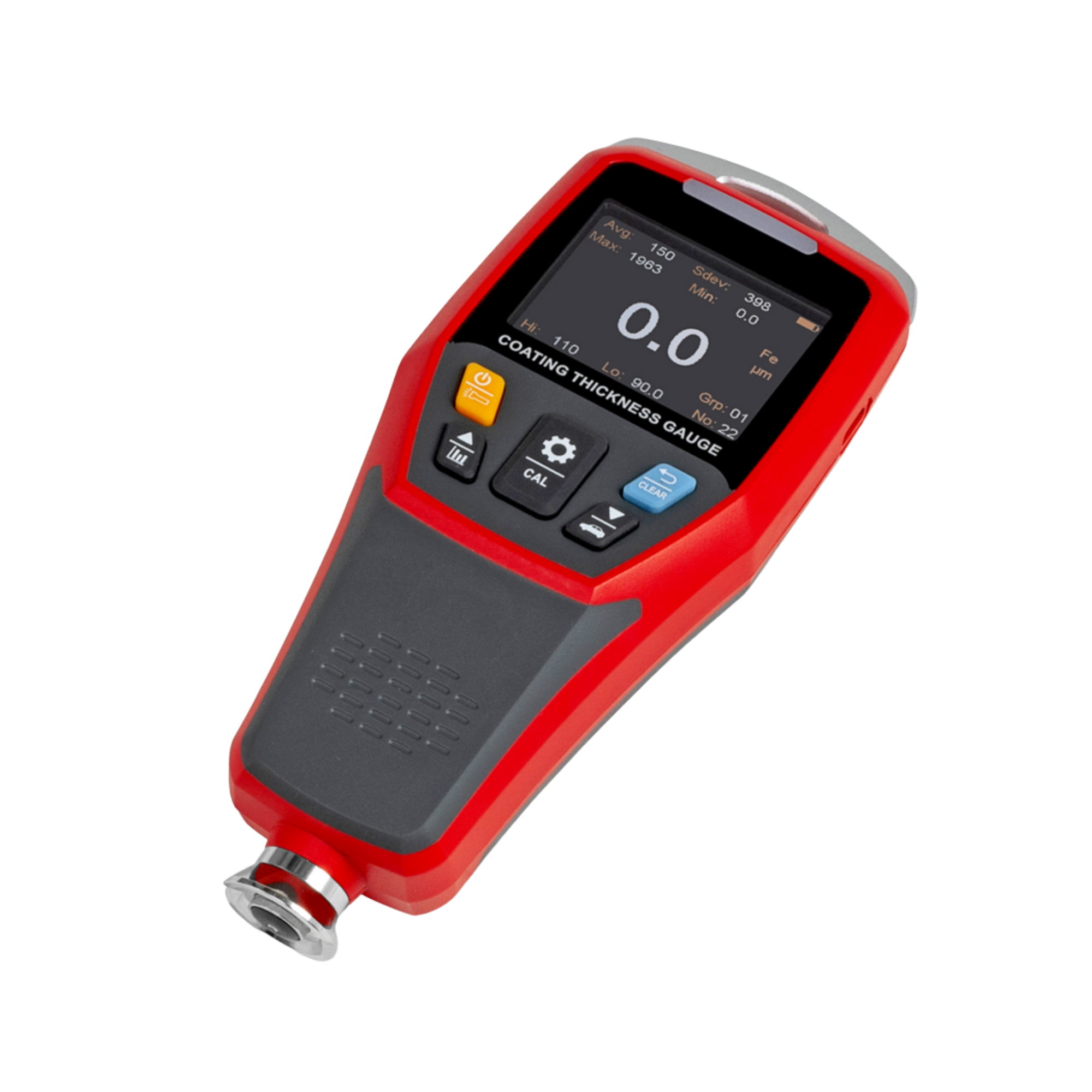

Sauter JCT 100 coating thickness gauge, Fe/NFe combination sensor, internal measuring cell
The Sauter JCT 100 measures the thickness of paint and coating layers on metallic substrates, with a measuring range of up to 2,000 µm and a readability of 0.1 µm. An internal sensor combines two measuring principles in a single device: magnetic induction for iron and steel (Fe), and eddy current for non-ferrous metals such as aluminium or copper (NFe). The JCT 100 automatically recognises the base material, eliminating the need to switch manually between measuring methods. This provides a handy coating thickness gauge for both material groups, suitable for corrosion protection testing, paint shops or incoming goods inspection. One sensor for ferrous and non-ferrous metals Automatic base material recognition saves time when working with different components, as there is no need to check whether the workpiece is magnetic before each measurement. The tolerance is 2 % of the full-scale range. To ensure reliable measurement, the base material beneath the coating must have a minimum thickness of 300 µm. The shape of the sample also plays a role: for flat surfaces, a very small sample of 10 mm is sufficient; for convex curves, a radius of curvature of at least 1.5 mm is required; and for concave shapes, a radius of at least 50 mm is needed. If you are testing very small or highly curved components, it is best to verify these values in advance using your own workpiece. Operation via traffic-light display and rotatable screen A three-colour LED indicates at a glance whether a measured value lies within the tolerance band (green), falls below a limit value (red) or exceeds it (yellow). For production testing, you can choose between single measurements and repeat measurements with a pass/fail assessment. The device can be adjusted using either one or two points; Sauter calls this single-point and two-point calibration. The display rotates automatically to match the hand’s position and can be locked manually if required. A dedicated automotive mode is provided for vehicle paint inspection, along with voice output. Memory and wireless data transfer The JCT 100 stores up to 55 measurement groups, each containing 60 individual values, internally; this is sufficient for extensive batch testing without the need for interim data retrieval. For further processing, the device transmits data wirelessly to a companion app, which, according to the manufacturer, is available for Android. Typical applications Coating thickness gauges such as the JCT 100 are used wherever an applied paint or anti-corrosion coating must meet a specific thickness requirement, for example after painting a vehicle body or following electroplating. According to Sauter, these include: Automotive industry Electroplating and surface finishing Shipbuilding and aircraft manufacturing Laboratories and quality control Construction and building sites Calibration and warranty According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. A warranty extension by a further 3 years to a total of 60 months is available separately (item no. 970-016). A factory calibration certificate is available as an option; according to the manufacturer, the processing time for this is 4 working days (item no. 961-112). According to the manufacturer, the device does not contain any substances prohibited under REACH. Technical details Measuring principleCombination of magnetic induction (Fe) and eddy current (NFe) methods, automatic base material detectionSensorInternal, for ferrous (Fe) and non-ferrous metals (NFe)Measurement rangeup to 2,000 µmReadability0.1 µmTolerance2 % of the full-scale valueMinimum thickness of base material300 µmSmallest sample, flat10 mmSmallest sample, convexRadius of curvature from 1.5 mmSmallest specimen, concaveRadius of curvature from 50 mmUnitsµm, inch (mil)Memory55 measurement groups, each with 60 individual valuesData transferwireless, app for Android (according to the manufacturer)Housing materialPlasticDimensions (W x D x H)152 x 65 x 35 mmWeight (net)0.20 kgWarranty (manufacturer)24 months according to Kern, excluding wear parts Scope of delivery Sauter JCT 100 coating thickness gauge Practical storage box Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement service Suitable adjustment foils are available for the regular adjustment of the JCT 100 (item no. ATB-US07). Our procurement service provides support with factory calibration certificates, warranty extensions and bespoke enquiries relating to Sauter measurement technology.

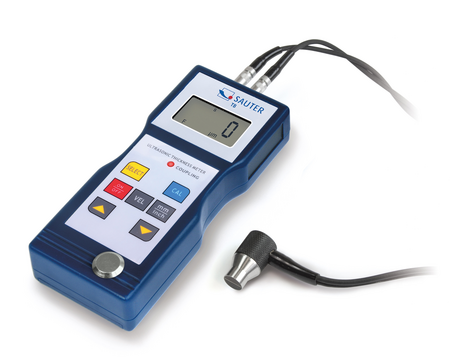

Sauter TB 200-0.1US-RED ultrasonic material thickness gauge, external, reduced material catalogue
The Sauter TB 200-0.1US-RED measures the thickness of components using the ultrasonic pulse-echo method, with an external probe for hard-to-reach measurement points. The measuring range extends from 1.5 to 200 mm with a readability of 0.1 mm. According to Sauter, the suffix ‘RED’ stands for a reduced measuring range: the device measures only 11 pre-programmed materials, including steel, cast iron, aluminium, copper and PVC. Reduced material catalogue: what RED means According to Sauter, ‘RED’ stands for a reduced measurement range. According to the manufacturer, the device can analyse only the following materials: cast iron, aluminium, copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, ductile cast iron and steel. Anyone wishing to measure materials outside this list will need the sister model, the Sauter TB 200-0.1US, which does not have the RED restriction. According to the manufacturer, the measurement range, readability, probe frequency and probe diameter are identical for both variants. The list of materials is the difference named by the manufacturer. External probe for hard-to-reach areas The 8 mm measuring head, with a test frequency of 5 MHz, is connected to the unit via a 0.9-metre-long cable. This allows it to be positioned even in places where the unit itself cannot fit. The tolerance is 0.5 % of the full-scale value of the measuring range, which corresponds to ± 1 mm for a 200 mm measuring range; the display can be set to millimetres or inches. Battery operation The TB 200-0.1US-RED runs on 4 standard AA-size alkaline-manganese batteries, which are included in the scope of delivery. Designed for ambient temperatures of 0 to 50 °C, the device can also be operated in workshop conditions without air conditioning; it should be stored at temperatures between minus 10 and 40 °C. An auto-power-off function conserves battery life during measurement breaks. Base plate for on-site adjustment The base plate included in the scope of delivery is used to adjust the measuring head before a new series of measurements begins. Typical applications Wall thicknesses on pipework, tanks, sheet metal or castings can be tested with the TB 200-0.1US-RED without opening or damaging the component, for example to detect corrosion or material loss at an early stage. According to Sauter, these include: Metalworking and mechanical engineering Oil and gas industry Aerospace engineering Plastics engineering Shipping CE marking, calibration and warranty According to the manufacturer’s data sheet, the device bears the CE marking. According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. A warranty extension by a further 3 years to a total of 60 months is available separately (item no. 970-015). A factory calibration certificate is available as an option, with a processing time of 4 working days (item no. 961-113). Technical details Measuring principleUltrasonic pulse-echo method, external probeMeasurement range1.5 to 200 mmReadability0.1 mmTolerance0.5 % of the full-scale value (± 1 mm at 200 mm)Unitsmm, inchMaterials that can be analysed (RED)Cast iron, aluminium, copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, ductile cast iron, steel (11 pre-set materials)Probe frequency5 MHzProbe diameter8 mmProbe cable length0.9 mPower supply4 x 1.5 V alkaline-manganese batteries, size AA (included in the scope of delivery)Housing materialPlasticHousing dimensions (W x D x H)161 x 68 x 32 mmWeight (net)0.30 kgOperating temperature0 °C to 50 °CStorage temperature-10 °C to 40 °CCE markingYesWarranty (manufacturer)24 months according to Kern, excluding wear parts Scope of delivery Operating instructions Batteries, 4 x 1.5 V AA External probe, diameter 8 mm Ultrasonic contact gel Base plate for adjusting the probe Sturdy carrying case Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement service A replacement is available for the device’s standard probe (item no. ATB-US06, 5 MHz, diameter 8 mm), as well as probes in other diameters (item no. ATB-US01, 6 mm, and item no. ATB-US02, 12 mm) and refills for the ultrasonic contact gel (item no. ATB-US03). Our procurement service provides support with factory calibration certificates, warranty extensions and bespoke enquiries relating to Sauter measurement technology.

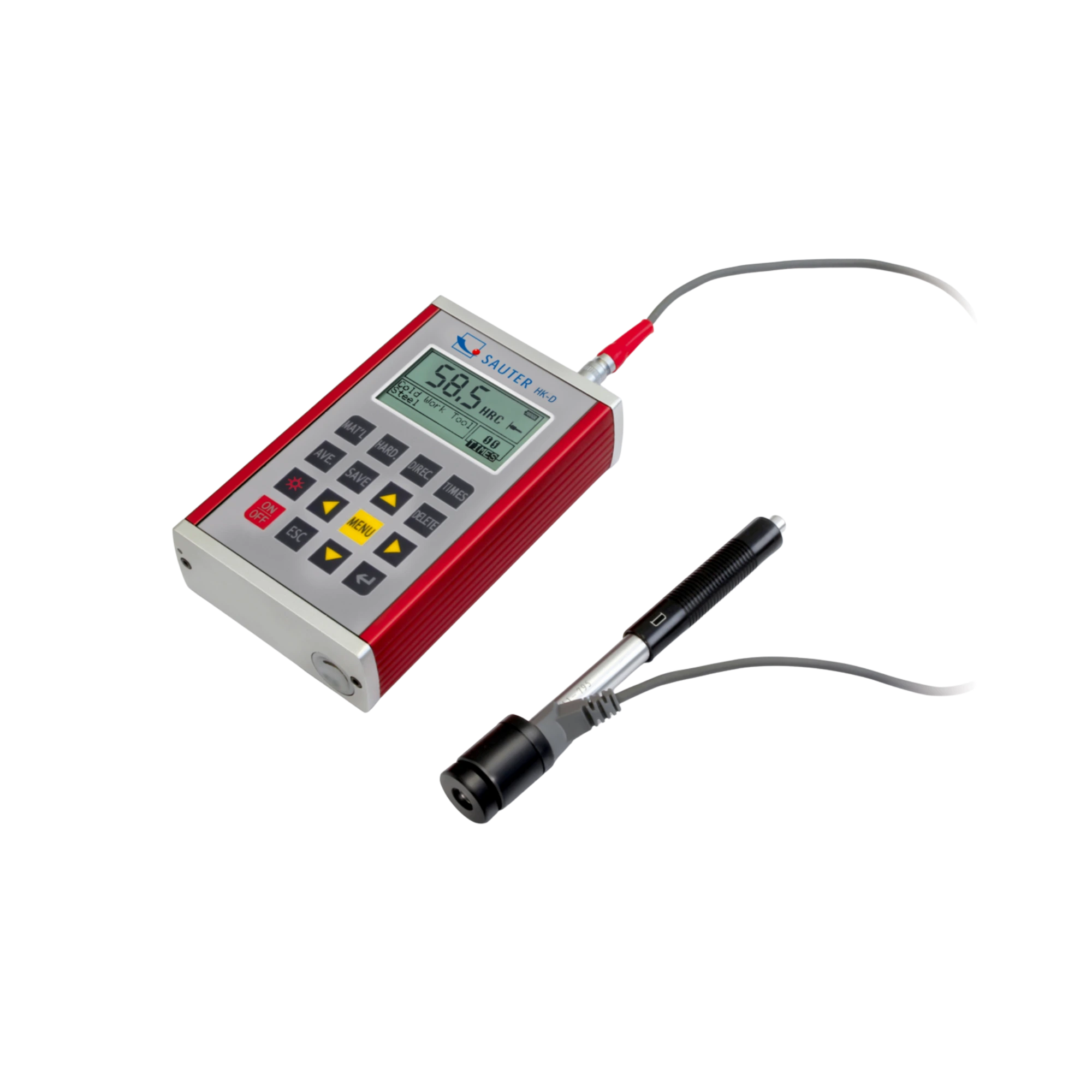

Sauter Leeb hardness tester HK-DB for metals, portable hardness tester
The Sauter HK-DB is a portable hardness tester for metals based on the Leeb method. It measures directly on the workpiece, not in the laboratory, and covers a range from 170 to 960 HLD. The type D rebound sensor is connected to the evaluation unit via a cable and is included in the scope of delivery. If a large or heavy component cannot be transported for hardness testing, the tester is taken to the component.How the Leeb hardness test worksIn the Leeb method, a test body strikes the surface; the hardness is determined from the rebound velocity. The measurement result is initially given on the Leeb scale. The HK-DB uses the HLD scale, where the ‘D’ stands for the sensor type. The device automatically converts the result into other hardness units. According to the data sheet, these are HL, HV, HB, HRB and HRC.Measurement in any orientationThe device automatically compensates for the direction of the test. It measures in all directions (360°), including sideways and overhead. The connected rebound sensor is automatically detected. The sensor is 14.6 cm long and has a diameter of 2 cm. The test specimen must weigh at least 2 kg and have a thickness of at least 3 mm. The tolerance is 1 %, and the readability is 1 HL.Storage and analysisThe internal memory can store up to 600 measurement groups, each containing up to 32 individual readings. The device calculates the average from the values in each group. A mini-statistics display shows the measured value, average value, measurement direction, date and time. The limit value function allows an upper and a lower limit to be programmed; the device signals any exceedances with an audible and visual alert. The graphic LCD is backlit and features 11 mm high digits; the display brings together all key functions on a single screen. Data is transferred from the device via USB; the USB cable is also available.Housing, batteries, caseThe evaluation unit is housed in a cast aluminium casing measuring 132 x 82 x 31 mm and weighs approximately 0.45 kg net. Two AA batteries (1.5 V) provide power for around 200 hours; the batteries are included. The unit is supplied in a carrying case.Hardness reference blockThe scope of delivery includes a hardness reference block with a hardness of approximately 800 HLD. It serves as a reference value for checking the instrument before a series of tests. Additional hardness reference plates of 790, 630 and 530 HL are also available.Typical applicationsAutomotive industry: checking the hardness of shafts, gears and castingsMetalworking and steel construction: incoming goods testing of semi-finished products and componentsEnergy and power station industry: On-site testing of large componentsOil and gas industry: hardness testing of plant componentsAerospace: testing of components that cannot be transported to a laboratorySelection guide: Sensor type and test objectThe HK-DB is supplied with the type D sensor. Other rebound sensors, namely type C, type D+15, type DL and type G, are also available. The type best suited to the testing task depends on the component’s shape and material. We would be happy to advise you on your selection.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsWhat materials is the device designed for?For metals, as the name suggests. The measuring range is 170 to 960 HLD.How heavy does the test specimen need to be?The minimum weight is 2 kg, and the minimum thickness is 3 mm.Is a USB cable included?No, the cable is also available separately. The device is fitted with a USB port.Can I take measurements in any direction?Yes, the device automatically compensates for the test direction and measures over 360°.How do I check the device?Using the supplied hardness reference block, with a hardness of approximately 800 HLD.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range170 to 960 HLDHardness scaleHLD (Leeb)Readability1 HLTolerance1 %Units (conversion)HL, HV, HB, HRB, HRCSensorexternal, Type D rebound sensorSensor dimensionsLength 14.6 cm, Ø 2 cmMinimum weight of test specimen2 kgMinimum thickness of test specimen3 mmTest direction360°, automatic compensationMemory600 groups, each with up to 32 individual valuesInterfaceUSB deviceDisplayGraphic LCD, backlit, digit height 11 mmHousing (W x D x H)132 x 82 x 31 mm, cast aluminiumPower supply2 x 1.5 V AAOperating timeapprox. 200 hNet weightapprox. 0.45 kgScope of deliverySauter HK-DB evaluation unitExternal rebound sensor, type DHardness reference block (approx. 800 HLD)BatteriesCarrying caseIndividual requirements and procurement serviceAdditional rebound sensors, hardness reference plates, adapter rings and the USB cable are also available, as well as factory calibration certificates for the instrument and the reference block. Enquiries are handled via our procurement service.

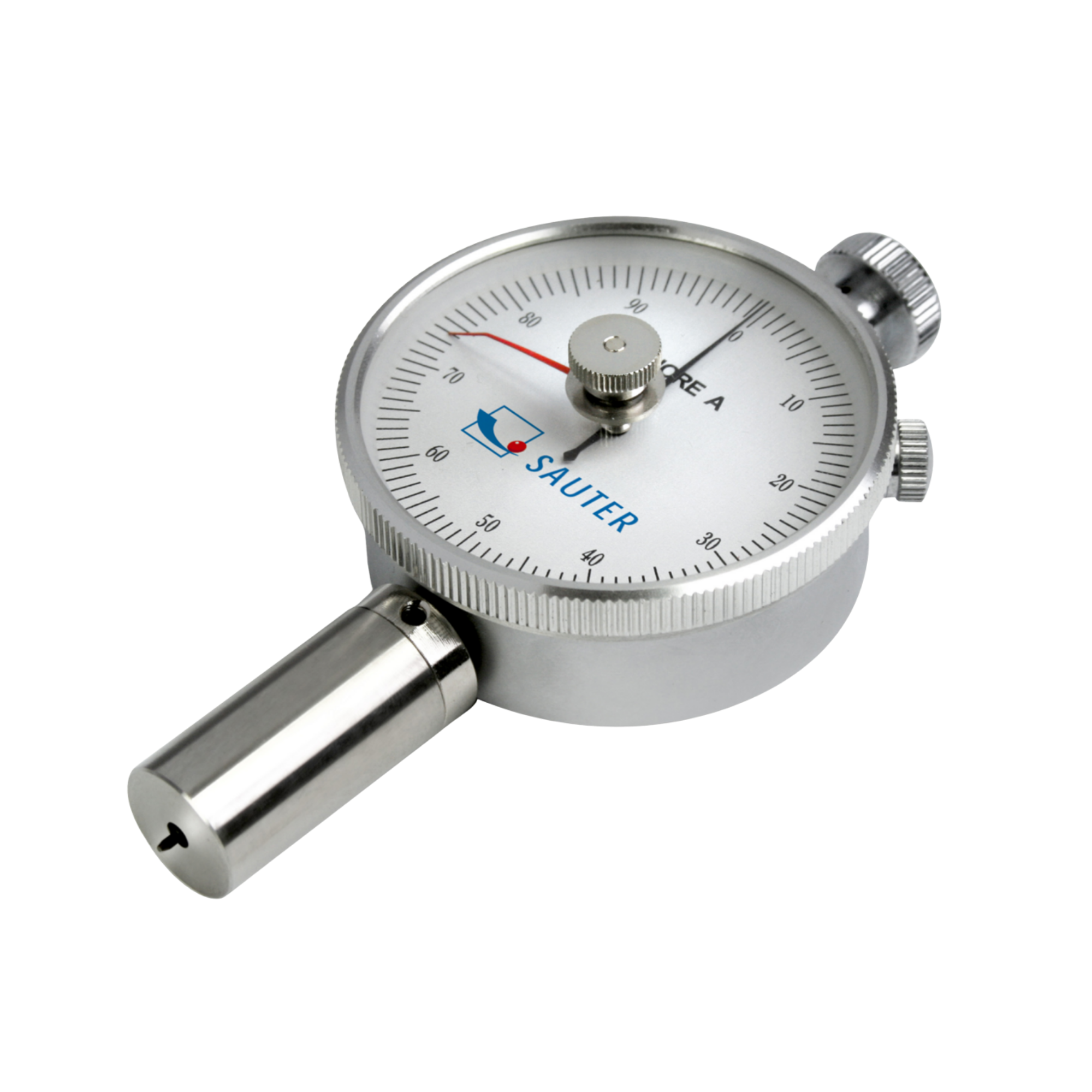

Sauter HB analogue Shore hardness testers, Shore A, Shore A0 and Shore D, measuring range 100, drag pointer
With the analogue Shore hardness testers of the Sauter HB, you test the hardness of rubber, elastomers and plastics by indentation measurement, without power and without a battery. The series comprises three models in metal housings: the HBA 100-0 measures on the Shore A scale, the HB0 100-0 on the Shore A0 scale and the HBD 100-0 on the Shore D scale. All instruments have a measuring range of 100 with a readability of 1 and display the measured value on an analogue scale.Drag pointer and max modeAll instruments have a drag pointer. It holds the peak value reached by the measuring tip when pressed in, and the value stays on the scale after lifting off. Kern calls this max mode. A device without a display or electronics has no interface and no memory; the reading is taken directly from the scale.Shore A, Shore A0 or Shore DThe scale determines which materials a device is intended for. Kern intends the HBA 100-0 with Shore A for rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt and leather. The HB0 100-0 with Shore A0 is intended for soft materials such as foam and sponges. The HBD 100-0 measures on the Shore D scale, which is used for harder plastics. The scale applicable to a test object is usually specified by the material specification or internal test procedure. Anyone testing several material classes will need several instruments. The instruments differ in the scale and in the weight: the HBA 100-0 weighs approx. 0.15 kg, the other two approx. 0.20 kg. The housing, dimensions, measurement accuracy and minimum thickness of the test object are the same.Comparison measurements and test standKern recommends the HB series primarily for internal comparison measurements. According to Kern, calibrations according to standard are not possible because of very tight standard tolerances. The measurement accuracy is 3 % of the final value; the test object must be at least 6 mm thick. Without the test stand, the device is held against the sample by hand. All three devices can be screwed onto a Shore test stand using an M7 fine-pitch thread. The HBA 100-0 and the HB0 100-0 fit onto the TI-AC test stand, whilst the HBD 100-0 fits onto the TI-D. The test stand holds the device in a suspended position and presses the measuring tip into the test object using a fixed test weight. According to Kern, the accuracy of the measurement result on the test stand is around 25 % higher than with a manual measurement.Typical applicationsPlastics engineering: comparing the hardness of plastic components and elastomersMedical technology: hardness testing of elastomer componentsAutomotive industry: hardness testing of seals and rubber componentsPackaging industry: testing the hardness of film and foam materialsFood industry: hardness testing of seals and plastic componentsThe HBA 100-0 is suitable for rubber and soft plastics, the HB0 100-0 for foam and sponges, whilst the HBD 100-0 is suitable for harder plastics. Measurements taken with the same instrument can be compared across batches and deliveries, for example during goods receipt or in production control. For measurements with a display, memory or data transmission, the Sauter HD and HE digital hardness testers are available; these series are also available.Models at a glanceModelHardness scaleMeasuring rangeReadabilitySuitable test standWeightHBA 100-0Shore A100 HA1 HATI-ACapprox. 0.15 kgHB0 100-0Shore A0100 HA01 HA0TI-ACapprox. 0.20 kgHBD 100-0Shore D100 HD1 HDTI-Dapprox. 0.20 kgTechnical detailsThese values apply to all models. Deviating values are given in the model table.Displayanalogue, drag pointer (max mode)Measurement accuracy3 % of the final valueTest object minimum thickness6 mmHousingMetal, 115 x 60 x 25 mm (W x D x H)Mounting on the test standM7 fine threadAmbient temperature0 °C to 40 °CStorage temperature-10 °C to 40 °CNet weightapprox. 0.15 kg (HBA 100-0), approx. 0.20 kg (HB0 100-0, HBD 100-0)Warranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySauter HB Shore hardness tester (HBA 100-0, HB0 100-0 or HBD 100-0, depending on the model)Plastic boxWarrantyAccording to Kern & Sohn, these devices come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions HB0 100-0 (PDF)Operating instructions HBD 100-0 (PDF)Individual requirements and procurement serviceThe TI-AC (Shore A, 10 N) and TI-D (Shore D, 50 N) Shore test stands, the AHBD-01 hardness reference plates for Shore D, and the HD and HE series digital Shore hardness testers are also available. Enquiries are handled via our procurement service.
WTW ProfiLine pH 3310 handheld meter (pH/mV, DIN connector), 2AA310
The WTW ProfiLine pH 3310 is the professional standard handheld meter for all users who demand high standards of reliability, data security and robustness, whether in the field, in the laboratory or in process monitoring. It combines precise digital analysis with a connection for tried-and-tested analogue pH electrodes (DIN). Robust field-ready design (IP 67) The instrument is fully waterproof and dustproof to IP 67. For specialist buyers working in the field (environmental measurement technology, aquaculture) or in harsh production environments, the instrument is protected even in the rain or if dropped into water. The backlit graphic display is clearly legible even in poor lighting conditions. Measurement reliability thanks to the CMC function A key advantage of the 3310 series is ‘Continuous Measurement Control’ (CMC). The device continuously displays a graphical indication to the user showing whether the current measurement is still within the range of the last calibration. This provides immediate assurance of the reliability of the measured value and prevents measurement errors caused by out-of-date calibrations. Data logger for GLP/AQS documentation The pH 3310 is suitable for quality assurance (AQS). It features a large data logger capable of storing up to 5,000 automatic (time-controlled) or 200 manual (at the touch of a button) data records. All data can be transferred to a PC via the integrated mini-USB interface including timestamps and sensor ID, which supports documentation in a GLP environment. Flexible electrode connection (DIN) This meter is deliberately equipped with a standard DIN connector (for pH/mV) and 4 mm banana sockets (for separate temperature sensors). This allows specialist buyers to continue using existing standard analogue electrodes from various manufacturers flexibly. Technical details Measurement channels: 1 (pH/mV) pH range: -2.000 to +19.999 pH mV range: ±1,200.0 mV; ±2,500 mV Temperature range: -5.0 to +105.0 °C Connection (pH): DIN (for pH electrodes) Connection (temperature): 2 × 4 mm banana sockets (for TFK probes or similar) Data storage: 200 (manual), 5,000 (automatic) Interface: Mini-USB-B (waterproof) Degree of protection: IP 67 Display: LCD (backlit, graphical) Calibration (pH): 1-, 2-, 3-, 4-, 5-point (WTW TEC / DIN buffers) Functions: CMC (Continuous Measurement Control) Power supply: 4 x 1.5 V AA (batteries) or USB operation Scope of delivery ProfiLine pH 3310 meter (main unit) 4 x AA batteries Quick start guide CD-ROM (with USB drivers and software) USB cable (A to Mini-B) Important note: The case, pH electrodes and temperature probe (TFK) are accessories and are not included with the basic unit (2AA310). Individual requirements & procurement service Do you need advice on the right pH electrode for your application (e.g. a robust SenTix 41 with a DIN plug) or a separate temperature probe (TFK 325)? Our team of experts will be happy to put together a complete set for you. For accessories not listed here, please use our bespoke procurement service.
WTW ProfiLine pH 3310 Set 2 pocket pH meter (logger & USB), 2AA312
The WTW ProfiLine pH 3310 Set 2 is a professional, portable pH measurement system designed for precise measurements in the field and data documentation in the GLP/AQS environment. The 3310 has an integrated data logger capable of storing up to 5,000 entries and a waterproof mini-USB interface. This enables the automated recording of measurement series (e.g. long-term monitoring of water bodies) and rapid transfer to a PC without the need for proprietary adapters. Measurement technology and process reliability The device offers 5-point calibration and the tried-and-tested CMC (Continuous Measurement Control) function. This displays on the backlit graphic display whether the current measured value is still within the calibrated range and issues a warning in the event of deviations. This increases the reliability of the measured values, particularly with changing sample matrices. Electrode and robustness ‘Set 2’ includes the low-maintenance SenTix® 41 pH electrode. It features a robust plastic shaft, an integrated temperature sensor (NTC 30 kOhm) for automatic temperature compensation, and a gel electrolyte that eliminates the need for refilling. The meter itself is waterproof to IP 67 (including the USB socket!) and can withstand brief submersion, making it suitable for harsh environments or sewage treatment works. Technical details pH measurement range: -2.000 … +19.999 pH Accuracy (pH): ±0.005 pH mV measurement range: ±1,200.0 / ±2,500 mV Temperature measurement range: -5.0 … +105.0 °C Calibration: 1- to 5-point (22 buffer sets stored) Data memory: 5,000 entries (automatic) / 200 (manual) Interface: Mini-USB-B (waterproof) Degree of protection: IP 67 Power supply: 4 x 1.5 V AA (up to 100 hours of continuous operation) or via USB Scope of delivery ProfiLine pH 3310 meter SenTix® 41 pH electrode (gel, integrated temperature sensor) STP 4 buffer solution (50 ml) STP 7 buffer solution (50 ml) Measuring beaker Stand Professional carrying case USB cable (A to Mini-B) CD-ROM with driver software Batteries (4x AA) Quick start guide Individual requirements and procurement service Do you require more precise glass electrodes (e.g. SenTix 81) for laboratory applications, or a kit for drinking water analysis or industrial requirements? We will gladly advise you on request.

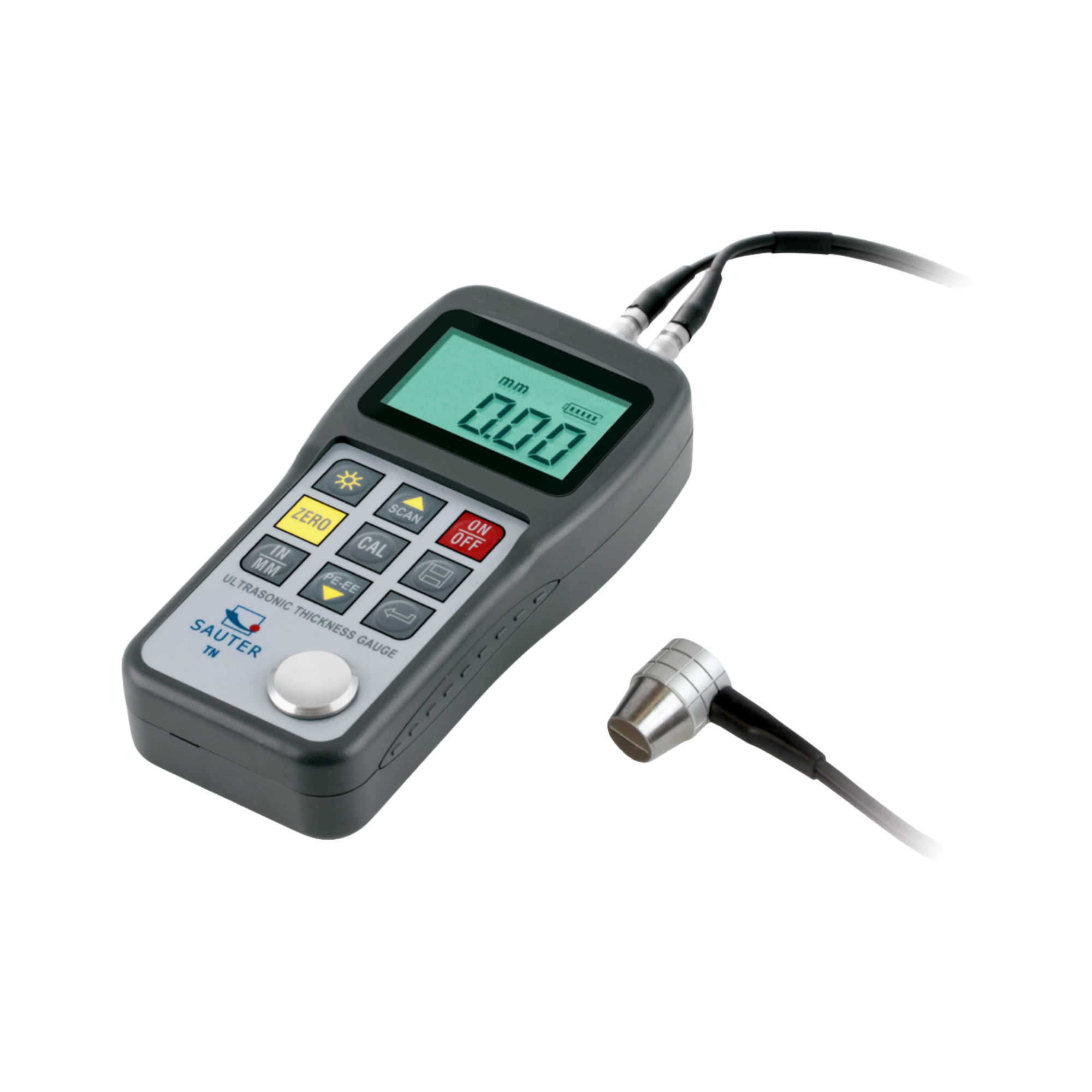

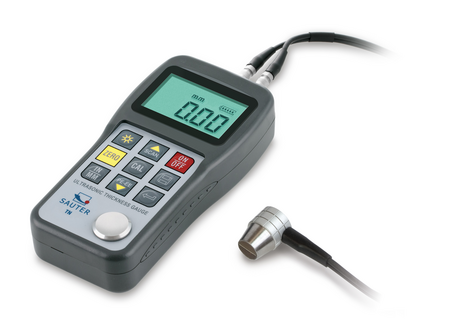

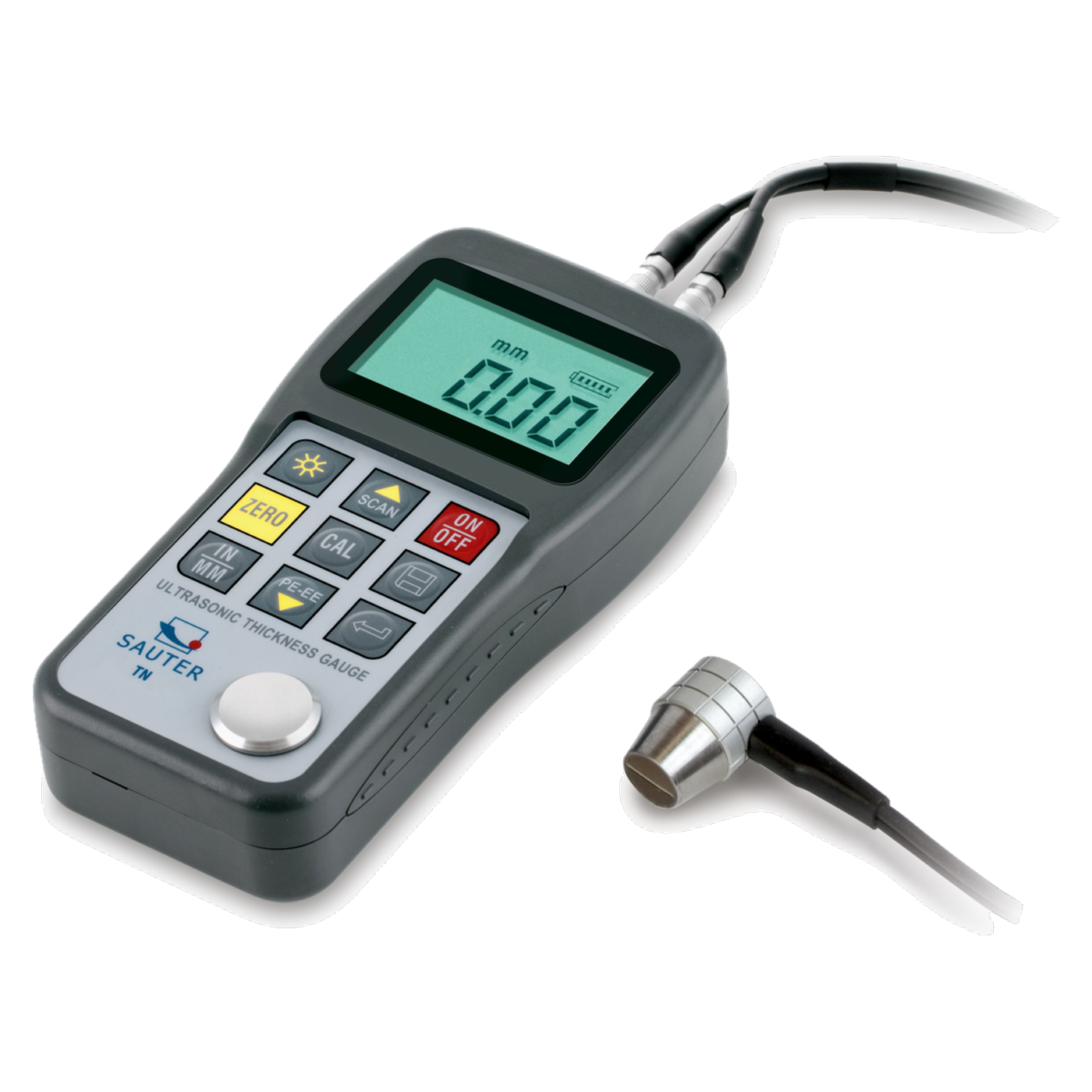

Sauter TN ultrasonic material thickness gauges, pulse-echo and echo-echo, up to 300 mm
The Sauter TN series comprises handheld ultrasonic measuring devices for measuring the thickness of a workpiece from just one side. An external probe transmits ultrasound into the material; the device calculates the wall thickness based on the transit time. The series comprises seven models: five pulse-echo devices for metals and plastics (TN 80-0.01US, TN 80-0.1US, TN 230-0.01US, TN 230-0.1US, TN 300-0.01US) and two devices with an additional echo-echo mode for coated parts (TN 30-0.01EE, TN 60-0.01EE). All are battery-operated and, at 150 x 74 x 32 mm, fit in one hand.Pulse-echo or echo-echoIn pulse-echo mode, the device measures the total thickness, including any coating. According to Kern, the echo-echo models TN 30-0.01EE and TN 60-0.01EE determine the actual material thickness independently of any existing coating. This allows, for example, the wall thickness of pipes to be measured non-destructively without removing the coating. The device can display the measured value already corrected for coating thickness. Echo-echo measurements only work with the supplied ATU-US12 probe. The echo-echo range is from 3 to 30 mm for the TN 30-0.01EE and from 3 to 60 mm for the TN 60-0.01EE. In pulse-echo mode, both measure from 0.65 to 600 mm.Probe, frequency and rangeRange and probe belong together. The probe of the TN 300-0.01US operates at 2.5 MHz, has a diameter of 14 mm and measures from 3 to 300 mm. Both TN 230 models have a 5 MHz probe with a diameter of 10 mm and measure from 1.2 to 230 mm. The two TN 80 models have a 7 MHz probe with a diameter of 6 mm and measure from 0.75 to 80 mm. The two TN 80 models and the two TN 230 models each differ in readability (0.01 mm versus 0.1 mm) and in the interface: the models ending in 0.1US (TN 80-0.1US, TN 230-0.1US) do not have a USB port. The sound velocity ranges from 1,000 to 9,999 m/s; Kern specifies the measurement accuracy as 0.5 % of Max ± 0.04 mm.Measuring modes, memory and data transferAll models can measure either in scan mode at 10 measurements per second or at a single measurement point. On all models, the internal memory can store up to 20 files, each containing up to 100 individual values. The unit is mm or inches. With the exception of the TN 80-0.1US and the TN 230-0.1US, all models have a USB interface. The LCD display features 14 mm high digits. According to the data sheet, two AA batteries last for approximately 100 h.Typical applicationsMetalworking and mechanical engineering: wall thickness of sheet metal, tubes and castingsOil and gas industry: wall thickness inspection on pipework, including under coatings (echo-echo)Aerospace: thickness measurement on components from one sidePlastics engineering: wall thickness of plastic componentsShipbuilding industry: plate thickness and corrosion checking on hullsFor thin walls from 0.75 to 80 mm, one of the two TN 80 models is sufficient; for measuring ranges up to 230 mm with a readability of 0.01 mm, the TN 230-0.01US is sufficient. For measuring thicker workpieces up to 300 mm, use the TN 300-0.01US; for inspecting coated tubes, use one of the two EE models.Models at a glanceModelMethodsPulse-echo measuring rangeEcho-echo measuring rangeReadabilityProbeUSBWeightTN 80-0.01USPulse-echo0.75 mm to 80 mmnot provided0.01 mm7 MHz, Ø 6 mmUSB0.30 kgTN 80-0.1USPulse-echo0.75 mm to 80 mmnot provided0.1 mm7 MHz, Ø 6 mmnone0.25 kgTN 230-0.01USPulse-echo1.2 mm to 230 mmnot provided0.01 mm5 MHz, Ø 10 mmUSB0.25 kgTN 230-0.1USPulse-echo1.2 mm to 230 mmnot provided0.1 mm5 MHz, Ø 10 mmnone0.30 kgTN 300-0.01USPulse-echo3 mm to 300 mmnot provided0.01 mm2.5 MHz, Ø 14 mmUSB0.30 kgTN 30-0.01EEPulse-echo and echo-echo0.65 mm to 600 mm3 mm to 30 mm0.01 mm5 MHz, Ø 10 mmUSB0.25 kgTN 60-0.01EEPulse-echo and echo-echo0.65 mm to 600 mm3 mm to 60 mm0.01 mm5 MHz, Ø 10 mmUSB0.30 kgTechnical detailsThese values apply to all models. Deviating values are given in the model table.Measurement principleUltrasound, external probe, 0.9 m cableSound velocity1,000 m/s to 9,999 m/sMeasurement accuracy (Kern)0.5 % of Max ± 0.04 mmMeasuring modesScan mode (10 measurements per second) or single measurement pointMemory20 files, each containing up to 100 individual valuesUnitsmm, inchDisplayLCD, digit height 14 mmPower supply2 AA batteries (1.5 V), alkaline-manganese, operating time approx. 100 hHousingPlastic, 150 x 74 x 32 mm (W x D x H)Ambient temperature-10 °C to 40 °CFactory calibration certificatecan be ordered separately, item no. 961-113Warranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter TN material thickness gauge (TN 80-0.01US, TN 80-0.1US, TN 230-0.01US, TN 230-0.1US, TN 300-0.01US, TN 30-0.01EE or TN 60-0.01EE) with external probe, ultrasonic coupling gel, batteries, operating instructions and carrying caseCalibrationA factory calibration certificate (item no. 961-113) can be ordered separately.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions TN 30-0.01EE, TN 60-0.01EE (PDF)Operating instructions TN 230-0.01US to TN 300-0.01US (PDF)Regulatory informationAs electrical devices, the material thickness gauges fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceAdditional probes (ATB-US02, ATB-US06, ATU-US01, ATU-US02, ATU-US09, ATU-US10 and, for the echo-echo models, ATU-US12), the coupling gel ATB-US03, the USB cable FL-A01 and the ATU-04 software are also available. Please enquire to find out which probes are compatible with which model. Enquiries are handled via our procurement service.

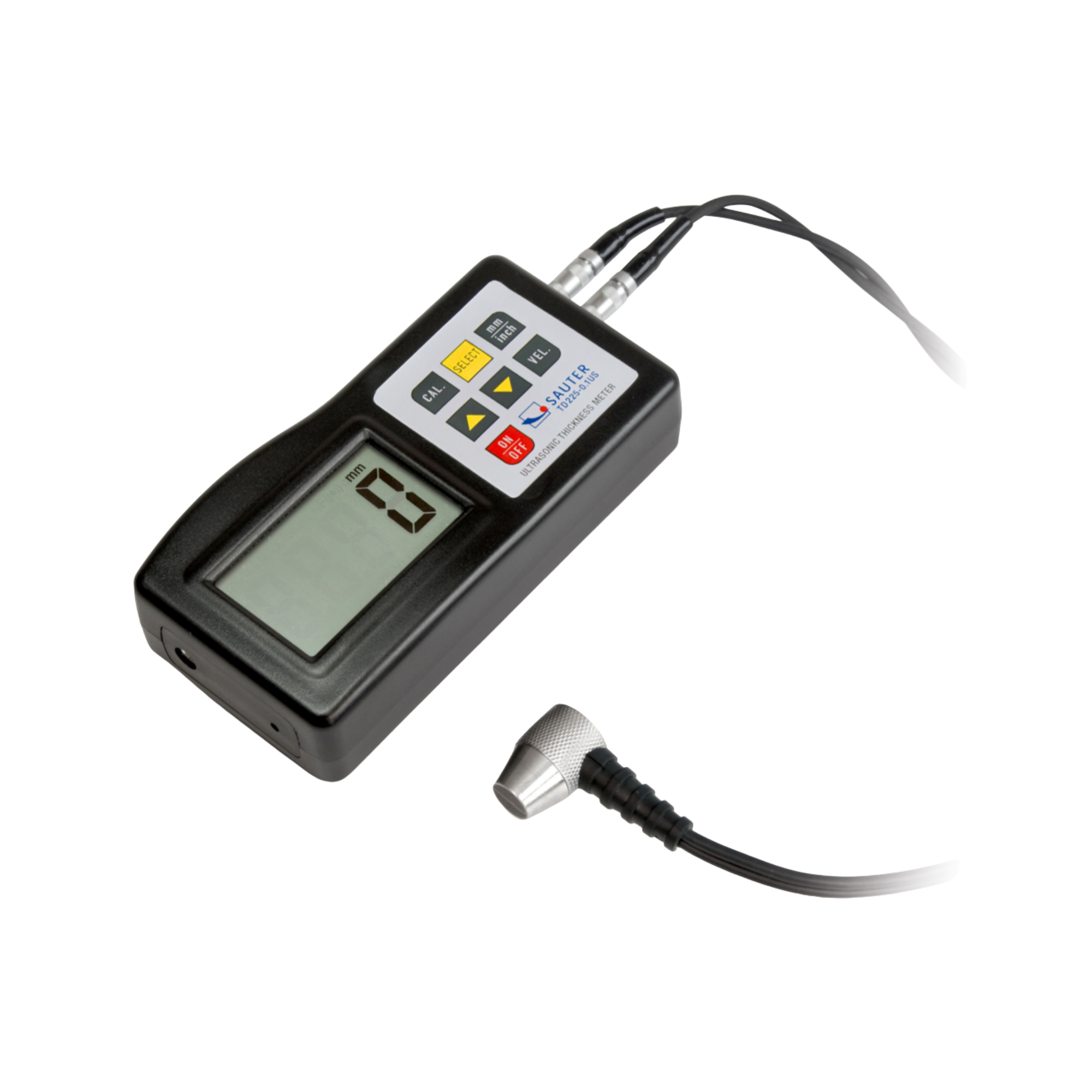

SAUTER TD 225-0.1US Ultrasonic Material Thickness Gauge, external sensor, 225 mm
The Sauter TD 225-0.1US is a pocket-sized ultrasonic thickness gauge. It measures thicknesses from 1.2 mm to 225 mm, with a readability of 0.1 mm, and features an external probe attached to a 0.9 m cable. The gauge itself measures 30 x 65 x 120 mm and weighs approximately 0.2 kg.Measuring with the external probeThe device operates using the pulse-echo method and therefore requires access to only one side of the component. The probe has a diameter of 8 mm and operates at 5 MHz. The sound velocity range extends from 1,000 to 9,999 m/s, with a tolerance of 0.5 % of the maximum value. Ultrasonic couplant gel is applied between the probe and the workpiece. The supplied zero plate is used for adjustment.Data transferAccording to Kern, the TD 225-0.1US comes with an RS-232 data interface as standard. This allows measured values to be transferred to a PC or printer. The unit can be switched between mm and inch, whilst an auto-off function saves the batteries.Power and operationThe device runs on four AAA batteries (1.5 V), which are included in the scope of delivery. It may be operated at 0 °C to 50 °C and is also stored at 0 °C to 50 °C. The housing is made of plastic.Typical applicationsMetalworking and mechanical engineering: thickness of sheet metal, plates and castingsOil and gas industry: wall thickness of pipes and vesselsAerospace: thickness of components that are only accessible from one sideShipbuilding: wall thickness of sheet metal in the hull areaPlastics engineering: wall thickness of plastic pipes and housingsThe TD 225-0.1US has the widest measuring range of the three instruments (up to 225 mm; the TB 200-0.1US up to 200 mm; the TN 80-0.1US up to 80 mm) and, at 0.2 kg, is also the lightest. If you need to measure thicknesses greater than 80 mm and require the data on a PC, this model is suitable. If you only need to measure up to 80 mm and wish to store the readings in the device, choose the TN 80-0.1US.Practical tipsWith thick walls, the material attenuates the sound more strongly. The rear of the component should be as parallel as possible to the front so that the echo returns clearly. The probe is placed vertically with couplant gel. For reporting purposes, the values can be transferred via RS-232.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsHow do I transfer measurement values?Via the standard RS-232 interface to a PC or printer.What batteries does the device require?Four 1.5 V AAA batteries. These are included in the scope of delivery.How thin can the material be?The measuring range starts at 1.2 mm thickness and extends to 225 mm.Does the device have a data memory?According to the data sheet, there is no internal data memory. The readings can be transferred via RS-232. If you wish to store them in the device, choose the TN 80-0.1US.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range, thickness (pulse-echo)1.2 mm to 225 mmReadability (d)0.1 mmTolerance0.5 % of maximumSound velocity1,000 m/s to 9,999 m/sProbeexternal, 5 MHz, Ø 8 mm, cable 0.9 mAdjustmentZero plateInterfaceRS-232 as standardUnitsmm, inchHousing (W x D x H)30 x 65 x 120 mm, plasticPower supply4 x 1.5 V AAAOperating temperature0 °C to 50 °CStorage temperature0 °C to 50 °CNet weightapprox. 0.2 kgScope of deliverySauter TD 225-0.1US thickness gaugeExternal probe, Ø 8 mmZero plate for adjustmentUltrasonic couplant gelBatteriesOperating instructionsCarrying caseIndividual requirements and procurement serviceAdditional probes with a diameter of 6 mm, 8 mm or 12 mm and couplant gel are also available, as well as a factory calibration certificate. Enquiries are handled via our procurement service.
Sauter ultrasonic material thickness gauge TB 200-0.1US, external probe
The Sauter TB 200-0.1US measures the thickness of materials from 1.5 mm to 200 mm. It operates using ultrasound with the pulse-echo method, meaning it only requires access to one side of the component. The probe is connected to the handheld unit via a 0.9 m cable, allowing it to be positioned in places where the unit itself cannot be reached.Measuring range and sound velocityThe readability is 0.1 mm, with a tolerance of 0.5 % of the maximum value. The sound velocity range extends from 500 to 9,999 m/s. The lower limit of 500 m/s is lower than that of the TN 80-0.1US and the TD 225-0.1US, which start at 1,000 m/s. The probe has a diameter of 8 mm and operates at 5 MHz.Zero plate and couplant gelBefore taking a measurement, the probe is adjusted against the supplied zero plate. Ultrasonic couplant gel, which is also included in the scope of delivery, is applied between the probe and the workpiece. Additional probes with diameters of 6 mm, 8 mm and 12 mm are available.Power and housingThe plastic casing measures 161 x 69 x 32 mm; the unit weighs approximately 0.3 kg net. It runs on four AA batteries (1.5 V), which are included in the scope of delivery. The auto-power-off function switches the unit off when not in use. The unit can be switched between mm and inch. In operation, the temperature may be 0 °C to 50 °C; storage is at minus 10 °C to 40 °C.Typical applicationsMetalworking and mechanical engineering: checking the thickness of sheet metal, shafts and castingsOil and gas industry: wall thickness of pipes and vesselsShipbuilding: wall thickness of hull plates and tanksAerospace: thickness of components that are difficult to accessPlastics engineering: wall thickness of plastic pipes and containersThe TB 200-0.1US covers thicker components up to 200 mm. Anyone who stays below 80 mm and needs data storage is better served by the TN 80-0.1US. Anyone who wants to reach 225 mm and transfer data via RS-232 should choose the TD 225-0.1US.Practical guidanceThe zero plate should be used at the start of every measurement series. Then place the probe vertically with couplant gel and hold it steady until the value is stable. Rough or rusty surfaces scatter the sound and should be cleaned or smoothed beforehand. The couplant gel can be wiped off the component after the measurement.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsHow thick can the material be?The measuring range is 1.5 mm to 200 mm in thickness.What is the zero plate for?It is used to adjust the probe and is supplied with the device.What batteries does the device require?Four 1.5 V AA batteries. These are included in the scope of delivery.Does the TB 200-0.1US have a data memory?According to the data sheet, it does not have an internal data memory. If you wish to save readings in the device, choose the TN 80-0.1US.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range, thickness (pulse-echo)1.5 mm to 200 mmReadability (d)0.1 mmTolerance0.5 % of maximumSound velocity500 m/s to 9,999 m/sProbeexternal, 5 MHz, Ø 8 mm, cable 0.9 mAdjustmentZero plateUnitsmm, inchHousing (W x D x H)161 x 69 x 32 mm, plasticPower supply4 x 1.5 V AAOperating temperature0 °C to 50 °CStorage temperature-10 °C to 40 °CNet weightapprox. 0.3 kgScope of deliverySauter TB 200-0.1US thickness gaugeExternal probe, Ø 8 mmZero plate for adjustmentUltrasonic couplant gelBatteriesOperating instructionsCarrying caseIndividual requirements and procurement serviceAdditional probes and couplant gel are also available, as well as a factory calibration certificate. Enquiries are handled via our procurement service.

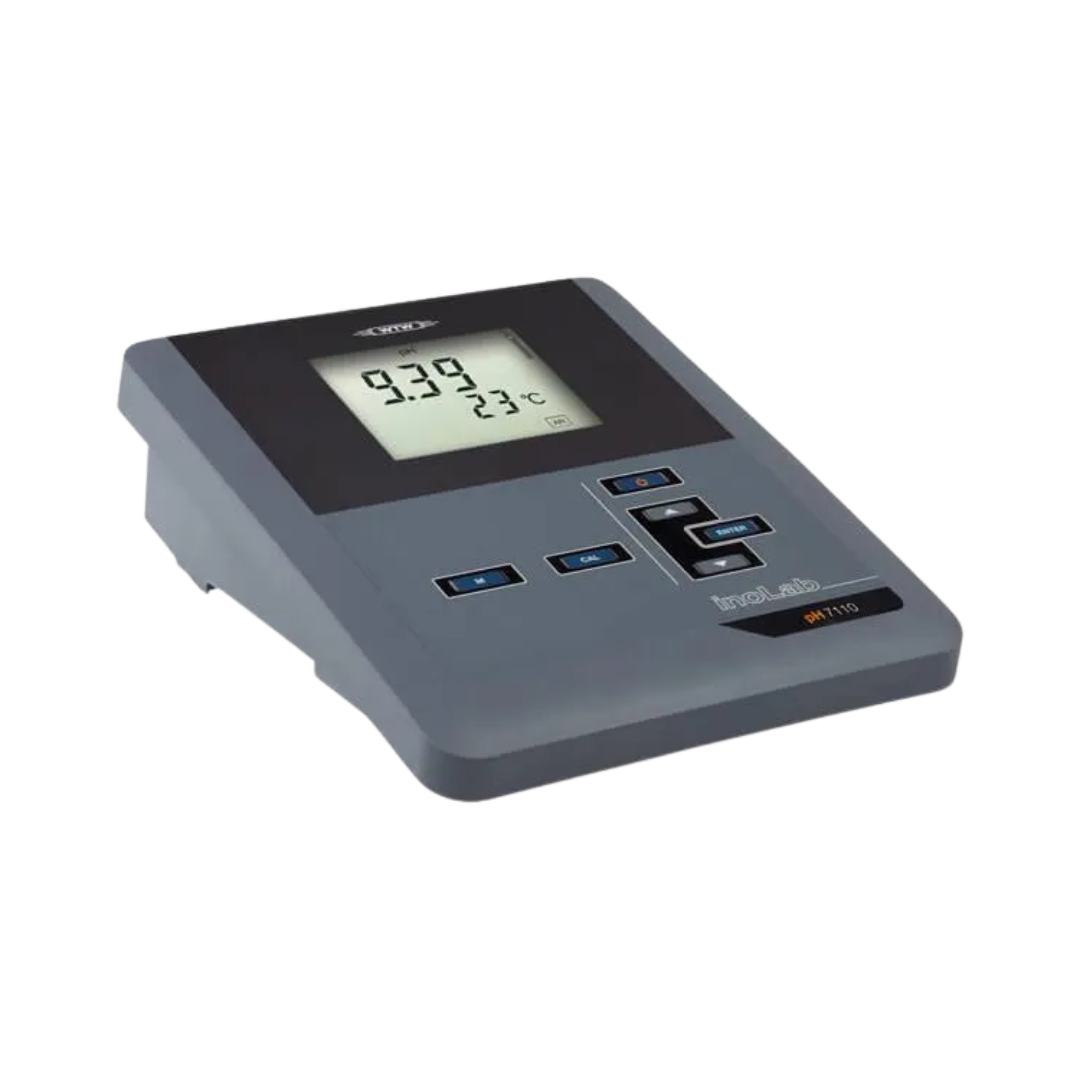

WTW inoLab pH 7110 DIN Laboratory pH Meter (basic unit), 1AA110
The WTW inoLab® pH 7110 (MPN 1AA110) is the precise entry-level instrument for routine laboratories that rely on traditional DIN connection technology. It offers the same high-quality measurement electronics as the ‘larger’ 7310 series (accuracy ±0.005 pH), but reduces complexity to the pure measurement task. This model is suitable for workstations where no extensive GLP documentation or data storage is required, but where the focus is on fast, reliable readings. DIN connector and compatibility Unlike the BNC version, this device is fitted with a DIN socket, which is widely used in German-speaking laboratories. This makes it a suitable replacement for existing WTW set-ups, as existing quality electrodes with DIN connectors (e.g. the SenTix series) can continue to be used seamlessly without the need for adaptors. Intuitive operation and AutoRead The large, segmented LCD display clearly shows the pH value and temperature at a glance. Operation is via a smooth, easy-to-clean membrane keypad, which also makes it easier to use whilst wearing gloves. The tried-and-tested “AutoRead” function ensures objective measurement results: it monitors the stability of the measurement signal and only releases the value once it has “stabilised”. This prevents reading errors caused by recording the value too early and significantly increases reproducibility. Calibration convenience The instrument supports 1- to 3-point calibration with automatic buffer recognition for WTW buffer sets as well as DIN/NIST buffers. An integrated calibration timer reminds the user at adjustable intervals when recalibration is required, to ensure long-term process reliability. Temperature measurement is carried out via separate 4 mm banana sockets. Technical details pH measurement range: -2.000 … +19.999 pH Accuracy (pH): ±0.005 pH mV measurement range: ±1200.0 / ±2,000 mV Accuracy (mV): ±0.3 mV Temperature measurement range: -5.0 … +105.0 °C Calibration: 1-, 2- or 3-point (WTW / DIN/NIST) pH connection: DIN socket (19262) Temperature connection: 2 × 4 mm banana sockets Display: LCD segment display (black and white) Power supply: Universal mains adaptor or 4 × 1.5 V AA batteries Degree of protection: IP 43 Scope of delivery inoLab® pH 7110 meter (DIN) Universal mains adaptor Stand (multi-purpose stand) Operating instructions Note: This offer (1AA110) does not include a pH electrode. This must be ordered separately or an existing electrode can be used. Individual requirements & procurement service Do you need suitable DIN electrodes (e.g. SenTix 41 or 81) or BNC-to-DIN adapter cables to use third-party sensors? We’ll put together a suitable accessory pack for you, including tested buffer solutions for your quality assurance.
SAUTER FK 500 Digital Force Gauge (500 N / 0.2 N)
The Sauter FK 500 measures tensile and compressive forces up to 500 N and has a readability of 0.2 N. It is a handheld measuring device with an internal sensor that can also be bolted onto a test stand. Those who only need to measure force occasionally can simply hold it in their hand. Those carrying out series testing can mount it on a Sauter test stand rated up to 5 kN to achieve reproducible measurement conditions.Measuring tensile and compressive forcesThe instrument measures forces in both directions. The tolerance is 0.5 % of maximum, whilst the overload protection is set at 200 % of maximum. Measurements are taken at 1,000 Hz, allowing even brief force peaks to be recorded. In Peak-Hold mode, the display freezes the maximum value for around 10 seconds; in Track mode, the display follows the applied force. Selectable units are N, lbf, kg and ozf. The automatic switch-off (Auto-Power-Off) conserves battery power.In practice, Peak-Hold is useful for tests where the maximum value is important, such as when disconnecting a connection or pressing a component until it fails. Track is suitable when a force needs to be monitored over the course of a movement, for example when pressing a switch.Display and housingThe LCD has 18 mm high digits and, according to Kern, rotates automatically depending on how the device is held or installed. The plastic housing measures 195 x 84 x 35 mm and weighs approximately 0.65 kg net. Force is applied via an M8 external thread. Clamps with an M6 internal thread are compatible with the AFM 22 thread adapter (M8 internal thread, M6 external thread), which is also available.Power supplyThe scope of delivery includes a mains adaptor and six AA batteries (1.5 V). According to the data sheet, the device operates for approximately 25 hours on batteries, after which it can be switched to mains power. Country-specific adaptors for the EU, UK, US and Switzerland are included with the mains adaptor. The ambient temperature should be between 10 °C and 30 °C.Typical applicationsTest laboratories and research and development: tensile force of joints, compressive force of springs and componentsAutomotive industry: actuation forces of switches, levers and fastenersMaintenance and servicing: testing of springs, latches and adjustment forcesPlastics engineering: pull-off and tear forces on small partsThe FK 500 covers the range up to 500 N. For testing higher forces, use the FK 1K with a capacity of 1,000 N and a readability of 0.5 N. If you require finer readability at 500 N, the FC 500 offers a readability of 0.1 N and a tolerance of 0.3 %.Practical adviceThe force should be applied in the axial direction of the device. Lateral forces place a strain on the sensor and distort the reading. On a test stand, the axis can be kept aligned easily; by hand this is more difficult.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsIs the FK 500 compatible with a test stand?Yes, according to Kern, it is compatible with all Sauter test stands up to 5 kN. The force application point is an M8 external thread.Can I connect clamps with an M6 thread?Yes, using the AFM 22 thread adapter (M8 internal thread, M6 external thread).Are the batteries included in the scope of delivery?Yes, six 1.5 V AA batteries are included, as well as the mains adaptor.Are calibration certificates available?Factory and DAkkS calibration certificates are also available, separately for tension, compression and both directions.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range (max)500 NReadability (d)0.2 NForce directionTension and compressionTolerance0.5 % of maximumOverload protection200 % of maximumMeasurement frequency1,000 HzFunctionsHold, Peak, Track, Auto-Power-OffUnitsN, lbf, kg, ozfDisplayLCD, digit height 18 mm, rotatableForce applicationM8 external threadHousing (W x D x H)195 x 84 x 35 mm, plasticPower supplyMains adaptor or 6 x 1.5 V AABattery lifeapprox. 25 hAmbient temperature10 °C to 30 °CNet weightapprox. 0.65 kgScope of deliverySauter FK 500 force gaugeStandard attachments, as shown in the product image90 mm extension rodMains adaptor with plug adaptors for the EU, UK, US and Switzerland6 AA batteries (1.5 V)Individual requirements and procurement serviceClamps, a handle, threaded adaptors, a tensiometer attachment and a carrying case are also available. Factory and DAkkS calibration certificates are available for tension, compression and combined tension and compression. Enquiries are handled via our procurement service.

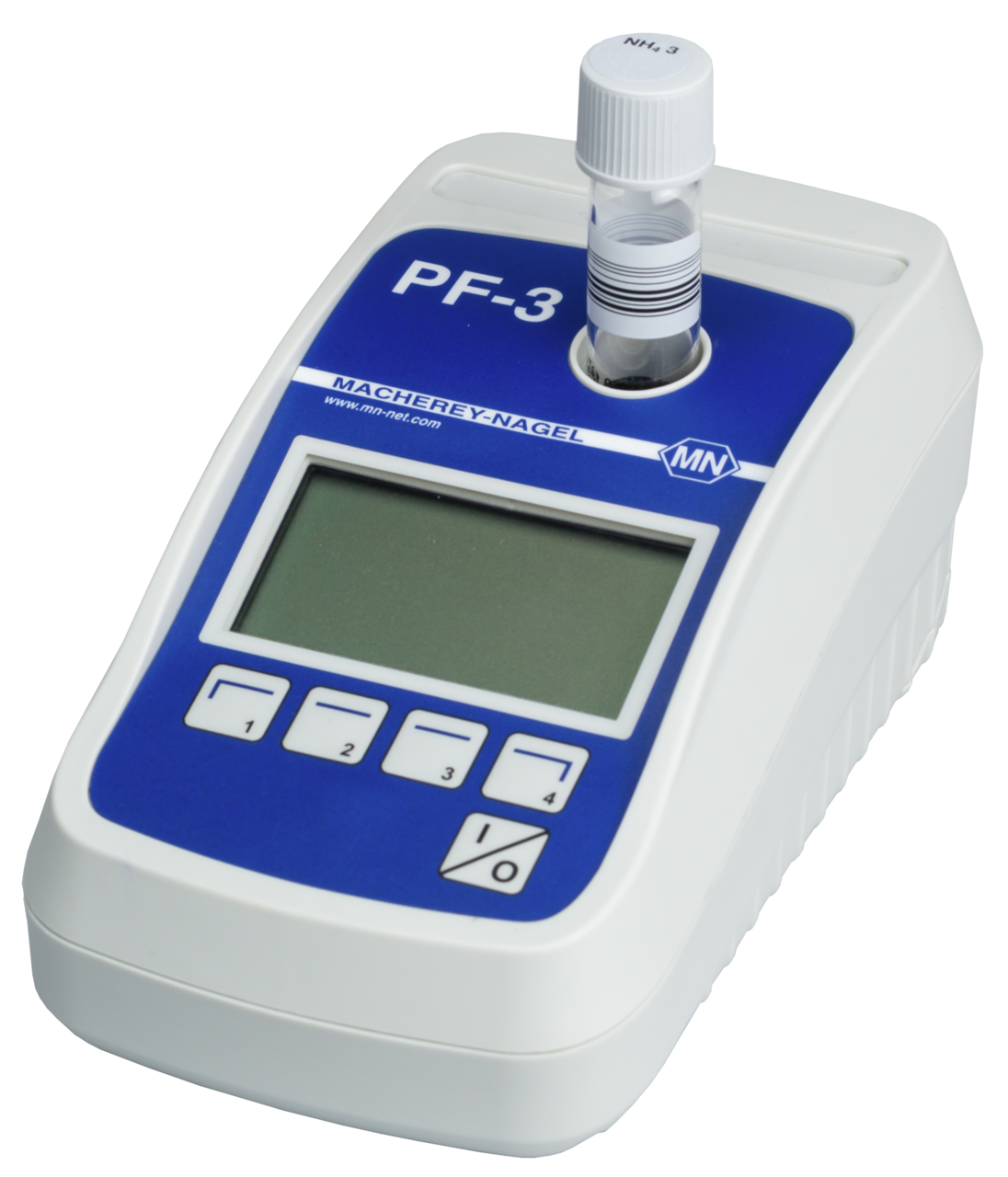

Macherey-Nagel Compact Photometer PF-3 Fish, 919345
The PF-3 Fish compact photometer is a model of the Macherey-Nagel PF-3 series and has been specially designed to meet the requirements of fishery water analysis. It supports the measurement of ammonium, chlorine, iron, silicic acid, copper, nitrate, nitrite, pH, phosphate and oxygen, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 Fish is a true lightweight and a practical companion for field analysis. The housing is shock-resistant, waterproof and dustproof, rated IP 68, ready for mobile use in and around bodies of water. Wide range of parameters for water analysis With ten supported measurement parameters, the PF-3 Fish covers a particularly wide range for monitoring fishery waters, from classic nutrient parameters (ammonium, nitrate, nitrite, phosphate) through to metals (iron, copper) and oxygen, pH, chlorine and silicic acid. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test initiation directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the instrument offers self-testing and auto-calibration. The open cuvette chamber is insensitive to extraneous light, ensuring reliable measurements even under changing light conditions in the field. Flexible power supply and data connectivity The PF-3 Fish is powered by 3 AA batteries or via a USB interface (mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or deactivated) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Deactivated or automatic switch-off after 5 min, 10 min, 15 min, 20 min Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80 % relative humidity (non-condensing) Standards/Certificates CE-marked Data storage 50 measurements Ambient light Insensitive to ambient light, open cuvette well Hazardous substances No Housing Shock-resistant, waterproof and dustproof, rated IP 68 Weight 0.5 kg Gross weight (including packaging) 844 g Cuvette well Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 263 x 222 x 86 mm Pre-programmed tests NANOCOLOR tube tests, VISOCOLOR ECO tests and Powder Pillows Wavelengths 450 nm / 530 nm / 660 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm
Sauter digital force gauge FC 500, internal load cell
The Sauter FC 500 is a compact force gauge for tension and compression up to 500 N. It has a readability of 0.1 N, with a tolerance of 0.3 % of maximum. The housing is made of metal; the display is backlit and rotates to match the mounting orientation. Anyone requiring a handheld measuring instrument with high readability and a memory for their own measurement series will find both here in a housing measuring 135 x 73 x 34 mm.Measurement functionsThe device measures at 1,000 Hz, with overload protection set at 150 % of maximum. In peak-hold mode, it holds the peak value; in track mode, it continuously displays the force curve. For batch testing, there is a limit value function: an upper and a lower limit value can be set between 10 and 100 % of maximum, separately for tension and compression. If a value is exceeded, the device signals this both audibly and visually. A rising illuminated bar indicates how much of the measuring range has already been used. According to Kern, clear warning signals are issued for loads exceeding 110 % of the measuring range. Selectable units are N, kgf, ozf and lbf.Memory and interfacesThe device stores up to 500 measured values. It features USB and RS-232 for data transfer; a USB cable is included in the scope of delivery. Compatible software is also available. The automatic switch-off function can be set to between 1 and 60 minutes or disabled altogether, allowing the device to operate continuously.Battery and designThe device contains a 3.6 V, 400 mAh NiMH battery. According to the data sheet, it lasts for around 20 hours, with a charging time of 4 hours. The mains adaptor with EU and CH adaptors is included. The housing weighs approximately 0.45 kg net. Force is applied via an M6 external thread. According to Kern, the device can be mounted on all Sauter test stands up to 5 kN, so that the measurement conditions are the same for series. The ambient temperature may be between minus 10 °C and 40 °C.Typical applicationsTest laboratories and research and development: measurement series with stored valuesAutomotive industry: monitoring of actuation and detent forces against limit valuesMaintenance and servicing: force testing in the field; the metal housing is designed for harsh environmentsPlastics engineering: testing of joints and snap-fit fastenersCompared with the FK models (FK 500 with 0.2 N and FK 1K with 0.5 N readability), the FC 500 offers finer readability, a memory function and a limit value function. However, its overload protection of 150 % is lower than that of the FK models, which is 200 %. Anyone who tests series against limit values and transfers the data to a PC should choose the FC 500.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsHow long does the battery last?Around 20 hours; the charging time is 4 hours. The device can also be powered via the mains adaptor.How do I transfer measured values?Via USB or RS-232. The USB interface cable is included in the scope of delivery.How does the limit value function work?An upper and a lower limit value are set between 10 and 100 % of maximum, separately for tension and compression. The device signals deviations with an audible and visual alarm.Is the FC 500 compatible with a test stand?Yes, with all Sauter test stands up to 5 kN. Force is applied via an M6 external thread.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range (max)500 NReadability (d)0.1 NForce directionTension and compressionTolerance0.3 % of maximumOverload protection150 % of maximumMeasurement frequency1,000 HzFunctionsHold, Peak, Track, limit values, capacity indicatorUnitsN, kgf, ozf, lbfMemory500 readingsInterfacesRS-232 as standard, USB deviceDisplayLCD 160 x 128, digit height 10 mm, rotatable, backlitForce applicationM6 external threadHousing (W x D x H)135 x 73 x 34 mm, metalPower supply3.6 V NiMH rechargeable battery, mains adaptorOperating timeapprox. 20 hCharging time4 hoursAmbient temperature-10 °C to 40 °CNet weightapprox. 0.45 kgScope of deliverySauter FC 500 force gaugeStandard attachments with hooks, as shown in the product image90 mm extension rodMains adaptor with adaptors for the EU and CHUSB interface cableCarrying caseIndividual requirements and procurement serviceScrew clamps, roller clamps, ball heads, sensors, handles and other attachments are also available, as well as software, factory calibration certificates and DAkkS calibration certificates. Enquiries are handled via our procurement service.
Aqualabo NEON, optical oxygen, OPTOD stainless steel, 3 m cable, PF-POR-C-00151
Anyone wishing to measure a single water parameter quickly and reliably in the field does not need a multi-parameter instrument with several connections, but rather a robust handheld meter with a permanently attached sensor. The Aqualabo NEON is exactly that: a portable single-parameter meter in which the selected digital sensor is permanently connected to the housing at the factory via a PG9 cable gland. Eight sensor variants measure, as required, oxygen, pH with or without redox potential, conductivity, turbidity, suspended solids or sludge level, each available with a 3-, 7- or 15-metre sensor cable. The ABS casing is IP67-rated, stores up to 30,000 measurement points and transfers them wirelessly to a PC via Wi-Fi. Selection guide for the Aqualabo NEON: Select sensor and cable length All 24 variants of the NEON share the same housing, display and memory, differing only in the factory-fitted sensor and cable length. The following overview matches each sensor option with the measurement task for which it is designed: Optical oxygen, OPTOD stainless steelOxygen (mg/L, ppm, % saturation)Standard application in fresh water and wastewater; optical measurement with no membrane wear Optical oxygen, OPTOD titaniumOxygen (mg/L, ppm, % saturation)Titanium housing for seawater, saltwater fish farming and other corrosive environments pH, redox and temperature, PHEHTpH, redox/ORP, temperatureIf redox potential is required in addition to pH pH and temperature, PHTpH, temperatureIf only the pH value is required, without redox measurement Conductivity and salinity, C4EConductivity, salinity, TDSConductivity and salinity measurement from fresh to seawater Turbidity, NTUTurbidity (NTU), suspended solids (mg/L)Spot turbidity measurement according to the formazin standard Suspended solids, MES5Suspended solids (g/L), turbidity (FAU), sludge levelIf several solids parameters are to be measured using a single sensor Sludge level, VB5Sludge level, temperatureWhen only the sludge level in the clarifier is to be measured The cable length determines only the operating distance between the housing and the sensor, not the measurement accuracy: the measurement specifications for each sensor are the same for all cable lengths, as stated in the data sheet. 3 mManual measurement directly at the edge of the tank or body of water, short distance between the operator and the measurement point 7 mMeasurement points at medium depth or distance, for example at the edges of tanks or in shallower shafts 15 mDeep shafts, large tanks or containers where the measurement point is a long way from the operator Distinctions within the Aqualabo range of handheld measuring devices The NEON is the entry-level model in the Aqualabo range of handheld measuring devices and differs from the other three series primarily in terms of the sensor connection. The Aqualabo NEON OPEN features a robust 6-pin metal connector with automatic sensor recognition instead of the PG9 screw connection, meaning the same base unit can be used with any compatible DIGISENS sensor, or optionally as a base unit without a sensor at all. The Aqualabo ODEON Open One and Aqualabo ODEON X handheld measuring devices also feature the interchangeable sensor connection: like the NEON and NEON OPEN, the ODEON Open One measures one parameter at a time and covers only seven rather than eight sensor variants; the titanium version of the OPTOD oxygen sensor is not listed there. The ODEON X is additionally designed for the simultaneous operation of two sensors on a single housing, such as pH/redox/temperature together with conductivity. For those who only measure a single parameter on a permanent basis and do not plan to change sensors, the NEON offers the simplest and most cost-effective solution. The following overview compares the four series based on their key differences: Sensor connectionPG9 screw connection, permanently attached6-pin plug connector, interchangeable6-pin plug connector, interchangeable, automatic detection with self-diagnosis2 x 6-pin connectors, interchangeable, automatic detection with self-diagnosis Sensor channels1112 DisplayLCD graphic display, size not specifiedLCD graphic display, size not specified4-inch graphic display, 240 x 320 pixels4-inch graphic display, 240 x 320 pixels Memory30,000 measurement points30,000 measurement points8 MB, over 100,000 data records for GLP documentation with sample, user and campaign IDs8 MB, over 100,000 data records for GLP documentation with sample, user and campaign IDs Recording modes2: on-demand, at set time intervals2: on-demand, at set intervals3: manual, at intervals, continuous3: manual, at intervals, continuous Data transferWi-Fi transferWi-Fi transferUSB, ODEON Viewer PC software includedUSB, ODEON Viewer PC software included Anyone requiring more than just measurement, such as documentation in a GLP environment with sample, user and campaign IDs, significantly more storage space or supplied PC analysis software, is better served by the ODEON platform than by the NEON. On the other hand, anyone who only needs to read a single parameter in the field occasionally and does not need to document the data systematically will find the more compact NEON sufficient. For the simultaneous measurement of two parameters on a single device, the ODEON range also includes the two-channel ODEON X variant. Use, calibration, maintenance and storage The NEON is powered by three AA-type alkaline batteries, displays readings on a backlit LCD graphic display with five adjustable brightness levels, and uses a stability indicator to show when a reading is stable enough to be recorded. Recordings can be saved on demand or automatically at the selected time interval; the automatic switch-off function can be set to 2, 5, 10, 15 or 30 minutes, and for the NTU version, additionally to 120 minutes. The calibration process varies in complexity depending on the sensor: Oxygen (OPTOD): 1 or 2 points pH with redox (PHEHT) or without redox (PHT): 3 points Conductivity (C4E): 4 measurement ranges, 2 points each Turbidity (NTU): 2 points per measurement range, plus 2 points using a real sample in the mg/L range Suspended solids (MES5): 2 points for suspended solids and turbidity, 1 point for the sludge level Sludge level (VB5): 1 point at 100 % We also offer suitable calibration solutions for the PHEHT and PHT pH sensors individually as pH buffer solutions. According to the manufacturer, the OPTOD optical oxygen sensor operates without the need for calibration during normal operation and without a membrane or electrolyte; the only recurring maintenance task is to replace the DOdisk cap every two years. For the PHEHT and PHT, the pH cartridge is the wear part; the manufacturer recommends replacing it every 12 to 18 months. According to the manufacturer, the C4E conductivity sensor is considered maintenance-free, whilst the NTU turbidity sensor requires no consumables of its own. The MES5 and VB5 operate optically and require regular cleaning of the measuring optics to prevent measurement drift. The housing is designed for a storage temperature of -10 to 60 °C; the NEON operates between -5 and 50 °C. The sensors themselves are protected against immersion to IP68 standard and, according to the data sheet, can withstand pressures of up to 5 bar. The three alkaline batteries must be removed prior to prolonged storage or disposal of the device and disposed of separately as battery waste. Typical applications Whether at the edge of a tank in an aquaculture facility or in a shaft at a municipal sewage treatment plant: the NEON delivers a stable reading within a few seconds and, thanks to its battery operation, can be used anywhere where there is no mains power supply. Fish farming: RAS systems, ponds, offshore cages, aquaculture industry Aquariums Surface water and groundwater monitoring Municipal wastewater treatment: inlet, aeration tank, outlet Industrial wastewater treatment Small-scale sewage treatment plants and decentralised sanitation technology The NEON thus complements our range of laboratory and field measurement technology. Investment rationale: single-parameter device or open platform The NEON is designed purely as a single-parameter handheld measuring device: the sensor is permanently fitted at the factory, thereby eliminating a plug-in connection as a potential source of error, and the device remains more cost-effective than the open platform whilst offering comparable sensor capabilities. This design is worthwhile if only one parameter is measured on a permanent basis, for example exclusively oxygen in fish farming or exclusively pH in wastewater monitoring, and no switch to other parameters is foreseeable. On the other hand, anyone wishing to measure several parameters in rotation or to replace the sensor as required without having to purchase a second housing will find the right solution in the open-platform Aqualabo NEON OPEN, which is also available as a base unit without a sensor. A switch to a different configuration is possible at any time: anyone who starts with a NEON and later expands their measurement requirements can purchase the open-platform base unit and retain their existing NEON as a standalone secondary unit for the original parameter. Frequently asked questions about the Aqualabo NEON Can I change the sensor on the NEON myself?No. The sensor is permanently attached to the housing at the factory via the PG9 cable gland and cannot be replaced without tools. The open platform Aqualabo NEON OPEN is designed for a replaceable sensor connection. What cable lengths are available, and does the length affect measurement accuracy?The NEON is available with 3, 7 or 15 metre sensor cables. The cable length only determines the operating distance between the housing and the sensor; according to the data sheet, the measurement specifications are identical for all three lengths. How is the measurement data read out?Wirelessly to a PC via Wi-Fi. According to the data sheet, there is no provision for a USB or cable connection. How many measurement points does the device store?Up to 30,000 measurement points, recorded either on demand or automatically at a selectable time interval. What batteries does the NEON require, and how long does a charge last?Three AA (LR6) alkaline batteries. Without recording, they last between 648 and 850 hours, depending on the sensor variant; with one recording per minute, they last between 170 and 230 hours. Is the NEON also suitable for use in seawater?For corrosive and marine environments, the OPTOD Titan sensor variant features a titanium housing instead of 316L stainless steel, making it suitable for seawater monitoring and fish farming in saltwater. What is included in the scope of delivery?The NEON housing with the permanently attached sensor of the selected version, the appropriate calibration solutions, a laminated quick start guide and a carry bag. How long is Aqualabo’s warranty on the NEON?1 year against manufacturing defects, excluding consumables such as sensor cartridges. The warranty begins with factory acceptance by the purchaser, or alternatively on the date of delivery or dispatch. Technical details Device typePortable single-parameter handheld meter DisplayBacklit LCD graphic display, 5 brightness levels Sensor connectionPG9 cable gland, sensor permanently connected, cannot be replaced without tools Available cable lengths3, 7 or 15 m Recording capacity30,000 measurement points Recording modesSnapshot and automatic at set intervals Data transferWi-Fi transfer Automatic switch-off2 / 5 / 10 / 15 / 30 mins (NTU version also 120 mins) Power supply3 x 1.5 V AA batteries (alkaline, type LR6) Operating time without recording648 to 850 h, depending on sensor variant Operating time with recording (1/min)170 to 230 h, depending on the sensor variant Housing materialABS Dimensions (H x W x D)146 x 88 x 33 mm Weight (housing without sensor)880 g Degree of protection (housing / sensors)IP 67 / IP 68 Operating temperature (housing)-5 to 50 °C Storage temperature (housing)-10 to 60 °C Available sensor variantsOPTOD stainless steel, OPTOD titanium, PHEHT, PHT, C4E, NTU, MES5, VB5 Measuring ranges and accuracy by sensor variant (temperature measurement from 0.00 to 50.00 °C also available for all sensors): Optical oxygen, OPTOD0.00 to 20.00 mg/L; 0.00 to 20.00 ppm; 0 to 200 % saturationAccuracy: ±0.1 mg/L; ±1 % (0 to 100 %) pH, redox and temperature, PHEHTpH 0.00 to 14.00; redox -1,000.0 to +1,000.0 mVAccuracy: pH ±0.1; redox ±2 mV pH and temperature, PHTpH 0.00 to 14.00; temperature 0.00 to 50.00 °CAccuracy: pH ±0.1; temperature ±0.5 °C Conductivity and salinity, C4E0 to 200.0 µS/cm; 0 to 2,000 µS/cm; 0.00 to 20.00 mS/cm; 0.0 to 200.0 mS/cm; salinity -5 to 60 g/kgAccuracy: ±1 % of the full-scale value Turbidity, NTU5 to 4,000 NTU (4 measuring ranges and automatic range selection); 0 to 4,500 mg/LAccuracy: < 5 % of the measured value Suspended solids, MES5TSS 0 to 50 g/L; turbidity 0 to 4,000 FAU; sludge level 0 to 100 %Accuracy: TSS < 10 %; turbidity ±5 % (200 to 4,000 FAU); sludge level ±2 % Sludge level, VB50 to 100 %Accuracy: ±2 % Scope of delivery NEON housing with a factory-fitted sensor of the selected version, including 3 x 1.5 V alkaline batteries (type LR6) 1 sensor from the OPTOD stainless steel, OPTOD titanium, PHEHT, PHT, C4E, NTU, MES5 or VB5 range, depending on the selected variant Calibration solutions suitable for the selected sensor Laminated quick start guide Carry bag A connection cable for the PC is not included and, according to the data sheet, is not provided for; data export takes place exclusively via Wi-Fi transfer. Regulatory information As an electrical appliance, the NEON is subject to the German Electrical and Electronic Equipment Act (ElektroG). At the end of its useful life, the device must not be disposed of with household waste but must be taken to a separate collection point for waste electrical and electronic equipment. The three alkaline batteries must be removed before disposal and disposed of separately as battery waste. Individual requirements & procurement service Our procurement service is here to assist you with additional calibration solutions, spare parts such as the DOdisk cap for the OPTOD sensor or the pH cartridge for the PHEHT sensor, as well as with any queries regarding the appropriate sensor variant. Those who prefer to work with a traditional, replaceable glass electrode will find the WTW ProfiLine pH 3310, a tried-and-tested handheld meter from our range. Please do not hesitate to contact us if you wish to switch to the NEON OPEN open platform at a later date.
Aqualabo ODEON X, pH, temperature plus conductivity, PHT and C4E, 15 m cable, NC-POR-C-00338
Measure two parameters in a single operation without having to carry two devices: the Aqualabo ODEON X is the dual-channel version of the ODEON handheld measuring device platform and automatically detects which digital PONSEL sensor is connected to each of the two sensor ports. Like the ODEON Open One, it features a large graphic display, 8 MB of memory for more than 100,000 data sets for GLP documentation and the ODEON Viewer PC software, but also includes a second sensor channel for combined measurements, such as pH, redox and temperature together with conductivity. Two sensor channels for combined measurementsThe ODEON X can operate two digital PONSEL sensors simultaneously, each via its own 6-pin grey metal connector for Sensor 1 and Sensor 2. Both channels automatically recognise the connected sensor and carry out a self-diagnosis. A Y-cable is also available as an accessory, allowing two digital sensors to be operated via a single input, for example if both channels are already in use. Same platform as the ODEON Open One, with one extra connectionApart from the number of sensor inputs, the ODEON X and ODEON Open One are structurally identical according to the data sheet: a 4-inch graphic display with 240 x 320 pixels, 8 MB of memory, IP67 protection rating, powered by 4 AA batteries with optional rechargeable NiMH cells, and a weight of 400 g for the unit without the sensor and cable. The only difference lies in the connections: one connection on the Open One, two on the X. Selection guide: sensor combination and cable lengthAqualabo offers five sensor variants for the ODEON X, either individually or as a combination set, each with a 3 m, 7 m or 15 m cable:ModelMeasured parametersTypical applicationpH, redox, temperature plus conductivity, PHEHT and C4EpH, ORP, temperature, conductivitypH and conductivity simultaneously, e.g. inlet or process waterpH, temperature plus conductivity, PHT and C4EpH, temperature, conductivitypH and conductivity simultaneously, without the need for redoxConductivity and salinity, C4EConductivity, salinity, TDSConductivity measurement, second channel free for an additional sensorpH, redox and temperature, PHEHTpH, redox/ORP, temperaturepH/redox measurement, second channel free for an additional sensorpH and temperature, PHTpH, temperature, without redoxpH-only measurement, second channel free for an additional sensorTwo channels are worthwhile as soon as two parameters are regularly measured together, such as pH and conductivity when monitoring the inlet or outlet of a sewage treatment plant. Instead of carrying two separate devices and manually combining two sets of measurements, the ODEON X provides both values in a single operation and in a single data set. In the pH/ORP/T plus conductivity and pHT plus conductivity combination sets, both channels are pre-configured at the factory; in the single-parameter sets, one channel remains free and can be fitted with an additional sensor at a later date. The same rule of thumb applies to cable length as for the Open One: 3 m for measurements taken directly at the vessel, 7 m for medium-depth tanks, and 15 m for deep tanks or shafts. Distinctions within the Aqualabo range of portable measuring devicesAqualabo offers its portable handheld measuring instruments in four versions: Aqualabo NEON as a single-parameter device with a hard-wired sensor, Aqualabo NEON OPEN with Open Technology for interchangeable digital sensors, as well as the Aqualabo ODEON Open One and the ODEON X as a larger platform with a large graphic display, more memory and its own PC software. The following table compares the four models:FeatureNEONNEON OPENODEON Open OneODEON XSensor replacementHard-wired sensor, single-parameterOpen Technology, interchangeable digital sensorsOpen Technology, interchangeable digital sensorsOpen Technology, interchangeable digital sensorsSensor channels1112DisplayCompact displayCompact display4-inch graphics display, 240 x 320 pixels4-inch graphic display, 240 x 320 pixelsMemoryup to 30,000 data pointsup to 30,000 data pointsOver 100,000 data records for GLP documentationOver 100,000 data sets for GLP documentationPC connectionWi-FiWi-FiUSB, including ODEON Viewer softwareUSB, including ODEON Viewer softwareWithin the product range, the ODEON X is the only model with two sensor channels. Those who only need one parameter are better served by the NEON, NEON OPEN or the ODEON Open One; those who regularly measure two parameters simultaneously will save time and reduce the number of devices required with the ODEON X. Typical applicationsWith two sensor channels, the ODEON X is particularly suitable for applications where two parameters are regularly measured together:Municipal wastewater treatment with simultaneous pH and conductivity monitoringIndustrial wastewater treatment and process water monitoringDrinking water monitoringSurface waters and natural water bodies in field applicationsMeasurement series where two parameters need to be recorded together on a regular basis Day-to-day use, calibration and maintenanceThe PHEHT and PHT pH sensors are calibrated at 3 points; their cartridges can be replaced as required. The PHEHT also measures redox in the range from -1,000 to +1,000 mV. The C4E conductivity sensor is calibrated across 4 measurement ranges, each with 2 points, and is maintenance-free according to the manufacturer. The ODEON X automatically recognises both sensor types via their respective channels and carries out a self-diagnosis. Suitable pH buffer solutions from our range are available for pH calibration; for replacing worn-out electrodes, please take a look at our range of electrodes. Data export, storage and disposalCharging and connection to a PC are carried out via the same 7-pin metal connector. The ODEON Viewer software analyses the measurement series from both channels in tabular and graphical form and exports them as CSV, XLS, XLSX, JPEG, PNG, TIF or PDF files. The manufacturer specifies a storage temperature range of -25 to +65 °C at 0 to 80 % relative humidity. At the end of its service life, the device must be disposed of as waste electrical and electronic equipment via a separate collection scheme; see ‘Regulatory information’ below for further details. Investment rationale: two channels instead of two devicesThose who already have suitable sensors or wish to add the second pair of sensors at a later date should opt for the Aqualabo ODEON X base unit without sensors. Those who only need to measure one parameter from the outset can save money with the single-channel Aqualabo ODEON Open One. Investing in the dual-channel platform pays off as soon as two parameters are regularly measured together, as this requires just one device and one data set instead of two separate measurements using two devices. Frequently asked questions about the ODEON XWhat distinguishes the ODEON X from the ODEON Open One?The ODEON X has two sensor channels, whilst the ODEON Open One has one. According to the data sheet, the display, memory, protection rating and housing are identical for both devices; the only difference is the number of sensor connections.Which sensor combinations are available for the ODEON X?The current range includes pH/redox/temperature (PHEHT), pHT without redox and conductivity (C4E), available individually or as combination sets: PHEHT plus C4E or PHT plus C4E.What is a Y-cable and what is it used for?The Y-cable is an optional accessory that allows two digital PONSEL sensors to be connected to a single input on the device.How many measurement values can the device store?The 8 MB memory holds more than 100,000 data records for GLP documentation, each with a sample ID, user ID, date and time.Is a charger included in the scope of delivery?No, according to the manufacturer, no ODEON-X kit includes a charger. The device is powered by 4 AA alkaline batteries; a charging cable and 4 NiMH rechargeable batteries are available as a separate accessory kit, reference NC-ACC-C-00001.What is the device’s protection rating?The housing is rated to IP67.Can I retrofit a second sensor later?In the single-parameter sets, only one channel is initially fitted; the second channel can be added later with another digital PONSEL sensor. Technical detailsDevice typePortable multi-parameter handheld measuring device, 2 sensor channelsDisplay4-inch LCD graphic display, backlit, 240 x 320 pixels, simultaneous display of 1 to 7 parametersMemory8 MB, more than 100,000 data records for GLP documentation including sample ID, user ID, date and timeDocumentation in a GLP environmentYesSensor detectionAutomatic, plug-and-play with self-diagnosis on both channelsRecording modes3 modes: manual, interval, continuousSensor channels2 (Sensor 1 and Sensor 2, each with a 6-pin grey metal plug)Combination optionsY-cable (available as an accessory) for connecting 2 digital sensors to a single inputDegree of protectionIP67Dimensions (L x W x H)approx. 196.5 to 205 x 121 to 122 x 43 to 46 mmWeight400 g (unit without sensor and cable)Operating temperature-25 to +50 °CStorage temperature-25 to +65 °CRelative humidity (operating/storage)0 to 70 % / 0 to 80 %Power supply4 x 1.5 V AA batteries (alkaline), fitted at the factoryOptional4 x AA NiMH rechargeable batteries or external 12 V power supplyOperating time145 to 190 hours depending on configurationInterfaceUSB via a shared 7-pin metal connector (PC connection and charging)SoftwareODEON Viewer, export to CSV, XLS, XLSX, JPEG, PNG, TIF, PDF Scope of delivery1 ODEON X unit, supplied with 4 AA alkaline batteries fitted as standard2 digital PONSEL sensors with 3 m, 7 m or 15 m cables in combination sets; in single-parameter sets, 1 sensor with a free second channel1 ODEON PC connection cable (USB)Standard solutions 125 ml, depending on the parameterShock-resistant carrying case for up to 2 sensors, PC cable and 4 bottles of standard solutionODEON Viewer PC softwareThe device operates out of the box using the 4 AA alkaline batteries supplied; according to the manufacturer, no ODEON-X set includes a charger. For operation with rechargeable batteries, the ODEON Rechargeable Battery accessory kit, comprising a charging cable and 4 NiMH rechargeable batteries, is available separately, reference NC-ACC-C-00001. Regulatory informationAs an electrical appliance, the ODEON X is subject to the German Electrical and Electronic Equipment Act (ElektroG). At the end of its useful life, the device must not be disposed of with household waste, but must be taken to a separate collection point for waste electrical and electronic equipment. Individual requirements and procurement serviceOur procurement service is here to assist you with additional sensors, a Y-cable, replacement cables or standard solutions. We would also be happy to discuss the most suitable equipment with you if you have any questions regarding calibration accessories from our range of measurement technology or a comparison with ODEON Open One, NEON and NEON OPEN.
Macherey-Nagel QUANTOFIX Relax Test Strip Reader, 91346
Test strips are quick and easy to use, but visual interpretation remains subjective. The QUANTOFIX Relax from Macherey-Nagel solves precisely this problem: it objectively analyses standard QUANTOFIX and pH-Fix test strips using a reflectometer, thereby combining the simplicity of the test strip method with the reliability of instrumental analysis. Objective analysis without special strips The QUANTOFIX Relax does not require specialised strips, but reads standard pH-Fix and QUANTOFIX test strips. As a microprocessor-controlled reflectometer, it features self-testing and auto-calibration. Calibration takes place automatically and independently, without the need for manual adjustment. Up to 50 strips per hour can be analysed. Operation & Documentation Operation is via an LCD display with a touchscreen and alphanumeric input. Results can be printed directly via the integrated thermal printer or processed further via the RS232, USB B (host) and PS/2 (for keyboard or barcode scanner) interfaces. The internal memory holds 200 measurements; software updates are available free of charge via the internet/PC. Compact & versatile Measuring 200 x 160 x 75 mm and weighing just 0.71 kg, the device is equally suited to mobile use in the field and to a fixed laboratory workstation. It is powered by 100–240 V AC, or optionally by 6 AA batteries, handy for use without a mains connection. Technical details Type Microprocessor-controlled reflectometer with self-test and auto-calibration Calibration Automatic, self-calibrating Strips per hour 50 Display LCD display with touchscreen Operation Alphanumeric input via touchscreen Data storage 200 measurements Interfaces RS232, USB B (host), PS/2 for connecting a keyboard or barcode scanner Further information Built-in thermal printer Update Free via the internet / PC Language DE / EN / FR / ES / IT / PT / PL / TR / HU Power supply 100–240 V AC, optionally with 6 AA batteries Operating range 10–40 °C, max. 80 % relative humidity (non-condensing) Dimensions (L x W x H) 200 x 160 x 75 mm Weight 0.71 kg Gross weight (including packaging) 1,650 g Packaging dimensions 230 x 320 x 170 mm Hazardous substances No Warranty 2 years Trademark QUANTOFIX Scope of delivery QUANTOFIX Relax, power supply unit, adapter plug, operating instructions, 1 roll of printer paper and certificate
Sauter SU sound level meters, 30 dB to 130 dB, SU 130 with RS-232, SU 150 class II
With the Sauter SU, you measure sound levels from 30 dB to 130 dB with 0.1 dB readability. The devices differ in terms of features and accuracy. The SU 130 is the model with basic functions and an RS-232 interface. It offers the measuring modes Lp, Leq and Ln, and has a measurement accuracy of 3 % of Max. According to the data sheet, the SU 150 has 1.5 % of Max measurement accuracy, states class II in the manufacturer data and has an analogue output, a memory for 63 measurements and switchable response times.SU 130: basic device for the workplaceThe SU 130 measures sound intensity in the workplace and helps to distinguish between normal sound levels and excessive noise exposure, for example in a production hall. It measures in the frequency range from 20 Hz to 12.5 kHz; the microphone has a sensitivity of 30 mV/Pa. There are three measurement functions to choose from: Lp is the standard sound level measurement, Leq is the energy-equivalent continuous sound level (type A) and Ln shows the deviation from a specified limit as a percentage. As acquisition modes, Kern specifies A (like the human ear), C (for loud environments such as machines and engines) and F (for constant sound levels).There is also a programmable limit value function for the maximum level, the track function for changing conditions and the peak hold function. The memory stores 30 measurements, which can be transferred to a PC using the Sauter ATC-01 software. The RS-232 interface is included in the scope of delivery. The device comes with four AAA batteries in a carrying case.SU 150: more accurate, with analogue outputThe SU 150 measures in the frequency range from 31.5 Hz to 8 kHz and provides Leq and Lcpeak as measuring modes; the weightings are A and C. You can select the range manually or automatically and switch between a fast (125 ms) and slow (1 s) response. A simulated analogue bar shows the measured values quickly. The data hold function holds the current value, the limit value function with visual signal reports exceeding and falling below. The AC/DC analogue signal output transmits the signal for further processing. The memory can store 63 measurements. The device runs on four AA batteries; the auto-off function switches it off after 1 min and can be deactivated. A tripod (SW-A05) is available. The SU 150 is supplied in a pouch.Device class and calibrationKern does not specify a device class for the SU 130; for the SU 150, the data sheet states class II. For measurements where documentation is required, such as in occupational health and safety, the required class should be clarified in advance. For the SU 150, a DAkkS calibration certificate is available in addition to the factory calibration certificate.Typical applicationsWorkplace and noise assessment: measuring sound levels on machinery and in production hallsIndustry and assembly halls: checking sound levels at machinery and assembly stationsEnvironmental monitoring and construction sites: recording and documenting noise levels (SU 150)Schools and traffic: measuring noise levels in classrooms and on roads (SU 130)Automotive industry: noise testing on components and test stands (SU 130)Events and public facilities: monitoring sound levels (SU 150)Anyone carrying out simple sound level measurements in the workplace will find the SU 130 sufficient. The SU 150 is intended for higher accuracy, class II and the analogue output.Models at a glanceModelMeasuring rangeReadabilityMeasurement accuracyMeasuring modesWeightingFrequency rangeMemory (measurements)OutputSU 13030 dB to 130 dB0.1 dB3 % of MaxLp, Leq, LnA, C, F20 Hz to 12.5 kHz30RS-232SU 15030 dB to 130 dB0.1 dB1.5 % of MaxLeq, LcpeakA, C31.5 Hz to 8 kHz63Analogue output AC/DCTechnical detailsThe model table contains the values for each model. This information applies to both models.Measured quantitySound levelUnitdBDisplayLCDHousingPlasticPower supply4 batteries (alkaline-manganese): SU 130 AAA, SU 150 AA, included in the scope of deliveryDimensions (W x D x H)SU 130: 236 x 63 x 40 mm; SU 150: 273 x 69 x 39 mmNet weightSU 130: approx. 0.20 kg; SU 150: approx. 0.40 kgDevice class according to the data sheetSU 130: not specified; SU 150: class IIFactory calibration certificatecan be ordered separately, item no. 961-281 (both models)DAkkS calibration certificatecan be ordered separately, item no. 963-281 (SU 150)Warranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySU 130: sound level meter with 4 AAA batteries and carrying caseSU 150: sound level meter with 4 AA batteries and pouchCalibrationA factory calibration certificate (item no. 961-281) can be ordered separately for both models. A DAkkS calibration certificate (item no. 963-281) is also available for the SU 150.WarrantyAccording to Kern & Sohn, these devices come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions SU 130 (PDF)Operating instructions SU 150 (PDF)Regulatory informationAs electrical devices, the sound level meters fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe ATC-01 software (for the SU 130), the SW-A05 tripod (for the SU 150) and the calibration certificates 961-281 and 963-281 are also available. Enquiries are handled via our procurement service.

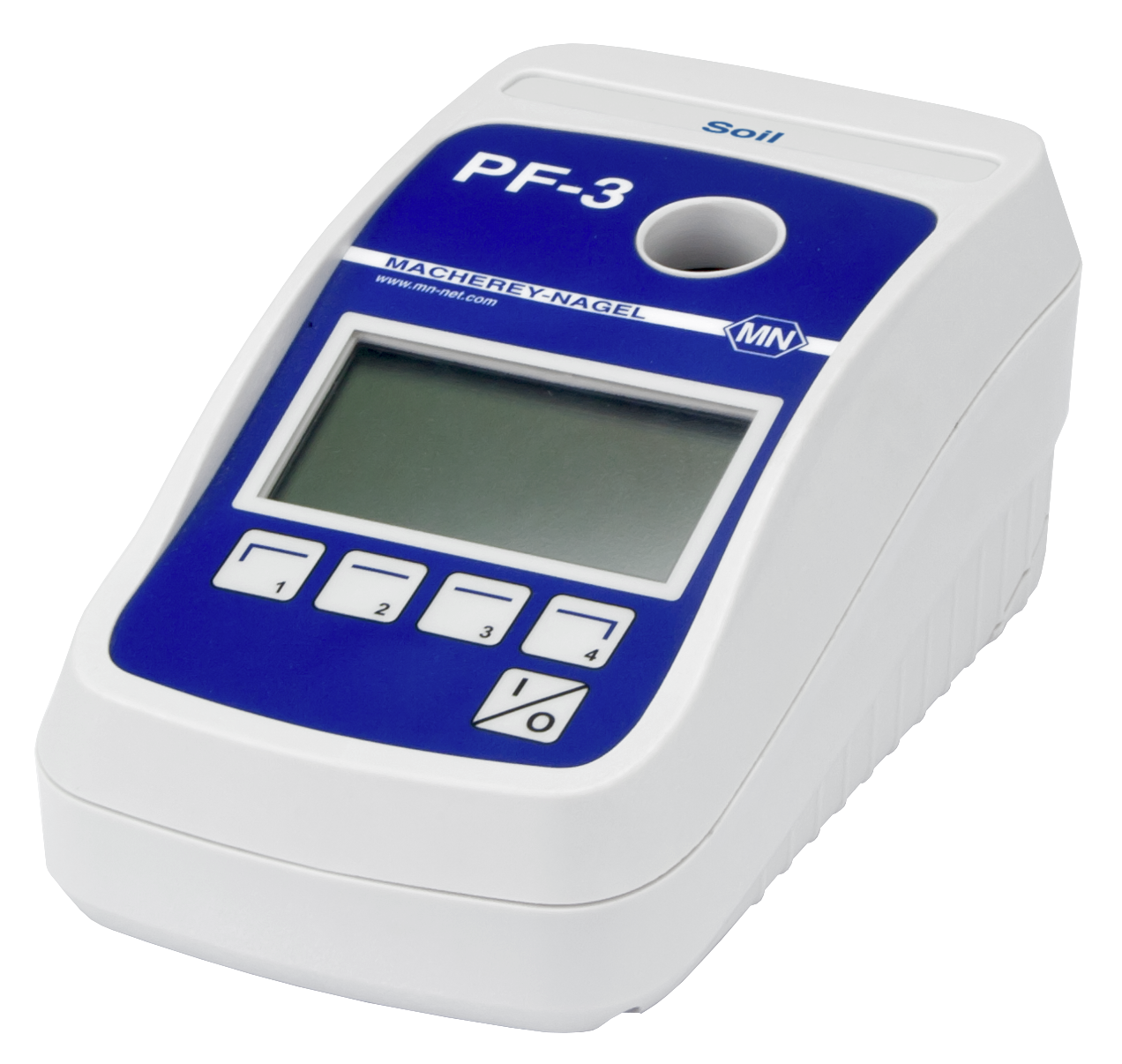

Macherey-Nagel compact photometer PF-3 Soil, 919341
The PF-3 Soil compact photometer is a model of the Macherey-Nagel PF-3 series and has been specially designed to meet the requirements of soil analysis. It supports the measurement of ammonium, nitrate, phosphorus and potassium, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 Soil is a true lightweight and a practical companion for field analysis. The housing is shock-resistant, waterproof and dustproof, rated IP 68, ready for mobile use outside the laboratory. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test selection directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the instrument features a self-test and auto-calibration function. The open cuvette chamber is insensitive to extraneous light, which makes measurements reliable even under changing light conditions in the field. Flexible power supply and data connectivity The PF-3 Soil is powered by 3 AA batteries/rechargeable batteries or via a USB interface (Mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or inactive) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Inactive or automatic switch-off after 5 min, 10 min, 15 min, 20 min Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80 % relative humidity (non-condensing) Standards/Certificates CE-marked Data storage 50 measurements Ambient light Insensitive to ambient light, open shaft Hazardous substances No Housing Shock-resistant, waterproof and dustproof, rated IP 68 Weight 0.5 kg Gross weight (including packaging) 800 g Cuvette well Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 260 x 220 x 80 mm Pre-programmed tests NANOCOLOR tube tests, VISOCOLOR ECO tests and Powder Pillows Wavelengths 365 nm / 450 nm / 660 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm
WTW inoLab pH 7110 Set 4 laboratory pH meter (with SenTix 81), 1AA114
The WTW inoLab® pH 7110 Set 4 (MPN 1AA114) is the ‘precision package’ of the 7110 series, designed for laboratories that do not wish to compromise on measurement quality, even when dealing with challenging samples. Whilst the main unit offers the tried-and-tested, simple operation without complex menus, the key advantage of this set lies in the sensor technology: instead of a standard gel electrode, it includes the SenTix® 81. This high-quality glass electrode with liquid electrolyte (KCl 3 mol/l) delivers more stable and faster readings than low-maintenance alternatives, even in protein-rich media, suspensions or during rapid temperature changes. Measurement performance and AutoRead The inoLab® pH 7110 (with DIN connector) focuses on the essentials: precise measurement readings. The integrated ‘AutoRead’ function automatically monitors electrode drift and only locks the reading once the signal is stable. This reduces subjective reading uncertainties. Together with the SenTix® 81, whose platinum diaphragm ensures a constant electrolyte flow, you can thus achieve reproducible results. Operation and calibration Despite being a high-end electrode, it remains intuitive to use. A large LCD segment display clearly shows all relevant information. Calibration is carried out using 1 to 3 points with automatic buffer recognition (WTW TEC or DIN/NIST). An adjustable calibration timer reliably reminds you to carry out regular maintenance to ensure the system’s high accuracy is maintained over the long term. The device features a smooth, easy-to-clean membrane keypad. Technical details pH measurement range: -2.000 … +19.999 pH Accuracy (pH): ±0.005 pH mV measurement range: ±1,200.0 / ±2,000 mV Accuracy (mV): ±0.3 mV Temperature measurement range: -5.0 … +105.0 °C Calibration: 1-, 2- or 3-point (WTW / DIN/NIST) pH connection: DIN socket (19262) Temperature connection: 2 × 4 mm banana sockets Sensor included in the set: SenTix® 81 (glass, liquid-filled, platinum diaphragm, NTC 30 kOhm) Display: LCD segment display (black and white) Power supply: Universal mains adaptor or 4 x 1.5 V AA batteries Degree of protection: IP 43 Scope of delivery inoLab® pH 7110 meter (DIN) SenTix® 81 pH electrode (liquid-filled, refillable, with integrated temperature sensor) Universal mains adaptor Stand (multi-purpose stand) pH 4 buffer solution (50 ml) Buffer solution pH 7 (50 ml) Buffer solution pH 10.01 (50 ml) Electrolyte solution 3 mol/l KCl (for electrode & storage) Measuring beaker Operating instructions Individual requirements and procurement service Do you work in food analysis (meat, cheese, yoghurt)? We can alternatively configure this kit with special insertion electrodes (e.g. SenTix SP) or supply you with the appropriate cleaning solutions (pepsin/HCl) to keep the platinum diaphragm of the SenTix 81 free from protein deposits.
Aqualabo ODEON Open One, sludge level, VB5, 15 m cable, NC-POR-C-00270
Anyone who takes measurements in the field or directly at a sewage treatment works is familiar with the problem: a simple handheld meter is sufficient for a quick spot check, but not for measurement series requiring documentation involving multiple samples, users and campaigns. The Aqualabo ODEON Open One bridges this gap as a portable, multi-parameter handheld measuring device featuring a single sensor channel, a large graphic display and its own PC software: It automatically recognises the connected digital PONSEL sensor, stores more than 100,000 data records for GLP documentation, including sample, user and campaign IDs, and transfers the measurement series via USB to the supplied ODEON Viewer software. Large display, plenty of memory, documentation in a GLP environmentThe 4-inch backlit graphic display, with a resolution of 240 x 320 pixels, shows the measured value alongside the date, time, user, sample, temperature, status and air pressure, whilst displaying up to 7 parameters simultaneously. An 8 MB memory operates in the background, storing more than 100,000 data records for GLP documentation, each with a sample ID, user ID, date and time. Three recording modes, manual, interval or continuous, cover both one-off measurements and automated measurement series. Sample, campaign and user IDs can be assigned using alphanumeric characters of up to 10 characters; the device manages up to 20 users simultaneously, which is practical for teams sharing a single device. Sensor detected automatically, ready to measure straight awayAs soon as a digital PONSEL sensor is connected to the 6-pin grey metal plug, the ODEON Open One automatically recognises it and carries out a self-diagnostic test, plug-and-play with no need for manual sensor configuration. The housing and connections are IP67-rated, meaning the device can withstand brief submersion and is suitable for use across different locations, including site premises, the water’s edge and the laboratory. Power is supplied by 4 AA alkaline batteries; optionally, it can also be powered by rechargeable NiMH batteries or an external 12 V power supply, with a runtime of between 145 and 190 hours, depending on the configuration. Selection guide: choosing the right sensor and cable lengthThe ODEON Open One is available with seven different PONSEL digital sensors, each in cable lengths of 3 m, 7 m or 15 m. The following overview matches the different models to typical measurement tasks:SensorMeasured variablesTypical applicationOptical oxygen, OPTOD stainless steelDissolved oxygen 0 to 20 mg/L, saturation 0 to 200 %Aeration tanks, fish farming, surface waterspH, redox and temperature, PHEHTpH 0 to 14, redox -1,000 to +1,000 mV, temperatureInlet and outlet monitoring, groundwater, industrial effluentpH and temperature, PHTpH 0 to 14, temperature, excluding redoxPure pH measurement without the need for redoxConductivity and salinity, C4EConductivity, salinity, TDSDrinking water, seawater, wastewater, aquacultureTurbidity, NTUTurbidity: 5 to 4,000 NTUInlet and outlet monitoring: sewage treatment works, sewerage network, drinking waterSuspended solids, MES5Suspended solids, turbidity, sludge levelAeration tanks, clarifiers, sludge treatmentSludge level, VB5Sludge level 0 to 100 %Primary and secondary settling tanks, small-scale sewage treatment plantsThe cable length depends on the distance between the operator and the measuring point: 3 m is sufficient for measurements taken directly at the edge of a vessel or tank; 7 m is suitable for medium-depth tanks; and 15 m is suitable for deep tanks, shafts or measuring points located at a greater distance from the operator’s station. Distinctions within the Aqualabo range of handheld measuring instrumentsAqualabo offers four versions of its portable handheld measuring devices: Aqualabo NEON, a single-parameter device with a hard-wired sensor; Aqualabo NEON OPEN, featuring Open Technology for interchangeable digital sensors; and the ODEON Open One and Aqualabo ODEON X, which are larger platforms with a large graphic display, more memory and dedicated PC software. The following table compares the four models:CharacteristicNEONNEON OPENODEON Open OneODEON XSensor replacementHard-wired sensor, single-parameterOpen Technology, interchangeable digital sensorsOpen Technology, interchangeable digital sensorsOpen Technology, interchangeable digital sensorsSensor channels1112Displaycompact displaycompact display4-inch graphics display, 240 x 320 pixels4-inch graphics display, 240 x 320 pixelsMemoryup to 30,000 data pointsup to 30,000 data pointsover 100,000 data records for GLP documentationover 100,000 data records for GLP documentationPC connectionWi-FiWi-FiUSB, including ODEON Viewer softwareUSB, including ODEON Viewer softwareIf you only need to continuously measure a single, fixed parameter, the NEON will suffice. If you wish to change the sensor occasionally but can do without the larger display and greater memory capacity of the ODEON range, the NEON OPEN is suitable. For measurement series requiring documentation, with a large display, high memory capacity and PC analysis, the ODEON Open One with a single sensor channel is the suitable choice; the ODEON X adds a second channel for the simultaneous measurement of two parameters. Typical applicationsAs a portable handheld measuring device with automatic sensor detection and GLP documentation, the ODEON Open One is suitable for, amongst other things:Municipal wastewater treatment, such as monitoring of inflow, aeration tanks and outflowIndustrial wastewater treatment and process water monitoringDrinking water testingSurface waters and natural water bodies in field useSwitching between laboratory and field use with the same device and different sensors Day-to-day use, calibration and maintenanceCalibration and maintenance depend on the sensor selected. According to the manufacturer, the OPTOD optical oxygen sensor operates without the need for calibration during normal operation and requires no membrane or electrolyte; the only regular maintenance required is the replacement of the DOdisk cap every two years. The pH sensors PHEHT and PHT are calibrated at three points; their cartridge can be replaced if necessary. The conductivity sensor C4E is calibrated across four measurement ranges, each with two calibration points, and is, according to the manufacturer, maintenance-free. The NTU turbidity sensor is calibrated using two points per measurement range and requires no consumables. The MES5 suspended solids sensor and the VB5 sludge level sensor operate optically and are set up using one or two calibration points, depending on the measured parameter. Suitable pH buffer solutions from our range are available for pH calibration; to replace worn-out electrodes, please take a look at our range of electrodes. Data export, storage and disposalCharging and connection to the PC are carried out via the same 7-pin metal plug. The ODEON Viewer software analyses the measurement series in tabular and graphical form and exports them as CSV, XLS, XLSX, JPEG, PNG, TIF or PDF files, for example for GLP documentation or transfer to a laboratory information system. The manufacturer specifies a storage temperature range of -25 to +65 °C at 0 to 80 % relative humidity. At the end of its service life, the device must be disposed of as waste electrical and electronic equipment via a separate collection scheme; see ‘Regulatory information’ below for further details. Investment rationale: a platform rather than a single deviceAnyone who is already using Aqualabo or Ponsel sensors does not necessarily have to buy a complete sensor set: The Aqualabo ODEON Open One base unit without sensor covers precisely this scenario. For everyone else, it is worth taking a look at the platform as a whole, because unlike a device designed for a single parameter, the ODEON Open One comes complete with documentation in a GLP environment, sample and user management, and the ODEON Viewer PC software. As the unit automatically recognises every compatible digital PONSEL sensor, the sensor array can be expanded as requirements grow without having to replace the base unit. Anyone wishing to measure two parameters simultaneously from the outset, such as pH and conductivity in a single operation, will be better served by the Aqualabo ODEON X with two sensor channels. Frequently asked questions about the ODEON Open OneWhat is the difference between the ODEON Open One and the ODEON X?The ODEON Open One has one sensor channel, whilst the ODEON X has two. This means that the ODEON X can measure two parameters simultaneously, such as pH, redox and temperature, together with conductivity. According to the data sheet, the other technical specifications, such as the display, memory and protection rating, are identical for both devices.How many readings can be stored on the device?The 8 MB memory can hold more than 100,000 data records for GLP documentation, each containing a sample ID, user ID, date and time.Do I need to configure the sensor manually?No. The ODEON Open One automatically recognises connected digital PONSEL sensors and carries out a self-diagnosis (plug and play).What cable lengths are available for the sensors?The digital PONSEL sensors are available with 3 m, 7 m or 15 m cables.How is the measurement data analysed?Using the ODEON Viewer PC software supplied, via a USB cable, with tabular and graphical analysis, as well as export to CSV, XLS, XLSX, JPEG, PNG, TIF or PDF.Is the device suitable for outdoor use?Yes, the housing and connections are rated to IP67. Power is supplied by 4 AA alkaline batteries; optionally, rechargeable NiMH batteries can also be used, with a runtime of 145 to 190 hours depending on the configuration.Can I retrofit further sensors at a later date?Yes. As the device automatically recognises any compatible digital PONSEL sensor, the sensor set can be expanded as required, for example if additional measurement parameters are added. Technical detailsDevice typePortable multi-parameter handheld measuring device, 1 sensor channelDisplay4-inch LCD graphic display, backlit, 240 x 320 pixels, simultaneous display of 1 to 7 parametersMemory8 MB, more than 100,000 data records for GLP documentation, including sample ID, user ID, date and timeDocumentation in a GLP environmentYes, including sensor status display and self-diagnosisSensor detectionAutomatic, plug-and-play with self-diagnosisRecording modes3 modes: manual, interval, continuousID managementSample, campaign and user IDs, alphanumeric, max. 10 characters, max. 20 usersSensor channels1 (Sensor 1, 6-pin grey metal plug)Degree of protectionIP67Dimensions (L x W x H)approx. 196.5 to 205 x 121 to 122 x 43 to 46 mmWeight400 g (device without sensor and cable)Operating temperature-25 to +50 °CStorage temperature-25 to +65 °CRelative humidity, operation / storage0 to 70 % / 0 to 80 %Power supply4 x 1.5 V AA batteries (alkaline), fitted at the factoryOptional4 x AA NiMH rechargeable batteries or an external 12 V power supplyOperating time145 to 190 hours, depending on the configurationInterfaceUSB via a shared 7-pin metal connector (PC connection and charging)SoftwareODEON Viewer, export as CSV, XLS, XLSX, JPEG, PNG, TIF, PDF Scope of delivery1 ODEON Open One unit, supplied with 4 AA alkaline batteries as standard1 digital PONSEL sensor with a 3 m, 7 m or 15 m cable, depending on the version selected1 ODEON-PC connection cable (USB)Standard solutions, 125 ml, depending on the parameterShock-resistant carrying case for up to 2 sensors, a PC cable and 4 bottles of standard solutionODEON Viewer PC softwareThe device operates out of the box using the 4 AA alkaline batteries supplied; according to the manufacturer, this set does not include a charger. For use with rechargeable batteries, the Rechargeable Battery ODEON accessory kit, comprising a charging cable and four NiMH rechargeable batteries, is available separately (reference NC-ACC-C-00001). Regulatory informationAs an electrical appliance, the ODEON Open One is subject to the Electrical and Electronic Equipment Act (ElektroG). At the end of its useful life, the appliance must not be disposed of with household waste, but must be taken to a separate collection point for waste electrical and electronic equipment. Individual requirements and procurement serviceOur procurement service is here to assist you with additional sensors, replacement cables, standard solutions or setting up a shared sensor pool for multiple ODEON devices. We’d also be happy to discuss the right equipment with you if you have any questions about calibration accessories from our range of measurement technology or about comparing NEON, NEON OPEN and ODEON X.
Sauter FM digital force gauges for tension and compression, 5 N to 20 kN, internal and external load cells
The Sauter FM are digital force gauges for tensile and compressive forces with a graphic-assisted display. There are 13 models ranging from 5 N to 20 kN. Eight models (FM 5 to FM 1K) have the load cell integrated into the unit, whilst five models (FM 1K EXT, FM 3K, FM 5K, FM 10K, FM 20K) use an external load cell for high forces. All models feature a data memory for 500 measured values, a limit value function and a sampling rate of 1,000 Hz.Internal or external load cellIn the models FM 5 to FM 1K, the load cell is located in the housing. A hook takes up the load, whilst an M6 external thread is provided for mounting attachments. These devices can be mounted on all Sauter test stands up to 5 kN. The models FM 1K EXT to FM 20K have a separate load cell with an M12 threaded hole for force introduction and force output. In these models, the force measurement is not integrated into the display unit; the cell can be used separately. Both the FM 1K and the FM 1K EXT measure up to 1 kN with a readability of 0.5 N and differ in their design.Accuracy and protectionAccording to Kern, the measurement accuracy is 0.2 % of Max and the overload protection 120 % of Max. This is a tighter accuracy than with the FE series (0.3 %), but the overload protection is lower (FE: 150 %). The largest expected force should therefore be chosen with some margin to the measuring range. The readability ranges from 0.002 N for the FM 5 to 10 N for the FM 20K.Display, capacity bar and memoryThe backlit LCD can be rotated. A capacity bar shows, as a rising band of light, how much of the measuring range is still free. The device displays either the peak value (peak hold) or the current value continuously (track). The internal memory stores up to 500 measured values. The available units are N, kN, kgf and lbf.Limit values and data transmissionFor pass/fail tests, an upper and a lower limit value are set, separately for tension and compression. A visual signal reports that the limit value is exceeded or undershot. The data is transmitted to a PC via USB-C, at a rate of approximately 25 measurements per second, according to Kern. There is also a PS/2 port for device coupling. The AFH FAST software is available for force-time measurements, the AFH LD software for force-displacement measurements, and the Sauter Readout software for models with an external load cell.Rechargeable batteryAccording to the data sheet, the NiMH rechargeable battery runs for up to 10 h without and up to 8 h with backlight, the charging time is approx. 8 h. Charging is carried out via the USB-C port using the supplied mains adaptor (100 V to 240 V). The rechargeable battery is permanently fitted.Typical applicationsTest laboratories: tensile and compression tests, test series with data storage and data transferResearch and development: force measurement on test objects, force-time and force-displacement curves using softwareAutomotive industry: testing of insertion, extraction and actuation forcesMaintenance and servicing: checking clamping, spring and holding forcesPlastics engineering: force testing on plastic parts using models with an internal load cellA model with an internal load cell is sufficient for forces up to 1 kN. If you need to measure forces from 3 kN to 20 kN or wish to use the load cell separately from the display, choose one of the external models.Models at a glanceModelLoad cellMeasuring range (Max)Readability (d)Dimensions of load cell (W x D x H)Factory calibration certificate for tension / compression / tension and compressionDAkkS calibration certificate tension / compression / tension and compressionFM 5internal5 N0.002 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 10internal10 N0.005 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 20internal20 N0.01 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 50internal50 N0.02 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 100internal100 N0.05 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 200internal200 N0.1 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 500internal500 N0.2 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 1Kinternal1 kN0.5 Nin the device961-162 / 961-262 / 961-362963-162 / 963-262 / 963-362FM 1K EXTexternal1 kN0.5 N72 x 64 x 20 mm961-162 / 961-262 / 961-362963-162 / 963-262 / 963-362FM 3Kexternal3 kN1 N70 x 60 x 24 mm961-163 / 961-263 / 961-363963-163 / 963-263 / 963-363FM 5Kexternal5 kN2 N70 x 60 x 24 mm961-163 / 961-263 / 961-363963-163 / 963-263 / 963-363FM 10Kexternal10 kN5 N70 x 60 x 24 mm961-164 / 961-264 / 961-364963-164 / 963-264 / 963-364FM 20Kexternal20 kN10 N70 x 64 x 25 mm961-164 / 961-264 / 961-364963-164 / 963-264 / 963-364Technical detailsThese values apply to all models. Deviating values are given in the model table.Directions of forceTension and compressionMeasurement accuracy (Kern)0.2 % of MaxOverload protection120 % of MaxSampling rate1,000 HzUnitsN, kN, kgf, lbfFunctionsLimit value function in tensile and compressive directions with visual signal, peak hold, track, capacity displayMemory500 measured valuesInterfacesUSB-C, PS/2; data transfer rate approx. 25 measured values per secondForce introductioninternal load cell: hook, M6 external thread; external load cell: M12 threaded holeDisplayLCD, rotatable, backlitDisplay unit housingABS plastic, 71 x 31 x 180 mm (W x D x H)Rechargeable batteryNiMH, 750 mAh, charging time approx. 8 h, operating time 10 h without and 8 h with backlightChargingUSB-C, mains adaptor 100 V to 240 VAmbient temperature15 °C to 35 °CStorage temperature-10 °C to 40 °CWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter FM force gauge with built-in rechargeable batteryMains adaptor (USB-C)Models with internal load cell: standard attachments and carrying caseModels with external load cell: external load cellCalibrationFor the FM series, there are factory calibration certificates and DAkkS calibration certificates, each for tension, compression or both tension and compression. The item numbers for each model are listed in the model table. The calibration procedure for the DAkkS certificates is DKD-R 3-3 (procedure A). For the FM 10K and FM 20K, the certificates are valid, according to Kern, for the range from 5 kN to 20 kN.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter FM (PDF)Regulatory informationAs electrical devices, the force gauges fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Ball heads: AC 02Screw clamps: AC 14, AC 17, AC 22, AD 9001, AD 9005, AD 9016Clamps from the AE series: AE 01 to AE 07, AE 500Adaptors: AFM 05, AFM 06, AFM 07, AFM 12, AFM 15Replacement parts: battery FL-A03, screen RFL-3001, display film RFL-4001Further accessories: handle AFK 02, cable FL-A04, plug-in mains adaptor FS-E07, needle printer YKT-01Please enquire to find out which parts are compatible with which model. Enquiries are handled via our procurement service.
