Water distillation units
Pure water is essential for reliable analyses and reproducible results in the laboratory. In the ‘Water and Distillation Equipment’ category at LT Laborhandel, you will find solutions for the preparation of distilled and demineralised water. The range extends from traditional water distillation units through systems for continuous water treatment to accessories for laboratory use. They are suitable for applications in research laboratories, industry, education and quality control.

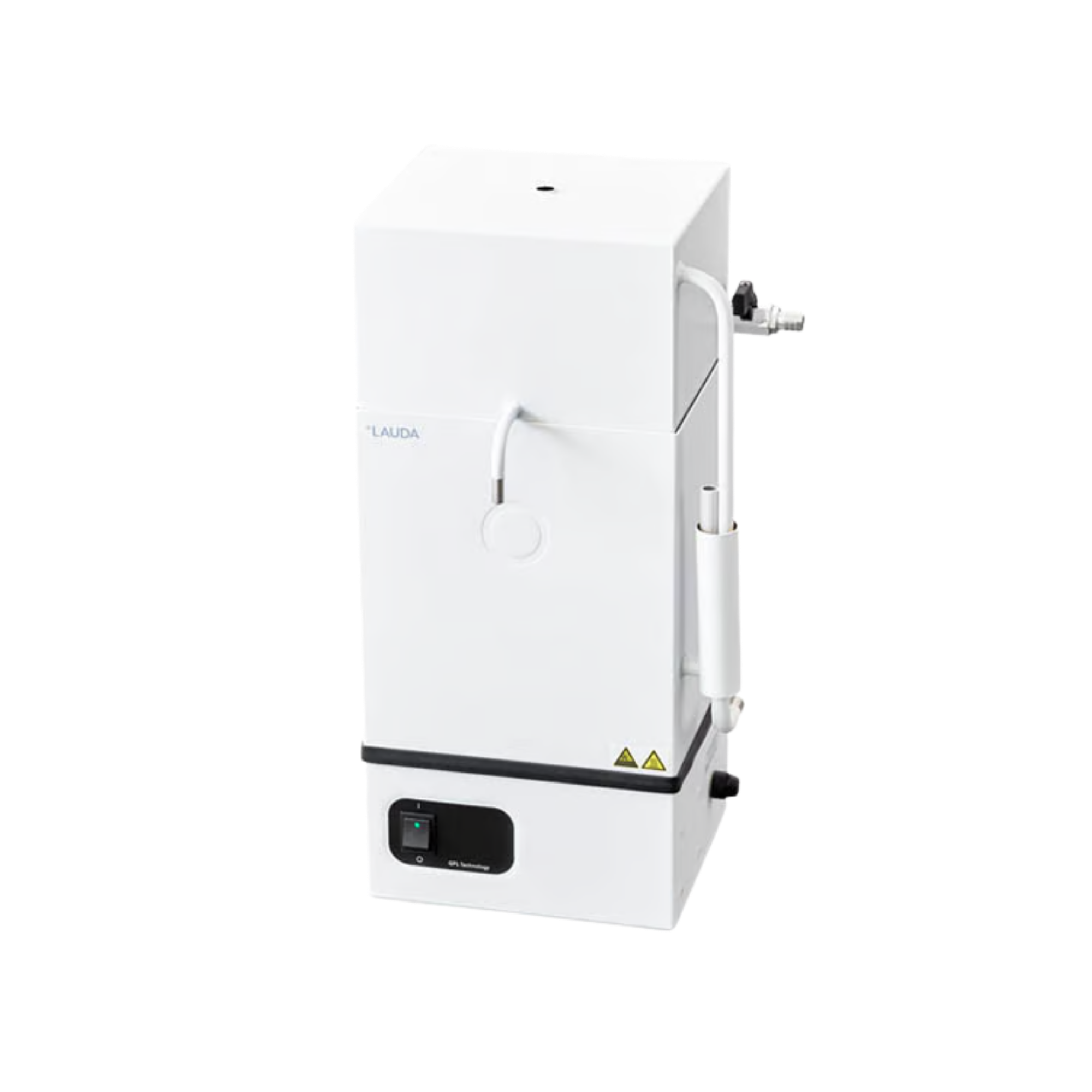

LAUDA Puridest PD 4 Mono Distillation Apparatus, 4 L/h, without Storage Tank, L003012
For those who need small quantities of distilled water on a continuous basis in the laboratory without having to carry a storage container around, the LAUDA Puridest PD 4 is a benchtop unit that dispenses the distillate directly from the condenser. This mono distillation apparatus produces up to 4 litres of distilled water per hour with a conductivity of 2.3 µS/cm at 25 °C, pure enough for diluting reagents and sample solutions. Without a storage tank, the unit fits on any laboratory bench and can be connected directly to a Schuko socket using the supplied mains cable.Collect distillate directly from the condenserThe PD 4 does not have a storage tank. The distillate flows out via a drain pipe on the condenser and is collected directly into a vessel. The cooling water supply is controlled manually via the outlet temperature, whilst a CO₂ vent on the condenser prevents dissolved gases from entering the distillate. A thermostatic low-water protection switch cuts off the heating as soon as the cooling water flow is too low. The distillation flask is easily accessible for cleaning. If you do not require automatic level monitoring, this simple design without electronics will suffice.Compact and economical in cooling water consumptionWithout accessories, the PD 4 measures just 280 x 250 x 490 millimetres and weighs 8 kilograms net; when packed, it weighs 10 kilograms. The maximum heating output is 3 kilowatts, whilst cooling water consumption is 0.67 litres per minute, the lowest figure in the Puridest Mono series. The cooling water connection works with a pressure differential from 1 bar, and the maximum pressure is 2 bar; both the inlet and outlet hoses have a 1/2-inch thread. The unit operates on 230-volt alternating current via the angled Schuko plug; a three-phase power supply is not required.Water quality according to the manufacturerThe conductivity of 2.3 µS/cm at 25 °C is significantly lower than that of normal tap water, making it suitable for applications that require water with a low conductivity. According to LAUDA, the Puridest series complies with the DAB regulations and the provisions of international pharmacopoeias (statement on the series, not on the individual model). No specially trained personnel are required for commissioning, and routine maintenance is also straightforward. Furthermore, the unit does not impose high demands on the quality of the raw water supplied to it.Typical applicationsDirect water supply for sample preparation and reagent dilution at the laboratory benchSupplement to the drinking water supply where no central ultrapure water system is availableResearch and development with varying, smaller daily requirements for distillateTraining and teaching, where a simple setup without a storage tank is sufficientWhich Puridest model is right for youFor those who prefer to have distillate on hand automatically rather than collecting it as it flows, the Puridest PD 4 R offers the same hourly output with an integrated 8-litre storage tank and tap. For higher demand, the Puridest PD 8 R with 8 litres per hour and the Puridest PD 12 R with 12 litres per hour are available, both with a three-phase connection. Where contact with stainless steel needs to be avoided, the structurally identical Puridest PD 4 G is available, featuring glass contact parts.Technical detailsProduction capacity4 L/hConductivity of mono-distillate at 25 °C2.3 µS/cmMax. heating output3 kWMax. power consumption3 kWCooling water consumption0.67 L/minMinimum cooling water pressure differential1 barMaximum cooling water pressure2 barWater cooling inlet1/2-inch hose connectionWater cooling drain1/2-inch hose connectionDimensions (W x D x H)280 x 250 x 490 mmNet weight8 kgGross weight (including packaging)10 kgPackaging dimensions (L x W x H)0.58 x 0.43 x 0.5 mAmbient temperature range10 to 40 °CMains supply230 V, 50/60 HzMains plugMains cable with angled Schuko plug (CEE7/7)Storage tankNo storage tank, tabletop installationMaterial of distillation flask/condenserStainless steelScope of deliveryLAUDA Puridest PD 4 distillation unit, order number L003012Mains cable with angled Schuko plugCooling water hoses and collection vessels for the distillate are not included in the scope of delivery and must be purchased separately.Regulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this unit from the date of purchase. Your statutory warranty rights remain unaffected.For the PD 4, cooling water hoses, connection fittings and spare parts such as the distillation flask or condenser may be required. On request, we can compile the appropriate accessories and spare parts for the relevant Puridest model, including for a subsequent upgrade to a version with a storage tank.

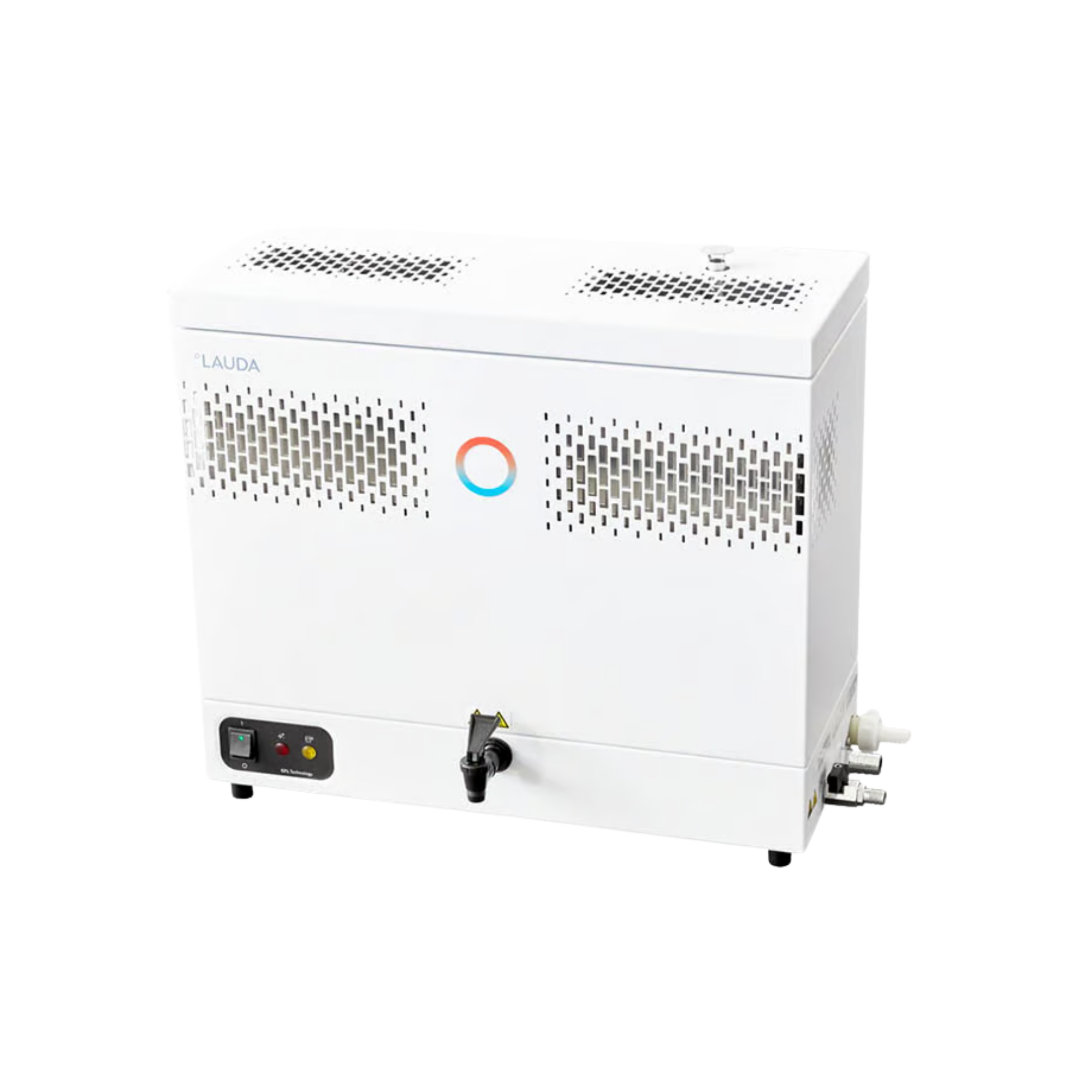

LAUDA Puridest PD 4 R Mono Distillation Apparatus, 4 L/h, 8-Litre Storage Tank, L003014
The LAUDA Puridest PD 4 R produces the same 4 litres of distillate per hour as the PD 4, but stores the water in a built-in 8-litre storage tank and dispenses it via a tap. The conductivity of the mono-distillate is 2.3 µS/cm at 25 °C, which is sufficiently pure for diluting reagents and sample preparations according to DAB regulations and international pharmacopoeia standards. The unit monitors its own water level and automatically replenishes it.Fully automatic operation with an 8-litre storage tankWith a capacity of 8 litres, the storage tank holds twice the unit’s hourly output and can be mounted either on the wall or on a table. The dispensing tap has a continuous and a momentary setting, allowing both larger quantities to be dispensed and individual vessels to be filled in measured quantities. A solenoid valve controls the water supply, whilst an electronic level sensor triggers automatic refilling after each dispensing cycle. The condenser is housed in the storage tank and can be replaced if necessary.Electronic contamination monitoringAn electronic monitoring system detects contamination in the distillation flask, stops the distillation process and displays a visual cleaning prompt before the water quality is compromised. A thermostatic low-water protection system provides additional protection against the heater running dry. Thanks to the automatic shut-off once the fill level is reached, the unit does not consume any unnecessary water.Connected load specifications and cooling water requirementsLike the PD 4, the PD 4 R operates on 230-volt alternating current via the angled Schuko plug; the maximum heating output is 3 kilowatts. Cooling water consumption is 0.8 litres per minute; however, the connection requires a higher pressure differential of at least 3 bar and a maximum of 7 bar. The inlet hose has a 1/2-inch thread, whilst the drain has a 3/4-inch thread. When packed, the unit weighs 24.5 kilograms, with packaging dimensions of 0.69 x 0.42 x 0.59 metres. The unit itself measures 620 x 330 x 460 millimetres, excluding accessories.Typical applicationsProvision of a buffered distillate supply for sample preparation and reagent dilutionOperation with automatic refilling of the distillate supplyWall or bench-top mounting, where space on the laboratory bench is limitedResearch, quality assurance and training with regular, predictable water requirementsWhich Puridest model is right for youFor those who do not require a storage tank and instead draw water continuously from the condenser, the Puridest PD 4 offers a simpler benchtop version with the same hourly output. For a larger supply and higher throughput, the Puridest PD 8 R with a 16-litre storage tank and the Puridest PD 12 R with a 24-litre storage tank are available, both with a three-phase connection. Where contact with stainless steel needs to be avoided, the Puridest PD 4 G is available with the same hourly output and glass contact parts.Technical detailsProduction capacity4 L/hConductivity of mono-distillate at 25 °C2.3 µS/cmTank capacity8 LMax. heating output3 kWMax. power consumption3 kWCooling water consumption0.8 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet1/2-inch hose connectionWater cooling drain3/4-inch hose connectionDimensions (W x D x H)620 x 330 x 460 mmNet weight21 kgGross weight (including packaging)24.5 kgPackaging dimensions (L x W x H)0.69 x 0.42 x 0.59 mAmbient temperature range10 to 40 °CMains supply230 V, 50/60 HzMains plugMains cable with angled Schuko plug (CEE7/7)Storage tank8 L, integrated, wall- or table-mountedMaterial of distillation flask/condenser/storage tankStainless steelScope of deliveryLAUDA Puridest PD 4 R distillation unit with integrated storage tank, order number L003014Mains cable with angled Schuko plugWall bracket, cooling water hoses and connection fittings are not included in the scope of delivery and must be procured separately.Regulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this device from the date of purchase. Your statutory warranty rights remain unaffected.For the PD 4 R, wall brackets, cooling water hoses, connection fittings and spare parts such as condensers or distillation flasks may be required. On request, we can compile the appropriate accessories and spare parts for the relevant Puridest model, including for upgrading to a version with higher production capacity.

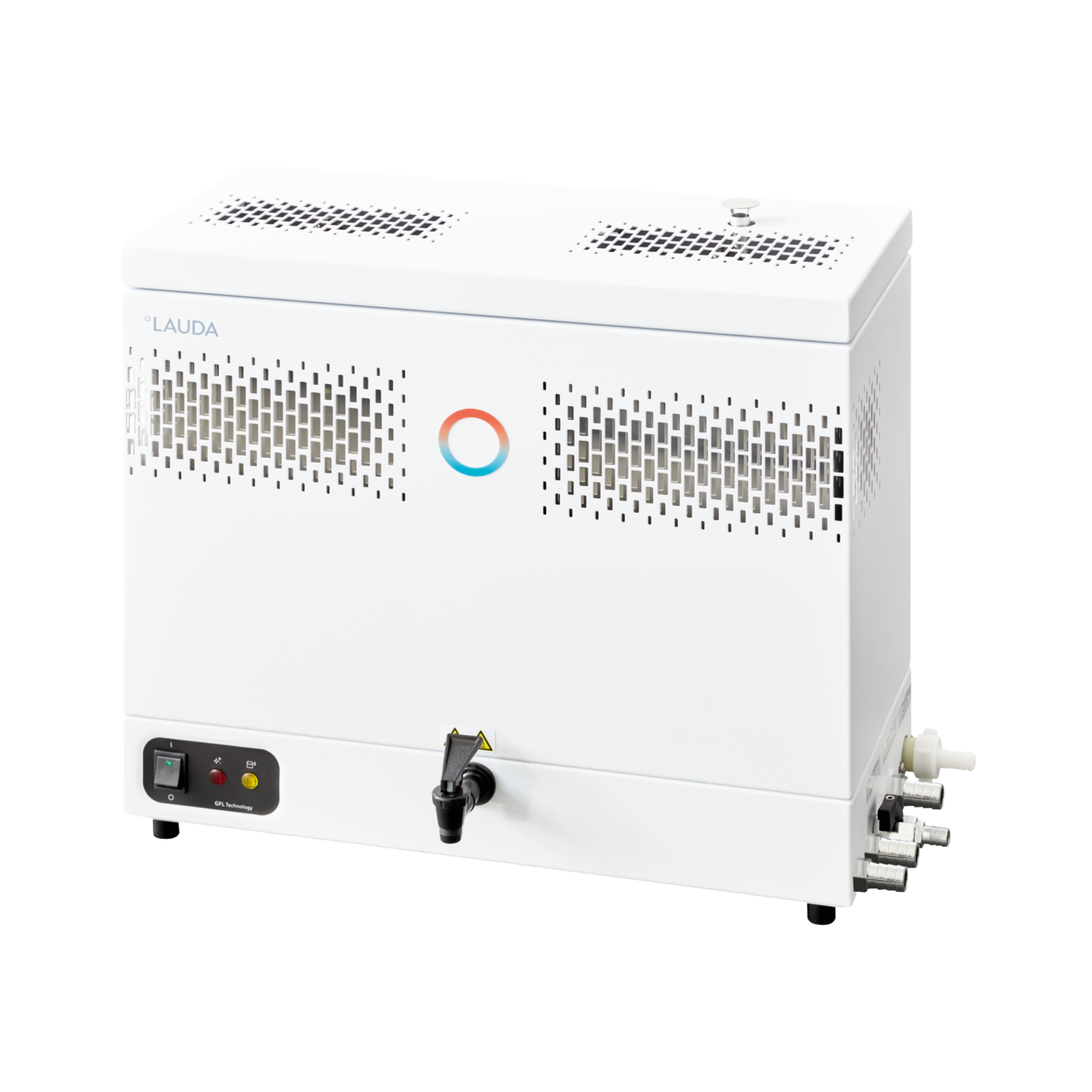

LAUDA Puridest PD 8 R Mono Distillation Apparatus, 8 L/h, 16-Litre Storage Tank, L003015
Compared with the PD 4 R, the LAUDA Puridest PD 8 R doubles the production capacity to 8 litres of distillate per hour and stores the distillate in a built-in 16-litre tank. The conductivity of the mono-distillate remains at 2.3 µS/cm at 25 °C, which is pure enough for reagent dilution and sample preparation according to DAB regulations and international pharmacopoeia standards. To achieve this higher throughput, the unit requires a 400-volt three-phase power supply rather than a standard mains socket.More supply for multiple workstationsWith a capacity of 16 litres, the storage tank also covers periods of increased demand, such as when several workstations are supplied from the same unit, as it holds twice the unit’s hourly output. The tap can be used for both continuous dispensing and short bursts; a solenoid valve regulates the water supply to the tank. If the water level drops after dispensing, the electronic level sensor detects the requirement and the unit automatically replenishes the supply. The condenser is located inside the tank itself and can be removed for replacement.Three-phase connection and cooling water consumptionThe PD 8 R is connected to the mains via a red CEE plug according to IEC 60309, rated at 16 amps, five-pin for 400 volts with a neutral and earth conductor. The heater draws a maximum of 6 kilowatts; the cooling water flows through at a rate of 1.2 litres per minute, with a pressure differential of between 3 and 7 bar. The inlet and drain have different thread sizes: 1/2 inch on the inlet and 3/4 inch on the drain. The unit weighs 34 kilograms net, and its footprint measures 780 x 410 millimetres.Contamination monitoring and water savingIf the distillation flask becomes contaminated, an electronic monitoring system detects this, stops the distillation process and displays a visual prompt to clean the unit. A thermostatic safety device also intervenes should the cooling water supply be interrupted, protecting the heating element from running dry. As the unit switches off automatically once the fill level is reached, no water continues to flow through unnecessarily.Typical applicationsSupplying distillate to several workstations from a central unitSample preparation and reagent dilution with higher daily requirementsQuality assurance and research in facilities with an existing three-phase power supplyTraining and teaching at institutes with several groups working in parallelWhich Puridest model is right for you?If a smaller supply is sufficient, the Puridest PD 4 R offers the same automatic operation at 4 litres per hour with an 8-litre storage tank, powered by a standard Schuko socket. For even higher demand, there is the Puridest PD 12 R with 12 litres per hour and a 24-litre storage tank. Where contact with stainless steel needs to be avoided, the comparable Puridest PD 8 G with glass contact parts is available; for higher purity requirements, the Puridest PD 8 D with bi-distillation is available.Technical detailsProduction capacity8 L/hConductivity of mono-distillate at 25 °C2.3 µS/cmTank capacity16 LMax. heating output6 kWMax. power consumption6 kWCooling water consumption1.2 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet1/2-inch hose connectionWater cooling drain3/4-inch hose connectionDimensions (W x D x H)780 x 410 x 540 mmNet weight34 kgGross weight (including shipping packaging)40.8 kgPackaging dimensions (L x W x H)0.92 x 0.72 x 0.55 mAmbient temperature range10 to 40 °CMains supply400 V, 3/N/PE, 50/60 HzMains plugMains cable with plug according to IEC 60309, 5-pin, CEE, red, 16 AStorage tank16 L, integrated, wall- or table-mountedMaterial of distillation flask/condenser/storage tankStainless steelScope of deliveryLAUDA Puridest PD 8 R distillation unit with integrated storage tank, order number L003015Mains cable with CEE plug (IEC 60309)Wall bracket, cooling water hoses and connection fittings are not included in the scope of delivery and must be purchased separately.Regulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this device from the date of purchase. Your statutory warranty rights remain unaffected.For the PD 8 R, wall brackets, cooling water hoses, connection fittings and spare parts such as condensers or distillation flasks may be required. On request, we can put together the appropriate accessories and spare parts for the relevant Puridest model, including for upgrading to a smaller or larger model within the series.

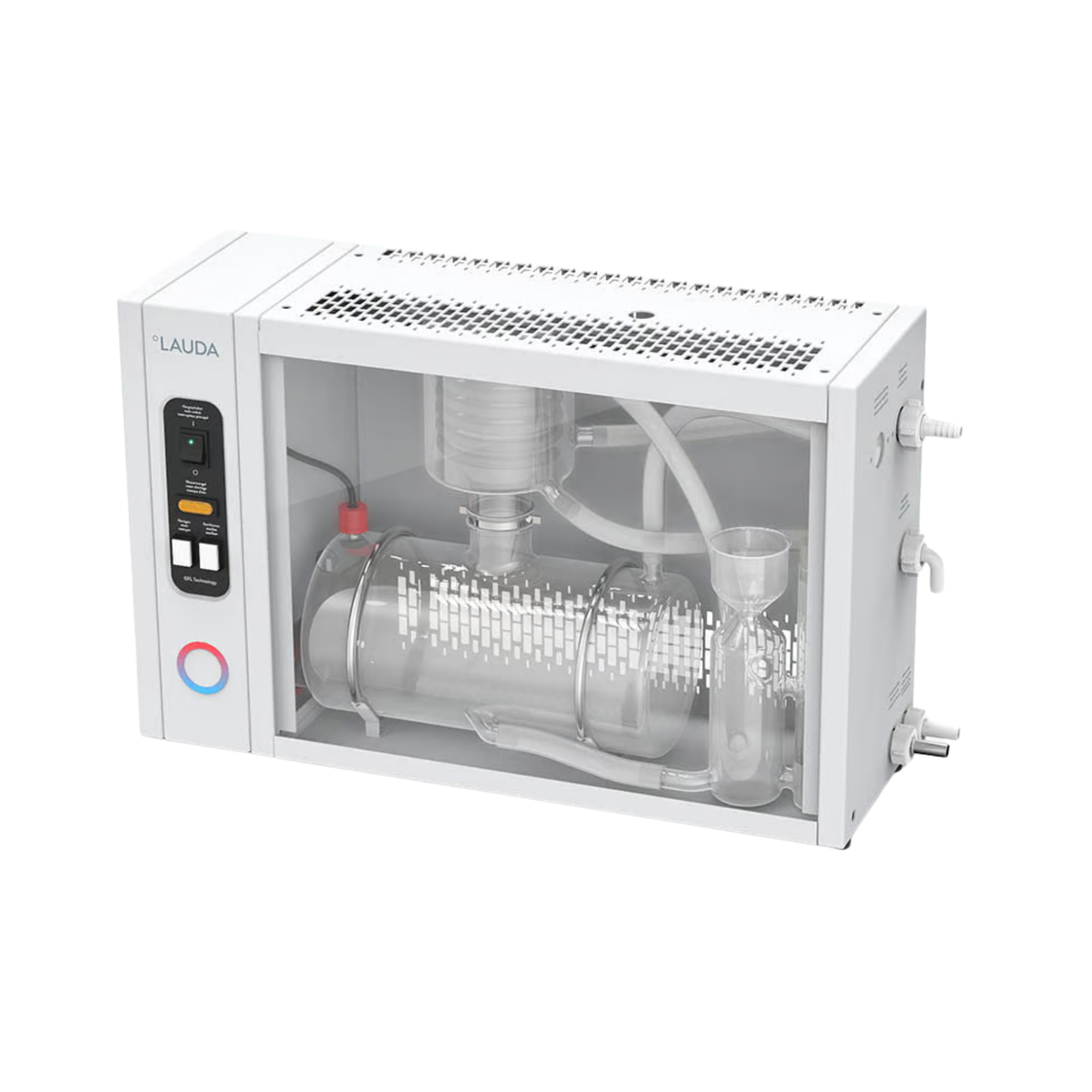

LAUDA Puridest PD 4 G Glass Distillation Apparatus, 4 L/h, Conductivity 2.2 µS/cm, L003018
For those in the laboratory who need fresh, high-purity water every day for dilutions and sample preparations, but have neither the space for a large storage tank nor the time for labour-intensive maintenance, the Puridest PD 4 G offers a simple introduction to glass distillation. This mono distillation apparatus from the LAUDA Puridest range distils up to 4 litres of water per hour and allows the entire process to be viewed through a shatterproof, non-misting front pane. The distillation flask and condenser are made of Duran borosilicate glass 3.3, whilst the heating rods are sheathed in quartz glass.Visible distillation process through glassThe operating principle of the PD 4 G has been deliberately kept simple. Raw water flows through a solenoid valve into the distillation flask, is heated and then condenses in a condenser section designed to prevent droplet formation. A CO₂ degassing port on the condenser, together with an electronic contamination monitor which, if necessary, automatically triggers a water change to clean the distillation flask, ensures low-maintenance operation. An electronic level monitoring system operates throughout the entire distillation process and automatically switches off the heating if there is a lack of water in the evaporator. The condenser section is sterilised by steam, without the need to dismantle the unit.Connection and cooling water requirementsThe PD 4 G operates from a 230-volt socket and draws a maximum of 3 kilowatts; the mains cable terminates in an angled Schuko plug according to CEE7/7. Cooling requires 1.2 litres of cooling water per minute, with a minimum pressure differential of 3 bar and a maximum permissible pressure of 7 bar at the connection. The inlet and drain for the water cooling system are designed for a 1/2-inch diameter hose. The unit does not have a storage tank; the mono-distillate, with a conductivity of 2.2 µS/cm at 25 °C, drains directly via the hose connection on the right-hand side of the unit.Typical applicationsProduction of high-purity mono-distillate for diluting reagents and preparing samplesSample preparation and quality assurance in research and developmentRoutine analytical work where the distillation process needs to remain visibleWall-mounted or benchtop installation in smaller laboratories without a dedicated storage tankSeries overviewThe Puridest series comprises six mono distillation apparatuses covering capacities from 4 to 12 litres per hour, available with either stainless steel or glass contact materials. For those requiring a higher distillate output per hour, the Puridest PD 8 G offers the same glass construction with a capacity of 8 litres per hour. If a lower conductivity is required, for example for cell or tissue cultures, the Puridest PD 4 D operates in a two-stage process and achieves 1.6 µS/cm; the Puridest PD 4 DG combines this two-stage bi-distillation with an all-glass construction. Those who prefer stainless steel to glass will find the same performance class in a stainless steel version with the Puridest PD 4 R.Technical detailsProduction capacity4 L/hConductivity of mono-distillate at 25 °C2.2 µS/cmHeating output / max. power consumption3 kWCooling water consumption1.2 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet and drain1/2 inch, hose connectionDimensions (W x D x H)650 x 200 x 390 mmNet weight16 kgGross weight (including shipping packaging)20.8 kgPackaging dimensions (L x W x H)0.92 x 0.62 x 0.5 mAmbient temperature range10 to 40 °CMains supply230 V, 50/60 HzMains plugSchuko CEE7/7, angledMaterial of distillation flask / condenserDuran borosilicate glass 3.3, heating elements encased in quartz glassScope of deliveryLAUDA Puridest PD 4 G, base unit (order number L003018)Mains cable with angled Schuko plug (CEE7/7)Accessories required for operation, such as connection hoses for the cooling water supply or a wall bracket, are not included in the scope of delivery.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this device from the date of purchase. Your statutory warranty rights remain unaffected.For the day-to-day operation of the PD 4 G, the most important items are the connection hoses for the cooling water supply and, depending on the installation location, a wall bracket. Our procurement service will, on request, compile a list of suitable accessories and spare parts for the Puridest series and can also advise on whether, for a specific application, the 8-litre model, a bi-distillation variant or a stainless steel model from the same series would be the more suitable choice.

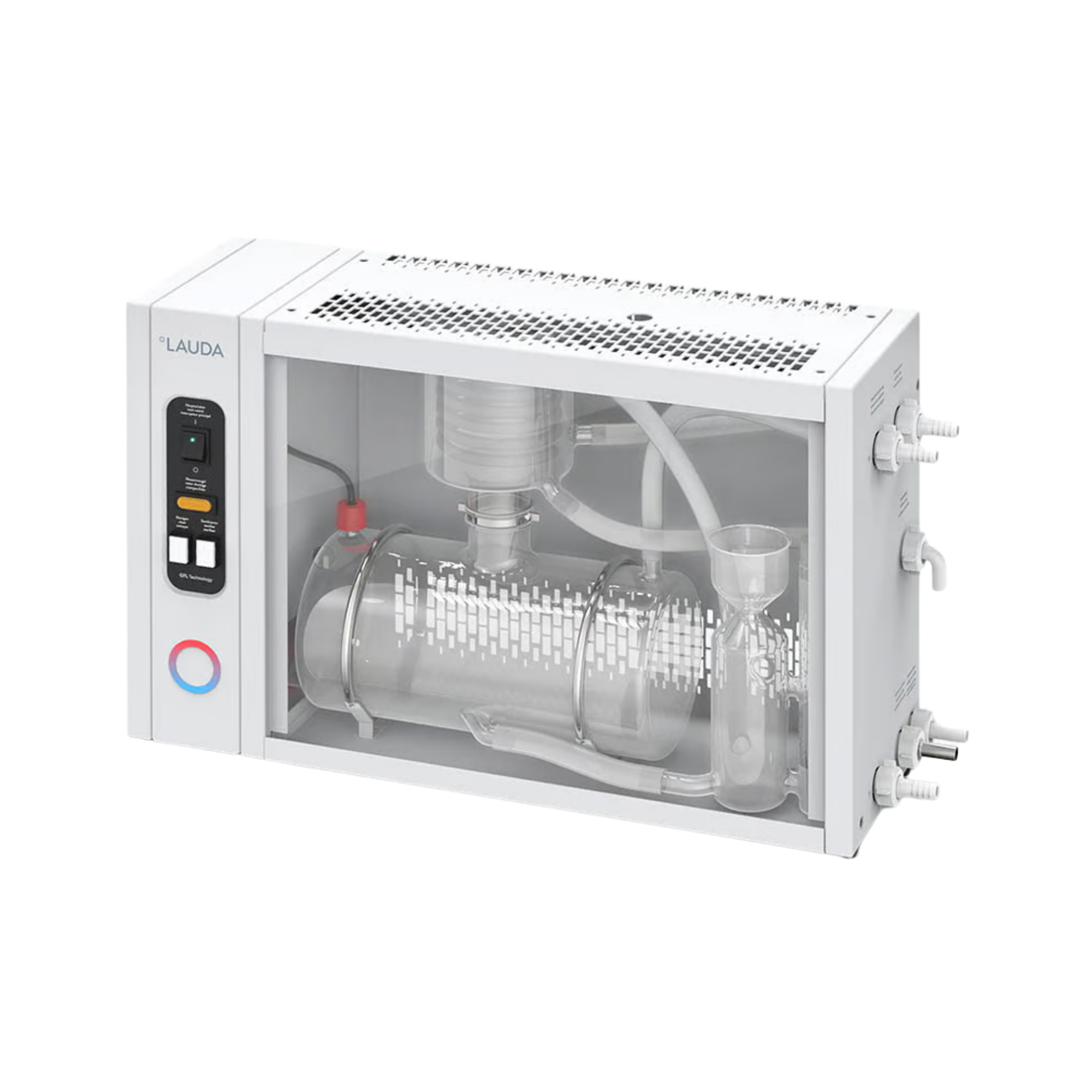

LAUDA Puridest PD 8 G Glass Distillation Apparatus, 8 L/h, Conductivity 2.2 µS/cm, L003019
If the 4-litre models in the Puridest range are no longer sufficient to meet daily water requirements, for example, because several workstations need to be supplied with mono-distillate simultaneously, the PD 8 G steps in with double the throughput. The glass distillation unit produces up to 8 litres of distilled water per hour at a conductivity of 2.2 µS/cm and allows the entire distillation process to be viewed through a shatterproof front pane. As with the smaller model, the distillation flask and condenser are made of Duran borosilicate glass 3.3, whilst the heating rods are sheathed in quartz glass.Higher throughput with the same glass constructionTo achieve 8 litres per hour instead of 4, the PD 8 G operates with a heating output of 6 kilowatts, twice that of the PD 4 G. The operating principle remains the same: A solenoid valve controls the water supply; the condenser section is designed to prevent droplet formation; a CO₂ degassing port releases dissolved gases; and an electronic contamination monitor automatically triggers a water change when necessary to clean the distillation flask. An electronic level monitoring system operates throughout the entire distillation process and automatically switches off the heating in the event of a water shortage; sterilisation is achieved by steaming the condenser section.Three-phase power supply and cooling water supplyDue to its higher heating output, the PD 8 G requires a three-phase connection of 400 volts, 3/N/PE at 50 or 60 hertz; the mains cable terminates in a red CEE plug (IEC 60309, 5-pin, 16 A). The cooling water requirement is 2.4 litres per minute; the pressure differential must be at least 3 bar, and the maximum pressure must not exceed 7 bar. The water cooling inlet and drain are designed for a hose with a 1/2-inch diameter. No storage tank is provided; the mono-distillate drains directly via the hose connection.Typical applicationsSupplying several workstations with high-purity mono-distillate from a central unitSample preparation and quality assurance with higher daily water requirementsResearch and development, where the 4-litre class is no longer sufficientWall-mounted or benchtop installation in laboratories with an existing three-phase power supplySeries overviewWithin the Puridest series, the PD 8 G is the glass version offering the higher of the two available mono performance levels; the smaller Puridest PD 4 G covers the same configuration at 4 litres per hour. Those requiring a lower conductivity of 1.6 µS/cm at 8 litres per hour will find this in the two-stage Puridest PD 8 D. For the 4-litre class with additional bi-distillation, the Puridest PD 4 DG is available. If a stainless steel flask is preferred to a glass one, the Puridest PD 8 R covers the same performance class in stainless steel.Technical detailsProduction capacity8 L/hConductivity of mono-distillate at 25 °C2.2 µS/cmHeating output / max. power consumption6 kWCooling water consumption2.4 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet and drain1/2 inch, hose connectionDimensions (W x D x H)650 x 365 x 390 mmNet weight25 kgGross weight (shipping packaging)31.5 kgPackaging dimensions (L x W x H)0.91 x 0.72 x 0.54 mAmbient temperature range10 to 40 °CMains supply400 V, 3/N/PE, 50/60 HzMains plugCEE plug, red, IEC 60309, 5-pin, 16 AMaterial of distillation flask / condenserDuran borosilicate glass 3.3, heating elements sheathed in quartz glassScope of deliveryLAUDA Puridest PD 8 G, base unit (order number L003019)Mains cable with CEE plug (IEC 60309, 5-pin, 16 A)Accessories required for operation, such as connection hoses for the cooling water supply or a wall bracket, are not included in the scope of delivery.Regulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this device from the date of purchase. Your statutory warranty rights remain unaffected.Due to the three-phase connection, it is worth taking a quick look at the existing electrical installation at the installation site before placing your order. Our procurement service will, on request, compile a list of suitable accessories and spare parts for the Puridest series and also advise on whether, in a specific case, a bi-distillation variant with a lower conductivity value or a stainless steel version of the same performance class would be more appropriate.

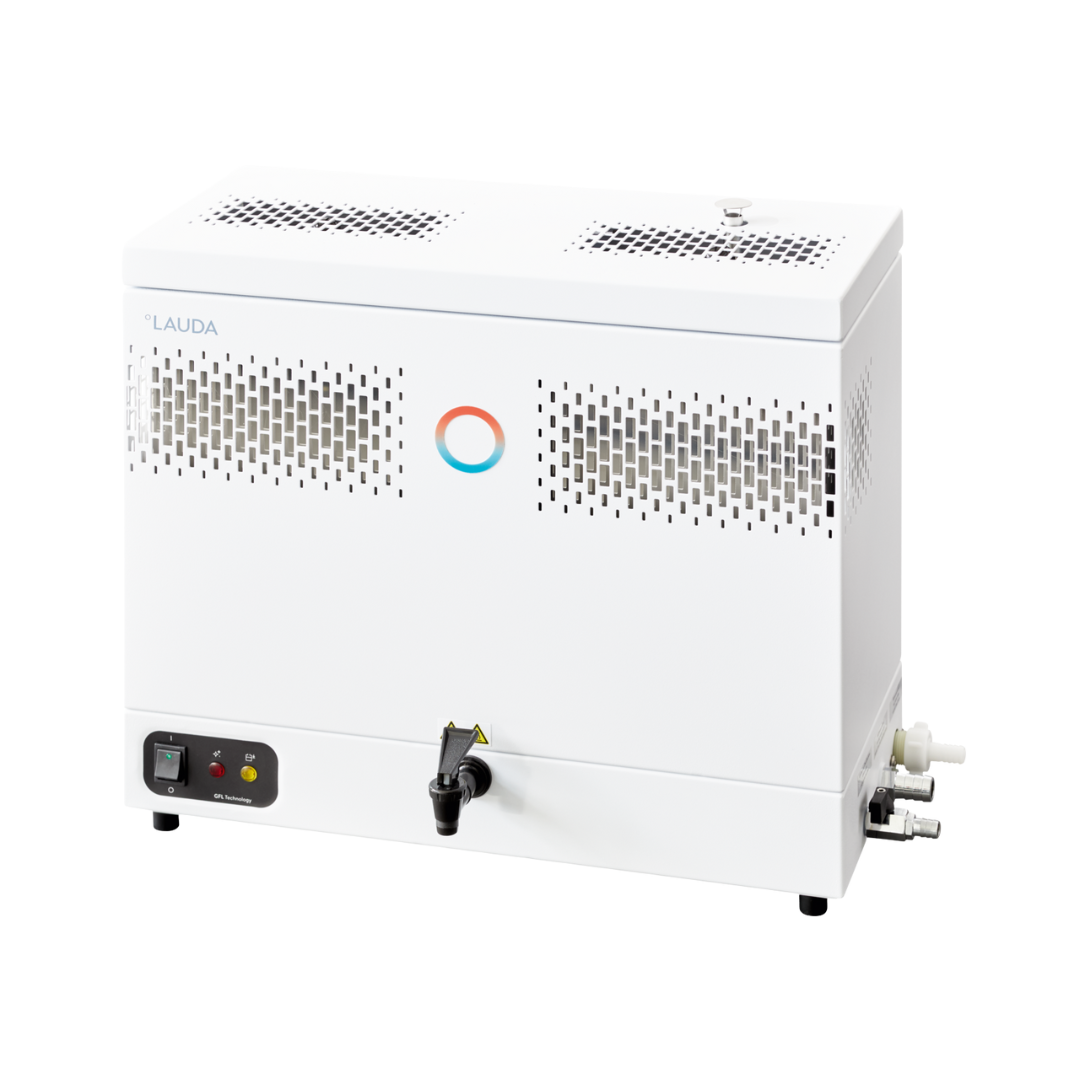

LAUDA Puridest PD 12 R Mono Distillation Apparatus, 12 L/h, 24-litre Storage Tank, L003016
With a capacity of 12 l of distillate per hour, the LAUDA Puridest PD 12 R is the most powerful model in the Mono series; the distillate is stored in a built-in 24-litre tank. Here too, the conductivity is 2.3 µS/cm at 25 °C, which is pure enough for reagent dilution and sample preparation according to DAB regulations and international pharmacopoeia standards. As its output is significantly higher than that of the PD 8 R, the PD 12 R requires the same three-phase power supply, but also the highest cooling water consumption in the Mono series.24-litre storage tank for high continuous demandThe 24-litre tank is sufficient for laboratories with a consistently high demand for water, for example when several autoclaves or workstations are being supplied simultaneously, as the supply here also covers twice the hourly output. Water is dispensed via a tap with a continuous or momentary setting, whilst an electronic level sensor in the background controls replenishment. The condenser is part of the storage tank and can be replaced if necessary; a solenoid valve regulates the water supply.Three-phase connection and cooling water requirementsLike the PD 8 R, the PD 12 R is connected via a red, five-pin CEE plug according to IEC 60309, rated at 16 amps at 400 volts three-phase current. The heating output increases to a maximum of 9 kilowatts; accordingly, the cooling water requirement is also higher at 3.3 l per minute, the highest figure in the Puridest Mono series. On the pressure side, the same limits apply as for the PD 8 R: 3 to 7 bar, with a 1/2-inch inlet and a 3/4-inch drain.Robustly built for continuous operationThe PD 12 R has a net weight of 40 kilograms and a packed weight of 47.36 kilograms, with a footprint of 780 x 410 millimetres, which is exactly the same as that of the PD 8 R. Only the height of the housing increases to 670 millimetres, as the larger storage tank requires more space. The tubular heating elements, distillation flask, storage tank and condenser are made of stainless steel, whilst the double-walled housing is made of galvanised, powder-coated sheet steel. A built-in sensor system also detects contamination in the distillation flask and stops the distillation process before water quality is compromised.Typical applicationsCentral distillate supply for institutes, departments or multiple autoclavesHigh, continuous daily demand in research and quality assuranceFacilities with an existing three-phase power supply and an adequate cooling water supplyReplacement of several smaller distillation units with a single central unitWhich Puridest model is suitableIf a smaller supply is sufficient, the Puridest PD 8 R delivers 8 l per hour with a 16-litre storage tank and lower cooling water consumption; the Puridest PD 4 R is sufficient for 4 l per hour and can be powered from a standard Schuko socket. If a higher purity is required instead of mono-distillate, the Puridest PD 4 D and the Puridest PD 4 DG feature an additional bi-distillation stage.Technical detailsProduction capacity12 L/hConductivity of mono-distillate at 25 °C2.3 µS/cmTank capacity24 LMax. heating output9 kWMax. power consumption9 kWCooling water consumption3.3 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet1/2-inch hose connectionWater cooling drain3/4-inch hose connectionDimensions (W x D x H)780 x 410 x 670 mmNet weight40 kgGross weight (including shipping packaging)47.36 kgPackaging dimensions (L x W x H)1.0 x 0.81 x 0.63 mAmbient temperature range10 to 40 °CMains supply400 V, 3/N/PE, 50/60 HzMains plugMains cable with plug according to IEC 60309, 5-pin, CEE, red, 16 AStorage tank24 L, integrated, wall- or table-mountedMaterial of distillation flask/condenser/storage tankStainless steelScope of deliveryLAUDA Puridest PD 12 R distillation unit with integrated storage tank, order number L003016Mains cable with CEE plug (IEC 60309)Wall bracket, cooling water hoses and connection fittings are not included in the scope of delivery and must be procured separately.Regulatory informationThis appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this device from the date of purchase. Your statutory warranty rights remain unaffected by this.For the PD 12 R, wall brackets, cooling water hoses, connection fittings and spare parts such as condensers or distillation flasks may be required. We will, on request, compile the appropriate accessories and spare parts for the respective Puridest model, including for upgrading to a smaller model or a version with bi-distillation.

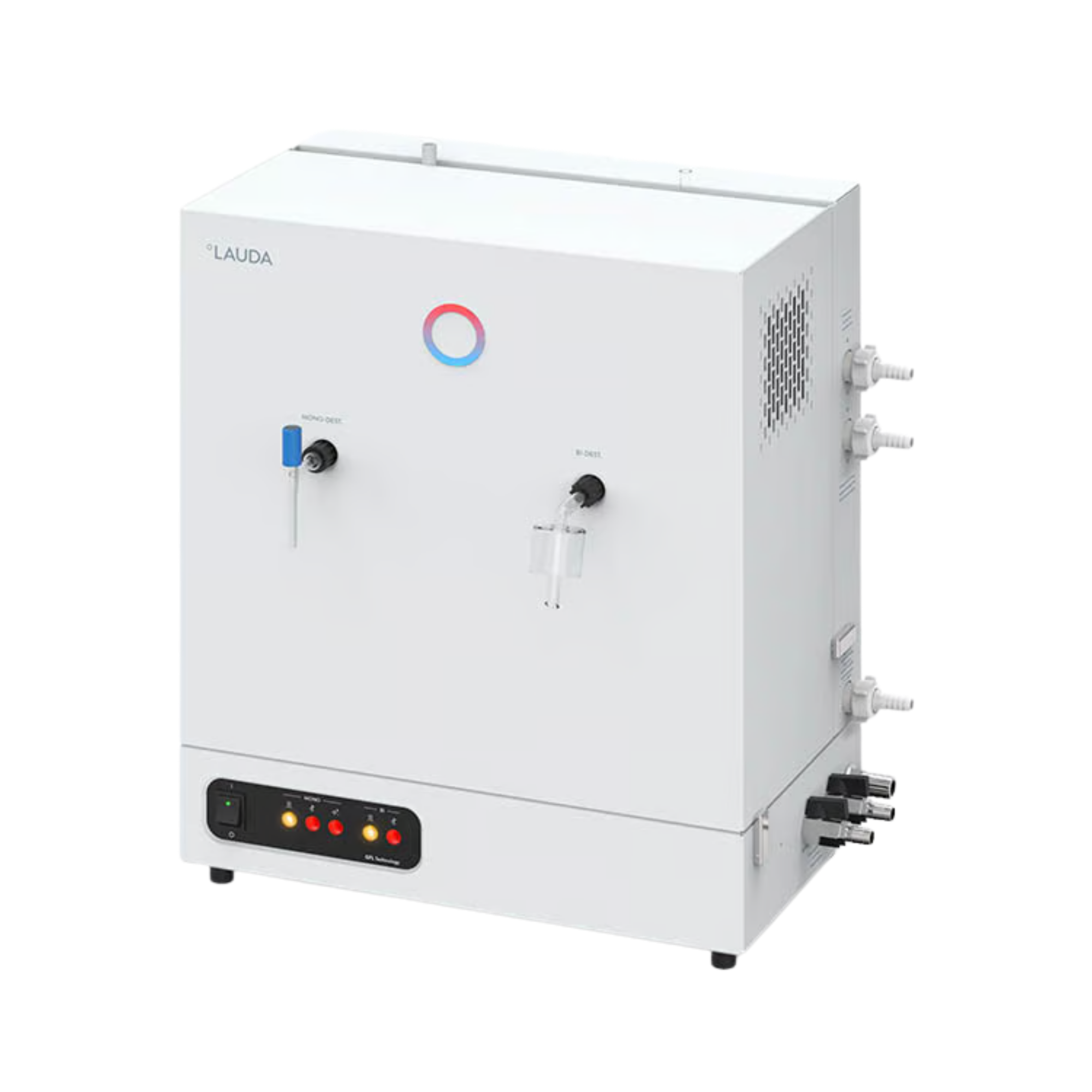

LAUDA Puridest PD 4 D Double-Distillation Unit, 4 L/h, Conductivity 1.6 µS/cm, L003021
For applications where a simple single-stage distillate is not pure enough, such as in the preparation of cell or tissue cultures, the Puridest PD 4 D distils the water in two stages. The bi-distillation unit reduces the conductivity of the final product from 2.2 µS/cm after the first stage to 1.6 µS/cm after the second stage and delivers up to 4 litres of bi-distillate per hour. The first stage is made of stainless steel, whilst the second stage is made of Duran borosilicate glass 3.3.Two distillation stages for lower conductivityIn the PD 4 D, the first distillation stage is followed by a second distillation stage, which further reduces the conductivity. A main switch with indicator lights shows the status of both stages. The mono-distillate can be collected separately via a borosilicate glass stopcock fitted with a PTFE plug; the finished bi-distillate drains freely through a borosilicate glass dust-proof bell, no storage tank is provided for this purpose. An electronic contamination monitoring system for the distillation flask stops the distillation if necessary and displays a visual cleaning prompt; an electronic level monitoring system operates throughout the entire process.Material combination and safetyThe tubular heating elements and the first-stage distillation flask are made of stainless steel; the second-stage condenser is made of Duran borosilicate glass 3.3, including a splash guard. A dual low-water protection system comprising a float switch and a thermostatic over-temperature protection switch provides additional safety for the unit. The double-walled housing, made of galvanised, powder-coated sheet steel, accommodates the connections for three-phase power and cooling water: 400 volts, 3/N/PE at 50 or 60 hertz, 2 litres of cooling water per minute at a pressure differential of at least 3 bar and a maximum pressure of 7 bar.Typical applicationsBacteriological and medical sample preparationPreparation of cell and tissue cultures with high purity requirementsCleaning and sterilisation processes in the laboratoryPreparation of buffer solutions in quality assurance, development and researchSeries overviewThe bi-distillation units in the Puridest range comprise the PD 4 D, the PD 4 DG and the PD 8 D, with capacities ranging from 4 to 8 litres per hour. For those who, within the same performance class, prefer both stages to be made of glass rather than a combination of stainless steel and glass, this is available in the Puridest PD 4 DG. For a higher throughput at the same conductivity, the Puridest PD 8 D is available with a capacity of 8 litres per hour. If a simple single-stage distillate is sufficient, the Puridest PD 4 G covers the same performance class without a second distillation stage, whilst the Puridest PD 4 R offers the same single-stage performance in a stainless steel version.Technical detailsProduction capacity (bi-distillate)4 L/hConductivity of mono-distillate at 25 °C2.2 µS/cmConductivity of bi-distillate at 25 °C1.6 µS/cmHeating power / maximum power consumption7 kWCooling water consumption2 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet1/2 inch, hose connectionDimensions (W x D x H)550 x 280 x 570 mmNet weight28 kgGross weight (shipping packaging)41.1 kgPackaging dimensions (L x W x H)0.7 x 0.72 x 0.4 mAmbient temperature range10 to 40 °CMains supply400 V, 3/N/PE, 50/60 HzMains plugCEE plug, red, IEC 60309, 5-pin, 16 AMaterial, 1st stage / 2nd stageStainless steel (Mono) / Duran borosilicate glass 3.3 (Bi)Scope of deliveryLAUDA Puridest PD 4 D, base unit (order number L003021)Mains cable with CEE plug (IEC 60309, 5-pin, 16 A)Accessories required for operation, such as connection hoses for the cooling water supply or collection vessels for the bi-distillate, are not included in the Scope of delivery.Regulatory informationThis unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this device from the date of purchase. Your statutory warranty rights remain unaffected.As the bi-distillate from the PD 4 D drains freely and does not have its own storage tank, it is worth ordering a suitable collection vessel at the same time. Our procurement service can, on request, compile a list of suitable accessories and spare parts for the Puridest series and also advise on whether, in a specific case, the all-glass PD 4 DG or the PD 4 G mono model is the more suitable option.

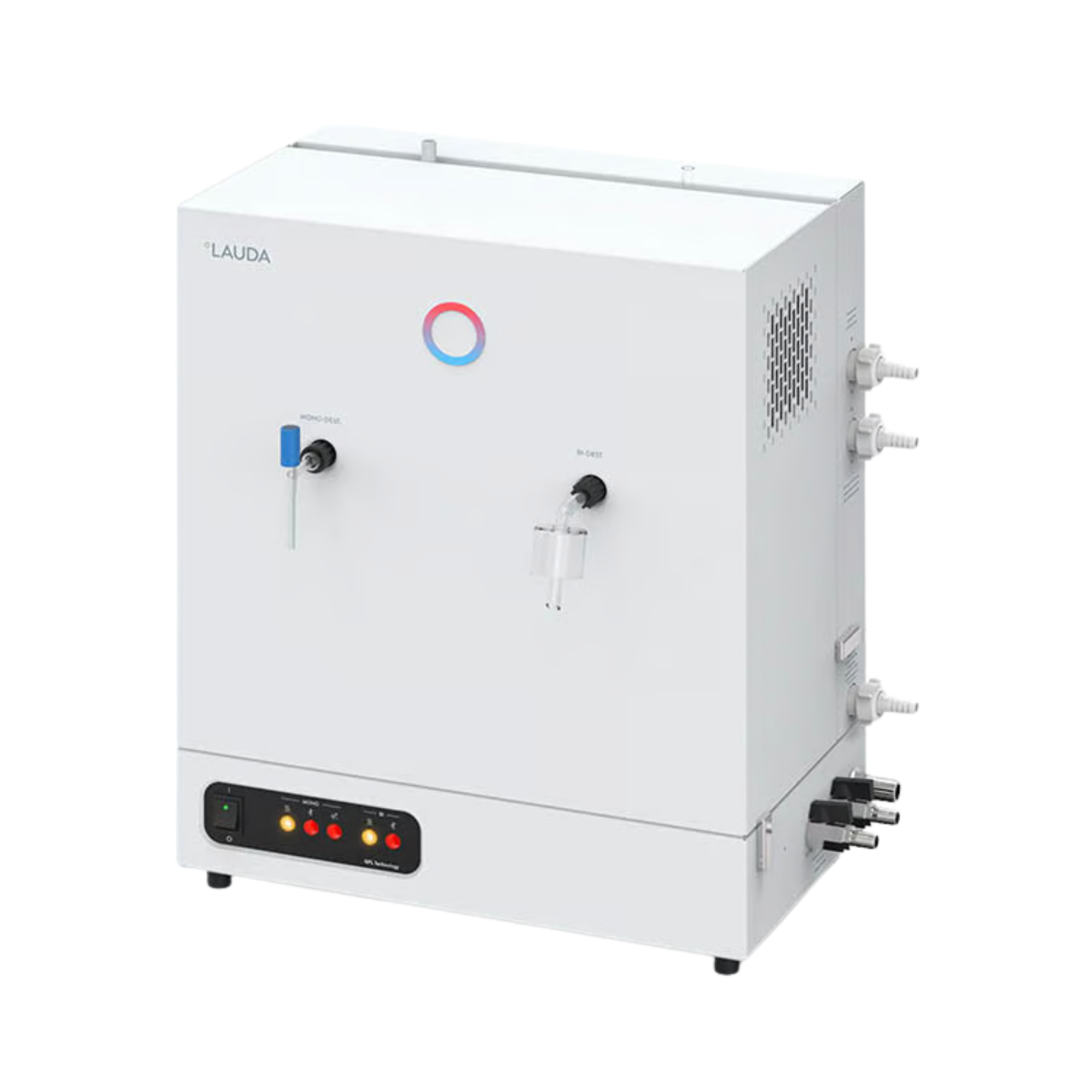

LAUDA Puridest PD 8 D Double-Distillation Unit, 8 L/h, Conductivity 1.6 µS/cm, L003022
If a laboratory requires larger quantities of low-conductivity bi-distillate, for example, for the simultaneous preparation of several cell culture batches, the PD 8 D is the higher-performance model within the two-stage Puridest range. It delivers up to 8 litres of bi-distillate per hour with a conductivity of 1.6 µS/cm after the second stage. As with the smaller model, the first stage is made of stainless steel, whilst the second stage is made of Duran borosilicate glass 3.3.Higher throughput whilst retaining the two-stage designTo achieve double the throughput of the PD 4 D, the PD 8 D operates with a heating power of 11.5 kilowatts. The operating principle remains the same: a main switch with indicator lights shows the status of both distillation stages; the mono-distillate from the first stage can be collected separately via a borosilicate glass stopcock with a PTFE plug, and the finished bi-distillate flows freely through a borosilicate glass dust protection bell. An electronic contamination monitoring system for the distillation flask stops the distillation if necessary and displays a visual cleaning prompt; an electronic level monitoring system monitors the entire process.Connected load specifications and cooling water requirementsThe PD 8 D requires a three-phase power supply of 400 volts, 3/N/PE at 50 or 60 hertz, connected via a red CEE plug (IEC 60309, 5-pin, 16 A). Cooling water consumption is 3.3 litres per minute; the pressure differential must be at least 3 bar and must not exceed 7 bar. The tubular heating elements and the first-stage distillation flask are made of stainless steel, whilst the second-stage condenser is made of Duran borosilicate glass 3.3 with a splash guard, protected by a dual low-water safety system comprising a float switch and a thermostatic over-temperature protection switch.Installation and weightMeasuring 700 x 390 x 700 millimetres and weighing 48 kilograms net, the PD 8 D requires significantly more installation space than the smaller PD 4 D. The double-walled housing, made of galvanised, powder-coated sheet steel, is suitable for both wall mounting and placement on a sturdy laboratory bench, provided that the supply lines for three-phase current and cooling water are already in place at the intended location. For dispatch, a gross weight of 54 kilograms is to be expected, with packaging dimensions of 0.85 x 0.86 x 0.57 metres.Typical applicationsBacteriological and medical sample preparation with higher daily requirementsParallel preparation of multiple cell and tissue culture batchesCleaning and sterilisation processes in the laboratoryPreparation of buffer solutions in quality assurance, development and researchSeries overviewWithin the two-stage Puridest range, the PD 8 D is the higher-performance variant compared to the Puridest PD 4 D, which has a capacity of 4 litres per hour. For those who do not require a second distillation stage at 8 litres per hour, the Puridest PD 8 G offers the same performance class as a pure single-stage glass distillation unit. If you are looking for a fully glass-constructed unit with two stages but at a lower capacity, this is covered by the Puridest PD 4 DG. For a stainless steel version in the same single-stage performance class, the Puridest PD 8 R is available.Technical detailsProduction capacity (bi-distillate)8 L/hConductivity of mono-distillate at 25 °C2.2 µS/cmConductivity of bi-distillate at 25 °C1.6 µS/cmHeating power / maximum power consumption11.5 kWCooling water consumption3.3 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet1/2 inch, hose connectionDimensions (W x D x H)700 x 390 x 700 mmNet weight48 kgGross weight (including packaging)54 kgPackaging dimensions (L x W x H)0.85 x 0.86 x 0.57 mAmbient temperature range10 to 40 °CMains supply400 V, 3/N/PE, 50/60 HzMains plugCEE plug, red, IEC 60309, 5-pin, 16 AMaterial, 1st stage / 2nd stageStainless steel (Mono) / Duran borosilicate glass 3.3 (Bi)Scope of deliveryLAUDA Puridest PD 8 D, base unit (order number L003022)Mains cable with CEE plug (IEC 60309, 5-pin, 16 A)Accessories required for operation, such as connection hoses for the cooling water supply or collection vessels for the bi-distillate, are not included in the Scope of delivery.Regulatory informationThe unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this appliance from the date of purchase. Your statutory warranty rights remain unaffected.Given the net weight of 48 kilograms and the three-phase power connection, it is worth checking the installation space and electrical installation at the site of use before placing your order. Our procurement service can, on request, put together suitable accessories and spare parts for the Puridest series and also advise on whether the smaller PD 4 D or a pure mono version is sufficient for your specific requirements.

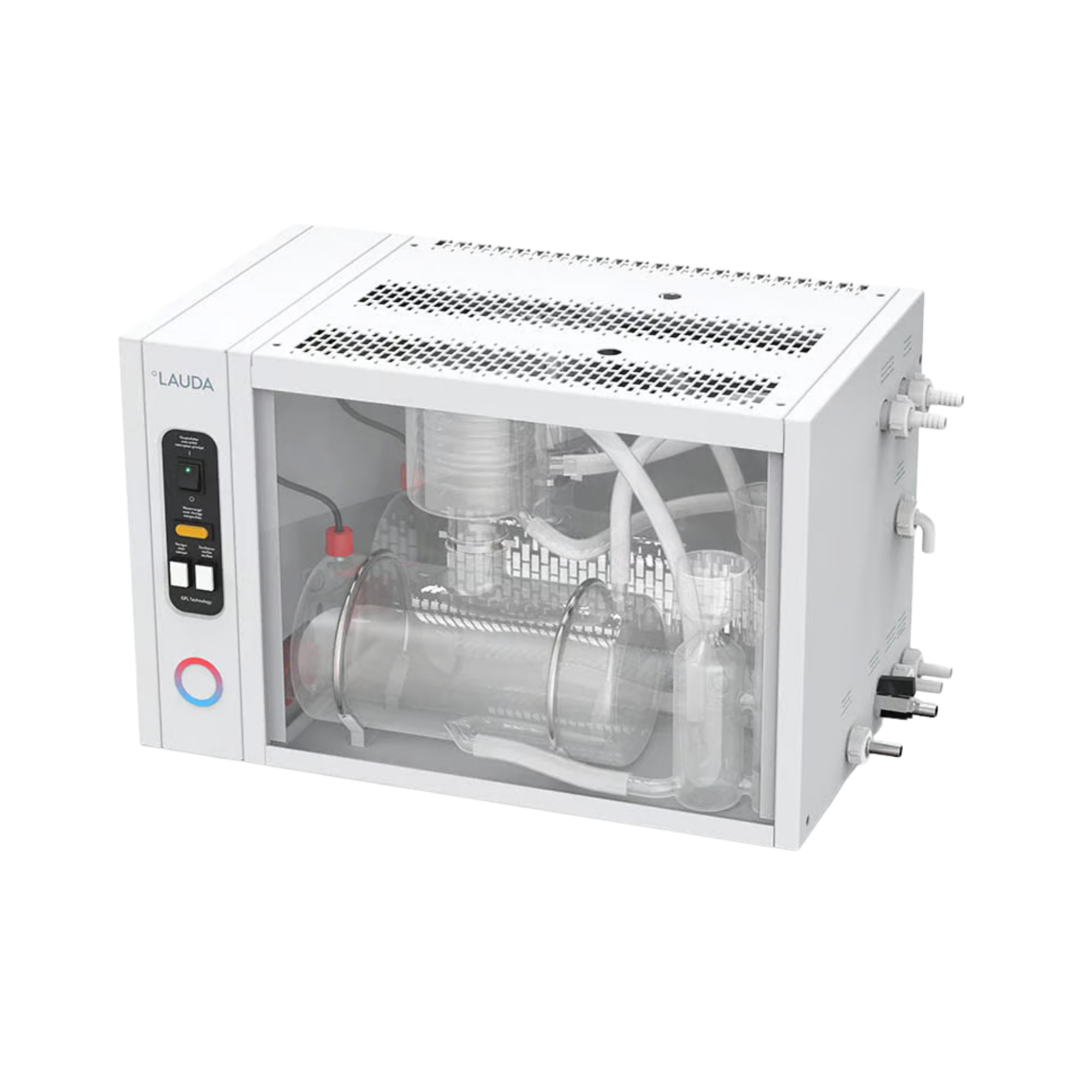

LAUDA Puridest PD 4 DG Glass Double-Distillation Unit, 4 L/h, Conductivity 1.6 µS/cm, L003024
Anyone wishing to combine the advantages of glass distillation, namely the visible process and the absence of stainless steel in the water path, with a lower conductivity will find the Puridest PD 4 DG to be the suitable version. This bi-distillation unit features both distillation stages constructed entirely from Duran borosilicate glass 3.3, thereby achieving a conductivity of 1.6 µS/cm at a rate of 4 litres of bi-distillate per hour. The heating elements are sheathed in quartz glass.Two distillation stages made entirely of glassUnlike the PD 4 D, which uses stainless steel in the first stage, the entire water path in the PD 4 DG runs through glass. Raw water is fed into the first distillation flask via a solenoid valve, where it is heated and condensed in a drip-proof condenser section before the second stage further reduces the conductivity. A CO₂ degassing port on the condenser and an electronic contamination monitor, which automatically triggers a water change for cleaning, ensure low-maintenance operation. Sterilisation is achieved by steaming the condenser sections; the process remains visible at all times through the shatterproof front pane.Connection and cooling water requirementsThe PD 4 DG requires a three-phase connection with 400 volts, 3/N/PE at 50 or 60 hertz, and draws a maximum of 5.8 kilowatts; the mains cable terminates in a red CEE plug (IEC 60309, 5-pin, 16 A). Cooling water consumption is 2.4 litres per minute; the pressure differential must be at least 3 bar and must not exceed 7 bar. The water cooling inlet and drain are designed for a 1/2-inch diameter hose. The unit does not have a storage tank; the finished bi-distillate drains via the hose connection on the right-hand side of the unit.Typical applicationsBacteriological and medical sample preparation requiring a continuously visible processPreparation of cell and tissue cultures with high purity requirementsCleaning and sterilisation processes in the laboratoryProduction of buffer solutions in quality assurance, development and research, where contact with stainless steel in the water path is to be avoidedSeries overviewWithin the two-stage Puridest models, the PD 4 DG is the only version in which both stages are made entirely of glass; the Puridest PD 4 D achieves the same conductivity of 1.6 µS/cm with a first stage made of stainless steel. For a higher throughput at the same conductivity, the Puridest PD 8 D is available with a capacity of 8 litres per hour. If a simple single-stage distillate is sufficient, the Puridest PD 4 G covers the same performance class without a second distillation stage, whilst the Puridest PD 4 R offers the same single-stage performance in a stainless steel version.Technical detailsProduction capacity (bi-distillate)4 L/hConductivity of mono-distillate at 25 °C2.2 µS/cmConductivity of bi-distillate at 25 °C1.6 µS/cmHeating power / maximum power consumption5.8 kWCooling water consumption2.4 L/minMinimum cooling water pressure differential3 barMaximum cooling water pressure7 barWater cooling inlet and drain1/2 inch, hose connectionDimensions (W x D x H)650 x 365 x 390 mmNet weight28 kgGross weight (including packaging)31.5 kgPackaging dimensions (L x W x H)0.92 x 0.72 x 0.55 mAmbient temperature range10 to 40 °CMains supply400 V, 3/N/PE, 50/60 HzMains plugCEE plug, red, IEC 60309, 5-pin, 16 AMaterial of distillation flasks / condensersDuran borosilicate glass 3.3, heating elements sheathed in quartz glassScope of deliveryLAUDA Puridest PD 4 DG, base unit (order number L003024)Mains cable with CEE plug (IEC 60309, 5-pin, 16 A)Accessories required for operation, such as connection hoses for the cooling water supply or a wall bracket, are not included in the Scope of delivery.Regulatory informationThis unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceLAUDA provides a standard 12-month manufacturer’s warranty on this device from the date of purchase. Your statutory warranty rights remain unaffected.Anyone who has previously used the PD 4 D and wishes to switch to a fully glass-bodied model will find the PD 4 DG to be the appropriate alternative, with the same conductivity value. Our procurement service will, on request, compile a list of suitable accessories and spare parts for the Puridest series and also advise on whether the 8-litre class or a pure mono version is more appropriate for your specific requirements.
