Ultrasonic baths
Ultrasonic baths clean and homogenise through cavitation. LT Laborhandel offers Bandelin SONOREX ultrasonic baths as benchtop or built-in units, as well as Elmasonic units in various capacities, some with integrated heating. Our service team will be happy to advise you on the right size.
Bandelin SONOREX SUPER RK 31 Ultrasonic Bath, 0.9 L, 35 kHz, 329
Sensor tips, small cannulas, jewellery or individual cuvettes do not require a large bath for ultrasonic cleaning; rather, they need a bath that delivers uniform cavitation to every corner of the tank. With a total capacity of 0.9 l, the Bandelin SONOREX SUPER RK 31 is the smallest model in the SUPER RK series and is designed specifically for these small-item cleaning tasks in laboratories, medical practices and workshops.Small tank, noticeable cavitationAt an operating frequency of 35 kHz, the RK 31 generates a peak ultrasonic power of 160 watts at a nominal ultrasonic power of 40 watts, distributed across a single vibration system. This is sufficient for the small tank volume of 0.9 l (working capacity 0.6 l); larger SUPER RK models, such as the RK 514 BH, on the other hand, operate with four vibration systems covering a significantly larger area. The automatic SweepTec function continuously adjusts the frequency slightly, thereby preventing standing waves in the ultrasonic field; as a result, the cleaning effect remains uniform even in small volumes.Thin stainless steel tank for the laboratory benchThe oscillating tank is made of 1.4301 stainless steel with a thickness of 0.8 millimetres; the housing is made from the same material. The internal dimensions of 190 x 85 x 60 mm and the compact external dimensions of 205 x 100 x 180 mm ensure that the unit, with a net weight of 2.2 kg, can still be accommodated even on already occupied work surfaces. The RK 31 is operated via a robust rotary handle; the timer ranges from 1 to 15 minutes (tolerance ± 5 %), and continuous operation is also available.No drain, no heating, but simpleThis model has no drain; a ball valve is not provided for this size. With a capacity of 0.9 l, the tank can be emptied directly over the edge after the cleaning cycle; an additional connection would be rather cumbersome in this case. Similarly, the RK 31 does not feature a heating element. Anyone requiring heating for cleaning in the same size should choose the RK 31 H with a fixed 65 °C; the next larger model with adjustable heating is the RK 100 H.Selection guide for the SUPER RK seriesThe SUPER RK series from Bandelin covers a wide range: from the RK 31 with a 0.9-litre capacity to the RK 1050 with a total capacity of 58 l. If you are only cleaning individual small parts, sensor tips or cuvettes, you are properly equipped with the RK 31. If the batch size increases to include several instruments or small glass vessels, it is worth considering the RK 100 H (3.0 l, heated) or the RK 103 H (4.0 l, heated and with a drain). For entire sieves or beakers, the larger models from the RK 510 (9.7 l) upwards are the more suitable choice.SUPER RK, DIGITEC DT and smart ST comparedIn addition to the SUPER RK series with classic rotary knob control, Bandelin offers the DIGITEC DT series with push-button control, an LED display and DEGAS degassing, as well as the smart ST series with a touchscreen, finely adjustable power control and programme memory. Those who only clean occasionally and value straightforward, robust operation would be well advised to choose a SUPER RK model such as the RK 31. We also offer Elma Elmasonic ultrasonic baths, an alternative for laboratories already equipped with this brand.Use and maintenanceThe working capacity of 0.6 l is deliberately set below the total capacity of 0.9 l, as space must be left for the items being cleaned when filling the bath; otherwise, the liquid will spill over the rim. As for the cleaning solution itself, Bandelin offers its own TICKOPUR range of concentrates; for the SONOREX PR series of pipette cleaners, this is included in the set, whilst a suitable concentrate for the RK 31 must be purchased separately. Freshly prepared cleaning fluid contains dissolved air, which initially dampens cavitation; a short pre-run in continuous operation before the actual cleaning process dispels it. The stainless steel tank is compatible with most aqueous cleaning agents; however, abrasive sponges or chlorine-based agents should still be avoided. At the end of the working day, it is best to empty and dry the tank.Typical applicationsCleaning of small sensor tips, cannulas and needlesPrecision cleaning of jewellery and small metal partsPre-cleaning of precision mechanical components and watch movementsCleaning individual cuvettes or small sample vessels in the laboratoryFrequently asked questionsIs the SONOREX SUPER RK 31 heated?No, the RK 31 is unheated. The heated version with the same volume is the RK 31 H (fixed at 65 °C); the next larger model with adjustable heating is the RK 100 H.Does the unit have a drain?No, the RK 31 has no ball valve; with a capacity of 0.9 l, the bath is emptied directly.Is the RK 31 a medical device?Yes, it is classified as a Class I medical device according to Regulation (EU) 2017/745 and is also CE-compliant with the Low Voltage, EMC and RoHS Directives.Are the basket and lid included in the scope of delivery?No, the K 08 insert basket and the D 08 lid are available separately as accessories.Technical detailsTotal capacity / Working capacity0.9 l / 0.6 lInternal dimensions of tank (L x W x D)190 x 85 x 60 mmExternal dimensions (L x W x H)205 x 100 x 180 mmWeight (net)2.2 kgUltrasonic frequency35 kHzUltrasonic powerPeak ultrasonic power 160 W, nominal ultrasonic power 40 W, 1 vibration systemTimer1 to 15 minutes (± 5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 0.8 mmHousing materialStainless steel 1.4301DrainNo drain/ball valveMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 0.2 A / 115 V 0.4 AProtection ratingIP 32Medical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions320 x 235 x 205 mmScope of delivery1x Bandelin SONOREX SUPER RK 31 ultrasonic bathFixed mains lead (2 m)Instructions for useThe insert basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor the K 08 insert basket, the D 08 lid or a larger SUPER RK model, there is an individual procurement requirement. You can use our procurement service to request a quote for suitable accessories, a replacement basket or another model from the SONOREX range.

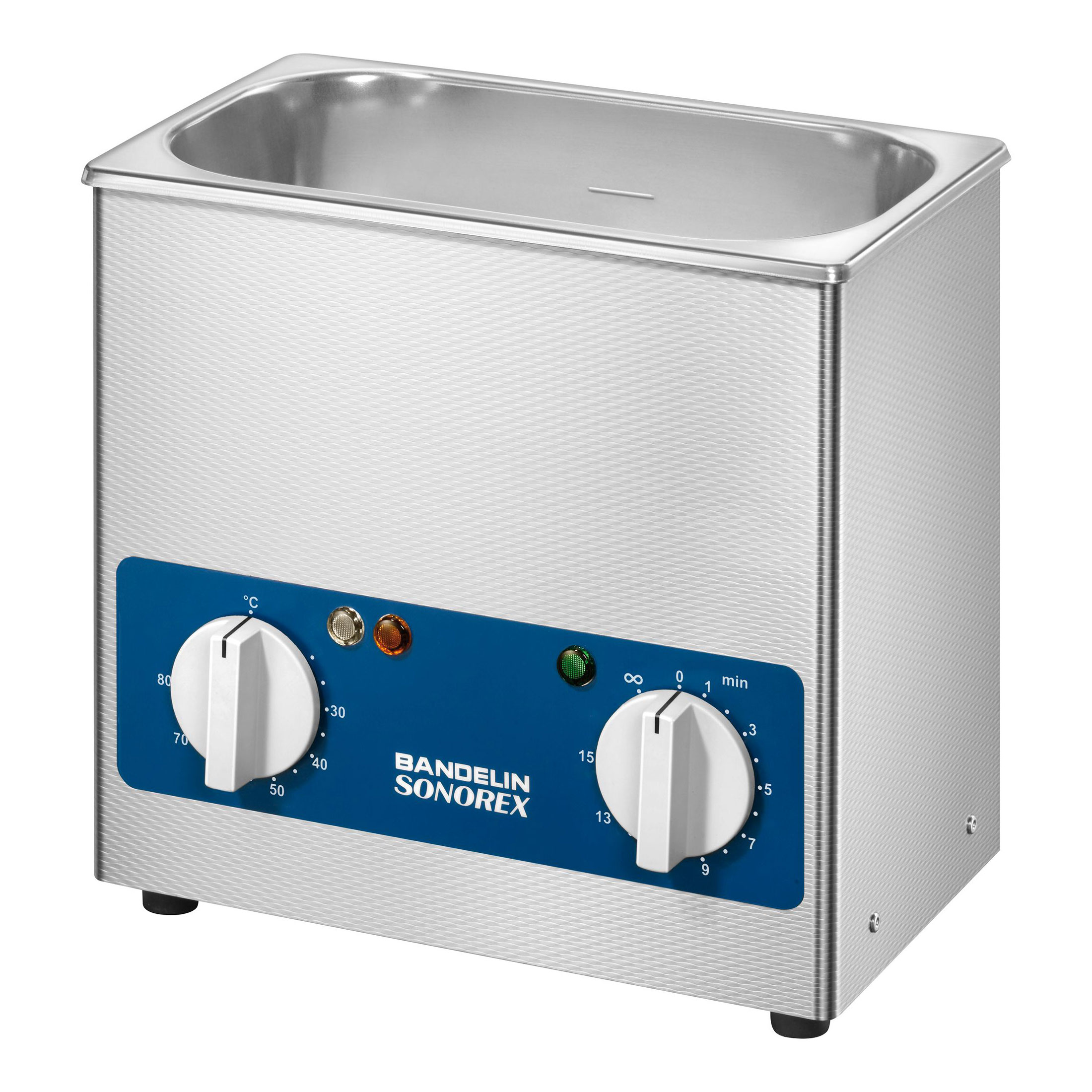

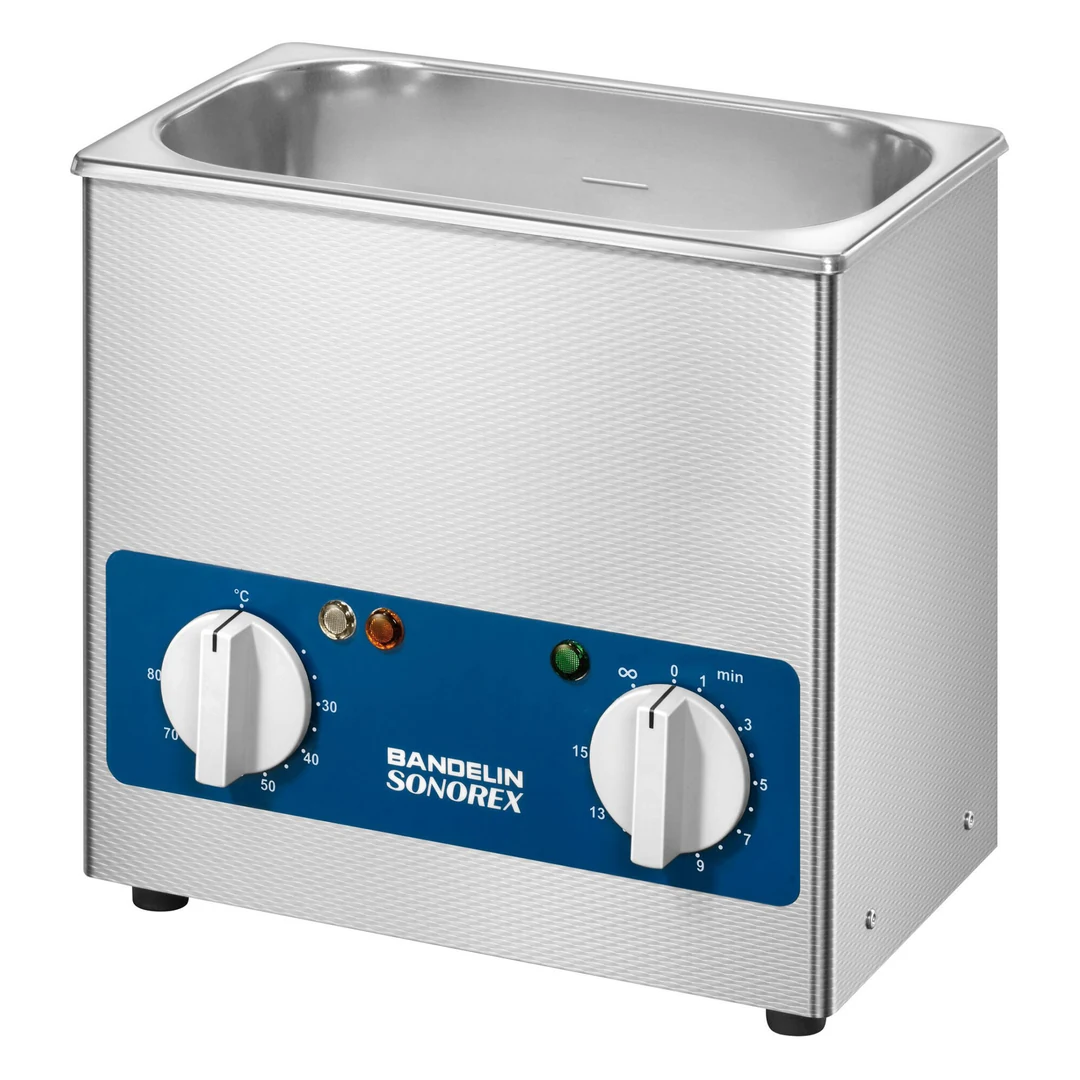

Bandelin SONOREX SUPER RK 100 H ultrasonic bath with heating, 3 litres, 312
Where instruments or small parts also need to be cleaned of grease and residues using heat, a cold ultrasonic bath is often not sufficient. The Bandelin SONOREX SUPER RK 100 H features its own heating system within its compact 3.0-litre capacity, making it the smallest heated model in the SUPER RK series.Heating from 30 to 80 °CThe 140-watt heater covers a temperature range of 30 to 80 °C and is fitted with dry-run protection, which switches the heater off as soon as there is insufficient liquid in the tank. Combined with an operating frequency of 35 kHz, a peak power of 320 watts and a nominal power of 80 watts, it can remove dirt that would otherwise require more time or a more aggressive cleaning agent at room temperature.One vibration system for 2.0 litres of working capacityThe total capacity of 3.0 litres (working capacity 2.0 litres) is subjected to ultrasonic treatment via a single vibration system, whilst the SweepTec function prevents standing waves in the tank. The tank and housing are made of 1.4301 stainless steel; the tank is 1.0 mm thick. The unit is operated via a rotary knob; the cleaning duration and bath temperature can be set independently of one another, whilst the timer ranges from 1 to 15 minutes (± 5 %) or continuous operation.Compact and without a drain connectionAs with the smaller RK 31, the data sheet for the RK 100 H makes no mention of a ball valve; ‘drain: -’ is explicitly stated in the technical specifications. With a capacity of 3.0 litres, the tank can still be easily emptied after cleaning. With external dimensions of 260 x 160 x 250 mm and a net weight of 3.5 kg, the appliance fits easily even on smaller worktops.Decision guide: when is it worth opting for the next size up?The RK 100 H is usually sufficient for individual instruments, spectacles or small tools. If you regularly need to clean several items at once or slightly larger objects, the RK 103 H (4.0 litres), which is slightly larger and fitted with a drain, offers a practical advantage when changing the cleaning solution. For beakers or small sieves, the RK 510 H, with a capacity of 9.7 litres, is the next step up within the SUPER RK series.SUPER RK or smart ST: two ways to achieve the same volumeBandelin also offers the same 3.0-litre tank size in its digital smart ST range, which features a touchscreen, fine-tuned power control and programme memory instead of a rotary knob. Those wishing to save cleaning cycles in a reproducible manner are better off with the smart ST 102 H, whilst those who prefer simple, robust operation without electronics should stick with the RK 100 H. In addition to Bandelin SONOREX, we also offer Elma Elmasonic ultrasonic baths in our range.Use and MaintenanceThe 2.0-litre capacity provides space for the items to be cleaned; if filled to the brim, the tank will overflow when the items are placed inside. A concentrate from Bandelin’s TICKOPUR range is suitable for use as the cleaning fluid and is available separately via the procurement service. As the RK 100 H does not have an automatic degassing function, a short initial run in continuous operation helps to expel dissolved air from freshly prepared liquid before the items to be cleaned are loaded. After the last cycle of the day, the tank should be emptied and wiped down to prevent any cleaning agent residues from settling.Typical applicationsHeat-assisted cleaning of small instruments in practices and laboratoriesDegreasing small metal and plastic partsCleaning spectacles, watches and jewelleryPreliminary cleaning of laboratory glassware prior to further processingFrequently Asked QuestionsWhat temperature does the RK 100 H reach?The heater operates at temperatures ranging from 30 to 80 °C, controlled via the rotary knob.Is there a drain for emptying?No, according to the data sheet, this model does not have a ball valve; the tank is simply tipped out.What is the difference between the RK 100 H and the RK 31?Both are part of the small SUPER RK range; the RK 100 H also has a 140-watt heating element and a slightly larger capacity (3.0 litres instead of 0.9 litres).Is a basket included in the scope of delivery?No, the K 3 C insert basket, the PK 2 C plastic basket and the D 100 lid are available separately.Technical detailsTotal capacity / Working capacity3.0 l / 2.0 lInternal dimensions of the tank (L x W x D)240 x 140 x 100 mmExternal dimensions (L x W x H)260 x 160 x 250 mmWeight (net)3.5 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 320 W, nominal power 80 W, 1 vibration systemHeating power140 W, temperature range 30 to 80 °C, dry-run protectionTimer1 to 15 minutes (± 5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 1.0 mmCasing materialStainless steel 1.4301Drainno drain/ball valveMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 1.0 A / 115 V 2.0 ADegree of protectionIP 32Medical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions365 x 265 x 315 mmScope of delivery1x Bandelin SONOREX SUPER RK 100 H ultrasonic bath with heatingFixed power cable (2 m)Instructions for useThe insert basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceThere is a specific procurement requirement for the K 3 C insert basket, the PK 2 C plastic basket, the D 100 lid or a model with a drain such as the RK 103 H. You can use our procurement service to request a quote for suitable accessories, a replacement basket or another model from the SONOREX range.
Elma Elmasonic Easy 30H Ultrasonic Bath with Heating, 2.7 Litre, 37 kHz, 1117697
Not every cleaning task in the laboratory requires a digital display and programme memory. For pipette tips, small glassware or tools, a simple ultrasonic bath with fixed time settings is often sufficient. With a tank capacity of 2.7 l and a built-in heater, the Elma Elmasonic Easy 30H offers precisely this basic set-up for the laboratory bench, without controls that are not needed in day-to-day use anyway. The Easy series is designed for simple applications where a reliable, quick-to-use device is more important than programmability or multiple ultrasonic modes.Operation via a rotary knobInstead of a digital display and menus, the Easy 30H features an analogue rotary knob with ten fixed time settings ranging from 1 to 30 minutes, as well as continuous operation for up to 6 hours. LED indicators show the operating status; two ultrasonic modes, Eco and Dynamic, cover the vast majority of laboratory cleaning tasks. Those who only clean occasionally or use the unit at different workstations can use it without any training; a second glance at the manual is rarely necessary, and even new staff can be shown how to use it quickly.Compact bath for the laboratory benchThe tank has a capacity of 2.7 l; a working volume of 1.6 l is recommended, with internal dimensions of 220 x 120 x 95 mm. This is sufficient for pipette tips, small glassware, laboratory cutlery or tools, without the need to use a large amount of cleaning solution. A modular cleaning basket 30 (item no. 1108916) holds the items above the base of the tank; an insert lid (item no. 1110262) or a stainless steel lid 30/40 (item no. 1111930) are available as accessories. For larger quantities of similar small parts, a suitable Hostalen tank is also available, which is used in size 30 for the Select and P models as well.Heating and performanceThe integrated heater ranges from 25 to 80 °C with a heating power of 200 watts; the ultrasonic power is 80 watts effective with a peak power of 320 watts. The Easy 30H does not have a drain connection; to empty it, the tank is tilted or the water is scooped out into a separate container. For a unit of this size, this is generally not a disadvantage in everyday laboratory use, as the volume of water remains small. The IP20 protection rating also means that the housing itself is not designed to withstand splashing water; the unit should therefore be placed on a dry surface.Cleaning in day-to-day useA typical cleaning cycle begins by adding the cleaning solution directly into the tank; the appropriate time setting is then selected using the rotary knob, depending on the level of soiling, this ranges from a few minutes to continuous operation. The ‘Dynamic’ mode is suitable for more stubborn residues, whilst ‘Eco’ is designed for gentler routine cleaning with lower energy consumption. As no programmes are saved, the time setting is adjusted each time using the rotary knob; this does not involve any additional effort when there are only a few, clearly recurring cleaning steps.Accessories for different workpiecesDepending on the items to be cleaned, the Easy 30H can be used with a range of accessories. The modular cleaning basket 30 is suitable for loose small parts that should not rest directly on the bottom of the tank; the insert lid seals the tank during operation without obstructing access to the control panel. The optional Hostalen tank serves as an inner liner and protects the stainless steel tank when using more aggressive cleaning agents or changing the bath frequently; this really pays off, particularly with daily use. For training workshops and test laboratories where different tools and small parts are cleaned one after the other, this allows flexible operation using the same basic unit, without the need to maintain a separate tank for each type of part.Choice within the Elma seriesWithin the Easy series, the models differ primarily in tank size; the smaller Easy 10H has a capacity of 0.9 l for very small parts. Those requiring additional programmable sequences or a sweep function will find these in the Select series, whilst those wishing to carry out analytical precision cleaning using two frequencies, 37 and 80 kHz, will find what they need in the P series. We also offer Bandelin SONOREX ultrasonic baths for laboratories that already use this range of equipment.Typical applicationsCleaning of pipette tips and small glass partsCleaning of tools and instruments at training and workshop workstationsCleaning of small laboratory parts in routine operationsGetting started with ultrasonic cleaning without the need for programmingTechnical detailsTotal volume2.7 l (recommended working volume 1.6 l)Internal dimensions of tank (W x D x H)220 x 120 x 95 mmExternal dimensions (W x D x H)305 x 190 x 230 mmWeight3.3 kgUltrasonic frequency37 kHzUltrasonic power80 W effective, 320 W peakHeating power200 WTemperature range25 to 80 °COperating modesEco, DynamicTimerRotary knob, fixed settings: 1/2/3/4/5/10/15/20/25/30 minutes or continuous operation for up to 6 hoursTank materialStainless steelDrainNo drain connectionMains connectionIEC power connector 220 to 240 V~, 50/60 Hz, 2 m power cableProtection ratingIP20, protection class IScope of delivery1x Elma Elmasonic Easy 30H ultrasonic bathPlastic lidPower cable (2 m)Operating instructionsThe cleaning basket, insert lid and stainless steel lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor the matching cleaning basket 30, insert lid or stainless steel lid, as well as the Hostalen tank, our procurement service can assist you.
Bandelin SONOREX SUPER RK 156 BH ultrasonic bath with heating, 9 L, 35 kHz, 646
Long pipettes, tubing, tools or torches rarely fit into a square tank. The Bandelin SONOREX SUPER RK 156 BH, with internal dimensions of 500 x 140 x 150 mm, is deliberately designed to be narrow and long, thus providing a total capacity of 9.0 l for elongated items that cannot be accommodated in the more compact SUPER RK models.Narrow tank for elongated objectsWhilst most SUPER RK models have approximately square tanks, the RK 156 BH, measuring 500 mm in length and just 140 mm in width, is tailored to slender items: shorter laboratory glass rods, tools, hoses or several smaller instruments placed side by side. The working capacity is 6.0 l, and four vibration systems ensure uniform ultrasonic agitation across the entire length of the tank.600-watt heater for thorough cleaningAt an operating frequency of 35 kHz, the RK 156 BH delivers 860 watts of peak power and 215 watts of rated power; the SweepTec function prevents standing waves across the elongated tank shape. The 600-watt heater covers a range of 30 to 80 °C and is fitted with dry-run protection; the timer ranges from 1 to 15 minutes (± 5 %) or continuous operation, controlled via rotary knobs for time and temperature.Ball valve drain and robust constructionA G 1/4 ball valve on the right-hand side allows the tank to be drained in a controlled manner. The tank and housing are made of 1.4301 stainless steel with a thickness of 1.0 mm; the external dimensions of 530 x 165 x 300 mm and the net weight of 7.3 kg correspond to the narrow, elongated design. The housing is IP 32-rated, and the 2-metre power cable is permanently attached to the unit.When the BH design is suitableFor compact, roughly cube-shaped items to be cleaned, the standard SUPER RK models, such as the RK 510 H (9.7 l, but with a more square tank), are often the more practical choice. The RK 156 BH is worth considering where the length of the items to be cleaned is the main issue, such as with rods, longer tools or multiple objects that need to be placed side by side rather than on top of one another.Product range breakdown: SUPER RK, DIGITEC DT and smart STThe slim BH design is currently only available within the SUPER RK series with classic rotary knob controls. Those looking instead for digital button controls with an LED display will find them in the DIGITEC DT series, whilst the smart ST series features touchscreen controls with programme memory. We also offer Elma Elmasonic ultrasonic baths, although these are built with different tank shapes.Use and maintenanceThe working capacity of 6.0 l is less than the total capacity of 9.0 l, ensuring that no water spills over the rim when the items to be cleaned are placed inside. A concentrate from Bandelin’s TICKOPUR range is suitable as the cleaning agent. Freshly prepared liquid should be run briefly in continuous operation before the first cleaning cycle, so that dissolved air escapes and cavitation can take full effect. After use, the tank can be drained completely via the ball valve, leaving no residue, and then wiped dry.Typical applicationsCleaning of elongated tools, rods and hosesSimultaneous cleaning of several smaller instruments side by sidePre-cleaning of narrow laboratory glassware prior to further processingDegreasing of elongated metal parts in workshops and industryFrequently asked questionsWhy is the tank so narrow and long?The internal dimensions of 500 x 140 x 150 mm are specifically designed for elongated items that do not fit into more square-shaped tanks.Where is the drain?On the right, as a ball valve with a G 1/4 connection.Is the RK 156 BH heated?Yes, with a heating power of 600 watts and a temperature range of 30 to 80 °C.How many vibration systems does the unit have?Four, distributed along the entire length of the tank to ensure uniform agitation.Technical detailsTotal capacity / Working capacity9.0 l / 6.0 lInternal tank dimensions (L x W x D)500 x 140 x 150 mmExternal dimensions (L x W x H)530 x 165 x 300 mmWeight (net)7.3 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 860 W, rated power 215 W, 4 vibration systemsHeating power600 W, temperature range 30 to 80 °C, dry-run protectionTimer1 to 15 minutes (± 5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 1.0 mmHousing materialStainless steel 1.4301DrainBall valve G 1/4, right-hand sideMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 3.6 A / 115 V 7.1 ADegree of protectionIP 32Medical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions655 x 265 x 370 mmScope of delivery1x Bandelin SONOREX SUPER RK 156 BH ultrasonic bath with heaterFixed mains lead (2 m)Instructions for useThe insert basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor the K 6 BL insert basket, the D 156 lid or another tank shape from the SUPER RK series, individual procurement requirements apply. You can request a quote without obligation via our procurement service for suitable accessories, a replacement basket or another model from the SONOREX range.

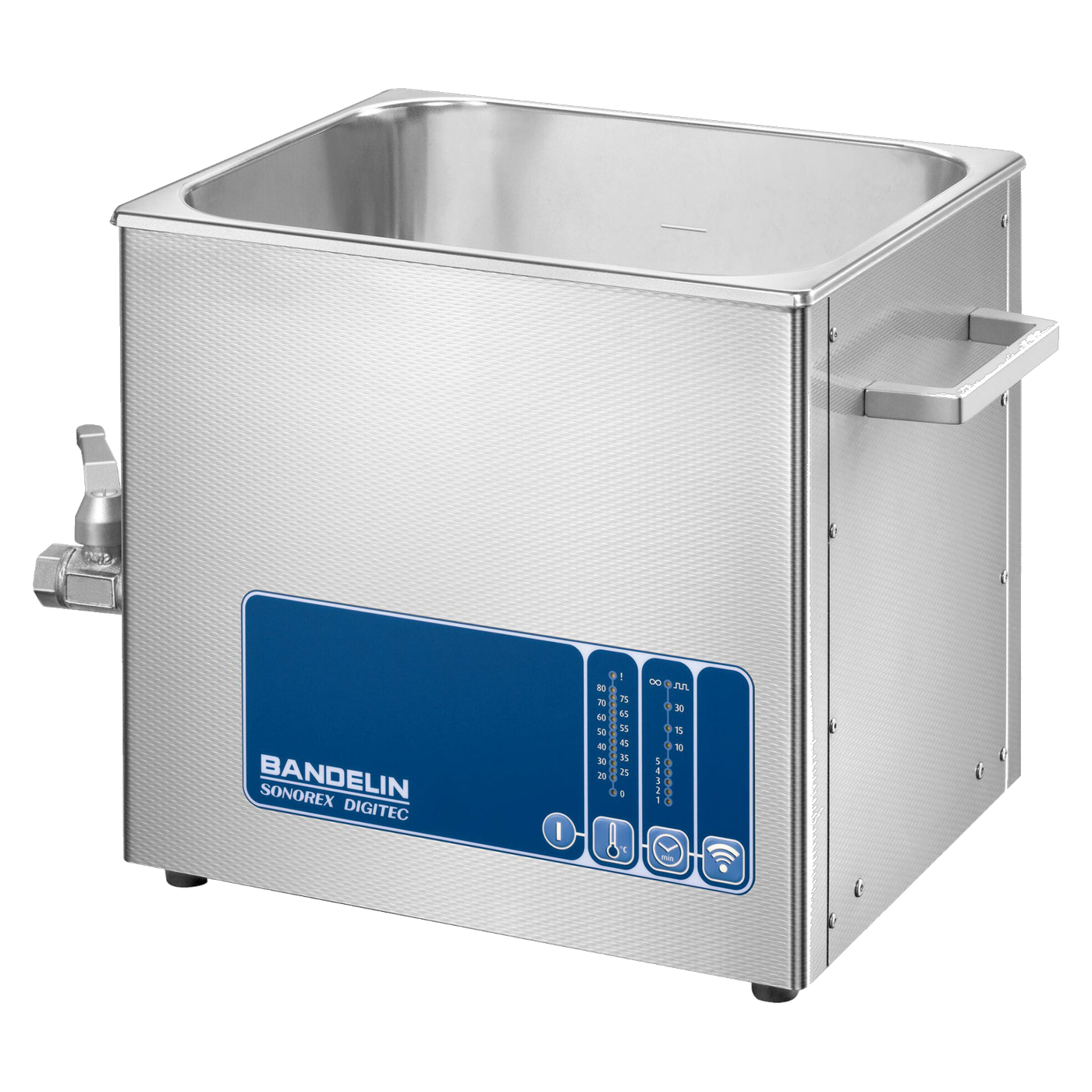

Bandelin SONOREX DIGITEC DT 510 H ultrasonic bath with heating, 9.7 L, 20 to 80 °C, 3206
The Bandelin SONOREX DIGITEC DT 510 H combines a 9.7-litre tank with a 400-watt heater, which can be set to temperatures between 20 and 80 °C. The inner dimensions of the bath are 300 x 240 x 150 mm; it is operated via buttons, and the display shows the setpoint and actual bath temperature.Temperature control with boiling delay protectionThe heater includes boiling delay protection and dry-run protection. The automatic safety shut-off activates 12 hours after the last button press. At 230 V, the heater’s current consumption of 2.5 A is significantly higher than that of the unheated DT 510, which is 0.7 A.Ultrasound with four vibration systemsFour vibration systems deliver a peak power of 640 watts at 35 kHz; the rated power is 160 watts. SweepTec operates fully automatically to counter standing waves in the ultrasonic field; there is also a pulse function and the DEGAS rapid degassing feature, which is activated at the start of the cleaning process. The timer runs in the following increments: 1, 2, 3, 4, 5, 10, 15 and 30 minutes (± 5 %) or in continuous operation.Tank, drain and weightThe tank (1.0 mm) and housing are made of 1.4301 stainless steel. Of the 9.7-litre total capacity, 6.6 l are used as working volume; a fill level mark is provided. The G 1/2 ball valve on the left-hand side is used for draining; a hose nozzle and hose for fitting to the drain are included. The unit measures 325 x 265 x 300 mm, weighs 7.4 kg and has side handles.Larger tank with heatingIf you need more capacity and heating up to 80 °C, the DT 514 H is the model for you, with a total capacity of 13.5 l, 600 watts of heating power and 860 watts of peak ultrasonic power. The DT 510 H, with a 9.7-litre capacity, is the smaller of the two baths and has a footprint of 325 x 265 mm.AccessoriesFor the DT 510 H, Bandelin supplies the K 10 insert basket (up to 10 kg), the GH 10 instrument holder, the D 510 lid, the DE 510 perforated lid for four insert cups, the ED 9 injection nozzle holder, the ZF 10 laboratory flask holder and the KW 10-0 polypropylene hanging tray. 0.6-litre insert cups are available in glass, plastic and stainless steel. Clamps EK 10 to EK 250 hold laboratory flasks with diameters up to 85 mm.Typical applicationsCleaning of items of various shapes, types and sizes in laboratories, medical practices and workshops at an adjustable bath temperatureRapid degassing of liquidsHomogenisation and emulsificationSonochemical applications, such as radical generation or improved mass transferSample preparation for analysisCleaning of instruments; the ultrasonic bath is classified as a Class I medical device, the suitability of the instruments depends on the instrument manufacturer’s specificationsFrequently asked questionsWhat temperatures can be set?20 to 80 °C at 400 watts of heating power.Where is the drain?On the left, as a G 1/2 ball valve.How does the DT 510 H differ from the DT 510?Both have the same tank and the same ultrasonic power. The DT 510 H also features a heating element and boiling delay protection.What is the unit’s current consumption?2.5 A at 230 V and 4.9 A at 115 V. The 3206 model is available with a CEE 7/7 EU plug for 230 V; Bandelin offers UK, Swiss and US variants under separate order numbers.Technical detailsTotal capacity / Working capacity9.7 l / 6.6 lInternal dimensions of tank (L x W x D)300 x 240 x 150 mmExternal dimensions (L x W x H)325 x 265 x 300 mm (excluding handles and ball valve, including feet)Weight (net / gross)7.4 kg / 9.0 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 640 W, rated power 160 W, 4 vibration systemsHeating400 W, adjustable temperature range 20 to 80 °C, boiling delay protection, dry-run protectionTimer1, 2, 3, 4, 5, 10, 15, 30 min (± 5 %) or continuous operationOperationButtons, display screenFunctionsSweepTec, pulse function, DEGAS rapid degassing, boiling delay protection, dry-run protection for the heater, automatic safety shut-off 12 hours after the last button pressTank materialStainless steel 1.4301, thickness 1.0 mmHousing materialStainless steel 1.4301DrainBall valve G 1/2, left-hand sideHandleson the sideMains connection230 V~ (± 10 %), 50/60 Hz, alternatively 115 V~ (± 10 %), 2 m fixed mains lead, protection class ICurrent consumption230 V 2.5 A / 115 V 4.9 ALeakage currentless than 3.5 mADegree of protectionIP 33Permissible ambient temperature5 to 40 °CMedical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions450 x 390 x 375 mmScope of delivery1x Bandelin SONOREX DIGITEC DT 510 H ultrasonic bath with heaterMains lead (2 m, permanently attached to the unit)Ball valve, hose connector and hose for fitting to the drainThe scope of delivery does not include baskets, lids, holders and insert cups, and they are available separately.Individual requirements and procurement serviceFor accessories such as the K 10 basket, the D 510 lid or another heated model, individual procurement requirements apply. You can request a quote without obligation via our procurement service.

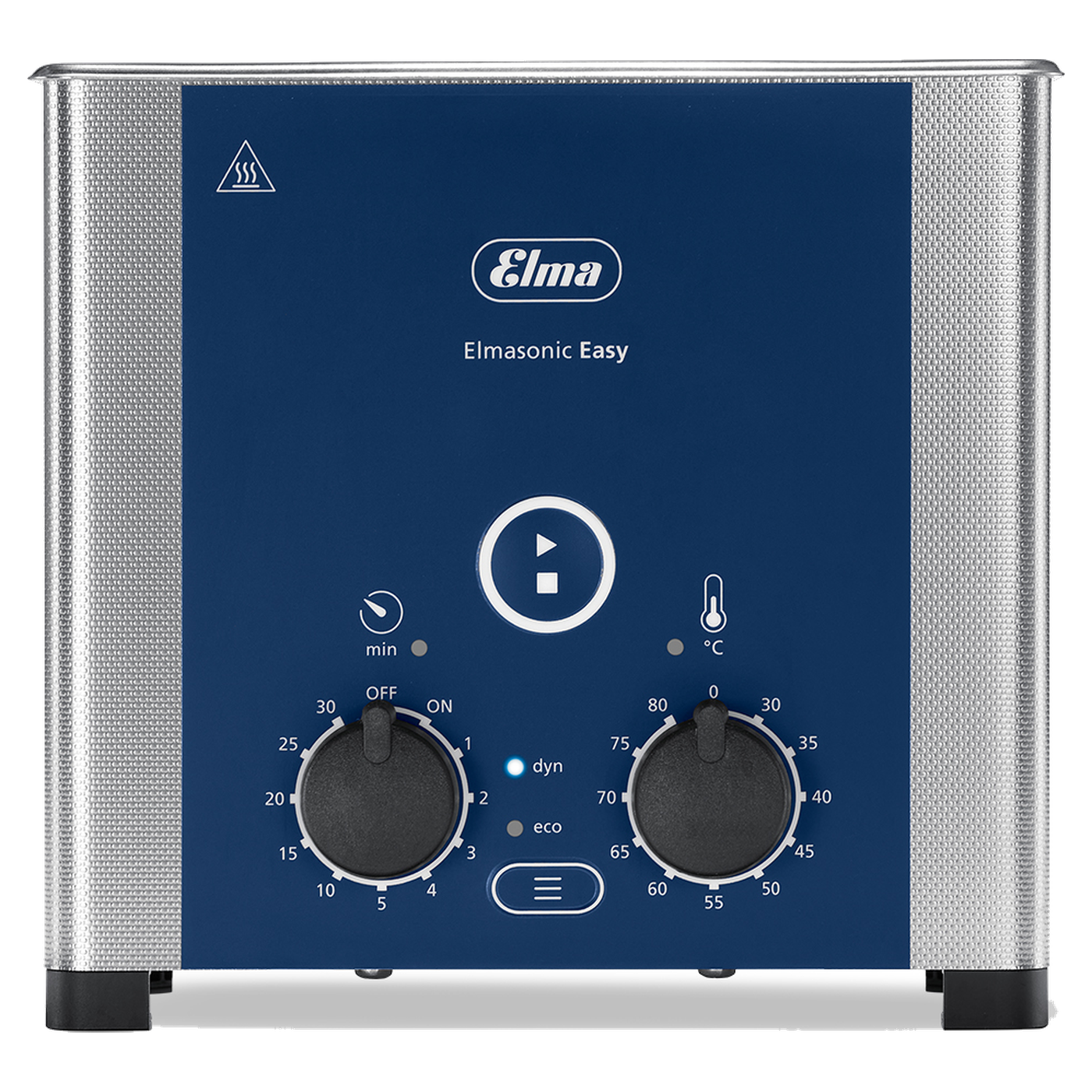

Elma Elmasonic Easy 10H Ultrasonic Bath with Heating, 0.9 Litre, 37 kHz, 1118883
For very small items to be cleaned, such as a few tweezers, small components or pieces of jewellery, a large ultrasonic bath is often not worth the investment. With a tank volume of 0.9 litres, the Elma Elmasonic Easy 10H is the smallest model in the Easy series and fits on any laboratory bench without compromising on heating.Smallest tank in the Easy seriesThe tank holds 0.9 litres; a working volume of 0.7 litres is recommended, with internal dimensions of 185 x 80 x 55 mm. Elma does not offer an insert lid for this tank size. A modular cleaning basket 10 (item no. 1117923) and a Hostalen tank (item no. 2070390000) specially manufactured for this model are available as accessories; for smaller workpieces, the basket is usually sufficient without an additional tank insert.Operation and performanceLike the entire Easy series, the unit is operated via an analogue rotary knob with ten fixed time settings ranging from 1 to 30 minutes or continuous operation for up to 6 hours; LED indicators show the status. The ultrasonic power is 30 W effective with a peak power of 240 W; the heating element covers a range of 25 to 80 °C with a heating power of 60 W. The unit does not have a drain outlet; however, with a volume of 0.9 litres, the tank can be emptied by hand without much effort.Compact footprint, clear benefitsWith external dimensions of 235 x 130 x 200 mm and a weight of 2.2 kg, the Easy 10H takes up hardly any space on the laboratory bench and can be moved between different workstations as required. For individual instruments, small-batch components or small laboratory parts that do not occur in large quantities, the unit is quickly ready for use without the need to fill a larger tank with cleaning solution.Workflow with the small bathWith a volume of 0.9 litres, the bath is quickly filled and just as quickly drained again, making the Easy 10H practical for workstations where different small parts are cleaned several times a day. The rotary knob with fixed time settings from 1 to 30 minutes covers most cleaning steps; for longer applications, continuous operation for up to 6 hours is also available. As no program is stored, the unit is particularly suitable for tasks with varying but short cleaning times.Material and operating environmentAs with the larger Easy models, the tank is made of stainless steel and is compatible with the aqueous cleaning concentrates commonly used in laboratories. The IP20 rating means that the housing is not protected against external splashes; the unit should therefore be placed on a dry work surface rather than directly next to a sink. Weighing 2.2 kg, it can be carried between workstations without any aids, which is practical when moving between different locations within a laboratory.Choice within the Elma rangesIf the 0.9-litre capacity is insufficient for the volumes involved, the larger Easy 30H, with a 2.7-litre capacity, can handle more items for cleaning, whilst retaining the same rotary knob operation. Those requiring Sweep, Pulse or Degas functions will find these in Elma’s Select or P series. We also offer Bandelin SONOREX ultrasonic baths, should you wish to continue using an existing range of equipment. Within the Easy series, operation remains the same across all models, so switching between tank sizes requires no adjustment.When the small model is worth itAn ultrasonic bath with a tank volume of 27.5 litres is not practical for cleaning just a pair of tweezers or a handful of small parts; the effort involved in changing the cleaning medium and water is out of proportion to the quantity. The Easy 10H fills this gap for workstations where small quantities are processed, without the need to purchase a larger unit with a correspondingly larger footprint. Where larger quantities or bulkier parts are cleaned on a regular basis, a model with a greater capacity is the more suitable choice, such as the Easy 30H from the same series.Typical applicationsCleaning small components, tweezers and instrumentsCleaning of jewellery and spectaclesCleaning of small laboratory parts in small volumesUse in workplaces with limited floor spaceTechnical detailsTotal volume0.9 litres (recommended working volume 0.7 litres)Internal dimensions of the tank (W x D x H)185 x 80 x 55 mmExternal dimensions (W x D x H)235 x 130 x 200 mmWeight2.2 kgUltrasonic frequency37 kHzUltrasonic power30 W effective, 240 W peakHeating power60 WTemperature range25 to 80 °COperating modesEco, DynamicTimerRotary knob, fixed settings: 1/2/3/4/5/10/15/20/25/30 minutes or continuous operation for up to 6 hoursTank materialStainless steelDrainNo drain connectionMains connectionIEC power connector 220 to 240 V~, 50/60 Hz, 2 m power cableDegree of protectionIP20, protection class IScope of delivery1x Elma Elmasonic Easy 10H ultrasonic bathPlastic lidMains lead (2 m)Operating instructionsThe cleaning basket and Hostalen tank are not included in the scope of delivery and are available separately. No insert lid is intended for this tank size.Regulatory informationThe ultrasonic bath is an electrical and electronic device under the ElektroG. The manufacturer Elma Schmidbauer GmbH is registered with the WEEE number DE 45649814. The return of old appliances is described at Environment and disposal.Individual requirements and procurement serviceFor the appropriate cleaning basket 10 or Hostalen tank, our procurement service can assist.
Bandelin SONOREX SUPER RK 1040 ultrasonic bath, 1.4301 tank, 39.5 litres, 35 kHz, 319
Within the SUPER-RK series, the Bandelin SONOREX SUPER RK 1040 stands out due to its shape: instead of a rectangular tank, it has a round tank with a diameter of 500 mm. With a total capacity of 39.5 litres and a working capacity of 28 litres, this ultrasonic bath is suitable for larger batches of laboratory glassware, tools or components. Like the other models in the series, it is classified as a Class I medical device in accordance with Regulation (EU) 2017/745.Round tank for large batches without heatingThe RK 1040 operates without heating and is therefore suitable for applications where pure ultrasonic energy is sufficient or where heat would adversely affect the items being cleaned or the cleaning medium. At 35 kHz, the unit generates a peak power of 1,520 watts and a nominal power of 380 watts via eight vibration systems. The tank is made of 1.4301 stainless steel with a thickness of 2.5 mm, which is greater than the 1.0 mm thickness of the smaller RK 1028 H, reflecting the larger tank surface area and higher filling volume. The automatic SweepTec function distributes the sound field evenly and prevents standing waves in the tank.Selection guide and dispatch for large batchesWith a working capacity of 28 litres, the RK 1040 sits between the RK 1028 series, which ranges from 19 to 30 litres, and the largest model, the RK 1050, with 41 litres. Anyone requiring a more robust tank made from 1.4404 instead of the standard 1.4301 tank will find this in the RK 1028 C or the RK 1050. Due to its weight and dimensions, the RK 1040 is dispatched on a Euro pallet; the net weight is 19.9 kg, whilst the shipping weight, including the carton and pallet, is 45.0 kg. This must be taken into account when planning delivery, for example if no forklift or pallet truck is available on site.Typical applicationsCleaning large batches of laboratory glassware, tools and componentsDegassing of solvents and aqueous media prior to analytical proceduresWorkshop and industrial applications without temperature requirementsCleaning tasks where a round tank promotes more uniform sound distributionPosition within the SUPER-RK seriesBandelin’s SUPER-RK series covers volumes ranging from less than one litre for the RK 31 up to 58 litres for the RK 1050, with or without heating, and with either a standard or a 1.4404 tank. For digital displays and push-button operation instead of a rotary knob, Bandelin offers the SONOREX DIGITEC range, although so far only in smaller sizes up to 13 litres. In addition to Bandelin, we also offer ultrasonic baths from Elma; their Elmasonic P series operates with switchable dual-frequency technology, offering an alternative for laboratories that do not wish to clean continuously at 35 kHz.Use and maintenanceThe tank is filled to a working capacity of 28 litres; the total volume of 39.5 litres refers to the tank filled to the brim without any items to be cleaned. The ball valve on the drain, specified in the data sheet as G 1/2 inch on the right-hand side of the unit, is used for draining. The K 40 insert basket and D 40 lid are available as accessories and are not included in the scope of delivery. The power cable is 2 metres long and permanently fitted; the unit operates on either 230 V or 115 V at 50/60 Hz, and the housing has an IP 32 protection rating.Frequently Asked QuestionsWhy is the tank of the RK 1040 round?Bandelin does not give an explicit reason for this in the data sheet; the round shape distinguishes this model from the other rectangular SUPER-RK sizes.How is the unit supplied?Due to its gross weight of 45.0 kg, the RK 1040 is dispatched as a carton on a Euro pallet.Is there a heated version of the RK 1040?No, according to the Bandelin range, there is no ‘H’ model with heating available for this size.Is the RK 1040 classified as a medical device?Yes, Bandelin classifies it as a Class I medical device in accordance with Regulation (EU) 2017/745.Technical detailsTotal capacity / Working capacity39.5 l / 28.0 lInternal dimensions of tank (Ø x D, round)Ø 500 x 195 mmExternal dimensions (Ø x H, round)Ø 540 x 500 mm, excluding handles/ball valve, with feetWeight (net)19.9 kgShipping weight (gross)45.0 kg, carton on Euro palletUltrasonic frequency35 kHzUltrasonic powerPeak power 1,520 W, nominal power 380 W, 8 vibration systemsHeatingNot applicable, unheated modelTimer1 to 15 minutes (±5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 2.5 mmHousing materialStainless steel 1.4301DrainBall valve G 1/2, right-hand sideMains connection230 V~ (±10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 1.7 A / 115 V 3.4 AProtection ratingIP 32PackagingCarton on a Euro pallet, 1200 x 800 x 600 mmMedical device classClass I in accordance with Regulation (EU) 2017/745Scope of delivery1x Bandelin SONOREX SUPER RK 1040 ultrasonic bathPermanently attached mains cable (2 m)Instructions for useThe K 40 insert basket and D 40 lid are not included in the scope of delivery and are available separately as accessories.Individual requirements and procurement serviceOur procurement service can assist you in finding the right insert basket, lid or cleaning concentrates for the SONOREX SUPER RK 1040.

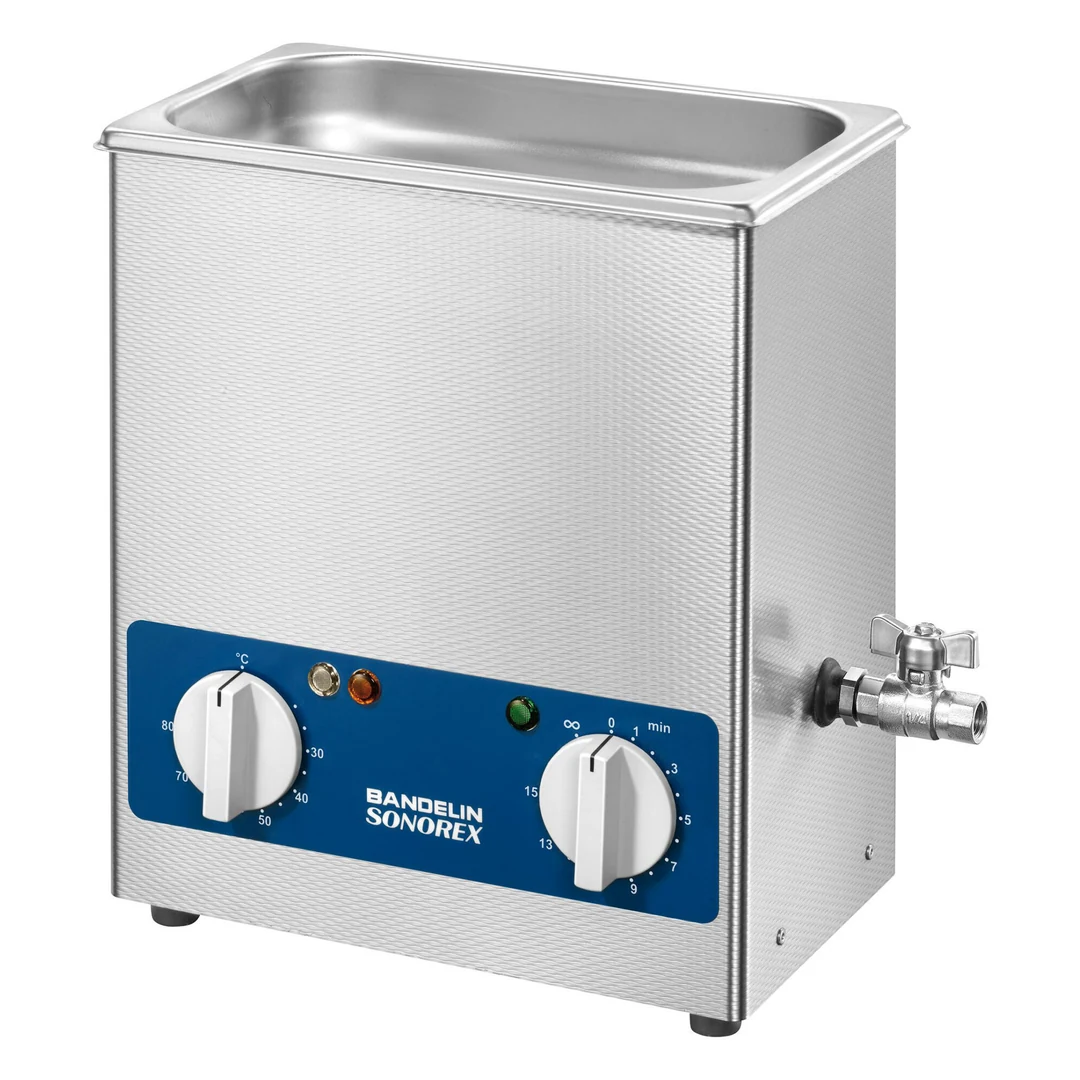

Bandelin SONOREX SUPER RK 103 H ultrasonic bath with heating, 4 litres, 326
One size larger than the RK 100 H, but with the same simple operating concept: The Bandelin SONOREX SUPER RK 103 H has a total capacity of 4.0 litres and a working capacity of 2.7 litres for cleaning tasks where a little more space is needed for instruments or small parts, without having to switch to a significantly larger bath.Greater performance thanks to two vibration systemsInstead of a single vibration system, as in the RK 100 H, the RK 103 H features two vibration systems operating in parallel, delivering a combined peak power of 560 watts at a nominal power of 140 watts, whilst maintaining a constant operating frequency of 35 kHz. The SweepTec function ensures that this power is distributed evenly across the slightly larger tank surface without standing waves forming.200-watt heater up to 80 °CAs with the other H models in the series, the integrated heater covers a range from 30 to 80 °C, with 200 watts of heating power and dry-run protection. Cleaning duration and temperature are set separately via two rotary knobs; the timer ranges from 1 to 15 minutes (± 5 %) or continuous operation.Ball valve drain as a practical difference from the RK 100 HUnlike the RK 100 H, the RK 103 H features a drain: a G 1/4 ball valve on the right-hand side allows for controlled emptying without having to lift or tilt the tank. Given the frequent changes of medium in everyday laboratory work, this is a noticeable advantage over its smaller counterpart. The tank and housing are made of 1.4301 stainless steel with a thickness of 1.0 mm; the external dimensions are 260 x 160 x 310 mm with a net weight of 4.6 kg.Guide to choosing between the RK 100 H and RK 103 HAnyone who regularly changes the cleaning medium or requires a working volume of more than 2.0 litres is better off with the RK 103 H (2.7-litre working volume, with drain) than with the smaller RK 100 H without a drain. If even more space is required, for example, to accommodate several beakers at the same time, the RK 510 H, with a total capacity of 9.7 litres, is the next model up in the SUPER RK series.Product range at a glance: SUPER RK, DIGITEC DT and smart STBandelin also offers the same performance class in the DIGITEC DT series, featuring push-button operation, an LED display and automatic DEGAS degassing, as well as in the smart ST series with a touchscreen and programme memory. The RK 103 H is designed for anyone who prefers simple, mechanical operation without a display. In addition, there are Elma Elmasonic ultrasonic baths for laboratories that already rely on this brand.Use and maintenanceThe 2.7-litre working capacity leaves room for the items to be cleaned when filling the bath; the bath should not be filled to the brim. A concentrate from Bandelin’s TICKOPUR range is suitable for use as the cleaning fluid. Before the first cleaning cycle with a freshly prepared solution, a short initial run in continuous operation helps to expel any trapped air and achieve the full cavitation effect. After the last use of the day, the tank should be drained via the ball valve and wiped dry to prevent any residues from settling.Typical applicationsCleaning of tweezers, scissors and smaller practice instrumentsDegreasing and cleaning of small metal and plastic partsCleaning of cuvettes, filter holders and sample holdersHeat-assisted pre-cleaning prior to further processingFrequently asked questionsWhat is the difference between the RK 103 H and the RK 100 H?The RK 103 H has a larger capacity (4.0 litres instead of 3.0 litres), two vibration systems instead of one, and a ball valve drain, which the RK 100 H does not have.What temperature range is available?30 to 80 °C, controlled via a separate rotary knob.On which side is the drain?On the right, fitted as a ball valve with a G 1/4 connection.Is the unit equally suitable for use in medical practices and laboratories?It is classified as a Class I medical device in accordance with Regulation (EU) 2017/745 and is CE-compliant with the Low Voltage, EMC and RoHS Directives. The suitability of the instruments depends on the instrument manufacturer’s specifications.Technical detailsTotal capacity / Working capacity4.0 l / 2.7 lInternal dimensions of the tank (L x W x D)240 x 140 x 150 mmExternal dimensions (L x W x H)260 x 160 x 310 mmWeight (net)4.6 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 560 W, nominal power 140 W, 2 vibration systemsHeating power200 W, temperature range 30 to 80 °C, dry-run protectionTimer1 to 15 minutes (± 5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 1.0 mmHousing materialStainless steel 1.4301DrainBall valve G 1/4, right-hand sideMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 1.5 A / 115 V 3.0 AProtection ratingIP 32Medical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions365 x 265 x 380 mmScope of delivery1x Bandelin SONOREX SUPER RK 103 H ultrasonic bath with heatingFixed mains lead (2 m)Instructions for useThe insert basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor the K 3 CL insert basket, the D 100 lid or another model from the SUPER RK series, there is an individual procurement need. You can use our procurement service to request a quote for suitable accessories, a replacement basket or another model from the SONOREX range.

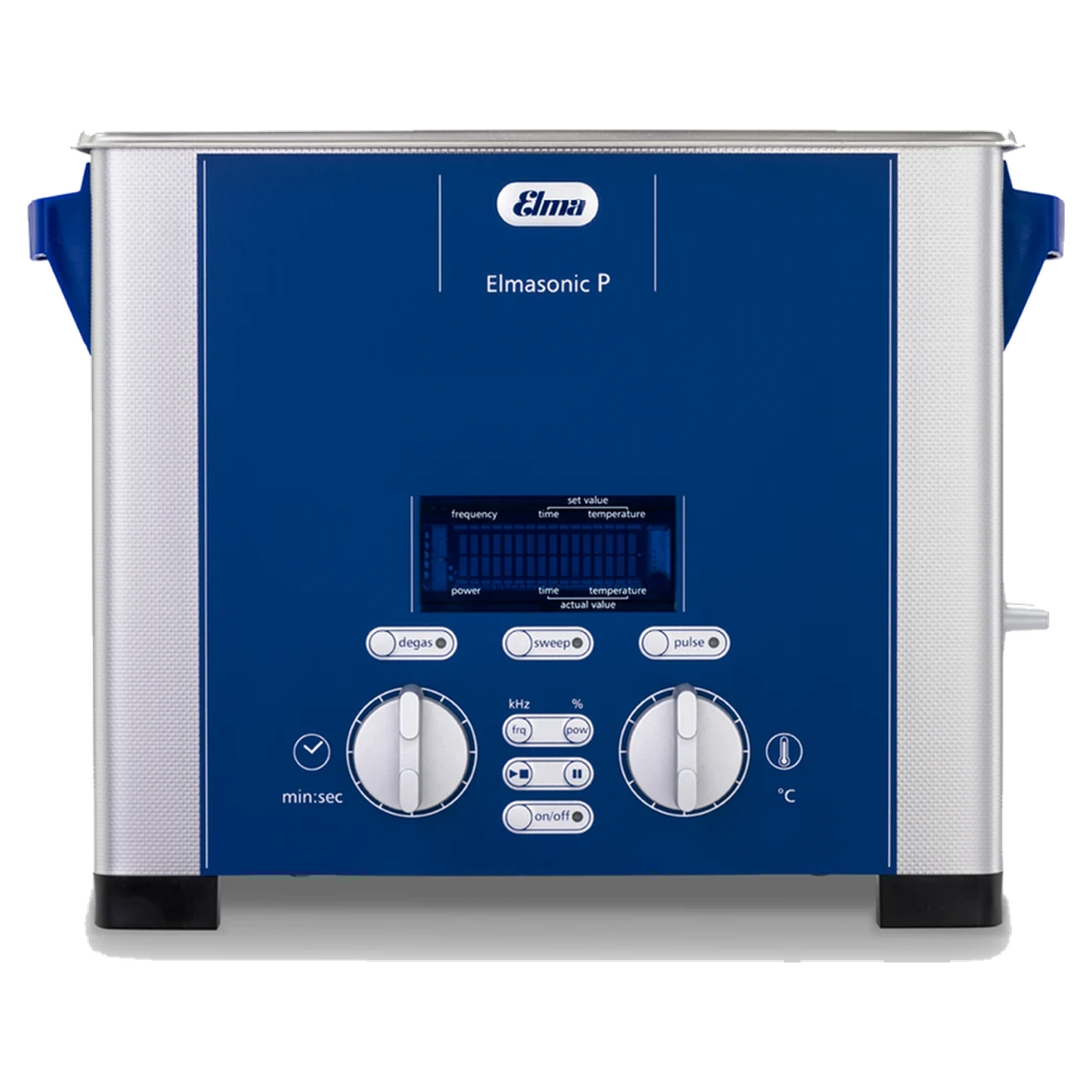

Elma Elmasonic P 30H ultrasonic bath with heating, 2.75 litres, 37/80 kHz, 1013737
A fixed ultrasonic frequency is often insufficient for analytical fine cleaning. Coarser contaminants require more energy, whilst sensitive samples require gentler treatment. The Elma Elmasonic P 30H switches between 37 and 80 kHz, meeting both requirements with a single unit, whilst offering a 2.75-litre tank capacity for smaller sample volumes. Elma positions the P-series for medical and analytical laboratories, as well as for intensive cleaning in industry, where a single frequency is not sufficient for all cleaning stages.Two frequencies for different cleaning tasksAt 37 kHz, the unit generates 120 watts of effective ultrasonic power (480 watts peak) for coarse cleaning; at 80 kHz, it delivers 100 watts effective (400 watts peak) for gentler, fine cleaning of sensitive surfaces. Additionally, the unit features a ‘Pulse’ mode for brief bursts of increased power, a ‘Sweep’ mode for even sound distribution, and a ‘Degas’ mode for the rapid degassing of fresh cleaning baths. Power control and a pause function complement the operating modes, allowing the cleaning process to be adapted to different materials without having to change the unit or switch back and forth between two separate ultrasonic baths.Precise operation with autostartTwo rotary switches set the sonication duration and temperature, whilst a keypad with a digital display shows setpoint and actual values simultaneously. The autostart function only begins the cleaning cycle once the bath has reached the set temperature, which keeps cleaning results comparable across multiple runs. The temperature range extends from 30 to 80 °C, slightly higher than in the Select and Easy series, which start at 25 °C, making it suitable for the more demanding requirements of analytical applications and for cleaning agents that only achieve their full effect at higher temperatures.Tank and basket for sample preparationAccording to the data sheet and operating instructions, the bath has a capacity of 2.75 l, with internal dimensions of 240 x 137 x 100 mm; the recommended working volume is 1.9 l. The matching modular cleaning basket 30 (item no. 1108916) has internal dimensions of 198 x 106 x 50 mm and is designed to hold up to 1.0 kg, making it suitable for smaller sample batches, individual sensors or several components at once. A drain tap (G 3/8 inch) facilitates the change of cleaning medium between batches; this connection is not included on the P 30H SE variant.Procedure for analytical cleaningIn practice, the sample is first cleaned of coarser residues at 37 kHz, followed by gentler fine cleaning of more sensitive surfaces at 80 kHz. The Degas mode degasses the freshly prepared bath in advance so that cavitation is not weakened by dissolved air. The digital display allows you to check at any time whether the target temperature has been reached before the autostart function begins the actual cycle. This is particularly relevant where cleaning results need to be documented or compared across multiple batches, such as during recurring test series in the same laboratory.Noise level and operating environmentAccording to the operating instructions, the sound pressure level is below 70 dB(A), measured with the basket and lid in place, whilst the ultrasonic level is below 105 dB. For a unit with a power consumption of 370 and 350 watts respectively, this is a level that allows it to be used even in laboratory rooms where several workstations are located in the immediate vicinity. Like the oscillating tank and the housing, the tank is made of stainless steel, which can withstand both aqueous cleaning concentrates and the more frequent changes of cleaning media that are common in dual-frequency operation between coarse and fine cleaning.Choice within the Elma seriesWhere a fixed frequency of 37 kHz is sufficient, the Select and Easy models are the simpler alternatives. The P-series is worthwhile when both coarse and fine cleaning stages need to be carried out using the same unit, for example in sample preparation for analysis. For larger volumes, the P300H with a 27.5-litre capacity is available within the P-series. We also offer Bandelin SONOREX ultrasonic baths, should a laboratory already be equipped with this brand and the dual-frequency function not be strictly necessary.Typical applicationsSample preparation in analytical and medical laboratoriesPrecision cleaning of sensitive components at 80 kHzIntensive cleaning of heavily soiled parts at 37 kHzDegassing of freshly prepared cleaning media prior to sensitive applicationsTechnical detailsTotal volume2.75 l (recommended working volume 1.9 l)Internal dimensions of the tank (W x D x H)240 x 137 x 100 mmInternal dimensions of basket (accessory)198 x 106 x 50 mm, max. load 1.0 kgExternal dimensions (W x D x H)300 x 179 x 221 mmWeight3.3 kgUltrasonic frequency37/80 kHz switchableUltrasonic power120 W / 100 W effective (37/80 kHz), 480 W / 400 W peakHeating power250 WTemperature range30 to 80 °CTotal power consumption370/350 WOperating modesNormal operation, Pulse, Sweep, Degas, Power control, Pause, AutostartTank materialStainless steel (oscillating tank and housing)DrainG 3/8-inch ball valve (P 30H SE variant without drain connection)Mains connectionIEC power connector 220 to 240 V~, 50/60 Hz, 2 m power cableDegree of protectionIP20, sound pressure level < 70 dB(A), ultrasonic level < 105 dB (with basket and lid)Scope of delivery1x Elma Elmasonic P 30H ultrasonic bathMains cable (2 m)Hose connection nozzle (not included with the P 30H SE model)Operating instructionsThe cleaning basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor the matching cleaning basket 30, stainless steel or plastic lid, our procurement service supports you.
Bandelin SONOREX DIGITEC DT 100 Ultrasonic Bath, 3 litres, 3210
Thorough ultrasonic cleaning for medical practices, laboratories and workshops The Bandelin SONOREX DIGITEC DT 100 is an ultrasonic cleaner for medical practices, laboratories and workshops. Intense cavitation bubbles clean thoroughly yet gently, even in hard-to-reach areas of the items being cleaned. The wipe-clean button controls and the LED display showing the remaining cleaning time make it particularly easy to use. SweepTec, pulse and degassing functions The fully automatic SweepTec function prevents standing waves in the ultrasonic field and ensures a particularly uniform cleaning effect. The pulse function allows for variable cleaning intensity, whilst the Degas function, which can be activated at the start, degasses the cleaning fluid, thereby further enhancing the effect of the ultrasound. Suitable accessories Suitable baskets, lids and cleaning and disinfection concentrates are available as accessories, tailored to different items to be cleaned and areas of application. Technical details Total volume3.0 litres Working volume2.0 litres Internal dimensions (L×W×H)240 × 140 × 100 mm External dimensions (L×W×H)260 × 160 × 250 mm MaterialStainless steel 1.4301, wall thickness 1.0 mm Ultrasonic frequency35 kHz Ultrasonic power80 W (rated), 320 W (peak) HeatingNot available Timer1/2/3/4/5/10/15/30 minutes or continuous operation (±5 %) DisplayLED display, remaining cleaning time Voltage230 V~ (±10 %), 50/60 Hz Mains cable2 m, permanently attached to the unit Weight4.2 kg Level indicatorAvailable Degree of protectionIP 33 ClassificationClass I medical device (EU 2017/745) Scope of delivery 1x Bandelin SONOREX DIGITEC DT 100 ultrasonic bath Baskets, lids and cleaning/disinfection concentrates are not included in the scope of delivery and are available separately as accessories. Individual requirements & procurement service Do you need suitable baskets, inserts, lids or cleaning concentrates for your SONOREX ultrasonic cleaner, or are you looking for a heated model? Our procurement service will be happy to help you select suitable accessories.

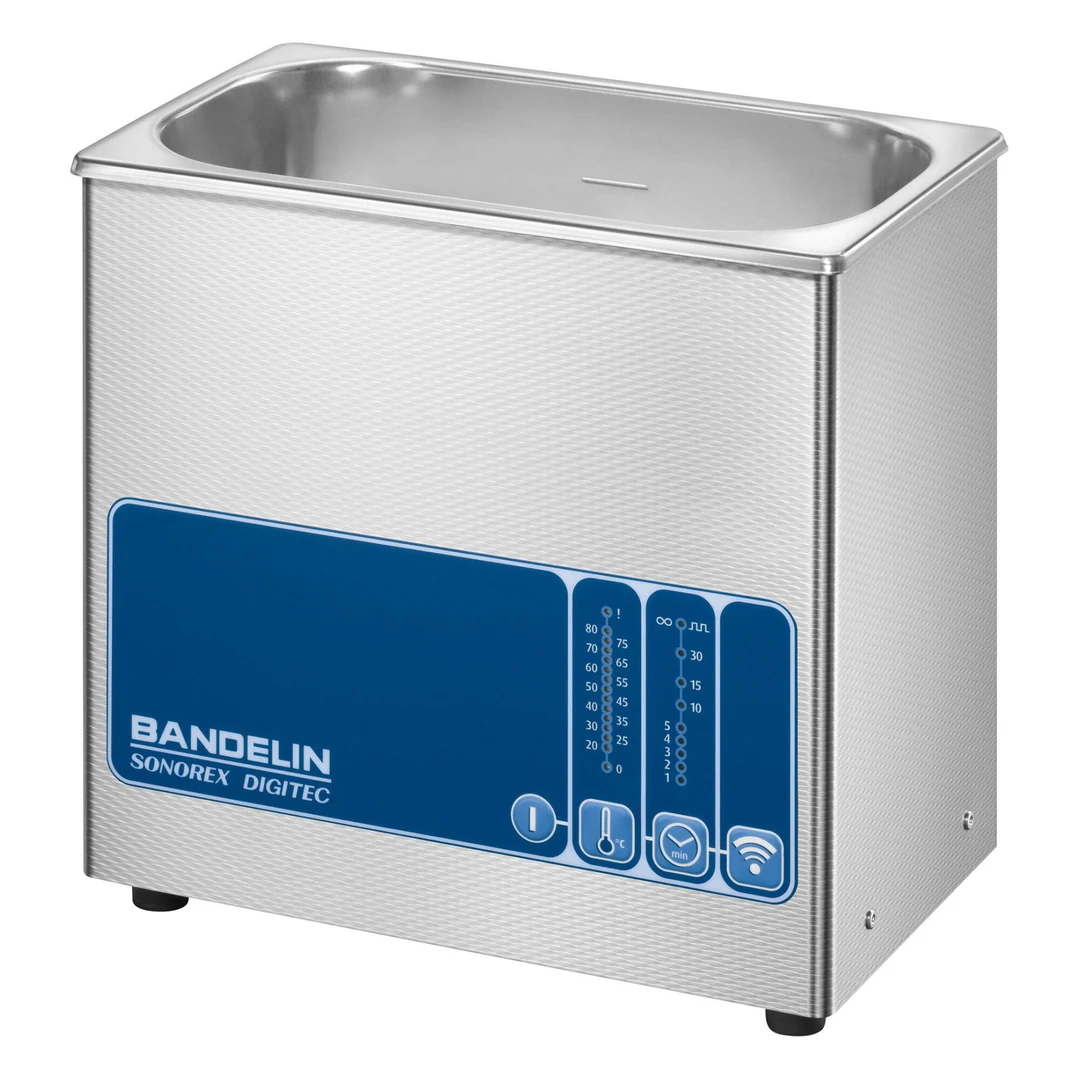

Bandelin SONOREX DIGITEC DT 100 H Ultrasonic Bath with Heating, 3 L, 35 kHz, 3230
Small components, tweezers or small laboratory parts often do not require a large tank volume, but rather a reliable temperature and simple digital control. The Bandelin SONOREX DIGITEC DT 100 H offers exactly that in a compact design: a total volume of 3.0 l, a working capacity of 2.0 l, and push-button operation with an LED display showing the remaining time and bath temperature. For a laboratory workstation or a workbench in a workshop, external dimensions of 260 x 160 x 250 millimetres (L x W x H, excluding handles) are sufficient.Compact volume for small batchesWith a total volume of 3.0 l and a working capacity of 2.0 l, the DT 100 H is designed for smaller cleaning volumes; a vibration system delivers 80 watts of nominal power and 320 watts of peak power. This is sufficient for individual tools, small metal or plastic parts, and laboratory accessories that do not accumulate in large batches. The internal dimensions of the tank are 240 x 140 x 100 millimetres.Buttons instead of a rotary knob, a display instead of a scaleButtons are used for operation instead of a rotary knob, whilst an LED display shows the remaining time as well as the setpoint and actual bath temperature simultaneously. The time can be selected in fixed increments from 1 to 30 minutes or set to continuous operation, in each case with a tolerance of ±5 %. The appliance switches off automatically after 12 hours without any buttons being pressed.Heating up to 80 °CThe 140-watt heating power covers a temperature range of 20 to 80 °C; a dry-run protection feature prevents damage should the tank accidentally run without liquid. Additionally, the unit features SweepTec for even sound distribution, DEGAS for rapid degassing, and a pulse function for varying cleaning intensity.DT 100 H or DT 512 H: which model is suitableFor small quantities such as tweezers, spectacles, jewellery or individual laboratory items, the DT 100 H with a 3.0-litre capacity is a suitable choice. If you regularly process larger batches, such as several laboratory bottles or bulkier items, the DT 512 H, with a total volume of 13.0 l and significantly higher performance, is the more suitable addition.Difference from the SUPER RK 100 H and smart ST 102 HThe SUPER RK 100 H has the same tank size but is operated via a traditional rotary knob, without a digital display or the DEGAS function. The smart ST 102 H offers more advanced technical features: a touchscreen, power adjustment from 10 to 100 % in 1 % increments, a freely selectable timer up to 8 hours and 12 programme memory slots. The DIGITEC DT 100 H falls somewhere in between and offers digital time and temperature control with a reasonable level of operational complexity.Operation without a drain tapThe DT 100 H has no drain or ball valve. To change the cleaning fluid, the tank is emptied directly or drained using a suction device. The K 3 C insert basket or the PK 2 C plastic basket, as well as the D 100 lid, both available separately, are compatible with the unit. The power cable is permanently fitted and measures 2 metres; the unit can be connected to either 230 V or 115 V at 50/60 Hz.Typical applicationsCleaning of small tools, tweezers and laboratory accessoriesProcessing of small metal or plastic parts in the workshopPre-cleaning of individual components prior to assembly or further processingCleaning tasks in confined spaces in the laboratory or at the workbenchFrequently asked questionsDoes the DT 100 H have a drain tap?No, the DT 100 H has no drain; the tank is emptied directly.Is the unit a medical device?Yes, Class I in accordance with Regulation (EU) 2017/745.Which accessories are compatible with the DT 100 H?The K 3 C insert basket or the PK 2 C plastic basket, as well as the D 100 lid; neither of these is included in the scope of delivery.How does the DT 100 H differ from the heated SUPER RK 100 H?Both models have the same tank size, but the SUPER RK 100 H is operated via a rotary knob, whilst the DT 100 H is operated via buttons with an LED display and an additional DEGAS function.How long does the appliance run without any input before it switches off?After 12 hours without any buttons being pressed, the automatic safety shut-off switches the appliance off.Technical detailsTotal volume3.0 lWorking capacity2.0 lInternal dimensions of the tank (L x W x D)240 x 140 x 100 mmExternal dimensions (L x W x H)260 x 160 x 250 mm (excluding handles/ball valve, including feet)Weightnet 3.5 kg / gross 4.4 kgTank materialStainless steel 1.4301, 1.0 mmUltrasonic frequency35 kHzUltrasonic power80 W nominal power, 320 W peak power, 1 vibration systemHeating power140 WTemperature range20 to 80 °CTimer1/2/3/4/5/10/15/30 minutes (±5 %) or continuous operation, automatic safety shut-off after 12 hoursOperationButtons, LED display showing remaining time and setpoint/actual bath temperatureFunctionsSweepTec, DEGAS rapid degassing, pulse function, dry-run protection for the heaterDrainNo drain/ball valveMains connection230 V AC (±10 %), 50/60 Hz, optionally 115 V AC, 2 m fixed power cable, Protection Class ICurrent consumption230 V 1.0 A / 115 V 2.0 AProtection ratingIP 33ClassificationClass I medical device (EU 2017/745)Scope of delivery1x Bandelin SONOREX DIGITEC DT 100 H ultrasonic bathFixed mains lead (2 m)Instructions for useThe K 3 C insert basket or PK 2 C plastic basket and D 100 lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor a suitable insert basket, lid or a larger DIGITEC model, please contact our procurement service.

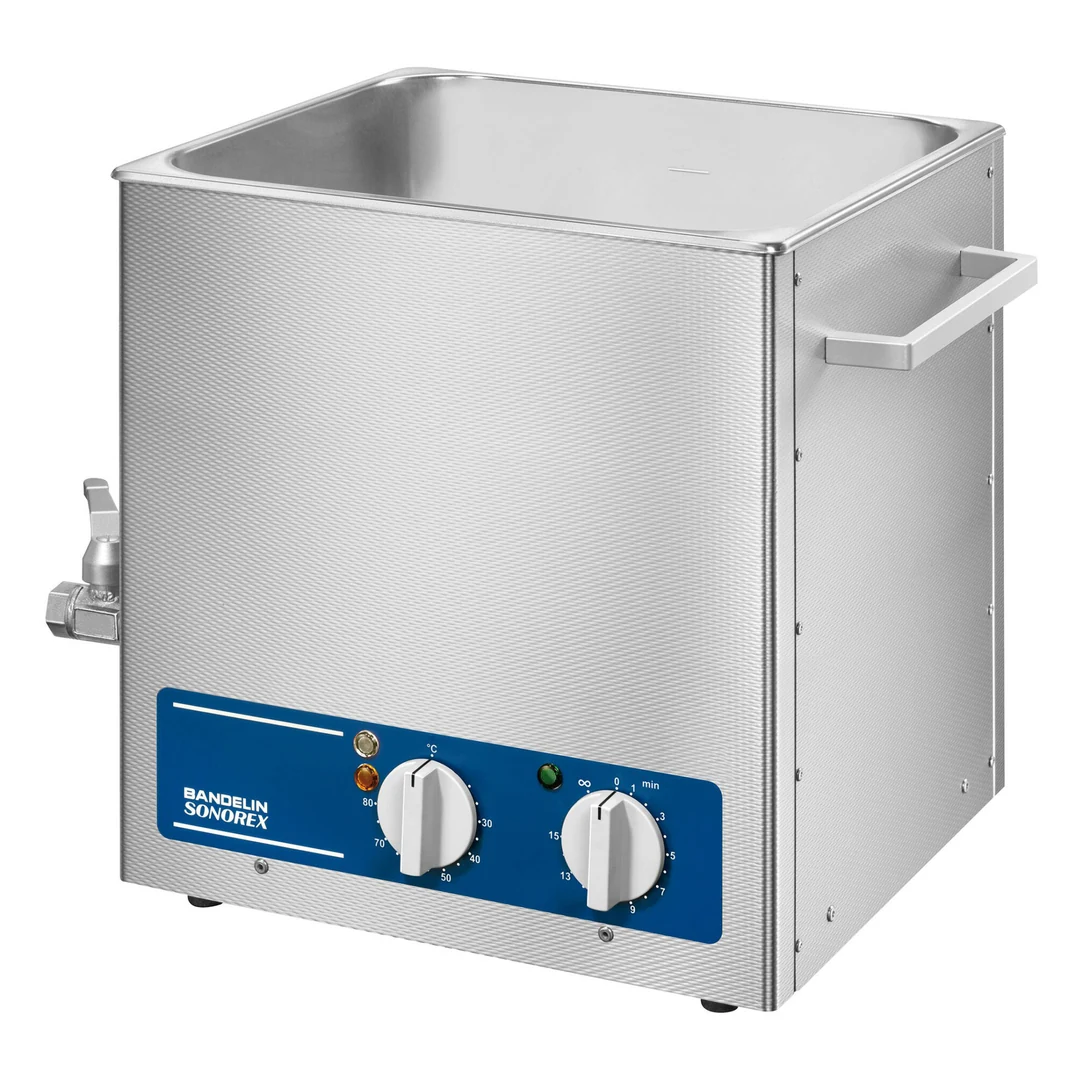

Bandelin SONOREX SUPER RK 514 BH ultrasonic bath with heating, 18.7 litres, 35 kHz, 263
When several beakers, sieves or larger sets of instruments need to be cleaned at the same time, 9 or 10 litres quickly proves to be insufficient. The Bandelin SONOREX SUPER RK 514 BH has a total capacity of 18.7 litres and a working capacity of 12.5 litres, a noticeably greater capacity, whilst remaining part of the SUPER RK series operated by a rotary handle.Four oscillation systems for larger batchesAt an operating frequency of 35 kHz, 860 watts of peak power and 215 watts of rated power are distributed across four oscillation systems; the SweepTec function ensures that, even with this larger tank volume, no standing waves are generated and cavitation acts uniformly, regardless of whether there are several smaller objects or a single large beaker in the bath.600-watt heater for demanding cleaning tasksThe heater covers a range of 30 to 80 °C, with dry-run protection to prevent damage if the liquid level is too low. Cleaning duration and temperature can be adjusted independently using two rotary knobs; the timer ranges from 1 to 15 minutes (± 5 %) or continuous operation for longer cleaning cycles.Larger tank than the smaller SUPER RK modelsThe tank and housing are made of 1.4301 stainless steel with a thickness of 1.0 mm; the internal dimensions of 325 x 300 x 200 mm offer significantly more space than the smaller SUPER RK models. With external dimensions of 355 x 325 x 385 mm and a net weight of 9.8 kg, the unit remains portable. A G 1/2 ball valve on the left-hand side allows the larger volume of water to be drained without tilting the unit.Selection guide: when the RK 514 BH is suitableIf the capacity of the RK 510 H (9.7 litres) is no longer sufficient because several beakers or a larger set of instruments need to be cleaned simultaneously on a regular basis, the RK 514 BH, with a capacity of 18.7 litres, is the next logical step within the SUPER RK series. If even more capacity is required, for example, for entire sieves or larger batches, models such as the RK 1028 H, with a capacity of 28 litres, are available.Product range overview: SUPER RK, DIGITEC DT and smart STEven with larger volumes, the SUPER RK series retains its simple rotary-knob operation. For digital button operation with an LED display and automatic DEGAS degassing in a similar size class, the DIGITEC DT 512 H with a 13-litre capacity is available; for touchscreen operation with programme memory, the smart ST series is available. In addition to Bandelin SONOREX, Elma Elmasonic ultrasonic baths are also available.Use and maintenanceThe working capacity of 12.5 litres is significantly less than the total capacity of 18.7 litres, allowing several beakers to be placed inside at the same time without the liquid spilling over the rim. A concentrate from Bandelin’s TICKOPUR range is suitable for the cleaning fluid; with this volume, a more generous refill quantity is recommended. Before the first cycle with freshly prepared medium, a short run-in period in continuous operation helps to remove trapped air. After the final cleaning cycle of the day, the tank can be quickly emptied via the ball valve.Typical applicationsCleaning several beakers or larger laboratory glassware items simultaneouslyCleaning of sieve inserts and larger sets of instrumentsHeat-assisted batch cleaning in workshops and industryDegassing of larger volumes of aqueous solutions prior to analysisFrequently asked questionsHow much does the tank actually hold?The working capacity is 12.5 litres, and the total capacity is 18.7 litres.What temperature range is possible?30 to 80 °C, with dry-run protection for the heater.Where is the drain?On the left, as a ball valve with a G 1/2 connection.Is a basket included?No, the K 14 B or, alternatively, the K 14 AZ hanging basket, as well as the D 514 lid, are available separately.Technical detailsTotal capacity / Working capacity18.7 l / 12.5 lInternal dimensions of the tank (L x W x D)325 x 300 x 200 mmExternal dimensions (L x W x H)355 x 325 x 385 mmWeight (net)9.8 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 860 W, rated power 215 W, 4 vibration systemsHeating power600 W, temperature range 30 to 80 °C, dry-run protectionTimer1 to 15 minutes (± 5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 1.0 mmHousing materialStainless steel 1.4301DrainBall valve G 1/2, left-hand sideMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 3.6 A / 115 V 7.1 ADegree of protectionIP 32Medical device classClass I (Regulation (EU) 2017/745)ComplianceLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions475 x 445 x 465 mmScope of delivery1x Bandelin SONOREX SUPER RK 514 BH ultrasonic bath with heaterFixed mains lead (2 m)Operating instructionsThe hanging basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor the K 14 B hanging basket, the alternative K 14 AZ basket, the D 514 lid or a larger model such as the RK 1028 H, there is an individual procurement need. You can use our procurement service to request a quote for suitable accessories, a replacement basket or another model from the SONOREX range.

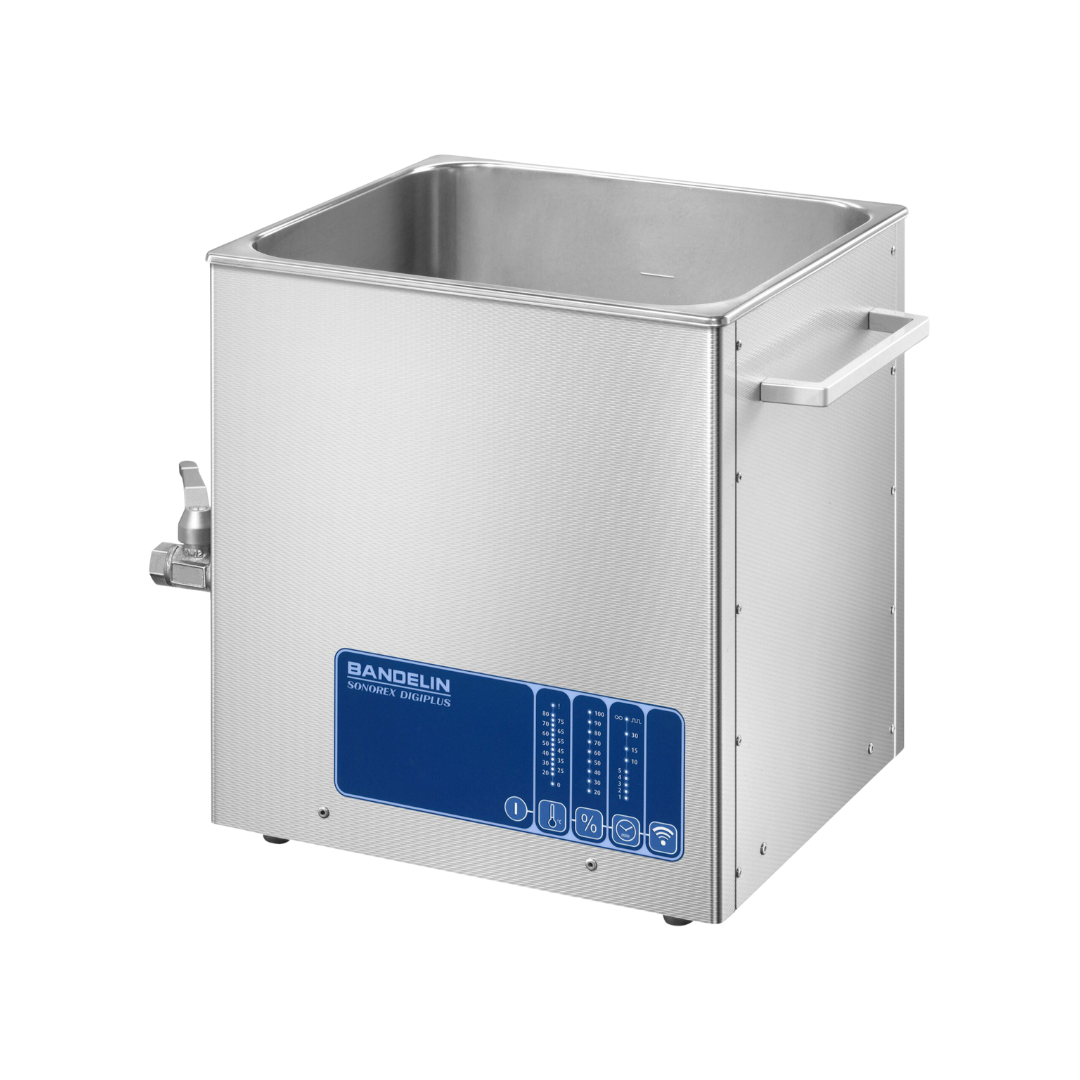

Bandelin SONOREX DIGIPLUS DL 514 BH ultrasonic bath with heating, 18.7 l, 7185
The Bandelin SONOREX DIGIPLUS DL 514 BH has been discontinued by the manufacturer and is no longer available. Its successor is the Bandelin SONOREX smart ST 514 BH, which has the same tank size and a finer power setting.Powerful cleaning with digital precision The Bandelin SONOREX DIGIPLUS DL 514 BH is a professional-grade digital ultrasonic bath, specially developed for demanding tasks in laboratories and industry. With a tank volume of 18.7 litres, it offers sufficient space for larger items to be cleaned. A key feature of this model is the power setting from 20 % to 100 % in 10 % increments. This allows you to precisely adjust the intensity of the ultrasound to suit the sensitivity of the items being cleaned, from gentle treatment to the powerful removal of stubborn dirt. Efficient heating and robust construction For optimum cleaning results, the unit features an integrated 600-watt heating element that electronically controls the temperature range from 20 °C to 80 °C. The ultrasonic tank is made of high-quality 1.4301 (V2A) stainless steel with a wall thickness of 1.0 mm. The housing is protected against spraying water (IP 33) and is also made of stainless steel, supporting easy cleaning and durability in daily use. Convenient operation and process reliability Control is via an intuitive membrane keypad. The digital timer allows selection of fixed time intervals (1, 2, 3, 4, 5, 10, 15, 30 min) or continuous operation for longer processes. Thanks to the high ultrasonic peak power of 860 W (at a frequency of 35 kHz), cavitation bubbles are effectively generated to clean thoroughly even in hard-to-reach cavities. After use, the liquid can be conveniently drained via the side-mounted ball valve (G ½). Technical details Tank capacity: 18.7 litres Working capacity: 12.5 litres Internal dimensions (L x W x D): 325 x 300 x 200 mm Nominal ultrasonic power: 215 W Ultrasonic peak power: 860 W Power setting: 20 to 100 % (adjustable) Heating power: 600 W (20 to 80 °C) Frequency: 35 kHz Timer: Intervals (1 to 30 mins) & continuous operation (∞) Drain: G ½ ball valve (left-hand side) Tank/housing material: Stainless steel 1.4301 Degree of protection: IP 33 External dimensions (L x W x H): 355 x 325 x 385 mm Scope of delivery Bandelin SONOREX DIGIPLUS DL 514 BH G ½ ball valve (fitted) Mains lead (2 m, permanently attached to the unit) Operating instructions Note: The basket (K 14 B) and lid (D 514) are not included in the scope of delivery. They are available separately. Individual requirements and procurement service The K 14 B insert basket, the D 514 lid and cleaning chemicals (TICKOPUR) are available as accessories. Our procurement service can arrange suitable accessories on request.

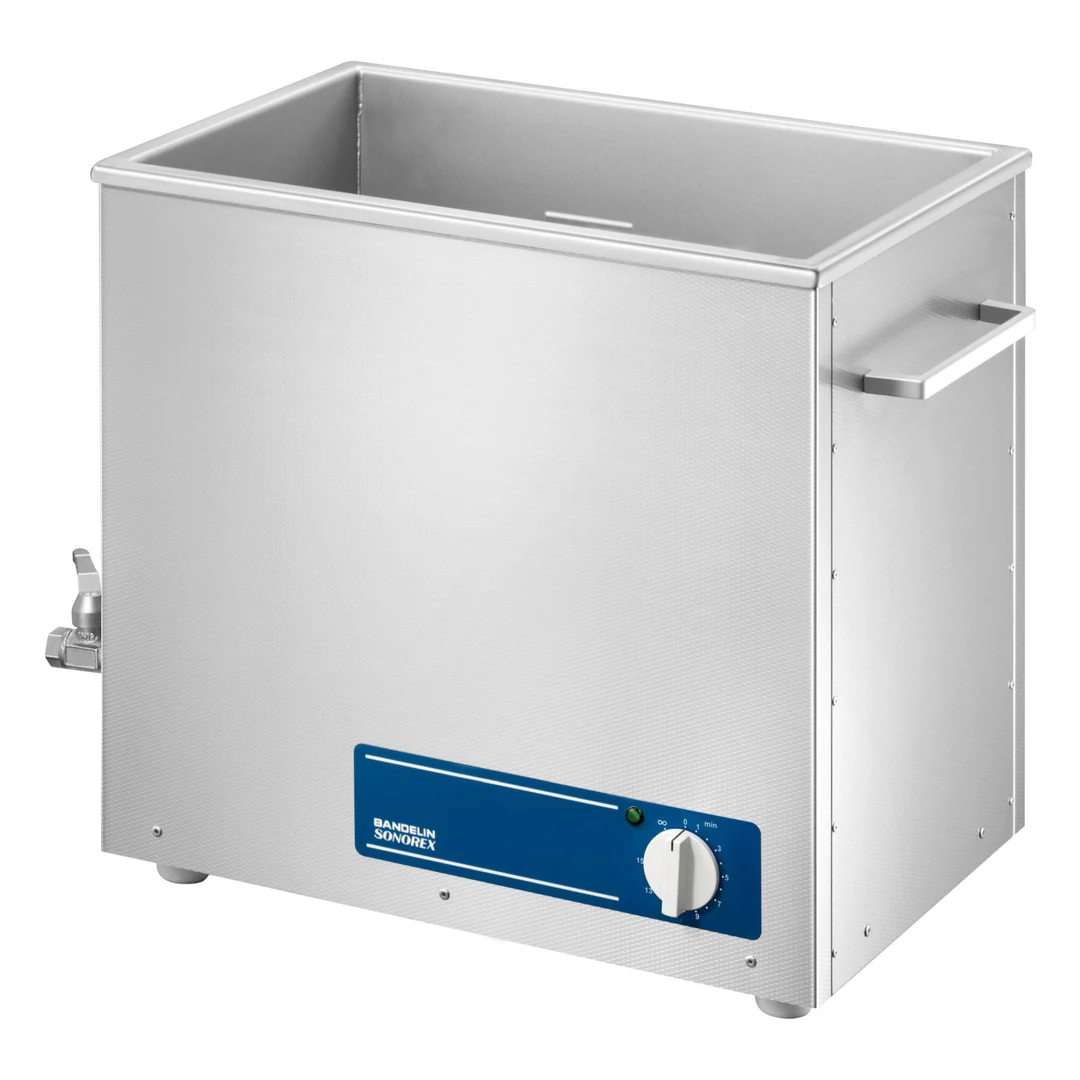

Bandelin SONOREX SUPER RK 1028 C ultrasonic bath, 1.4404 tank, 45 litres, 35 kHz, 661
Not every cleaning task requires heat; indeed, some cleaning agents and materials do not tolerate it well. The Bandelin SONOREX SUPER RK 1028 C operates without heating and instead features a welded tank made from high-alloy stainless steel 1.4404 (AISI 316L). With a total capacity of 45 litres and a working capacity of 30 litres, this ultrasonic bath is one of the larger models in the SUPER-RK series and, like all units in the range, is classified as a Class I medical device in accordance with Regulation (EU) 2017/745.Robust tank for continuous operation without heatingThe 1.4404 grade is molybdenum-alloyed and is therefore generally more resistant to chlorides and more aggressive cleaning agents than the standard 1.4301 grade, from which the other unheated SUPER-RK models, such as the RK 1040, are manufactured. The tank is welded rather than drawn and has a thickness of 2.0 mm, twice that of the standard RK 1028 H model. On the ultrasonic side, the RK 1028 C delivers a peak power of 2,000 watts and a nominal power of 500 watts at 35 kHz, distributed across ten vibration systems. The SweepTec function operates fully automatically to counter standing waves in the acoustic field, whilst an additional pulse function briefly increases the energy output to tackle more stubborn dirt.Typical applicationsCleaning of larger batches of laboratory glassware, tools and componentsPreparation and degassing of cleaning media prior to analytical processesUse with cleaning concentrates that are more aggressive towards standard stainless steelWorkshop and industrial applications with high throughput and no temperature requirementsThe 1028 series and alternatives in the rangeIf you additionally need heating, the RK 1028 CH with an identical tank offers the heated version with the same tank material. If the standard 1.4301 tank is sufficient, the RK 1028 H with the same volume and heating is the more cost-effective alternative. For smaller batches without heating, Bandelin also offers the RK 510 with a capacity of 9.7 litres and the RK 1040 with a round tank and a capacity of 39.5 litres. In addition to the SONOREX range, we also offer ultrasonic baths from Elma, for example with switchable dual-frequency technology, for applications where a fixed frequency of 35 kHz is insufficient.Use and maintenanceThe tank is filled to a working capacity of 30 litres; the total volume of 45 litres refers to the tank filled to the brim without the items to be cleaned. The ball valve on the drain, specified in the data sheet as G 1/2 inch on the left-hand side of the unit, is used for draining and changing the cleaning medium. The insert basket and lid are not included in the scope of delivery; for the RK 1028 C, the K 28 C or K 28 CS baskets are suitable, with the corresponding lids D 1028 C or D 1028 CS respectively. Cleaning concentrates for the SONOREX series can be purchased separately. The power cable is 2 metres long and permanently attached to the unit; operation is possible with either 230 V or 115 V.Frequently Asked QuestionsWhy does the RK 1028 C not have heating?This is the unheated basic version of the 1028 model; for heated operation with the same tank, there is the sister model RK 1028 CH.What distinguishes the 1.4404 tank from the standard tank?The tank of the RK 1028 C is welded rather than drawn, 2.0 mm thick instead of 1.0 mm, and is made from the molybdenum-alloyed stainless steel 1.4404, which is generally more resistant to chlorides than the standard material 1.4301.How much does the unit weigh when shipped?The net weight of the RK 1028 C is 24.9 kg; when packed in a carton, the weight increases to 28.0 kg.Is the device classified as a medical device?Yes, Bandelin classifies the RK 1028 C as a Class I medical device in accordance with Regulation (EU) 2017/745.Technical detailsTotal capacity / Working capacity45.0 l / 30.0 lInternal dimensions of the tank (L x W x D)500 x 300 x 300 mmExternal dimensions (L x W x H)540 x 340 x 500 mm, excluding handles/ball valve, with feetWeight (net)24.9 kgShipping weight (gross)28.0 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 2,000 W, nominal power 500 W, 10 vibration systemsHeatingNot applicable, unheated modelTimer1 to 15 minutes (±5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4404 (AISI 316L), welded, thickness 2.0 mmHousing materialStainless steel 1.4301DrainBall valve G 1/2, left-hand sideMains connection230 V~ (±10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 2.2 A / 115 V 4.4 ADegree of protectionIP 32Packaging dimensions670 x 470 x 565 mmMedical device classClass I in accordance with Regulation (EU) 2017/745Scope of delivery1x Bandelin SONOREX SUPER RK 1028 C ultrasonic bathPermanently attached mains cable (2 m)Instructions for useThe insert basket (K 28 C or K 28 CS) and lid (D 1028 C or D 1028 CS) are not included in the scope of delivery and are available separately as accessories.Individual requirements and procurement serviceOur procurement service can assist you in finding a suitable insert basket, lid or cleaning concentrates for the SONOREX SUPER RK 1028 C.

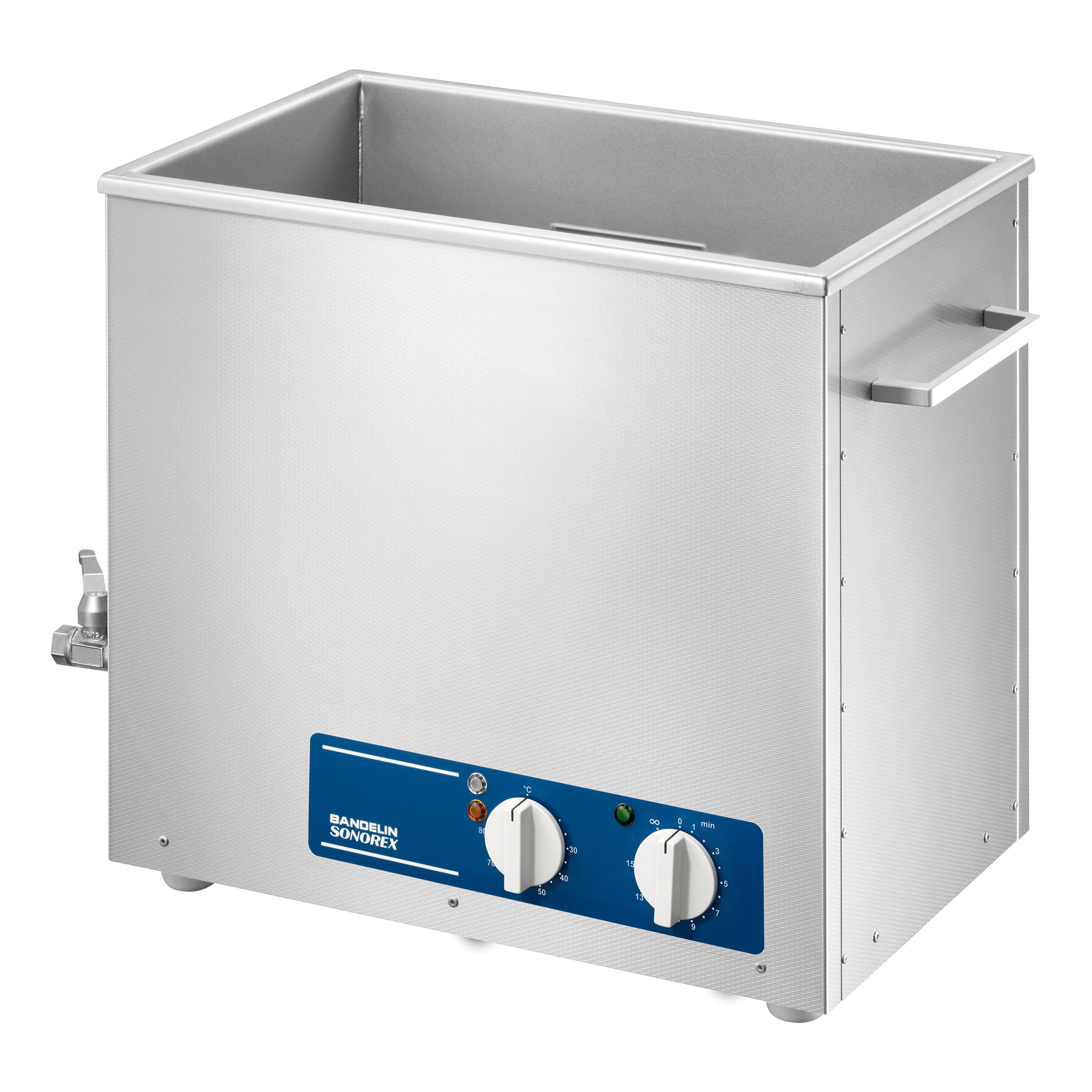

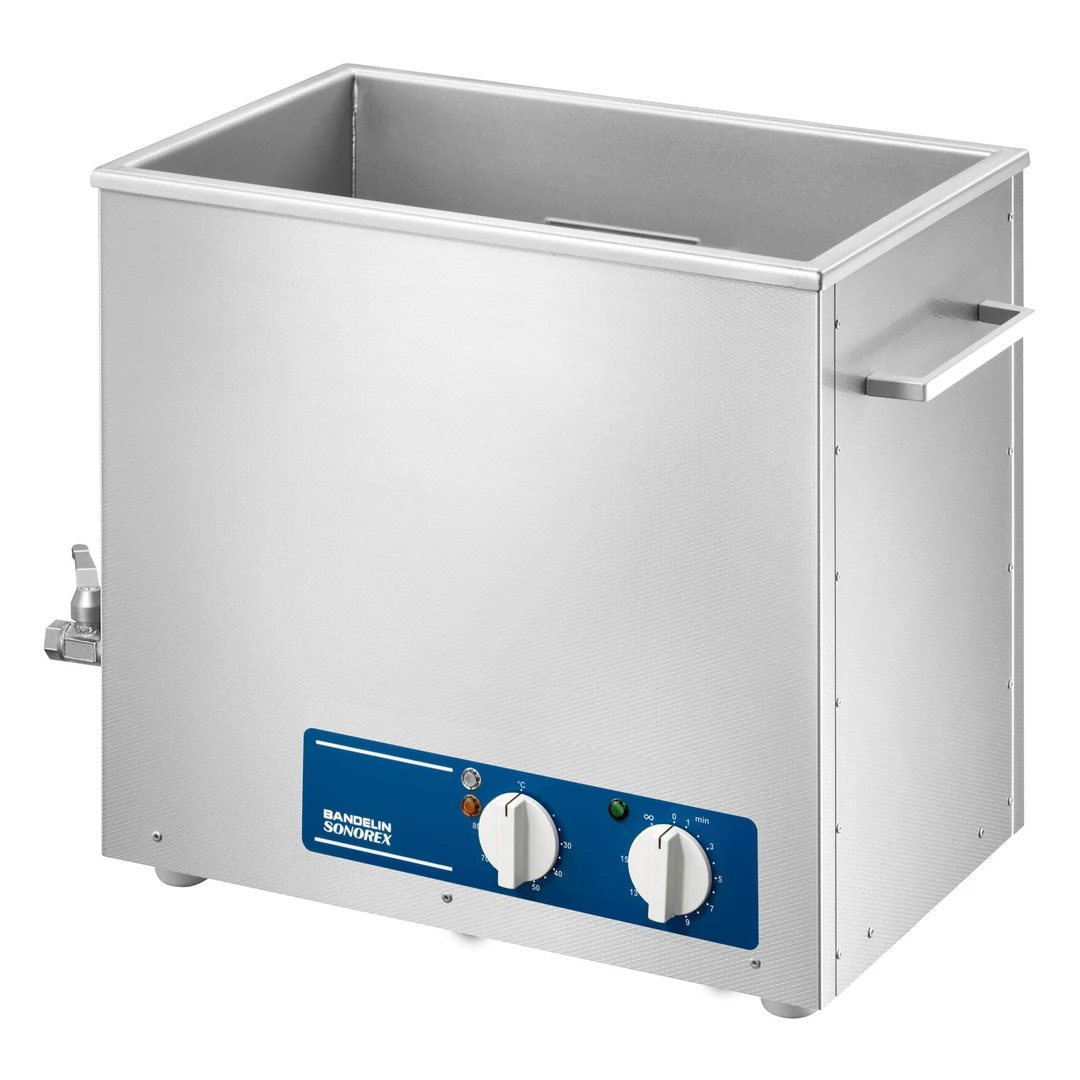

Bandelin SONOREX SUPER RK 1028 CH ultrasonic bath with heating, 1.4404 tank, 45 litres, 35 kHz, 143
Larger batches and a cleaning medium that places greater demands on the standard tank: Bandelin offers the SONOREX SUPER RK 1028 CH for this combination. It combines a welded tank made of 1.4404 stainless steel (AISI 316L) with a heating element that heats the bath to up to 80 °C, with a total capacity of 45 litres and a working capacity of 30 litres. Like the other models in the SUPER-RK series, it is classified as a Class I medical device in accordance with Regulation (EU) 2017/745 and is designed for use in laboratories, medical practices and workshops.Heater and durable bath in a single unitThe heating power is 1,450 watts when operating at 230 volts or 1,400 watts at 115 volts, and the bath temperature can be continuously adjusted between 30 and 80 °C; a dry-run protection feature switches off the heater if the water level is too low. As with the RK 1028 C, the tank is made of welded 1.4404 steel with a thickness of 2.0 mm; compared to the standard tank made of 1.4301, it is generally more resistant to chlorides and more aggressive cleaning agents. At 35 kHz, the unit delivers a peak power of 1,200 watts at a rated power of 300 watts via eight transducer systems, distributed by the automatic SweepTec function to prevent standing waves in the ultrasonic field.Selection guide: with or without heating, which tankAnyone who regularly works with heat and simultaneously requires a more robust tank, for example, for frequent changes of concentrate, will be well served by the RK 1028 CH. If the standard 1.4301 tank is sufficient but a heating element is still required, the RK 1028 H, with a total capacity of 28 litres, is the suitable choice. If heating is not required but a more robust bath is, the RK 1028 C remains the option as an unheated variant with the same bath specifications. For smaller batches, Bandelin offers, amongst others, the RK 514 BH with a capacity of 18.7 litres and the RK 156 BH with a narrow, elongated basin for 9 litres within the SUPER-RK range.Use and maintenanceThe tank is filled to a working capacity of 30 litres; the total volume of 45 litres applies to the tank filled to the brim without a load. According to Bandelin, the RK 1028 CH is fitted with a 50 cm long hose connected to the G 1/2 ball valve on the left-hand side of the unit, which facilitates changing the medium via an external container. The hanging basket and lid are not included in the Scope of delivery; the RK 1028 CH is compatible with baskets K 28 C, K 28 CS, K 28 CA or K 28 CV, together with lids D 1028 C or D 1028 CS. The power cable is 2 metres long and permanently fitted; the unit can be operated at either 230 V or 115 V at 50/60 Hz.Typical applicationsHeated cleaning of large batches of laboratory glassware and instrumentsRemoval of grease and dried-on residues at elevated temperaturesUse with more aggressive cleaning concentrates thanks to the robust tankPreparation and degassing of solvents prior to analytical proceduresFrequently asked questionsHow does the RK 1028 CH differ from the RK 1028 H?Both have a heating element. The RK 1028 CH has a total capacity of 45 litres compared with 28 litres for the RK 1028 H, and additionally features a welded 1.4404 tank with a thickness of 2.0 mm instead of the standard 1.0 mm 1.4301 tank.How quickly does the unit heat up?Bandelin does not state a heating-up time; the heating power is 1,450 watts at 230 V or 1,400 watts at 115 V.Is a drain hose included?Yes, according to Bandelin the RK 1028 CH has a 50 cm long hose connected to the G 1/2 ball valve.Can I use the unit for medical instruments?Bandelin classifies the RK 1028 CH as a Class I medical device in accordance with Regulation (EU) 2017/745. The suitability of the instruments depends on the instrument manufacturer’s specifications.Technical detailsTotal capacity / Working capacity45.0 l / 30.0 lInternal dimensions of tank (L x W x D)500 x 300 x 300 mmExternal dimensions (L x W x H)540 x 340 x 500 mm, excluding handles/ball valve, with feetWeight (net)23.4 kgShipping weight (gross)26.4 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 1,200 W, rated power 300 W, 8 vibration systemsHeating power1,450 W at 230 V / 1,400 W at 115 VTemperature range30 to 80 °C, dry-run protection for the heaterTimer1 to 15 minutes (±5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4404 (AISI 316L), welded, thickness 2.0 mmHousing materialStainless steel 1.4301DrainG 1/2 ball valve with 50 cm hose, left-hand sideMains connection230 V~ (±10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 7.7 A / 115 V 15.0 ADegree of protectionIP 32Packaging dimensions670 x 470 x 565 mmMedical device classClass I in accordance with Regulation (EU) 2017/745Scope of delivery1x Bandelin SONOREX SUPER RK 1028 CH ultrasonic bath with heatingPermanently attached mains cable (2 m)Instructions for useHanging basket (K 28 C, K 28 CS, K 28 CA or K 28 CV) and lid (D 1028 C or D 1028 CS) are not included in the Scope of delivery and are available separately as accessories.Individual requirements and procurement serviceOur procurement service can assist you in finding the right hanging basket, lid or cleaning concentrates for the SONOREX SUPER RK 1028 CH.

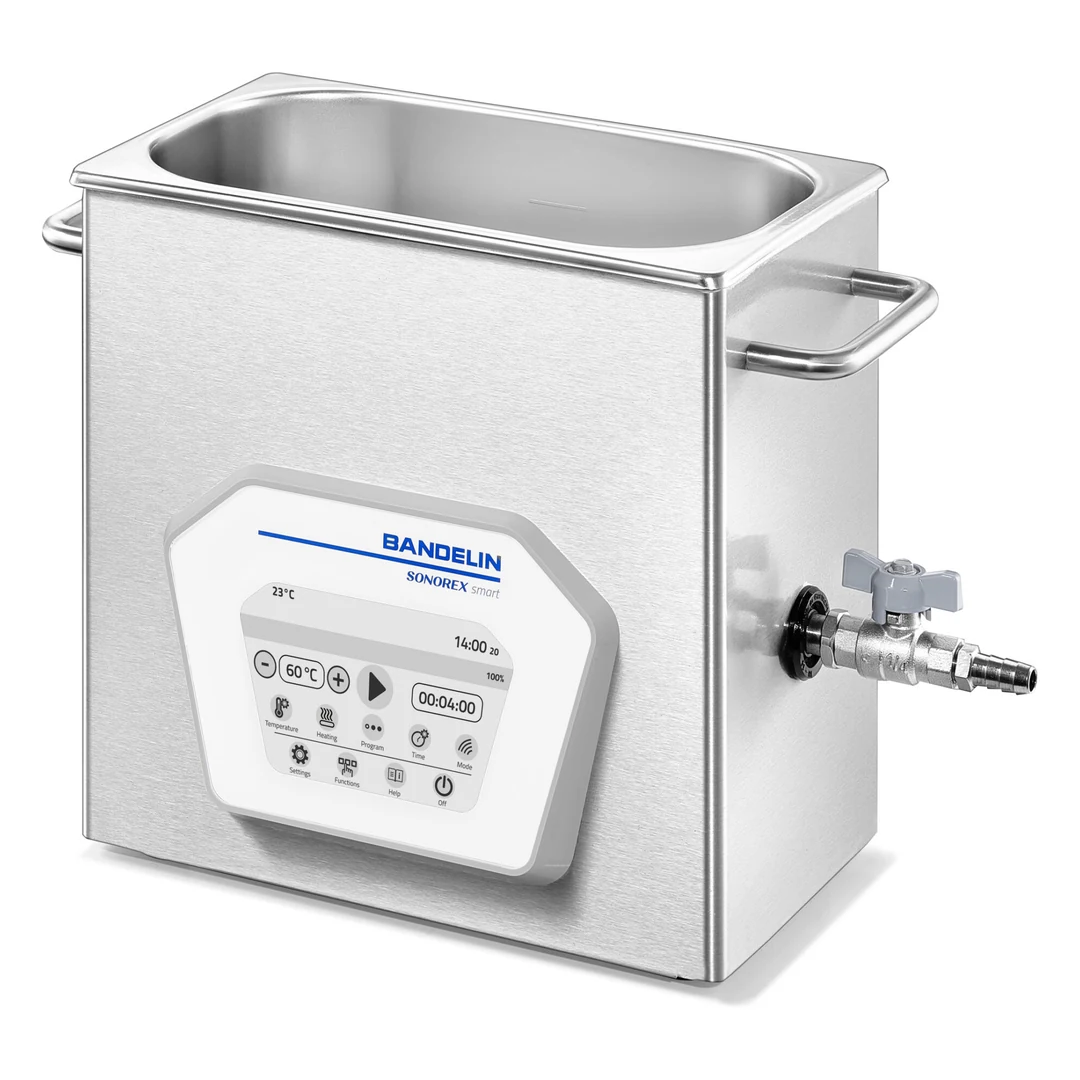

Bandelin SONOREX smart ST 102 H ultrasonic bath with heating, 3 litres, 40 kHz, 7100
Same tank size as the SUPER RK 100 H, but with a completely different operating system: With a total capacity of 3.0 litres and touchscreen controls, the Bandelin SONOREX smart ST 102 H is the digital alternative for users who wish to fine-tune cleaning cycles and repeat them consistently.Touchscreen instead of a rotary knobA touchscreen takes over the operation instead of a mechanical rotary knob. The ultrasonic power can be adjusted from 10 to 100 % in 1 % increments, whilst the timer accepts any value from 1 second to 8 hours in 1-second increments. Twelve programme memories, including an ECO programme, allow cleaning cycles to be saved once they have been set and recalled later with a single tap, rather than having to reset the time, power and temperature each time.40 kHz instead of 35 kHz, plus DEGAS degassingUnlike the SUPER RK series, the smart ST 102 H operates at an ultrasonic frequency of 40 kHz, with a peak power of 480 watts and a nominal power of 120 watts. In addition to the SweepTec function, there is an automatic DEGAS rapid degassing feature, which removes dissolved air from freshly prepared cleaning fluid before the actual cleaning process begins, supplemented by a pulse mode and an interval operation ranging from 1 to 60 seconds.Heating up to 80 °C, in 1-degree incrementsThe 140-watt heater covers a range from 20 to 80 °C, adjustable in 1-degree increments rather than over a continuous range as with the SUPER RK models, and also features boiling delay protection and dry-run protection. Drainage is via a G 1/4 ball valve with a 25 cm hose on the right-hand side.Hard-chromed tank and system bus interfaceAs with the SUPER RK series, the tank and housing are made of 1.4301 stainless steel with a thickness of 1.0 mm; the tank is also hard-chromed. The unit can be connected to a docking station via a system bus interface with a 4-pin M12 socket. A lithium backup battery (CR 2032, 3 V) safeguards the stored programmes even in the event of a power cut.SUPER RK, DIGITEC DT or smart ST: choose the suitable control optionBandelin offers this same compact 3.0-litre tank size in three control concepts: with a rotary knob in the SUPER RK series (such as the RK 100 H), with push-button controls and an LED display in the DIGITEC DT series, or with a touchscreen and programme memory in the smart ST 102 H. Those wishing to store cleaning parameters for different items in a reproducible manner will benefit from the smart ST series, whilst those who prefer simple, robust operation without electronics should opt for the RK 100 H. We also offer Elma Elmasonic ultrasonic baths as a further brand.Use and maintenanceThe working capacity of 2.0 litres is less than the total capacity of 3.0 litres, ensuring that no water spills over the rim when the items to be cleaned are placed inside. A concentrate from Bandelin’s TICKOPUR range is suitable for the cleaning fluid. Unlike the SUPER RK models, the DEGAS function of the smart ST 102 H automatically degasses freshly prepared cleaning fluid; a manual pre-run is not necessary. The hard-chromed tank is compatible with standard aqueous cleaning agents, but should be emptied and wiped dry after the last cycle of the day to prevent residues from settling.Typical applicationsReproducible cleaning programmes for recurring test seriesPrecision cleaning of small instruments and sensor tips using stored parametersProcess validation in laboratories and practices with documented settingsConnection to a docking station for networked cleaning processesFrequently asked questionsWhat is the difference between the smart ST 102 H and the SUPER RK 100 H?Both have a tank capacity of 3.0 litres; the smart ST 102 H features a touchscreen, programme memory, DEGAS degassing and operates at 40 kHz instead of 35 kHz.How many programmes can be stored?Twelve, including an ECO programme.Is there a drain?Yes, a G 1/4 ball valve with a 25 cm hose on the right-hand side.Is the appliance also available with a 115 V connection?Yes, according to Bandelin, a 115 V version is available on request, as well as versions with Swiss or British plugs; the model listed here is the standard EU version with 230 V.Technical detailsTotal capacity / Working capacity3.0 l / 2.0 lInternal dimensions of the tank (L x W x D)240 x 140 x 100 mmExternal dimensions (L x W x H)260 x 160 x 250 mmWeight (net)4.4 kgUltrasonic frequency40 kHzUltrasonic powerPeak power 480 W, nominal power 120 W, power adjustment 10 to 100 % in 1 % incrementsHeating power140 W, temperature range 20 to 80 °C in 1 °C increments, boiling delay protection, dry-run protectionTimer1 second to 8 hours in 1-second increments, automatic safety shut-off after 8 hoursOperationTouchscreenFunctionsSweepTec, DEGAS rapid degassing, Pulse mode, interval 1 to 60 s, 12 programme memories including ECO programme, M12 system bus interface (4-pin)Tank materialStainless steel 1.4301, thickness 1.0 mm, hard chrome-platedHousing materialStainless steel 1.4301DrainG 1/4 ball valve with 25 cm hose, right-hand sideMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 1.2 A / 115 V 2.4 ABack-up batteryLithium button cell CR 2032, 3 VDegree of protectionIP 32Medical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions365 x 265 x 315 mmScope of delivery1x Bandelin SONOREX smart ST 102 H ultrasonic bath with heatingFixed mains lead (2 m)Operating instructionsThe insert basket and lid are not included in the scope of delivery and are available separately.Regulatory informationThe appliance contains a lithium backup battery (CR 2032 button cell, 3 V) for the programme memory. In accordance with the Batteries Act, batteries must not be disposed of with household waste; used batteries can be returned free of charge at local authority collection points and at any shop selling batteries of the relevant type.Individual requirements and procurement serviceThere is a need for individual procurement of the K 3 C insert basket, the PK 2 C plastic basket, the D 100 lid or the docking station. Through our procurement service, you can request a quote for suitable accessories, a replacement basket or another model from the SONOREX range.

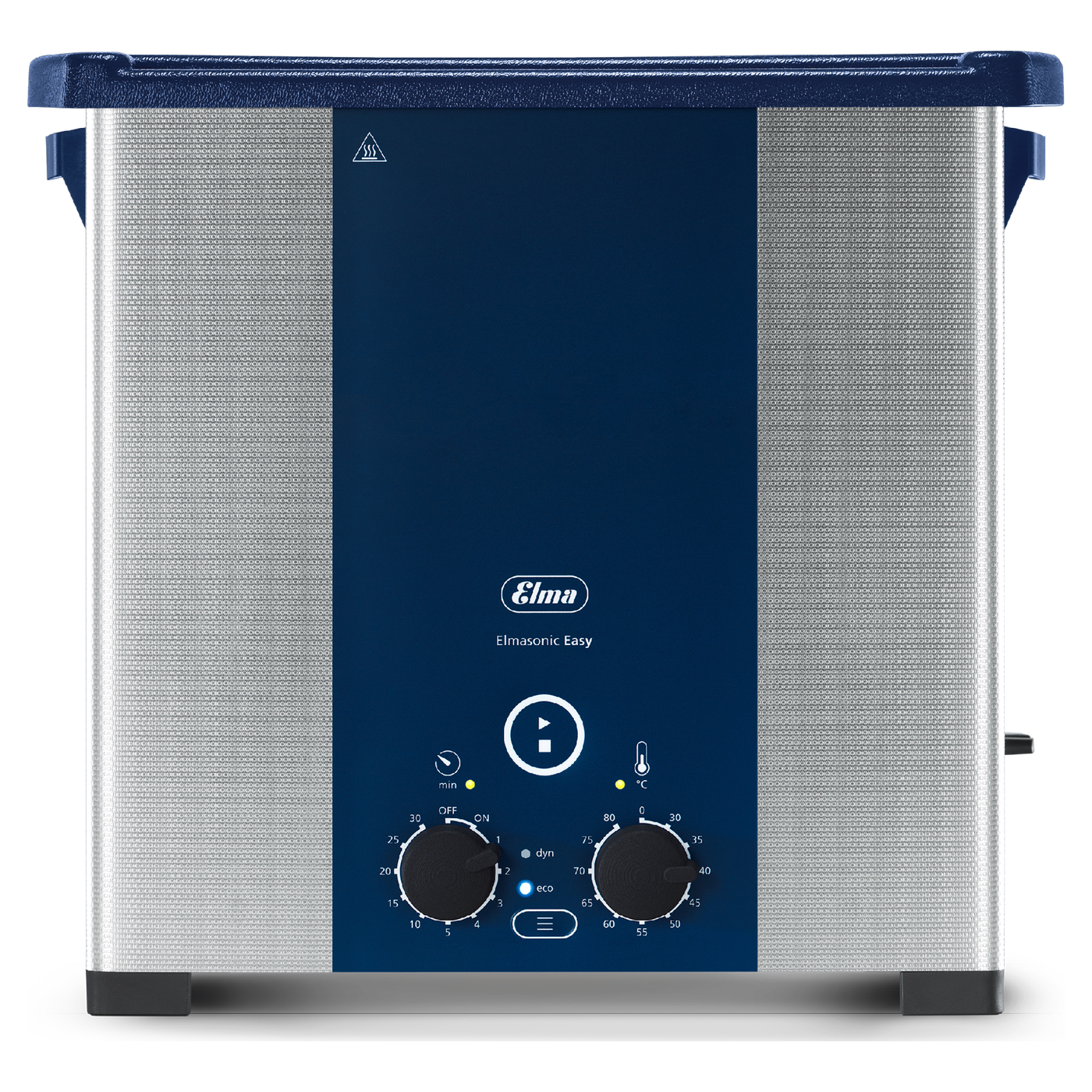

Elma Elmasonic Easy 120H Ultrasonic Bath with Heating, 12.9 Litre, 37 kHz, 1118898
The Elma Elmasonic Easy 120H has a tank that is 195 mm deep. With 12.9 litres total volume and internal dimensions of 275 x 215 x 195 mm, it is the first Easy model with a fan and 200 W ultrasonic power. Resinification, adhesive residues, oils and greases are the contamination that Elma names for the series, and laboratory instruments, glass pipettes, and beakers and test tubes are among the items cleaned.Deep tank, high fill levelThe fill level is 165 mm, and 10.0 litres of working volume are recommended. The modular cleaning basket 120 (item no. 1113390) has internal dimensions of 250 x 195 x 135 mm and can be loaded up to 7.0 kg. From the basket floor to the liquid level it is 135 mm. Compared with the Easy 100H, the footprint at 275 x 215 mm has stayed almost the same (100H: 280 x 220 mm), but the tank is 50 mm deeper, and the basket is 135 instead of 90 mm high.200 W ultrasound, 800 W heatingThe ultrasound has 200 W effective power and 800 W peak at 37 kHz, and the heater likewise 800 W. Together the unit draws 1,000 W. The series has a fan from the 120H upwards. Temperature: 25 to 80 °C, and at a bath temperature of 90 °C the safety shutdown is triggered. With lid at a distance of 1 m, the sound pressure level is below 80 dB(A).Drain with rotary knobFor emptying, the tank has a G 3/8 inch drain connection that is opened and closed with a rotary knob. The hose is connected with an internal diameter of 12 mm, and the hose nozzle is included with the unit. Available as accessories are a stainless steel drain strainer (item no. 1045648), the stainless steel lid 100/120 (item no. 1111932), plastic lid 100/120 (item no. 1003285, 1101133, 1071697), the insert lid 1 for four cleaning glasses or beakers (item no. 1111909) and a cooling coil (item no. 1037515).Setting and modesCleaning duration and temperature are selected with two rotary knobs. The time knob goes from 1 to 30 minutes in ten steps and has the ON position for continuous operation with a stop after 6 hours at most. In addition there are the mode button for Eco and Dynamic and the start/stop button, with which ultrasonic cleaning is started and ended. The unit switches off after 8 hours without operation. There is no screen or program memory.When the next size up makes senseFor parts with a larger footprint, the Easy 180H with internal tank dimensions of 300 x 270 x 195 mm and 17.8 litres is the next size. Ultrasound (200 W), heating (800 W) and tank height (195 mm) are the same as on the 120H, while tank area, volume and housing get larger. Where 145 mm depth is sufficient, the 100H with 9.5 litres is the smaller choice.Typical applicationsCleaning of laboratory instruments, glass pipettes, and beakers and test tubesRemoval of resinification, adhesive residues, oils and greasesCleaning of industrial components, parts, as well as carburettors and filtersCleaning of parts in workshops and repair shopsTechnical detailsTotal volume12.9 litres (recommended working volume 10.0 litres)Internal dimensions of tank (W x D x H)275 x 215 x 195 mmFill level165 mmDistance from basket floor to liquid level135 mmBasket 120 (accessory), internal dimensions250 x 195 x 135 mm, load max. 7.0 kgExternal dimensions with lid (W x D x H)380 x 315 x 330 mmWeight with lid7.5 kgUltrasonic frequency37 kHzUltrasonic power200 W effective, 800 W peakHeating power800 WTemperature range25 to 80 °CTotal power consumption1,000 WUltrasonic modesEco, DynamicTime steps1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes, ON up to max. 6 hoursFanyesSound pressure level< 80 dB(A) with lid at 1 mTank and housing materialStainless steelDrainG 3/8 inch with rotary knob open/closed, hose connection internal Ø 12 mmPower connectionIEC power connector 220 to 240 V~, 50/60 HzProtection ratingIP20, protection class IScope of delivery1x Elma Elmasonic Easy 120H Ultrasonic BathPlastic lid, can be turned upside down and used as a drip tray for a basketPower cableHose nozzle for the drainOperating instructionsBasket, stainless steel lid, insert lid, drain strainer and cooling coil are not included in the scope of delivery and are available separately.Regulatory informationThe Easy 120H is an electrical device. The manufacturer is ELMA Schmidbauer GmbH in Singen, and the WEEE registration number is DE 45649814. Notes on take-back and disposal can be found on the page Environment and disposal. It bears the CE marking, and the EU declaration of conformity is available from the manufacturer.Individual requirements and procurement serviceFor the cleaning basket 120, the insert lid, the stainless steel lid, the drain strainer or the cooling coil, our procurement service takes your enquiry.

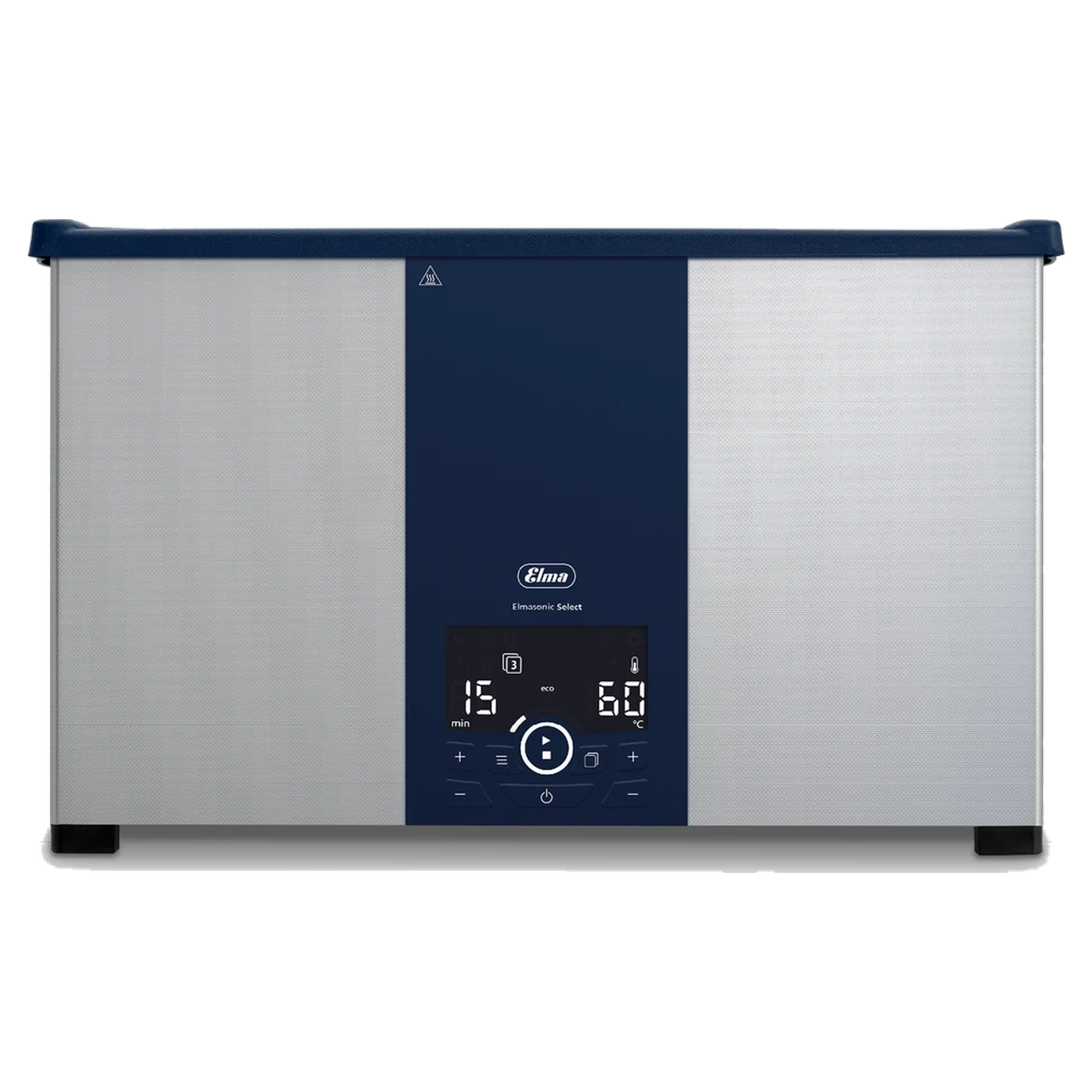

Elma Elmasonic Select 300 Ultrasonic Bath with Heating, 27.5 Litre, 37 kHz, 1106995
Anyone who cleans large quantities of laboratory glassware, pipettes or small parts in the laboratory needs an ultrasonic bath that can be set up once and then reliably processes one batch after another. The Elma Elmasonic Select 300 meets this need with a tank volume of 27.5 litres and four programs that can be saved. Five ultrasonic modes, ranging from Eco to Degas, adapt the cleaning process to different levels of soiling and materials, without the need for a new unit for every application. The Select series is designed for research and development laboratories, pharmaceutical and industrial analytical laboratories, as well as for workshops, metalworking, watchmakers and jewellers.Five modes for everyday laboratory useThe Select series offers five different operating modes: Eco, Sweep, Pulse, Dynamic and Degas. Eco stands for gentler cleaning of light soiling; Sweep distributes the acoustic field evenly across the entire tank and prevents standing waves; Pulse briefly increases peak power for stubborn residues. Degas degasses freshly prepared cleaning baths before the actual cleaning begins, as dissolved air in the medium weakens cavitation. The four programs that can be saved store pre-defined combinations of mode, temperature and time, so that recurring cleaning steps do not need to be reset each time.Tank size for batch cleaningWith a total volume of 27.5 litres and a recommended working volume of 22 litres, the tank, with internal dimensions of 475 x 270 x 195 mm, can accommodate several beakers or an entire batch of laboratory glassware at once. The matching modular cleaning basket 300 (item no. 1113072) holds the items to be cleaned above the tank floor, whilst a stainless steel lid 150/300 (item no. 1111933) is also available as an accessory. For temperature-sensitive cleaning media, a cooling coil (item no. 1037515) is also available for tank sizes 60 to 300. The G 3/8-inch drain connection makes it easier to change the cleaning medium between two batches without having to empty the tank by hand.Operation and safetyThe large illuminated display with membrane keys shows the current settings and confirms each input with an audible signal. For the Select series, Elma specifies a patented dry-run protection feature and a safety shut-off after 8 hours of continuous operation. The heating range is from 25 to 80 °C with a heating power of 1,200 W; the timer can be set digitally from 1 minute to 6 hours. The bath is made of stainless steel. The IP20 rating requires that the housing itself does not come into contact with splashing water.Selection within the Elma product rangesElma divides its ultrasonic range into three series offering varying levels of ease of use. The Easy series operates with an analogue rotary knob and fixed time settings, without programs and without a Sweep or Degas function; this is sufficient for simple cleaning tasks on smaller benchtop units. The P-series additionally switches between 37 and 80 kHz and is designed for analytical and medical applications with higher demands for precision cleaning. The Select 300 falls between the two series in terms of operation, featuring a digital display and program memory, but with a fixed frequency of 37 kHz. We also offer Bandelin SONOREX ultrasonic baths; for laboratories already equipped with this range of units, this remains an option.Cleaning cycle procedureIn practice, the cleaning medium is prepared and then degassed for a few minutes in degassing mode to ensure that subsequent cavitation is not inhibited by dissolved air. For the actual cleaning, depending on the degree of soiling, either ‘Sweep’ is used for an even effect throughout the entire tank, or ‘Pulse’ for more stubborn residues. Once the combination of mode, temperature and time has been set appropriately, it can be saved as one of the four programs and called up directly for the next similar batch. At the end of the working day, the medium is drained via the G 3/8-inch drain connection without having to empty the tank by hand. This allows a cleaning cycle to be repeated consistently, even if there are several days between two batches.Typical applicationsCleaning large batches of laboratory glassware in research and quality assuranceDegassing of freshly prepared cleaning or rinsing baths prior to sensitive applicationsComponent cleaning in workshops and metalworkingCleaning of watch and jewellery components in larger quantitiesTechnical detailsTotal volume27.5 litres (recommended working volume 22 litres)Internal dimensions of tank (W x D x H)475 x 270 x 195 mmExternal dimensions (W x D x H)575 x 360 x 330 mmWeight12.2 kg (empty)Ultrasonic frequency37 kHz (tolerance -2.5/+5.5 kHz)Ultrasonic power300 W effective (±10 %), 1,200 W peakHeating power1,200 WTemperature range25 to 80 °COperating modesEco, Sweep, Pulse, Dynamic, Degas, 4 programs that can be savedTimer1 minute to 6 hours, set digitally using the plus/minus buttonsTank materialStainless steelDrainDrain connection G 3/8 inchMains connectionIEC power connector 220 to 240 V~, 50/60 Hz, 2 m mains cableDegree of protectionIP20, protection class IScope of delivery1x Elma Elmasonic Select 300 ultrasonic bathPlastic lidMains cable (2 m)Hose nozzle for the drainOperating instructionsThe cleaning basket, stainless steel lid and cooling coil are not included in the scope of delivery and are available separately.Regulatory informationThe ultrasonic bath is an electrical and electronic device under the ElektroG. The manufacturer Elma Schmidbauer GmbH is registered with the WEEE number DE 45649814. The return of old appliances is described at Environment and disposal.Individual requirements and procurement serviceFor the appropriate cleaning basket 300, the stainless steel lid or a cooling coil for sensitive cleaning media, please contact our procurement service.

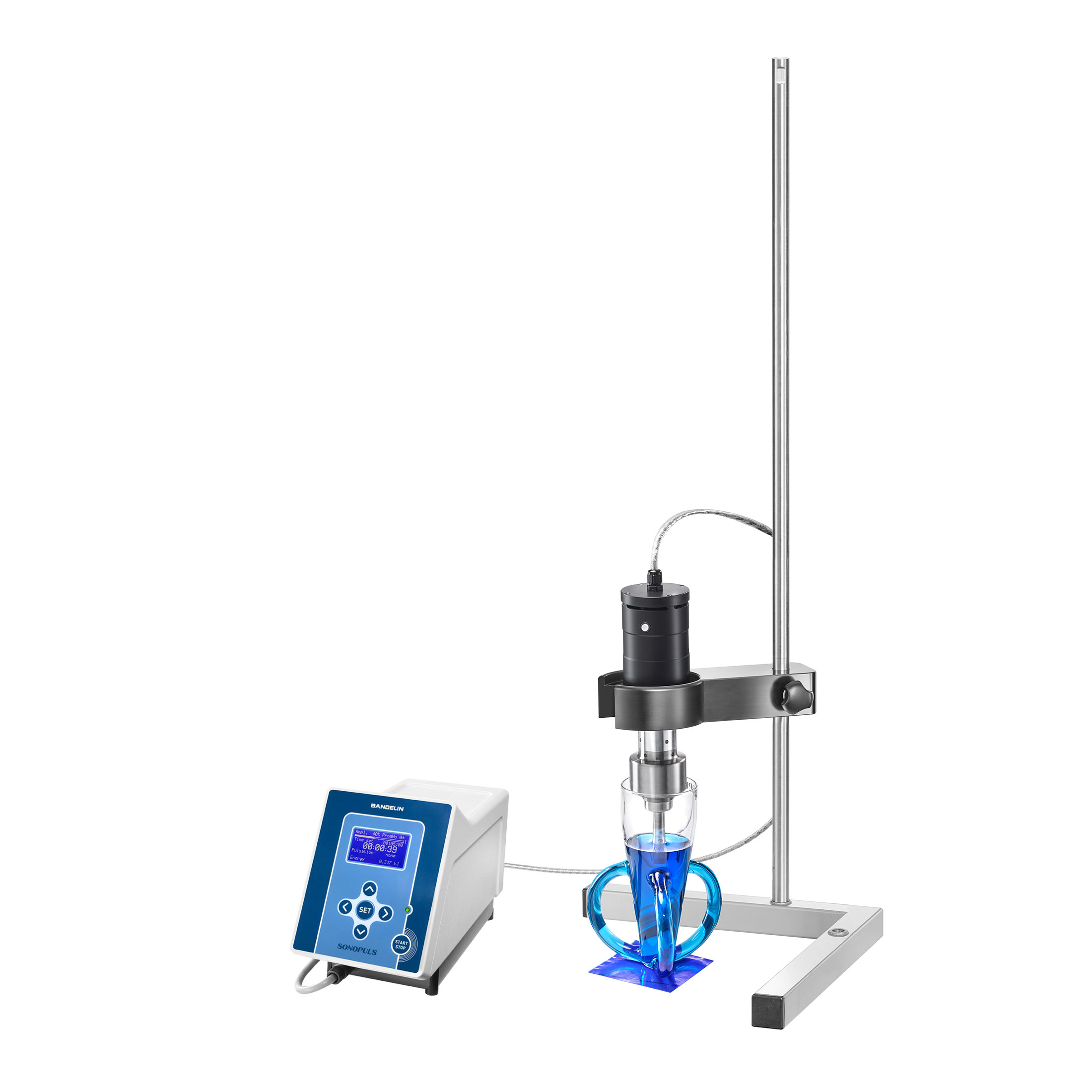

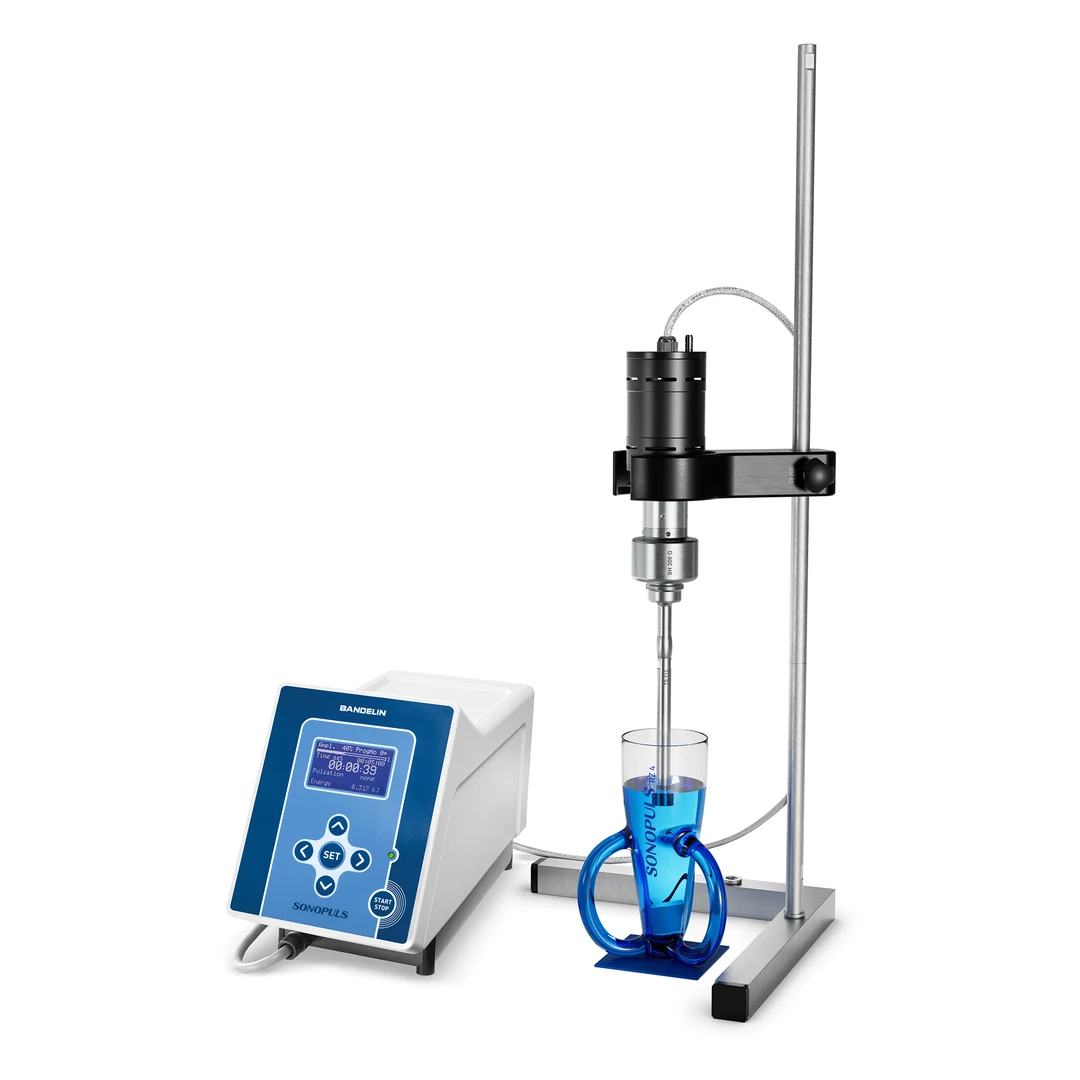

Bandelin SONOPULS HD 4200 Ultrasonic Homogeniser, 200 W, 20 kHz, 4200
Cell disruption, homogenisation or emulsification require more energy at any one point than an ultrasonic bath can provide. The Bandelin SONOPULS HD 4200 therefore uses a sonotrode that is immersed directly into the sample rather than a bath: The generator, transducer, stepped horn and the TS 113 titanium sonotrode form a ready-to-use set for sample volumes of 20 to 900 millilitres.Amplitude control with AMPLICHRON circuitryThe amplitude can be adjusted in 1 % increments from 10 to 100 %; the current value is displayed continuously during operation. The AMPLICHRON circuit maintains a constant amplitude even when the load on the sample varies, which promotes reproducible results across multiple runs. With a nominal ultrasonic power output of 200 watts and a frequency of 20 kilohertz, the GM 4200 generator delivers sufficient energy to reliably process even more viscous samples.TS 113 sonotrode for volumes up to 900 millilitresThe scope of delivery includes the TS 113 titanium sonotrode, 130 millimetres in length and featuring an M 10 stepped horn connection, designed for sonication volumes of 20 to 900 millilitres. With the UW 200 transducer, the HD 4200 covers a total range of 5 to 1,000 millilitres, depending on which of the available sonotrodes with diameters ranging from 3 to 25 millimetres is used. Users who regularly process smaller or larger volumes can change the sonotrode whilst using the same generator.Pulse mode, timer and batch processingThe time setting ranges from 1 second to 9 hours, 59 minutes and 59 seconds, or continuous operation; an energy display in kilojoules records the energy input per run. The working interval can be set to pulse between 0.2 and 600 seconds, and the rest interval between 0.3 and 600 seconds, so the sample remains cooler between pulses. Nine programme memory slots and batch operation allow several stored sonication programmes to be run automatically one after the other, which is practical for recurring sample series.Operational safetyAccording to the operating instructions, for health reasons it is not permitted to remain in the immediate vicinity of the device for any length of time without hearing protection. The device complies with the CE marking criteria in accordance with the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU, and has been tested according to the standards EN 61010-1 (safety) and EN 61326-1 (EMC, Class B according to EN 55011). The device is intended for indoor use at temperatures between 5 and 40 °C and at altitudes of up to 2,000 metres; the generator has degree of protection IP 30 according to DIN EN 60529.Care and maintenance of the sonotrodeAccording to the operating instructions, SONOPULS ultrasonic homogenisers are maintenance-free, apart from process-related wear and tear on the sonotrodes. Cleaning is usually carried out using an alcohol-soaked, lint-free cloth; for sterilisation, the sonotrode can be unscrewed and sterilised separately. If the sound-emitting surface wears down due to cavitation erosion, it can be re-polished until approximately 1 millimetre of material has been removed; after that, replacement is necessary. For frequent use, it is therefore advisable to keep a stock of the sonotrodes in use.Typical applicationsCell lysis in bioanalytics and microbiologyHomogenisation of tissue and cell samplesEmulsification and dispersion of small sample volumesUltrasonic treatment of recurring sample series using stored programmesFrequently asked questionsIs the SONOPULS HD 4200 a medical device?No, it is not classified as a medical device; it bears the CE mark in accordance with the Low Voltage, EMC and RoHS Directives.What sample volumes are possible with the supplied sonotrode?20 to 900 millilitres with the TS 113 titanium sonotrode; the HD 4200 covers 5 to 1,000 millilitres, depending on the sonotrode.Is hearing protection required during operation?Yes; according to the operating instructions, prolonged exposure to the running device without hearing protection is not permitted for health reasons.Is the device maintenance-free?Apart from wear and tear on the sonotrodes due to cavitation erosion, yes; no further maintenance is provided for according to the operating instructions.Can the device process several samples automatically in succession?Yes; thanks to nine programme memory slots and batch mode, stored sonication programmes can be run automatically one after the other.Technical detailsSonication volume (with TS 113)20 to 900 ml (HD 4200 total range 5 to 1,000 ml, depending on the sonotrode)Nominal ultrasonic power200 WUltrasonic frequency20 kHz ± 500 HzSonotrode included in the setTS 113, titanium, Ø 13 mm, length 130 mm, stepped horn connection M 10Amplitude control10 to 100 % in 1 % increments, with actual value displayTime setting1 second to 9 hours 59 minutes 59 seconds or continuous operationPulsation timesOperating interval 0.2 to 600 s, rest interval 0.3 to 600 sProgramme memory9 memory slots, including batch modeGM 4200 ultrasonic generatorWeight approx. 3.2 kg, external dimensions 335 x 150 x 230 mm (L x W x H)Ultrasonic transducer UW 200Weight 1.6 kg, Ø 70 x 170 mm, protection rating IP 20Total weight of setapprox. 6.5 kgMains connection230 V~ (±10 %) 50/60 Hz or 115 V~ (±10 %) 50/60 Hz, protection class IProtection rating of generatorIP 30 according to DIN EN 60529CE conformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUStandardsSafety EN 61010-1, EMC EN 61326-1 (Class B according to EN 55011)Environmental conditionsIndoor use only, 5 to 40 °C, up to 2,000 m altitudeScope of deliveryGM 4200 ultrasonic generatorUltrasonic transducer UW 200SH 200 G stepped hornTitanium sonotrode TS 113 (Ø 13 mm, for 20 to 900 ml)Assembly toolInstructions for useIndividual requirements and procurement serviceFor additional sonotrodes of other diameters or spare parts, please contact our procurement service.

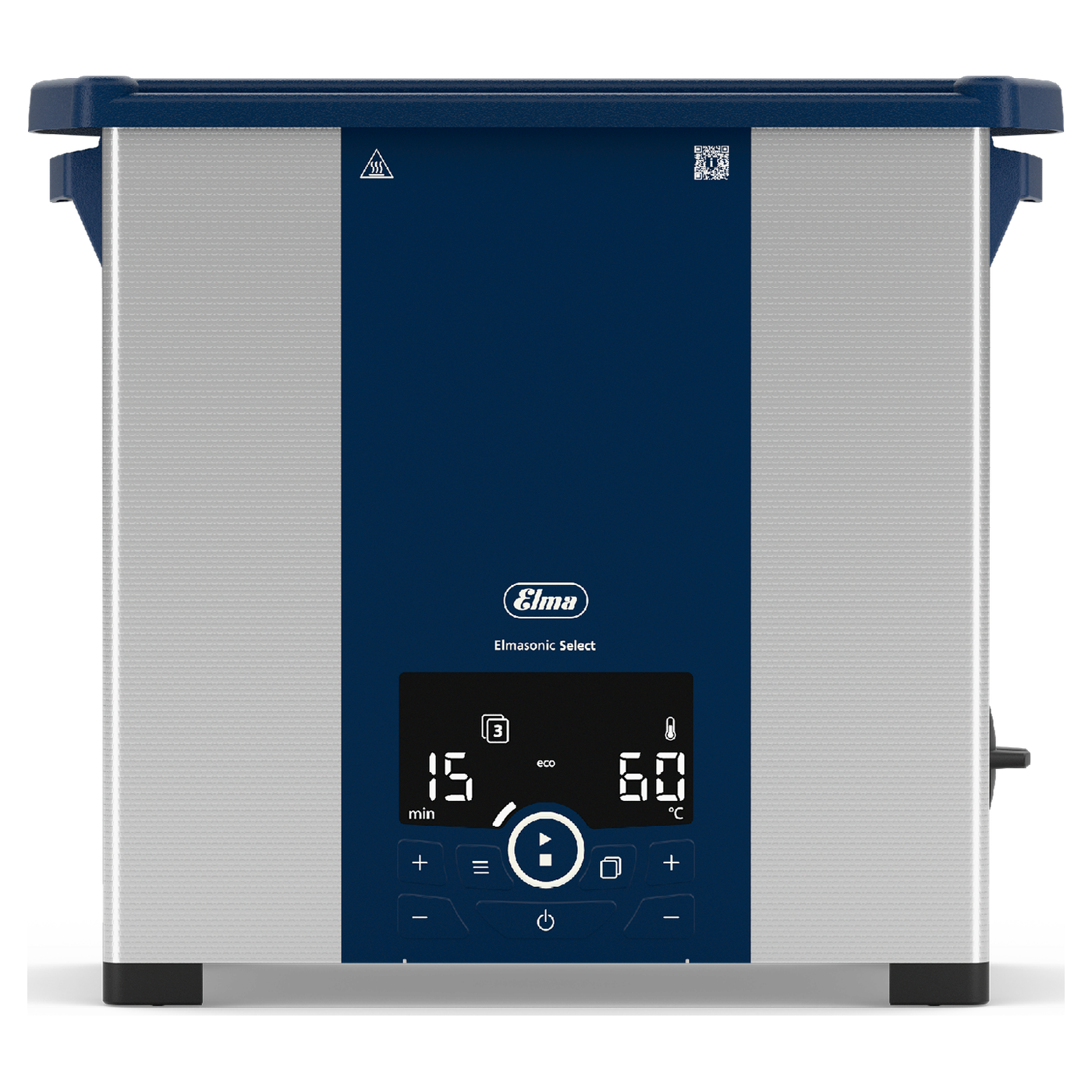

Elma Elmasonic Select 120 Ultrasonic Bath with Heating, 12.9 Litre, 37 kHz, 1106992
The tank of the Elma Elmasonic Select 120 is 195 mm high, 50 mm more than on the Select models 60, 80 and 100. This shows in the fill level, which is 165 mm here, and in the 12.9 litres total volume. The unit operates at 37 kHz, and the effective ultrasonic power is 200 W.Dimensions and basketInternally the tank measures 300 x 215 x 195 mm, with 10 litres of working volume recommended. From the basket floor to the liquid level it is 130 mm. The original accessory basket has internal dimensions of 250 x 190 x 110 mm and can be loaded with up to 7 kg. Externally the unit measures 380 x 300 x 330 mm with lid and weighs 7.7 kg. Compared with the Select 100, the external height grows from 280 to 330 mm, while width and depth stay the same at 380 x 300 mm. The plastic lid in the scope of delivery, turned upside down, serves as a drip tray for a basket.Power in detailThe ultrasonic peak power is 800 W, the heater delivers 800 W, and the total power consumption is 1,000 W. The Select 100 has 150 W effective ultrasonic power, 600 W peak and 400 W heating power, while here each value is higher. The available operating modes are Eco, Sweep, Pulse, Dynamic and Degas, and four programs store their settings. The temperature-controlled start and Auto-Degas complement the functions. In Dynamic mode, Pulse and Sweep work together.Operation, drain and protectionThe display shows the set values, the membrane keypad works with plus and minus keys, and every input is confirmed acoustically. The duration can be set from 1 minute to 6 hours, the setpoint temperature from 25 to 80 °C, and the limit temperature from 40 to 60 °C. The G 3/8 inch drain connection has a rotary switch, and the DN10 hose nozzle is included. With active heating, dry-run protection safeguards the tank, and after 8 hours the unit switches off. With lid, the sound pressure level at a distance of 1 m is below 80 dB(A).Choosing between the Select sizesSame tank height, different area: the Elmasonic Select 180 at 300 x 270 x 195 mm has the same length and height as the Select 120, but is 55 mm deeper and holds 17.8 litres. Both have 200 W effective ultrasonic power and 800 W heating power. The Elmasonic Select 100 at 280 x 220 x 145 mm is lower. Where area matters more than height, the Elmasonic Select 150 at 485 x 280 x 95 mm is the alternative.Typical applicationsCleaning of laboratory instruments, volumetric measuring equipment and test tubesCleaning of watch components, jewellery and industrial partsRemoval of resinification, adhesive and grease residues, wear soiling, and horn and skin residuesDegassing, dispersing and lysing in sample preparationTechnical detailsTotal volume12.9 litresWorking volume (recommended)10.0 litresInternal dimensions of tank (W x D x H)300 x 215 x 195 mmExternal dimensions with lid (W x D x H)380 x 300 x 330 mmWeight with lid7.7 kgFrequency37 kHz (tolerance -2.5/+5.5 kHz)Ultrasonic power200 W effective, 800 W peakHeating power800 WTotal power consumption1,000 WTemperature25 to 80 °C setpoint temperature, limit temperature 40 to 60 °COperating modesEco, Sweep, Pulse, Dynamic, Degas, 4 programsTimer1 minute to 6 hoursDrainG 3/8 inch with rotary switch, hose nozzle DN10MaterialStainless steel (tank and housing)Power connectionIEC power connector, 220 to 240 V~, 50/60 HzDegree of protectionIP20, protection class IScope of delivery1x Elma Elmasonic Select 120 Ultrasonic BathPlastic lid, can be turned upside down and used as a drip trayPower cable with IEC power connectorHose nozzle for the drain (DN10)Operating instructionsBaskets and further accessories are not included.Regulatory informationAs an electrical device, the ultrasonic bath falls under the ElektroG. The manufacturer Elma Schmidbauer GmbH is registered under the WEEE registration number DE 45649814. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceTo match the Select 120, Elma offers the modular cleaning basket 120 (item no. 1113390), the stainless steel lid 100/120 (item no. 1111932), the insert lid 1 for four cleaning glasses or beakers (item no. 1111909), a drain strainer (item no. 1045648) and a cooling coil (item no. 1037515). We procure these parts together with the unit.
Bandelin SONOREX SUPER RK 100 ultrasonic bath, 3 litres, 301
Ultrasonic bath for reliable cleaning in everyday laboratory work The Bandelin SONOREX SUPER RK 100 is a compact ultrasonic bath with a 3-litre tank capacity for the daily cleaning of laboratory equipment, instruments and small parts. The tank has a usable capacity of 2.0 litres and is made from 1.4301 stainless steel with a wall thickness of 1.0 mm, ensuring a robust and durable construction for regular laboratory use. The housing is also made from 1.4301 stainless steel and meets degree of protection IP 32. SweepTec technology and ease of use The unit operates at a frequency of 35 kHz and generates a peak ultrasonic power of 320 W at a rated power (effective ultrasonic power) of 80 W. The fully automatic SweepTec function prevents standing waves in the ultrasonic field, thereby ensuring a particularly uniform cleaning effect throughout the entire tank volume. Operation is via a simple rotary knob for setting the time; the timer covers a range from 1 to 15 minutes (±5 %) and includes a continuous operation mode. A fill-level mark inside the tank makes it easier to fill it correctly with cleaning fluid. The power cable is 2 m long and permanently attached to the unit; it operates at 230 V~ (±10 %), 50/60 Hz. Applications for the SONOREX SUPER RK 100 Thanks to its compact dimensions, the ultrasonic bath is particularly suitable for laboratories with limited space, for example for instrument cleaning, the degassing of solvents or the gentle cleaning of laboratory glassware and small parts. For specific applications, Bandelin offers suitable inserts such as baskets and lids, as well as cleaning and disinfection concentrates, as separate accessories. Technical details ModelSONOREX SUPER RK 100 Frequency35 kHz Ultrasonic peak power320 W Rated power (effective)80 W Timer range1–15 min (±5 %), plus continuous operation Tank volume (capacity)3.0 l Useful capacity2.0 l Tank materialStainless steel 1.4301, wall thickness 1.0 mm External dimensions (L x W x H)260 x 160 x 250 mm Internal tank dimensions (L x W x D)240 x 140 x 100 mm Weight4.3 kg Degree of protectionIP 32 Operating voltage230 V~ (±10 %), 50/60 Hz ConformityCE conformity: Class I medical device (Regulation (EU) 2017/745), Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU Scope of delivery 1x Bandelin SONOREX SUPER RK 100 ultrasonic bath Operating instructions Customised Requirements & Procurement Service Do you need suitable inserts, baskets, lids or cleaning concentrates for your ultrasonic bath, or do you have specific requirements for your laboratory equipment? We support you with a personalised procurement service and will find the right solution for your needs. Find out more at our procurement service.

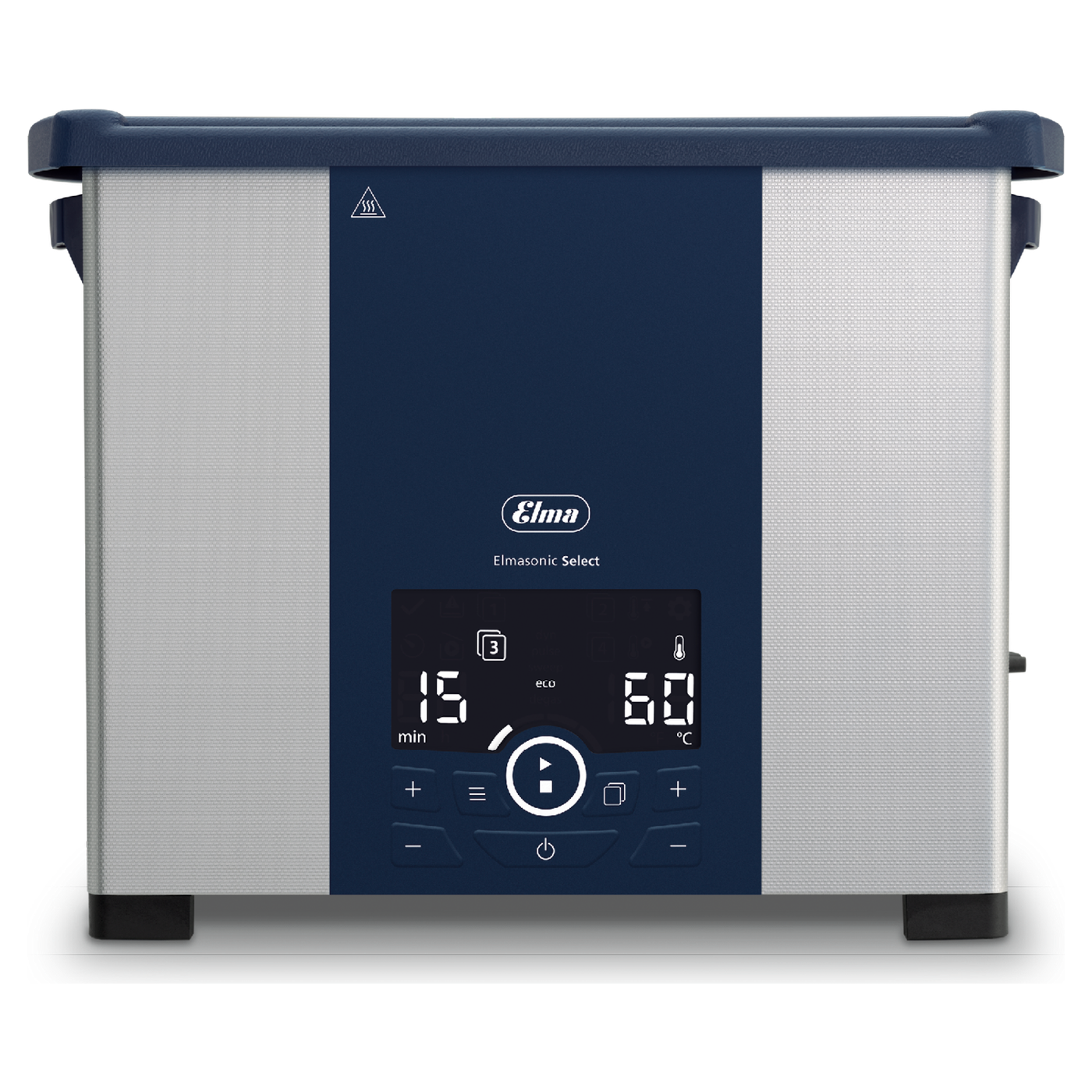

Elma Elmasonic Select 100 Ultrasonic Bath with Heating, 9.5 Litre, 37 kHz, 1106991
Carburettors, filters and industrial components are among the items cleaned in the Select series. For this, the Elma Elmasonic Select 100 has a tank of 280 x 220 x 145 mm and 9.5 litres total volume. The tank is deeper than that of the Select 80, which at a similar volume is only 110 mm deep. The ultrasonic frequency is 37 kHz, and the heater delivers 400 W.Area and fill levelThe unit is filled to 115 mm, and the distance from the basket floor to the liquid level is 80 mm. The original accessory basket has internal dimensions of 255 x 200 x 70 mm and takes up to 6 kg. Externally the unit measures 380 x 300 x 280 mm with lid and weighs 6.2 kg. The plastic lid is part of the scope of delivery and can be turned upside down and used as a drip tray for the basket. The fill level of 115 mm and the recommended working volume of 6.8 litres match the values of the Select 80, although the tank is shaped differently.Ultrasound and modesThe effective ultrasonic power is 150 W, the peak power 600 W, and the total power consumption 550 W. The unit has five modes. Eco stands for gentler cleaning, Sweep for evenly distributed action, and Pulse for increased peak power against stubborn soiling. Dynamic combines Pulse and Sweep, and Degas degasses the medium before cleaning. Auto-Degas and the temperature-controlled start are also available. Four programs store combinations of mode, duration and temperature.Drain and operationThe medium is drained via a G 3/8 inch drain connection that can be opened and closed with a rotary switch. The DN10 hose nozzle is included. On the display, the duration between 1 minute and 6 hours and the setpoint temperature between 25 and 80 °C are set with plus and minus keys, and the limit temperature can be set to 40 to 60 °C. An acoustic signal confirms inputs. Dry-run protection is active when the heating is on, and after 8 hours the unit switches off.Select 100 and the neighbouring sizesThe Elmasonic Select 80 offers 9.3 litres in a tank of 475 x 110 x 145 mm and 600 W heating power. The Elmasonic Select 120 has a similar footprint at 300 x 215 mm, but a tank height of 195 instead of 145 mm, giving 12.9 litres, plus 200 W effective ultrasonic power and 800 W heating power. Stainless steel lid and insert lid for four cleaning glasses or beakers are the same article at Elma for both sizes, 100 and 120.Typical applicationsCleaning of industrial components and parts, of carburettors and filtersRemoval of resinification, oils and greases, as well as chips and flux residuesCleaning of laboratory instruments and test tubesSample preparation: homogenising, emulsifying, lysing and deagglomeratingTechnical detailsTotal volume9.5 litres, recommended working volume 6.8 litresTank internal (W x D x H)280 x 220 x 145 mmUnit external with lid (W x D x H)380 x 300 x 280 mmWeight with lid6.2 kgUltrasonic frequency37 kHz (tolerance -2.5/+5.5 kHz)Ultrasonic power150 W effective, 600 W peakHeating power400 WTotal power consumption550 WTemperature range25 to 80 °C setpoint temperatureOperating modes5 modes, 4 programs that can be savedTimer1 minute to 6 hoursDrainG 3/8 inch, rotary switch, hose nozzle DN10MaterialStainless steel (tank and housing)Power connectionIEC power connector, 220 to 240 V~, 50/60 HzDegree of protectionIP20, protection class IScope of delivery1x Elma Elmasonic Select 100 Ultrasonic BathPlastic lidPower cable with IEC power connectorHose nozzle for the drain (DN10)Operating instructionsBaskets and further accessories are not part of the scope of delivery.Regulatory informationThe unit is an electrical device within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Elma Schmidbauer GmbH is DE 45649814. Notes on returning old appliances can be found on our page Environment and disposal.Individual requirements and procurement serviceFor the Select 100, Elma offers the modular cleaning basket 100 (item no. 1113387), a stainless steel lid 100/120 (item no. 1111932), an insert lid 1 for four cleaning glasses or beakers (item no. 1111909), a drain strainer (item no. 1045648) and a cooling coil (item no. 1037515). We order the accessories together with the unit and advise on the selection.

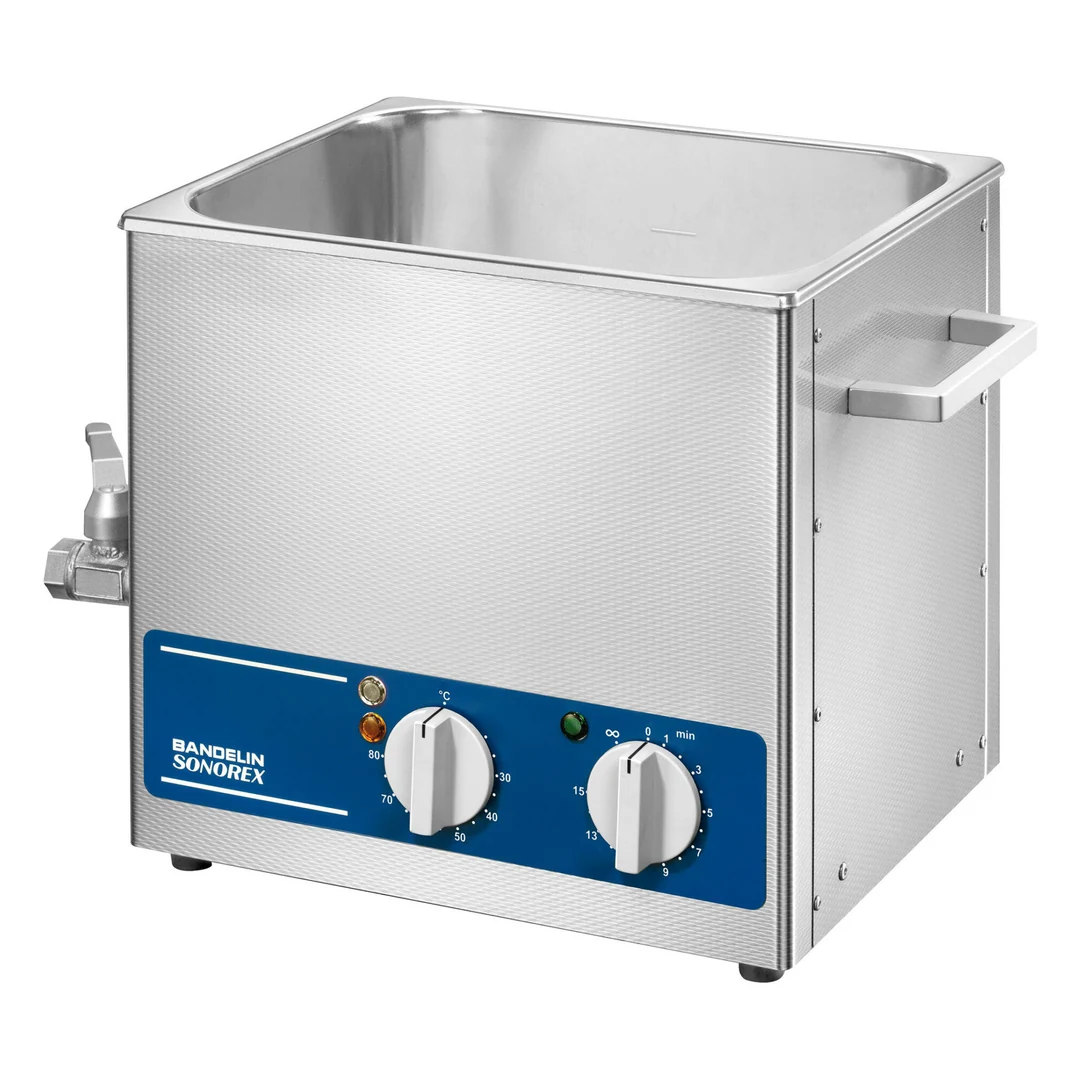

Bandelin SONOREX SUPER RK 510 H ultrasonic bath with heating, 9.7 litres, 321
The same tank as the RK 510, but with a heater: The Bandelin SONOREX SUPER RK 510 H also has a capacity of 9.7 litres (6.6 litres working volume) and adds a 400-watt heater to its unheated counterpart for cleaning processes that require a heated medium.400-watt heating element with dry-run protectionThe heating element operates between 30 and 80 °C and switches off automatically via the integrated dry-run protection as soon as there is insufficient liquid in the tank. Cleaning duration and temperature are set using two separate rotary knobs; the timer ranges from 1 to 15 minutes (± 5 %) or continuous operation.Same ultrasonic power as the unheated RK 510At an operating frequency of 35 kHz, the RK 510 H, like the RK 510, delivers 640 watts of peak power and 160 watts of rated power via four transducer systems, distributed evenly throughout the tank by the SweepTec function. The tank and housing are made of 1.4301 stainless steel; the tank is 1.0 mm thick with internal dimensions of 300 x 240 x 150 mm.Slightly heavier due to the heating technologyWith a net weight of 7.5 kg, the RK 510 H is only slightly heavier than the unheated RK 510 (7.2 kg); the external dimensions of 325 x 265 x 300 mm are identical. A G 1/2 ball valve on the left-hand side allows the tank to be emptied without lifting it. Both variants share the same IP 32 protection rating and are classified as a Class I medical device in accordance with Regulation (EU) 2017/745.When the heating system is worth itGrease, oil or wax residues dissolve much more quickly in heated cleaning fluid than at room temperature; likewise, many cleaning concentrates only become fully effective above a certain temperature. Anyone who regularly deals with such contaminants will benefit from the RK 510 H. If, on the other hand, you work exclusively with pre-heated or cold cleaning media, the RK 510, which has the same design, saves on the additional heating technology.Product range: SUPER RK, DIGITEC DT and smart STWithin the SUPER RK series, the range of tank capacities extends from 0.9 litres (RK 31) to 58 litres (RK 1050), all featuring rotary knob controls. The DIGITEC DT series is available for digital button operation with an LED display and automatic degassing, whilst the smart ST series offers touchscreen operation with programme memory. We also offer Elma Elmasonic ultrasonic baths as a second brand in our range.Use and maintenanceThe working capacity of 6.6 litres is less than the total capacity of 9.7 litres, ensuring that heated water does not spill over the rim when beakers or instruments are placed inside. A concentrate from Bandelin’s TICKOPUR range is suitable for the cleaning solution; it usually dissolves even more effectively at higher temperatures. Before the first cycle with a freshly prepared solution, a short initial run in continuous operation helps to expel dissolved air. After the last cleaning cycle of the day, the tank, whilst still warm, should be drained via the ball valve and wiped dry.Typical applicationsRemoval of grease and oil residues at elevated bath temperaturesHeat-assisted cleaning of instruments and laboratory glasswareCleaning processes using temperature-activated concentratesCleaning of multiple beakers or small parts in a single batchFrequently asked questionsWhat is the difference between the RK 510 H and the RK 510?Both share the same tank; the RK 510 H also has a 400-watt heater with a temperature range of 30 to 80 °C.What is the usable working capacity?6.6 litres out of a total capacity of 9.7 litres.Where is the drain?On the left, as a ball valve with a G 1/2 connection.Is a basket included in the scope of delivery?No, the K 10 insert basket and the D 510 lid are available separately.Technical detailsTotal capacity / Working capacity9.7 l / 6.6 lInternal dimensions of the tank (L x W x D)300 x 240 x 150 mmExternal dimensions (L x W x H)325 x 265 x 300 mmWeight (net)7.5 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 640 W, rated power 160 W, 4 vibration systemsHeating power400 W, temperature range 30 to 80 °C, dry-run protectionTimer1 to 15 minutes (± 5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 1.0 mmHousing materialStainless steel 1.4301DrainBall valve G 1/2, left-hand sideMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 2.5 A / 115 V 4.9 AProtection ratingIP 32Medical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions450 x 390 x 375 mmScope of delivery1x Bandelin SONOREX SUPER RK 510 H ultrasonic bath with heaterFixed mains lead (2 m)Instructions for useThe insert basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceThe K 10 insert basket, the D 510 lid or the unheated RK 510 version are available on request. You can use our procurement service to request a quote for suitable accessories, a replacement basket or another model from the SONOREX range.

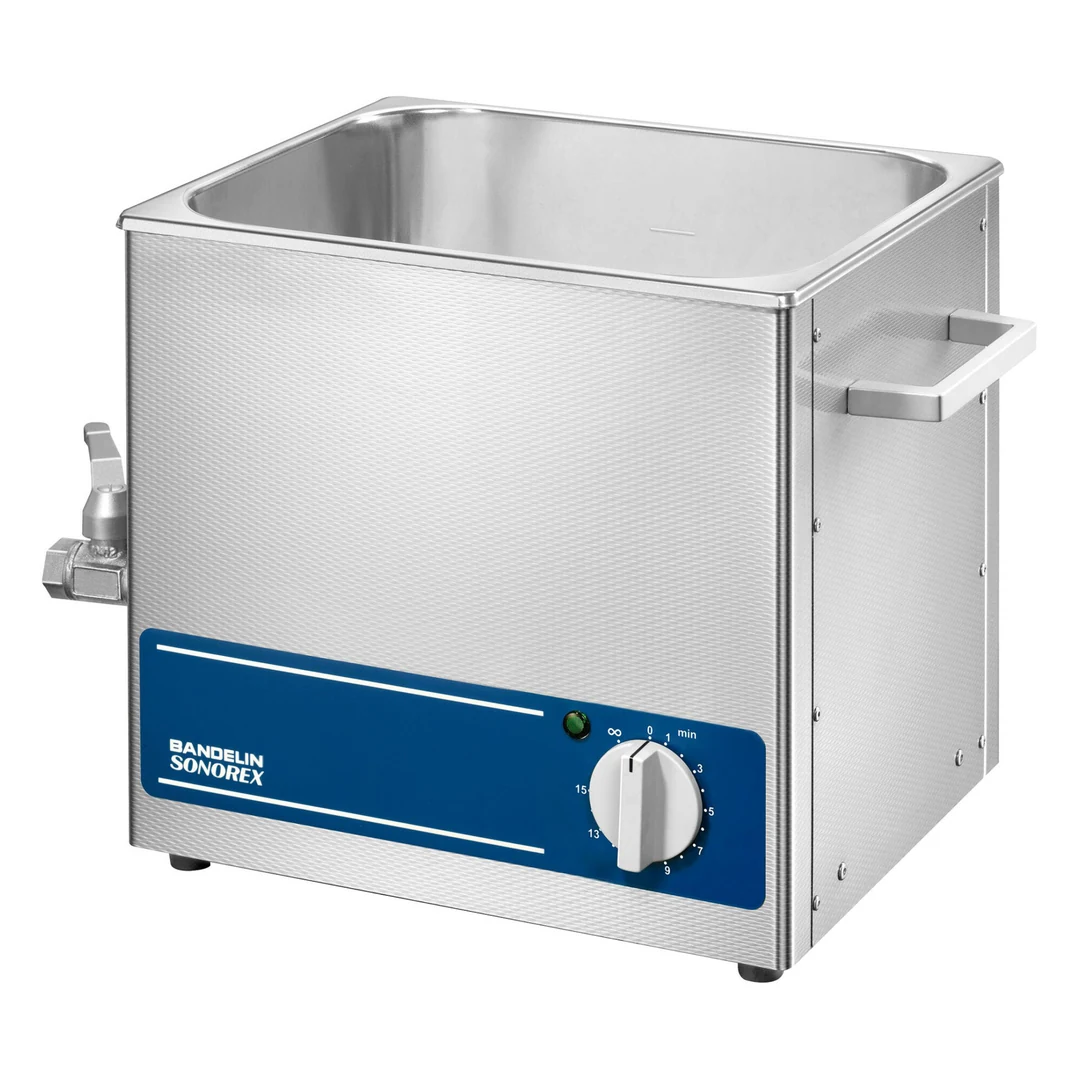

Bandelin SONOREX SUPER RK 510 ultrasonic bath, 9.7 litres, 327
Not every cleaning task requires heat. If you are already working with a medium at a specific temperature or at room temperature, an additional heating element is simply unnecessary technology in the unit. The Bandelin SONOREX SUPER RK 510 has a total capacity of 9.7 litres and a working capacity of 6.6 litres, providing ample space for laboratory glassware and larger small parts; it is deliberately designed without a heating function.Powerful cleaning even without heatAt an operating frequency of 35 kHz, the RK 510 delivers 640 watts of peak power and 160 watts of rated power via four vibration systems. The SweepTec function continuously modulates the ultrasonic field to prevent standing waves from forming and ensure that cavitation acts evenly throughout the tank, even without auxiliary heating.Robust tank for daily useThe tank and housing are made of 1.4301 stainless steel; the tank is 1.0 mm thick with internal dimensions of 300 x 240 x 150 mm. Operation is via a rotary knob; the timer covers 1 to 15 minutes (± 5 %), and continuous operation is also available. With a net weight of 7.2 kg and external dimensions of 325 x 265 x 300 mm, the unit can be moved around the laboratory with minimal effort.Ball valve drain for easy medium changeA G 1/2 ball valve on the left-hand side allows the tank to be emptied without lifting or tilting it, which is practical when the cleaning medium needs to be changed frequently. IP 32 protection rating and CE conformity according to the Medical Devices Regulation, the Low Voltage Directive, the EMC Directive and the RoHS Directive allow it to be used in laboratories, medical practices and workshops alike.Selection guide: unheated or with heatingThe RK 510 shares the same tank size as the heated RK 510 H; both have a capacity of 9.7 litres, with a working volume of 6.6 litres. Those working exclusively with cold or pre-tempered media can save on the additional heating technology with the RK 510. As soon as grease or oil residues require a higher bath temperature, the RK 510 H is the more suitable choice, given the identical tank size.Product range breakdown: SUPER RK, DIGITEC DT and smart STWithin the SUPER RK series, the range extends from 0.9 litres (RK 31) to 58 litres (RK 1050), with operation consistently via rotary knobs. Those looking instead for a digital display with DEGAS degassing will find this in the DIGITEC DT series, whilst the smart ST series features touchscreen operation with programme memory. In addition to Bandelin SONOREX, we also offer Elma Elmasonic ultrasonic baths in our range.Use and maintenanceThe working capacity of 6.6 litres is deliberately set below the total capacity of 9.7 litres to prevent water from spilling over the rim when beakers or laboratory glassware are placed inside. A concentrate from Bandelin’s TICKOPUR range is suitable for use as the cleaning fluid. A short pre-run in continuous operation before the first cleaning cycle removes dissolved air from freshly prepared medium. After the last use of the day, the tank can be drained via the ball valve and then wiped dry to prevent limescale or cleaning agent residues.Typical applicationsCleaning of beakers and laboratory glassware without the need for heatDegassing of aqueous solutions prior to analytical proceduresCleaning of tools and small parts in the workshopPre-cleaning of larger batches of instruments prior to further processingFrequently asked questionsCan the RK 510 be heated?No, the RK 510 is the unheated version; the heated version with the same tank size is the RK 510 H.Where is the drain?On the left, as a ball valve with a G 1/2 connection.How much volume is actually available for cleaning?6.6 litres working capacity with a total capacity of 9.7 litres.Is the device a medical device?Yes, Class I according to Regulation (EU) 2017/745.Technical detailsTotal capacity / Working capacity9.7 l / 6.6 lInternal dimensions of the tank (L x W x D)300 x 240 x 150 mmExternal dimensions (L x W x H)325 x 265 x 300 mmWeight (net)7.2 kgUltrasonic frequency35 kHzUltrasonic powerPeak power 640 W, rated power 160 W, 4 vibration systemsTimer1 to 15 minutes (± 5 %) or continuous operationOperationRotary knobFunctionsSweepTec, pulse functionTank materialStainless steel 1.4301, thickness 1.0 mmHousing materialStainless steel 1.4301DrainBall valve G 1/2, left-hand sideMains connection230 V~ (± 10 %), 50/60 Hz, optionally 115 V~, 2 m fixed mains lead, protection class ICurrent consumption230 V 0.7 A / 115 V 1.4 ADegree of protectionIP 32Medical device classClass I (Regulation (EU) 2017/745)ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EUPackaging dimensions450 x 390 x 375 mmScope of delivery1x Bandelin SONOREX SUPER RK 510 ultrasonic bathFixed mains lead (2 m)Instructions for useThe insert basket and lid are not included in the scope of delivery and are available separately.Individual requirements and procurement serviceFor the K 10 insert basket, the D 510 lid or the heated version RK 510 H, individual procurement requirements apply. You can request a quote without obligation via our procurement service for suitable accessories, a replacement basket or another model from the SONOREX range.
