Rotary evaporator
Rotary evaporators gently separate solvents by means of vacuum distillation. LT Laborhandel stocks IKA RV-series rotary evaporators (digital, auto pro, FLEX) as well as Heidolph Hei-VAP models, each also available as a complete package including a vacuum pump and heating bath. Our service team will be happy to advise you on the right equipment for your needs.

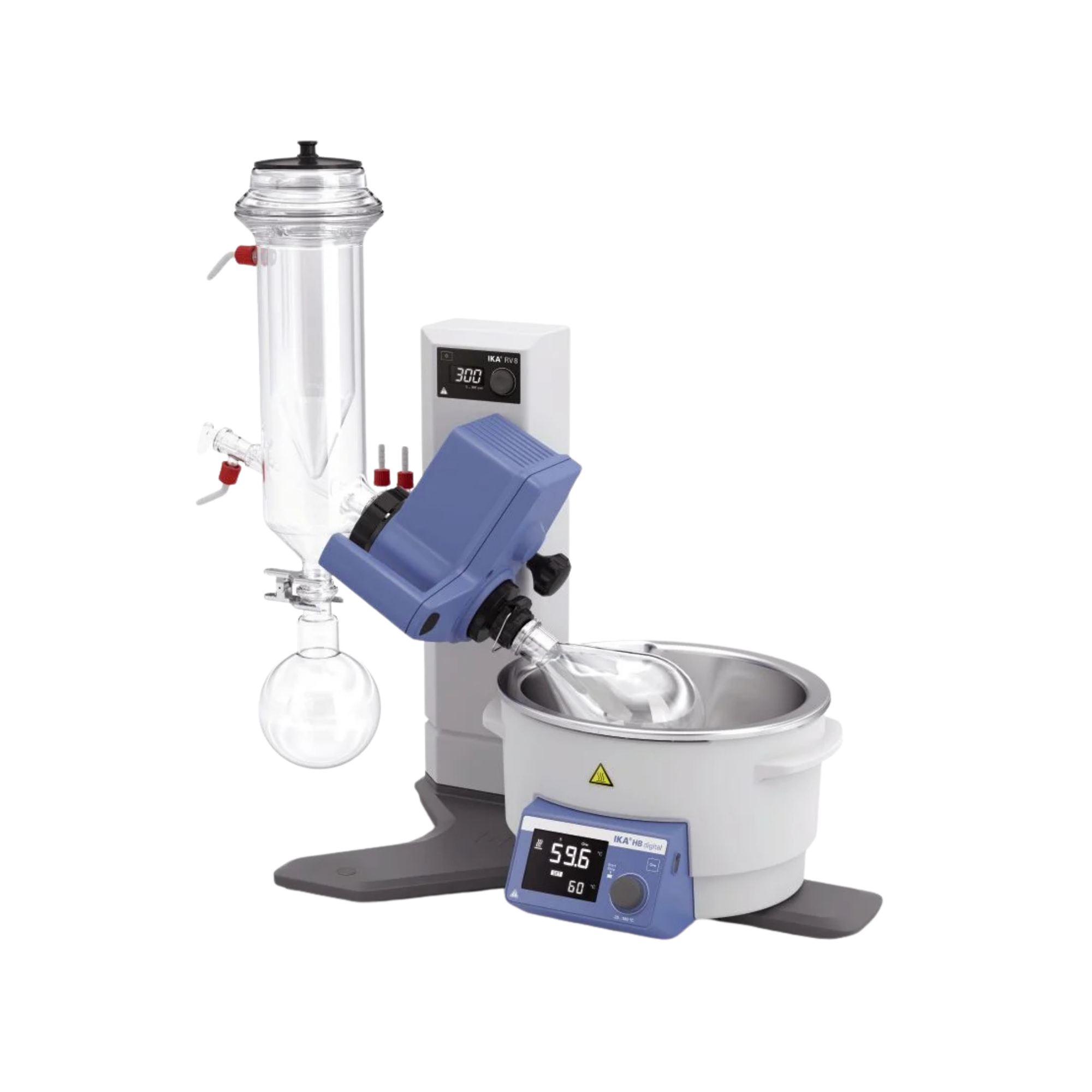

IKA RV 8 rotary evaporator with dry ice cooler, coated glass, 0010006360
The IKA RV 8 rotary evaporator with dry ice cooler (coated) represents a specialised, mechatronic system solution for highly efficient distillation and solvent recovery, which operates entirely independently of a conventional cooling water infrastructure. Designed as a professional entry-level model, this setup is ideally suited for use in laboratories where no running cooling water is available, or for processes in which extremely volatile, low-boiling-point solvents (such as ether or acetone) need to be condensed reliably and without significant emissions. When thermally separating complex mixtures of substances under vacuum, the precise interplay of mechanical rotational stability and maximum cryogenic condensation capacity guarantees gentle and reproducible operation. Ergonomic mechanics and precise process control The mechanical system architecture of the RV 8 is characterised by a perfectly balanced, manual lift. The entire glass assembly can be moved vertically with minimal effort. An integrated, mechanically adjustable end stop (Safety Stop) protects the glass assembly from accidental collision with the bottom of the heating bath or surrounding laboratory equipment. The ergonomic one-handed operation is optimally accessible for both right- and left-handed users. Precise control of the surface area is ensured by the digital LED display, which continuously shows the rotational speed. This can be adjusted with high precision from 5 to 300 revolutions per minute using a stepless rotary control, to ensure uniform film formation on the inner wall of the flask. Universal heating bath with high thermodynamic energy density The process engineering foundation for thermal energy transfer is provided by the HB digital universal water-oil heating bath, which is included in the scope of delivery. With a heating power of 1,300 watts, the bath achieves extremely short heat-up times and allows for a flexible operating temperature range from room temperature up to 180 °C. The system thus covers a wide range of applications, from conventional evaporation processes to high-boiling-point distillations. A clear digital display clearly shows the setpoint and actual temperatures. The ergonomically designed heating bath features integrated safety handles for safe handling and is structurally designed so that it can be moved flexibly within its footprint to optimally adjust the immersion depth of the evaporating flask. Maximum condensation capacity thanks to a coated dry-ice cooler The standout feature of this model variant is the vertical dry-ice cooler. Instead of a conventional cooling coil, the cooling jacket is filled with a mixture of dry ice and acetone (or a comparable cryogenic medium), enabling extremely low condensation temperatures of up to –78 °C to be achieved. This guarantees the near-complete capture of even the most volatile solvent vapours. To ensure uncompromising occupational safety, the entire glass assembly is encased in a transparent, highly resistant plastic safety coating (Coated). This protective layer minimises the risk of glass breakage due to mechanical impact and, in the critical event of an implosion under vacuum, prevents glass shards and toxic substances from flying about uncontrollably. Technical details Rotation & Drive Specifications Drive type: DC motor with continuously variable speed control Speed range: 5 to 300 rpm Speed display: Digital LED display Lifting function: Manual lift with integrated ‘lift-out’ safety function Stroke: 120 mm Head tilt (adjustable angle): 0 to 45 degrees Thermodynamics & Heating Bath (HB digital) Heating power: 1300 W Temperature range: Room temperature to 180 °C Setting accuracy: +/- 1 K Max. bath volume: approx. 4 litres Suitable media: Water or suitable thermal oils Safety circuit (dry-run protection): Fixed at 190 °C Glass periphery & dimensions Glass attachment type: Dry ice cooler for cryogenic cooling media Safety coating: Yes, transparent plastic coating (coated) Cooling surface characteristics: High-performance condensation through direct contact with dry ice slurry Overall dimensions (W x H x D): approx. 510 x 430 x 490 mm (excluding glass assembly) Net weight (including heating bath and glass): approx. 21 kg Protection class according to DIN EN 60529: IP 20 Scope of delivery 1 x IKA RV 8 rotary evaporator drive unit (MPN: 0010006360) 1 x IKA HB digital universal heating bath 1 x IKA dry ice glass attachment set (safety-coated) 1 x Evaporation flask (NS 29/32, 1000 ml, coated) 1 x Receiving flask (KS 35/20, 1000 ml, coated) 1 x power cable set 1 x Operating instructions / Quality certificate Individual requirements & accessories As the IKA RV 8 with dry ice cooler is operated without an external recirculating chiller, the need for peripheral infrastructure is significantly reduced. To complete your distillation setup, all that is required is the integration of a suitable vacuum supply. Our laboratory range includes chemical-resistant diaphragm vacuum pumps (e.g. IKA MVP 10 digital) as well as precise, digital vacuum controllers for accurate boiling point control. For specialised applications, we also offer evaporation flasks in various volumes (from 50 to 3000 ml), as well as powder flasks, distillation spiders and original replacement seals. Please use our technical procurement service to configure your self-contained distillation setup.

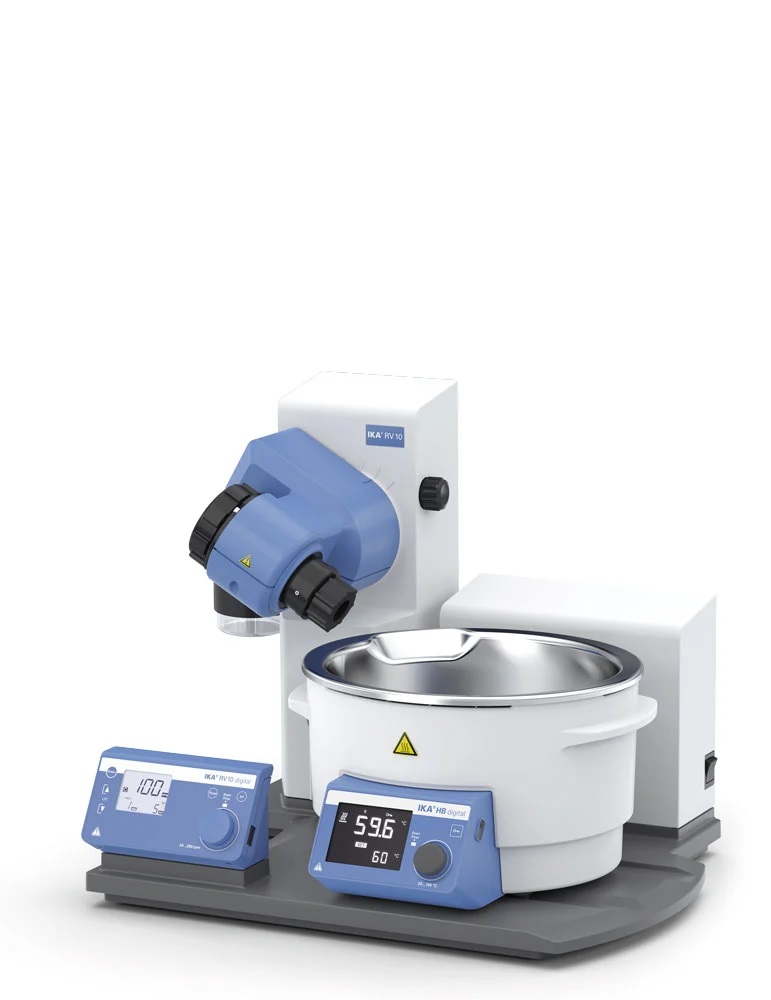

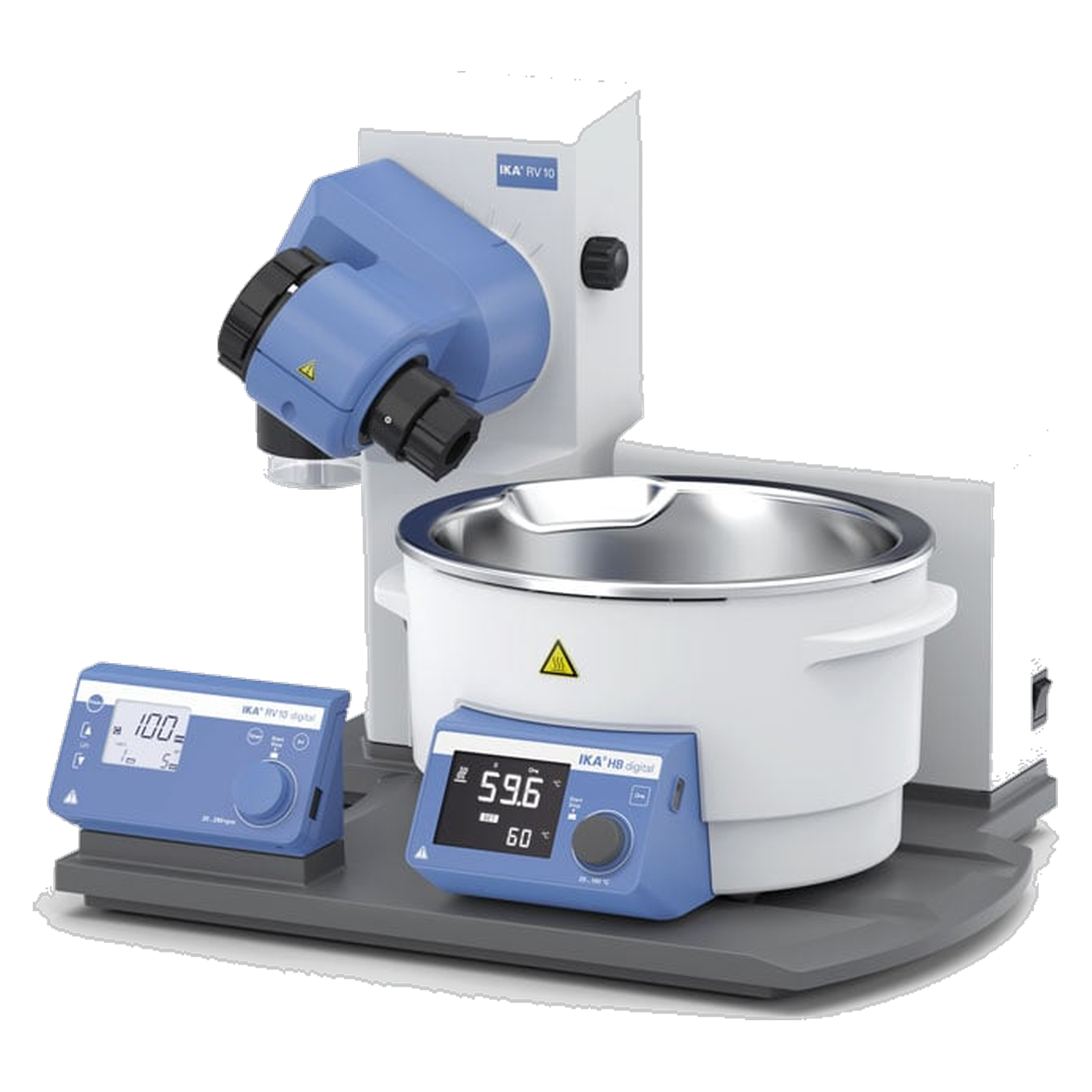

IKA RV 10 digital FLEX rotary evaporator, 0010004805
RV 10 digital FLEX The RV 10 digital is the logical next step in the evolution of the RV 10 rotary evaporator product range. It includes a universal heating bath, modern safety features and digital interfaces. The RV 10 digital is a robust and reliable companion for all distillation tasks. Its optimised bath volume enables rapid heating times. The RV also offers further innovative features such as soft start, alternating clockwise and anti-clockwise rotation in interval mode, and a timer function for controlling time sequences, all of which support the user in their day-to-day laboratory work. Safety is ensured by the motorised lift with a ‘safety-stop’ function. In the event of a power cut, it automatically lifts the evaporator flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry-run protection, adjustable limit position detection to protect against glass breakage, and a lockout function ensure user safety. Furthermore, the receiving flasks and the condenser are also available in a coated version. The RS-232 interface allows remote control via the labworldsoft software. The heating bath is controlled by the control unit via an infrared interface. 4-litre heating bath Universal (water/oil) safety heating bath Motorised lift with ‘safety-stop’ function RS-232 interface Optimised bath volume for rapid heating Ergonomic carrying handles on the heating bath Soft start Forward and reverse operation Timer function Dry-run protection Safety temperature circuit Limit position detection Coated and uncoated glassware available Piston release mechanism for stuck pistons Simple and safe operation thanks to an ergonomically designed control unit Scope of delivery RV 10 digital HB digital S099 RV 05.10 Ball-ground clamp RV 10.88 Clamp NS 29 RV 10.70 Steam feed-through pipe (NS 29/32) RV 10.8001 Seal RV 3.4 Woulff flask RV 3.1 Support rod Technical data Cooler type without cooler Motor type Direct current Speed range 5–280 rpm Reversible rotation yes Lift Motor Stroke 140 mm Heating temperature range Room temp. – 180 °C Heating power 1350 W Setpoint temperature accuracy ±1 K Max. capacity 4 l Timer Yes Dimensions (W x H x D) 500 x 430 x 440 mm Weight 18.5 kg Permissible ambient temperature range 5–40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface yes Voltage 220–240 V Frequency 50/60 Hz Power consumption 1400 W Other voltage variants available (220–240 V / 115 V / 100–240 V / 100–120 V / 100–115 V) Accessories and spare parts available on request

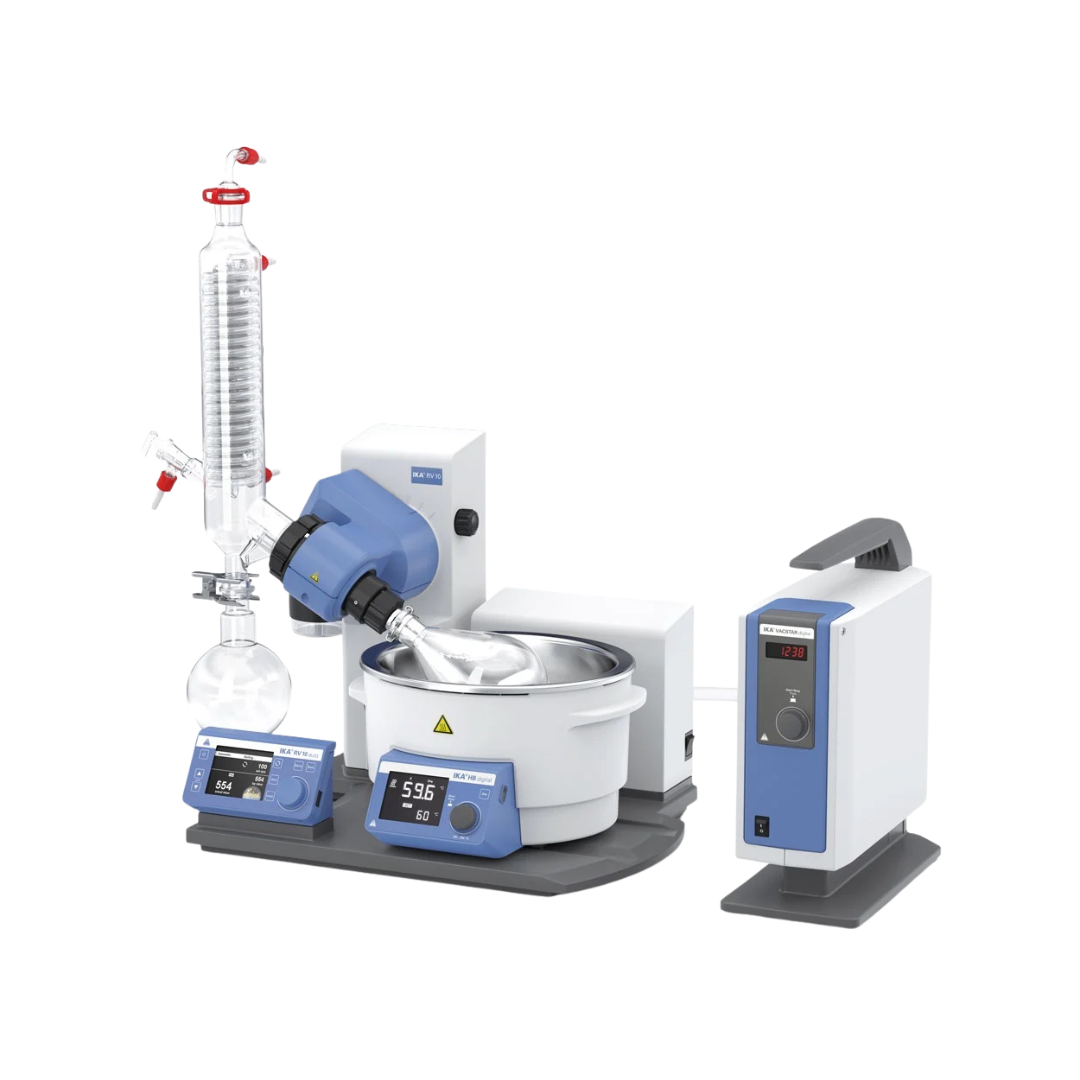

IKA RV 10 auto pro V-C Rotary Evaporator (Package), 0010004812
The IKA RV 10 auto pro V-C is the premium all-in-one solution for fully automatic and unattended distillation in the laboratory. This package (MPN 0010004812) is the flagship of the RV 10 series and is aimed at procurement specialists and laboratories that demand the highest standards of efficiency, process reliability and documentation. Fully automatic distillation (auto pro) At the heart of this package is the ‘auto pro’ controller. (Feature) It enables fully automatic boiling point detection at the touch of a button. The instrument automatically determines the required vacuum pressure and dynamically adjusts it throughout the entire process. (Benefit) This saves users valuable time, prevents delays in boiling or samples from boiling over, and ensures highly efficient and rapid distillation. Intelligent control and solvent library The high-resolution TFT graphic display enables intuitive operation. A major advantage for laboratories with varying applications is the integrated solvent library. (Feature) Users can save and retrieve standard processes for common solvents, which significantly improves reproducibility (compliance with SOPs) (Benefit). The entire process can be seamlessly documented via labworldsoft ® using USB and RS-232 interfaces. Maximum safety and efficiency (V-C glassware) The abbreviation “V-C” stands for “Vertical” and “Coated”. The vertical cooler (V) is the space-saving standard solution with a highly efficient cooling surface area of 1500 cm². The “C” coating on the glass (feature) is a crucial safety feature. It protects the glass from mechanical damage and, in the event of glass breakage, provides implosion protection for the user (benefit). Integrated vacuum controller and motorised lift This package already includes the vacuum control unit, which communicates directly with the heating bath (HB eco). In the event of a power cut or at the end of the process, the motorised lift automatically raises the evaporator piston out of the heating bath to protect the sample. Important ordering information This package (0010004812) includes the stirrer, the heating bath, the V-C glassware and the vacuum controller. A vacuum pump (e.g. IKA V-3000) and a recirculating chiller (e.g. IKA RC 2) are essential for operation but are not included in this package. Technical details Condenser type: Vertical (V) with 1500 cm² cooling surface Glassware: Plastic-coated (C) for splinter protection Control system: RV 10 auto pro (automatic boiling point detection) Display: TFT display, graphical, programmable Heating bath: HB eco (RT – 180 °C, 3 L capacity) Drive: Motorised lift with ‘Safety-Stop’ function Speed range: 10–150 rpm Motor: Brushless DC motor Vacuum control: Yes, included in the scope of delivery Interfaces: RS 232, USB (for labworldsoft ®) Scope of delivery RV 10 auto pro drive (motor lift) HB eco heating bath RV 10.1 glassware, vertical, coated (V-C) RV 10.4002 vacuum control unit Hose set (for water/vacuum) USB cable Mains cable User manual Note: The vacuum pump and recirculating cooler are not included in the scope of delivery.

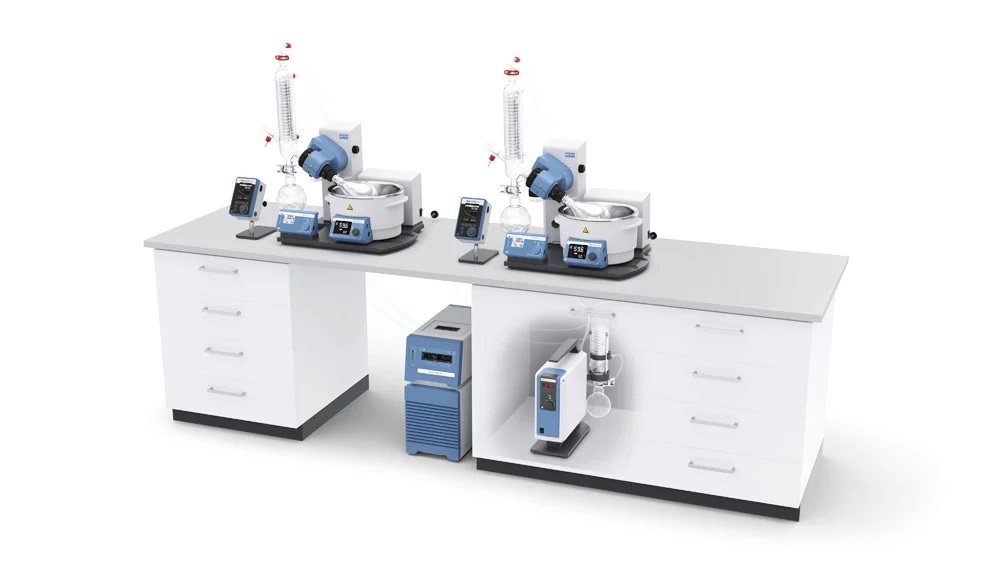

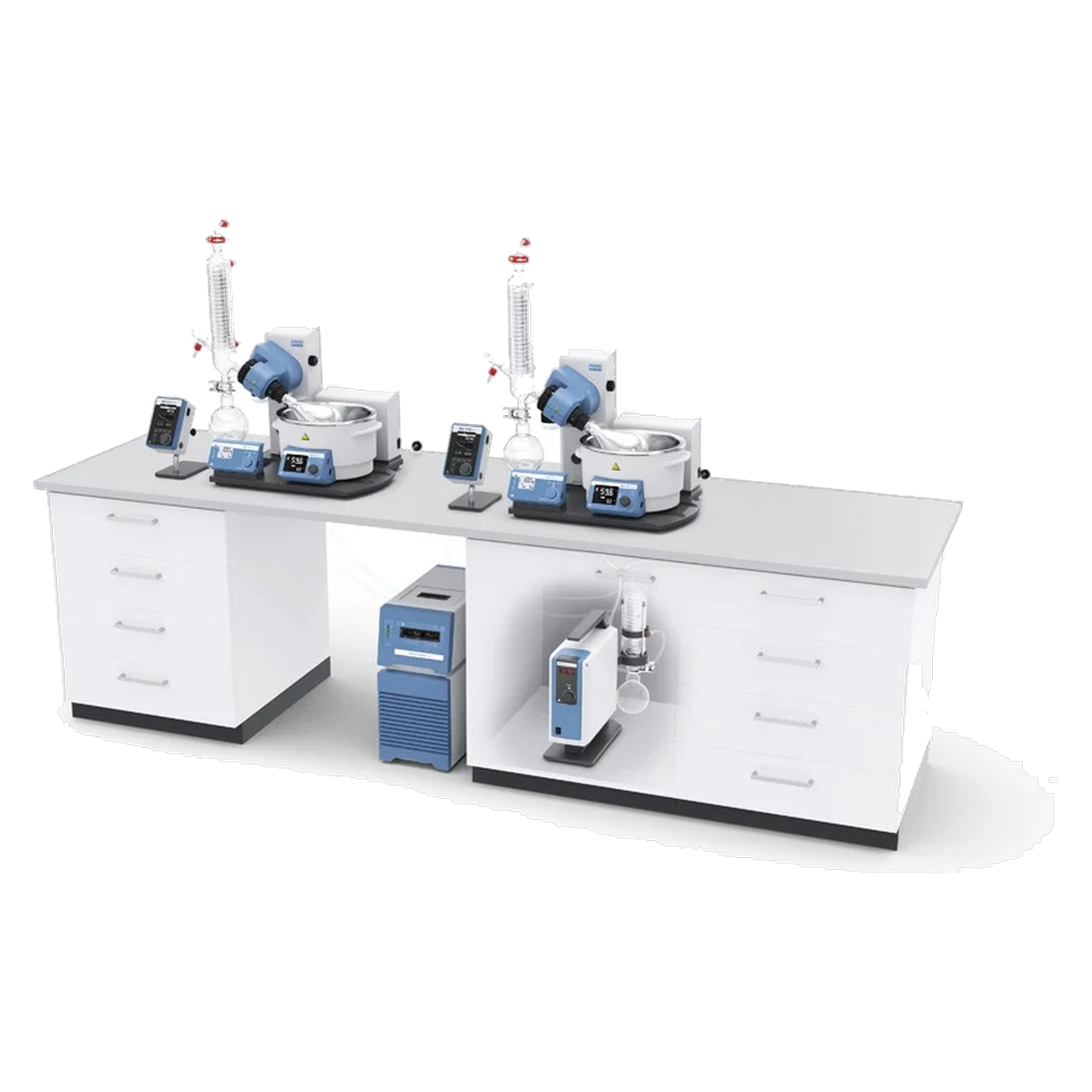

IKA RV 10 digital pro V-C double Complete rotary evaporator, #0010012327
IKA RV 10 digital pro V-C double Complete rotary evaporator, #0010012327
IKA RV 8 V rotary evaporator, hand lift, including heating bath and glassware set, 0010003482
The reliable entry-level evaporator: IKA RV 8 V The IKA RV 8 V (MPN 0010003482) is the ideal rotary evaporator for all users seeking high-quality distillation technology at an attractive price. As the entry-level model in the IKA range, the RV 8 focuses on the essentials: durability, functional precision and ease of use. It is ideally suited for use in university education, school laboratories and research and industrial departments where standard solvents need to be evaporated on a routine basis without the need for fully automated process control. Ergonomic manual lift with safety feature Unlike the motorised models (RV 10), the RV 8 features a smooth-running manual lift. This has been specially developed with ergonomics in mind. The key feature: the lift handle is positioned so that it can be operated effortlessly by both right- and left-handed users. The precise mechanism allows the evaporator flask to be positioned with pinpoint accuracy in the heating bath. An integrated safety stop prevents the flask from accidentally striking the bottom of the heating bath and causing glass breakage. This manual control provides the user with direct feedback and requires very little maintenance, as no motor electronics are needed for the lifting action. High-performance HB 10 heating bath The scope of delivery includes the high-quality HB 10 heating bath with a volume of 4 litres. It covers a temperature range from room temperature to 180 °C and is therefore suitable for use with both water and temperature-control oil. This broadens the range of applications from low-boiling-point solvents to those requiring higher temperatures. The bath impresses with its well-thought-out features: Ergonomics: Integrated carrying handles allow for safe emptying and transport, even when the bath is still warm. Safety: A locking mechanism secures the bath firmly to the base unit, whilst still allowing flexible adjustment to accommodate different flask sizes. Versatility: The heating bath can also be used as a ‘stand-alone’ unit for other temperature control tasks in the laboratory, making the investment doubly worthwhile. Efficient distillation with a vertical condenser The ‘V’ in the name stands for the vertical glassware set supplied. This standard glassware set is the space-saving solution for most laboratory fume cupboards. The condenser offers a cooling surface area of 1,500 cm², which guarantees efficient condensation of solvent vapours and thus high recovery rates. The connections for cooling water and vacuum are conveniently located. The system is compatible with the entire IKA RV 10 glassware range, offering you full flexibility should you require it (e.g. switching to dry-ice coolers or coated glass). Intuitive operation and control Despite its basic design, the RV 8 offers digital convenience. The drive speed (adjustable from 5 to 300 rpm) is shown on an easy-to-read digital display. The temperature of the heating bath is also displayed digitally. This enables reproducible setting of the process parameters. The angle of the evaporating flask is infinitely adjustable to optimise wetting of the flask surface and thus the evaporation rate. Focus on safety IKA makes no compromises when it comes to safety. The unit operates internally at a low safety voltage (24 V), which minimises the risk in the event of contact with liquids. The flask clamping mechanism with integrated release device (‘Push-Out’) allows for easy and safe replacement of the evaporating flasks, even if they are stuck due to a vacuum or crystallisation. The scope of delivery also includes a Woulff bottle, which serves as a safety vessel upstream of the vacuum pump. Summary The IKA RV 8 V is the ‘people’s Rotavap’: a reliable, robust piece of equipment that makes German engineering accessible to any laboratory budget. Anyone who can do without a motorised lift and fully automatic operation will find a faithful companion here for many years to come. Technical data Unit type: Rotary evaporator (manual) Lift type: Manual lift (suitable for right- and left-handers) Speed range: 5 – 300 rpm Speed display: Digital Cooler type: Vertical (V) Cooling surface area: 1,500 cm² Heating bath: HB 10 (4 litres) Temperature range: Room temperature to 180 °C Temperature display (bath): Digital Heating power: 1,300 W Timer: No Dimensions (W x H x D): 510 x 490 x 345 mm Weight: approx. 15.5 kg (without glass) / approx. 24 kg (shipping) Protection rating: IP 20 Voltage: 100–240 V (wide range) Contents 1 x IKA RV 8 drive unit 1 x HB 10 heating bath 1 x RV 10.1 glass set (vertical, uncoated) 1 x steam feed-through tube 1 x Woulff’s flask 1 x mains lead 1 x User manual Individual requirements & accessories Do you also need a vacuum pump or a recirculating chiller to save water? The IKA RV 8 combines perfectly with the VACSTAR digital pump and the RC 2 lite chiller. We’d be happy to put together a package deal for you. Please contact our procurement service.
IKA RV 10 digital pro V double Complete rotary evaporator, #0010011964
IKA RV 10 digital pro V double Complete rotary evaporator, #0010011964

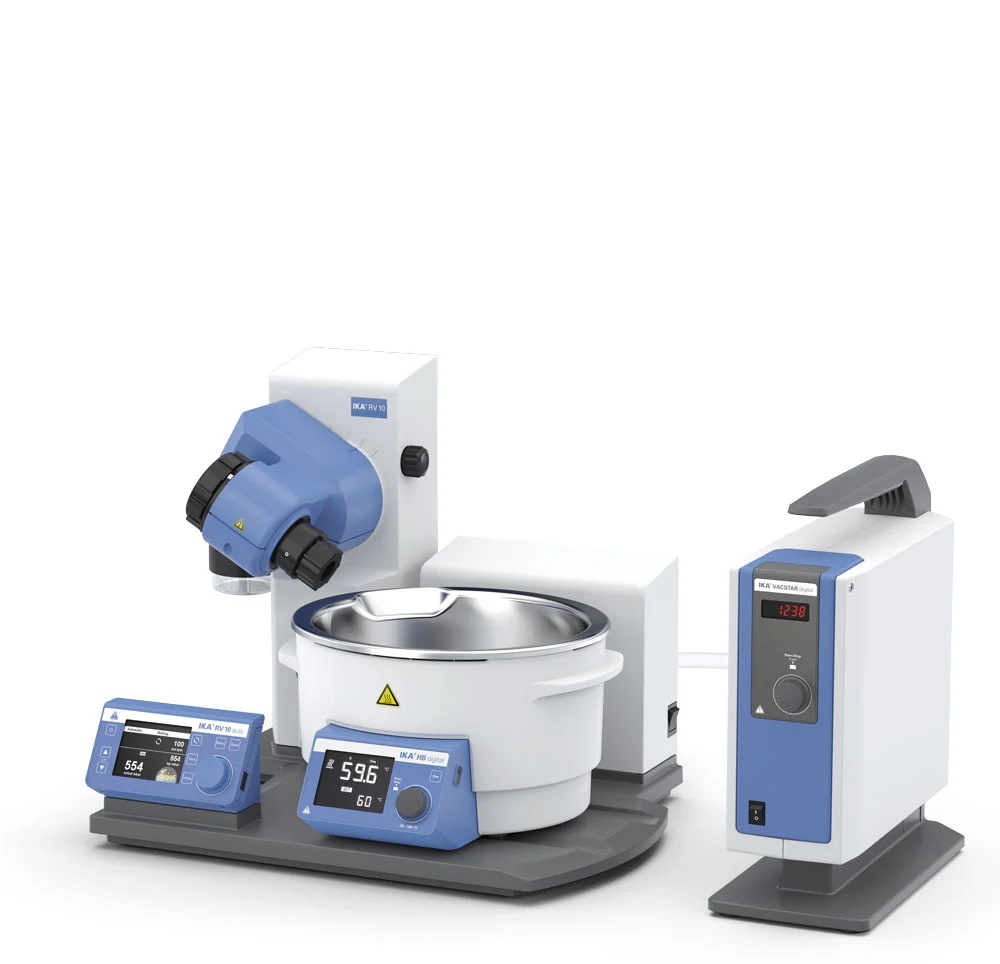

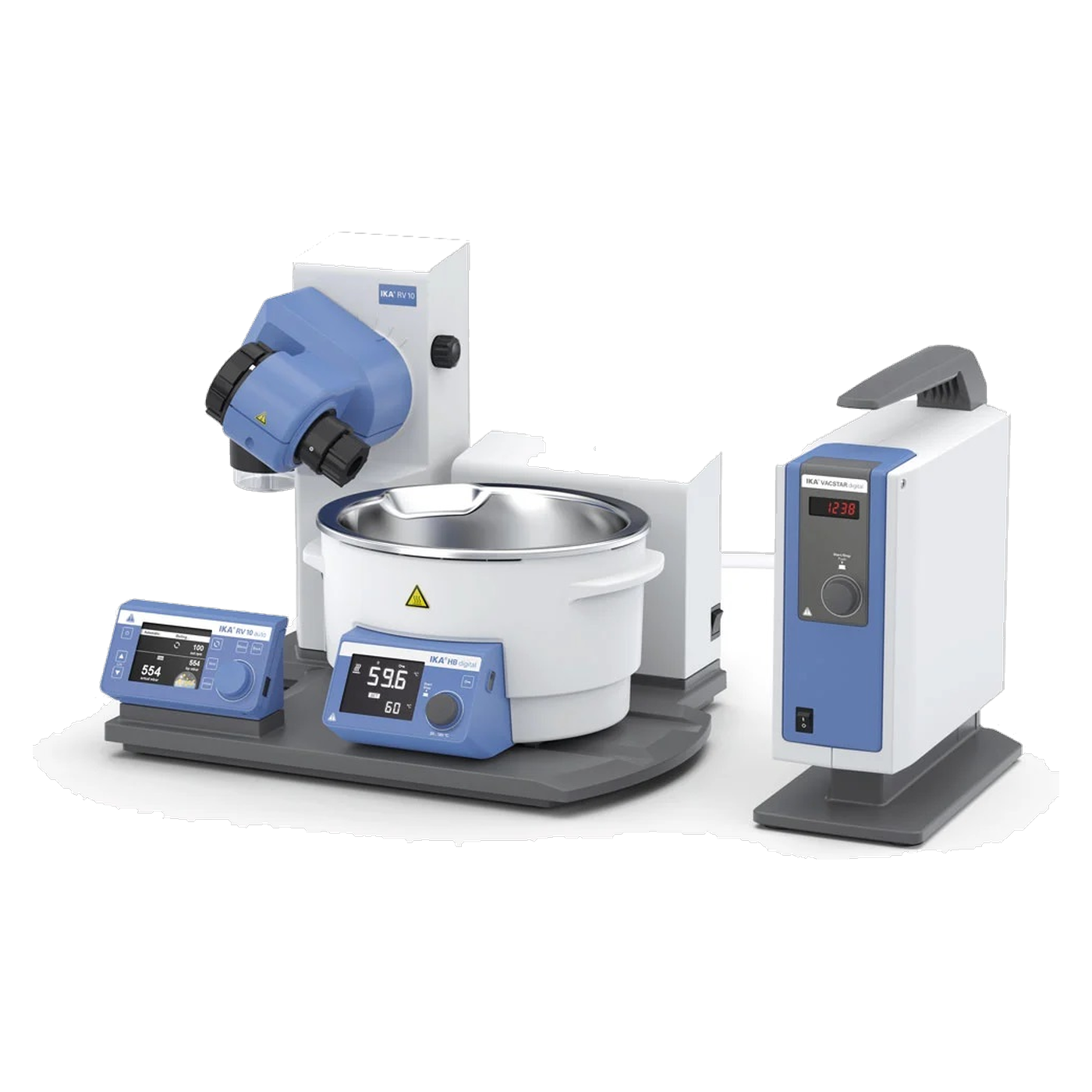

IKA RV 10 auto pro FLEX rotary evaporator, 0010004818
RV 10 auto pro FLEX The completely redesigned RV 10 auto is the flagship model in IKA’s rotary evaporator product range. Its key features include innovative operation via a brilliant TFT colour graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all the features required for efficient, safe and economical operation. These include automatic control of the vacuum and the cooling water flow rate. The intuitive operation quickly guides the user to the desired result. The RV 10 auto allows the user to carry out customised procedures via advanced ramp programming. Further innovative features such as soft start, alternating clockwise and anti-clockwise rotation in interval mode, and the timer function for controlling time sequences simplify day-to-day laboratory work. Safety is ensured by the motor-driven lift with a ‘safety-stop’ function. In the event of a power failure, it automatically lifts the evaporating flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry-run protection, adjustable end-position detection to protect against glass breakage, and a lock function ensure user safety. Furthermore, the receiving flasks and the condenser are also available in a coated version. The USB or RS-232 interface allows remote control via the IKA ‘labworldsoft’ software and enables updates via the firmware update tool. The scope of delivery includes vacuum hoses and water hose connections for your in-house cooling water supply. The new IKA Vacstar digital, included in the scope of delivery, is controlled directly by the RV 10 auto drive unit via the supplied data cable. 4-litre heating bath Automatic boiling point detection Integrated vacuum controller Integrated solvent library with 40 pre-stored and expandable solvents Operation via a brilliant TFT colour graphic display Universal safety heating bath Optimised bath volume for rapid heating Ergonomic carrying handles on the heating bath Safety temperature circuit Dry-run protection Coated and uncoated glassware available as accessories Intuitive operation via simple menu navigation Programming of up to ten individual procedures Soft start Right-left rotation Timer function End-position detection Piston extraction device for stuck pistons Digital interfaces: USB and RS-232 interfaces for remote control Multilingual Automatic cooling water management Automatic aeration Automatic heating bath management Warranty By registering online at www.ika.com/register, you can extend the warranty on your equipment free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years following registration (2+3). For peripheral equipment included in the package (vacuum pump and cooler), the additional warranty is one year (2+1). Contents of delivery RV 10 auto HB digital S099 VACSTAR digital RV 05.10 Ball-joint clamp RV 10.88 Clamp NS 29 RV 10.70 Steam feed-through pipe (NS 29/32) RV 10.8001 Seal Vacuum hose (2 x 0.55 m) Water discharge hose (1 x 1 m) Water discharge hose (1 x 1 m) USB cable Technical specifications Cooler type: without cooler Speed range 5–300 rpm Reversible rotation: yes Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 % Lift motor Stroke: 140 mm Heating temperature range: room temperature – 180 °C Heating power 1350 W Setpoint temperature accuracy ±1 K Max. capacity 4 l Integrated vacuum regulator: yes Measurement accuracy: ±1 mbar Timer: Yes Dimensions (W x H x D) 500 x 430 x 440 mm Weight 18.6 kg Permissible ambient temperature range 5–40 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 20 RS 232 interface: yes USB interface: Yes Analogue output: Yes Voltage 100–240 V Frequency 50/60 Hz Power consumption 100 W Standby power consumption: 3.3 W Accessories and spare parts available on request

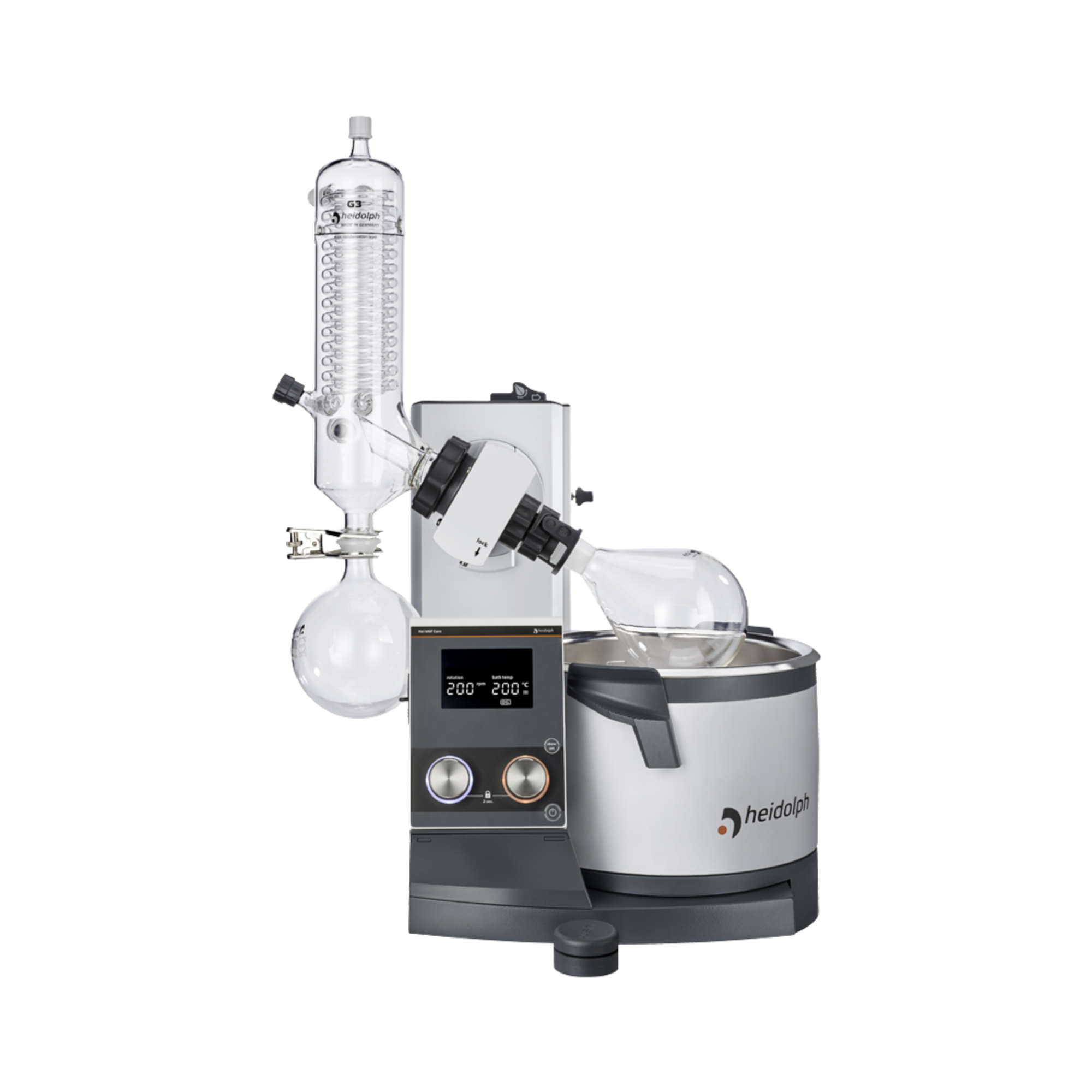

Heidolph Hei-VAP Core, Handlift, G3 vertical cooler, 571-01300-00
Focusing on the essentials: the Heidolph Hei-VAP Core (Handlift / G3) The Heidolph Hei-VAP Core (MPN 571-01300-00) is the answer to the demand from many laboratories for a rotary evaporator that ‘simply works’. Without complex menu structures or overloaded touchscreens, this model offers absolute reliability and intuitive operation for day-to-day use. Equipped with the classic Handlift and the universal G3 vertical condenser, this package is the gold standard for standard distillations at universities, in training and in industrial quality control. Operating concept: intuitive and safe The Hei-VAP Core’s control panel is self-explanatory. Direct access: Two large rotary controls regulate the key parameters: rotation and heating bath temperature. You have full tactile control at all times. Digital display: Unlike purely analogue devices, the bright digital display shows the actual and setpoint values precisely. A single glance is enough to tell you whether the process is running stably. Lock function: To prevent accidental adjustment of the parameters (e.g. by cleaning staff or colleagues), the settings can be locked electronically. The Handlift: Feel what’s happening This package includes the tried-and-tested Handlift. Why do so many professionals deliberately opt against a motorised lift? Direct feedback: As you lower the piston into the heating bath, you can feel the resistance. You can position the piston with extreme precision and speed, or pull it out of the bath in a flash if ‘boil-off’ (foam formation) occurs. Robustness: Where there is no motor, there is no electronics to fail. The mechanical lift is practically indestructible and guarantees a silky-smooth operation even after years of use. G3 Vertical Cooler: The space-saver The G3 glass set is the standard for most applications. The vertical condenser saves valuable width in the fume cupboard (compared to slanted diagonal condensers). With a condensation surface area of approx. 1,400 cm², it offers excellent distillation performance for solvents such as ethanol, acetone or ethyl acetate. The system is designed for maximum vacuum and, thanks to high-quality seals (PTFE/FKM), is extremely leak-resistant. Safety comes first Heidolph is renowned for uncompromising safety (“Research made easy”). Residual heat indicator: Even when the unit is switched off, a flashing light ring warns the user as long as the bath temperature remains above 50 °C. This protects against burns. Separate on/off switch: The unit does not switch on accidentally when the power is connected, but must be started deliberately. Heating bath: The double-walled heating bath provides excellent insulation (no risk of burns from the outer wall) and features ergonomic carrying handles for safe emptying. Durability and protection The Hei-VAP Core’s electronics are protected against splashing water and dust in accordance with protection class IP 42. Ventilation slots and drainage channels are designed to prevent spilled liquids from entering the interior of the unit. The patented clamping sleeve system prevents the steam passage tube from becoming stuck in the drive – a common problem with other makes, which has been elegantly resolved here. Technical Specifications Model: Hei-VAP Core Lift: Manual lift Glass assembly: G3 (vertical cooler) Speed range: 10 – 280 rpm Bath temperature range: 20 – 210 °C Heating power: 1,300 W Bath control accuracy: ± 1 K Cooling surface area: 1,400 cm² Max. flask capacity: 5 litres Display: Digital (LCD, black and white) Protection class: IP 42 Dimensions (W x H x D): approx. 450 x 850 x 500 mm (including glass) Weight: approx. 16 kg (excluding glass) Contents 1 x Heidolph Hei-VAP Core (drive unit) with hand lift 1 x heating bath 1 x G3 glassware set (vertical condenser, 1-litre evaporating flask, 1-litre receiving flask) 1 x steam conduit 1 x vacuum seal 1 x mains cable (EU) 1 x user manual Customised requirements & accessories Do you require a vacuum pump, a recirculating chiller or specially coated glass components (“Safety Coated”) for enhanced breakage protection? We can put together a complete rotary evaporator system for you. Please contact our procurement service.

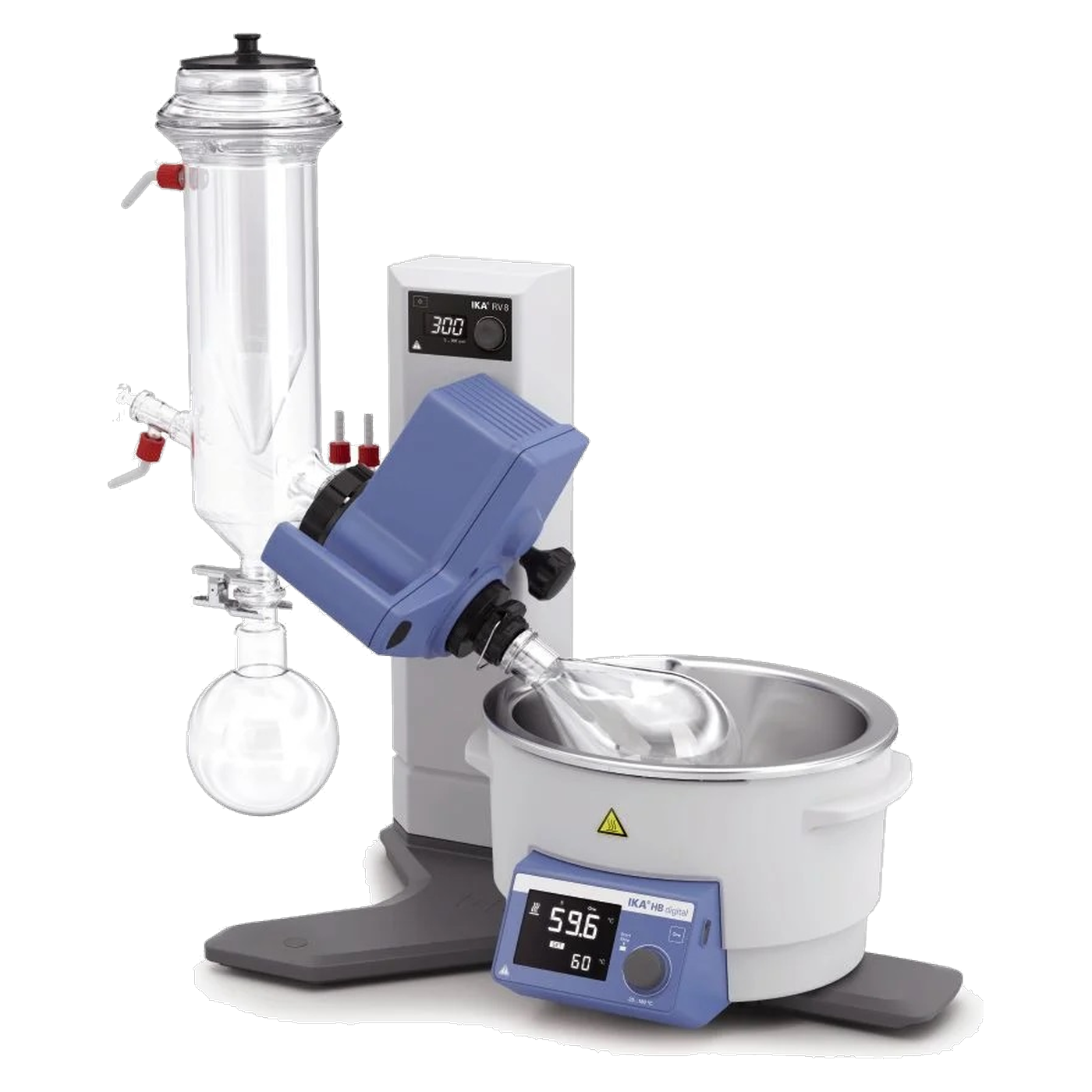

IKA Rotary Evaporator, RV 8 with dry ice condenser, 0010006361
IKA RV 8 Rotary Evaporator with Dry Ice Condenser The RV 8 is the entry-level model in the IKA rotary evaporator series and impresses with its ease of use, precise control and robust design. With its manual lift, digital displays and well-designed safety features, it is the ideal solution for everyday distillation tasks in the laboratory. The new clamping mechanism makes it easy to change the evaporating flasks quickly. Thanks to the ergonomic water/oil heating bath with practical carrying handles and an integrated lock function for the heating temperature, handling is particularly comfortable and safe. Key features: Manual lift with integrated ‘Lift-Out’ safety function Digital display for rotation speed (5–300 rpm) and heating bath temperature HB 10 heating bath with ergonomic handles and temperature lock button Adjustable immersion angle for flexible applications Clamping mechanism for easy replacement of the evaporator flasks Enhanced safety thanks to 24 V operating voltage Compatible with the entire RV 10 range of glassware Technical data (excerpt): Speed range: 5 – 300 rpm Heating temperature: room temperature – 180 °C Heating power: 1300 W, setpoint temperature accuracy ±1 K Stroke: 120 mm (manual) Max. capacity: 4 l Dimensions (W × H × D): 510 × 490 × 345 mm Weight: 15.5 kg Protection rating: IP 20 Voltage: 100–240 V, 50/60 Hz Contents of delivery: RV 8 FLEX rotary evaporator Heating bath HB 10 RV 10.4 dry ice condenser The IKA RV 8 with dry ice condenser offers an ideal introduction to the world of rotary evaporators – reliable, safe and versatile.

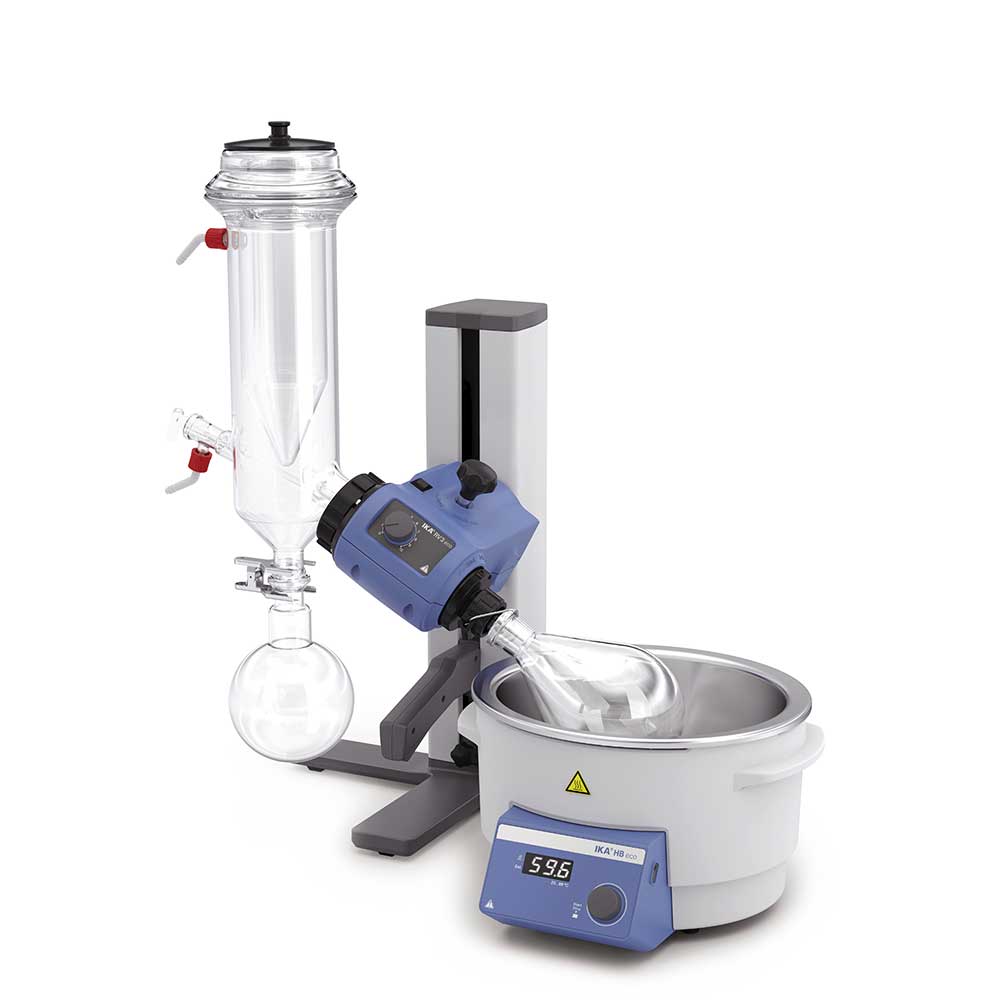

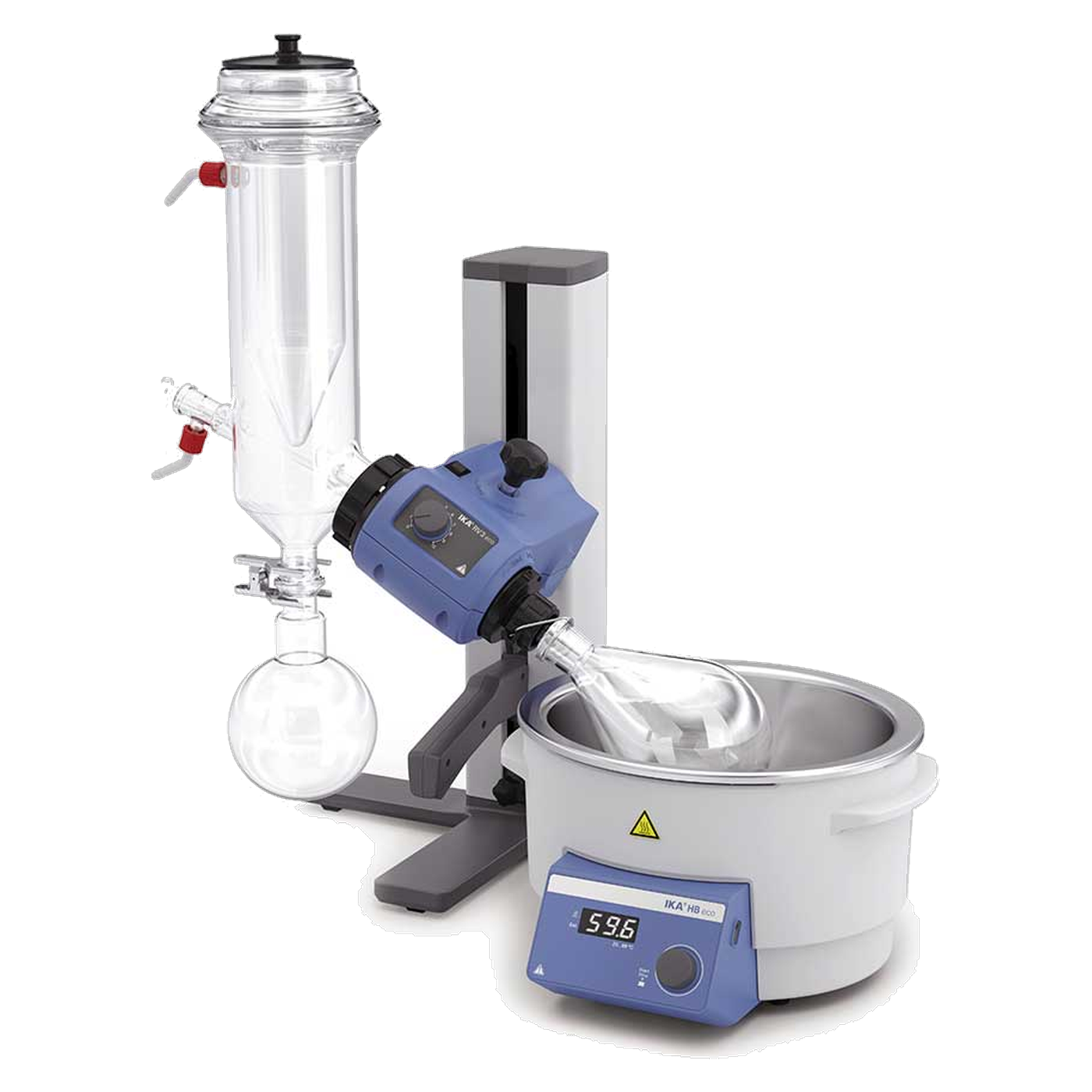

IKA rotary evaporator, RV 3 with dry ice condenser, coated, 0010006362
IKA RV 3 rotary evaporator with coated dry-ice condenser & HB eco heating bath The RV 3 is the manual entry-level model in the IKA rotary evaporator series and impresses with its high reliability, safety and ease of use. Thanks to digital displays for speed and heating bath temperature, distillation processes can be precisely monitored and controlled. The new 4-litre heating bath with ergonomic handles offers greater flexibility, whilst the integrated safety shut-off function provides additional protection in the event of a power cut. The manual lift allows for precise positioning of the glassware, and the adjustable immersion angle expands the range of applications. Particularly practical: the clamping mechanism with push-off function allows for the quick replacement of evaporating flasks. The coated glassware set ensures increased break resistance – ideal for demanding laboratory environments. Key features: Digital display for speed (20–300 rpm) and heating bath temperature 4-litre HB eco heating bath with temperature lock button Safety shut-off function in the event of a power cut New clamping mechanism with push-off function for changing flasks Manual lift with 150 mm stroke and adjustable immersion angle Ergonomic operation for left- and right-handers Coated dry ice condenser for increased breakage resistance Operating voltage 24 V for maximum safety Compatible with IKA RV 10 glassware Technical data (extract): Speed range: 20 – 300 rpm Heating temperature range: room temperature – 99 °C Stroke: 150 mm (manual) Cooling surface area: 620 cm² Dimensions (W × H × D): 440 × 530 × 330 mm Weight: 28.3 kg Voltage: 100 – 240 V, 50/60 Hz Protection class: IP 20 Contents of delivery: RV 3 FLEX rotary evaporator HB eco heating bath RV 10.40 dry ice condenser (coated) The IKA RV 3 is the perfect choice for laboratories looking for a safe, functional and durable entry-level model – fitted with coated glassware for added protection.

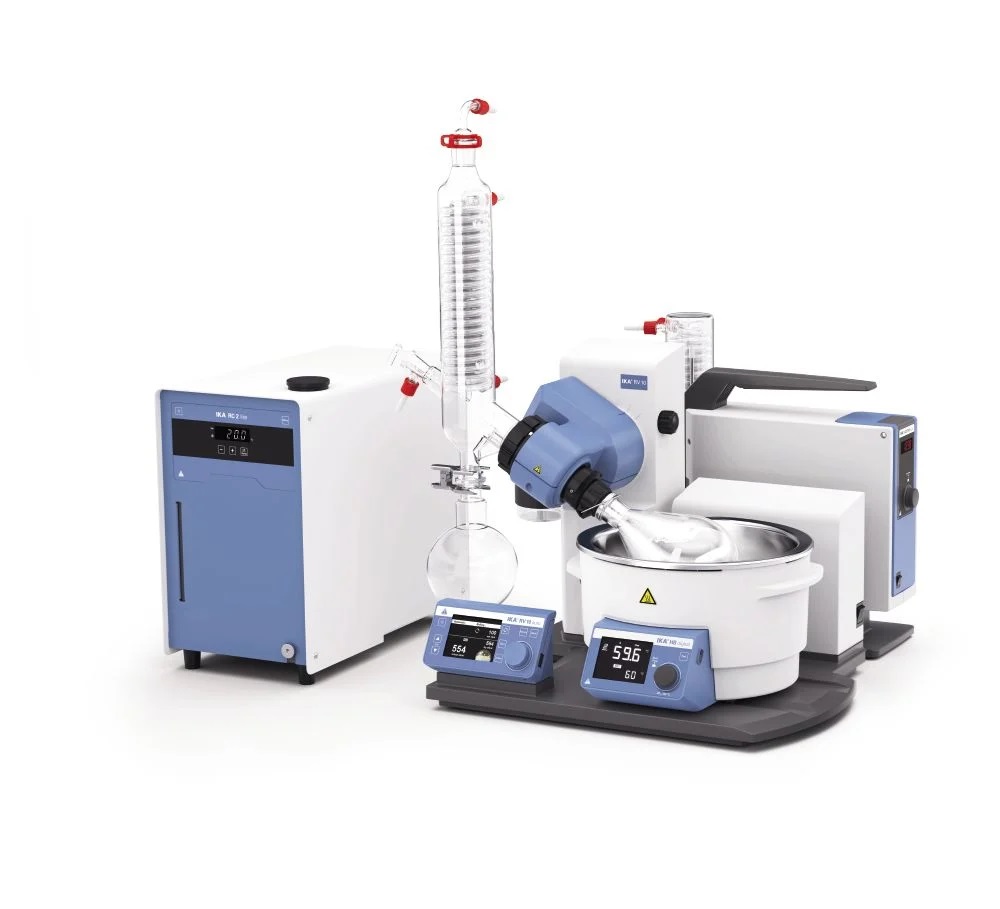

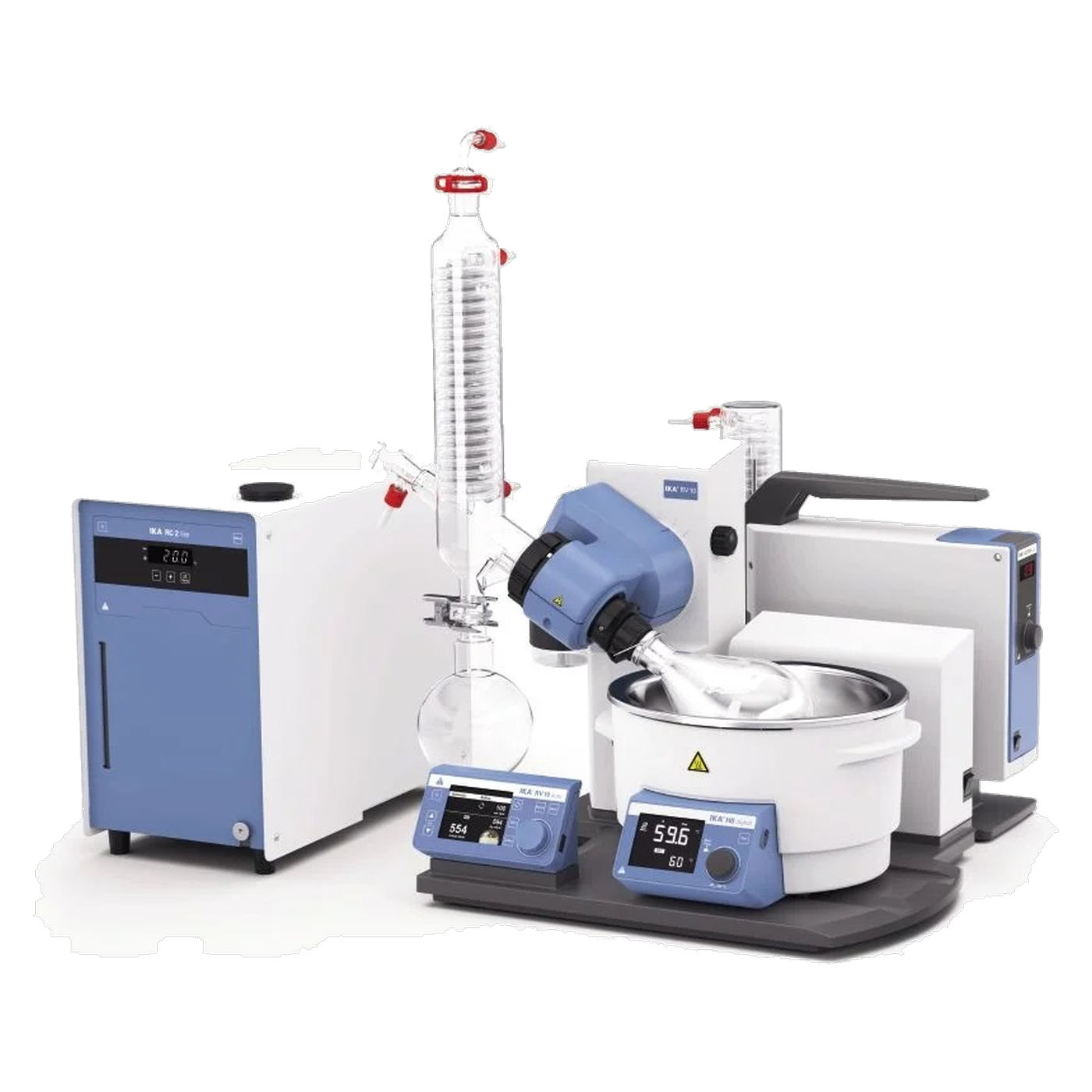

IKA RV 10 auto pro V-C Complete Rotary Evaporator, #0010007353
IKA RV 10 auto pro V-C Complete Rotary Evaporator, #0010007353
IKA RV 10 auto V Starter Solution, rotary evaporator set including vacuum pump, 0010014909
Distillation on autopilot: The IKA RV 10 auto V Starter Solution With the IKA RV 10 auto V Starter Solution (MPN 0010014909), you can bring the future of distillation into your laboratory. This high-end package has been developed for users who do not want to waste time manually monitoring boiling points or readjusting vacuum settings. The RV 10 auto is the flagship of the IKA rotary evaporator series and offers a level of automation that sets new standards in its class. The “Starter” package perfectly complements the evaporator with the high-performance VACSTAR digital vacuum pump – a combination that guarantees efficiency, safety and precision. Intelligence meets process reliability The standout feature of the RV 10 auto is its ability to automatically detect boiling points. Using intelligent sensors and algorithms, the system independently determines the optimum pressure point for the respective solvent. Whether you need to distil individual samples or separate complex solvent mixtures, the RV 10 auto guides the process safely and quickly to completion without the need for constant intervention. This not only saves valuable working time, but also drastically increases the recovery rate of solvents and helps protect the environment. The integrated solvent library also allows you to easily call up predefined parameters for common substances or save your own profiles. All-inclusive: the VACSTAR digital vacuum pump A rotary evaporator is only as good as its vacuum. That is why this set includes the IKA VACSTAR digital vacuum pump. This compact diaphragm pump is perfectly matched to the RV 10 auto. It is controlled directly from the evaporator (via the supplied data cable) and delivers a pumping speed of 22 l/min at a final vacuum of up to 2 mbar. The pump operates oil-free, is chemical-resistant and extremely quiet, making it the ideal partner for use in a laboratory fume cupboard. Maximum safety for users and samples Safety is paramount in distillation processes. The RV 10 auto features a comprehensive safety package: Motorised lift with safety stop: In the event of a power cut, the evaporator piston automatically retracts from the hot heating bath to prevent the sample from overheating or decomposing. Temperature management: The heating bath has an individual safety temperature setting and dry-run protection. Ergonomics: The 4-litre heating bath is fitted with ergonomic carrying handles, making filling and emptying safe and convenient. It heats up extremely quickly (up to 180 °C) and is suitable for water and oil. Intuitive operation and connectivity Control is via a brilliant TFT graphic display with intuitive menu navigation. Here, you can keep an eye on all parameters – from the bath temperature and speed to the current vacuum reading. The integrated vacuum controller eliminates the need for external measuring devices. For the modern, networked laboratory, the RV 10 auto also offers USB and RS-232 interfaces. This allows the system to be integrated into the labworldsoft laboratory software ® to remotely control processes, run pressure-temperature profiles and document them seamlessly. Efficient cooling The set includes the vertical glass assembly (V) with a cooling surface area of 1,500 cm². This highly efficient cooler ensures optimum condensation of solvent vapours. Thanks to its compact design, the unit makes optimum use of the available space within the laboratory fume cupboard. Technical data Unit type: Rotary evaporator (fully automatic) Cooler type: Vertical (V), standard coating Cooling surface area: 1,500 cm² Speed range: 5 – 300 rpm Speed control: Digital Stroke: Motorised lift (140 mm) Heating temperature range: Room temperature to 180 °C Heating power: 1,300 W Vacuum regulator: Integrated Boiling point detection: Automatic Solvent library: Yes Timer function: Yes Interfaces: USB, RS 232 Dimensions (W x H x D): 500 x 430 x 410 mm Weight: approx. 18.6 kg (excluding pump) Protection class: IP 20 Contents of delivery 1 x IKA RV 10 auto drive 1 x HB digital heating bath 1 x RV 10.1 glass set (vertical) 1 x VACSTAR digital vacuum pump 1 x RV 10.5005 vacuum hose set 1 x steam feed-through tube 1 x Woulff bottle (safety bottle) 1 x mains cable & data cable 1 x User manual Customised requirements & accessories Do you also need a recirculating cooler for resource-efficient cooling without tap water? We recommend the suitable IKA cooler (e.g. RC 2 lite). Please contact our procurement service for a comprehensive quote.
IKA RV 10 digital V Starter Solution Rotary Evaporator Pack, 0010013947
The IKA RV 10 digital V Starter Solution is a comprehensive distillation system that combines the RV 10 digital rotary evaporator with precisely matched peripheral equipment for vacuum and cooling. This setup addresses the issue of component compatibility by supplying the evaporator, vacuum pump (VACSTAR digital) and recirculating chiller (RC 2 lite) in a ready-to-use configuration. The system is primarily suited to reproducible standard distillations in the laboratory, where space-saving and process reliability are key priorities. Evaporator architecture and safety features At the heart of the system is the RV 10 digital with a vertical glass assembly (cooling surface area 1500 cm²). The motorised lift is equipped with a ‘Safety-Stop’ function: in the event of a power cut, the evaporator flask is automatically raised out of the heating bath to prevent the medium from overheating or the system running dry. The universal heating bath (water/oil) is controllable up to 180 °C and communicates with the drive unit via an infrared interface, which prevents the bath temperature from rising uncontrollably. Vacuum and cooling management Unlike modular individual set-ups, this solution includes the VACSTAR digital vacuum pump, which delivers a pumping speed of 22 l/min at a final vacuum of 2 mbar. The pump is complemented by the compact RC 2 lite recirculating chiller, which, with a cooling capacity of 400 watts, ensures a constant condensation temperature and reduces water consumption at the chiller to zero. This enables autonomous operation independent of the mains water supply. Data interfaces and automation RS 232 interfaces are provided on both the heating bath and the drive unit for process monitoring and remote control. This allows integration with laboratory software (e.g. IKA labworldsoft) for the documentation of temperature and speed curves. Technical details Speed range: 5 – 280 rpm Heating temperature range: Room temperature – 180 °C Stroke mechanism: Motorised (140 mm stroke) Cooling type: Vertical Cooling surface area: 1500 cm² Final vacuum (pump): 2 mbar Max. pumping speed (pump): 22 l/min Cooling capacity (@20°C): 400 W Interfaces: RS 232, IR (heating bath drive) Protection class (unit): IP 20 Contents of delivery RV 10 digital drive HB 10 heating bath RV 10.1 glass set (vertical) VACSTAR digital vacuum pump RC 2 lite recirculating cooler RV 10.5001 Water hose (2x) H 11 Vacuum hose Customised requirements & procurement service Should you require a version with coated glass for enhanced protection against splinters, or if you are planning to integrate the unit into existing vacuum systems, we would be happy to check the availability of alternative configurations. Our procurement team will clarify technical details for you regarding different glass sets or more powerful coolers.

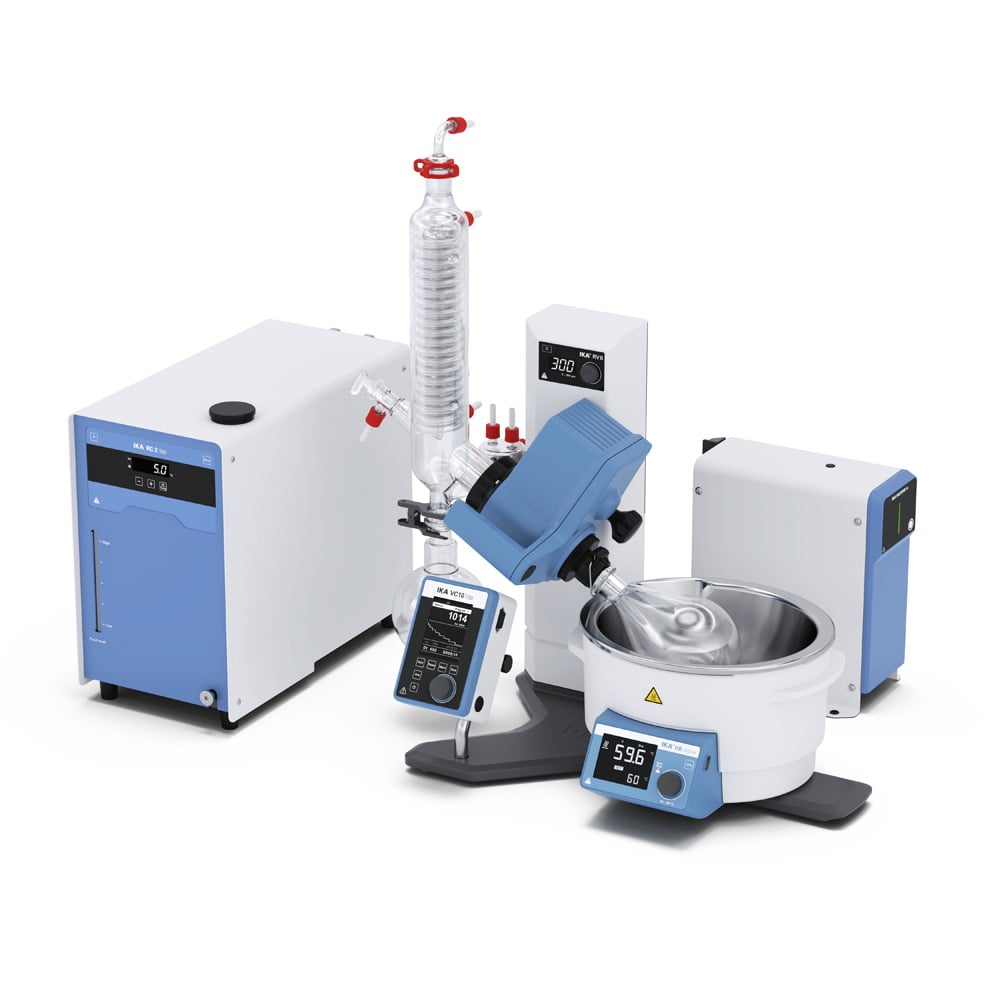

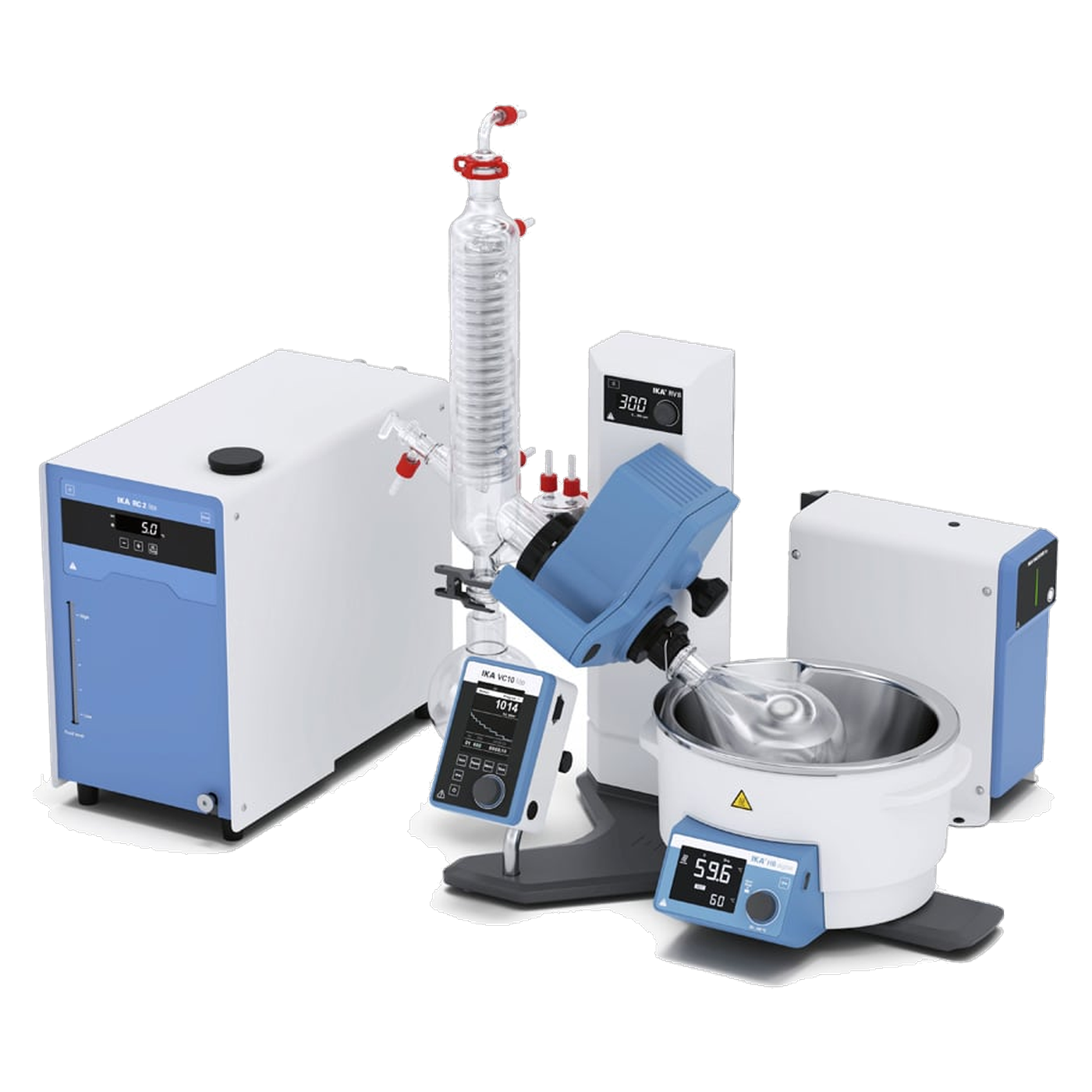

IKA RV 8 V Rotary Evaporator, Starter Solution, 0010013946
IKA RV 8 V Rotating Evaporator Starter Solution, 0010013946 RV 8 V Starter Solution The RV 8 Starter Solution package is the cost-effective, all-in-one solution for your rotary evaporator setup. In addition to the RV 8 V rotary evaporator, the package includes the HB digital heating bath with a 4-litre capacity and a heating temperature range from room temperature to 180 °C, a highly efficient vertical glass condenser set with 1-litre collection and evaporating flasks, as well as the VACSTAR lite vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating cooler. All components and connections required for operation are therefore included. The RV 8 rotary evaporator is the basic manual model in the IKA range of rotary evaporators. It is versatile and can be used in the chemical, pharmaceutical and biotechnology industries, in the fields of research and development, production and quality assurance, in laboratories and in plant engineering. Thanks to specially developed glass guides, the vertical cooler utilises the cooling surface area of 1500 cm² extremely efficiently. Digital displays for rotational speed and heating bath temperature allow for optimal control of all distillation processes. The VACSTAR lite vacuum pump, included in the scope of delivery, is extremely space-saving and achieves a minimum vacuum of 9 mbar. It is controlled via the supplied VC 10 lite vacuum controller. In addition to regulating the recirculating cooler, this also allows for manual setting of the vacuum target value as well as programme-controlled operation. The compact RC 2 lite recirculating chiller, with a robust 400-watt cooling capacity and a powerful pressure and suction pump (0.35 bar), is designed for simple cooling tasks down to –10 °C. The easily accessible and easy-to-clean stainless steel mesh filter ensures consistently high cooling performance for years to come. Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well-prepared for the future. Warranty : By registering online at www.ika.com/register, you can extend the warranty on your equipment free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years following registration (2+3). For peripheral equipment included in the package (vacuum pump and cooler), the additional warranty is one year (2+1). Contents: RV 8 FLEX , RV 10.1 vertical glass set, VC 10 lite , RV 8.3 support rod , VACSTAR lite , RC 2 lite , RV 10.5005 hose set , PC 1.3 cable Accessories and spare parts are available on request!

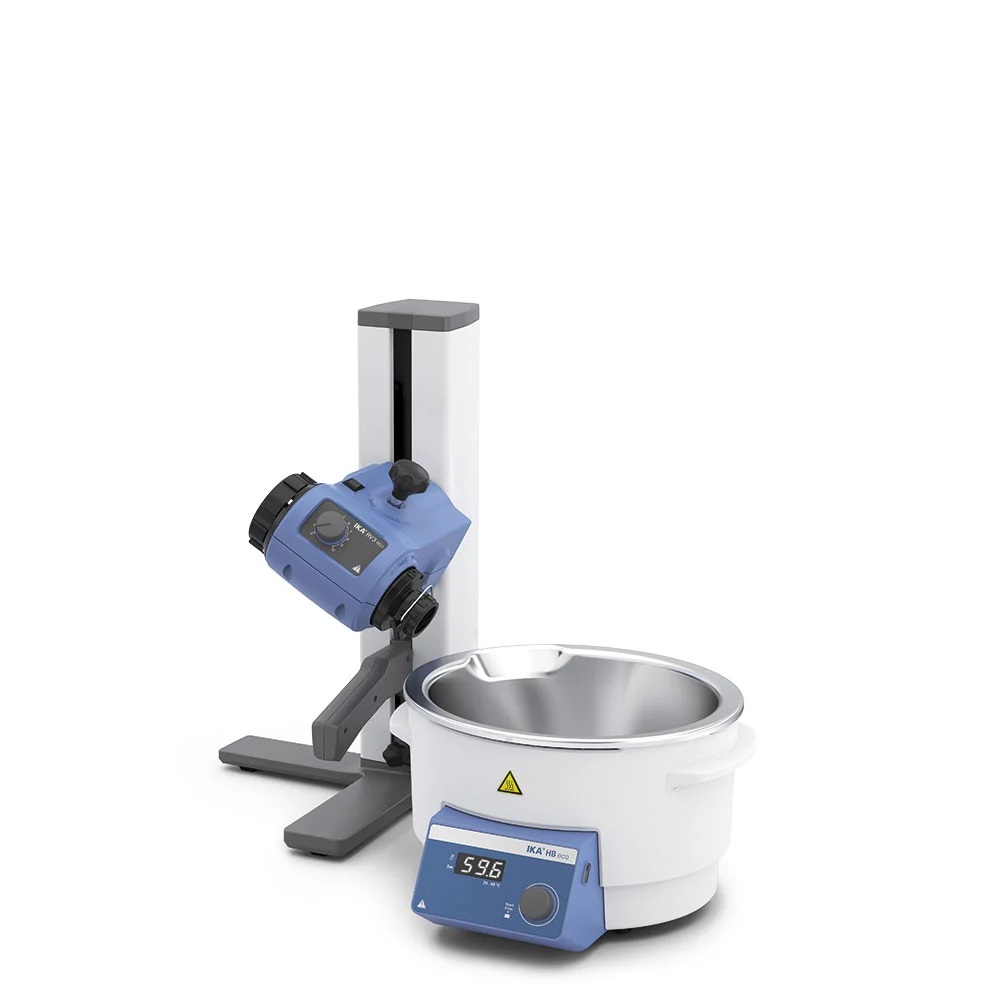

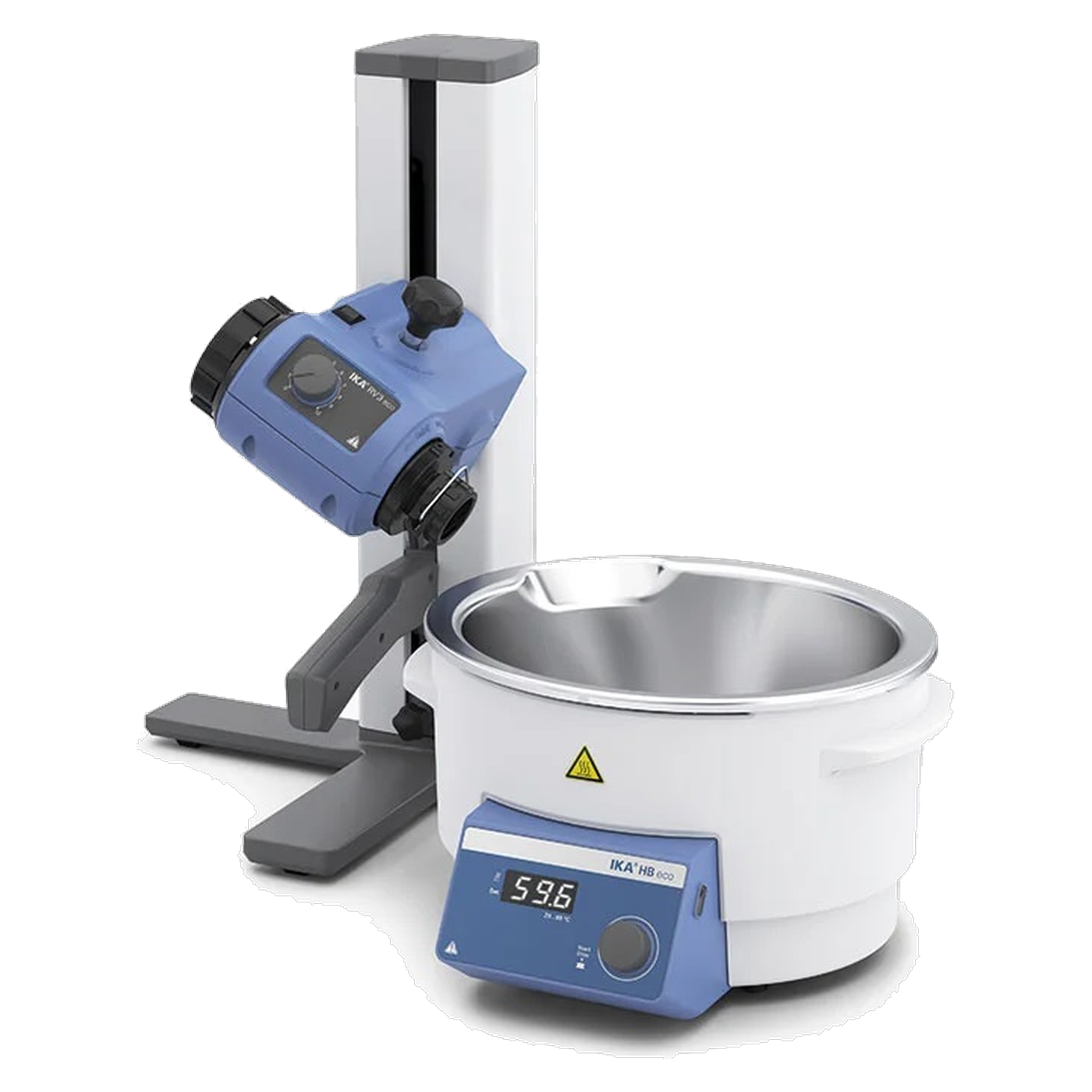

IKA RV 3 FLEX Rotary Evaporator, 0010003331
RV 3 FLEX The RV 3 rotary evaporator is the ideal entry-level model in the IKA range of rotary evaporators. It is versatile and can be used in the chemical, pharmaceutical and biotechnology industries, in the fields of research and development, production and quality assurance, in laboratories and in plant engineering. 4 l heating bath up to 99°C Water heating bath with digital temperature display and carrying handles Mechanical end-stop for the lift Locking mechanism: red indicator showing the unlocked position of the vapour transfer tube Manual lift for precise positioning of glassware Adjustable immersion angle One-handed operation of the manual lift, suitable for both right- and left-handed users Continuously variable speed adjustment via rotary knob and scale Speed range: 20–300 rpm User safety ensured by the unit’s 24 V low-voltage system Flask clamping with integrated release mechanism for easy replacement of the evaporating flask Compatible with the entire IKA RV 10 range of glassware Contents of delivery RV 3 ECO HB eco S099 RV 05.10 Ball-joint clamp RV 10.88 Clamp NS 29 RV 10.70 Steam feed-through pipe (NS 29/32) RV 10.8001 Seal Technical data Cooler type without cooler Motor principle Direct current Speed range 20–300 rpm Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 % Lift manual Stroke 150 mm Heating temperature range Room temp. – 99 °C Dimensions (W x H x D) 440 x 530 x 330 mm Weight 12 kg Permissible ambient temperature range 5 – 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 Voltage 100–240 V Frequency 50/60 Hz Power consumption 1400 W Accessories and spare parts available on request

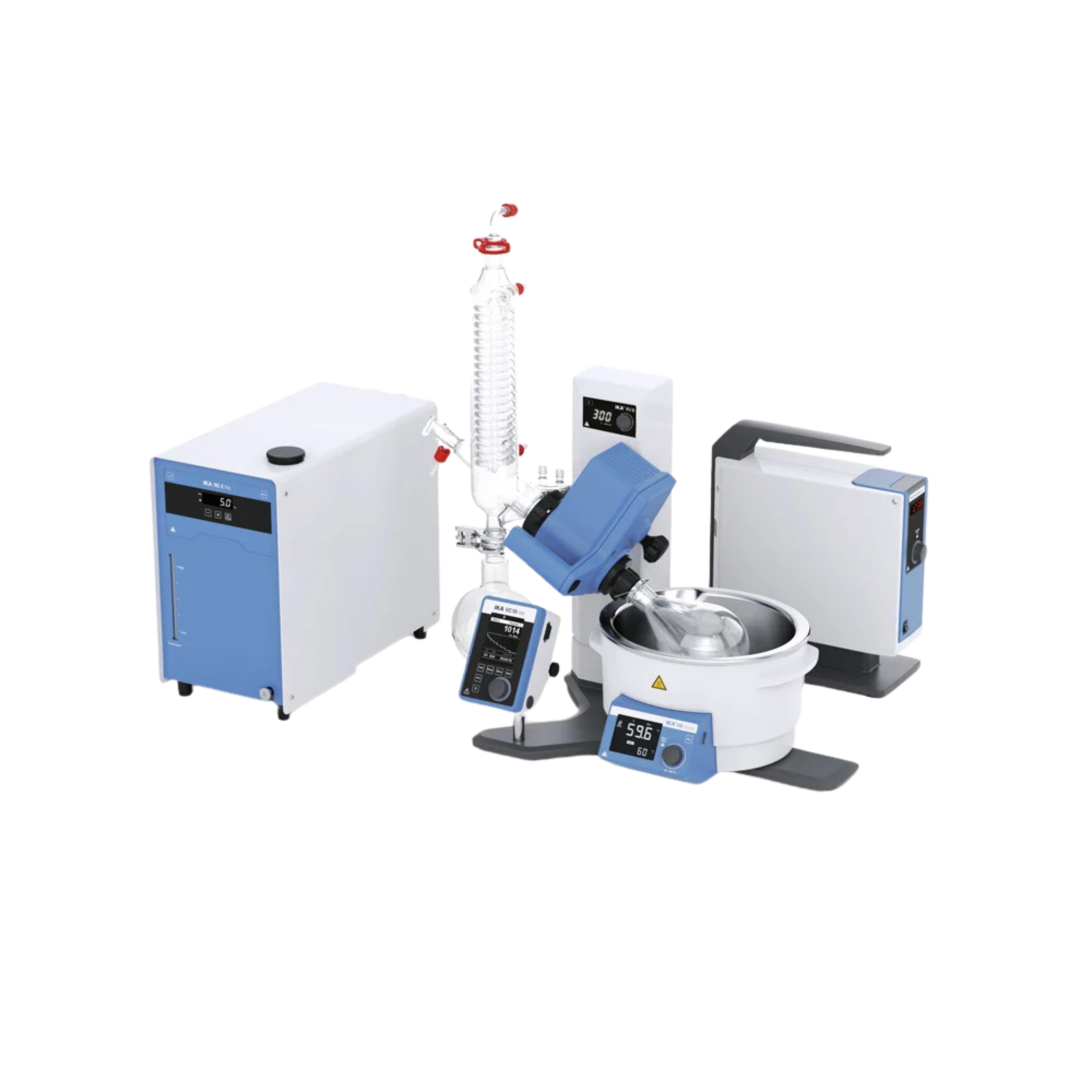

IKA RV 8 pro V-C Complete rotary evaporator, coated vertical glass, 0010012325
The IKA RV 8 pro V-C Complete rotary evaporator is a highly advanced, mechatronic system solution for efficient, gentle distillation, concentration and solvent recovery in chemical, pharmaceutical and biotechnology laboratories. As an entry-level model in professional distillation technology, this complete system combines tried-and-tested functionality with the highest levels of operator ergonomics and process reliability. When thermally separating complex mixtures of substances in research and routine operations, the precise interplay between rotational speed, thermodynamic energy input and vacuum stability is the primary criterion for reliably guaranteeing reproducible evaporation rates without causing thermal damage to the analytes. Ergonomic design and precise mechanical stroke guidance The mechanical system architecture of the RV 8 pro is characterised by a precisely balanced, manual lift mechanism that enables effortless and precise positioning of the evaporator flask in the heating bath. An integrated, mechanically adjustable end stop (Safety Stop) protects the glass apparatus from accidental collision with the bottom of the bath or surrounding laboratory equipment. The ergonomic one-handed operation is optimally accessible for both right- and left-handed users. Additional ease of use is provided by the digital LED display, which continuously shows the rotation speed; this can be adjusted with high precision from 5 to 300 revolutions per minute via a stepless rotary control to ensure uniform film formation on the inner wall of the flask. Universal heating bath and material-friendly thermodynamics The HB digital universal water-oil heating bath, included as standard, forms the process engineering foundation for thermal energy transfer. With a heating capacity of 1,300 watts, the bath achieves extremely short heat-up times and allows for a flexible operating temperature range from room temperature up to 180 degrees Celsius. This makes the system suitable for both low-boiling-point solvents and high-boiling-point phases. A clear digital display clearly shows the setpoint and actual temperatures. The ergonomically designed heating bath features integrated safety handles for safe handling and is structurally designed so that it can be moved flexibly within its footprint to optimally adjust the immersion depth of the flask. Maximum occupational safety thanks to safety-coated vertical glass The material design of this model variant is uncompromisingly geared towards providing maximum protection for laboratory staff. The vertical glass assembly set (V-C) included in the ‘Complete’ package is encased in a transparent, highly resistant plastic safety coating (Coated). This protective coating minimises the risk of glass breakage due to mechanical impact and, in the critical event of an implosion under vacuum, prevents dangerous glass shards and toxic substances from flying around uncontrollably. The vertical intensive condenser, with a generous cooling surface area of 1500 cm², ensures excellent condensation rates even at high flow rates and, thanks to its vertical orientation, takes up minimal floor space in the fume cupboard. Technical details Rotation & Drive Specifications Drive type: DC motor with stepless speed control Speed range: 5 to 300 rpm Speed display: Digital LED display Lifting function: Manual lift with integrated ‘lift-out’ safety function Stroke: 120 mm Head tilt (adjustable angle): 0 to 45 degrees Thermodynamics & Heating Bath (HB digital) Heating power: 1300 W Temperature range: Room temperature (plus device-specific self-heating) to 180 degrees Celsius Setting accuracy: +/- 1 K Max. bath volume: approx. 4 litres Suitable media: Water or suitable thermal oils Safety circuit (dry-run protection): Fixed at 190 degrees Celsius Glass periphery & dimensions Glass attachment type: Vertical condenser, type RV 10.10 Safety coating: Yes, transparent plastic coating (V-C) Cooling surface area: 1500 cm² Overall dimensions (W x H x D): approx. 510 x 430 x 490 mm (excluding glass assembly) Net weight (including heating bath and glass): approx. 20 kg Protection class according to DIN EN 60529: IP 20 Scope of delivery 1 x IKA RV 8 rotary evaporator drive unit (MPN: 0010012325) 1 x IKA HB digital universal heating bath 1 x IKA RV 10.10 vertical glass attachment set (safety-coated, V-C) 1 x Evaporation flask (NS 29/32, 1000 ml, coated) 1 x receiving flask (KS 35/20, 1000 ml, coated) 1 x power cable set 1 x Operating instructions / Quality certificate Individual requirements & accessories To utilise the full potential of the IKA RV 8 pro V-C Complete, we recommend integrating suitable vacuum and cooling peripherals. Our laboratory range includes chemical-resistant diaphragm vacuum pumps (e.g. IKA MVP 10 digital) as well as precise vacuum controllers for accurate boiling point control. To reduce cooling water consumption and ensure constant condensation temperatures, we also recommend connecting a compact recirculating chiller (such as the IKA RC 2 lite). For specialised applications, we also offer evaporation flasks in various volumes (from 50 to 3000 ml), as well as powder flasks and distillation spiders. Please use our technical procurement service to configure your turnkey distillation unit.
IKA RV 3 Rotary Evaporator with Dry Ice Condenser, 0010006363
RV 3 with dry ice condenser The RV 3 rotary evaporator is the basic manual model in the IKA range of rotary evaporators. It has a wide range of applications in the chemical, pharmaceutical and biotechnology industries, in research and development, in production and quality assurance, in laboratories and in plant engineering. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes. 4-litre heating bath Integrated safety shut-off function in the event of a power cut Water/oil heating bath with carrying handles Lock button to fix the heating bath temperature Locking mechanism: red indicator shows the unlocked position of the vapour tube Flask clamping with integrated push-off function for easy replacement of evaporating flasks Manual lift for precise positioning of glassware Adjustable immersion angle One-handed manual operation of the lift, suitable for both left- and right-handers. Speed range: 5–300 rpm Low operating voltage (24 V) ensures user safety Compatible with the entire range of IKA RV 10 glassware. Scope of delivery RV 3 FLEX RV 10.4 dry ice cooler Technical data Cooler type: Dry ice cooler Cooling surface area 620 cm² Motor type: DC Speed range: 20–300 rpm Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 % Manual lift Stroke 150 mm Heating temperature range: room temperature – 99 °C Dimensions (W x H x D) 440 x 530 x 330 mm Weight 28.3 kg Permissible ambient temperature range 5 – 40 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 20 Voltage 100–240 V Frequency 50/60 Hz Power consumption 1400 W Accessories and spare parts available on request

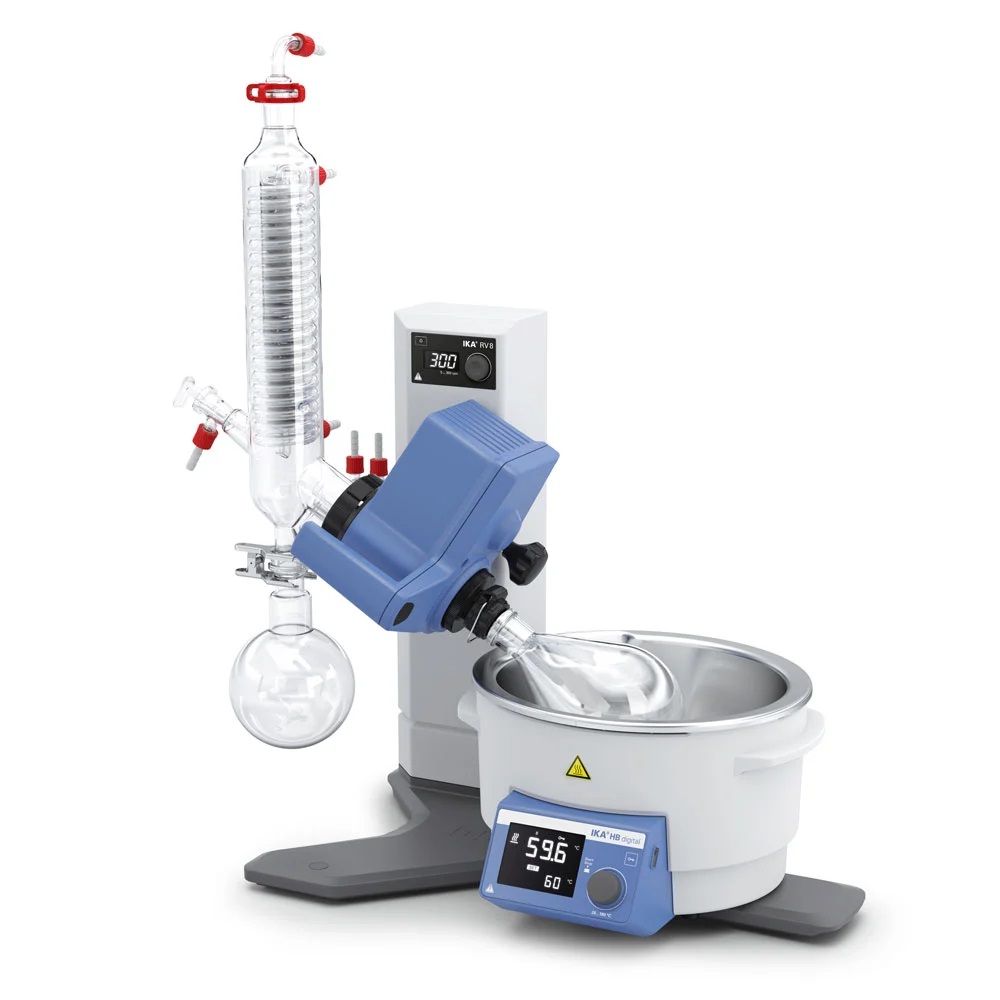

IKA RV 8 V-C Rotary Evaporator, 0010003485
RV 8 V-C The RV 8 rotary evaporator is the basic manual model in the IKA range of rotary evaporators. It is versatile and can be used in the chemical, pharmaceutical and biotechnology industries, in the fields of research and development, production and quality assurance, in laboratories and in plant engineering. Thanks to specially developed glass guides, the transparently coated vertical cooler utilises the cooling surface area of 1600 cm² extremely efficiently. Digital displays for rotational speed and heating bath temperature allow for optimal control of all distillation processes. 4-litre heating bath Integrated safety lift mechanism in the event of a power cut Woulf flasks included Water-oil heating bath with carrying handles Lock button to secure the heating bath temperature Easy-to-read black-and-white glass display Locking mechanism: red indicator showing the unlocked position of the steam passage tube Manual lift for precise positioning of glassware Adjustable immersion angle One-handed operation of the manual lift, suitable for both right- and left-handers Speed range: 5–300 min⁻¹ User safety ensured by 24 V low-voltage power supply within the unit Flask mounting with integrated ejection mechanism for easy replacement of the evaporating flask Highly efficient condenser with 1600 cm² – compact design Compatible with the entire IKA RV 10 range of glassware Scope of delivery RV 8 drive HB digital S099 RV 10.10 glass set, vertically coated RV 10.88 Clamp NS 29 RV 10.70 Steam feed-through pipe (NS 29/32) RV 10.8001 Seal RV 3.4 Woulff flask Technical data Cooler design: vertical Cooling surface area 1600 cm² Motor type: DC Speed range 5–300 rpm Speed tolerance (set speed <100 rpm): ±1 rpm Speed tolerance (set speed >100 rpm): ±1 % Manual lift Stroke: 120 mm Heating temperature range: room temperature – 180 °C Heating power 1400 W Setpoint temperature accuracy ±1 K Max. capacity: 4 l Dimensions (W x H x D) 510 x 490 x 345 mm Weight: 26.07 kg Permissible ambient temperature range 5–40 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 20 Voltage 100–240 V Frequency 50/60 Hz Power consumption 1500 W DC voltage 24 V= Accessories and spare parts available on request

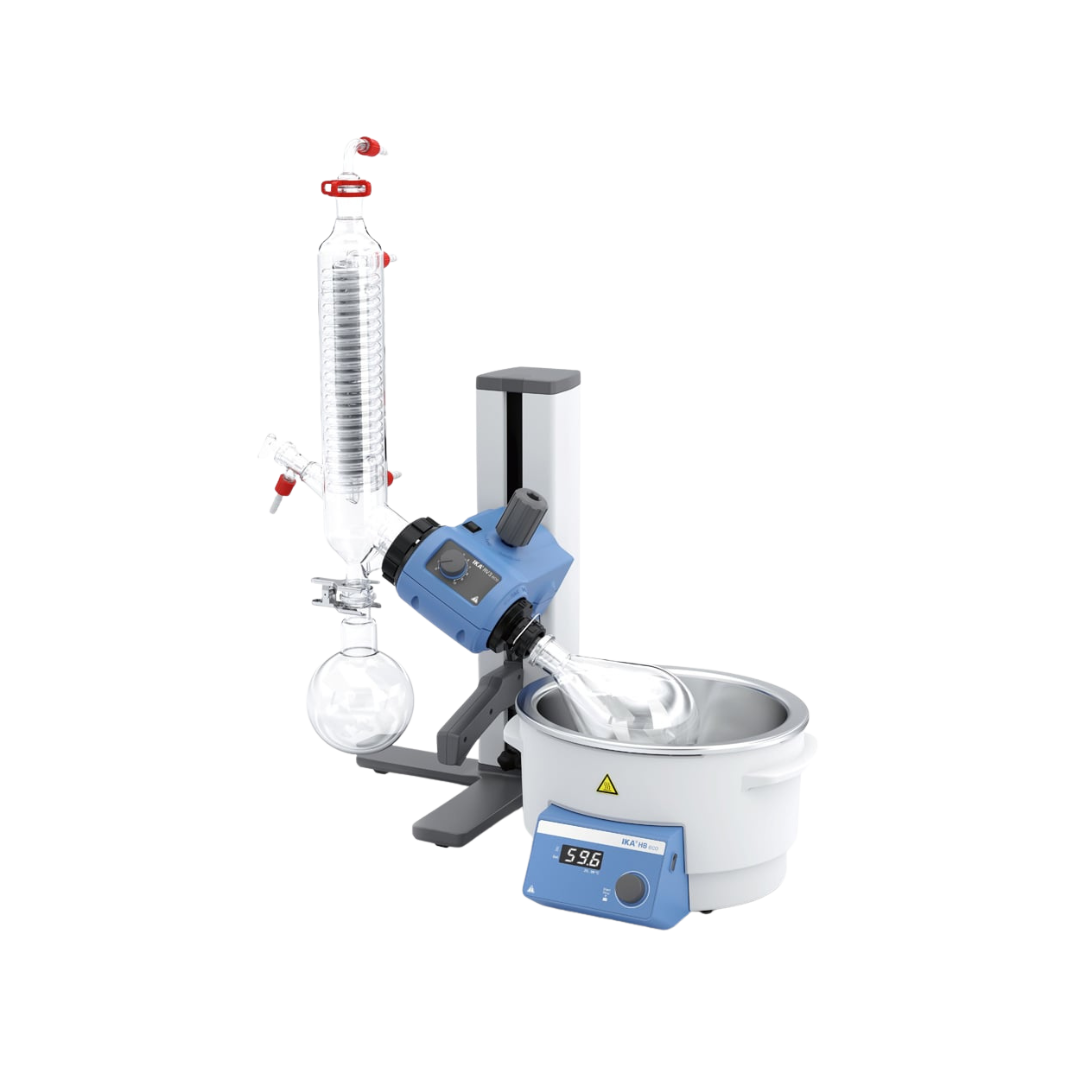

IKA RV 3 V Rotary Evaporator Pack (Vertical Glass), 0010003324
The IKA RV 3 V is the ideal entry-level package for rotary evaporation and represents the latest generation of the tried-and-tested RV series. Designed as a robust ‘workhorse’ for standard distillation tasks in laboratories and educational settings, it offers excellent value for money. Manual control for robust routine applications This model has been deliberately streamlined to focus on the essential functions. (Feature) Professional buyers appreciate the intuitive, analogue controls: rotary knobs for the rotation speed (5–300 rpm) and the heating bath temperature (room temperature–180 °C) enable quick and straightforward operation without complex programming. (Benefit) This makes the RV 3 V particularly durable and ideal for teaching laboratories or routine quality control. Safe and easy handling A key advantage is the ergonomic, manual lift. (Feature) This enables the evaporating flask to be lifted out of the heating bath quickly and precisely. Operation is optimised for both right- and left-handed users. (Benefit) The “HB eco” heating bath features carrying handles for safe transport and a “Hot” warning indicator that warns of the risk of burns even when the unit is switched off. Complete basic package (vertical glass) This pack (MPN 0010003324) already contains all the core components. ‘V’ stands for the vertical glassware set (RV 10.1) included in the scope of delivery. (Feature) This standard cooler (1500 cm² cooling surface) is space-saving and highly efficient for most common solvents. (Benefit) Technical details Condenser type: Vertical (V) with 1500 cm² cooling surface Chiller material: Borosilicate glass 3.3 Heating bath: HB eco Heating bath temperature range: RT – 180 °C Heating bath volume: 3 L Drive: RV 3 (manual) Lift type: Manual lift Stroke (lift): 155 mm Speed range: 5 – 300 rpm Motor: Brushless DC motor Protection class (housing): IP 20 Dimensions (W x H x D): 460 x 530 x 430 mm Scope of delivery RV 3 drive unit (drive) HB eco heating bath RV 10.1 Glassware, vertical (vertical cooler, 1L evaporating flask, 1L receiving flask) RV 10.70 steam feed-through tube (NS 29/32) Hose connection set Mains cable User manual Note: A vacuum pump and recirculating cooler are required for operation but are not included in this package. Customised requirements & procurement service This is the perfect starter pack. Do you need advice on a suitable vacuum pump (e.g. IKA VACSTAR) or an efficient recirculating chiller (e.g. IKA RC 2)? Our team of experts will be happy to put together a complete system for you. For specific spare parts, such as individual glass components, please use our bespoke procurement service.

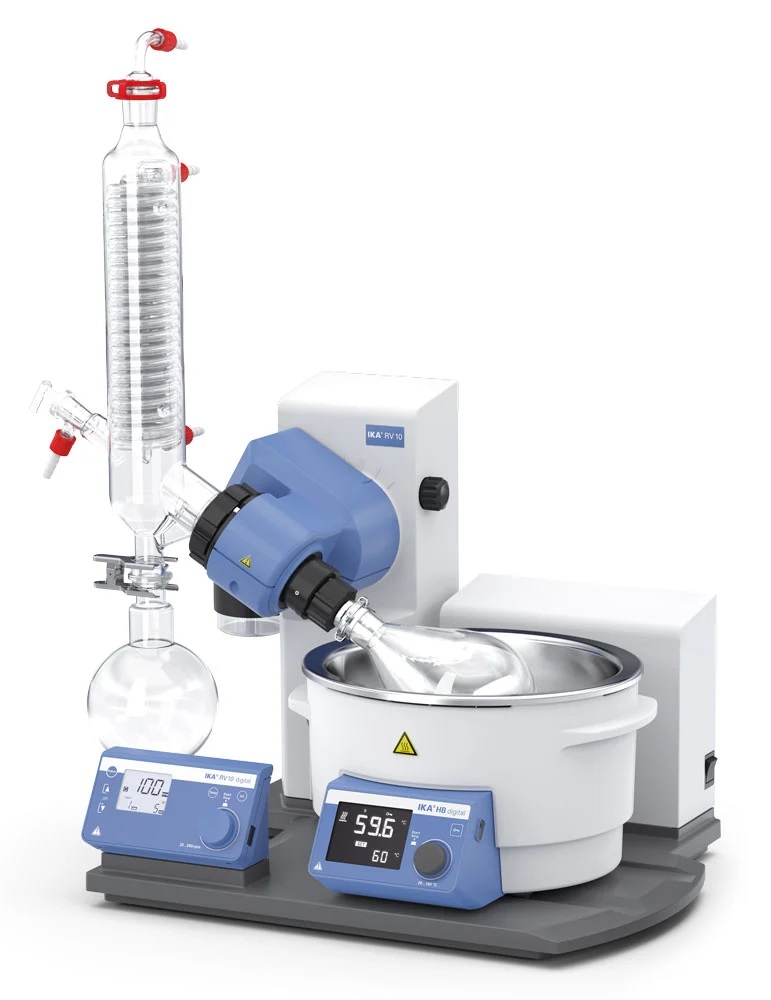

IKA RV 10 digital V rotary evaporator, vertical cooler, HB 10 heating bath, RS 232, 0010004799
Efficiency and safety in everyday laboratory work: the IKA RV 10 digital V The IKA RV 10 digital V (MPN 0010004799) is the logical evolution of the tried-and-tested RV 10 series. As a digital upgrade to the basic model, this complete rotary evaporator package offers not only the highest precision but also cutting-edge interfaces for the modern Laboratory 4.0. Equipped with the vertical glass set (V), this system is the ideal all-rounder for standard distillations, reflux applications and drying processes in the chemical, pharmaceutical and biotechnology sectors. Intelligent technology for reproducible results Unlike analogue devices, the RV 10 digital features an easy-to-read display that provides information on the heating bath temperature, rotational speed and timer function at all times. This enables precise reproducibility of your experiments. A particular highlight is the RS 232 interface: it allows remote control of the unit as well as comprehensive documentation of all process parameters via the labworldsoft laboratory software ®. In addition, the drive unit communicates directly with the heating bath via an infrared interface, enabling intelligent power control. Safety without compromise When working with solvents and heat, safety is paramount. The RV 10 digital sets new standards in this regard. The motorised lift features an integrated ‘Safety-Stop’ function: in the event of a power cut, the evaporator piston automatically retracts from the hot bath. This reliably prevents the medium from overheating or the sample from ‘boiling dry’. The universal heating bath (water/oil) heats up to 180 °C and is equipped with dry-run protection and an adjustable safety temperature circuit. Ergonomic carrying handles on the bath also ensure safe handling when filling or emptying, and the lockable bath base prevents accidental slipping. User-friendliness and durability During development, IKA placed particular emphasis on usability. The timer function enables time-controlled processes, ideal for routine tasks. The patented release mechanism significantly simplifies the replacement of the evaporating flask: even flasks that are firmly stuck can be released safely and with minimal effort, minimising the risk of glass breakage. The RV 10.1 vertical condenser included in the set is extremely space-saving and efficient. With a cooling surface area of 1,500 cm², it ensures high condensation rates. The coated versions (available as an option) offer additional protection against splintering. Soft start and intermittent operation The motor’s soft start prevents the medium from spilling over at start-up, even at high fill levels. For difficult-to-handle media, the RV 10 digital offers intermittent operation (right-left cycle), which improves mixing and can speed up the drying process. The unit also automatically detects the lift’s end stop and can be individually adjusted to suit your glassware. Detailed technical specifications Cooler type: Vertical (RV 10.1) Cooling surface area: 1,500 cm² Speed range: 5 – 280 rpm Speed display: Digital Heating bath temperature: Room temperature to 180 °C Heating power: 1,300 W Lift: Motorised (stroke 140 mm) Interfaces: RS 232 (PC), IR (bath) Timer: Yes Safety features: Lift-out in the event of a power cut, dry-run protection, safety temperature circuit Protection rating: IP 20 Permissible ambient temperature: 5 – 40 °C Dimensions (W x H x D): 500 x 430 x 410 mm Weight: approx. 20 kg Contents 1 x IKA RV 10 digital drive unit 1 x HB 10 heating bath (universal water/oil) 1 x RV 10.1 glassware set (vertical condenser, 1000 ml evaporating flask, 1000 ml receiving flask) 1 x steam connection Operating instructions and cable Customised requirements & accessories Do you require a vacuum pump (e.g. VACSTAR digital), a recirculating cooler (RC 2 lite) or coated glassware for enhanced safety? We would be happy to put together a complete rotary evaporator system for you. Please contact our procurement service for personalised advice.
IKA RV 10 Digital Rotary Evaporator with Dry Ice Condenser, 0010006365
RV 10 digital with dry ice condenser The RV 10 digital model represents the logical evolution of the RV 10 rotary evaporator product range. It features a new universal heating bath, modern safety features and digital interfaces. The RV 10 digital is a robust and reliable companion for all distillation tasks. The package with a dry ice condenser is particularly suitable for the distillation of low-boiling solvents. Scope of supply RV 10 digital FLEX RV 10.102 receiving flask (KS 35/20, 500 ml) RV 10.4 dry ice cooler RV 10.84 evaporating flask (NS 29/32, 1,000 ml) Technical Specifications Cooler type Dry ice cooler Cooling surface area 620 cm² Motor type Direct current Speed range 5–280 rpm Reversible rotation Yes Lift Motor Stroke 140 mm Heating temperature range Room temperature – 180 °C Heating power 1300 W Setpoint temperature accuracy ±1 K Max. capacity 3 l Timer Yes Dimensions (W x H x D) 500 x 430 x 440 mm Weight 20 kg Permissible ambient temperature range 5 – 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface yes Voltage 115 V Frequency 50/60 Hz Power consumption 1400 W Other voltage options available (220–240 V / 115 V / 100–240 V / 100–120 V / 100–115 V) Accessories and spare parts available on request

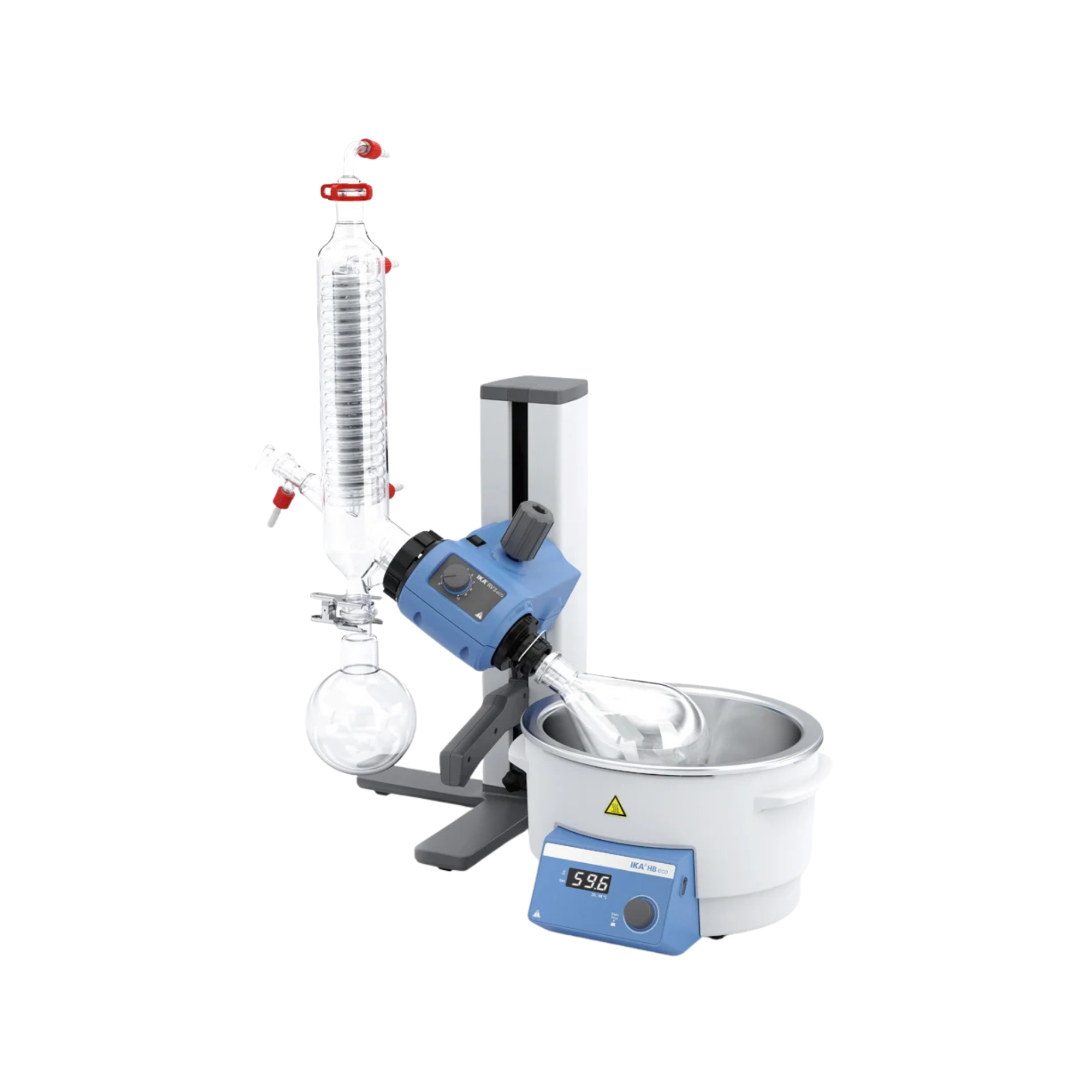

IKA RV 3 V-C rotary evaporator, coated vertical condenser, 0010003328
Thermodynamics of phase transitions and wick film evaporation In instrumental solvent recovery, distillation kinetics are based on the manipulation of vapour pressure curves through the application of a vacuum. The IKA RV 3 rotary evaporator controls this phase transition (liquid to gas) via precise mechanical rotation of the evaporator flask. The stepless direct drive generates speeds of 20 to 300 revolutions per minute. This rotation uses radial centrifugal forces to force the liquid medium in the flask to form a continuous, extremely thin liquid film (wipe film) on the heated inner glass wall. This fluid-mechanical surface enlargement drastically maximises the heat transfer coefficient from the 4-litre heating bath into the medium. At the same time, the continuous mixing prevents thermodynamic boiling delay and reduces the specific evaporation enthalpy, enabling even high-boiling-point solvents to be gently distilled off at moderate heating bath temperatures. Polymer physics and mechanical vacuum containment From a process engineering perspective, distillation apparatus operates under high vacuum, which exerts a massive negative differential pressure (Δp) on the molecular silicate structure of the glass components. Under this pressure, mechanical micro-cracks or thermal shock stresses can lead to a catastrophic implosion. The suffix ‘V-C’ (Vertical – Coated) defines the safety-related architecture of this system: the entire borosilicate vertical cooler is completely coated with a highly transparent, thermoplastic polymer matrix. In the event of glass fracture, this plastic coating acts as a mechanical vacuum containment. It absorbs the kinetic energy of the collapsing glass structure and absolutely reliably prevents the ballistic ejection of glass splinters and toxic aerosols into the laboratory atmosphere. Kinematics of the lifting system and immersion angle geometry On the RV 3, the physical positioning of the evaporating flask at the thermodynamic centre of the heating bath is achieved via a purely mechanical, manual lifting system. Locking the vertical axis requires the use of both hands, which, from a safety perspective, prevents the glass components from being lowered unintentionally by gravity. The mechanical end stop of the lifting mechanism can be precisely set manually to physically prevent the rotating glass flask from colliding with the base of the heating bath. In addition, the system allows for stepless adjustment of the immersion angle, enabling the fluid-dynamic geometry of the flask to be adapted to asymmetrical fill volumes or varying viscosities of the sample matrix. Technical details Product type: Rotary evaporator with manual lifting system Thermodynamic principle: Thin-film evaporation under vacuum Cooler geometry: Vertical cooler (V-C) Glass coating (containment): Thermoplastic splatter protection (coated) Drive kinematics: Stepless rotation (20–300 rpm) Heating bath volume: 4 litres (HB eco heating bath for aqueous media) Lifting mechanism: Manual lift with two-handed safety lock and end stop Immersion angle: Infinitely adjustable to optimise fluid dynamics Cooling surface area: 1500 cm² for maximum thermodynamic condensation rate Scope of delivery 1 x IKA RV 3 drive unit (manual lift) 1 x IKA HB eco heating bath (4 litres) 1 x IKA RV 10.10 glassware set (vertical condenser, coated, incl. evaporating flask and receiving flask) (Important note: The vacuum pump, which is essential for distillation, the vacuum controller and a recirculating cooler for thermodynamic condensation are not included in the scope of delivery!) Individual requirements & accessories The RV 3 V-C is a purely physical distillation apparatus and does not generate any phase transitions without the appropriate pressure and cooling infrastructure. To maintain the thermodynamic gradient in the vertical condenser, it is essential to combine it with a high-performance recirculating cooler (e.g. IKA RC 2 basic). To manipulate the vapour pressure curve of the solvent, you must use a chemical-resistant diaphragm vacuum pump. Please contact our procurement service at any time for a metrologically accurate calculation of vacuum and cooling capacity requirements for your specific solvents.

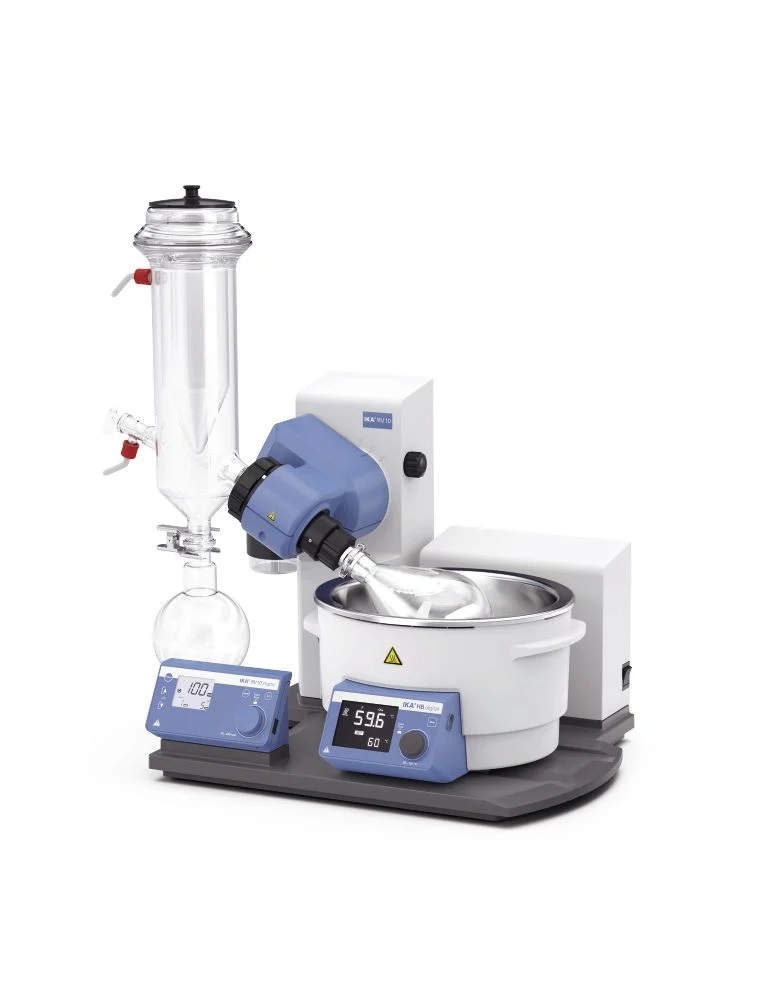

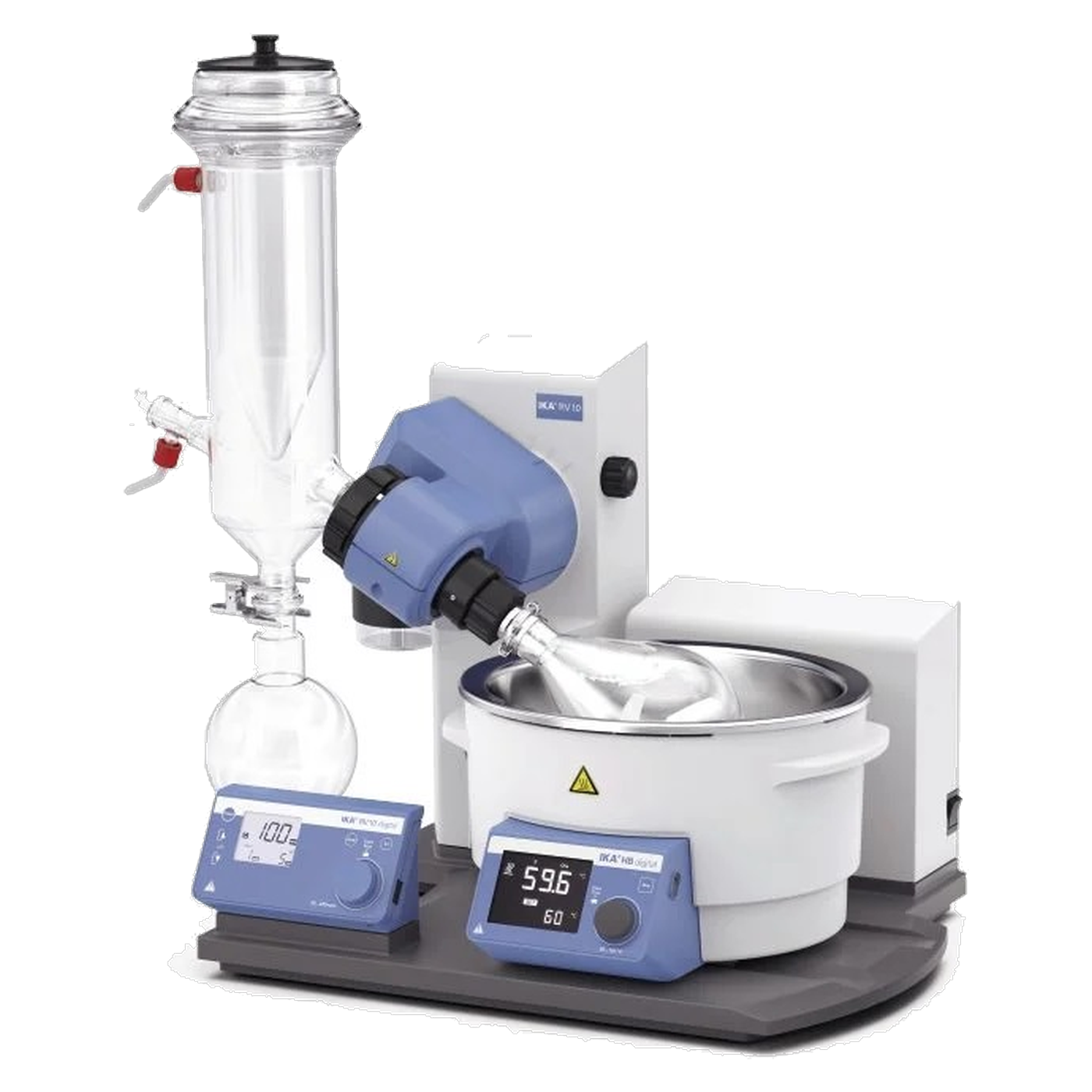

IKA rotary evaporator, RV 10 digital with dry ice condenser, coated, 0010006364
IKA RV 10 digital rotary evaporator with coated dry-ice condenser The RV 10 digital is the logical evolution of IKA’s tried-and-tested RV 10 series and sets new standards in ease of use, safety and efficiency. Featuring a motorised lift, digital control and a modern universal heating bath, the system is suitable for a wide range of distillation tasks – from research and development to quality control. The included dry-ice condenser set with coated glassware is specially designed for the distillation of low-boiling-point solvents. The glass coating provides additional break resistance and enhanced user safety in everyday laboratory work. Key features: Digital control for precise regulation of speed and heating temperature Motorised lift with 140 mm stroke and safety features Universal heating bath (room temperature – 180 °C) with 1300 W heating power Digital display and timer function for reproducible processes Reversible rotation for flexible applications Coated dry ice condenser, cooling surface area 620 cm² RS-232 interface for data connection and documentation Max. filling volume: 3 l Compatible with IKA glassware from the RV 10 series Technical data (extract): Speed range: 5 – 280 rpm Setpoint temperature accuracy: ±1 K Stroke: 140 mm (motor-driven) Dimensions (W × H × D): 500 × 430 × 440 mm Weight: 20 kg Voltage: 115 V (other voltage options available) Protection class: IP 20 Contents: RV 10 digital FLEX rotary evaporator Heating bath (universal) RV 10.84 evaporating flask, NS 29/32, 1,000 ml RV 10.203 collection flask, coated, KS 35/20, 1,000 ml RV 10.40 dry ice condenser, coated The IKA RV 10 digital with a coated dry-ice condenser combines safety, digital precision and robust construction – the ideal solution for demanding distillation tasks.

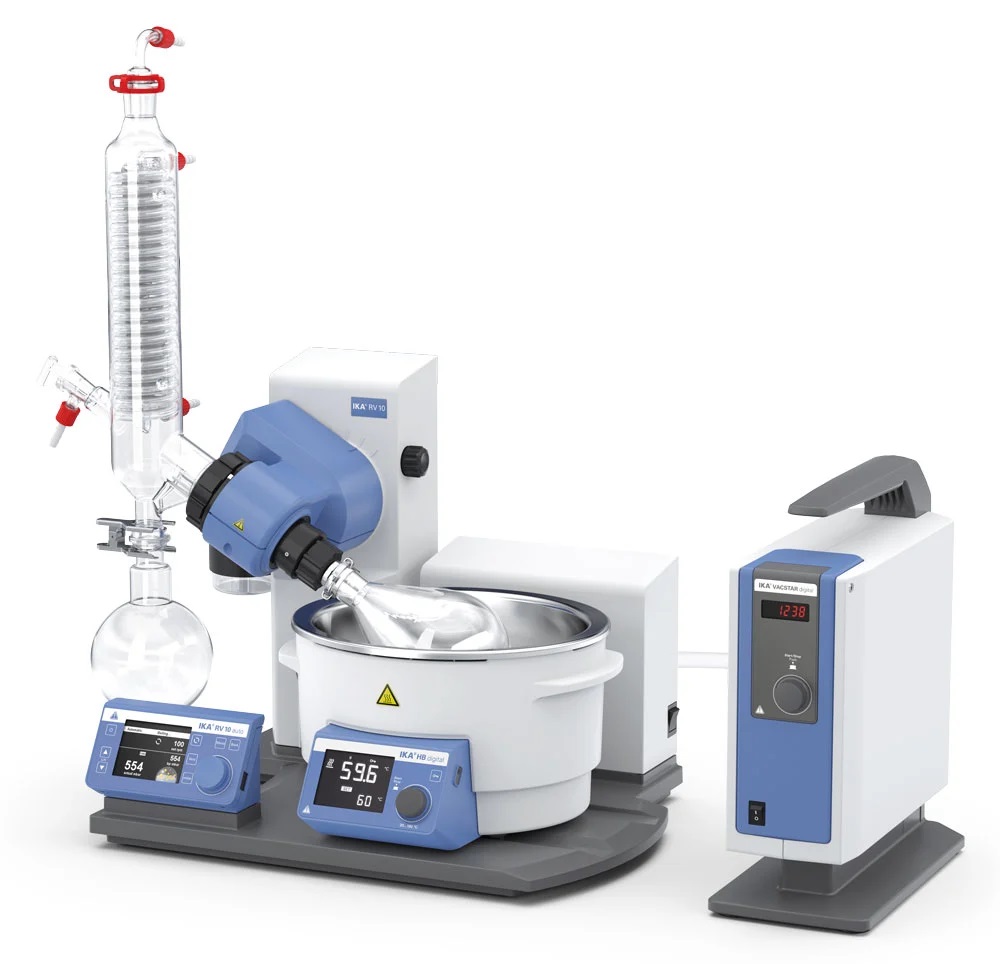

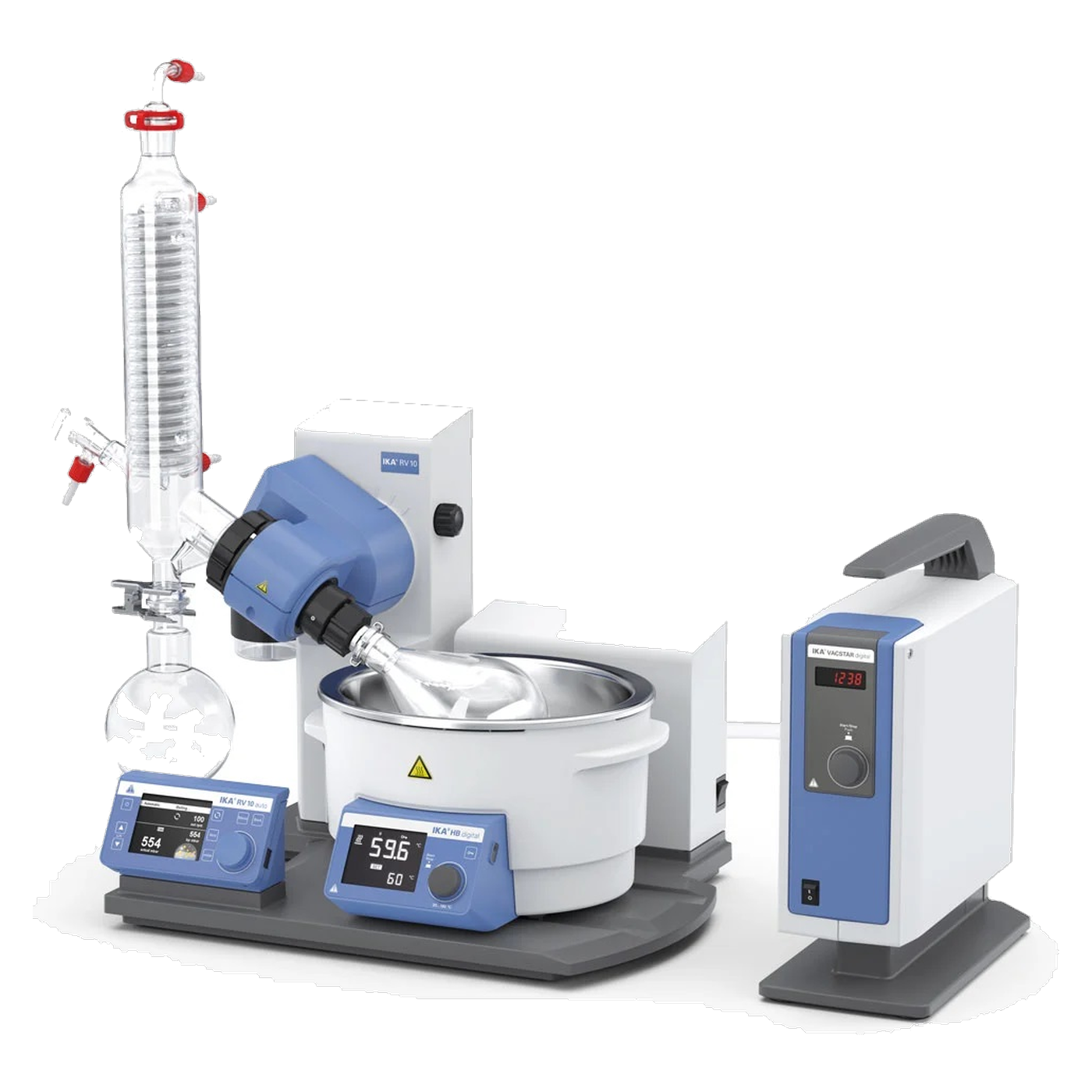

IKA RV 10 auto pro V rotary evaporator, 0010004815
RV 10 auto pro V The completely redesigned RV 10 auto is the flagship model in IKA’s rotary evaporator product range. Its key features include innovative operation via a brilliant TFT colour graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all the features required for efficient, safe and economical operation. These include automatic control of the vacuum and the cooling water flow rate. The intuitive operation quickly guides the user to the desired result. Thanks to specially developed glass guides, the cooler utilises its 1600 cm² cooling surface extremely efficiently. The RV 10 auto allows the user to carry out customised procedures via advanced ramp programming. Further innovative features such as soft start, alternating clockwise and anti-clockwise rotation in interval mode, and the timer function for controlling time sequences make day-to-day laboratory work easier. Safety is ensured by the motor-driven lift with a ‘safety-stop’ function. In the event of a power cut, it automatically lifts the evaporating flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry-run protection, adjustable end-position detection to protect against glass breakage, and a lock function ensure user safety. Furthermore, the receiving flasks and the cooler are also available in a coated version. The USB or RS-232 interface allows remote control via the IKA ‘labworldsoft’ software and enables updates via the firmware update tool. The scope of delivery includes vacuum hoses and water hose connections for your in-house cooling water supply. The new IKA Vacstar digital, included in the scope of delivery, is controlled directly by the RV 10 auto drive unit via the supplied data cable. 4-litre heating bath Automatic boiling point detection Integrated vacuum controller Integrated solvent library with 40 pre-stored and expandable solvents Operation via a brilliant TFT colour graphic display Universal safety heating bath Optimised bath volume for rapid heating Ergonomic carrying handles on the heating bath Safety temperature circuit Dry-run protection Cooler with 1600 cm² with a compact footprint Coated glass Intuitive operation via simple menu navigation Programming of up to ten individual procedures Soft start Right-left rotation Timer function End-position detection Piston extraction device for stuck pistons Digital interfaces: USB and RS-232 interfaces for remote control Multilingual Automatic cooling water management Automatic aeration Automatic heating bath management Warranty By registering online at www.ika.com/register, you can extend the warranty on your equipment free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years following registration (2+3). For peripheral equipment included in the package (vacuum pump and cooler), the additional warranty is one year (2+1). Contents RV 10 auto pro FLEX VACSTAR digital RV 10.1 Vertical Glass Set RV 10.70 vapour feed-through tube (NS 29/32) RV 10.8001 Seal Vacuum hose (2 x 0.55 m) Water discharge hose (1 x 1 m) Water discharge hose (1 x 1 m) USB cable Technical specifications Cooler type Vertical cooler Cooling surface area 1600 cm² Speed range 5–300 rpm Reversible rotation yes Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 % Lift Motor Stroke 140 mm Heating temperature range Room temp. – 180 °C Heating power 1350 W Setpoint temperature control accuracy ±1 K Max. filling volume 4 l Integrated vacuum regulator yes Measurement accuracy: ± 1 mbar Timer yes Vacuum pump Vacstar digital Dimensions (W x H x D) 500 x 430 x 440 mm Weight 52.34 kg Permissible ambient temperature range 5–40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface yes USB interface Yes Analogue output Yes Voltage 100–240 V Frequency 50/60 Hz Device power consumption 100 W Standby power consumption 3.3 W Accessories and spare parts available on request
