Moisture analyser
KERN moisture analysers determine the moisture content of samples quickly and accurately, using either halogen or infrared drying technology. Depending on the model, the instruments have a readability of up to 0.001 g and feature a graphic display for clear evaluation. You can also find suitable precision balances in our shop. Our service team will be happy to advise you on selecting the right equipment.

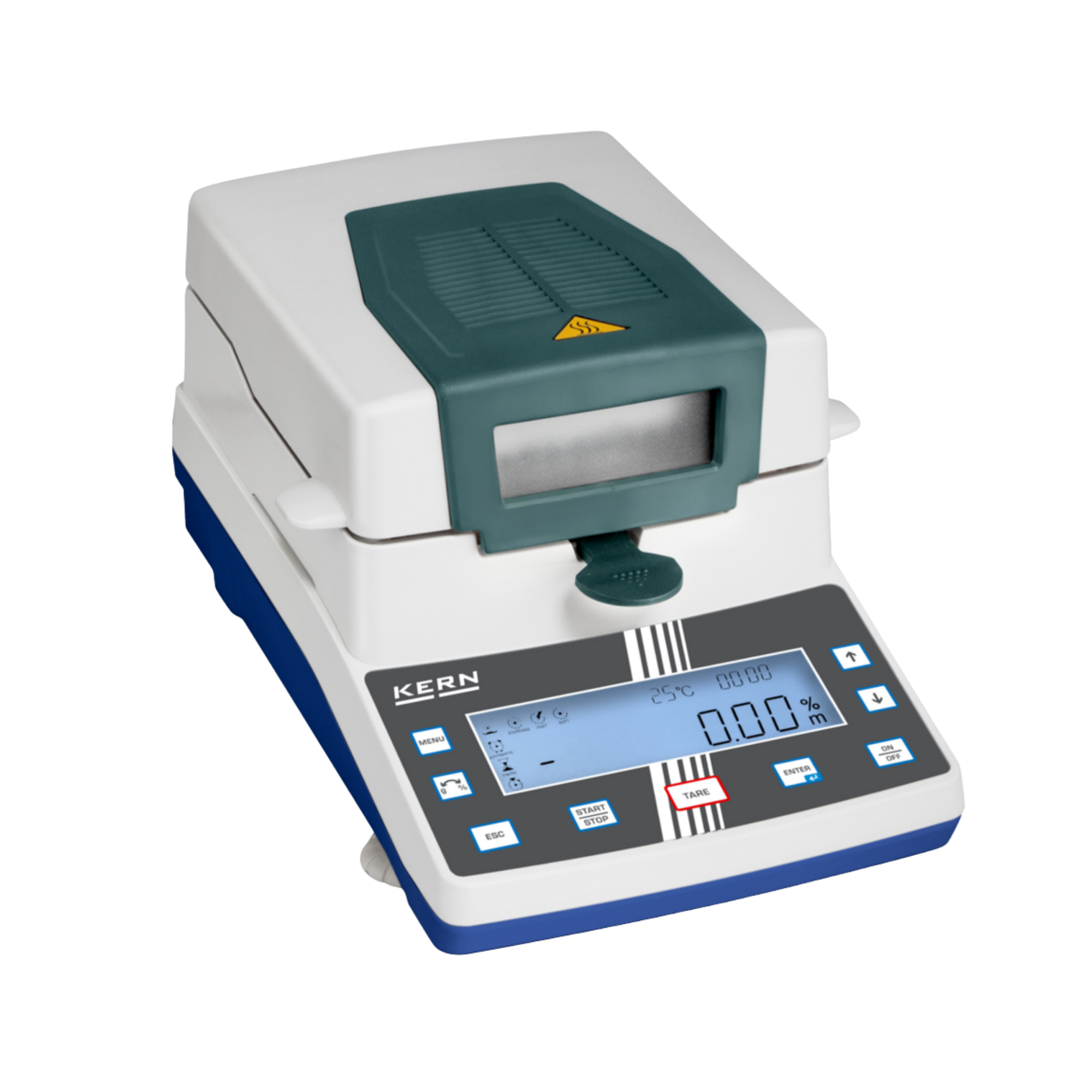

Kern DAB 200-2 halogen moisture analyser, 200 g / 0.01 g
The Kern DAB 200-2 moisture analyser operates using a halogen quartz glass heating element and covers a weighing range of up to 200 grams, with a readability of 0.01 grams or 0.05 % moisture. The measuring principle is thermogravimetric: the built-in precision balance continuously records the sample weight during drying; the instrument calculates the moisture content from the weight loss and displays the drying curve in real time on the backlit graphic display. Those who regularly test larger quantities, such as grain, animal feed or sewage sludge, will benefit from the higher capacity compared with the smaller sister model, the DAB 100-3. Halogen quartz glass heating element for short drying times A 400-watt halogen quartz glass heating element is housed in the lid. The drying temperature can be set in 1-degree increments from 40 to 199 °C; the stabilisation time until the start of the measurement is 3 seconds. There are three drying programmes to choose from: standard drying, fast drying and gentle drying. The unit can be switched off either automatically as soon as the weight of the sample stops changing, by a timer after a set duration, or manually at the touch of a button. Halogen or infrared: choosing the right heating technology The DAB 200-2 is the halogen version of the DAB series. The Kern DAB 200-2IR with infrared heating is also available. The main difference lies in the maximum achievable drying temperature: for the infrared version, the adjustable range ends at 160 °C, whilst for the halogen version described here, it ends at 199 °C. For those who want to dry samples at temperatures above 160 °C, the DAB 200-2 is suitable. Those who work predominantly at moderate temperatures or prefer a more even, gentler application of heat will find the DAB 200-2IR to be the alternative from the same series. The weighing range, readability and operating concept are identical for both models; the difference lies in the heating technology and the maximum possible temperature. The decision can be made regardless of capacity requirements: even those who need the smaller DAB 100-3 will find the same choice between halogen and infrared with the DAB 100-3IR. Graphic display and memory functions The backlit graphic display, with 14-millimetre-high digits, shows the current moisture content and the drying curve whilst the measurement is in progress. Up to 15 complete drying programmes can be stored in the unit, along with memory slots for 5 measurement results and 5 sample names. The device can be connected to a printer or PC via the RS-232 serial interface to document measurement values. Weighing technology and accuracy The internal balance is designed as a single-range balance with a strain gauge system, with a resolution of 20,000 parts. Reproducibility and linearity are 0.01 grams and ± 0.03 grams respectively. For a measurement uncertainty of 0.1 % at k=2, Kern specifies a minimum sample weight of 20 grams; this is consistent with the moisture content range of 20 to 100 % of the sample for which this model is designed. The aluminium sample pans have a diameter of 92 millimetres; the housing is made of cast aluminium and plastic. Typical applications The DAB 200-2 moisture analyser is used wherever the moisture content needs to be determined quickly and without time-consuming sample preparation, for example in the goods-in department of a grain mill or during routine checks of raw materials prior to further processing. The drying chamber measures 92 mm in diameter and 20 mm in height; Kern specifies a sample size of 1 g to 200 g. Food production and the food industry Water management Energy and raw materials industry Agriculture Selection guide: DAB 100-3 or DAB 200-2 If you are undecided between the two halogen models, the main factors to consider are the weighing range and readability. The table compares the DAB 200-2 and DAB 100-3 side by side, using the manufacturer’s specifications. FeatureDAB 100-3DAB 200-2Weighing range (max)110 g200 gReadability (weight)0.001 g0.01 gReadability (moisture)0.01 %0.05 %Resolution110,000 parts20,000 partsMinimum sample weight (k=2, U=0.1 %)2 g20 g For small, high-value or particularly inhomogeneous samples, where every milligram counts, the DAB 100-3 is the more accurate choice. For larger or heavier samples, where absolute capacity is more important than the last decimal place, the DAB 200-2 remains the more practical option. Both models share the same housing, operating concept and interface, meaning that switching between the two sizes in day-to-day laboratory work does not require any changes to workflows. Operating conditions, materials and warranty The DAB 200-2 is designed for operation at ambient temperatures of 5 to 40 °C and a relative humidity of 5 to 80 %. According to the manufacturer’s specifications, the device contains no substances prohibited under REACH. According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questions about the DAB 200-2 What distinguishes the DAB 200-2 from the DAB 100-3? The DAB 200-2 covers a wider weighing range up to 200 grams, with a readability of 0.01 grams. The DAB 100-3 offers finer measurement, down to 0.001 grams, with a weighing range of up to 110 grams. For small, high-precision samples, the DAB 100-3 is the more accurate choice. What is the difference between the halogen and infrared versions? Both operate on the same thermogravimetric principle. The difference lies in the maximum drying temperature: The halogen version, the DAB 200-2, reaches up to 199 °C, whilst the infrared version, the DAB 200-2IR, reaches up to 160 °C. What is the minimum sample size required? For a measurement uncertainty of 0.1 % at k=2, Kern specifies a minimum sample weight of 20 grams. Can the instrument be connected to a printer or PC? Yes, measurement reports can be transferred to a printer or computer via the RS-232 serial interface. What drying programmes are available? Standard drying, fast drying and gentle drying, with a choice of automatic, time-controlled or manual switch-off. How many sample pans are included in the scope of delivery? The carton contains 50 aluminium sample pans, each with a diameter of 92 millimetres. What power supply does the DAB 200-2 require? Power is supplied via a built-in power supply unit, rated for 230 volts AC and 50 hertz. Technical details Weighing range (max)200 gReadability (weight)0.01 gReadability (moisture)0.05 %Reproducibility0.01 gLinearity± 0.03 gWeighing systemStrain gauge, single-range balanceResolution20,000 partsMinimum sample weight (k=2, U=0.1 %)20 gPossible moisture content of the sample20 % to 100 %Heating methodHalogen quartz glass heating element, 400 WTemperature range40 °C to 199 °C, in 1 °C incrementsStabilisation time3 sDrying programmesStandard drying, fast drying, gentle dryingSwitch-off criteriatime-controlled, automatic, manualProgramme memory15 drying programmesResult memory5 measurementsSample designation memory5DisplayGraphic display, backlit, digit height 14 mmSample pan diameter92 mmHousing materialCast aluminium, plasticWeighing pan materialAluminium (aluminium pans)InterfaceRS-232Power supplyBuilt-in power supply, 230 V AC, 50 HzDimensions (W x D x H)240 x 365 x 180 mmWeight (net)5.0 kgOperating temperature5 °C to 40 °COperating humidity5 % to 80 %Warranty (manufacturer)36 months according to Kern, excluding wear parts Scope of delivery DAB 200-2 moisture analyser 50 sample pans (aluminium) Power supply with mains cable Operating instructions (multilingual) Individual requirements and procurement service The 50 sample pans supplied are sufficient for the first series of measurements; however, it is advisable to keep a stock of spare pans for day-to-day use. The internal balance should be checked regularly using an external test weight. Our procurement service provides support with accessories, spare parts and bespoke enquiries relating to Kern moisture analysers.

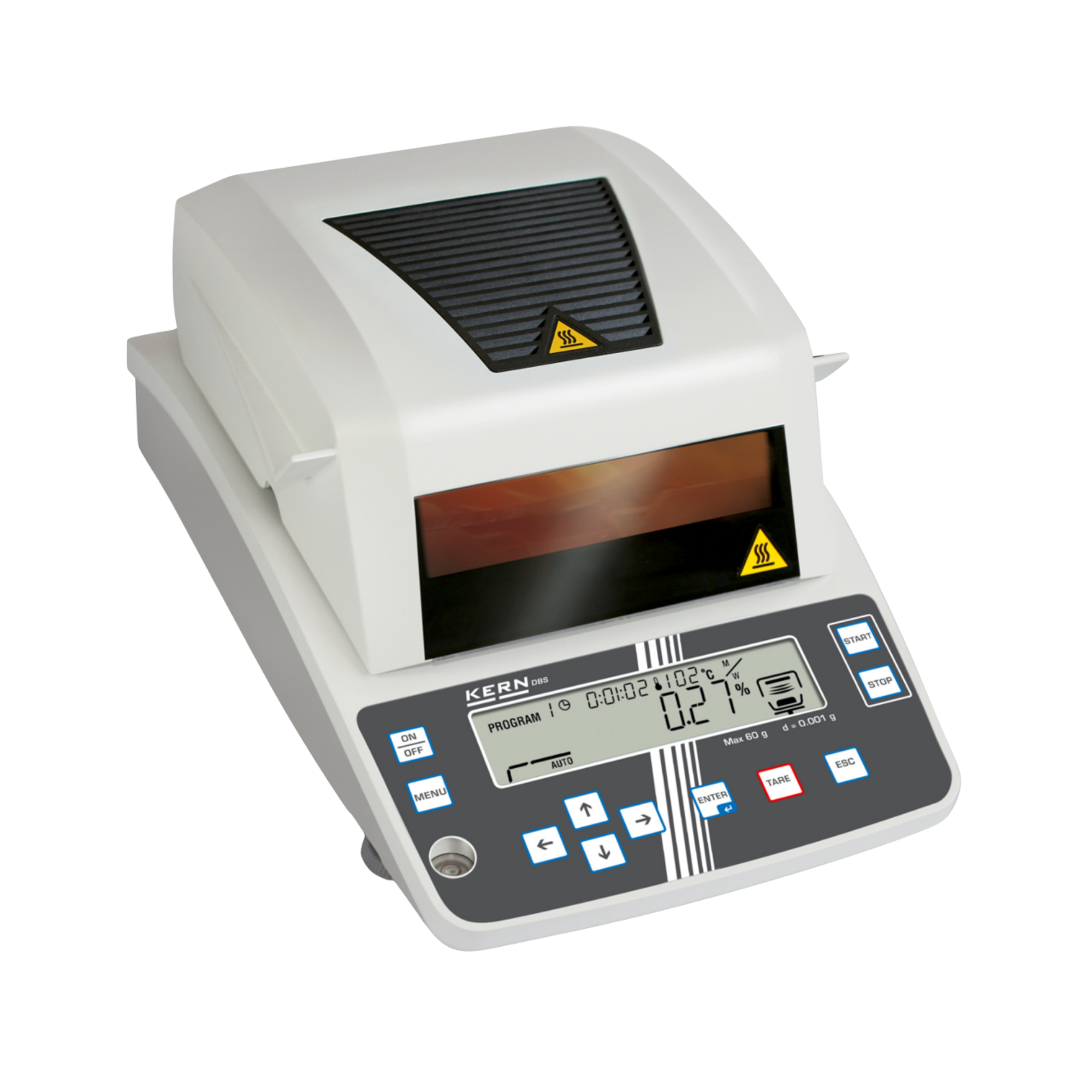

Kern DBS 60-3 halogen moisture analyser, 60 g / 0.001 g (0.01 %), graphic display
The actual moisture content of a raw material or intermediate product often determines the quality of the finished product, whether it be grain, plastic granules or an active pharmaceutical ingredient. The Kern DBS 60-3 moisture analyser measures this value using the traditional drying method directly in the laboratory, with a halogen quartz glass heating element and a single-cell balance accurate to 0.001 g. 400-watt halogen heater The heating element uses halogen-quartz glass and has a power output of 400 watts; the drying temperature can be set in 1-degree increments between 50 °C and 200 °C. The display stabilises within 3 seconds. Four drying programmes cater for different types of samples: standard drying, rapid drying, gentle drying and a staged drying process with several temperature plateaus, for example to expel free surface water separately from chemically bound water. Drying ends automatically based on weight loss, by a set time, or manually at the touch of a button; programmes can optionally be stored in one of 10 programme memory slots for recurring samples. Weighing range and resolution The single-cell balance covers a range up to 60 g; with a resolution of 60,000 parts, it reads in increments of 0.001 g, which corresponds to 0.01 % moisture content. Linearity is ± 0.003 g. This resolution is particularly relevant for small sample weights, for example when only a few grams of an expensive or hard-to-obtain sample are available. The sample dish has a diameter of 95 mm and rests on a stainless steel weighing pan. The moisture content that can be displayed ranges from 0.1 % to 100 %, with the dry matter content corresponding to 100 % to 0.1 %. Documentation and interfaces The backlit graphic display, with 15 mm digit height, shows moisture content, residual weight, temperature and drying time during the measurement. A printer or laboratory PC can be connected via the RS-232 interface; a USB interface is also available. At the end of a measurement, the moisture analyser can print a report containing the date, time and result, formatted according to GLP or ISO conventions. This is a device function, not an external certification. Up to 100 measurement results and 99 sample names can be stored in the instrument, which is useful for routine samples that are analysed on a regular basis. Installation and operation The housing is made of cast aluminium and plastic; the built-in power supply unit operates at 220 to 240 V AC at 50 Hz. The balance operates within the specified range at an ambient temperature of 5 to 40 °C and a relative humidity of 5 to 85 %; it may be stored at temperatures between -10 and 50 °C. Measuring 204 x 336 x 167 mm and weighing 4.6 kg net, the instrument fits on a laboratory bench. According to the manufacturer, the instrument contains no substances prohibited under REACH. Differences from the DAB series Those who require larger weighing capacities and can make do with a lower resolution are better served by the Kern DAB series: the DAB 200-2 covers up to 200 g, but only reads to 0.01 g. Conversely, the DBS 60-3 is designed for smaller weighing ranges up to 60 g with a readability of 0.001 g, when the last decimal place matters. Typical applications In the pharmaceutical industry, moisture measurement is used to determine the residual moisture of active ingredients and excipients. In the food industry, the focus is often on shelf life, for example with cereals, flour or dried products. In research and development, the instrument is used for the rapid testing of new formulations or materials; in the energy and raw materials industries, as well as in water management, it is used to determine the water content of samples from production or treatment processes. Pharmaceutical industry Research and development Water management Food industry Energy and raw materials industry Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questions What is the weighing range of the DBS 60-3?Up to 60 g, with a readability of 0.001 g. How quickly does the display stabilise?Within 3 seconds of placing the sample on the balance. Can the measurement result be documented?Yes, via the RS-232 interface to a printer or laboratory PC, optionally as a GLP- or ISO-compliant report. This is a device function, not an external certification. How many drying programmes are there?Four pre-set profiles (Standard, Fast, Gentle, Step) as well as 10 memory slots for your own recurring programmes. How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. Technical details Weighing range (max.)60 gReadability (d)0.001 gLinearity± 0.003 gMoisture readability0.01 %Weighing systemSingle-cellResolution60,000 partsHeating methodHalogen quartz glass heating element, 400 WTemperature range50 to 200 °C, in 1 °C incrementsStabilisation time3 secondsDrying programmesStandard, Fast, Gentle, StagesShut-off criteriaAutomatic, time-controlled, manualProgramme memory10Memory for measurement results100Sample name memory99DisplayGraphic display, backlit, digit height 15 mmSample dish diameter95 mmHousing materialCast aluminium, plasticWeighing pan materialStainless steelInterfacesRS-232, USB (device)Power supplyBuilt-in power supply unit, 220 to 240 V AC, 50 HzDimensions (W x D x H)204 x 336 x 167 mmWeight (net)4.6 kgAmbient temperature (operation)5 to 40 °CHumidity (operating)5 to 85 %Storage temperature-10 to 50 °CWarranty (manufacturer)36 months according to Kern, excluding wear parts Scope of delivery DBS 60-3 moisture analyser 50 sample dishes (aluminium) Protective cover Power supply unit with mains cable Operating instructions (multilingual) Individual requirements and procurement service The 50 aluminium sample dishes supplied will eventually be used up with regular use. For reordering sample dishes, for calibration or for other accessories relating to the DBS 60-3, our procurement service will assist in clarifying your requirements.

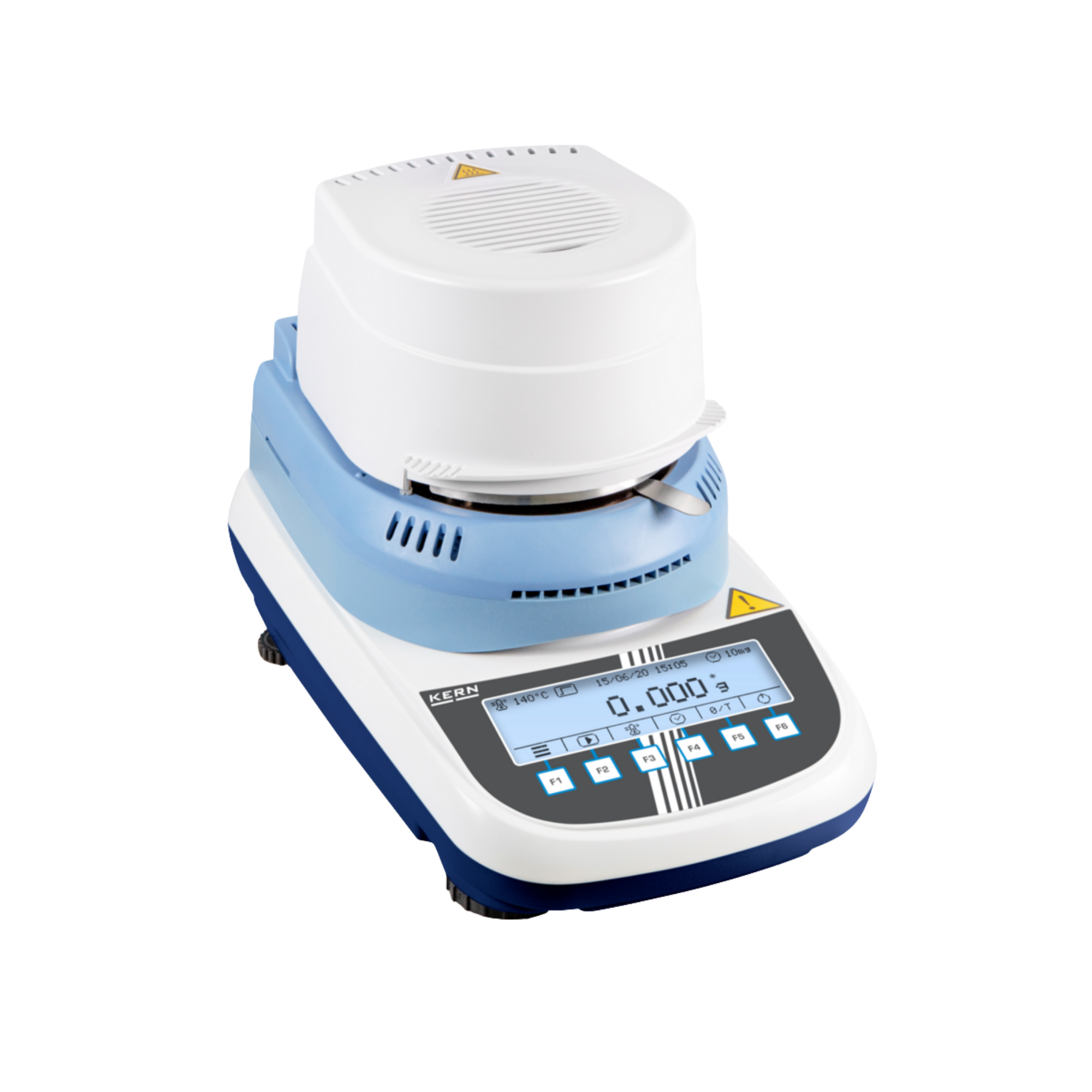

Kern DLB 160-3A halogen moisture analyser, 160 g / 0.001 g / 0.01 %, graphic display
The Kern DLB 160-3A moisture analyser has a weighing range of up to 160 g, with a readability of 0.001 g or 0.01 % moisture. A halogen quartz glass heating element dries the sample, whilst the internal balance continuously records the weight loss and displays it in real time on the backlit graphic display. Weighing technology and accuracy The resolution is 160,000 parts, with reproducibility and linearity of 0.001 g and ± 0.003 g respectively. For a sample weight of 10 g, Kern specifies the reproducibility of the moisture reading as 0.05 %; for a sample weight of 2 g, it is 0.15 %. The USP minimum sample weight for a measurement uncertainty of 0.1 % at k=2 is 2 g. The stabilisation time in pure weighing mode is 4 seconds. Halogen heating and drying programmes The halogen quartz glass heating element operates at 400 watts and covers a temperature range from 35 to 160 °C in 1-degree increments. You can choose between standard drying and a fast-drying programme with a switchable preheating stage. In Auto Mode, the unit switches off automatically following a selectable weight loss (0.01 mg/30 s to 10 mg/30 s or 0.1 to 9.9 %/60 s), time-controlled in Time Mode between 1 minute and 12 hours, or manually at the touch of a button. Operation and data logging The backlit graphic LCD display with 11 mm digit height guides the user step-by-step through the measurement; the user interface is available in six languages: German, English, French, Italian, Spanish and Portuguese. Five drying programmes can be stored internally; the log output interval is adjustable between 5 and 250 seconds. Measurement values can be transferred to a printer or PC via the RS-232 interface. Temperature adjustment with optional calibration kit For checking and adjusting the heating temperature, Kern offers the optional DLB-A01N temperature calibration set, comprising a sensor with a separate readout unit. The ‘Tmp test’ service function checks the temperature without altering the setting at a selectable temperature between 35 and 160 °C; after approximately 15 minutes, the value is compared with the reading on the DLB-A01N. The ‘Tmp Adj’ adjustment function operates at two points, factory-set to 80 °C and 150 °C, with the second point having to be at least 30 °C above the first. The heating phase takes approximately 15 minutes per point, after which the adjustment is carried out using the device’s navigation keys to match the DLB-A01N display. The procedure is documented in the operating instructions and, in addition to the mass calibration certificate, can be backed up with a separate ISO temperature calibration (item no. 964-305). Weighing pan and housing The weighing pan has a diameter of 100 mm; the drying chamber above it also has a diameter of 100 mm and a height of 12 mm. The housing is made of plastic. Position within the Kern range The Kern DBS 60-3 is also available, a moisture analyser with a single-cell weighing system, a 60 g weighing range, 0.001 g readability, a temperature range of 50 to 200 °C, four drying profiles, and RS-232 and USB interfaces. The DBS 60-3 therefore has the same readability as the DLB 160-3A, but a smaller weighing range, a temperature range up to 200 °C and, in addition, a USB interface. Typical applications Moisture analysers such as the DLB 160-3A are used wherever the moisture content needs to be checked quickly and without the need for an external laboratory, for example during the incoming goods inspection of raw materials. Food production and the food industry Agriculture and the grain industry Plastics and raw materials industry Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questions about the DLB 160-3A What is the weighing range of the DLB 160-3A?Up to 160 g, with a readability of 0.001 g or 0.01 % moisture. What is the maximum drying temperature that can be set?Between 35 and 160 °C, in 1-degree increments. How can the heating temperature be checked or adjusted?Using the optional DLB-A01N temperature calibration kit and the ‘Tmp test’ and ‘Tmp Adj’ service functions, with factory-set points at 80 °C and 150 °C. How many sample dishes are included?10 aluminium sample dishes, 90 mm in diameter. How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. Technical details Weighing range (max.)160 gReadability (weight)0.001 gReadability (moisture)0.01 %Reproducibility (weighing mode)0.001 gReproducibility of moisture content for a 10 g sample0.05 %Reproducibility of moisture content for a 2 g sample0.15 %Linearity± 0.003 gMinimum sample weight (k=2, U=0.1 %)2 gResolution160,000 partsStabilisation time (weighing mode)4 secondsAdjustment (mass)External, recommended adjustment weight 100 g (E2), calibration point 100 gDrying programmesStandard drying, rapid drying with preheating stageSwitch-off criteriaAuto Mode, Time Mode (1 min to 12 h), manualReport output interval5 to 250 seconds, adjustableHeating methodHalogen quartz glass radiant heater, 400 WTemperature range35 to 160 °C, in 1 °C incrementsDisplayGraphic LCD display, backlit, digit height 11 mmUser interface6 languages (DE, EN, FR, IT, ES, PT)Weighing pan sizeØ 100 mmDrying chamberØ 100 mm, 12 mm highProgramme memory5 drying programmesHousing materialPlasticInterfaceRS-232Housing dimensions (W x D x H)215 x 345 x 235 mmPackaging dimensions280 x 450 x 400 mmWeight (net)4.8 kgWeight (gross)7 kgAmbient temperature (operation)5 to 40 °CHumidity (operating)45 to 75 %, non-condensingWarranty (manufacturer)36 months according to Kern, excluding wear parts Scope of delivery DLB 160-3A moisture analyser 10 sample dishes (aluminium, Ø 90 mm) Mains cable Connection cable ‘balance / heating attachment’ Operating instructions Individual requirements and procurement service The 10 aluminium sample dishes supplied are sufficient for the first series of measurements; a pack of 80 is available for subsequent purchase. In addition, there are glass fibre filter circles in packs of 100, the optional DLB-A01N temperature calibration kit, and a thermal printer or a dot matrix printer for the long-term archiving of measurement reports on standard paper. A protective working cover is available as a set of 5 for replacement. Our procurement service provides support for the DAkkS mass calibration certificate (963-127), the ISO temperature calibration (964-305) and other accessories for the DLB 160-3A.

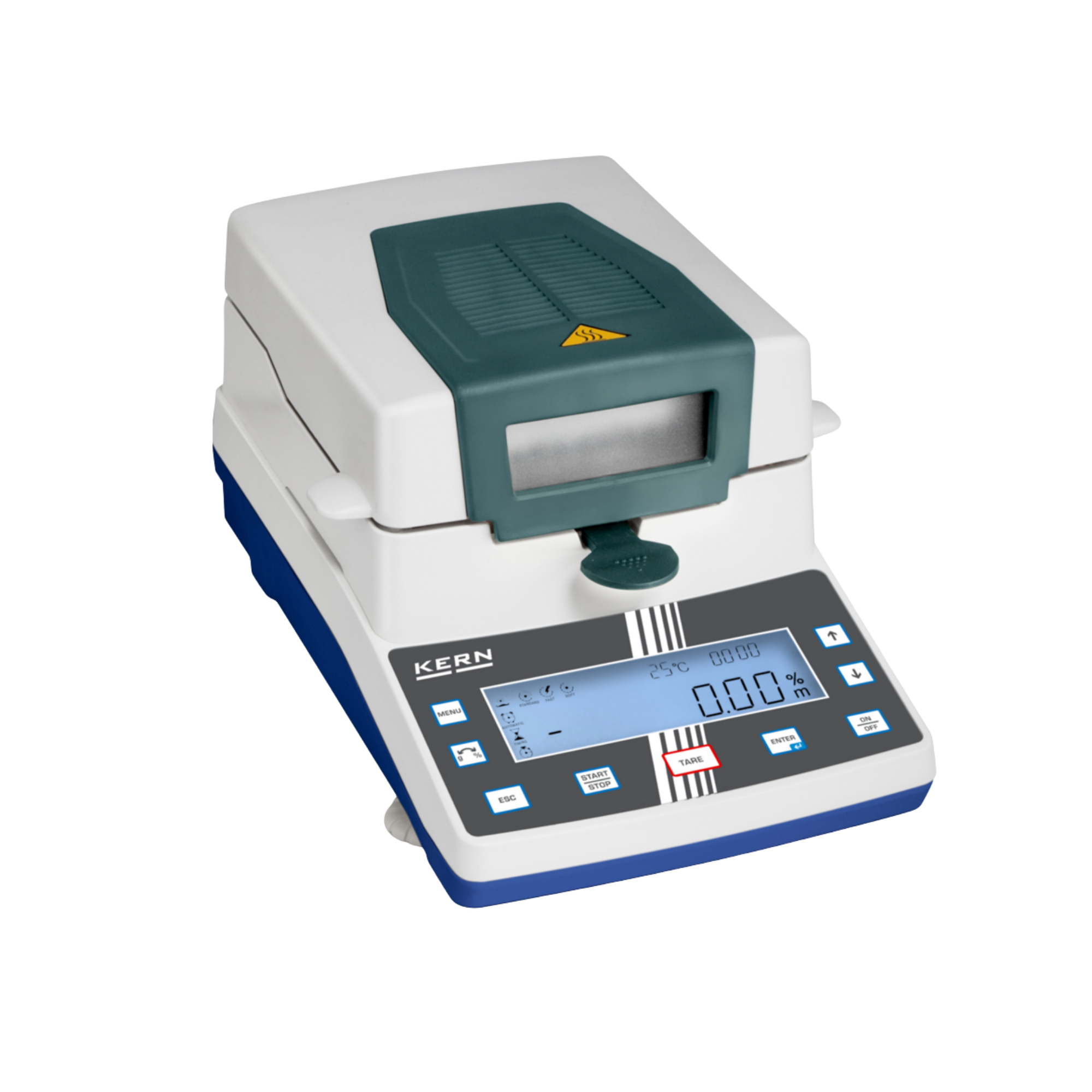

Kern DAB 100-3 halogen moisture analyser, 110 g / 0.001 g
The Kern DAB 100-3 moisture analyser is the high-resolution model in the Halogen DAB series, with a weighing range of up to 110 grams and a readability of 0.001 grams or 0.01 % moisture. As with the larger DAB 200-2, the instrument operates on a thermogravimetric principle: the internal balance continuously records the sample weight during drying; the instrument calculates the moisture content from the weight loss and displays the drying curve in real time on the screen. For small or high-value samples, where every milligram counts, the finer readability is immediately noticeable compared with the larger sister model. Halogen quartz glass heating element for short drying times As with the DAB 200-2, the lid houses a 400-watt halogen quartz glass heating element. The drying temperature can be set in 1-degree increments from 40 to 199 °C; it takes just 3 seconds for the temperature to stabilise before the actual measurement begins. You can choose between the drying programmes ‘Standard drying’, ‘Fast drying’ and ‘Gentle drying’; the unit switches off automatically when a constant weight is reached, either by a timer or manually. Halogen or infrared: choosing the right heating technology The DAB 100-3 is the halogen version of the DAB series. The Kern DAB 100-3IR (item no. lt-23263) with infrared heating is also available. The difference lies in the maximum achievable drying temperature: the infrared version reaches a maximum of 160 °C, whilst the halogen version described here reaches 199 °C. For samples that require higher temperatures to ensure thorough drying, the DAB 100-3 is suitable. Those who can manage with more moderate temperatures or prefer a gentler application of heat will find the DAB 100-3IR to be the alternative from the same series, with an identical weighing range and identical readability. The same choice between halogen and infrared is also available for the larger DAB 200-2 and its counterpart, the DAB 200-2IR (item no. lt-23265), should the higher weighing range be more important than high readability. Graphical display and memory functions The backlit LCD graphic display, with 14-millimetre-high digits, shows the moisture content and drying curve whilst the measurement is in progress. The internal memory can store up to 15 drying programmes, plus 5 memory slots for measurement results and 5 for sample names. Measurement values can be transferred to a printer or PC via the RS-232 interface. Weighing technology and accuracy The balance is designed as a single-range balance with a strain gauge system, with a resolution of 110,000 parts, more than five times the resolution of the DAB 200-2. Reproducibility and linearity are 0.001 grams and ± 0.003 grams respectively. According to Kern, a minimum sample weight of 2 grams is sufficient to achieve a measurement uncertainty of 0.1 % at k=2, making the instrument suitable for use with small or limited sample quantities. As with the DAB 200-2, the aluminium sample pans have a diameter of 92 millimetres; the housing is made of cast aluminium and plastic. Typical applications The DAB 100-3 is suitable wherever small sample quantities need to be tested for moisture content quickly and with high resolution, for example during the incoming inspection of raw materials in small batches or for release testing in the laboratory. The low minimum sample weight of 2 grams allows reliable results, even when only a small amount of sample material is available. Food production and the food industry Water management Energy and raw materials industry Agriculture Selection guide: DAB 100-3 or DAB 200-2 Within the Halogen DAB series, the DAB 100-3 and DAB 200-2 differ primarily in terms of weighing range and readout accuracy. The following table compares both models using the manufacturer’s specifications. FeatureDAB 100-3DAB 200-2Weighing range (max)110 g200 gReadability (weight)0.001 g0.01 gReadability (moisture)0.01 %0.05 %Resolution110,000 parts20,000 partsMinimum sample weight (k=2, U=0.1 %)2 g20 g For small, high-value or particularly inhomogeneous samples, where every milligram counts, the DAB 100-3 remains the more accurate choice. Those who regularly test larger or heavier samples will find the DAB 200-2 (item no. lt-23264) to be a suitable alternative with a higher capacity. Both models share the same housing, operating concept and interface, so switching between the two sizes does not alter your usual workflow. Operating conditions, storage and warranty The DAB 100-3 is designed for operation at ambient temperatures of 5 to 40 °C and a relative humidity of 5 to 80 %. For storage outside of operation, for example during transport or in stock, Kern specifies a temperature range of minus 10 to 40 °C. According to the manufacturer’s specifications, the unit contains no substances prohibited under REACH. According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questions about the DAB 100-3 What distinguishes the DAB 100-3 from the DAB 200-2? The DAB 100-3 measures more finely, with a readability of 0.001 grams across a weighing range of up to 110 grams. The DAB 200-2 (item no. lt-23264) covers a wider weighing range up to 200 grams, with a readability of 0.01 grams. What is the difference between the halogen and infrared versions? Both versions operate on the same thermogravimetric principle. The difference lies in the maximum drying temperature: the DAB 100-3 reaches up to 199 °C, whilst the infrared version, the DAB 100-3IR (item no. lt-23263), reaches up to 160 °C. What is the minimum sample size? For a measurement uncertainty of 0.1 % at k=2, Kern specifies a minimum sample weight of 2 grams. Can the instrument be connected to a printer or PC? Yes, measurement reports can be transferred to a printer or computer via the RS-232 serial interface. What drying programmes are available? Standard drying, fast drying and gentle drying, with automatic, time-controlled or manual switch-off. How many sample pans are included? 50 aluminium sample pans, each 92 millimetres in diameter, are included in the scope of delivery. What power supply does the DAB 100-3 require? The unit has a built-in power supply for 230-volt AC at 50 hertz. Technical details Weighing range (max)110 gReadability (weight)0.001 gReadability (moisture)0.01 %Reproducibility0.001 gLinearity± 0.003 gWeighing systemStrain gauge, single-range balanceResolution110,000 partsMinimum sample weight (k=2, U=0.1 %)2 gPossible moisture content of the sample20 % to 100 %Heating methodHalogen quartz glass heating element, 400 WTemperature range40 °C to 199 °C, in 1 °C incrementsStabilisation time3 sDrying programmesStandard drying, fast drying, gentle dryingSwitch-off criteriatime-controlled, automatic, manualProgramme memory15 drying programmesResult memory5 measurementsSample designation memory5DisplayLCD graphic display, backlit, digit height 14 mmSample pan diameter92 mmHousing materialCast aluminium, plasticWeighing pan materialAluminium (aluminium pans)InterfaceRS-232Power supplyBuilt-in power supply, 230 V AC, 50 HzDimensions (W x D x H)240 x 365 x 180 mmWeight (net)5.0 kgOperating temperature5 °C to 40 °COperating humidity5 % to 80 %Storage temperature-10 °C to 40 °CWarranty (manufacturer)36 months according to Kern, excluding wear parts Scope of delivery DAB 100-3 moisture analyser 50 sample pans (aluminium) Mains cable with Euro plug Operating instructions (multilingual) Individual requirements and procurement service The 50 aluminium sample pans supplied are sufficient for the first series of measurements; for frequent use, it is worth reordering suitable replacement pans. An external test weight is recommended for regular checking of the internal balance. Our procurement service provides support with accessories, spare parts and bespoke enquiries relating to Kern moisture analysers.
Kern DAB 100-3IR infrared moisture analyser, 110 g / 0.001 g (0.01 %)
The Kern DAB 100-3IR is a moisture analyser with an infrared heating element (400 W) and a weighing range of 110 g. It reads to 0.001 g or 0.01 % moisture. The measuring principle is thermogravimetric: the internal balance records the weight of the sample during drying, and the instrument calculates the moisture content from the weight loss.Infrared or halogenThe drying temperature can be set from 40 to 160 °C in 1 °C steps. The Kern DAB 100-3 (item no. lt-21715) with a halogen heating element, which reaches 199 °C, is also available. The weighing range and readability are the same; the difference lies in the heating technology and the temperature range. Anyone who wants to dry samples above 160 °C should choose the halogen version. For samples that tolerate moderate temperatures, the infrared version is sufficient.Drying programmes and switch-offThe heating profiles standard drying, fast drying and gentle drying are available. The typical stabilisation time is 3 seconds. The instrument switches off automatically when the weight remains constant (according to the operating instructions, at a weight loss of 2 mg in 45 seconds), by timer after 3 to 99 minutes, or manually with the stop key.Display, memory and interfaceThe backlit graphical display has digits 14 mm high and shows moisture content, dry content and residual weight. The instrument can store 15 drying methods and 5 measurement results. Via the RS-232 interface, it sends measurement reports to a printer or PC.Weighing technology and accuracyReproducibility 0.001 g, linearity ± 0.003 g. According to Kern, the reproducibility of the moisture reading is 0.15 % (sample weight 2 g) or 0.03 % (sample weight 10 g), depending on the application. The minimum weight according to USP is 2 g, and the sample size is 1 g to 110 g. The drying chamber measures 92 mm in diameter and is 20 mm high. Before the first measurement, the instrument needs a warm-up time of 2 hours. Adjustment is external; Kern recommends a weight of 100 g (F2), which is not included in the scope of delivery.Typical applicationsKern lists the following fields of application for the DAB series:Food production and the food industryWater managementEnergy and raw materials industryAgricultureTypical tasks include incoming goods inspection of raw materials and moisture determination during ongoing production.Frequently asked questionsUp to what temperature does the DAB 100-3IR dry?Up to 160 °C, adjustable in 1 °C steps from 40 °C. The halogen version DAB 100-3 reaches 199 °C.How small can the sample be?For a measurement uncertainty of 0.1 % at k=2, Kern specifies a minimum weight according to USP of 2 g.How long does the instrument need to warm up?The warm-up time is 2 hours.Can the instrument be connected to a printer or PC?Yes, via the serial RS-232 interface.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsWeighing range (max)110 gReadability (weight)0.001 gReadability (moisture)0.01 %Reproducibility0.001 gLinearity± 0.003 gReproducibility of moisture reading (sample weight 2 g / 10 g)0.15 % / 0.03 %Minimum weight (USP)2 gSample size1 g to 110 gHeating methodInfrared heating element, 400 WTemperature range40 °C to 160 °C, in 1 °C incrementsStabilisation time3 sWarm-up time2 hDrying programmesStandard drying, fast drying, gentle dryingSwitch-off criteriaautomatic, time-controlled (3 to 99 min), manualMethod memory15 drying methodsResult memory5 measurementsDisplayGraphical display, backlit, digit height 14 mmDrying chamberØ 92 mm, 20 mm highInterfaceRS-232Power supply230 V AC, 50 HzDimensions (W x D x H)240 x 365 x 180 mmWeight (net)5.0 kgOperating temperature5 °C to 40 °COperating humidity5 % to 80 %, non-condensingScope of deliveryDAB 100-3IR moisture analyser50 sample dishes (aluminium)Power cableOperating instructionsRegulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceSpare sample dishes, glass fibre filter circles, an adjustment weight, a DAkkS calibration certificate (item no. 963-127) and ISO temperature calibration (item no. 964-305) are available for the DAB 100-3IR. We can advise you on the selection. Enquiries are handled through our procurement service.
Kern DIS moisture analyser with halogen heater, weighing range 50 g and 120 g, temperature up to 175 °C or 250 °C
The Kern DIS is available in four models, which differ in two respects: the weighing range and the temperature range. The DIS 50-4 weighs up to 50 g to an accuracy of 0.0001 g (0.1 mg), whilst the DIS 100-3 weighs up to 120 g to an accuracy of 0.001 g (1 mg). The two standard models heat from 30 °C to 175 °C, whilst the HT models, the DIS 50-4HT and DIS 100-3HT, heat up to 250 °C, in 1 °C increments in each case. The heat is provided by a 400 W halogen quartz glass heater.Which model is suitable?For small samples, the DIS 50-4 is the more accurate choice. For a 2 g initial weight, the data sheet specifies a reproducibility of 0.05 %; for the DIS 100-3, this figure is 0.1 %. The DIS 100-3, on the other hand, can weigh up to 120 g. The HT version is designed for samples that are to be dried at temperatures above 175 °C. According to Kern, the extended temperature range allows for adaptation to different material properties and reduces the measurement time for samples with stable temperatures.Operation in three stepsThe measurement process consists of three steps: taring, adding the sample, and starting. The backlit graphic LCD (digit height 15 mm) displays the drying curve in real time; the last measured value remains on display until the next measurement. The HT models also feature a configurable display: the result can be shown as either moisture content, dry weight, ATRO value or residual weight, and the digit display, contrast and backlighting are adjustable. Password protection prevents stored settings and data from being altered.Heating profiles, memory and logThere are four heating profiles to choose from: standard drying, rapid drying, gentle drying and step drying. Up to 40 drying programmes can be stored. Drying ends automatically, by timer or manually.The instrument stores up to 1,000 measurement results and up to 1,000 freely programmable sample names, which are printed on the measurement report. Date and time are included as standard. Data is transferred to a PC or printer via RS-232 or USB; the GLP/ISO report is an instrument function for printing, not an external certification. The weighing system, which features electromagnetic force compensation, is equipped with overload protection.InstallationThe instrument measures 211 x 342 x 187 mm (W x D x H) and weighs approx. 5.0 kg. It is designed for ambient temperatures of 15 °C to 30 °C and relative humidity of 25 % to 85 %. The power supply is built-in (230 V AC, 50 Hz); connection is via an IEC power cable. The balance is adjusted using an external weight.Typical applicationsFood processing and quality controlPharmaceutical and chemical industries, as well as analytical and chemical laboratoriesCosmetics manufacturing and the plastics and polymers industryBuilding materials and cement industries, as well as the ceramics and non-metallic materials industriesAgricultural product monitoring and quality assuranceWater and wastewater management (e.g. sewage treatment works) and energy generation from biomassModels at a glanceModelWeighing range (Max)Readability (d)LinearityStabilisation timeTemperature range (1 °C steps)Reproducibility at sample weight 10 g / 2 gUSP minimum sample weight (k = 2, U = 0.1 %)DIS 50-450 g0.0001 g± 0.0003 g4 s30 °C to 175 °C0.02 % / 0.05 %200 mgDIS 50-4HT50 g0.0001 g± 0.0003 g4 s30 °C to 250 °C0.02 % / 0.05 %200 mgDIS 100-3120 g0.001 g± 0.003 g3 s30 °C to 175 °C0.03 % / 0.1 %2 gDIS 100-3HT120 g0.001 g± 0.003 g3 s30 °C to 250 °C0.03 % / 0.1 %2 gTechnical detailsThese values apply to all models. Deviating values are given in the model table.HeaterHalogen quartz glass heater, 400 WWeighing systemForce compensation with overload protectionWeighing panØ 95 mmHeating profilesStandard drying, rapid drying, gentle drying, step dryingDrying programmes (memory)40Switch-off criteriaautomatic, time-controlled, manualMemory1,000 measurement results, 1,000 sample namesDisplayGraphic LCD with backlight, digit height 15 mmInterfacesRS-232 (standard), USB deviceAdjustmentexternalHousingABS plasticDimensions, fully assembled (W x D x H)211 x 342 x 187 mmNet weightapprox. 5.0 kgPower supplybuilt-in power supply, 230 V AC, 50 Hz, IEC power cableAmbient temperature15 °C to 30 °CHumidity25 % to 85 %DAkkS calibration certificatecan be ordered separately, item no. 963-127Warranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryKern DIS moisture analyser with halogen quartz glass heater50 sample pansWorking protective coverIEC power cableCalibrationA DAkkS calibration certificate (item no. 963-127) can be ordered separately. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate. A factory calibration certificate (item no. 964-305) is available for temperature. The temperature calibration points are 100 °C and 175 °C; for the HT models, they are 25 °C, 100 °C and 250 °C.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern DIS (PDF)Regulatory informationAs electrical devices, the moisture analysers fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Further accessories: aluminium sample pan (RH-A01), glass fibre filter circles (RH-A02, RH-A03), temperature calibration kit (DIS-A01), test for individual substances (965-243)Protective covers: safety hoods (YBA-A23, YBA-A23S05)Cables: IEC power cable for the UK (822-903), USB 2.0 cable (DBS-A04), RS-232 interface cable (MLB-A05)Printers: thermal printer (YKC-01, YKH-01), dot matrix printers (YKT-01)Interfaces: RS232 Bluetooth adaptors (YKI-02), RS232 to Ethernet converters (YKI-10, YKI-11), RS232 Wi-Fi converter (YKI-12)OIML Class F1 test weights: 326-06 at 50 g; for the 100-series models, also 326-07 at 100 gSafety Set: 315-306-303 at 5 g and 50 g, Class F2Enquiries are handled via our procurement service.
Kern DAB 200-2IR infrared moisture analyser, 200 g / 0.01 g (0.05 %)
The Kern DAB 200-2IR is a moisture analyser with an infrared heating element (400 W) and a weighing range of 200 g. It reads to 0.01 g or 0.05 % moisture. The measuring principle is thermogravimetric: the internal balance records the weight of the sample during drying, and the instrument calculates the moisture content from the weight loss.Infrared or halogenThe drying temperature can be set from 40 to 160 °C in 1 °C steps. The Kern DAB 200-2 (item no. lt-23264) with a halogen heating element, which reaches 199 °C, is also available. The weighing range and readability are the same; the difference lies in the heating technology and the temperature range. Anyone who wants to dry samples above 160 °C should choose the halogen version. For samples that tolerate moderate temperatures, the infrared version is sufficient.Drying programmes and switch-offThe heating profiles standard drying, fast drying and gentle drying are available. The typical stabilisation time is 3 seconds. The instrument switches off automatically when the weight remains constant (according to the operating instructions, at a weight loss of 2 mg in 45 seconds), by timer after 3 to 99 minutes, or manually with the stop key.Display, memory and interfaceThe backlit graphical display has digits 14 mm high and shows moisture content, dry content and residual weight. The instrument can store 15 drying methods and 5 measurement results. Via the RS-232 interface, it sends measurement reports to a printer or PC.Weighing technology and accuracyReproducibility 0.01 g, linearity ± 0.03 g. According to Kern, the reproducibility of the moisture reading is 1.5 % (sample weight 2 g) or 0.3 % (sample weight 10 g), depending on the application. The minimum weight according to USP is 20 g, and the sample size is 1 g to 200 g. The drying chamber measures 92 mm in diameter and is 20 mm high. Before the first measurement, the instrument needs a warm-up time of 30 minutes. Adjustment is external; Kern recommends a weight of 200 g (F2), which is not included in the scope of delivery.Typical applicationsKern lists the following fields of application for the DAB series:Food production and the food industryWater managementEnergy and raw materials industryAgricultureTypical tasks include incoming goods inspection of raw materials and moisture determination during ongoing production.Frequently asked questionsUp to what temperature does the DAB 200-2IR dry?Up to 160 °C, adjustable in 1 °C steps from 40 °C. The halogen version DAB 200-2 reaches 199 °C.How small can the sample be?For a measurement uncertainty of 0.1 % at k=2, Kern specifies a minimum weight according to USP of 20 g.How long does the instrument need to warm up?The warm-up time is 30 minutes.Can the instrument be connected to a printer or PC?Yes, via the serial RS-232 interface.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsWeighing range (max)200 gReadability (weight)0.01 gReadability (moisture)0.05 %Reproducibility0.01 gLinearity± 0.03 gReproducibility of moisture reading (sample weight 2 g / 10 g)1.5 % / 0.3 %Minimum weight (USP)20 gSample size1 g to 200 gHeating methodInfrared heating element, 400 WTemperature range40 °C to 160 °C, in 1 °C incrementsStabilisation time3 sWarm-up time30 minDrying programmesStandard drying, fast drying, gentle dryingSwitch-off criteriaautomatic, time-controlled (3 to 99 min), manualMethod memory15 drying methodsResult memory5 measurementsDisplayGraphical display, backlit, digit height 14 mmDrying chamberØ 92 mm, 20 mm highInterfaceRS-232Power supply230 V AC, 50 HzDimensions (W x D x H)240 x 365 x 180 mmWeight (net)5.0 kgOperating temperature5 °C to 40 °COperating humidity5 % to 80 %, non-condensingScope of deliveryDAB 200-2IR moisture analyser50 sample dishes (aluminium)Power cableOperating instructionsRegulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceSpare sample dishes, glass fibre filter circles, an adjustment weight, a DAkkS calibration certificate (item no. 963-127) and ISO temperature calibration (item no. 964-305) are available for the DAB 200-2IR. We can advise you on the selection. Enquiries are handled through our procurement service.
Kern DLB 60-4A moisture analyser, 60 g / 0.0001 g, halogen lamp up to 160 °C
The Kern DLB 60-4A moisture analyser dries samples using a halogen quartz glass heater (400 W) and measures samples up to 60 g to an accuracy of 0.0001 g (0.1 mg). The temperature can be set from 35 °C to 160 °C in 1 °C increments. According to the Kern data sheet, it is particularly suitable for plastic granules. It is operated via a backlit graphic LCD with six direct-access keys.Six keys for the main functionsThe direct keys access the main menu, start the drying process, set the drying temperature, select the switch-off criterion, zero/tare and enter standby mode. During the measurement, the display shows the current temperature, the current heating profile and the active switch-off criterion. The drying process can be cancelled or paused, and the unit of measurement displayed can be switched. After the measurement, you can print the measurement report, edit the GLP parameters and view the result in detail.According to Kern, the user interface is available in six languages (DE, EN, FR, IT, ES, PT). The instrument automatically tares when the lid is closed. The last measured value remains on the display until it is overwritten by a new measurement.Drying, accuracy and reportAccording to the data sheet, two heating profiles are available: standard drying and rapid drying. The drying process ends automatically, by timer or manually. Reproducibility is 0.05 % with a 10 g initial weight and 0.18 % with a 2 g initial weight. The USP minimum initial weight is 200 mg, and the settling time is 4 s.The instrument prints out GLP data internally: balance ID, project ID, user ID and the values determined during the drying process. This is an instrument function, not an external certification. Printing is carried out via the RS-232 interface to a printer. Weighing is performed using a force-compensated weighing system, and adjustment is carried out using an external weight. 20 g (E2) is recommended.Set-upThe plastic housing measures 215 x 345 x 235 mm (W x D x H); the instrument has a net weight of approx. 4.8 kg. The weighing surface has a diameter of 100 mm. The power supply unit is built-in (220 V to 240 V AC, 50/60 Hz); connection is via an IEC power cable. The moisture analyser is designed for an ambient temperature of 5 °C to 35 °C and relative humidity of 45 % to 70 %.Typical applicationsPlastic granules, for which Kern states in the data sheet that the instrument is particularly suitableFood and agricultural industriesEnvironmental analysis and water managementResearch and developmentTechnical detailsWeighing range (Max)60 gReadability (d)0.0001 gReproducibility0.0001 gLinearity± 0.0006 gStabilisation time4 sUSP minimum sample weight (k = 2, U = 0.1 %)200 mgReproducibility at sample weight 10 g / 2 g0.05 % / 0.18 %Weighing systemForce compensationHeaterHalogen quartz glass heater, 400 WTemperature range35 °C to 160 °C, in 1 °C stepsHeating profilesStandard drying, rapid dryingSwitch-off criteriaautomatic, time-controlled, manualWeighing panØ 100 mmDisplayGraphic LCD with backlight, digit height 11 mm, 6 direct keysUnitsg, mg, % dry massInterfaceRS-232 (standard)Adjustmentexternal, recommended adjustment weight 20 g (E2)HousingPlasticHousing dimensions (W x D x H)215 x 345 x 235 mmNet weightapprox. 4.8 kgPower supplybuilt-in power supply, 220 V to 240 V AC, 50/60 Hz, IEC power cableAmbient temperature5 °C to 35 °CHumidity45 % to 70 %DAkkS calibration certificatecan be ordered separately, item no. 963-103Warranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliveryKern DLB 60-4A moisture analyser with halogen quartz glass heater10 sample pansWorking protective coverIEC power cable for the EUCalibrationA DAkkS calibration certificate (item no. 963-103) can be ordered separately. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate. A factory calibration certificate (item no. 964-305) is available for temperature. The temperature calibration points are at 80 °C and 150 °C.WarrantyAccording to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Kern DLB (PDF)Regulatory informationAs an electrical device, the moisture analyser falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Further accessories: aluminium sample pan (RH-A01), glass fibre filter circles (RH-A02, RH-A03), temperature calibration kit (DLB-A01N)Protective covers: safety hoods (ALJ-A01, ALJ-A01S05)Test weight: 20 g, OIML Class E2 (316-05)Cables: IEC power cable for the UK (822-903) and Switzerland (YKK-01), RS-232 interface cables (572-926)Printers: thermal printers (YKC-01, YKH-01), dot-matrix printers (YKG-01), dot-matrix printers (YKT-01)Interfaces: RS-232 Bluetooth adaptors (YKI-02), RS-232-to-Ethernet converters (YKI-10, YKI-11), RS-232-to-Wi-Fi converters (YKI-12)Enquiries are handled via our procurement service.
