Medication refrigerators
Medicinal refrigerators ensure the correct storage of temperature-sensitive medicines, vaccines and irrigation solutions in medical practices, pharmacies and hospitals. LT Laborhandel stocks Liebherr medicinal refrigerators compliant with DIN 13277, available with either solid metal or glass doors and an optional organisation system for clear stock management. You can also find related equipment in the categories ‘Laboratory Refrigerators & Freezers’ and ‘Ultra-Low Temperature Freezers’. If you have any questions about the right equipment for your needs, our sales team will be happy to assist you.
Liebherr HMFvh 4011 Medicines Refrigerator 279 L Glass Door DIN 13277 999338500
The Liebherr HMFvh 4011 is a professional pharmaceutical refrigerator that meets the stringent requirements of DIN 13277 (formerly DIN 58345) and has been specially developed for pharmacies, hospitals and laboratories. Unlike its sister model, the HMFvh 4001, this version features an insulated glass door, which allows for a quick visual check of the contents without having to open the door. Maximum temperature stability in accordance with DIN 13277 This model meets all the criteria of the standard for the safe storage of medicines. The powerful dynamic cooling system (forced air circulation), in conjunction with the precise electronic control system, ensures maximum temperature stability and a highly uniform temperature distribution throughout the entire interior. The operating temperature range of +3 °C to +8 °C is reliably maintained. Comprehensive alarm and safety system To ensure continuous monitoring, the HMFvh 4011 is equipped with a comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (either above or below the set point) as well as when the door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset, enabling easy temperature monitoring. Integrated safety thermostat to prevent frost A key feature of DIN 13277 is protection against sub-zero temperatures. The HMFvh 4011 features an additional safety thermostat that actively prevents the temperature from falling below +2 °C. Even in the unlikely event of a control system fault, this prevents vaccines or medicines from freezing. Connectivity and transparent storage For integration into central monitoring systems (BMS/GLP/GMP), the unit is fitted as standard with an RS 485 interface and a potential-free contact for alarm signalling. The 279-litre interior is fitted with five heavy-duty, plastic-coated shelves (up to 45 kg). The self-closing glass door features a robust lock to prevent unauthorised access. Technical details Compliance with standards: DIN 13277 (medicines refrigerators) Net capacity: 279 l Door type: Insulated glass door Cooling system: Dynamic (forced air) Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C) Safety thermostat: Yes (prevents temperatures below +2 °C) Control: Electronic control Temperature display: External digital Min/Max memory: Yes (High/Low memory) Defrosting method: Automatic (hot gas) Shelving: 5 x plastic-coated shelves Shelf load capacity: 45 kg Interfaces: RS 485, dry contact (alarm) Lock: Mechanical lock fitted Warning signal (temperature/door/mains): Visual and audible Door: Insulated glass door, self-closing Door hinge: Right-hand (reversible) Housing material: Steel, white Climate class: 4 (SN-ST) Refrigerant: R 600a Noise level: 47 dB(A) Voltage: 220–240 V ~ Current rating: 2.0 A Dimensions (H/W/D): 187.7 / 59.7 / 68.0 cm Net weight: 72.8 kg Contents of delivery Liebherr HMFvh 4011 (basic unit with glass door) 5 x shelves (plastic-coated) 1 x mains lead (permanently fitted) 2 x keys User manual Declaration of Conformity (DIN 13277) Customised requirements & procurement service Do you require accessories such as additional shelves, external temperature data loggers for comprehensive documentation (GMP/GLP) or a calibration service for this DIN 13277 refrigerator? Our bespoke procurement service can assist you with sourcing specific accessories and services.
Liebherr HMFvh 4001 Medicines Refrigerator 279 L DIN 13277 999338300
The Liebherr HMFvh 4001 is a professional pharmaceutical refrigerator that has been designed in strict accordance with the rigorous requirements of DIN 13277 (formerly DIN 58345). It ensures the safe and stable storage of temperature-sensitive medicines, vaccines and reagents in pharmacies, hospitals, doctors’ surgeries and laboratories. Maximum temperature stability in accordance with DIN 13277 This model meets all the criteria of the standard for safe storage of medicines. The powerful dynamic cooling system (forced air circulation), combined with precise electronic control, ensures maximum temperature stability and a highly uniform temperature distribution throughout the entire interior. The benefit: The operating temperature range of +3 °C to +8 °C is reliably maintained, guaranteeing the efficacy of your valuable refrigerated goods. Comprehensive alarm and safety system To ensure seamless monitoring, the HMFvh 4001 is equipped with a comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (either above or below the set point) as well as when the door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset, enabling easy temperature monitoring. Integrated safety thermostat to prevent frost A key feature of DIN 13277 is protection against sub-zero temperatures. The HMFvh 4001 features an additional safety thermostat that actively prevents the temperature from falling below +2 °C. Even in the unlikely event of a control system fault, this prevents vaccines or medicines from freezing. Connectivity and robust construction For integration into central monitoring systems (BMS/GLP/GMP), the unit is fitted as standard with an RS 485 interface and a potential-free contact for alarm signalling. The 279-litre interior is fitted with five heavy-duty, plastic-coated shelves (up to 45 kg). The self-closing solid steel door features a robust lock to prevent unauthorised access. Technical details Compliance with standards: DIN 13277 (medicines refrigerators) Net capacity: 279 l Cooling system: Dynamic (forced air) Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C) Safety thermostat: Yes (prevents temperatures below +2 °C) Control: Electronic control Temperature display: External digital Min/Max memory: Yes (High/Low memory) Defrosting method: Automatic (hot gas) Shelving: 5 x plastic-coated shelves Shelf load capacity: 45 kg Interfaces: RS 485, dry contact (alarm) Lock: Mechanical lock fitted Warning signal (temperature/door): Visual and audible Warning signal (power failure): Yes, immediate Door: Solid door (steel), self-closing Door hinge: Right-hand (reversible) Housing material: Steel, white Climate class: 4 (SN-ST) Refrigerant: R 600a Noise level: 47 dB(A) Voltage: 220–240 V ~ Current rating: 2.0 A Dimensions (H/W/D): 187.7 / 59.7 / 68.0 cm Net weight: 67.6 kg Contents of delivery Liebherr HMFvh 4001 (base unit) 5 x racks (plastic-coated) 1 x mains cable (permanently fitted) 2 x keys Operating instructions Declaration of Conformity (DIN 13277) Customised requirements & procurement service Do you require accessories such as additional shelves, external temperature data loggers for comprehensive documentation (GMP/GLP) or a calibration service for this DIN 13277 refrigerator? Our bespoke procurement service can assist you with sourcing specific accessories and services.

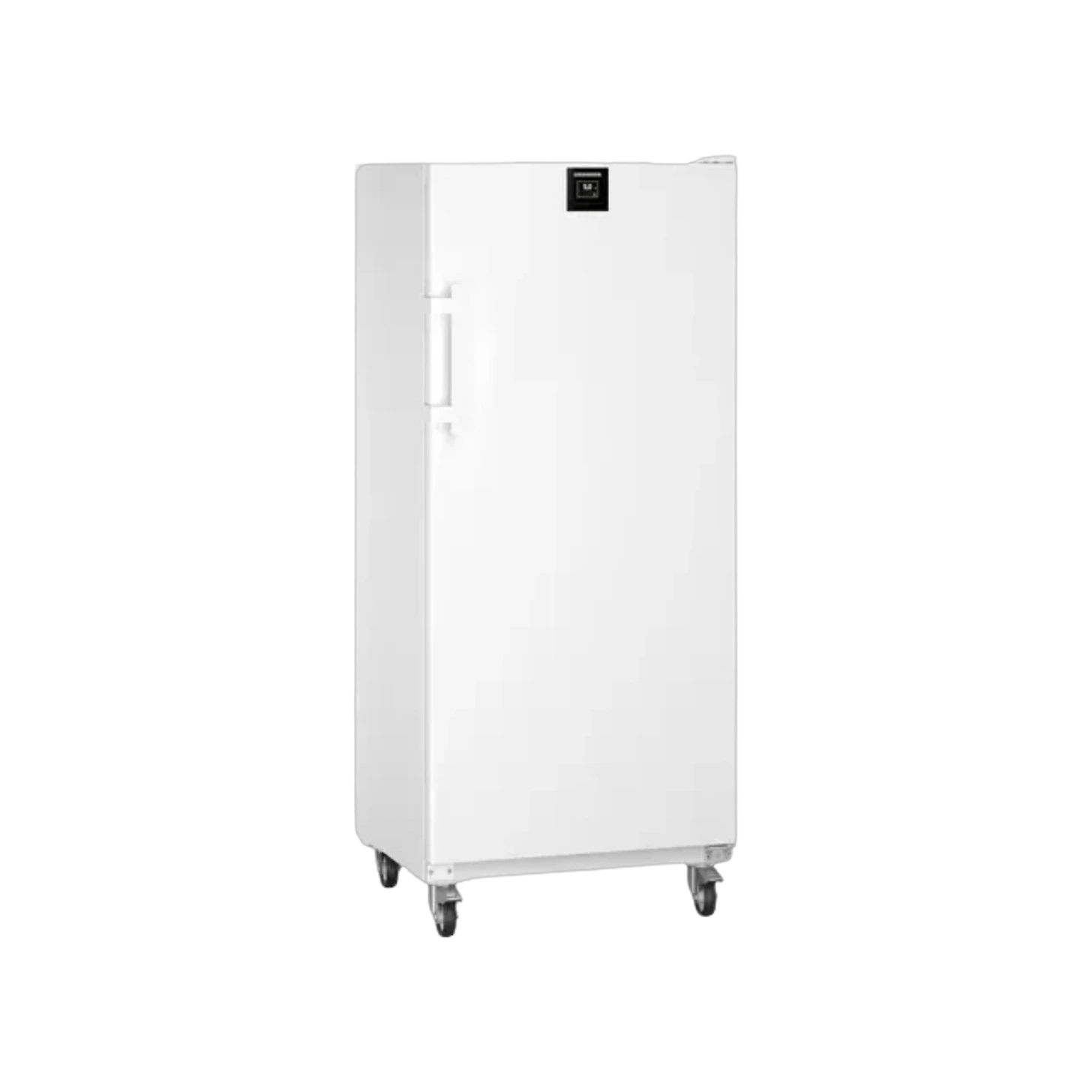

Liebherr HMFvh 5501 Medicines Refrigerator 588 L DIN 13277 999338700
The Liebherr HMFvh 5501 is a large-capacity pharmaceutical refrigerator which, with a net capacity of 588 litres, has been designed to meet the high storage requirements of hospital pharmacies, supply centres and large laboratories. It fully complies with the stringent requirements of DIN 13277 (formerly DIN 58345) and ensures the safe and stable storage of temperature-sensitive medicines and vaccines. Maximum temperature stability in accordance with DIN 13277 This model meets all the criteria of the standard for safe medicine storage. The powerful dynamic cooling system (forced air circulation), in conjunction with the precise electronic control system, ensures maximum temperature stability and a highly uniform temperature distribution throughout the entire, spacious interior. The operating temperature range of +3 °C to +8 °C is reliably maintained. Comprehensive alarm and safety system To ensure seamless monitoring, the HMFvh 5501 is equipped with a comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (either above or below the set point) as well as when the door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset, enabling easy temperature monitoring. Integrated safety thermostat to prevent frost A key feature of DIN 13277 is protection against sub-zero temperatures. The HMFvh 5501 features an additional safety thermostat that actively prevents the temperature from falling below +2 °C. Even in the unlikely event of a control system fault, this prevents vaccines or medicines from freezing. Connectivity and Maximum Capacity For integration into central monitoring systems (BMS/GLP/GMP), the unit is fitted as standard with an RS 485 interface and a potential-free contact for alarm signalling. The 588-litre interior is fitted with ten heavy-duty, plastic-coated shelves (up to 45 kg). The self-closing solid steel door features a robust lock to prevent unauthorised access. Technical details Compliance with standards: DIN 13277 (medicines refrigerators) Net capacity: 588 l Cooling system: Dynamic (forced air) Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C) Safety thermostat: Yes (prevents temperatures below +2 °C) Control: Electronic control Temperature display: External digital Min/Max memory: Yes (High/Low memory) Defrosting method: Automatic (hot gas) Shelving: 10 x plastic-coated shelves Shelf load capacity: 45 kg Interfaces: RS 485, dry contact (alarm) Lock: Mechanical lock fitted Warning signal (temperature/door/mains): Visual and audible Door: Solid door (steel), self-closing Door hinge: Right-hand (reversible) Housing material: Steel, white Climate class: 4 (SN-ST) Refrigerant: R 600a Noise level: 47 dB(A) Voltage: 220–240 V ~ Current rating: 2.0 A Dimensions (H/W/D): 187.7 / 74.7 / 76.9 cm Net weight: 76.5 kg Contents of delivery Liebherr HMFvh 5501 (base unit) 10 x racks (plastic-coated) 1 x mains cable (permanently fitted) 2 x keys User manual Declaration of Conformity (DIN 13277) Customised requirements & procurement service Do you require accessories such as additional shelves, a retrofittable aluminium drawer system (organisation system) or external temperature data loggers for comprehensive documentation (GMP/GLP)? Our bespoke procurement service will assist you in sourcing specific accessories and services.
Liebherr HMFvh 5511 Medicines Refrigerator 588 L Glass Door DIN 13277 999338900
The Liebherr HMFvh 5511 is a large-capacity pharmaceutical refrigerator that meets the stringent requirements of DIN 13277 (formerly DIN 58345). It has been designed to meet the high storage demands of hospital pharmacies, supply centres and large laboratories, and combines a large storage capacity (588 litres) with the ability to carry out quick visual checks through an insulated glass door. Maximum temperature stability in accordance with DIN 13277 This model meets all the criteria of the standard for safe medicine storage. The powerful dynamic cooling system (forced air circulation), in conjunction with the precise electronic control system, ensures maximum temperature stability and a highly uniform temperature distribution. The operating temperature range of +3 °C to +8 °C is reliably maintained. Transparency, alarm and safety system The double-glazed door allows for quick stock-taking or locating preparations without having to open the door, which minimises cold loss. To ensure continuous monitoring, the HMFvh 5511 is equipped with a comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (either above or below the set point) as well as when the door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset. Integrated safety thermostat to prevent freezing A key feature of DIN 13277 is protection against sub-zero temperatures. The HMFvh 5511 features an additional safety thermostat that actively prevents the temperature from falling below +2 °C. Even in the unlikely event of a control system fault, this prevents vaccines or medicines from freezing. Connectivity and Maximum Capacity For integration into central monitoring systems (BMS/GLP/GMP), the unit is fitted as standard with an RS 485 interface and a dry contact for alarm signalling. The 588-litre interior is fitted with ten heavy-duty, plastic-coated shelves (up to 45 kg). The self-closing glass door features a robust lock. Technical details Compliance with standard: DIN 13277 (medicines refrigerators) Net capacity: 588 l Door type: Insulated glass door Cooling system: Dynamic (forced air) Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C) Safety thermostat: Yes (prevents temperatures below +2 °C) Control: Electronic control Temperature display: External digital Min/Max memory: Yes (High/Low memory) Defrosting method: Automatic (hot gas) Shelving: 10 x plastic-coated shelves Shelf load capacity: 45 kg Interfaces: RS 485, dry contact (alarm) Lock: Mechanical lock fitted Warning signal (temperature/door/mains): Visual and audible Door: Insulated glass door, self-closing Door hinge: Right-hand (reversible) Housing material: Steel, white Climate class: 4 (SN-ST) Refrigerant: R 600a Noise level: 47 dB(A) Voltage: 220–240 V ~ Current rating: 2.0 A Dimensions (H/W/D): 187.7 / 74.7 / 76.9 cm Net weight: 81.7 kg Contents Liebherr HMFvh 5511 (basic unit with glass door) 10 x shelves (plastic-coated) 1 x mains lead (permanently fitted) 2 x keys User manual Declaration of Conformity (DIN 13277) Customised requirements & procurement service Do you require accessories such as additional shelves, a retrofittable aluminium drawer system (organisation system) or external temperature data loggers for comprehensive documentation (GMP/GLP)? Our bespoke procurement service will assist you in sourcing specific accessories and services.
Liebherr HMTvh 1501 pharmaceutical refrigerator, 102 l net capacity, DIN 13277, 994890151
Storing medicines safely in a pharmacy, doctor’s surgery or hospital ward requires more than just an ordinary fridge. The Liebherr HMTvh 1501 is a compact medicines refrigerator compliant with DIN 13277, with a net capacity of 102 litres, designed as a tabletop or under-counter unit for locations where there is no space for a large freestanding unit. The housing and door are made of steel, whilst the inner compartment is made of easy-to-clean white plastic. DIN 13277 and precise temperature control The HMTvh 1501 meets the requirements of DIN 13277 for refrigeration units used in laboratories and for the storage of medicines. The set temperature is fixed at +5 °C and is maintained with a temperature stability of ±2 °C, within a permissible ambient temperature range of +10 °C to +35 °C. If, in the event of a fault, the temperature falls below +2 °C, the integrated SafetyDevice function takes control and protects temperature-sensitive samples from supercooling. In the event of a fault, the unit immediately issues a visual and audible warning; in the event of a power cut, the mains failure alarm is triggered immediately and is buffered for at least 12 hours. Documentation and networking An integrated USB data logger records the temperature history without interruption and creates its own alarm log, an important component for demonstrating compliance with storage standards under the Pharmacy Operating Regulations. Via the integrated, removable Wi-Fi/LAN interface, the HMTvh 1501 can be integrated into an existing practice or hospital network and monitored remotely. The unit is secured by an electronic lock with remote control; the antimicrobial handle with opening mechanism facilitates daily operation, whilst an LED light strip on the left ensures a clear view of the contents. Interior fittings: four storage shelves In the standard version, the HMTvh 1501 is fitted with four plastic-coated storage shelves, each with a load capacity of up to 45 kg, designed for the traditional, flat storage of medicine packaging. With a net volume of 102 l and a gross capacity of 134 l, there is still enough space for a substantial stock, despite the compact external dimensions of 81.9 x 59.7 x 60.5 cm (H x W x D). Cleanroom-compatible in accordance with ISO EN 14644-1 According to the product data sheet, the HMTvh 1501 is designed to be cleanroom-compatible in accordance with ISO EN 14644-1 and complies with GMP Class B; it is also certified to IEC 60068-3, IEC 61010-1, IEC 61010-2-011 and IEC 61326-1. For businesses required to document the storage of medicinal products, this is a key consideration when selecting equipment, particularly if other Liebherr units compliant with comparable standards are already in use on the same premises. Compact tabletop unit from the Perfection series The HMTvh 1501 is part of Liebherr’s Perfection range for pharmaceutical refrigeration and is designed as a tabletop or under-counter unit, significantly more compact than the large freestanding units in the HMFvh range. Where a freestanding unit with a net capacity of several hundred litres is too large or simply not suitable – for example, on a worktop, under a counter or in a small adjoining room – the HMTvh 1501, with its compact external dimensions of just 81.9 x 59.7 x 60.5 cm, fits perfectly without compromising on temperature monitoring and documentation. Two fixed feet ensure a secure stance on the respective installation surface. Particularly in businesses that already use a larger freestanding unit for their main stock, the HMTvh 1501 is ideal as a second, compact unit for a secondary location within the premises – such as an adjoining room or a branch – without having to compromise on the same standard compliance and monitoring technology. Typical areas of application The HMTvh 1501 is suitable wherever medicines need to be stored in a small space in a standard-compliant, refrigerated manner without the need to purchase a large floor-standing unit. If, for example, a small but fully monitored stock of medicines needs to be kept at the reception or in the treatment room of a doctor’s surgery, the compact tabletop or under-counter model provides exactly the right size without having to compromise on data loggers and alarm systems. Even for smaller establishments that maintain only a limited stock of medicines overall, the HMTvh 1501 is therefore often the more suitable choice compared to a large floor-standing unit. Pharmacies and doctors’ surgeries with limited space for medication refrigeration Ward stations and treatment rooms with a smaller stock that is subject to documentation requirements Supplementary unit alongside a larger medicines refrigerator for separate storage areas Veterinary practices and similar facilities requiring compliant refrigerated storage Technical details Net capacity102 l Gross capacity134 l Shelves4 plastic-coated shelves, each with a load capacity of 45 kg Gross weight37.20 kg Net weight35.30 kg External dimensions (H x W x D)81.9 x 59.7 x 60.5 cm Internal dimensions (H x W x D)62.0 x 45.0 x 44.0 cm Packaging dimensions (W x D x H)61.5 x 71.0 x 89.0 cm Cabinet/door materialSteel Inner containerPlastic, white Door hingeright-hand, reversible RefrigerantR 600a (32 g) Cooling systemDynamic, automatic defrosting Temperature setting range+5 °C fixed, ±2 °C stability (ambient temperature +10 °C to +35 °C) Power consumption2.0 A Voltage / Frequency220–240 V ~ / 50/60 Hz Connection cable3,000 mm InterfaceWi-Fi/LAN, integrated and detachable, integrated USB data logger LockElectronic, with remote control AlarmsVisual/audible, immediate power failure alarm, backup power for at least 12 hours, alarm history Cleanroom classISO EN 14644-1, GMP Class B CertificationsDIN 13277, IEC 60068-3, IEC 61010-1, IEC 61010-2-011, IEC 61326-1 Energy consumption111 kWh/year Scope of supply 1x Liebherr HMTvh 1501 medicines refrigerator, standard version with 4 storage shelves User manual Customised requirements & procurement service Do you require the version with an organisation system, a different Liebherr model size, or assistance in selecting the right pharmaceutical refrigerator for your practice or pharmacy? Through our procurement service, LT Laborhandel will be happy to assist you with procurement and configuration.
Liebherr HMTvh 1511 Medicines Refrigerator, double-glazed door, 102 l, DIN 13277, 994870751
Anyone who, in the day-to-day running of a surgery or pharmacy, frequently just wants to quickly check whether a medicine compartment still has space available does not need to open the door every time and unnecessarily warm up the interior. The Liebherr HMTvh 1511 is a medicine refrigerator compliant with DIN 13277, with a net capacity of 102 litres and an insulated glass door, which makes precisely this everyday situation easier. The housing and frame are made of steel, whilst the inner compartment is made of easy-to-clean white plastic. Insulated glass door for a quick overview Unlike the structurally identical HMTvh 1501 with a steel door, the door of the HMTvh 1511 is made of insulated glass with a plastic frame. This allows the contents to be checked at a glance without opening the door and warming up the interior – a noticeable advantage when frequent visual checks are required in a practice setting. However, this additional transparency comes at the cost of efficiency: annual energy consumption, at 187 kWh, is noticeably higher than the 111 kWh of the steel-door version, whilst the external dimensions remain identical at 81.9 x 59.7 x 60.5 cm (H x W x D). DIN 13277 and precise temperature control The HMTvh 1511 meets the requirements of DIN 13277 for refrigeration units used in laboratories and for the storage of medicinal products. The setpoint temperature is fixed at +5 °C and is maintained with a temperature stability of ±2 °C, within a permissible ambient temperature range of +10 °C to +35 °C. If, in the event of a fault, the temperature falls below +2 °C, the integrated SafetyDevice function takes control and protects temperature-sensitive preparations from supercooling. In the event of a fault, the unit immediately issues a visual and audible warning; in the event of a power cut, the mains failure alarm is triggered immediately and is buffered for at least 12 hours. Documentation and networking An integrated USB data logger records the temperature history without interruption and creates its own alarm history, an important component for demonstrating compliance with storage standards under the Pharmacy Operating Regulations. Via the integrated, removable Wi-Fi/LAN interface, the HMTvh 1511 can be integrated into an existing practice or hospital network and monitored remotely. The unit is secured by an electronic lock with remote control; the antimicrobial handle with opening mechanism facilitates daily operation, whilst an LED light strip on the left ensures a clear view of the contents. Interior layout and cleanroom compatibility The HMTvh 1511 is fitted with four plastic-coated storage shelves, each with a load capacity of up to 45 kg. With a net volume of 102 litres and a gross volume of 137 litres, there is sufficient space for a substantial basic stock despite the compact design. According to the product data sheet, the unit is designed for cleanroom use in accordance with ISO EN 14644-1 and complies with GMP Class B; it is also certified to IEC 60068-3, IEC 61010-1, IEC 61010-2-011 and IEC 61326-1. Compact benchtop unit from the Perfection series Like the structurally identical HMTvh 1501, the HMTvh 1511 also forms part of Liebherr’s Perfection range for pharmaceutical cooling and is designed as a tabletop or under-counter unit, making it significantly more compact than the large floor-standing units in the HMFvh range. With external dimensions of just 81.9 x 59.7 x 60.5 cm, the unit fits on a worktop, under a counter or in a small adjoining room, without compromising on temperature monitoring and documentation. Two fixed feet ensure it stands securely on the chosen surface. Those who already operate a larger freestanding unit for their main stock in the same building can add the HMTvh 1511 as a second, compact unit for a reception or dispensing area, without having to compromise on the same regulatory compliance and monitoring technology. Typical areas of application The HMTvh 1511 is suitable wherever medicines need to be refrigerated in accordance with standards and, at the same time, checked frequently, without every visual inspection interrupting the cold chain. If, for example, staff at the reception of a doctor’s surgery or pharmacy need to check at a glance on a regular basis whether certain medicines are still in stock, the insulated glass door eliminates the need for repeated opening and closing, thereby maintaining a more consistent temperature inside the unit than would be the case with frequent door movement. Pharmacies and doctors’ surgeries where frequent visual checks of medication stocks are required Reception and dispensing areas where stock needs to be visible without opening the door Ward supply points requiring documented, standard-compliant cold storage Add-on to an HMTvh 1501 with a steel door for separate storage areas Technical details Net volume102 l Gross capacity137 l Shelves4 shelves, plastic-coated, each with a load capacity of 45 kg Gross weight45.60 kg Net weight43.60 kg External dimensions (H x W x D)81.9 x 59.7 x 60.5 cm Internal dimensions (H x W x D)62.0 x 45.0 x 46.0 cm Packaging dimensions (W x D x H)61.5 x 71.0 x 89.0 cm Casing materialSteel Door materialInsulated glass with plastic frame Inner containerPlastic, white Door hingeright-hand, reversible RefrigerantR 600a (32 g) Cooling systemDynamic, automatic defrosting Temperature setting range+5 °C fixed, ±2 °C stability (ambient temperature +10 °C to +35 °C) Power consumption2.0 A Voltage / Frequency220–240 V ~ / 50/60 Hz Connection cable3,000 mm InterfaceWi-Fi/LAN, integrated and detachable, integrated USB data logger LockElectronic, with remote control AlarmsVisual/audible, immediate power failure alarm, backup power for at least 12 hours, alarm history Cleanroom classISO EN 14644-1, GMP Class B CertificationsDIN 13277, IEC 60068-3, IEC 61010-1, IEC 61010-2-011, IEC 61326-1 Energy consumption187 kWh/year Scope of supply 1x Liebherr HMTvh 1511 medicines refrigerator with insulated glass door User manual Customised requirements & procurement service Do you require the version with a steel door, a different Liebherr model, or assistance in selecting the right pharmaceutical refrigerator for your practice or pharmacy? Through our procurement service, LT Laborhandel will be happy to assist you with procurement and configuration.
