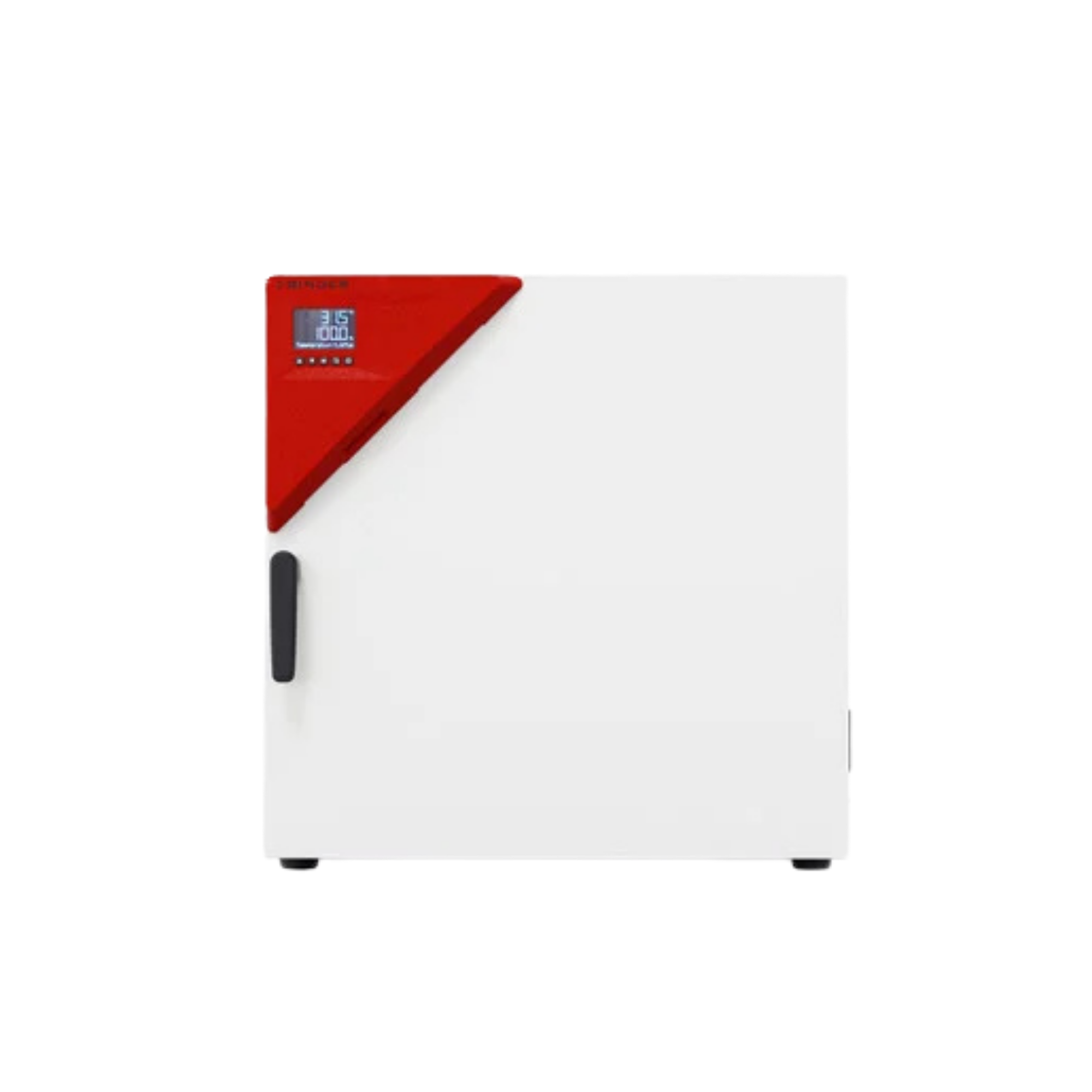

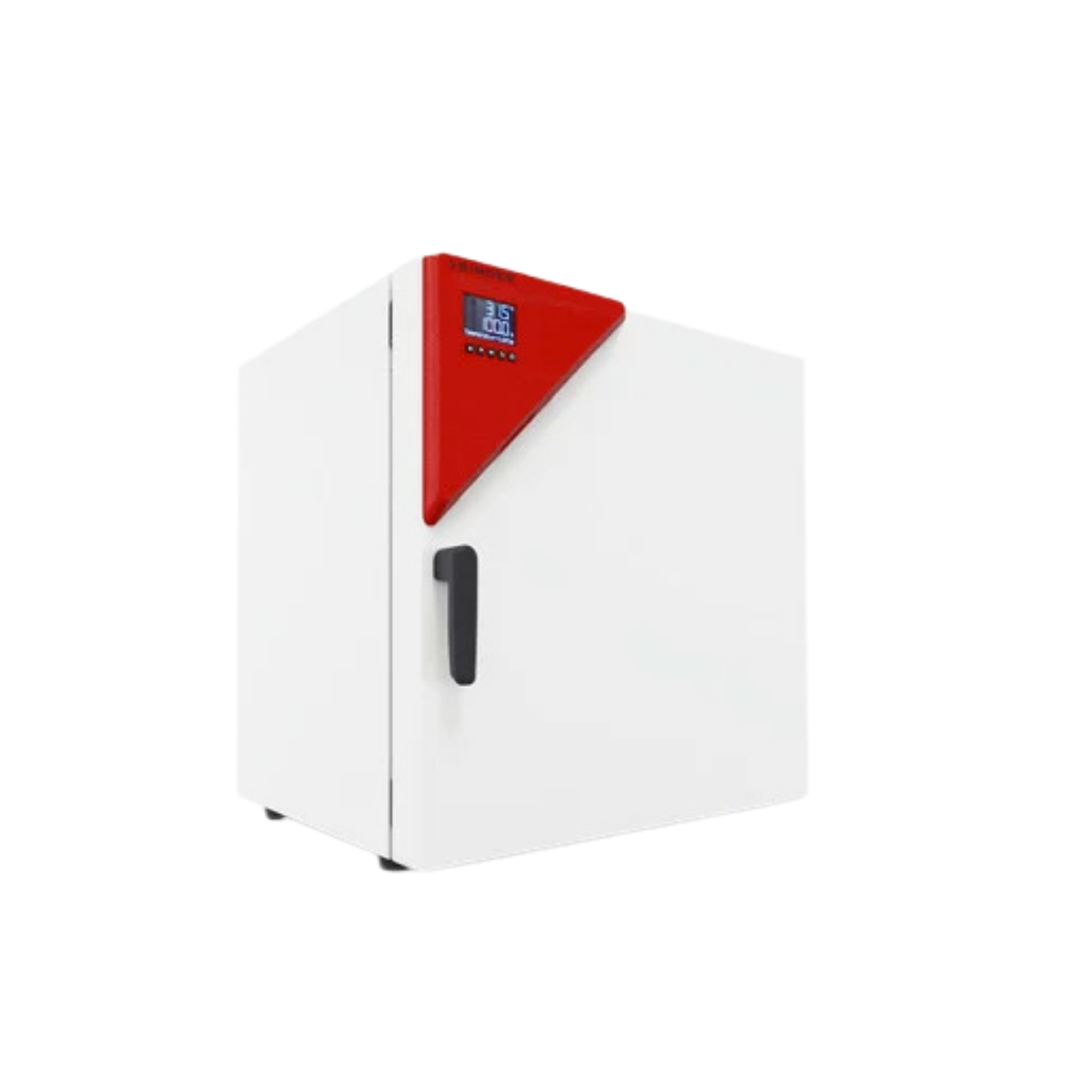

BINDER FP 115 drying and heating oven with forced air circulation, 116 litres, 300 °C, 230 V, 9010-0364

The BINDER FP 115: Programmable precision for demanding drying applications

The BINDER FP 115 (MPN 9010-0364) is far more than just a simple drying oven. As part of the modern Avantgarde.Line, this forced-air heating chamber is specially designed for complex stress and material tests where temperature profiles must be followed precisely. With a capacity of 116 litres and powerful forced convection (circulating air), it offers short drying times and an extremely fast heating rate. This 230 V model is the standard for European laboratories and impresses with its energy efficiency and state-of-the-art communication technology.

APT.line™ technology for perfect temperature distribution

With the FP 115, too, BINDER relies on its patented APT.line™ preheating chamber technology. Unlike conventional ovens, where heating coils often radiate heat unevenly, the air is preconditioned in a separate chamber and then flows evenly into the interior from both sides.

• Homogeneity: No matter how full the chamber is, the temperature is virtually identical at every point.
• Fast recovery times: Thanks to the powerful forced-air circulation, the unit returns to the set temperature in a flash after the door is opened.
• Precision up to 300 °C: The wide temperature range (10 °C above room temperature up to 300 °C) makes it an all-rounder for material testing and ageing tests.

Intelligent control: ramping and programming

The highlight of the FP series is the controller. Whilst simple ovens often only have an ‘On/Off’ function and a single temperature setting, the FP 115 allows you to programme complex temperature-time profiles (ramps).

• Time-interval and real-time programming: Define heating phases, dwell times and cooling curves precisely in accordance with your test standards.
• Adjustable fan speed: Control the intensity of the forced air circulation. Reduce it for fine powders to prevent turbulence, or increase it for maximum drying performance with damp materials.
• LCD display: All parameters (temperature, fan, damper position) are clearly shown on the large display.

Safety and connectivity

The BINDER FP 115 offers safety features of the highest standard:

• Integrated temperature protection: A Class 2 temperature selector limiter and a Class 3.1 temperature selector monitor (DIN 12880) with visual and audible alarms reliably protect your samples and the laboratory from overheating.
• Data acquisition: You can easily transfer measurement data to a USB stick via the integrated USB interface. An Ethernet interface also allows integration into networks (with the optional APT-COM™ software).

Ergonomics and design

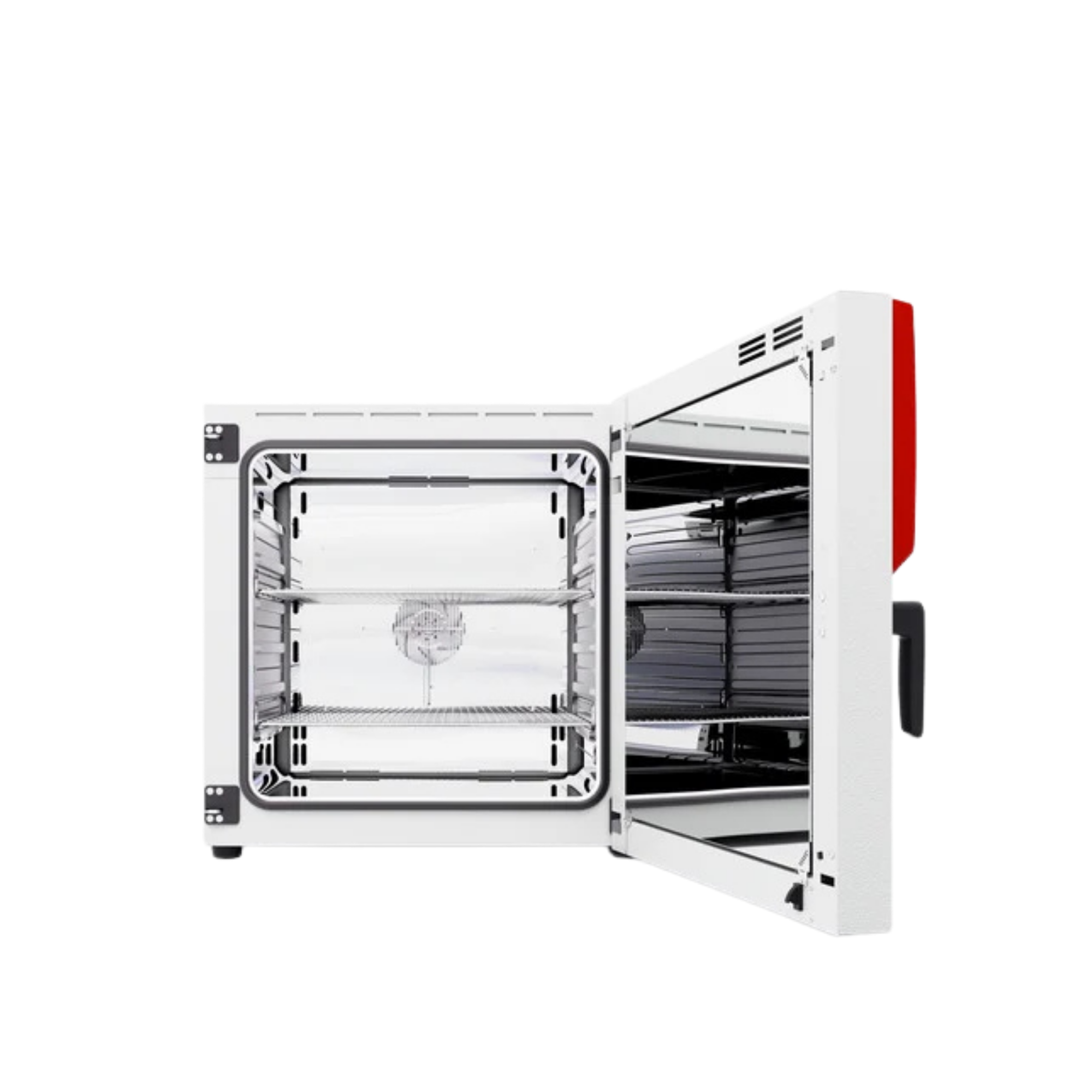

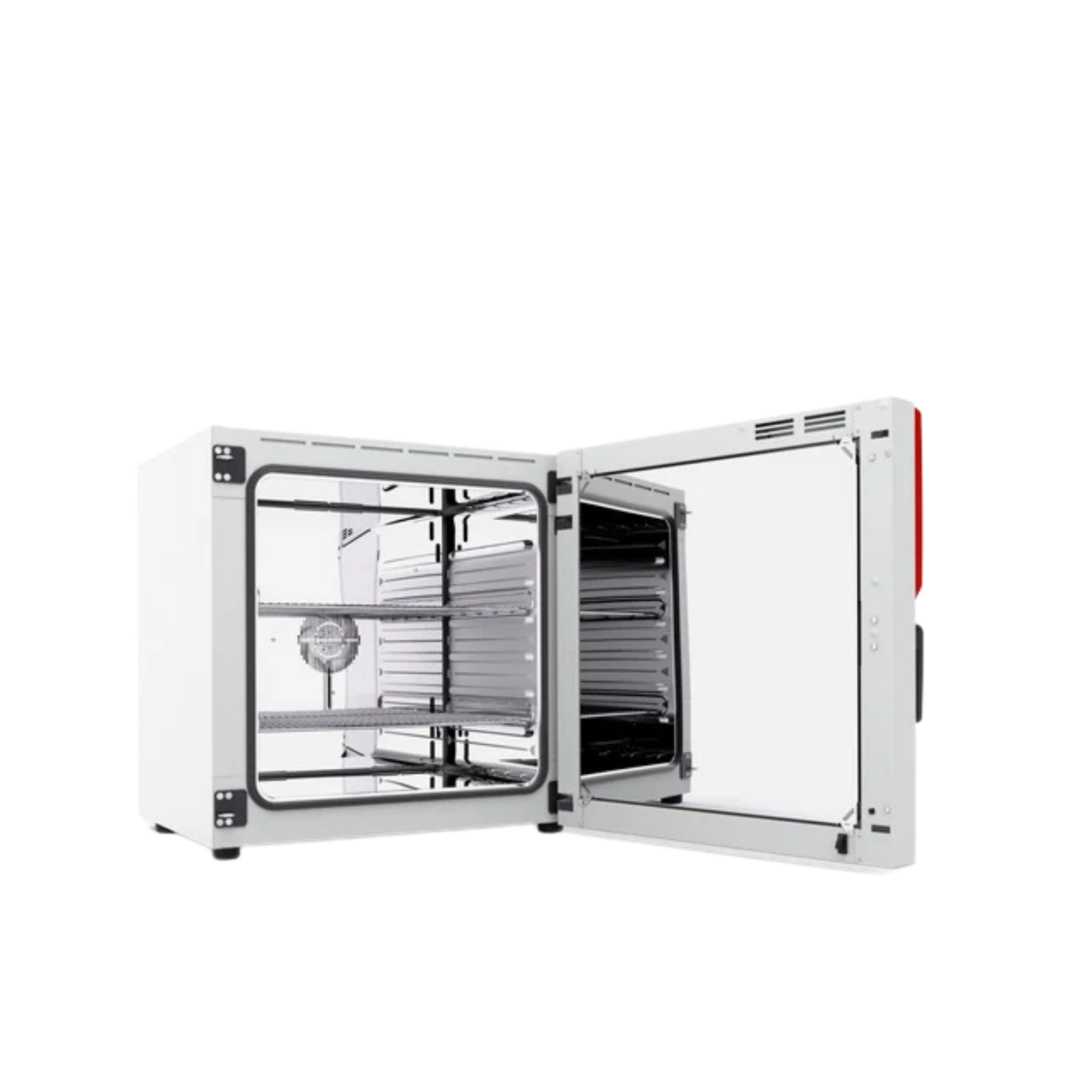

The Avantgarde.Line’s housing impresses with its clean lines and high functionality. The ergonomic door handle is easy to operate even with full hands. The interior, made of high-quality stainless steel, is easy to clean, and the shelves can be positioned flexibly.

Areas of application

• Material testing: Ageing tests on plastics or cables using defined temperature profiles.
• Electronics: ‘Burn-in’ tests on components.
• Automotive industry: Heat testing of components.
• Research: Drying of samples with precise logging.

With the BINDER FP 115 (9010-0364), you are choosing a high-performance heating chamber that combines precision, speed and programming flexibility in a robust unit.

Technical data

• Model: FP 115 (Avantgarde.Line)
• Part number (MPN): 9010-0364
• Voltage: 230 V 1~ 50/60 Hz
• Internal volume: 116 litres
• Temperature range: +10 °C above room temperature to +300 °C
• Convection type: Forced convection (circulating air), fan speed adjustable
• Heating time (to 150 °C): 19 min
• Recovery time (after 30 s with the door open at 150 °C): 5 min
• Control: LCD controller with interval and real-time programming
• Exhaust flap: Electromechanically controlled
• Interfaces: Ethernet, USB (data logger)
• Safety: Class 2 and Class 3.1 (DIN 12880) selectable
• Internal dimensions (W x H x D): 550 x 550 x 383 mm
• External dimensions (W x H x D): 714 x 732 x 636 mm
• Shelves: 2 chrome-plated wire mesh shelves included (max. 6 possible)
• Load capacity per shelf: max. 30 kg
• Rated power: 1.4 kW
• Weight: 55 kg (net)

Contents of delivery

• 1 x BINDER FP 115 (230 V version)
• 2 x shelf grids (chrome-plated)
• 1 x mains cable
• 1 x operating instructions

Customised requirements & accessories

Do you require the APT-COM™ 4 software for GLP-compliant documentation, additional shelves or pre-delivery calibration? We can tailor the FP 115 to your laboratory processes. Please contact our procurement service.
