Viscometers
Viscometers are measuring instruments for determining the viscosity of liquids in laboratories, research and industrial quality control. At LT Laborhandel, you will find precise viscometers for a range of applications, from routine analysis to demanding material and process testing. The instruments are suitable for measuring oils, chemicals, paints, varnishes or foodstuffs. To complement the viscometers, we recommend suitable products from the category Measuring Instruments as well as measurement technology from manufacturers such as Kern and IKA.
IKA ROTAVISC SBS me-vi HELI Complete, 100 to 40,000,000 mPas, ball bearings, electric stand, 0010013683
Anyone who frequently switches between samples during continuous operation, or moves the viscometer between several workstations, needs a bearing system that can withstand daily spindle changes without damage. The ROTAVISC SBS me-vi HELI Complete features SBS ball bearing technology and a motorised HELISTAND stand, which moves the viscometer and rotating body evenly through the sample during measurement. The scope of delivery already includes the complete spindle set for the measurement range 100 to 40,000,000 mPas; the drive, stand and accessories are matched to one another and ready for immediate use.Ball bearings instead of jewel bearingsThe SBS version (Steel Ball Bearing, Suspended) replaces the standard jewel bearings with ball bearing technology. It withstands high sample throughput, frequent spindle changes and harsh environments. Anyone who transports the instrument between multiple workstations or measures many samples per shift in quality control is better served by this design than by the more delicate standard bearing system. The spring torque of the built-in measuring spring is 0.7187 mNm, matching the measuring range of the spindles supplied in the SP set-2 kit.HELISTAND moves the sample during measurementThe motorised HELISTAND stand slowly and smoothly raises and lowers the viscometer, complete with spindle, within the sample, rather than simply allowing it to be immersed in a fixed position. This is suitable for measurements where viscosity varies with immersion depth or where uniform movement is required during the measurement series. The telescopic stroke is 142 mm, the maximum stroke at the boom is 61 mm, and the permissible dynamic load is 3.2 kg. The stand rod has a diameter of 16 mm, and the plug-in coupling for the drive is 12 mm.TFT display with ramp function and graphThe TFT display allows the speed (0.01 to 200 rpm in increments of ±0.01 rpm), timer and measured values to be read and set directly. A digital spirit level assists with alignment before the measurement begins, the ramp function automates recurring test sequences, and the graph function displays the viscosity curve during the measurement. The timer covers a range from 0.017 to 6,000 minutes and operates in both timer and continuous modes. An external temperature sensor can also be connected via PT 100; the resolution of the temperature measurement is 0.1 K, whilst RS 232 and Micro-USB transfer the measurement data to a PC.Calibration and data processingThe device can be calibrated at the measurement station and connected to laboratory software via the serial interface or USB, enabling documented measurement series without the need for manual data transfer. The motor delivers 4.8 W at the output, rotates clockwise as standard and is protected against overload. It is designed for operation at an ambient temperature of 5 to 40 °C with a maximum relative humidity of 80 %; the base vessel holds 600 ml of sample.Typical applicationsThe measurement range and robust design make it well suited to use where many different samples are tested in quick succession.Viscosity determination of Newtonian and non-Newtonian fluids in laboratories and quality controlHigh sample throughput with frequent spindle changes thanks to SBS ball bearingsMeasurements with a rotating body via the motorised HELISTAND standMobile use at different workstations or locationsDocumented measurement series via RS 232 or USB interfaceMeasurement series with external temperature monitoring via the PT-100 connectionTechnical detailsViscosity measurement range100 to 40,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque0.7187 mNmSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmTime setting range0.017 to 6,000 minBase vessel volume600 mlOperating temperature (sample)-100 to 300 °CStandHELISTAND, motorisedStroke of telescopic stand / max. stroke142 mm / 61 mmDynamic load3.2 kgInterfacesRS-232, Micro-USBDimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100 to 240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC, 1,000 mADegree of protectionIP 40 (DIN EN 60529)Scope of deliveryThe drive, stand and spindle set are supplied fully matched in a single package; all components can be reordered individually using their respective ID numbers.1 x ROTAVISC SBS me-vi control1 x HELISTAND, motorised stand (Ident No. 0020116429)1 x T-SP-SET (Ident No. 0025007765)1 x SP set-2, spindle set (Ident No. 0025000329)1 x PT 100.8 temperature sensor (Ident No. 0025000413)1 x protective bracketRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA manufacturer’s warranty: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase. Within the ROTAVISC SBS range, the Complete packages differ primarily in their measurement range and stand. For those seeking the same me-vi range without the motion function, the ROTAVISC SBS me-vi Complete offers the version with a fixed ROTASTAND. For higher-viscosity samples, the ROTAVISC SBS hi-vi I HELI Complete and the ROTAVISC SBS hi-vi II HELI Complete are available, each featuring the same SBS ball bearing system and the same HELISTAND stand. We provide support in selecting the appropriate measurement range and in sourcing further accessories such as spindles or calibration oil via our procurement service.
IKA ROTAVISC lo-vi Complete Rotational Viscometer Set, low-viscosity media, TFT touchscreen, 0010013826
Anyone who routinely tests low-viscosity liquids such as oils, paints, drinks or aqueous solutions needs a rotational viscometer that is ready to measure straight out of the box, rather than having to search for accessories first. The ROTAVISC lo-vi Complete from IKA comes as a matched set comprising the measuring head, stand, spindle set and temperature probe; with its soft measuring spring, it precisely covers the range in which many laboratory quality controls are carried out: from 1 to 6,000,000 mPas.Rotational principle with a soft measuring spring for low-viscosity mediaThe lo-vi measuring system uses the softest spring in the ROTAVISC series (spring torque 0.0673 mNm) and is therefore designed for low-viscosity to medium-viscosity samples. The viscosity measurement range extends from 1 to 6,000,000 mPas with an accuracy of 1 % of full scale (FSR) and a repeatability of 0.2 % FSR. The rotational speed can be adjusted from 0.01 to 200 rpm in increments of 0.01 rpm, which allows even very flat viscosity curves to be resolved with high precision.TFT touchscreen display with trend graph and timerThe ROTAVISC lo-vi Complete is operated via a TFT touchscreen display, on which speed, torque and temperature are shown simultaneously as setpoint and actual values. An integrated graphing function displays the viscosity curve directly on the instrument, which is useful for identifying shear-thinning or shear-thickening at a glance, without first having to export the measured values to external software. For long measurement series, a timer ranging from 0.017 to 6,000 minutes is available, either in timer mode or continuous operation. A calibration function directly on the device supports measurement accuracy throughout its service life.Temperature-controlled measurement with PT 100As viscosity is highly temperature-dependent, a PT 100.8 temperature sensor is included as standard. It has a resolution of 0.1 Kelvin and, together with the instrument, covers a working temperature range from minus 100 to 300 °C. Users wishing to actively control the temperature of the sample during measurement can utilise an external cooling/heating circulating thermostat from the range of accessories, such as the HRC 2 lite or the CBC VISC lite, which use the natural refrigerant R290. Separate measurement chambers are also available as accessories for sealed or particularly small sample volumes, enabling temperature-sensitive or volatile media to be measured under controlled conditions. An RS-232 interface and a micro-USB port are provided for connection to a process control system or the Labworldsoft 6 laboratory equipment software, allowing measurement series to be documented and analysed even outside the TFT display.Typical applicationsWith its wide measurement range, designed for low to medium viscosities, the ROTAVISC lo-vi Complete is technically suitable for:Quality control of low-viscosity products such as oils, paints, dip coatings or beveragesIncoming goods inspection of raw materials with defined viscosity specificationsRecipe and formulation development in research and developmentIn-process spot-check measurements on low- to medium-viscosity batchesTraining and teaching in rheology, thanks to the clear TFT user interfaceSelection guide within the ROTAVISC rangeIKA offers the ROTAVISC series in several measurement range variants, which differ primarily in terms of the spring stiffness of the measuring head and the spindle set supplied. All of them share the same display, speed range, interfaces and housing:VariantViscosity measurement rangeSpring torqueStandROTAVISC lo-vi Complete, this unit1 to 6,000,000 mPas0.0673 mNmRotastand, manualROTAVISC me-vi HELI Complete100 to 40,000,000 mPas0.7187 mNmHelistand, motorisedROTAVISC hi-vi II Complete800 to 320,000,000 mPas5.7496 mNmRotastand, manualFor most low- to medium-viscosity standard samples in the laboratory, the lo-vi version is suitable. If the viscosity rises into the range of pastes and highly viscous substances, the ROTAVISC hi-vi II Complete is the more suitable option. If controlled up-and-down movement of the spindle is also required, for example with non-flowing or structurally viscous samples, the ROTAVISC me-vi HELI Complete, with its motorised Helistand, is the right addition.Distinction from the CBC series with integrated temperature controlIn addition to the Complete set described here, in which temperature control is provided by an optional external circulating thermostat, IKA offers the CBC series, a variant in which a cooling/heating bath is already permanently integrated into the viscometer. For the low-viscosity measurement range, this corresponds to the ROTAVISC CBC lo-vi Package. Users who regularly carry out measurements at defined, actively controlled temperatures thus avoid the need to set up a separate external bath; those who only occasionally work under temperature-controlled conditions will generally find the Complete Set, combined with an external thermostat such as the CBC VISC lite (which can be added as required), to be the more cost-effective option.Technical detailsViscosity measurement range1 to 6,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque0.0673 mNmGuard raillo-viMeasuring spindlesSP set-1 (SP 1 to SP 4)Motor power, output4.8 WMotor direction of rotationclockwise, with overload protectionDisplayTFT touchscreen with graph functionSpeed range0.01 to 200 rpm, setting accuracy ±0.01 rpmTorque display / measurementYesTimer0.017 to 6,000 min, timer and continuous operationWorking temperature-100 to 300 °C, temperature measurement resolution 0.1 KConnection for external temperature sensorPT 100Base vessel volume600 mlStandRotastand, max. stroke 200 mm, Ø 16 mm, dynamic load 5 kgStroke of telescopic stand200 mmInterfacesRS 232, USB (Micro-USB)Degree of protectionIP 40 in accordance with DIN EN 60529Dimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100 to 240 V, 50/60 Hz, 24 WScope of delivery1 x ROTAVISC lo-vi control S000 (measuring head)1 x Rotastand (stand)1 x SP set-1 (standard spindle set SP 1 to SP 4)1 x PT 100.8 (temperature sensor)1 x Guard rail (protective bracket)Use, installation, maintenance and disposalThe device is protected against solid foreign objects from 1 millimetre in size in accordance with degree of protection IP 40; direct contact with splashing water must be avoided. To ensure reproducible measurement results, the stand should be placed on a level work surface with minimal vibration; the guard rail protects the spindle and measuring head from accidental contact during operation. The integrated calibration function allows for regular checks using standard silicone oils from the range of accessories; it is advisable to switch off the power before changing spindles or vessels. Spindles and the measuring vessel should be cleaned thoroughly after each measurement to ensure that dried-on residues do not distort the next measurement. At the end of its service life, the ROTAVISC lo-vi Complete, as an electrical appliance, must not be disposed of with household waste but must be placed in the separate collection for waste electrical and electronic equipment.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement serviceAdditional spindles and adaptors, measuring chambers, standard silicone oils for calibration, external circulating thermostats and the Labworldsoft 6 laboratory equipment software are available for the ROTAVISC lo-vi Complete as required. Factory calibration can also be ordered. Through our procurement service, we assist you in putting together the right accessories and selecting from our range of viscometers.Frequently Asked QuestionsWhat is included in the scope of delivery of the ROTAVISC lo-vi Complete?The measuring head, Rotastand, SP set-1 spindle set, PT 100.8 temperature sensor and protective bracket are all included in the scope of delivery.What viscosity range is the instrument designed for?For 1 to 6,000,000 mPas, using the softest measuring spring in the ROTAVISC range for low- to medium-viscosity media.Can the sample be temperature-controlled during the measurement?Yes, using the supplied PT 100 probe and an optional external circulating thermostat from the range of accessories, such as the CBC VISC lite.What is the difference between the lo-vi and hi-vi II models?The hi-vi II Complete measures up to 320,000,000 mPas using a stiffer spring and is therefore designed for pastes and highly viscous media.Can I calibrate the device myself?A calibration function is built in, and suitable standard silicone oils are available as accessories.What interfaces are available for data transfer?RS 232 and Micro-USB, compatible with the Labworldsoft 6 laboratory instrument software.
IKA ROTAVISC hi-vi II Complete Rotational Viscometer Set, for high-viscosity media and pastes, 0010013829
Pastes, adhesives, resins or greases are often difficult to measure reliably using a standard viscometer, as their flow behaviour lies well outside the measuring range for low-viscosity media. The ROTAVISC hi-vi II Complete from IKA is fitted with the stiffest measuring spring in the ROTAVISC range and, as a complete set comprising a stand, spindles and a temperature probe, covers a range from 800 to 320,000,000 mPas.Rigid measuring spring for highly viscous media and pastesWith a spring torque of 5.7496 mNm, the hi-vi-II measuring system operates with significantly greater stiffness than the lo-vi and me-vi variants of the series and is therefore specifically designed for viscous to paste-like samples. The viscosity measurement range extends from 800 to 320,000,000 mPas with an accuracy of 1 % of full scale (FSR) and a repeatability of 0.2 % FSR. The supplied spindle set SP set-2 (SP 7 to SP 12) is designed for the higher viscosity range and delivers a stable, analysable torque signal even with viscous substances.TFT display, torque measurement and timerSpeed, torque and temperature are displayed on the TFT touchscreen as setpoint and actual values; the integrated graphing function records the viscosity curve directly on the instrument. This is particularly useful with highly viscous media, as it enables the early detection of structural viscosity or sample hardening during the measurement. The speed range extends from 0.01 to 200 rpm with a setting accuracy of ±0.01 rpm; the timer covers 0.017 to 6,000 minutes in timer or continuous operation. A calibration function is integrated directly into the device. The integrated overload protection reacts if a very viscous or already set sample subjects the motor to a load exceeding the permissible torque, thereby protecting against damage to the measuring head during prolonged, unattended measurement runs.Temperature-controlled measurement with PT 100Many highly viscous media, such as melts, resins or temperature-dependent pastes, exhibit significant changes in viscosity even with small temperature fluctuations. The PT 100.8 sensor included in the scope of delivery has a resolution of 0.1 Kelvin and, together with the instrument, covers a working temperature range from minus 100 to 300 °C. For actively temperature-controlled measurement series, an external cooling/heating circulating thermostat such as the HRC 2 lite or the CBC VISC lite can be connected; for documenting the measurement series, an RS-232 interface and a micro-USB port are available for the Labworldsoft 6 laboratory instrument software.Typical applicationsWith its rigid measuring spring and extended measurement range, the ROTAVISC hi-vi II Complete is technically suitable for:Quality control of adhesives, sealants and resinsTesting of greases, pastes and high-viscosity emulsionsFormulation development for viscous formulations in research and developmentIncoming inspection of high-viscosity raw materials with defined specificationsIn-process monitoring in plastics and adhesives processingBrief differentiation within the ROTAVISC rangeIn addition to the hi-vi-II model described here, IKA offers the ROTAVISC series in further measurement range variants. The ROTAVISC lo-vi Complete measures from 1 to 6,000,000 mPas using a softer spring and is suitable for low-viscosity to medium-viscosity media. The ROTAVISC me-vi HELI Complete covers a medium range from 100 to 40,000,000 mPas and also includes a motorised Helistand stand for samples that do not flow freely during measurement. As a rough guide: users who regularly switch between low-viscosity and paste-like batches when changing samples are often better served by the hi-vi-II set described here, together with an additional lo-vi spindle set from the range of accessories, than by using two separate instruments.Distinction from the SBS series with a more robust ball bearing systemFor applications involving particularly frequent spindle changes or continuous operation under high mechanical stress, IKA also offers the hi-vi series in an SBS version with a more robust ball bearing system: the ROTAVISC SBS hi-vi II Complete. For the vast majority of routine laboratory measurements, the standard bearing arrangement of the Complete set described here is sufficient; the SBS variant is particularly worthwhile for very intensive, multi-shift use.Technical detailsViscosity measurement range800 to 320,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque5.7496 mNmMeasuring spindlesSP set-2 (SP 7 to SP 12)Motor power, output4.8 WMotor direction of rotationclockwise, with overload protectionDisplayTFT touchscreen with graph functionSpeed range0.01 to 200 rpm, setting accuracy ±0.01 rpmTorque display / measurementYesTimer0.017 to 6,000 min, timer and continuous operationWorking temperature-100 to 300 °C, temperature measurement resolution 0.1 KConnection for external temperature sensorPT 100Base vessel volume600 mlStandRotastand, max. stroke 200 mm, Ø 16 mm, dynamic load 5 kgStroke of telescopic stand200 mmInterfacesRS 232, USB (Micro-USB)Degree of protectionIP 40 in accordance with DIN EN 60529Dimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100 to 240 V, 50/60 Hz, 24 WScope of delivery1 x ROTAVISC hi-vi II control S000 (measuring head)1 x Rotastand (stand)1 x SP set-2 (standard spindle set SP 7 to SP 12)1 x PT 100.8 (temperature sensor)1 x Guard rail (protective bracket)Use, installation, maintenance and disposalThe instrument is protected against solid foreign objects from 1 millimetre in size in accordance with degree of protection IP 40. In the case of viscous, sticky or hardening media, it is recommended that the spindle and measuring vessel be cleaned immediately after each measurement, before residues dry out and make cleaning more difficult or distort the next measurement. The stand should be placed on a stable, level surface so that the high rigidity of the measuring spring is not compromised by vibrations. It is advisable to switch off the power to the device before changing the spindle or vessel. At the end of its service life, the ROTAVISC hi-vi II Complete, as an electrical appliance, must not be disposed of with household waste but must be placed in the separate collection scheme for end-of-life electrical equipment. As highly viscous media are often difficult to remove from the base vessel, it is advisable, in the case of very sticky samples, to clean the equipment promptly after cooling, whilst residues can still be dissolved using standard commercial solvents.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement serviceAdditional spindles and adapters for other viscosity ranges, measuring chambers, standard silicone oils for calibration, external circulating thermostats and the Labworldsoft 6 laboratory equipment software are available for the ROTAVISC hi-vi II Complete as required, as is factory calibration. An additional spindle set for the low-viscosity range (SP set-1) can also be retrofitted if, in addition to viscous media, you occasionally need to analyse more fluid samples. Through our procurement service, we will assist you in selecting from our range of viscometers.Frequently Asked QuestionsWhat viscosity range is the hi-vi-II model designed for?For 800 to 320,000,000 mPas, using the stiffest measuring spring in the ROTAVISC range for highly viscous media and pastes.Is the instrument ready for immediate use?Yes, the measuring head, Rotastand, SP set-2 spindle set, PT 100.8 temperature sensor and protective bracket are all included in the scope of delivery.What distinguishes the hi-vi-II model from the lo-vi model?The lo-vi Complete measures from 1 to 6,000,000 mPas using a softer spring and is suitable for low-viscosity to medium-viscosity media.Is there a version with a more robust bearing system?Yes, the SBS variant, the ROTAVISC SBS hi-vi II Complete, features a more robust ball bearing system for very intensive use.Can the sample be temperature-controlled during the measurement?Using the supplied PT-100 probe and an optional external circulating thermostat, such as the CBC VISC lite or HRC 2 lite.Can I also measure lower-viscosity samples with the same instrument?With an additional SP-set-1 spindle set (available separately), the measurement range can be extended to cover lower viscosities; for very low-viscosity media, the ROTAVISC lo-vi Complete remains the more accurate choice.
IKA ROTAVISC me-vi Complete, Rotational Viscometer 100 to 40,000,000 mPas, 0010013827
A rotational viscometer on its own is of little use if the stand and spindle set have to be purchased separately. The ROTAVISC me-vi Complete supplies the drive unit, ROTASTAND stand and SP set-2 spindle set in a single order, designed for the medium viscosity range from 100 to 40,000,000 mPas. Paints, varnishes, creams and many food samples fall precisely within this range; the package is therefore suitable for quality control testing tasks without the need for a second instrument for outlying ranges.What the medium measurement range is suited forWith an accuracy of 1 % of the measuring range and a repeatability of 0.2 %, the instrument delivers reproducible results for formulation comparisons and batch approvals. The 4.3-inch TFT display guides you through the menu; a digital spirit level helps with aligning the stand before measurement; and a ramp function automatically runs recurring test sequences. The rotational speed can be set from 0.01 to 200 rpm in increments of 0.01 rpm, for both Newtonian and non-Newtonian fluids.Set-up with the ROTASTAND telescopic standThe supplied ROTASTAND stand has a stroke of 200 mm and can support a dynamic load of 5 kg; the drive unit is secured via a 16 mm stand rod and a 12 mm push-fit coupling. For measurement series where the position does not need to be changed during the measurement, this manual design is sufficient. Those wishing to move the rotating body through the sample using a motor will find the lo-vi HELI Complete or the other HELISTAND packages in the range to be a suitable alternative.Calibration and data connectivity in everyday laboratory workThe device can be connected to a PC via RS 232 and a micro-USB interface for data logging and analysis using Labworldsoft, IKA’s measurement, control and regulation software. The integrated calibration function and the graph function on the TFT display support the traceability of measurement series without the need for additional software for basic documentation. This is particularly useful when comparing formulations across multiple batches, as the viscosity curve can be read directly on the instrument rather than simply noting a single final value.Typical applicationsQuality control of paints and coatings prior to fillingFormulation comparisons in food productionRelease testing of medium-viscosity creams and emulsionsRoutine tests in the laboratory and at goods-inSelection guide: an overview of the ROTAVISC Complete rangeThe Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearings (jewel bearings or SBS ball bearings), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The me-vi Complete covers the mid-range with standard bearings and a standard stand.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete (this package)100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range100 to 40,000,000 mPasAccuracy (FSR)1 % of the measuring rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measurement value (torque)0.7187 mNmMeasuring spindles, basic configurationSP set-2StandROTASTAND (manual telescopic stand)Time setting range for timer0.017 to 6,000 minWorking temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC me-vi control, drive unit (part of the pack with ID no. 0010013827)1 x ROTASTAND, ID No. 00201164281 x Spindle set SP set-2, ID No. 00250003291 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the instrument; this is extended to 10 years if the instrument is registered at ika.com/register within 90 days of purchase. For accessories such as additional spindles, calibration oils or a circulating thermostat for temperature-controlled measurement series, our procurement service is available, for example for the ROTATEMP package with heating system. The entire range of this series can be accessed via the viscometer category.

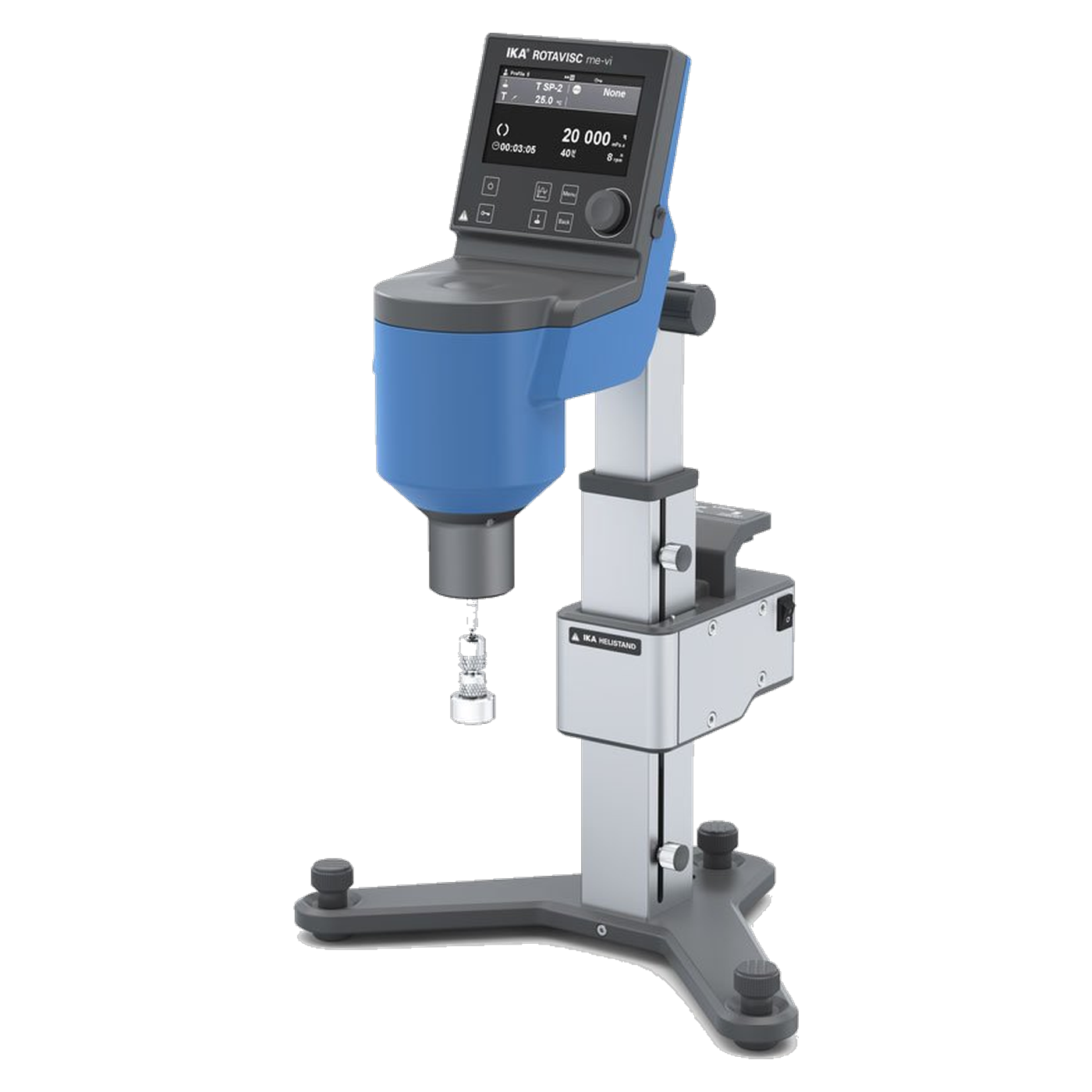

IKA ROTAVISC me-vi HELI Complete Rotational Viscometer Set, motorised Helistand stand, 0010013731
Not every sample flows evenly around the spindle of its own accord; for example, gels, ointments, creams or viscous substances tend to pool rather than flow. For precisely such cases, the ROTAVISC me-vi HELI Complete from IKA features a motorised Helistand instead of a rigid stand; this moves the spindle up and down in a controlled manner during the measurement, thereby feeding fresh sample material to the measuring head. The set combines this special design feature with the same digital measuring head used by the other ROTAVISC variants, thereby delivering reproducible viscosity readings that can be read directly on the instrument, even with samples that remain stationary.Medium viscosity range with motorised HelistandThe me-vi measuring system operates with a spring torque of 0.7187 mNm and covers a viscosity range from 100 to 40,000,000 mPas, with an accuracy of 1 % of full scale (FSR) and a repeatability of 0.2 % FSR. Unlike the Rotastand in the lo-vi and hi-vi sets, in the me-vi HELI set the motorised Helistand stand handles the vertical movement: the spindle dips slightly deeper into the sample and back out again at defined intervals, ensuring that even samples without their own flow movement are continuously re-measured.TFT display, graph function and timerSpeed, torque and temperature are shown on the TFT touchscreen as setpoint and actual values, whilst a graphing function displays the viscosity curve directly on the instrument. The speed range extends from 0.01 to 200 rpm with a setting accuracy of ±0.01 rpm; the timer covers 0.017 to 6,000 minutes in timer or continuous operation. The supplied spindle set SP set-2 (SP 7 to SP 12) and the additional T-SP-SET are designed for the medium to high viscosity range.Temperature-controlled measurement with PT 100A PT 100.8 temperature sensor is included in the scope of delivery; it has a resolution of 0.1 Kelvin and, in conjunction with the instrument, covers a working temperature range from minus 100 to 300 °C. For actively temperature-controlled measurement series on non-flowing samples, such as when testing creams or gels over a defined temperature range, an external cooling/heating circulation thermostat, such as the HRC 2 lite or the CBC VISC lite, can be connected. An RS-232 interface and a micro-USB port enable connection to the Labworldsoft 6 laboratory instrument software.Typical applicationsWith its motorised Helistand stand, the ROTAVISC me-vi HELI Complete is particularly well-suited for samples that do not flow freely:Cosmetics and pharmaceutical testing of creams, ointments and gelsQuality control of structurally viscous foodstuffs such as spreads or saucesTesting of sealants and paste-like formulations in research and developmentFormulation development for stable, non-self-levelling compoundsIn-process monitoring in the cosmetics and consumer goods industriesBrief differentiation within the ROTAVISC rangeIn addition to the me-vi-HELI model described here, IKA offers the ROTAVISC series in further measuring range variants with a manual Rotastand stand. The ROTAVISC lo-vi Complete measures from 1 to 6,000,000 mPas using a softer spring and is suitable for low-viscosity to medium-viscosity, self-flowing media. The ROTAVISC hi-vi II Complete, with a stiffer spring, covers the range from 800 to 320,000,000 mPas and is designed for pastes and highly viscous media that also flow freely. If the sample does not flow freely during the measurement, the motorised Helistand stand of the me-vi-HELI set described here is the more suitable design, regardless of the viscosity range.Distinction from the CBC series with integrated temperature controlFor those who regularly carry out measurements in the me-vi range at actively controlled temperatures, the ROTAVISC CBC me-vi Package offers a variant with a permanently integrated cooling/heating bath instead of an optional external thermostat. For measurements at room temperature or with occasional use of an external thermostat, the me-vi-HELI Complete Set described here remains the more compact and flexible solution, as the Helistand stand can be used independently of the temperature control module. For particularly intensive continuous operation, IKA also offers the combination of CBC temperature control and a more robust ball bearing system in the ROTAVISC CBC SBS me-vi Package.Technical detailsViscosity measurement range100 to 40,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque0.7187 mNmGuide railme-viMeasuring spindlesSP set-2 (SP 7 to SP 12)Motor power, output4.8 WMotor direction of rotationclockwise, with overload protectionDisplayTFT touchscreen with graph functionSpeed range0.01 to 200 rpm, setting accuracy ±0.01 rpmTorque display / measurementYesTimer0.017 to 6,000 min, timer and continuous operationWorking temperature-100 to 300 °C, temperature measurement resolution 0.1 KConnection for external temperature sensorPT 100Base vessel volume600 mlStandHelistand, motorised, stroke of telescopic stand 142 mmMax. stroke / Ø / dynamic load (stand)142 mm / 16 mm / 3.2 kgInterfacesRS 232, USB (Micro-USB)Degree of protectionIP 40 in accordance with DIN EN 60529Dimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100 to 240 V, 50/60 Hz, 24 WScope of delivery1 x ROTAVISC me-vi HELI Complete (measuring head)1 x SP set-2 (standard spindle set SP 7 to SP 12)1 x PT 100.8 (temperature sensor)1 x Helistand (motorised stand)1 x T-SP-SETUse, installation, maintenance and disposalThe instrument is protected against solid foreign objects from 1 millimetre in size in accordance with degree of protection IP 40. To ensure that the Helistand can move up and down smoothly, it should be set up on a stable, vibration-free surface with sufficient headroom for the full stroke of the telescopic stand of 142 millimetres. For non-flowing, stable samples, it is advisable to clean the spindle and base vessel regularly immediately after measurement, as dried-on residues can hinder the up-and-down movement of the spindle. It is advisable to switch off the power to the device before changing the spindle or vessel. At the end of its service life, the ROTAVISC me-vi HELI Complete, as an electrical appliance, must not be disposed of with household waste but must be placed in the separate collection for waste electrical and electronic equipment. As the Helistand stand has moving mechanical parts, it is worth carrying out a quick visual check before switching it on to ensure there is sufficient clearance, so that the up and down movement does not get caught on cables or other nearby laboratory equipment.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement serviceAdditional spindles and adaptors, measuring chambers, standard silicone oils for calibration, external circulating thermostats and the Labworldsoft 6 laboratory equipment software are available for the ROTAVISC me-vi HELI Complete if required, as are certificates for qualification (IQ/OQ) or factory calibration. Through our procurement service, we will assist you in selecting from our range of viscometers.Frequently Asked QuestionsWhat is the motorised Helistand stand used for?It moves the spindle up and down in a controlled manner during the measurement, ensuring that even samples which do not flow freely, such as creams or gels, are continuously re-measured.What viscosity range is the me-vi model designed for?For 100 to 40,000,000 mPas, with a spring torque of 0.7187 mNm.Is the device ready for immediate use?Yes, the measuring head, Helistand, spindle set SP set-2, T-SP-SET and PT 100.8 temperature sensor are included in the scope of delivery.What distinguishes the me-vi-HELI model from the lo-vi and hi-vi-II models?The lo-vi and hi-vi-II sets operate with a manual Rotastand for self-flowing media, whilst the me-vi-HELI set moves the spindle up and down by motor and is therefore suitable for non-flowing samples.Is there a version with integrated temperature control?Yes, the ROTAVISC CBC me-vi Package features a permanently integrated cooling and heating bath instead of an optional external thermostat.

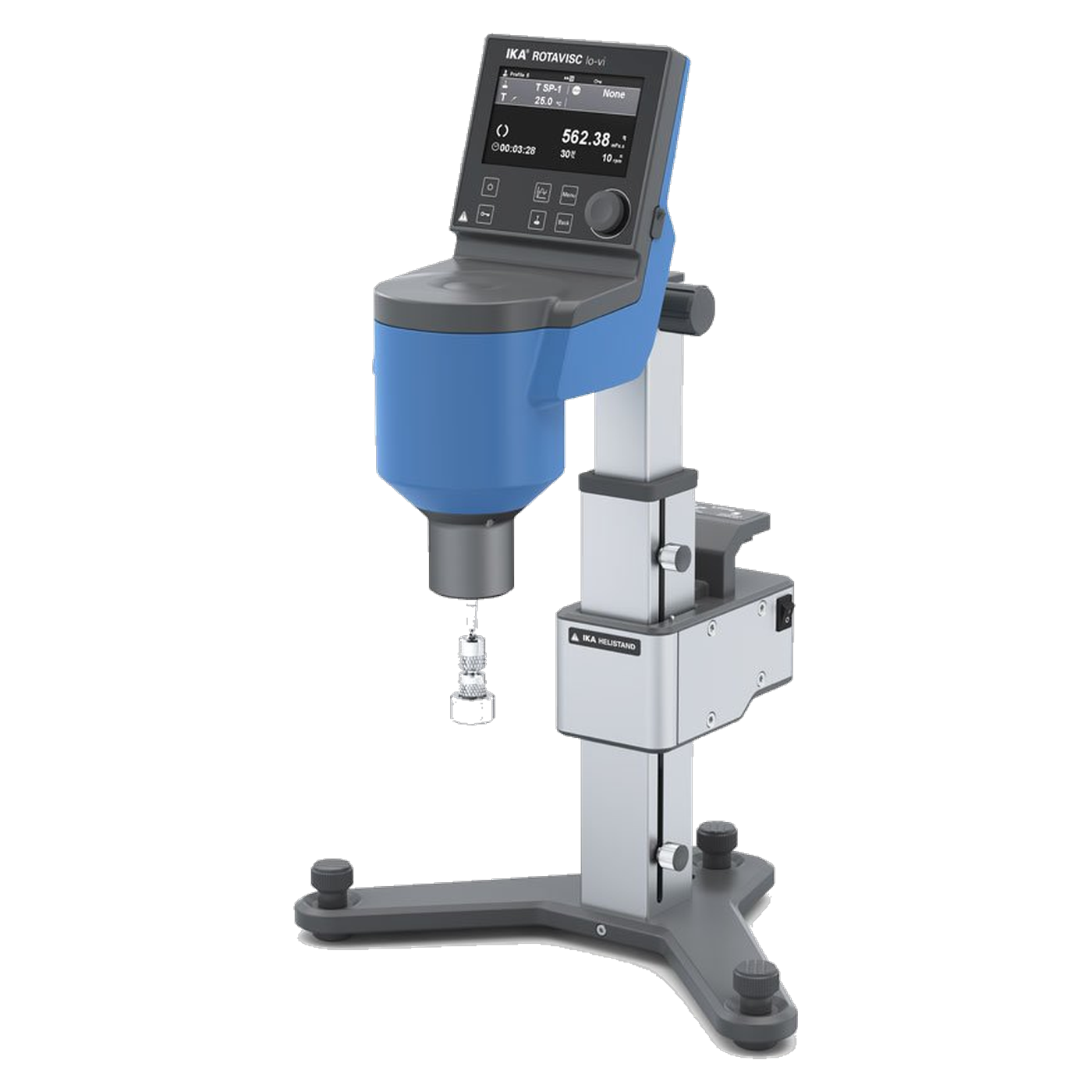

IKA ROTAVISC lo-vi HELI Complete, Rotational Viscometer 15 to 6,000,000 mPas, Electric HELISTAND Stand, 0010013698
Low-viscosity media such as solvents, light oils or diluted dispersions place different demands on a viscometer than thick pastes. The ROTAVISC lo-vi HELI Complete measures at the lower end of the range, from 15 to 6,000,000 mPas, and features the smallest spring measurement value in the entire family, along with a motorised HELISTAND stand that moves the rotating body slowly and evenly through the sample during measurement.Low-viscosity media require a fine torqueWith a spring measurement value of 0.0673 mNm, this instrument is designed for measurement ranges where other ROTAVISC packages reach their lower limit. As with the entire range, accuracy and repeatability are 1 % and 0.2 % of the measurement range respectively. The scope of delivery includes the SP set-1 spindle set, which covers different spindle sizes to the SP set-2 included in the other packages.The benefits of the motorised HELISTAND movementThe HELISTAND stand uses a motor to move the drive unit and rotating body up and down through the sample, enabling viscosity measurement whilst in motion rather than at a fixed point. For low-viscosity media, this ensures a consistent immersion depth throughout the entire measurement series. The scope of delivery also includes the T-SP-SET, which is required for the HELISTAND design. Those looking instead for a manual stand for the medium measuring range will find the me-vi Complete, the standard version of the series.Documenting measurement seriesFor low-viscosity media, whose values may change over time, RS 232 and Micro-USB connections to Labworldsoft are particularly useful. The integrated graph function displays the viscosity curve directly on the 4.3-inch TFT display, whilst the calibration option ensures traceable reference measurements over longer periods. In the case of solvents that are prone to evaporation, this makes it possible to quickly determine whether a value is still within the expected range or whether the sample needs to be replenished.Typical applicationsViscosity measurement of solvents and light oilsQuality control of low-viscosity dispersions and coating solutionsRelease measurements of low-viscosity cleaning and process fluidsMeasurement series where a consistent immersion depth is importantSelection guide: an overview of the ROTAVISC Complete rangeThe Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearings (jewel bearings or SBS ball bearings), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The lo-vi HELI Complete works with the SP set-1 spindle set and is designed for the range of low viscosities. For medium viscosities, using the same motorised stand but with the SP set-2 spindle set, the hi-vi I HELI Complete is the alternative.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete (this package)15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range15 to 6,000,000 mPasAccuracy (FSR)1 % of the measurement rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measurement value (torque)0.0673 mNmMeasuring spindles, standard configurationSP set-1StandHELISTAND (motorised, incl. T-SP-SET)Time setting range for timer0.017 to 6,000 minWorking temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC lo-vi HELI Complete, drive unit (part of package ID no. 0010013698)1 x HELISTAND, ID No. 00201164291 x T-SP-SET, ID No. 00250077651 x Spindle set SP set-1, ID No. 00250003191 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the instrument; this is extended to 10 years if the instrument is registered at ika.com/register within 90 days of purchase. For measurement series at a defined sample temperature, a ROTATEMP package with a heating system complements the lo-vi HELI Complete. If you have any questions regarding the appropriate spindle combination, our procurement service is available to assist; the full range can be accessed via the viscometer category.
IKA ROTAVISC SBS hi-vi I HELI Complete, 200 to 80,000,000 mPas, ball bearings, electric stand, 0010013658
Viscous to paste-like samples often cannot be accurately measured within a standard measuring range; the display goes off-scale or the spindle barely turns at all. The ROTAVISC SBS hi-vi I HELI Complete covers a significantly higher range, from 200 to 80,000,000 mPas, and features SBS ball bearings as well as a motorised HELISTAND stand; it is fully assembled and ready for use with the appropriate spindle set.Designed for the hi-vi-I rangeFor the higher viscosity range, a different measuring spring is fitted compared to the me-vi model; the spring torque is 1.4374 mNm. Together with the SP set-2 spindle set, the instrument covers the range from 200 to 80,000,000 mPas, with an accuracy of 1 % of the measuring range and a repeatability of 0.2 %. The rotational speed is adjustable in increments of ±0.01 rpm across the full range from 0.01 to 200 rpm.SBS ball bearing system for continuous operationThe SBS version (Steel Ball Bearing, Suspended) replaces the jewel bearing with ball bearing technology, which is better suited to high sample throughput, frequent spindle changes and harsh environmental conditions. For businesses that use the same instrument at multiple sites or across multiple shifts, this is the appropriate choice over the more delicate standard bearing system. Both instrument variants share the same motor and display control; the difference lies solely in the bearing system.HELISTAND stand and operationThe motorised HELISTAND stand moves the viscometer and rotating body slowly and smoothly up and down during measurement; the telescopic stroke is 142 mm, the maximum stroke at the arm is 61 mm, with a permissible dynamic load of 3.2 kg. The TFT display is used to set and read the rotational speed (0.01 to 200 rpm), timer (0.017 to 6,000 min) and measured values; a ramp function automates recurring test sequences and the graph function displays the viscosity curve. The PT 100 accommodates an external temperature sensor, whilst RS 232 and Micro-USB are used to transmit the measurement data.Calibration and environmental conditionsThe instrument can be calibrated at the test station and connected to laboratory software via RS 232 or USB; this allows test series to be documented without having to transfer values manually. The motor delivers 4.8 W at the output, rotates clockwise as standard and is protected against overload. It is designed for operation at an ambient temperature of 5 to 40 °C and a maximum relative humidity of 80 %; the base vessel holds 600 ml of sample, the stand rod has a diameter of 16 mm, and the plug-in coupling to the drive measures 12 mm in diameter.Typical applicationsThe hi-vi-I range is suitable for samples that are already too viscous for the standard measurement range of me-vi instruments, but do not yet constitute extremely high-viscosity substances.Testing of highly viscous to paste-like samples beyond the me-vi measurement rangeQuality control with high sample throughput and frequent spindle changesMeasurements with a rotating body in motion using the motorised HELISTAND standSwitching between workstationsDocumented measurement series via RS 232 or USB interfaceMeasurement series with external temperature monitoring via the PT-100 connectionTechnical detailsViscosity measurement range200 to 80,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque1.4374 mNmSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmTime setting range0.017 to 6,000 minBase vessel volume600 mlOperating temperature (sample)-100 to 300 °CStandHELISTAND, motorisedStroke of telescopic stand / max. stroke142 mm / 61 mmDynamic load3.2 kgInterfacesRS-232, Micro-USBDimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100 to 240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC, 1,000 mADegree of protectionIP 40 (DIN EN 60529)Scope of deliveryThe drive, stand and spindle set are designed to work together and are supplied as a complete package; each component can be reordered individually using its own ID number.1 x ROTAVISC SBS hi-vi I control1 x HELISTAND, motorised stand (Ident No. 0020116429)1 x T-SP-SET (Ident No. 0025007765)1 x SP set-2, spindle set (Ident No. 0025000329)1 x PT 100.8 temperature sensor (Ident No. 0025000413)1 x protective bracketRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA manufacturer’s warranty: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase. For those measuring in the me-vi range, the ROTAVISC SBS me-vi HELI Complete is the suitable variant for the range 100 to 40,000,000 mPas. For even higher-viscosity samples, the ROTAVISC SBS hi-vi II HELI Complete covers the range up to 320,000,000 mPas. Those who do not require a motion function can save money with the ROTAVISC SBS hi-vi I Complete on a fixed ROTASTAND, which does not require motorised movement and is therefore slightly simpler in design. For details on spindles, calibration oil or software integration, Labworldsoft, IKA’s own laboratory equipment software, is also available. We can advise on selecting the appropriate measurement range and procure further accessories via our procurement service.
IKA ROTATEMP lo-vi Package, Viscometer Set including Heating System (300 °C), Low-viscosity, 0010014004
Not every temperature-dependent sample is as tough as bitumen. When heated, waxes, hot-melt adhesives or confectionery mixtures often become thin and fluid before transitioning to a medium viscosity range, and it is precisely this lower range for which the ROTATEMP lo-vi Package is designed. It combines the ROTAVISC drive in the lo-vi range with the IKA ROTATEMP high-temperature system, which heats samples to up to 300 °C in around 16 minutes. The drive, stand, heating system and spindle set are coordinated as a complete package and ready for use.Spindle set and measuring spring for the lo-vi rangeFor lower viscosities, a more sensitive measuring spring is fitted than in the me-vi models; the spring torque is just 0.0673 mNm. Together with the SP set-1 spindle set, the instrument covers a range up to 6,000,000 mPas, with an accuracy of 1 % of the measuring range and a repeatability of 0.2 %. This means that even thinner melts remain within the measurement range, whereas with the me-vi instruments they would already be outside the resolution at the lower end.ROTATEMP high-temperature systemThe heating system is mounted directly on the boom, eliminating the need for a separate external water bath. The sample is brought to the target temperature in approximately 16 minutes using magnetic stirrer technology; according to the manufacturer, this is achieved without overheating it. According to the data sheet, the sample’s working temperature ranges from -100 to 300 °C; of particular practical relevance for this package is the heated upper range up to 300 °C, combined with the drive’s low-viscosity measurement range.Operation and connectivityThe TFT display allows the speed (0.01 to 200 rpm), timer (0.017 to 6,000 min) and measured values to be set and read directly; a ramp function automates recurring test sequences, and the graph function displays the viscosity curve throughout the heating phase. RS 232 and USB-B connect the device to the labworldsoft laboratory software for control, automation and documentation of the measurement series. An external PT-100 temperature sensor with a resolution of 0.1 K supplements the internal measurement.Operating conditions and compact designThe drive, stand and heating system form a ready-to-connect complete system with a space-saving design; there is no need for a separate setup comprising a bath, pump and tubing. The stand’s telescopic stroke is 200 mm with a permissible dynamic load of 5 kg; the base vessel holds 600 ml of sample. The unit is designed for operation at an ambient temperature of 5 to 40 °C and a maximum relative humidity of 80 %; the motor delivers 4.8 W at the output, rotates clockwise as standard and is protected against overload.Typical applicationsThe lo-vi range is suitable wherever samples become flowable when heated but do not reach the extreme viscosity of bitumen or similar materials.Waxes, hot-melt adhesives and polymers in the low-viscosity rangeConfectionery mixtures and other food melts at a defined temperatureComparative measurement series at different target temperatures up to 300 °CSamples that would be too thin for the me-vi measurement rangeQuality control with documented, reproducible heating profilesAutomated measurement series via labworldsoft and RS 232 or USB-BTechnical detailsViscosity measurement rangeup to 6,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque0.0673 mNmMeasuring spindlesSP set-1Speed range0.01 to 200 rpmTime setting range0.017 to 6,000 minWorking temperature-100 to 300 °CStandROTASTANDStroke of telescopic stand / max. stroke200 mm / 61 mmDynamic load5 kgBase vessel volume600 mlInterfacesRS 232, USB-BDimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100 to 240 V, 50/60 Hz, 24 W (standby 1.6 W), 24 V DC, 1,000 mADegree of protectionIP 40 (DIN EN 60529)Scope of deliveryThe drive, stand, heating system and spindle set are supplied as a pre-assembled set; each component can be reordered individually using its own identification number if required, for example for a second temperature sensor.1 x ROTAVISC lo-vi control S0001 x ROTASTAND (ID no. 0020116428)1 x ROTATEMP high-temperature system (ID no. 0020113825)1 x SP set-1, spindle set (ID no. 0025000319)1 x PT 100.8 temperature sensor (ID no. 0025000413)Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA manufacturer’s warranty: 2 years; extended to 10 years upon registration at ika.com/register within 90 days of purchase. For regularly processed, higher-viscosity samples within the same temperature range, the ROTATEMP me-vi Package is available with a wider measurement range up to 40,000,000 mPas. For SBS ball bearings with high sample throughput, the ROTATEMP SBS me-vi Package is a robust alternative in the higher range. Those who require cooling as well as heating, for example for samples between -25 and 125 °C, are better served by the CBC ROTAVISC lo-vi Package, where a recirculating bath thermostat takes over temperature control instead of the cantilever heating system. We can advise on selecting the appropriate system and the correct measurement range, and can source further accessories, such as replacement spindles, via our procurement service.
IKA ROTATEMP SBS me-vi Package, viscometer set (SBS bearing), 300 °C, 0010013993
Anyone who regularly tests temperature-sensitive samples with varying compositions is best advised to combine two features in a single instrument: robust bearings to withstand frequent spindle changes and a heating system that reliably brings the sample up to the target temperature. The ROTATEMP SBS me-vi Package combines the SBS ball bearing system from the ROTAVISC range with the IKA ROTATEMP high-temperature system, which heats samples to up to 300 °C in around 16 minutes. The drive, stand, heating system and spindle set are designed to work together as a complete package and do not need to be assembled individually.SBS ball bearings in the me-vi rangeThe SBS version (Steel Ball Bearing, Suspended) replaces the jewel bearings found in standard instruments with ball bearing technology, which is better suited to high sample throughput, frequent spindle changes and harsh environments. The measuring range extends up to 40,000,000 mPas; the spring torque of the measuring spring is 0.7187 mNm; the SP set-2 spindle set is supplied as standard. Accuracy and repeatability remain unchanged at 1 % and 0.2 % of the measuring range respectively, as with the other ROTAVISC instruments in the range.ROTATEMP heating system on the boomThe heating system is mounted directly onto the ROTASTAND stand and heats the sample in the cantilever vessel using magnetic stirring technology, eliminating the need for a separate external water bath. According to the manufacturer, the system reaches the target temperature in around 16 minutes, in a controlled manner and without overheating the sample. The stand’s telescopic stroke is 200 mm with a permissible dynamic load of 5 kg, which is significantly more than with the standard ROTAVISC Complete packages without a heating system. According to the data sheet, the sample’s working temperature ranges from -100 to 300 °C; the heated upper range is of practical relevance.Operation, calibration and connectionThe TFT display allows you to set the speed (0.01 to 200 rpm), timer (0.017 to 6,000 min) and measured values directly; a ramp function automates recurring test sequences, and the graph function displays the viscosity curve during the heating phase. The instrument can be calibrated at the test station and connected via RS 232 or USB-B to the labworldsoft laboratory software for control, automation and documentation of the test series. An external PT-100 temperature sensor with a resolution of 0.1 K supplements the internal measurement.Operating conditionsThe unit is designed for an ambient temperature of 5 to 40 °C with a maximum relative humidity of 80 % and operates in both timer and continuous modes. The base vessel holds 600 ml of sample; the motor delivers 4.8 W at the output, rotates clockwise as standard and is protected against overload. Typical applicationsThe combination of a robust bearing and a heating system is suitable wherever there is frequent switching between different, temperature-sensitive samples.Viscosity measurement of asphalt, bitumen and similar road construction materials with high sample throughputWaxes, hot-melt adhesives and other temperature-sensitive compounds in continuous operationQuality control involving frequent spindle changes and varying test mediaTest series with a defined heating phase up to 300 °COperations across multiple sites or in multiple consecutive shiftsAutomated measurement sequences via labworldsoft and RS 232 or USB-BTechnical detailsViscosity measurement rangeup to 40,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque0.7187 mNmMeasuring spindlesSP set-2Speed range0.01 to 200 rpmTime setting range0.017 to 6,000 minWorking temperature-100 to 300 °CStandROTASTANDLifting height of telescopic stand / Max. lifting height200 mm / 61 mmDynamic load5 kgBase vessel volume600 mlInterfacesRS 232, USB-BDimensions (W x H x D)351 × 629 × 372 mmWeight7.1 kgConnected load100-240 V, 50/60 Hz, 24 W (standby 1.6 W), 24 V=, 1,000 mADegree of protectionIP 40 (DIN EN 60529)Scope of deliveryThe drive, stand, heating system and spindle set are supplied as a pre-assembled set; each component can be reordered individually using its own identification number if required, for example to obtain a second spindle set for parallel measurement series.1 x ROTAVISC SBS me-vi control1 x ROTASTAND (ID No. 0020116428)1 x ROTATEMP high-temperature system (ID No. 0020113825)1 x SP set-2, spindle set (ID No. 0025000329)1 x PT 100.8 temperature sensor (ID No. 0025000413)Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA manufacturer’s warranty: 2 years, extended to 10 years if registered at ika.com/register within 90 days of purchase. If you do not require SBS ball bearings, the ROTATEMP me-vi Package offers the same combination on a standard jewel bearing, which is generally sufficient for samples that are changed less frequently. For lower-viscosity samples within the same temperature range, the ROTATEMP lo-vi Package is available. Anyone who needs cooling as well as heating, for example, for samples between -25 and 125 °C, will find the CBC ROTAVISC lo-vi Package better suited; there, a circulation thermostat with a bath takes care of the temperature control. Anyone looking for the SBS ball bearing without a heating system will find it in the ROTAVISC SBS me-vi Complete. We can advise you on choosing the right system and the correct measurement range, and can supply additional accessories such as replacement spindles via the procurement service.
IKA ROTAVISC hi-vi I HELI Complete, Rotational Viscometer 200 to 80,000,000 mPas, Electric HELISTAND Stand, 0010013745
Paste-like samples that channel around a fixed spindle often produce fluctuating readings at a stationary measuring point. The ROTAVISC hi-vi I HELI Complete covers a measuring range of 200 to 80,000,000 mPas with a motorised HELISTAND stand, which slowly moves the drive unit through the sample during measurement, complete with the SP set-2 spindle set and T-SP-SET.Moving measurement instead of a fixed measuring pointWith creams, gels or other semi-solid substances, the medium often moves away from the spindle during rotation and forms a channel that distorts the measurement. Instead, the HELISTAND stand moves the drive unit and rotating body slowly and evenly up and down, ensuring that the measurement does not remain fixed at a single point within the sample.Same measurement range, different design to the standard packageThe measurement range, accuracy and spring measurement value (1.4374 mNm) correspond to those of the hi-vi I Complete with ROTASTAND; the only difference lies in the stand and the supplied T-SP-SET. Those who do not need to change the sample position during the measurement will find the manual stand a more cost-effective solution; those testing channelling media will benefit from the motorised movement of this package.Data analysis directly on the instrument or via PCThe graph function on the TFT display shows the viscosity curve in real time during the motorised HELISTAND movement; RS 232 and Micro-USB also transfer the data to a PC running Labworldsoft. The on-device calibration option complements the documentation, without requiring additional software for the basic functions. For channelling samples, the recorded curve also helps to distinguish an atypical measurement from a genuine change in consistency.Typical applicationsViscosity measurement of creams and gels that channel around the spindleQuality control of semi-solid substances in the cosmetics and pharmaceutical industriesTesting of adhesives and sealants with non-uniform flow behaviourMeasurement series where a uniform immersion depth across the sample is importantSelection guide: an overview of the ROTAVISC Complete rangeThe Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearing type (jewel bearing or SBS ball bearing), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The hi-vi I HELI Complete combines the upper-mid range with the motorised stand. The hi-vi I Complete is available for the same measurement range without HELISTAND movement, whilst the SBS hi-vi I HELI Complete is available for the more robust SBS ball bearing with a motorised stand.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete (this package)200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range200 to 80,000,000 mPasAccuracy (FSR)1 % of the measuring rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measured value (torque)1.4374 mNmMeasuring spindles, basic configurationSP set-2StandHELISTAND (motorised, incl. T-SP-SET)Time setting range for timer0.017 to 6,000 minWorking temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC hi-vi I HELI Complete, drive unit (part of package ID no. 0010013745)1 x HELISTAND, ID No. 00201164291 x T-SP-SET, ID No. 00250077651 x Spindle set SP set-2, ID No. 00250003291 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the instrument; this is extended to 10 years if the instrument is registered at ika.com/register within 90 days of purchase. When choosing between the manual ROTASTAND and the motorised HELISTAND, our procurement service will advise you based on the specific sample matrix; they will also advise on whether an SBS ball bearing is suitable for the intended user group. The entire range of this series can be accessed via the viscometer category.
IKA ROTAVISC hi-vi II HELI Complete, Rotational Viscometer 800 to 320,000,000 mPas, Electric HELISTAND Stand, 0010013764
At the upper end of the ROTAVISC range are samples that barely flow at all, such as thick pastes, highly viscous gels or polymer melts. The ROTAVISC hi-vi II HELI Complete covers the highest measurement range in the family, from 800 to 320,000,000 mPas, and combines the spring-loaded measuring mechanism required for this with a motorised HELISTAND stand, SP set-2 spindle set and T-SP-SET.The highest measurement range in the seriesA spring measurement value of 5.7496 mNm, the highest within the ROTAVISC Complete range, makes the instrument suitable for materials that are considered semi-solid rather than liquid. As with the entire series, accuracy and repeatability remain at 1 % and 0.2 % of the measurement range.HELISTAND for samples that channel around the spindleNon-free-flowing substances tend to form a channel around a stationary spindle, which distorts the measurement at a fixed point. The motorised HELISTAND stand instead moves the drive unit and rotating body continuously through the sample. For those seeking the same measurement range but with more robust SBS ball bearings instead of jewel bearings, the SBS hi-vi II HELI Complete is the suitable alternative.Traceable readings even at very high viscositiesParticularly with samples at the upper end of the measurement range, the integrated graph function helps you to check the progression of the measurement directly, rather than simply reading off a final value. RS 232 and Micro-USB are available for connection to Labworldsoft, whilst the on-board calibration function completes the documentation package. For polymer melts or sealants whose consistency depends on the processing temperature, the recorded curve can be directly compared with the process parameters.Typical applicationsTesting of high-viscosity pastes and gels in the cosmetics and pharmaceutical industriesQuality control of polymer melts and sealantsMeasurements on virtually non-flowing materialsComparative measurements between batches at the upper end of the consistency scaleSelection guide: an overview of the ROTAVISC Complete rangeThe Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearings (jewel bearings or SBS ball bearings), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The hi-vi II HELI Complete, with a range of 800 to 320,000,000 mPas, is the model with the highest spring measurement value. A ROTASTAND version without motorised movement is available for this measurement range within the series with jewel bearings as the hi-vi II Complete and with SBS ball bearings as the SBS hi-vi II Complete.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi II Complete800 to 320,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete (this package)800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range800 to 320,000,000 mPasAccuracy (FSR)1 % of the measuring rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measured value (torque)5.7496 mNmMeasuring spindles, basic configurationSP set-2StandHELISTAND (motorised, incl. T-SP-SET)Time setting range for timer0.017 to 6,000 minWorking temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC hi-vi II HELI Complete, drive unit (part of the package with ID no. 0010013764)1 x HELISTAND, ID No. 00201164291 x T-SP-SET, ID No. 00250077651 x Spindle set SP set-2, ID No. 00250003291 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the unit; this is extended to 10 years if the unit is registered at ika.com/register within 90 days of purchase. Our procurement service is available for additional spindles not included in the SP set-2 or for a more robust ball bearing assembly, as well as for enquiries regarding connection to a process control system. The full range of this series can be accessed via the viscometer category.
IKA CBC ROTAVISC SBS me-vi Package, viscometer set (cooling/heating), SBS bearing, 0010014031
The IKA CBC ROTAVISC SBS me-vi Package (MPN 0010014031) combines a rotational viscometer with a cooling and heating circulation thermostat to form a coordinated system solution for viscosity measurement across a wide temperature range. Viscosity is not a constant; rather, it depends heavily on temperature: Engine oil must remain fluid in winter, salad dressing must not set in the fridge, and hydraulic fluids must function both at sub-zero temperatures and under process heat. To this end, the set combines the robust ROTAVISC SBS me-vi viscometer with the CBC 5 basic cooling and heating circulation thermostat to form a ready-to-use unit.Two components, one coordinated systemInstead of having to assemble and coordinate a viscometer, thermostat and connecting components individually, IKA supplies the package as a fully configured system. This saves time and effort in procurement and ensures that all components are mechanically and thermally compatible with one another. Specifically, the package comprises:ROTAVISC SBS me-vi viscometer: Rotational viscometer with steel ball bearings for the medium viscosity rangeCBC 5 basic thermostat: cooling and heating circulation thermostat for the temperature range from -25 °C to +200 °CMounting bracket and stand set: positions the viscometer precisely above the thermostat bathSP set-2 spindle set: already included in the set, for different viscosity rangesPT 100.8 temperature sensor, together with a hose set and connection fittings for linking the two devicesThis combination eliminates the need to check separately whether the measuring head, bath and holder are mechanically compatible with one another, a task that would otherwise be required when individual components are selected separately.Active cooling and heating with the CBC 5 basicThe thermostat achieves a heating output of 2,500 watts and an active cooling capacity of 350 watts at 20 °C, thereby covering the range from -25 °C to +200 °C. In cold tests, this allows analysis of the temperature at which an oil becomes tough or an emulsion becomes unstable. Heat tests reveal the decrease in viscosity caused by process heat. A pressure and suction pump circulates the temperature-control medium and ensures good temperature homogeneity directly at the measuring vessel, which supports reproducible measurement conditions across the entire temperature range.SBS bearings for everyday laboratory useThe measuring head in this package is the SBS version of the ROTAVISC me-vi. SBS stands for Steel Ball Bearing. Compared to the more delicate sapphire bearing, according to IKA, this technology is more resilient to impacts or rough handling during spindle changes and is therefore suitable for laboratories with high sample throughput or changing staff. The more robust bearing system really pays off in day-to-day use, particularly when frequently switching between different spindles from the supplied SP set-2 spindle set. The viscosity range (me-vi) extends from 100 to 40,000,000 mPas and covers typical applications such as varnishes, paints, oils and foodstuffs.Operation and accuracyThe 4.3-inch TFT display shows all measured values at a glance, whilst the menu navigation supports ramp functions and timer control. A digital spirit level assists with the correct alignment of the instrument, which is essential for reliable viscosity measurements. The measurement accuracy is ± 1 % (F.S.), and the repeatability is ± 0.2 % (F.S.), values that are sufficient for quality control where documentation is required and which can be logged via the digital interfaces.Software integration for automated measurement sequencesBoth the thermostat and the viscometer are equipped with USB and RS-232 interfaces. Using the optional labworldsoft software, both devices can be linked to automatically run and document temperature-viscosity profiles; for example, whilst the thermostat ramps up from -20 °C to +100 °C and the viscosity of the sample is monitored in real time on the PC. For laboratories that need to document rheograms across multiple temperature stages, this eliminates the need for manual transfer of individual measurement points.Typical applicationsThe SBS me-vi Package is suitable for viscosity tests in which both low-temperature and high-temperature behaviour are equally relevant:Automotive and lubricants industry: low-temperature flow behaviour of engine and gearbox oilsFood industry: consistency testing of dressings, sauces and creams at fridge temperaturePaints and coatings industry: viscosity control in production and quality assurance processesChemical industry: testing of hydraulic fluids over a wide temperature rangeResearch and development: automated temperature-viscosity profiles (rheograms) using labworldsoftIn all these areas, the package replaces the combination of a separate viscometer, bath and connection technology that would otherwise be required with a coordinated, all-in-one solution that is ready for use immediately after set-up.Technical detailsViscosity range (me-vi)100 to 40,000,000 mPasBearingSBS (steel ball bearings)Thermostat typeCooling and heating circulation thermostatTemperature range-25 °C to +200 °CHeating output2,500 WCooling capacity350 W (at 20 °C)Viscosity accuracy± 1 % (F.S.)Reproducibility± 0.2 % (F.S.)Display4.3-inch TFTInterfacesUSB, RS 232 (both units)PumpPressure/suction pumpScope of delivery1 x IKA ROTAVISC SBS me-vi (measuring head)1 x IKA CBC 5 basic (cooling/heating thermostat)1 x Mounting bracket/stand set for mounting above the bath1 x SP set-2 spindle set1 x PT 100.8 temperature sensor1 x Hose set and connection fittings1 x mains lead and operating instructionsIndividual requirements & procurement serviceA suitable thermal fluid (bath fluid) for the intended temperature range is required for operation; special oils or glycols are used for sub-zero temperatures. Our procurement service will be happy to advise you on the appropriate bath fluid and other accessories.WarrantyManufacturer’s warranty from IKA: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

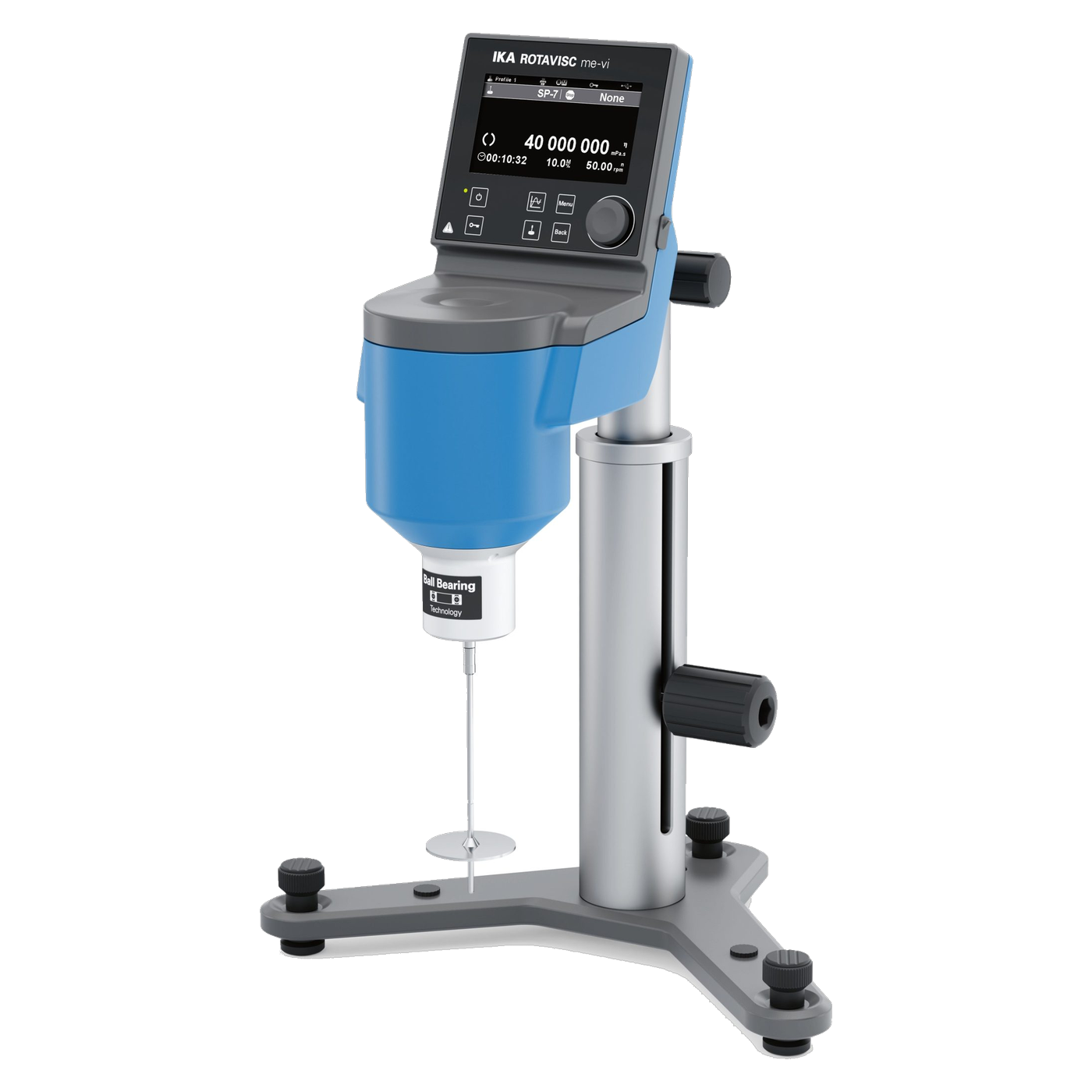

IKA ROTAVISC SBS me-vi Complete, Rotational Viscometer 100 to 40,000,000 mPas, SBS Ball Bearings, 0010013824
In laboratories with multiple users and frequent spindle changes, a ball bearing is available as an alternative to the jewel bearing. The ROTAVISC SBS me-vi Complete replaces it with an SBS ball bearing (Steel Ball Bearing, Suspended) and thus covers the same measurement range of 100 to 40,000,000 mPas as the standard package, complete with a ROTASTAND stand and SP set-2 spindle set.SBS bearing instead of jewel bearingSBS ball bearing technology replaces the traditional jewel bearing. The measuring range, accuracy of 1 % of the measuring range and spring measurement value of 0.7187 mNm correspond to the me-vi Complete with jewel bearings; the only difference lies in the bearing type.For laboratories with high sample throughputWhere several teams work on the same instrument or spindles are changed several times a day, the SBS ball bearing version is an option. The ROTASTAND stand with a 200 mm stroke remains manually adjustable, for measurement series at a fixed position above the sample. Paints, varnishes and food samples in the medium viscosity range can thus be tested reliably, even with frequent changes of user. A dynamic load of 5 kg and a stroke of 200 mm provide sufficient flexibility to position vessels of varying heights beneath the spindle without having to reconfigure the stand.Interfaces for multi-user laboratoriesWhere several users work on the same device, the connection to Labworldsoft via RS 232 or Micro-USB helps to document measurement series consistently rather than having to transfer them manually. Calibration options and a graphing function are already integrated and are available regardless of the user. For laboratories where several teams analyse the same dataset, this significantly reduces the effort involved in transferring individual measurement values.Typical applicationsHigh-usage laboratory workstations with frequent spindle changesQuality control of paints, varnishes and foodstuffs in the medium viscosity rangeTraining and practical laboratories with changing usersRoutine measurements where robustness takes precedence over fine adjustmentSelection guide: an overview of the ROTAVISC Complete rangeEleven Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearing type (jewel bearing or SBS ball bearing), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The SBS me-vi Complete is the more robust variant for the medium measurement range with a standard stand. Those who require a motorised stand instead of a manual ROTASTAND will find the SBS me-vi HELI Complete offers the same bearing configuration with HELISTAND movement; those who prefer the classic jewel bearing should choose the me-vi Complete.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete (this package)100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range100 to 40,000,000 mPasAccuracy (FSR)1 % of the measuring rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measurement value (torque)0.7187 mNmMeasuring spindles, basic configurationSP set-2StandROTASTAND (manual telescopic stand)Time setting range for timer0.017 to 6,000 minOperating temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC SBS me-vi control, drive unit (part of package ID no. 0010013824)1 x ROTASTAND, ID No. 00201164281 x Spindle set SP set-2, ID No. 00250003291 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the instrument; this is extended to 10 years if the instrument is registered at ika.com/register within 90 days of purchase. For additional spindles, calibration oils or a heating bath circulator, our procurement service can advise you, for example, on the ROTATEMP package with heating system. The entire range of this series is available via the viscometer category.
IKA ROTAVISC SBS hi-vi II Complete, Rotational Viscometer 800 to 320,000,000 mPas, SBS Ball Bearings, 0010013822
This package is designed to handle very viscous samples and high-throughput laboratory work. The ROTAVISC SBS hi-vi II Complete covers the highest measurement range in the series, from 800 to 320,000,000 mPas, and combines this with the SBS ball bearing system instead of the classic jewel bearing system, complete with a ROTASTAND stand and SP set-2 spindle set.Variant for very high-viscosity samplesA spring measurement value of 5.7496 mNm, the highest in the entire ROTAVISC Complete range, makes the instrument suitable for thick pastes, gels and polymer melts. Accuracy and repeatability remain at 1 % and 0.2 % of the measurement range. The supplied spindle set SP set-2 covers the entire range from 800 to 320,000,000 mPas, eliminating the need to procure additional spindles for individual batches.SBS bearings in the rigours of everyday laboratory useWhere several users work on the same instrument or where samples with highly variable consistency are tested, the SBS ball bearing is available as an alternative to a jewel bearing. Those seeking the same measurement range with a motorised stand for highly viscous media will find the SBS hi-vi II HELI Complete to be the suitable alternative; those who prefer the standard jewel bearing configuration should choose the hi-vi II HELI Complete.Data analysis with high sample throughputWith high sample throughput, the RS 232 or Micro-USB connection to Labworldsoft reduces the effort required for documentation compared to manual data transfer. Calibration options and a graphing function are integrated into the instrument, ensuring traceable results even with very high-viscosity samples. When a series of measurements across multiple batches is analysed, the viscosity trend for each individual measurement can be traced directly, rather than simply recording the final value.Typical applicationsBusy laboratory workstations with frequent spindle changes when handling highly viscous samplesQuality control of highly viscous pastes and gels in the cosmetics and pharmaceutical industriesTesting of polymer melts and sealants in continuous operationRoutine measurements at the upper end of the consistency scale, with a focus on robustnessSelection guide: an overview of the ROTAVISC Complete rangeThe Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearing type (jewel bearing or SBS ball bearing), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The SBS hi-vi II Complete combines the highest measurement range with the more robust bearing design. There is no version with jewel bearings and without a motorised stand available for this measurement range within the series; however, the hi-vi II HELI Complete is available with a motorised HELISTAND and jewel bearings.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete (this package)800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range800 to 320,000,000 mPasAccuracy (FSR)1 % of the measuring rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measured value (torque)5.7496 mNmMeasuring spindles, basic configurationSP set-2StandROTASTAND (manual telescopic stand)Time setting range of timer0.017 to 6,000 minOperating temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC SBS hi-vi II control, drive unit (part of package ID no. 0010013822)1 x ROTASTAND, ID No. 00201164281 x Spindle set SP set-2, ID No. 00250003291 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the instrument; this is extended to 10 years if the instrument is registered at ika.com/register within 90 days of purchase. For additional spindles or a motorised HELISTAND version, please contact our procurement service. The full range of this series is available via the viscometer category.
IKA ROTAVISC SBS hi-vi I Complete, Rotational Viscometer 200 to 80,000,000 mPas, SBS Ball Bearings, 0010013820
More viscous media and a laboratory environment with frequent changes of user place two different demands on a viscometer, which this package combines. The ROTAVISC SBS hi-vi I Complete covers a range from 200 to 80,000,000 mPas and replaces the traditional jewel bearing with the more robust SBS ball bearing technology, complete with a ROTASTAND stand and SP set-2 spindle set.Robust technology for more viscous mediaThe spring measurement value of 1.4374 mNm corresponds to that of the hi-vi I Complete with a jewel bearing; accuracy and repeatability remain unchanged at 1 % and 0.2 % of the measurement range. Pastes, adhesives and thicker creams can be tested just as reliably.Frequent spindle changes without wear concernsIn laboratories where several people work on the same instrument and spindles are changed several times a day, the SBS ball bearing reduces the risk of damaging the more delicate jewel bearing through careless handling. The ROTASTAND stand remains manually and securely positioned, ensuring measurement series are carried out without any movement during the test. The SP set-2 spindle set fully covers the measurement range from 200 to 80,000,000 mPas, without the need to order additional spindles for individual test tasks.Documentation across multiple shiftsIn laboratories operating in shifts, the connection via RS 232 or Micro-USB to Labworldsoft ensures consistent reports, regardless of who carried out the measurement. The integrated calibration function and the graph function on the TFT display complement the basic documentation directly on the device, without the need for a separate evaluation scheme for each shift. This simplifies the handover when a series of measurements is continued by another person.Typical applicationsBusy laboratory workstations with frequent spindle changes when handling viscous samplesQuality control of adhesives, sealants and thicker creamsTraining and practical laboratories with changing usersRoutine measurements on pastes, with a focus on robustness rather than fine adjustmentSelection guide: an overview of the ROTAVISC Complete rangeEleven Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearing type (jewel bearing or SBS ball bearing), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The SBS hi-vi I Complete is the more robust variant in the upper mid-range with a standard stand. For the same measurement range with classic jewel bearings, the hi-vi I Complete is available; for a motorised HELISTAND version with SBS bearings, the SBS hi-vi I HELI Complete is available.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete (this package)200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range200 to 80,000,000 mPasAccuracy (FSR)1 % of the measuring rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measurement value (torque)1.4374 mNmMeasuring spindles, basic configurationSP set-2StandROTASTAND (manual telescopic stand)Time setting range of timer0.017 to 6,000 minOperating temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC SBS hi-vi I control, drive unit (part of the package with ID no. 0010013820)1 x ROTASTAND, ID No. 00201164281 x Spindle set SP set-2, ID No. 00250003291 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the unit; this is extended to 10 years if the unit is registered at ika.com/register within 90 days of purchase. For special spindles or a motorised version with HELISTAND, such as the SBS hi-vi I HELI Complete, our procurement service is available to advise, as well as on any queries regarding connection to a refrigerated/heating circulator. The full range of this series can be accessed via the viscometer category.
IKA ROTATEMP me-vi Package, viscometer set including heating system (300 °C), 0010014015
Asphalt, bitumen, wax and hot-melt adhesives are not fluid at room temperature; their viscosity can only be measured accurately when they are warm or hot. The ROTATEMP me-vi Package combines the ROTAVISC rotational viscometer in the me-vi measuring range with the IKA ROTATEMP high-temperature system, which uses magnetic stirring technology to heat samples to up to 300 °C in around 16 minutes without overheating them. The drive, stand, heating system and spindle set are designed to work together as a complete package and do not need to be assembled individually.Heating system instead of a separate water bathThe ROTATEMP high-temperature system is mounted directly onto the stand and heats the sample in the cantilever vessel; this eliminates the need for an additional external water bath for temperature-dependent measurements up to 300 °C. According to the manufacturer, the system reaches the target temperature in around 16 minutes; the controlled heating is designed to prevent the temperature from overshooting, thereby making the measurement more reproducible. According to the data sheet, the sample’s working temperature ranges from -100 to 300 °C; for this package, the upper, heated range is of practical relevance.Viscometer for the me-vi rangeThe ROTAVISC drive, fitted with standard jewel bearings, measures in the range up to 40,000,000 mPas, with an accuracy of 1 % of the measuring range and a repeatability of 0.2 %. The SP set-2 spindle set is supplied as standard; the spring torque of the measuring spring is 0.7187 mNm. The TFT display allows the speed (0.01 to 200 rpm), timer (0.017 to 6,000 min) and measured values to be set and read directly. An external PT-100 temperature sensor supplements the measurement; its resolution is 0.1 K.Compact complete systemThe drive, ROTASTAND stand and heating system form a ready-to-connect complete system with a space-saving design, eliminating the need for a separate setup comprising a bath, pump and hoses. The device can be connected to the labworldsoft laboratory software via RS 232 or USB-B for automated measurement series, control and documentation. The stand’s telescopic stroke is 200 mm with a permissible dynamic load of 5 kg, significantly more than with the standard ROTAVISC Complete package without a heating system.Operating conditions and operationThe instrument is designed for an ambient temperature of 5 to 40 °C at a maximum relative humidity of 80 % and operates in both timer and continuous modes. A digital spirit level facilitates alignment before measurement begins, a ramp function automates recurring test sequences, and the graph function displays the viscosity curve during the heating phase and the actual measurement. The base vessel holds 600 ml of sample; the motor delivers 4.8 W at the output, rotates clockwise as standard and is protected against overload.Typical applicationsThis package is suitable wherever viscosity only becomes relevant as the temperature rises and a fixed target temperature must be reached in the cantilever vessel, for example with samples that are solid or tough at room temperature.Viscosity measurement of asphalt, bitumen and similar road construction materialsWaxes, hot-melt adhesives and other temperature-dependent materialsPolymers and confectionery mixtures that only become flowable when warmMeasurement series with a defined heating phase up to 300 °CComparative measurement series at different target temperaturesAutomated measurement series via labworldsoft and RS 232 or USB-BTechnical detailsViscosity measurement rangeup to 40,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque0.7187 mNmMeasuring spindlesSP set-2Speed range0.01 to 200 rpmTime setting range0.017 to 6,000 minWorking temperature-100 to 300 °CStandROTASTANDMax. stroke (ROTASTAND stand)200 mmDynamic load5 kgBase vessel volume600 mlInterfacesRS 232, USB-BDimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100 to 240 V, 50/60 Hz, 24 W (standby 1.6 W), 24 V DC, 1,000 mADegree of protectionIP 40 (DIN EN 60529)Scope of deliveryThe drive, stand, heating system and spindle set together form the complete, pre-assembled package. Each component can be reordered individually using its own identification number if required, for example if a second spindle set is needed for parallel measurement series.1 x ROTAVISC me-vi control S0001 x ROTASTAND (ID no. 0020116428)1 x ROTATEMP high-temperature system (ID no. 0020113825)1 x SP set-2, spindle set (ID no. 0025000329)1 x PT 100.8 temperature sensor (ID no. 0025000413)Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA manufacturer’s warranty: 2 years; extended to 10 years upon registration at ika.com/register within 90 days of purchase. For those who regularly test lower-viscosity samples within the same temperature range, the ROTATEMP lo-vi Package is the suitable variant. For high sample throughput with frequent spindle changes, the same me-vi combination with SBS ball bearings is available as the ROTATEMP SBS me-vi Package. Those who require cooling as well as heating, for example for samples between -25 and 125 °C, are better served by the CBC ROTAVISC lo-vi Package, where a recirculating bath thermostat handles temperature control instead of the cantilever heating system. We provide advice on selecting the appropriate temperature control system, the correct measurement range and additional accessories such as replacement spindles via our procurement service.

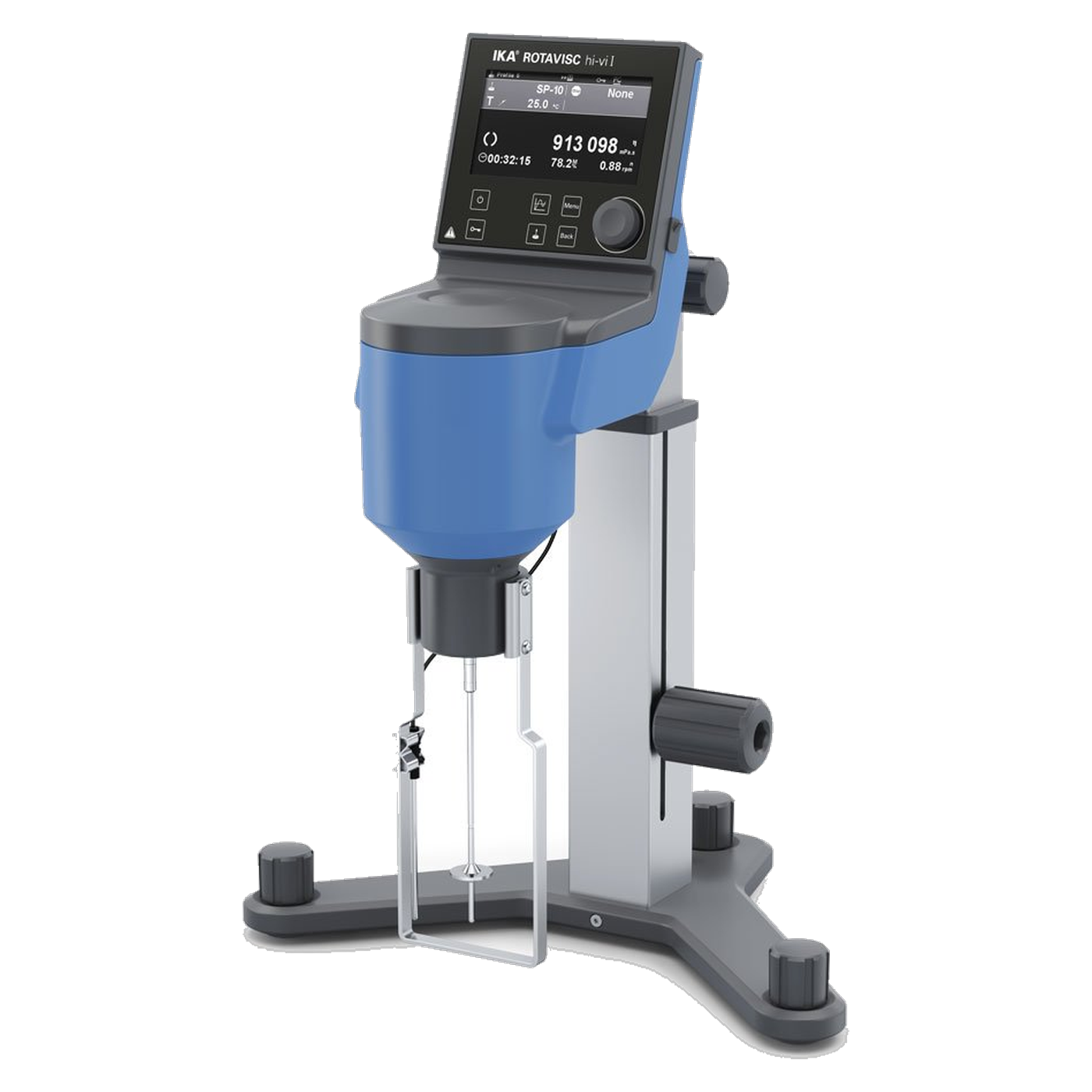

IKA ROTAVISC hi-vi I Complete, Rotational Viscometer 200 to 80,000,000 mPas, 0010013828
As soon as a sample becomes more viscous than a paint, such as a paste, an adhesive or a thicker cream, the measuring range of the me-vi package is no longer sufficient to ensure accurate results. The ROTAVISC hi-vi I Complete covers a range from 200 to 80,000,000 mPas and comes complete with a ROTASTAND stand and SP set-2 spindle set, meaning a single order is sufficient for routine measurements of higher-viscosity samples.When the sample becomes more viscous than with the me-viThe wider measurement range results in a different spring measurement value; for this instrument, it is 1.4374 mNm compared with 0.7187 mNm for the me-vi package. Accuracy and repeatability remain the same at 1 % of the measurement range and 0.2 %, as do the speed range, TFT display and ramp function. For adhesives, thicker creams and pastes with a still-flowable consistency, the device is therefore a direct upward extension of the me-vi package.ROTASTAND for stationary measurement seriesAs with the me-vi Complete, the ROTASTAND stand is manually adjustable, with a 200 mm stroke and a dynamic load of 5 kg. The drive unit is fixed in position above the sample, which is practical for series of measurements at consistent locations within the laboratory. If the rotating body needs to be moved motorised through the sample during the measurement, for example, because the medium is channelled around the spindle, the hi-vi I HELI Complete, with the same measurement range, is the suitable alternative.Interfaces for data loggingRS 232 and a micro-USB interface are available for connection to a PC system, compatible with IKA’s Labworldsoft laboratory equipment software. Calibration options and a graphing function are already integrated into the instrument, ensuring that test reports remain traceable even when testing viscous media such as adhesives or pastes. Anyone comparing measurement series across several batches can view the viscosity curve directly on the TFT display, without first having to process the raw data on an external computer.Typical applicationsTesting of adhesives and sealants of medium to high consistencyQuality control of pastes and thicker creams in the cosmetics and pharmaceutical industriesRelease measurements of viscous food products such as fillings or spreadsComparative measurements between batches with varying viscositySelection guide: an overview of the ROTAVISC Complete rangeThe Complete packages cover the ROTAVISC series; they differ in four respects: viscosity range, bearing type (jewel bearings or SBS ball bearings), stand (ROTASTAND or motorised HELISTAND) and the spindle set supplied. The hi-vi I Complete covers the upper mid-range with standard bearings and a standard stand. For those who frequently change spindles within the same measurement range or share the instrument with several people, the SBS hi-vi I Complete, with its SBS ball bearings, offers the more robust option.PackageViscosity rangeBearingStandSpindle setROTAVISC me-vi Complete100 to 40,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC hi-vi I Complete (this package)200 to 80,000,000 mPasJewel bearingsROTASTANDSP set-2ROTAVISC lo-vi HELI Complete15 to 6,000,000 mPasJewel bearingsHELISTAND (electric)SP set-1ROTAVISC hi-vi I HELI Complete200 to 80,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC hi-vi II HELI Complete800 to 320,000,000 mPasJewel bearingsHELISTAND (electric)SP set-2ROTAVISC SBS me-vi Complete100 to 40,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi I Complete200 to 80,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS hi-vi II Complete800 to 320,000,000 mPasSBS ball bearingsROTASTANDSP set-2ROTAVISC SBS me-vi HELI Complete100 to 40,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi I HELI Complete200 to 80,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2ROTAVISC SBS hi-vi II HELI Complete800 to 320,000,000 mPasSBS ball bearingsHELISTAND (electric)SP set-2Technical detailsViscosity measurement range200 to 80,000,000 mPasAccuracy (FSR)1 % of the measuring rangeRepeatability (FSR)0.2 % of the measurement rangeSpeed range0.01 to 200 rpmSpeed setting accuracy±0.01 rpmMotor power, output4.8 WSpring measured value (torque)1.4374 mNmMeasuring spindles, basic configurationSP set-2StandROTASTAND (manual telescopic stand)Time setting range of timer0.017 to 6,000 minWorking temperature (sample)-100 to 300 °CPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %InterfacesRS 232, USB (Micro-USB)Connected load100-240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC / 1,000 mADegree of protectionIP 40 (DIN EN 60529)Dimensions (W x H x D, drive unit)351 x 629 x 372 mmWeight (drive unit)7.1 kgScope of delivery1 x ROTAVISC hi-vi I control, drive unit (part of package ID no. 0010013828)1 x ROTASTAND, ID No. 00201164281 x Spindle set SP set-2, ID No. 00250003291 x PT 100.8 temperature sensor, ID No. 00250004131 x Guard railRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA provides a 2-year manufacturer’s warranty on the instrument; this is extended to 10 years if the instrument is registered at ika.com/register within 90 days of purchase. For special spindles, calibration oils or a temperature-controlled extension, our procurement service can advise on the selection. The entire range of this series is available via the viscometer category.

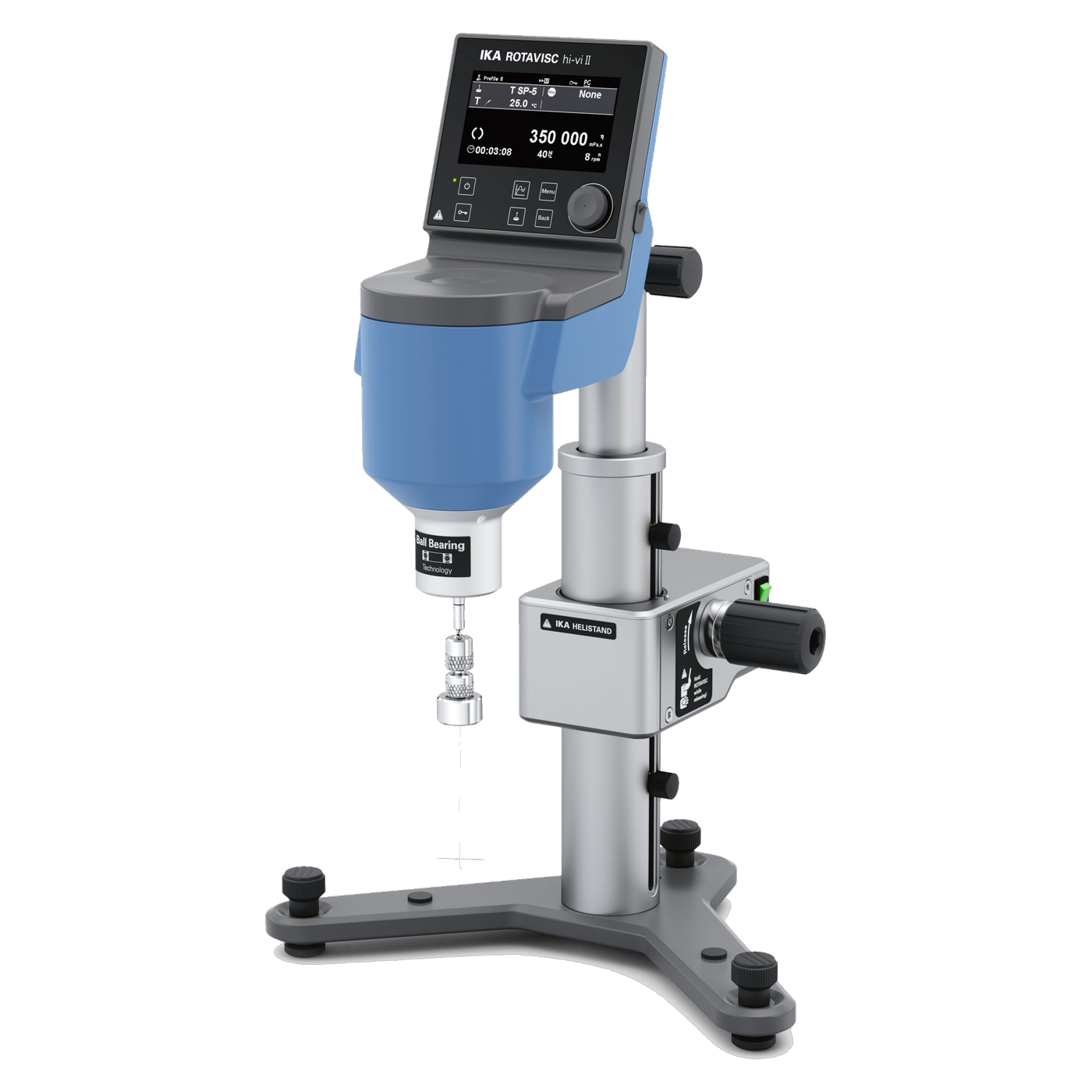

IKA ROTAVISC SBS hi-vi II HELI Complete, 800 to 320,000,000 mPas, ball bearings, electric stand, 0010013672
At the upper end of the viscosity spectrum, for viscous pastes, putties or spreadable compounds just below their yield point, a rotational viscometer requires a stronger measuring spring and a bearing assembly capable of withstanding the correspondingly high forces. The ROTAVISC SBS hi-vi II HELI Complete covers, at 800 to 320,000,000 mPas, the highest measurement range in the ROTAVISC-SBS-HELI series, and comes as a complete package featuring SBS ball bearings and a motorised HELISTAND stand.The highest measurement range in the seriesThe hi-vi II range features the most powerful measuring spring in the ROTAVISC SBS family; the spring torque is 5.7496 mNm, more than four times that of the me-vi version. In combination with the SP set-2 spindle set, the instrument covers the range from 800 to 320,000,000 mPas with an accuracy of 1 % of the measuring range and a repeatability of 0.2 %, the same values as for the other ROTAVISC-SBS models in the series.SBS ball bearing design to resist wearWith highly viscous samples, significantly higher forces act on the bearings than with low-viscosity media; the SBS version (Steel Ball Bearing, Suspended) withstands this better than the jewel bearings used in standard instruments. This proves particularly beneficial where there are frequent changes between samples of varying viscosity or where the instrument is in use for several shifts in a row. The drive and display control are identical to those of the other ROTAVISC-SBS instruments in the range; the only difference lies in the measuring spring and spindle assembly.HELISTAND stand, display and interfacesThe motorised HELISTAND stand moves the viscometer and rotating body slowly and smoothly through the sample; the telescopic stroke is 142 mm, the maximum stroke at the boom is 61 mm, and the permissible dynamic load is 3.2 kg. The TFT display allows the rotational speed (0.01 to 200 rpm), timer (0.017 to 6,000 min) and measured values to be set and read directly; a ramp function automates recurring test sequences. The PT 100 accommodates an external temperature sensor, whilst RS-232 and Micro-USB transmit the measurement data to a PC or laboratory software.Calibration and environmental conditionsThe unit can be calibrated at the test station and is protected against overload; the motor delivers 4.8 W at the output and rotates clockwise as standard. It is designed for operation at an ambient temperature of 5 to 40 °C and a maximum relative humidity of 80 %; the base vessel holds 600 ml of sample, whilst the stand rod has a diameter of 16 mm with a 12 mm plug-in coupling.Typical applicationsThe hi-vi-II range is intended for samples that would already be too viscous for the hi-vi-I range, such as highly viscous substances just below their yield point. Thanks to the SBS ball bearing system, switching between spindles and test series remains reproducible.Testing of extremely high-viscosity samples beyond the hi-vi-I measurement rangeQuality control with high sample throughput and frequent spindle changesMeasurements with a rotating body via the motorised HELISTAND standSwitching between workstationsDocumented measurement series via RS 232 or USB interfaceMeasurement series with external temperature monitoring via the PT-100 connectionTechnical detailsViscosity measurement range800 – 320,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque5.7496 mNmSpeed range0.01 – 200 rpmSpeed setting accuracy±0.01 rpmTime setting range0.017 – 6,000 minBase vessel volume600 mlOperating temperature (sample)-100 to 300 °CStandHELISTAND, motorisedStroke of telescopic stand / max. stroke142 mm / 61 mmDynamic load3.2 kgInterfacesRS-232, Micro-USBDimensions (W x H x D)351 x 629 x 372 mmWeight7.1 kgConnected load100–240 V, 50/60 Hz, 24 W (standby 0.06 W), 24 V DC, 1,000 mADegree of protectionIP 40 (DIN EN 60529)Scope of deliveryThe drive, stand and spindle set are designed to work together and are supplied as a complete, pre-assembled package. Each component can be reordered individually using its own identification number if required, for example if a second spindle set or a replacement temperature sensor is needed.1 x ROTAVISC SBS hi-vi II control1 x HELISTAND, motorised stand (Ident No. 0020116429)1 x T-SP-SET (Ident No. 0025007765)1 x SP set-2, spindle set (Ident No. 0025000329)1 x PT 100.8 temperature sensor (Ident No. 0025000413)1 x protective bracketRegulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA manufacturer’s warranty: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase. The ROTAVISC SBS hi-vi I HELI Complete is available for the medium viscosity range (200 to 80,000,000 mPas), whilst the ROTAVISC SBS me-vi HELI Complete is available for the medium-viscosity range (100 to 40,000,000 mPas), each featuring the same SBS ball bearing system and the same HELISTAND stand. Those who do not require motorised movement will find the ROTAVISC SBS hi-vi II Complete, which offers the same bearing system and the same measurement range on a fixed ROTASTAND. We can advise on selecting the appropriate measurement range and, via our procurement service, can supply further accessories such as spindles, calibration oil or spare parts for the stand.
IKA CBC ROTAVISC me-vi Package, viscometer set (cooling/heating), 0010014058
The all-in-one solution for temperature-dependent viscometry: IKA CBC ROTAVISC me-vi Package The IKA CBC ROTAVISC me-vi Package (MPN 0010014058) is a set for viscosity measurements at different temperatures. Whether you need to test the storage stability of a cream at low temperatures, assess the workability of a paint at room temperature, or simulate the flow behaviour of hot melt adhesive, this package makes it possible. It combines the IKA ROTAVISC me-vi for medium viscosities with the CBC 5 basic dynamic cooling and heating circulation thermostat. The “me-vi” range for viscometry The measuring head of this system is the ROTAVISC me-vi (“Medium Viscosity”). With a measuring range of 100 to 40,000,000 mPas, it covers precisely the range within which most industrial and chemical products fall. Typical applications include: Paints & coatings: Determining spreadability and flow behaviour. Cosmetics & Pharmaceuticals: Analysis of the consistency of ointments, shampoos, lotions or toothpaste. Food: Quality control of mayonnaise, dairy products, chocolate or sauces. Chemicals: Characterisation of polymer solutions and adhesives. The instrument utilises a sapphire bearing (‘jewel bearing’), which provides high sensitivity whilst ensuring a long service life when operated correctly. The measurement accuracy of ± 1 % and the reproducibility of ± 0.2 % (relative to the full-scale value) ensure reliable data on which you can base your quality decisions. Temperature control: CBC 5 basic Viscosity is inextricably linked to temperature. Even small temperature deviations can lead to measurement errors with some oils or polymers. The CBC 5 basic circulation thermostat included in the set reduces this uncertainty. It offers a wide working temperature range from -25 °C to +200 °C. Active cooling: Even if you ‘only’ want to measure at 20 °C, an active cooler is often necessary to dissipate the frictional heat from the spindle or to compensate for high ambient temperatures in summer. It also enables low-temperature tests (e.g. winter resistance of diesel or cosmetics). Powerful heating: With 2,500 watts, the unit heats the bath quickly, shortening waiting times between different temperature settings. Circulation: The pressure and suction pump ensures mixing of the bath medium. This supports an even temperature at the measuring cup. An integrated system The major advantage of this package is its mechanical and thermal integration. The viscometer is not simply placed next to the thermostat, but is mounted directly above the bath using a special bracket. The measuring cup is immersed in the temperature-controlled liquid. This supports heat transfer without the losses that can occur with external hose temperature control. The system is compact, tidy and saves space on the lab bench. Ramping and documentation For modern R&D departments, static measurement is often not enough. You want to know: “How does my product change as it cools down?” Thanks to the USB and RS-232 interfaces on both devices (viscometer and thermostat), you can connect the system to a PC. Use the labworldsoft software (optional) to synchronise both devices. Fully automatic temperature ramps: Create programmes in which the thermostat follows a temperature curve whilst the viscometer continuously collects data. Live visualisation: See immediately on-screen at which point a structure breaks down or curing begins. Documentation: Measured values can be saved on the PC. Focus on ease of use Despite the complex capabilities, operation is remarkably simple. The ROTAVISC’s 4.3 inch TFT display guides you intuitively through the menus. A digital spirit level assists with the precise horizontal alignment of the instrument. The Quick-Connector coupling enables spindles to be changed quickly. Technical data (system) Viscosity range: 100 to 40,000,000 mPas (me-vi) Suitable for: Medium viscosities (paints, varnishes, creams, pastes) Thermostat: CBC 5 basic cooling and heating circulation thermostat Temperature range: -25 °C to +200 °C Heating output: 2,500 W Cooling capacity: 350 W (@ 20 °C) Viscosity accuracy: ± 1 % F.S. Reproducibility: ± 0.2 % F.S. Display: 4.3 inch TFT (viscometer) Interfaces: USB, RS 232 Scope of delivery 1 x IKA ROTAVISC me-vi (measuring head) 1 x IKA CBC 5 basic (cooling/heating thermostat) 1 x Bracket for mounting the viscometer on the bath 1 x SP set-2 spindle set (standard spindles for me-vi) 1 x PT 100.8 temperature sensor 1 x Hose set & connection fittings 1 x mains cable & operating instructions WarrantyManufacturer’s warranty from IKA: 2 years, extended to 10 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & accessories To make full use of the temperature range, choosing the right bath fluid is important. We can source IKA thermofluids on request. Please contact our procurement service.
IKA CBC ROTAVISC lo-vi Package, viscometer set (cooling/heating), low-viscosity, 0010014045
Some viscosity measurements do not require heating up to 300 °C, but rather a precisely maintained temperature between cold and warm; this applies, for example, to samples that are to be tested at fridge temperature or whose flow behaviour needs to be documented across a wide temperature range. The CBC ROTAVISC lo-vi Package combines the ROTAVISC drive in the lo-vi range with the CBC VISC lite cooling and heating circulation thermostat, which controls the temperature of the sample directly in the heating bath between -25 and 125 °C. The drive, stand, bath and spindle set are coordinated as a complete kit and ready for use.The CBC VISC lite cools and heats in the same bathUnlike the ROTATEMP packages, which only heat, the CBC VISC lite bath can also actively cool samples. The temperature range extends from -25 to 125 °C; the bath uses the natural refrigerant R290 (propane) and has space for two standard 600 ml beakers, allowing a second beaker to be pre-conditioned whilst the measurement is in progress. An easily removable air filter maintains a constant cooling capacity over time without the need to open the bath.Measurement directly in the bath or via an external connectionFor the measurement, the sample is tempered directly in the bath of the CBC VISC lite; an external pump connection also allows DIN-standard vessels to be heated for the determination of absolute viscosity using ELVAS spindles or double-walled beakers. The ROTAVISC drive measures in the lo-vi range from 1 to 6,000,000 mPas, with an accuracy of 1 % of the measuring range and a repeatability of 0.2 %; the SP set-1 spindle set is supplied as standard. The spring torque of the measuring spring is 0.0673 mNm, designed for low-viscosity samples in this range.Operation and connectivityThe TFT display allows the rotational speed (0.01 to 200 rpm), timer (0.017 to 6,000 min) and measured values to be set and read directly; a ramp function automates recurring test sequences, and the graph function displays the viscosity curve over the temperature ramp. RS 232 and USB-B connect the device to the labworldsoft laboratory software for control, automation and documentation of the measurement series. An external PT-100 temperature sensor with a resolution of 0.1 K supplements the internal measurement, whilst a digital spirit level assists with alignment before the measurement begins.Operating conditionsThe ROTAVISC drive is designed for an ambient temperature of 5 to 40 °C at a maximum relative humidity of 80 %, regardless of the sample temperature set in the bath. The motor delivers 4.8 W at the output, rotates clockwise as standard and is protected against overload. The base vessel on the drive itself has a capacity of 600 ml.Typical applicationsThis package is suitable wherever samples need to be tested within a defined temperature range between cold and warm.Viscosity measurement at refrigeration or room temperature between -25 and 125 °CComparative measurement series over a wide temperature range in a bathAbsolute viscosity determination in accordance with DIN via an external pump connection using ELVAS spindlesSamples that would be too low-viscosity for the me-vi measuring rangeParallel pre-conditioning of a second beaker whilst the measurement is in progressTests using natural refrigerants as an alternative to conventional refrigerantsAutomated measurement series via labworldsoft and RS 232 or USB-BTechnical detailsViscosity measurement range1 to 6,000,000 mPasAccuracy (FSR)1 %Repeatability (FSR)0.2 %Spring torque0.0673 mNmMeasuring spindlesSP set-1Temperature range CBC VISC lite-25 to 125 °CCapacity of the CBC VISC lite2 standard beakers, 600 ml eachRefrigerant CBC VISC liteR290 (propane, natural refrigerant)Speed range0.01 to 200 rpmTime setting range0.017 to 6,000 minStandROTASTANDBase vessel volume600 mlInterfacesRS 232, USB-BConnected load (ROTAVISC drive)100 to 240 V, 50/60 Hz, 24 W (standby 1.6 W), 24 V =, 1,000 mAProtection class (ROTAVISC drive)IP 40 (DIN EN 60529)Scope of deliveryThe drive, stand, circulation bath and spindle set are supplied as a pre-assembled, ready-to-use set; each component can be reordered individually using its own identification number if required, such as an additional beaker for alternating use in the bath.1 x ROTAVISC lo-vi control S0001 x ROTASTAND (ID No. 0020116428)1 x CBC VISC lite heating bath and circulating thermostat, R290 (ID No. 0020102007)1 x SP set-1, spindle set (ID No. 0025000319)1 x PT 100.8 temperature probe (ID No. 0025000413)Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Warranty and procurement serviceIKA manufacturer’s warranty: 2 years; extended to 10 years upon registration at ika.com/register within 90 days of purchase. For those who do not require active cooling and only need to heat up to 300 °C, the ROTATEMP lo-vi Package offers a suitable alternative with a boom-mounted heating system instead of a bath, though without a cooling function below room temperature. For those carrying out measurements without a temperature control system at all, the ROTAVISC lo-vi HELI Complete on a motorised stand is a suitable choice. We can advise on selecting the appropriate temperature control system and the correct measurement range, and can source further accessories such as ELVAS spindles or replacement glassware via our procurement service.
