IKA MIXSTER Set 4 (TWISTER), Modular Magnetic Stirring System, 0020027390

Modular magnetic stirring system with four drives

The IKA MIXSTER Set 4 is a multi-position magnetic stirrer with four drives. According to the datasheet, each stirring position handles 5 ml to 5 l (H₂O) at 100 to 3,000 rpm and viscosities up to 500 mPas. With additional IKA MIXSTER stirring units (accessory, item no. 0020112621), the system can be extended to up to 30 stirring positions. The positions can be controlled separately or simultaneously (leader-follower principle). The supplied power supply is designed for up to four devices; depending on the number of devices, a different power supply may be required.

Operation and degree of protection IP 66

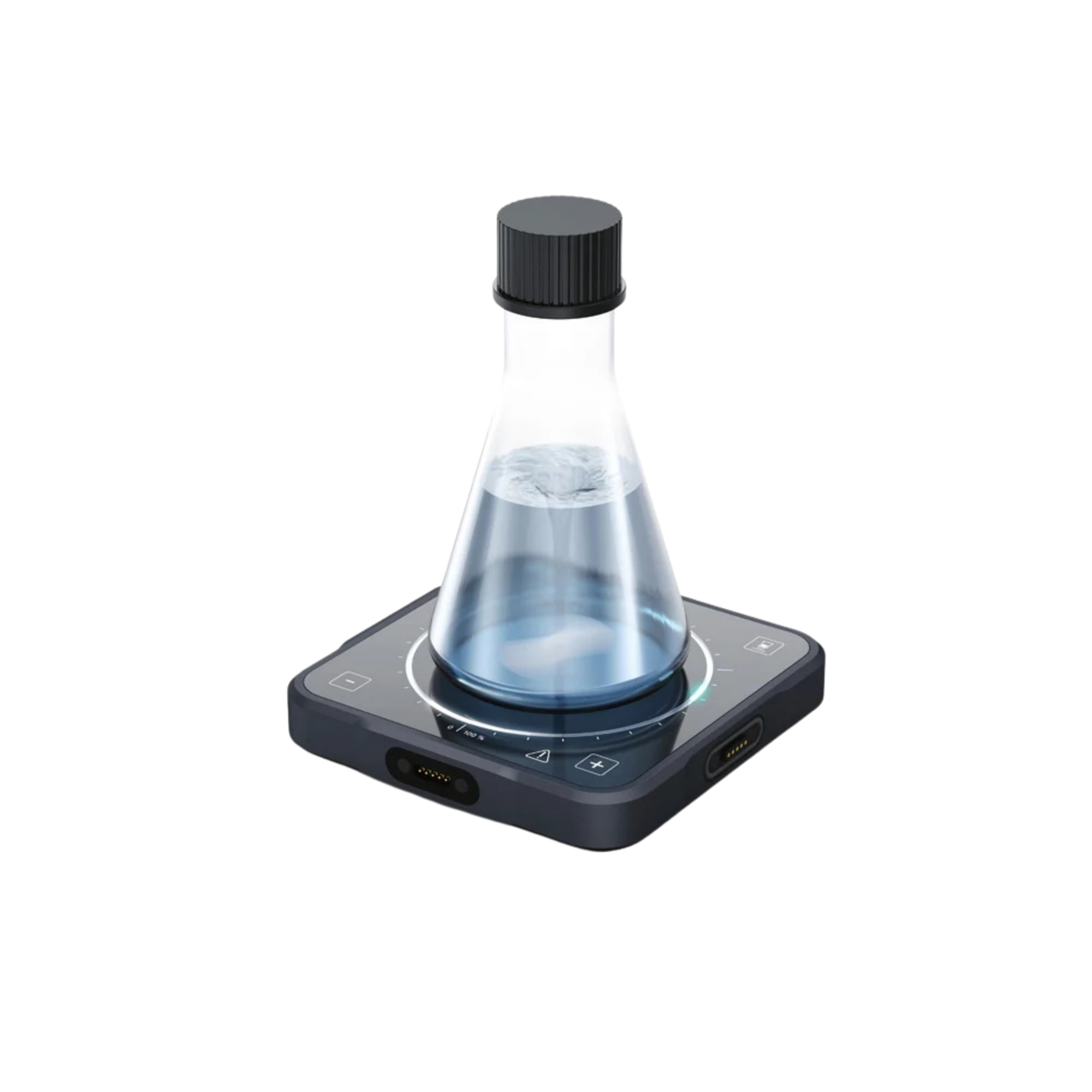

The 360° LED glass display conveys all information without an alphanumeric readout. It shows either the speed or the stirring power, so changes in viscosity can be followed as a percentage. The speed is set with a tap button. With the integrated vessel detection, stirring also starts when the vessel is placed on the unit or touched. The reverse function changes the direction of rotation at definable intervals, and interval operation can be set from 6 s to 30 min. IP 66 allows cleaning under the tap and operation in an incubator up to 40 °C. A USB interface is optional.

Technical details

• Number of stirring positions: 4, spacing 135 mm
• Stirring volume per position (H₂O): 0.005 to 5 l
• Maximum load: 7.5 kg
• Motor power output: 5 W, direction of rotation clockwise / counterclockwise
• Speed range: 100 to 3,000 rpm, set with a tap button (accuracy 100 rpm)
• Stir bar length: 10 to 30 mm
• Mounting surface: glass, 124 x 124 mm
• Automatic reversal of rotation, interval operation 6 s to 30 min, viscosity trend measurement
• Speed deviation (no load, rated voltage, 1500 rpm, 25 °C): ±2 %
• Display: 360° LED glass display (speed setpoint and actual value)
• Dimensions per unit (W x H x D): 135 x 24 x 135 mm, weight 0.6 kg
• Protection rating in accordance with DIN EN 60529: IP 66
• Permissible ambient temperature 5 to 40 °C, relative humidity 80 %
• Interface: USB optional
• Voltage 100 to 240 V, 50/60 Hz, power consumption 10 W (standby 2 W), DC voltage 24 V, 400 mA

Scope of delivery

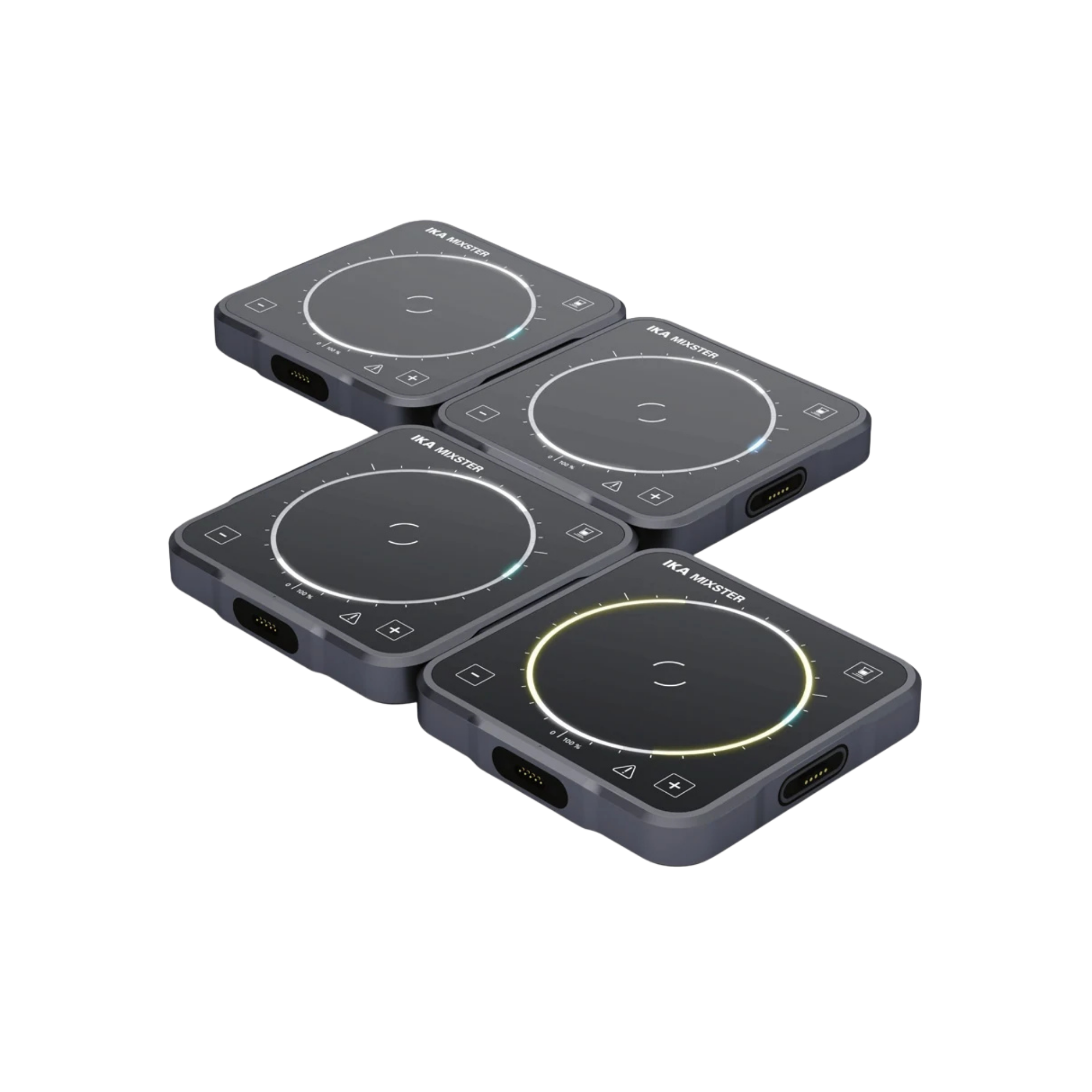

• 4 x IKA MIXSTER stirring unit
• 1 x MIX.PWR.1 power supply
• 4 x IKAFLON 25 stir bars

Individual requirements & accessories

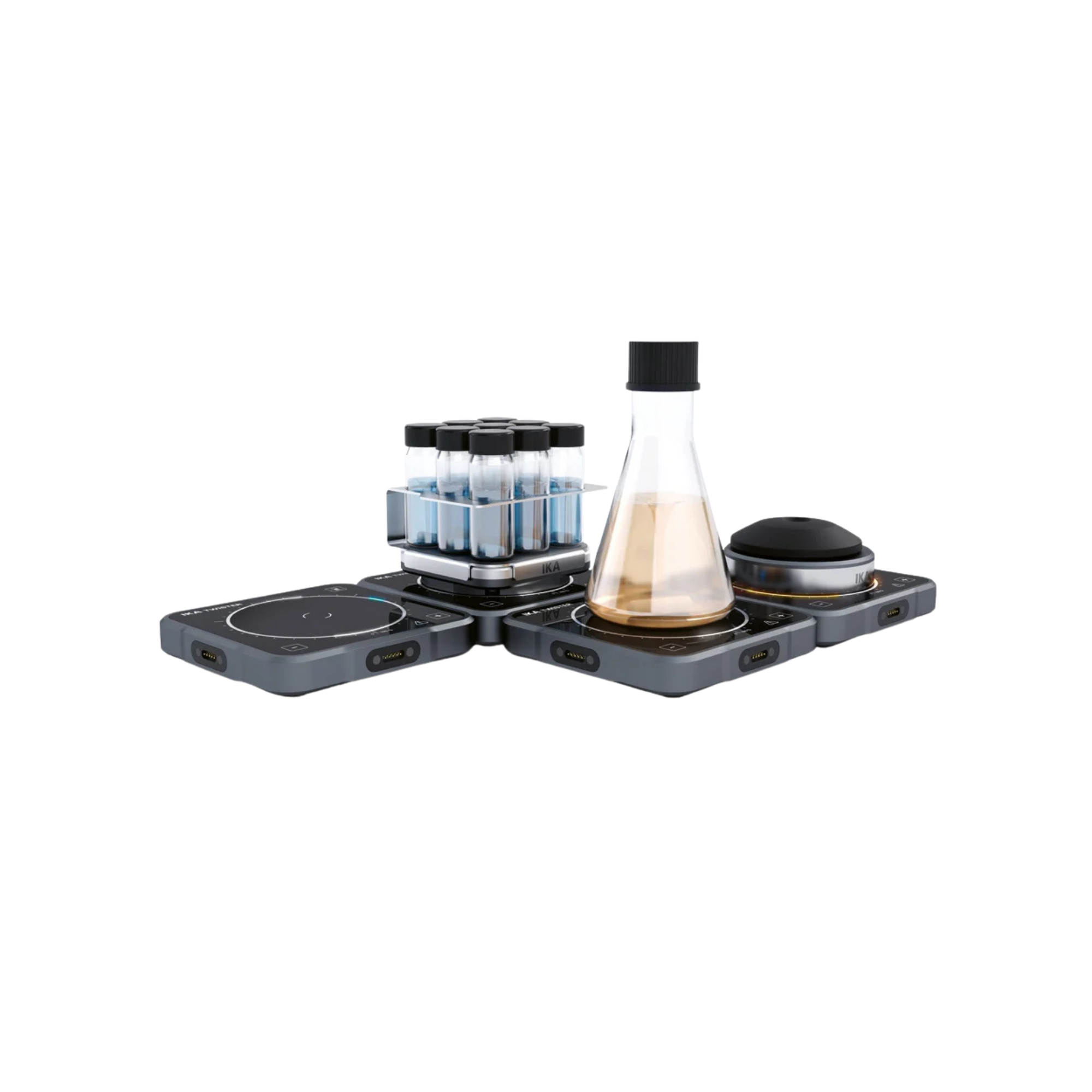

With the MIX.IX multi-position stirring attachment, the drive becomes a magnetic stirrer with 9 stirring positions for sample vessels of 8 to 60 ml. The MIX.VX shaker attachment turns the magnetic drive into a vortex or orbital shaker. The attachments are not included. For questions about accessories or the power supply for many stirring positions, our procurement service is happy to help.
