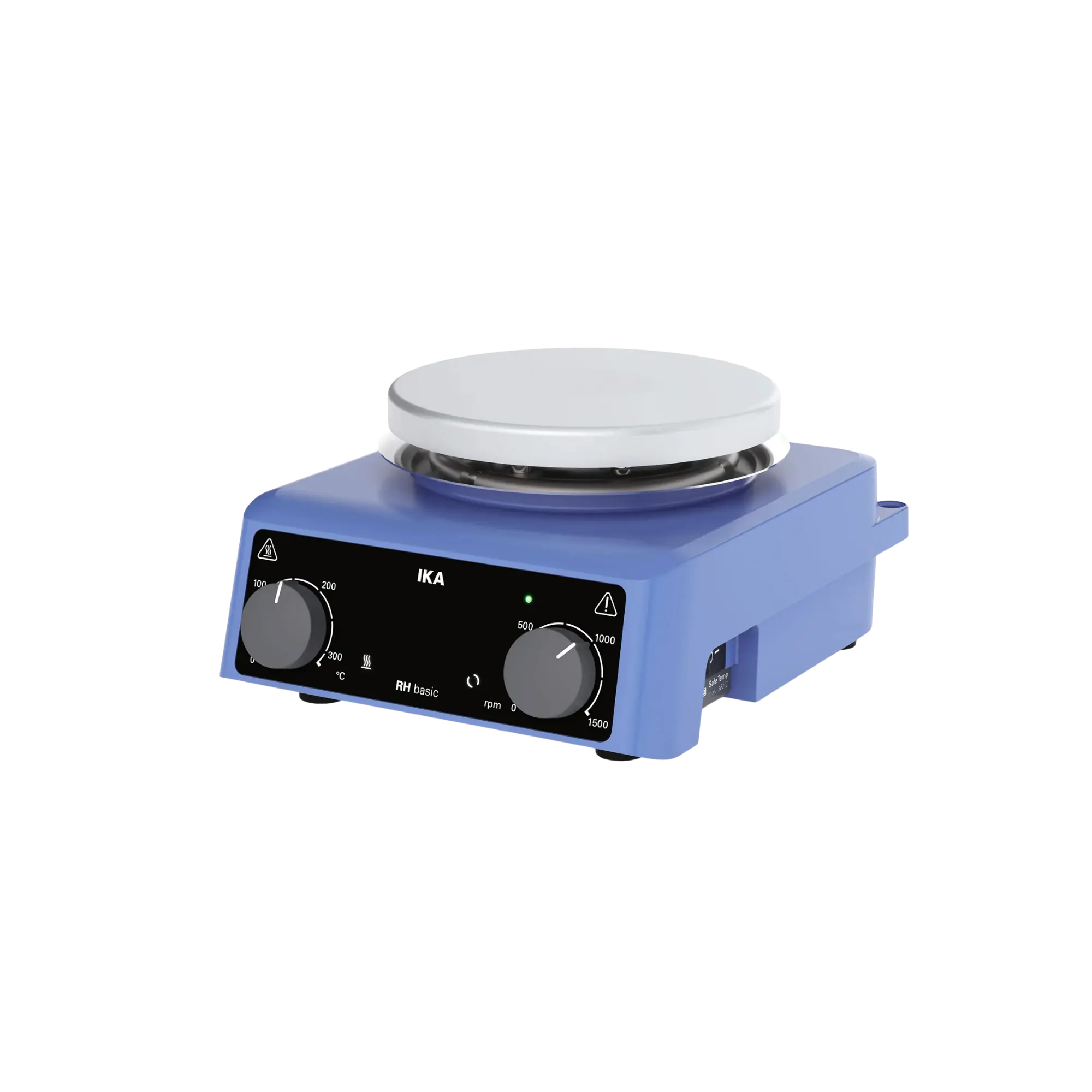

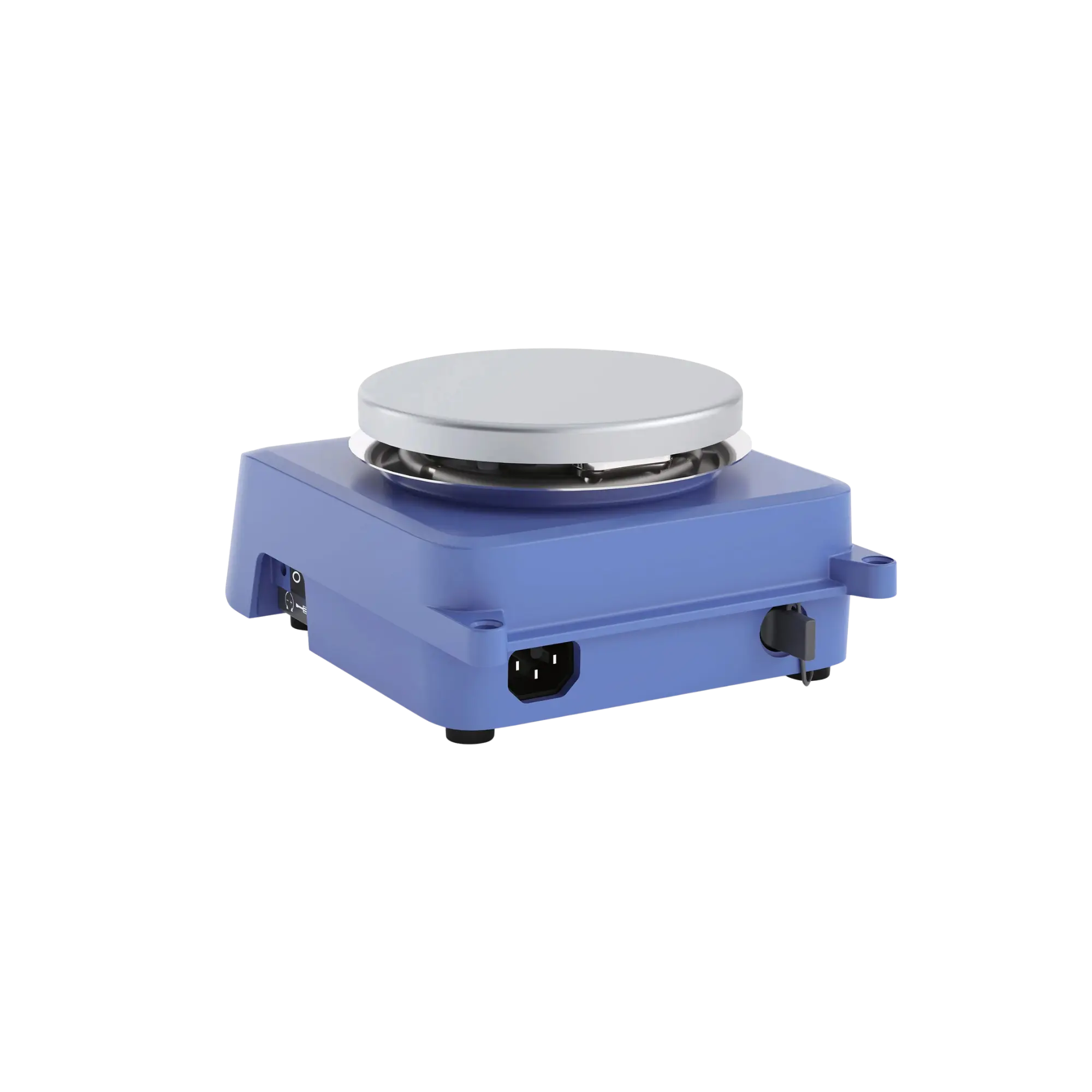

IKA RH basic ETS-D5 Solution Magnetic Stirrer Complete Package, stainless steel base, 0020106987

The IKA RH basic ETS-D5 Solution Complete Package (MPN 0020106987) offers a highly cost-effective, mechanically robust and thermodynamically precise system solution for the simultaneous stirring and temperature control of liquid media to within one degree in the laboratory. This turnkey system package combines the reliable RH basic heating magnetic stirrer with the precise ETS-D5 electronic contact thermometer and the appropriate mounting accessories. Whether for daily routine processes in chemical analysis, sample preparation in B2B testing laboratories or reproducible mixing operations in industrial quality control, this complete set ensures gentle handling of materials and reliable, process-safe operation during continuous use.

Outstanding thermal conductivity thanks to a pure stainless steel base

The structural foundation of the stirring drive is a circular base with a diameter of 135 mm, manufactured from a high-quality, uncoated stainless steel alloy. Compared to conventional coated surfaces, the stainless steel plate offers excellent direct thermal conductivity, resulting in short heating times and loss-free energy transfer into the sample vessel. The metal surface is also characterised by outstanding mechanical impact and scratch resistance, is completely inert towards a wide range of organic solvents, and can be cleaned quickly and without leaving any residue in everyday laboratory use.

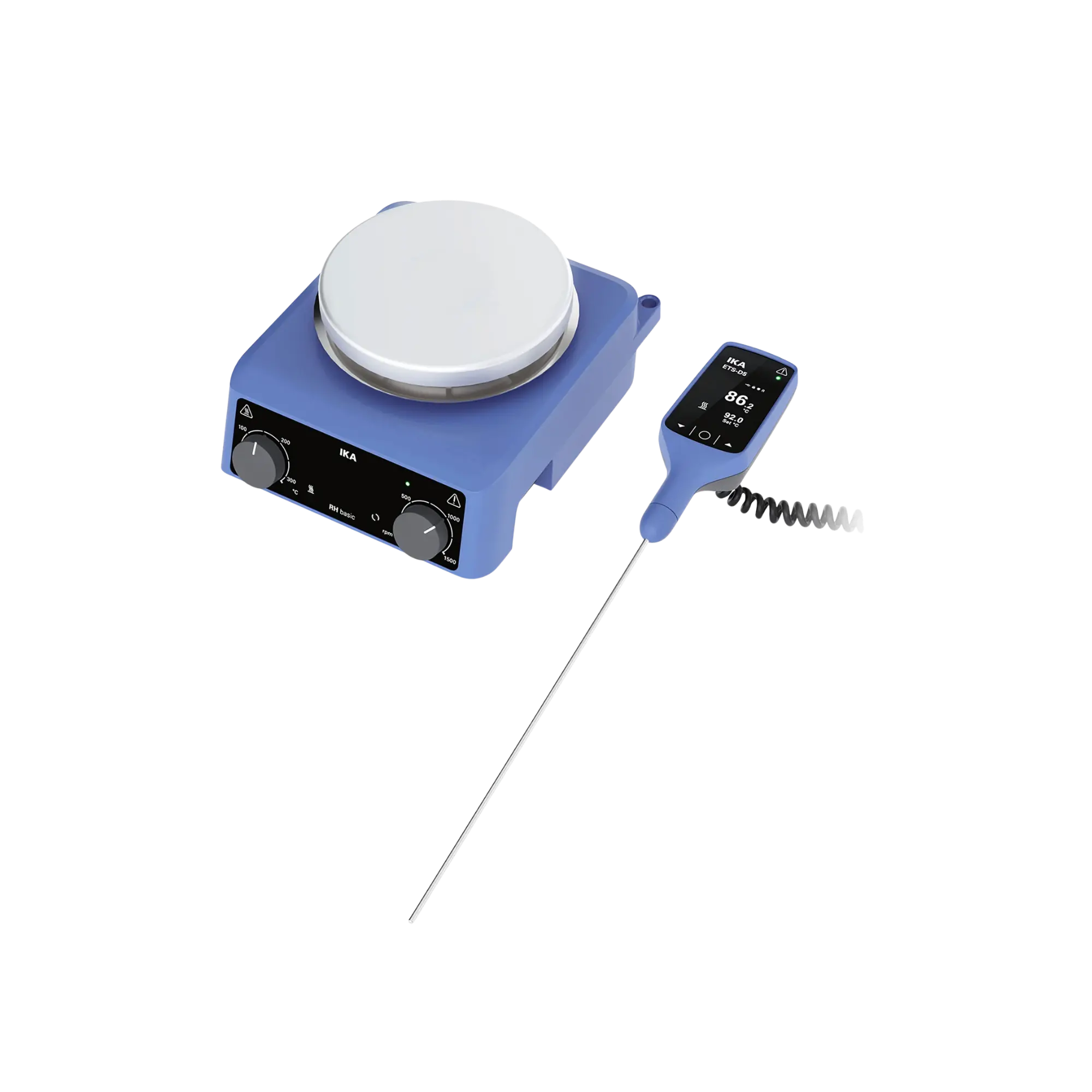

Fault-free medium temperature control via the ETS-D5 contact thermometer

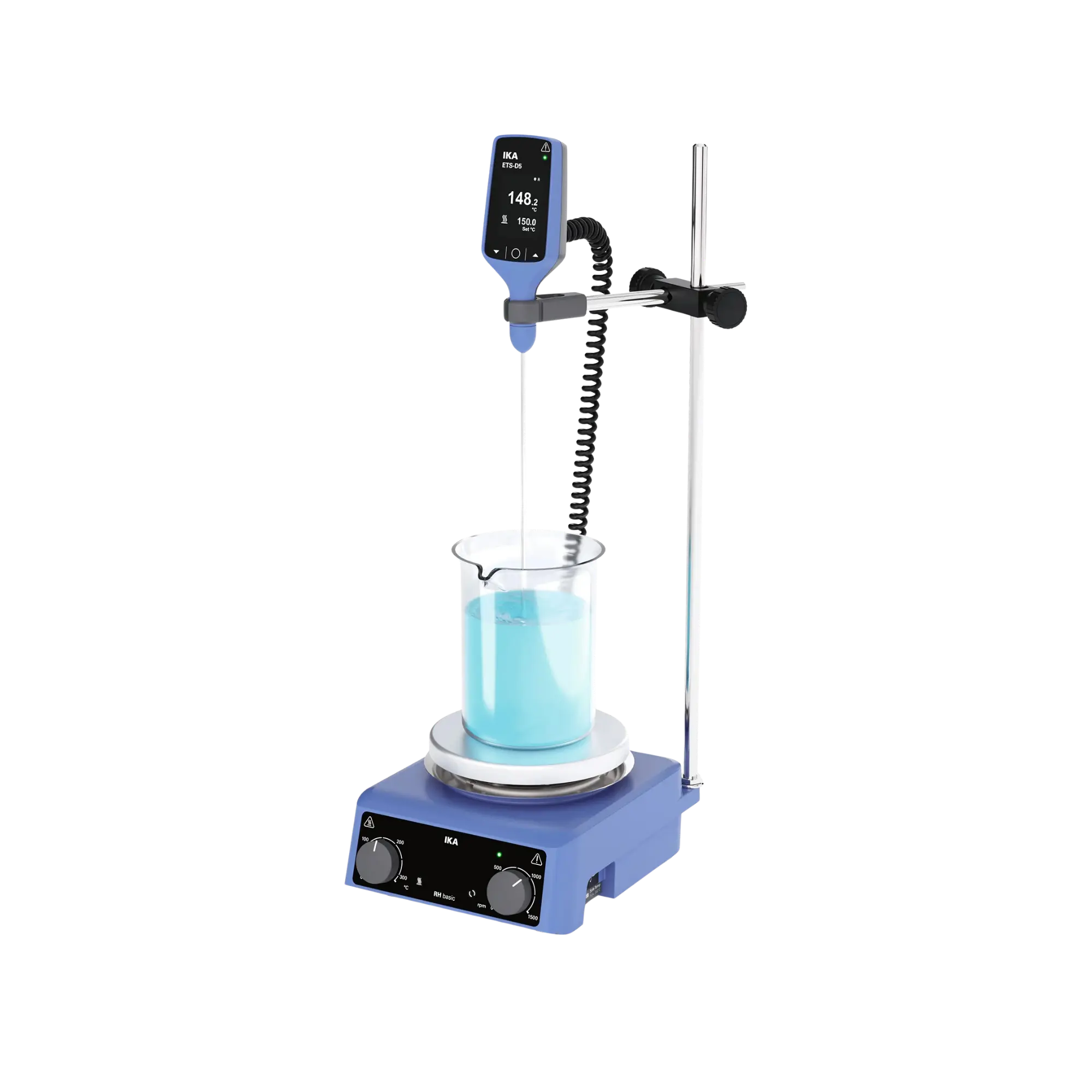

The process engineering highlight of this solution package is the direct thermodynamic control within the medium via the ETS-D5 electronic contact thermometer, which is included in the scope of delivery. The associated sensor is positioned vibration-free directly within the liquid core of the sample using the sturdy stand components. Via a sophisticated microprocessor control system, the RH basic continuously adjusts its heating power to the transient actual values, thereby effectively preventing thermal overshoot of the target temperature. This reliably protects temperature-sensitive syntheses or biological matrices from thermal degradation.

Technical details

Drive & Stirring Specifications

• Number of stirring points: 1
• Maximum stirring volume (based on water): 15 litres
• Motor power output: 2 watts
• Speed range: 100 to 2000 revolutions per minute (rpm)
• Speed control: Continuously variable via analogue rotary control with scale

Thermodynamics & heating power

• Heating power: 600 watts (for rapid heating cycles)
• Heating plate temperature: 50 to 320 degrees Celsius
• Connection for external sensor: DIN 12878 (for ETS-D5 contact thermometer)
• Control accuracy in the medium with ETS-D5: ±0.5 K
• Heating surface diameter: 135 mm
• Heating plate material: High-quality stainless steel alloy
• Safety circuit: Fixed setting for integrated overheating protection (400 degrees Celsius)

Design, geometry & protection classes

• Housing material: Robust, chemically resistant coated laboratory housing
• Protection class according to DIN EN 60529: IP 21
• Dimensions (W x D x H): 168 x 220 x 105 mm
• Mains connection: 220–230 V / 50/60 Hz

Contents

• 1 x IKA RH basic magnetic stirrer with heating (stainless steel plate)
• 1 x IKA ETS-D5 electronic contact thermometer
• 1 x Pt1000 temperature probe for ETS-D5
• 1 x stand rod including matching cross-sleeve for securing the probe
• 1 x mains cable
• 1 x Detailed operating instructions / safety guide

Customised requirements & accessories

To ensure optimal utilisation and expansion of the IKA RH basic ETS-D5 Solution complete package, we offer a wide range of complementary system peripherals:

• Housing protection: Precisely fitting silicone protective covers to reliably protect the instrument surface from aggressive liquid splashes.
• Synthesis attachments: Highly chemically resistant IKA Dry attachments made from anodised aluminium for the clean, oil-free heating of round-bottomed flasks directly on the stainless steel plate.
• Consumables: A wide range of PTFE-coated magnetic stir bars in cylindrical, oval or triangular shapes to perfectly match your vessel shapes. Make use of our technical procurement service to configure your laboratory workstations for your specific applications.
