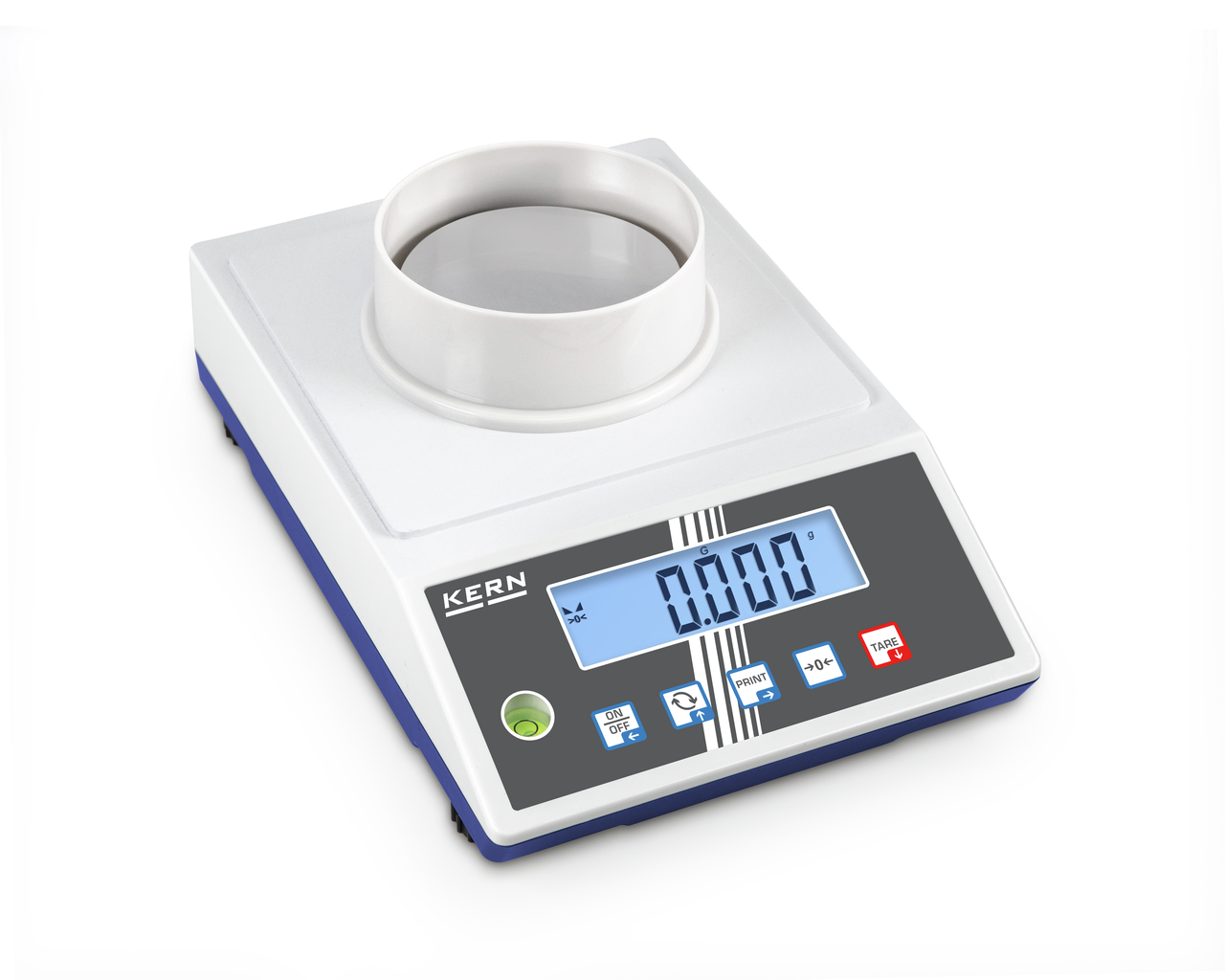

KERN IoT-Line PCB 300-3 Compact Laboratory Balance

IoT-Line PCB 300-3 Compact Laboratory Balance

Product family: PCB

The industry standard for laboratories, ideal for the wide range of possibilities offered by Industry 4.0 applications

Description

Compatible with school-specific software solutions such as Vernier ® or LabQuest ® Thanks to the KERN School Protocol, weighing data can be transferred via the USB data interface to a PC, laptop, etc. for evaluation and visualisation as part of technical experiments

Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adaptors, such as RS-232, USB, Bluetooth, Wi-Fi or Ethernet. The outstanding advantage here is that the KUP interface adapters simply plug in, meaning that retrofitting interfaces is straightforward without having to open the balance housing or carry out complicated installation work. The interface adapters enable convenient transfer of weighing data to networks, PCs, smartphones, tablets, laptops, printers, etc. Furthermore, control commands and data inputs can also be sent to the balance via the connected devices. Tip: with the KERN KUP-13 extension box, up to three KUP interface adapters can be operated in parallel on the balance

KERN Communication Protocol (KCP): The KCP allows the scale to be queried and remotely controlled via external control devices or computers

Consistent, simplified operating philosophy

PRE-TARE function for manually subtracting a known container weight, useful for checking fill quantities

The recipe function allows the various components of a mixture to be weighed. The total weight of all components can be displayed for verification

Weighing with a tolerance range (checkweighing): A visual signal assists with portioning, dosing or sorting

Freely programmable weighing unit, e.g. display directly in thread length g/m, paper weight g/m², or similar

A special anti-shock system between the weighing plate and the load cell reduces vibrations during weighing, thus ensuring faster and more reliable weighing results

Ring-shaped draught shield as standard, weighing chamber ∅×H 90×40 mm

Safety hood included in the scope of delivery

Technical data

Weighing range [Max] 360 g

Readability [d] 0.001 g

Units: kg, g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa, m

Linearity ± 0.005 g

Reproducibility 0.002 g

Settling time 3 s

USP minimum weighing capacity (k=2, U=0.1%) 4 g

Interfaces RS-232 (optional), Bluetooth (optional), Ethernet (optional), USB device (optional), KUP, Wi-Fi (optional)

Calibration options: Calibration with external weight

Recommended calibration weight 200 g (F1)

Ambient temperature range -10 °C – 40 °C

Dimensions Weighing surface (Ø) 82 mm

Dust shield material: plastic

Housing material: plastic

Housing dimensions (W×D×H) 163×245×65 mm

Weighing plate material: plastic, with conductive coating

Net weight approx. 0.85 kg

Scale type: Single-range scale

GTIN/EAN number 4045761243187
