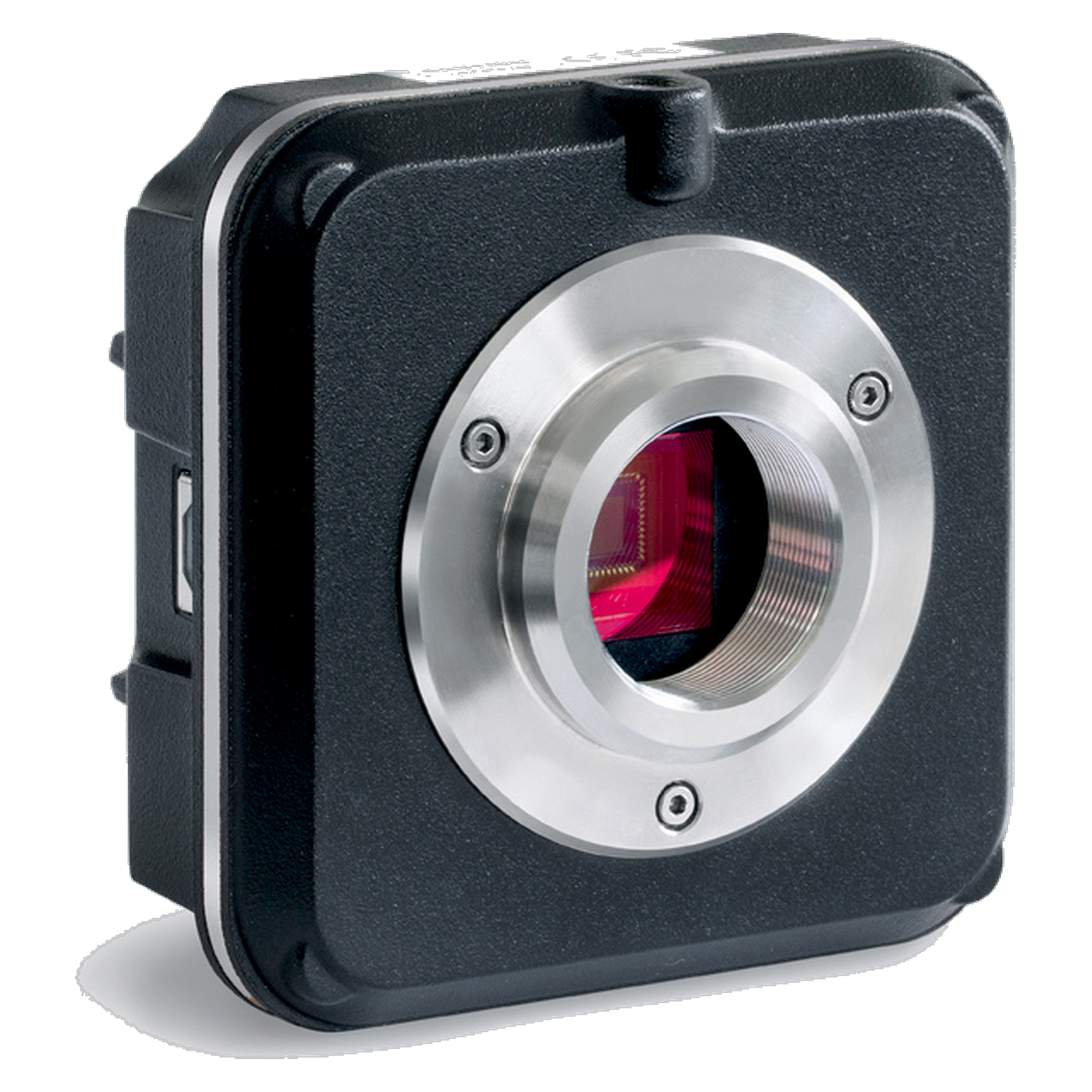

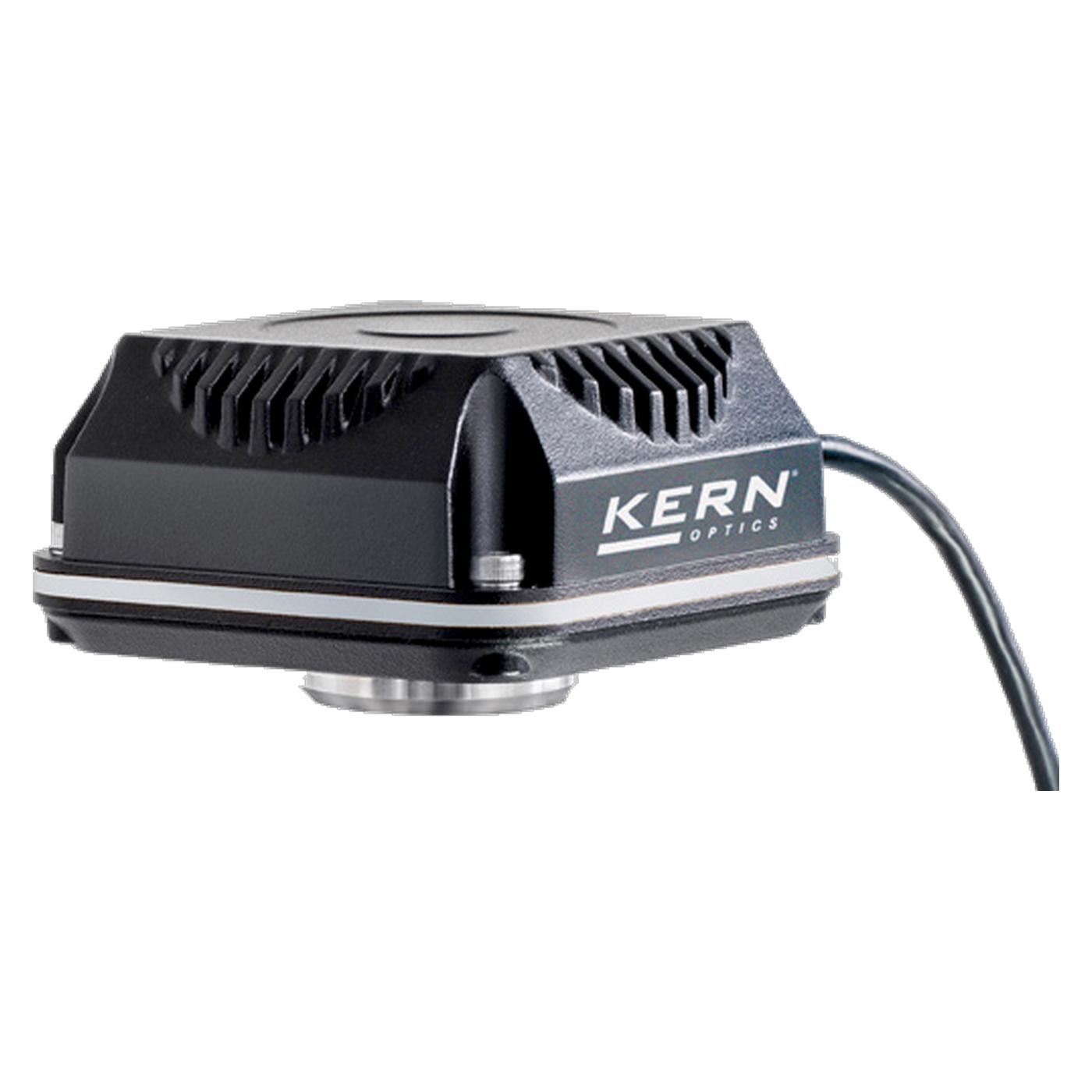

Kern ODC 825 C-Mount microscope camera, 5.1 MP, USB 2.0, Aptina CMOS 1/2.5-inch
€369.00
% Manufacturer's RRP: €410.00 10% below manufacturer's RRP
- C-Mount microscope camera with 5.1 MP, Aptina CMOS 1/2.5-inch, pixel size 2.2 µm
- USB 2.0, 7 frames per second at 2592 x 1944, up to 101 at 648 x 486
- Exposure time 0.2 to 2,000 ms, rolling shutter
- VIS 2.0 PRO or LITE software, Windows 10
- Power supply via USB; 2 m USB cable, eyepiece adapter and stage micrometer included in the scope of delivery
- Dimensions 80 x 80 x 45 mm, approx. 0.6 kg
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Kern ODC 825 C-Mount microscope camera, 5.1 MP, USB 2.0, Aptina CMOS 1/2.5-inch"
The Kern ODC 825 is a C-Mount camera for microscopes with 5.1 megapixels and a USB 2.0 connection. It is fitted to the camera port of a trinocular microscope, transmits the live image via USB to a PC or laptop, and is powered via the same cable. The camera does not have a display. Kern cites measurements, counting, documentation, archiving and image processing as applications.
Sensor and frame rate
The Aptina CMOS colour sensor has a 1/2.5-inch (5.7 x 4.28 mm) format with pixels measuring 2.2 x 2.2 µm and operates using a rolling shutter. The frame rate depends on the resolution: at 2,592 x 1,944 pixels, the data sheet states 7 frames per second; at 1,296 x 972 pixels, 28; and at 648 x 486 pixels, 101. The exposure time can be set from 0.2 to 2,000 ms. The high resolution is suitable for still images and measurements, while the lower resolution is suitable for smooth live images.
Software and PC
Data analysis is carried out using the Microscope VIS 2.0 PRO (OXM 902) software, which, according to the Kern brochure, is available free of charge together with the VIS 2.0 LITE version. It captures images and videos, edits and documents them, and takes measurements. The data sheet lists Windows 10 as the supported operating system. The system requirements are a quad-core CPU (x64) running at 2.5 GHz, 8 GB of RAM, a 256 GB SSD, a graphics card with DirectX 12 and a 13-inch Full HD (1,920 x 1,080) display.
Connection to the microscope
The camera has a C-Mount connection. Kern asks that the C-Mount adapter matching the respective Kern microscope be ordered at the same time, for example the OBB-A1514 (1x) or the OBB-A1515 (0.5x), depending on the microscope. According to Kern, the camera is also suitable for dark field, phase contrast and fluorescence microscopy. In addition, several eyepiece adapters are supplied. The camera measures 80 x 80 x 45 mm and weighs approximately 0.6 kg.
Power supply
The USB port (USB B) supplies 5 V at 170 mA; a power supply unit is not required. The USB cable is 2 m long. The camera may be stored at temperatures between -5 °C and 40 °C.
Typical applications
- Laboratory and quality assurance: measuring and counting on screen
- Documentation and archiving of specimens
- Fluorescence, phase contrast and dark field imaging with suitable microscopes
- Schools and universities: images for laboratory reports
Technical details
| Camera type | USB 2.0 microscope camera, C-Mount |
| Sensor | Aptina CMOS, colour, 5.1 MP, 1/2.5 inch (5.7 x 4.28 mm), pixel size 2.2 x 2.2 µm, rolling shutter |
| Frame rate | 7 frames per second at 2,592 x 1,944; 28 at 1,296 x 972; 101 at 648 x 486 |
| Exposure time | 0.2 ms to 2,000 ms |
| Interface | USB 2.0, USB B port |
| Software | VIS 2.0 PRO microscope (OXM 902), functions: image, video, editing and documentation, measurements |
| Operating system | Windows 10 |
| System requirements | Quad-core x64, 2.5 GHz, 8 GB RAM, 256 GB SSD, DirectX 12, 13-inch Full HD display |
| Power supply | via USB, 5 V / 170 mA |
| Dimensions (W x D x H) | 80 x 80 x 45 mm |
| Net weight | approx. 0.6 kg |
| Storage temperature | -5 °C to 40 °C |
| Labelling | CE |
| Warranty (manufacturer) | 24 months according to Kern, excluding wear parts |
Scope of delivery
- C-Mount camera ODC 825
- USB cable, 2 m
- Several eyepiece adapters
- Stage micrometer for calibrating the software
Warranty
According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Kern ODC-82 (PDF)Regulatory information
As an electrical device, the camera falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
The calibration slide ODC-A2404, the eyepiece adapters for C-Mount cameras ODC-A8102 (Ø 23.2 to 30 mm), ODC-A8103 (Ø 23.2 to 30.5 mm) and ODC-A8105 (0.5x, 23.2 mm), as well as the software OXM 902 (VIS 2.0 PRO) and OXM 903 (VIS 2.0 LITE) are also available. The camera is also included in the OBE 124C825, OBE 134C825, OBL 137C825 and OBN 135C825 digital microscope sets. Enquiries are handled via our procurement service.
