Kern ODC 861 C-Mount camera for fluorescence, 20 MP, 1-inch Sony CMOS, cooled, USB 3.0
€2,079.00
% Manufacturer's RRP: €2,310.00 10% below manufacturer's RRP
- C-Mount microscope camera with Peltier cooling for fluorescence, 20 MP, 1-inch Sony CMOS
- USB 3.0, 19 frames per second at 5,440 x 3,648
- Exposure time 0.1 ms to 3,600,000 ms, black balance
- Mains power supply 100 to 240 V (device 12 V / 3 A), storage box
- Only 1.0x C-Mount adapter available
- Dimensions 80 x 80 x 103 mm, approx. 2.6 kg
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Kern ODC 861 C-Mount camera for fluorescence, 20 MP, 1-inch Sony CMOS, cooled, USB 3.0"
The Kern ODC-83 comprises two C-Mount cameras with USB 3.0 connections: the ODC 832 with 5.1 megapixels for general microscopy and the ODC 861 with Peltier cooling and 20 megapixels for fluorescence. Both are fitted to the camera port of a trinocular microscope and transmit the live image to a PC. The ODC 832 is powered via the USB cable, while the ODC 861 requires its own mains power supply due to its cooling system.
ODC 832: standard camera with USB 3.0
The ODC 832 features a 1/2.5-inch (5.7 x 4.28 mm) Aptina CMOS colour sensor with 2.2 x 2.2 µm pixels and a rolling shutter. According to the data sheet, it delivers 16 frames per second at 2,592 x 1,944 pixels, 50 at 1,296 x 972 and 100 at 648 x 486. The exposure time ranges from 0.1 to 2,000 ms. The device measures 80 x 80 x 45 mm and weighs approximately 0.6 kg. Power is supplied via USB B at 5 V and 200 mA. According to Kern, the camera is also suitable for dark field, phase contrast and fluorescence microscopy.
ODC 861: cooled for low-light conditions

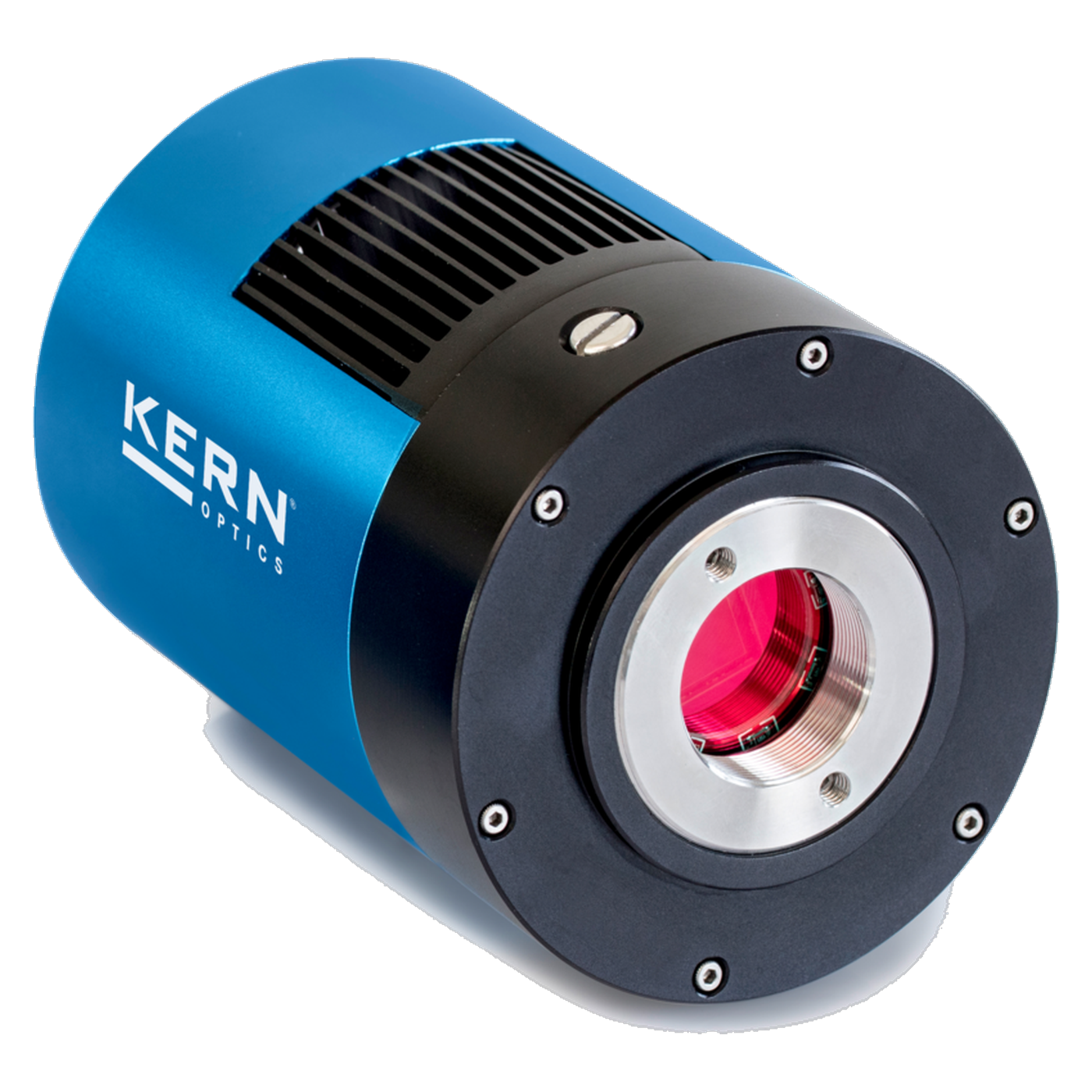

The ODC 861 features a 1-inch Sony CMOS colour sensor (13.056 x 8.755 mm) with 20 MP and pixels measuring 2.4 x 2.4 µm. According to Kern, the Peltier cooling system is intended to significantly reduce image noise in low light. This is complemented by an exposure time ranging from 0.1 ms to 3,600,000 ms, which corresponds to one hour. The frame rate is 19 frames per second at 5440 x 3648, 49 at 2,736 x 1,824 and 59 at 1,824 x 1,216. A black balance is possible. The camera measures 80 x 80 x 103 mm and weighs approximately 2.6 kg. According to Kern, it comes with a storage box for protection and transport.
Software and operating system
Both cameras operate with the Microscope VIS 2.0 PRO software (OXM 902), which, according to the brochure, is free of charge, just like the VIS 2.0 LITE version. According to the data sheet, the ODC 832 supports Windows 8, 10 and 11, while the ODC 861 supports Windows 10. The system requirements for both are as follows: quad-core CPU (x64) running at 2.5 GHz, 8 GB RAM, 256 GB SSD, graphics card with DirectX 12 and a 13-inch Full HD (1,920 x 1,080) display. According to the brochure, the ODC 832 comes with the Microscope VIS Basic software (OXM 901).
Power, adapter and connection

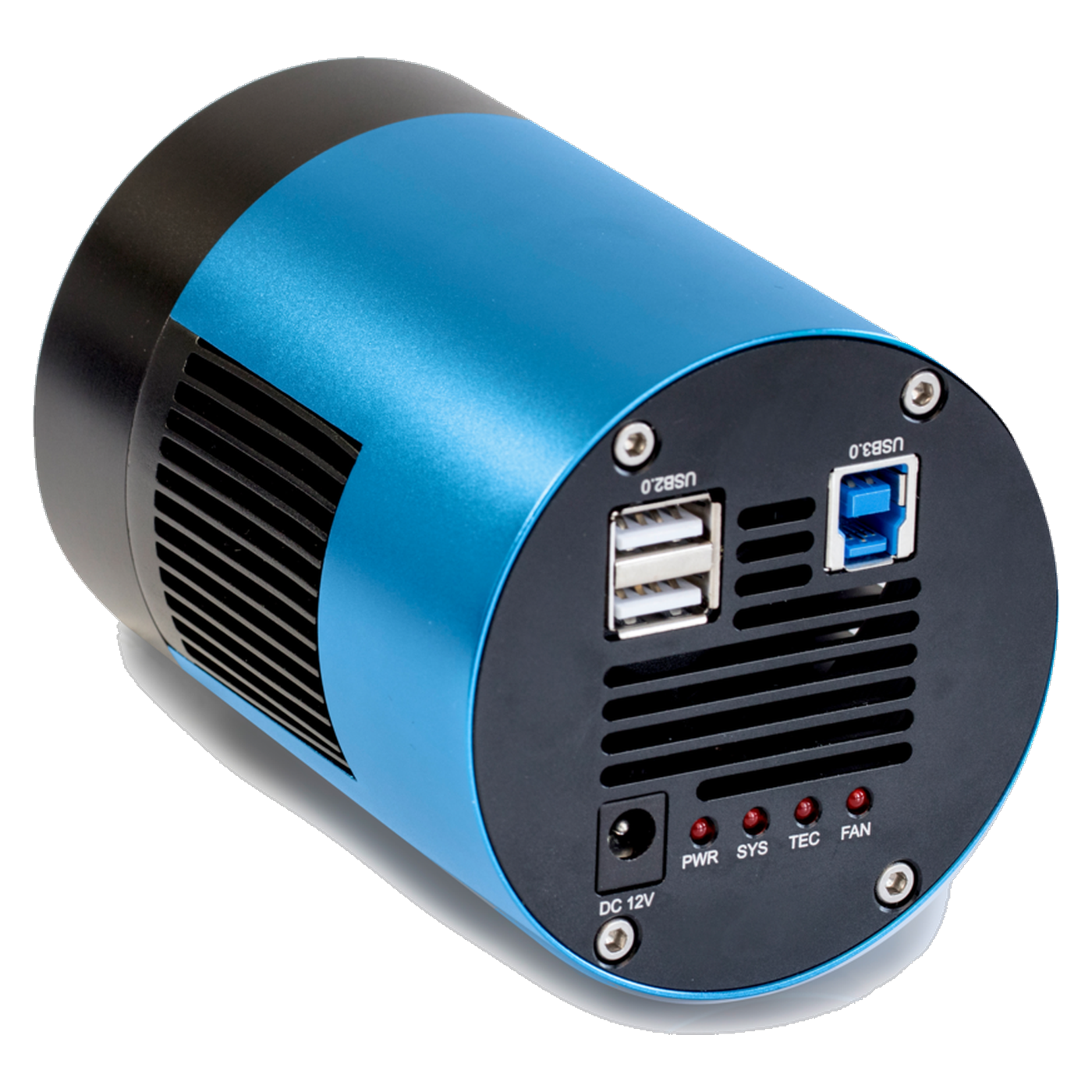

The ODC 861 operates with a plug-in mains adaptor for 100 to 240 V at 50/60 Hz and 1.0 A; 12 V at 3 A (36 W) are applied at the unit. The power supply has a detachable IEC connector. Both cameras have a C-Mount connection. Kern asks that the matching C-Mount adapter be ordered at the same time. For the ODC 861, only the 1.0x adapter is compatible.
Typical applications
- Fluorescence microscopy with the ODC 861: immunofluorescence and other applications in low light
- Documentation and archiving at the microscope using the ODC 832
- Measuring, counting and image processing on a PC
- Bright field, dark field and phase contrast with the ODC 832
Models at a glance
| Model | Sensor | Resolution | Frame rate at full resolution | Exposure time | Current | Weight |
|---|---|---|---|---|---|---|
| ODC 832 | Aptina CMOS 1/2.5-inch | 5.1 MP | 16 frames per second | 0.1 to 2,000 ms | via USB, 5 V / 200 mA | approx. 0.6 kg |
| ODC 861 | Sony 1-inch CMOS, cooled | 20 MP | 19 frames per second | 0.1 to 3,600,000 ms | Power supply 12 V / 3 A | approx. 2.6 kg |
Technical details
These values apply to both cameras. Any differing values are listed in the model table.
| Camera type | USB 3.0 microscope camera, C-Mount, colour, rolling shutter |
| Interface | USB 3.0 |
| Software | Microscope VIS 2.0 PRO (OXM 902) |
| System requirements | Quad-core x64, 2.5 GHz, 8 GB RAM, 256 GB SSD, DirectX 12, 13-inch Full HD display |
| Dimensions (W x D x H) | ODC 832: 80 x 80 x 45 mm; ODC 861: 80 x 80 x 103 mm |
| Mains plug (ODC 861) | Euro included in the scope of delivery; adapters for AUS, UK, US and CH optional |
| Storage temperature | -5 °C to 40 °C |
| Labelling | CE |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Scope of delivery
- ODC 832 or ODC 861 camera, depending on the model
- ODC 832 according to the brochure: Microscope VIS Basic software (OXM 901), USB cable (2,000 mm), eyepiece adapter and stage micrometer

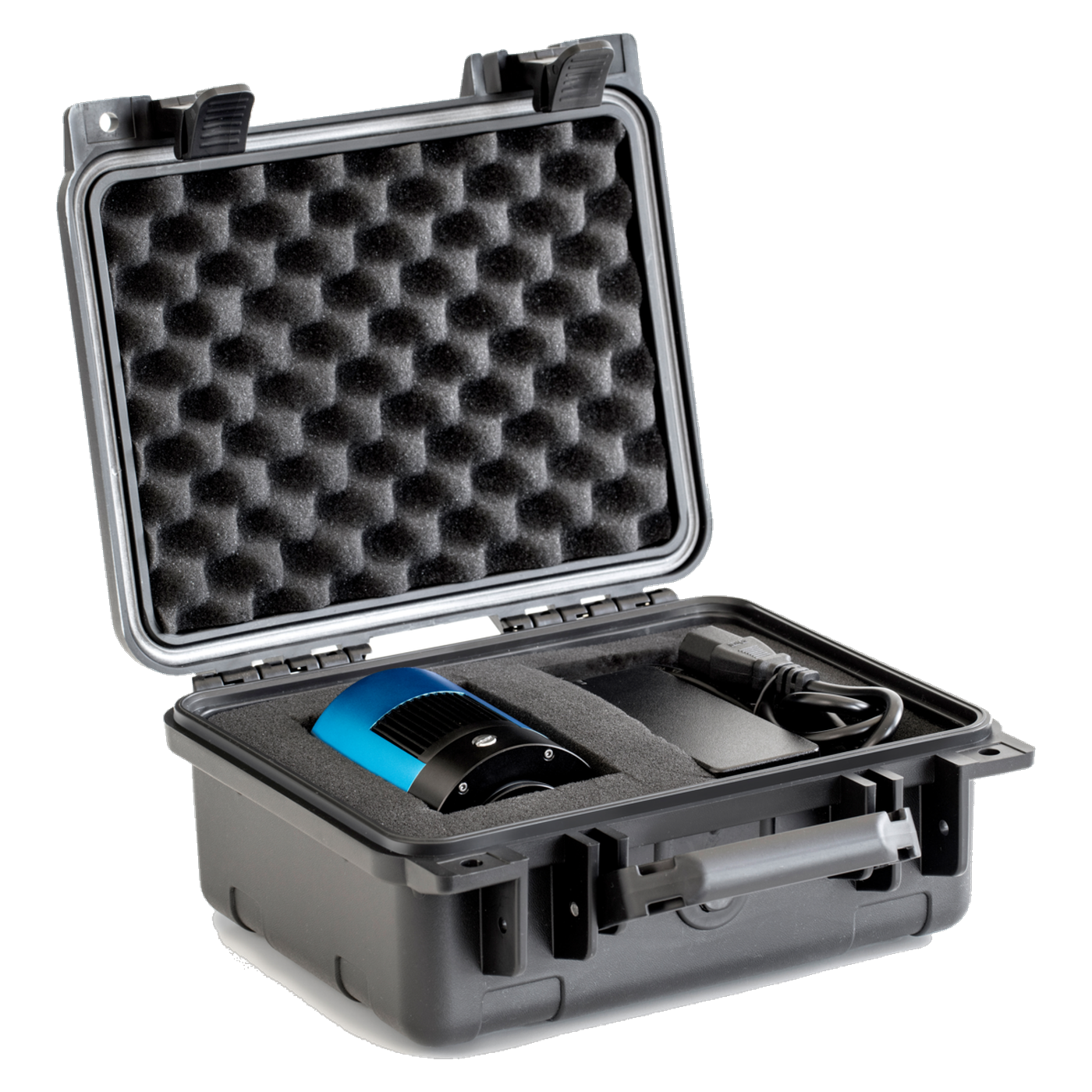

- ODC 861: Power supply unit with Euro plug and storage box
Warranty
According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Kern ODC 832 (PDF)Regulatory information
As electrical devices, the cameras fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
The calibration slide ODC-A2404, the eyepiece adapters ODC-A8102, ODC-A8103 and ODC-A8105 (ODC 832) or ODC-A8108 (ODC 861), the software OXM 902 and OXM 903 and, for the ODC 861, the IEC power cables MLB-A07 (Euro), 822-903 (UK), MLB-A09 (US) and YKK-01 (CH) are also available. The cameras are also included in the digital microscope sets OBE 124C832, OBE 134C832, OBL 137C832, OBN 135C832, OKO 178C832 (ODC 832) and OBN 142C861 (ODC 861). Enquiries are handled via our procurement service.
| Design: | ODC 861 · 20 MP |
|---|
