Kern PWS 800-2 precision balance 820 g / 0.01 g
€1,080.00
% Manufacturer's RRP: €1,200.00 10% below manufacturer's RRP
- Weighing range 820 g, readability 0.01 g
- Reproducibility 0.01 g, linearity ± 0.01 g, stabilisation time 3 s
- USP minimum sample weight 20 g, weighing pan Ø 140 mm
- Housing and weighing plate made of stainless steel, degree of protection IP65 (EN 60529)
- Tuning fork weighing system, adjustment with external weight
- RS-232 as standard, prepared for battery operation, piece counting, weighing with tolerance range
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Kern PWS 800-2 precision balance 820 g / 0.01 g"

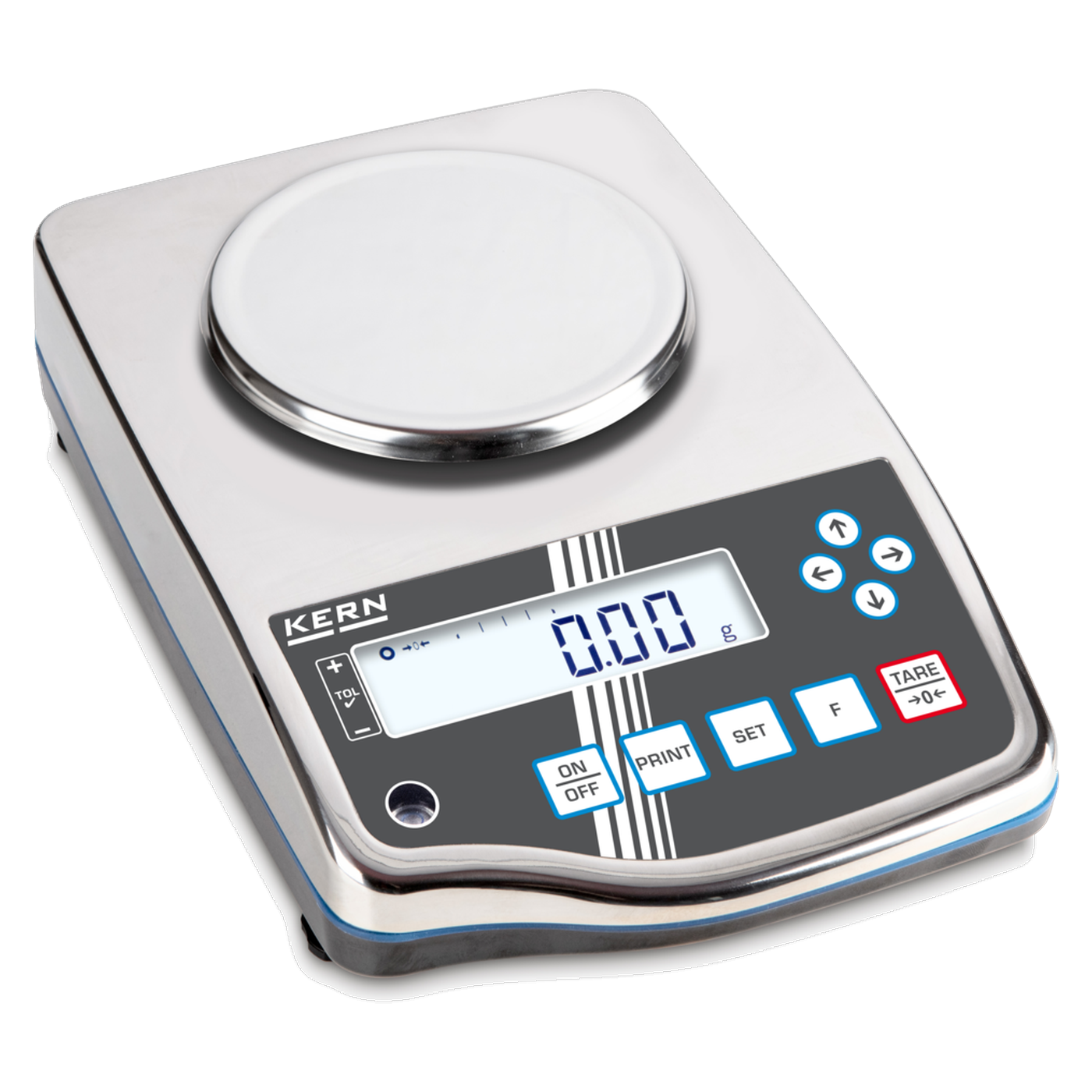

The Kern PWS is a precision balance with housing and weighing plate made of stainless steel and degree of protection IP65. It is intended for workstations where dust or splashing water occurs. Three models are available: the PWS 800-2 weighs up to 820 g at 0.01 g, the PWS 3000-1 up to 3,200 g and the PWS 8000-1 up to 8,200 g, both at 0.1 g. The tuning fork weighing system has a stabilisation time of 3 s on all three models.
IP65 and stainless steel
The complete device has dust and splash protection to IP65 (EN 60529). The housing and weighing plate are made of stainless steel. According to Kern, the surfaces are smooth and easy to clean. The housing measures 310 x 205 x 85 mm; when fully assembled, the dimensions are 320 x 205 x 90 mm. The balance weighs approximately 3.0 kg. The spirit level and adjustable feet are used for levelling. The ambient temperature may be between 10 °C and 30 °C, the humidity up to 80 %.
Features
The PWS counts pieces with the reference piece counts 5, 10, 30 and 100, determines percentages and density and weighs with tolerance range (checkweighing) with an audible and a visual signal. Under unstable weighing conditions, the averaging function forms an average. Taring is possible manually and several times. The LCD has 16.5 mm high digits; according to the data sheet, operation is via a symbol language. The units can be switched between, including kg, g, ct, lb and oz.
Adjustment, interface and power supply

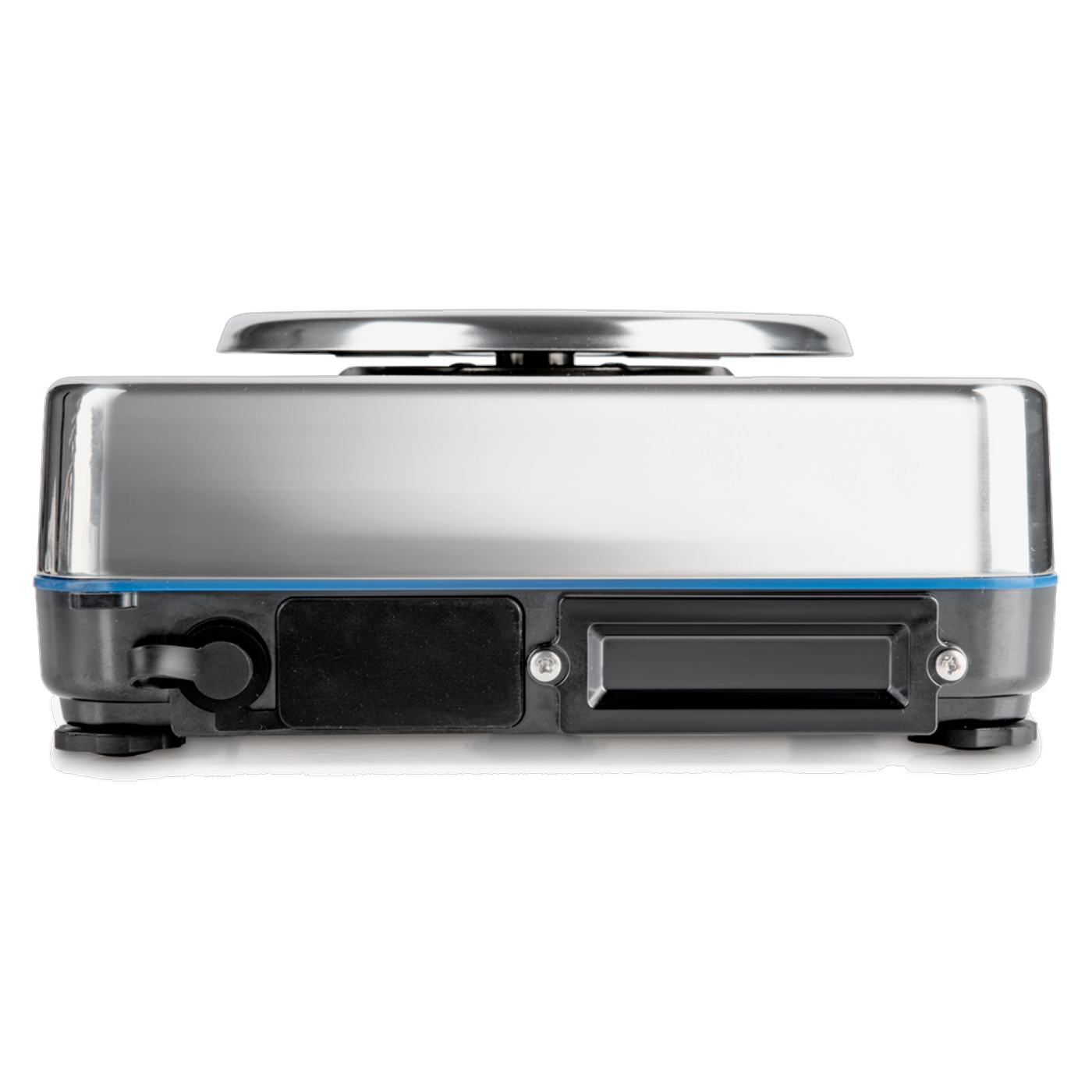

The PWS is adjusted using an external weight. This does not replace a calibration certificate, which is available separately (see below). An RS-232 interface for connecting a printer is fitted as standard. The plug-in mains adaptor operates at 100 V to 240 V AC at 50 / 60 Hz and 0.3 A and comes with country adaptors for EU, AUS, UK, US and CH. The balance is prepared for battery operation. In battery operation, the balance switches off automatically after 3 min. The battery holder is available as an accessory.
Typical applications
- Environmental technology: weighing samples in damp or dusty environments
- Water analysis: weighing at workstations exposed to splashing water
- Agricultural industry: weighing and counting samples and containers
- Cosmetics industry: weighing and density determination
- Food industry: weighing and portioning at workstations that are cleaned
The PWS 800-2 is the model for weighing in up to 820 g at 0.01 g. The PWS 3000-1 and PWS 8000-1 both read to 0.1 g and have the same weighing pan of 190 x 190 mm; they differ in their weighing range.
Models at a glance
| Model | Weighing range (Max) | Readability (d) | Reproducibility | Linearity | Stabilisation time | Weighing pan | USP minimum sample weight (k = 2, U = 0.1 %) | Minimum unit weight when piece counting (laboratory / normal) |
|---|---|---|---|---|---|---|---|---|
| PWS 800-2 | 820 g | 0.01 g | 0.01 g | ± 0.01 g | 3 s | Ø 140 mm | 20 g | 10 mg / 100 mg |
| PWS 3000-1 | 3,200 g | 0.1 g | 0.1 g | ± 0.1 g | 3 s | 190 x 190 mm | 200 g | 100 mg / 1 g |
| PWS 8000-1 | 8,200 g | 0.1 g | 0.1 g | ± 0.1 g | 3 s | 190 x 190 mm | 200 g | 100 mg / 1 g |
Technical details
These values apply to all models. Deviating values are given in the model table.
| Weighing system | Tuning fork |
| Housing and weighing plate | Stainless steel |
| Degree of protection | IP65 (EN 60529), complete unit |
| Housing (W x D x H) | 310 x 205 x 85 mm; fully assembled 320 x 205 x 90 mm |
| Display | LCD, digit height 16.5 mm, symbol language |
| Units | including kg, g, ct, lb, oz |
| Reference piece counts when counting | 5, 10, 30, 100 |
| Adjustment | external |
| Interface | RS-232 as standard |
| Power supply | Plug-in mains adaptor, 100 V to 240 V AC, 50 / 60 Hz, 0.3 A, with country adaptors for EU, AUS, UK, US and CH |
| Battery operation | prepared, switch-off after 3 min |
| Net weight | approx. 3.0 kg |
| Ambient temperature | 10 °C to 30 °C |
| Humidity | up to 80 % |
| DAkkS calibration certificate | can be ordered separately, item no. 963-127 (PWS 800-2, 3000-1) or 963-128 (PWS 8000-1) |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Scope of delivery
- Kern PWS stainless steel precision balance with weighing plate
- Plug-in mains adaptor with country adaptors for EU, AUS, UK, US and CH
Batteries, battery holder and eyelet for below-balance weighing are not included in the scope of delivery.
Calibration
A DAkkS calibration certificate can be ordered separately: item no. 963-127 for the PWS 800-2 and PWS 3000-1, item no. 963-128 for the PWS 8000-1. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate.
Warranty
According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Regulatory information
As electrical devices, the balances fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
Battery holder (PWS-A01), eyelet for below-balance weighing (EG-A07), anti-vibration table (YPS-03), anti-vibration plates (YPS-04, YPS-05), thermal printers (YKC-01, YKH-01), dot-matrix printer (YKG-01), needle printer (YKT-01), RS232 Bluetooth adapter (YKI-02), RS232 Ethernet converters (YKI-10, YKI-11), RS232 WLAN converter (YKI-12) and RS-232 interface cables (MLB-A05, PWS-A02) are also available. Enquiries are handled via our procurement service.
| Weighing range (Max): | 820 g |
|---|---|
| Readability (d): | 0.01 g |
| Verifiable: | no |
| Design: | PWS 800-2 · 820 g |
| Power supply: | Mains operation |
