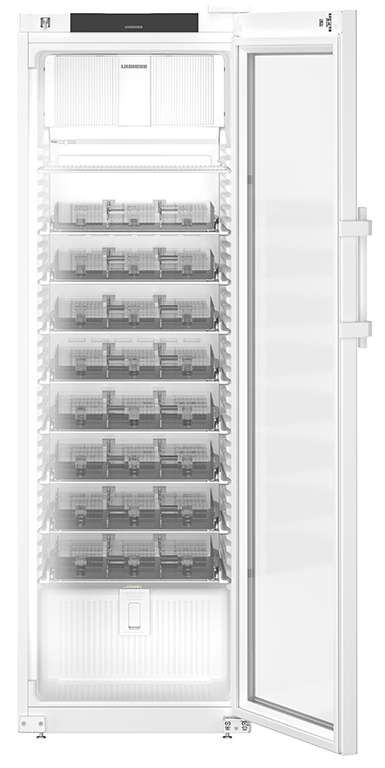

Liebherr HMFvh 4011 Medicines Refrigerator, 279 L, glass door with organisation system, 999338508

The Liebherr HMFvh 4011 is a professional pharmaceutical refrigerator that meets the stringent requirements of DIN 13277 (formerly DIN 58345) and has been specially developed for pharmacies, hospitals and laboratories. This model combines the advantages of a quick visual inspection through the double-glazed door with highly organised storage provided by an integrated aluminium drawer system.

DIN 13277 Stability & Transparency

This model meets all the criteria of the standard for safe medicine storage. The high-performance dynamic cooling system (forced air circulation) ensures maximum temperature stability and a highly uniform temperature distribution within the range of +3 °C to +8 °C. The insulated glass door offers the advantage of direct visual inspection, thereby reducing door opening times and further supporting temperature stability.

Optimised organisation system (variant -93127 / H63)

Instead of wire shelves, this model is fitted with the H63 organisation system. It consists of six height-adjustable aluminium drawers with smooth-running full-extension runners. This enables extremely compact, clear and organised storage of small-sized medicine packs or vaccines. The supplied longitudinal and transverse dividers (12 longitudinal, 60 transverse) allow for flexible partitioning of each drawer.

Comprehensive alarm and safety system

To ensure comprehensive monitoring, the HMFvh 4011 is equipped with a fully comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (above or below the set point) as well as when a door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset.

Frost protection & connectivity

A key feature of the DIN 13277 standard is protection against sub-zero temperatures. An additional safety thermostat prevents the temperature from falling below +2 °C. For integration into central monitoring systems (GMP/GLP), the unit is fitted as standard with an RS 485 interface and a dry contact for alarm signalling.

Technical Details

• Compliance with standard: DIN 13277 (medicines refrigerators)
• Net capacity: 279 l
• Door type: Insulated glass door
• Cooling system: Dynamic (forced air)
• Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C)
• Safety thermostat: Yes (prevents temperatures below +2 °C)
• Control: Electronic control
• Temperature display: External digital
• Min/Max memory: Yes (High/Low memory)
• Defrosting method: Automatic (hot gas)
• Storage: 6 x aluminium drawers (height-adjustable, H63 organisation system)
• Interfaces: RS 485, dry contact (alarm)
• Lock: Mechanical lock fitted
• Warning signal (temperature/door/mains): Visual and audible
• Door: Insulated glass door, self-closing
• Door hinge: Right-hand (reversible)
• Climate class: 4 (SN-ST)
• Refrigerant: R 600a
• Noise level: 47 dB(A)
• Voltage: 220–240 V ~
• Current rating: 2.0 A
• Dimensions (H/W/D): 187.7 / 59.7 / 68.0 cm
• Net weight: 81.8 kg (including drawers)

Contents of delivery

• Liebherr HMFvh 4011 (basic unit with glass door)
• 6 x aluminium drawers (H63 organisation system)
• 12 x longitudinal dividers for drawers
• 60 x cross dividers for drawers
• 1 x mains cable (permanently fitted)
• 2 x keys
• User manual
• Declaration of conformity (DIN 13277)
• (Note: Standard shelves are not included with this model)
