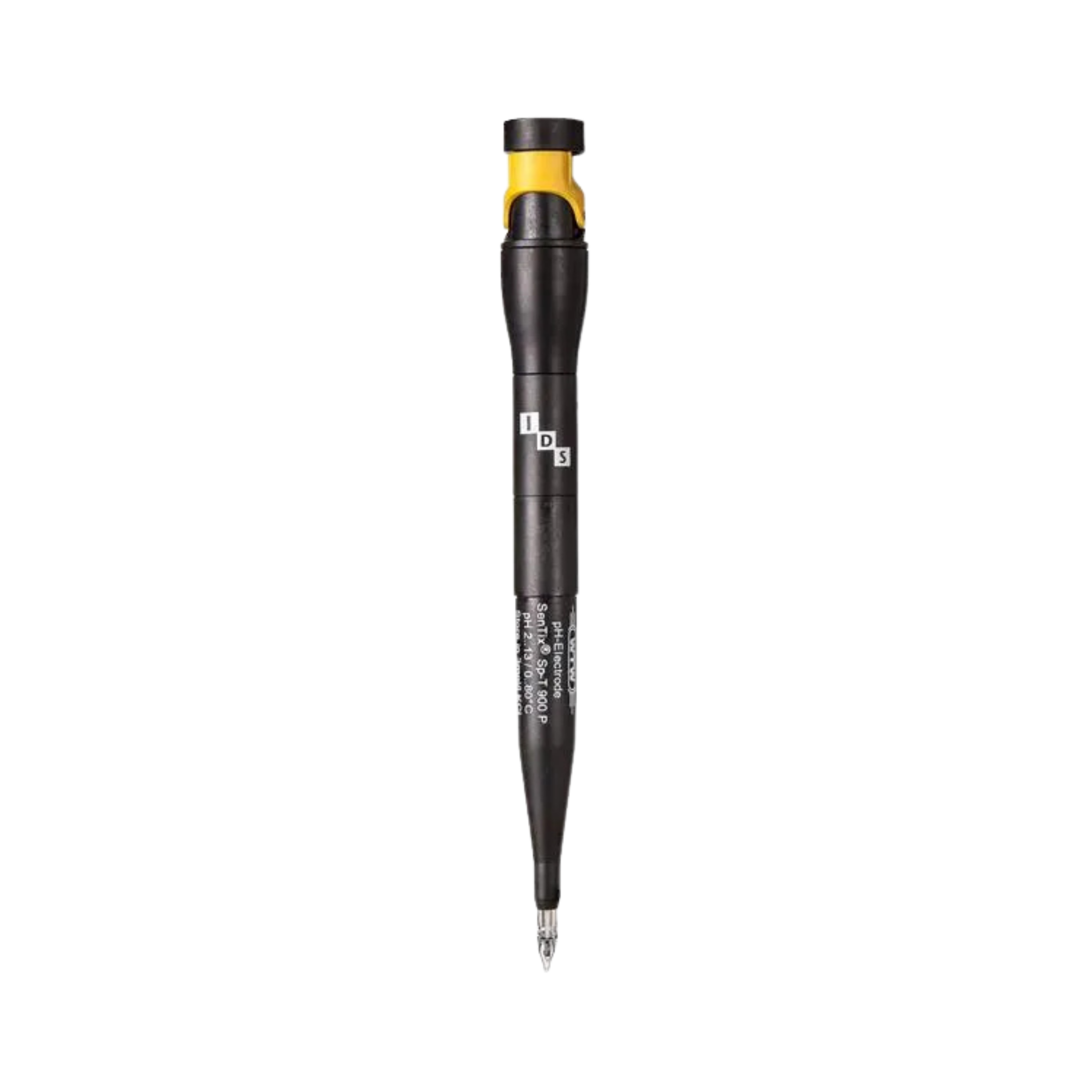

WTW SenTix Sp-T 900-P digital IDS pH insertion electrode, plastic shaft, 103766

The WTW SenTix Sp-T 900-P digital IDS pH insertion electrode represents a highly advanced, electrochemical system solution for the precise and minimally invasive measurement of pH in semi-solid, viscous and plastic media such as meat, sausages, cheese, fruit and dairy products. Designed for demanding applications in the food industry, agricultural laboratories and cosmetic laboratory systems, this digital insertion probe enables error-free signal transmission and comprehensive batch documentation directly to WTW IDS multi-parameter analysers. When measuring in sample matrices containing proteins, cells and fats, the sensor’s mechanical robustness and resistance to clogging are the primary criteria for reliably preventing slow response times or measurement drifts.

Intelligent IDS sensor technology and reliable digital measurement

The mechatronic system architecture of the SenTix Sp-T 900-P is based on pioneering IDS (Intelligent Digital Sensors) technology. The highly sensitive analogue voltage signal from the measuring chain is digitised and calibrated directly within the sensor head. This transient signal processing completely eliminates electromagnetic interference, such as that which may be caused by surrounding production equipment, electric motors or moisture in slaughterhouses and dairies. The integrated data memory permanently stores the electrode’s specific serial number as well as a complete history of the last 10 calibrations. The automatic sensor evaluation system QSC (Quality Sensor Control) continuously monitors the current condition of the electrode and displays it on the measuring instrument, guaranteeing maximum validity at every test stage.

Robust penetration design with impact-resistant plastic shaft

The materials-science-based design is uncompromisingly optimised for the mechanical stresses encountered when piercing tough foods and pastes. The electrode features an extremely robust, lance-shaped glass piercing tip that merges into a durable plastic shaft. This hybrid construction offers optimum protection against mechanical damage and the risk of splintering during mobile field use or directly on the production line. The Referid polymer electrolyte, which has a lifetime of service, serves as the reference system. In combination with a non-clogging perforated diaphragm, constant and stable surface contact is achieved. As no conventional porous diaphragm is used, fats, proteins or fibre structures cannot block the measuring path, which drastically extends the sensor’s service life in the harsh conditions of everyday laboratory use.

Integrated temperature compensation and universal plug-in head

To ensure thermodynamically correct analyses, the SenTix Sp-T 900-P features a built-in 30 kOhm NTC temperature sensor, positioned directly behind the insertion tip, which performs automatic, real-time temperature compensation of the pH value. An outstanding ergonomic feature of this variant is the universal IDS plug-in head. The sensor does not have a permanently attached cable; instead, it can be connected to the measuring station with great flexibility, either via an AS IDS connection cable or completely wirelessly via a WTW radio module. This protects the system from mechanical stress caused by cable tension and improves the user’s freedom of movement in confined laboratory workstations or during field measurements.

Technical details

Measurement & Sensor Technology

• Sensor type: Digital IDS pH insertion electrode
• Model: SenTix Sp-T 900-P
• pH measurement range: 2 to 13 pH
• Temperature element: Integrated NTC 30 kOhm temperature sensor
• Operating temperature range: 0 to 80 °C
• Calibration memory: Integrated memory for up to 10 calibrations
• Sensor evaluation: QSC-compatible (Quality Sensor Control)

Design & dimensions

• Shaft material: Robust plastic shaft
• Diaphragm shape: Spear-shaped / lance-shaped (shock-resistant)
• Electrolyte: Lifetime polymer filling (Referid)
• Diaphragm: Contamination-resistant perforated diaphragm
• Shaft length: 65 / 25 mm (tapered stepped shape)
• Shaft diameter: 15 / 5 mm
• Connection head: Universal IDS plug-in head (for AS IDS cable or wireless module)
• Serial number: Stored electronically within the sensor

Operating conditions

• Maintenance: Low maintenance (no need to top up liquid electrolyte)
• Main applications: Meat, sausages, cheese, bread, fish, fruit, vegetables, yoghurt, cosmetics, creams, pastes

Contents

• 1 x WTW digital IDS pH insertion electrode SenTix Sp-T 900-P (MPN: 103766)
• 1 x Rinsing cap with storage solution
• 1 x Quality certificate / Quick start guide

Important note: An IDS connection cable (e.g. AS IDS-1.5), wireless modules, pH buffer solutions and the IDS meter itself are not included in the standard scope of delivery and must be ordered separately.

Individual requirements & accessories

To make full use of the WTW SenTix Sp-T 900-P’s full range of functions, we recommend operating it with a compatible WTW MultiLine or inoLab IDS measuring instrument. For the mechanical connection, we stock the suitable AS IDS-1.5 cable as well as innovative IDS wireless module systems for cable-free operation. For regular recalibration and to ensure the integrity of the metrological chain, we offer certified WTW technical buffer solutions (pH 4.01 and pH 7.00). As protein and fat residues from foodstuffs can build up on the glass membrane over time, we strongly recommend periodic cleaning with genuine WTW pepsin-hydrochloric acid solution to regenerate the membrane, as well as correct storage in KCl storage solution. Please use our procurement service to put together your measuring station peripherals.
