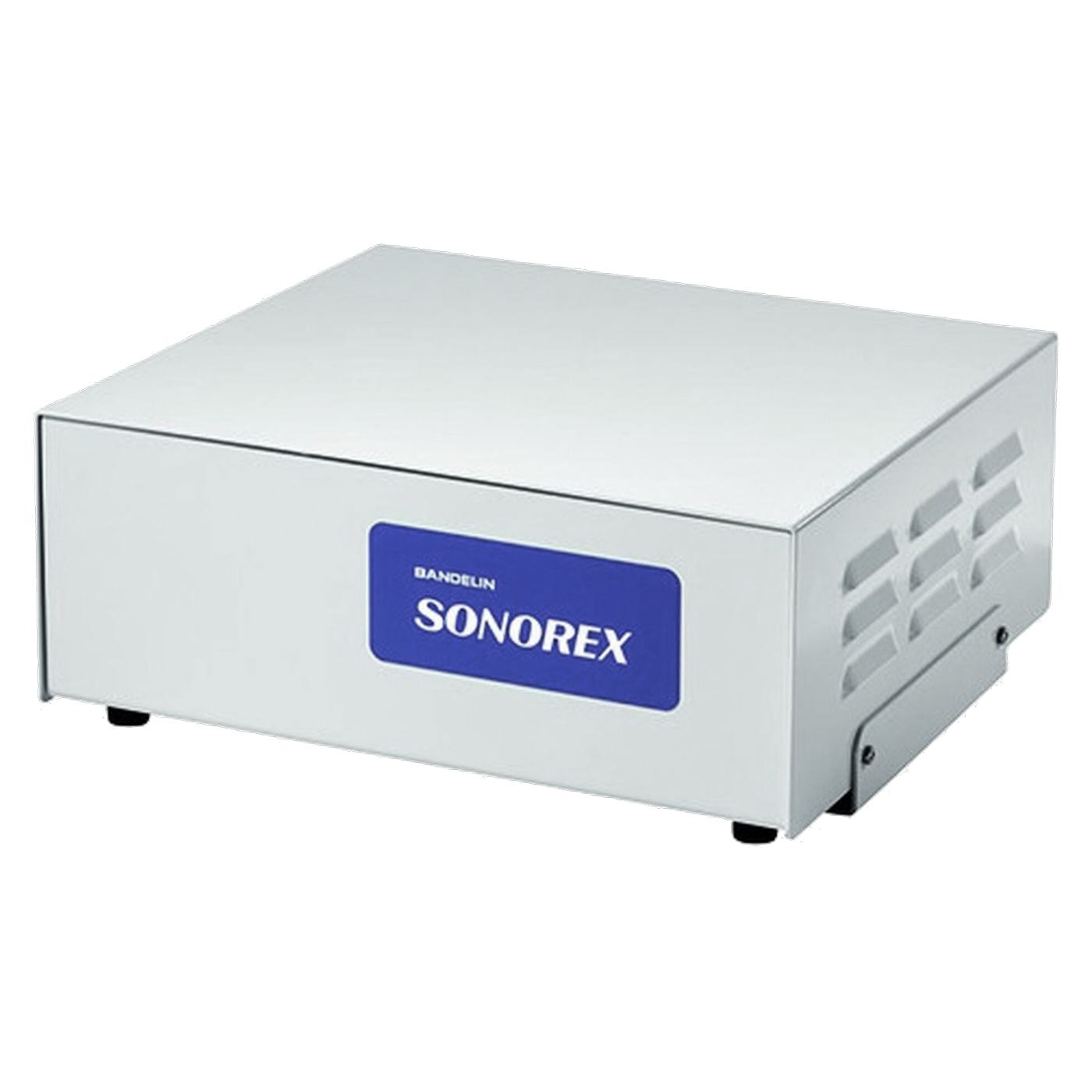

Bandelin SONOREX GT 503 M-C HF Generator for Built-in Ultrasonic Baths ZE, 35 kHz, 300 W Rated Power, 3209
€953.00
% Manufacturer's RRP: €1,253.00 23% below manufacturer's RRP
- HF generator for the SONOREX ZE 1031 and ZE 1031 DT built-in ultrasonic baths
- 35 kHz, peak power 1,200 W, rated power 300 W
- Overload-protected and with constant output, featuring a pulse function and sweep
- Painted aluminium housing, IP 20, 360 x 310 x 142 mm
- Mounting bracket for vertical installation, left- or right-hand side
- Class I medical device in accordance with Regulation (EU) 2017/745
Product information "Bandelin SONOREX GT 503 M-C HF Generator for Built-in Ultrasonic Baths ZE, 35 kHz, 300 W Rated Power, 3209"
With a peak power output of 1,200 W and a rated power output of 300 W, the Bandelin SONOREX GT 503 M-C is a generator designed for the smaller ZE built-in ultrasonic baths: It operates at 35 kHz in the ZE 1031 and ZE 1031 DT models, which have a tank measuring 510 x 300 mm internally and holding 29 l. It is also available as a standalone unit.
Use in the ZE 1031
The SONOREX ZE 1031 features a TE 1031 oscillating tank with eight vibration systems on the base, a working capacity of 20 l and the ST 15.1 control unit with a rotary knob. In the ZE 1031 DT, operation is handled by the ST 30.1 DT control unit, which features push-buttons, a temperature sensor, a temperature display and an overtemperature warning. In both cases, the GT 503 M-C provides the ultrasonic power. For the larger baths, the ZE 1058 and ZE 1059, the GT 1003 M-C with a rated power of 600 W is specified instead.
Key electrical specifications
The generator operates at 230 V~ (± 10 %) and 50/60 Hz, drawing 1.4 A; at 115 V, the current is 2.8 A. The leakage current is less than 3.5 mA. It is overload-protected and maintains a constant output. The pulse and sweep functions are available, whilst DEGAS rapid degassing is available with the DT version of the bath. The generator is connected to the ST control unit via an IEC 60320-C14 plug.
Housing and mounting
The housing is made of painted aluminium, measures 360 x 310 x 142 mm and is rated to IP 20. A mounting bracket allows for vertical installation, with the option to mount it on the left or right-hand side.
The bath for the generator
The ZE 1031’s tank is made of 1.4404 stainless steel with a wall thickness of 2.0 mm. The base is sloped, the corners are rounded, and the drain is a 1½-inch bead in the tank. The oscillating tank is rated to IP 30 and is connected to the generator via a 2-metre-long connection cable with an AMP-CPC plug. The permissible ambient temperature is between 5 and 40 °C. With the ZE 1031, the time can be set from 1 to 15 minutes (± 5 %) or to continuous operation; with the ZE 1031 DT, settings ranging from 1 to 30 minutes are available.
Classification
Bandelin lists the GT 503 M-C as a Class I medical device in accordance with Regulation (EU) 2017/745. In addition, the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU apply. The ZE 1031 and ZE 1031 DT built-in baths are designed for the cleaning of medical instruments.
Typical applications
- Ultrasonic generator for the SONOREX ZE 1031 and ZE 1031 DT built-in ultrasonic baths
- Equipment for built-in ultrasonic baths used for cleaning medical instruments
Frequently asked questions
Which baths are compatible with the GT 503 M-C?
The SONOREX ZE 1031 and the ZE 1031 DT.
What is the generator’s power output?
Peak power 1,200 W, rated power 300 W at 35 kHz.
What is the current consumption?
1.4 A at 230 V and 2.8 A at 115 V.
Is the control unit included with this item?
No, the ST control unit is supplied with the respective ZE bath.
Technical details
| Ultrasonic frequency | 35 kHz |
| Ultrasonic power | Peak power 1,200 W, rated power 300 W |
| Operation | Overload-protected, constant power output |
| Functions | Pulse function, sweep, DEGAS rapid degassing on DT models |
| Compatible with | ZE 1031 / ZE 1031 DT |
| Operating voltage | 230 V AC (± 10 %), 50/60 Hz |
| Current consumption | 230 V: 1.4 A / 115 V: 2.8 A |
| Leakage current | < 3.5 mA |
| Mains connection | IEC 60320-C14 plug for connection to the ST control unit |
| Housing material | Aluminium, painted |
| Protection rating | IP 20 |
| External dimensions (L x W x H) | 360 x 310 x 142 mm |
| Installation | Mounting bracket for vertical installation, left- or right-hand mounting |
| Medical device class | Class I (Regulation (EU) 2017/745) |
| Conformity | Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU |
Scope of delivery
- 1x Bandelin SONOREX GT 503 M-C ultrasonic generator with mounting bracket for vertical installation
The oscillating tank and control unit are not included and form part of the respective ZE built-in unit.
Individual requirements and procurement service
The TE 1031 oscillating tank, the ST 15.1 or ST 30.1 DT control unit, or a complete ZE built-in unit require individual procurement. You can request a quote for the appropriate configuration without obligation via our procurement service.
