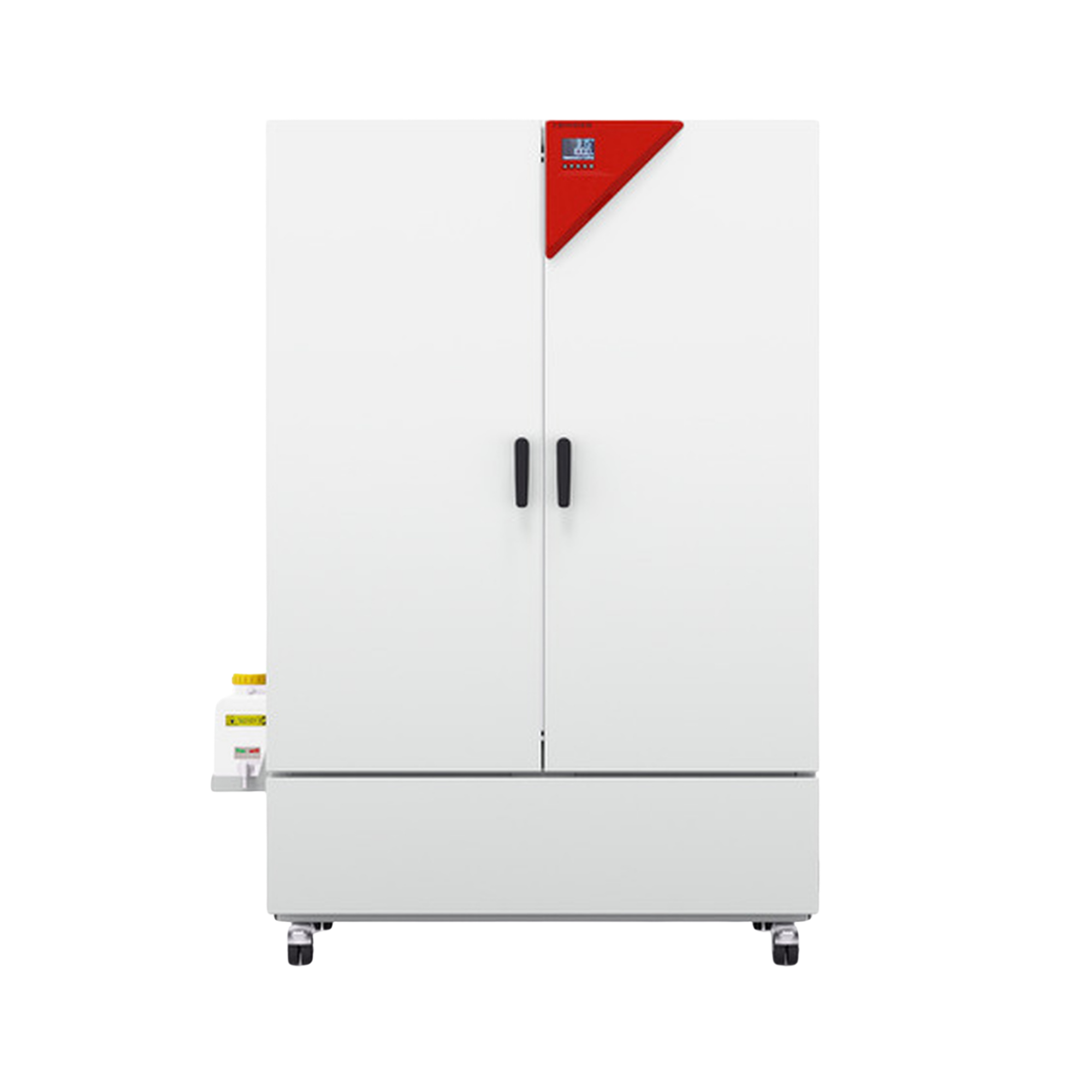

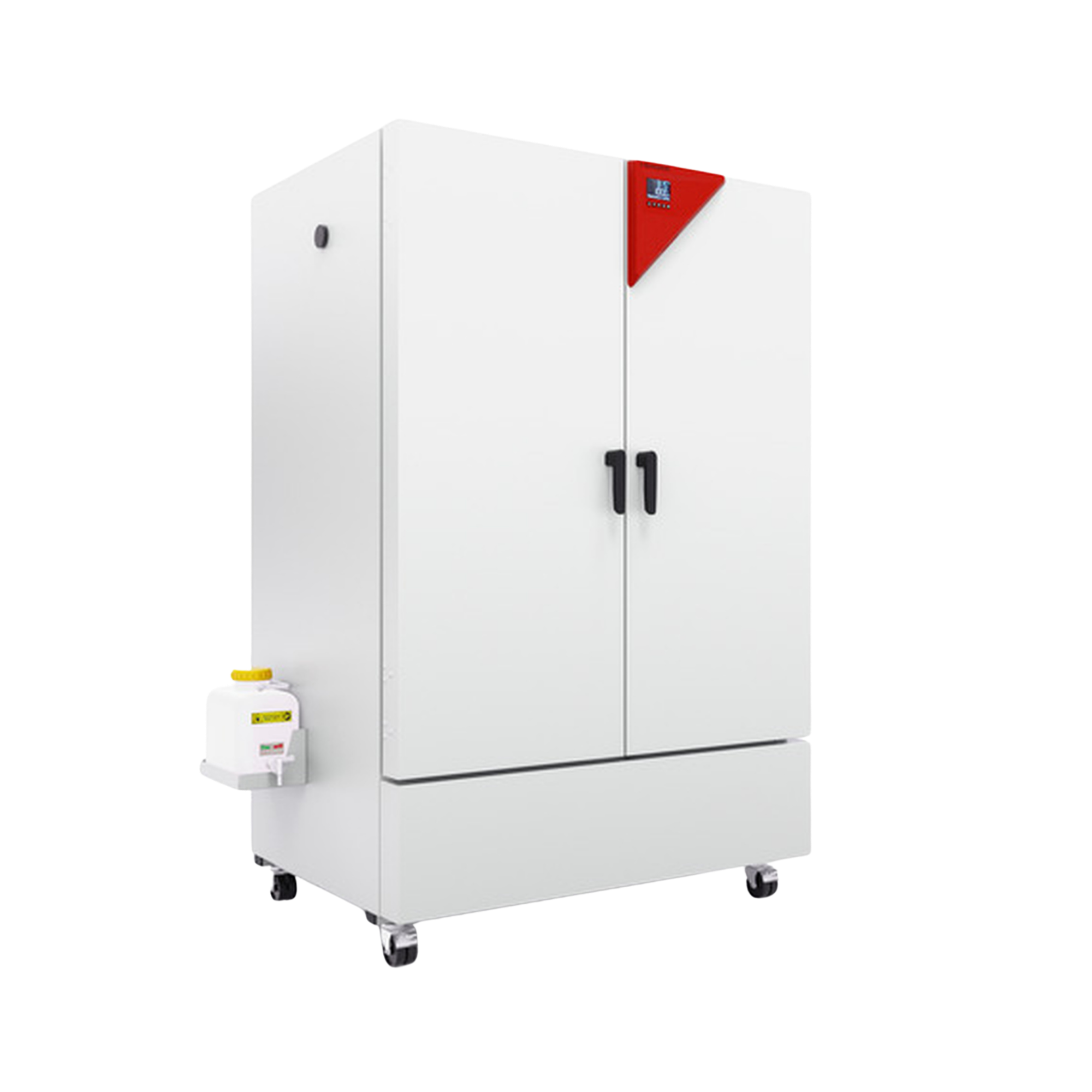

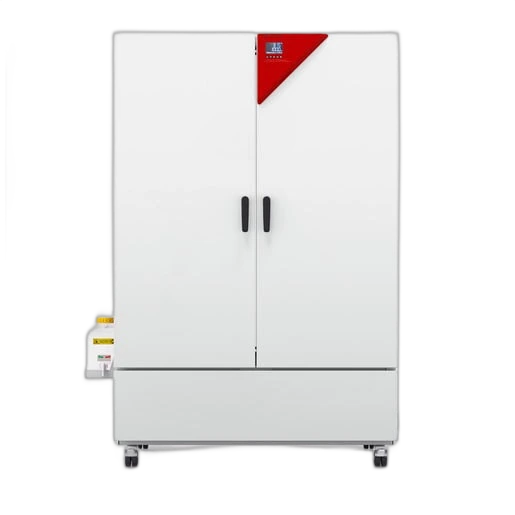

Binder KBF-S ECO 720 Constant Climate Chamber, Peltier technology, 700 litres, 9020-0418

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Binder KBF-S ECO 720 Constant Climate Chamber, Peltier technology, 700 litres, 9020-0418"

For those conducting long-term stability tests in accordance with ICH guidelines involving large sample volumes, whilst prioritising low running costs and quiet, continuous operation, the Binder KBF-S ECO 720 offers a high-performance solution. Despite its model designation of 720, this constant climate chamber offers an actual usable volume of 700 litres, providing space for numerous samples whilst featuring compressor-free, refrigerant-free climate control.

Peltier technology instead of a compressor and refrigerant

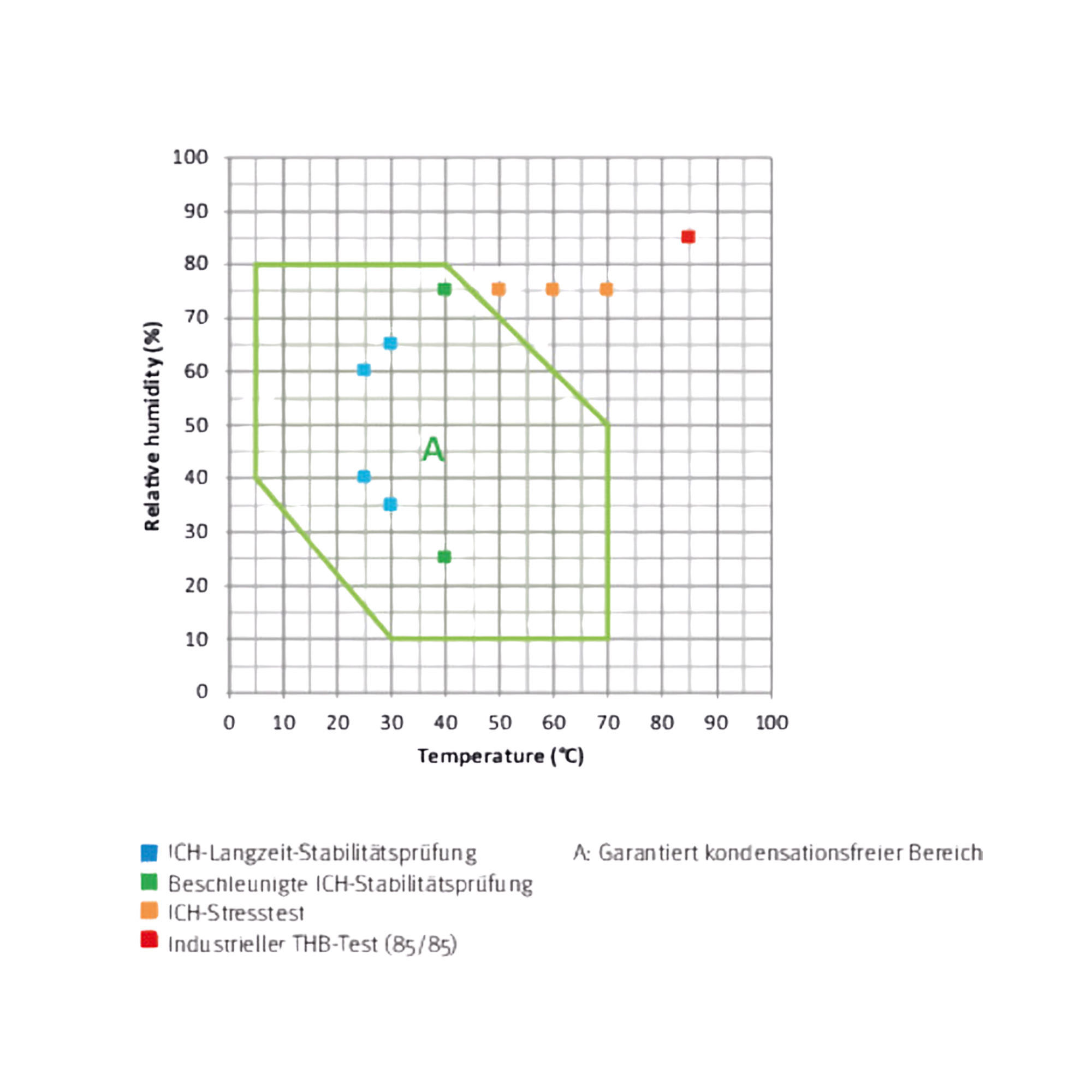

At the heart of the KBF-S ECO 720 lies thermoelectric Peltier technology with patented heat dissipation. Unlike conventional compressor-based climate chambers, the unit operates entirely without refrigerant, so no fluorinated gases (F-gases) are used and the otherwise necessary periodic leak tests are not required. The temperature range extends from 0 °C to +70 °C; the cooling system achieves a maximum of 24 to 28 Kelvin below ambient temperature, meaning it does not cover a deep-freeze range. Humidity control covers 10 % to 80 % relative humidity, with a temperature stability of ± 0.1 K and a humidity stability of ± 1.5 % rh. As there is no compressor running, the cabinet also operates significantly more quietly than comparable compressor-based units, an advantage in laboratories where concentrated work is carried out.

Uniform climate distribution across 700 litres

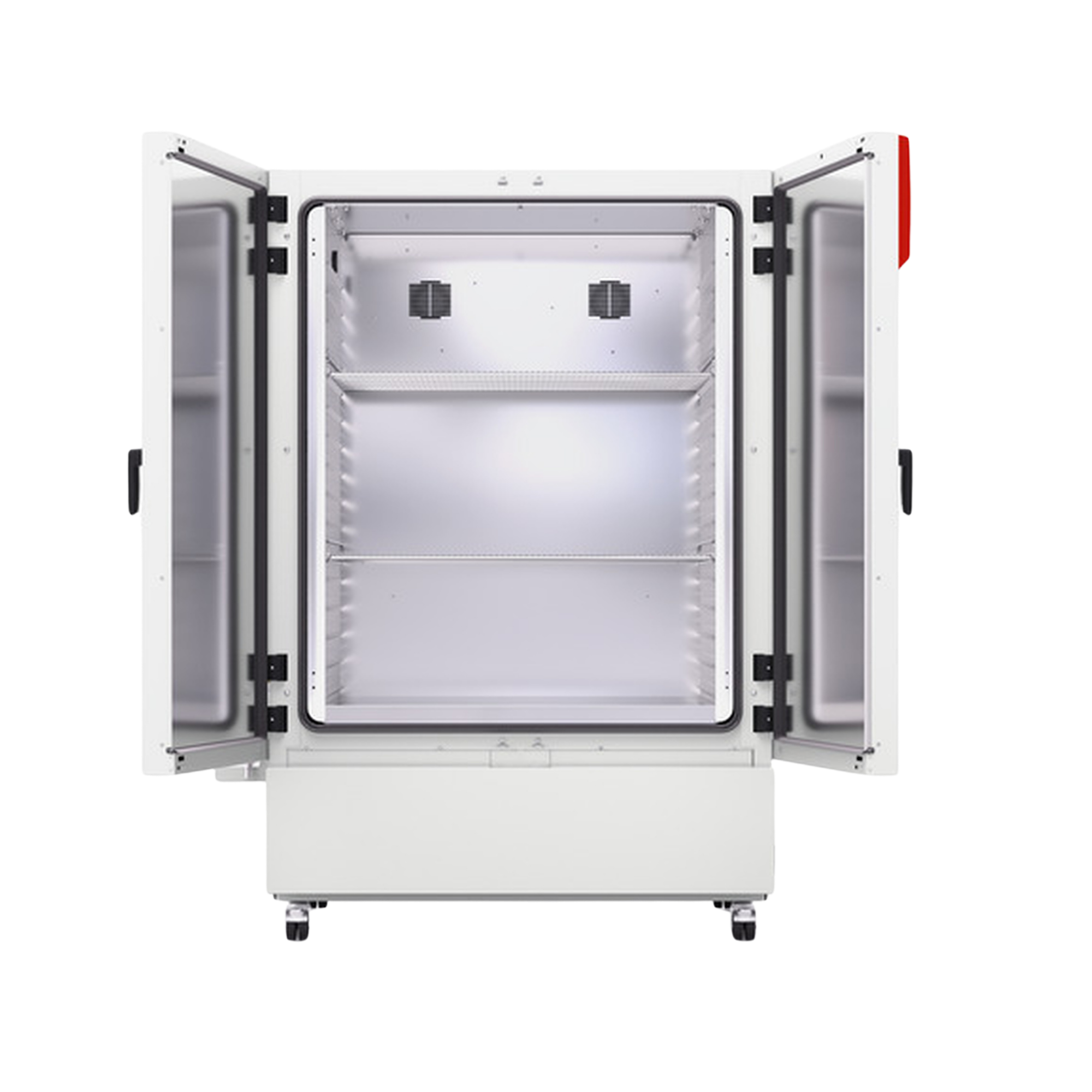

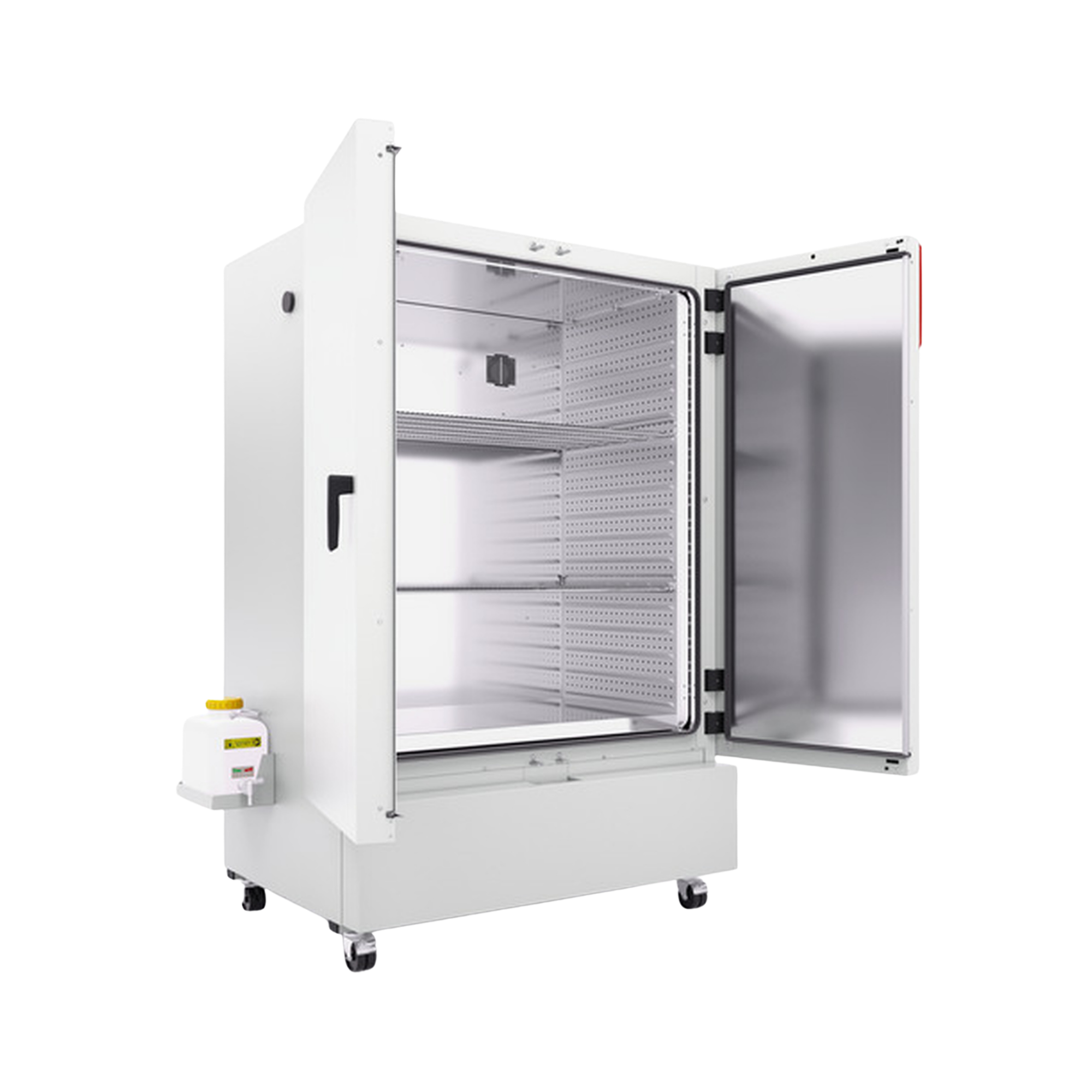

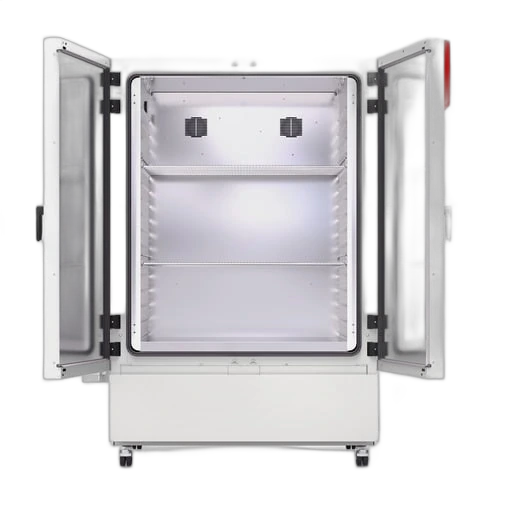

A large volume is of little use if conditions are not uniform throughout. The APT.line pre-heating chamber technology in the KBF-S ECO 720 ensures horizontal airflow from both sides, so that temperature and humidity remain largely uniform regardless of whether a sample is located at the bottom, top, front or rear of the interior. Two inner doors made of stainless steel and safety glass also allow a view into the interior without disrupting the climatic conditions by opening the chamber. The inner chamber is made entirely of stainless steel; two stainless steel shelves are included, and if required, the chamber can be expanded to accommodate up to 15 shelves, each with a load capacity of 45 kg.

Safety, operation and documentation

For laboratories with GMP and GLP requirements, the KBF-S ECO 720 offers an independent equipment class 3.1 (TWW/TWB) according to DIN 12880, which protects against over- and under-temperature conditions whilst providing both visual and audible alarms. The unit is controlled via an LCD display showing temperature, humidity, additional information and alarms. An internal data logger records the measured values, which can be read out in an open format via USB; process data can also be archived seamlessly and tamper-proof via the Ethernet interface and the optionally available APT-COM software. Humidification is provided by a responsive steam humidifier with an independent water supply via a canister, whilst humidity is measured using a capacitive, drift-free humidity sensor. A feed-through fitted with a silicone plug (Ø 30 mm, left) allows external probes or cables to be inserted without having to open the chamber.

Peltier or compressor: the right technology in the Binder range

In addition to the KBF-S-ECO series, Binder also offers the compressor-based KBF and KBF PRO constant climate chambers. These cover an extended temperature range; the KBF PRO even ranges from -20 °C to +100 °C at humidity levels of 10 % to 98 % rh. For the temperature range between 0 °C and 70 °C, which is typical for ICH stability tests, the Peltier technology of the KBF-S ECO 720 is, by contrast, a choice without the need for refrigerant management or the associated leak tests. Where extreme climates are required, such as cold stress tests below freezing point, the compressor-based KBF-PRO series remains the more suitable option.

Typical applications

The KBF-S ECO 720 is suitable for applications involving a high sample throughput, where low running costs and quiet continuous operation are important:

  • Stability testing of medicinal products in accordance with ICH Q1A with larger batch volumes
  • Shelf-life testing of cosmetic products such as creams and lotions
  • Testing of barrier properties in packaging films under defined climatic conditions
  • Shelf-life tests to determine the best-before date in food development
  • Materials research involving more extensive test series, where several samples must be tested in parallel under identical conditions

Technical details

Usable volume700 l
Temperature range0 °C to +70 °C (max. 24 to 28 K below ambient temperature)
Humidity range10 % rh to 80 % rh
Temperature stability± 0.1 K
Humidity stability± 1.5 % rh
TechnologyPeltier (thermoelectric) with patented heat dissipation
AirflowAPT.line preheating chamber technology (horizontal, on both sides)
HumidificationSteam humidification with independent water supply via a canister
Inner doors2, stainless steel/safety glass
Safety classClass 3.1 (TWW/TWB) according to DIN 12880, visual/audible alarm
Connected load1.2 kW
Power supply200 to 230 V, single-phase, 50/60 Hz

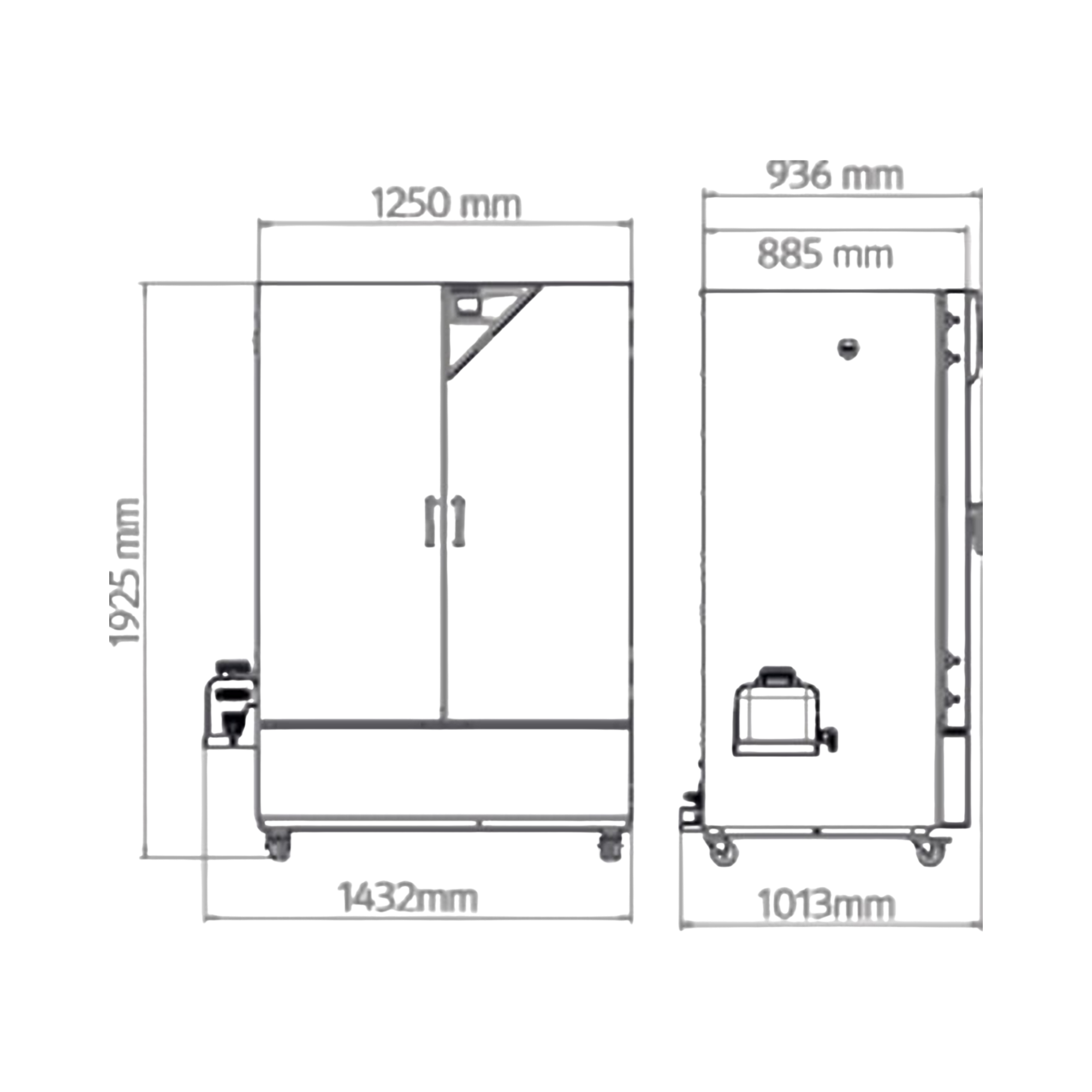

External dimensions (W x D x H)1,254 x 885 x 1,925 mm
Net weight267 kg
Inner chamberMade entirely of stainless steel
Shelves (standard/max.)2 / 15 stainless steel shelves
Max. load per shelf45 kg
InterfacesUSB (data logger readout), Ethernet
Feed-throughSilicone plug, Ø 30 mm, left-hand side

Scope of delivery

  • 1x Binder KBF-S ECO 720 constant climate chamber, 230 V version (9020-0418)
  • 2x stainless steel grid shelves
  • 1x water inlet and outlet hoses
  • 1x mains cable
  • Operating instructions

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, BINDER GmbH, is DE 37004983. Information on the return of old appliances can be found on our page Environment and disposal.

Individual requirements & procurement service

Further accessories are available for the BINDER KBF-S-ECO series, such as reinforced shelves for heavy loads, the APT-COM software for centralised data backup, or on-site validation of the unit. Do you require any of these accessories, a bespoke configuration, or assistance in selecting the right unit size for your application? Through our procurement service, we will be happy to assist you with procurement and configuration.

Certification marks: GS (DGUV Test)
Volume: 700 l
