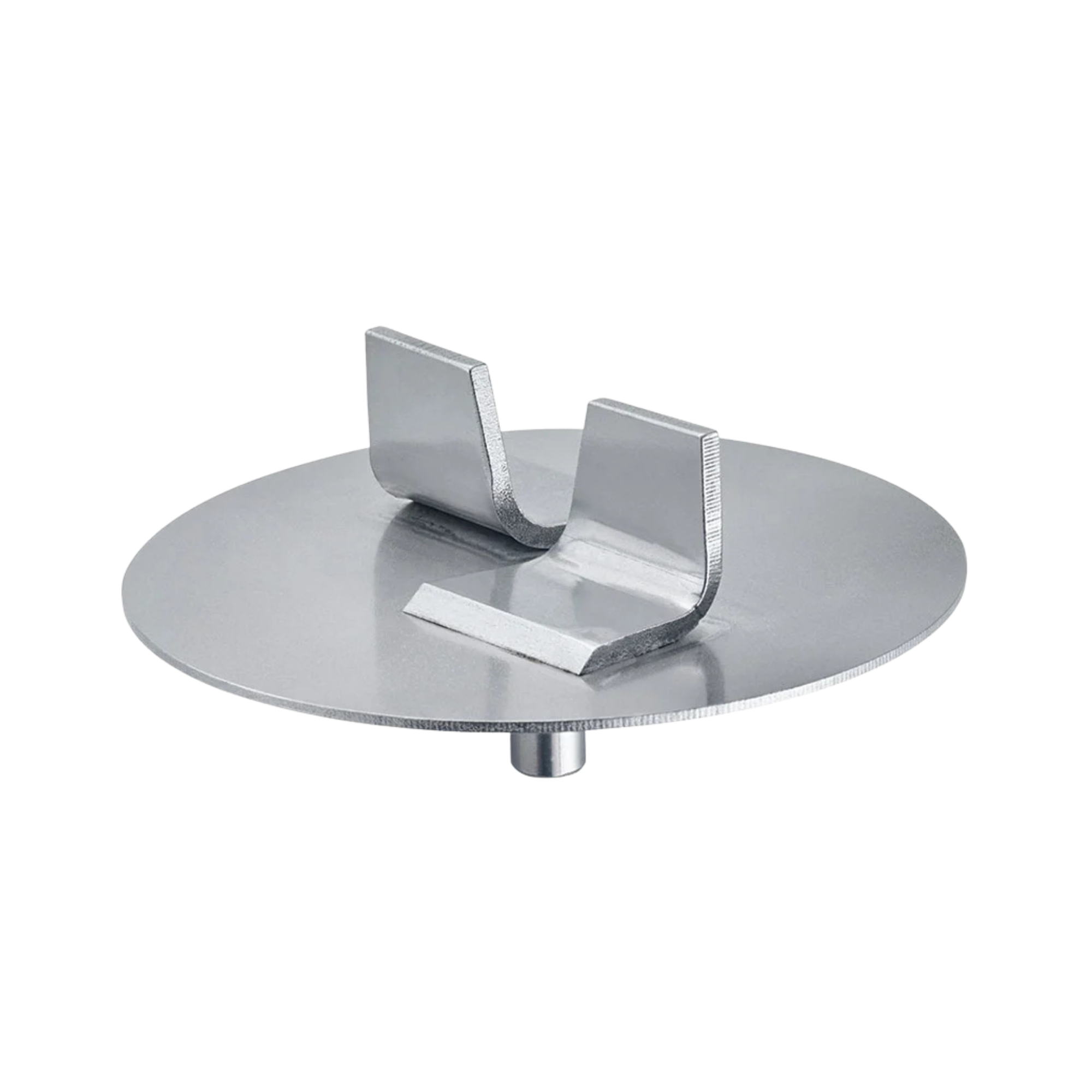

IKA A 10.4 grinding chamber reducer for the A 10 basic analytical mill, 0025001664

Optimal results with the smallest sample sizes: IKA A 10.4 grinding chamber reducer

The IKA A 10.4 grinding chamber reducer (MPN 0025001664) is an unassuming yet extremely effective accessory for the IKA A 10 basic analytical mill. Anyone who has ever tried to grind just a few grams of a valuable sample in a standard mill will be familiar with the problem: the material is simply flung against the walls of the grinding chamber or into the lid by centrifugal forces and is barely caught by the beater. The grinding result is uneven and inefficient.

Keeping the sample within the working area

The grinding chamber reducer solves this problem in a simple and clever way:

• Volume reduction: The insert significantly reduces the free volume of the grinding chamber.
• Increased efficiency: The sample simply has no room left to ‘evade’ the grinding tool. It is specifically held within the direct working area of the beater or blade.
• Finer final particle size: As the material is constantly struck by the tool, you achieve reproducibly finer and more homogeneous grinding results, even with the smallest sample weights.
• Less sample loss: The sample does not spread throughout the entire upper grinding chamber and lid, which makes it much easier to remove it completely after the grinding process.

Easy to use

The original IKA accessory is simply inserted into the grinding chamber before the lid is closed. It is made from high-quality, robust plastic and can be cleaned quickly and easily after use.

Technical data

• Model: A 10.4 Grinding Chamber Reducer
• Compatibility: Suitable for the IKA A 10 basic analytical mill
• Function: Reduces the grinding chamber volume for small sample quantities
• Advantage: Keeps the material to be ground in direct contact with the blade/beater

Contents

• 1 x IKA A 10.4 grinding chamber reducer

(Note: The A 10 basic analytical mill and the grinding tools are not included in the scope of delivery!)

Customised requirements & accessories

This reducer can be combined with all grinding tools in the A 10 series. Whether you’re working with the A 10.1 stainless steel beater (for hard samples), the A 10.2 star blade (for fibrous samples) or the A 10.3 carbide beater (for extremely hard samples) – the A 10.4 always ensures the best results for small quantities. Please contact our procurement service if you have any questions regarding optimal sample preparation.
