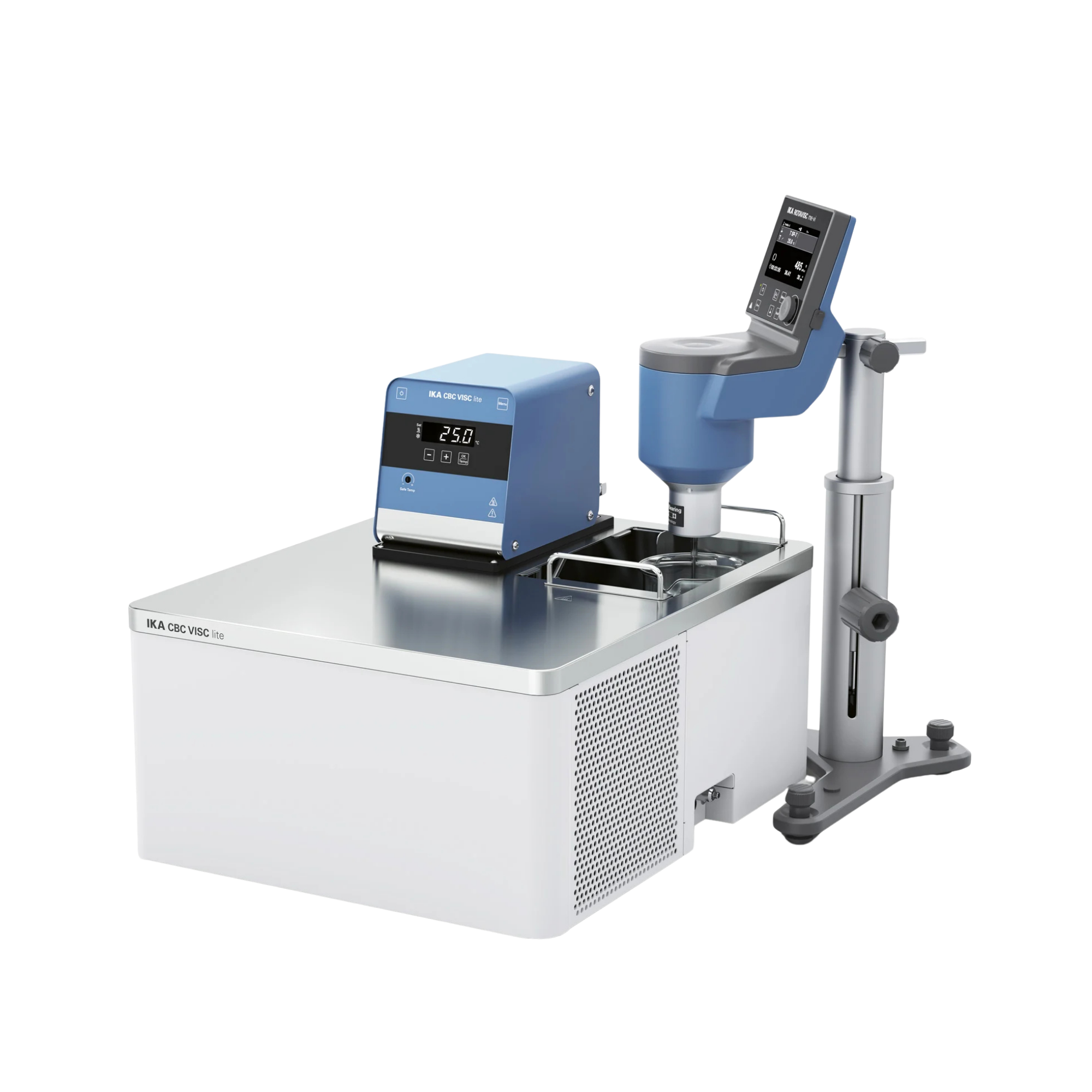

IKA CBC ROTAVISC SBS me-vi Package, viscometer set (cooling/heating), SBS bearing, 0010014031

Measuring viscosity in cold and hot conditions: The IKA CBC ROTAVISC SBS me-vi Package

The IKA CBC ROTAVISC SBS me-vi Package (MPN 0010014031) is the ultimate all-in-one solution for laboratories that need to characterise the flow behaviour of substances across an extremely wide temperature range. Viscosity is not a constant; it is highly temperature-dependent. Many products – be it engine oil that must remain liquid in winter, salad dressing that must not set in the fridge, or hydraulic fluids – need to be tested at both sub-zero temperatures and in the heat. This package seamlessly combines the robust ROTAVISC SBS me-vi viscometer with the high-performance CBC 5 basic cooling and heating circulation thermostat.

Active cooling and heating: the CBC 5 basic

Unlike pure heating units (such as the ROTATEMP system), the CBC 5 basic thermostat included in the set offers full flexibility in both directions. With a powerful heating capacity of 2,500 watts and an active cooling capacity of 350 watts, it covers a temperature range from -25 °C to +200 °C. This is crucial for real-world stress tests:

• Cold tests: Analyse the temperature at which an oil becomes too viscous or an emulsion breaks down.
• Heat tests: Investigate the decrease in viscosity under process heat. Thanks to the powerful pressure and suction pumps, the temperature control medium (e.g. silicone oil) is circulated optimally, guaranteeing excellent temperature uniformity directly at the measuring cup.

SBS bearings: Robustness for everyday industrial use

The measuring head in this package is the “SBS” version of the ROTAVISC me-vi. “SBS” stands for Steel Ball Bearing. In contrast to the more delicate sapphire bearing (“jewel bearing”), this technology is extremely resistant to mechanical stress.

• Resilient: The bearing is significantly more tolerant of impacts or rough handling during spindle changes.
• Durable: Ideal for laboratories with high sample throughput or changing staff, as downtime due to bearing damage is minimised.
• Range of application: Perfect for the medium viscosity range (“me-vi”, 100 to 40,000,000 mPas), which covers typical applications such as varnishes, paints, oils or foodstuffs.

Precision and ease of use

The viscometer itself impresses with state-of-the-art features. The 4.3" TFT display keeps all measured values clearly in view. The menu navigation is intuitive and supports functions such as ramping and timer control. A digital spirit level assists with correct alignment. The measurement accuracy of ± 1 % and the repeatability of ± 0.2 % (F.S.) meet high quality standards.

The complete package for rheology

This set (“Solution”) eliminates the need for the complex assembly of individual components. IKA supplies a fully integrated system:

• Viscosity meter: ROTAVISC SBS me-vi.
• Thermostat: CBC 5 basic (bath thermostat).
• Connection: A special stand and mounts ensure that the viscometer is perfectly positioned above the thermostat’s bath.
• Accessories: A suitable spindle set (SP set-2) is already included.

Software integration (optional)

Both the thermostat and the viscometer are equipped with USB and RS-232 interfaces. Using the optional labworldsoft software ®, you can link the devices and run and document complex temperature-viscosity profiles (rheograms) fully automatically. Watch live on your PC as the viscosity of your sample changes whilst the thermostat ramps up from -20 °C to +100 °C.

Technical data (system)

• Viscosity range: 100 – 40,000,000 mPas (me-vi)
• Bearings: SBS (steel ball bearings) – extra robust
• Thermostat type: Cooling & heating circulation thermostat
• Temperature range: -25 °C to +200 °C
• Heating power: 2,500 W
• Cooling capacity: 350 W (@ 20 °C)
• Viscosity accuracy: ± 1 % F.S.
• Reproducibility: ± 0.2 % F.S.
• Interfaces: USB, RS 232 (both units)
• Pump performance: High-performance pressure/suction pump
• Weight (system): Combined (viscometer + heavy thermostat)

Contents

• 1 x IKA ROTAVISC SBS me-vi (measuring head)
• 1 x IKA CBC 5 basic (cooling/heating thermostat)
• 1 x Mounting bracket/tripod set for mounting above the bath
• 1 x SP set-2 spindle set
• 1 x PT 100.8 temperature sensor
• 1 x Hose set & connection fittings
• 1 x mains lead & operating instructions

Custom requirements & accessories

Please ensure you select the correct thermal fluid (bath fluid) for the intended temperature range! For sub-zero temperatures, you will need special oils or glycols. We would be happy to advise you on the most suitable fluid. Please contact our procurement service.
