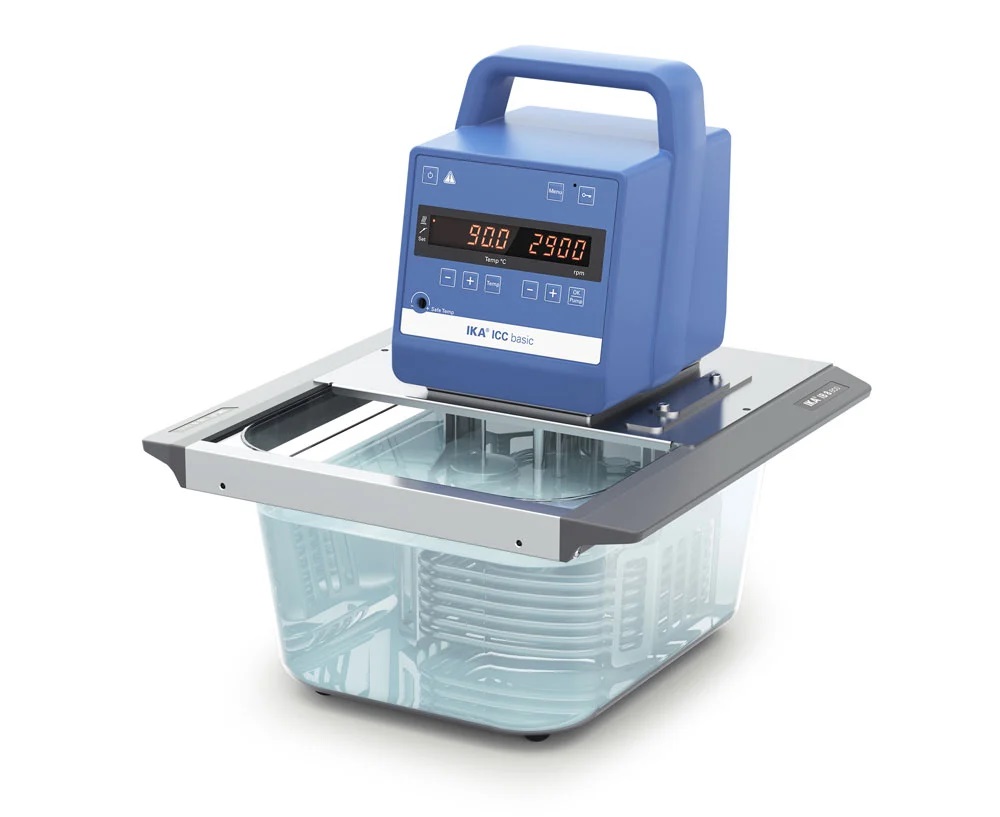

IKA Compact Immersion Thermostat Package, ICC basic eco 8, 0008034900

The ICC basic eco 8
IKA makes it easier for you to put together your temperature control system and offers ready-to-connect packages containing all the necessary accessories.

Package includes
: ICC basic compact immersion thermostat
IB 8 eco, plastic bath (size S)
, BS.ICC bath bridge

Overall dimensions: 320 x 335 x 349 mm
Bath opening: 188 x 105 mm *
Max. bath opening: 227 x 118 mm **
Immersion depth: 85 mm–125 mm

*Maximum size of a plate that can be placed on the bottom of the bath.
**Maximum dimensions of the bath opening at the upper edge of the bath.

Max. temperature in the plastic bath (‘eco’ series): 100°C (water only)

Technical data refer to the thermostat included in the package

Technical data
Device type: Compact suspended thermostats
Class designation according to DIN 12876: III
Marking according to DIN 12876: FL
Heating power: 2000 W
Operating temperature: Ambient temp. +10K @1000rpm – 150 °C
Operating temperature min. (with external cooling) –20 °C
Temperature display: yes
Temperature control: PID
Operating temperature sensor: PT 100
Safety temperature sensor: PT 1000
Operating temperature display: LED
Safety temperature display: LED
Temperature stability: DIN 12876 ±0.02 K
Display resolution: 0.1 K
Operating status display with external sensor: yes
Setpoint accuracy: ±0.1 K
Visual warning function: yes
Audible warning function: yes
Overtemperature warning function: yes
Safety circuit adjustable: 0–160 °C
Low-level protection: yes
High-level protection: yes
Pump type: Pressure/suction pump
Adjustable pump output: yes
Maximum pump pressure: (0 litres flow rate) 0.3 bar
Pump pressure (suction side) max. (0 litres flow rate) 0.2 bar
Flow rate max. (0 bar back pressure) 18 l/min
Bath depth min. 150 mm
Calibration option yes
Device mounting clamp
Technical data in accordance with DIN 12876
Permissible duty cycle 100 %
Dimensions (W x H x D) 145 x 340 x 200 mm
Weight 10.5 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class in accordance with DIN EN 60529 IP 21
RS-232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 2100 W

Accessories and spare parts available on request
