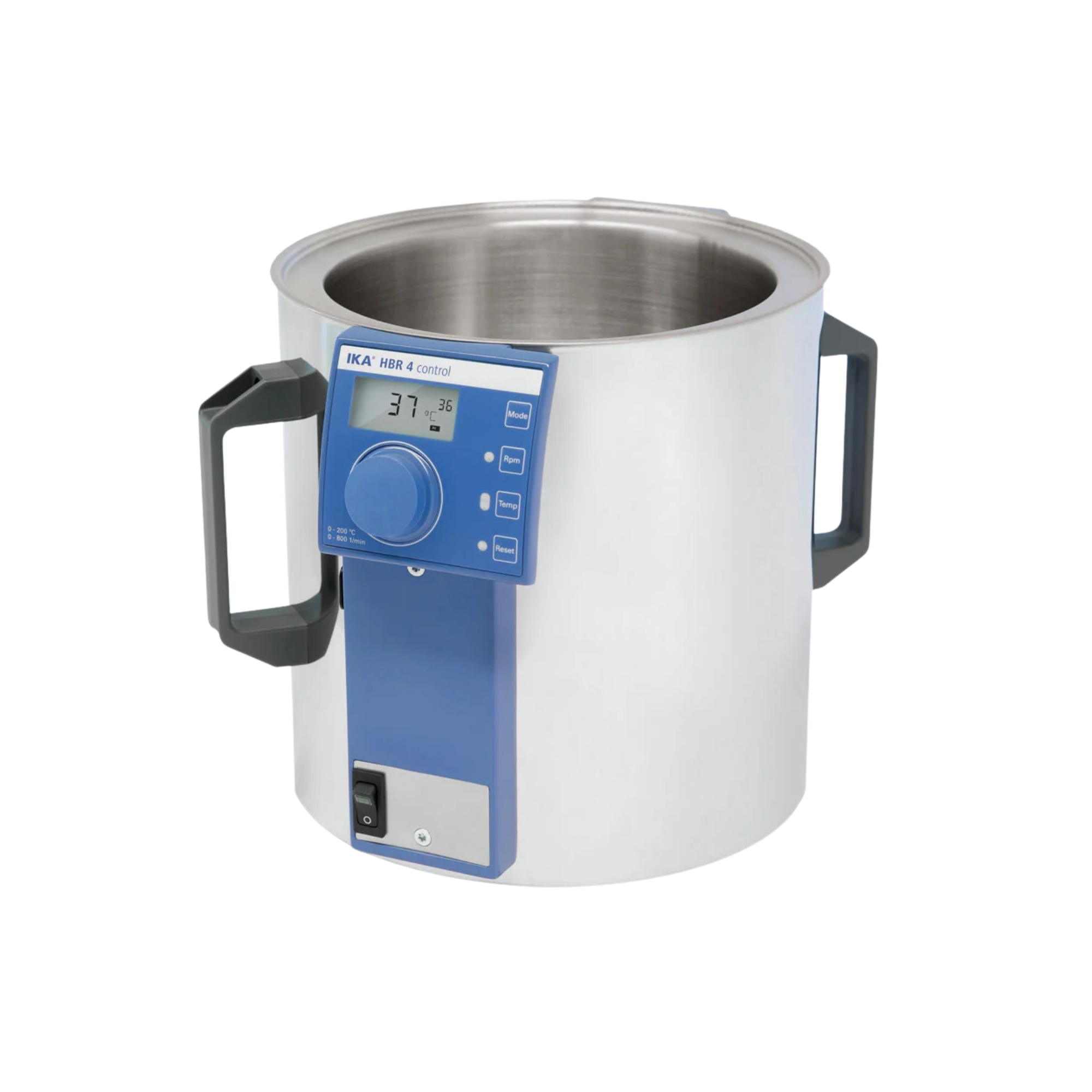

IKA HBR 4 control, safety heating bath, 4 litres, 0020003549

Thermodynamics and Fluid Dynamics of Heat Transfer

The IKA HBR 4 control is a high-precision heating bath system optimised for temperature control of liquids up to 200 °C. The cylindrical bath geometry, combined with the high-quality stainless steel inner vessel (1.4301), ensures homogeneous temperature distribution within the heat transfer medium (water or low-viscosity oils). The specific arrangement of the heating elements induces efficient convection, which minimises thermal gradients and thus creates isothermal conditions for the sample vessel. The system is designed for a maximum heating power of 1000 W to achieve fast heating times even with larger volumes.

Metrological control and cybernetic safety

The heating process is controlled by a microprocessor-controlled PID controller, which ensures excellent stability of the bath temperature. An integrated connection for an external temperature sensor (PT 1000) enables precise measurement of the medium temperature, allowing the control system to respond directly to the kinetic energy of the sample. A key feature of the ‘control’ version is the digital interface (USB/RS232), which allows for comprehensive documentation of thermal processes via Labworldsoft ®. The safety architecture includes an independently adjustable safety temperature limiter, which reliably prevents thermal decomposition of the medium or overheating of the apparatus in the event of system faults.

Technical details

Thermodynamics & Heating Technology

• Heating power: 1000 W
• Operating temperature range: room temperature + 10 K to 200 °C
• Temperature stability: ± 0.1 K
• Max. bath volume: 4 l

Metrology & Control Engineering

• Display: Digital LCD for setpoint and actual values
• External sensor connection: PT 1000
• Control accuracy with external probe: ± 0.2 K
• Adjustable safety temperature: 50 to 210 °C
• Safety temperature setting accuracy: 1 K

Kinematics & Mechanics

• Bath shape: Cylindrical
• Bath material: Stainless steel 1.4301
• Bath diameter (internal): 200 mm
• Bath height (internal): 120 mm

Interfaces & Dimensions

• Interfaces: USB, RS232
• Dimensions (W x H x D): 250 x 250 x 250 mm
• Weight (empty): 4.4 kg
• Protection class in accordance with DIN EN 60529: IP 21
• Voltage: 230 V (50/60 Hz)

Contents

• 1 x IKA HBR 4 control heating bath
• 1 x PT 1000.70 temperature probe (stainless steel)
• 1 x mains cable
• 1 x operating instructions

Important note: A suitable heat transfer fluid (e.g. silicone oil) for operating temperatures above 100 °C is not included and must be selected specifically for the intended application.

Individual requirements & accessories

The choice of heat transfer fluid is crucial for physically correct operation at high temperatures (viscosity, flash point, heat capacity). Furthermore, the Labworldsoft software ® is recommended for computer-aided analysis to process the data streams output via USB/RS232. Please use our procurement service to select the appropriate accessories.
