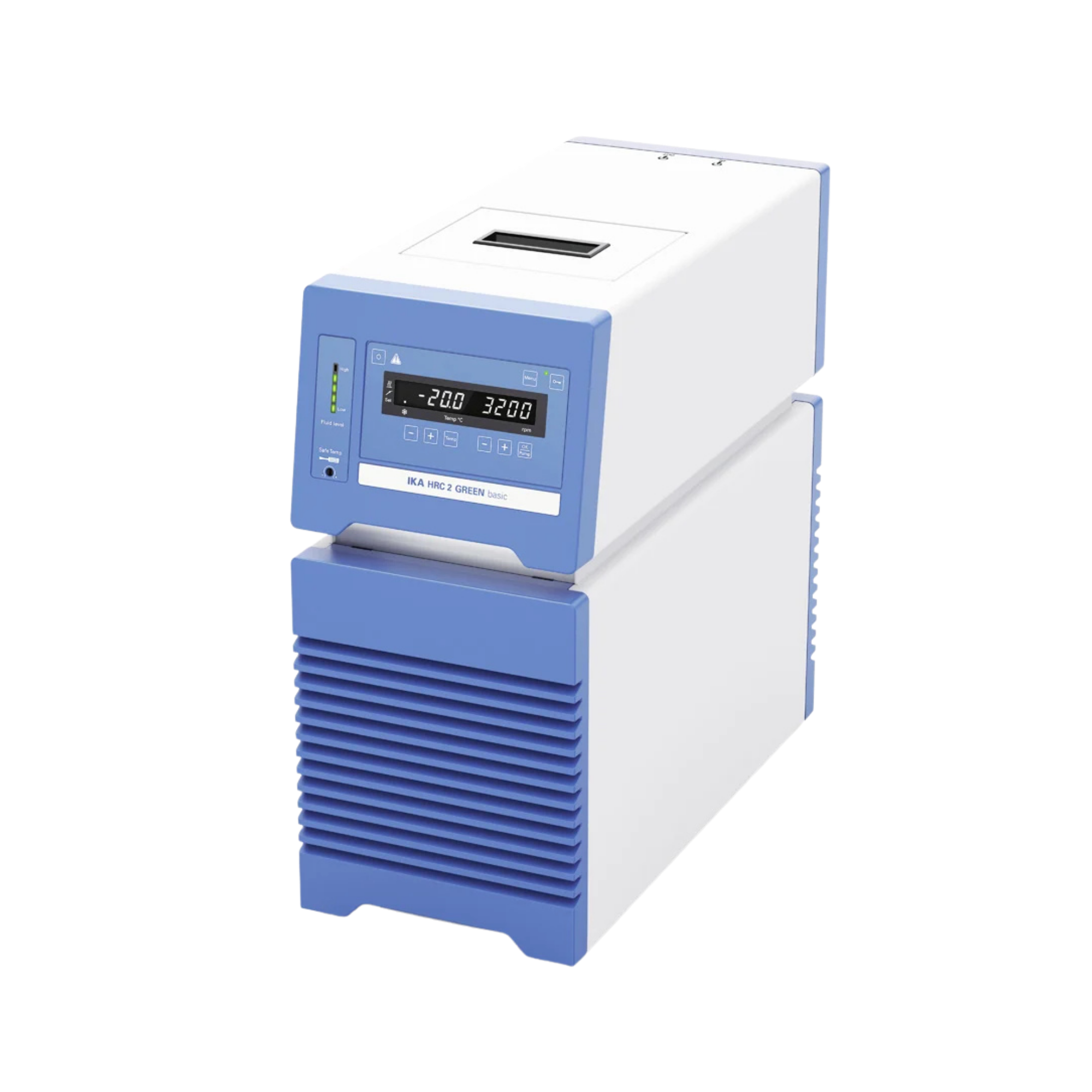

IKA HRC 2 GREEN basic cooling and heating thermostat, R290, -20°C to 100°C, 0020128734

The future of temperature control: sustainable, intelligent and wireless – IKA HRC 2 GREEN control

The IKA HRC 2 GREEN control (MPN 0020128734) marks a turning point in laboratory technology. It combines excellent thermodynamic properties with an uncompromising ecological approach and state-of-the-art user-friendly technology. This unit is not simply a circulating bath – it is the perfect solution for laboratories on the path to becoming a ‘Green Lab’ whilst demanding the highest standards of precision, connectivity and flexibility. With an operating temperature range of –20 °C to +100 °C, it covers a wide spectrum of applications in chemical synthesis, pharmaceutical development and biotechnology.

Sustainability as a concept: ‘GREEN’ technology

Climate protection does not stop at the laboratory door. Conventional refrigeration units often use fluorinated greenhouse gases, which will be subject to strict regulations in future. The HRC 2 GREEN control, on the other hand, uses the natural refrigerant R290 (propane). Why is this important? R290 has an extremely low global warming potential (GWP=3), whilst conventional refrigerants often have values in the thousands. This means that this unit is not only environmentally friendly but also future-proof against forthcoming tightening of the F-gas Regulation. But at IKA, sustainability also means efficiency: the speed-controlled compressor and the intelligent fans dynamically adjust their output to the actual cooling requirements. This significantly reduces energy consumption and noticeably lowers operating costs over the unit’s service life. Furthermore, this technology reduces heat dissipation into the laboratory, which in turn takes the strain off the building’s air-conditioning system.

Maximum freedom with the Wireless Controller (WiCo)

The standout feature of the “control” model is the detachable Wireless Controller (WiCo). Whilst with standard units you always have to stand directly in front of the machine to change parameters, the WiCo gives you freedom. Thanks to the Bluetooth connection, you can detach the control unit and operate the thermostat from a distance of up to 10 metres. This represents a huge gain in safety and convenience, particularly when:

• The thermostat is located in a fume cupboard and the front sash needs to remain closed (for energy efficiency and safety).
• The unit is located in a hard-to-reach spot, such as under a laboratory bench or behind a reactor setup.
• You wish to monitor potentially explosive or toxic processes from a safe distance. The brilliant TFT display shows all relevant process data graphically and allows intuitive navigation through complex temperature profiles.

Precision directly in the medium: connection for an external probe

Unlike the ‘basic’ model, the HRC 2 GREEN control features a socket for an external temperature probe (PT 100, included in the scope of delivery). This is crucial for demanding applications. Normally, a thermostat controls the temperature of the internal bath. However, in external applications (e.g. a double-jacketed reactor), a temperature gradient arises between the thermostat and the reactor contents. Thanks to the external probe, the HRC 2 GREEN control regulates the temperature of your sample directly. The unit automatically compensates for heat loss through the tubing and reaches the target temperature in the reactor with pinpoint accuracy and without overshoot.

High-performance PEEK pump for demanding circuits

At the heart of the liquid circuit is a high-quality pressure and suction pump made from PEEK (polyetheretherketone). This high-performance plastic offers excellent chemical resistance and thermal stability. The pump is speed-controlled, allowing you to precisely adjust the flow rate (up to 21 l/min) and pressure (0.5 bar) to suit your application. This enables both gentle temperature control of sensitive glassware and powerful flow rates in applications with high back pressure.

Safety and ease of maintenance

Safety is IKA’s top priority. The HRC 2 GREEN control complies with the highest safety class III (FL) in accordance with DIN 12876 for operation with flammable liquids. An integrated drain port makes it easy to change the temperature-control fluid without having to tip the heavy unit. The easily accessible air filter can be cleaned without tools, ensuring that cooling performance remains consistently high.

Interfaces for Laboratory 4.0

The unit is ideally equipped for integration into automated laboratory environments. In addition to USB and RS 232 interfaces for control via a PC (e.g. using labworldsoft ®), the thermostat offers the option of saving and running complex temperature ramps and programmes directly on the unit.

Technical Specifications

• Device type: Circulating thermostat (cooling/heating) with detachable controller
• Temperature range: -20 °C to +100 °C
• Temperature stability: ± 0.05 K
• Refrigerant: R290 (GWP 3, natural)
• Heating capacity: 1,500 W
• Cooling capacity (@20 °C): 400 W
• Pump: Pressure and suction pump (PEEK), speed-controlled
• Max. pump flow rate: 21 l/min / 0.5 bar
• Control: Wireless controller (WiCo) with TFT display
• WiCo range: approx. 10 m (Bluetooth)
• External sensor connection: Yes (PT 100)
• Interfaces: USB, RS 232, Bluetooth
• Filling capacity: 1.4 – 4.0 litres
• Dimensions (W x H x D): 220 x 475 x 525 mm
• Weight: approx. 29 kg

Contents

• 1 x IKA HRC 2 GREEN control
• 1 x Wireless Controller (WiCo)
• 1 x External PT 100.30 temperature sensor
• 2 x hose connectors (NW 8 & NW 12)
• 1 x USB cable & mains lead
• 1 x User manual

Custom requirements & accessories

To realise the full potential of this thermostat, we recommend high-quality accessories such as insulated metal hoses or specialised temperature control fluids. Our team of experts will assist you with the configuration. Please contact our procurement service.
