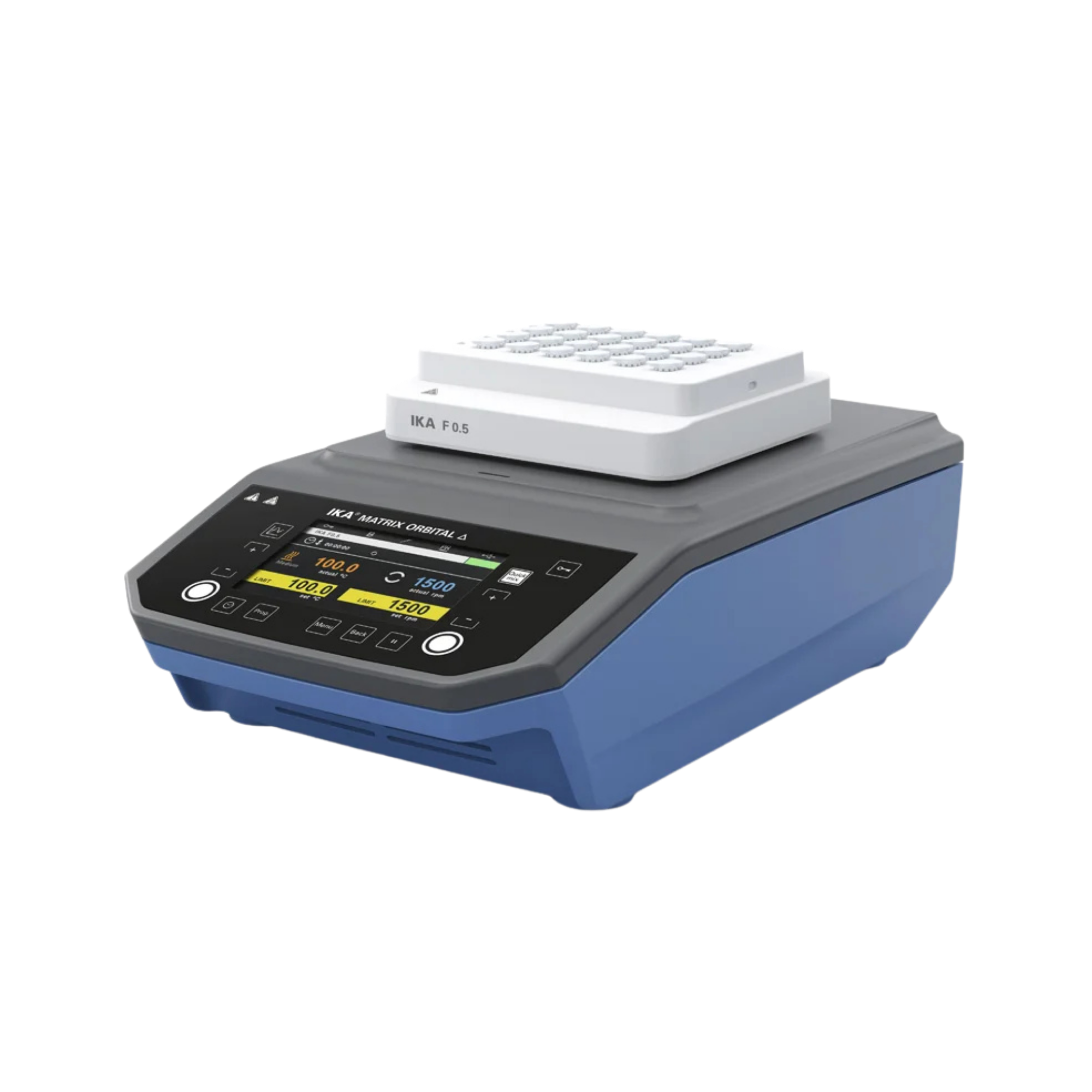

IKA MATRIX Orbital Delta F0.5, thermal shaker set (0.5 ml) including pipette, 0010006255

Precision for the smallest volumes: IKA MATRIX Orbital Delta F0.5

The IKA MATRIX Orbital Delta F0.5 (MPN 0010006255) is the specialist in the Matrix range for working with 0.5 ml reaction vessels. In molecular biology, genetics and forensics, precious samples are often processed in small quantities – whether for PCR reactions, enzyme restriction or the storage of oligonucleotides. For these sensitive applications, you need a thermal shaker that not only maintains precise temperature control but also effectively mixes even the smallest volumes of liquid without wetting the vessel walls. This instrument offers exactly that: a permanently integrated block for 24 x 0.5 ml vessels, combined with powerful heating and mixing performance. As part of the complete set, you also receive the ergonomic IKA PETTE vario pipette, which is perfectly matched to the volume range.

Fixed block (F0.5) for maximum performance

Why does IKA use a fixed block (“Fixed”) rather than an interchangeable system for this model? The answer lies in the physics of heat transfer and mechanical stability.

1. Direct temperature control: With 0.5 ml vessels, the surface-to-volume ratio is very high. The aluminium block, which is firmly connected to the heating element, encloses the small tubes with a precise fit. As there are no insulating air gaps between the heating plate and the adapter, the heat energy reaches the sample extremely quickly and evenly.
2. Higher speeds: Thanks to its robust design and lower moving mass compared to larger attachments, the Delta F0.5 enables speeds of up to 2,000 rpm. This is crucial for generating turbulent mixing within the narrow 0.5 ml vials, ensuring homogeneous reaction conditions.
3. Smooth operation: The secure fit prevents vibrations and resonance, making the unit pleasantly quiet even at maximum speed.

Heating and mixing to perfection

The ‘Delta’ suffix in the name refers to the active heating function. The instrument covers a temperature range from room temperature (+4 °C) to 100 °C.

• Fast heating rates: At approx. 15 °C/min (depending on the load), you can quickly reach your target temperature, reducing waiting times in the laboratory.
• Precise control: The electronic control system maintains a stable temperature with an accuracy of ± 0.5 °C. This is essential for temperature-sensitive enzymatic reactions.
• Efficient mixing: The 3 mm orbital shaking stroke ensures that liquids are effectively mixed without droplets clinging to the lid (centrifugal effect at high speeds).
• Includes liquid handling package

Don’t just buy a piece of equipment – buy a solution. This set includes the IKA PETTE vario 100–1000 µl. This pipette is a robust precision instrument with a DLC-coated piston and an autoclavable shaft. It is ideal for dispensing buffers or master mixes. Thanks to the interchangeable grips supplied, it can be ergonomically adapted to any hand size.

Intuitive operation for everyday laboratory use

The IKA MATRIX Orbital Delta F0.5 has been developed for users who want to focus on their research, not on the technology.

• Clear display: The large TFT display shows all relevant parameters (speed, time, temperature) at a glance.
• Programmable ramps: Create automatic sequences. Example: “Mix for 30 seconds at 2,000 rpm, then heat to 55 °C for 1 hour, then cool down.” The unit carries out these steps automatically, which improves the reproducibility of your experiments.
• Timer function: From 1 second to 6,000 minutes – or continuous operation. You have full control over the process time.

Robustness and design

Like all devices in the Matrix series, the F0.5 features a solid die-cast aluminium housing. This ensures it stands extremely securely on the laboratory bench and protects the electronics from spilled liquids (IP 21 protection rating). The smooth surfaces and the integrated design, which has no areas where dirt can accumulate, make cleaning and disinfection considerably easier.

Applications

• Genetics: Preparation of PCR samples in 0.5 ml tubes.
• Protein chemistry: Denaturation of proteins in small volumes.
• Microbiology: Cultivation of small primary cultures under defined temperature conditions.

With the IKA MATRIX Orbital Delta F0.5, you get a high-performance package specifically tailored to the requirements of microvolume processing.

Technical data

• Equipment type: Thermal shaker (heating & mixing)
• Attachment: Fixed for 24 x 0.5 ml vessels
• Motion type: Orbital
• Shaking stroke: 3 mm
• Speed range: 0 – 2,000 rpm
• Temperature range: Room temperature +4 °C to 100 °C
• Heating power: 100 W
• Heating rate: approx. 15 °C/min
• Temperature stability: ± 0.5 °C
• Timer: Yes (1 s to 6,000 min)
• Display: TFT
• Housing: Die-cast aluminium
• Interfaces: USB, RS 232
• Protection rating: IP 21
• Dimensions (W x H x D): 216 x 127 x 351 mm
• Weight: 8.2 kg

Contents

• 1 x IKA MATRIX Orbital Delta F0.5 (unit including fixed block)
• 1 x IKA PETTE vario 100–1000 µl (pipette)
• 1 x mains lead
• 1 x USB cable
• 1 x User manual
• 1 x calibration certificate (for the pipette)

Customised requirements & accessories

Do you need suitable 0.5 ml PCR-grade reaction tubes or pipette tips for the pipette supplied? We offer a complete range of consumables from a single source. Please contact our procurement service.
