IKA MATRIX Orbital Delta F1.5, thermal shaker set (1.5 ml) including pipette, 0010006249

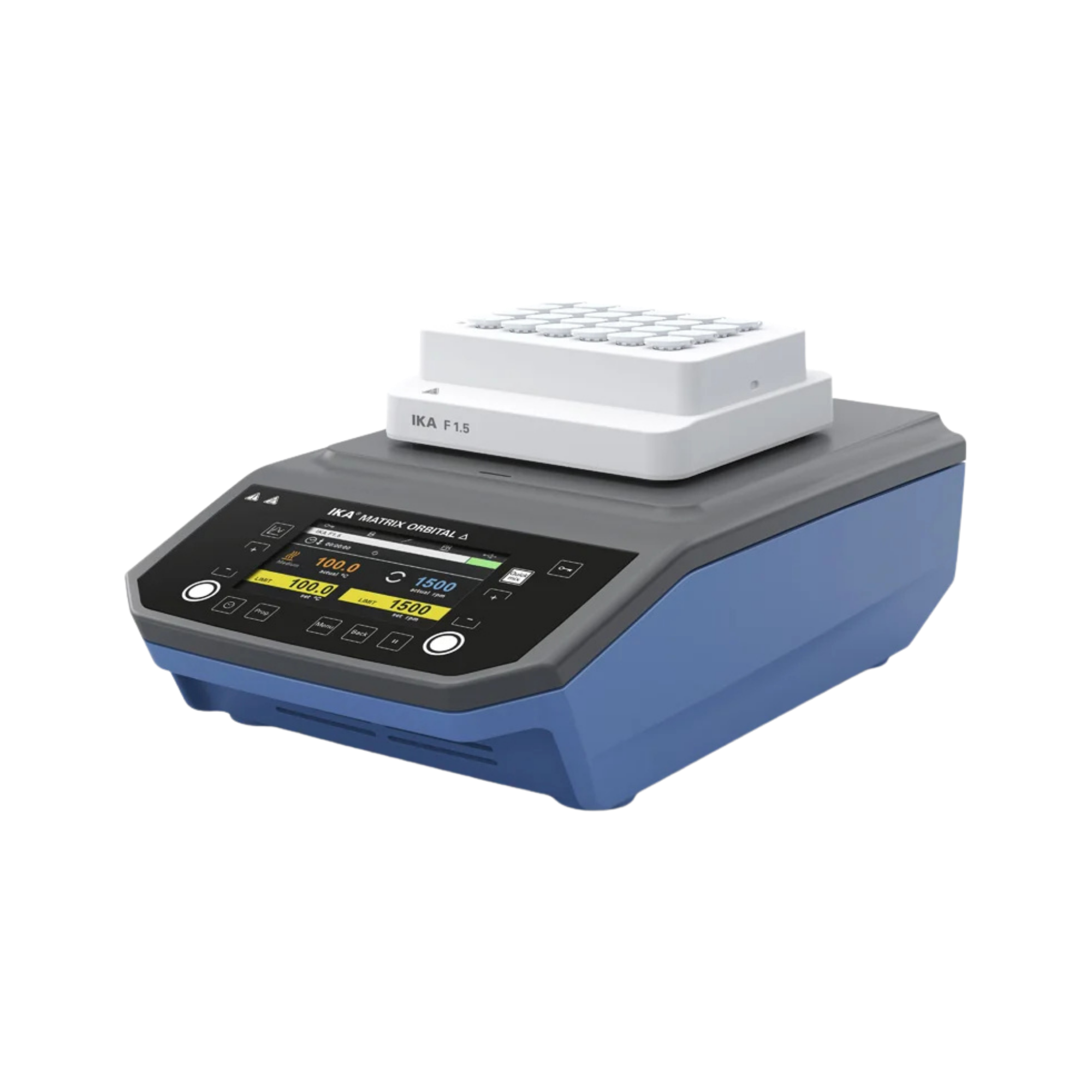

The specialist for 1.5 ml applications: IKA MATRIX Orbital Delta F1.5

The IKA MATRIX Orbital Delta F1.5 (MPN 0010006249) is the tailor-made solution for laboratories that focus on the standard vessel format used in molecular biology: the 1.5 ml reaction tube (‘Eppi’). In this high-performance thermal shaker, heating and mixing are perfectly coordinated. Unlike the variable base model, the block for 24 x 1.5 ml vials is permanently fitted. This guarantees optimum heat transfer and maximum stability, even during long runs. As a special highlight, IKA supplies this unit as an ‘all-in-one’ package: a precise IKA PETTE vario pipette is included as standard, so you can start your work straight away.

‘Delta’ stands for heating and mixing

The IKA Matrix product family is divided into different performance classes. The suffix “Delta” indicates that this unit features a powerful heating function.

• Precise temperature control: The large, flat-surfaced heating block fits the 1.5 ml vessels perfectly. This ensures extremely rapid and uniform heat transfer from room temperature (+4 °C) up to 100 °C. Whether for enzymatic reactions at 37 °C, lysis processes at 56 °C or denaturation at 95 °C – the MATRIX Orbital Delta F1.5 maintains a stable temperature (± 0.5 °C).
• Effective mixing: At the same time, the orbital shaking mechanism, with a stroke of 3 mm, ensures thorough mixing of the samples. At speeds of up to 1,500 rpm, pellets are resuspended and viscous buffer solutions are homogenised. The combination of heating and shaking significantly reduces process times and increases the yield in extractions.

Why a fixed attachment (F1.5)?

In everyday laboratory work, where 1.5 ml tubes are predominantly used, the fixed attachment (“F” for Fixed) offers decisive advantages over interchangeable systems:

1. Better thermal conductivity: As the block is firmly attached to the heating element, there are no air gaps or thermal resistance losses, as is the case with screw-on adaptors. The energy reaches the sample more quickly and directly.
2. Mechanical stability: The fixed block eliminates vibrations and resonance that could occur with loose-fitting interchangeable attachments. The device runs more smoothly and quietly.
3. Durability: Where there are no moving connecting parts, there is nothing to wear out. The F1.5 is designed for long-term use.

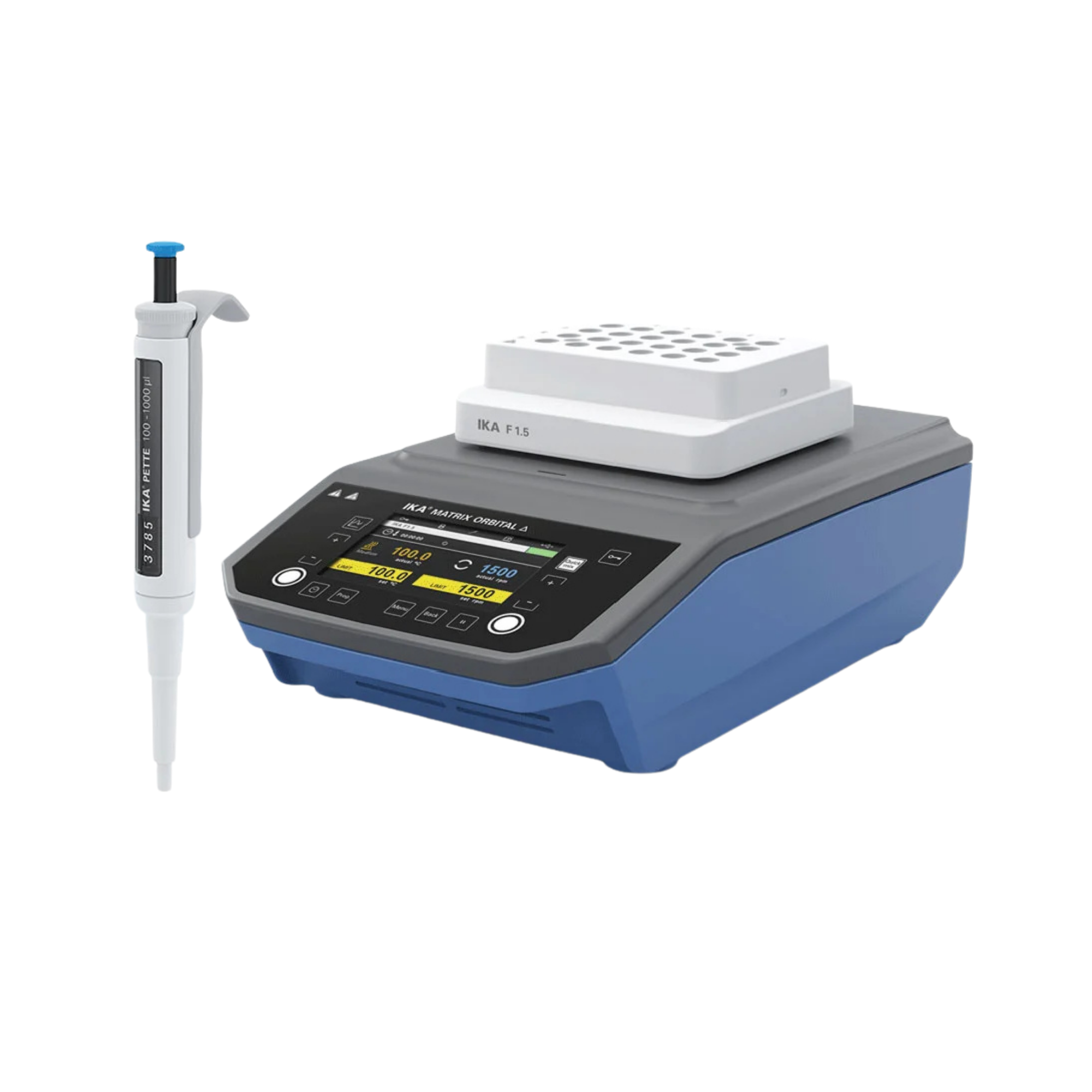

The Comfort Package: Includes the IKA PETTE vario

This product is more than just a piece of equipment; it is a workplace solution. The box also contains the IKA PETTE vario 100–1000 µl. This ergonomic single-channel pipette is perfectly matched to the working volume of the 1.5 ml vessels. It features a robust, DLC-coated piston, is autoclavable and, thanks to its interchangeable grips, fits perfectly in the hand. This saves you from having to purchase a separate pipetting tool.

Smart features for reproducible results

Like all devices in the Matrix series, the Delta F1.5 also impresses with its modern control options:

• Ramp programming: You can create complex temperature and mixing profiles. Example: “Heat to 37 °C, mix gently for 10 minutes, then heat to 95 °C, shake vigorously for 2 minutes, then stop.” The instrument carries out these steps fully automatically.
• Intuitive operation: The large TFT display clearly shows all parameters (actual and setpoint values). The menu navigation is self-explanatory.
• Timer & Quick Access: Save your routine methods to shortcut keys to avoid errors in a hectic working day.

Robust design

The housing is made of high-quality die-cast aluminium. This not only gives the thermal shaker a substantial weight for stability (no ‘wandering’ across the table), but also makes it resistant to chemical splashes and easy to clean.

Areas of application

The IKA MATRIX Orbital Delta F1.5 is the standard thermal shaker for:

• Molecular biology: DNA/RNA extraction, plasmid isolation.
• Biochemistry: protein denaturation, enzyme kinetics.
• Clinical chemistry: sample preparation in 1.5 ml vials.

With this set, you get maximum performance and features in one package.

Technical specifications

• Device type: Thermal shaker (heating & mixing)
• Attachment: Fixed for 24 x 1.5 ml vials
• Motion type: Orbital
• Shaking stroke: 3 mm
• Speed range: 0 – 1,500 rpm
• Temperature range: Room temperature +4 °C to 100 °C
• Heating power: 100 W
• Heating rate: approx. 15 °C/min
• Temperature stability: ± 0.5 °C
• Timer: Yes (1 s to 6,000 min)
• Operating modes: Timer and continuous operation
• Housing: Die-cast aluminium
• Interfaces: USB, RS 232
• Protection rating: IP 21
• Dimensions (W x H x D): 216 x 127 x 351 mm
• Weight: 8.2 kg

Contents

• 1 x IKA MATRIX Orbital Delta F1.5 (unit including fixed block)
• 1 x IKA PETTE vario 100–1000 µl (pipette)
• 1 x mains lead
• 1 x USB cable
• 1 x User manual
• 1 x calibration certificate (for the pipette)

Customised requirements & accessories

Do you need suitable 1.5 ml reaction vials (“Eppis”) of certified quality, or a second thermoshaker for cooling applications (Matrix Delta plus)? We can fully equip your laboratory. Please contact our procurement service.
