IKA MATRIX Orbital Delta FP, thermal shaker set for plates (MTP), 0010006252

The standard for high-throughput in the laboratory: IKA MATRIX Orbital Delta FP

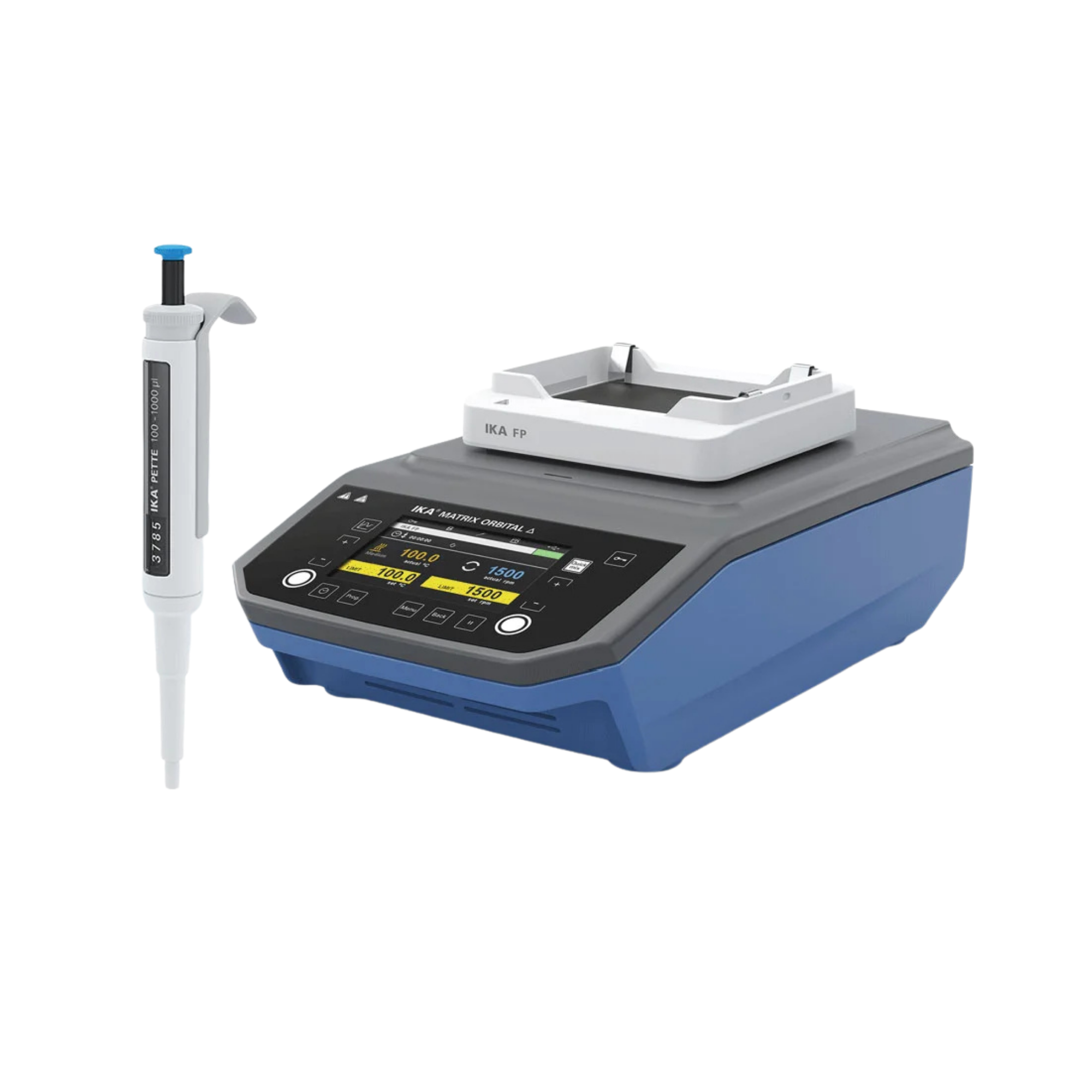

The IKA MATRIX Orbital Delta FP (MPN 0010006252) is the specialised solution for all laboratories that work with microtitre plates (MTPs) or deep-well plates on a daily basis. In modern diagnostics, drug screening or molecular biology, plate formats are indispensable for processing large numbers of samples in parallel. This thermal shaker has been developed specifically for this geometry. The abbreviation ‘FP’ stands for ‘Fixed Plate’ – the device features a permanently installed, flat heating block with retaining clips that securely holds one or more plates without any wobble. As a special bonus, this device is supplied as a complete set: the ergonomic IKA PETTE vario 100–1000 µl pipette is included as standard, making this package an unbeatable offer for laboratory set-up or expansion.

Optimised heat transfer for plates

With microtitre plates, maintaining uniform temperature is often a challenge, as the samples do not come into direct contact with a heating block (unlike tubes, which are inserted into wells). The IKA MATRIX Orbital Delta FP solves this with a large-area, flat heating plate that is in direct contact with the base of the microtitre plate.

• Precision: The solid block (Delta FP) ensures excellent temperature uniformity across the entire plate. Whether in the centre or at the edge – every well is maintained at exactly the same temperature.
• Performance: With a heating rate of up to 15 °C/min (depending on the mass), the device rapidly reaches target temperatures of up to 100 °C. This is ideal for incubations, enzymatic assays (ELISA) or lysis steps carried out directly in the plate.

Powerful mixing in orbital mode

Effective mixing is particularly difficult in the small wells of a 96-well plate, as capillary forces are high. The MATRIX Orbital Delta FP utilises an orbital shaking motion with a 3 mm stroke. What does this mean for your application?

• Resuspension: Even firmly settled pellets are reliably resuspended at speeds of up to 2,000 rpm (often limited by spillage in plates, but technically possible here).
• Homogenisation: Buffers and reagents mix in a matter of seconds, which accelerates reaction kinetics and delivers reproducible results.

Safety and convenience thanks to the ‘fixed’ design

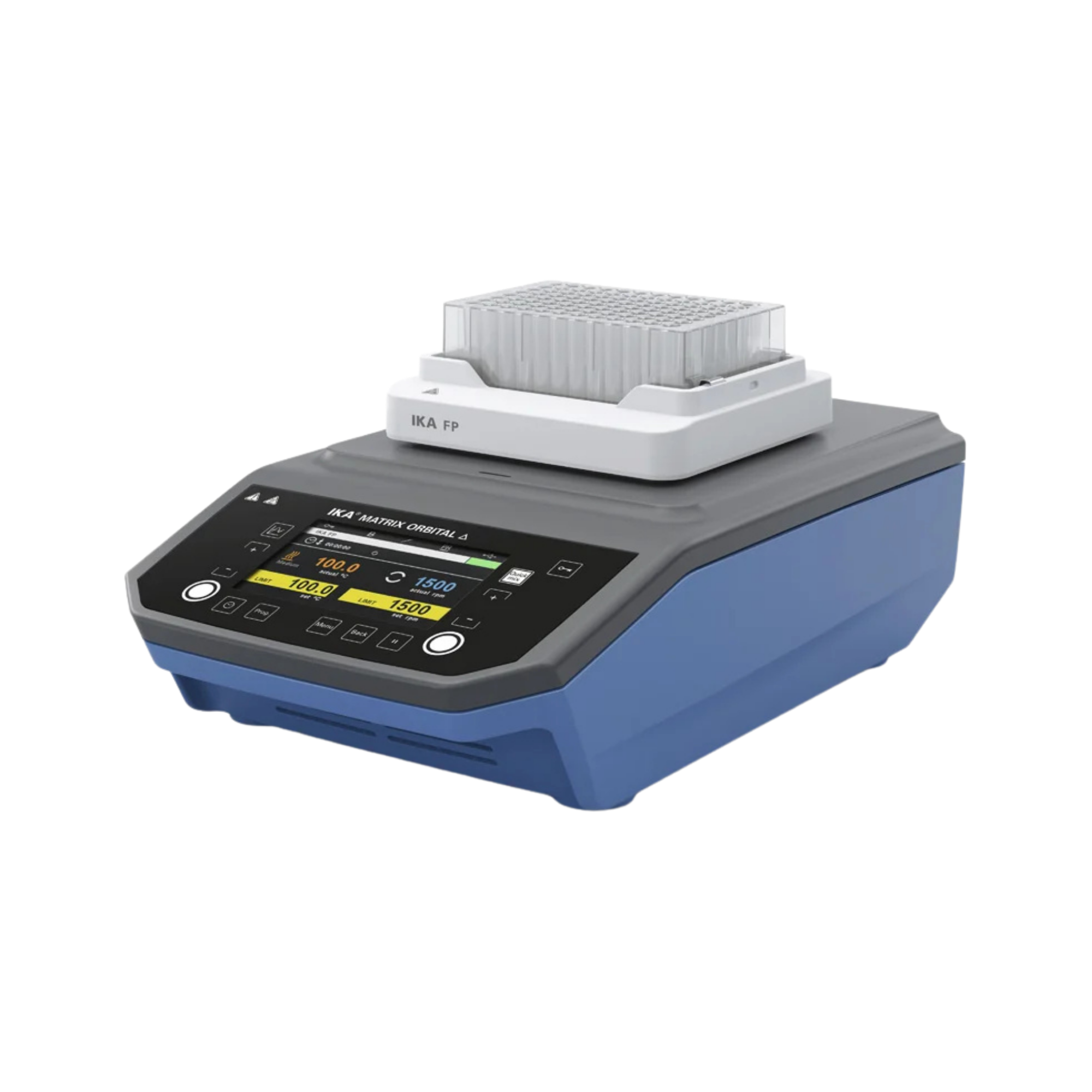

Why a fixed attachment? Interchangeable systems are flexible, but often compromise on stability. The IKA MATRIX Orbital Delta FP’s permanently mounted plate holder offers maximum mechanical robustness. A sophisticated spring mechanism secures the plate firmly to the heating element. Even at high speeds, the plate remains ‘rock-solid’, which reduces noise and prevents wear. Furthermore, the fixed connection guarantees the best possible heat transfer, as there are no air gaps between the heating element and the adapter plate.

Intelligent control for automated processes

The device is not just a ‘heater and shaker’, but a programmable process assistant. Using the intuitive menu and the large TFT display, you can define so-called ramps. A typical scenario: “Heat to 37 °C, shake gently for 30 minutes (incubation), then heat to 95 °C for 5 minutes (reaction termination), cool down (passively).” The device carries out this sequence automatically whilst you attend to other tasks. Frequently used programmes can be saved to quick-access buttons.

Includes a premium pipette

Inside the box of this set, you will find the IKA PETTE vario 100–1000 µl. This pipette is ideal for dispensing reagents into plates or adding buffers. It is fully autoclavable, extremely smooth-running (DLC-coated piston) and comes with three interchangeable handles to ensure a perfect ergonomic fit in your hand.

Robustness for continuous operation

The die-cast aluminium housing makes the MATRIX Orbital Delta FP extremely stable and durable. Spilled liquids can be easily wiped away from the smooth surface, and the IP 21 protection rating ensures safety in everyday laboratory use.

Technical Specifications

• Device type: Thermal shaker (heating & mixing)
• Attachment: Fixed for microtitre plates (MTP) / deep-well plates
• Type of motion: Orbital
• Shaking stroke: 3 mm
• Speed range: 0 – 2,000 rpm (up to 3,000 rpm technically possible, load-dependent)
• Temperature range: Room temperature +5 °C to 100 °C
• Heating power: 100 W
• Heating rate: approx. 15 °C/min
• Temperature stability: ± 0.5 °C (at low temperatures), up to ± 1.0 °C (at maximum temperature)
• Timer: Yes (1 s to 6,000 min)
• Operating modes: Timer and continuous operation
• Interfaces: USB, RS 232
• Dimensions (W x H x D): 216 x 127 x 351 mm
• Weight: 8.5 kg
• Protection class: IP 21

Contents

• 1 x IKA MATRIX Orbital Delta FP (unit including plate holder)
• 1 x IKA PETTE vario 100–1000 µl (pipette)
• 1 x mains cable
• 1 x USB cable
• 1 x User manual
• 1 x calibration certificate (for the pipette)

Customised requirements & accessories

Are you looking for suitable deep-well plates, sealing films to seal the plates, or do you require a unit with a cooling function (Delta plus)? We’d be happy to advise you on the best laboratory equipment. Please contact our procurement service.
