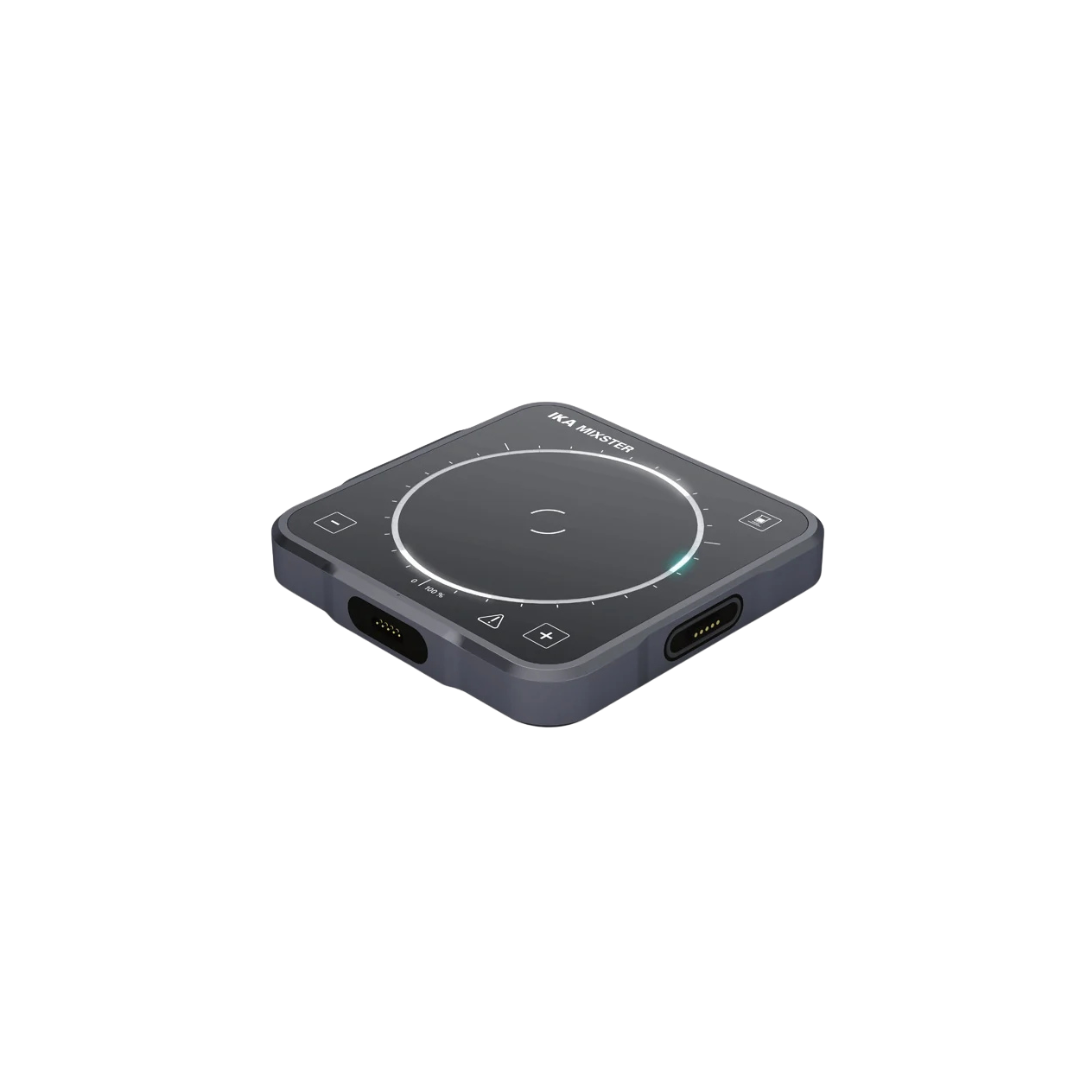

IKA MIXSTER SET 1 Universal Magnetic Stirrer (Twister), 0020027010

Innovative universal mixing drive

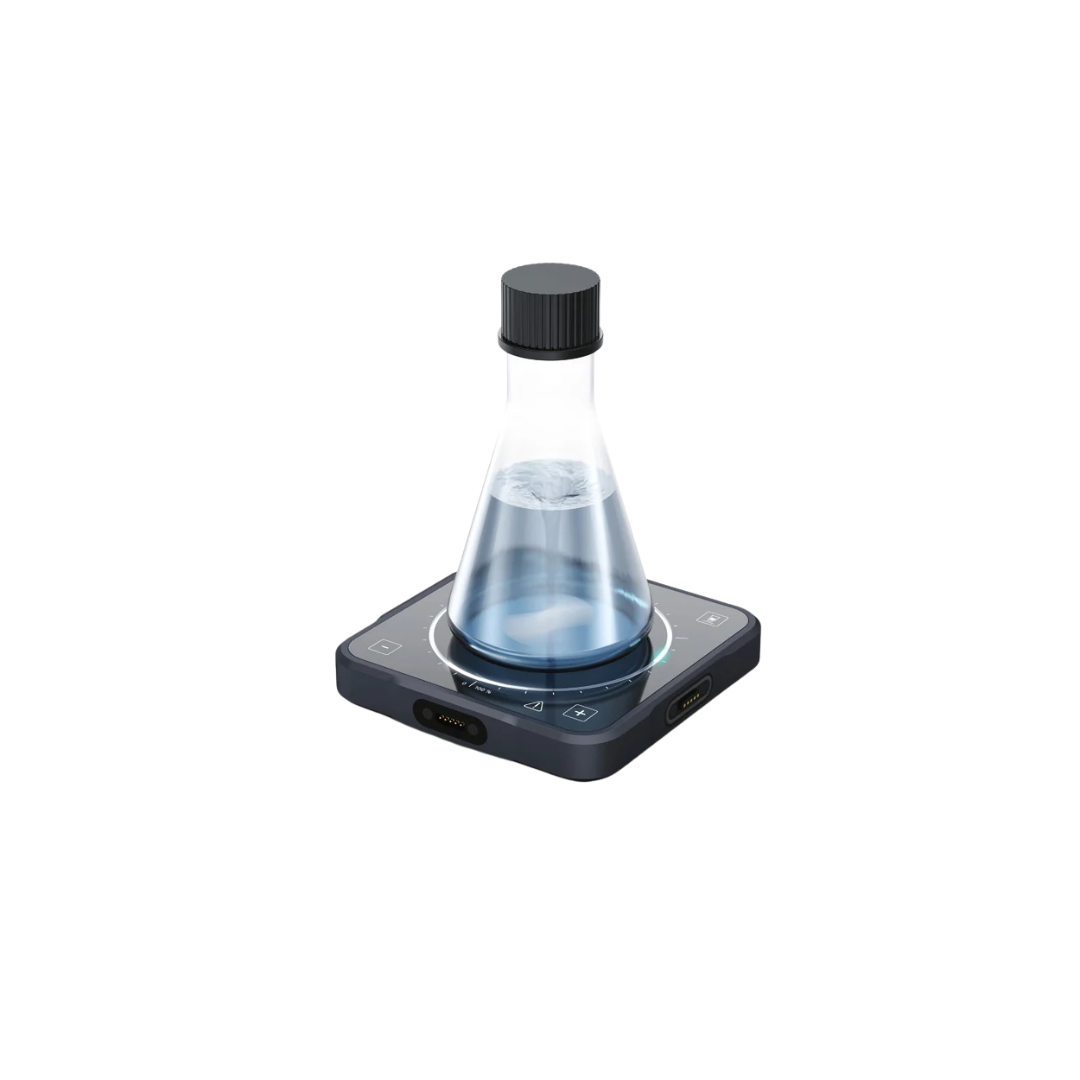

The IKA MIXSTER (known as the Twister) is more than just a magnetic stirrer – it is a modular mixing system that adapts to your requirements. With its ultra-slim design and high-quality glass surface, it is a real eye-catcher in the laboratory. The powerful drive handles volumes of up to 5 litres at speeds of up to 3,000 rpm and effortlessly copes with viscosities of up to 500 mPas. Thanks to the intuitive beaker recognition, the stirring process starts automatically as soon as a vessel is placed on the unit.

Modularly expandable to a multi-position system

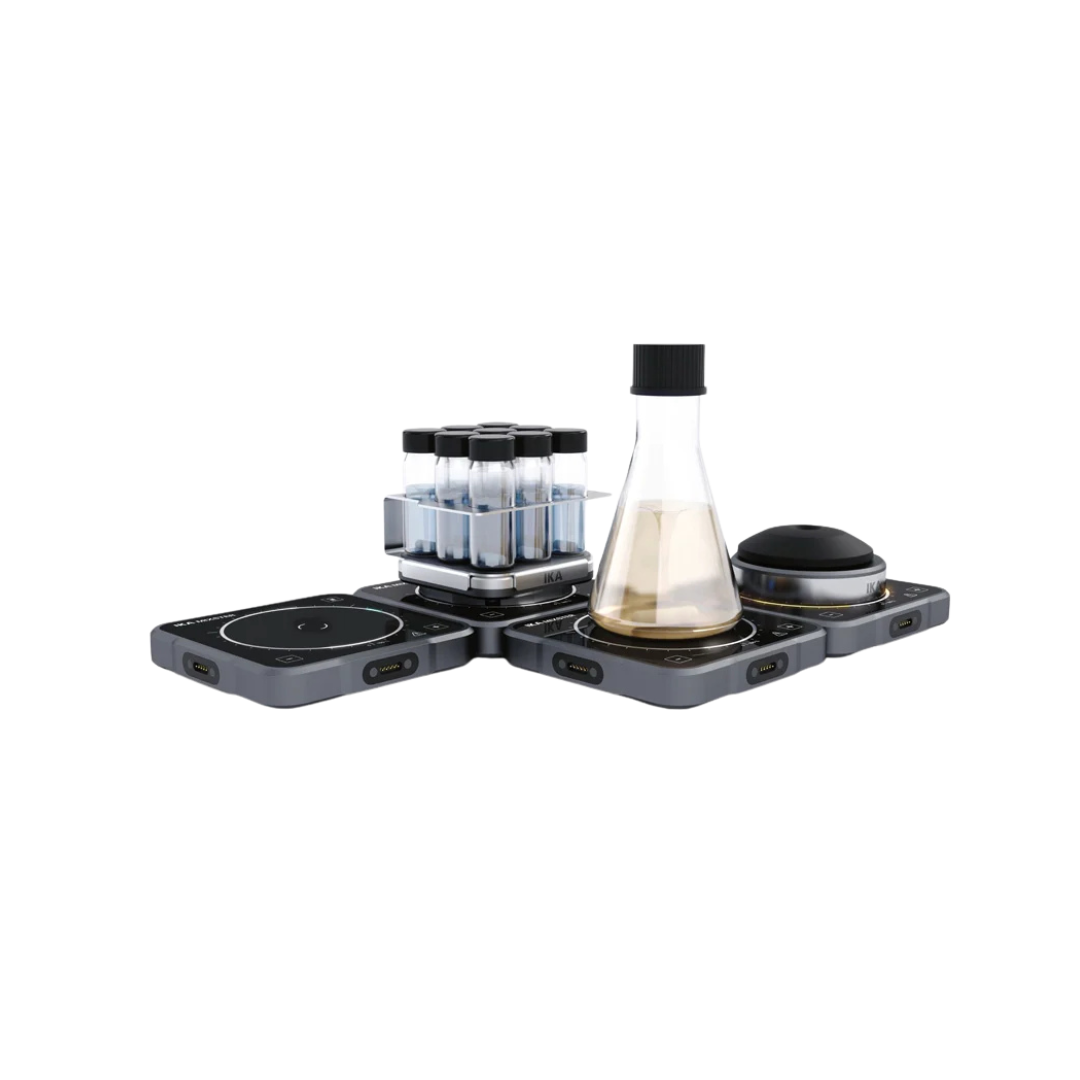

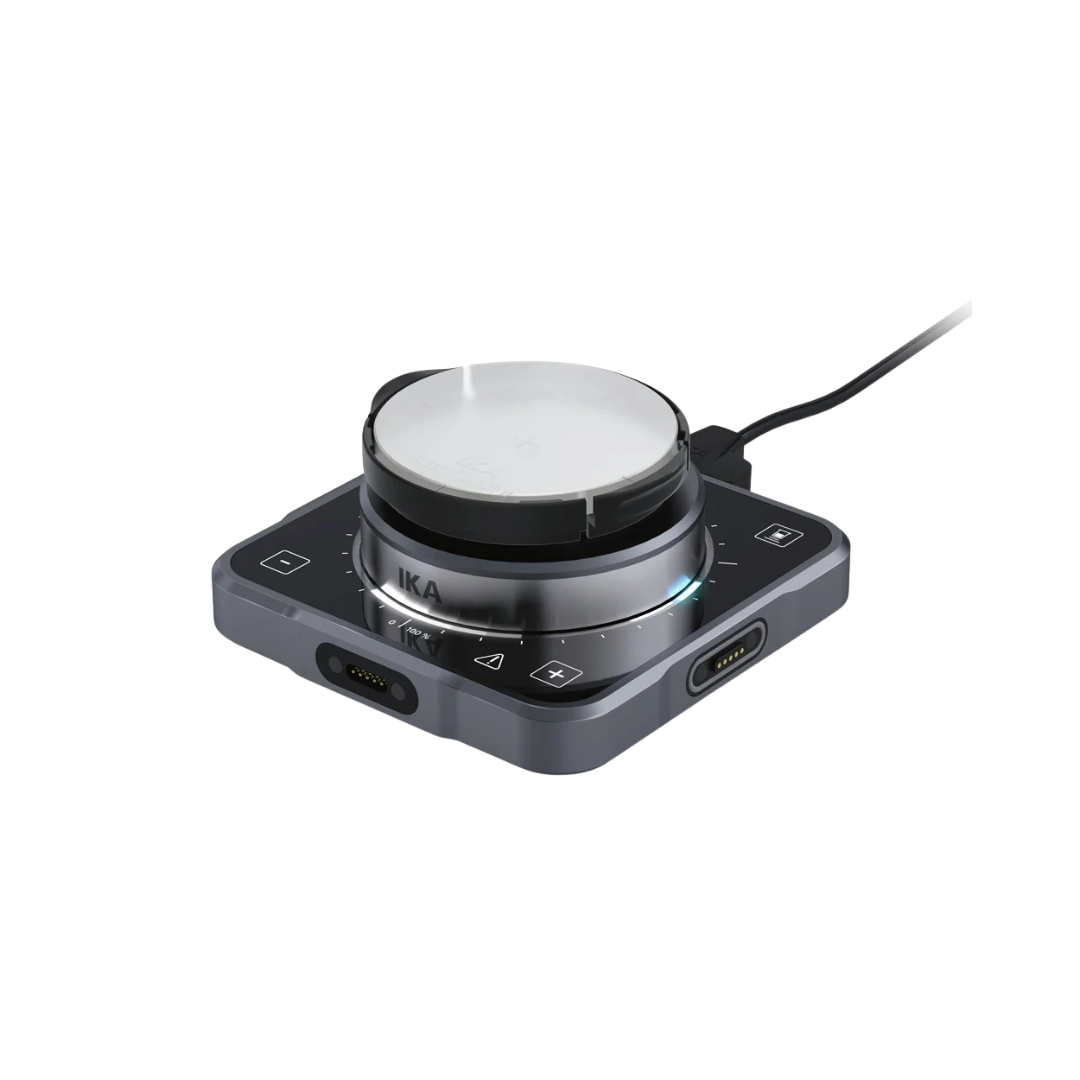

Its expandability is unique: you can use the MIXSTER as a single unit or link up to 30 units to form a large multi-position magnetic stirrer. The units can be easily slotted together and communicate using the leader-follower principle. Furthermore, with optional accessories (such as the MIX.VX attachment), the drive can be transformed into a vortex mixer or circular shaker in no time at all. This makes it a universal ‘all-in-one’ tool for any laboratory bench.

Smart features & robustness

The innovative 360° LED glass display does away with alphanumeric readouts and intuitively visualises changes in speed or viscosity graphically. For samples that are difficult to mix, the integrated reverse function (automatic direction of rotation reversal) ensures significantly better mixing. With its high IP 66 protection rating, the device is dust-tight and protected against powerful water jets – it can be easily cleaned under the tap and is even suitable for use in incubators up to 40 °C.

Technical details

• Number of stirring points: 1 (expandable to up to 30)
• Max. stirring volume (H₂O): 5 litres
• Speed range: 100–3,000 rpm
• Setting accuracy: 10 rpm
• Footprint: Glass, 124 x 124 mm
• Protection class according to DIN EN 60529: IP 66
• Dimensions (W x H x D): 135 x 24 x 135 mm
• Weight: 0.6 kg
• Permissible ambient temperature range: 5–40 °C
• Functions: Beaker glass detection, reverse function, viscosity trend measurement
• Voltage: 100–240 V (power supply unit for up to 2 devices)

Contents

• IKA MIXSTER magnetic stirrer (drive unit)
• Mains power supply unit (with adaptors for EU, UK, CH, US, AUS)
• User manual

Note: Magnetic stirring bars and attachments (vortex/multi-point) are not included.

Customised requirements & procurement service

Would you like to expand your MIXSTER system, or do you require the MIX.VX shaking attachment or the MIX.IX multi-position attachment? We can put together your modular stirring system. Please contact our procurement service for accessories and expansion units.
