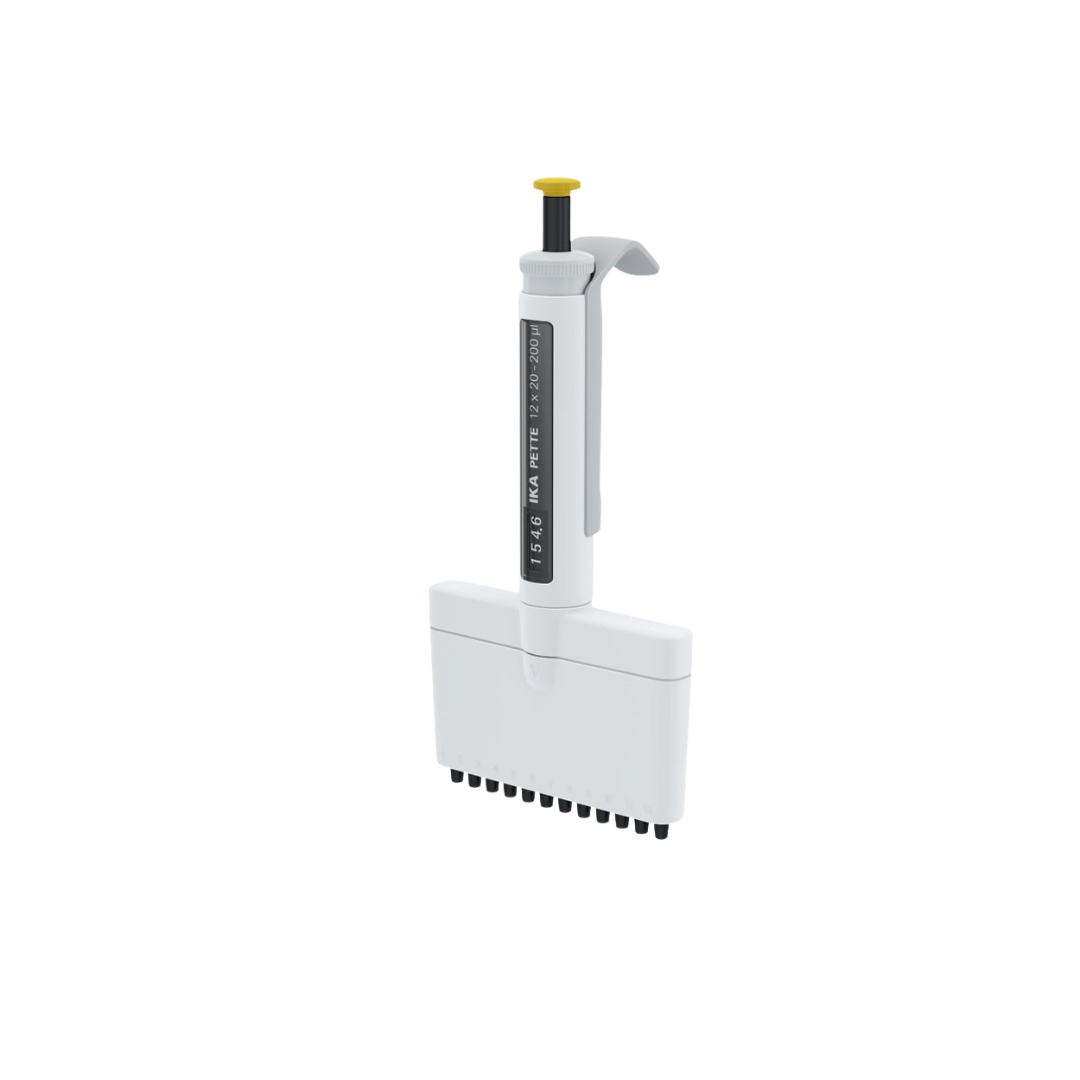

IKA PETTE multi 12-channel pipette, variable 20–200 µl, 0020017948

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "IKA PETTE multi 12-channel pipette, variable 20–200 µl, 0020017948"

Efficient high-throughput sample processing

The IKA PETTE multi 12 x 20–200 µl is tailored to the requirements of modern laboratories that process large volumes of samples in microtitre plates on a daily basis. With 12 channels and a variable volume range of 20 to 200 µl (adjustable in 0.2 µl increments), it enables the precise and time-saving filling of 96-well plates. The ergonomic design significantly reduces the manual effort required during long pipetting runs. Thanks to the three interchangeable grips included in the scope of delivery, the instrument can be individually adjusted to suit the user’s hand size, which improves balance and can reduce fatigue.

Robustness and precision through DLC technology

To ensure maximum durability and consistent precision, the pistons and tip cones of all 12 channels are made of stainless steel and finished with a high-quality DLC (Diamond-Like Carbon) coating. This extremely hard, diamond-like surface is not only wear-resistant and corrosion-resistant, but also minimises friction. The result is exceptionally smooth gliding action during pipetting and a reliable seal for the tips, channel by channel.

Hygiene and easy maintenance

The IKA PETTE multi is fully autoclavable at 121 °C without the need for prior disassembly. This saves time and enhances process reliability in sterile working areas. For regular cleaning, the volumetric unit can be dismantled without tools. If necessary, the user can also carry out adjustments independently and without special tools. A large, mechanical display ensures that the set volume is always clearly legible.

Technical details

  • Design principle: Air cushion pipette (piston stroke), mechanical
  • Number of channels: 12
  • Volume range: 20–200 µl
  • Volume increment (steps): 0.2 µl
  • Colour code: Yellow
  • Piston material: Stainless steel (DLC-coated)
  • Tip cone material: Stainless steel (DLC-coated)
  • Autoclavability: Yes, fully autoclavable (121 °C)
  • Dimensions (W x H x D): 119 x 235 x 63 mm
  • Weight: 0.195 kg
  • Accuracy (at 200 µl): ± 1.6 µl (± 0.8 %)
  • Precision (at 200 µl): ± 0.6 µl (± 0.3 %)
  • Operation: One-handed operation (volume setting and tip ejection)

Scope of delivery

  • IKA PETTE multi 12 x 20–200 µl pipette
  • Replaceable handles (sizes XS, S, M)
  • Adjustment tool for maintenance
  • Multipurpose wrench

Please note: Pipette tips are not included.

Individual requirements & procurement service

Are you looking for suitable reservoirs, specific tips for multichannel pipettes or spare parts? We’d be happy to help you equip your laboratory, even beyond our standard range. Contact our procurement service for a quick and personalised consultation.
