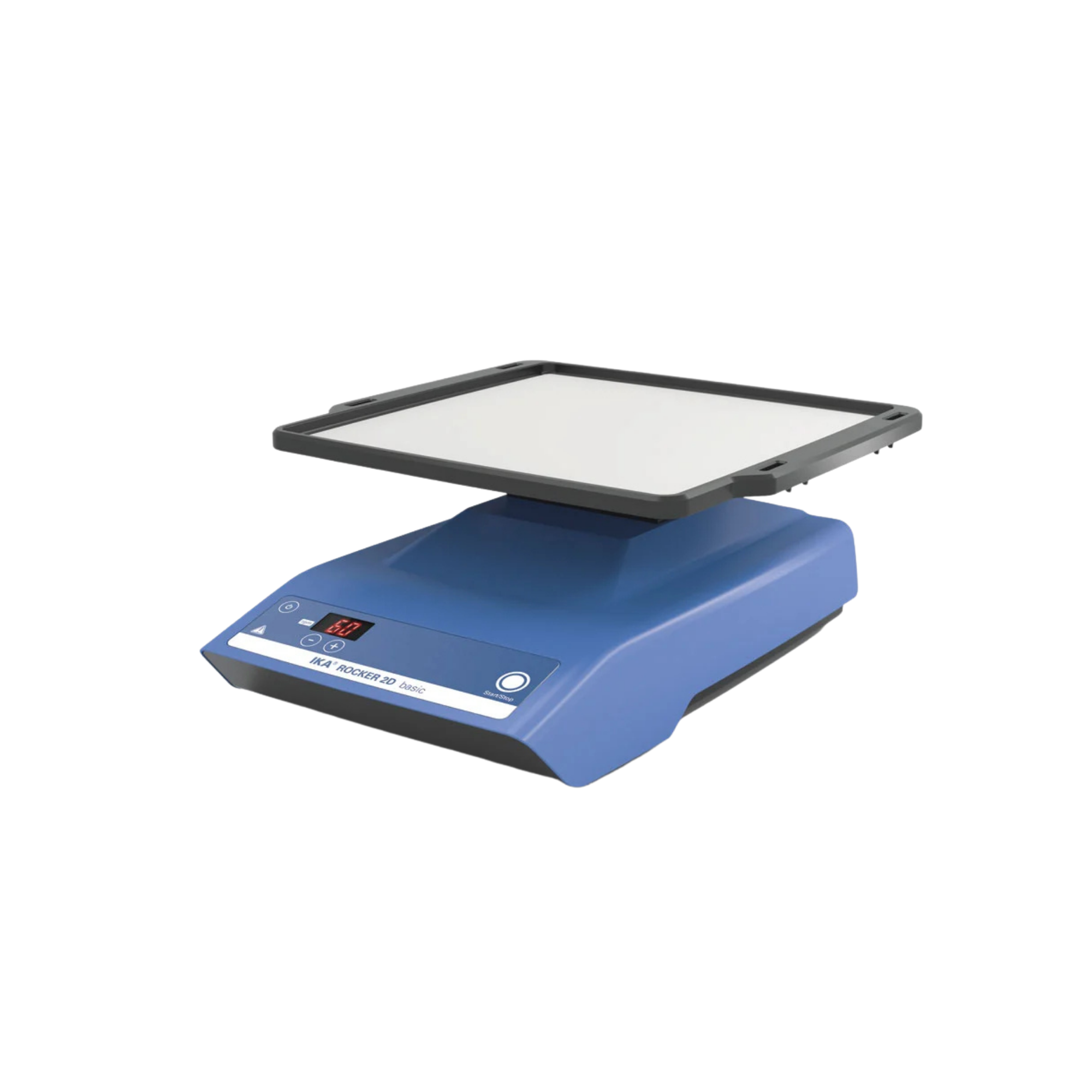

IKA ROCKER 2D basic, rocking shaker, 0004002000

Kinematics and fluid shear dynamics

The IKA ROCKER 2D basic is a specialised laboratory shaker designed to generate precise, sinusoidal rocking movements at a fixed angle of inclination of 7°. From a kinematic and fluid dynamics perspective, this motion profile serves to induce laminar flow waves within sample vessels, Petri dishes or cell culture flasks. In contrast to orbital shakers, the 2D rocking motion minimises the centrifugal forces generated and reduces the mechanical shear stress on sensitive biological suspensions or adherent cultures. This is essential for the homogeneous mixing of culture media without destabilising cellular integrity.

Metrological consistency and system stability

The instrument is designed for continuous operation at a fixed rotational speed of 30 rpm, ensuring high reproducibility in standard incubation processes, staining and destaining procedures for electrophoresis gels, and in blot hybridisations. The mechanical load limit of 2 kg is supported by a robust drive with high torque stability. The rubber mat supplied acts as a tribological interface which, thanks to a high coefficient of static friction, physically prevents sample vessels from shifting, even at maximum load and with continuous changes in inclination.

Technical details

Kinematics & Shaking Dynamics

• Shaking motion: Rocking (2D)
• Fixed rocking angle: 7°
• Fixed speed: 30 rpm
• Maximum shake weight (including attachment): 2 kg
• Operating mode: Continuous operation (100% duty cycle)

Mechanical & housing features

• Unit surface: Non-slip rubber mat (included)
• Dimensions (W x H x D): 280 x 150 x 330 mm
• Weight: 2.2 kg
• Protection class in accordance with DIN EN 60529: IP 21
• Housing material: Impact-resistant plastic / aluminium base

Electrical specifications

• Voltage: 100–240 V
• Frequency: 50/60 Hz
• Power consumption: 16 W
• DC voltage: 24 V (external power supply)
• Current consumption: 650 mA
• Environmental conditions
• Permissible ambient temperature: 4 to 50 °C (suitable for incubators)
• Permissible relative humidity: 80 %

Contents of delivery

• 1 x IKA ROCKER 2D basic
• 1 x RD 1 rubber mat
• 1 x mains adaptor
• 1 x User manual

Important note: Additional tier attachments to increase capacity (layer systems) are not included as standard and must be purchased as optional accessories.

Individual requirements & accessories

To scale up incubation processes in cell biology, the usable area can be physically expanded by using spacers and additional tiers (e.g. IKA RD 2). For applications in CO₂ incubators, the thermal stability of the housing components is guaranteed up to 50 °C. To ensure the optimal configuration of your experimental set-ups, please use our procurement service.
