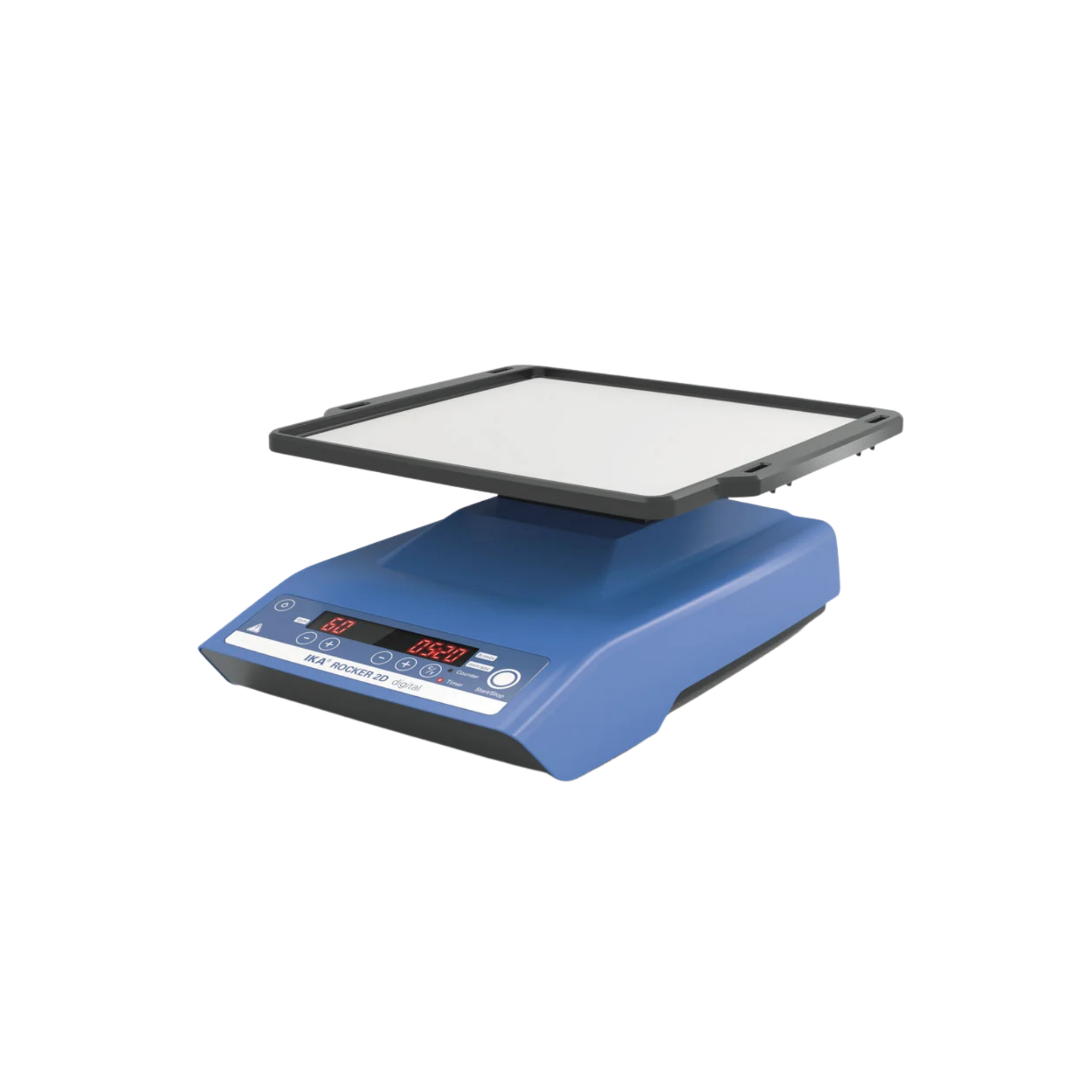

IKA ROCKER 2D digital, rocking shaker, 0004003000

The IKA ROCKER 2D digital 0004003000, a digitally controlled rocking shaker, is the technological solution to the increasing demands for process validation and reproducibility in modern pharmaceutical research and academic teaching. Whilst analogue devices often leave room for interpretation when setting the rotational speed, this model’s digital interface guarantees a precise definition of the kinetic parameters. For laboratory procurement officers, this means a significant reduction in sources of error within standardised operating procedures (SOPs). The precise frequency adjustment from 5 to 80 rpm makes it possible to tailor the shaking rhythm exactly to the viscosity of the medium and the sensitivity of the samples used – from the gentle mixing of sensitive cell cultures to intensive washing steps in proteomics.

Digital process control and validation in pharmaceutical research

In pharmaceutical drug discovery, the documentation of experimental parameters is essential. The IKA ROCKER 2D digital 0004003000 offers real-time monitoring of the shaking frequency and the remaining running time via its bright, easy-to-read LED display. The integrated timer function, which covers time intervals from one second up to almost 100 hours, allows for the automation of overnight experiments without the risk of kinetic overload of the samples. In environments operating in accordance with GLP (Good Laboratory Practice), this digital precision offers a decisive advantage over manually calibrated devices, as it minimises inter-experimental variability. The brushless DC motor ensures a constant speed regardless of load, even when the device is operating at its maximum load capacity of 2 kg.

Range of applications: From Western blots to cell culture

The practical applications of the IKA ROCKER 2D digital 0004003000 span key disciplines within the life sciences. In molecular biology, it is the standard tool for incubating membranes in Western blots. Here, the variably adjustable rocking angle of 2.5° to 15° prevents the formation of ‘dry spots’ – areas where the antibody solution fails to reach the membrane. By adjusting the angle, the liquid film can be controlled so that a minimal amount of reagent is sufficient for complete wetting, thereby reducing operating costs in the laboratory. In cell culture, the gentle, laminar wave motion enables optimal gas exchange (O₂/CO₂) at the phase boundary without detaching adherent cells from the vessel surface due to excessive shear stress. This makes the Rocker the ideal partner for cultivation in Petri dishes or multi-well plates within incubators.

Robustness and reliability for training and universities

For use in universities and educational institutions, the mechanical resilience of the IKA ROCKER 2D digital 0004003000 is a key selling point. The units are designed for continuous operation and can withstand the demands of changing user groups and high workloads. The thermal decoupling of the drive prevents heat transfer to the sample platform, which is particularly important during enzymatic reactions or when working with temperature-sensitive samples outside of climate-controlled cabinets. The housing is also designed to be easily decontaminated, which enhances safety in microbiological S1 or S2 laboratories. The supplied non-slip rubber mat (RD 1) ensures that all vessels remain securely in place even at high speeds and maximum tilt angles, thereby preventing glass breakage and sample loss during the hectic day-to-day routine of a laboratory.

Operational efficiency and infrastructure integration

The compact footprint of the IKA ROCKER 2D digital 0004003000 allows for integration into already fully utilised laboratory environments or use under fume cupboards. Thanks to the wide-range mains power supply (100–240 V), the unit can also be used flexibly at various global locations, making it attractive for international research collaborations. The brushless motor’s maintenance-free design reduces the total cost of ownership (TCO) over the device’s entire lifecycle. For laboratory managers who require scalability, the optional tiered system offers the possibility of doubling throughput within the same footprint without having to invest in a completely new system.

Technical Details

Kinematics & Dynamics

• Shaking motion: Rocking (two-dimensional)
• Tilt angle: 2.5° to 15° (digitally adjustable in 0.5° increments)
• Speed range: 5 rpm to 80 rpm
• Max. load weight (including attachment): 2.0 kg
• Drive system: Maintenance-free, brushless DC motor
• Duty cycle: 100% (suitable for continuous operation)

Metrology & Control Technology

• Display: Digital 7-segment LED for speed and time
• Timer function: Integrated, 1 s to 99 h 59 min
• Operating modes: Timer mode and continuous mode
• Speed setting: Keypad with digital feedback
• Load compensation: Electronically controlled constant speed under varying loads

Materials Science & Design

• Footprint (usable area): 280 mm x 280 mm
• Unit dimensions (W x H x D): 280 mm x 150 mm x 330 mm
• Weight: approx. 2.2 kg (easy to position in the laboratory)
• Surface finish: Chemical-resistant housing, easy to clean
• Interfaces: Connection for external power supply (24 V DC)

Environmental stability & safety

• Protection class in accordance with DIN EN 60529: IP 21 (protection against vertically falling water droplets)
• Permissible ambient temperature: 4 °C to 50 °C (suitable for use in an incubator)
• Permissible relative humidity: Max. 80%
• EMC compliance: In accordance with international laboratory standards

Contents of delivery

• 1 x IKA ROCKER 2D digital base unit
• 1 x RD 1 rubber mat (high-adhesion, non-slip)
• 1 x wide-range mains adaptor (for international use)
• 1 x Detailed user manual

Important note: Optional tier extensions and spacer bolts are available for vertical capacity expansion (multi-layer operation); these are not included in the standard scope of delivery.

Customised requirements & accessories

For specialised applications in proteomics or where high sample volumes are involved, it is strongly recommended that the IKA ROCKER 2D digital 0004003000 be expanded using the RD 2 tier system. This enables physically stable stacking of up to two tiers. For use in cleanrooms or under sterile conditions, care should be taken to ensure the integrity of the rubber mat to prevent cross-contamination. Suitable replacement mats and fixing kits for securing Erlenmeyer flasks can be obtained via our procurement service.
