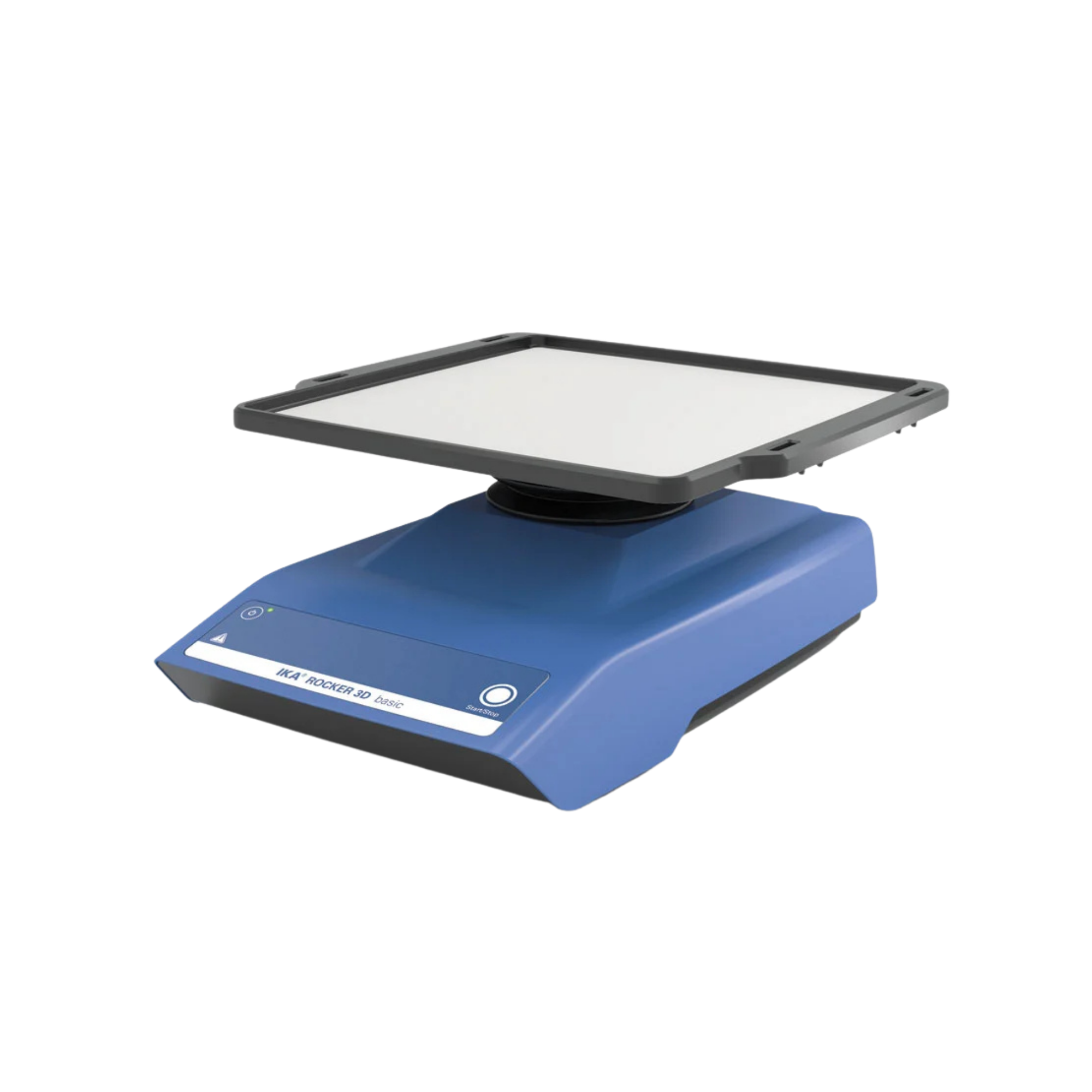

IKA ROCKER 3D basic shaker, tilting shaker, 0004000000

The IKA ROCKER 3D basic shaker is a specialised laboratory system solution designed for the gentle, three-dimensional mixing of sample media in molecular biology, haematology and clinical laboratories. When preparing cell cultures, performing DNA extractions, immunoblots or tissue staining, continuous, homogeneous wetting of the sample surface without mechanical stress is the decisive factor for reproducible experimental results. This highly efficient tumbler generates a constant, three-dimensional tumbling motion at a precisely defined angle of inclination. For laboratory managers and industrial procurement departments, the instrument offers maximum reliability and process stability in daily routine operations thanks to its robust construction and suitability for unattended continuous operation.

Kinetics and mixing behaviour of the three-dimensional motion

The mechanical operating principle is based on mathematically optimised tumbling kinetics, which induce a uniform, wave-like movement of the sample material. The fixed tilt angle of 7° and a constant speed of 30 revolutions per minute ensure efficient mixing with minimal foam formation. This is particularly essential when working with sensitive proteins or delicate cell suspensions in Petri dishes, culture flasks or reaction vessels. The precise mechanical guidance prevents uncontrolled acceleration peaks, allowing the liquid to rise evenly up the vessel walls without spilling over.

Structural strength and continuous operating limits

The mechanical structure of the ROCKER 3D basic is designed for a maximum shaking load of up to 2 kilograms. The robust drive concept ensures a permissible duty cycle of 100 per cent, enabling fault-free operation in incubators or cold rooms within a temperature range of 4 °C to 50 °C. The material properties of the housing guarantee high resistance to abrasive disinfectants and chemical agents. The non-slip rubber mat included in the scope of delivery reliably prevents the sample vessels from sliding around on the shaking platform, even at maximum load.

Ergonomic integration and operational reliability

The housing design complies with protection class IP 21 and effectively protects the internal winding assembly from vertically falling dripping water and mechanical impacts. The operation has been deliberately designed to be minimalist and fail-safe: a robust toggle switch controls the start-stop process directly on the front of the unit, which prevents operating errors in multi-user environments. The compact dimensions of 280 × 165 × 330 millimetres allow for space-saving integration on confined work surfaces or within biosafety workbenches, without restricting the logistical flexibility of the laboratory infrastructure.

Technical details

Shaking & Drive Technology

• Shaking motion: 3D (tumbling)
• Fixed tilt angle: 7°
• Max. shaking weight (incl. attachment): 2 kg
• Fixed speed: 30 rpm
• Permissible duty cycle: 100% (continuous operation)

Design & Dimensions

• Dimensions (W x H x D): 280 x 165 x 330 mm
• Weight: 2.2 kg
• Protection class according to DIN EN 60529: IP 21
• Permissible ambient temperature range: 4 – 50 °C
• Permissible relative humidity: 80 %

Electrical specifications

• Voltage: 100–240 V
• Frequency: 50/60 Hz
• Power consumption: 16 W
• Power supply output voltage: 24 V DC

Contents

• 1 x IKA ROCKER 3D basic shaker base unit
• 1 x non-slip rubber mat
• 1 x plug-in power supply unit for universal power supply
• 1 x user manual

Individual requirements & accessories

To ensure flexible use of the IKA ROCKER 3D basic shaker, we offer a selection of optional shaking mats and mounting adaptors. For mixing samples in Eppendorf cups or centrifuge tubes, studded mats are ideal as they physically prevent the vessels from tipping over. The device is validated for use in incubators to precisely control temperature-dependent reactions. Please use our procurement service to expand your setup as required.
