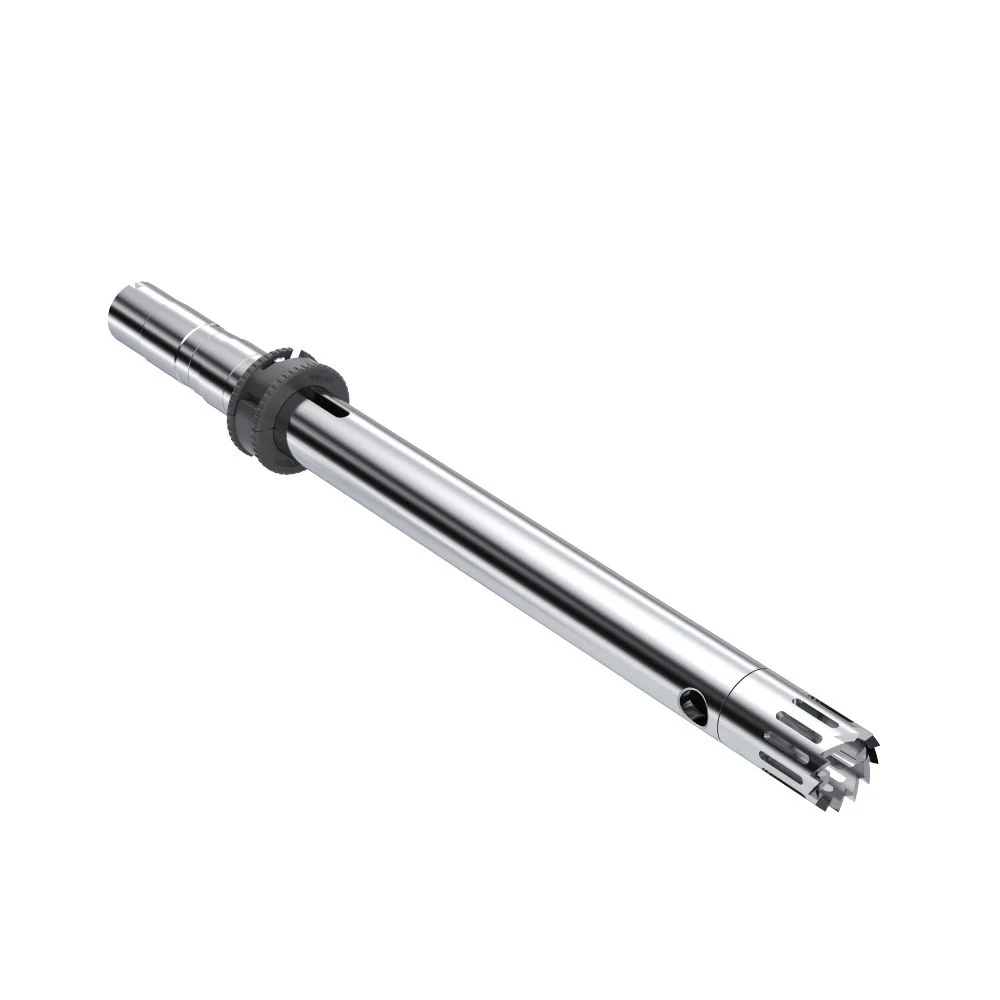

IKA S 25 EC - C - 18 G - ST mixing tool, Ø18 mm for T 25 easy clean, #0025007399

S 25 EC - C - 18 G - ST Dispersing tool
The S 25 EC-C-18G-ST dispersing tool is only compatible with the T 25 easy clean digital & control dispersers

Cleaning procedure for the easy clean tool: By turning and lowering the clamp, the shaft and rotor can be released until the entire rotor has exited the stator. The tool’s shaft tube can then also be thoroughly rinsed from the inside.

Bearing type: Ceramic plain bearing
Material in contact with the product: AISI 316L, ceramic
Suitable for solvents: Yes
Sterilisable: Yes, all methods
Max. operating temperature [°C]: 180
Installation length [mm]: 191
Stator / rotor diameter [mm]: 18 / 13.4
Gap width [mm]: 0.25
Recommended immersion depth [mm]: 35–150
Recommended working volume [mL]: 10–1500

Technical data:
Processable volume (H₂O) 0.01 – 1.5 l
Stator diameter 18 mm
Rotor diameter 13.4 mm
Gap width between stator and rotor 0.25 mm
Maximum permissible rotational speed 25,000 rpm
Maximum circumferential speed 17.5 m/s
Immersion depth 35–150 mm
Installation length 191 mm
Materials in contact with the product AISI 316L, ceramic
pH range 2 – 13
Suitable for solvents yes
Suitable for abrasive substances yes
Maximum operating temperature 180 °C
Sterilisability all methods
Final particle size of suspensions 10 – 50 µm
Final particle size of emulsions 1 – 10 µm
Weight 0.4 kg
