Dispersing tools
Dispergierwerkzeuge sind die Verschleißteile am Dispergierer – sie bestimmen Zerkleinerungsgrad, Durchsatz und Partikelgröße beim Homogenisieren. LT Laborhandel führt IKA Dispergierwerkzeuge in Sägezahn- und Feinausführung für die ULTRA-TURRAX-Serie, Einwegtuben für kontaminationsfreies Arbeiten sowie Rührwellen für Laborreaktoren. Das passende Grundgerät finden Sie unter Dispergiergeräte & Homogenisatoren. Welches Werkzeug zu Ihrer Probe passt, sagen wir Ihnen gerne.
IKA S 18 N - 19 G Dispersing tool, coarse, PTFE bearings, 10 to 1,500 ml, L004640
The IKA S 18 N – 19 G (L004640) is the standard tool for coarse dispersion tasks on the IKA T 18 series drives, such as the T 18 digital ULTRA-TURRAX. The stainless steel tool covers a working range of 0.01 to 1.5 litres (10 to 1,500 millilitres, based on water) and is therefore the obvious choice for day-to-day sample preparation when rapid grinding and mixing are required. Toothed geometry for pre-grinding The letter G in the model designation stands for ‘coarse’. Unlike fine-grinding tools, the stator of this model features a coarsely serrated geometry with a gap width of 0.25 millimetres between the rotor and stator. This makes the S 18 N - 19 G the obvious choice for the pre-grinding of solid sample components, the mixing of pigments or fillers into coarse suspensions, and for viscous media that could clog finer tools. PTFE bearings for contact with aggressive media The rotor shaft is mounted in a PTFE bearing, as indicated by the letter ‘N’ in the model designation. PTFE is chemically almost inert, meaning the tool can be used with aggressive solvents, acids and alkalis without the bearing being affected. One important application note remains: PTFE bearings rely on the medium for lubrication and cooling; the tool must therefore not run dry, otherwise the resulting frictional heat will destroy the bearing. Hygiene and material quality Manufactured from electropolished AISI 316L stainless steel, the tool meets high hygiene standards. It is corrosion-resistant, durable and can be easily dismantled and sterilised for applications in the medical or microbiological fields, whether by chemical disinfection, dry heat or in an autoclave. This prevents cross-contamination between different sample batches. Typical applications According to the manufacturer, the S 18 N - 19 G is designed as a dispersing tool for the T 18 digital drive for volumes ranging from 10 to 1,500 millilitres. In practice, it is suitable for: Preliminary grinding of solid components in liquid samples Coarse suspensions containing pigments or fillers Viscous media that would be too viscous for finer tools Sample preparation with high requirements for chemical resistance Selection guide within the tool range In addition to the coarse version described here, LT Laborhandel stocks further tools for the T-18 drives with different gap geometries or made from different materials. The S 18 N - 10 G, with a narrower gap width, is suitable for finer end products; for single-use requirements and applications where no cleaning is required between samples, the plastic tools S 18 D - 10 G - KS and S 18 D - 14 G - KS are available. Technical details Compatible drivesT 18 digital ULTRA-TURRAX and other T-18 drives (see Compatible drives) Processable volume (H₂O)0.01 to 1.5 l Stator diameter19 mm Rotor diameter12.7 mm Gap width between stator and rotor0.25 mm Maximum permissible speed25,000 rpm Maximum circumferential speed16.6 m/s Penetration depth35 to 170 mm Installation length204 mm Material in contact with the productPTFE, AISI 316L stainless steel pH range2 to 13 Suitable for solventsYes Suitable for abrasive substancesYes Max. operating temperature180 °C SterilisabilityAll methods Final particle size of suspensions10 to 50 µm Final particle size (emulsions)1 to 10 µm Weight0.379 kg Contents 1 x IKA S 18 N - 19 G dispersing tool A drive unit is not included; the tool is operated on a compatible T-18 drive. Compatible drives The S 18 N - 19 G is designed for use with several drives in the T-18 range: the T 18 digital ULTRA-TURRAX, as well as the T 18 digital Solution and T 18 mini digital Solution complete sets, which already include this tool. According to the manufacturer’s compatibility information, it is also compatible with the brushless drives T 18 brushless digital ULTRA-TURRAX, T 18 brushless digital Solution and the compact T 18 mini digital ULTRA-TURRAX. Use, maintenance and disposal Before first use, the tool should be securely screwed onto the drive unit and checked to ensure it is firmly in place. During operation, the tool must remain fully submerged in the medium at all times; the immersion depth ranges from 35 to 170 millimetres, depending on the container. After use, the tool can be detached from the drive unit for cleaning and, depending on requirements, chemically disinfected, treated with dry heat or autoclaved. As an accessory to an electrical appliance, the end-of-life tool must not be disposed of with household waste, but must be disposed of properly together with the associated drive unit. Individual requirements & procurement service Do you require a tool for finer emulsions, a spare part or assistance in selecting the appropriate gap geometry for your sample? Through our procurement service, LT Laborhandel can assist you with procurement and compatibility enquiries. Frequently Asked Questions Which drives is the S 18 N - 19 G suitable for?It is suitable for the T-18 drive family, including the T 18 digital ULTRA-TURRAX and the T-18 brushless drives. What do the letters G and N in the name mean?G stands for the coarse-toothed stator geometry, and N for the PTFE bearing on the rotor shaft. Can I use the tool with solvents?Yes, the PTFE bearing is virtually chemically inert and suitable for aggressive solvents, acids and alkalis, provided the tool does not run dry. Is the tool autoclavable?Yes, according to the manufacturer, it can be sterilised using all standard methods, including autoclaving.

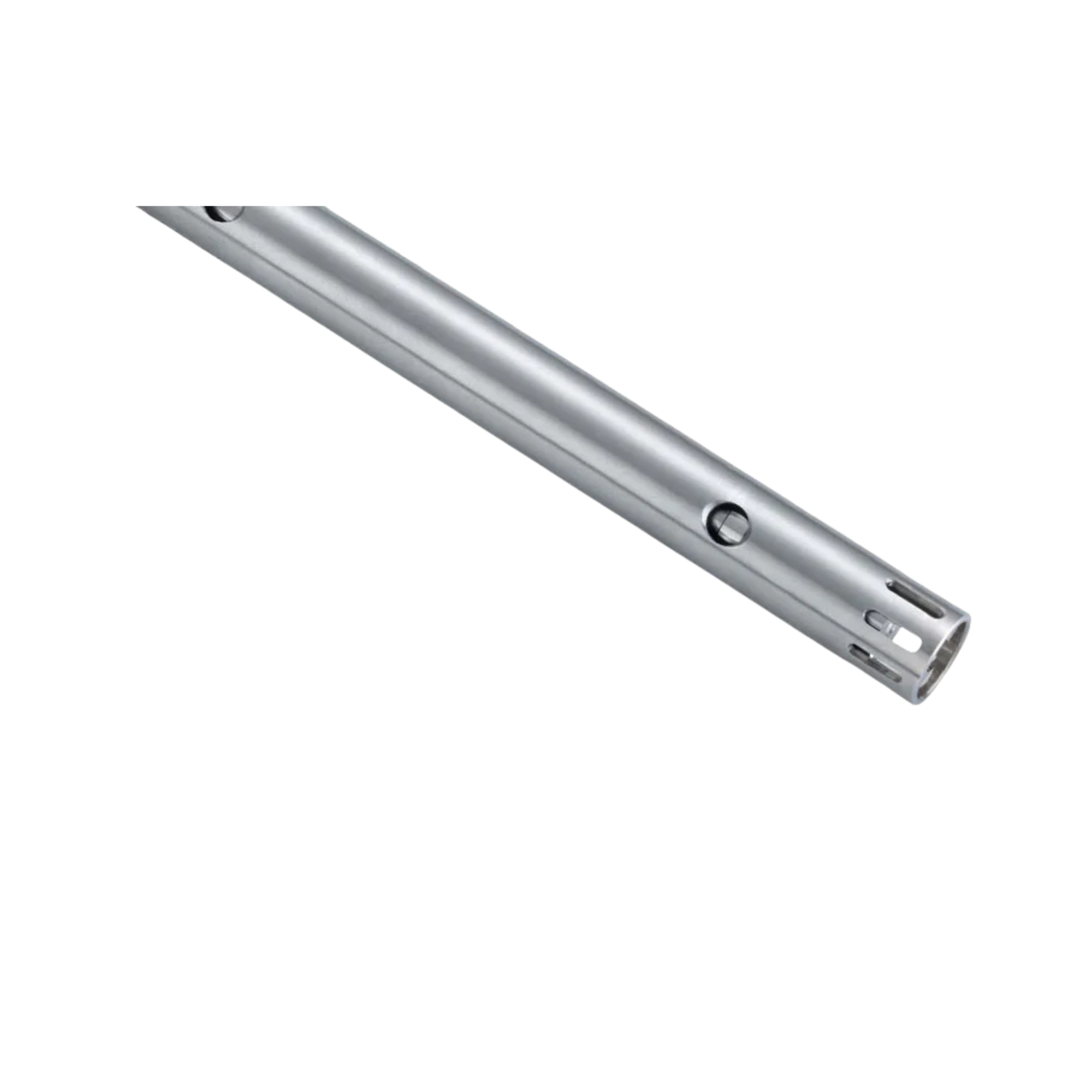

IKA S 18 N - 10 G dispersing tool, Ø 10 mm, L004639
The IKA S 18 N - 10 G dispersing tool is a specialised, materials-science-optimised system component designed for precise rotor-stator dispersion in the millilitre range. Designed for use with the high-performance laboratory dispersers of the ULTRA-TURRAX T 18 series, this dispersing shaft enables highly efficient sample preparation of biological, pharmaceutical and chemical media. In applications such as the disruption of tissue cells, the emulsification of cosmetic formulations or the suspension of poorly soluble active ingredients in laboratory vessels, the precise fluid-dynamic geometry of this tool prevents thermal stress on samples and ensures complete homogenisation. For laboratory managers and procurement officers in industrial research facilities, this tool offers the highest level of validity and process reliability in accordance with stringent GLP and GMP guidelines. Rotor-stator kinetics and process shear dynamics The mechanical operating principle is based on the tried-and-tested rotor-stator system, in which the inner rotor moves within the fixed stator at extremely high rotational speeds of up to 25,000 revolutions per minute. Due to the small radial gap between the rotor and stator, the sample medium is drawn axially into the dispersion head and then forced radially through the slots of the generator with enormous kinetic energy. The combination of extremely high shear forces, turbulent shear fields and transient cavitation effects guarantees particle and droplet size reduction down to the micrometre range. The 10 G generator is characterised by an optimised tooth geometry, which enables rapid primary fragmentation of fibrous, tough or cellular sample structures across an extended volume range. Material resilience and sterilisation cycles The material-specific system limits of the dispersing tool are defined by the consistent use of high-quality stainless steel (material number 1.4404 / AISI 316L) and a robust PTFE bearing. This material composition ensures outstanding chemical resistance to aggressive acids, alkalis and organic solvents, and gently prevents metallic cross-contamination in multi-user operations. A crucial criterion for molecular biological and microbiological applications is the instrument’s unrestricted sterilisability: the entire dispersing instrument is fully autoclavable at 121 °C and can be hot-air sterilised up to 180 °C, thereby guaranteeing an absolutely germ-free sample handling process. Ergonomic design features and working area The mechanical design features a stator diameter of 10 millimetres and a shaft length of 108 millimetres, enabling reliable operation in various reaction vessels and laboratory glassware. The working range covers a sample volume of 1 to 100 millilitres, allowing flexible sample series to be processed efficiently whilst minimising material wastage. Thanks to the shaft’s easy disassembly, the tool can be cleaned quickly and thoroughly after use, significantly speeding up the laboratory’s workflow and minimising downtime. Technical details Drive & Dispersion Technology Tool type: Rotor-stator dispersing tool Generator designation: 10 G Operating range (volume range H₂O): 1–100 ml Max. permissible speed: 25,000 rpm Gap width (radial gap): 0.25 mm Design & dimensions Stator diameter: 10 mm Rotor diameter: 7.5 mm Wavelength: 108 mm Minimum immersion depth: 20 mm Max. immersion depth: 85 mm Material (in contact with sample): Stainless steel (AISI 316L / 1.4404), PTFE Resistances & Certificates Sterilisation methods: Autoclavable (121 °C), hot air (up to 180 °C) Solvent resistance: Yes Acid/alkali resistance: Yes Contents of delivery 1 x IKA S 18 N - 10 G dispersing tool 1 x manufacturer’s quality certificate 1 x Safety and cleaning instructions Important note: A suitable drive unit from the IKA ULTRA-TURRAX T 18 series and stand accessories are not included in the standard scope of delivery and must be ordered separately. Individual requirements & accessories For the IKA S 18 N - 10 G dispersing tool to operate as intended, a drive unit from the IKA ULTRA-TURRAX T 18 series (e.g. T 18 digital) is required. To physically prevent abrasive wear of the internal PTFE bearings during dry running, the tool must always be immersed sufficiently deep into the sample medium (min. 20 mm) before switching on. In the event of long-term material fatigue, we stock suitable PTFE replacement seals and manufacturer-approved maintenance kits in our range. Please use our procurement service to select your laboratory peripherals.
IKA S 25 N - 25 F Dispersing tool, fine, PTFE bearings, 100–2000 ml, 0001713800
The finest particles for the most demanding requirements: the IKA S 25 N – 25 F The IKA S 25 N – 25 F (MPN 0001713800) is a high-performance dispersing tool specially developed for applications where particularly fine particle sizes are required. Compatible with the drive units of the IKA T 25 series (e.g. T 25 digital, T 25 easy clean), this tool transforms your disperser into a precision instrument for demanding emulsification and suspension tasks. It covers a working range from 100 ml to 2,000 ml (H₂O), making it the ideal all-rounder for medium-sized laboratory batches. The ‘F’ makes all the difference: rotor-stator geometry for fine results At IKA, the designation “F” stands for “Fine”. In contrast to the standard version (“G”=“Coarse”), this tool features a specially designed rotor-stator geometry with narrower slots and smaller clearances. This results in higher shear rates and more intensive mechanical processing of the sample. The result is significantly smaller particle sizes and more stable emulsions. This makes the S 25 N - 25 F ideal for the production of creams and lotions in cosmetic development, the homogenisation of dairy products, or the fine grinding of fibrous samples that have already been pre-ground. PTFE bearings (“N”) for universal resistance The “N” in the model designation indicates the type of bearing used: high-quality PTFE (polytetrafluoroethylene) is employed here. PTFE bearings are characterised by their excellent chemical resistance to almost all acids, alkalis and solvents. They also minimise heat build-up in the bearing area. Note: Tools with PTFE bearings are ideal for liquid applications, but must never be run dry, as the bearing is lubricated and cooled by the medium. Running the bearing dry would destroy it immediately. Material Quality and Hygiene All parts in contact with the medium are made from high-quality stainless steel (AISI 316L). This material is not only extremely corrosion-resistant but also meets the high hygiene requirements of the pharmaceutical and food industries. The tool is designed for operating temperatures of up to 180 °C and can be easily dismantled for cleaning and sterilisation. It is compatible with all standard sterilisation methods – including autoclaving (wet sterilisation) – which guarantees sterile operation in microbiological applications. Easy handling and maintenance Thanks to its standardised shank design, the S 25 N - 25 F can be mounted quickly and securely onto T 25 drives. Cleaning is straightforward thanks to its well-thought-out design: the tool can be dismantled into its individual parts in just a few simple steps to remove all residues and reliably prevent cross-contamination. Technical data Compatible drives: IKA T 25 digital, T 25 easy clean (digital/control) Working range (H₂O): 100 – 2,000 ml Stator diameter: 25 mm Rotor diameter: 18 mm Version: F = Fine Bearing: N = PTFE bearing Material (in contact with the medium): Stainless steel (AISI 316L), PTFE Max. temperature: 180 °C Sterilisation methods: All (including autoclaving) Generator gap: 0.5 mm Immersion depth: 40 – 165 mm Screw-in shaft: Yes Contents 1 x IKA S 25 N - 25 F dispersing tool Operating instructions (often included in the drive manual or supplied separately) Individual requirements & accessories Do you require tools for larger volumes, cutting tools (S 25 N – 25 G) for coarse pre-shredding, or special ceramic seals (‘K’ series) for vacuum applications? We stock the entire IKA tool range. Please contact our procurement service for assistance in selecting the right tool.
IKA S 25 N - 18 G - ST Dispersing tool, sawtooth, PTFE bearing, 10–1500 ml, 0004447300
The cutting specialist for fibrous media: IKA S 25 N - 18 G - ST With the S 25 N - 18 G - ST dispersing tool (MPN 0004447300), you can expand the range of applications for your IKA T 25 disperser (e.g. T 25 digital or T 25 easy clean) to include a crucial capability: the effective comminution of fibrous and viscous structures. Whilst conventional rotor-stator systems often become blocked with long-fibre samples or merely wrap the fibres around the rotor, this specialised tool reliably cuts them into small pieces. It covers a working volume range of 10 ml to 1,500 ml (H₂O) and is therefore ideal for sample preparation in biology, food chemistry or environmental analysis. Sawtooth technology (“ST”) for maximum cutting efficiency The abbreviation “ST” stands for “Saw Tooth”. If you look closely at the generator head, you can see its unique geometry: the stator ring is not only slotted but also features a serrated cutting edge. In combination with the high-speed rotating blade rotor, the system acts like a pair of extremely efficient scissors. This design makes the tool ideal for demanding tasks such as: Tissue disruption: shredding of muscle tissue, tendons or skin in medical diagnostics. Plant samples: homogenisation of leaves, roots or fibrous vegetables (e.g. asparagus, leeks). Material analysis: Processing of paper, pulp or textile samples. Durable and chemically resistant thanks to PTFE bearing (“N”) Like all “N” tools in the S 25 series, this model is also fitted with a high-quality PTFE bearing. PTFE (Teflon) is chemically almost inert and easily withstands aggressive acids, bases and solvents. This makes the tool universally applicable, regardless of the dispersing medium. Important note: As PTFE bearings require the medium for lubrication and cooling, the tool must not be allowed to run dry. Running dry would lead to immediate overheating and destruction of the bearings. Pharmaceutical-grade stainless steel The shaft and the generator elements are made of high-quality stainless steel (AISI 316L). This material is not only robust and rust-resistant, but also meets all hygiene requirements for use in the laboratory. The tool is designed for temperatures up to 180 °C and can be completely dismantled for cleaning. For sterile applications, the entire tool can be autoclaved (wet sterilisation) or sterilised with hot air, which effectively prevents cross-contamination. Easy replacement and cleaning Thanks to the standardised coupling, the S 25 N - 18 G - ST can be fitted to all drives in the T 25 range in a matter of seconds. It can be dismantled for cleaning without the need for special tools, ensuring that fibre residues can be safely removed from the cutting head. Technical data Compatible drives: IKA T 25 digital, T 25 easy clean (digital/control) Working range (H₂O): 10 – 1,500 ml Stator diameter: 18 mm Rotor diameter: 12.7 mm Design: G - ST (coarse with sawtooth) Bearing: N=PTFE bearing Material (in contact with the medium): Stainless steel (AISI 316L), PTFE Max. temperature: 180 °C Generator gap: 0.5 mm Immersion depth: 40 – 165 mm Sterilisation: All methods (fully autoclavable) Special feature: Cutting head for fibrous samples Contents of delivery 1 x IKA dispersing tool S 25 N - 18 G - ST Operating instructions (included with the drive or supplied separately) Individual requirements & accessories If you need to process extremely hard samples (e.g. tablets, bones), we may recommend using a pre-processing mill (e.g. IKA Tube Mill) instead of the cutting tools. For standard emulsions without fibres, it is better to use the classic “G” or “F” version without a serrated edge. Please contact our procurement service for application advice.
IKA S 18/25-ET50 disposable tube, 50 ml, for S 18 D / S 25 D, 0003452500
Safe dispersion in a closed system: IKA S 18/25-ET50 disposable tube The IKA S 18/25-ET50 (MPN 0003452500) is a practical single-use tube with a volume of 50 ml. It is the ideal solution for laboratories working with infectious, toxic or extremely odourous samples and which have the highest standards of safety and hygiene. Function: Splash protection and contamination control This tube has been specially developed for use with the disposable plastic dispersing tools from the IKA S 18 D and S 25 D series (compatible with the T 18 and T 25 drives). Easy to attach: The tube simply clips onto the shaft of the plastic tool. Sealed system: The precise fit creates a sealed chamber. The sample cannot splash out during homogenisation. Safety: It protects the user from hazardous aerosols and prevents contamination of the fume cupboard or the drive motor. No cross-contamination: As both the dispersing tool (S 18 D / S 25 D) and the tube are disposed of as a whole after use, sample carry-over (cross-contamination) is 100 per cent ruled out. Time-consuming cleaning and sterilisation are no longer necessary. Material and application The tube is made of robust polypropylene (PP). It is largely chemical-resistant and is ideally suited for applications in medical diagnostics, pharmaceutical research, forensic science or food analysis, where sterile or single-substance conditions are required. Technical data Model: S 18/25-ET50 Product type: Disposable sample vessel / splash guard Volume: 50 ml Material: Polypropylene (PP) Compatibility with tools: IKA S 18 D and S 25 D (disposable plastic tools) Drive compatibility: IKA T 18 (digital, brushless, mini) and T 25 (digital, easy clean, mini) Function: Enables dispersion in a sealed system Weight: approx. 0.014 kg Contents 1 x IKA S 18/25-ET50 disposable tube (50 ml) (Please note: The drive unit and disposable dispersing tools are not included and must be ordered separately!) Individual requirements & accessories To use this system, you must have the appropriate IKA disposable plastic tools (e.g. S 18 D - 10 G - KS or S 25 D - 14 G - KS). We would be happy to put together the appropriate consumables sets for your T 18 or T 25 drive. Please contact our procurement service.
IKA S 50 N - G 45 G - ST dispersing tool, sawtooth design, 0008039500
The IKA S 50 N - G 45 G - ST dispersing tool represents a high-purity and extremely powerful fluid-mechanical system solution for the professional comminution, homogenisation and suspension of demanding sample media on a laboratory and pilot-plant scale. This precision-manufactured rotor-stator system has been specifically validated for use with the high-performance IKA dispersing drives of the ULTRA-TURRAX T 50 series. In complex processes within the pharmaceutical processing industry, food analysis, biotechnology or pulp research, the disruption of viscous, fibrous or elastic sample structures is the primary criterion for producing homogeneous suspensions in a gentle and time-efficient manner for subsequent analytical steps. Fluid-mechanical comminution via sawtooth geometry The process-engineering heart of the tool is the generator in a special ST (Saw Tooth) design. The distinctive geometry of the saw teeth on the rotor and stator generates extremely high mechanical impact, cutting and shear forces in the transient shear gap. This mechanical kinetics is ideally designed to cut and disintegrate fibrous matrices – such as tissue structures, plant parts, tobacco, paper and wood pulps, as well as tough plastics or viscous emulsions – in a flash. Uncontrolled wrapping of fibres around the shaft is prevented by the flow-optimised tooth arrangement, ensuring gentle handling of the material and process reliability. Material-related inertness and uncompromising sterilisability The materials science design of the dispersing rod is consistently optimised for maximum chemical resilience and absolute freedom from contamination. All functional elements in contact with the medium are made of high-purity, stainless steel grade 1.4404 (AISI 316L). The shaft is supported by an extremely low-friction and wear-resistant PTFE bearing system. This combination of materials allows for continuous use in aggressive acids, alkalis and organic solvents. To ensure a sterile sampling environment and to completely rule out cross-contamination in multi-user operation, the entire tool can be easily sterilised in an autoclave or cleaned gently with standard disinfectants. Process reliability and convenient system integration The mechatronic system architecture guarantees safe and vibration-free power transmission even at maximum speeds of up to 10,000 revolutions per minute. The dispersing shaft can be quickly and tool-free secured in the T 50 digital drive via the standardised connection. Thanks to the generous immersion depth of up to 250 mm and the fluid-mechanical geometry, the tool is certified for a wide working volume ranging from 0.5 to 20 litres (based on water). This offers laboratory managers and industrial users maximum flexibility when scaling up processes from research to pilot plant scale. Technical details Metrology & Dispersion Specifications Tool type: Rotor-stator dispersing tool Model designation: S 50 N - G 45 G - ST Operating range (volume range for H₂O): 0.5 to 20 litres Generator design: G (Coarse) with ST geometry (sawtooth) Maximum speed range: 10,000 rpm Maximum peripheral speed: approx. 18.8 m/s Design, materials & geometry Materials in contact with the medium: Stainless steel 1.4404 (AISI 316L), PTFE Stator diameter: 45 mm Rotor diameter: 36 mm Shear gap (distance): approx. 0.5 mm Minimum immersion depth: 70 mm Max. immersion depth: 250 mm Shaft diameter: 30 mm Overall length: 290 mm Operating conditions & cleaning Solvent resistance: Yes (universal chemical resistance) Cleaning: Autoclavable (up to 121 degrees Celsius) and hot-air sterilisable (up to 180 degrees Celsius) Bearing type: PTFE plain bearing (shaft-guided, low-maintenance) Contents 1 x IKA S 50 N - G 45 G - ST dispersing tool (MPN: 0008039500) 1 x Operating instructions / Quality certificate Important note: The required dispersing drive (e.g. IKA ULTRA-TURRAX T 50 digital), stand fixtures, cross-sockets and sample vessels are not included in the standard scope of delivery and must be configured separately. Individual requirements & accessories To get the most out of the IKA S 50 N - G 45 G - ST tool, we recommend using it with the original ULTRA-TURRAX T 50 digital dispersing drive. To ensure a safe and vibration-free setup at your laboratory workstation, our range includes suitable telescopic stands (R 2722 or R 2723), robust cross-sockets (R 271) and practical vessel holders (RH 5). Should you wish to process samples requiring finer final homogenisation, we also offer alternative IKA generator heads with medium (M) or fine (F) toothing. For the regular replacement of wear parts, we stock original PTFE replacement bearings. Please use our technical procurement service to put together your complete homogenisation system.
IKA S 25 KD - LR - 25 G dispersing tool (for laboratory reactors), 0025007321
The IKA S 25 KD - LR - 25 G is a specialised dispersing tool designed primarily for use in IKA laboratory reactors (LR series). The distinctive feature of this tool lies in its geometric design: it has an extended shaft (267 mm installation length), which allows for deeper immersion into reactor vessels. This is crucial for ensuring efficient homogenisation even at low liquid levels or with small sample volumes, without the reactor needing to be filled to the brim. KD design for vacuum and cleaning The abbreviation ‘KD’ stands for a special sealing and bearing design that allows operation under vacuum down to 100 mbar. This makes the tool ideal for processes where air ingress must be avoided or which take place under reduced pressure (e.g. degassing during dispersion). At the same time, the KD design enables tool-free disassembly: the rotor can be easily removed, which significantly facilitates cleaning and sterilisation (wet chemical or autoclave) and prevents cross-contamination. Material quality and FDA compliance All parts in contact with the product are manufactured from high-quality materials: stainless steel (AISI 316L), PTFE and FFPM. This combination not only ensures high chemical resistance (pH 2–13) and solvent compatibility, but also meets the strict requirements of the FDA. This makes the tool ideally suited for applications in pharmaceutical and food development, where the highest levels of purity are required. Technical details Processing volume (H₂O): 0.05 – 2.0 l Stator diameter: 25 mm Rotor diameter: 17 mm Gap width: 0.5 mm Installation length: 267 mm Immersion depth: 40–220 mm Final particle size (suspensions): 15–50 µm Final fineness (emulsions): 1–10 µm Max. operating temperature: 150 °C Vacuum resistance: up to 100 mbar Materials (in contact with the product): AISI 316L, PTFE, FFPM Max. peripheral speed: 22.2 m/s Compatibility: T 25 digital, T 25 easy clean (digital/control) Contents of delivery IKA S 25 KD - LR - 25 G dispersing tool Customised requirements & procurement service Do you require the even finer ‘F’ version for emulsions, or the shorter standard version without the ‘LR’ extension? We stock the full range of IKA dispersing accessories and can advise you on compatibility with your existing reactor systems.
IKA S 25 KV - 2802 Dissolver Stirring Shaft, high speed, Stator Ø 39 mm, for T 25, 0020008825
The S 25 KV - 2802 (0020008825) dissolver agitator shaft has a rotor with a diameter of 30 mm and achieves a peripheral speed of 39.3 m/s at 25,000 rpm. IKA describes it as a high-speed agitator for intensive mixing and the breaking up of agglomerates. It is suitable for volumes of 0.1 to 2 l and is compatible with T-25 drives.Mechanical seal and materialsThe shaft is mounted in a ball bearing with a mechanical seal. The counter ring and seal ring are made of SiC, whilst the O-rings are made of Kalrez. Materials in contact with the product include FFPM, SiC, AISI 316L and AISI 302; the unit is FDA-compliant. It may be used under vacuum down to 1 mbar and at pressures up to 6 bar.Operating limitsThe pH range is from 2 to 13; solvents are permitted. Temperatures of up to 220 °C are permitted for short periods; sterilisation may be carried out using any method. The immersion depth is 40 to 225 mm, the installation length is 270 mm, and the weight is 0.56 kg.Typical applicationsIntensive mixing in high-speed agitator operation for batches of 0.1 to 2 lBreaking up agglomeratesOperations under vacuum down to 1 mbar or pressure up to 6 barBatches containing solvents in the pH range 2 to 13Processes involving short-term temperatures of up to 220 °CBatches where the tool is sterilised between runsTechnical detailsProcessable volume (H2O)0.1 to 2 lStator diameter39 mmRotor diameter30 mmMax. permissible speed25,000 rpmMax. peripheral speed39.3 m/sPenetration depth40 to 225 mmInstallation length270 mmBearings and sealsBall bearing, mechanical seal (SiC, Kalrez O-rings)Materials in contact with the productFFPM, SiC, AISI 316L, AISI 302pH range2 to 13Suitable for solventsYesMax. operating temperature220 °C (for short periods)Sterilisabilityall methodsVacuum1 mbarMax. pressure6 barFDA complianceYesWeight0.56 kgScope of delivery1 x IKA S 25 KV - 2802 dissolver stirrer shaft (single tool)The drive unit (T 25 easy clean digital, T 25 easy clean control, T 25 digital or T 25 mini control) is not included in the Scope of delivery.Position within the KV-25 seriesThe S 25 KV - 25 F has the same installation length of 270 mm and the same immersion depth of 40 to 225 mm, but only an 18 mm rotor diameter and a circumferential speed of 23.6 m/s. It specifies a final fineness of 5 to 25 µm for suspensions. With a 17 mm rotor and 22.2 m/s, the S 25 KV - 25 G operates (0.05 to 2 l, 15 to 50 µm for suspensions). All three tools feature a SiC mechanical seal, can operate under vacuum down to 1 mbar and under pressure up to 6 bar, and are constructed from FFPM, SiC, AISI 316L and AISI 302. Differences lie in the design (dissolver agitator shaft versus dispersing tool) and in the diameters of the stator and rotor.Individual requirements and procurement serviceLT Laborhandel can source the appropriate T-25 drives and other tools on request. Through the procurement service, the selection can be tailored to your specific application.

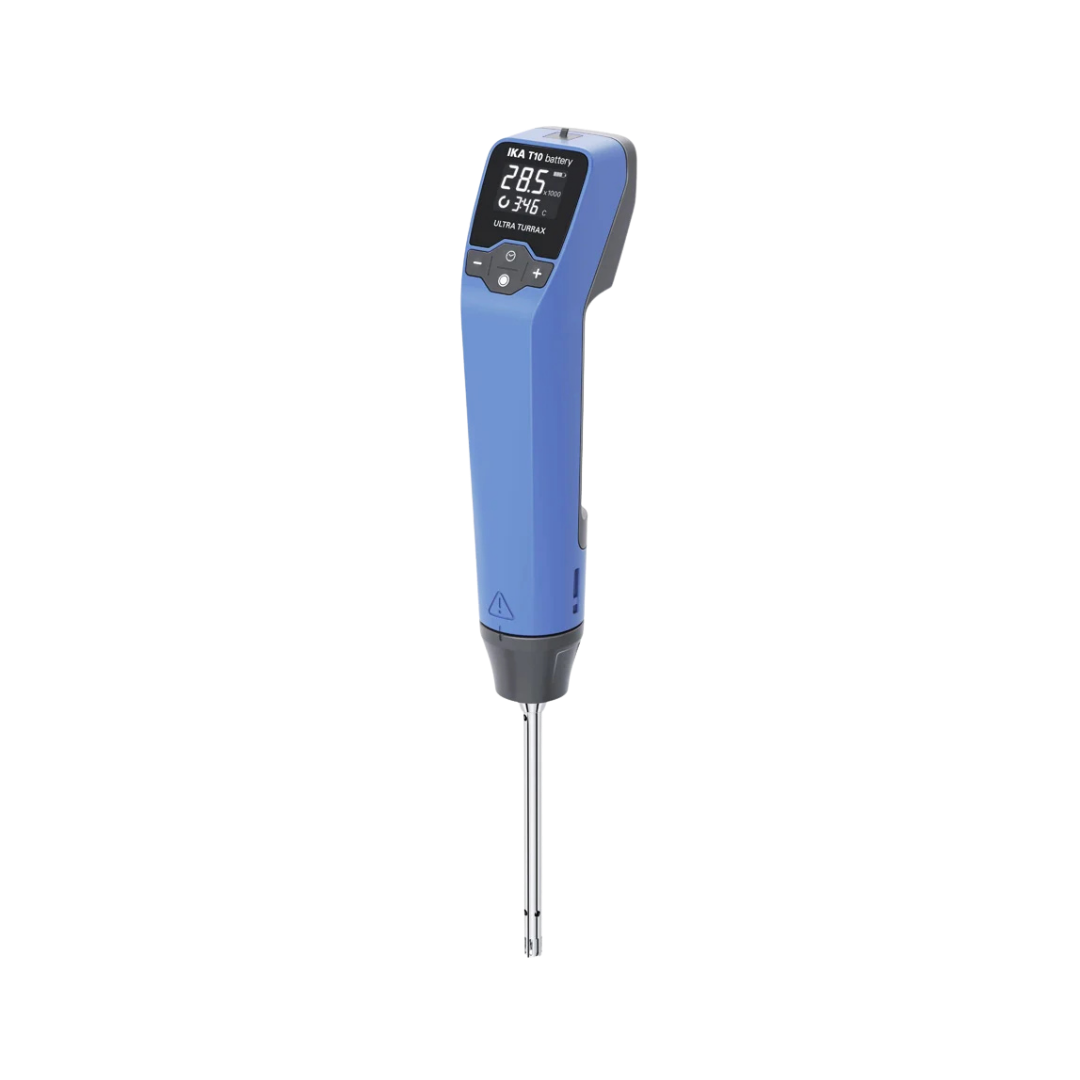

IKA T 10 Battery-powered Portable Solution Disperser Set, 0.5 to 100 ml, up to 30,000 rpm, 0010015684
The T 10 battery Portable Solution combines the battery-powered T 10 battery ULTRA-TURRAX disperser with a matching dispersing tool to form a ready-to-use set. For those looking for a basic mobile kit for sampling outside the laboratory, this eliminates the need to select a tool separately from the range of accessories.What’s included in the setIn addition to the drive unit, the set includes an S 10 N - 5 G dispersing tool, a reusable stainless steel tool with a diameter of 5 millimetres. You can start using it straight out of the box, without having to order a suitable tool size separately beforehand. A stand and clamp are not included in this starter set; those wishing to work in a stationary setup will find the appropriate equipment in the T 10 battery Complete Solution.Battery operation for mobile useThe battery consists of three permanently fitted LiPo cells with a voltage of 10.8 volts and an energy capacity of 34.56 watt-hours; it is charged via a USB-C cable or charging clamp. The device remains operational even without a power socket within reach. The speed can be adjusted continuously between 8,000 and 30,000 revolutions per minute via the LCD display, whilst a timer facilitates reproducible process steps.Brushless motor for quiet operationThe brushless DC motor operates at a noise level of 65 dB(A) without a tool attached and draws a maximum of 45 watts when charging from the mains; during actual use, the motor is powered solely by the battery. The working volume ranges from 0.5 to 100 millilitres (H₂O), and the maximum viscosity is 200 mPas.Add accessories as requiredIf your requirements exceed those of the supplied S 10 N - 5 G tool, further dispersing tools from the same T-10 series are available in other diameters, as well as an R 104 stand with an H 44 cross-sleeve for a later switch to stationary operation. Those who require this equipment from the outset can avoid having to purchase additional items later and opt directly for the T 10 Battery Complete Solution.Typical applicationsSampling in the field or on site visits without mains powerHomogenisation of small volumes directly at the sampling siteMobile quality control with a dedicated toolSelection guide: Portable, Complete or Tissue Safe?The Portable Solution is the most compact of the three T-10 battery sets, designed for anyone looking for a ready-to-use basic set without a stand. Those who also wish to work in a stationary setup with a stand and clamp will find the right equipment in the T 10 battery Complete Solution. Those who primarily process tissue samples and need to prevent cross-contamination between samples are better served by the disposable tools of the T 10 battery Tissue Safe Solution. The drive unit alone, without tools, is available as the T 10 battery ULTRA-TURRAX; for mains operation without a battery, it is available as the T 10 basic ULTRA-TURRAX.Technical detailsMotor power input / output30 W / 25 WProcessable volume (H₂O)0.5 to 100 mlMax. viscosity200 mPasSpeed range8,000 to 30,000 rpm, continuously variable (5% deviation)Speed displayLCDMotor typebrushless, direct currentNoise level without tools65 dB(A)Boom diameter / boom length8 mm / 100 mmDuty cycleON 10 mins, OFF 5 minsTimerYes, LCD displayPermissible ambient temperature / humidity5 to 40 °C / 80 %Protection classIP 30 in accordance with DIN EN 60529USB interfaceUSB-CCharging input15 V =, max. 45 W, 3,000 mABattery typeCustom LiPo, 3 cells, type 18650-3S1PBattery capacity34.56 WhBattery voltage10.8 VBattery installationpermanently fittedDimensions (W x H x D) of drive unit53 x 239 x 70 mmWeight of drive unit0.5 kgDispersing tool suppliedS 10 N - 5 G, reusable, stainless steel, 5 mmContentsT 10 battery ULTRA-TURRAX drive unit including permanently fitted batteryS 10 N - 5 G mixing tool, reusable, stainless steel, 5 mmRegulatory informationThe drive unit in this set is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). It contains a permanently installed lithium battery and, together with the battery, must not be disposed of with household waste. The WEEE registration number of the manufacturer IKA is DE 66784213. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.Warranty and procurement serviceThe T 10 battery Portable Solution is covered by IKA’s manufacturer’s warranty: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For additional accessories such as further dispersing tools, a stand or a clamp, LT Laborhandel’s procurement service will handle the assembly.

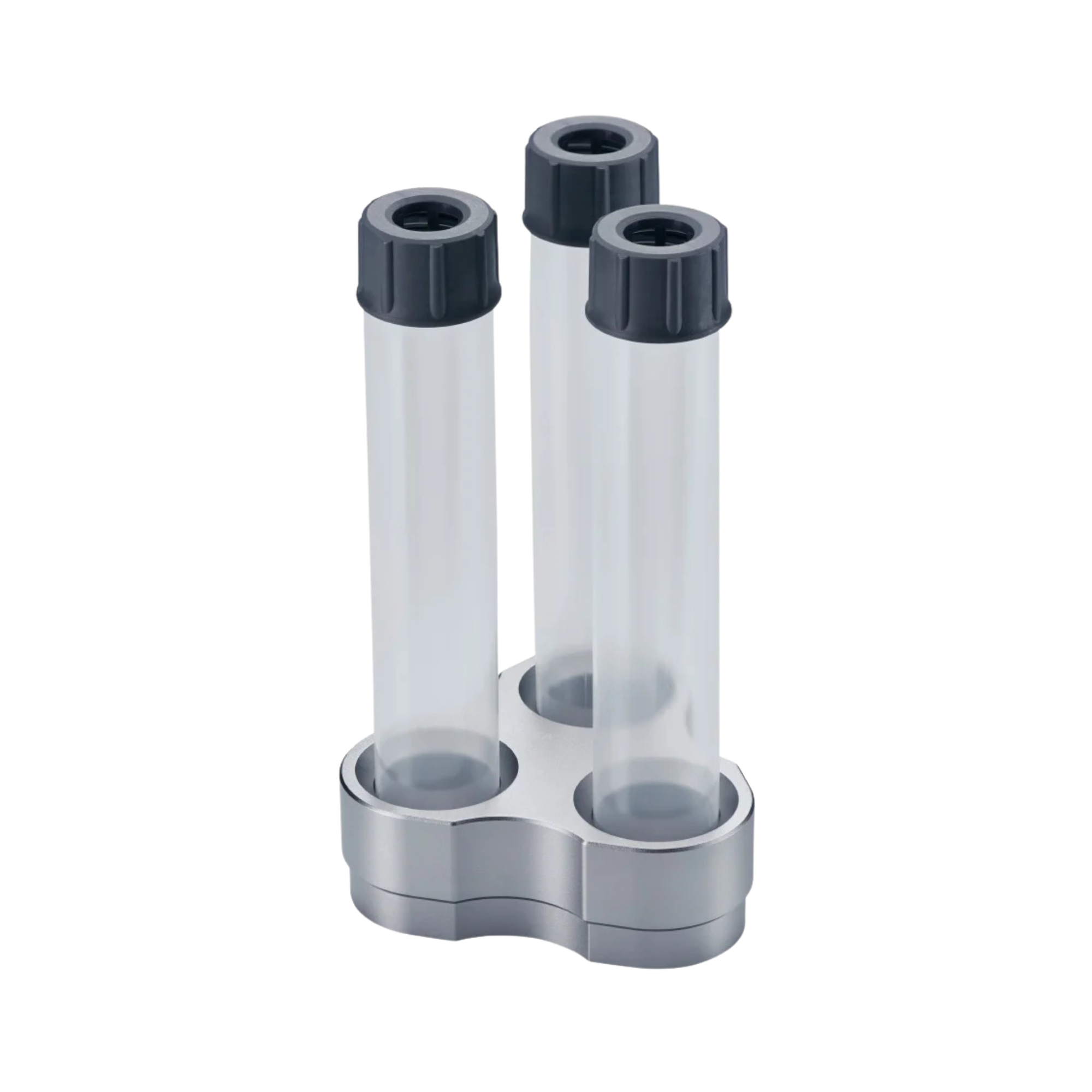

IKA TS 25-3 Cleaning tool, cleaning tool for T 25 disperser, 0020003013
Maximum analytical reliability through impeccable hygiene: the IKA TS 25-3 Cleaning Tool In modern laboratory practice – be it in strictly regulated pharmaceutical quality control, highly sensitive food analysis or microbiological research – sample preparation is by far the most critical step. High-performance dispersing tools break down tissue, emulsify oils or suspend powders using immense shear forces. In the process, microscopically small sample particles are inevitably forced deep into the narrow gap between the rotor and stator, as well as into the tool’s internal plain bearings. If these residues are not removed one hundred per cent after every single sample, there is a risk of the dreaded cross-contamination (carry-over). Even invisible traces of DNA, allergens or active pharmaceutical ingredients from the previous sample can completely skew the subsequent analysis, leading to fatal misinterpretations or costly product recalls. Manually scrubbing the sharp-edged tools under running water is not only extremely time-consuming, but also poses a high risk of injury to laboratory staff. To standardise this essential cleaning process, make it safer and significantly speed it up, IKA has developed the TS 25-3 Cleaning Tool (MPN 0020003013). This intelligent cleaning system is the ultimate solution for all users of the T 25 disperser series who cannot afford to compromise on the cleanliness of their instruments. The systematic 3-stage cleaning procedure At the heart of the IKA TS 25-3 system lies not only the hardware itself, but also the establishment of a validatable Standard Operating Procedure (SOP) for your laboratory. With this tool, IKA recommends a precisely defined and highly effective cleaning process comprising three consecutive steps: Pre-cleaning (solvent): In the first step, coarse contamination is removed. The contaminated dispersing tool is inserted into the first tube, which is filled with a solvent suitable for your sample. Switching on the dispersing drive creates a powerful suction that forces the solvent through the shear gap with high kinetic energy, mechanically and chemically dislodging even stubborn, greasy or sticky residues. Main cleaning (cleaning agent): In the second step, you move on to the next tube, which is filled with a specific laboratory cleaning agent (surfactant mixture). Here, proteins are denatured, fats are emulsified and any remaining organic or inorganic deposits are separated from the tool’s high-quality stainless steel at a molecular level. Final cleaning (rinsing): The third and final step takes place in the last tube, which contains pure, demineralised water. This rinsing cycle thoroughly washes all remaining traces of the previously used solvents and cleaning agents out of the tool. The result is a chemically pure, residue-free dispersion tool that is immediately ready for the next highly sensitive sample. Occupational health and safety at the highest level In addition to analytical purity, the TS 25-3 Cleaning Tool offers an invaluable advantage in terms of occupational health and safety. When solvents or aggressive surfactants are dispersed openly in a beaker to clean a tool, dangerous aerosols are inevitably produced, which can be inhaled by laboratory staff. The TS 25-3 system eliminates this hazard. The ingenious tube holder secures the three supplied tubes firmly and stably. Thanks to the matching caps, the cleaning process takes place in a largely enclosed system. This effectively prevents toxic solvents or hot cleaning solutions from being sprayed out. It also eliminates the need for dangerous manual handling with brushes near the razor-sharp, rotating blades of the dispersing tool. Comprehensive compatibility with the T 25 ecosystem IKA has seamlessly integrated this cleaning tool into its existing product portfolio. The TS 25-3 Cleaning Tool is designed exclusively for use in combination with the globally proven high-performance dispersers of the T 25 class, namely the T 25 digital and the modern high-tech drives T 25 easy clean digital and T 25 easy clean control. In terms of tools, the system covers an enormous range. It has been specifically developed for cleaning a wide variety of stainless steel dispersing tools, including models from the S 25 N series (e.g. S25N-18G/18G-ST, S25N-25G/F/25G-ST), the S 25 KR series (e.g. S25KR-18G/18G-ST, S25KR-25G/25F/25G-ST) and the vacuum-sealed S 25 KV series (S25KV-18G/25G/25F). Cost-effectiveness and Total Cost of Ownership (TCO) At first glance, a specialised cleaning tool may seem like nothing more than a luxury item. However, if a detailed full-cost analysis is carried out, the TS 25-3 pays for itself extremely quickly in laboratories with high sample throughput. The working time saved by highly qualified laboratory staff, who no longer have to stand at the sink for minutes on end, is considerable. Far more crucial, however, is the extension of the service life of your expensive dispersing tools. Improper manual cleaning often leads to microscopic scratches on the stator or damage to the sensitive plain bearings caused by dried-on sample residues. Hydrodynamic cleaning in the TS 25-3 is gentle on the material, prevents shafts from seizing up and thus massively reduces your ongoing spare parts costs. Investing in the IKA TS 25-3 Cleaning Tool means investing in certifiable process reliability, the protection of your staff and the uncompromising reliability of your analytical results. Technical data System type: 3-stage cleaning system for dispersing tools Cleaning phases: 1. Solvent, 2. Detergent, 3. Demineralised water Compatible drive motors: IKA T 25 digital, T 25 easy clean digital, T 25 easy clean control Compatible tools (selection): S 25 N series (18G, 25G, 25F), S 25 KR series, S 25 KV series Health and safety benefit: Reduces aerosol formation and contact with sharp rotor blades Analytical benefit: Prevents cross-contamination (carry-over) Contents 1 x tube holder (sturdy base) 3 x cleaning tubes 3 x caps (for splash and aerosol protection) (Please note: The dispersion drive and the dispersion tools are not included in the scope of delivery!) Individual requirements & accessories Have you switched to the newer generation of ‘easy clean’ (EC) tools in your laboratory, which can be cleaned without any dismantling? For machine cleaning in the laboratory dishwasher, we recommend the IKA HS 25 EC - DW Holder as a supplementary item. Do you work with highly infectious samples and wish to avoid cleaning altogether? In that case, we would be happy to advise you on IKA’s sterile, single-use plastic tools. Please feel free to contact our expert procurement service at any time for a bespoke optimisation of your laboratory processes.
IKA S 50 KD - G45F Dispersing Tool, Ø 45 mm, Ball Bearings, for T 50, 0010000631
The S 50 KD - G45F (0010000631) is designed for batch sizes ranging from 0.25 to 10 l. The stator measures 45 mm, the rotor 40 mm; at 10,000 rpm, speeds of up to 20.9 m/s are achieved at the rotor circumference. IKA specifies the T 50 digital as the drive.Ball bearing with PTFE sealThe shaft runs in a ball bearing with a PTFE seal and an FFKM O-ring. Materials in contact with the product are FFPM, PTFE and AISI 316L. The pH range is 2 to 13; solvents are permitted. Under vacuum, the tool may be used down to 100 mbar; the maximum operating temperature is 150 °C. IKA states that it is autoclavable.Gap, fineness and dimensionsThe gap between the rotor and stator is 0.5 mm wide. The final fineness ranges from 10 to 30 µm for suspensions and from 1 to 10 µm for emulsions. The immersion depth is 70 to 260 mm with an installation length of 300 mm; batch sizes of 250 to 10,000 ml are recommended. The tool weighs 0.658 kg.Typical applicationsDispersing and emulsifying in batches of 0.25 to 10 lSuspensions with final particle sizes of 10 to 30 µmEmulsions with final particle sizes of 1 to 10 µmOperations under vacuum down to 100 mbarBatches containing solventsSamples where the tool is autoclavedTechnical detailsProcessable volume (H2O)0.25 to 10 lStator diameter45 mmRotor diameter40 mmStator/rotor gap width0.5 mmMax. permissible speed10,000 rpmMaximum circumferential speed20.9 m/sPenetration depth70 to 260 mmInstallation length300 mmBearing and sealBall bearing, PTFE seal, FFKM O-ringMaterials in contact with the productFFPM, PTFE, AISI 316LpH range2 to 13Suitable for solventsYesMax. operating temperature150 °CSterilisabilityAutoclavableVacuum100 mbarFinal particle size of suspensions10 to 30 µmFinal particle size of emulsions1 to 10 µmWeight0.658 kgScope of delivery1 x IKA S 50 KD - G45F dispersing tool (single tool)The T 50 digital drive is not included in the Scope of delivery.Same dimensions, different bearing arrangementThe S 50 N - G 45 F has the same stator, rotor and gap dimensions (45, 40 and 0.5 mm). It is made of PTFE and AISI 316L, has a specified operating temperature of 180 °C and an installation length of 290 mm with an immersion depth of 70 to 250 mm. The S 50 KG - HH - G 45 F also has a 45 mm stator and a 40 mm rotor, plus a mechanical seal and a vacuum rating of up to 1 mbar. The S 50 KD - G45M (0.5 to 15 l) has a narrower gap of 0.25 mm and a 40.5 mm rotor.Individual requirements and procurement serviceWhether you need a second tool to swap in, the T 50 digital drive or guidance on selecting the right geometry: LT Laborhandel can source the equipment and provide advice through its procurement service.
IKA S 25 KV - 26 LR Dissolver Agitator, High Speed, Ø 26 mm, 0020015397
Maximum efficiency in dissolution and deagglomeration: the IKA S 25 KV - 26 LR dissolver The IKA S 25 KV - 26 LR dissolver (MPN 0020015397) represents the very pinnacle of modern mixing and dispersion technology for demanding laboratory reactor systems. In many industrial and research sectors – be it in chemical synthesis, cosmetics development, paint production or food technology – users face the significant daily challenge of homogeneously incorporating fine powders, highly cohesive solids or sticky pigments into liquid media. Very often, stubborn agglomerates form when these solids are stirred in. These disruptive clumps of particles are simply moved in circles by conventional agitators such as propeller, paddle or anchor agitators, but are not effectively broken up mechanically. The result is incomplete reactions, poor textures or significantly prolonged process times. This high-speed dissolver was designed precisely for these critical and energy-intensive process steps. It delivers uncompromising performance in intensive mixing, dissolution and deagglomeration to ensure homogeneous, completely lump-free dispersions in the shortest possible time. The aerodynamic dissolver principle In direct comparison to a conventional rotor-stator dispersing tool, in which the medium is forced through a very narrow, defined gap between two components, the S 25 KV - 26 LR model utilises a specially serrated dissolver disc with a diameter of 26 millimetres. This solid metal disc rotates freely at extremely high speeds (high speed) within the liquid medium. The sharp teeth on the edge of the disc, which are alternately curved upwards and downwards, generate immense local shear forces and strong turbulence. The rotation accelerates the liquid radially outwards with great force, which simultaneously creates an enormous axial suction effect (vortex formation) at the centre. This intelligent flow pattern draws the floating or agglomerated powder particles from the liquid surface directly downwards towards the rotating toothed disc. There, they are literally shattered by the high kinetic energy of the teeth and broken down into their fine primary particles. In process engineering, this principle is the absolute gold standard method for the rapid incorporation of poorly wettable thickeners, colour pigments or high-molecular-weight polymers into aqueous or highly solvent-based systems. Vacuum and pressure tightness (the ‘KV’ seal) Another outstanding feature of this stirring tool, which is indispensable for many applications, is indicated by the specific abbreviation ‘KV’. In IKA products, this stands for a high-quality ball bearing system combined with a special sealing technology that makes the tool absolutely vacuum- and pressure-tight (up to the respective system-specific limits of the laboratory reactors). When working professionally with state-of-the-art laboratory reactors such as the IKA LR 1000 control System or the versatile LR-2.ST series, this leak-tightness is of fundamental importance. Sensitive chemical reactions or the production of high-purity cosmetics and emulsions often require the strict exclusion of oxygen. Users must work under a protective inert gas atmosphere or specifically degas the sample under vacuum to avoid disruptive air pockets in pasty, viscous media. A conventional, open dispersing tool would cause the reactor chamber to leak under these extreme conditions and ruin the process. The S 25 KV - 26 LR dissolver agitator, on the other hand, seals the reactor opening absolutely securely via the flange. This allows you to deagglomerate your samples at full high-speed rotation whilst a strong vacuum is maintained inside the vessel – an enormous technological advantage for process quality. Material quality, hygiene and compatibility As this dissolver stirrer is designed for direct, continuous contact with aggressive chemicals, highly abrasive pigments and reactive media, all parts in contact with the media (including the dissolver disc and the shaft) are made from high-quality, chemically extremely resistant AISI 316L stainless steel. This industrially proven material not only guarantees outstanding resistance to most organic solvents, acids and alkalis, but can also be cleaned safely and thoroughly after use, leaving no residue. Thanks to its robust construction, the unit is ideally suited to the rigours of everyday laboratory use. As an original accessory, the S 25 KV - 26 LR is precisely matched to IKA’s reactor platforms. It is fully compatible with the T 25 digital LR disperser, the LR 1000 systems (basic and control) and the entire LR-2.ST series (including Allrounder, High Performer and Starvisc). Investing in this highly specialised tool massively increases the efficiency of your laboratory processes, significantly reduces mixing times and decisively optimises the quality of your end products. Technical data Model: S 25 KV - 26 LR Product type: High-speed dissolver stirring shaft Operating principle: Dissolver disc (toothed disc) for high shear forces Dissolver disc diameter: 26 mm Max. immersion depth: 180 mm Bearing/seal: Ball bearing, vacuum- and pressure-tight (KV) Material in contact with the medium: Stainless steel (AISI 316L) Main application: Intensive mixing, dissolution, breaking up of agglomerates (e.g. pigments) Compatible drives/reactors: IKA T 25 digital LR, LR 1000 basic system, LR 1000 control system, LR-2.ST (Allrounder, High Performer, Versatile, Compact Power, Starvisc 200) Scope of supply 1 x IKA S 25 KV - 26 LR dissolver agitator (Please note: The reactor, drive motor and reactor lid are not included in the scope of delivery!) Customised requirements & accessories Get the most out of this high-speed stirrer by integrating it into the IKA LR 1000 laboratory reactors. Should you require a conventional rotor-stator tool for your reactor instead of a dissolver (e.g. for ultra-fine emulsions), we naturally also offer the corresponding vacuum-tight KD tools. Please feel free to contact our procurement service at any time for expert system advice on all aspects of your reactor technology.
IKA S 25 D - 10 G - KS disposable dispersing tool (12 pieces), plastic, Ø 10 mm, 0003452200
The gold standard for contamination-free sample preparation: the IKA S 25 D - 10 G - KS disposable dispersing tool In highly specialised analytical laboratories, medical diagnostics, forensic evidence collection and modern biotechnological research, the quality of sample preparation is the crucial foundation for valid results. When grinding and homogenising tissue samples, cell cultures or infectious materials using a high-performance disperser from the IKA T 25 series, enormous mechanical shear forces are at work. These forces inevitably force microscopically small components of the sample deep into the mechanical gaps and plain bearings of the tool being used. Unless a conventional stainless-steel tool is laboriously dismantled, chemically cleaned and sterilised in an autoclave after every single sample, there is a risk of the dreaded cross-contamination (carry-over). It is precisely to address this critical, time-consuming and error-prone issue that IKA has developed the revolutionary S 25 D - 10 G - KS disposable dispersing tool (MPN 0003452200). Supplied in a cost-effective pack of 12, this tool, made from high-quality medical-grade plastic, offers uncompromising homogenisation performance whilst providing 100 per cent protection against sample carry-over. The end of cross-contamination in highly sensitive processes The fundamental concept behind the “KS” (plastic) series is the single-use principle. In fields such as PCR (polymerase chain reaction) analysis, next-generation sequencing (NGS) or toxicological testing, even a single carried-over DNA molecule or a tiny trace of an active substance from a previous sample can lead to false-positive results. At best, such misinterpretations merely ruin an expensive series of experiments; at worst, however, they can lead to incorrect medical diagnoses or forensic evidence that is inadmissible in court. With the IKA S 25 D - 10 G - KS, you can completely eliminate this risk. For each new patient or environmental sample, you remove a brand-new, unused tool from its packaging. After the dispersion process, the plastic tool is simply disposed of properly, together with the potentially contaminated residual sample. The error-prone and time-consuming cleaning and sterilisation cycle required for conventional stainless steel tools is completely eliminated, raising your process reliability (GLP/GMP) to an unprecedented level. Technological precision: 10 mm stator and coarse (G) geometry Despite being designed as a single-use item, this tool is in no way inferior to its steel counterparts in terms of homogenisation efficiency. It operates on the highly effective rotor-stator principle. The stator has a precisely dimensioned diameter of 10 millimetres (hence the ‘10’ in the product name). This compact size defines the optimal working range: the tool is precisely designed for the rapid homogenisation of small to medium sample volumes in the range of 10 to 100 millilitres (based on the viscosity of water). The abbreviation ‘G’ stands for a coarse slot geometry on the stator. This open, high-throughput design is of fundamental importance when you need to process coarse-grained, tough or highly fibrous raw materials. Plant roots, muscle tissue, cartilage or compact pharmaceutical tablets are drawn deep into the shear gap by the rotor’s powerful axial suction forces and shattered there into their finest components at speeds of up to 24,000 revolutions per minute. Cost-effectiveness and Total Cost of Ownership (TCO) in the laboratory At first glance, the ongoing purchase of disposable tools is often regarded as an additional cost factor. However, a detailed total cost of ownership (TCO) analysis in day-to-day laboratory practice consistently proves the exact opposite. The purchase cost of an IKA S 25 D single-use tool is significantly lower than the cumulative cost of the working time a highly qualified laboratory technician spends each day at the sink dismantling and brushing stainless steel tools. Added to this are the substantial savings on expensive, aggressive cleaning chemicals, the energy consumption of the autoclave, and the inevitable wear and tear on PTFE slide bearings and seals in conventional instruments. By using single-use technology, laboratories drastically increase their sample throughput. Staff are freed from tedious cleaning tasks and can once again concentrate on the actual, value-adding scientific analysis. System integration for maximum occupational safety (splash protection) The S 25 D - 10 G - KS is designed as a precisely fitting original accessory exclusively for the IKA T 25 dispersion drives (compatible with T 25 digital, T 25 easy clean digital and T 25 easy clean control). Another advantage of this system, which is absolutely crucial for occupational health and safety, is its compatibility with IKA disposable tubes (e.g. the ET50 tube). Fitting this protective tube onto the tool shaft creates a completely sealed system. When dispersing infectious bacterial cultures, toxic chemicals or extremely foul-smelling environmental samples, no dangerous splashes or invisible aerosols can escape into the laboratory environment or the fume cupboard. You therefore not only protect yourself and your staff from dangerous pathogens, but also prevent external contamination of your valuable laboratory instruments. The S 25 D - 10 G - KS is therefore the ultimate choice for laboratories that place the highest priority on uncompromising safety, maximum efficiency and absolute sample purity. Technical data Product type: Disposable dispersing tool (rotor-stator) Packaging unit (PU): 12 pieces per box Material: High-quality, dimensionally stable and chemical-resistant plastic (PC/polymer blend) Stator diameter: 10 mm Rotor diameter: approx. 6.8 mm Working range (H₂O volume): 10–100 ml Slot geometry: Coarse (G) for high throughput with viscous samples Gap between rotor and stator: 0.2 mm Maximum permissible speed: up to 24,000 rpm (depending on the drive used) Immersion depth: 15 – 85 mm Compatible drives: IKA T 25 digital, T 25 easy clean digital, T 25 easy clean control Sterilisable: No (purely a single-use item to prevent contamination) Contents 1 x box containing 12 IKA S 25 D - 10 G - KS single-use plastic dispersing tools (Important note: The required T 25 drive motor, as well as any sample vessels or protective tubes that may be needed, are available separately and are not included in this delivery.) Individual requirements & accessories To realise the full potential of this tool in terms of health and safety, we strongly recommend using it in combination with the IKA S 18/25-ET50 disposable tube, which fits seamlessly onto the shaft and acts as a hermetic aerosol barrier. Do you need to process significantly larger sample volumes (up to 500 ml)? Then simply switch to the larger version, the S 25 D - 14 G - KS (with a 14 mm stator). Our procurement service will be happy to advise you on selecting the ideal tool sizes and establishing SOPs for your sample preparation.

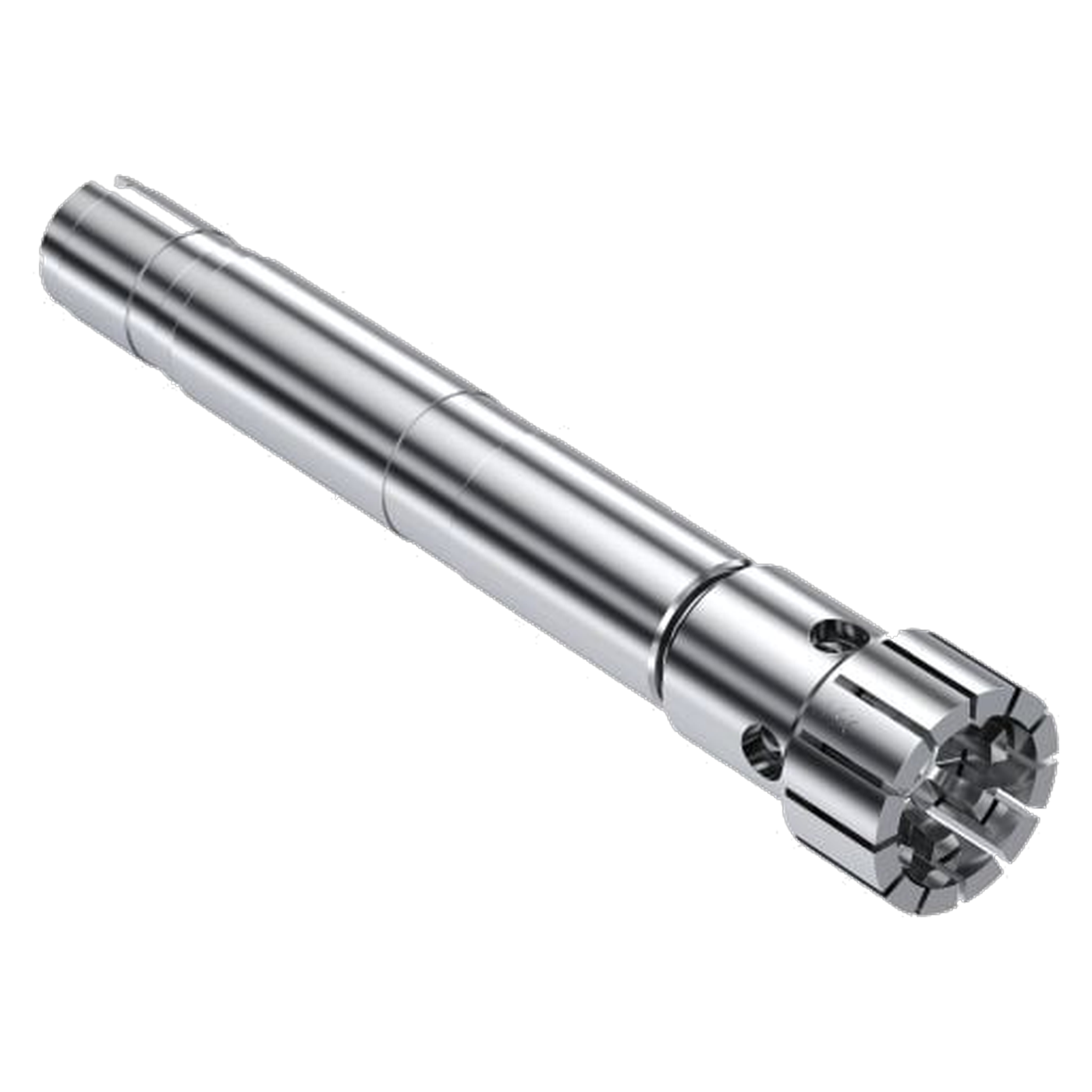

IKA S 25 KV - 25 F - IL Dispersing Tool, Ø 25 mm, In-line, for UTL 25 digital, 0002830200
25 mm stator, 18 mm rotor, 0.5 mm gap: the S 25 KV - 25 F - IL (0002830200) shares this geometry with the S 25 KV - 25 F vessel tool. However, the IL version is designed for the UTL 25 digital in-line disperser, which IKA specifies as the sole drive unit.Sealed for horizontal operationThe fully sealed internal system prevents the sample from entering the main drive. Operation in a horizontal in-line position is therefore permitted. Vacuum levels up to 1 mbar and pressures up to 6 bar are permitted; the maximum operating temperature is 220 °C.Dimensions, fineness and materialsAt 25,000 rpm, the rotor reaches a peripheral speed of 23.6 m/s. The final fineness ranges from 5 to 25 µm for suspensions and 1 to 5 µm for emulsions. The installation length is short at 110 mm; the immersion depth is specified as 40 to 85 mm. Materials in contact with the product include FFPM, SiC, AISI 316L and AISI 302. The pH range is from 2 to 13; solvents are permitted, and sterilisation may be carried out using any method.Typical applicationsIn-flow dispersion using the UTL 25 digitalHorizontal installation in in-line operationSuspensions with final particle sizes of 5 to 25 µmEmulsions with final particle sizes of 1 to 5 µmProcesses with a vacuum down to 1 mbar or pressure up to 6 barMedia containing solvents in the pH range 2 to 13Technical detailsStator diameter25 mmRotor diameter18 mmStator/rotor air gap width0.5 mmMax. permissible speed25,000 rpmMaximum circumferential speed23.6 m/sPenetration depth40 to 85 mmInstallation length110 mmMaterials in contact with the productFFPM, SiC, AISI 316L, AISI 302pH range2 to 13Suitable for solventsYesMax. operating temperature220 °CSterilisabilityall methodsVacuum1 mbarMax. pressure6 barFinal fineness of suspensions5 to 25 µmFinal fineness of emulsions1 to 5 µmScope of delivery1 x IKA S 25 KV - 25 F - IL dispersing tool (single tool)The UTL 25 digital inline disperser is not included in the Scope of delivery.Alternative rotor size for in-line operationThe S 25 KV - 25 G - IL has the same stator and the same gap, has a 17 mm rotor, achieves 22.2 m/s and specifies 15 to 50 µm for suspensions and 1 to 10 µm for emulsions. For the tool described here, the figures are 5 to 25 µm and 1 to 5 µm. The S 25 KV - 25 F vessel tool operates on T-25 drives, amongst others, and has an installation length of 270 mm with an immersion depth of 40 to 225 mm.Individual requirements and procurement serviceLT Laborhandel can supply the UTL 25 digital in-line disperser and other accessories on request. The procurement service will put together the right combination for your flow-through process.

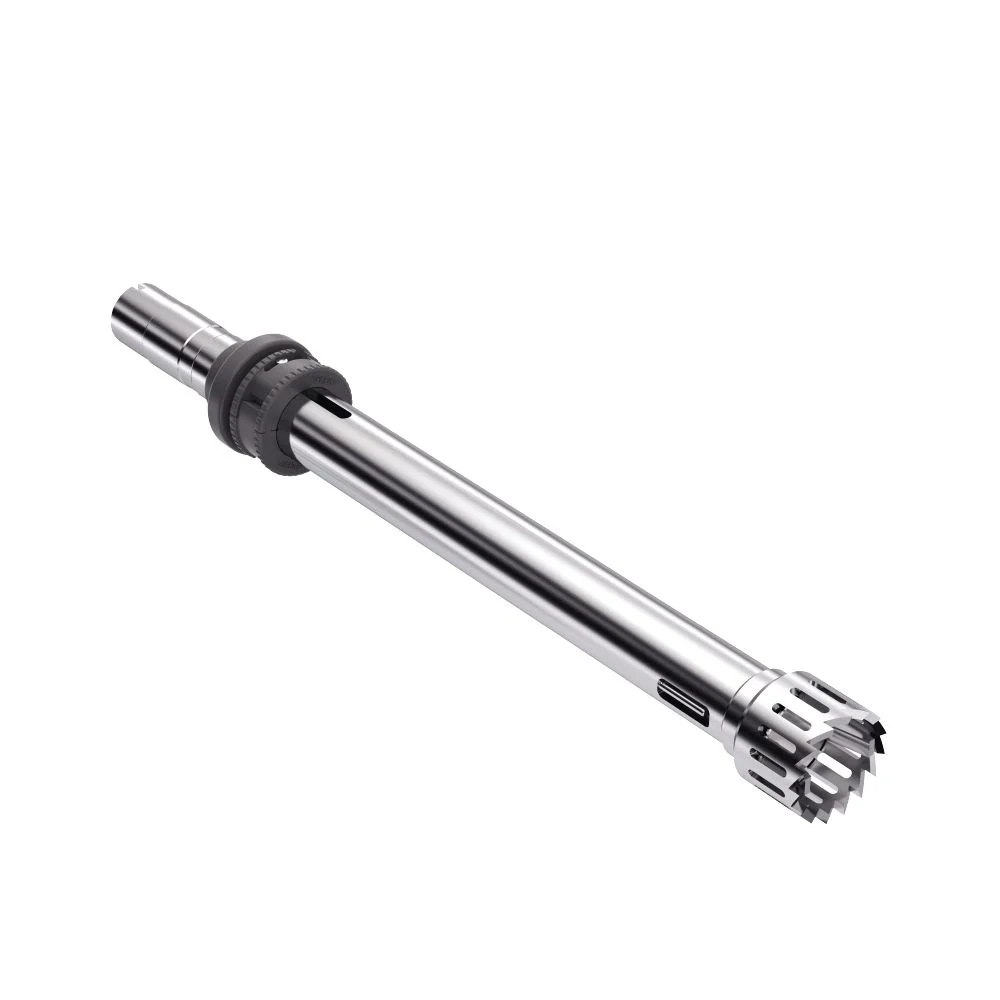

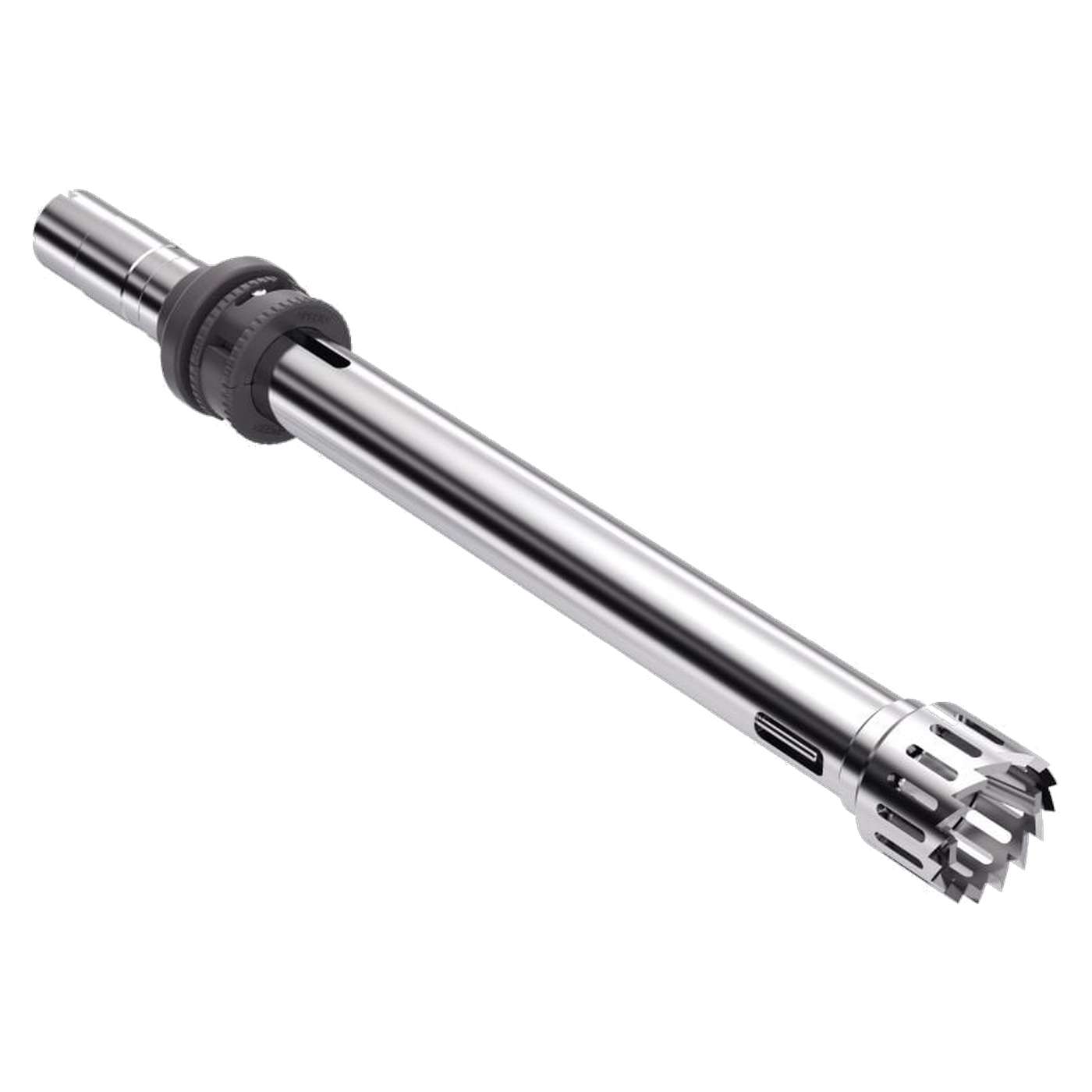

IKA S 25 EC - T - C - 25 G - ST Dispersing Tool, Ø 25 mm, Temperature Sensor, easy to clean, 0025002595
IKA cites dispersing applications in biochemistry and pharmaceuticals as typical uses for the S 25 EC - T - C - 25 G - ST (0025002595), such as the emulsification of heat-sensitive pharmaceutical intermediates. The autoclavable tool has a 25 mm stator and a 20 mm rotor, processes volumes of 0.05 to 2 l and incorporates a temperature sensor.Temperature and operating hoursThe integrated sensor measures from 0 to 125 °C and displays the value during operation. The drive keeps track of operating hours; a message appears on the display when maintenance is due. IKA specifies the T 25 easy clean control as the drive. The maximum operating temperature of the unit is 120 °C.Cleaning according to the ‘easy-clean’ principleWhen the clamp is turned and lowered, the shaft and rotor drop out until the rotor has completely left the stator. The shaft tube can then also be rinsed internally. The shaft runs in a ceramic plain bearing; the parts in contact with the product are made of AISI 316L and ceramic.Gap, fineness and dimensionsThe gap is 0.5 mm; at 25,000 rpm, a speed of 26.2 m/s is achieved at the rotor circumference. The final fineness ranges from 15 to 50 µm for suspensions and from 1 to 10 µm for emulsions. The tool has a plunge depth of 45 to 150 mm, is 191 mm long, weighs 0.634 kg and is suitable for solvents and abrasive materials.Typical applicationsDispersion in biochemistry and pharmaceuticals, including heat-sensitive intermediatesBatches of 0.05 to 2 l with temperature measurementEmulsions with final particle sizes of 1 to 10 µmSamples containing abrasive componentsWork involving solventsSample series with maintenance instructions based on operating hoursTechnical detailsProcessable volume (H2O)0.05 to 2 lStator diameter25 mmRotor diameter20 mmStator/rotor gap width0.5 mmMax. permissible speed25,000 rpmMaximum circumferential speed26.2 m/sPenetration depth45 to 150 mmInstallation length191 mmBearing typeCeramic plain bearingMaterials in contact with the productAISI 316L, ceramicpH range2 to 13Suitable for solventsYesSuitable for abrasive substancesYesTemperature measurement range0 to 125 °CMax. operating temperature120 °CSterilisabilityall methods except hot airFinal particle size of suspensions15 to 50 µmFinal particle size of emulsions1 to 10 µmWeight0.634 kgScope of delivery1 x IKA S 25 EC - T - C - 25 G - ST dispersing tool (single tool)The T 25 easy clean control drive is not included in the Scope of delivery.With and without a sensorThe S 25 EC - C - 25 G - ST has the same geometry but without a temperature sensor; its operating temperature is 180 °C and it has an immersion depth of 35 to 150 mm. The S 25 EC - T - C - 25 G operates with a sensor, but features a 17 mm rotor and a speed of 22.2 m/s. Those requiring an 18 mm rotor and particle sizes of 1 to 5 µm for emulsions will find this in the S 25 EC - T - C - 25 F.Individual requirements and procurement serviceLT Laborhandel can supply the T 25 easy clean control drive and other tools on request. The procurement service assists with selection.

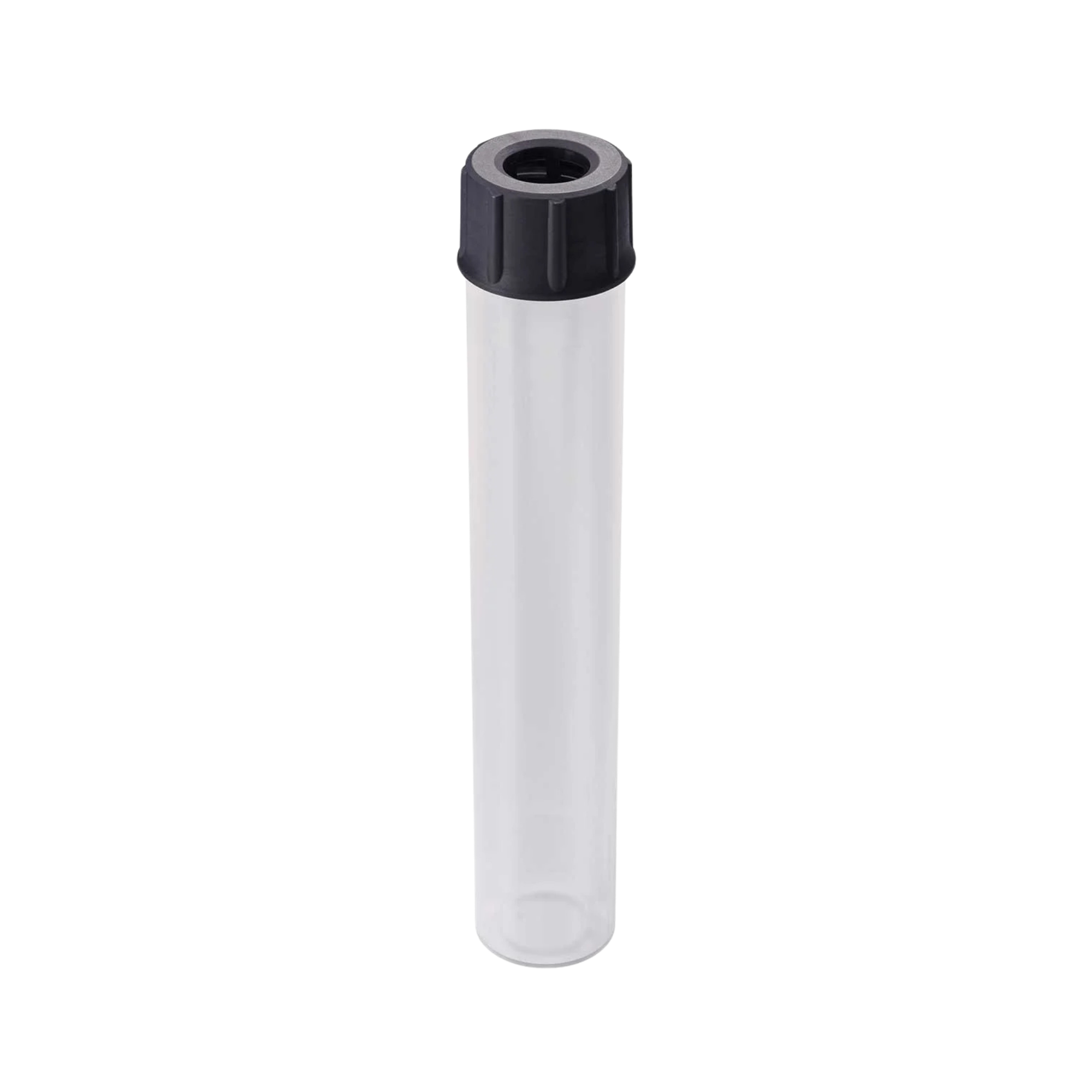

IKA CT.15 Cleaning tube, replacement cleaning tubes with caps (15 pieces), for T 25, 0020006595
Maximum efficiency and purity in sample preparation: the IKA CT.15 cleaning tubes In modern analytical chemistry, strictly regulated pharmaceutical quality control and biological research, the consistent prevention of cross-contamination (carry-over) is the absolute foundation of reliable measurement results. When working with high-performance dispersers such as the tried-and-tested IKA T 25 series, tissues, powders or emulsions are broken down using extreme shear forces. Microscopically small residues of these samples inevitably remain in the narrow shear gap between the stator and rotor. To remove these contaminants safely, gently and completely after each homogenisation, IKA has established a systematic, hydrodynamic 3-stage cleaning process. The IKA CT.15 cleaning tubes (MPN 0020006595) are the essential consumable component for this highly effective system. Supplied in an extremely practical and cost-effective pack of exactly 15 pieces, these high-quality cleaning tubes enable a seamless, uninterrupted and highly standardised workflow in laboratories with high sample throughput. The perfect complement to the TS 25-3 cleaning system The CT.15 set is the ideal, logical extension for all users who already utilise the IKA TS 25-3 Cleaning Tool (the robust tube holder) in their laboratory. The validatable cleaning process recommended by IKA consists of three consecutive phases: intensive pre-cleaning with a strong, sample-specific solvent; main cleaning with a suitable laboratory cleaning agent (surfactant); and final cleaning and rinsing with demineralised water. By purchasing this pack of 15, you can easily set up several of these 3-stage stations in parallel and keep them permanently stocked. Whilst one member of staff is still dispersing samples at Station A, freshly filled tubes are already ready for immediate cleaning at Station B. This forward-planning approach eliminates tedious waiting times at the laboratory sink, speeds up the entire analysis cycle enormously and relieves the burden on highly qualified laboratory staff in their daily routine tasks. Health and safety through tightly sealing caps A major, often underestimated problem with the manual cleaning of dispersion tools in open beakers is occupational health and safety. The extremely high speeds of the drive motor inevitably generate fine aerosols and uncontrolled splashes during cleaning and dispersion. If the solvents used are volatile, irritant or toxic chemicals, this poses a significant health risk through inhalation or skin contact. Every single tube in the IKA CT.15 set is therefore supplied as standard with a precisely fitting, tight-sealing cap. These caps transform the cleaning process into a closed, absolutely safe system in no time at all. Simply pierce the prepared opening with the shaft of the dispersing tool, and the spillage of hazardous substances into the laboratory environment or the fume cupboard is effectively and reliably prevented. This not only protects the health of your staff, but also safeguards expensive laboratory equipment and sensitive instruments in the immediate vicinity from aggressive chemical vapours. Consistently prevent cross-contamination with dedicated tubes Another enormous analytical advantage of this 15-piece set is the ability to clearly physically separate work processes. Even with the most thorough rinsing, plastic vessels can, over time, suffer microscopic scratches on their inner walls due to the high shear forces of the disperser or detached hard particles. Stubborn biofilms, denatured proteins or chemical residues can become trapped in these fine scratches. With a generous supply of 15 tubes, you can immediately and properly replace heavily worn vessels. Even more important for GLP compliance: you can designate specific tubes for particular solvents or certain types of samples (e.g. ‘For RNA extraction only’ or ‘For high-fat samples only’). This strict, physical separation categorically rules out the possibility of the cleaning solvent itself becoming an invisible source of contamination for the next sample. Unrestricted system compatibility and TCO optimisation The IKA CT.15 cleaning tubes are 100 per cent compatible with IKA’s globally established T 25 ecosystem. They are fully compatible with the high-performance dispersing drives of the T 25 digital series, as well as the state-of-the-art T 25 easy clean digital and T 25 easy clean control ranges. Whether you use classic S 25 N standard tools, the S 25 KR series or the vacuum-tight KD tools – the geometry of the tubes is designed so that the tool rotates at the ideal distance from the base, achieving a perfect hydrodynamic cleaning effect without damaging the vessel. This consistent and gentle care also prevents premature wear of the sensitive plain bearings in the tools. A dispersing tool that is not manually scrubbed with hard brushes retains its precise gap geometry for significantly longer, which in turn guarantees consistent, highly reproducible particle sizes in your subsequent samples and drastically reduces your Total Cost of Ownership (TCO) for spare parts. With a total weight of just 0.3772 kg per packaging unit, the tubes are also ideal for storage and keeping on hand at the workplace. Technical data Packaging unit: 15 pieces per pack Compatible drive motors: IKA T 25 digital, T 25 easy clean digital, T 25 easy clean control Intended use: Consumables for the 3-stage cleaning process (solvent, cleaning agent, demineralised water) Health and safety benefit: Includes caps to prevent hazardous aerosols and solvent splashes Weight (per pack): 0.3772 kg Material: High-quality, chemical-resistant plastic Contents 15 x IKA CT.15 cleaning tubes 15 x Tight-fitting caps as splash guards (Please note: The sturdy tube holder (TS 25-3), as well as the dispersing drive and the dispersing tool, are not included in the scope of delivery!) Individual requirements & accessories If you are setting up this system in your laboratory for the first time, you will definitely need the complete IKA TS 25-3 Cleaning Tool (which includes the tube holder) to ensure a secure, wobble-free stand. This pack of 15 is the perfect addition for replacing worn-out tubes or speeding up your workflow by running multiple cleaning stations in parallel. If you have any questions about establishing SOPs for tool cleaning, please feel free to contact our procurement service. We will provide you with comprehensive advice on optimising your processes.

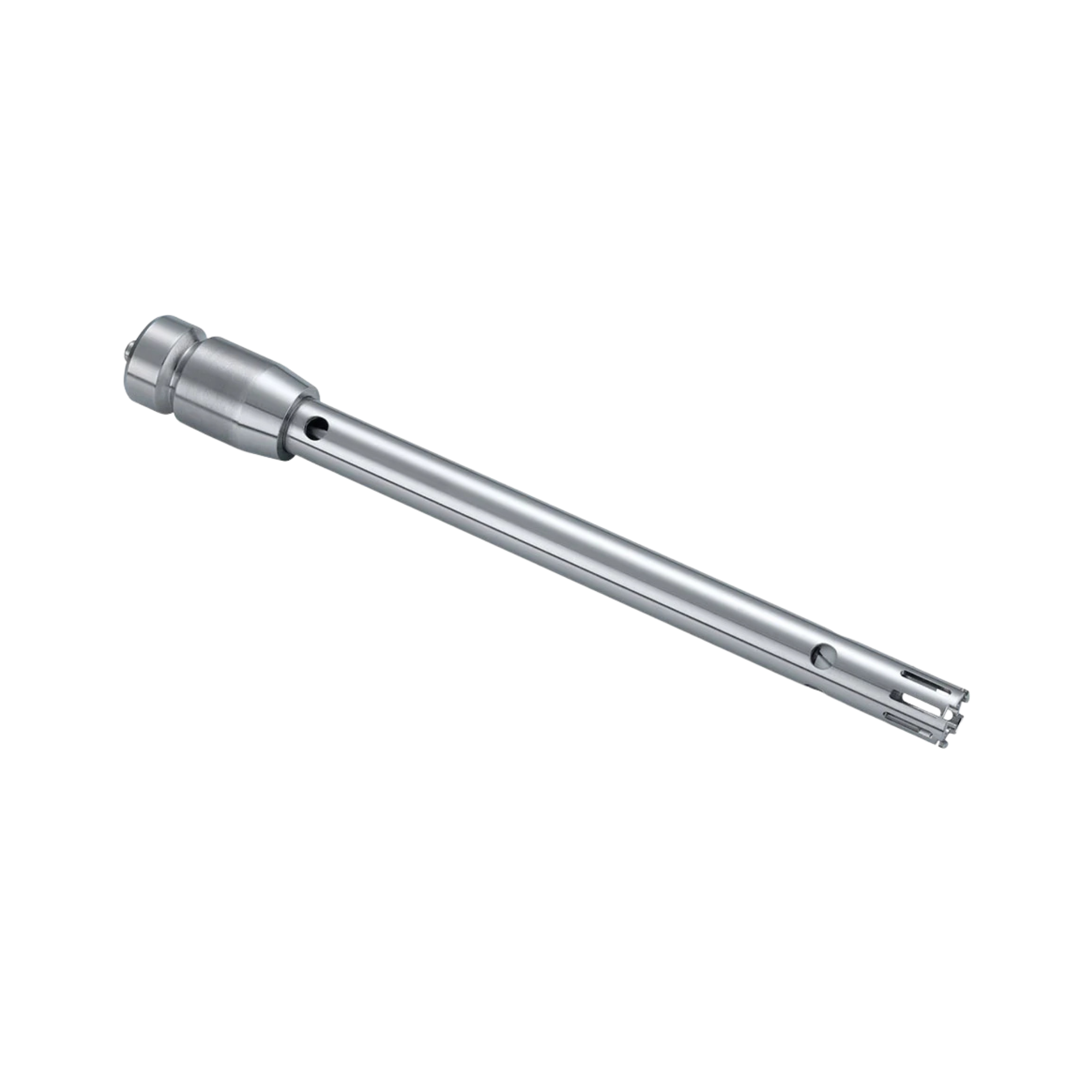

IKA S 10 N - 10 G dispersing tool, Ø 10 mm, 0003370100
The IKA S 10 N – 10 G dispersing tool is a specialised, materials-science-optimised system component designed for precise rotor-stator dispersion in the millilitre range. Designed for use with the compact dispersers of the ULTRA-TURRAX T 10 series, this dispersing shaft enables highly efficient sample preparation of biological, pharmaceutical and chemical media. In applications such as the disruption of tissue cells, the emulsification of cosmetic formulations or the suspension of poorly soluble active ingredients in laboratory vessels, the precise fluid-dynamic geometry of this tool prevents thermal stress on samples and ensures complete homogenisation. For laboratory managers and procurement officers in industrial research facilities, this tool offers the highest level of validity and process reliability in accordance with stringent GLP and GMP guidelines. Rotor-stator kinetics and process-related shear dynamics The mechanical operating principle is based on the tried-and-tested rotor-stator system, in which the inner rotor moves within the fixed stator at extremely high rotational speeds of up to 30,000 revolutions per minute. Due to the small radial gap between the rotor and stator, the sample medium is drawn axially into the dispersing head and then forced radially through the slots of the generator with enormous kinetic energy. The combination of extremely high shear forces, turbulent shear fields and transient cavitation effects guarantees particle and droplet size reduction down to the micrometre range. The 10 G generator is characterised by an optimised tooth geometry, which enables rapid primary fragmentation of fibrous, tough or cellular sample structures across an extended volume range. Material resilience and sterilisation cycles The material-specific system limits of the dispersing tool are defined by the consistent use of high-quality stainless steel (material number 1.4404 / AISI 316L) and a robust PTFE bearing. This material composition ensures outstanding chemical resistance to aggressive acids, alkalis and organic solvents, and gently prevents metallic cross-contamination in multi-user operations. A crucial criterion for molecular biological and microbiological applications is the instrument’s unrestricted sterilisability: the entire dispersing instrument is fully autoclavable at 121 °C and can be hot-air sterilised up to 180 °C, thereby guaranteeing an absolutely germ-free sample handling process. Ergonomic design features and working area The mechanical design features a stator diameter of 10 millimetres and a shaft length of 115 millimetres, enabling reliable operation in various reaction vessels and laboratory glassware. The working range covers a sample volume of 1 to 100 millilitres, allowing flexible sample series to be processed efficiently whilst minimising material wastage. Thanks to the shaft’s easy disassembly, the tool can be cleaned quickly and thoroughly after use, significantly speeding up the laboratory’s workflow and minimising downtime. Technical details Drive & Dispersion Technology Tool type: Rotor-stator dispersing tool Generator designation: 10 G Operating range (H₂O volume range): 1–100 ml Max. permissible speed: 30,000 rpm Gap width (radial gap): 0.25 mm Design & dimensions Stator diameter: 10 mm Rotor diameter: 7.5 mm Wavelength: 115 mm Minimum immersion depth: 20 mm Max. immersion depth: 90 mm Material (in contact with sample): Stainless steel (AISI 316L / 1.4404), PTFE Resistances & Certificates Sterilisation methods: Autoclavable (121 °C), hot air (up to 180 °C) Solvent resistance: Yes Acid/alkali resistance: Yes Contents of delivery 1 x IKA S 10 N - 10 G dispersing tool (MPN: 0003370100) 1 x manufacturer’s quality certificate 1 x Safety and cleaning instructions Important note: A suitable drive unit from the IKA ULTRA-TURRAX T 10 series and stand accessories are not included in the standard scope of delivery and must be ordered separately. Individual requirements & accessories For the IKA S 10 N - 10 G dispersing tool to operate as intended, a drive unit from the IKA ULTRA-TURRAX T 10 series (e.g. T 10 basic or T 10 digital) is required. To physically prevent abrasive wear of the internal PTFE bearings during dry running, the tool must always be immersed sufficiently deep into the sample medium (min. 20 mm) before switching it on. In the event of long-term material fatigue, we stock suitable PTFE replacement seals and manufacturer-approved maintenance kits in our range. Please use our procurement service to select your laboratory peripherals.
IKA S 50 N - G 45 M Dispersing Tool, Ø 45 mm, PTFE Split-ring Bearing, for T 50, 0008003300
Narrow gap, large capacity: The S 50 N - G 45 M (0008003300) operates with a gap of 0.25 mm between the rotor and stator and processes volumes of 0.5 to 15 l. The stator measures 45 mm, the rotor 40.5 mm. It is driven by the T 50 digital.Bearings and materialsThe shaft is mounted in a PTFE split-ring bearing. Only PTFE and AISI 316L come into contact with the product. The unit is suitable for solvents and abrasive substances, with a pH range of 2 to 13. The short-term operating temperature is up to 180 °C, and it may be sterilised using any method.Speed, fineness and dimensionsA speed of 10,000 rpm is permitted, resulting in speeds of up to 21.2 m/s at the rotor. The final fineness ranges from 25 to 50 µm for suspensions and 5 to 20 µm for emulsions. The immersion depth ranges from 70 to 250 mm, the installation length is 298 mm, and the tool weighs 0.95 kg.Typical applicationsDispersing and emulsifying volumes from 0.5 to 15 lOperations with a narrow gap of 0.25 mmSuspensions with final particle sizes of 25 to 50 µmEmulsions with final particle sizes of 5 to 20 µmBatches containing solvents or abrasive componentsProcesses involving short-term temperatures of up to 180 °CTechnical detailsProcessable volume (H2O)0.5 to 15 lStator diameter45 mmRotor diameter40.5 mmStator/rotor gap width0.25 mmMax. permissible speed10,000 rpmMaximum circumferential speed21.2 m/sPenetration depth70 to 250 mmInstallation length298 mmBearingPTFE split ring bearingsMaterials in contact with the productPTFE, AISI 316LpH range2 to 13Suitable for solventsYesSuitable for abrasive substancesYesMax. operating temperature180 °C (for short periods)Sterilisabilityall methodsFinal particle size of suspensions25 to 50 µmFinal particle size of emulsions5 to 20 µmWeight0.95 kgScope of delivery1 x IKA S 50 N - G 45 M dispersing tool (single tool)The T 50 digital drive is not included in the Scope of delivery.Same geometry with different bearing arrangementThe S 50 KD - G45M has the same geometry (45 mm stator, 40.5 mm rotor, 0.25 mm gap). It runs on a ball bearing with a PTFE seal, is rated up to 150 °C and may operate under vacuum down to 100 mbar. The S 50 N - G 45 F is made of the same materials, but has a 40 mm rotor, a 0.5 mm gap and 10 to 30 µm for suspensions. For those wishing to operate under vacuum down to 1 mbar, the S 50 KG - HH - G 45 M with a mechanical seal offers the same stator and rotor dimensions, also for 0.5 to 15 l.Individual requirements and procurement serviceShould the tool be supplied together with the T 50 digital drive? LT Laborhandel will put the combination together via its procurement service, including a second tool for changing.
IKA S 18 D - 10 G - KS disposable dispersing tool (12 pieces), plastic, Ø 10 mm, 0003452400
100 per cent protection against cross-contamination: IKA S 18 D - 10 G - KS disposable dispersing tool In modern and highly sensitive laboratory environments, sample preparation often represents the most critical and error-prone step within the entire analytical chain. Particularly in fields such as forensics, medical diagnostics, PCR analysis or molecular biology research, even the tiniest carry-over of samples – known as cross-contamination – can have disastrous consequences. Not only do they ruin expensive and time-consuming experimental runs, but in the worst-case scenario they can lead to incorrect medical diagnoses or flawed forensic chains of evidence. The IKA S 18 D - 10 G - KS dispersing tool (MPN 0003452400) was developed precisely for these extremely demanding scenarios. This innovative single-use plastic tool, supplied in a cost-effective pack of 12, revolutionises your day-to-day laboratory work and sets entirely new standards in terms of safety, reliability and workflow efficiency. The problem of cross-contamination and the limitations of stainless steel tools Whilst traditional stainless steel dispersing tools are durable and robust, they present significant drawbacks when processing highly infectious or DNA-containing samples. To ensure that samples are 100 per cent free of germs and DNA between two samples, a stainless steel tool must be laboriously dismantled after every single dispersing operation, cleaned manually or by machine, and then sterilised at high temperatures in an autoclave. This process not only ties up valuable working time for highly qualified laboratory staff, but also requires the constant use of harsh chemicals and the regular replacement of wear parts such as PTFE bearings. The IKA S 18 D - 10 G - KS completely eliminates this entire cleaning and sterilisation cycle. Once the sample has been homogenised, the plastic tool is simply and safely disposed of in its entirety. This effectively reduces the risk of cross-contamination to zero, whilst at the same time freeing up enormous amounts of staff time and resources in the laboratory, which can then be used for actual analytical work. Technical superiority in a compact plastic format Despite being designed as a single-use item (identified by the abbreviation ‘KS’ for plastic), this dispersing tool offers no compromise whatsoever in terms of grinding performance. The tool operates on the tried-and-tested rotor-stator principle and is specifically designed for the high-performance dispersing drives of the IKA T 18 series (such as the T 18 digital, T 18 basic or T 18 mini). With a stator diameter of 10 millimetres (indicated by the “10” in the product designation), it is perfectly sized for processing small to medium sample volumes in the range of 10 to 100 millilitres (based on water). The abbreviation “G” stands for a coarse slot geometry on the stator. This geometry enables optimal suction of the sample into the shear gap and ensures rapid, efficient primary comminution of tough tissue, plant material or solid foodstuffs. Even at maximum speeds of up to 24,000 revolutions per minute, the high-quality plastic remains completely dimensionally stable and produces particle sizes that are ideally suited to downstream extraction processes. Economic considerations and workflow optimisation At first glance, the ongoing purchase of disposable tools may appear to be an additional cost factor. However, a detailed full-cost analysis in modern laboratories regularly reveals a very different picture: The purchase cost of an IKA S 18 D - 10 G - KS tool is generally significantly lower than the combined expenditure on labour for manual cleaning, the operating and maintenance costs for autoclaves, expensive chemical cleaning agents, and the regular procurement of spare parts for conventional stainless steel tools. By eliminating set-up and waiting times, laboratories can massively increase their sample throughput. The tool is simply fitted onto the drive, the sample is dispersed, and the tool is then ejected in a single step and disposed of properly. Numerous areas of application in highly specialised laboratories The potential applications of this plastic dispersion tool are extremely diverse and cover the most demanding areas of modern analytics. In forensics, it is used for the safe and absolutely contamination-free extraction of DNA or RNA from evidence such as skin, hair or tissue samples. In medical and clinical diagnostics, it enables the rapid homogenisation of biopsies, tumour cells or organ samples for pathology, without the risk of transmitting dangerous pathogens to laboratory staff or other valuable patient samples. This single-use tool is also the absolute first choice for reproducible work in pharmaceutical research – for example, when pulverising coated tablets for active ingredient analysis – or in strictly regulated food safety testing for the detection of pathogenic microorganisms in meat or plant samples. System integration for maximum safety (splash protection) To ensure the absolute highest level of user safety, the IKA S 18 D - 10 G - KS dispersing tool can be ideally combined with the appropriate IKA single-use tubes (such as the ET50 tube). This combination creates a fully enclosed system. This protects the user from hazardous, infectious or toxic aerosols that can inevitably be generated during the dispersion process under high centrifugal forces. The system remains completely sealed from homogenisation right through to disposal, which not only physically protects the user but also reliably and permanently prevents contamination of expensive laboratory equipment, pipettes and sterile fume cupboards. Technical data Model: S 18 D - 10 G - KS Product type: Disposable dispersing tool (rotor-stator) Packaging unit (PU): 12 pieces per pack Material: High-quality, dimensionally stable plastic (KS) Stator diameter: 10 mm Rotor diameter: 6.8 mm Working range (H₂O volume): 10 – 100 ml Slot geometry: Coarse (G) Gap between rotor and stator: 0.2 mm Maximum permissible speed: 24,000 rpm Immersion depth: 15 – 85 mm Max. permissible operating temperature: 100 °C Compatible drives: IKA T 18 digital, T 18 basic Sterilisable: No (Designed as a single-use item only to prevent contamination) Contents 1 x pack of 12 IKA S 18 D - 10 G - KS plastic dispersing tools (Note: The T 18 drive motor and any sample vessels or protective tubes that may be required are not included in the scope of delivery!) Individual requirements & accessories To realise the full potential of this closed safety system, we strongly recommend combining it with the IKA S 18/25-ET50 disposable tube as an effective splash guard. If you need to process sample volumes of less than 10 ml, IKA also offers smaller disposable tools with a 7 mm stator diameter. Please contact our procurement service for detailed advice on your specific workflow.
IKA S 25 N - 10 G - ST Dispersing tool, sawtooth, Ø 10 mm, 1–100 ml, 0004447100
Effective on tough samples: IKA S 25 N - 10 G - ST dispersing tool The IKA S 25 N - 10 G - ST dispersing tool (MPN 0004447100) is the solution for laboratories that regularly struggle with the homogenisation of viscous, fibrous or difficult-to-process materials. Designed as a high-performance attachment for the tried-and-tested IKA T 25 dispersing drives (e.g. T 25 digital), this tool has been specifically developed to prevent the dreaded clogging of the rotor. The innovation: sawtooth geometry (“ST”) What makes this tool special lies in the stator, which features an aggressive saw-tooth contour. Pre-cutting effect: Before the sample enters the actual shear gap, the sharp edges tear and cut through the tough structures. Continuous workflow: The wrapping of the shaft by tendons, plant fibres or polymer strands is effectively prevented. You can digest your samples in a fraction of the time, often without having to laboriously chop them up with a scalpel beforehand. The happy medium (“10 G”) With a stator diameter of 10 mm, this tool bridges the gap between micro-attachments and large standard tools. Volume range: It homogenises volumes from 1 ml to 100 ml (H₂O). This makes it the perfect all-rounder for centrifuge tubes (e.g. 15 ml or 50 ml Falcon tubes) and small beakers. Coarse (“G”): The slot width ensures high throughput and rapid primary comminution. With speeds of up to 25,000 rpm, you can still achieve very fine particle sizes. High-quality materials (“N”) The tool features a chemically highly resistant PTFE bearing (“N”). Easy to clean: After use, the dispersing tool can be dismantled into its individual parts in just a few simple steps for manual cleaning or sterilisation. Hygienic: All components in contact with the medium are made of high-quality stainless steel (AISI 316L) and PTFE. It is fully autoclavable at 121 °C. Areas of application Life sciences: Digestion of muscle tissue, skin or plant material for nucleic acid extraction. Food inspection: Homogenisation of fibrous meat or tough vegetables. Materials testing: Grinding of soft plastics, textile fibres or paper. Pharmaceuticals: Dissolving capsules or tablets in liquid media. Technical data Model: S 25 N - 10 G - ST Suitable for drives: IKA T 25 (digital, easy clean) Operating range (H₂O volume): 1 – 100 ml Stator diameter: 10 mm Rotor diameter: 7.5 mm Maximum permissible speed: 25,000 rpm Immersion depth: 22 – 85 mm Materials in contact with the medium: stainless steel (AISI 316L), PTFE Maximum permissible operating temperature: 180 °C Sterilisation methods: Autoclavable (121 °C) Overall length: 105 mm Weight: approx. 0.1 kg Contents of delivery 1 x IKA S 25 N - 10 G - ST dispersing tool (Note: The T 25 drive motor is not included and must be purchased separately!) Custom requirements & accessories Are you looking for the right stand and a cross-coupling to securely mount your IKA T 25 drive? Or do you need replacement PTFE bearings for this tool to prevent downtime in the laboratory? Please contact our procurement service.
IKA S 50 KG - HH - G 45 G - ST Dispersing Tool, Ø 45 mm, Suitable for Vacuum Use, 0010000648
The ‘ST’ suffix in the name distinguishes the S 50 KG - HH - G 45 G - ST (0010000648) from the version without ‘ST’, the S 50 KG - HH - G 45 G, which has the same stator and rotor dimensions (45 and 36 mm). The unit processes volumes of 0.5 to 20 l and is driven by the T 50 digital drive.Mechanical seal for vacuumThe shaft is mounted on ball bearings; the single-acting mechanical seal consists of tungsten carbide against tungsten carbide. Operation under vacuum down to 1 mbar is possible; the pressure may reach up to 6 bar. Materials in contact with the product are FFPM, tungsten carbide (WC) and AISI 316L. The tool is solvent-resistant, with a pH range of 2 to 13. Sterilisation is carried out using wet chemical methods, and the short-term operating temperature is up to 150 °C.Rotor, fineness and dimensionsThe rotor measures 36 mm and, at the permissible speed, reaches up to 18.8 m/s at the circumference. The final fineness ranges from 40 to 100 µm for suspensions and from 10 to 30 µm for emulsions. The immersion depth is 70 to 260 mm, and the installation length is 300 mm. The tool weighs 0.576 kg.Typical applicationsDispersing and emulsifying volumes of 0.5 to 20 lOperations under vacuum down to 1 mbarProcesses with overpressure up to 6 barSuspensions with final particle sizes of 40 to 100 µmSolvent-based processesTechnical detailsProcessable volume (H2O)0.5 to 20 lStator diameter45 mmRotor diameter36 mmMax. circumferential speed18.8 m/sImmersion depth70 to 260 mmInstallation length300 mmBearing and sealBall bearing, single-acting mechanical seal (carbide/carbide)Materials in contact with the productFFPM, WC / AISI 316LpH range2 to 13Suitable for solventsYesMax. operating temperature150 °C (for short periods)Sterilisabilitywet chemicalVacuum1 mbarMax. pressure6 barFinal fineness of suspensions40 to 100 µmFinal fineness of emulsions10 to 30 µmWeight0.576 kgScope of delivery1 x IKA S 50 KG - HH - G 45 G - ST dispersing tool (single tool)The T 50 digital drive is not included in the Scope of delivery.Rotor sizes in the S 50 seriesThe S 50 KD - G45G ST is also an ST version for 0.5 to 20 l, but has a 38 mm rotor, 19.9 m/s and operates under vacuum down to 100 mbar. The S 50 KD - G45G also has the same stator, the same rotor and the same operating range as described here, and is also suitable for suspensions with particle sizes of 40 to 100 µm. The S 50 KG - HH - G 45 M also features a mechanical seal and operates under vacuum down to 1 mbar, but has a 40.5 mm rotor, a capacity of 0.5 to 15 l and a particle size range of 25 to 50 µm for suspensions.Individual requirements and procurement serviceWhether you need a second tool for changing parts, a T 50 digital drive or assistance with geometry: LT Laborhandel can sort this out via its procurement service.
IKA S 65 C - G 65 F Dispersing Tool, Ø 65 mm, Ceramic, for T 65, 0010001667
In the S 65 C - G 65 F (0010001667), the parts in contact with the product are made of AISI 316L and ceramic. The tool is designed for batch sizes of 2 to 30 l and is operated by the T 65 digital drive.Bearings and limit valuesThe shaft runs in a ball bearing and a ceramic plain bearing. This tool is not designed for use under vacuum. Solvents are permitted; the pH range is from 2 to 13. The maximum operating temperature is 170 °C; sterilisation may be carried out using any method.Geometry and precisionStator 65 mm, rotor 58 mm, gap 0.5 mm. At 9,500 rpm, the rotor circumference reaches 28.8 m/s. The final fineness ranges from 5 to 20 µm for suspensions and 1 to 10 µm for emulsions. The immersion depth is 90 to 450 mm with an installation length of 520 mm. The tool weighs 3.94 kg. The 58 mm rotor achieves a higher peripheral speed than the 53 mm rotor of the S 65 C - G 65 G, at 26.4 m/s.Typical applicationsDispersing and emulsifying 2 to 30 lSuspensions with final particle sizes of 5 to 20 µmEmulsions with final particle sizes of 1 to 10 µmBatches with solvents in the pH range 2 to 13Processes up to 170 °C without vacuum operationTechnical detailsProcessable volume (H2O)2 to 30 lStator diameter65 mmRotor diameter58 mmStator/rotor gap width0.5 mmMax. permissible speed9,500 rpmMaximum circumferential speed28.8 m/sPenetration depth90 to 450 mmInstallation length520 mmBearingBall bearings and ceramic plain bearingsMaterials in contact with the productAISI 316L, ceramicpH range2 to 13Suitable for solventsYesMax. operating temperature170 °CSterilisabilityAll methodsSuitable for vacuum sterilisationNoFinal particle size of suspensions5 to 20 µmFinal fineness of emulsions1 to 10 µmWeight3.94 kgScope of delivery1 x IKA S 65 C - G 65 F dispersing tool (single tool)The T 65 digital drive is not included in the Scope of delivery.Comparison within the S 65 seriesThe S 65 KD - G 65 F has the same geometry with a PTFE seal and FFKM O-ring: same stator, same rotor, same gap, 2 to 30 l and the same final particle sizes, plus vacuum down to 100 mbar. For applications up to 50 l, the S 65 C - G 65 G also features ceramic components, but with a 53 mm rotor and a particle size range of 25 to 75 µm for suspensions. Fitted with a mechanical seal, capable of a vacuum down to 1 mbar and pressure up to 6 bar, but also featuring a 65 mm stator and a 58 mm rotor, the S 65 KG - HH - G 65 F operates at 2 to 30 l.Individual requirements and procurement serviceLT Laborhandel can source the T 65 digital drive and other equipment on request. The procurement service will put together the right combination for your batch size.
IKA S 25 KV - 18 G Dispersing Tool, Ø 18 mm, Mechanical Seal, for T 25, 0002348000
The S 25 KV - 18 G (0002348000) operates within a range of 10 to 1,500 ml and features an 18 mm stator and a 12.7 mm rotor. It has a mechanical seal, is rated for short-term operation up to 220 °C and runs on T-25 drives.Seal and vacuumThe shaft runs in a ball bearing with a mechanical seal; the counter ring and sliding ring are made of SiC, whilst the O-rings are made of Kalrez. The unit is designed for operation under vacuum down to 1 mbar and can withstand pressures of up to 6 bar. Materials in contact with the product are FFPM, SiC, AISI 316L and AISI 302. It is FDA-compliant, suitable for use with solvents and can be sterilised using all methods.Clearance, speed and finenessThe gap is 0.25 mm. At 25,000 rpm, a speed of 16.6 m/s is achieved at the rotor circumference. The final particle size ranges from 10 to 50 µm for suspensions and from 1 to 10 µm for emulsions. The tool can be immersed to a depth of 40 to 225 mm; the installation length is 270 mm and the weight is 0.5514 kg.Typical applicationsDispersing and emulsifying small batches of 10 to 1,500 mlOperations under vacuum down to 1 mbarProcesses at pressures up to 6 barBatches containing solvents in the pH range 2 to 13Processes involving short-term temperatures of up to 220 °CEmulsions with final particle sizes of 1 to 10 µmTechnical detailsProcessable volume (H2O)0.01 to 1.5 lStator diameter18 mmRotor diameter12.7 mmStator/rotor gap width0.25 mmMax. permissible speed25,000 rpmMaximum circumferential speed16.6 m/sPenetration depth40 to 225 mmInstallation length270 mmBearings and sealsBall bearing, mechanical seal (SiC, Kalrez O-rings)Materials in contact with the productFFPM, SiC, AISI 316L, AISI 302pH range2 to 13Suitable for solventsYesMax. operating temperature220 °C (for short periods)SterilisabilityAll methodsVacuum1 mbarMax. pressure6 barFinal fineness of suspensions10 to 50 µmFinal fineness of emulsions1 to 10 µmFDA complianceYesWeight0.5514 kgScope of delivery1 x IKA S 25 KV - 18 G dispersing tool (single tool)The drive unit (T 25 easy clean digital, T 25 easy clean control, T 25 digital or T 25 mini control) is not included in the Scope of delivery.Larger rotor or shorter designWith a 25 mm stator, 17 mm rotor and a capacity of 0.05 to 2 l, the S 25 KV - 25 G operates with the same installation length of 270 mm. The S 25 KD - 18 G has the same stator and rotor dimensions as this tool (18 and 12.7 mm), but is shorter, with an installation length of 194 mm and an immersion depth of 40 to 165 mm. It is specified for temperatures up to 150 °C and vacuum down to 100 mbar.Individual requirements and procurement serviceLT Laborhandel can source the appropriate T-25 drives and other tools on request. The procurement service assists with selecting the correct geometry.
IKA S 65 KD - G 65 M Dispersing Tool, Ø 65 mm, Ball Bearings, for T 65, 0010000642
The S 65 KD - G 65 M (0010000642) can process up to 40 l of water on a T 65 digital. There is a gap of 0.5 mm between the 65 mm stator and the 58 mm rotor; at 9,500 rpm, the rotor circumference reaches 28.8 m/s.Seals and materialsThe shaft runs in a ball bearing with a PTFE seal and an FFKM O-ring. Materials in contact with the product are FFPM, PTFE and AISI 316L. Solvents are permitted; the pH range is from 2 to 13. Under vacuum, the tool may be used down to 100 mbar; the maximum operating temperature is 170 °C. Sterilisation is carried out using a wet chemical process.Fineness and dimensionsThe final fineness ranges from 20 to 50 µm for suspensions and 5 to 15 µm for emulsions. The immersion depth is 80 to 450 mm, and the installation length is 520 mm. Batches of 2,000 to 40,000 ml are recommended. The tool weighs 4.21 kg.Typical applicationsDispersing and emulsifying 2 to 40 lemulsions with final particle sizes of 5 to 15 µmSuspensions with final particle sizes of 20 to 50 µmOperations under vacuum down to 100 mbarProcesses involving solventsTechnical detailsProcessable volume (H2O)2 to 40 lStator diameter65 mmRotor diameter58 mmStator/rotor gap width0.5 mmMax. permissible speed9,500 rpmMaximum circumferential speed28.8 m/sPenetration depth80 to 450 mmInstallation length520 mmBearing and sealBall bearing, PTFE seal, FFKM O-ringMaterials in contact with the productFFPM, PTFE, AISI 316LpH range2 to 13Suitable for solventsYesMax. operating temperature170 °CSterilisabilitywet chemicalVacuum100 mbarFinal particle size of suspensions20 to 50 µmFinal particle size of emulsions5 to 15 µmWeight4.21 kgScope of delivery1 x IKA S 65 KD - G 65 M dispersing tool (single tool)The T 65 digital drive is not included in the Scope of delivery.Same geometry, different sealThe S 65 KG - HH - G 65 M has the same geometry (65 mm stator, 58 mm rotor, 0.5 mm gap) with a mechanical seal, which allows a vacuum down to 1 mbar and has an installation length of 510 mm. The S 65 C - G 65 M uses ceramic instead of PTFE and also operates with volumes of 2 to 40 l, but is not designed for vacuum. The S 65 KD - G 65 F is available for batches of up to 30 l with particle sizes of 5 to 20 µm in suspensions. The S 65 KD - G 65 G operates with a 53 mm rotor and handles batches of up to 50 l.Individual requirements and procurement serviceLT Laborhandel can supply the T 65 digital drive and other accessories on request. Through our procurement service, we will work with you to determine which geometry is best suited to your batch.
