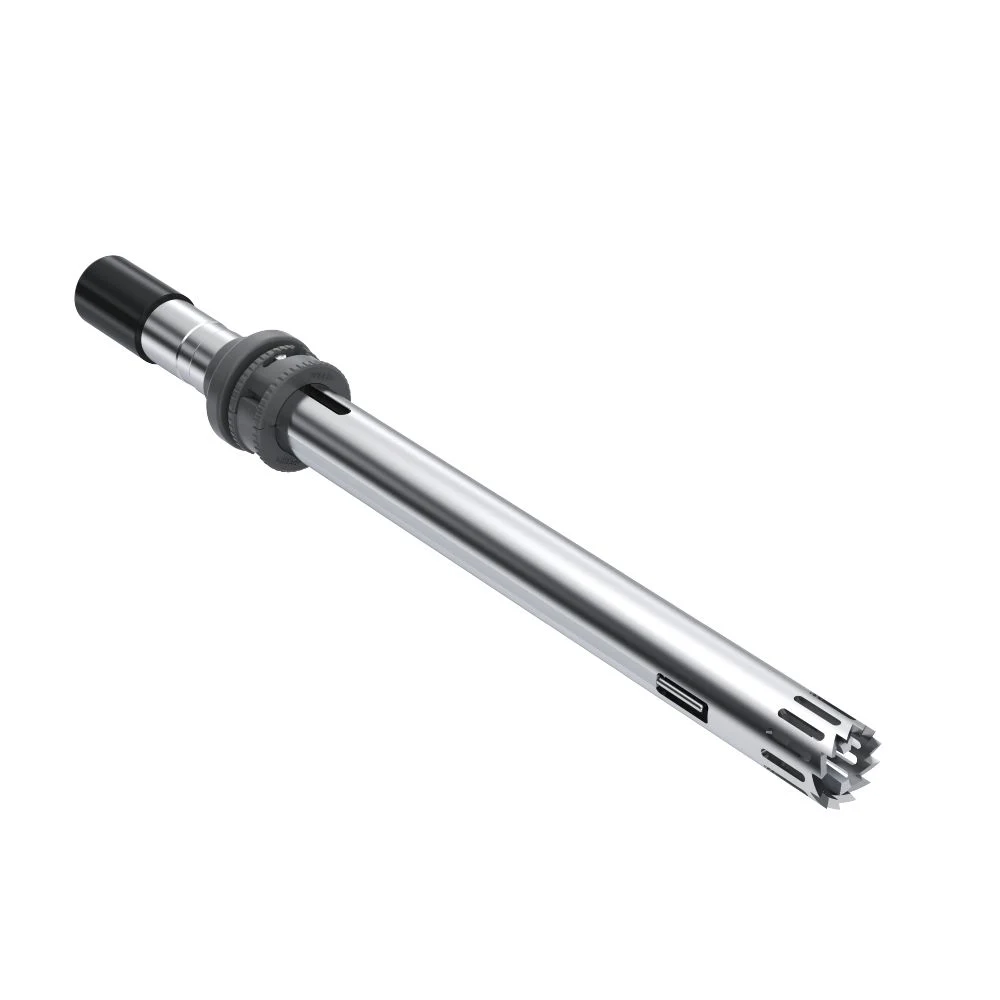

IKA S 25 EC - T - C - 18 G - ST mixing tool, Ø18 mm for T 25 easy clean, #0025007398

S 25 EC - T - C - 18 G ST Dispersing tool
The autoclavable dispersing tool S 25 EC - T - C - 18 G - ST is suitable for general applications involving high-speed mixing with high shear forces, grinding in liquid, emulsification, reducing particle size in solution, and the vigorous dissolution of miscible and immiscible solids and liquids in a liquid medium. It is particularly recommended for dispersion applications in biochemistry or pharmaceuticals, e.g. for emulsifying heat-sensitive intermediates of active substances.

The sawtooth-shaped tool enables the cutting of fibrous materials in solutions for even faster homogenisation. The integrated temperature sensor allows temperature measurement during operation. Operating time is recorded via the associated T 25 easy clean digital or control disperser. A message on the display informs the user when maintenance is required.

As the name ‘easy clean’ suggests, the dispersing tools are particularly easy to clean: by simply turning and lowering the clamp, the shaft and rotor can be removed from the housing. This allows the shaft tube to be completely flushed through and cleaned from the inside.

Note: The S 25 EC - T - C - 18 G is only compatible with the T 25 easy clean digital and control dispersers. The temperature sensor function of the T tools can only be activated in conjunction with the T 25 easy clean control.

Technical data:
Processable volume (H₂O) 0.01 – 1.5 l
Stator diameter 18 mm
Rotor diameter 13.4 mm
Gap width between stator and rotor 0.25 mm
Maximum permissible speed 25,000 rpm
Maximum circumferential speed 17.5 m/s
Immersion depth 45 – 150 mm
Installation length 191 mm
Material in contact with the product AISI 316L, ceramic
pH range 2 – 13
Suitable for solvents yes
Suitable for abrasive substances yes
Temperature measurement range 0–125 °C
Temperature measurement accuracy ±1 K
Maximum operating temperature 120 °C
Sterilisability all methods except hot air
Final particle size of suspensions 10–50 µm
Final particle size of emulsions 1–10 µm
Weight 0.634 kg
