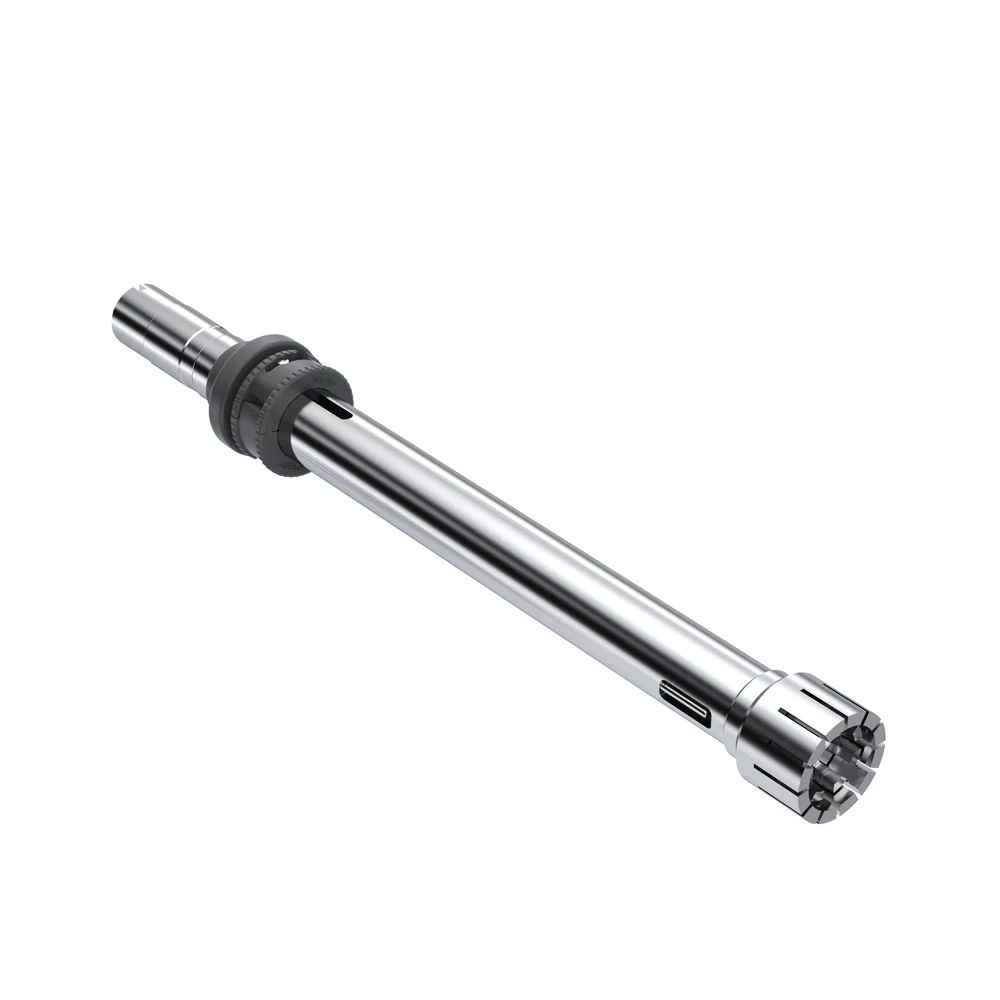

IKA S 25 EC - T - C - 25 F mixing tool, Ø25 mm for T 25 easy clean, #0025007199

S 25 EC - T - C - 25 F Dispersing Tool
The S 25 EC-T-C-25F dispersing tool is particularly suitable for dispersing applications in the cosmetics sector. The integrated temperature sensor enables temperature measurement during operation. Operating hours are recorded via the associated T 25 easy clean digital or control disperser. A message on the display alerts the user when maintenance is required.

The easy clean dispersing tool is particularly easy to clean: by turning and lowering the clamp, the shaft and rotor can be released until the entire rotor has exited the stator. The tool’s shaft tube can then also be flushed completely from the inside.

Bearing type: Ceramic plain bearing
Material in contact with the product: AISI 316L, ceramic
Suitable for solvents: Yes
Sterilisable: Yes, all methods (except hot air)
Max. operating temperature [°C]: 120
Installation length [mm]: 191
Stator/rotor diameter [mm]: 25 / 18
Gap width [mm]: 0.5
Recommended immersion depth [mm]: 45–150
Recommended working volume [mL]: 100–2000
Temperature measurement: Yes
Temperature measurement accuracy: ± 0.5 K
Operating hours monitoring: Yes

The S 25 EC-T-C-25F is only compatible with the T 25 easy clean digital and control dispersers.

Technical data:
Processable volume (H₂O) 0.01 – 2 l
Stator diameter 25 mm
Rotor diameter 18 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible speed 25,000 rpm
Maximum circumferential speed 23.6 m/s
Immersion depth 45–150 mm
Installation length 191 mm
Materials in contact with the product AISI 316L, ceramic
pH range 2–13
Suitable for solvents yes
Suitable for abrasive substances yes
Temperature measurement range 0–125 °C
Temperature measurement accuracy ±1 K
Maximum operating temperature 120 °C
Sterilisability all methods except hot air
Final particle size of suspensions 5–25 µm
Final particle size of emulsions 1–5 µm
Weight 0.634 kg
