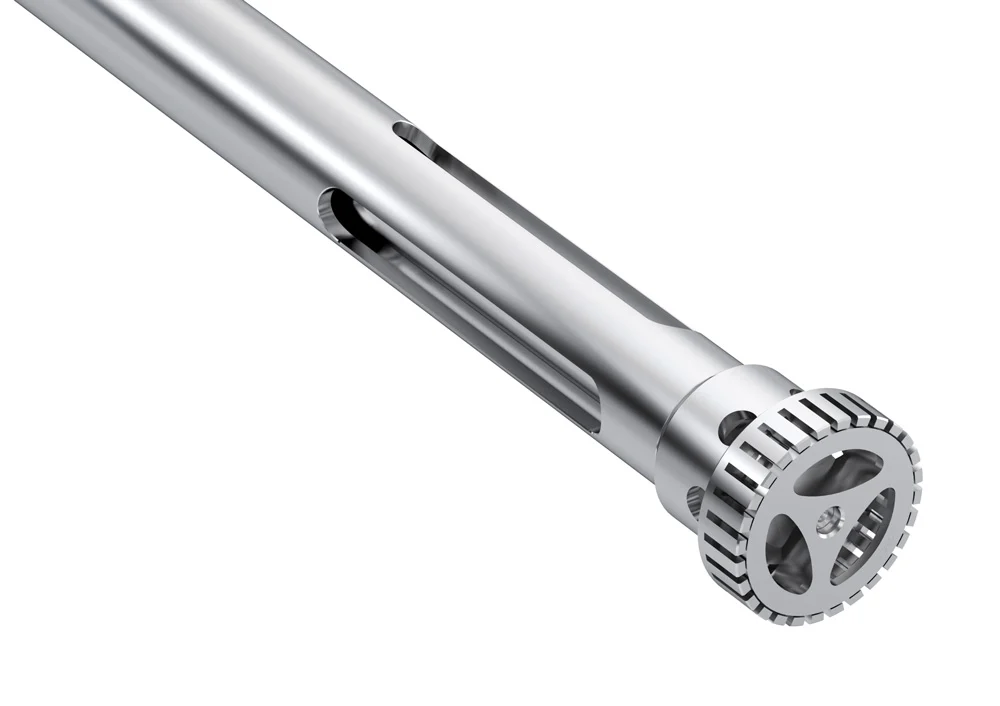

IKA S 65 C - G 65 M dispersing tool, Ø65 mm, #0010001666
€4,907.70
% Regular price: €5,166.00 (5% saved)
Accessories and spare parts are available on request!
Product information "IKA S 65 C - G 65 M dispersing tool, Ø65 mm, #0010001666"
S 65 C - G 65 M Dispersing tool
Dispersing tool for the T 65 basic/digital disperser
Bearing type and seal type: Ball bearings and ceramic plain bearings
Material in contact with the product: AISI 316L, ceramic
Suitable for solvents: Yes
Sterilisable: all methods (except ball bearings)
Suitable for vacuum: No
Max. operating temperature [°C]: 180
Installation length [mm]: 520
Stator/rotor diameter [mm]: 65/58
Gap width [mm]: 0.5
Recommended immersion depth [mm]: 94–450
Recommended working volume [ml]: 2,000–40,000
Technical data:
Processable volume (H₂O) 2 – 40 l
Stator diameter 65 mm
Rotor diameter 53 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible speed 9,500 rpm
Maximum circumferential speed 28.8 m/s
Immersion depth 90 – 450 mm
Installation length 520 mm
Material in contact with the product AISI 316L, ceramic
pH range 2–13
Suitable for solvents yes
Maximum operating temperature 170 °C
Sterilisable all methods
Final particle size of suspensions 20–50 µm
Final particle size of emulsions 5–15 µm
Weight 3.91 kg
