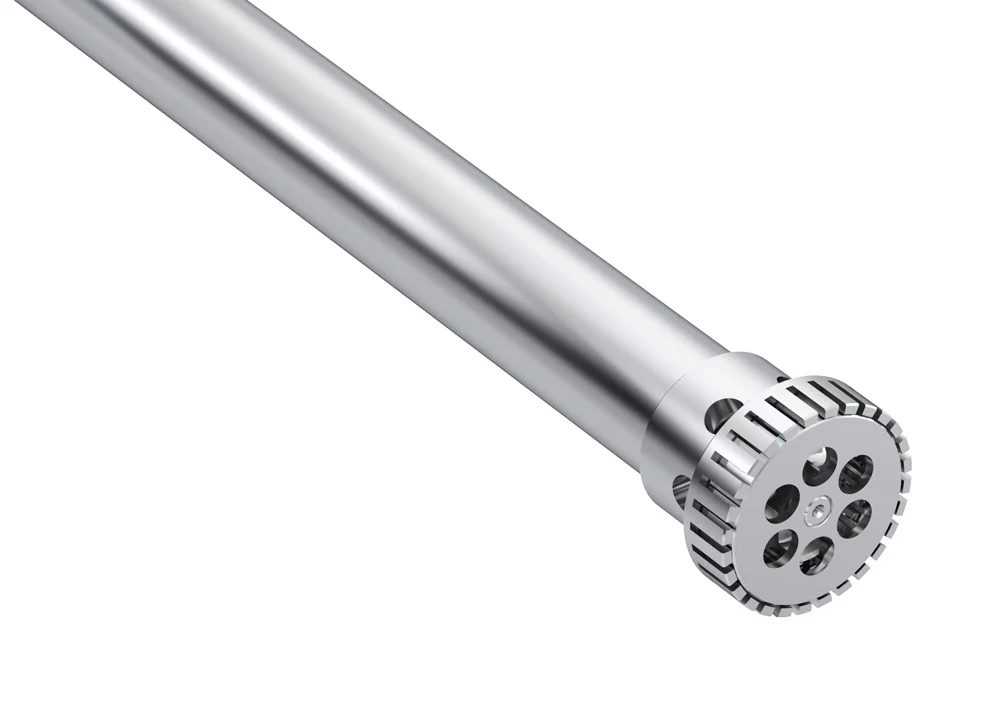

IKA S 65 KD - G 65 F dispersing tool, Ø65 mm, #0010000643
€5,255.40
% Regular price: €5,532.00 (5% saved)
Accessories and spare parts are available on request!
Product information "IKA S 65 KD - G 65 F dispersing tool, Ø65 mm, #0010000643"
S 65 KD - G 65 F Dispersing tool
Dispersing tool for the T 65 basic / digital disperser
Bearing type and seal type: Ball bearing with PTFE seal and FFKM O-ring
Material in contact with the product: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilisable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. operating temperature [°C]: 180
Installation length [mm]: 520
Stator/rotor diameter [mm]: 65/58
Gap width [mm]: 0.5
Recommended immersion depth [mm]: 92–450
Recommended working range [ml]: 2,000–30,000
Technical data:
Processable volume (H₂O) 2–30 l
Stator diameter 65 mm
Rotor diameter 58 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible speed 9,500 rpm
Maximum circumferential speed 28.8 m/s
Immersion depth 80–450 mm
Installation length 520 mm
Materials in contact with the product FFPM, PTFE, AISI 316L
pH range 2–13
Maximum operating temperature 170 °C
Sterilisability wet – chemical
Vacuum 100 mbar
Final particle size of suspensions 5 – 20 µm
Final particle size of emulsions 1 – 10 µm
Weight 4.24 kg
