Kern 440-51N precision balance 4,000 g / 1 g
€153.00
% Manufacturer's RRP: €170.00 10% below manufacturer's RRP
- Weighing range 4,000 g, readability 1 g
- Reproducibility 1 g, linearity ± 2 g, stabilisation time 2 s
- Minimum unit weight when piece counting 2 g (laboratory) or 20 g (standard conditions)
- Stainless steel weighing pan 150 x 170 mm
- Backlit LCD, RS-232 as standard, rechargeable battery optional
Product information "Kern 440-51N precision balance 4,000 g / 1 g"

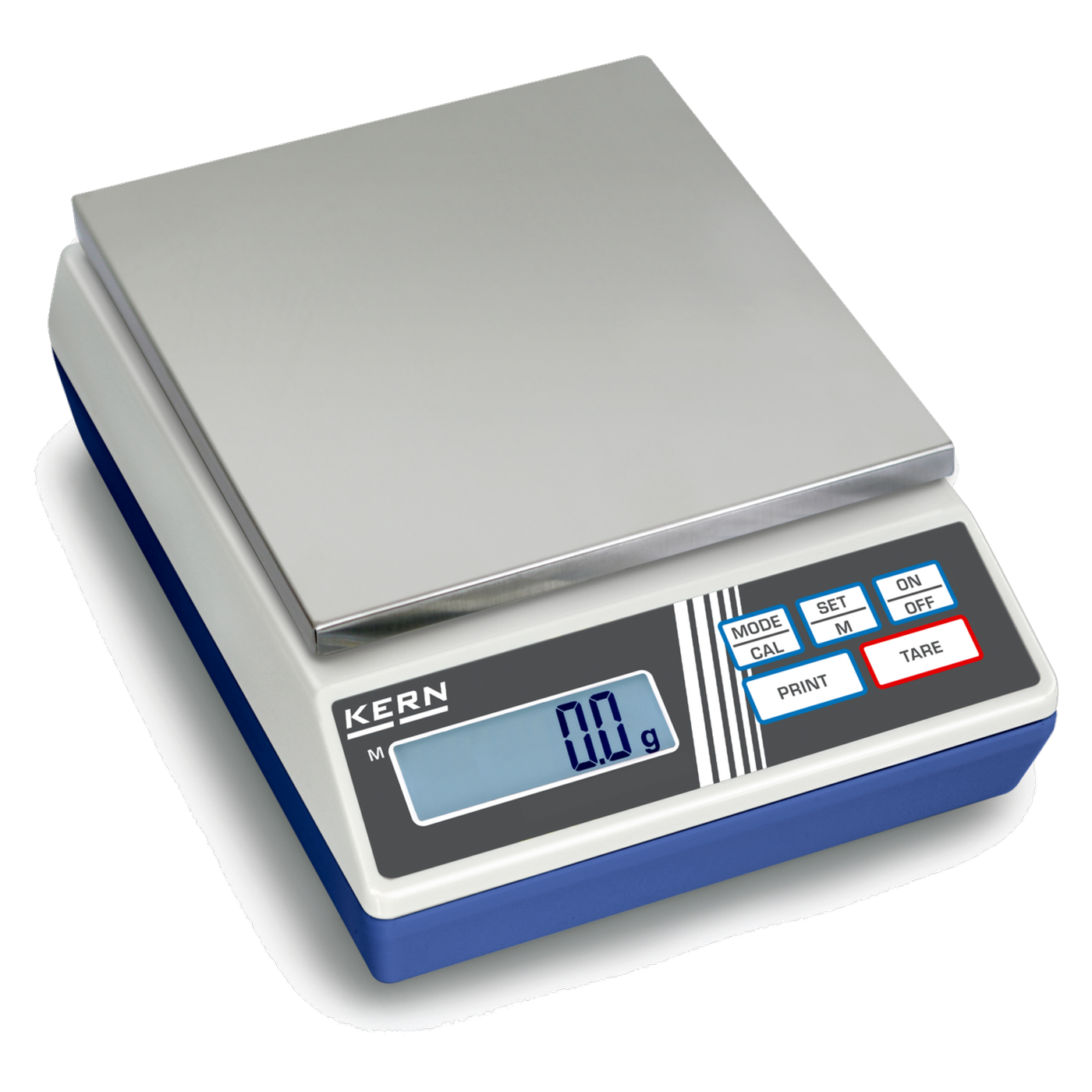

The Kern 440 is a compact precision balance with strain gauges for laboratory use. Nine models weigh from 60 g to 6,000 g and have a readability of 0.001 g, 0.01 g, 0.1 g or 1 g. The plastic housing measures 165 x 230 x 80 mm, so the balance takes up little space on the workbench.
Nine models, four readability levels
The 440-21A covers the finest range: 60 g at 0.001 g, with a ring-shaped draught shield (weighing chamber Ø 90 mm, 40 mm high) and a plastic weighing plate (Ø 81 mm) with static-dissipative paint finish. The 440-33N (up to 200 g) and the 440-35A (up to 600 g) read to 0.01 g, both with a stainless steel plate (Ø 105 mm). The 440-43N (400 g), 440-45N (1,000 g), 440-47N (2,000 g) and 440-49A (6,000 g) read to 0.1 g. The 440-51N (4,000 g) and the 440-53N (6,000 g) have a readability of 1 g and, at 2 s, take slightly less time to stabilise than the other models (3 s).
Functions and operation
The balance determines percentages, counts pieces and adds up weighings via the Net-Total function of the formulation and totalling level. The minimum unit weight for counting is given for each model in the table. The units are switchable; depending on the model, these include g, ct, lb, oz, dwt and ozt (the full list is provided in the Kern data sheet). The backlit LCD has digits 15 mm high. According to the data sheet, adjustment is carried out using an external weight.
Mains power, rechargeable battery and battery
The plug-in mains adaptor (100 V to 240 V, 50 Hz or 60 Hz) is included in the scope of delivery. In addition, the balance can be operated with a 9 V block battery, which is not supplied. As an option, Kern lists the rechargeable battery FCB-A01 (NiMH) with 10 h charging time and 20 h operating time without backlight. The automatic switch-off after 3 min in rechargeable battery and battery operation can be switched off. Data is transmitted to a printer or PC via the standard RS-232 interface. The permissible range is 5 °C to 35 °C and up to 80 % humidity.
Typical applications
- Laboratories with limited space: 165 x 230 mm footprint, mains, battery or rechargeable battery operation
- Sample preparation in the milligram range: 440-21A with draught shield
- Preparing solutions and weighing to 0.01 g: 440-33N and 440-35A
- Goods receipt and checkweighing up to 6 kg: 440-49A and 440-53N
Models at a glance
| Model | Weighing range (Max) | Readability (d) | Reproducibility | Linearity | Stabilisation time | Minimum unit weight (laboratory / normal) | Weighing pan | Net weight approx. | DAkkS calibration certificate (item no.) |
|---|---|---|---|---|---|---|---|---|---|
| 440-21A | 60 g | 0.001 g | 0.001 g | ± 0.003 g | 3 s | 2 mg / 20 mg | Ø 81 mm | 0.95 kg | 963-127 |
| 440-33N | 200 g | 0.01 g | 0.01 g | ± 0.02 g | 3 s | 20 mg / 200 mg | Ø 105 mm | 1.00 kg | 963-127 |
| 440-35A | 600 g | 0.01 g | 0.01 g | ± 0.03 g | 3 s | 20 mg / 200 mg | Ø 105 mm | 1.00 kg | 963-127 |
| 440-43N | 400 g | 0.1 g | 0.1 g | ± 0.2 g | 3 s | 200 mg / 2 g | 130 x 130 mm | 1.2 kg | 963-127 |
| 440-45N | 1,000 g | 0.1 g | 0.1 g | ± 0.2 g | 3 s | 200 mg / 2 g | 130 x 130 mm | 1.2 kg | 963-127 |
| 440-47N | 2,000 g | 0.1 g | 0.1 g | ± 0.2 g | 3 s | 200 mg / 2 g | 130 x 130 mm | 1.2 kg | 963-127 |
| 440-51N | 4,000 g | 1 g | 1 g | ± 2 g | 2 s | 2 g / 20 g | 150 x 170 mm | 1.2 kg | 963-127 |
| 440-49A | 6,000 g | 0.1 g | 0.1 g | ± 0.3 g | 3 s | 200 mg / 2 g | 150 x 170 mm | 1.2 kg | 963-128 |
| 440-53N | 6,000 g | 1 g | 1 g | ± 2 g | 2 s | 2 g / 20 g | 150 x 170 mm | 1.2 kg | 963-128 |
Technical details
These values apply to all models. Deviating values are given in the model table.
| Weighing system | Strain gauge |
| Weighing pan material | Stainless steel (440-21A: plastic, painted static-dissipative) |
| Display | LCD with backlight, digit height 15 mm |
| Interface | RS-232 (standard) |
| Housing | Plastic, 165 x 230 x 80 mm (W x D x H) |
| Power supply | Plug-in mains adaptor, 100 V to 240 V AC, 50 Hz or 60 Hz; 9 V block battery possible; rechargeable battery FCB-A01 optional |
| Ambient temperature | 5 °C to 35 °C |
| Humidity | up to 80 % |
| DAkkS calibration certificate | can be ordered separately, item no. 963-127 (440-49A, 440-53N: 963-128) |
| Warranty (manufacturer) | 24 months according to Kern, excluding wear parts |
Calibration
For the 440 series, Kern does not list a conformity assessment under the NAWI Directive (2014/31/EU). A DAkkS calibration certificate can be ordered separately (item no. 963-127; for 440-49A and 440-53N: 963-128). The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate.
Scope of delivery
- Kern 440 precision balance with weighing plate (440-21A with ring-shaped draught shield)
- Working protective cover
- Plug-in mains adaptor with country adaptors for EU, UK, US and CH
Warranty
According to Kern & Sohn, these devices come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Regulatory information
As electrical devices, the balances fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
A hook for below-balance weighing (440-A01, not for the 440-21A), the rechargeable battery FCB-A01, the plug-in mains adaptor YKA-03N, working protective covers (also in packs of 5), the anti-vibration table YPS-03, the anti-vibration plates YPS-04 and YPS-05, the thermal printer YKC-01, the needle printer YKT-01, the RS232 Bluetooth adapter YKI-02, RS232 Ethernet converters (YKI-10, YKI-11), the RS232 WLAN converter YKI-12, the RS232 to USB converter (AFH 13) and the RS-232 interface cable 572-926 are also available. Kern lists the following test weights: 337-06 (50 g, OIML class F2) for the 440-21A, 347-08 (200 g, M1) for the 440-33N, 337-09 (500 g, F2) for the 440-35A, 347-11 (1 kg, M1) for the 440-45N, 347-12 (2 kg, M1) for the 440-47N, 337-13 (5 kg, F2) for the 440-49A and 356-76 (5 kg, M2, Eco block) for the 440-53N. Enquiries are handled via our procurement service.
| Weighing range (Max): | 4 kg |
|---|---|
| Readability (d): | 1 g |
| Verifiable: | no |
| Design: | 440-51N · 4.000 g |
| Power supply: | Mains operation |
