Kern 572-39 precision balance 4,200 g / 0.01 g

Product information "Kern 572-39 precision balance 4,200 g / 0.01 g"

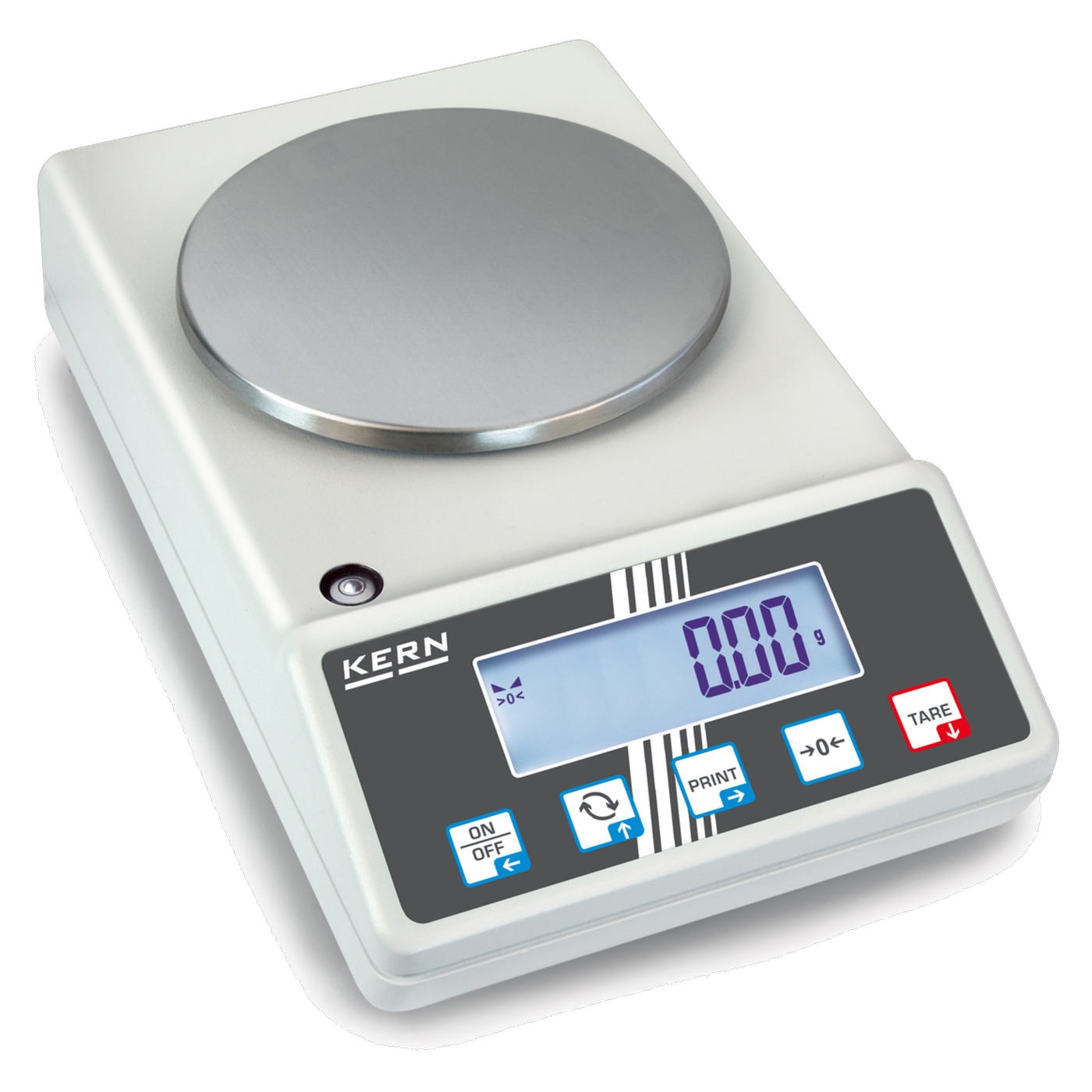

The Kern 572 is a precision balance in a die-cast aluminium housing. Kern states that the country of origin is Germany. Ten models weigh from 240 g to 24 kg and have a readability of 0.001 g to 0.1 g. Instead of fixed interfaces, the balance features a KUP connection (KERN Universal Port), to which interface adaptors can be easily plugged in. Kern regards it as an all-rounder for laboratories and harsh industrial environments.

Die-cast aluminium housing and data connection

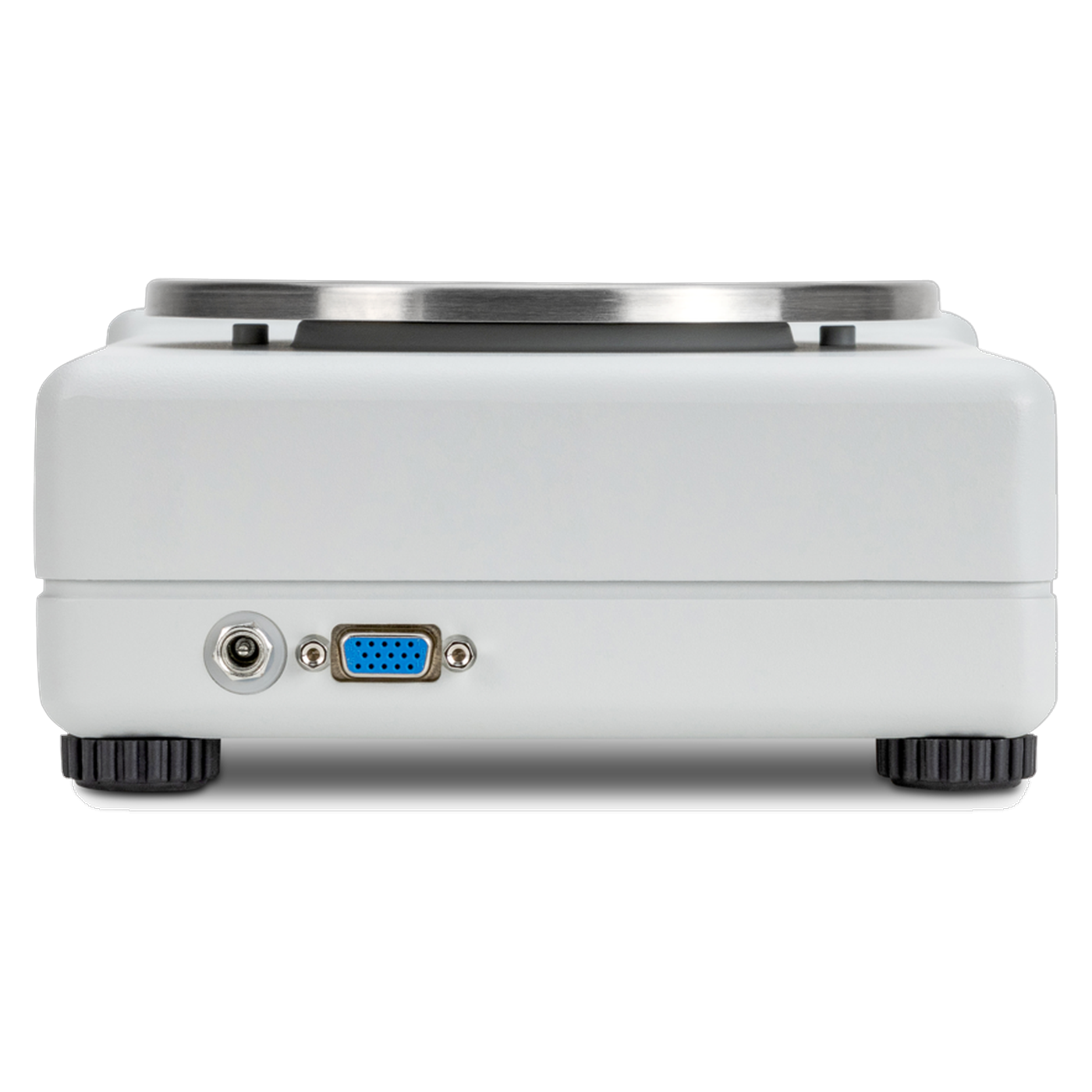

According to Kern, the die-cast aluminium housing (180 x 310 x 85 mm) protects the weighing technology and ensures a stable stand. A spirit level and levelling feet are included. The adaptors for RS-232, USB device, Ethernet, WLAN and Bluetooth BLE can be plugged into the KUP connection without opening the housing. The KERN Communication Protocol (KCP) allows the balance to be queried and remotely controlled via control units or computers. According to Kern, the KERN EasyTouch software is compatible. The LCD has digits 21 mm high.

Functions for laboratory and production

Features include a formulation function, percentage determination, piece counting and vibration-free weighing. The weighing unit can be freely programmed, for example to display thread length (g/m) or paper weight (g/m²). The units are also switchable, including g, kg, ct, lb and oz. The data sheet gives temperatures from -10 °C to 40 °C and up to 80 % humidity. Power is supplied via the plug-in mains adaptor (100 V to 240 V, 50 Hz or 60 Hz). A Li-ion rechargeable battery is optionally available ex works (charging time 8 h, operating time 24 h with and 48 h without backlight).

Three designs in ten models

The 572-30 and 572-32 (240 g and 420 g, readability 0.001 g) have a weighing plate with a diameter of 106 mm, a ring-shaped draught shield (weighing chamber Ø 157 mm, 43 mm high) and an eyelet for below-balance weighing in the scope of delivery. The 572-33, 572-35 and 572-39 (1,600 g, 2,400 g and 4,200 g, readability 0.01 g) have a weighing plate with a diameter of 150 mm. The five large models 572-43, 572-45, 572-49, 572-55 and 572-57 (10 kg to 24 kg) have a rectangular weighing pan measuring 160 x 200 mm. The readability is 0.05 g or 0.1 g, depending on the model. The stabilisation time is 3 s; only the 572-49 takes 2 s.

Typical applications

Laboratory applications and sample analysis: 572-30 and 572-32 with draught shield
Quality control: piece counting and percentage determination
Food industry: larger containers up to 24 kg with 0.1 g readability
Workshops: die-cast aluminium housing for everyday use

Models at a glance

Model	Weighing range (Max)	Readability (d)	Reproducibility	Linearity	Stabilisation time	Minimum unit weight (laboratory / normal)	Weighing pan	Net weight approx.	DAkkS calibration certificate (item no.)
572-30	240 g	0.001 g	0.001 g	± 0.003 g	3 s	1 mg / 10 mg	Ø 106 mm	2.4 kg	963-127
572-32	420 g	0.001 g	0.002 g	± 0.005 g	3 s	1 mg / 10 mg	Ø 106 mm	2.4 kg	963-127
572-33	1,600 g	0.01 g	0.01 g	± 0.03 g	3 s	10 mg / 100 mg	Ø 150 mm	2.4 kg	963-127
572-35	2,400 g	0.01 g	0.01 g	± 0.03 g	3 s	10 mg / 100 mg	Ø 150 mm	2.4 kg	963-127
572-39	4,200 g	0.01 g	0.02 g	± 0.05 g	3 s	10 mg / 100 mg	Ø 150 mm	2.4 kg	963-127
572-43	10 kg	0.1 g	0.1 g	± 0.3 g	3 s	100 mg / 1 g	160 x 200 mm	2.8 kg	963-128
572-45	12,000 g	0.05 g	0.05 g	± 0.15 g	3 s	50 mg / 500 mg	160 x 200 mm	2.8 kg	963-128
572-49	16 kg	0.1 g	0.1 g	± 0.3 g	2 s	100 mg / 1 g	160 x 200 mm	2.8 kg	963-128
572-55	20 kg	0.05 g	0.1 g	± 0.25 g	3 s	50 mg / 500 mg	160 x 200 mm	2.8 kg	963-128
572-57	24 kg	0.1 g	0.1 g	± 0.3 g	3 s	100 mg / 1 g	160 x 200 mm	2.8 kg	963-128

Technical details

These values apply to all models. Deviating values are given in the model table.

Weighing system	Strain gauge
Weighing pan material	Stainless steel
Display	LCD, digit height 21 mm
Interfaces	KUP connection; RS-232, USB device, Ethernet, WLAN and Bluetooth BLE optional as adaptors
Housing	Die-cast aluminium, 180 x 310 x 85 mm (W x D x H)
Power supply	Plug-in mains adaptor, 100 V to 240 V AC, 50 Hz or 60 Hz; rechargeable battery optional ex works
Ambient temperature	-10 °C to 40 °C
Humidity	up to 80 %
DAkkS calibration certificate	can be ordered separately, item no. 963-127 (572-30 to 572-39) or 963-128 (572-43 to 572-57)
Warranty (manufacturer)	36 months according to Kern, excluding wear parts

Calibration

For the 572 series, Kern does not list a conformity assessment under the NAWI Directive (2014/31/EU). A DAkkS calibration certificate can be ordered separately. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate.

Scope of delivery

Kern 572 precision balance with stainless steel weighing pan (572-30 and 572-32 with draught shield and eyelet for below-balance weighing)
Working protective cover
Plug-in mains adaptor with country adaptors for EU, UK, US and CH

Warranty

According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.

Downloads

Operating instructions Kern 572 (PDF)

Regulatory information

As electrical devices, the balances fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.

Individual requirements and procurement service

The KUP interface adaptors KUP-01 (RS-232), KUP-03 (USB device), KUP-04 (Ethernet), KUP-05 (WLAN) and KUP-06 (Bluetooth BLE), the extension box KUP-13, the signal lamp CFS-A03, the rechargeable battery YKR-01, the plug-in mains adaptor YKA-27, the working protective cover 572-A02, the hook for below-balance weighing 572-A03 (for 572-33 to 572-57), thermal printers (YKC-01, YKH-01), the dot-matrix printer YKG-01, the needle printer YKT-01, the anti-vibration table YPS-03 and the anti-vibration plates YPS-04 and YPS-05 are also available. Kern lists the following test weights: 326-08 (200 g, OIML class F1) for the 572-30, 326-12 (2 kg, F1) for the 572-35, 326-14 (10 kg, F1) for 572-43 and 572-45, and 327-151 (20 kg, F1, control weight) for 572-55 and 572-57. Enquiries are handled via our procurement service.

Weighing range (Max):	4.2 kg
Readability (d):	0.01 g
Verifiable:	no
Design:	572-39 · 4.200 g
Power supply:	Mains operation
