Kern CCS 60K0.1L. counting system 60 kg / 2 g, reference balance 6 kg / 100 mg
€720.00
% Manufacturer's RRP: €800.00 10% below manufacturer's RRP
- Quantity platform 60 kg, readability 2 g (KFP 60V20LM)
- Reference balance 6 kg, readability 100 mg
- Counting resolution 600,000, minimum unit weight 100 mg (laboratory)
- Weighing pan of the platform 500 x 400 mm
- Three displays, 100 item memory locations, fill-to-target function
- RS-232 as standard, plug-in mains adaptor and working protective cover in the scope of delivery
Product information "Kern CCS 60K0.1L. counting system 60 kg / 2 g, reference balance 6 kg / 100 mg"

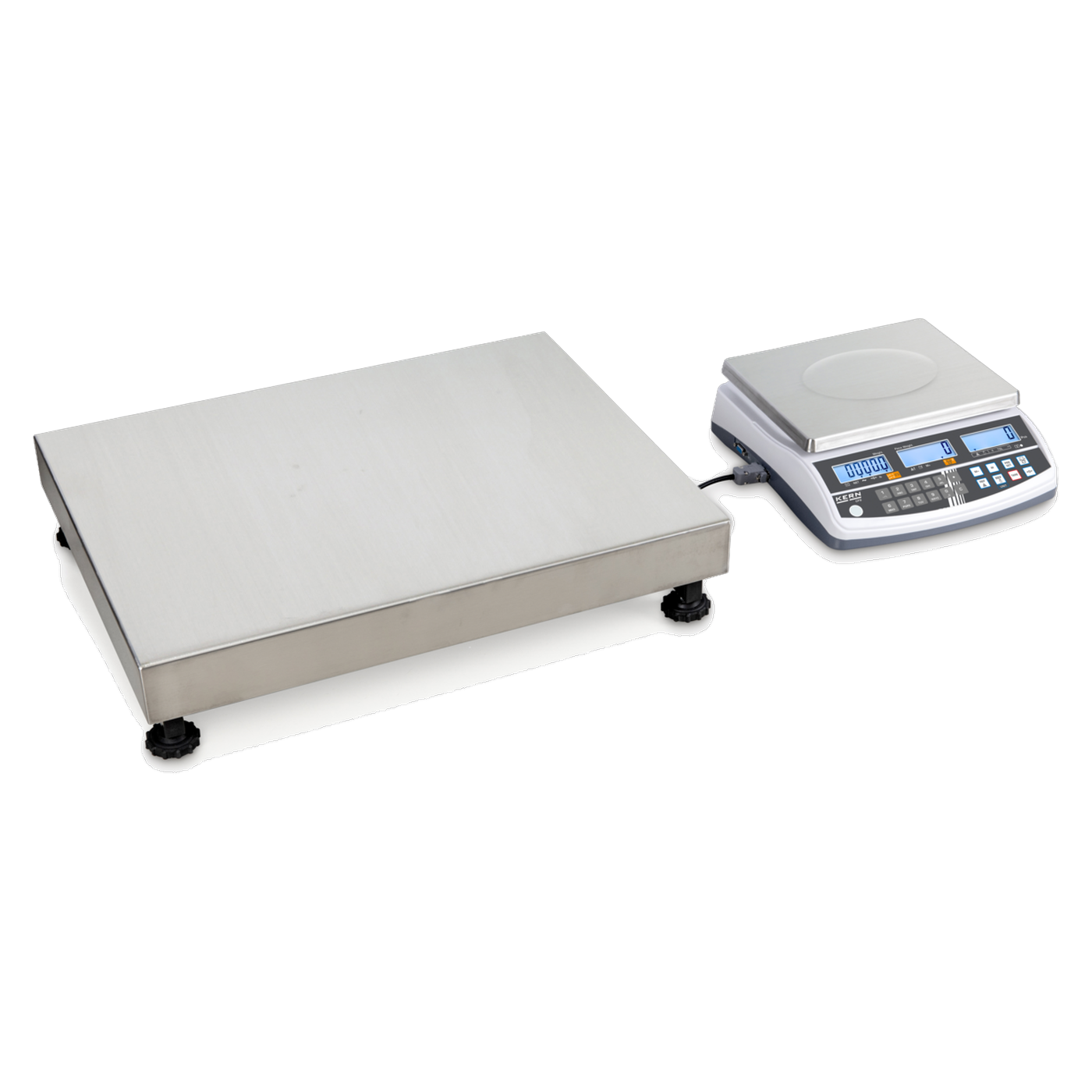

The Kern CCS is a counting system comprising a reference balance from the CFS series and a quantity platform. The reference balance weighs the individual part very finely, the platform the large quantity, and the system calculates the number of pieces from this. Twenty models cover quantity platforms from 6 kg to 3,000 kg, from the table platform measuring 230 x 230 mm to the weighing bridge measuring 1,500 x 1,500 mm. The display shows up to 999,999 counted items. The counting resolution ranges from 300,000 to 30,000,000 depending on the model; the minimum unit weight under laboratory conditions ranges from 5 mg to 100 mg.
Reference balances and platforms
There are three reference balances. The CFS 300-3 (300 g, readability 1 mg) is built into the CCS 6K-6 and CCS 10K-6 models and counts parts from 5 mg. The CFS 3K-5 (3 kg, 10 mg) works in the models with 0.01 in the name and counts parts from 50 mg. The CFS 6K0.1 (6 kg, 100 mg) belongs to the remaining models and counts parts from 100 mg. For the platforms, Kern distinguishes three designs: KFP table platforms with a stainless steel weighing plate (6 kg to 300 kg), KIP weighing bridges made of steel chequer plate (600 kg to 3,000 kg) and the KFU U-shaped weighing bridge for pallet loads (CCS 1T-1U). The CCS 1T-1L has a large KFP platform measuring 1,500 x 1,250 mm.
Operation and functions
Three displays show the weight, reference weight and total number of items. The reference quantity and a known reference weight can be entered via the keypad. The automatic reference optimisation gradually improves the average value of the unit weight. The memory (PLU) can store 100 items with additional text, reference weight and tare weight, such as that of a container. The fill-to-target function works with a programmable target piece count or target weight; reaching it is indicated by an audible and visual signal. In addition there are the PRE-TARE function, a totals memory and a conversion function.
Connection and power supply
RS-232 is fitted as standard. The platform is connected to the reference balance by a cable, 3 m for the table platforms and 5 m for the weighing bridges. The plug-in mains adaptor (220 V to 240 V AC, 50 Hz, device 12 V, 500 mA) is supplied with adaptors for EU, UK, US and CH. A lead-acid rechargeable battery (GAB-A04) is available as an accessory and takes 12 h to charge. The display is protected to IP23; the platform and load cell of the table models are protected to IP65. The ambient temperature may be between 0 °C and 40 °C, and the relative humidity up to 80 %.
Typical applications
- Assembly and parts logistics: counting screws, nuts and stamped parts from containers
- Packaging industry: determining quantities for bags and cartons
- Quality assurance: checking delivery quantities against order quantities
- Order picking and stocktaking: recording small parts in crates and on pallets
- Goods receipt: counting pallets up to 3,000 kg on a weighing bridge
Models at a glance
| Model | Quantity platform (type) | Weighing range of the platform | Readability of the platform | Reference balance (Max / d) | Counting resolution (laboratory) | Minimum unit weight when piece counting (laboratory / normal) | Weighing pan of the platform |
|---|---|---|---|---|---|---|---|
| CCS 6K-6 | KFP 6V20M | 6 kg | 0.2 g | 300 g / 1 mg | 1,200,000 | 5 mg / 50 mg | 230 x 230 mm |
| CCS 10K-6 | KFP 15V20M | 15 kg | 0.5 g | 300 g / 1 mg | 3,000,000 | 5 mg / 50 mg | 300 x 240 mm |
| CCS 30K0.1. | KFP 30V20M | 30 kg | 1 g | 6 kg / 100 mg | 300,000 | 100 mg / 1 g | 400 x 300 mm |
| CCS 30K0.01. | KFP 30V20M | 30 kg | 1 g | 3 kg / 10 mg | 600,000 | 50 mg / 500 mg | 400 x 300 mm |
| CCS 60K0.1. | KFP 60V20M | 60 kg | 2 g | 6 kg / 100 mg | 600,000 | 100 mg / 1 g | 400 x 300 mm |
| CCS 60K0.01. | KFP 60V20M | 60 kg | 2 g | 3 kg / 10 mg | 1,200,000 | 50 mg / 500 mg | 400 x 300 mm |
| CCS 60K0.1L. | KFP 60V20LM | 60 kg | 2 g | 6 kg / 100 mg | 600,000 | 100 mg / 1 g | 500 x 400 mm |
| CCS 60K0.01L. | KFP 60V20LM | 60 kg | 2 g | 3 kg / 10 mg | 1,200,000 | 50 mg / 500 mg | 500 x 400 mm |
| CCS 150K0.1. | KFP 150V20M | 150 kg | 5 g | 6 kg / 100 mg | 1,500,000 | 100 mg / 1 g | 500 x 400 mm |
| CCS 150K0.01 | KFP 150V20M | 150 kg | 5 g | 3 kg / 10 mg | 3,000,000 | 50 mg / 500 mg | 500 x 400 mm |
| CCS 150K0.1L | KFP 150V20LM | 150 kg | 5 g | 6 kg / 100 mg | 1,500,000 | 100 mg / 1 g | 650 x 500 mm |
| CCS 150K0.01L | KFP 150V20LM | 150 kg | 5 g | 3 kg / 10 mg | 3,000,000 | 50 mg / 500 mg | 650 x 500 mm |
| CCS 300K0.1 | KFP 300V20M | 300 kg | 10 g | 6 kg / 100 mg | 3,000,000 | 100 mg / 1 g | 650 x 500 mm |
| CCS 300K0.01 | KFP 300V20M | 300 kg | 10 g | 3 kg / 10 mg | 6,000,000 | 50 mg / 500 mg | 650 x 500 mm |
| CCS 600K-1S | KIP 600V20SM | 600 kg | 200 g | 6 kg / 100 mg | 6,000,000 | 100 mg / 1 g | 1,000 x 1,000 mm |
| CCS 1T-4S | KIP 1500V20SM | 1,500 kg | 500 g | 6 kg / 100 mg | 15,000,000 | 100 mg / 1 g | 1,000 x 1,000 mm |
| CCS 1T-4 | KIP 1500V20M | 1,500 kg | 500 g | 6 kg / 100 mg | 15,000,000 | 100 mg / 1 g | 1,200 x 1,500 mm |
| CCS 1T-1U | KFU 1500V20M | 1,500 kg | 500 g | 6 kg / 100 mg | 15,000,000 | 100 mg / 1 g | 840 x 1,190 mm |
| CCS 1T-1L | KFP 1500V20M | 1,500 kg | 500 g | 6 kg / 100 mg | 15,000,000 | 100 mg / 1 g | 1,500 x 1,250 mm |
| CCS 3T-3L | KIP 3000V20LM | 3,000 kg | 1 kg | 6 kg / 100 mg | 30,000,000 | 100 mg / 1 g | 1,500 x 1,500 mm |
Technical details
These values apply to all models. Deviating values are given in the model table.
| Weighing system | Strain gauge |
| Stabilisation time | 2 s |
| Display | Backlit LCD, 3 displays, digit height 20 mm |
| Degree of protection of the display | IP23 |
| Item memory (PLU) | 100 locations |
| Adjustment | external, recommended adjustment weight depending on the platform, usually equal to the weighing range |
| Interface | RS-232 as standard |
| Power supply | Plug-in mains adaptor, 220 V to 240 V AC, 50 Hz, device 12 V, 500 mA, with adaptors for EU, UK, US and CH |
| Rechargeable battery (accessory) | Lead, GAB-A04, charging time 12 h |
| Ambient temperature | 0 °C to 40 °C |
| Humidity | up to 80 % |
| DAkkS calibration certificate | can be ordered separately, item no. 962-128-127 (6K-6, 10K-6, 30K0.01.); item no. 962-128-128 (30K0.1.); item no. 962-129-128 (60K0.1., 60K0.1L., 150K0.1., 150K0.1L, 300K0.1); item no. 962-129-127 (60K0.01., 60K0.01L., 150K0.01, 150K0.01L, 300K0.01); item no. 962-130-127 (600K-1S); item no. 962-130-128 (1T-4S, 1T-4, 1T-1U, 1T-1L); item no. 962-132-128 (3T-3L) |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Scope of delivery
- Kern CCS counting system comprising a reference balance (CFS) and a quantity platform with connecting cable
- Plug-in mains adaptor with adaptors for EU, UK, US and CH
- Working protective cover
The rechargeable battery, printer and interface adaptors are not in the scope of delivery.
Calibration
A DAkkS calibration certificate can be ordered separately: item no. 962-128-127 for CCS 6K-6, CCS 10K-6 and CCS 30K0.01., item no. 962-128-128 for CCS 30K0.1., item no. 962-129-128 for CCS 60K0.1., CCS 60K0.1L., CCS 150K0.1., CCS 150K0.1L and CCS 300K0.1, item no. 962-129-127 for CCS 60K0.01., CCS 60K0.01L., CCS 150K0.01, CCS 150K0.01L and CCS 300K0.01, item no. 962-130-127 for CCS 600K-1S, item no. 962-130-128 for CCS 1T-4S, CCS 1T-4, CCS 1T-1U and CCS 1T-1L, item no. 962-132-128 for CCS 3T-3L. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate.
Warranty
According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Regulatory information
As electrical devices, the balances fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
The lead-acid rechargeable battery GAB-A04, the working protective covers (CFS-A02, CFS-A02S05 with 5 pieces), the signal lamp (CFS-A03), the RS-232 interface cable (CFS-A01) and the RS-232 Y interface cable (CFS-A04), the plug-in mains adaptors PFB-A02 to PFB-A04 and YKA-11, the stainless steel fruit bowl (RFS-A02), the ESD earthing plug (YGR-01), the RS232 to USB converter (AFH 13), the RS232 Bluetooth adaptor (YKI-02), the RS232 Ethernet converters (YKI-10, YKI-11), the RS232 WLAN converter (YKI-12), the thermal printer (YKC-01), the dot-matrix printer (YKG-01) and the needle printer (YKT-01) are also available. For the KIP weighing bridges, Kern lists the access ramp BIC-A02 (1,200 x 1,000 x 108 mm), the pit frame BIC-A05 and the pair of foot plates BIC-A07; for the CCS 1T-1L, the access ramp BFS-A02N (1,250 x 740 x 90 mm), the pit frame BFS-A04N and the pair of foot plates BFS-A06N. Enquiries are handled via our procurement service.
| Design: | CCS 60K0.1L. · 60 kg |
|---|
