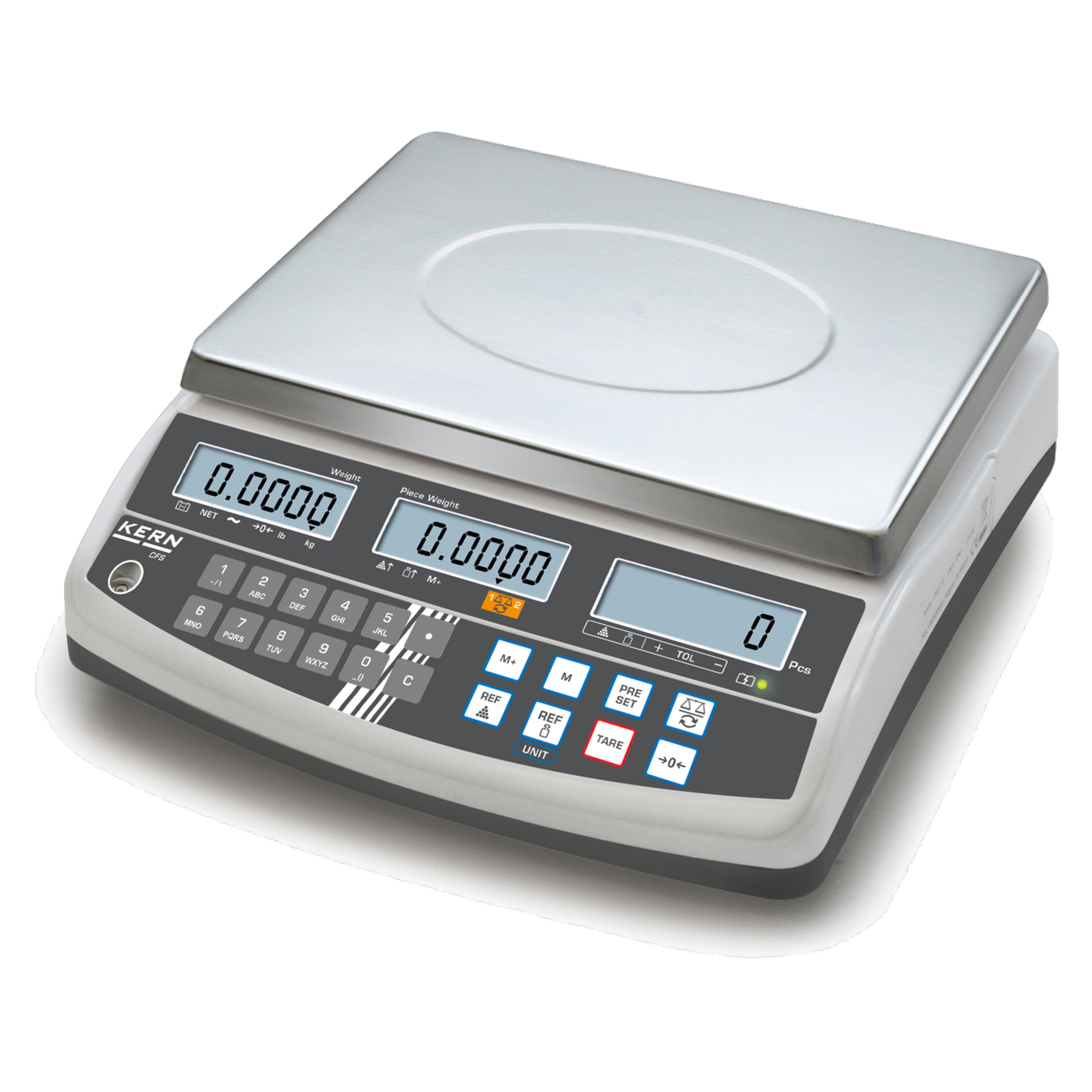

Kern CFS 6K0.1 counting balance 6 kg / 0.1 g
€306.00
% Manufacturer's RRP: €340.00 10% below manufacturer's RRP
- Weighing range 6 kg, readability 0.1 g
- Reproducibility 0.1 g, linearity ± 0.2 g, stabilisation time 2 s
- Counting resolution 60,000, minimum unit weight 100 mg (laboratory)
- Three displays for weight, reference weight and count, 100 item memory locations
- Fill-to-target, Pre-Tare, weighing with tolerance range, totalising memory
- RS-232 and second-balance interface as standard, rechargeable lead-acid battery optional
Product information "Kern CFS 6K0.1 counting balance 6 kg / 0.1 g"
The Kern CFS is a counting balance with three displays, 100 item memory locations and a second-balance interface. Six models weigh from 300 g to 50 kg. The CFS 300-3 and the CFS 3K-5 read to 0.001 g and 0.01 g respectively and count parts from a unit weight of 1 mg and 10 mg respectively under laboratory conditions. The CFS 6K0.1, 15K0.2, 30K0.5 and 50K-3 models cover a range from 6 kg to 50 kg with a readability of 0.1 g to 1 g. Kern cites warehouse logistics, production monitoring, quality control, order picking and stocktaking as areas of application.
Counting with three displays
Three displays show weight, reference weight and total piece count at the same time. Reference piece count and a known reference weight can be entered using the keypad. The automatic reference optimisation gradually improves the average value of the unit weight. The counting resolution is specified in the model table; it ranges from 50,000 to 300,000. Depending on the model, the minimum unit weight ranges from 1 mg to 1 g under laboratory conditions. Under standard conditions, the range is 10 mg to 10 g.
Item memory, target values and tolerance
The balance stores 100 items (PLU). With the fill-to-target function, a target piece count or target weight can be programmed; a signal indicates when the target value is reached. When weighing within a tolerance range (checkweighing), an audible and a visual signal indicate whether a value falls within the range. The PRE-TARE function manually subtracts the known weight of a container in advance; according to Kern, this is useful for fill quantity checks. In addition, there are a totalising memory, a conversion function and manual taring, which is possible several times.
Second-balance interface and data connection
The second-balance interface is standard. Kern mentions it for setting up a high-resolution counting system, for example with KERN KFP V20 weighing platforms. In addition, there is the standard RS-232 interface with the KERN Communication Protocol (KCP) and an internal memory. A signal lamp (CFS-A03) is available as an accessory.
Weighing range and design
For the precise counting of small parts, the CFS 300-3 and CFS 3K-5, with a counting resolution of 300,000, are the models of choice. The CFS 300-3 has a round weighing pan (Ø 80 mm) with a draught shield (weighing chamber 155 x 141 x 80 mm) and is 185 mm high. The other five models are 125 mm high. Their weighing pan measures 295 x 225 mm, whilst that of the CFS 50K-3 measures 370 x 240 mm. For containers and cartons, the CFS 15K0.2 (15 kg), CFS 30K0.5 (30 kg) and CFS 50K-3 (50 kg) are available. The linearity is ± 0.2 g for the CFS 6K0.1, ± 0.4 g for the CFS 15K0.2, ± 1 g for the CFS 30K0.5 and ± 2 g for the CFS 50K-3.
Adjustment
The CFS is adjusted using an external weight. Kern specifies the recommended adjustment weights and adjustment points for each model (model table). This does not replace a calibration certificate, which is available separately (see below).
Power supply
The balance operates with a power supply. A lead-acid rechargeable battery (GAB-A04) is optionally available, with a charging time of 14 h and an operating time of 40 h with backlight (70 h without). In rechargeable battery operation, the balance switches off after 3, 5, 15 or 30 min or not at all; this applies to all models except the CFS 30K0.5, for which Kern does not specify an automatic switch-off.
Typical applications
- Warehouse logistics: counting small parts during goods receipt and stock checks
- Order picking and stocktaking: calculating quantity from weight, item memory for 100 items
- Production monitoring: checking fill quantities against target value and tolerance
- Quality control: checking the quantity and weight of batches
- Industrial applications: counting and weighing heavy containers up to 50 kg
Models at a glance
| Model | Weighing range (Max) | Readability (d) | Reproducibility | Linearity | Counting resolution (laboratory) | Minimum unit weight when piece counting (laboratory / normal) | Weighing pan | Recommended adjustment weights | Net weight approx. |
|---|---|---|---|---|---|---|---|---|---|
| CFS 300-3 | 300 g | 0.001 g | 0.002 g | ± 0.004 g | 300,000 | 1 mg / 10 mg | Ø 80 mm | 200 g (F1); 100 g (F1) | 2.6 kg |
| CFS 3K-5 | 3,000 g | 0.01 g | 0.03 g | ± 0.1 g | 300,000 | 10 mg / 100 mg | 295 x 225 mm | 2 kg (F1); 1 kg (F1) | 3.4 kg |
| CFS 6K0.1 | 6 kg | 0.1 g | 0.1 g | ± 0.2 g | 60,000 | 100 mg / 1 g | 295 x 225 mm | 1 kg (F2); 5 kg (F2) | 3.2 kg |
| CFS 15K0.2 | 15 kg | 0.2 g | 0.2 g | ± 0.4 g | 75,000 | 200 mg / 2 g | 295 x 225 mm | 5 kg (F2); 10 kg (F2) | 3.4 kg |
| CFS 30K0.5 | 30 kg | 0.5 g | 0.5 g | ± 1 g | 60,000 | 500 mg / 5 g | 295 x 225 mm | 10 kg (F2); 20 kg (F2) | 3.4 kg |
| CFS 50K-3 | 50 kg | 1 g | 1 g | ± 2 g | 50,000 | 1 g / 10 g | 370 x 240 mm | 50 kg (F2) | 4.4 kg |
Technical details
These values apply to all models. Deviating values are given in the model table.
| Weighing system | Strain gauge |
| Stabilisation time | 2 s |
| Weighing plate | Stainless steel |
| Housing | Plastic, 315 x 350 x 100 mm (CFS 300-3: 315 x 350 x 110 mm; CFS 50K-3: 370 x 360 x 100 mm) |
| Dimensions, fully assembled (W x D x H) | 315 x 350 x 125 mm (CFS 300-3: 315 x 350 x 185 mm; CFS 50K-3: 370 x 360 x 125 mm) |
| Display | LCD with backlight, three displays, digit height 20 mm |
| Units | kg and lb (CFS 300-3: g and lb) |
| Reference piece count | free entry, reference weight can be entered |
| Item memory | 100 items (PLU) |
| Interfaces | RS-232 as standard, second-balance interface as standard, KCP |
| Adjustment | external |
| Degree of protection | Load cell IP65; complete unit IP23 (not specified for the CFS 15K0.2) |
| Power supply | 110 V to 230 V AC (CFS 300-3, 3K-5, 15K0.2); 220 V to 240 V AC, 50 Hz (CFS 6K0.1, 30K0.5, 50K-3), according to the data sheet |
| Rechargeable battery (optional) | Lead-acid rechargeable battery (GAB-A04), charging time 14 h, operating time 40 h with and 70 h without backlight |
| Net weight | approx. 3.4 kg (CFS 3K-5, 15K0.2, 30K0.5); 2.6 kg (CFS 300-3); 3.2 kg (CFS 6K0.1); 4.4 kg (CFS 50K-3) |
| Ambient temperature | 0 °C to 40 °C |
| Humidity | 0 % to 80 % |
| Storage temperature | -20 °C to +60 °C |
| DAkkS calibration certificate | can be ordered separately, item no. 963-127 (CFS 300-3, 3K-5) or 963-128 (CFS 6K0.1, 15K0.2, 30K0.5, 50K-3) |
| Warranty (manufacturer) | 36 months (300-3), 24 months (3K-5, 6K0.1, 15K0.2, 30K0.5, 50K-3), according to Kern, excluding wear parts |
Scope of delivery
- Kern CFS counting balance with stainless steel weighing plate
- Power supply with country adaptors for EU, UK, US and CH
- Working protective cover (not for the CFS 50K-3)
The rechargeable battery is not included in the scope of delivery.
Calibration
A DAkkS calibration certificate can be ordered separately: item no. 963-127 for the CFS 300-3 and CFS 3K-5, item no. 963-128 for the CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 and CFS 50K-3. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate.
Warranty
According to Kern & Sohn, the CFS 300-3 comes with a 3-year warranty and the CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 and CFS 50K-3 come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Regulatory information
As electrical devices, the balances fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
The rechargeable battery (GAB-A04), plug-in mains adaptors (PFB-A02 for EU and CH, PFB-A03 for UK, PFB-A04 for US, YKA-11 for EU, AUS, UK, US and CH), the signal lamp (CFS-A03), the RS-232 interface cable (CFS-A01) and the RS-232 Y interface cable (CFS-A04), working protective covers (CFS-A02, CFS-A02S05 with 5 pieces, not for CFS 50K-3), the stainless steel fruit bowl (RFS-A02, only for CFS 6K0.1, 15K0.2, 30K0.5 and 50K-3), thermal printer (YKC-01), dot-matrix printer (YKG-01), needle printer (YKT-01), RS232 Bluetooth adapter (YKI-02), RS232 Ethernet converters (YKI-10, YKI-11) and RS232 WLAN converter (YKI-12) are also available. Kern also lists the Safety Set 315-208-205 (20 g and 200 g, F1) for the CFS 300-3, the Safety Set 315-312-308 (200 g and 2000 g, F2) for the CFS 3K-5 and the test weight 337-16 (50 kg, OIML class F2) for the CFS 50K-3. Enquiries are handled via our procurement service.
| Weighing range (Max): | 6 kg |
|---|---|
| Readability (d): | 0.1 g |
| Verifiable: | no |
| Design: | CFS 6K0.1 · 6 kg |
| Power supply: | Mains operation |
