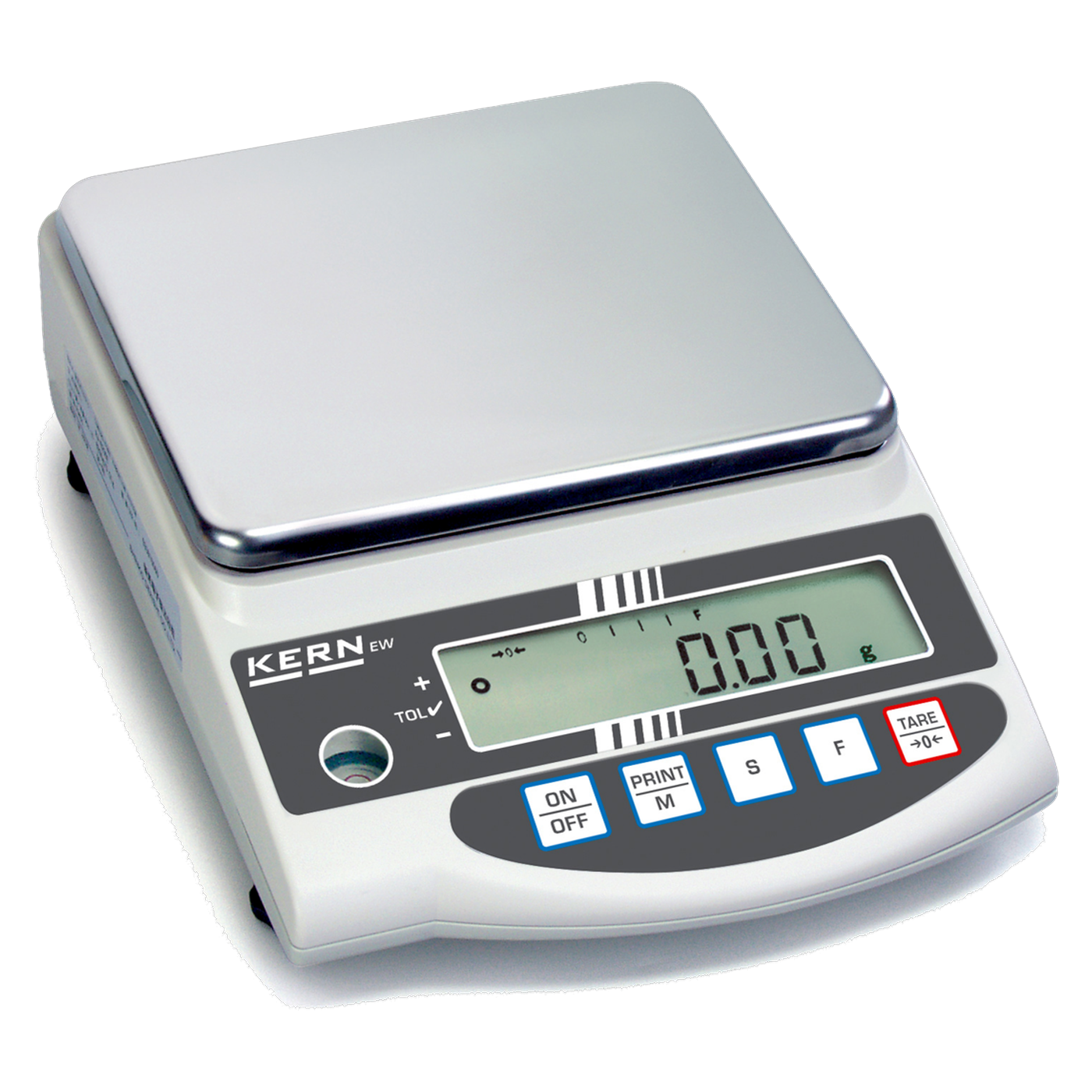

Kern EW 4200-2NM precision balance 4,200 g / 0.01 g
€936.00
% Manufacturer's RRP: €1,040.00 10% below manufacturer's RRP
- Weighing range 4,200 g, readability 0.01 g
- Reproducibility 0.01 g, linearity ± 0.02 g
- Minimum unit weight when piece counting 10 mg (laboratory) or 100 mg (standard conditions)
- Tuning fork weighing system, stabilisation time 2 s, CAL adjustment programme
- Weighing pan 180 x 160 mm made of stainless steel
- Backlit LCD, RS-232 as standard, rechargeable battery optional
Product information "Kern EW 4200-2NM precision balance 4,200 g / 0.01 g"
The Kern EW is a precision balance with a tuning fork weighing system for use without conformity assessment. Seven models weigh from 220 g to 12,000 g and read to 0.001 g, 0.01 g or 0.1 g. Accuracy is set using the CAL adjustment programme and an external test weight. Unlike the Kern EG sister series, the EW has no verification values and no internal adjustment via a rotary knob. The stabilisation time is 2 s for six models.
Seven weighing ranges in three groups
The EW 220-3NM, EW 420-3NM and EW 620-3NM models have a readability of 0.001 g, a draught shield and a round weighing pan with a diameter of 118 mm. For the EW 820-2NM, EW 2200-2NM and EW 4200-2NM, the readability is 0.01 g, and the weighing pan is rectangular (170 x 140 mm for the EW 820-2NM, 180 x 160 mm for the other two). The EW 12000-1NM weighs up to 12 kg with a readability of 0.1 g and needs 3 s to stabilise. The choice depends on the largest item to be weighed and on the decimal place to which it is to be read.
Adjustment with an external weight
The CAL adjustment programme sets the accuracy. This requires an external test weight, which is not included in the scope of delivery (see accessories). According to Kern, the balance shows stable temperature behaviour and high corner-load safety. The bar graph capacity display shows how much of the weighing range is already in use.
Functions, connections and power supply
The balance counts pieces, totals counted parts and determines percentages. The units are switchable, including g, ct, lb, oz, dwt and ozt. The backlit LCD has 17 mm high digits; the plastic housing measures 180 x 235 x 75 mm, or 185 x 235 x 165 mm for models with the draught shield fitted. Data go to a printer or PC via the standard RS-232 interface. The plug-in mains adaptor operates at 220 V to 240 V and 50 Hz. A rechargeable battery is optional (charging time 12 h, operating time 12 h with backlight, switch-off after 3 min in rechargeable battery operation).
Typical applications
- Pharmacies: weighing in formulation components to 0.001 g
- Chemical industry and laboratory applications: weighing in samples and counting small parts
- Gold and precious metals trading: weighing in ct, dwt and ozt
- Cosmetics industry: dosing of raw materials
- Larger containers: EW 12000-1NM for samples up to 12 kg
Models at a glance
| Model | Weighing range (Max) | Readability (d) | Reproducibility | Linearity | Stabilisation time | Minimum unit weight (laboratory / normal) | Weighing pan | Net weight approx. | DAkkS calibration certificate (item no.) |
|---|---|---|---|---|---|---|---|---|---|
| EW 220-3NM | 220 g | 0.001 g | 0.001 g | ± 0.002 g | 2 s | 1 mg / 10 mg | Ø 118 mm | 1.4 kg | 963-127 |
| EW 420-3NM | 420 g | 0.001 g | 0.001 g | ± 0.003 g | 2 s | 1 mg / 10 mg | Ø 118 mm | 1.4 kg | 963-127 |
| EW 620-3NM | 620 g | 0.001 g | 0.001 g | ± 0.003 g | 2 s | 1 mg / 10 mg | Ø 118 mm | 1.4 kg | 963-103 |
| EW 820-2NM | 820 g | 0.01 g | 0.01 g | ± 0.01 g | 2 s | 10 mg / 100 mg | 170 x 140 mm | 1.6 kg | 963-127 |
| EW 2200-2NM | 2,200 g | 0.01 g | 0.01 g | ± 0.01 g | 2 s | 10 mg / 100 mg | 180 x 160 mm | 3.0 kg | 963-127 |
| EW 4200-2NM | 4,200 g | 0.01 g | 0.01 g | ± 0.02 g | 2 s | 10 mg / 100 mg | 180 x 160 mm | 3.0 kg | 963-127 |
| EW 12000-1NM | 12,000 g | 0.1 g | 0.1 g | ± 0.2 g | 3 s | 100 mg / 1 g | 180 x 160 mm | 3.0 kg | 963-128 |
Technical details
These values apply to all models. Deviating values are given in the model table.
| Weighing system | Tuning fork |
| Adjustment | CAL adjustment programme with external test weight |
| Weighing pan material | Stainless steel |
| Display | LCD with backlight, digit height 17 mm |
| Interface | RS-232 (standard) |
| Housing | Plastic, 180 x 235 x 75 mm (W x D x H) |
| Power supply | Plug-in mains adaptor, 220 V to 240 V AC, 50 Hz; rechargeable battery optional |
| Ambient temperature | 10 °C to 30 °C |
| Humidity | up to 80 % |
| DAkkS calibration certificate | can be ordered separately, item no. see model table |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Calibration
For the EW series, Kern does not list a conformity assessment under the NAWI Directive (2014/31/EU). A DAkkS calibration certificate can be ordered separately; the item number is listed in the model table. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate.
Scope of delivery
- Kern EW precision balance with stainless steel weighing pan (draught shield for EW 220-3NM, EW 420-3NM, EW 620-3NM)
- Working protective cover
- Plug-in mains adaptor with country adaptors for EU, UK, US and CH (EW 420-3NM additionally AUS)
Warranty
According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Regulatory information
As electrical devices, the balances fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
Kern lists test weights and Safety Sets for adjustment by model: test weight 326-12 (2 kg, OIML class F1) and Safety Set 315-112-407 (100 g M1, 2,000 g E2) for the EW 2200-2NM, test weight 326-08 (200 g, F1) and Safety Set 315-108-304 (10 g F2, 200 g E2) for the EW 220-3NM, Safety Set 315-208-205 (20 g F1, 200 g F1) for the EW 420-3NM, test weight 316-09 (500 g, E2) and Safety Set 315-109-205 (20 g F1, 500 g E2) for the EW 620-3NM, Safety Set 315-209-406 (50 g M1, 500 g F1) for the EW 820-2NM and test weight 326-14 (10 kg, F1) for the EW 12000-1NM. Working protective covers (EG-A09 and EG-A09S05 with 5 pieces for EW 2200-2NM, EW 4200-2NM, EW 12000-1NM; EG-A05 and EG-A05S05 for the other models), rechargeable batteries (EG-A06 for EW 2200-2NM, EW 4200-2NM, EW 12000-1NM; EG-A04 for the other models), the plug-in mains adaptor YKA-03N, the anti-vibration table YPS-03, the anti-vibration plates YPS-04 and YPS-05, thermal printers (YKC-01, YKH-01), the dot-matrix printer YKG-01, the needle printer YKT-01, the RS232 Bluetooth adapter YKI-02, RS232 Ethernet converters (YKI-10, YKI-11), the RS232 WLAN converter YKI-12, the RS232 to USB converter (AFH 13) and the RS-232 interface cable 474-926 are also available. Enquiries are handled via our procurement service.
| Weighing range (Max): | 4.2 kg |
|---|---|
| Readability (d): | 0.01 g |
| Verifiable: | no |
| Design: | EW 4200-2NM · 4.200 g |
| Power supply: | Mains operation |
